1. Perl & Elasticsearch:
Jumping on the
bandwagon.

2. Me Dean Hamstead
dean@bytefoundry.com.au

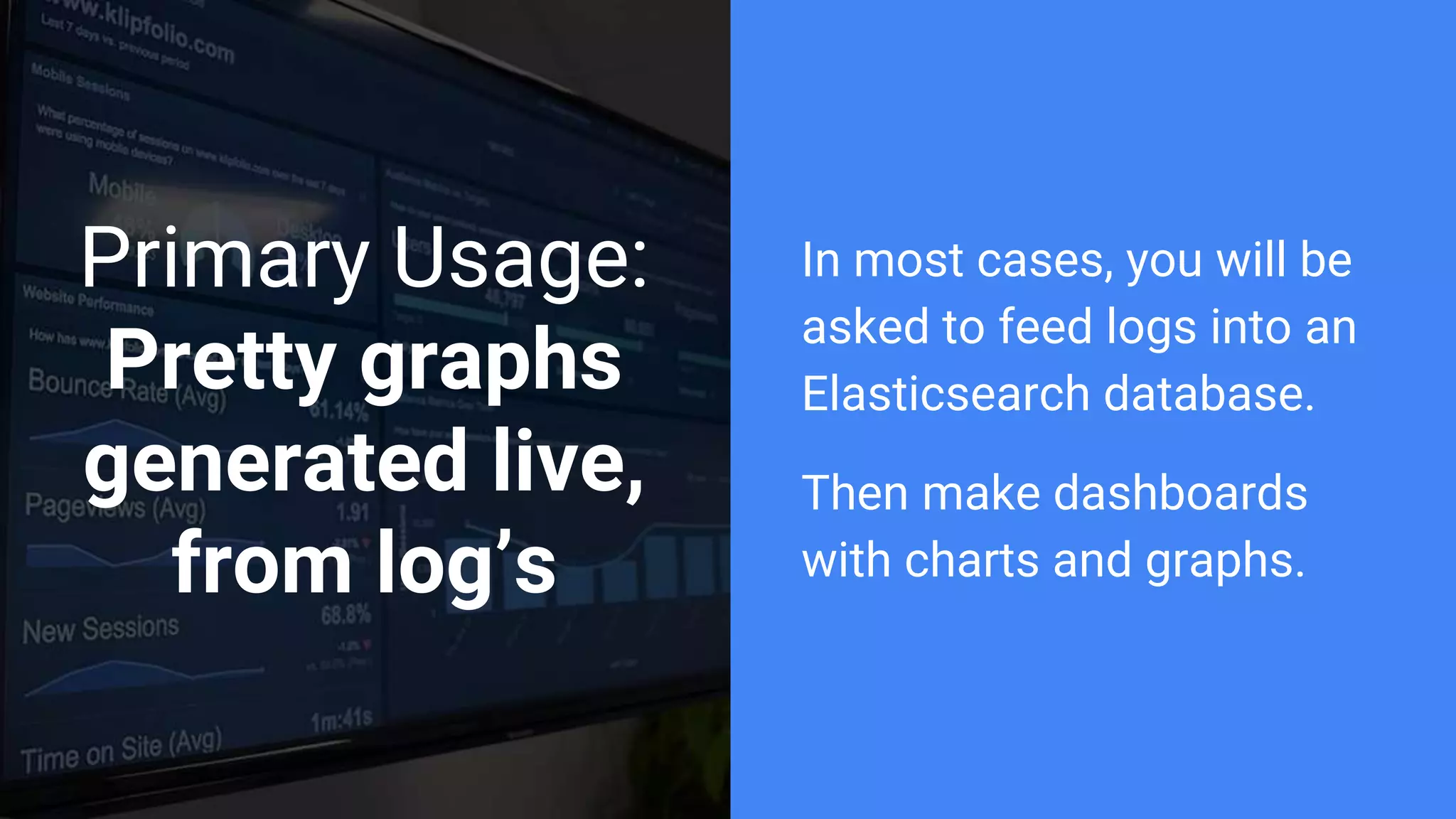

3. Primary Usage:
Pretty graphs
generated live,
from log’s
In most cases, you will be
asked to feed logs into an
Elasticsearch database.
Then make dashboards
with charts and graphs.

4. At the heart of Elasticsearch is
Apache Lucene
Elasticsearch uses Lucene as its
text indexer.
What it adds is an ability to scale
horizontally with relative ease.
It also adds a comprehensive
RESTful JSON interface.

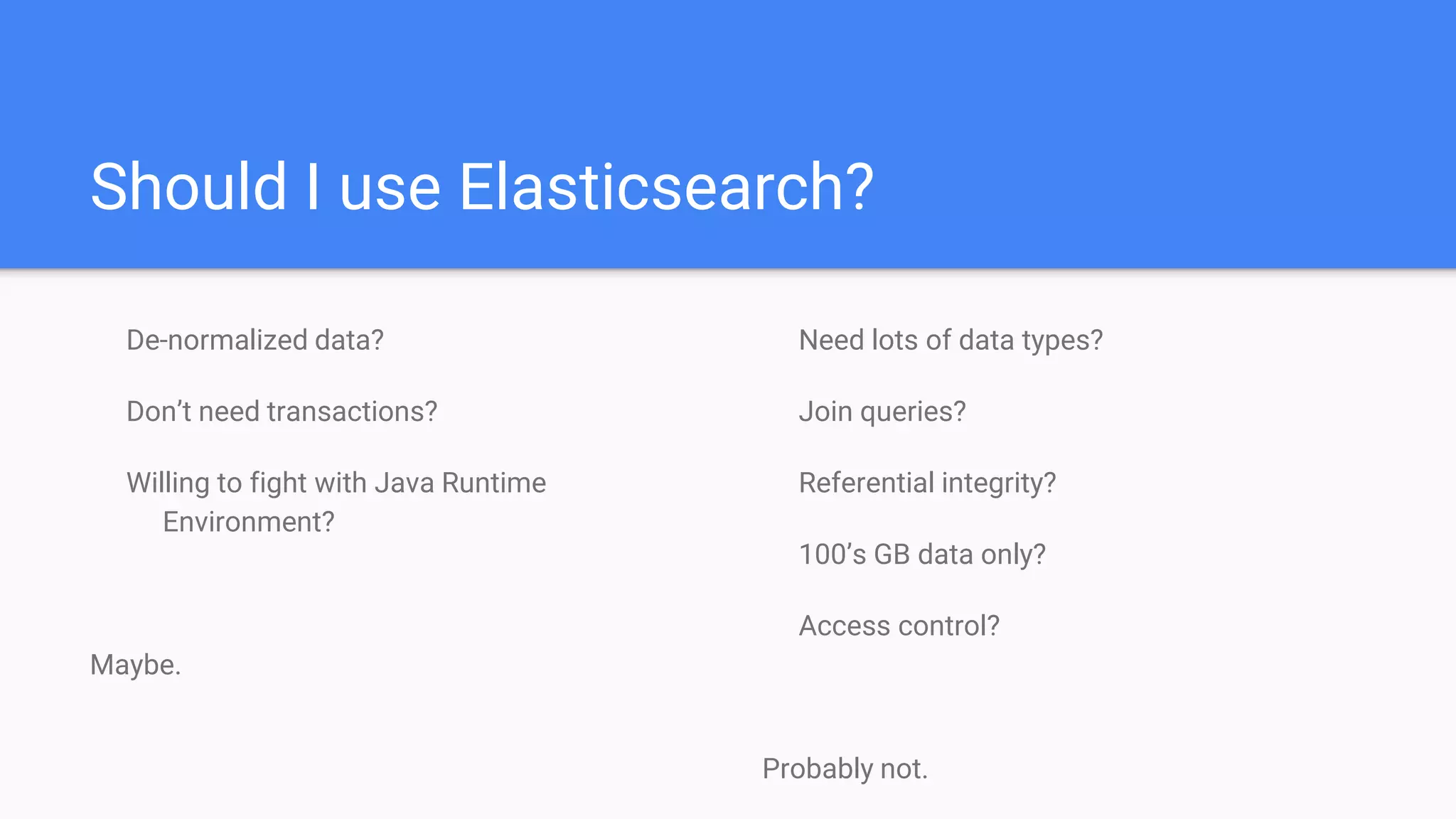

5. Should I use Elasticsearch?
De-normalized data?
Don’t need transactions?
Willing to fight with Java Runtime
Environment?
Maybe.
Need lots of data types?
Join queries?
Referential integrity?
100’s GB data only?
Access control?
Probably not.

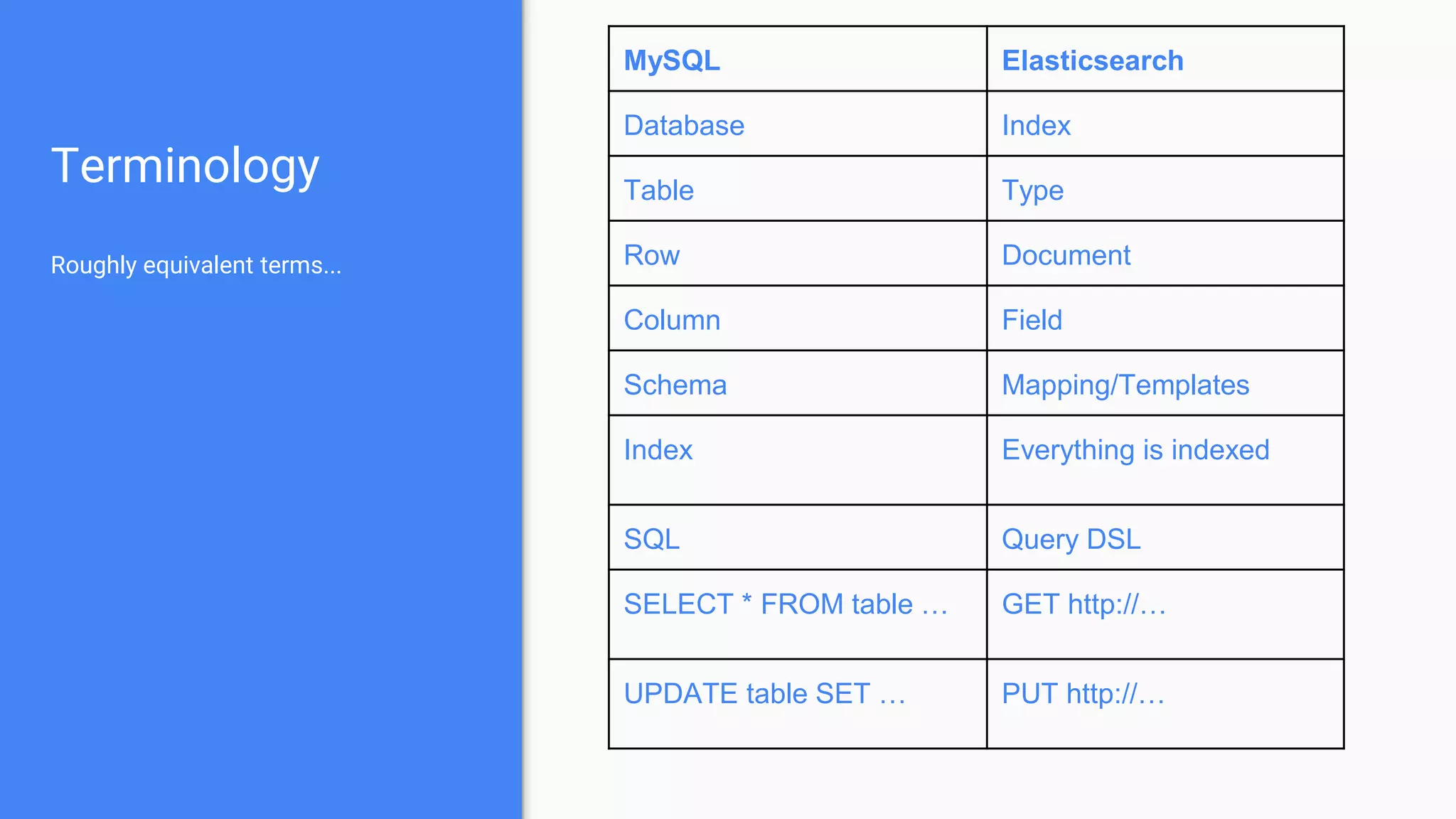

6. Terminology
Roughly equivalent terms...
MySQL Elasticsearch
Database Index
Table Type
Row Document
Column Field
Schema Mapping/Templates
Index Everything is indexed
SQL Query DSL
SELECT * FROM table … GET http://…
UPDATE table SET … PUT http://…

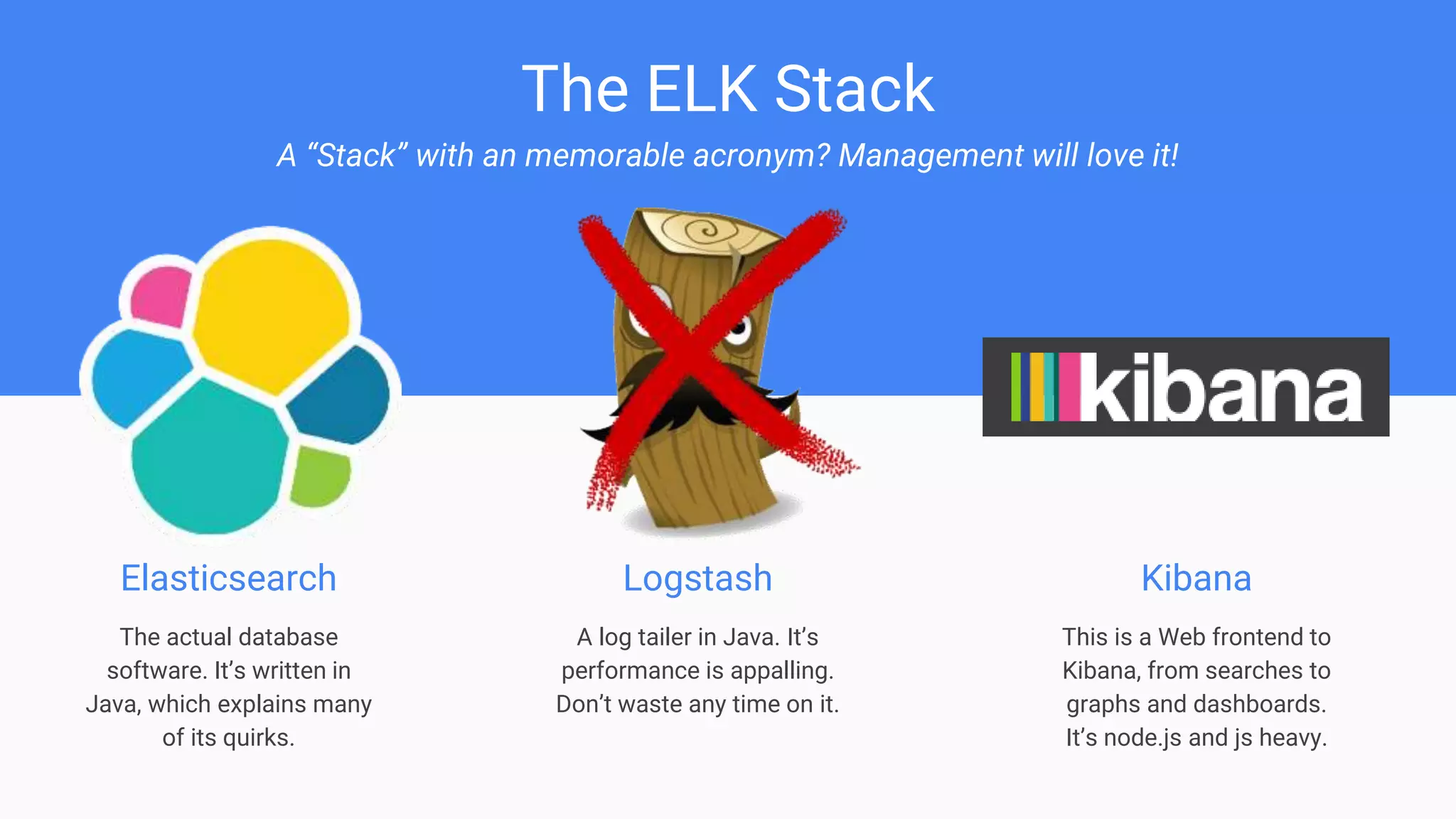

7. The ELK Stack
A “Stack” with an memorable acronym? Management will love it!
Elasticsearch Logstash
The actual database
software. It’s written in
Java, which explains many
of its quirks.
A log tailer in Java. It’s
performance is appalling.
Don’t waste any time on it.
Kibana
This is a Web frontend to
Kibana, from searches to
graphs and dashboards.
It’s node.js and js heavy.

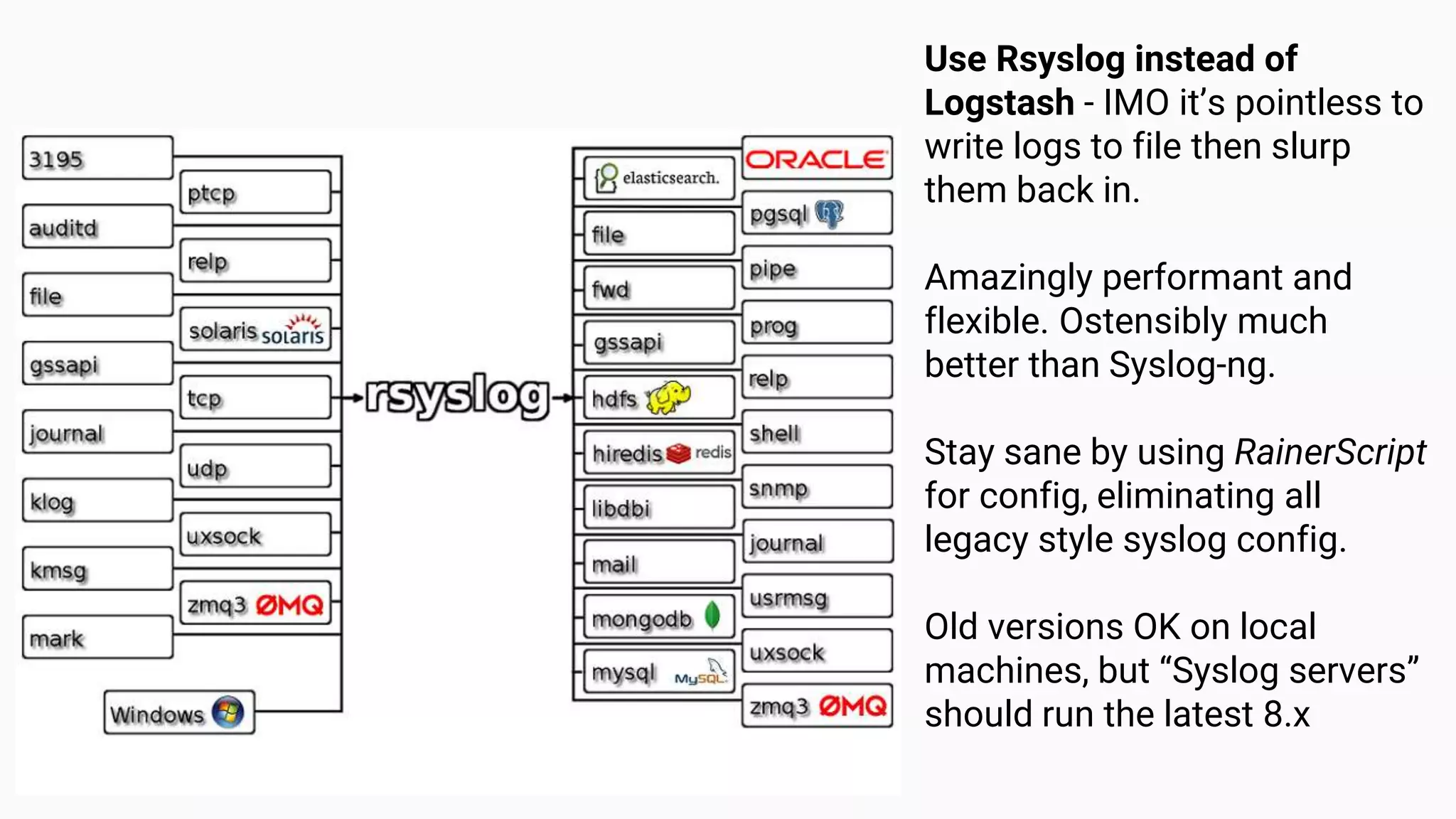

8. Use Rsyslog instead of
Logstash - IMO it’s pointless to
write logs to file then slurp
them back in.
Amazingly performant and
flexible. Ostensibly much
better than Syslog-ng.
Stay sane by using RainerScript
for config, eliminating all
legacy style syslog config.
Old versions OK on local
machines, but “Syslog servers”
should run the latest 8.x

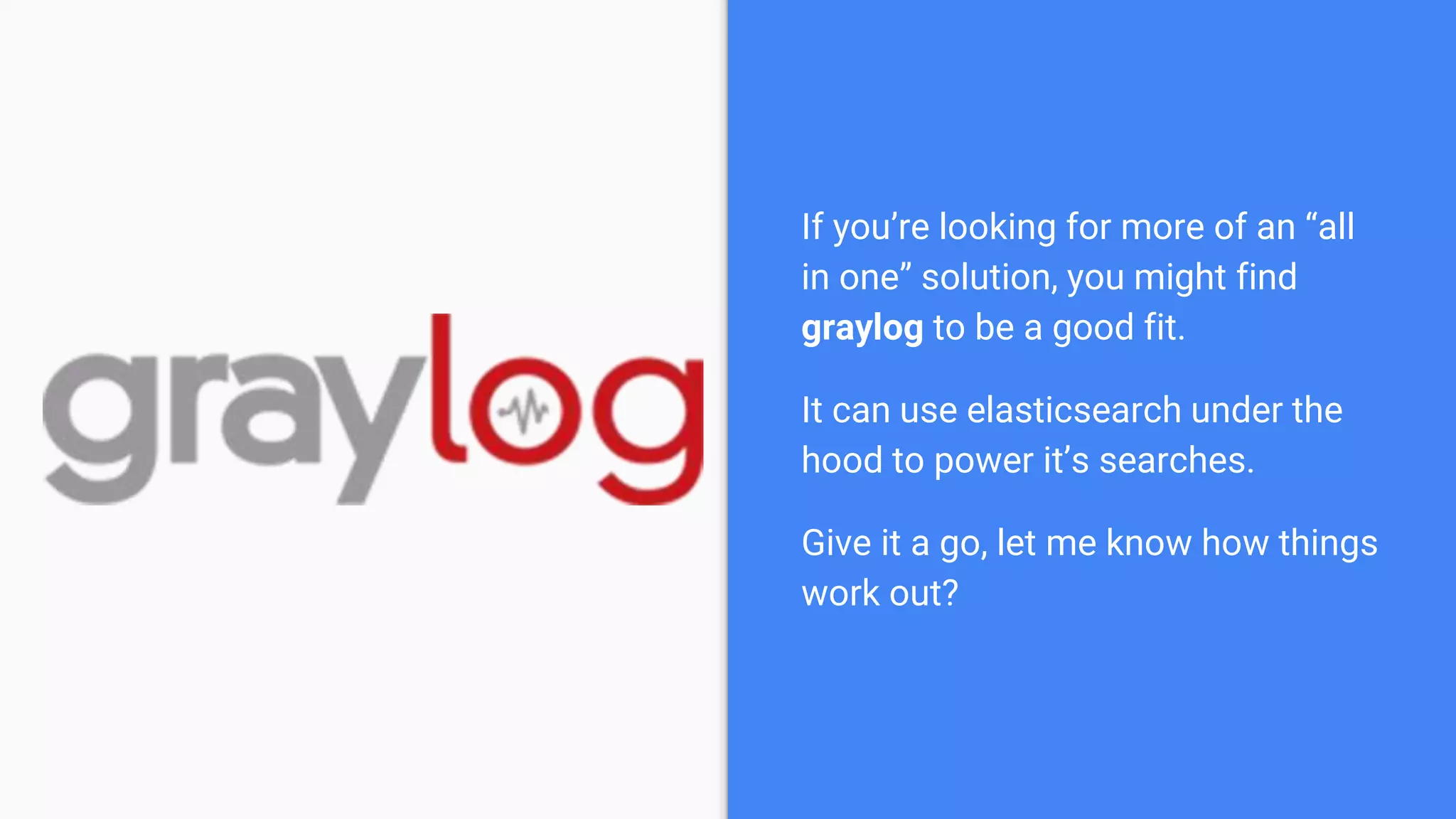

9. If you’re looking for more of an “all
in one” solution, you might find
graylog to be a good fit.
It can use elasticsearch under the
hood to power it’s searches.
Give it a go, let me know how things
work out?

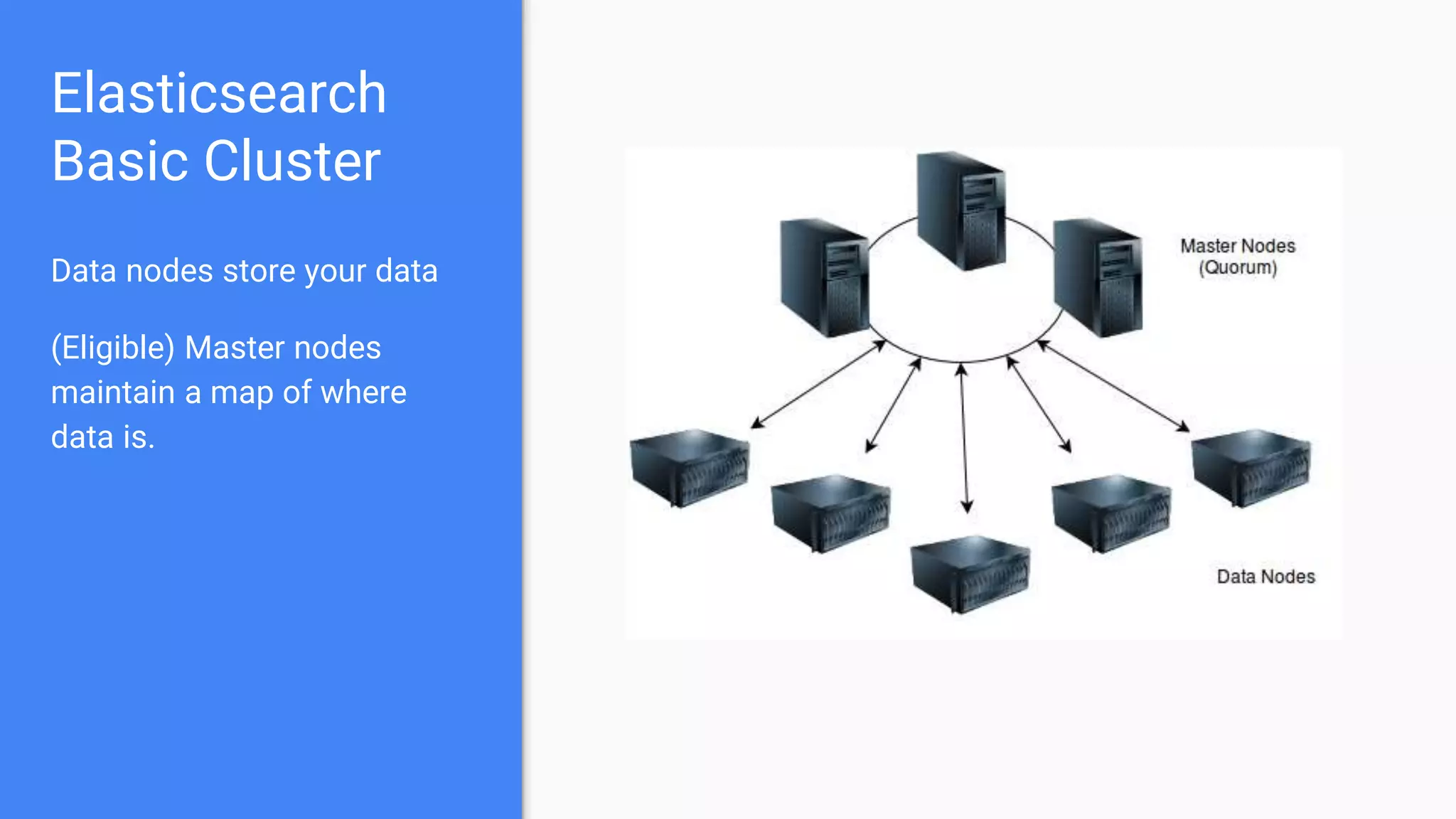

10. Elasticsearch
Basic Cluster
Data nodes store your data
(Eligible) Master nodes
maintain a map of where
data is.

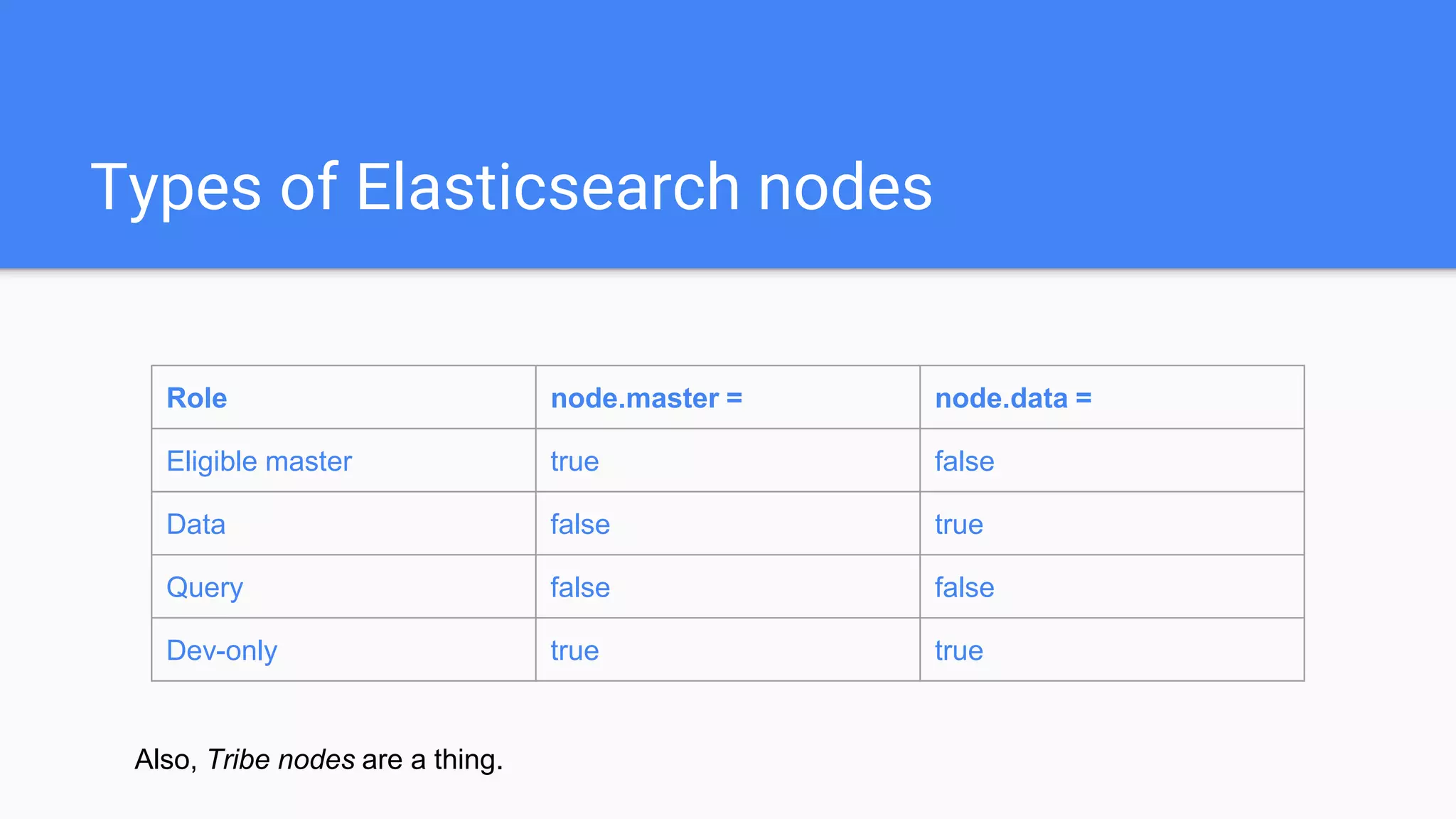

11. Types of Elasticsearch nodes
Role node.master = node.data =
Eligible master true false
Data false true
Query false false
Dev-only true true
Also, Tribe nodes are a thing.

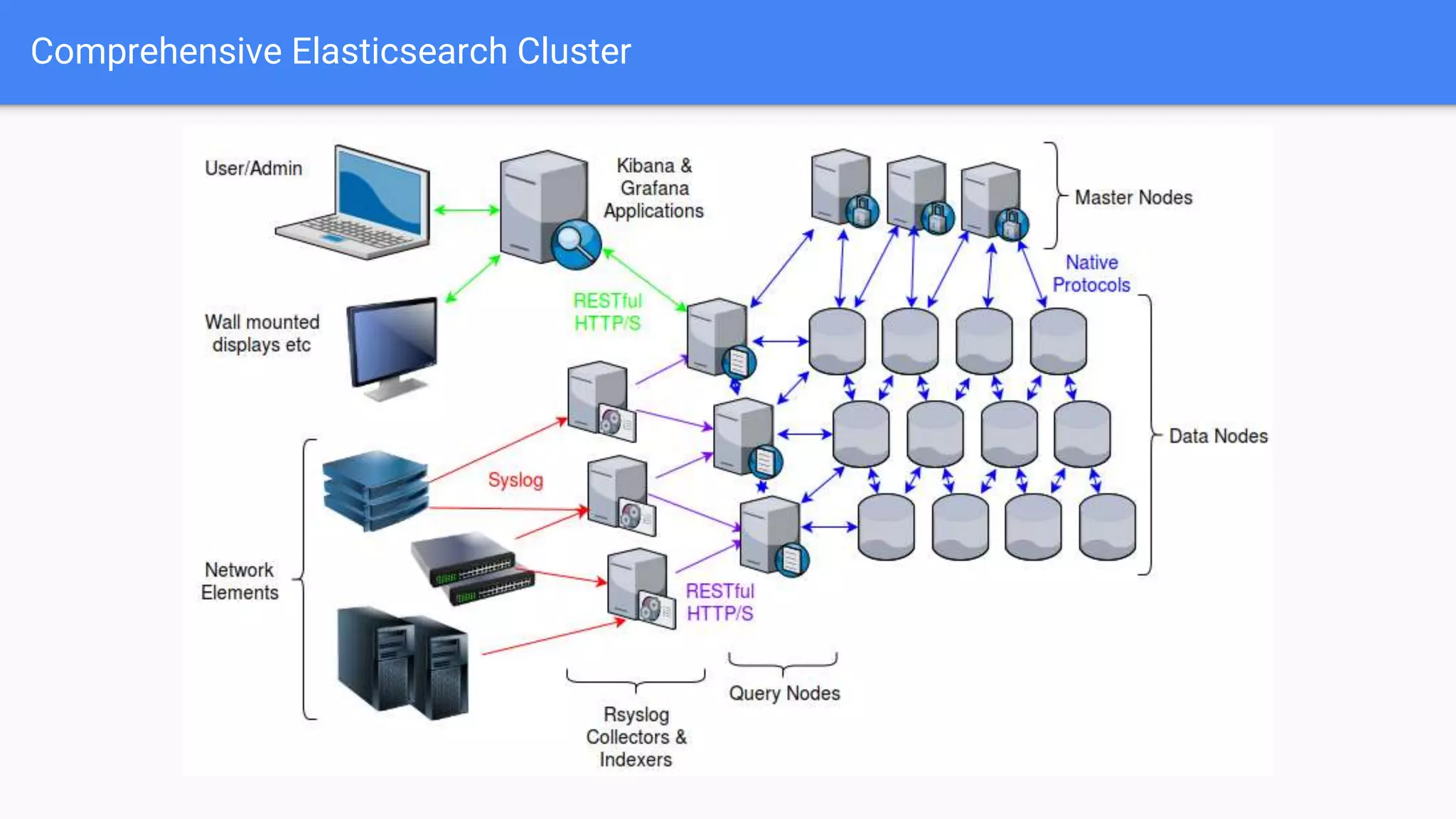

12. Comprehensive Elasticsearch Cluster

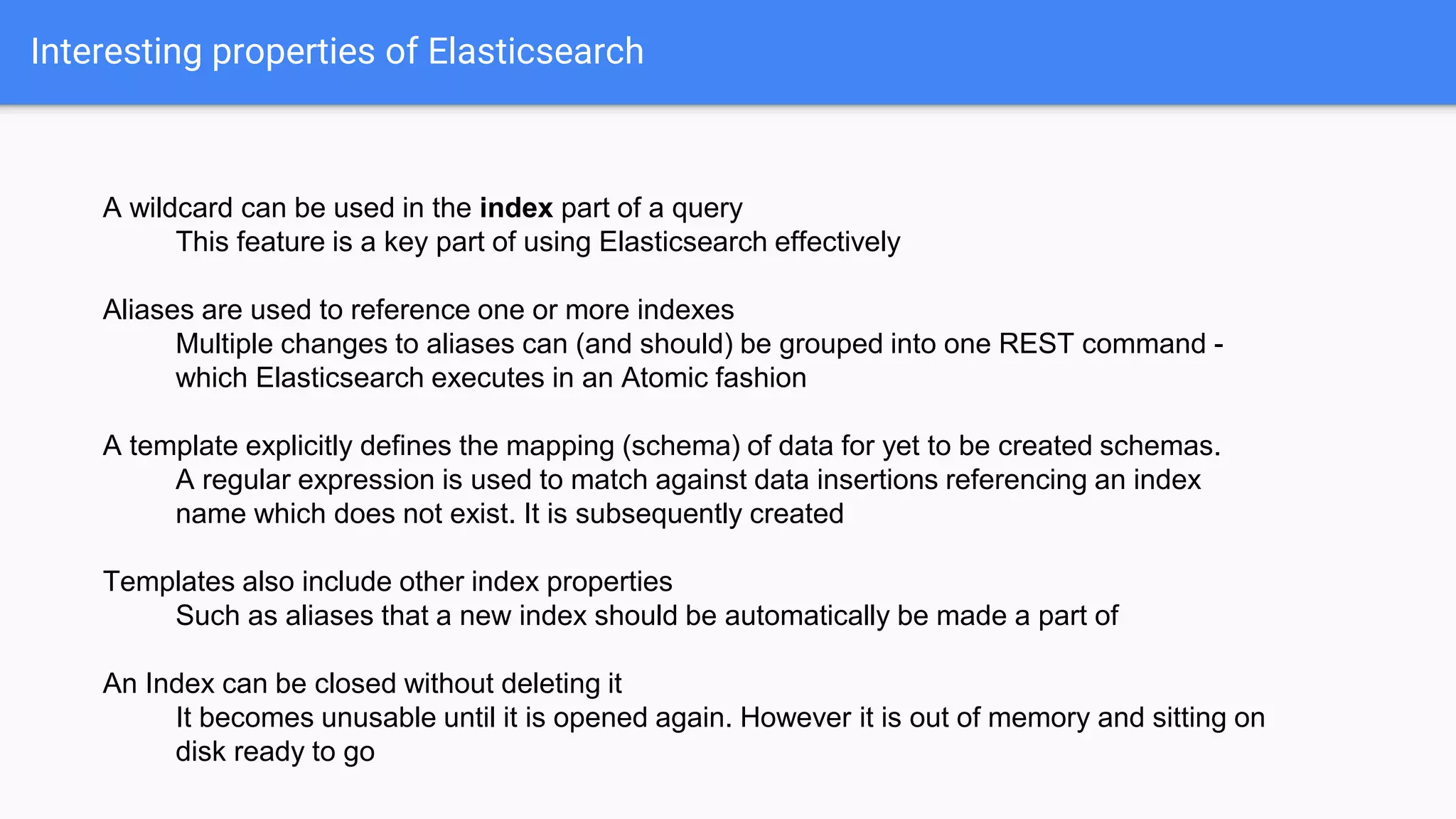

13. Interesting properties of Elasticsearch
A wildcard can be used in the index part of a query
This feature is a key part of using Elasticsearch effectively
Aliases are used to reference one or more indexes
Multiple changes to aliases can (and should) be grouped into one REST command -
which Elasticsearch executes in an Atomic fashion
A template explicitly defines the mapping (schema) of data for yet to be created schemas.
A regular expression is used to match against data insertions referencing an index
name which does not exist. It is subsequently created
Templates also include other index properties
Such as aliases that a new index should be automatically be made a part of
An Index can be closed without deleting it
It becomes unusable until it is opened again. However it is out of memory and sitting on
disk ready to go

14. Schemaless,
NoSQL?
Elasticsearch queries are
made with JSON in RESTful
http/s. So it’s not SQL.
If no index exists, it will be
created on data insertion. If
no template is defined,
Elasticsearch will guess at the
mapping.
Turn this off, always define a
template for every index.

15. Tips for server hardware selection & OS configuration
● 30GB of RAM for each Elasticsearch instance (beyond this the JVM slows down)
● +25% RAM for OS. 48GB total is a good number
● Use RAID0 (striping) or no RAID on disks. Elasticsearch will ensure data is preserved via
replication
● Spinning disks have yet to be a bottleneck for me. Scale out rather than up. YMMV
● Turn off Transparent Huge Pages - generally a good idea on any and all servers
● Configure Elasticsearch’s JVM to huge Hugepages directly
● By default, Linux IO is tuned to run as poorly as possible (even set these on your laptop/desktop)
○ echo 1024 > /sys/block/sda/queue/nr_requests (maybe more, benchmark to taste)
○ blockdev --setra 16384 /dev/sda
○ Use XFS with mount options like: rw,nobarrier,logbufs=8,inode64,logbsize=256k (XFS rocks)
○ Don’t use partitions, just format the disk as is (mkfs -t xfs /dev/sdb). XFS will automatically
pick the perfect block alignment
○ echo 0 > /sys/block/sda/queue/add_random (exclude the disk as a source of entropy)
● In iptables, it’s generally a good idea to disable connection tracking on the service ports (assuming
you have no outbound rules). This saves on CPU time and avoids filling the connection state table
● Use the same JVM on all nodes. Either Oracle Java or OpenJDK are fine, pick one and don’t mix

16. Tips for Tuning Elasticsearch
● Elasticsearch default settings are for a read heavy load
● There are lots and lots of settings, & lots and lots of blogs talking about how people have tuned their
clusters.
● Blogs can be very helpful to find which combination of settings will be right for you
● Be careful with anything referencing Elasticsearch before 2.0, ignore anything before 1.0. Things
have changed too much
● Note above every setting in your config file a small blurb about what it does and why you have set
that setting. This will help you remember “why on earth did I think that was a good setting??”
● The Elasticsearch official documentation is very very good. Take the time to read what each setting
does before you attempt to change it (or if that that setting still exists in the version you are running)
● Increase settings by small amounts and observe if performance improves
● Having a setting too high or too low can both reduce performance - you’re trying to find the sweet
spot
● More replicas can help read heavy loads if you have more nodes for them to run on, more shards
can too. However, shards cannot be changed after an index is created, replicas you can change at
any time
● More indexes plus more nodes can help write heavy loads
● Don’t run queries against data nodes

17. Elasticsearch lets you scale
horizontally, so you have to actually
scale your work load horizontally…
but without overwhelming your
cluster.
Achieving peak performance in
Elasticsearch is a balancing game
of server settings, indexing strategy
and well conceived queries.
Different workloads will require
retuning your cluster.

18. Degrading and Deleting Data
Elasticsearch is not intended to be a data warehouse.
Design a policy which degrades then eventually deletes your data
Degrades? Reduce the number of replicas, move data to nodes with slower
disks, eventually close the index
Delete data? If you’re using date stamped index named, just drop the index.
Records can also be created with a TTL

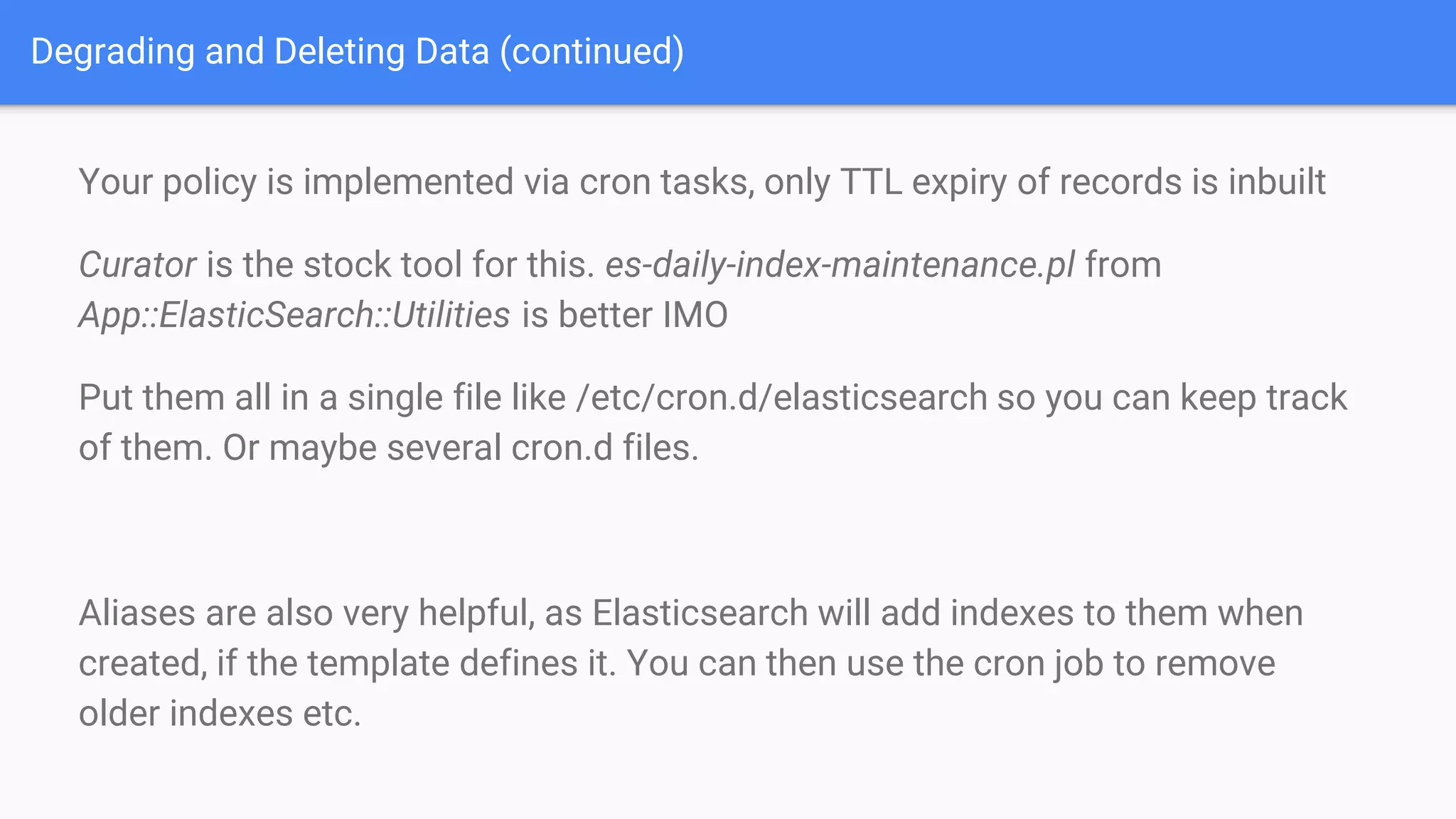

19. Degrading and Deleting Data (continued)
Your policy is implemented via cron tasks, only TTL expiry of records is inbuilt
Curator is the stock tool for this. es-daily-index-maintenance.pl from
App::ElasticSearch::Utilities is better IMO
Put them all in a single file like /etc/cron.d/elasticsearch so you can keep track
of them. Or maybe several cron.d files.
Aliases are also very helpful, as Elasticsearch will add indexes to them when
created, if the template defines it. You can then use the cron job to remove
older indexes etc.

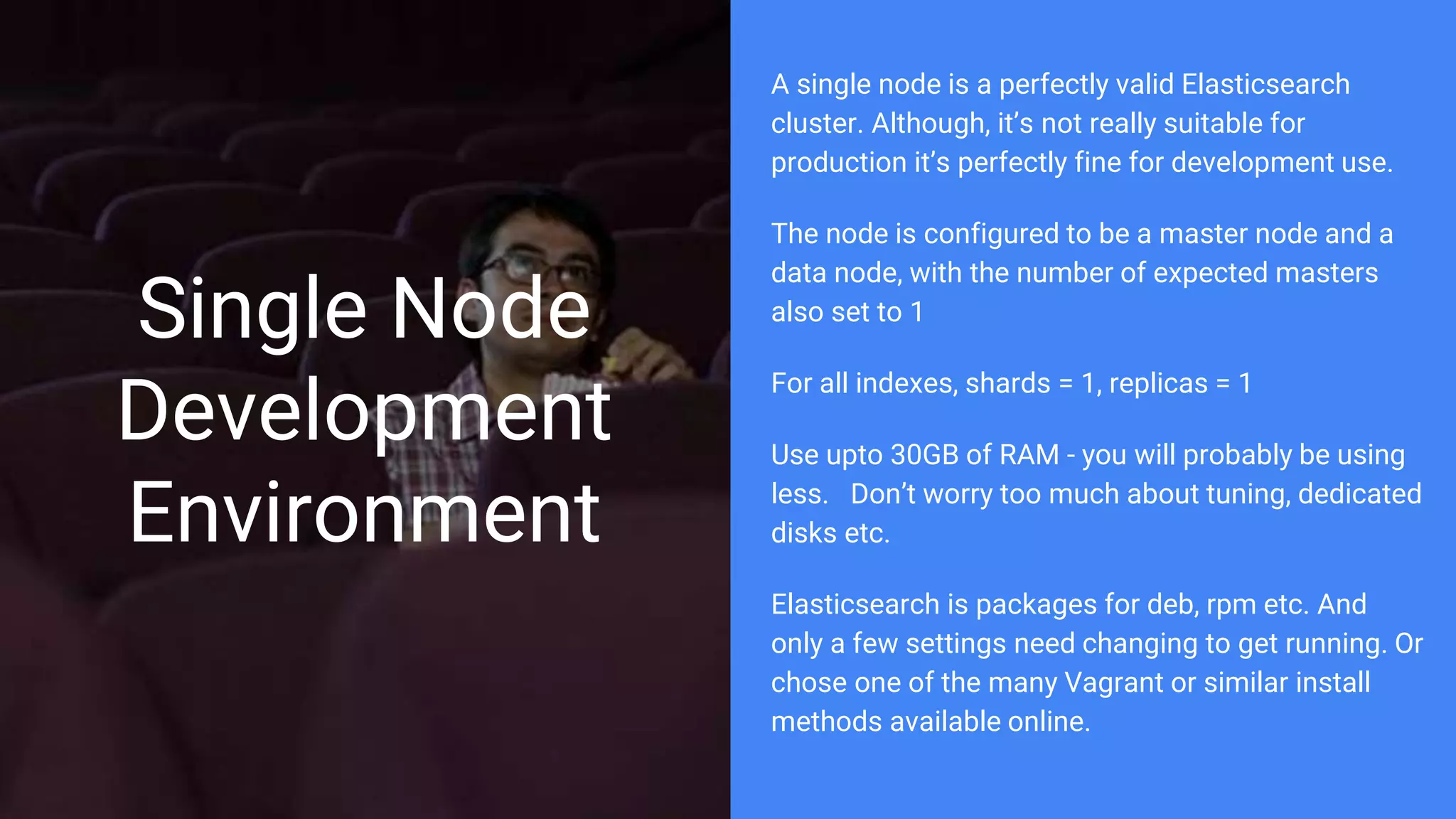

20. Single Node
Development
Environment
A single node is a perfectly valid Elasticsearch
cluster. Although, it’s not really suitable for
production it’s perfectly fine for development use.
The node is configured to be a master node and a
data node, with the number of expected masters
also set to 1
For all indexes, shards = 1, replicas = 1
Use upto 30GB of RAM - you will probably be using
less. Don’t worry too much about tuning, dedicated
disks etc.
Elasticsearch is packages for deb, rpm etc. And
only a few settings need changing to get running. Or
chose one of the many Vagrant or similar install
methods available online.

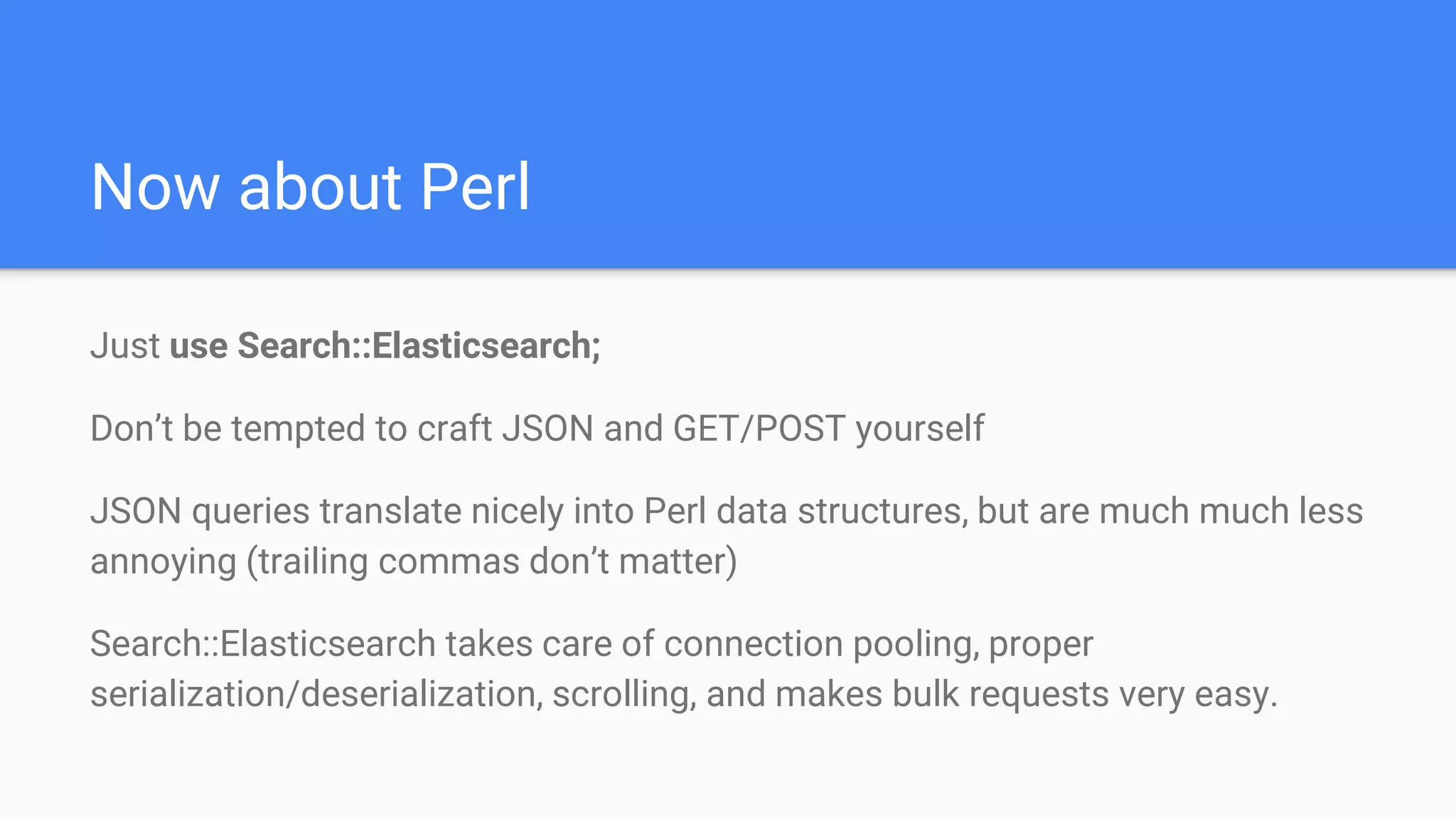

21. Now about Perl
Just use Search::Elasticsearch;
Don’t be tempted to craft JSON and GET/POST yourself
JSON queries translate nicely into Perl data structures, but are much much less
annoying (trailing commas don’t matter)

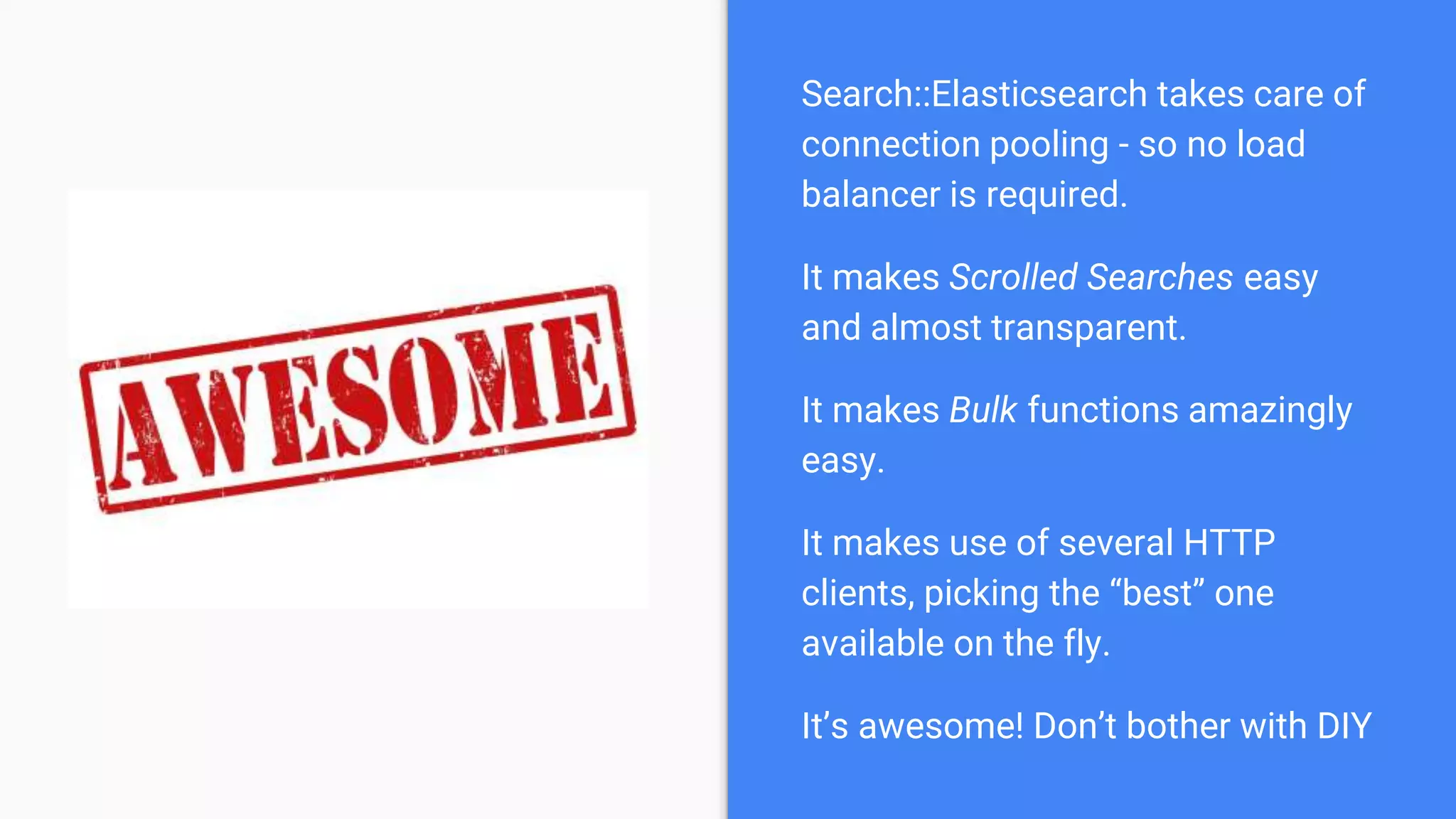

Search::Elasticsearch takes care of connection pooling, proper
serialization/deserialization, scrolling, and makes bulk requests very easy.

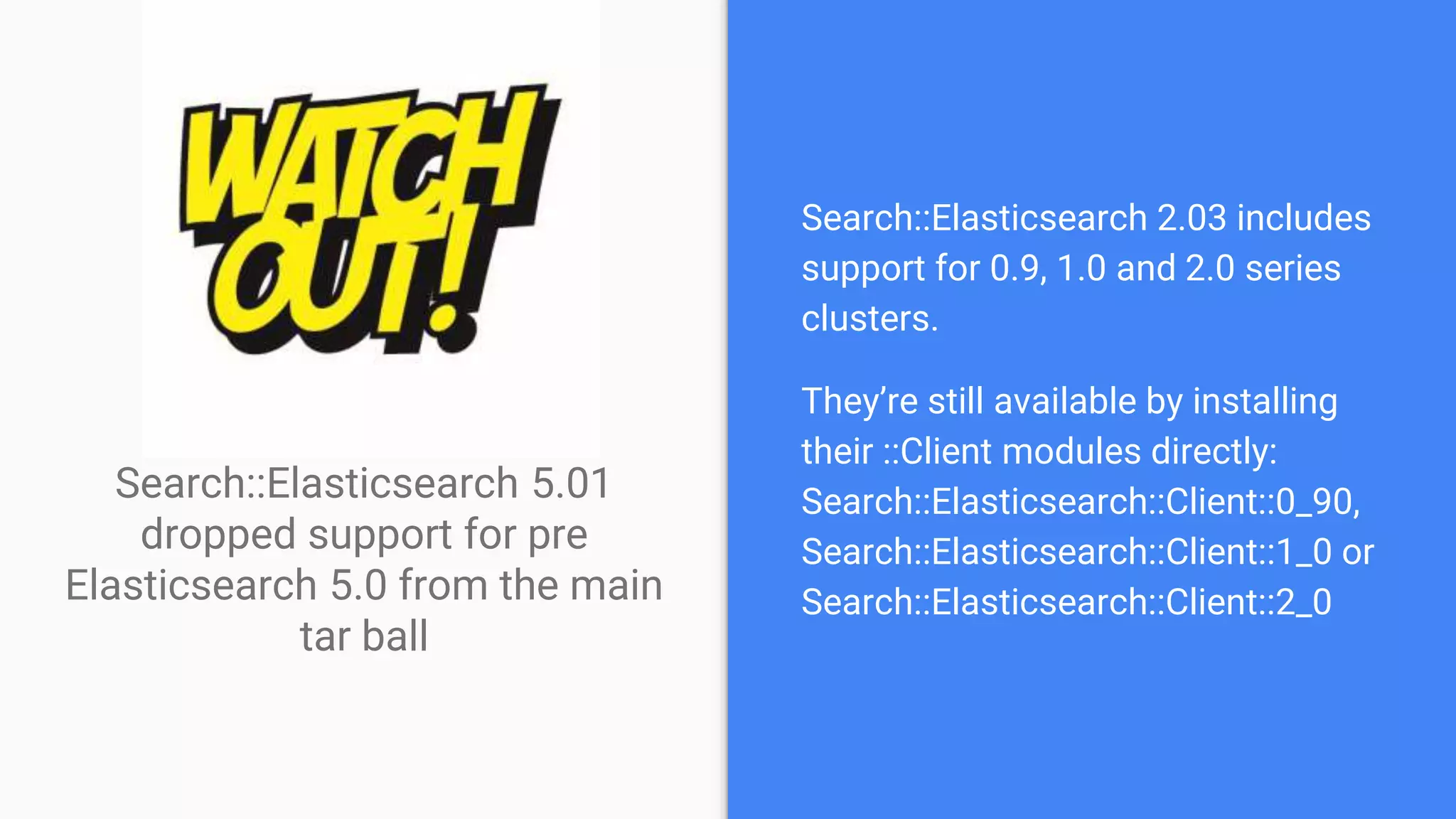

22. Search::Elasticsearch 2.03 includes
support for 0.9, 1.0 and 2.0 series
clusters.
They’re still available by installing
their ::Client modules directly:
Search::Elasticsearch::Client::0_90,
Search::Elasticsearch::Client::1_0 or
Search::Elasticsearch::Client::2_0
Search::Elasticsearch 5.01
dropped support for pre
Elasticsearch 5.0 from the main
tar ball

23. Connecting to Elasticsearch
Explicitly connect to a single server
Provide a number of servers, which the client will RR between (i.e. query
nodes)
Provide a single hostname, and have the client Sniff out the rest of the
cluster. Which it will RR between.

24. Connecting to Elasticsearch (straight from the Pod)
use Search::Elasticsearch;
# Connect to localhost:9200:
my $e = Search::Elasticsearch->new();
# Round-robin between two nodes:
my $e = Search::Elasticsearch->new(
nodes => [
'search1:9200',
'search2:9200'
]
);
# Connect to cluster at search1:9200, sniff all nodes and round-robin between them:
my $e = Search::Elasticsearch->new(
nodes => 'search1:9200',
cxn_pool => 'Sniff'
);

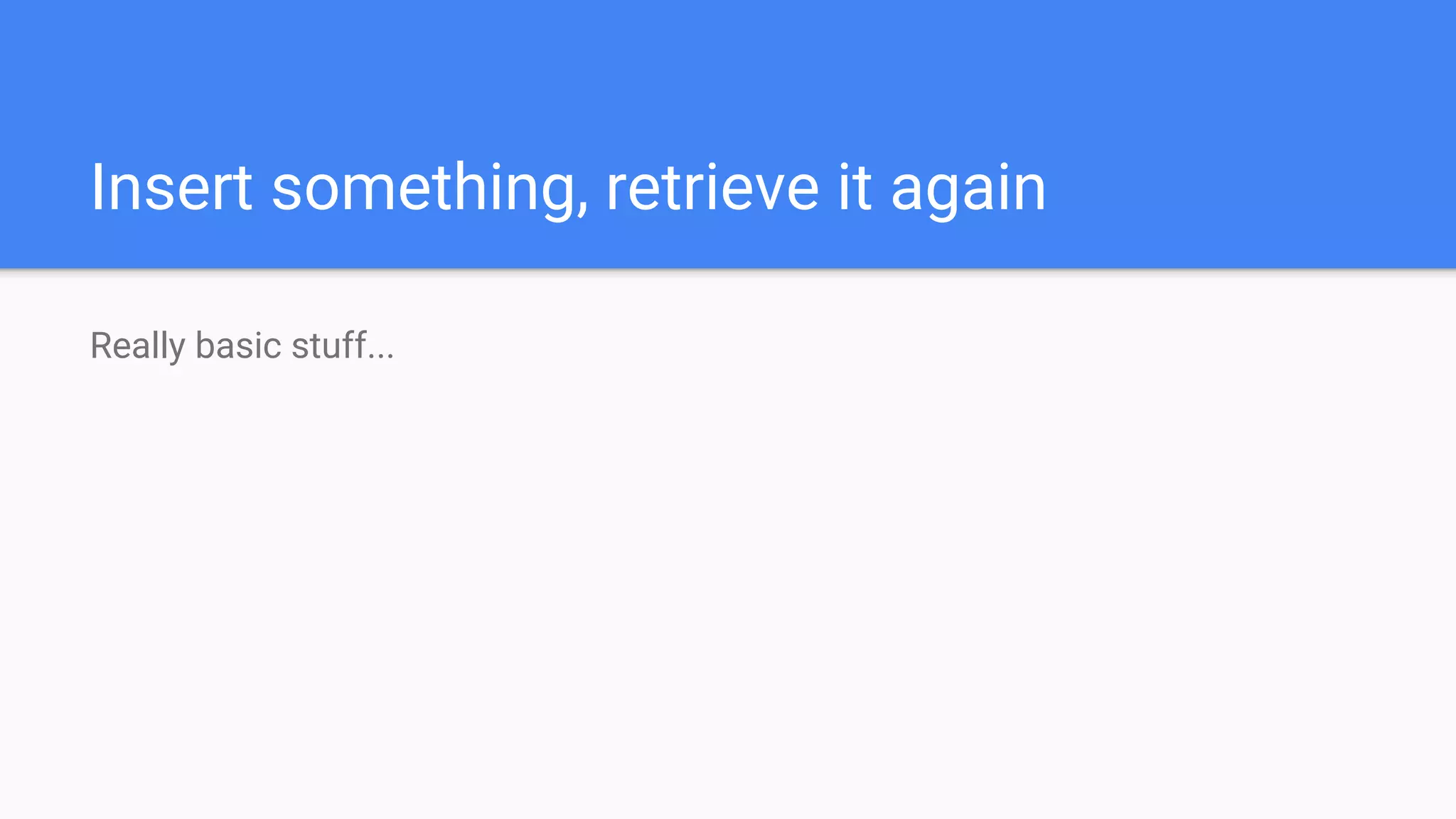

25. Insert something, retrieve it again
Really basic stuff...

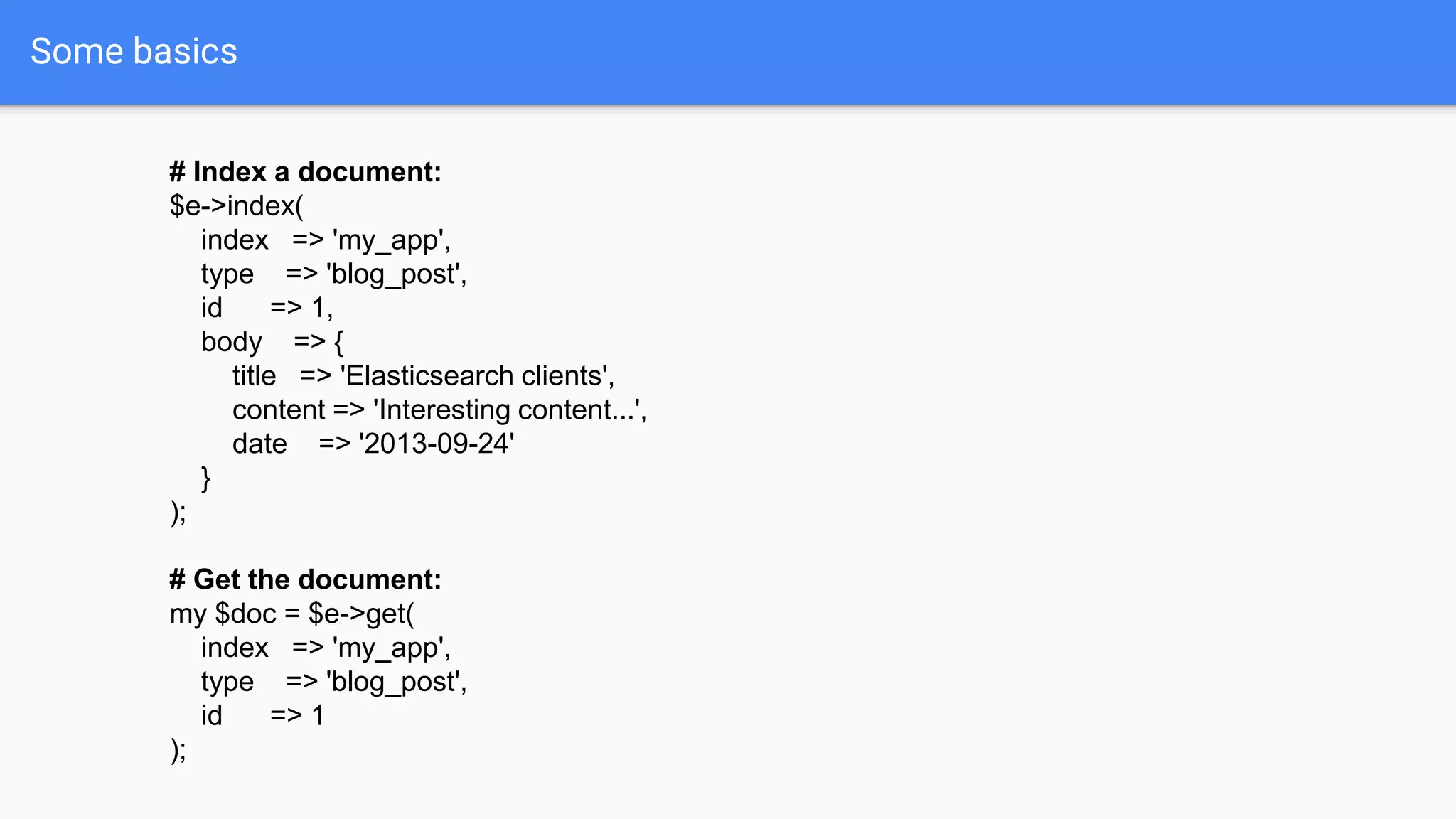

26. Some basics
# Index a document:
$e->index(
index => 'my_app',
type => 'blog_post',
id => 1,
body => {
title => 'Elasticsearch clients',
content => 'Interesting content...',
date => '2013-09-24'
}
);
# Get the document:
my $doc = $e->get(
index => 'my_app',
type => 'blog_post',
id => 1
);

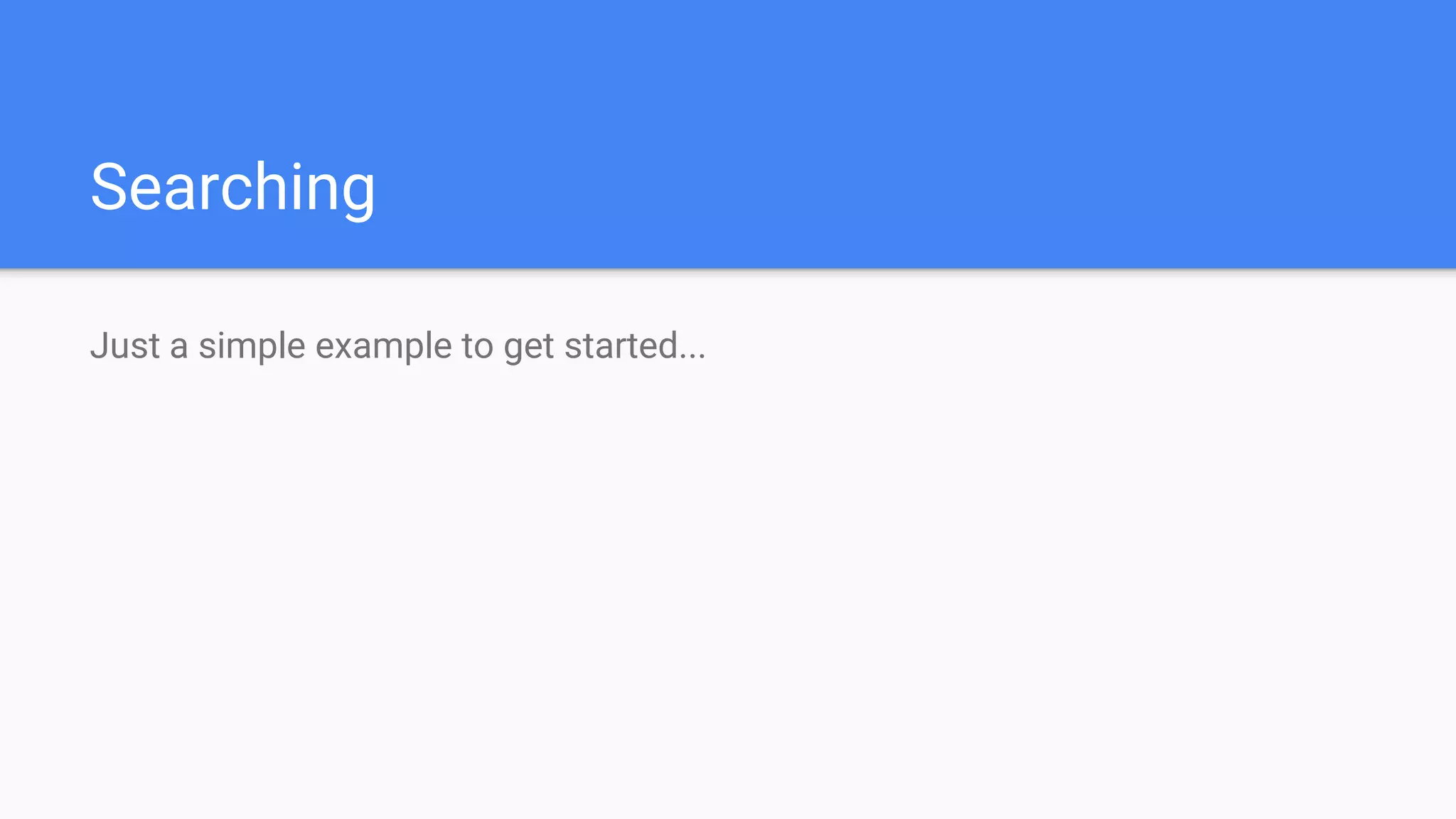

27. Searching
Just a simple example to get started...

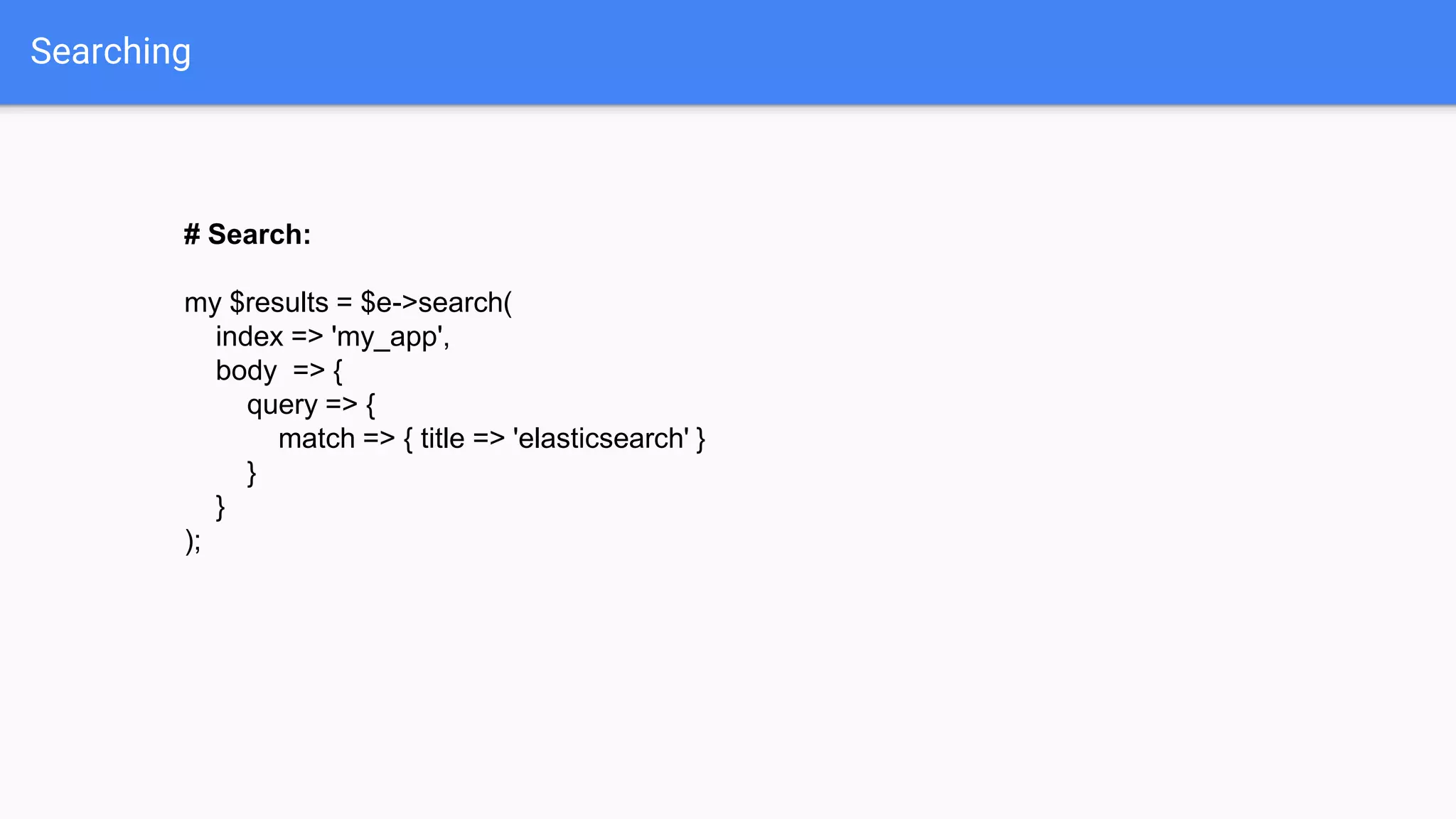

28. Searching
# Search:
my $results = $e->search(
index => 'my_app',
body => {
query => {
match => { title => 'elasticsearch' }
}
}
);

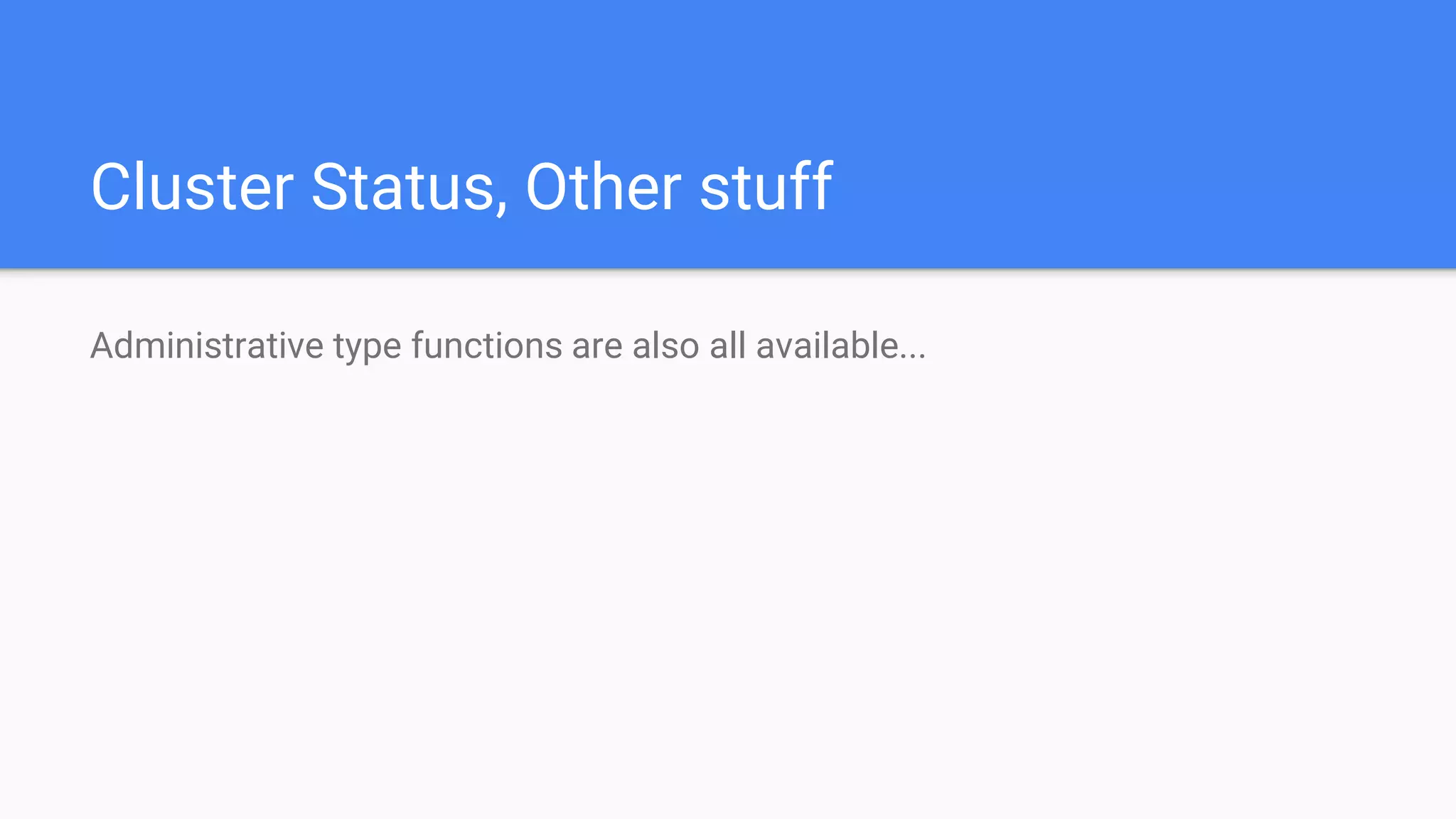

29. Cluster Status, Other stuff
Administrative type functions are also all available...

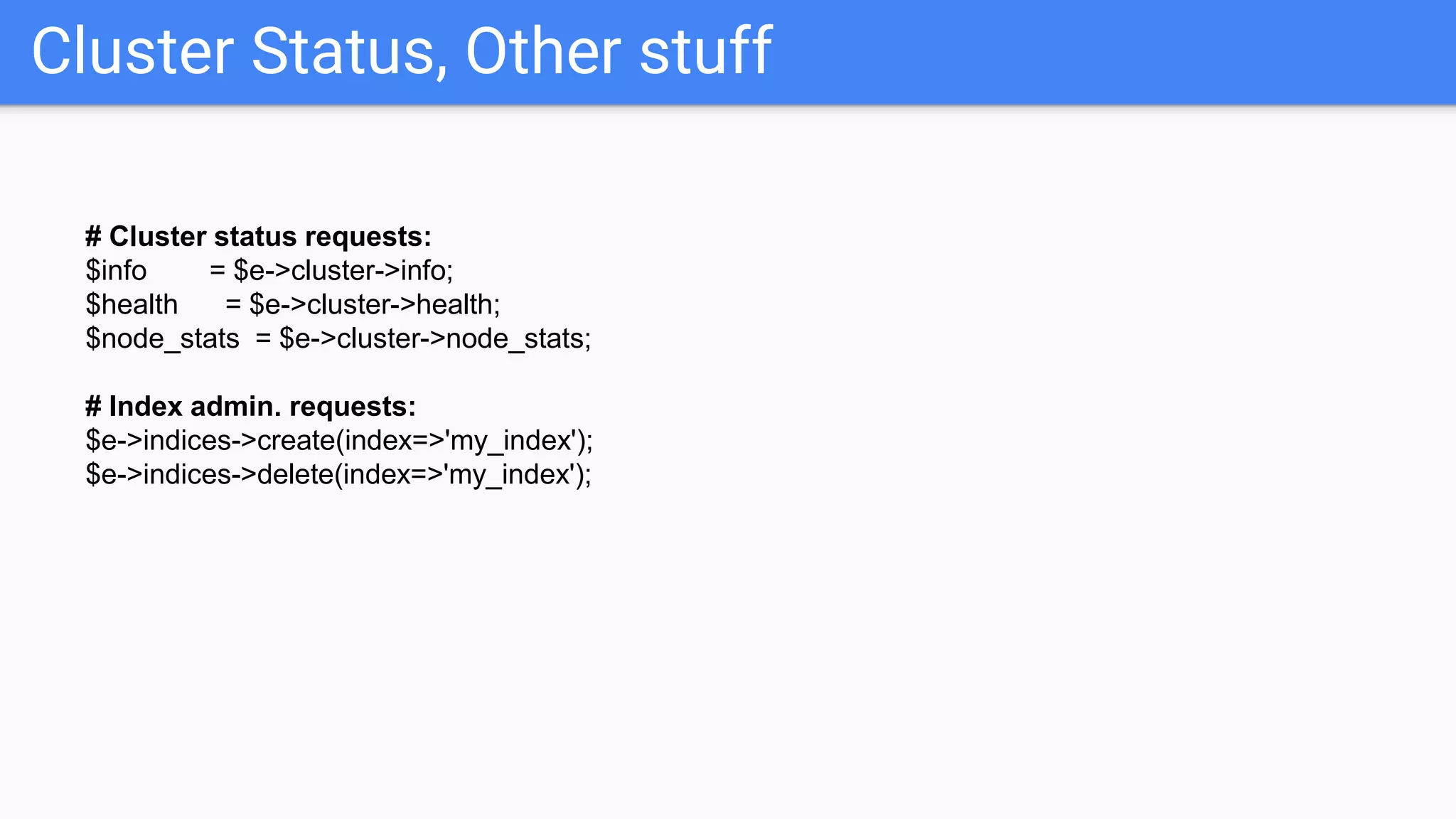

30. Cluster Status, Other stuff
# Cluster status requests:
$info = $e->cluster->info;
$health = $e->cluster->health;
$node_stats = $e->cluster->node_stats;
# Index admin. requests:
$e->indices->create(index=>'my_index');
$e->indices->delete(index=>'my_index');

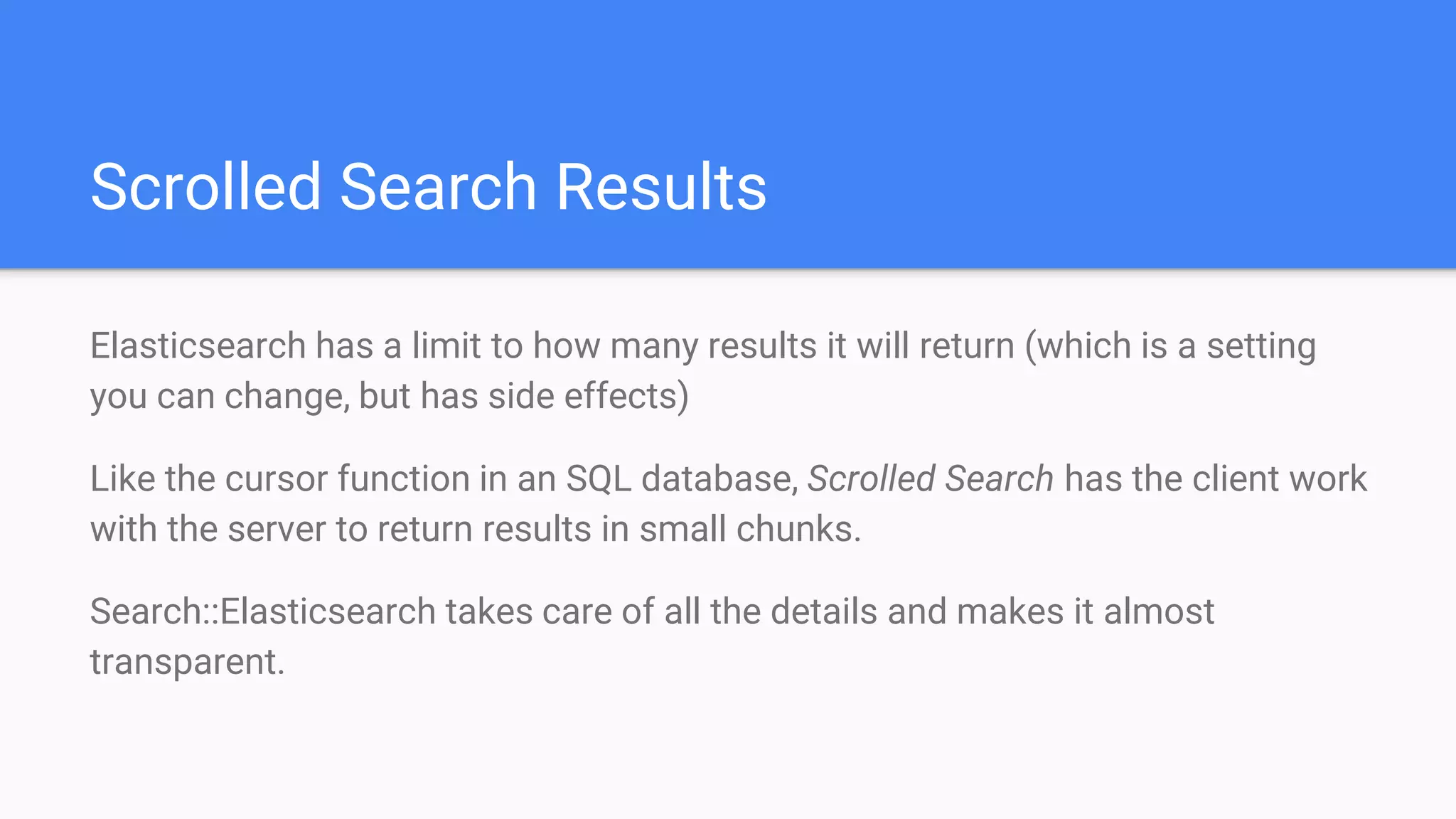

31. Scrolled Search Results
Elasticsearch has a limit to how many results it will return (which is a setting
you can change, but has side effects)
Like the cursor function in an SQL database, Scrolled Search has the client work
with the server to return results in small chunks.
Search::Elasticsearch takes care of all the details and makes it almost
transparent.

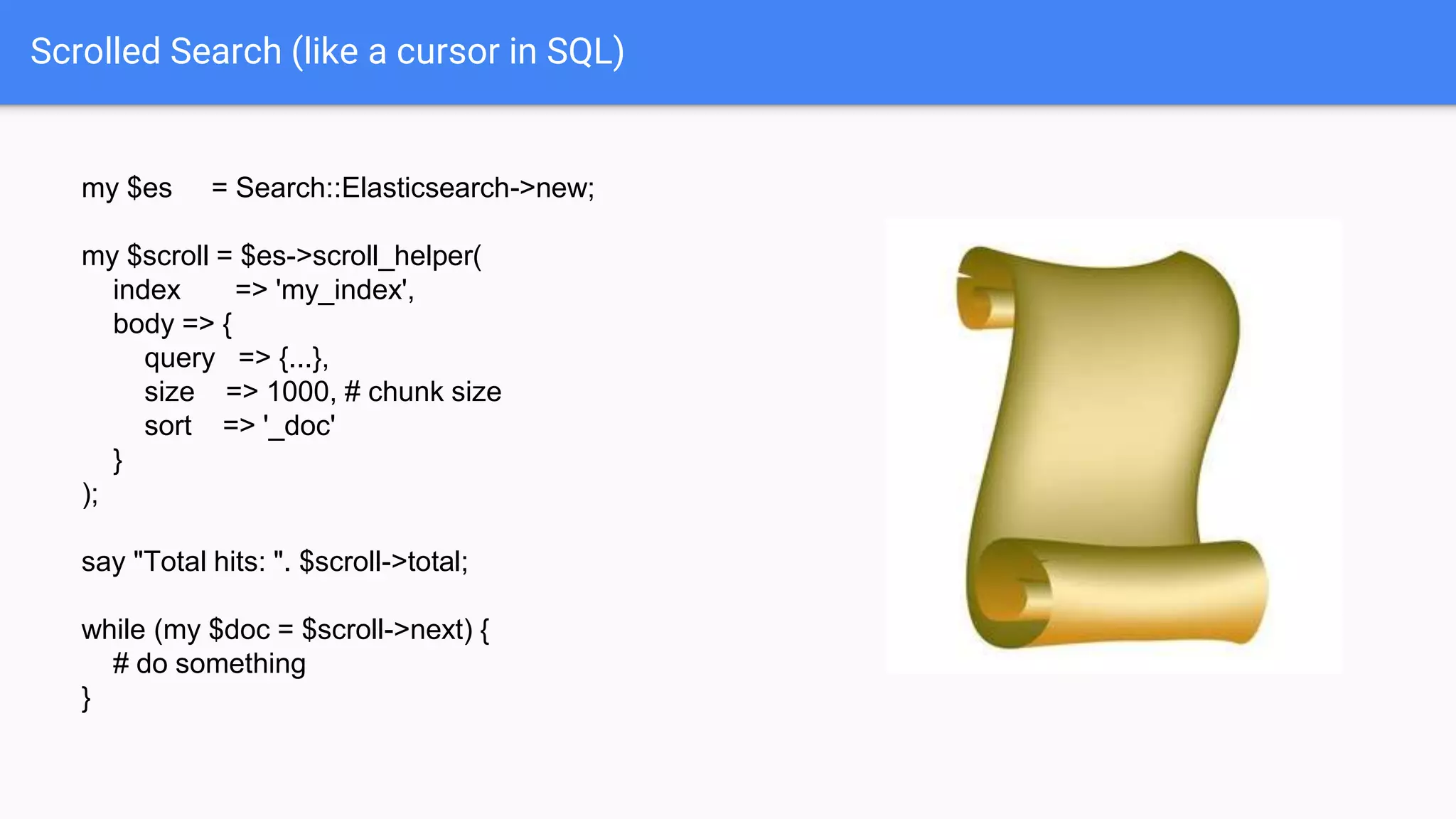

32. Scrolled Search (like a cursor in SQL)
my $es = Search::Elasticsearch->new;
my $scroll = $es->scroll_helper(
index => 'my_index',
body => {
query => {...},
size => 1000, # chunk size
sort => '_doc'
}
);
say "Total hits: ". $scroll->total;
while (my $doc = $scroll->next) {
# do something
}

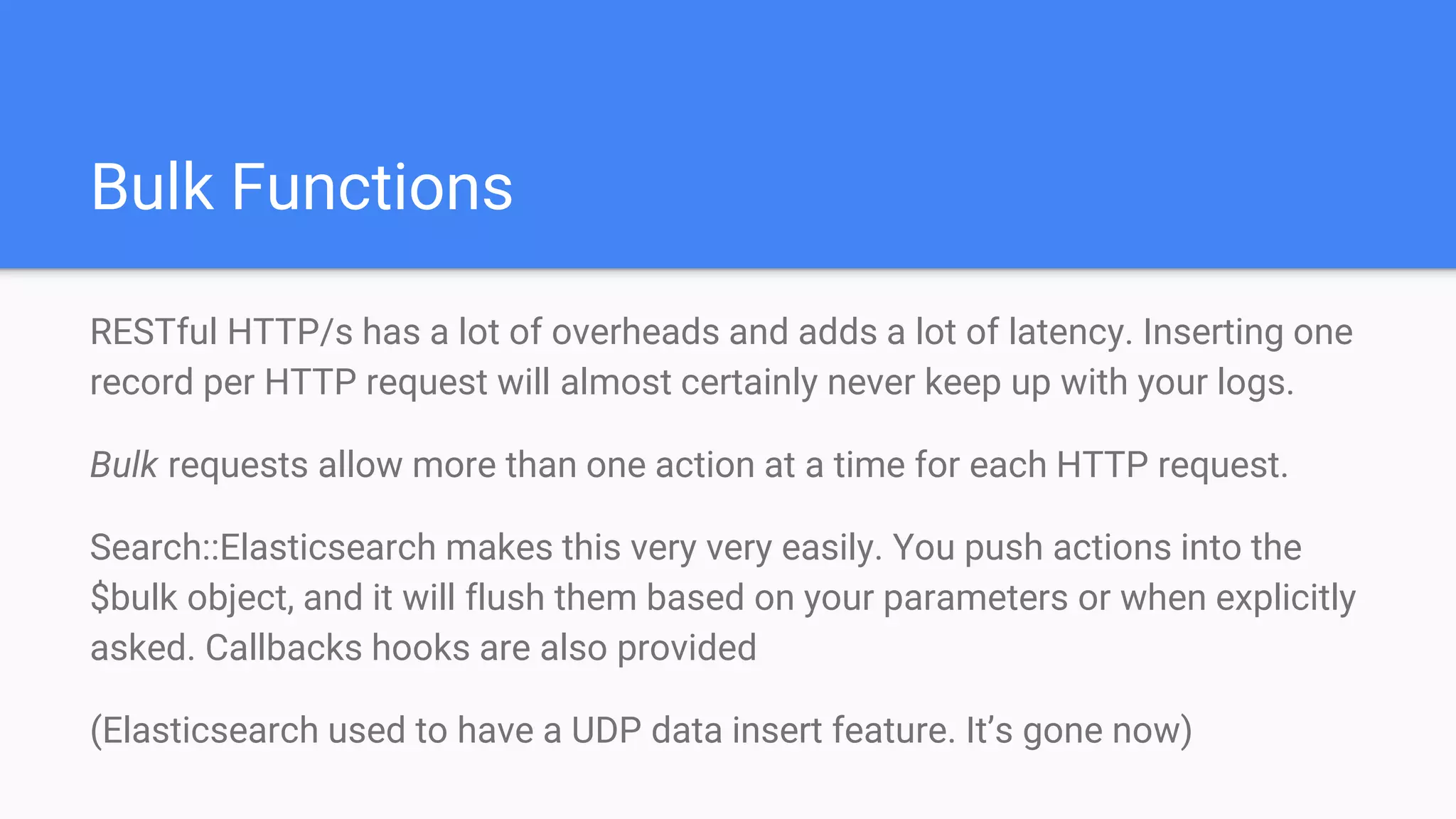

33. Bulk Functions
RESTful HTTP/s has a lot of overheads and adds a lot of latency. Inserting one
record per HTTP request will almost certainly never keep up with your logs.
Bulk requests allow more than one action at a time for each HTTP request.
Search::Elasticsearch makes this very very easily. You push actions into the
$bulk object, and it will flush them based on your parameters or when explicitly
asked. Callbacks hooks are also provided
(Elasticsearch used to have a UDP data insert feature. It’s gone now)

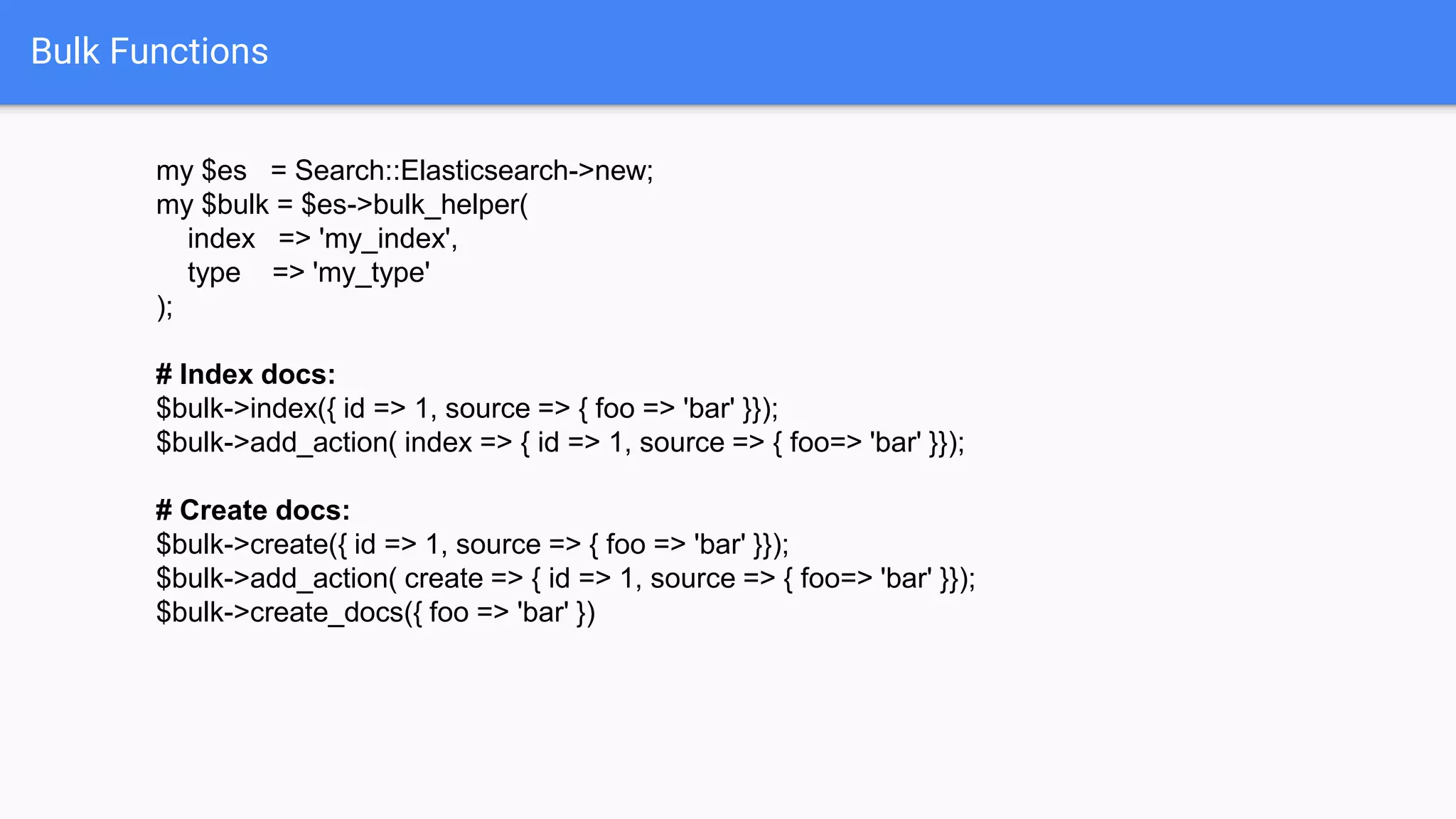

34. Bulk Functions
my $es = Search::Elasticsearch->new;
my $bulk = $es->bulk_helper(
index => 'my_index',
type => 'my_type'
);
# Index docs:
$bulk->index({ id => 1, source => { foo => 'bar' }});
$bulk->add_action( index => { id => 1, source => { foo=> 'bar' }});
# Create docs:
$bulk->create({ id => 1, source => { foo => 'bar' }});
$bulk->add_action( create => { id => 1, source => { foo=> 'bar' }});
$bulk->create_docs({ foo => 'bar' })

35. Bulk Functions (continued)
# on_success callback, called for every action that succeeds
my $bulk = $es->bulk_helper(
on_success => sub {
my ($action,$response,$i) = @_;
# do something
},
);
# on_conflict callback, called for every conflict
my $bulk = $es->bulk_helper(
on_conflict => sub {
my ($action,$response,$i,$version) = @_;
# do something
},
);
# on_error callback, called for every error
my $bulk = $es->bulk_helper(
on_error => sub {
my ($action,$response,$i) = @_;
# do something

36. Search::Elasticsearch takes care of
connection pooling - so no load
balancer is required.
It makes Scrolled Searches easy
and almost transparent.
It makes Bulk functions amazingly
easy.
It makes use of several HTTP
clients, picking the “best” one
available on the fly.
It’s awesome! Don’t bother with DIY

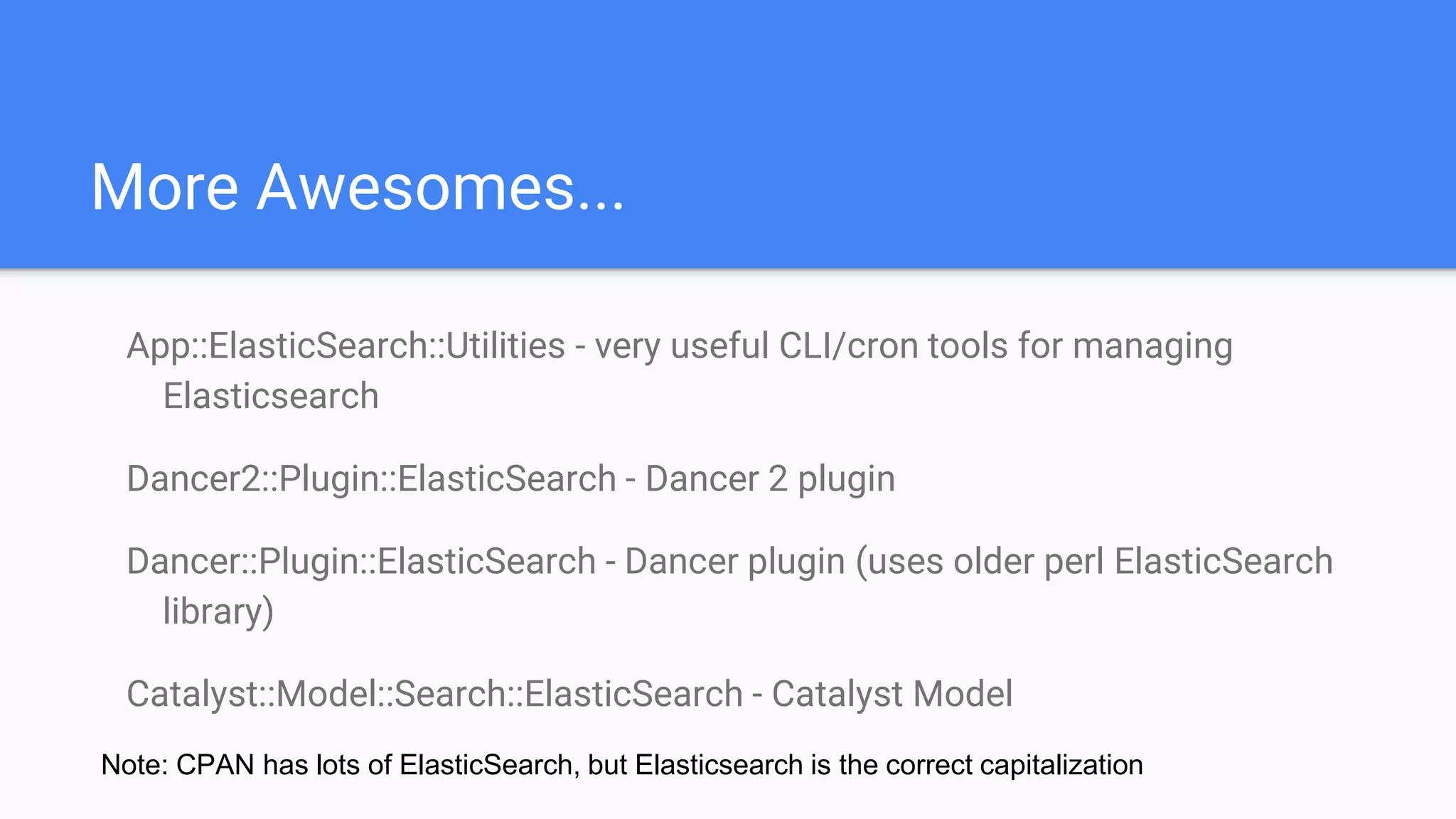

37. More Awesomes...
App::ElasticSearch::Utilities - very useful CLI/cron tools for managing
Elasticsearch
Dancer2::Plugin::ElasticSearch - Dancer 2 plugin
Dancer::Plugin::ElasticSearch - Dancer plugin (uses older perl ElasticSearch
library)
Catalyst::Model::Search::ElasticSearch - Catalyst Model
Note: CPAN has lots of ElasticSearch, but Elasticsearch is the correct capitalization

38. More on query’s...

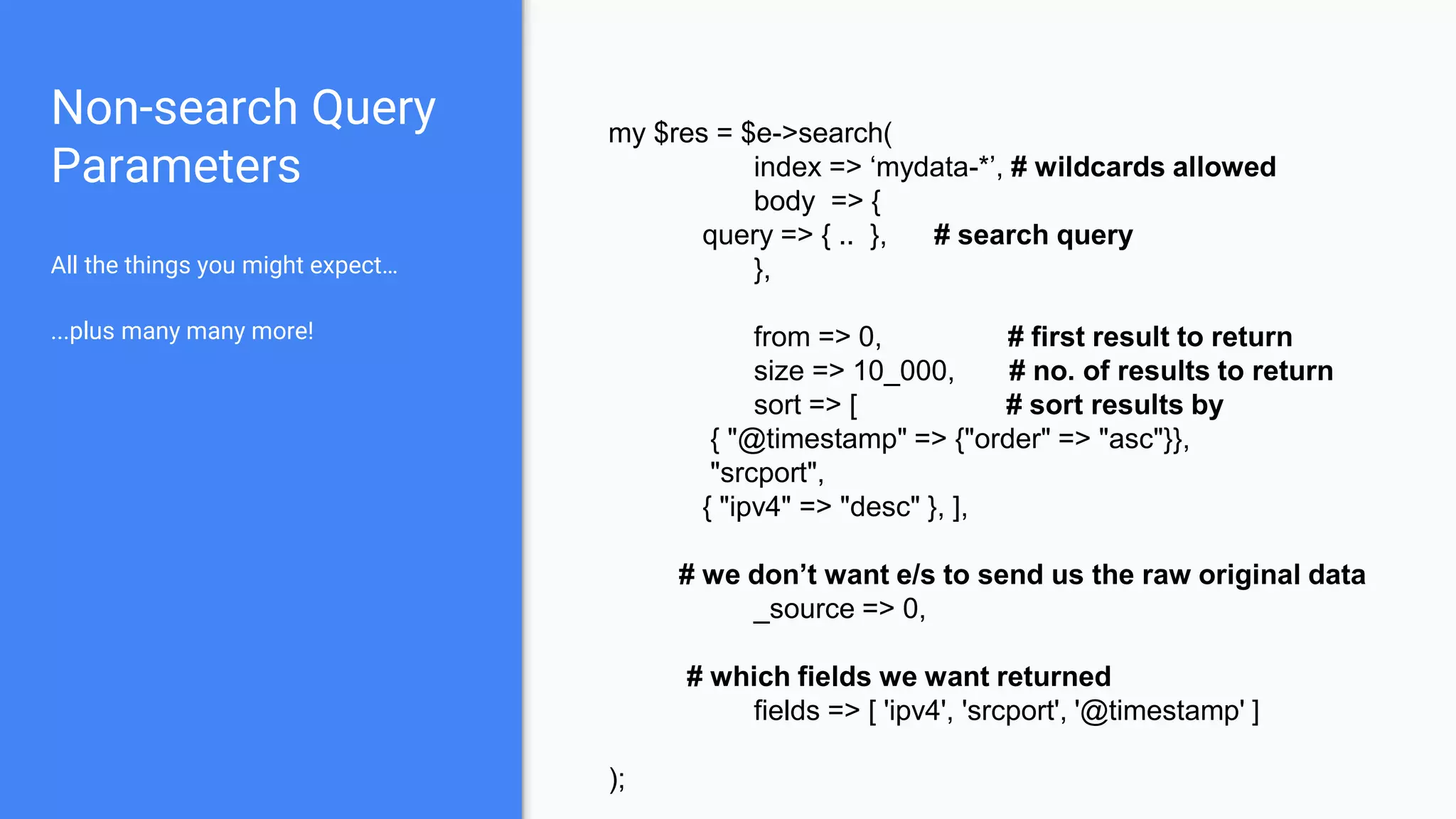

39. Non-search Query
Parameters
All the things you might expect…
...plus many many more!
my $res = $e->search(
index => ‘mydata-*’, # wildcards allowed
body => {
query => { .. }, # search query
},
from => 0, # first result to return
size => 10_000, # no. of results to return
sort => [ # sort results by
{ "@timestamp" => {"order" => "asc"}},
"srcport",
{ "ipv4" => "desc" }, ],
# we don’t want e/s to send us the raw original data
_source => 0,
# which fields we want returned
fields => [ 'ipv4', 'srcport', '@timestamp' ]
);

40. More on Queries
Wildcard queries
What you would expect
Regexp queries
Also, what you would expect
query => {
wildcard => { user => "ki*y" }
}
query => {
regexp => {
"name.first" => "s.*y"
}
}

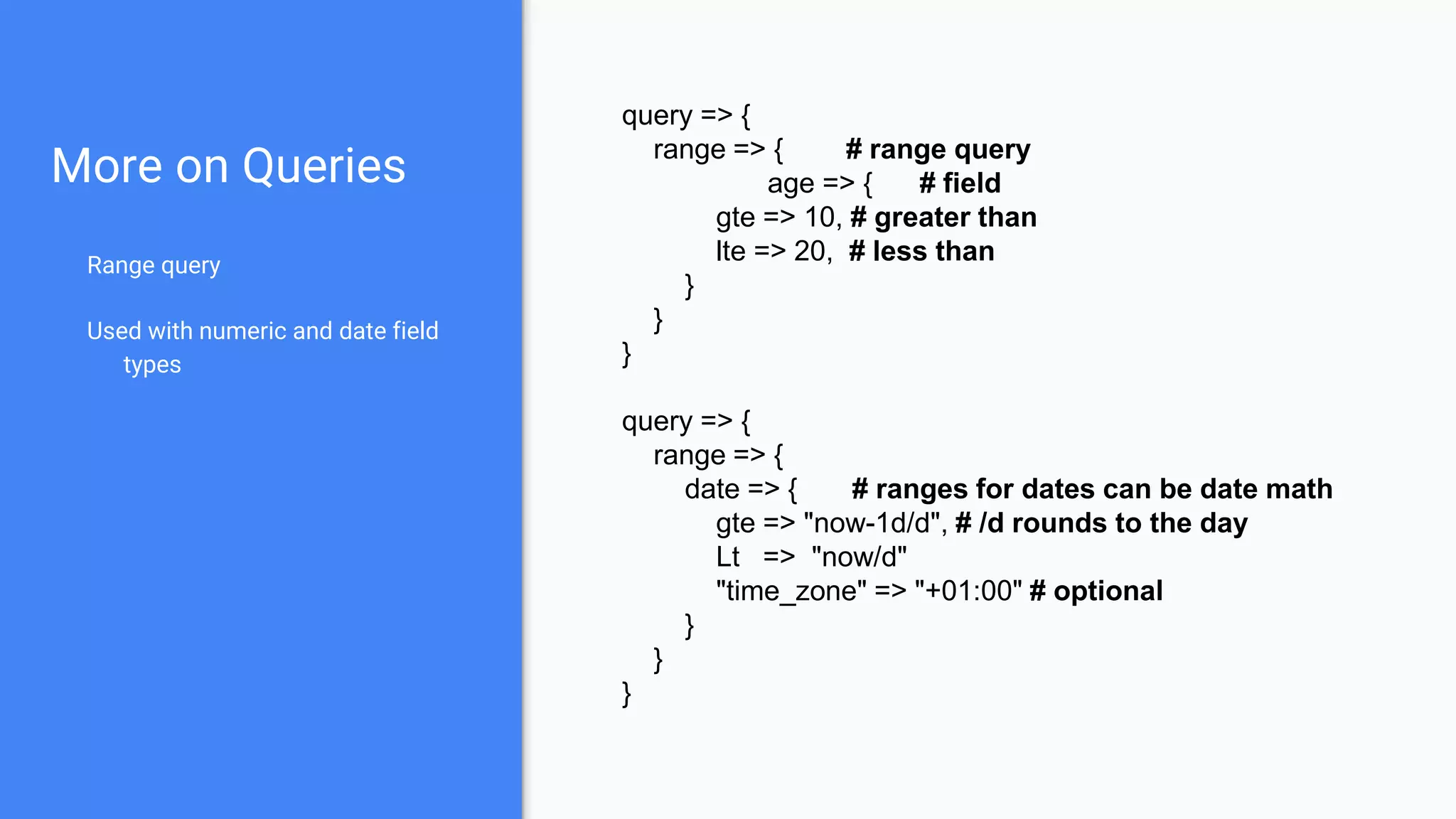

41. More on Queries
Range query
Used with numeric and date field
types
query => {
range => { # range query
age => { # field
gte => 10, # greater than
lte => 20, # less than
}
}
}
query => {
range => {
date => { # ranges for dates can be date math
gte => "now-1d/d", # /d rounds to the day
Lt => "now/d"
"time_zone" => "+01:00" # optional
}
}
}

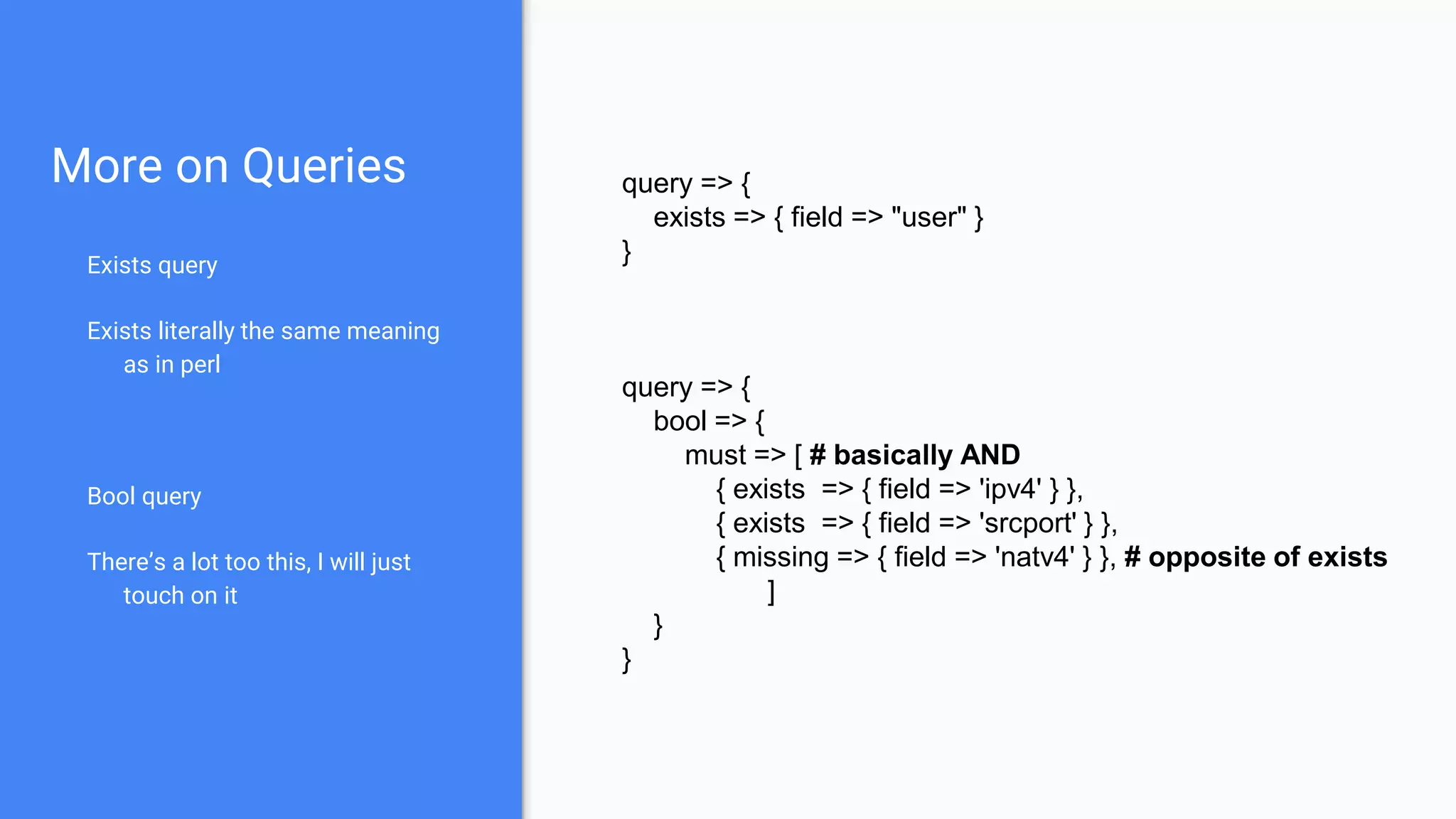

42. More on Queries
Exists query
Exists literally the same meaning
as in perl
Bool query
There’s a lot too this, I will just
touch on it
query => {
exists => { field => "user" }
}
query => {
bool => {
must => [ # basically AND
{ exists => { field => 'ipv4' } },
{ exists => { field => 'srcport' } },
{ missing => { field => 'natv4' } }, # opposite of exists
]
}
}

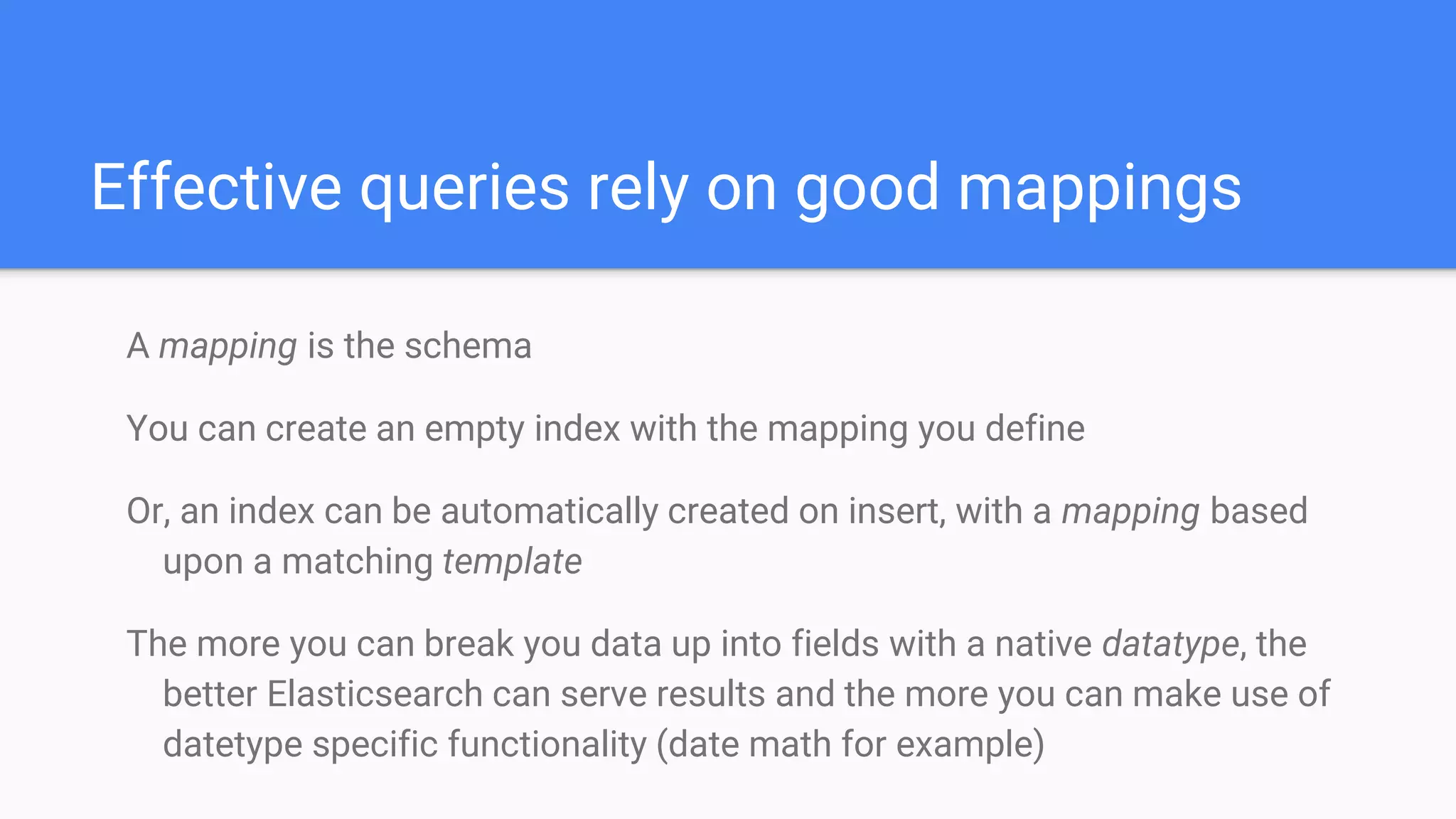

43. Effective queries rely on good mappings
A mapping is the schema
You can create an empty index with the mapping you define
Or, an index can be automatically created on insert, with a mapping based
upon a matching template
The more you can break you data up into fields with a native datatype, the
better Elasticsearch can serve results and the more you can make use of
datetype specific functionality (date math for example)

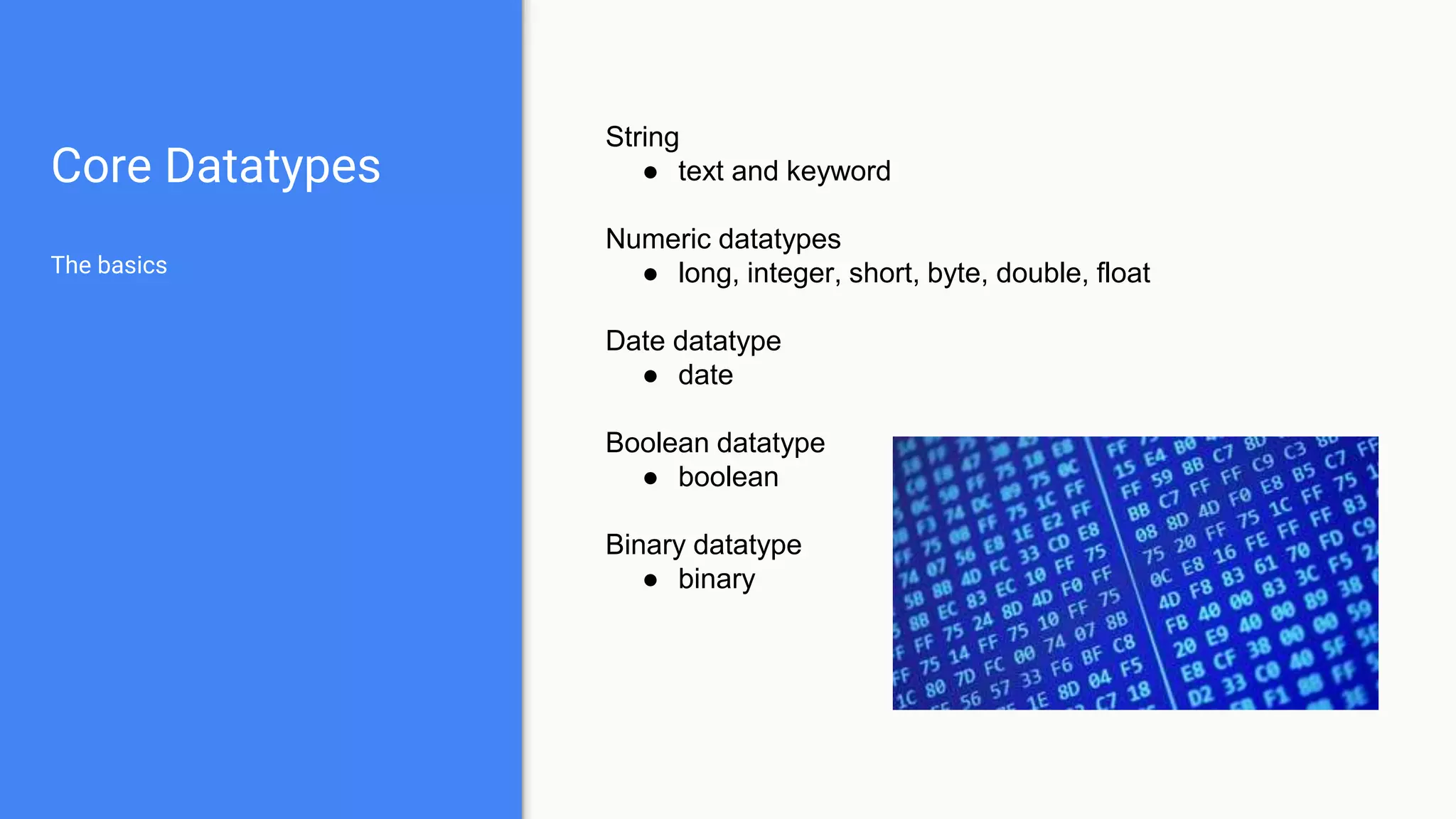

44. Core Datatypes
The basics
String
● text and keyword
Numeric datatypes
● long, integer, short, byte, double, float
Date datatype
● date
Boolean datatype
● boolean
Binary datatype
● binary

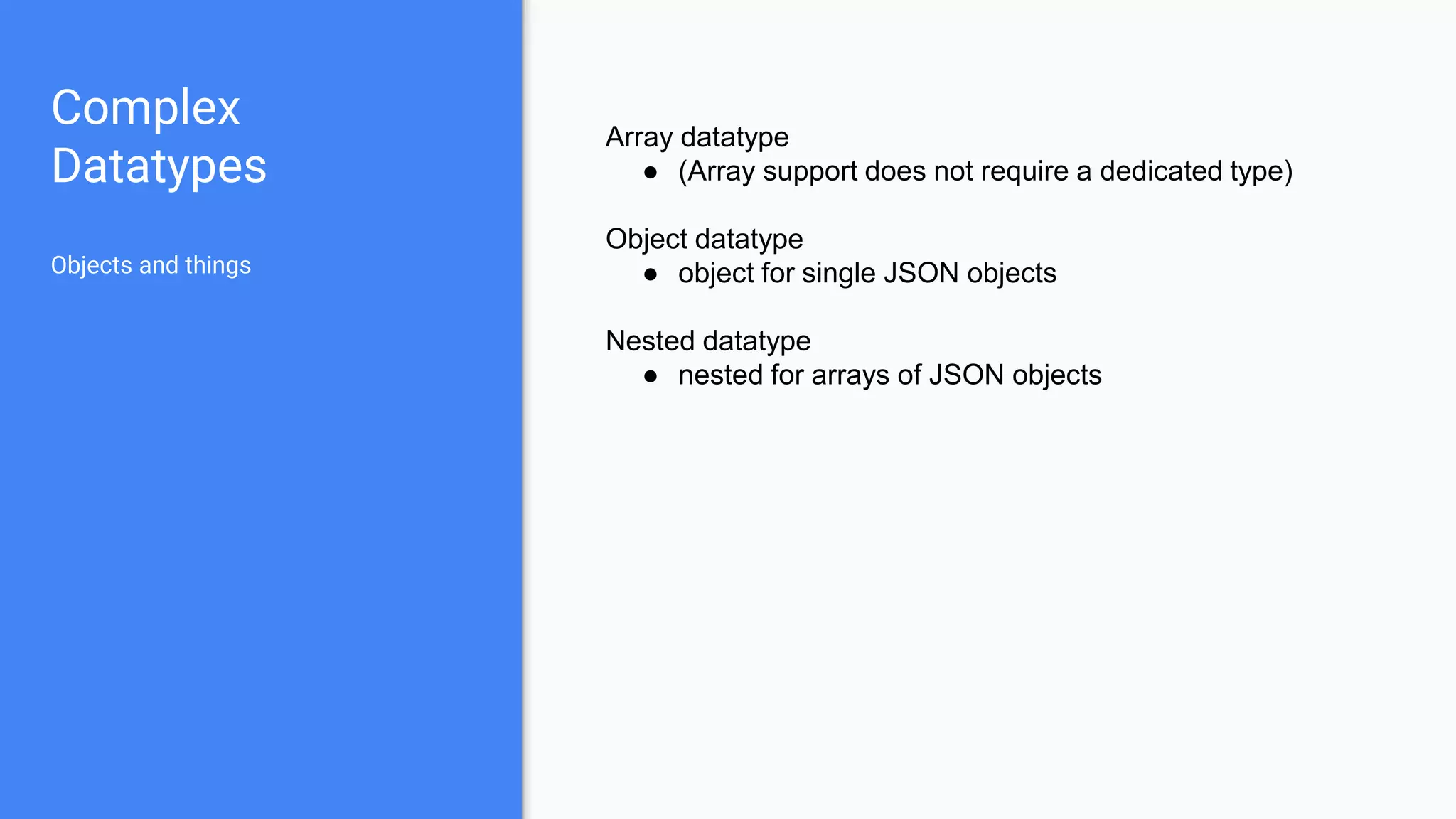

45. Complex
Datatypes
Objects and things
Array datatype
● (Array support does not require a dedicated type)
Object datatype
● object for single JSON objects
Nested datatype
● nested for arrays of JSON objects

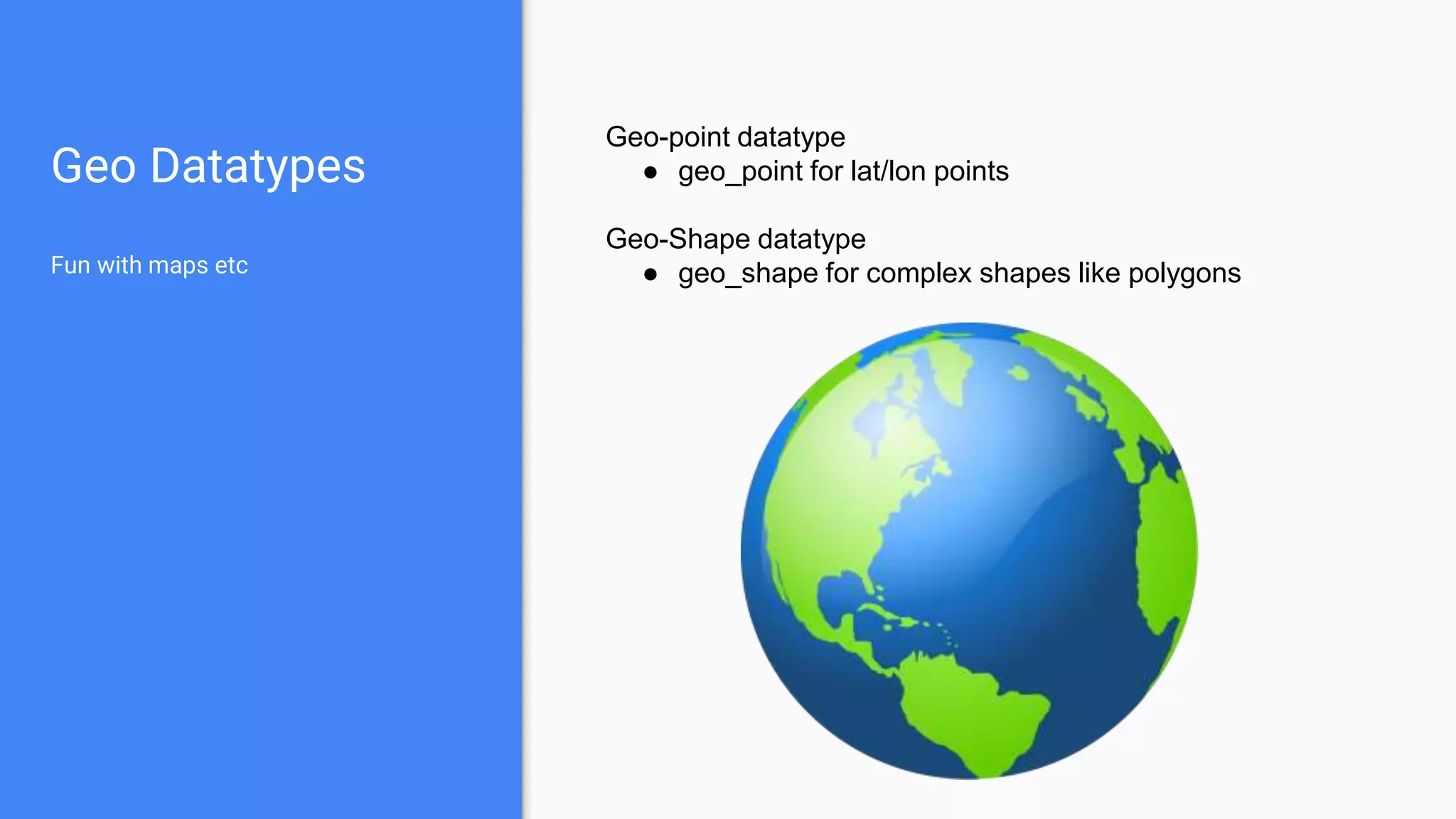

46. Geo Datatypes
Fun with maps etc
Geo-point datatype
● geo_point for lat/lon points
Geo-Shape datatype
● geo_shape for complex shapes like polygons

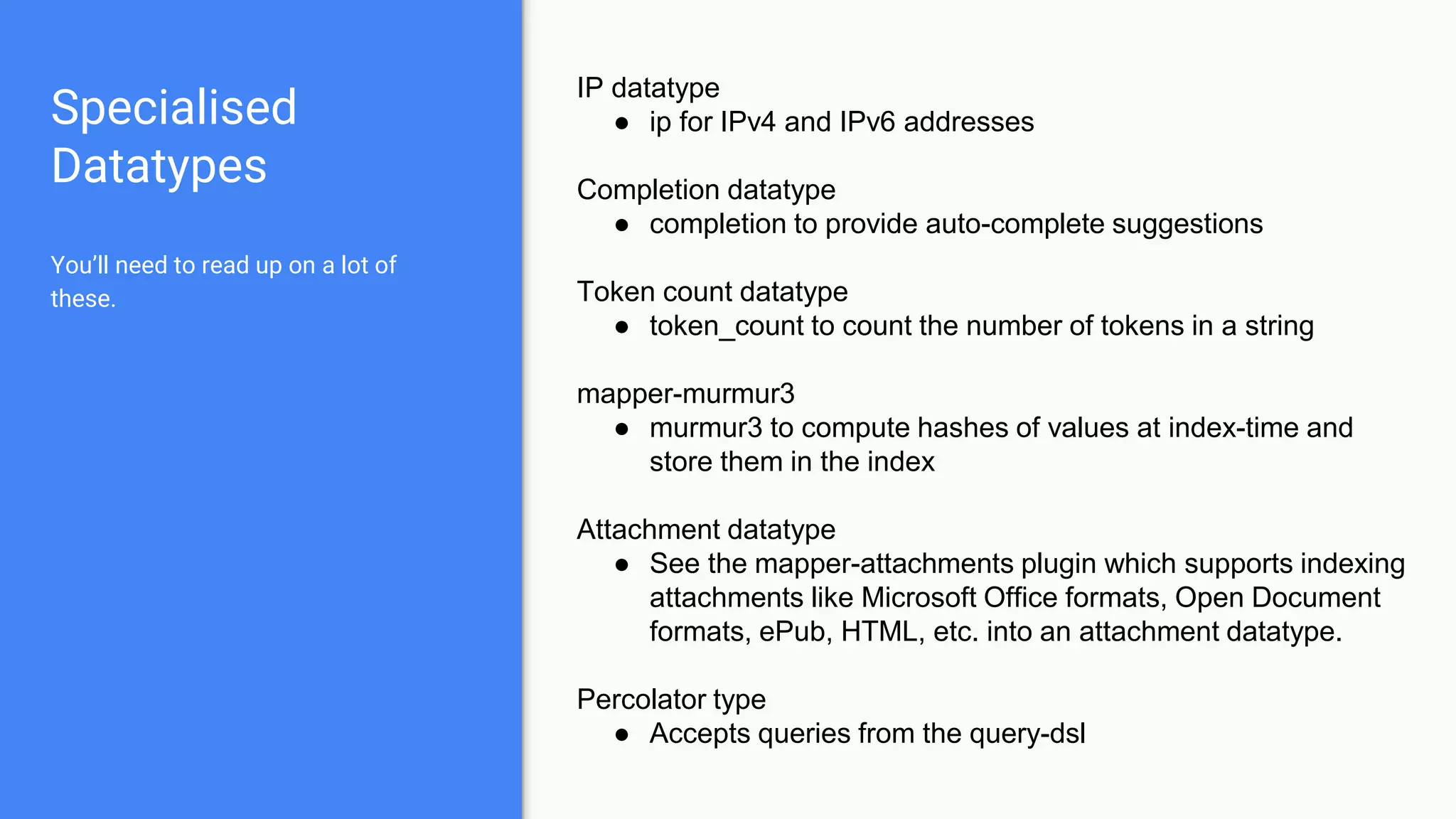

47. Specialised
Datatypes
You’ll need to read up on a lot of
these.
IP datatype
● ip for IPv4 and IPv6 addresses
Completion datatype
● completion to provide auto-complete suggestions
Token count datatype
● token_count to count the number of tokens in a string
mapper-murmur3
● murmur3 to compute hashes of values at index-time and
store them in the index
Attachment datatype
● See the mapper-attachments plugin which supports indexing
attachments like Microsoft Office formats, Open Document
formats, ePub, HTML, etc. into an attachment datatype.
Percolator type
● Accepts queries from the query-dsl

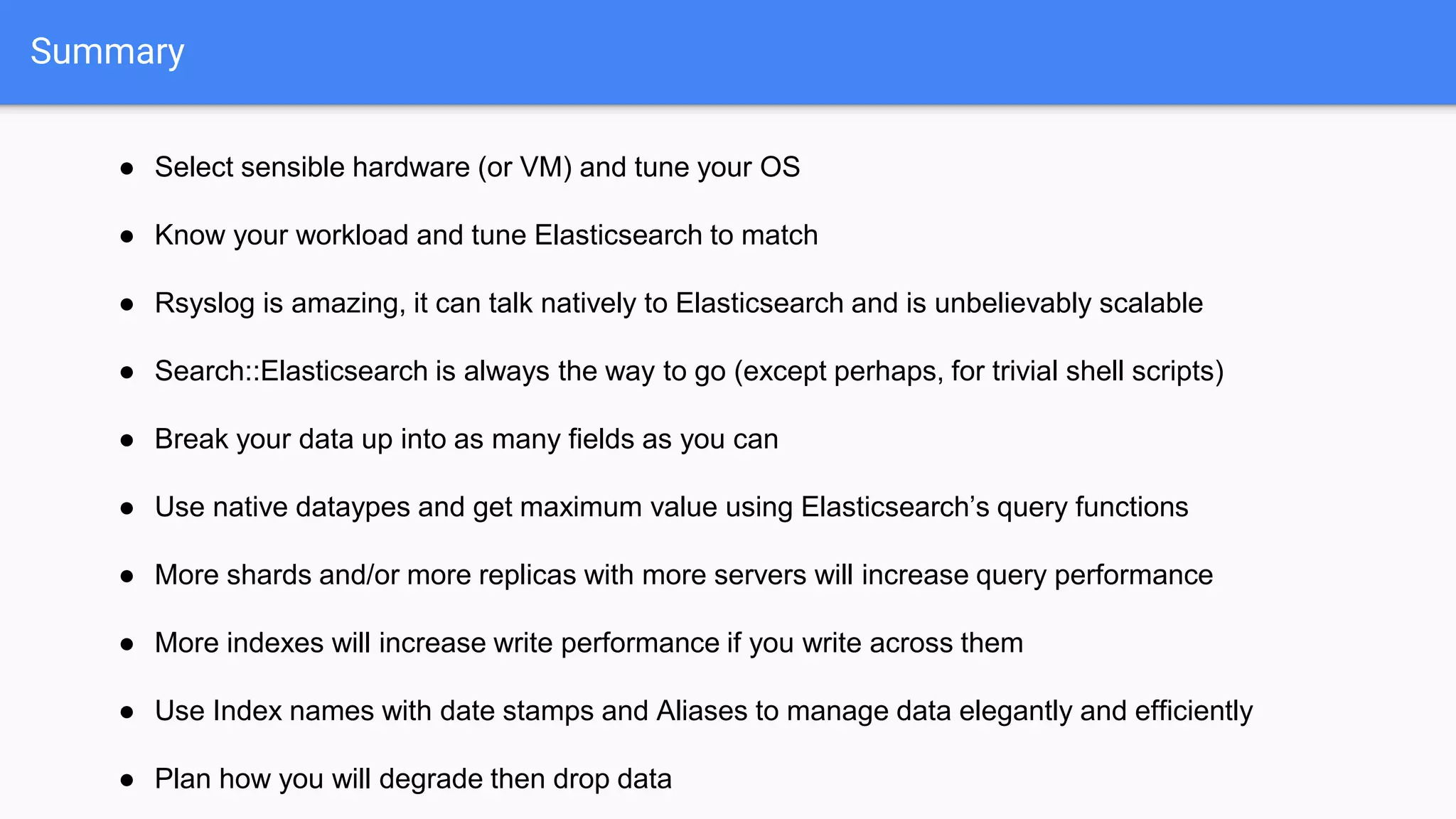

48. Summary
● Select sensible hardware (or VM) and tune your OS
● Know your workload and tune Elasticsearch to match
● Rsyslog is amazing, it can talk natively to Elasticsearch and is unbelievably scalable
● Search::Elasticsearch is always the way to go (except perhaps, for trivial shell scripts)
● Break your data up into as many fields as you can
● Use native dataypes and get maximum value using Elasticsearch’s query functions
● More shards and/or more replicas with more servers will increase query performance
● More indexes will increase write performance if you write across them
● Use Index names with date stamps and Aliases to manage data elegantly and efficiently
● Plan how you will degrade then drop data

49. Thank You!
