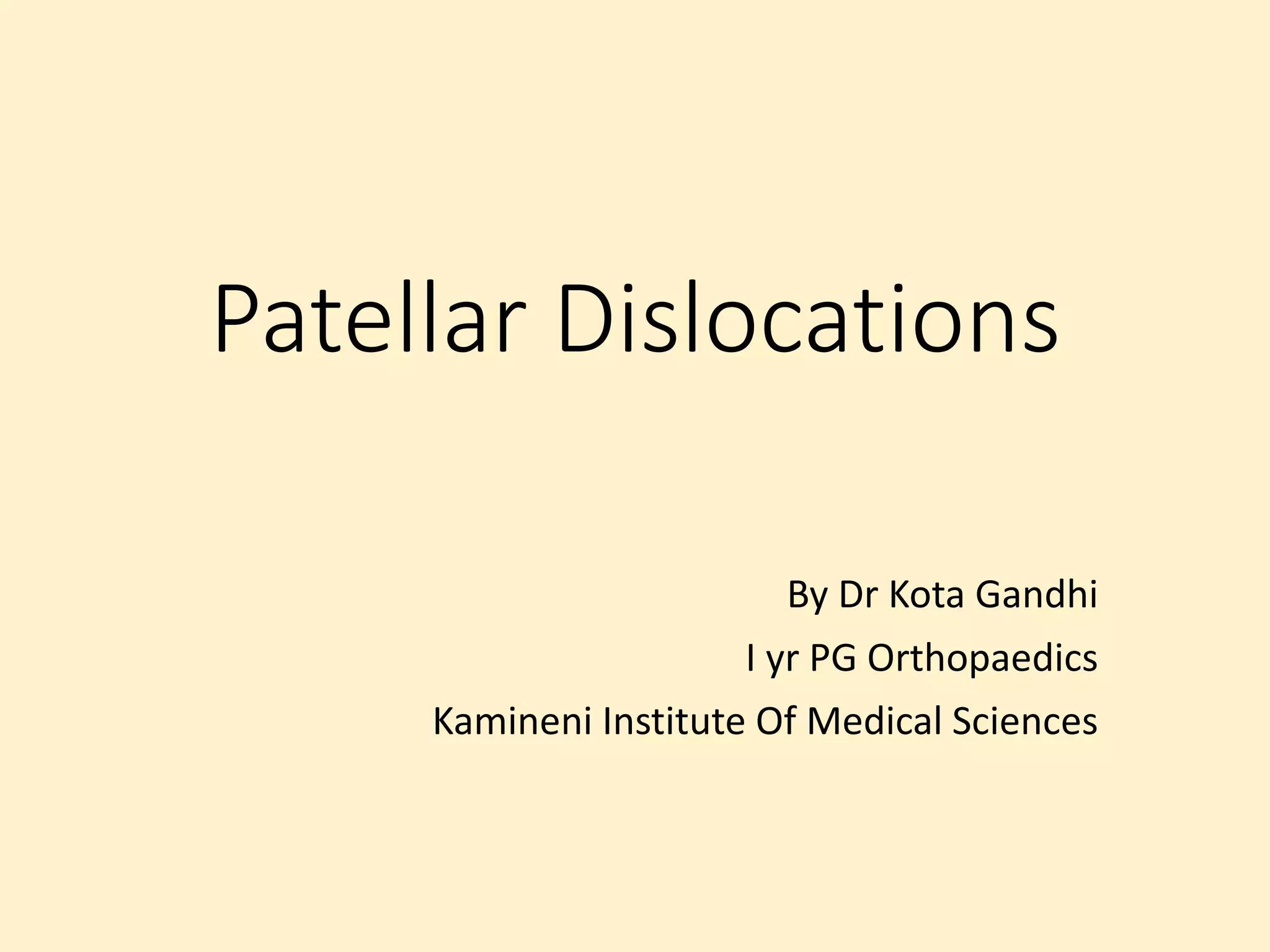

1. Patellar Dislocations
By Dr Kota Gandhi
I yr PG Orthopaedics
Kamineni Institute Of Medical Sciences

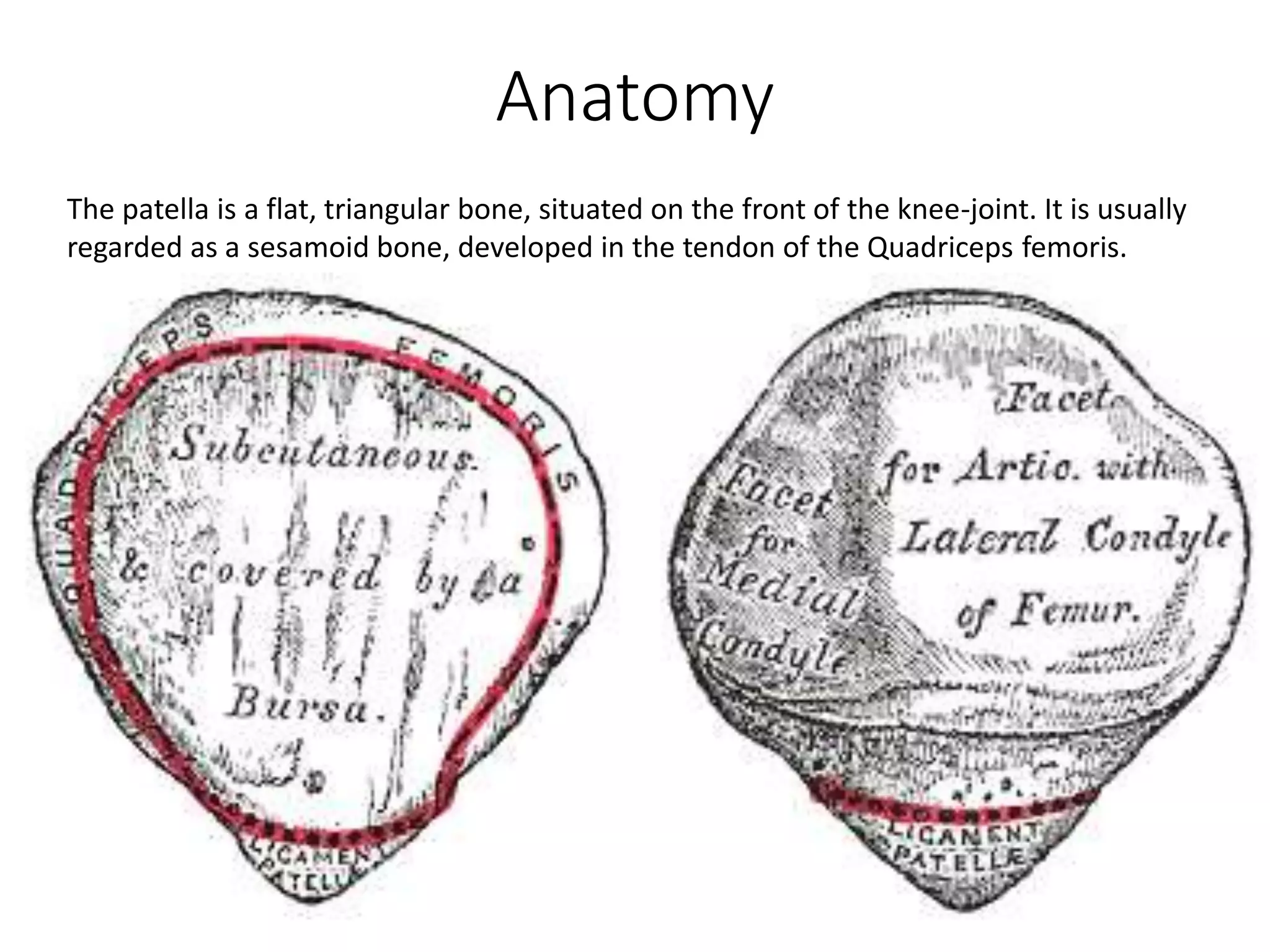

2. The patella is a flat, triangular bone, situated on the front of the knee-joint. It is usually
regarded as a sesamoid bone, developed in the tendon of the Quadriceps femoris.
Anatomy

3. Anatomy
The upper three quarters of the patella articulates with femur
and subdivided into medial and a lateral facet by vertical ledge
which varies in shape.

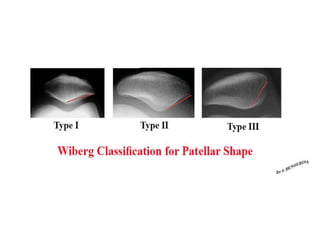

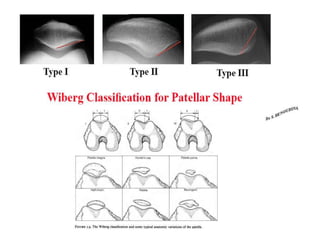

Wiberg classification is a system for describing the
shape of the patella based mainly on asymmetry between
the patellar medial and lateral facet on axial views of the
patella.
Type I: the facets are concave, symmetrical, and of equal
size.
Type II: the medial facet is smaller than the lateral facet
and flat or only slightly convex. The lateral facet is
concave.

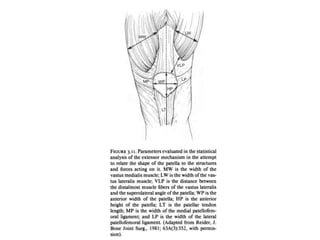

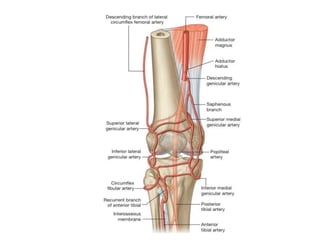

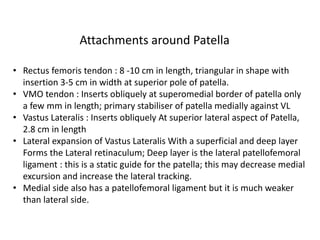

6. • Rectus femoris tendon : 8 -10 cm in length, triangular in shape with
insertion 3-5 cm in width at superior pole of patella.
• VMO tendon : Inserts obliquely at superomedial border of patella only
a few mm in length; primary stabiliser of patella medially against VL
• Vastus Lateralis : Inserts obliquely At superior lateral aspect of Patella,
2.8 cm in length
• Lateral expansion of Vastus Lateralis With a superficial and deep layer
Forms the Lateral retinaculum; Deep layer is the lateral patellofemoral
ligament : this is a static guide for the patella; this may decrease medial
excursion and increase the lateral tracking.
• Medial side also has a patellofemoral ligament but it is much weaker
than lateral side.
Attachments around Patella

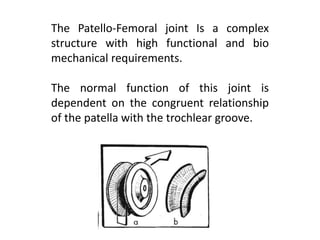

8. The Patello-Femoral joint Is a complex
structure with high functional and bio
mechanical requirements.
The normal function of this joint is
dependent on the congruent relationship
of the patella with the trochlear groove.

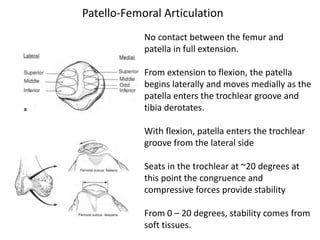

9. No contact between the femur and
patella in full extension.
From extension to flexion, the patella
begins laterally and moves medially as the
patella enters the trochlear groove and
tibia derotates.
With flexion, patella enters the trochlear
groove from the lateral side
Seats in the trochlear at ~20 degrees at
this point the congruence and
compressive forces provide stability
From 0 – 20 degrees, stability comes from
soft tissues.
Patello-Femoral Articulation

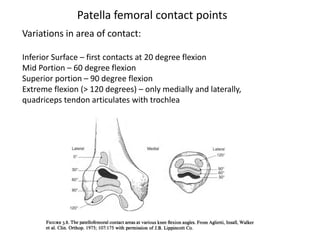

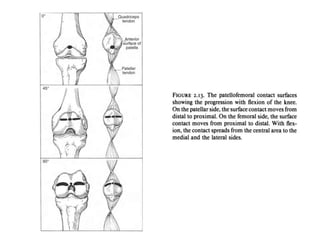

10. Variations in area of contact:
Inferior Surface – first contacts at 20 degree flexion
Mid Portion – 60 degree flexion
Superior portion – 90 degree flexion
Extreme flexion (> 120 degrees) – only medially and laterally,
quadriceps tendon articulates with trochlea
Patella femoral contact points

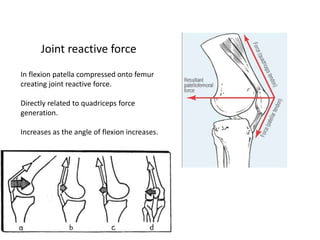

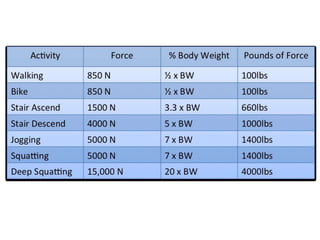

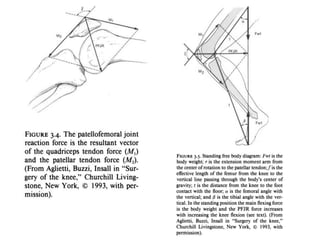

13. In flexion patella compressed onto femur
creating joint reactive force.
Directly related to quadriceps force
generation.
Increases as the angle of flexion increases.
Joint reactive force

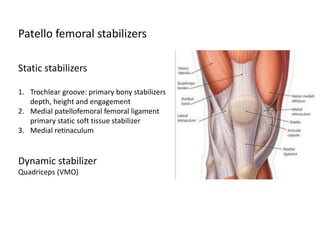

15. Static stabilizers
1. Trochlear groove: primary bony stabilizers
depth, height and engagement
2. Medial patellofemoral femoral ligament
primary static soft tissue stabilizer
3. Medial retinaculum
Dynamic stabilizer
Quadriceps (VMO)
Patello femoral stabilizers

16. Soft Tissue
Global --HMS (Hyperlaxity)
Medial
MPFL Insufficiency
VMO dysplasia/VL dominance
Lateral -- ITB, Contracture Lat Ret
Osseous abnormalities
Patella alta/ morphology
Trochlea dysplasia
Lower limb Malalignment (Torsion or Genu Valgum)
Fem anteversion, Ext tibia torsion, foot pronation
Increased Q angle or TT:TG distance
Gait (Valgus thrust, Pelvis core muscles)

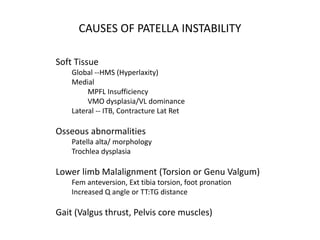

CAUSES OF PATELLA INSTABILITY

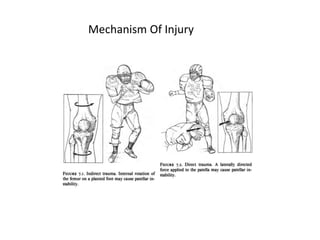

17. Mechanism Of Injury

18. Acute Dislocation
Single episode after a significant
trauma. Almost always lateral
dislocation
Recurrent Dislocation
repeated, occasional dislocation
(commonest form). The dislocations
may occur at intervals of weeks or
months.
Habitual Dislocation
also known as chronic dislocation
patella which dislocates every time
the knee flexes. In these cases it
cannot be held in the reduced
position throughout the full range of
flexion.
Types of dislocations Recurrent Dislocation
• Second decade
• Female preponderance / Athletic males
• Initial episode of dislocation
• Subsequent episodes of instability
• Frequency decreases with Age(Crosby)
• The main factor is incompetence of
MPFL
Habitual Dislocation
• Knees in which patella dislocates
laterally each time knee is flexed and
returns to midline in extension(Habitual
dislocation)
• More severe —patella permanently
dislocated —(Permanent dislocation)

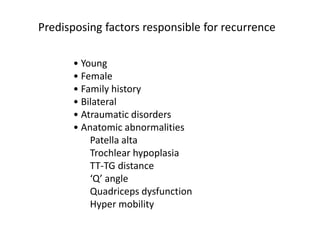

19. • Young
• Female
• Family history
• Bilateral
• Atraumatic disorders
• Anatomic abnormalities
Patella alta
Trochlear hypoplasia
TT-TG distance
‘Q’ angle
Quadriceps dysfunction
Hyper mobility
Predisposing factors responsible for recurrence

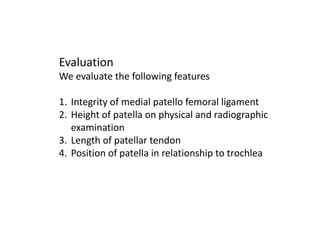

20. Evaluation
We evaluate the following features
1. Integrity of medial patello femoral ligament
2. Height of patella on physical and radiographic
examination
3. Length of patellar tendon
4. Position of patella in relationship to trochlea

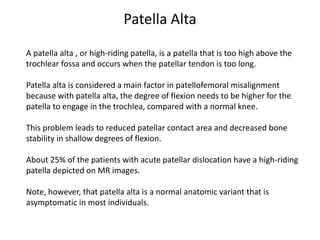

21. A patella alta , or high-riding patella, is a patella that is too high above the
trochlear fossa and occurs when the patellar tendon is too long.
Patella alta is considered a main factor in patellofemoral misalignment
because with patella alta, the degree of flexion needs to be higher for the
patella to engage in the trochlea, compared with a normal knee.
This problem leads to reduced patellar contact area and decreased bone
stability in shallow degrees of flexion.
About 25% of the patients with acute patellar dislocation have a high-riding
patella depicted on MR images.
Note, however, that patella alta is a normal anatomic variant that is
asymptomatic in most individuals.
Patella Alta

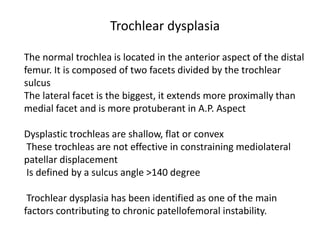

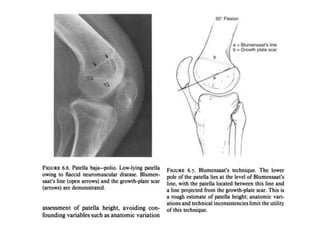

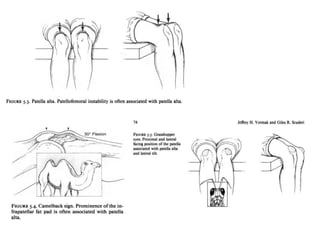

24. The normal trochlea is located in the anterior aspect of the distal
femur. It is composed of two facets divided by the trochlear
sulcus
The lateral facet is the biggest, it extends more proximally than
medial facet and is more protuberant in A.P. Aspect
Dysplastic trochleas are shallow, flat or convex
These trochleas are not effective in constraining mediolateral
patellar displacement
Is defined by a sulcus angle >140 degree
Trochlear dysplasia has been identified as one of the main
factors contributing to chronic patellofemoral instability.
Trochlear dysplasia

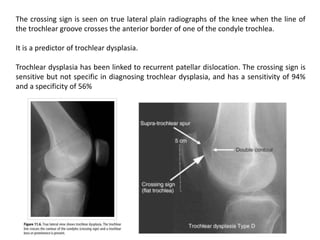

25. The crossing sign is seen on true lateral plain radiographs of the knee when the line of
the trochlear groove crosses the anterior border of one of the condyle trochlea.
It is a predictor of trochlear dysplasia.
Trochlear dysplasia has been linked to recurrent patellar dislocation. The crossing sign is
sensitive but not specific in diagnosing trochlear dysplasia, and has a sensitivity of 94%
and a specificity of 56%

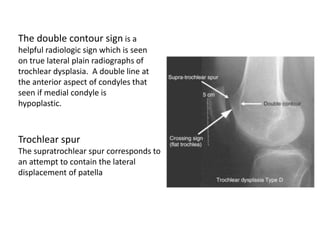

26. The double contour sign is a
helpful radiologic sign which is seen
on true lateral plain radiographs of
trochlear dysplasia. A double line at
the anterior aspect of condyles that
seen if medial condyle is
hypoplastic.
Trochlear spur
The supratrochlear spur corresponds to
an attempt to contain the lateral
displacement of patella

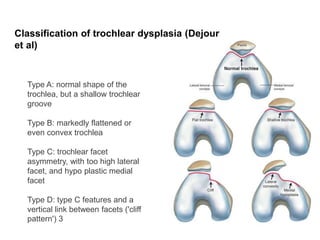

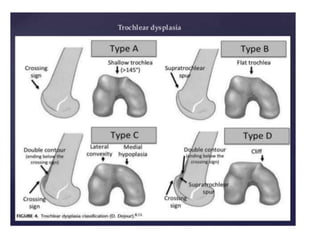

27. Type A: normal shape of the
trochlea, but a shallow trochlear
groove
Type B: markedly flattened or
even convex trochlea
Type C: trochlear facet
asymmetry, with too high lateral
facet, and hypo plastic medial
facet
Type D: type C features and a
vertical link between facets ('cliff
pattern') 3
Classification of trochlear dysplasia (Dejour
et al)

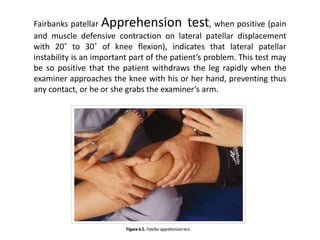

29. Fairbanks patellar Apprehension test, when positive (pain
and muscle defensive contraction on lateral patellar displacement
with 20˚ to 30˚ of knee flexion), indicates that lateral patellar
instability is an important part of the patient’s problem. This test may
be so positive that the patient withdraws the leg rapidly when the
examiner approaches the knee with his or her hand, preventing thus
any contact, or he or she grabs the examiner’s arm.

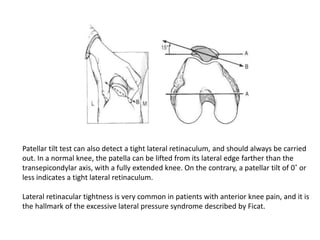

30. Patellar tilt test can also detect a tight lateral retinaculum, and should always be carried
out. In a normal knee, the patella can be lifted from its lateral edge farther than the
transepicondylar axis, with a fully extended knee. On the contrary, a patellar tilt of 0˚ or
less indicates a tight lateral retinaculum.
Lateral retinacular tightness is very common in patients with anterior knee pain, and it is
the hallmark of the excessive lateral pressure syndrome described by Ficat.

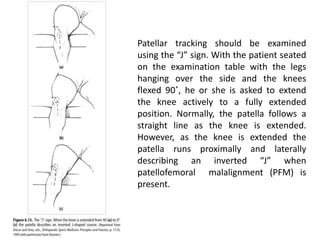

31. Patellar tracking should be examined
using the “J” sign. With the patient seated
on the examination table with the legs
hanging over the side and the knees
flexed 90˚, he or she is asked to extend
the knee actively to a fully extended
position. Normally, the patella follows a
straight line as the knee is extended.
However, as the knee is extended the
patella runs proximally and laterally
describing an inverted “J” when
patellofemoral malalignment (PFM) is
present.

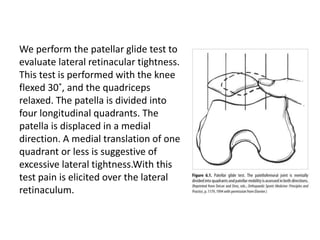

32. We perform the patellar glide test to
evaluate lateral retinacular tightness.
This test is performed with the knee
flexed 30˚, and the quadriceps
relaxed. The patella is divided into
four longitudinal quadrants. The
patella is displaced in a medial
direction. A medial translation of one
quadrant or less is suggestive of
excessive lateral tightness.With this
test pain is elicited over the lateral
retinaculum.

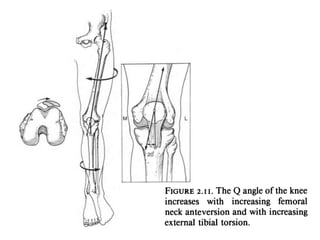

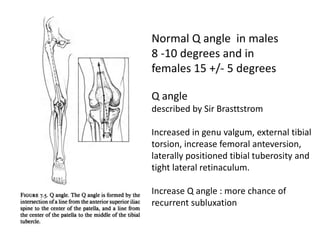

34. Q angle
described by Sir Brasttstrom
Increased in genu valgum, external tibial
torsion, increase femoral anteversion,
laterally positioned tibial tuberosity and
tight lateral retinaculum.
Increase Q angle : more chance of
recurrent subluxation
Normal Q angle in males
8 -10 degrees and in
females 15 +/- 5 degrees

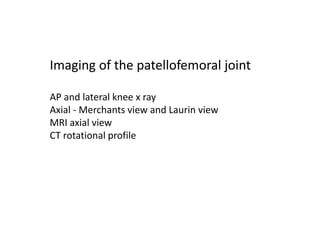

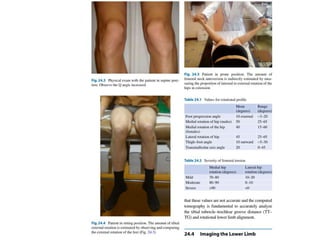

37. Imaging of the patellofemoral joint
AP and lateral knee x ray
Axial - Merchants view and Laurin view
MRI axial view
CT rotational profile

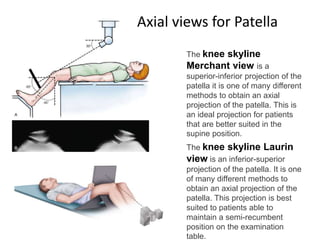

38. The knee skyline
Merchant view is a
superior-inferior projection of the
patella it is one of many different
methods to obtain an axial
projection of the patella. This is
an ideal projection for patients
that are better suited in the
supine position.
The knee skyline Laurin
view is an inferior-superior
projection of the patella. It is one
of many different methods to
obtain an axial projection of the
patella. This projection is best
suited to patients able to
maintain a semi-recumbent
position on the examination
table.
Axial views for Patella

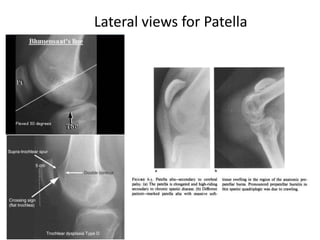

40. Lateral views for Patella

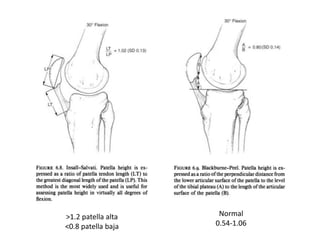

41. Normal
0.54-1.06
>1.2 patella alta
<0.8 patella baja

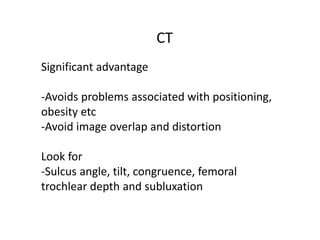

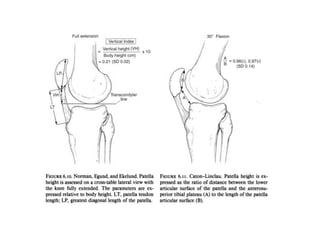

43. CT
Significant advantage
-Avoids problems associated with positioning,
obesity etc
-Avoid image overlap and distortion
Look for
-Sulcus angle, tilt, congruence, femoral
trochlear depth and subluxation

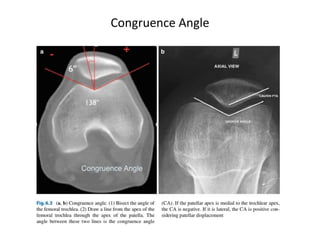

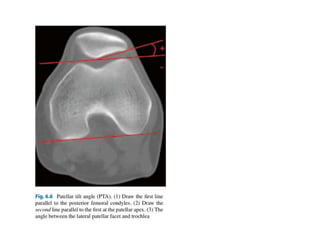

46. Congruence Angle

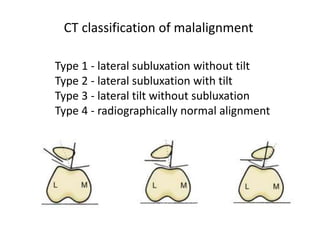

47. CT classification of malalignment
Type 1 - lateral subluxation without tilt
Type 2 - lateral subluxation with tilt
Type 3 - lateral tilt without subluxation
Type 4 - radiographically normal alignment

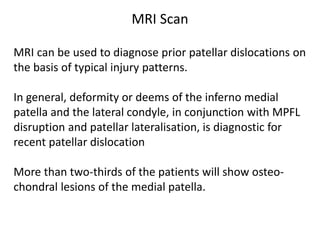

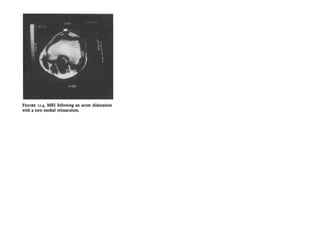

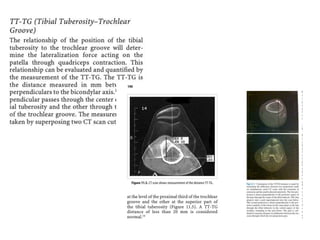

49. MRI Scan
MRI can be used to diagnose prior patellar dislocations on
the basis of typical injury patterns.
In general, deformity or deems of the inferno medial
patella and the lateral condyle, in conjunction with MPFL
disruption and patellar lateralisation, is diagnostic for
recent patellar dislocation
More than two-thirds of the patients will show osteo-
chondral lesions of the medial patella.

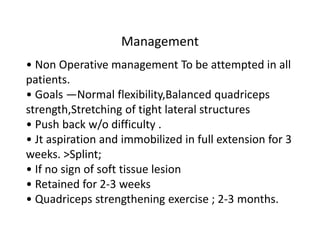

51. Management
• Non Operative management To be attempted in all
patients.
• Goals —Normal flexibility,Balanced quadriceps
strength,Stretching of tight lateral structures
• Push back w/o difficulty .
• Jt aspiration and immobilized in full extension for 3
weeks. >Splint;
• If no sign of soft tissue lesion
• Retained for 2-3 weeks
• Quadriceps strengthening exercise ; 2-3 months.

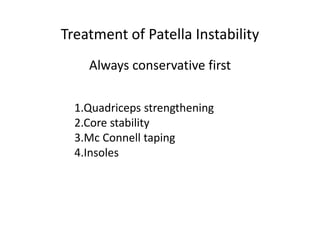

52. 1.Quadriceps strengthening
2.Core stability
3.Mc Connell taping
4.Insoles
Treatment of Patella Instability
Always conservative first

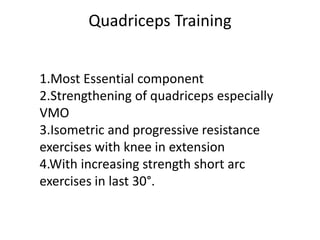

53. Quadriceps Training
1.Most Essential component
2.Strengthening of quadriceps especially
VMO
3.Isometric and progressive resistance
exercises with knee in extension
4.With increasing strength short arc
exercises in last 30°.

54. Indications
With certain knee injuries – such as patellofemoral pain syndrome where abnormal
patella tracking is contributing to the injury.
To prevent injury or injury aggravation – Patella taping maybe beneficial during
sports or activities that place the knee at-risk of injury or injury aggravation
Mc Connell patella taping

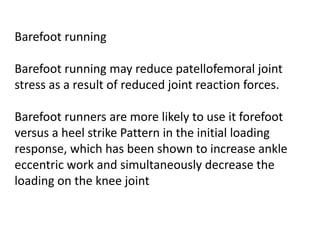

55. Barefoot running
Barefoot running may reduce patellofemoral joint
stress as a result of reduced joint reaction forces.
Barefoot runners are more likely to use it forefoot
versus a heel strike Pattern in the initial loading
response, which has been shown to increase ankle
eccentric work and simultaneously decrease the
loading on the knee joint

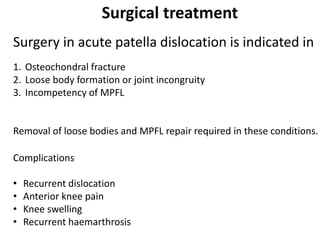

56. Surgical treatment
Surgery in acute patella dislocation is indicated in
1. Osteochondral fracture
2. Loose body formation or joint incongruity
3. Incompetency of MPFL
Removal of loose bodies and MPFL repair required in these conditions.
Complications
• Recurrent dislocation
• Anterior knee pain
• Knee swelling
• Recurrent haemarthrosis

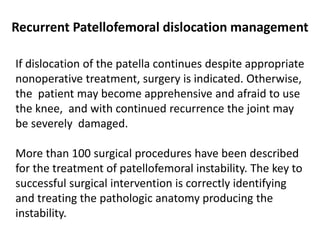

57. Recurrent Patellofemoral dislocation management
If dislocation of the patella continues despite appropriate
nonoperative treatment, surgery is indicated. Otherwise,
the patient may become apprehensive and afraid to use
the knee, and with continued recurrence the joint may
be severely damaged.
More than 100 surgical procedures have been described
for the treatment of patellofemoral instability. The key to
successful surgical intervention is correctly identifying
and treating the pathologic anatomy producing the
instability.

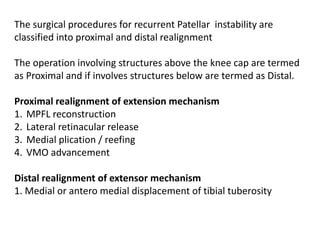

58. The surgical procedures for recurrent Patellar instability are
classified into proximal and distal realignment
The operation involving structures above the knee cap are termed
as Proximal and if involves structures below are termed as Distal.
Proximal realignment of extension mechanism
1. MPFL reconstruction
2. Lateral retinacular release
3. Medial plication / reefing
4. VMO advancement
Distal realignment of extensor mechanism
1. Medial or antero medial displacement of tibial tuberosity

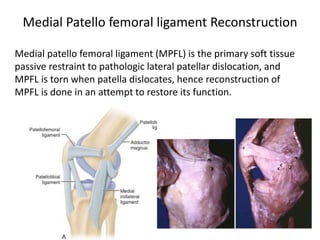

59. Medial patello femoral ligament (MPFL) is the primary soft tissue
passive restraint to pathologic lateral patellar dislocation, and
MPFL is torn when patella dislocates, hence reconstruction of
MPFL is done in an attempt to restore its function.
Medial Patello femoral ligament Reconstruction

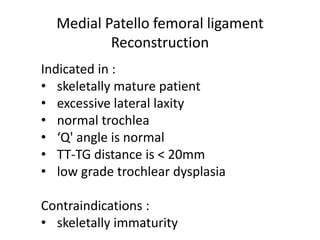

60. Indicated in :
• skeletally mature patient
• excessive lateral laxity
• normal trochlea
• ‘Q' angle is normal
• TT-TG distance is < 20mm
• low grade trochlear dysplasia
Contraindications :
• skeletally immaturity
Medial Patello femoral ligament
Reconstruction

61. • Examination under anaesthesia (EUA)
• Diagnostic Arthroscopy: Superolateral portal
• Graft Harvest & preparation
• Incission 1: on medial side patella
• Incission 2: on femoral fixation site
• Patellar side fixation
• Graft passage from incision 1 to 2
• Femoral side fixation
• Appropriate tensioning
Surgical Steps

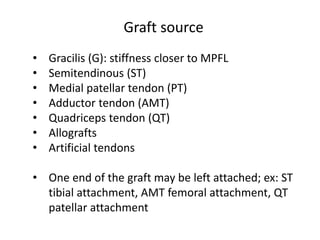

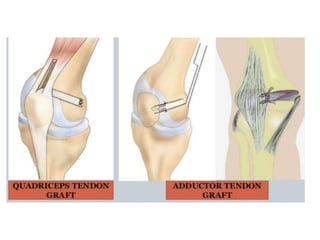

62. • Gracilis (G): stiffness closer to MPFL
• Semitendinous (ST)
• Medial patellar tendon (PT)
• Adductor tendon (AMT)
• Quadriceps tendon (QT)
• Allografts
• Artificial tendons
• One end of the graft may be left attached; ex: ST
tibial attachment, AMT femoral attachment, QT
patellar attachment
Graft source

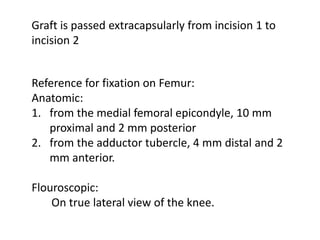

64. Graft is passed extracapsularly from incision 1 to
incision 2
Reference for fixation on Femur:
Anatomic:
1. from the medial femoral epicondyle, 10 mm
proximal and 2 mm posterior
2. from the adductor tubercle, 4 mm distal and 2
mm anterior.
Flouroscopic:
On true lateral view of the knee.

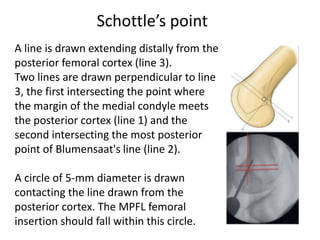

65. A line is drawn extending distally from the
posterior femoral cortex (line 3).
Two lines are drawn perpendicular to line
3, the first intersecting the point where
the margin of the medial condyle meets
the posterior cortex (line 1) and the
second intersecting the most posterior
point of Blumensaat's line (line 2).
A circle of 5-mm diameter is drawn
contacting the line drawn from the
posterior cortex. The MPFL femoral
insertion should fall within this circle.
Schottle’s point

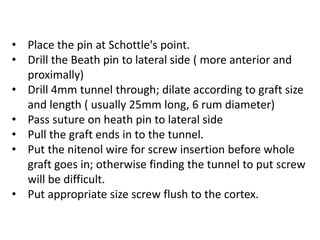

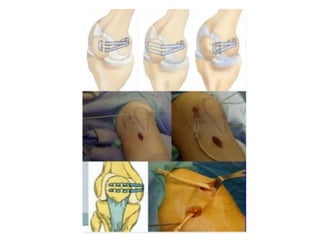

67. • Place the pin at Schottle's point.
• Drill the Beath pin to lateral side ( more anterior and
proximally)
• Drill 4mm tunnel through; dilate according to graft size
and length ( usually 25mm long, 6 rum diameter)
• Pass suture on heath pin to lateral side
• Pull the graft ends in to the tunnel.
• Put the nitenol wire for screw insertion before whole
graft goes in; otherwise finding the tunnel to put screw
will be difficult.
• Put appropriate size screw flush to the cortex.

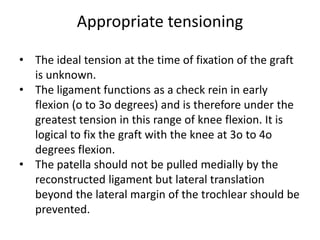

68. Appropriate tensioning
• The ideal tension at the time of fixation of the graft
is unknown.
• The ligament functions as a check rein in early
flexion (o to 3o degrees) and is therefore under the
greatest tension in this range of knee flexion. It is
logical to fix the graft with the knee at 3o to 4o
degrees flexion.
• The patella should not be pulled medially by the
reconstructed ligament but lateral translation
beyond the lateral margin of the trochlear should be
prevented.

69. • Prominence of fixation hardware on the medial aspect
of the medial femoral condyle: local irritation and
potentially restrict motion
• Patellar fracture: usually relates to the use of bone
tunnels; penetration of the anterior cortex
• Recurrent lateral patellar dislocation: predisposing
factors such as patellar alts, trochlear dysplasia, and
lateralization of the tibial tuberosity, as well as the
overall alignment of the lower limb
• Infection
• Hematoma formation
• Graft site morbidity
Complications

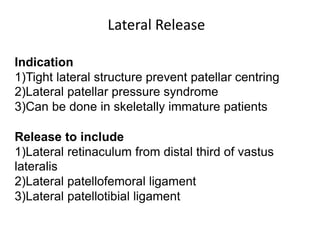

70. Indication
1)Tight lateral structure prevent patellar centring
2)Lateral patellar pressure syndrome
3)Can be done in skeletally immature patients
Release to include
1)Lateral retinaculum from distal third of vastus
lateralis
2)Lateral patellofemoral ligament
3)Lateral patellotibial ligament
Lateral Release

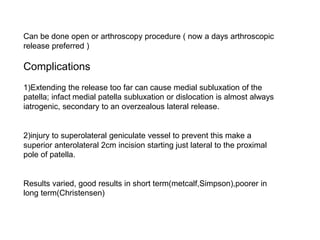

72. Can be done open or arthroscopy procedure ( now a days arthroscopic
release preferred )
Complications
1)Extending the release too far can cause medial subluxation of the
patella; infact medial patella subluxation or dislocation is almost always
iatrogenic, secondary to an overzealous lateral release.
2)injury to superolateral geniculate vessel to prevent this make a
superior anterolateral 2cm incision starting just lateral to the proximal
pole of patella.
Results varied, good results in short term(metcalf,Simpson),poorer in
long term(Christensen)

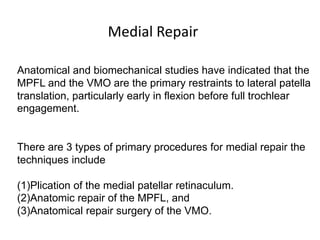

73. Anatomical and biomechanical studies have indicated that the
MPFL and the VMO are the primary restraints to lateral patella
translation, particularly early in flexion before full trochlear
engagement.
There are 3 types of primary procedures for medial repair the
techniques include
(1)Plication of the medial patellar retinaculum.
(2)Anatomic repair of the MPFL, and
(3)Anatomical repair surgery of the VMO.
Medial Repair

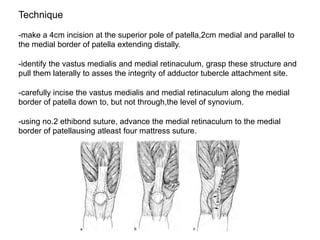

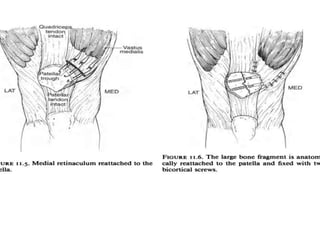

74. Technique
-make a 4cm incision at the superior pole of patella,2cm medial and parallel to
the medial border of patella extending distally.
-identify the vastus medialis and medial retinaculum, grasp these structure and
pull them laterally to asses the integrity of adductor tubercle attachment site.
-carefully incise the vastus medialis and medial retinaculum along the medial
border of patella down to, but not through,the level of synovium.
-using no.2 ethibond suture, advance the medial retinaculum to the medial
border of patellausing atleast four mattress suture.

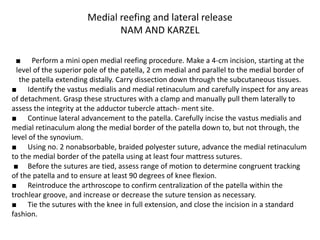

75. Medial reefing and lateral release
NAM AND KARZEL
■ Perform a mini open medial reefing procedure. Make a 4-cm incision, starting at the
level of the superior pole of the patella, 2 cm medial and parallel to the medial border of
the patella extending distally. Carry dissection down through the subcutaneous tissues.
■ Identify the vastus medialis and medial retinaculum and carefully inspect for any areas
of detachment. Grasp these structures with a clamp and manually pull them laterally to
assess the integrity at the adductor tubercle attach- ment site.
■ Continue lateral advancement to the patella. Carefully incise the vastus medialis and
medial retinaculum along the medial border of the patella down to, but not through, the
level of the synovium.
■ Using no. 2 nonabsorbable, braided polyester suture, advance the medial retinaculum
to the medial border of the patella using at least four mattress sutures.
■ Before the sutures are tied, assess range of motion to determine congruent tracking
of the patella and to ensure at least 90 degrees of knee flexion.
■ Reintroduce the arthroscope to confirm centralization of the patella within the
trochlear groove, and increase or decrease the suture tension as necessary.
■ Tie the sutures with the knee in full extension, and close the incision in a standard
fashion.

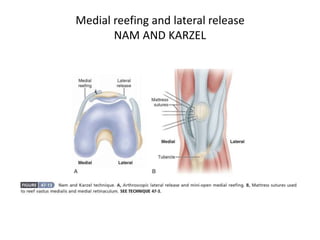

76. Medial reefing and lateral release
NAM AND KARZEL

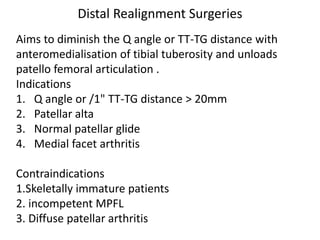

77. Distal Realignment Surgeries
Aims to diminish the Q angle or TT-TG distance with
anteromedialisation of tibial tuberosity and unloads
patello femoral articulation .
Indications
1. Q angle or /1" TT-TG distance > 20mm
2. Patellar alta
3. Normal patellar glide
4. Medial facet arthritis
Contraindications
1.Skeletally immature patients
2. incompetent MPFL
3. Diffuse patellar arthritis

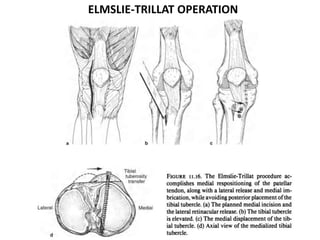

78. ELMSLIE-TRILLAT OPERATION

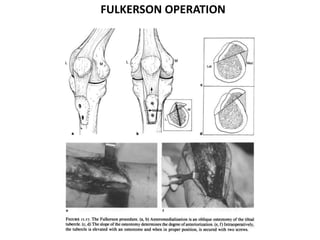

79. FULKERSON OPERATION

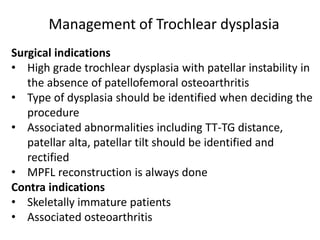

80. Surgical indications
• High grade trochlear dysplasia with patellar instability in
the absence of patellofemoral osteoarthritis
• Type of dysplasia should be identified when deciding the
procedure
• Associated abnormalities including TT-TG distance,
patellar alta, patellar tilt should be identified and
rectified
• MPFL reconstruction is always done
Contra indications
• Skeletally immature patients
• Associated osteoarthritis
Management of Trochlear dysplasia

81. Type A dysplasia : medial patellofemoral ligament
reconstruction
Type B and D dysplasia : sulcus deepening
trochleoplasty with MPFL reconstruction
Type C dvsplasia : lateral facet elevation trochleoplasty
with MPFL reconstruction
Management of Trochlear dysplasia

82. Trochleaoplasty

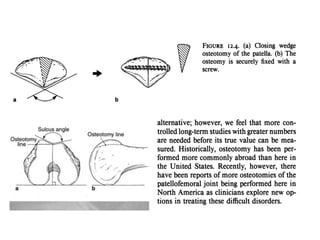

84. Derotational High tibial osteotomy

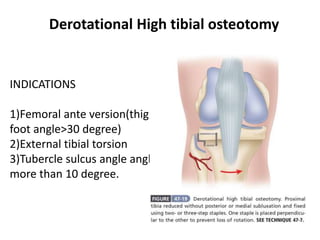

INDICATIONS
1)Femoral ante version(thigh
foot angle>30 degree)
2)External tibial torsion
3)Tubercle sulcus angle angle
more than 10 degree.

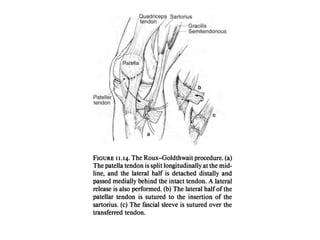

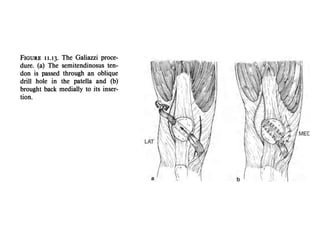

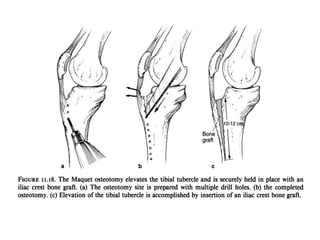

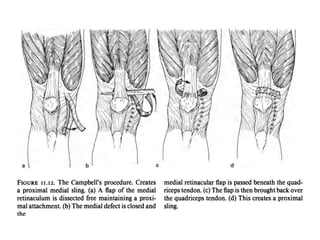

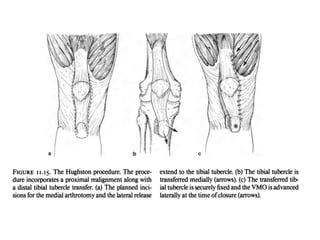

93. Thank You!
