1. PARENTERAL CONTROLLED DRUG
DELIVERY SYSTEM
6/15/2020
By. Mr. Sachin Chandankar
Research Scholar
M. Pharmacy
(Pharmaceutics) & PGD-IPR

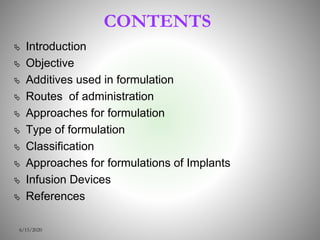

2. CONTENTS
 Introduction
 Objective
 Additives used in formulation
 Routes of administration
 Approaches for formulation
 Type of formulation
 Classification
 Approaches for formulations of Implants

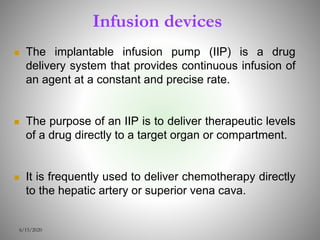

 Infusion Devices

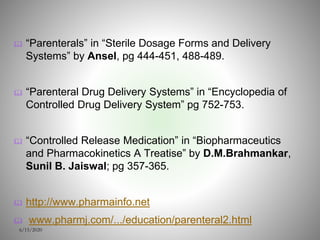

 References
6/15/2020

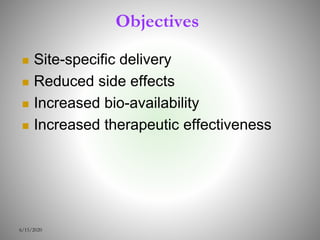

3. Objectives
 Site-specific delivery
 Reduced side effects
 Increased bio-availability
 Increased therapeutic effectiveness
6/15/2020

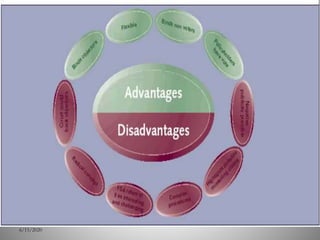

4. 6/15/2020

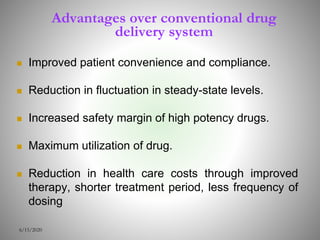

5. Advantages over conventional drug
delivery system
 Improved patient convenience and compliance.
 Reduction in fluctuation in steady-state levels.
 Increased safety margin of high potency drugs.
 Maximum utilization of drug.
 Reduction in health care costs through improved
therapy, shorter treatment period, less frequency of
dosing
6/15/2020

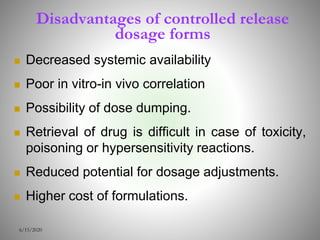

6. Disadvantages of controlled release
dosage forms
 Decreased systemic availability
 Poor in vitro-in vivo correlation
 Possibility of dose dumping.
 Retrieval of drug is difficult in case of toxicity,
poisoning or hypersensitivity reactions.
 Reduced potential for dosage adjustments.
 Higher cost of formulations.
6/15/2020

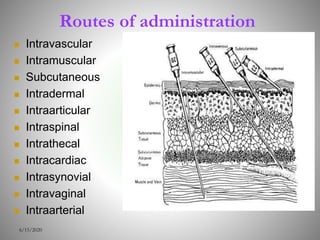

7. Routes of administration
 Intravascular
 Intramuscular
 Subcutaneous
 Intradermal
 Intraarticular
 Intraspinal
 Intrathecal
 Intracardiac
 Intrasynovial
 Intravaginal
 Intraarterial
6/15/2020

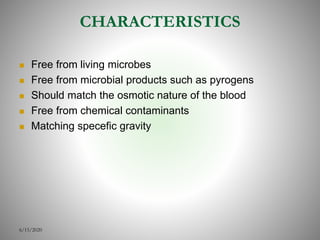

8. CHARACTERISTICS
 Free from living microbes
 Free from microbial products such as pyrogens
 Should match the osmotic nature of the blood
 Free from chemical contaminants
 Matching specefic gravity
6/15/2020

9. ADDITIVES USED DURING FORMULATION
OF PARENTRALS
 Vehicles
 Stabilizers
 Buffering agents
 Tonicity factors
 Solubilizers
 Wetting, suspending, emulsifying agents
 Antimicrobial compounds
6/15/2020

10. APPROACHES FOR
FORMUALATION
6/15/2020

11. 116/15/2020

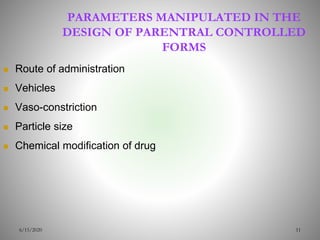

PARAMETERS MANIPULATED IN THE
DESIGN OF PARENTRAL CONTROLLED
FORMS
 Route of administration
 Vehicles
 Vaso-constriction
 Particle size
 Chemical modification of drug

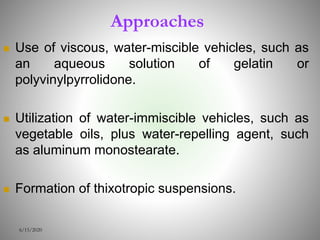

12. Approaches
 Use of viscous, water-miscible vehicles, such as
an aqueous solution of gelatin or
polyvinylpyrrolidone.
 Utilization of water-immiscible vehicles, such as
vegetable oils, plus water-repelling agent, such
as aluminum monostearate.
 Formation of thixotropic suspensions.
6/15/2020

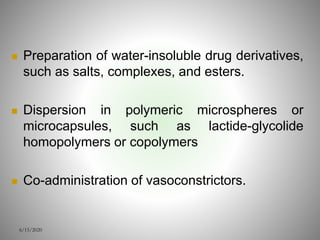

13.  Preparation of water-insoluble drug derivatives,
such as salts, complexes, and esters.
 Dispersion in polymeric microspheres or
microcapsules, such as lactide-glycolide
homopolymers or copolymers
 Co-administration of vasoconstrictors.
6/15/2020

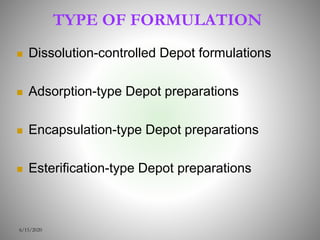

14. TYPE OF FORMULATION
 Dissolution-controlled Depot formulations
 Adsorption-type Depot preparations
 Encapsulation-type Depot preparations
 Esterification-type Depot preparations
6/15/2020

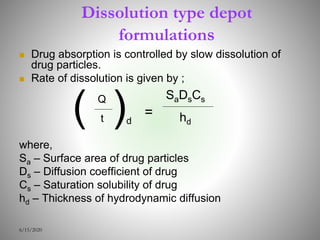

15. Dissolution type depot
formulations
 Drug absorption is controlled by slow dissolution of
drug particles.
 Rate of dissolution is given by ;
where,
Sa – Surface area of drug particles
Ds – Diffusion coefficient of drug
Cs – Saturation solubility of drug
hd – Thickness of hydrodynamic diffusion
6/15/2020
( Q
t )d
=
SaDsCs
hd

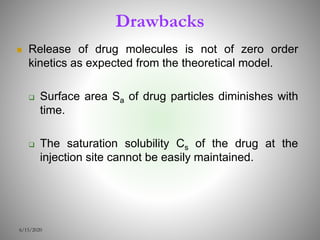

16. Drawbacks
 Release of drug molecules is not of zero order
kinetics as expected from the theoretical model.
 Surface area Sa of drug particles diminishes with
time.
 The saturation solubility Cs of the drug at the
injection site cannot be easily maintained.
6/15/2020

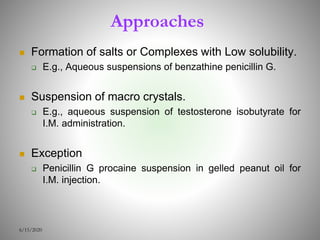

17. Approaches
 Formation of salts or Complexes with Low solubility.
 E.g., Aqueous suspensions of benzathine penicillin G.
 Suspension of macro crystals.
 E.g., aqueous suspension of testosterone isobutyrate for
I.M. administration.
 Exception
 Penicillin G procaine suspension in gelled peanut oil for
I.M. injection.
6/15/2020

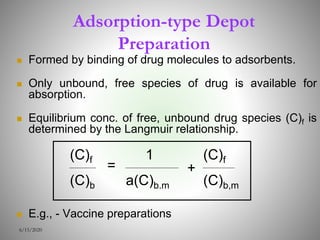

18. Adsorption-type Depot
Preparation
 Formed by binding of drug molecules to adsorbents.
 Only unbound, free species of drug is available for
absorption.
 Equilibrium conc. of free, unbound drug species (C)f is
determined by the Langmuir relationship.
 E.g., - Vaccine preparations
6/15/2020
1
a(C)b.m
(C)f
(C)b
= +
(C)f
(C)b,m

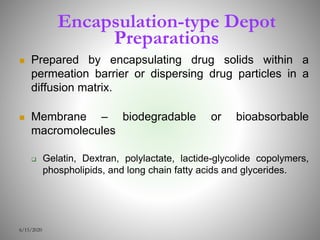

19. Encapsulation-type Depot
Preparations
 Prepared by encapsulating drug solids within a
permeation barrier or dispersing drug particles in a
diffusion matrix.
 Membrane – biodegradable or bioabsorbable
macromolecules
 Gelatin, Dextran, polylactate, lactide-glycolide copolymers,
phospholipids, and long chain fatty acids and glycerides.
6/15/2020

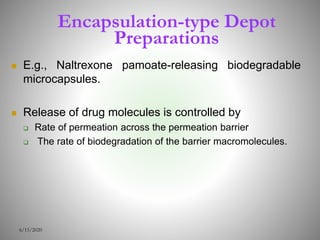

20. Encapsulation-type Depot
Preparations
 E.g., Naltrexone pamoate-releasing biodegradable
microcapsules.
 Release of drug molecules is controlled by
 Rate of permeation across the permeation barrier
 The rate of biodegradation of the barrier macromolecules.
6/15/2020

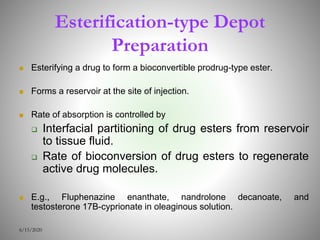

21. Esterification-type Depot
Preparation
 Esterifying a drug to form a bioconvertible prodrug-type ester.
 Forms a reservoir at the site of injection.
 Rate of absorption is controlled by
 Interfacial partitioning of drug esters from reservoir
to tissue fluid.
 Rate of bioconversion of drug esters to regenerate
active drug molecules.
 E.g., Fluphenazine enanthate, nandrolone decanoate, and
testosterone 17B-cyprionate in oleaginous solution.
6/15/2020

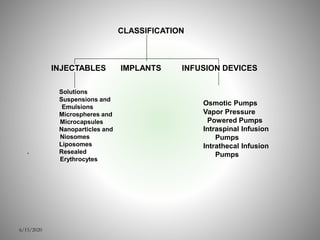

22. CLASSIFICATION
INJECTABLES IMPLANTS INFUSION DEVICES
Solutions
Suspensions and
Emulsions
Microspheres and
Microcapsules
Nanoparticles and
Niosomes
Liposomes
. Resealed
Erythrocytes
Osmotic Pumps
Vapor Pressure
Powered Pumps

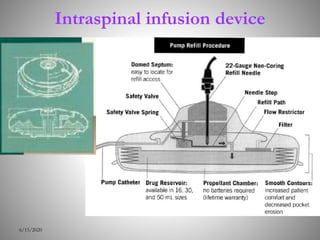

Intraspinal Infusion
Pumps
Intrathecal Infusion
Pumps
6/15/2020

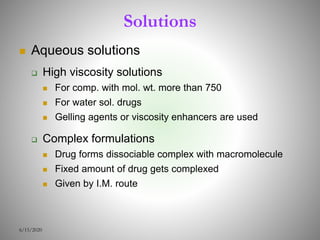

23. Solutions
 Aqueous solutions
 High viscosity solutions
 For comp. with mol. wt. more than 750
 For water sol. drugs
 Gelling agents or viscosity enhancers are used
 Complex formulations
 Drug forms dissociable complex with macromolecule
 Fixed amount of drug gets complexed
 Given by I.M. route
6/15/2020

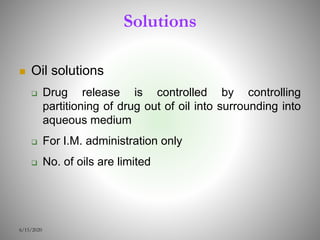

24. Solutions
 Oil solutions
 Drug release is controlled by controlling
partitioning of drug out of oil into surrounding into
aqueous medium
 For I.M. administration only
 No. of oils are limited
6/15/2020

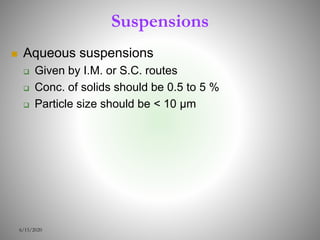

25. Suspensions
 Aqueous suspensions
 Given by I.M. or S.C. routes
 Conc. of solids should be 0.5 to 5 %
 Particle size should be < 10 μm
6/15/2020

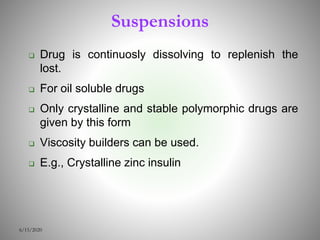

26. Suspensions
 Drug is continuosly dissolving to replenish the
lost.
 For oil soluble drugs
 Only crystalline and stable polymorphic drugs are
given by this form
 Viscosity builders can be used.
 E.g., Crystalline zinc insulin
6/15/2020

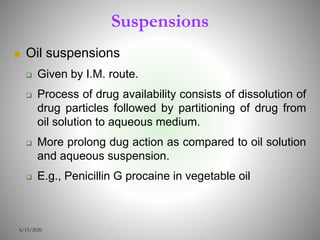

27. Suspensions
 Oil suspensions
 Given by I.M. route.
 Process of drug availability consists of dissolution of
drug particles followed by partitioning of drug from
oil solution to aqueous medium.
 More prolong dug action as compared to oil solution
and aqueous suspension.
 E.g., Penicillin G procaine in vegetable oil
6/15/2020

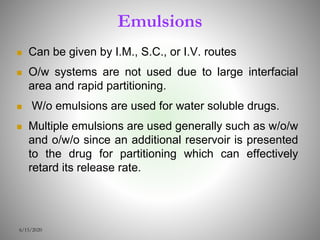

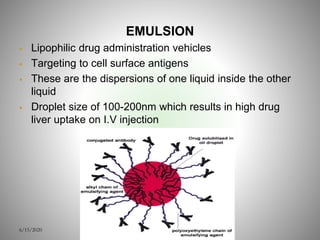

28. Emulsions
 Can be given by I.M., S.C., or I.V. routes
 O/w systems are not used due to large interfacial
area and rapid partitioning.
 W/o emulsions are used for water soluble drugs.
 Multiple emulsions are used generally such as w/o/w
and o/w/o since an additional reservoir is presented
to the drug for partitioning which can effectively
retard its release rate.
6/15/2020

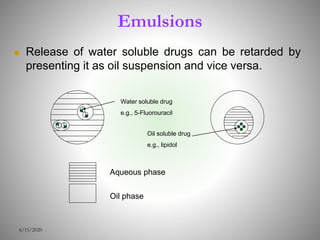

29. Emulsions
 Release of water soluble drugs can be retarded by
presenting it as oil suspension and vice versa.
6/15/2020
Aqueous phase
Oil phase
Water soluble drug
e.g., 5-Fluorouracil
Oil soluble drug
e.g., lipidol

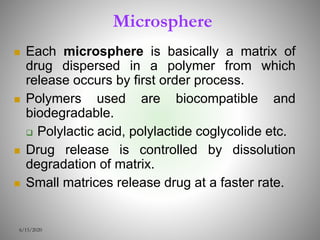

30. Microsphere
 Each microsphere is basically a matrix of
drug dispersed in a polymer from which
release occurs by first order process.
 Polymers used are biocompatible and
biodegradable.
 Polylactic acid, polylactide coglycolide etc.
 Drug release is controlled by dissolution
degradation of matrix.
 Small matrices release drug at a faster rate.
6/15/2020

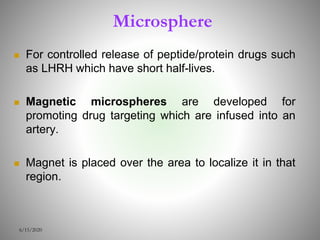

31. Microsphere
 For controlled release of peptide/protein drugs such
as LHRH which have short half-lives.
 Magnetic microspheres are developed for
promoting drug targeting which are infused into an
artery.
 Magnet is placed over the area to localize it in that
region.
6/15/2020

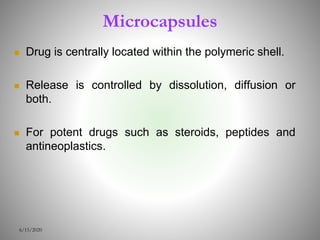

32. Microcapsules
 Drug is centrally located within the polymeric shell.
 Release is controlled by dissolution, diffusion or
both.
 For potent drugs such as steroids, peptides and
antineoplastics.
6/15/2020

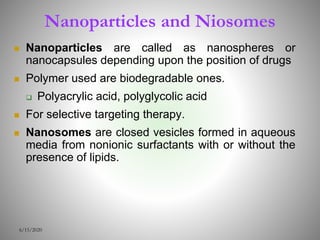

33. Nanoparticles and Niosomes
 Nanoparticles are called as nanospheres or
nanocapsules depending upon the position of drugs
 Polymer used are biodegradable ones.
 Polyacrylic acid, polyglycolic acid
 For selective targeting therapy.
 Nanosomes are closed vesicles formed in aqueous
media from nonionic surfactants with or without the
presence of lipids.
6/15/2020

34. Liposomes
 Spherule/vesicle of lipid bilayers enclosing an
aqueous compartment.
 Lipid most commonly used are phospholipids,
sphingolipids, glycolipids and sterols.
6/15/2020
liposomes
MLV OLV ULV
GUVMUV LUV

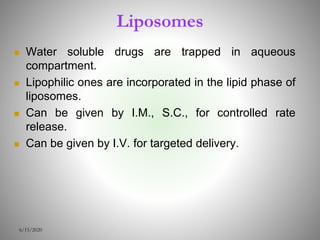

35. Liposomes
 Water soluble drugs are trapped in aqueous
compartment.
 Lipophilic ones are incorporated in the lipid phase of
liposomes.
 Can be given by I.M., S.C., for controlled rate
release.
 Can be given by I.V. for targeted delivery.
6/15/2020

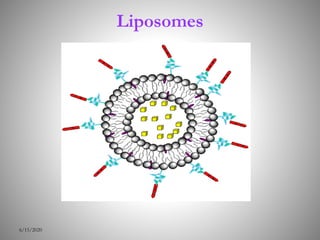

36. Liposomes
6/15/2020

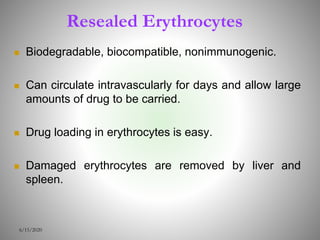

37. Resealed Erythrocytes
 Biodegradable, biocompatible, nonimmunogenic.
 Can circulate intravascularly for days and allow large
amounts of drug to be carried.
 Drug loading in erythrocytes is easy.
 Damaged erythrocytes are removed by liver and
spleen.
6/15/2020

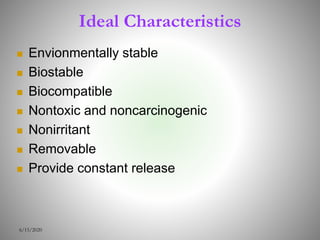

38. Ideal Characteristics
 Envionmentally stable
 Biostable
 Biocompatible
 Nontoxic and noncarcinogenic
 Nonirritant
 Removable
 Provide constant release
6/15/2020

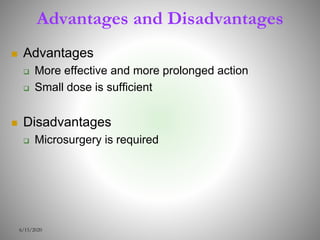

39. Advantages and Disadvantages
 Advantages
 More effective and more prolonged action
 Small dose is sufficient
 Disadvantages
 Microsurgery is required
6/15/2020

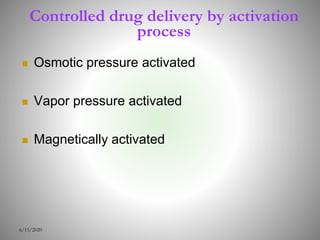

40. Approaches to implantable drug delivery
CDD by diffusion Activation process Feedback regulated
Osmotic pressure

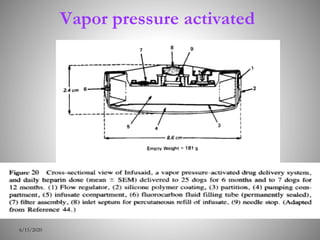

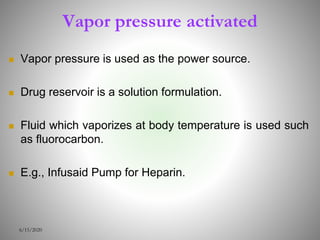

Vapour pressure

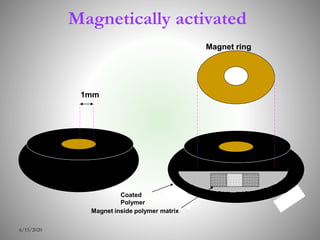

Magnetically activated
Phonophoresis
Hydration activated

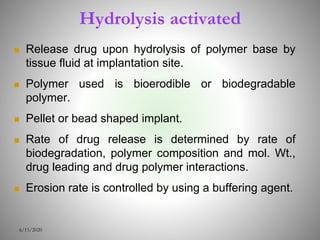

Hydrolysis activated
Bioerosion
Bioresponsive
Polymer
membrane
Matrix
diffusion
Microreservoir
6/15/2020

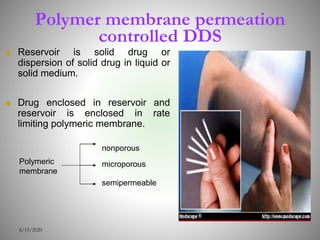

41. Polymer membrane permeation
controlled DDS
 Reservoir is solid drug or
dispersion of solid drug in liquid or
solid medium.
 Drug enclosed in reservoir and
reservoir is enclosed in rate
limiting polymeric membrane.
6/15/2020
Polymeric
membrane
nonporous
microporous
semipermeable

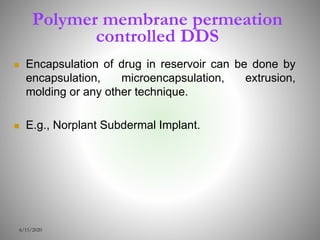

42. Polymer membrane permeation
controlled DDS
 Encapsulation of drug in reservoir can be done by
encapsulation, microencapsulation, extrusion,
molding or any other technique.
 E.g., Norplant Subdermal Implant.
6/15/2020

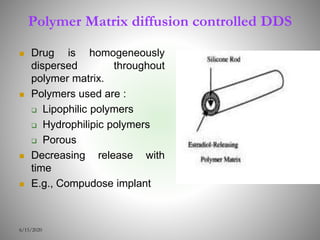

43. Polymer Matrix diffusion controlled DDS
 Drug is homogeneously
dispersed throughout
polymer matrix.
 Polymers used are :
 Lipophilic polymers
 Hydrophilipic polymers
 Porous
 Decreasing release with
time
 E.g., Compudose implant
6/15/2020

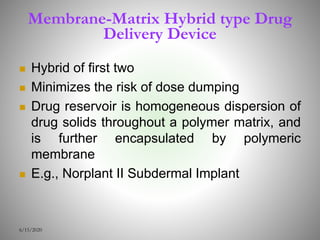

44. Membrane-Matrix Hybrid type Drug
Delivery Device
 Hybrid of first two
 Minimizes the risk of dose dumping
 Drug reservoir is homogeneous dispersion of
drug solids throughout a polymer matrix, and
is further encapsulated by polymeric
membrane
 E.g., Norplant II Subdermal Implant
6/15/2020

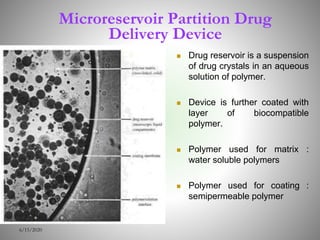

45. Microreservoir Partition Drug
Delivery Device
 Drug reservoir is a suspension
of drug crystals in an aqueous
solution of polymer.
 Device is further coated with
layer of biocompatible
polymer.
 Polymer used for matrix :
water soluble polymers
 Polymer used for coating :
semipermeable polymer
6/15/2020

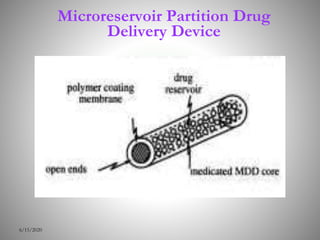

46. Microreservoir Partition Drug
Delivery Device
6/15/2020

47. Controlled drug delivery by activation
process
 Osmotic pressure activated
 Vapor pressure activated
 Magnetically activated
6/15/2020

48. Osmotic pressure activated
 Osmotic pressure
is used as energy
source
 Drug reservoir is
either a solution
or semisolid
formulation
 Cellulosic outer
membrane
 Polyester internal
membrane
6/15/2020

49. Vapor pressure activated
 Vapor pressure is used as the power source.
 Drug reservoir is a solution formulation.
 Fluid which vaporizes at body temperature is used such
as fluorocarbon.
 E.g., Infusaid Pump for Heparin.
6/15/2020

50. Vapor pressure activated
6/15/2020

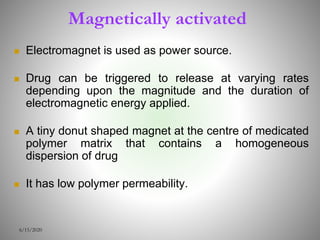

51. Magnetically activated
 Electromagnet is used as power source.
 Drug can be triggered to release at varying rates
depending upon the magnitude and the duration of
electromagnetic energy applied.
 A tiny donut shaped magnet at the centre of medicated
polymer matrix that contains a homogeneous
dispersion of drug
 It has low polymer permeability.
6/15/2020

52. Magnetically activated
 External surface is coated with pure polymer, such
as ethylene vinyl acetate copolymer or silicone
copolymer.
 The drug is activated to release at much higher rate
by applying the external magnetic field.
6/15/2020

53. Magnetically activated
6/15/2020
1mm
Magnet ring
Coated
Polymer
Magnet inside polymer matrix

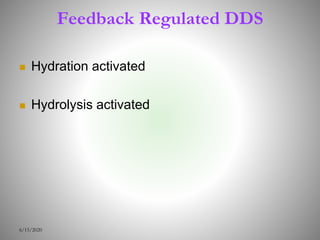

54. Feedback Regulated DDS
 Hydration activated
 Hydrolysis activated
6/15/2020

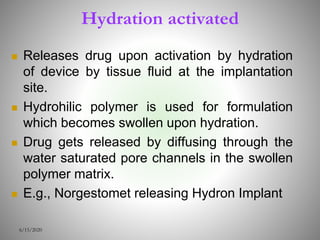

55. Hydration activated
 Releases drug upon activation by hydration
of device by tissue fluid at the implantation
site.
 Hydrohilic polymer is used for formulation
which becomes swollen upon hydration.
 Drug gets released by diffusing through the
water saturated pore channels in the swollen
polymer matrix.
 E.g., Norgestomet releasing Hydron Implant
6/15/2020

56. Hydrolysis activated
 Release drug upon hydrolysis of polymer base by
tissue fluid at implantation site.
 Polymer used is bioerodible or biodegradable
polymer.
 Pellet or bead shaped implant.
 Rate of drug release is determined by rate of
biodegradation, polymer composition and mol. Wt.,
drug leading and drug polymer interactions.
 Erosion rate is controlled by using a buffering agent.
6/15/2020

57. INFUSION DEVICES
6/15/2020

58. Infusion devices
 The implantable infusion pump (IIP) is a drug
delivery system that provides continuous infusion of
an agent at a constant and precise rate.
 The purpose of an IIP is to deliver therapeutic levels
of a drug directly to a target organ or compartment.
 It is frequently used to deliver chemotherapy directly
to the hepatic artery or superior vena cava.
6/15/2020

59. Intraspinal infusion device
6/15/2020

60. RECENT DEVELOPMENTS
LIPOSOMES
Passive tumour targeting
Vaccine adjuvants
Passive targeting to lung endothelium in gene delivery
Targeting to regional lymph nodes
Targeting to cell surface ligands in various organs/areas of
pathology
Sustained release depot at point of injection
6/15/2020

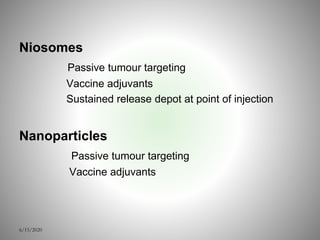

61. Niosomes
Passive tumour targeting
Vaccine adjuvants
Sustained release depot at point of injection
Nanoparticles
Passive tumour targeting
Vaccine adjuvants
6/15/2020

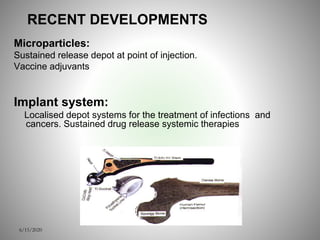

62. Microparticles:
Sustained release depot at point of injection.
Vaccine adjuvants
Implant system:
Localised depot systems for the treatment of infections and
cancers. Sustained drug release systemic therapies
6/15/2020
RECENT DEVELOPMENTS

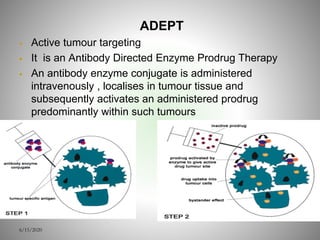

63. ADEPT
 Active tumour targeting
 It is an Antibody Directed Enzyme Prodrug Therapy
 An antibody enzyme conjugate is administered
intravenously , localises in tumour tissue and
subsequently activates an administered prodrug
predominantly within such tumours
6/15/2020

64. EMULSION
 Lipophilic drug administration vehicles
 Targeting to cell surface antigens
 These are the dispersions of one liquid inside the other
liquid
 Droplet size of 100-200nm which results in high drug
liver uptake on I.V injection
6/15/2020

65. CYCLODEXTRIN
 Lipophilic drug solubilisation for parenteral use
 These compounds form inclusion complexes with
hydrophobic guest molecule
 Modfied cyclodextrins such as hydroxypropyl b-
cyclodextrin and sulphobutyl b-cyclodextrins are
regardedas safe for parentral use
6/15/2020

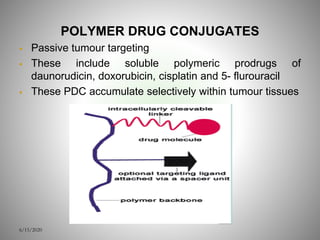

66. POLYMER DRUG CONJUGATES
 Passive tumour targeting
 These include soluble polymeric prodrugs of
daunorudicin, doxorubicin, cisplatin and 5- flurouracil
 These PDC accumulate selectively within tumour tissues
6/15/2020

67. 6/15/2020

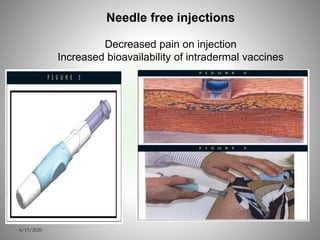

Needle free injections
Decreased pain on injection
Increased bioavailability of intradermal vaccines

68. 686/15/2020
 “Parenteral Drug Delivery and Delivery Systems”, in
“Controlled Drug Delivery System” by Y.W.Chein;
Marcel Decker Publications Vol. 50 pg – 381 -513.
 “Parenteral Drug Delivery”, in “Targeted and Controlled
Drug Delivery” by Vyas and Khar pg – 30-33.
 “Parenteral Products”, in “Controlled Drug Delivery” by
Robinson and Lee; Marcel Decker Publications, Vol. 29
pg – 433 – 450.
References

69.  “Parenterals” in “Sterile Dosage Forms and Delivery
Systems” by Ansel, pg 444-451, 488-489.
 “Parenteral Drug Delivery Systems” in “Encyclopedia of
Controlled Drug Delivery System” pg 752-753.
 “Controlled Release Medication” in “Biopharmaceutics
and Pharmacokinetics A Treatise” by D.M.Brahmankar,
Sunil B. Jaiswal; pg 357-365.
 http://www.pharmainfo.net
 www.pharmj.com/.../education/parenteral2.html
6/15/2020

70. Thank you!
6/15/2020
