OVHcloud – Enterprise Cloud Databases

1
Enterprise Cloud Databases
Product presentation
v2019-10-03
Bastien Verdebout (@bastienOVH) / Wilfried Roset

2

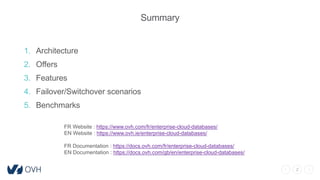

Summary
1. Architecture
2. Offers
3. Features
4. Failover/Switchover scenarios
5. Benchmarks
FR Website : https://www.ovh.com/fr/enterprise-cloud-databases/
EN Website : https://www.ovh.ie/enterprise-cloud-databases/
FR Documentation : https://docs.ovh.com/fr/enterprise-cloud-databases/
EN Documentation : https://docs.ovh.com/gb/en/enterprise-cloud-databases/

3

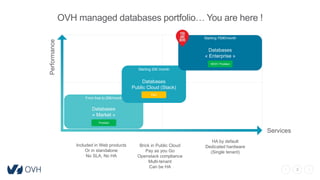

Performance
Services
Included in Web products
Or in standalone
No SLA, No HA
Databases
« Market »
From free to 20€/month
Databases
Public Cloud (Stack)
Databases
« Enterprise »
Brick in Public Cloud
Pay as you Go
Openstack compliance
Multi-tenant
Can be HA
HA by default
Dedicated hardware
(Single tenant)
Prodded
R&D
Starting 750€/month
Starting 20€ /month
OVH managed databases portfolio… You are here !
NEW ! Prodded

5

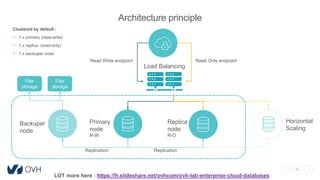

Architecture principle
Clustered by default :
 1 x primary (read-write)
 1 x replica (read-only)
 1 x backuper node
LOT more here : https://fr.slideshare.net/ovhcom/ovh-lab-enterprise-cloud-databases
Read Only endpointRead Write endpoint
Backuper
node
Primary
node
R-W
Replica
node
R-O
Horizontal
Scaling
Replication
Load Balancing
Replication
Filer
storage
Filer
storage

6

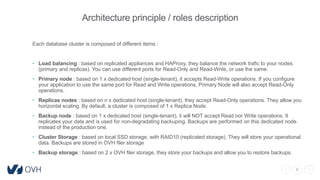

Architecture principle / roles description
Each database cluster is composed of different items :
• Load balancing : based on replicated appliances and HAProxy, they balance the network trafic to your nodes
(primary and replicas). You can use different ports for Read-Only and Read-Write, or use the same.
• Primary node : based on 1 x dedicated host (single-tenant), it accepts Read-Write operations. If you configure
your application to use the same port for Read and Write operations, Primary Node will also accept Read-Only
operations.
• Replicas nodes : based on n x dedicated host (single-tenant), they accept Read-Only operations. They allow you
horizontal scaling. By default, a cluster is composed of 1 x Replica Node.
• Backup node : based on 1 x dedicated host (single-tenant), it will NOT accept Read nor Write operations. It
replicates your data and is used for non-degradating backuping. Backups are performed on this dedicated node
instead of the production one.
• Cluster Storage : based on local SSD storage, with RAID10 (replicated storage). They will store your operational
data. Backups are stored in OVH filer storage
• Backup storage : based on 2 x OVH filer storage, they store your backups and allow you to restore backups.

7

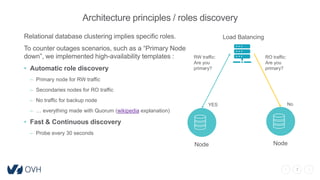

Architecture principles / roles discovery
Load Balancing
RW traffic:
Are you
primary?
Relational database clustering implies specific roles.
To counter outages scenarios, such as a “Primary Node
down”, we implemented high-availability templates :
• Automatic role discovery
– Primary node for RW traffic
– Secondaries nodes for RO traffic
– No traffic for backup node
– … everything made with Quorum (wikipedia explanation)
• Fast & Continuous discovery
– Probe every 30 seconds
Node
RO traffic:
Are you
primary?
Node
YES No

8

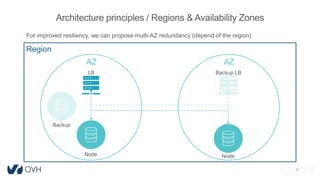

Architecture principles / Regions & Availability Zones
Region
AZ AZ
LB Backup LB
Node Node
Backup
For improved resiliency, we can propose multi-AZ redundancy (depend of the region)

10

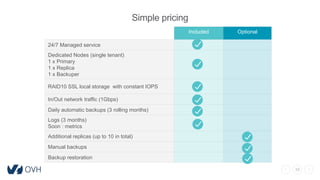

Simple pricing
Included Optional
24/7 Managed service
Dedicated Nodes (single tenant)
1 x Primary
1 x Replica
1 x Backuper
RAID10 SSL local storage with constant IOPS
In/Out network traffic (1Gbps)
Daily automatic backups (3 rolling months)
Logs (3 months)
Soon : metrics
Additional replicas (up to 10 in total)
Manual backups
Backup restoration

11

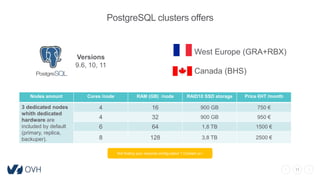

PostgreSQL clusters offers
Nodes amount Cores /node RAM (GB) /node RAID10 SSD storage Price €HT /month
3 dedicated nodes
whith dedicated
hardware are
included by default
(primary, replica,
backuper).
4 16 900 GB 750 €
4 32 900 GB 950 €
6 64 1,8 TB 1500 €
8 128 3,8 TB 2500 €
West Europe (GRA+RBX)
Canada (BHS)
Versions
9.6, 10, 11
Not finding your required configuration ? Contact us !

12
Aditional replicas
Manual backups :
Restoring a backup :
(it creates an instance)
PostgreSQL clusters offers : options
RAM (GB) /replica Price €HT /month
16 150 €
32 200 €
64 300 €
128 600 €
Item Hourly Monthly
Data consumed 0,00015 € 0,108 € /GB
Item Hourly Monthly
Restored instance 0,09€ /instance +- 65€ /instance
Data volume 0,000055 € /GB +- 0,04 € /GB

14
Key benefits
Databases for a S.M.A.R.T. Cloud
Dedicated hardware
Each node is on a dedicated server,
just for you. We provide constant CPU
performances, constant IOPS and real
isolation.
100% Managed
We monitor your services 24/7. We
perform software maintenance and
hardware maintenance, and daily
backup your critical data.
Vanilla software
No vendor lock-in. We use open source
and vanilla software, trusted by the
community.
Simple pricing
Network traffic ? Included. Storage and
constant IOPS ? Included/
Observability tools, daily backups, and
so on ? Included !
Scalability
You databases can grow with your
needs. Change you database plan
when you want, and add up to 50
replicas for horizontal scalability.
High-Availability by default
Your workloads are critical. Our
architecture are highly available by
default, with automatic failover in few
seconds. We provide 99,99% SLA.
</>

15

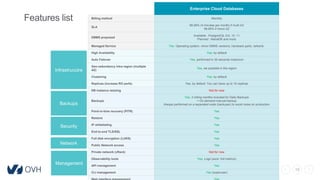

Features list
Enterprise Cloud Databases
Billing method Monthly
SLA
99,99% (4 minutes per month) if multi AZ
99,95% if mono AZ
DBMS proposed
Available : PostgreSQL 9.6, 10, 11
Planned : MariaDB and more
Managed Service Yes. Operating system, minor DBMS versions, hardware parts, network.
High Availability Yes, by default
Auto Failover Yes, performed in 30 seconds maximum
Geo-redundancy intra region (multiple
AZ)
Yes, we possible in the region
Clustering Yes, by default
Replicas (increase RO perfs) Yes, by default. You can have up to 10 replicas
DB instance resizing Not for now
Backups
Yes, 3 rolling months included for Daily Backups
+ On-demand manual backup
Always performed on a separated node (backuper) to avoid noise on production
Point-in-time recovery (PITR) Yes
Restore Yes
IP whitelisting Yes
End-to-end TLS/SSL Yes
Full disk encryption (LUKS) Yes
Public Network access Yes
Private network (vRack) Not for now
Observability tools Yes, Logs (soon :full metrics)
API management Yes
CLI management Yes (superuser)
Infrastrucutre
Backups
Management
Network
Security

16

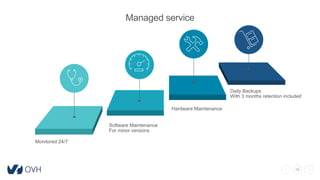

Managed service
Hardware Maintenance
Daily Backups
With 3 months retention included
Monitored 24/7
Software Maintenance
For minor versions

17

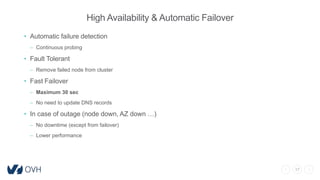

High Availability & Automatic Failover
• Automatic failure detection
– Continuous probing
• Fault Tolerant
– Remove failed node from cluster
• Fast Failover
– Maximum 30 sec
– No need to update DNS records
• In case of outage (node down, AZ down …)
– No downtime (except from failover)
– Lower performance

18

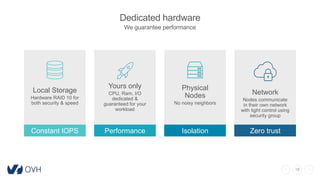

Dedicated hardware
We guarantee performance
Physical
Nodes
No noisy neighbors
Isolation
Network
Nodes communicate
in their own network
with tight control using
security group
Zero trustConstant IOPS
Local Storage
Hardware RAID 10 for
both security & speed
Yours only
CPU, Ram, I/O
dedicated &
guaranteed for your
workload
Performance

19

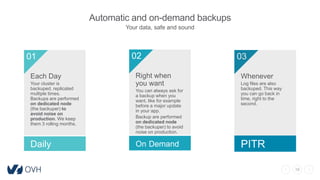

Automatic and on-demand backups
Your data, safe and sound
Each Day
Your cluster is
backuped, replicated
multiple times.
Backups are performed
on dedicated node
(the backuper) to
avoid noise on
production. We keep
them 3 rolling months.
01
Daily
Right when
you want
You can always ask for
a backup when you
want, like for example
before a major update
in your app.
Backup are performed
on dedicated node
(the backuper) to avoid
noise on production.
02
On Demand
03
Whenever
Log files are also
backuped. This way
you can go back in
time, right to the
second.
PITR

20

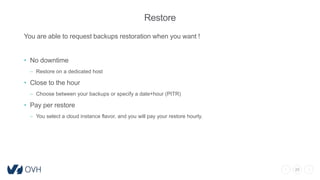

Restore
You are able to request backups restoration when you want !
• No downtime
– Restore on a dedicated host
• Close to the hour
– Choose between your backups or specify a date+hour (PITR)
• Pay per restore
– You select a cloud instance flavor, and you will pay your restore hourly.

21

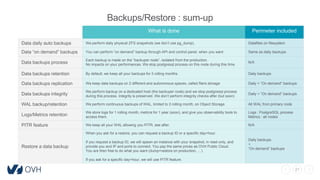

Backups/Restore : sum-up
What is done Perimeter included
Data daily auto backups We perform daily physical ZFS snapshots (we don’t use pg_dump). Datafiles on filesystem
Data “on demand” backups You can perform “on demand” backup through API and control panel, when you want Same as daily backups
Data backups process
Each backup is made on the “backuper node”, isolated from the production.
No impacts on your performances. We stop postgresql process on this node during this time.
N/A
Data backups retention By default, we keep all your backups for 3 rolling months. Daily backups
Data backups replication We keep data backups on 2 different and autonomous spaces, called filers storage Daily + “On demand” backups
Data backups integrity
We perform backup on a dedicated host (the backuper node) and we stop postgresql process
during this process. Integrity is preserved. We don’t perform integrity checks after (but soon)
Daily + “On demand” backups
WAL backup/retention We perform continuous backups of WAL, limited to 3 rolling month, on Object Storage. All WAL from primary node
Logs/Metrics retention
We store logs for 1 rolling month, metrics for 1 year (soon), and give you observability tools to
access them.
Logs : PostgreSQL process
Metrics : all nodes
PITR feature We keep all your WAL allowing you PITR, see after. N/A
Restore a data backup
When you ask for a restore, you can request a backup ID or a specific day+hour.
If you request a backup ID, we will spawn an instance with your snapshot, in read-only, and
provide you and IP and ports to connect. You pay the same prices as OVH Public Cloud.
You are then free to do what you want (dump+restore on production, …)
If you ask for a specific day+hour, we will use PITR feature.
Daily backups
+
“On demand” backups

22

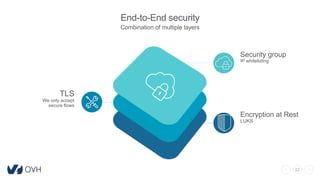

End-to-End security
Combination of multiple layers
TLS
We only accept
secure flows
Security group
IP whitelisting
Encryption at Rest
LUKS

23

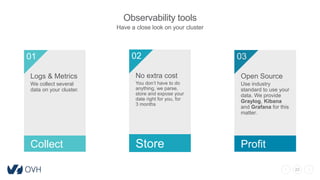

Observability tools
Have a close look on your cluster
Logs & Metrics
We collect several
data on your cluster.
01
Collect
No extra cost
You don’t have to do
anything, we parse,
store and expose your
date right for you, for
3 months
02
Store
03
Open Source
Use industry
standard to use your
data. We provide
Graylog, Kibana
and Grafana for this
matter.
Profit

24

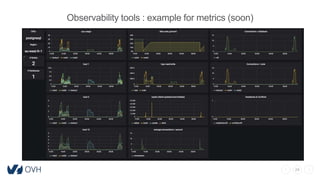

Observability tools : example for metrics (soon)

25
Management
• CLI
– We provide vanilla database with superuser access. Use your standards commands!
• API
– Our OVH API allow you to order a cluster, add/remove replicas, delete a cluster, handle the backup and
restore, whitelist IPs, …
• WEB Control Panel
– Everything you can do through API, but from a web interface. You will also be able to access billing console
and observability tools

26

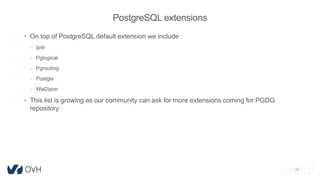

PostgreSQL extensions
• On top of PostgreSQL default extension we include :
– Ip4r
– Pglogical
– Pgrouting
– Postgis
– Wal2json
• This list is growing as our community can ask for more extensions coming for PGDG
repository

27
#4
Failover/Switchover scenarios

28

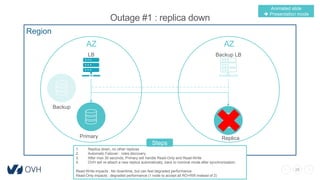

Outage #1 : replica down
Region
AZ AZ
LB Backup LB
Primary Replica
Backup
1. Replica down, no other replicas
2. Automatic Failover : roles discovery
3. After max 30 seconds, Primary will handle Read-Only and Read-Write
4. OVH will re-attach a new replica automatically, back to nominal mode after synchronization
Read-Write impacts : No downtime, but can feel degraded performance
Read-Only impacts : degraded performance (1 node to accept all RO+RW instead of 2)
Steps
Animated slide
 Presentation mode

29

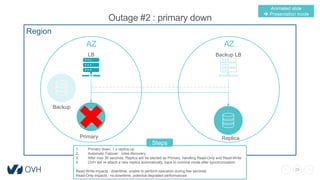

Outage #2 : primary down
Region
AZ AZ
LB Backup LB
Primary Replica
Backup
1. Primary down, 1 x replica up
2. Automatic Failover : roles discovery
3. After max 30 seconds, Replica will be elected as Primary, handling Read-Only and Read-Write
Read-Write impacts : downtime, unable to perform operation during few seconds
Read-Only impacts : no downtime, potential degraded performances
Steps
Animated slide

30

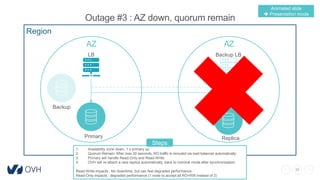

Outage #3 : AZ down, quorum remain
Region
AZ AZ
LB Backup LB
Primary Replica
Backup
1. Availability zone down, 1 x primary up
2. Quorum Remain: After max 30 seconds, RO traffic is rerouted via load balancer automatically
3. Primary will handle Read-Only and Read-Write
Read-Write impacts : No downtime, but can feel degraded performance
Read-Only impacts : degraded performance (1 node to accept all RO+RW instead of 2)
Steps
Animated slide

31

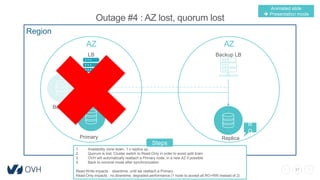

Outage #4 : AZ lost, quorum lost
Region
AZ AZ
LB Backup LB
Primary Replica
Backup
R
O
1. Availability zone down, 1 x replica up,
2. Quorum is lost. Cluster switch to Read-Only in order to avoid split brain
3. OVH will automatically reattach a Primary node, in a new AZ if possible
4. Back to nominal mode after synchronization
Read-Write impacts : downtime, until we reattach a Primary.
Read-Only impacts : no downtime, degraded performance (1 node to accept all RO+RW instead of 2)
Steps
Animated slide

32

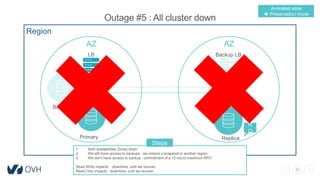

Outage #5 : All cluster down
Region
AZ AZ
LB Backup LB
Primary Replica
Backup
R
O
1. Both availabilities Zones down
2. We still have access to backups : we restore a snapshot in another region
3. We don’t have access to backup : commitment of a 12 hours maximum RPO
Read-Write impacts : downtime, until we recover.
Read-Only impacts : downtime, until we recover
Steps
Animated slide

33

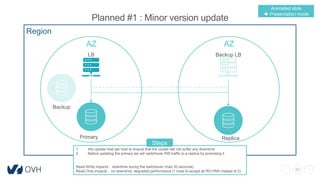

Planned #1 : Minor version update
Region
AZ AZ
LB Backup LB
Primary Replica
Backup
1. We update host per host to ensure that the cluster will not suffer any downtime
2. Before updating the primary we will switchover RW traffic to a replica by promoting it
Read-Write impacts : downtime during the switchover (max 30 seconds)
Read-Only impacts : no downtime, degraded performance (1 node to accept all RO+RW instead of 2)
Steps
Animated slide

35

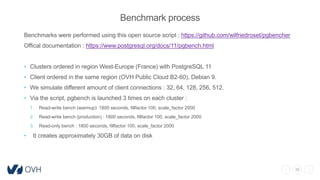

Benchmark process
Benchmarks were performed using this open source script : https://github.com/wilfriedroset/pgbencher
Offical documentation : https://www.postgresql.org/docs/11/pgbench.html
• Clusters ordered in region West-Europe (France) with PostgreSQL 11
• Client ordered in the same region (OVH Public Cloud B2-60), Debian 9.
• We simulate different amount of client connections : 32, 64, 128, 256, 512.
• Via the script, pgbench is launched 3 times on each cluster :
1. Read-write bench (warmup): 1800 seconds, fillfactor 100, scale_factor 2000
2. Read-write bench (production) : 1800 seconds, fillfactor 100, scale_factor 2000
3. Read-only bench : 1800 seconds, fillfactor 100, scale_factor 2000
• It creates approximately 30GB of data on disk

36

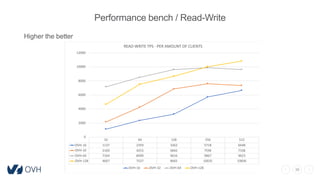

Performance bench / Read-Write
Higher the better
32 64 128 256 512
OVH-16 1137 2359 3262 5718 6648
OVH-32 2169 4253 6842 7596 7338
OVH-64 7164 8499 9616 9867 9623
OVH-128 4667 7537 8665 10035 10836
0
2000
4000
6000
8000
10000
12000
READ-WRITE TPS - PER AMOUNT OF CLIENTS
OVH-16 OVH-32 OVH-64 OVH-128

37

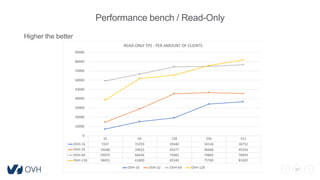

Performance bench / Read-Only
Higher the better
32 64 128 256 512
OVH-16 7247 15359 19440 34146 36752
OVH-32 14648 29023 45477 46668 45556
OVH-64 59074 66636 74283 74865 76693
OVH-128 38655 61800 65340 75700 81692
0
10000
20000
30000
40000
50000
60000
70000
80000
90000
READ-ONLY TPS - PER AMOUNT OF CLIENTS
OVH-16 OVH-32 OVH-64 OVH-128

38

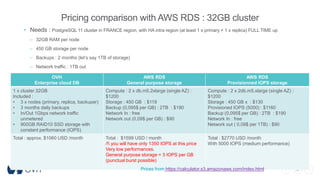

Pricing comparison with AWS RDS : 32GB cluster
• Needs : PostgreSQL 11 cluster in FRANCE region, with HA intra region (at least 1 x primary + 1 x replica) FULL TIME up
– 32GB RAM per node
– 450 GB storage per node
– Backups : 2 months (let’s say 1TB of storage)
– Network traffic : 1TB out
OVH
Enterprise cloud DB
AWS RDS
General purpose storage
AWS RDS
Provisionned IOPS storage
1 x cluster 32GB
Included :
• 3 x nodes (primary, replica, backuper)
• 3 months daily backups
• In/Out 1Gbps network traffic
unmetered
• 900GB RAID10 SSD storage with
constant performance (IOPS)
Compute : 2 x db.m5.2xlarge (single AZ) :
$1200
Storage : 450 GB : $119
Backup (0,095$ per GB) : 2TB : $190
Network In : free
Network out (0,09$ per GB) : $90
Compute : 2 x 2db.m5.xlarge (single AZ) :
$1200
Storage : 450 GB x : $130
Provisioned IOPS (5000) : $1160
Backup (0,095$ per GB) : 2TB : $190
Network In : free
Network out ( 0,09$ per 1TB) : $90
Total : approx. $1060 USD /month Total : $1599 USD / month
/! you will have only 1350 IOPS at this price
Very low performances.
General purpose storage = 3 IOPS per GB
(punctual burst possible)
Total : $2770 USD /month
With 5000 IOPS (medium performance)
Prices from https://calculator.s3.amazonaws.com/index.html

39
Thank you !
Order page and documentation :
FR Website : https://www.ovh.com/fr/enterprise-cloud-databases/
EN Website : https://www.ovh.ie/enterprise-cloud-databases/
FR Documentation : https://docs.ovh.com/fr/enterprise-cloud-databases/
EN Documentation : https://docs.ovh.com/gb/en/enterprise-cloud-
databases/

OVHcloud – Enterprise Cloud Databases

More Related Content

What's hot

Similar to OVHcloud – Enterprise Cloud Databases

More from OVHcloud

Recently uploaded

OVHcloud – Enterprise Cloud Databases
