This document introduces Oracle's Zero Data Loss Recovery Appliance, which provides a new approach to protecting Oracle databases. Traditional backup appliances treat databases as files and copy them periodically, which can slow production and leave gaps in protection during backups. The Recovery Appliance uses real-time redo transport to instantly protect ongoing transactions with no data loss. It offloads backup processing and scales to protect all databases, providing database-level recoverability without impacting production. Customers have achieved faster restores, reduced backup windows, capacity savings, and elimination of data loss.

1. Engineered Data Protection For
Oracle Databases
Eric C.W. Chan
Sales Consulting Senior Manager
Oracle Systems
October 26, 2016
Introducing Oracle’s Zero Data Loss Recovery Appliance

2. Copyright © 2016, Oracle and/or its affiliates. All rights reserved. |
Key Database Protection Goals
• Business Goals
– Never lose critical business data
– No impact on business applications
• I.T. Goals
– Ensure database level recoverability
– Centralized service to protect all databases
Current backup solutions fail to achieve these goals
2

3. Copyright © 2016, Oracle and/or its affiliates. All rights reserved. |

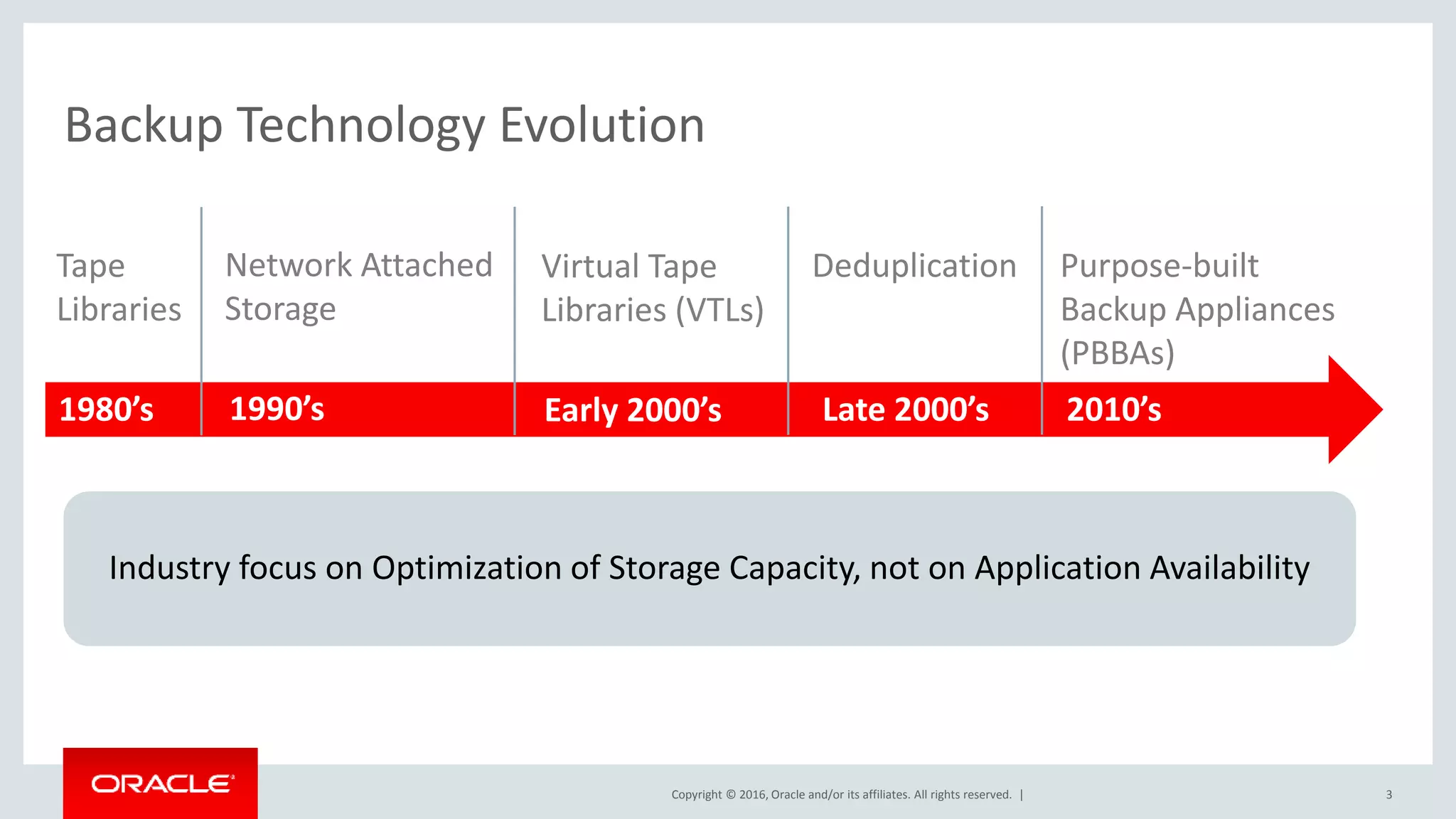

Backup Technology Evolution
Industry focus on Optimization of Storage Capacity, not on Application Availability
1980’s 1990’s Early 2000’s 2010’s
Tape
Libraries
Network Attached
Storage
Virtual Tape
Libraries (VTLs)
Deduplication
Late 2000’s
Purpose-built
Backup Appliances
(PBBAs)
3

4. Copyright © 2016, Oracle and/or its affiliates. All rights reserved. |

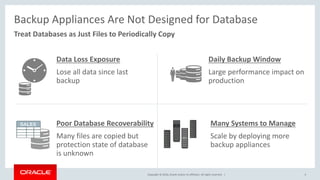

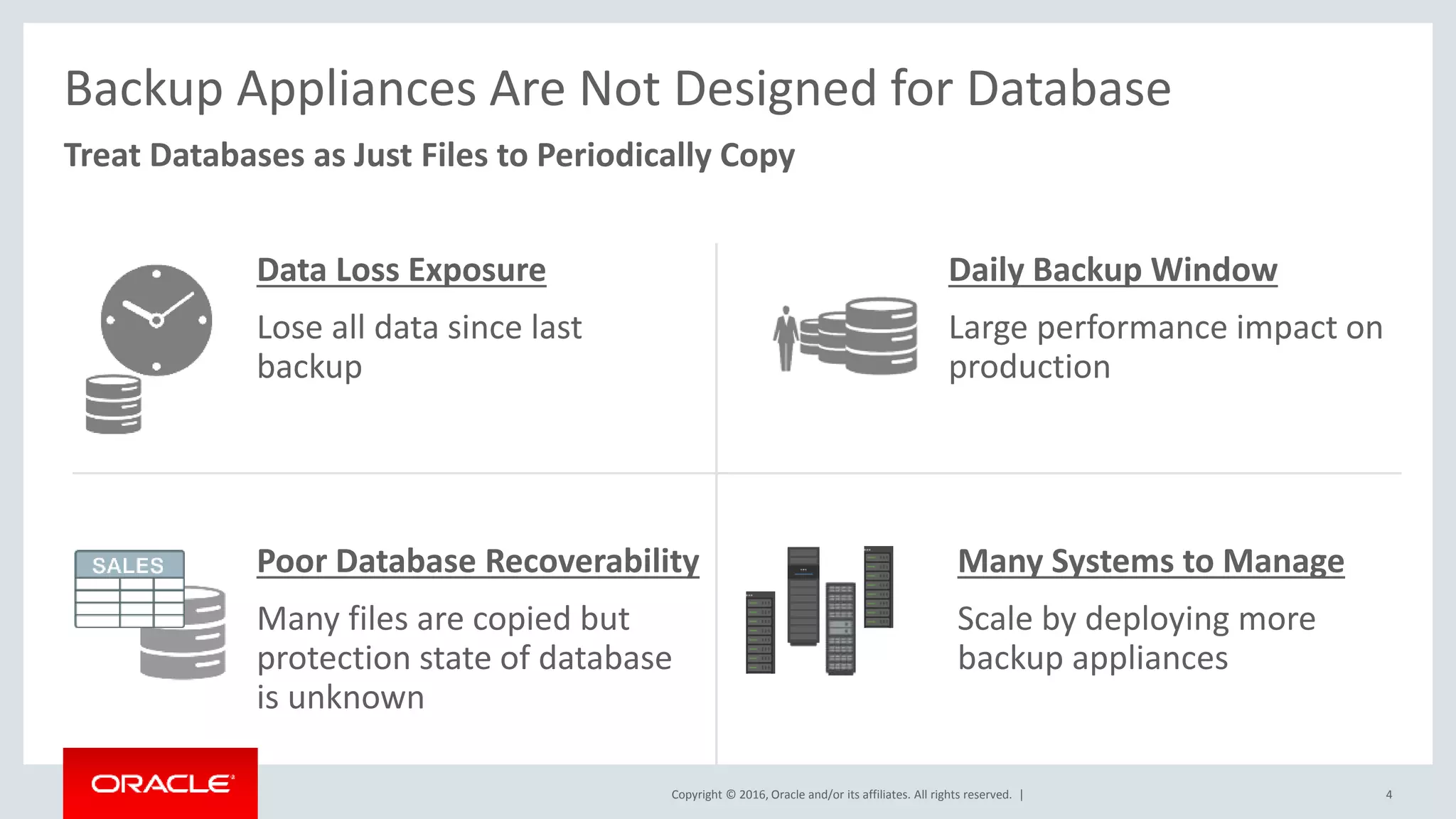

Backup Appliances Are Not Designed for Database
Treat Databases as Just Files to Periodically Copy
Daily Backup Window
Large performance impact on
production
Data Loss Exposure
Lose all data since last
backup
Many Systems to Manage
Scale by deploying more
backup appliances
Poor Database Recoverability
Many files are copied but
protection state of database
is unknown
4

5. Copyright © 2016, Oracle and/or its affiliates. All rights reserved. |
Data Protection: Still A Complex Task
• Significant challenges
for data protection?
• #1: Backing up and
managing increasingly
large data volumes
Ref. Oracle Database And Data Protection Survey (200 IT professionals), January 2014
http://www.dbta.com/DBTA-Downloads/ResearchReports/Oracle-Database-and-Data-Protection-Survey-Results-4331.pdf
Backups are too slow
Backups need constant
management
Complex Recovery
Production slow down
Coordination of
multiple backups
5

6. Copyright © 2016, Oracle and/or its affiliates. All rights reserved. |

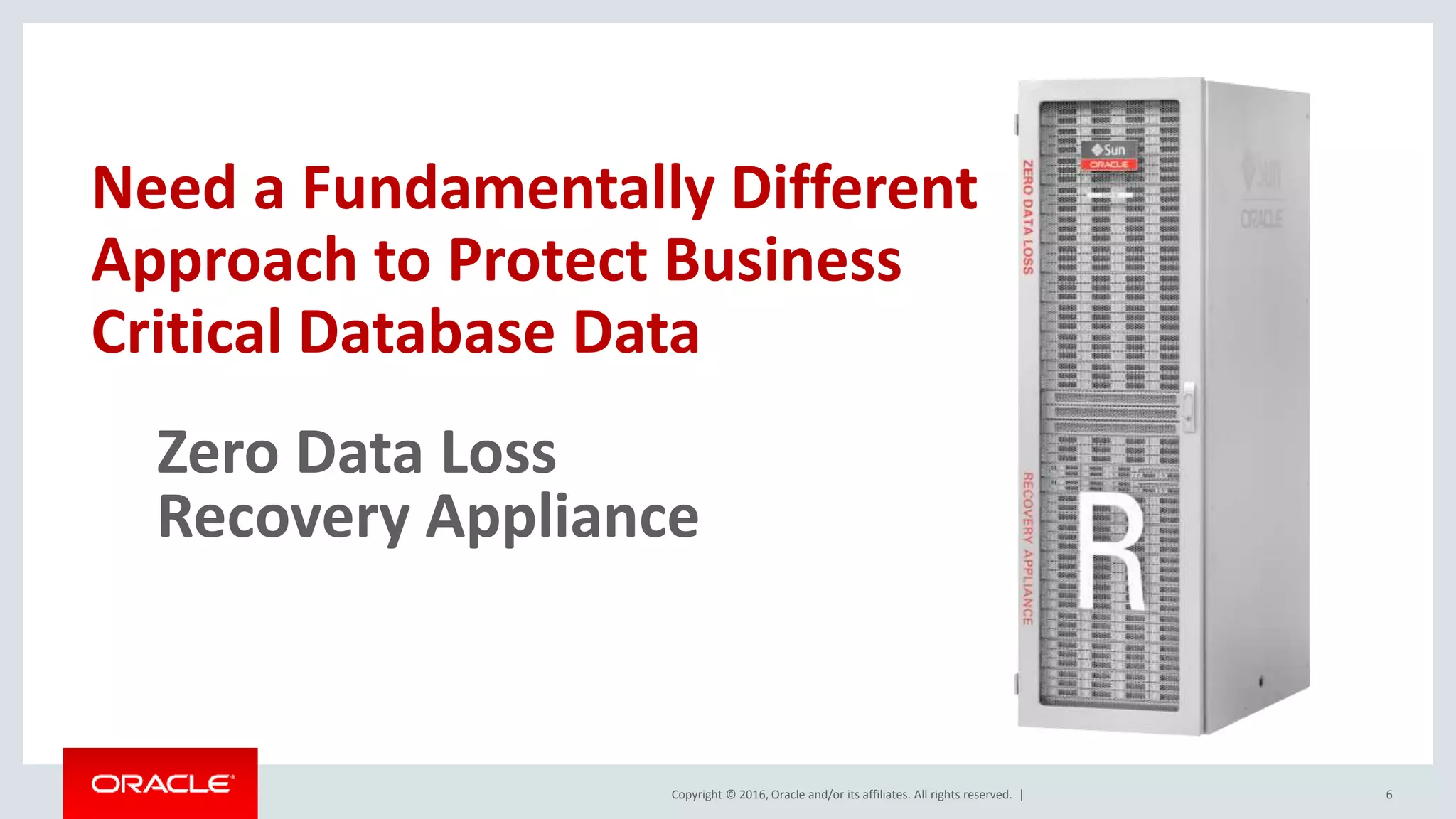

Zero Data Loss
Recovery Appliance
Need a Fundamentally Different
Approach to Protect Business
Critical Database Data
6

7. Copyright © 2016, Oracle and/or its affiliates. All rights reserved. |

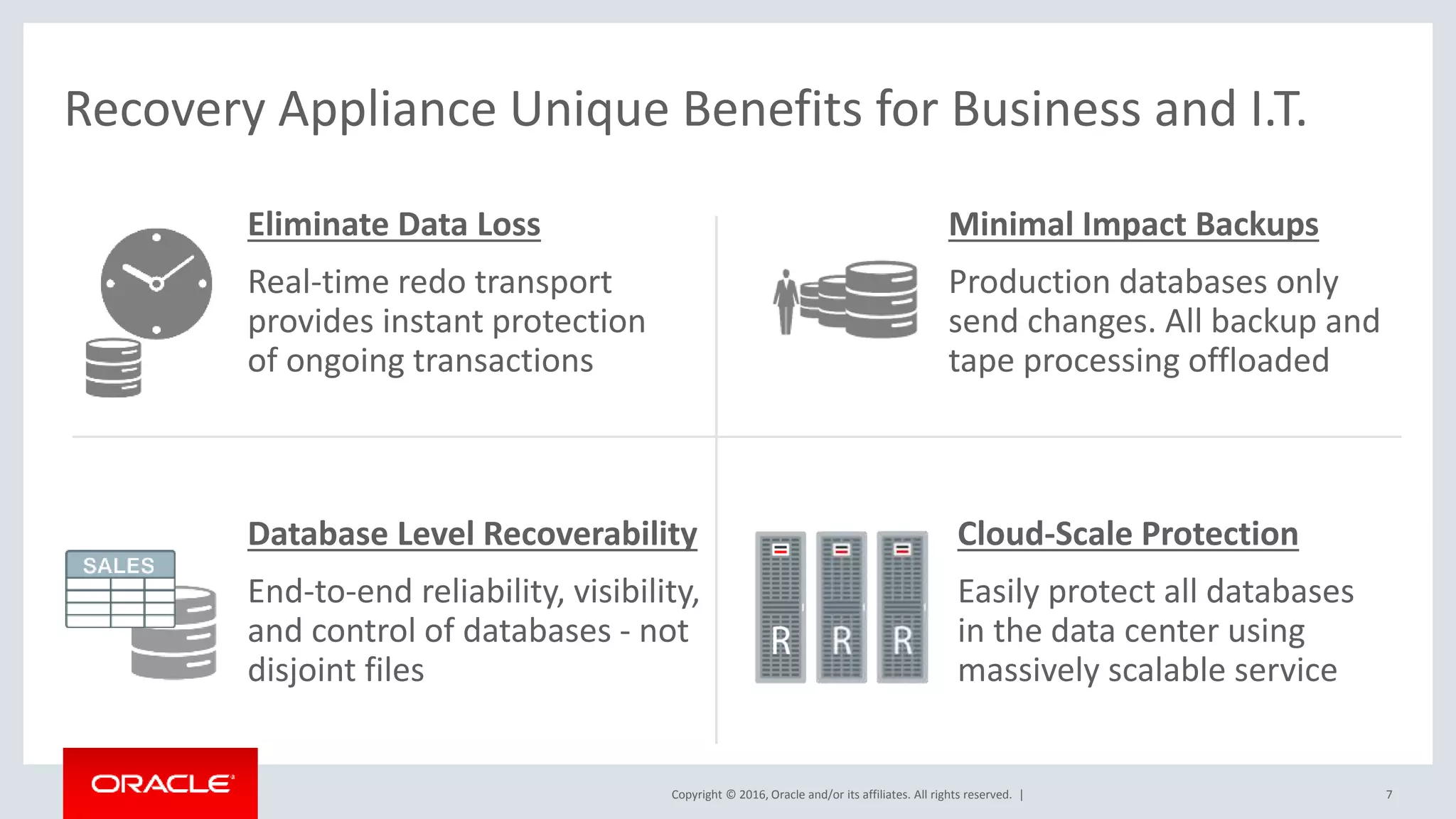

Recovery Appliance Unique Benefits for Business and I.T.
Minimal Impact Backups
Production databases only
send changes. All backup and
tape processing offloaded
Eliminate Data Loss
Real-time redo transport
provides instant protection
of ongoing transactions
Cloud-Scale Protection
Easily protect all databases
in the data center using
massively scalable service
Database Level Recoverability
End-to-end reliability, visibility,
and control of databases - not
disjoint files
7

8. Copyright © 2016, Oracle and/or its affiliates. All rights reserved. |

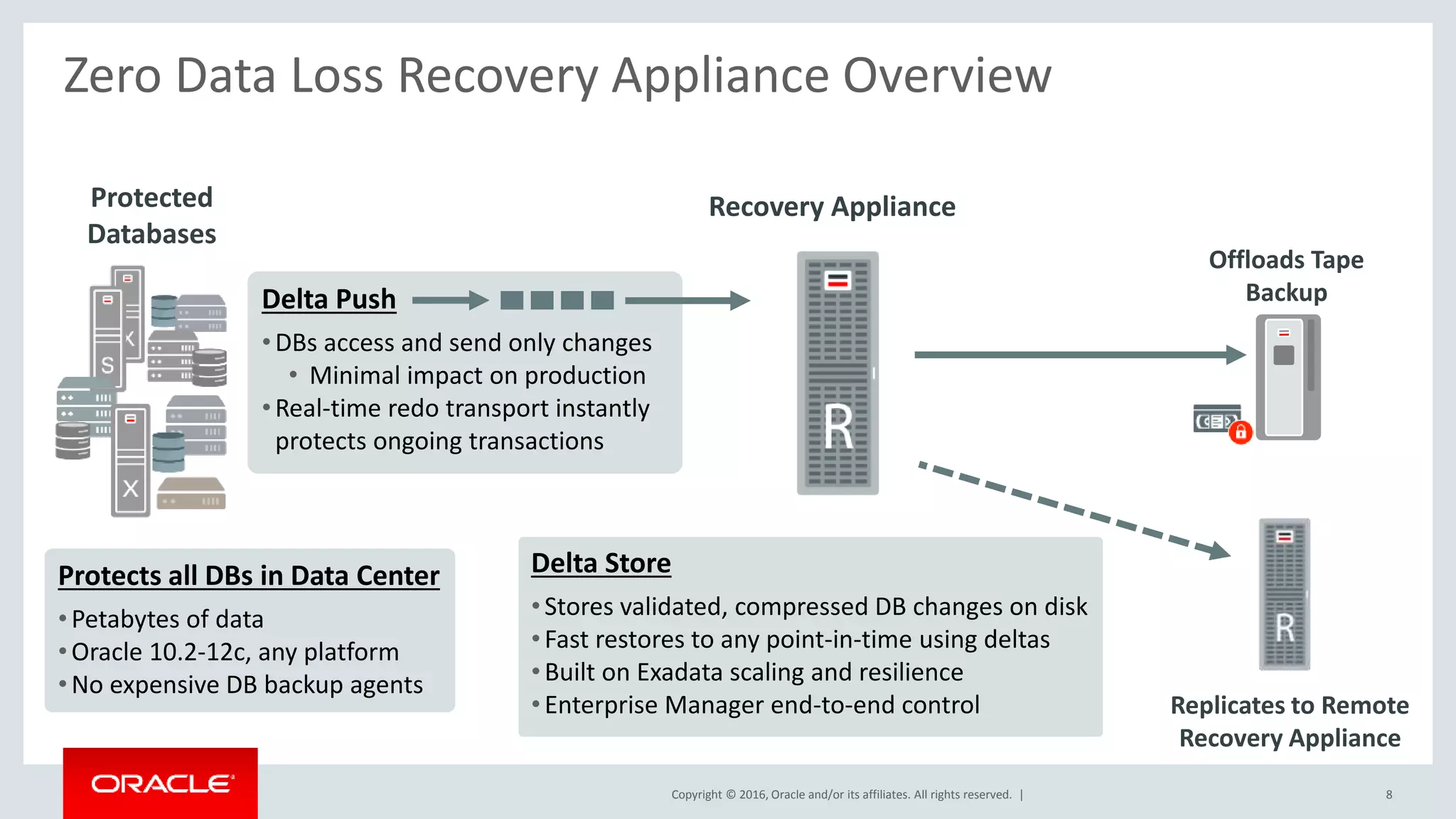

Zero Data Loss Recovery Appliance Overview
Delta Push
•DBs access and send only changes
• Minimal impact on production
•Real-time redo transport instantly
protects ongoing transactions
Protected
Databases
Protects all DBs in Data Center
•Petabytes of data
•Oracle 10.2-12c, any platform
•No expensive DB backup agents
Delta Store
•Stores validated, compressed DB changes on disk
•Fast restores to any point-in-time using deltas
•Built on Exadata scaling and resilience
•Enterprise Manager end-to-end control
Recovery Appliance
Replicates to Remote
Recovery Appliance
Offloads Tape
Backup
8

9. Copyright © 2016, Oracle and/or its affiliates. All rights reserved. |

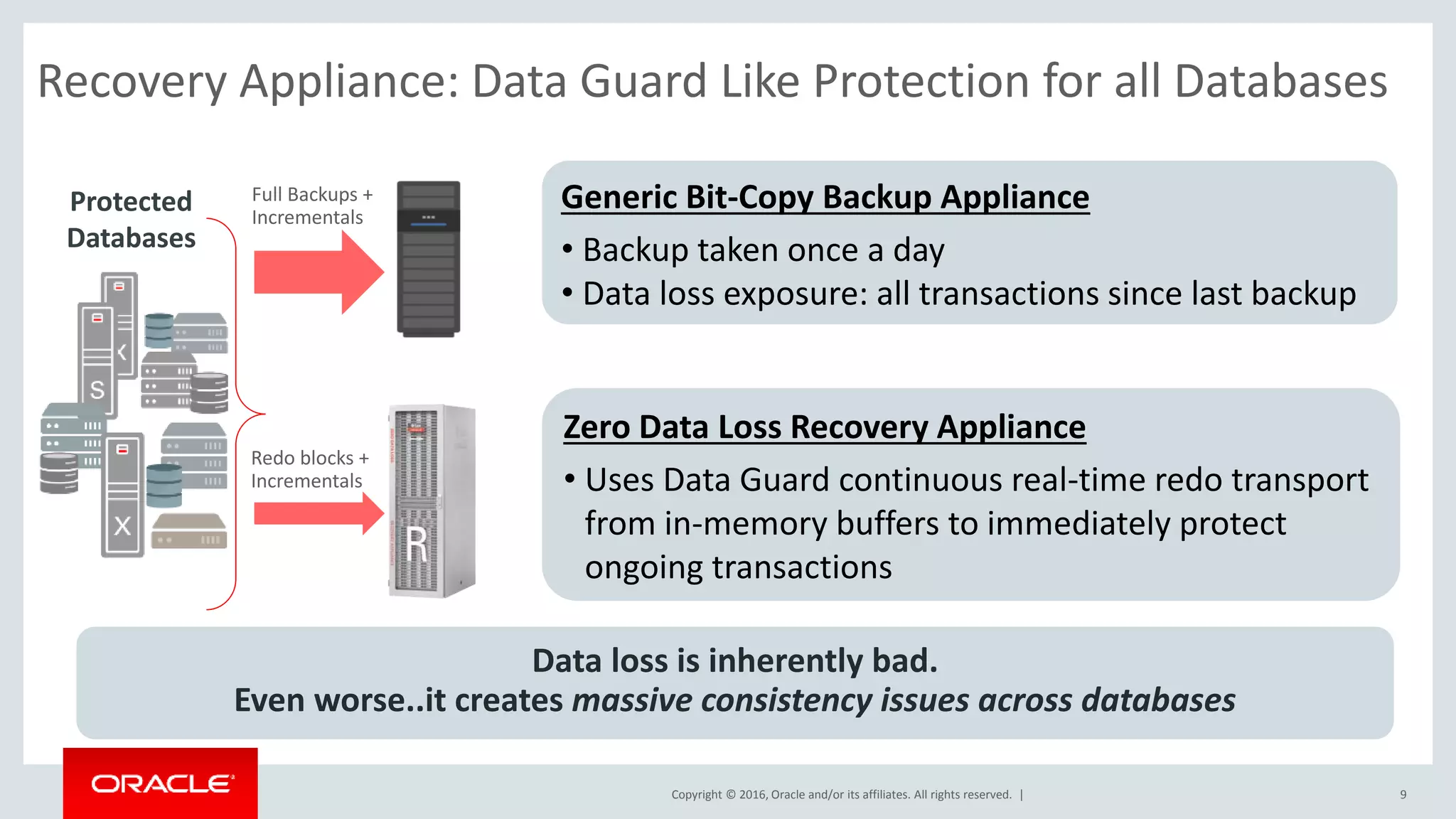

Recovery Appliance: Data Guard Like Protection for all Databases
Generic Bit-Copy Backup Appliance
• Backup taken once a day
• Data loss exposure: all transactions since last backup
Zero Data Loss Recovery Appliance
• Uses Data Guard continuous real-time redo transport
from in-memory buffers to immediately protect
ongoing transactions
Protected
Databases
Data loss is inherently bad.
Even worse..it creates massive consistency issues across databases
9
Full Backups +
Incrementals
Redo blocks +
Incrementals

10. Copyright © 2016, Oracle and/or its affiliates. All rights reserved. |

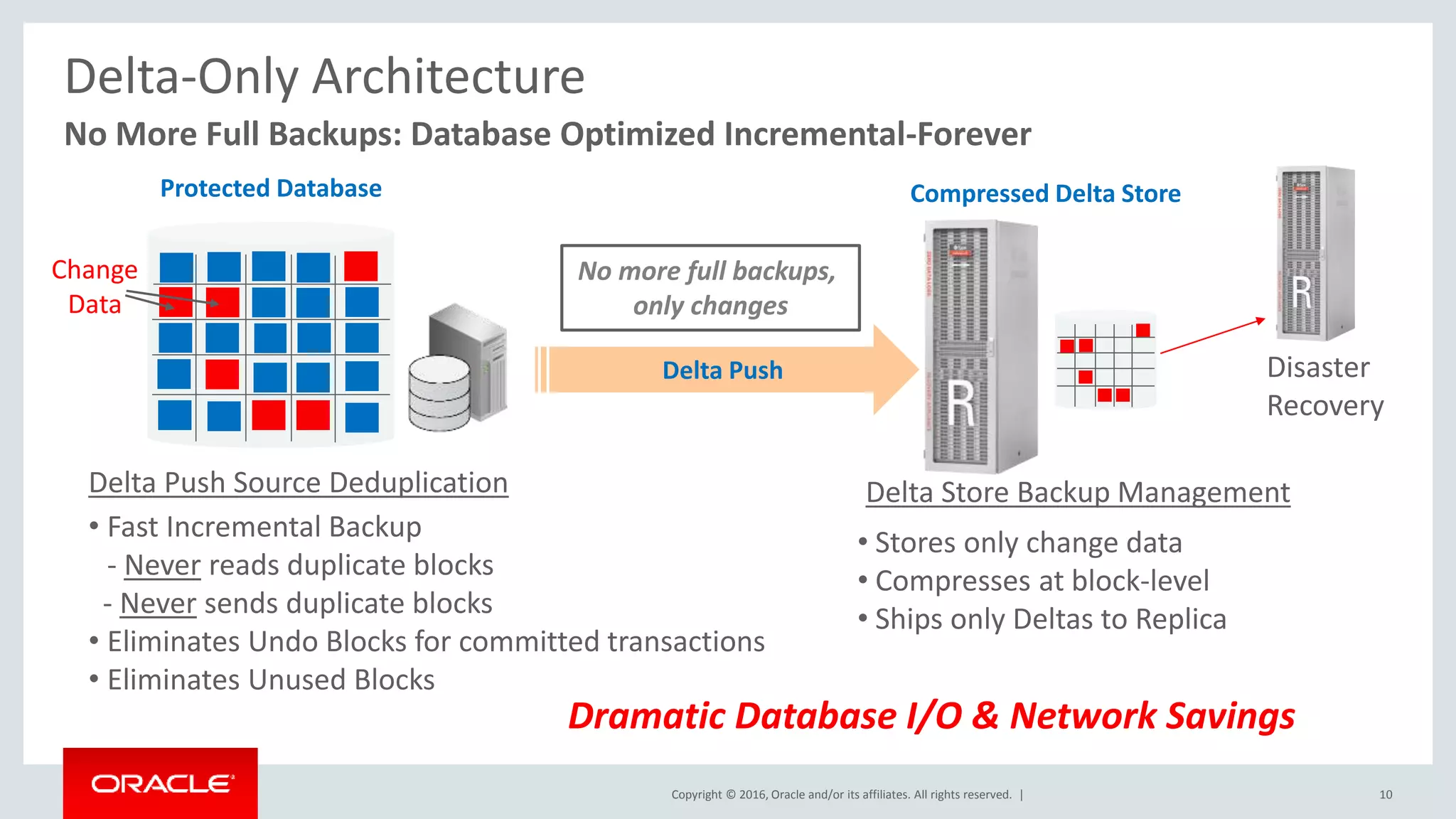

Delta-Only Architecture
No More Full Backups: Database Optimized Incremental-Forever
Delta Push
Delta Push Source Deduplication
• Fast Incremental Backup
- Never reads duplicate blocks
- Never sends duplicate blocks
• Eliminates Undo Blocks for committed transactions
• Eliminates Unused Blocks
Delta Store Backup Management
• Stores only change data
• Compresses at block-level
• Ships only Deltas to Replica
Protected Database Compressed Delta Store
Dramatic Database I/O & Network Savings
Change
Data
No more full backups,
only changes
Disaster
Recovery
10

11. Copyright © 2016, Oracle and/or its affiliates. All rights reserved. |

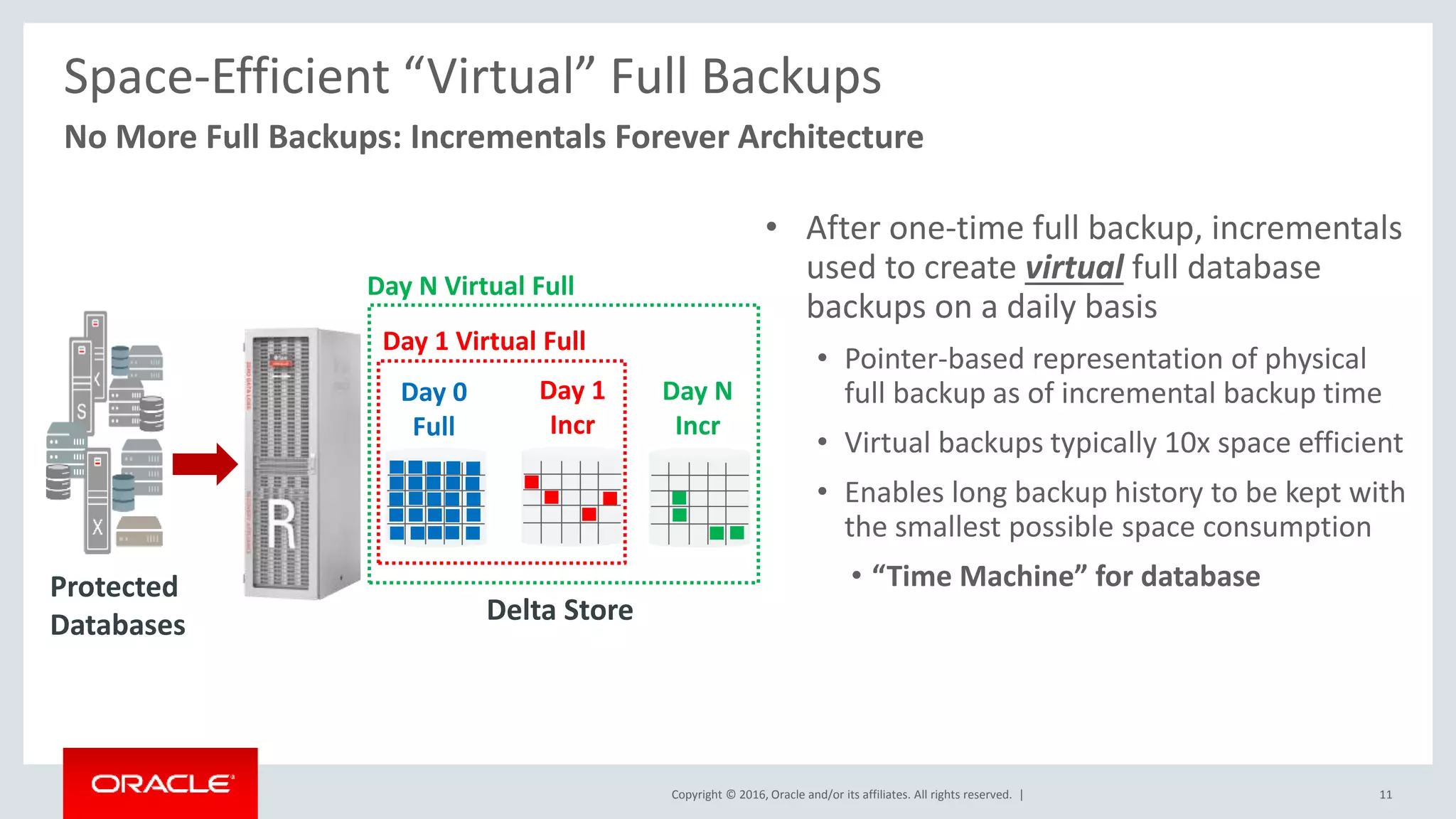

Space-Efficient “Virtual” Full Backups
• After one-time full backup, incrementals
used to create virtual full database
backups on a daily basis
• Pointer-based representation of physical
full backup as of incremental backup time
• Virtual backups typically 10x space efficient
• Enables long backup history to be kept with
the smallest possible space consumption
• “Time Machine” for database
Delta Store
Protected
Databases
Day N
Incr
Day 1 Virtual Full
Day N Virtual Full
Day 1
Incr
Day 0
Full
No More Full Backups: Incrementals Forever Architecture
11

12. Copyright © 2016, Oracle and/or its affiliates. All rights reserved. |

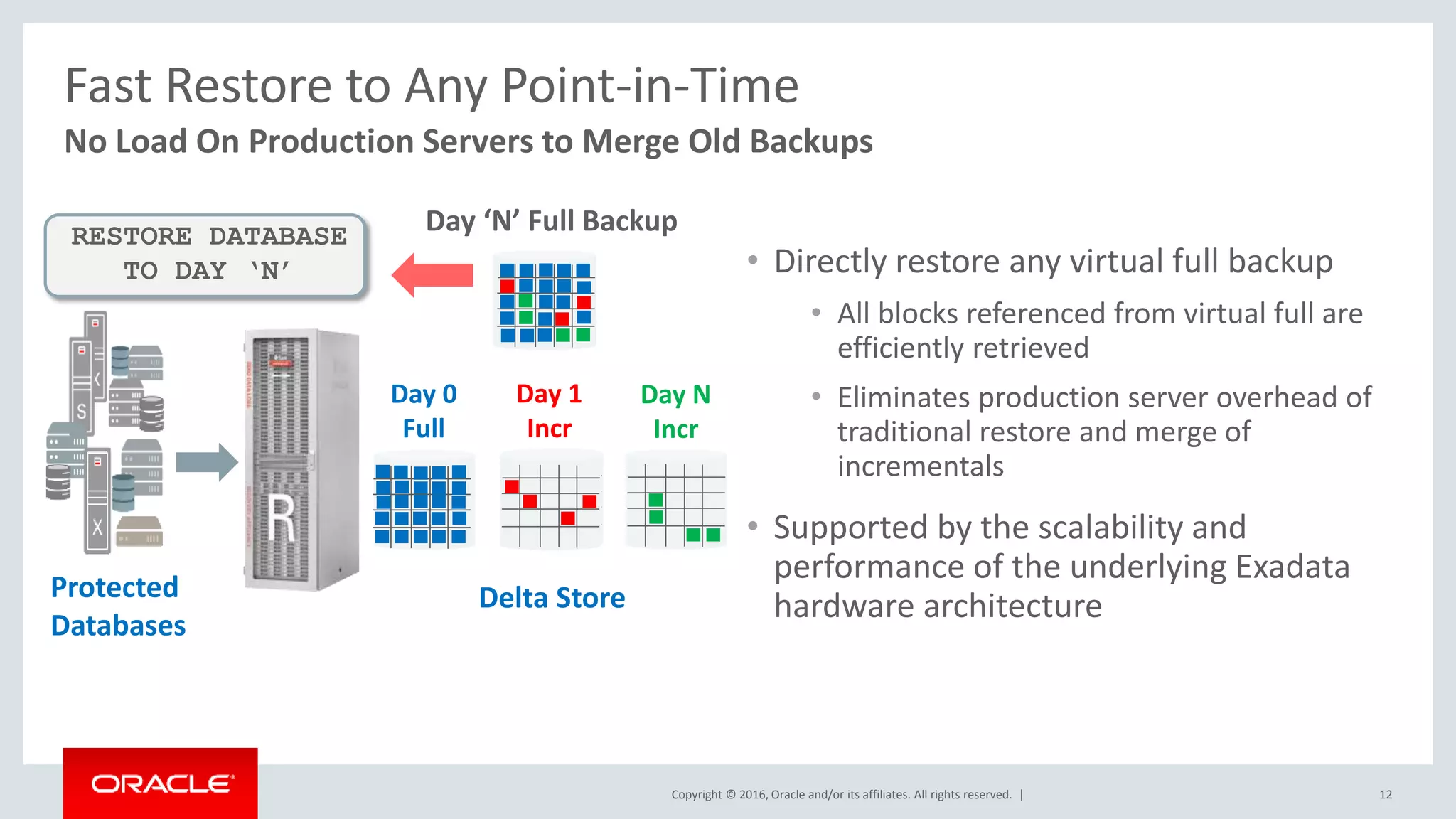

Fast Restore to Any Point-in-Time
No Load On Production Servers to Merge Old Backups
• Directly restore any virtual full backup
• All blocks referenced from virtual full are
efficiently retrieved
• Eliminates production server overhead of
traditional restore and merge of
incrementals
• Supported by the scalability and
performance of the underlying Exadata
hardware architectureDelta StoreProtected
Databases
RESTORE DATABASE
TO DAY ‘N’
Day 0
Full
Day 1
Incr
Day N
Incr
Day ‘N’ Full Backup
12

13. Copyright © 2016, Oracle and/or its affiliates. All rights reserved. |

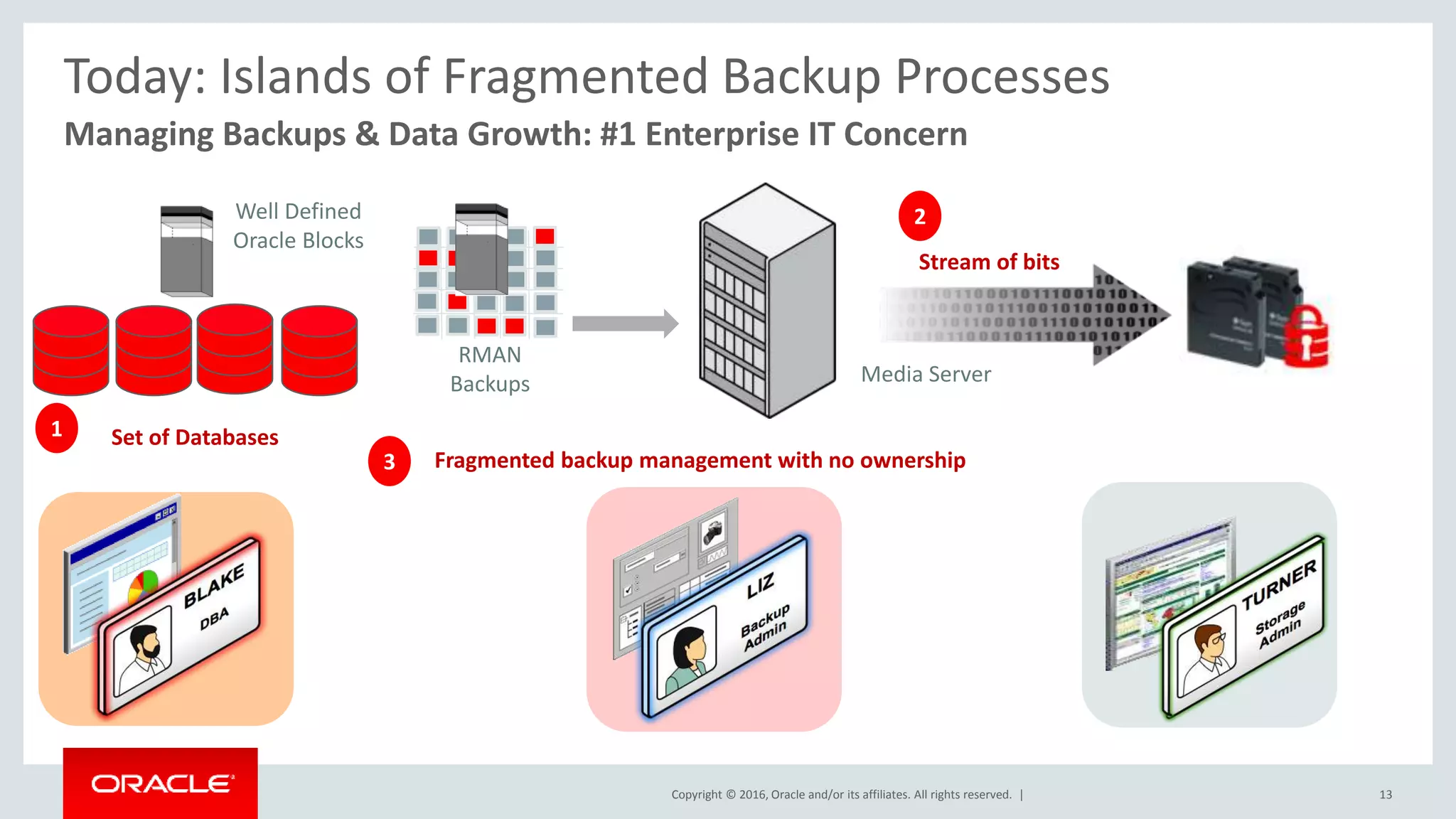

3 Fragmented backup management with no ownership
Today: Islands of Fragmented Backup Processes
Managing Backups & Data Growth: #1 Enterprise IT Concern
1 Set of Databases
Well Defined
Oracle Blocks
RMAN
Backups
Stream of bits
2
Media Server
13

14. Copyright © 2016, Oracle and/or its affiliates. All rights reserved. |

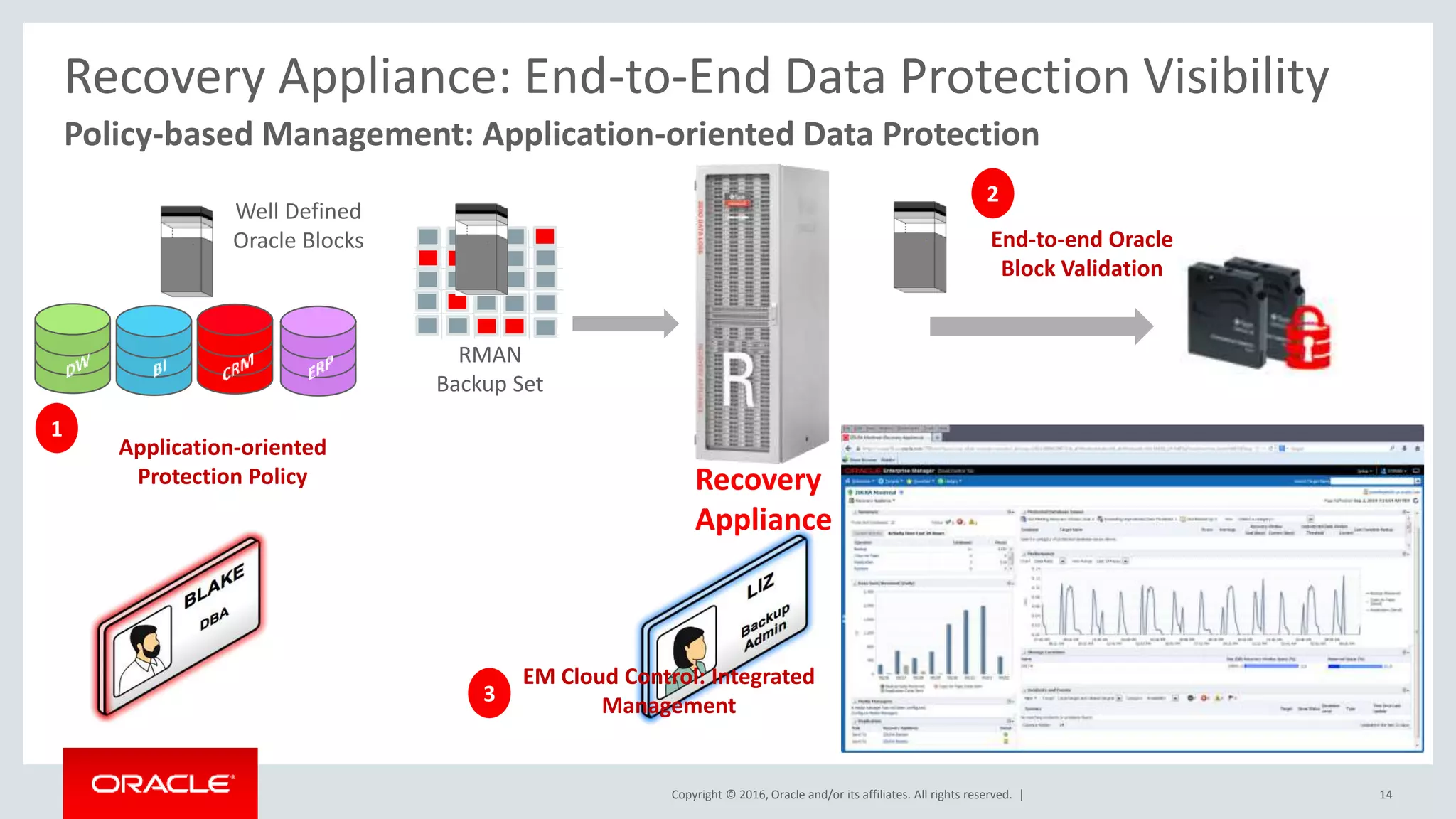

Recovery Appliance: End-to-End Data Protection Visibility
Policy-based Management: Application-oriented Data Protection
1
Application-oriented
Protection Policy
Well Defined
Oracle Blocks
RMAN
Backup Set
End-to-end Oracle
Block Validation
2
Recovery
Appliance
3
EM Cloud Control: Integrated
Management
14

15. Copyright © 2016, Oracle and/or its affiliates. All rights reserved. |
World Leader in Aircraft
Engine Manufacturing
Eliminates Data Loss
Exposure
15
Up to the moment
recovery possible
5X to 10X
faster restore time
Gained
validated backup
confidence
CUSTOMER PERSPECTIVE
ZDLRA has also introduced faster recovery times
so now we’re able to recover and restore in a
matter of 2 to 4 hours instead of previously where
we had an average of about 20 hours of
restore time.
Renee Reed, US ERP Platform Leader, GE Aviation
https://www.youtube.com/watch?v=Wq2H2un84EA

16. Copyright © 2016, Oracle and/or its affiliates. All rights reserved. |
Korean Credit Card Issuer
Achieves Sub-Second
Recovery Point Objective
16
$850Ma month in payments processed
without data loss
13Xfaster backup
performance
65%capacity savings
over Data Domain
CUSTOMER PERSPECTIVE
We selected Oracle’s Zero Data Loss Recovery
Appliance over Data Domain because only Oracle
could offer the incremental-forever backup
feature, enabling us to virtually eliminate data
loss exposure and ensure data security.
Iljoon Lee, Senior Manager, IT team,
KEB Hana Card Co., Ltd.
http://www.oracle.com/us/corporate/customers/customersearc
h/hana-card-5-recovery-appliance-3115183.html

17. Copyright © 2016, Oracle and/or its affiliates. All rights reserved. | Oracle Confidential – Internal Use OnlyCopyright © 2014 Oracle and/or its affiliates. All rights reserved. |
What is it costing you today to protect your critical
Oracle databases?
Can you confidently ensure the recoverability of
your Oracle databases?
Can you readily recover your databases to any
point in time?
Can you extend your on-premises data protection
with cloud options?
17

18. Copyright © 2016, Oracle and/or its affiliates. All rights reserved. |

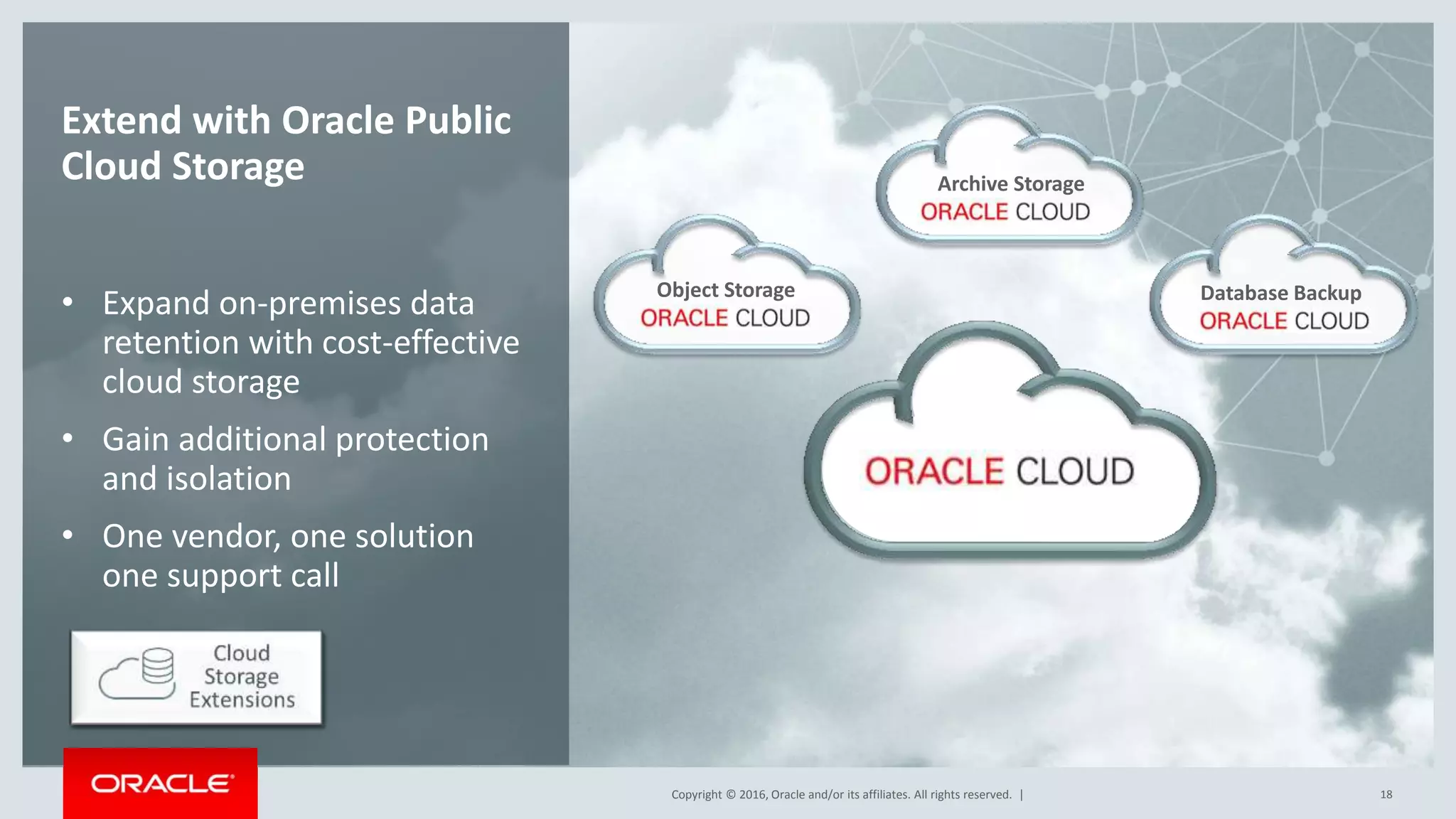

Extend with Oracle Public
Cloud Storage
• Expand on-premises data
retention with cost-effective
cloud storage
• Gain additional protection
and isolation
• One vendor, one solution
one support call
18
Database Backup
Archive Storage
Object Storage

19. Copyright © 2016, Oracle and/or its affiliates. All rights reserved. |
1010001001101001010101010001010101
001010101010001010101001010
1010010100010101010010101000101010100
0011010010101010100010101010010
101000100110100101010101000101

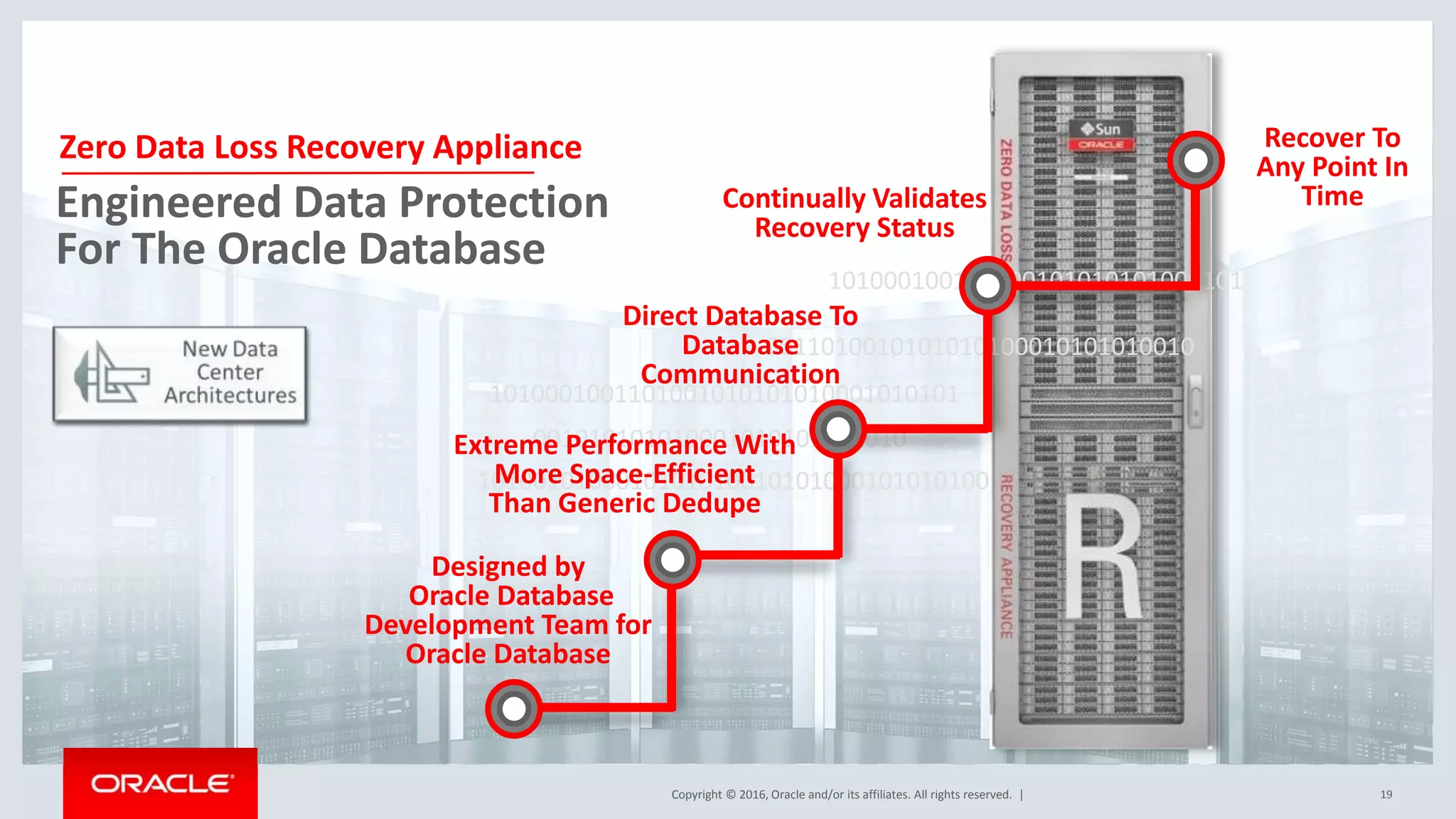

Designed by
Oracle Database
Development Team for
Oracle Database
Direct Database To
Database
Communication
Continually Validates
Recovery Status
Recover To
Any Point In
Time
Extreme Performance With
More Space-Efficient
Than Generic Dedupe
Engineered Data Protection
For The Oracle Database
Zero Data Loss Recovery Appliance
19

20. Copyright © 2016, Oracle and/or its affiliates. All rights reserved. | 20
