1. Oracle Service Bus – Lesson 5
Name – Rakesh Gujjarlapudi
Email Address – rakesh_gujj@yahoo.com
Leveraging Web Service Manager to Enforce Security Policy

2. 1. Introduction
Use Oracle Service Bus and SOA Composite to
 Invoke a Proxy Service requiring User Name Token authentication from a SOA Composite
 Propagate Identity of the authenticated user from Oracle Service Bus to the SOA Composite by
specifying a SAML OWSM Policy
Use OSB to mediate security to standardized on UserNameToken as the corporate authentication
protocol.
ValidateCredit Proxy Service on OSB will require UserNameToken based authentication. The
getCreditCardStatus reference in the POProcessing Composite will provide credentials
(username/password) to authenticate itself with the ValidateCredit OSB Proxy Service. The identity of
the authenticated user in OSB will be propagated to the credit validation service using SAML. For the
purpose of this lab, the getStatusByCC exposed service in the validationForCC SOA Composite will
require SAML.

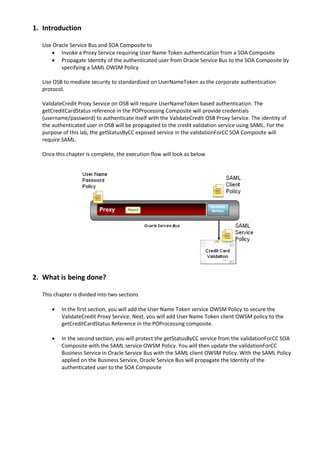

Once this chapter is complete, the execution flow will look as below
2. What is being done?
This chapter is divided into two sections
 In the first section, you will add the User Name Token service OWSM Policy to secure the
ValidateCredit Proxy Service. Next, you will add User Name Token client OWSM policy to the
getCreditCardStatus Reference in the POProcessing composite.
 In the second section, you will protect the getStatusByCC service from the validationForCC SOA
Composite with the SAML service OWSM Policy. You will then update the validationForCC
Business Service in Oracle Service Bus with the SAML client OWSM Policy. With the SAML Policy
applied on the Business Service, Oracle Service Bus will propagate the Identity of the
authenticated user to the SOA Composite

3. 3. Setup
Before you process with the lab you must complete the following steps to setup OWSM and create the
required user.
Register Keystore using Enterprise Manager. This step is required so OSB test console or SOA reference
can use the OWSM csf-key to look up the username/password to send the ValidateCredit Proxy Service
secured with the UserNameToken OWSM policy.
Setup default keystore - Copy sample keystore file, default-keystore.jks to
domain home’s fmwconfig directory, /$mwhome/user_projects/domains/soa-osb/config/fmwconfig
Navigate to EM
Expand Weblogic Domain as shown below and click on soa_osb_domain Domain
Expand Weblogic Domain, expand Security and click on Security Provider Configuration as shown below
In the Security Provider Configuration, find Keystore under Web Services Manager Authentication
Providers. Expand Keystore and Click Configure

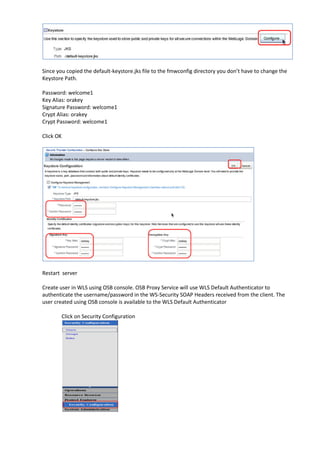

4. Since you copied the default-keystore.jks file to the fmwconfig directory you don’t have to change the
Keystore Path.
Password: welcome1
Key Alias: orakey
Signature Password: welcome1
Crypt Alias: orakey
Crypt Password: welcome1
Click OK
Restart server
Create user in WLS using OSB console. OSB Proxy Service will use WLS Default Authenticator to
authenticate the username/password in the WS-Security SOAP Headers received from the client. The
user created using OSB console is available to the WLS Default Authenticator
Click on Security Configuration

5. Click Add New
Add User Name: joe Password: welcome1. Click Save
Add csf-key for user joe created in step 2. This step is required so the OSB test console/SOA reference
can lookup the username/password using the csf-key.
In Enterprise Manager, select soa_osb_domain Weblogic Domain. Expand Security and select
Credentials as shown below.

6. Create Map with name oracle.wsm.security if it does not already exist. (Note:
The name MUST match oracle.wsm.security, otherwise OWSM will NOT recognize it).
Add Key to the oracle.wsm.security Map.
- Map: oracle.wsm.security
- Key: joe-key
- Type: Password
- User Name: joe (same as entered in OSB console)
- Password: welcome1 (same as entered in OSB console)
- Click OK
4. Secure Proxy Service
In this section, you will add oracle/wss_username_token_service_policy OWSM policy to the
ValidateCredit Proxy Service and test it using OSB test console. Next, you will apply oracle/
wss_username_token_client_policy to the getCreditCardStatus reference in the POProcessing
composite in order to invoke the ValidateCredit Proxy Service.
Add User Name Token Service OWSM Policy to Proxy Service
In OSB Console, Click Resource Browser, click Proxy Services and click on ValidateCredit proxy service to
edit the configuration
Navigate to Policies tab
Select OWSM Policy Bindings
Expand Service
Click Add to add an OWSM Policy

7. Select OWSM Policy dialog is displayed. Navigate to Page 2 (you can filter by specifying *username* in
the search field) and select oracle/wss_username_token_service_policy. Click Submit
Click Update
Navigate to Security tab
Set Process WS-Security Header flag to YES (Do not miss this step)

8. Click Update at the bottom of the page
Click Activate to activate the changes made in this session
Click Submit to confirm session activation
Positive Test
Navigate to Proxy Services (Click Resource Browser, Click Proxy Services)
Click on for the ValidateCredit Proxy Service to test it
Paste the following into the Payload field in the Test Console
<cca:creditcardStatusRequest
xmlns:cca="http://www.globalcompany.com/ns/CCAuthorizationService">
<cca:CCNumber>1234-1234-1234-1234</cca:CCNumber>
</cca:creditcardStatusRequest>
Since the ValidateCredit Proxy Service has the User Name Token OWSM policy you will see a Security
section in the Test Console with an oracle/wss_username_token_client_policy with a csf-key property.

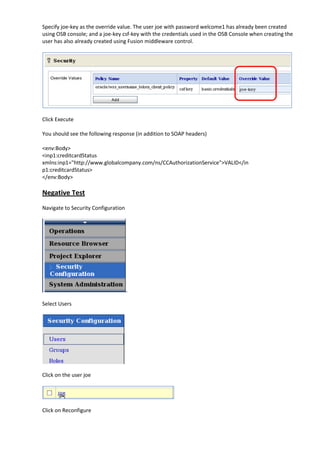

9. Specify joe-key as the override value. The user joe with password welcome1 has already been created
using OSB console; and a joe-key csf-key with the credentials used in the OSB Console when creating the
user has also already created using Fusion middleware control.
Click Execute
You should see the following response (in addition to SOAP headers)
<env:Body>
<inp1:creditcardStatus
xmlns:inp1="http://www.globalcompany.com/ns/CCAuthorizationService">VALID</in
p1:creditcardStatus>
</env:Body>
Negative Test
Navigate to Security Configuration
Select Users
Click on the user joe
Click on Reconfigure

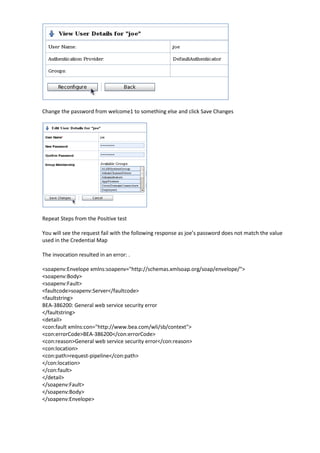

10. Change the password from welcome1 to something else and click Save Changes
Repeat Steps from the Positive test
You will see the request fail with the following response as joe’s password does not match the value
used in the Credential Map
The invocation resulted in an error: .
<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/">
<soapenv:Body>
<soapenv:Fault>
<faultcode>soapenv:Server</faultcode>
<faultstring>
BEA-386200: General web service security error
</faultstring>
<detail>
<con:fault xmlns:con="http://www.bea.com/wli/sb/context">
<con:errorCode>BEA-386200</con:errorCode>
<con:reason>General web service security error</con:reason>
<con:location>
<con:path>request-pipeline</con:path>
</con:location>
</con:fault>
</detail>
</soapenv:Fault>
</soapenv:Body>
</soapenv:Envelope>

11. You can go to the Operations Dashboard and select Pipeline Alerts. You will see the following alert. This
is due to the pipeline alert that is present in the Service-level Error Handler in the ValidateCredit proxy
service message flow. When WS- Security validation fails for a proxy service the Service-level Error
Handler in the proxy service is invoked.
Reset the password of joe to welcome1
Add UserNameToken Client OWSM policy to SOA Reference
In POProcessing composite right click on the getCreditCardStatus Reference. Select Configure WS
policies
On the Security policies section select
Select oracle/wss_username_token_client_policy and click OK.
Select the policy and click (Edit)

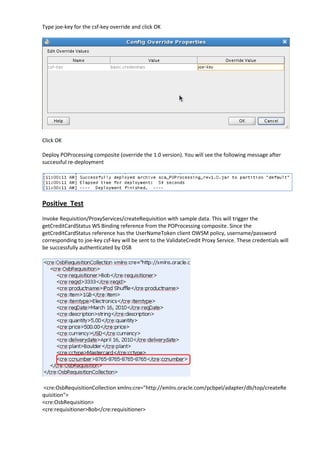

12. Type joe-key for the csf-key override and click OK
Click OK
Deploy POProcessing composite (override the 1.0 version). You will see the following message after
successful re-deployment
Positive Test
Invoke Requisition/ProxyServices/createRequisition with sample data. This will trigger the
getCreditCardStatus WS Binding reference from the POProcessing composite. Since the
getCreditCardStatus reference has the UserNameToken client OWSM policy, username/password
corresponding to joe-key csf-key will be sent to the ValidateCredit Proxy Service. These credentials will
be successfully authenticated by OSB
<cre:OsbRequisitionCollection xmlns:cre="http://xmlns.oracle.com/pcbpel/adapter/db/top/createRe
quisition">
<cre:OsbRequisition>
<cre:requisitioner>Bob</cre:requisitioner>

13. <cre:reqid>3333</cre:reqid>
<cre:productname>iPod Shuffle</cre:productname>
<cre:item>1GB</cre:item>
<cre:itemtype>Electronics</cre:itemtype>
<cre:reqDate>March 16, 2010</cre:reqDate>
<cre:description>string</cre:description>
<cre:quantity>5.00</cre:quantity>
<cre:price>500.00</cre:price>
<cre:currency>USD</cre:currency>
<cre:deliverydate>April 16, 2010</cre:deliverydate>
<cre:plant>Boulder</cre:plant>
<cre:cctype>Mastercard</cre:cctype>
<cre:ccnumber>8765-8765-8765-8765</cre:ccnumber>
</cre:OsbRequisition>
</cre:OsbRequisitionCollection>

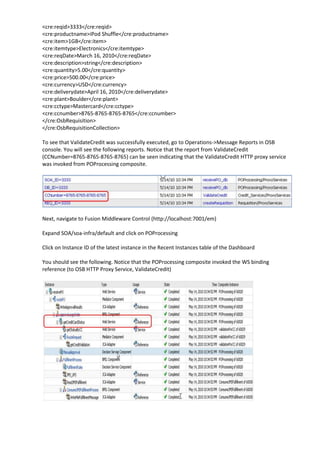

To see that ValidateCredit was successfully executed, go to Operations->Message Reports in OSB
console. You will see the following reports. Notice that the report from ValidateCredit
(CCNumber=8765-8765-8765-8765) can be seen indicating that the ValidateCredit HTTP proxy service
was invoked from POProcessing composite.
Next, navigate to Fusion Middleware Control (http://localhost:7001/em)
Expand SOA/soa-infra/default and click on POProcessing
Click on Instance ID of the latest instance in the Recent Instances table of the Dashboard
You should see the following. Notice that the POProcessing composite invoked the WS binding
reference (to OSB HTTP Proxy Service, ValidateCredit)

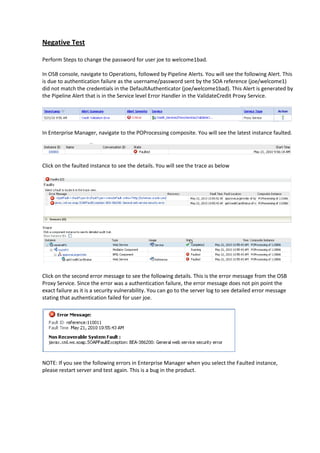

14. Negative Test
Perform Steps to change the password for user joe to welcome1bad.
In OSB console, navigate to Operations, followed by Pipeline Alerts. You will see the following Alert. This
is due to authentication failure as the username/password sent by the SOA reference (joe/welcome1)
did not match the credentials in the DefaultAuthenticator (joe/welcome1bad). This Alert is generated by
the Pipeline Alert that is in the Service level Error Handler in the ValidateCredit Proxy Service.
In Enterprise Manager, navigate to the POProcessing composite. You will see the latest instance faulted.
Click on the faulted instance to see the details. You will see the trace as below
Click on the second error message to see the following details. This is the error message from the OSB
Proxy Service. Since the error was a authentication failure, the error message does not pin point the
exact failure as it is a security vulnerability. You can go to the server log to see detailed error message
stating that authentication failed for user joe.
NOTE: If you see the following errors in Enterprise Manager when you select the Faulted instance,
please restart server and test again. This is a bug in the product.

15. If you expand the errors in the first table by clicking on the Error Message you will see the following
Reset the password of joe to welcome1
Repeat Steps in this test to update the password of joe back to welcome1
Rerun the test and it must succeed.

16. 5. Propagate Identity from OSB to Composite
In this section, you will propagate the identity of the user authenticated in Oracle Service Bus to the SOA
Composite. You will perform the following steps.
 Protect the getStatusByCC service from the validationForCC SOA Composite with the
oracle/wss10_saml_token_service_policy service OWSM Policy
 Update the validationForCC Business Service in Oracle Service Bus with the
 oracle/wss10_saml_token_client_policy client OWSM Policy
 Test
Add SAML Service OWSM Policy to SOA Composite Service
Navigate to Fusion middleware control (http://localhost:7001/em)
Select validationForCC composite
Click the Policies tab
Click on Attach To/Detach From, Select getStatusByCC
Select oracle/wss10_saml_token_service_policy

17. Click Attach
Click OK
You will see the policy attached to the service as shown below
Add SAML Client OWSM Policy to OSB Business Service
Navigate to Oracle Service Bus Console (http://localhost:7001/sbconsole)
Create a Session
Navigate to Project Explorer, expand Credit_Services project. Select BusinessServices folder

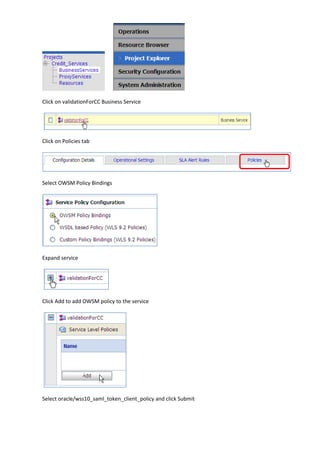

18. Click on validationForCC Business Service
Click on Policies tab
Select OWSM Policy Bindings
Expand service
Click Add to add OWSM policy to the service
Select oracle/wss10_saml_token_client_policy and click Submit

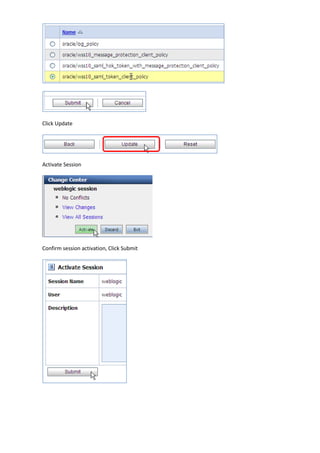

19. Click Update
Activate Session
Confirm session activation, Click Submit

20. Test
Navigate to Proxy Services (Click Resource Browser, Click Proxy Services)
Click on for the ValidateCredit Proxy Service to test it
Paste the following into the Payload field in the Test Console
<cca:creditcardStatusRequest xmlns:cca="http://www.globalcompany.com/ns/CCAuthorizationService ">
<cca:CCNumber>1234-1234-1234-1234</cca:CCNumber>
</cca:creditcardStatusRequest>
Specify joe-key as the override value for csf-key property of the
oracle/wss_username_token_client_policy.
Click Execute
You should see the following response (in addition to SOAP headers)
<env:Body>
<inp1:creditcardStatus xmlns:inp1="http://www.globalcompany.com/ns/CCAuthorizationServic
e">VALID</inp1:creditcardStatus>
</env:Body>
Navigate to validationForCC composite in Enterprise Manager and click on the latest instance from the
Recent Instances table. You should see the following. This indicates the service was successfully invoked
with SAML identity propagated
