This document provides steps for configuring an AWR baseline using Oracle Enterprise Manager Cloud Control. It details how to: 1. Create a single AWR baseline by selecting a snapshot range and time period. 2. Compute baseline statistics and refresh until the status shows as completed. 3. Set the performance page to show the 99th percentile line using the new baseline. 4. Configure alert thresholds for the baseline by editing metric thresholds.

1. Oracle AWR Baseline using OEM Cloud control
1 Prepared by – Monowar Mukul

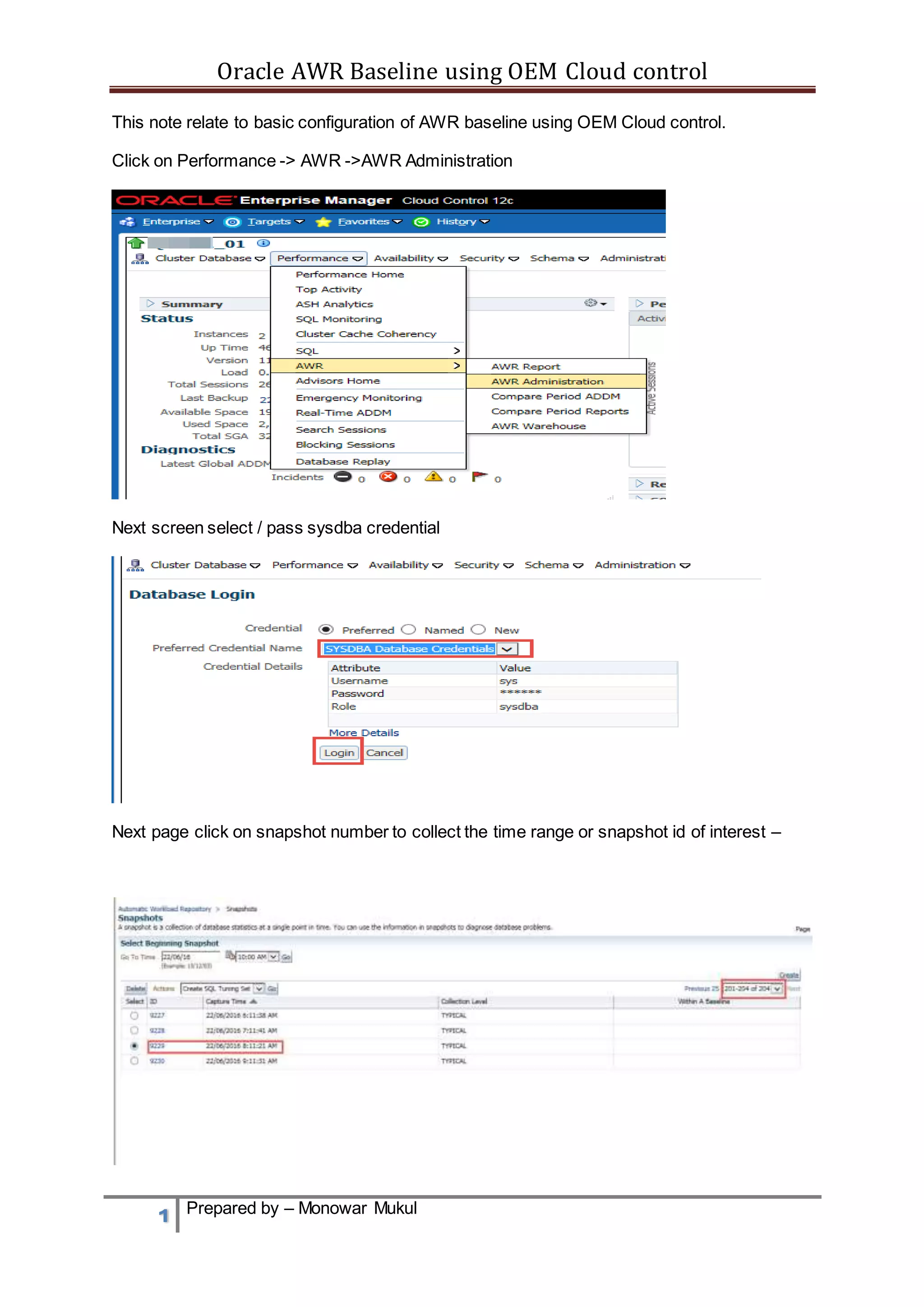

This note relate to basic configuration of AWR baseline using OEM Cloud control.
Click on Performance -> AWR ->AWR Administration
Next screen select / pass sysdba credential
Next page click on snapshot number to collect the time range or snapshot id of interest –

2. Oracle AWR Baseline using OEM Cloud control
2 Prepared by – Monowar Mukul

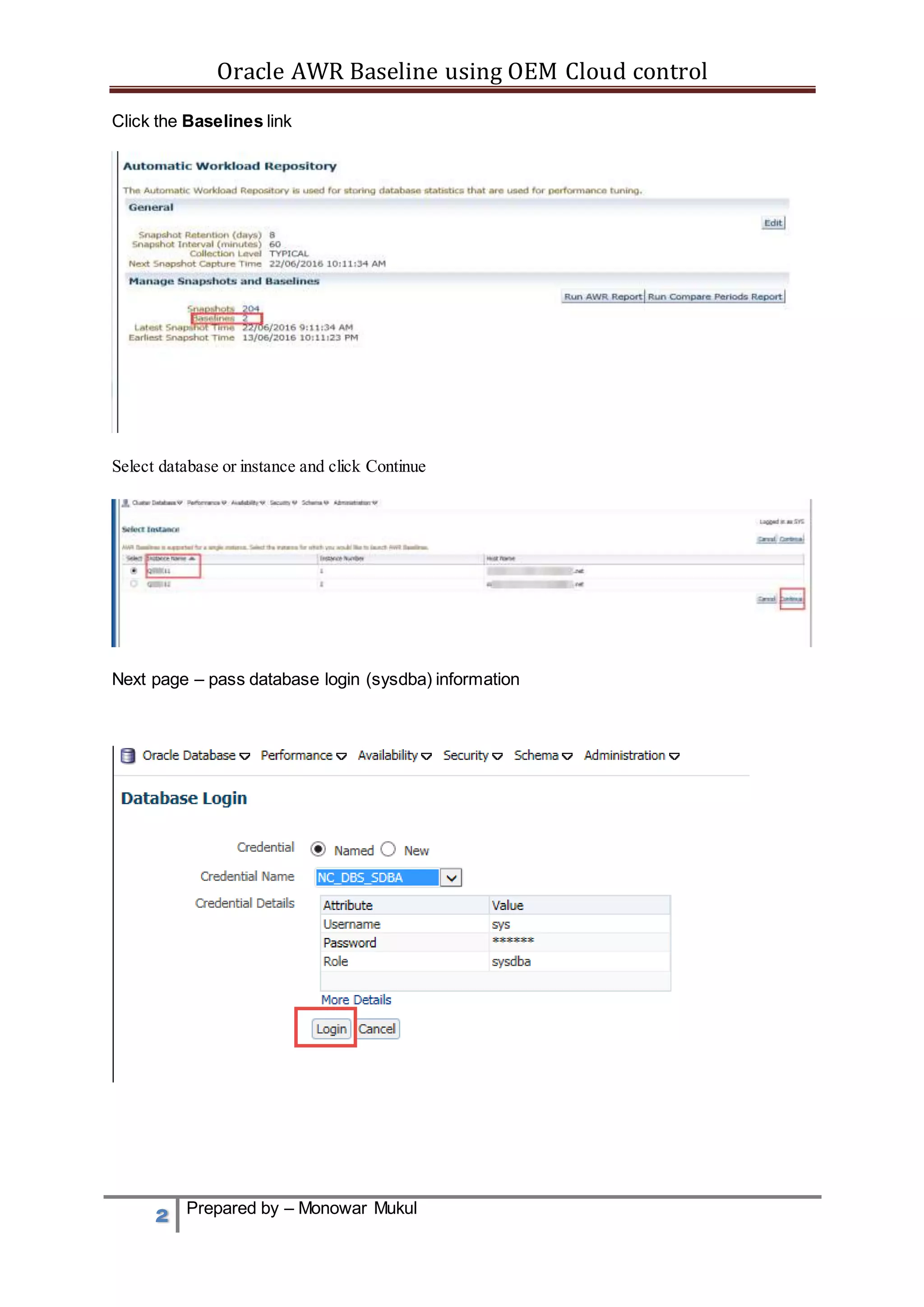

Click the Baselines link
Select database or instance and click Continue
Next page – pass database login (sysdba) information

3. Oracle AWR Baseline using OEM Cloud control
3 Prepared by – Monowar Mukul
Click Create button
Select Single radio button and Click Continue
Select Snapshot Range and click on Finish.

4. Oracle AWR Baseline using OEM Cloud control
4 Prepared by – Monowar Mukul
Single baseline creation is complete now
Calculate the statistics for this baseline
From the Actions drop-down list, select Schedule Statistics Computation and click Go.
Select Immediately and click Submit.

5. Oracle AWR Baseline using OEM Cloud control
5 Prepared by – Monowar Mukul
Click Refresh until Statistics Computed becomes “Yes.”
Setup Performance page for the “Perf_ckpt” baseline statistics
Performance  Performance Home
Click Settings
Select “Show the 99th percentile line using a static baseline with computed statistics.”
From the Baseline Name drop-down list, select Perf_ckpt and click OK.

6. Oracle AWR Baseline using OEM Cloud control
6 Prepared by – Monowar Mukul
Setup alert threshold for the ‘Perf_ckpt’ baseline
Click on Performance -> AWR ->AWR Administration

7. Oracle AWR Baseline using OEM Cloud control
7 Prepared by – Monowar Mukul
Select “Perf_ckpt” baseline Click Baseline Metric Thresholds in the Related Links section
Next page select View type. Here I have selected view to Basic and Additional Metrics.
Click the edit button

8. Oracle AWR Baseline using OEM Cloud control
8 Prepared by – Monowar Mukul
Edit Thresholds and Click Preview
Now click on Apply Thresholds.
Done ! – Not going to add further testing to get the alert through monitoring template.
