Orachk utility testing for Oracle Stack Health Check

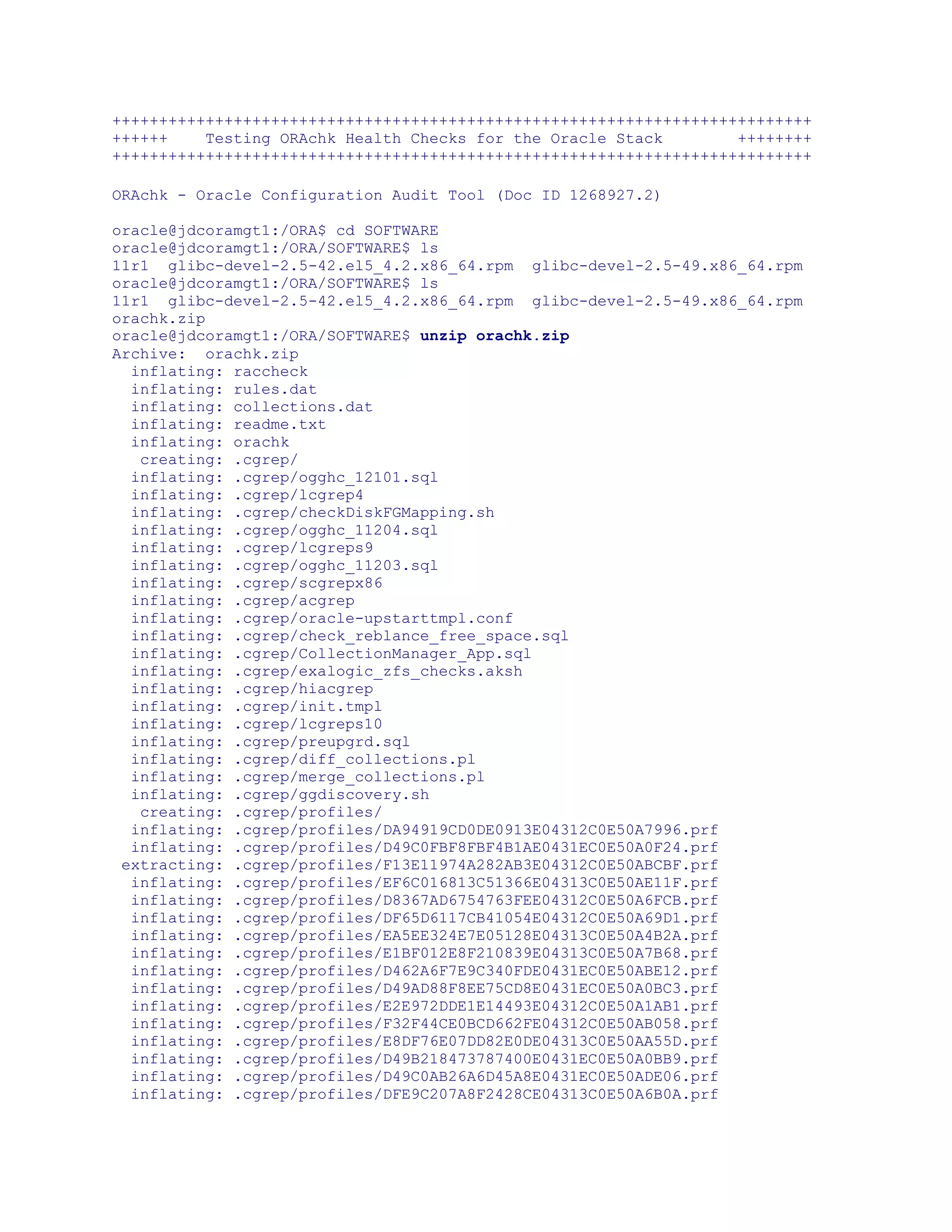

1. +++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
++++++ Testing ORAchk Health Checks for the Oracle Stack ++++++++
+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
ORAchk - Oracle Configuration Audit Tool (Doc ID 1268927.2)
oracle@jdcoramgt1:/ORA$ cd SOFTWARE
oracle@jdcoramgt1:/ORA/SOFTWARE$ ls
11r1 glibc-devel-2.5-42.el5_4.2.x86_64.rpm glibc-devel-2.5-49.x86_64.rpm
oracle@jdcoramgt1:/ORA/SOFTWARE$ ls
11r1 glibc-devel-2.5-42.el5_4.2.x86_64.rpm glibc-devel-2.5-49.x86_64.rpm
orachk.zip
oracle@jdcoramgt1:/ORA/SOFTWARE$ unzip orachk.zip
Archive: orachk.zip
inflating: raccheck
inflating: rules.dat
inflating: collections.dat
inflating: readme.txt
inflating: orachk
creating: .cgrep/
inflating: .cgrep/ogghc_12101.sql
inflating: .cgrep/lcgrep4
inflating: .cgrep/checkDiskFGMapping.sh
inflating: .cgrep/ogghc_11204.sql
inflating: .cgrep/lcgreps9
inflating: .cgrep/ogghc_11203.sql
inflating: .cgrep/scgrepx86
inflating: .cgrep/acgrep
inflating: .cgrep/oracle-upstarttmpl.conf
inflating: .cgrep/check_reblance_free_space.sql
inflating: .cgrep/CollectionManager_App.sql
inflating: .cgrep/exalogic_zfs_checks.aksh
inflating: .cgrep/hiacgrep
inflating: .cgrep/init.tmpl
inflating: .cgrep/lcgreps10
inflating: .cgrep/preupgrd.sql
inflating: .cgrep/diff_collections.pl
inflating: .cgrep/merge_collections.pl
inflating: .cgrep/ggdiscovery.sh
creating: .cgrep/profiles/
inflating: .cgrep/profiles/DA94919CD0DE0913E04312C0E50A7996.prf
inflating: .cgrep/profiles/D49C0FBF8FBF4B1AE0431EC0E50A0F24.prf
extracting: .cgrep/profiles/F13E11974A282AB3E04312C0E50ABCBF.prf
inflating: .cgrep/profiles/EF6C016813C51366E04313C0E50AE11F.prf
inflating: .cgrep/profiles/D8367AD6754763FEE04312C0E50A6FCB.prf
inflating: .cgrep/profiles/DF65D6117CB41054E04312C0E50A69D1.prf
inflating: .cgrep/profiles/EA5EE324E7E05128E04313C0E50A4B2A.prf
inflating: .cgrep/profiles/E1BF012E8F210839E04313C0E50A7B68.prf
inflating: .cgrep/profiles/D462A6F7E9C340FDE0431EC0E50ABE12.prf
inflating: .cgrep/profiles/D49AD88F8EE75CD8E0431EC0E50A0BC3.prf
inflating: .cgrep/profiles/E2E972DDE1E14493E04312C0E50A1AB1.prf
inflating: .cgrep/profiles/F32F44CE0BCD662FE04312C0E50AB058.prf
inflating: .cgrep/profiles/E8DF76E07DD82E0DE04313C0E50AA55D.prf
inflating: .cgrep/profiles/D49B218473787400E0431EC0E50A0BB9.prf
inflating: .cgrep/profiles/D49C0AB26A6D45A8E0431EC0E50ADE06.prf
inflating: .cgrep/profiles/DFE9C207A8F2428CE04313C0E50A6B0A.prf

2. inflating: .cgrep/profiles/D49C4F9F48735396E0431EC0E50A9A0B.prf
inflating: .cgrep/profiles/D49BDC2EC9E624AEE0431EC0E50A3E12.prf
inflating: .cgrep/profiles/DF65D0F7FB6F1014E04312C0E50A7808.prf
inflating: .cgrep/scnhealthcheck.sql
inflating: .cgrep/pxhcdr.sql
inflating: .cgrep/lcgrep5
inflating: .cgrep/scgrep
inflating: .cgrep/raw_data_browser.pl
inflating: .cgrep/profiles.dat
inflating: .cgrep/rack_comparison.py
inflating: .cgrep/versions.dat
inflating: .cgrep/create_version.pl
inflating: .cgrep/lcgreps11
inflating: .cgrep/utluppkg.sql
inflating: .cgrep/utlusts.sql
inflating: .cgrep/reset_crshome.pl
inflating: .cgrep/asrexacheck
inflating: .cgrep/lcgrep6
inflating: .cgrep/utlu112i.sql
inflating: UserGuide.txt
oracle@jdcoramgt1:/ORA/SOFTWARE$ . oraenv
ORACLE_SID = [MONDB] ?
The Oracle base for ORACLE_HOME=/ORA/app/oracle/product/11.2.db is
/ORA/app/oracle
oracle@jdcoramgt1:/ORA/SOFTWARE$ ls
11r1 glibc-devel-2.5-42.el5_4.2.x86_64.rpm orachk
raccheck rules.dat
collections.dat glibc-devel-2.5-49.x86_64.rpm orachk.zip
readme.txt UserGuide.txt
oracle@jdcoramgt1:/ORA/SOFTWARE$ ./orachk -a
List of running databases
1. MONDB
2. None of above
Select databases from list for checking best practices. For multiple
databases, select 1 for All or comma separated number like 1,2 etc [1-2][1].1
. .
Checking Status of Oracle Software Stack - Clusterware, ASM, RDBMS
. . . . . . . . . . . . . . .
-----------------------------------------------------------------------------
--------------------------
Oracle Stack Status
-----------------------------------------------------------------------------
--------------------------
Host Name CRS Installed ASM HOME RDBMS Installed CRS UP ASM UP
RDBMS UP DB Instance Name
-----------------------------------------------------------------------------
--------------------------
jdcoramgt1 No No Yes No
No Yes MONDB
-----------------------------------------------------------------------------
--------------------------

3. Copying plug-ins
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . .
*** Checking Best Practice Recommendations (PASS/WARNING/FAIL) ***
Collections and audit checks log file is
/ORA/SOFTWARE/orachk_jdcoramgt1_MONDB_042414_144802/log/orachk.log
Checking for prompts in /ORA/.bash_profile on jdcoramgt1 for oracle user...
=============================================================
Node name - jdcoramgt1
=============================================================
Collecting - Database Parameters for MONDB database
Collecting - Database Undocumented Parameters for MONDB database
Collecting - RDBMS Feature Usage for MONDB database
Collecting - CPU Information
Collecting - DiskMount Information
Collecting - Kernel parameters
Collecting - Maximum number of semaphore sets on system
Collecting - Maximum number of semaphores on system
Collecting - Maximum number of semaphores per semaphore set
Collecting - Memory Information
Collecting - OS Packages
Collecting - Patches for RDBMS Home
Collecting - number of semaphore operations per semop system call
Data collections completed. Checking best practices on jdcoramgt1.
-----------------------------------------------------------------------------
---------
WARNING => Kernel Parameter SEMOPM Is Lower Than The Recommended Value
WARNING => Kernel Parameter SEMMSL Is Lower Than The Recommended Value
INFO => user_dump_dest has trace files older than 30 days for MONDB
INFO => At some times checkpoints are not being completed for MONDB
WARNING => One or more redo log groups are NOT multiplexed for MONDB
WARNING => OSWatcher is not running as is recommended.
FAIL => Database parameter DB_BLOCK_CHECKSUM is NOT set to recommended
value on MONDB instance
FAIL => Database parameter DB_LOST_WRITE_PROTECT is NOT set to
recommended value on MONDB instance
WARNING => Database parameter DB_BLOCK_CHECKING on PRIMARY is NOT set to the
recommended value. for MONDB
INFO => Operational Best Practices

4. INFO => Database Consolidation Best Practices
INFO => Computer failure prevention best practices
INFO => Data corruption prevention best practices
INFO => Logical corruption prevention best practices
INFO => Database/Cluster/Site failure prevention best practices
INFO => Client failover operational best practices
FAIL => RECYCLEBIN on PRIMARY should be set to the recommended value on
MONDB instance
WARNING => Redo log file size should be sized to switch every 20 minutes
during peak redo generation for MONDB
WARNING => Oracle clusterware is not being used
WARNING => RAC Application Cluster is not being used for database high
availability on MONDB instance
WARNING => "DISK_ASYNCH_IO is NOT set to recommended value for MONDB
FAIL => Flashback on PRIMARY is not configured for MONDB
INFO => Database failure prevention best practices
FAIL => Primary database is NOT protected with Data Guard (standby
database) for real-time data protection and availability for MONDB
FAIL => Active Data Guard is not configured for MONDB
WARNING => Redo log write time is more than 500 milliseconds for MONDB
INFO => Parallel Execution Health-Checks and Diagnostics Reports for
MONDB
WARNING => OS parameter vm.swappiness is NOT set to the recommended value
INFO => Oracle recovery manager(rman) best practices
INFO => Consider increasing the COREDUMPSIZE size
WARNING => Consider setting database parameter NLS_SORT to BINARY for MONDB
Best Practice checking completed.Checking recommended patches on jdcoramgt1.
-----------------------------------------------------------------------------
----
Collecting patch inventory on ORACLE_HOME /ORA/app/oracle/product/11.2.db
-----------------------------------------------------------------------------
----
-----------------------------------------------------------------------------
----
1 Recommended RDBMS patches for 112010 from /ORA/app/oracle/product/11.2.db
on jdcoramgt1
-----------------------------------------------------------------------------
----
Patch# RDBMS ASM type Patch-Description
-----------------------------------------------------------------------------
----
12419378 no merge DATABASE PSU 11.2.0.1.6
(INCLUDES CPUJUL
-----------------------------------------------------------------------------
----
-----------------------------------------------------------------------------
----
-----------------------------------------------------------------------------
----

5. RDBMS homes patches summary report
-----------------------------------------------------------------------------
----
Total patches Applied on RDBMS Applied on ASM ORACLE_HOME
-----------------------------------------------------------------------------
----
1 0 0
/ORA/app/oracle/product/11.2.db
-----------------------------------------------------------------------------
----
-----------------------------------------------------------------------------
----
Detailed report (html) -
/ORA/SOFTWARE/orachk_jdcoramgt1_MONDB_042414_144802/orachk_jdcoramgt1_MONDB_0
42414_144802.html
UPLOAD(if required) - /ORA/SOFTWARE/orachk_jdcoramgt1_MONDB_042414_144802.zip
++++++++++++++++++++++
Detailed report (html)
++++++++++++++++++++++++
You can get an example of detailed report from below link:
https://www.dropbox.com/s/eiymj19x6g3zqmd/a.html
