1. Operating OpenStack on a Budget
Susan Wu
Director of Technical Marketing
Midokura
Samir Ibradžić
Head of Infrastructure and Systems
Midokura

2. Agenda
• Introduction to myself and Midokura
• About our private cloud “MidoCloud”
• Planning your OpenStack Cloud
• Building your OpenStack Cloud
• Operating your OpenStack Cloud
• Lessons Learned
• Q&A

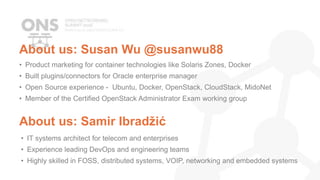

3. About us: Susan Wu @susanwu88
• Product marketing for container technologies like Solaris Zones, Docker
• Built plugins/connectors for Oracle enterprise manager
• Open Source experience - Ubuntu, Docker, OpenStack, CloudStack, MidoNet
• Member of the Certified OpenStack Administrator Exam working group
About us: Samir Ibradžić
• IT systems architect for telecom and enterprises
• Experience leading DevOps and engineering teams
• Highly skilled in FOSS, distributed systems, VOIP, networking and embedded systems

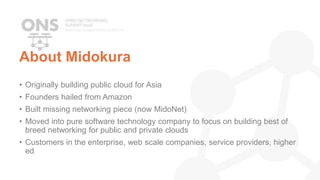

4. About Midokura
• Originally building public cloud for Asia
• Founders hailed from Amazon
• Built missing networking piece (now MidoNet)
• Moved into pure software technology company to focus on building best of
breed networking for public and private clouds
• Customers in the enterprise, web scale companies, service providers, higher
ed

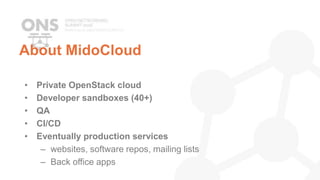

5. About MidoCloud
• Private OpenStack cloud
• Developer sandboxes (40+)
• QA
• CI/CD
• Eventually production services
– websites, software repos, mailing lists
– Back office apps

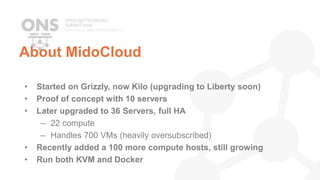

6. About MidoCloud
• Started on Grizzly, now Kilo (upgrading to Liberty soon)
• Proof of concept with 10 servers
• Later upgraded to 36 Servers, full HA
– 22 compute
– Handles 700 VMs (heavily oversubscribed)
• Recently added a 100 more compute hosts, still growing
• Run both KVM and Docker

7. Planning your OpenStack Deployment

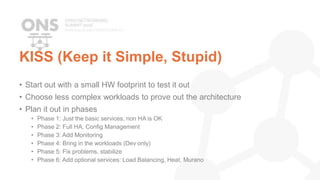

8. KISS (Keep it Simple, Stupid)
• Start out with a small HW footprint to test it out
• Choose less complex workloads to prove out the architecture
• Plan it out in phases
• Phase 1: Just the basic services, non HA is OK
• Phase 2: Full HA, Config Management
• Phase 3: Add Monitoring
• Phase 4: Bring in the workloads (Dev only)
• Phase 5: Fix problems, stabilize
• Phase 6: Add optional services: Load Balancing, Heat, Murano

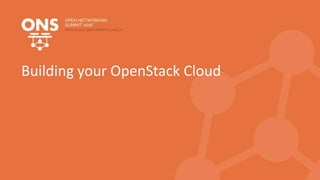

9. Building your OpenStack Cloud

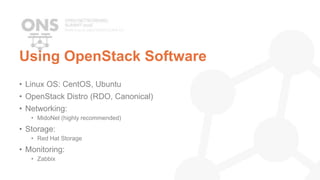

10. Using OpenStack Software
• Linux OS: CentOS, Ubuntu
• OpenStack Distro (RDO, Canonical)
• Networking:
• MidoNet (highly recommended)
• Storage:
• Red Hat Storage
• Monitoring:
• Zabbix

11. Why MidoNet for Networking?
• OVS Plugin is default, but largest headache in OpenStack
• Fully Open Source (Apache 2)
• Dramatically simplifies Neutron networking
• No SPOF
• Scalable
• Fewer components to setup and manage
• Great community support
• More at www.midonet.org

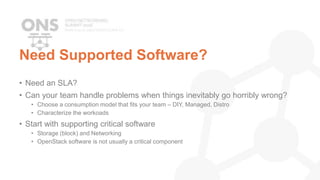

12. Need Supported Software?
• Need an SLA?
• Can your team handle problems when things inevitably go horribly wrong?
• Choose a consumption model that fits your team – DIY, Managed, Distro
• Characterize the workoads
• Start with supporting critical software
• Storage (block) and Networking
• OpenStack software is not usually a critical component

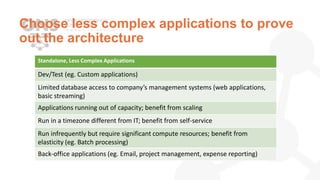

13. Choose less complex applications to prove
out the architecture
Standalone, Less Complex Applications
Dev/Test (eg. Custom applications)
Limited database access to company’s management systems (web applications,
basic streaming)
Applications running out of capacity; benefit from scaling
Run in a timezone different from IT; benefit from self-service
Run infrequently but require significant compute resources; benefit from
elasticity (eg. Batch processing)
Back-office applications (eg. Email, project management, expense reporting)

14. More complex workloads require
infrastructure planning
More complex, requires enterprise integration
Resource-intensive (memory, IO) or require specific hardware (e.g. Big Data, DB)
Require integration with company management information databases (eg. ERP,
HR)
Frequent, high volume transactions against a database that can’t be moved to
the cloud (eg. Stock trading)
High security and compliance requirements (eg. Electronic health records)
Performance-sensitive (eg. Business intelligence)
Run on legacy systems and/or require specialize hardware (eg. Mainframe or
encryption hardware)

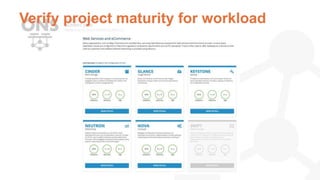

15. Verify project maturity for workload

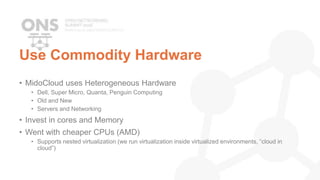

16. Use Commodity Hardware
• MidoCloud uses Heterogeneous Hardware
• Dell, Super Micro, Quanta, Penguin Computing
• Old and New
• Servers and Networking
• Invest in cores and Memory
• Went with cheaper CPUs (AMD)
• Supports nested virtualization (we run virtualization inside virtualized environments, “cloud in
cloud”)

17. Build your team
• “DevOps” focus
• Traditional Sys Admins with high Linux competency and scripting skills
• Thirst to learn new tech
• Patience of a saint
• 1-2 people initially
• Became part time gig for 3 people eventually
• Training
• Don’t be reliant on “easy installers”
• Start with manual installs of OpenStack to understand all components
• Later, installers are fine

18. Operating your OpenStack Cloud

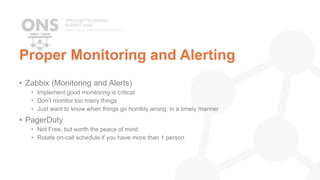

19. Proper Monitoring and Alerting
• Zabbix (Monitoring and Alerts)
• Implement good monitoring is critical
• Don’t monitor too many things
• Just want to know when things go horribly wrong, in a timely manner
• PagerDuty
• Not Free, but worth the peace of mind
• Rotate on-call schedule if you have more than 1 person

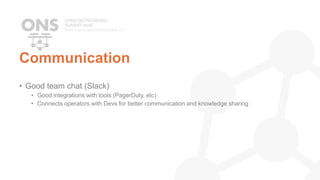

20. Communication
• Good team chat (Slack)
• Good integrations with tools (PagerDuty, etc)
• Connects operators with Devs for better communication and knowledge sharing

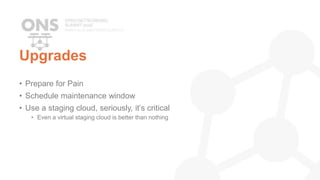

21. Upgrades
• Prepare for Pain
• Schedule maintenance window
• Use a staging cloud, seriously, it’s critical
• Even a virtual staging cloud is better than nothing

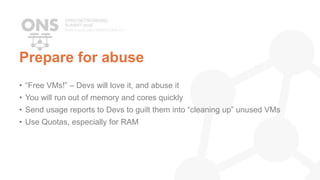

22. Prepare for abuse
• “Free VMs!” – Devs will love it, and abuse it
• You will run out of memory and cores quickly
• Send usage reports to Devs to guilt them into “cleaning up” unused VMs
• Use Quotas, especially for RAM

23. Lessons Learned

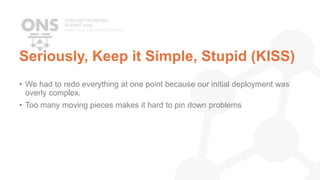

24. Seriously, Keep it Simple, Stupid (KISS)
• We had to redo everything at one point because our initial deployment was
overly complex.
• Too many moving pieces makes it hard to pin down problems

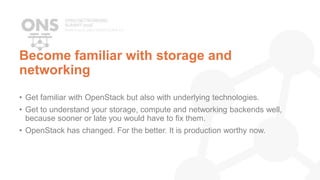

25. Become familiar with storage and
networking
• Get familiar with OpenStack but also with underlying technologies.
• Get to understand your storage, compute and networking backends well,
because sooner or late you would have to fix them.
• OpenStack has changed. For the better. It is production worthy now.

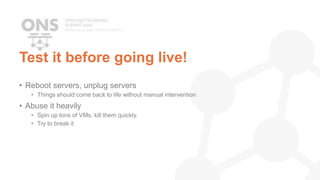

26. Test it before going live!
• Reboot servers, unplug servers
• Things should come back to life without manual intervention
• Abuse it heavily
• Spin up tons of VMs, kill them quickly.
• Try to break it

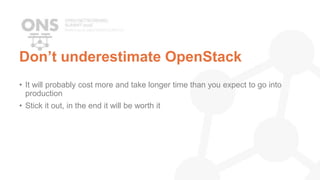

27. Don’t underestimate OpenStack
• It will probably cost more and take longer time than you expect to go into
production
• Stick it out, in the end it will be worth it

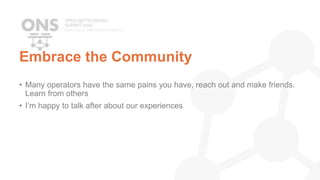

28. Embrace the Community
• Many operators have the same pains you have, reach out and make friends.
Learn from others
• I’m happy to talk after about our experiences

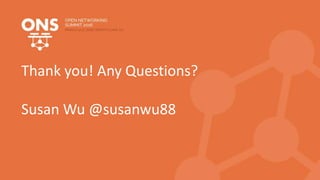

29. Thank you! Any Questions?
Susan Wu @susanwu88
