[OpenStack Days Korea 2016] Track3 - OpenStack on 64-bit ARM with X-Gene
- 1. 1© AppliedMicro Proprietary & Confidential Introduction to X-Gene® Technology February 2016

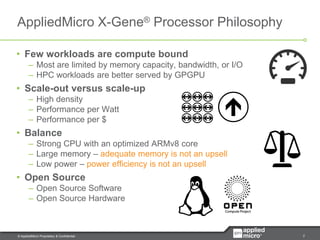

- 2. 2© AppliedMicro Proprietary & Confidential AppliedMicro X-Gene® Processor Philosophy • Few workloads are compute bound – Most are limited by memory capacity, bandwidth, or I/O – HPC workloads are better served by GPGPU • Scale-out versus scale-up – High density – Performance per Watt – Performance per $ • Balance – Strong CPU with an optimized ARMv8 core – Large memory – adequate memory is not an upsell – Low power – power efficiency is not an upsell • Open Source – Open Source Software – Open Source Hardware
- 3. 3© AppliedMicro Proprietary & Confidential X-Gene® 1 Processor Fully Integrated Server-on-a-Chip • 8 Custom ARMv8 64-bit Cores – Up to 2.4 GHz – 8MB shared L3 cache • Integrated Memory Controllers – 4 channel DDR3-1600 • Integrated Networking – Dual 10 Gb Ethernet SFP+ – Quad 1 Gb Ethernet (SGMII) • Integrated Storage – 6 lanes of Serial-ATA 3 • Integrated I/O Interfaces – 17 lanes of PCI-Express® gen3 – 5 controllers • 45 Watt TDP Coherent Network I/O Network 72-Bit DDR3 72-Bit DDR3 72-Bit DDR3 72-Bit DDR3 8MB Shared L3 Serial ATA 3PCI-Express® 3 (x17/ 5 controllers) USB 2.0 10 Gb Ethernet (2) 1 Gb Ethernet (4) GPIO SPI UART I2C ARM Cortex M3 I/D Cache System Management Power Management PKE Engine ARM v8 L1 I$ L1 D$ ARM v8 L1 I$ L1 D$ L2 Cache PMD ARM v8 L1 I$ L1 D$ ARM v8 L1 I$ L1 D$ L2 Cache PMD ARM v8 L1 I$ L1 D$ ARM v8 L1 I$ L1 D$ L2 Cache PMD ARM v8 L1 I$ L1 D$ ARM v8 L1 I$ L1 D$ L2 Cache PMD I/OBridge In Production
- 4. 4© AppliedMicro Proprietary & Confidential X-Gene® 2 Processor Scale-Out Optimized Server-on-a-Chip • 8 Custom ARMv8 64-bit Cores – Up to 2.8 GHz – Expanded instruction set – 10% higher performance • Genome Coherent Clustering • Integrated Memory Controllers – 4 channel DDR3-1866 • Integrated Networking – Dual 10 Gb Ethernet (KR) – RDMA over Ethernet support • Integrated Storage – 6 channel Serial-ATA 3 • Integrated I/O Interfaces – x8 PCI-Express® – Full I/O virtualization (SMMU) • 35 Watt TDP – 50% higher performance / Watt Coherent Network I/O Network 72-Bit DDR3 72-Bit DDR3 72-Bit DDR3 72-Bit DDR3 8MB Shared L3 Serial ATA 3PCI-Express® 3 (x8/ 3 controllers) USB 2.0 10 Gb Ethernet (2) 1 Gb Ethernet (4) GPIO SPI UART I2C ARM Cortex M3 I/D Cache System Management Power Management PKE Engine ARM v8 L1 I$ L1 D$ ARM v8 L1 I$ L1 D$ L2 Cache PMD ARM v8 L1 I$ L1 D$ ARM v8 L1 I$ L1 D$ L2 Cache PMD ARM v8 L1 I$ L1 D$ ARM v8 L1 I$ L1 D$ L2 Cache PMD ARM v8 L1 I$ L1 D$ ARM v8 L1 I$ L1 D$ L2 Cache PMD I/OBridge Sampling Now
- 5. 5© AppliedMicro Proprietary & Confidential X-Gene® Processor Performance
- 6. 6© AppliedMicro Proprietary & Confidential Primary Workloads Web Tier Web Serving / Proxy | Apache, NGINX, HAProxy Web Apps / Hosting | Drupal, WordPress, Rails Web Caching | Memcached, Redis, Squid Database | MySQL, MongoDB, Cassandra Cold Storage Big Data Data Analytics Cold Storage | CEPH, GlusterFS, Openstack Swift Big Data | Hadoop MapReduce, Spark Data Analytics | Lucene, ElasticSearch, Hive HPC HPC | CPU / GPU combination workloads
- 7. 7© AppliedMicro Proprietary & Confidential AppliedMicro ARMv8 Core Performance Frequency-Independent 3.4 4.2 4.6 DhrystoneMIPs/MHz/Core 1.0 2.0 3.0 4.0 5.0 6.0 5.0 6.5 AtomC2750 CortexA-57 XeonE3(Haswell–22nm) X-Gene®2 X-Gene®1 Core Performance: Must be competitive… but it does not tell the full story Up to 40% faster than Intel Atom Up to 80% of the performance of Xeon®… but with large memory and lower power X-Gene 1 8-core 128 GB 45 Watts X-Gene 2 8-core 128 GB 35 Watts Xeon E3 4-core 32 GB 80 Watts Up to 10% faster than ARM Cortex A-57… but higher frequency
- 8. 8© AppliedMicro Proprietary & Confidential Enterprise Workload Performance Web Server (WRK Benchmark) AppliedMicro X-Gene® 2 Intel Xeon® E5-2630v3 1038 771 2.4 4.4 8.5 6.3 Bandwidth (higher is better) Latency (lower is Better) Performance (higher is better) KRPS KRPS ms ms Gbps Gbps X-Gene 2 (8c @ 2.4 GHz) • 4 node 1U / ½ width sled • 64GB DDR3-1600 • 4 x 10GbE (integrated) • Wall power: ~190 Watts Xeon e5-2630v3 (8c/16t @ 2.4 GHz) • 2P 1U / ½ width sled • 64GB DDR4-2133 • 4 x 10GbE (NIC) • Wall power: ~180 Watts Up to 35% Higher Performance | Lower TCO Standard CPU benchmarks do not always translate to delivered workload performance
- 9. 9© AppliedMicro Proprietary & Confidential MongoDB Performance with YCSB Real World In-Memory Database Workload 1U / 2P Rack Server Intel™ Xeon® E5-2630v3 • 16C/32T 2.4GHz Turbo/HT • 64GB DDR4-1866 2-port 10GbE Mellanox NIC CentOS 7.1 24-port 10GbE Netgear™ Switch Client Intel™ Xeon® 2P e5-2630v2 • 12C/24T 2.6GHz Turbo /HT • 64GB DDR3-1600 2-port 10GbE Mellanox NIC CentOS 7.1 HP Moonshot m400 AppliedMicro X-Gene® CPU • 8-Core 2.4GHz • 64GB DDR3-1333 10GbE Integrated Ethernet RHELSA 7.1 Hardware Topology • Server Command • mongoDB version 2.4.9 • compile options scons mongodb –usev8=false • Run options ./mongod --dbpath /root/mongod/data4 --nojournal -- logpath=/root/tuan/mongod4_log --port 27021 --logappend * Benchmark Command ./bin/ycsb run mongodb -s -P workloads/workloadb -p mongodb.url=mongodb://10.66.12.206:27017 –threads $threads ./bin/ycsb run mongodb -s -P workloads/workloadb -p mongodb.url=mongodb://10.66.12.206:27018 –threads $threads ./bin/ycsb run mongodb -s -P workloads/workloadb -p mongodb.url=mongodb://10.66.12.206:27019 –threads $threads ./bin/ycsb run mongodb -s -P workloads/workloadb -p mongodb.url=mongodb://10.66.12.206:27020 –threads $threads ./bin/ycsb run mongodb -s -P workloads/workloadb -p mongodb.url=mongodb://10.66.12.206:27021 –threads $threads *YCSB from github at commit 5ab241 1x10GbE 1x10GbE 1x10GbE 1GbE
- 10. 10© AppliedMicro Proprietary & Confidential Single Moonshot m400 Cartridge = ~50% performance of a full 1U 2P Intel Xeon® E5 Haswell server MongoDB Performance with YCSB Real World In-Memory Database Workload 36 48 89 109 55 100 188 252 0 50 100 150 200 250 300 1 thread 2 threads 5 threads 10 threads Performanceops/sec(Thousands) Throughput HP Moonshot m400 2P E5-2630v3 Haswell 25 48 90 100 7 14 30 38 0 20 40 60 80 100 120 1 thread 2 threads 5 threads 10 threads CPUUtilization(%) CPU Utilization HP Moonshot m400 2P E5-2630v3 Haswell
- 11. 11© AppliedMicro Proprietary & Confidential MongoDB Performance with YCSB Real World In-Memory Database Workload 42URack 9Moonshotm400chassis/rack 402PE5-2630v3Haswell1Uservers/rack Rack-level Scalability = 5x the Performance versus full 1U 2P Intel Xeon® E5 Haswell rack 15 19 36 44 2 4 8 10 0 5 10 15 20 25 30 35 40 45 50 1 thread 2 threads 5 threads 10 threads Performanceops/sec(Millions) Rack Level Throughput HP Moonshot m400 2P E5-2630v3 Haswell
- 12. 12© AppliedMicro Proprietary & Confidential 1U / 2P Rack Server Intel™ Xeon® E5-2630v3 • 16C/32T 2.4GHz Turbo/HT • 64GB DDR4-1866 2-port 10GbE Mellanox NIC CentOS 7.1 24-port 10GbE Netgear™ Switch Client Intel™ Xeon® 2P e5-2630v2 • 12C/24T 2.6GHz Turbo /HT • 64GB DDR3-1600 2-port 10GbE Mellanox NIC CentOS 7.1 HP Moonshot m400 AppliedMicro X-Gene® CPU • 8-Core 2.4GHz • 64GB DDR3-1333 10GbE Integrated Ethernet RHELSA 7.1 Hardware Topology • Server Command • PostgreSQL version 9.4.4 • compile options ./configure Run options su postgres -c '/usr/local/pgsql/bin/postgres -F -D /home/postgres/data -p 5432 &' Postgres Performance with BenchmarkSQL Real World In-Memory Database Workload PostgreSQL Database Contents 32 Warehouses with 100,000 parts inventory/warehouse 10 districts/warehouse 3000 customers/district 1 terminal/district = 1 operator/district to serve 3000 customers Total Customers = 32*10*3000 = 960,000 PostgreSQL Database Operations New Order = 45% Payment = 43% Order Status = 4% Delivery = 4% Stock Level = 4% • Benchmark Command • BenchmarkSQL version 4.1.0 cd ~/benchmarksql-4.1.0/run ./runBenchmark.sh props.pg progs.pg file content driver=org.postgresql.Driver conn=jdbc:postgresql://10.76.191.182:5432/postgres user=benchmarksql password=amcc1234 warehouses=32 terminals=8 runTxnsPerTerminal=0 runMins=2 limitTxnsPerMin=0 newOrderWeight=45 paymentWeight=43 orderStatusWeight=4 deliveryWeight=4 stockLevelWeight=4 1x10GbE 1x10GbE 1x10GbE 1GbE
- 13. 13© AppliedMicro Proprietary & Confidential Single Moonshot m400 Cartridge = ~90% performance of a full 1U 2P Intel Xeon® E5 Haswell server Postgres Performance with BenchmarkSQL Real World In-Memory Database Workload 8 15 25 38 52 70 69 4 6 10 18 36 76 120 0 20 40 60 80 100 120 140 1 2 4 8 16 32 64 TransactionsPerMinute(Thousands) Terminals (1 terminal = 1operator serving 3000 customers/district) Throughput HP Moonshot m400 2P E5-2630v3 Haswell 8% 17% 30% 49% 70% 97% 100% 1% 2% 3% 5% 10% 18% 28% 0% 20% 40% 60% 80% 100% 120% 1 2 4 8 16 32 64 CPUUtilization(%) Terminals (1 terminal = 1operator serving 3000 customers/district) CPU Utilization HP Moonshot m400 2P E5-2630v3 Haswell
- 14. 14© AppliedMicro Proprietary & Confidential Rack Level Scalability = 8X-9X the performance versus full 1U 2P Intel Xeon® E5 Haswell rack Postgres Performance with BenchmarkSQL Real World In-Memory Database Workload 3170 6066 10106 15255 21171 28329 28143 146 222 381 724 1458 3023 4783 0 5000 10000 15000 20000 25000 30000 1 2 4 8 16 32 64 TransactionsPerMinute(Thousands) Terminals (1 terminal = 1 operator serving 3000 customers/district) Rack Level Throughput HP Moonshot m400 2P E5-2630v3 Haswell 42URack 9Moonshotm400chassis/rack 402PE5-2630v3Haswell1Uservers/rack
- 15. 15© AppliedMicro Proprietary & Confidential X-Gene® Technology in the Data Center

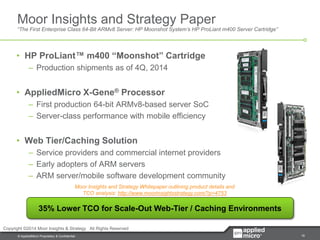

- 16. 16© AppliedMicro Proprietary & Confidential Moor Insights and Strategy Paper “The First Enterprise Class 64-Bit ARMv8 Server: HP Moonshot System’s HP ProLiant m400 Server Cartridge” • HP ProLiant™ m400 “Moonshot” Cartridge – Production shipments as of 4Q, 2014 • AppliedMicro X-Gene® Processor – First production 64-bit ARMv8-based server SoC – Server-class performance with mobile efficiency • Web Tier/Caching Solution – Service providers and commercial internet providers – Early adopters of ARM servers – ARM server/mobile software development community Copyright ©2014 Moor Insights & Strategy All Rights Reserved Moor Insights and Strategy Whitepaper outlining product details and TCO analysis: http://www.moorinsightsstrategy.com/?p=4753 35% Lower TCO for Scale-Out Web-Tier / Caching Environments
- 17. 17© AppliedMicro Proprietary & Confidential X-Gene® Technology in the Public Cloud "This is probably the first example of Moonshot AArch64 running in Europe outside of HP’s development labs, and certainly the first example of generally available Moonshot backed AArch64 instances in an OpenStack public cloud anywhere in the world.” Dr. Mike Kelly, CEO and founder of DataCentred
- 18. 18© AppliedMicro Proprietary & Confidential Ethernet Switch X- Ge ne D I M M D I M M D I M M D I M M X- Ge ne D I M M D I M M D I M M D I M M X- Ge ne D I M M D I M M D I M M D I M M X- Ge ne D I M M D I M M D I M M D I M M X- Ge ne D I M M D I M M D I M M D I M M X- Ge ne D I M M D I M M D I M M D I M M X- Ge ne D I M M D I M M D I M M D I M M X- Ge ne D I M M D I M M D I M M D I M M Xeon E5-2660 v3 Xeon E5-2660 v3 IO Chipset 10G NIC D I M M D I M M D I M M D I M M D I M M D I M M D I M M D I M M D I M M D I M M D I M M D I M M D I M M D I M M D I M M D I M M Xeon ® 1U Server X-Gene ® 1U Server No of Xeon® vCPUs 32 No of X-Gene® 2 ARM vCPUs 64 General Purpose Instances 1x m3.medium, m3.large, m3.xlarge General Purpose Instances 2x m3.medium, m3.large, m3.xlarge Memory Optimized Instances 1x r3.large, r3.xlarge, r3.2xlarge Memory Optimized Instances 2x r3.large, r3.xlarge, r3.2xlarge X-Gene® 2 vCPU: 2x density per 1U server
- 19. 19© AppliedMicro Proprietary & Confidential X-Gene® 2 v/s Intel Xeon® : Rack Level TCO 2x density; 45-50% Instance Cost Reduction Xeon® Rack X-Gene® 2 Rack Rack Power: 13KW Rack Power: 13KW General Purpose Instances Rack Cost: $145K Rack Cost: $145K No of vCPUs: 1280 No of vCPUs: 2560 Instance Cost: 1x Instance Cost: 0.5x Rack Power: 14KW Rack Power: 16KW Memory Optimized Instances Rack Cost: $170K Rack Cost: $190K No of vCPUs: 1280 No of vCPUs: 2560 Instance Cost: 1x Instance Cost: 0.55x X-Gene® 2 ARM Instances at 45 – 50% lower prices than Xeon® Instances
- 20. 20© AppliedMicro Proprietary & Confidential X-Gene® Platform Ecosystem
- 21. 21© AppliedMicro Proprietary & Confidential Storage Languages Application Workloads Web Tier & Storage Web Proxy Web Apps Web Caching Database Web Server Swift Cinder
- 22. 22© AppliedMicro Proprietary & Confidential NFV Update SAE PGW SGW GTP IP OVS Open Source Linux X-Gene 1 Evaluation Platform Evolved Packet Core (EPC) Tieto TIP Stack APM Software Traffic Generator Traffic Generator GUI • AppliedMicro Working with Tieto to Port TIP Stack to X-Gene • Demo of EPC and TIP using OVS with Traffic Generator • Multiple Networking Functions Virtualized – SAE Core – Packet Data Network Gateway – Serving Gateway • Schedule – Completion December, 2015
- 23. 23© AppliedMicro Proprietary & Confidential X-Gene® ARM Processor Software Ecosystem PEAP UBOOT Compilers Management UEFI UEFI
- 24. 24© AppliedMicro Proprietary & Confidential X-Gene® 1 Platform Ecosystem Multiple SKUs from Leading OEM and ODM Partners

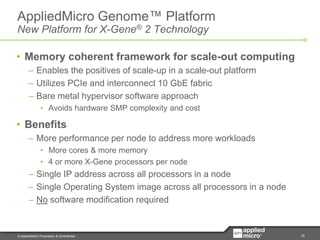

- 25. 25© AppliedMicro Proprietary & Confidential AppliedMicro Genome™ Platform New Platform for X-Gene® 2 Technology • Memory coherent framework for scale-out computing – Enables the positives of scale-up in a scale-out platform – Utilizes PCIe and interconnect 10 GbE fabric – Bare metal hypervisor software approach • Avoids hardware SMP complexity and cost • Benefits – More performance per node to address more workloads • More cores & more memory • 4 or more X-Gene processors per node – Single IP address across all processors in a node – Single Operating System image across all processors in a node – No software modification required
- 26. 26© AppliedMicro Proprietary & Confidential Genome™ Coherent Solution Genome™ RDMA / PCIe® Low Latency Coherent Fabric 8-core X-Gene 2 32 GB DDR3 Application Software 32-core SMP Linux 8-core X-Gene 2 32 GB DDR3 8-core X-Gene 2 32 GB DDR3 8-core X-Gene 2 32 GB DDR3 PCIe Gen3 Fabric 1TB 10 Gigabit Ethernet Fabric 10 GbE Switch PCIe Switch 2 x 10GbE to TOR Switch BMC Scalable performance across multiple sockets Customizable for each application – configurable nodes based on need Lowest power and price for the target application ½ width 1U, 4 node reference implementation Options: more nodes, more memory
- 27. 27© AppliedMicro Proprietary & Confidential X-Gene® 2 Genome™ Development Platform Gryphon • Platform – 4 X-Gene 2 processor nodes – Up to 2.8 GHz – 2 DDR3 channels / node • Up to 64 Gbytes / node (2 DIMMs) • DDR3-1866 • Form Factor – 1U ½ width – Dimensions: • Depth: 27.5” (698mm) • Width: 17.64” (448mm) • Height: 1.75” (44.5mm) • Features – 1 SATA HDD/SSD / node – 16-port 10GbE switch / sled • 2x10G XFI to top-of-rack switch – 1GbE management port / sled – 8-port PCI-Express® Gen 3 switch – BMC • IPMI v2.0 – On board thermal sensors • Power – 220 Watts
- 28. 28© AppliedMicro Proprietary & Confidential Thank You!
