This document describes Matteo Moretti's company Madisoft's migration of their Nuvola application from on-premise servers to AWS. It involved moving over 60 servers, 1000 databases totaling 4.5TB of data, and 25M media files to AWS using Ansible automation. The migration provided benefits like increased flexibility, horizontal scaling, infrastructure as code, and cost optimization. It took place over multiple environments using tools like Ansible, AWS EC2, RDS, S3, Route53, and was completed in around 50 minutes with no issues for users.

1. Nuvola: a tale of migration to AWS
Ansible + AWS: victory is mine!

2. Who am I?
Matteo Moretti

3. Who I am?
CTO @
website: madisoft.it
tech blog: labs.madisoft.it

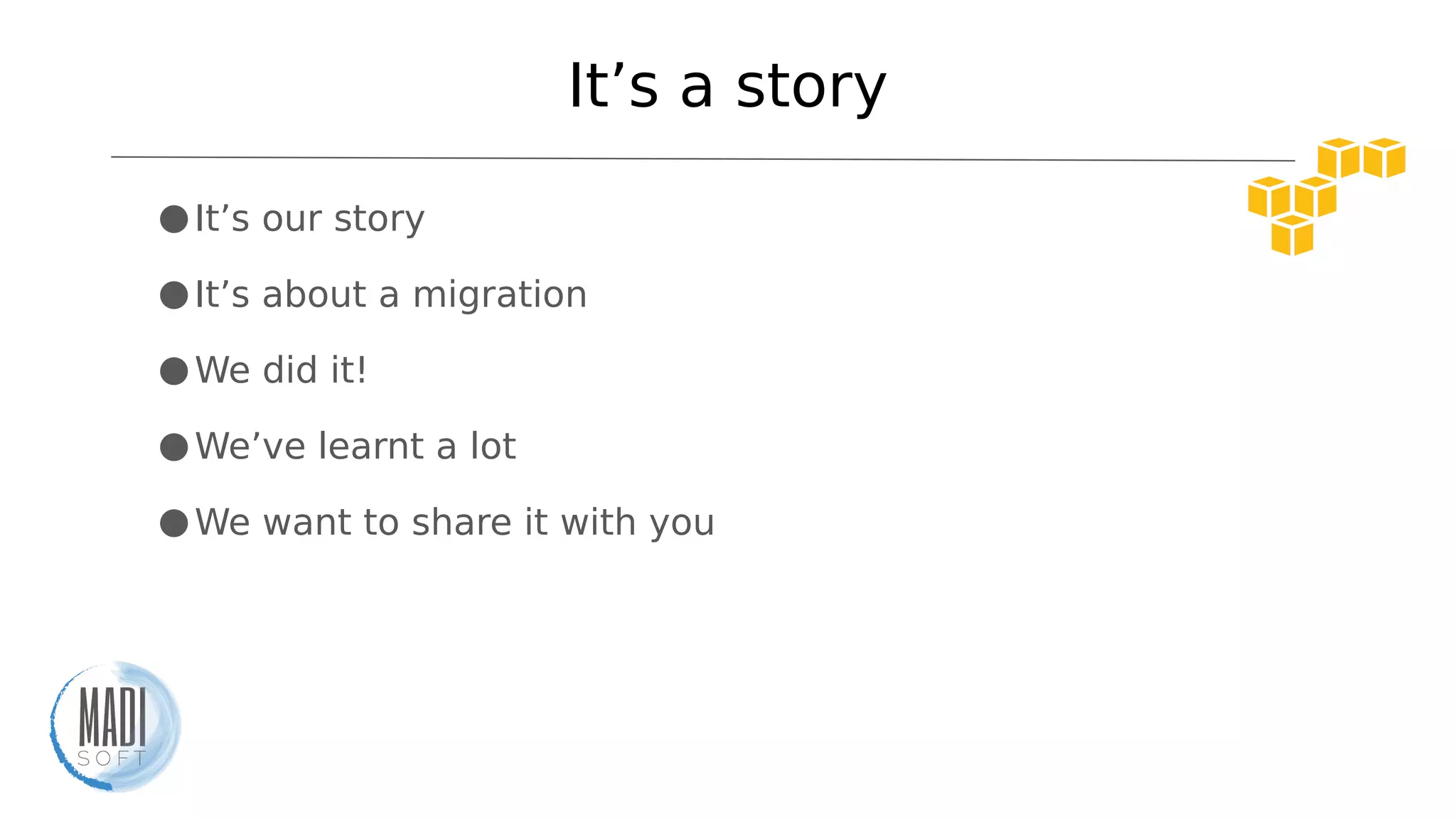

4. It’s a story
●It’s our story
●It’s about a migration
●We did it!
●We’ve learnt a lot
●We want to share it with you

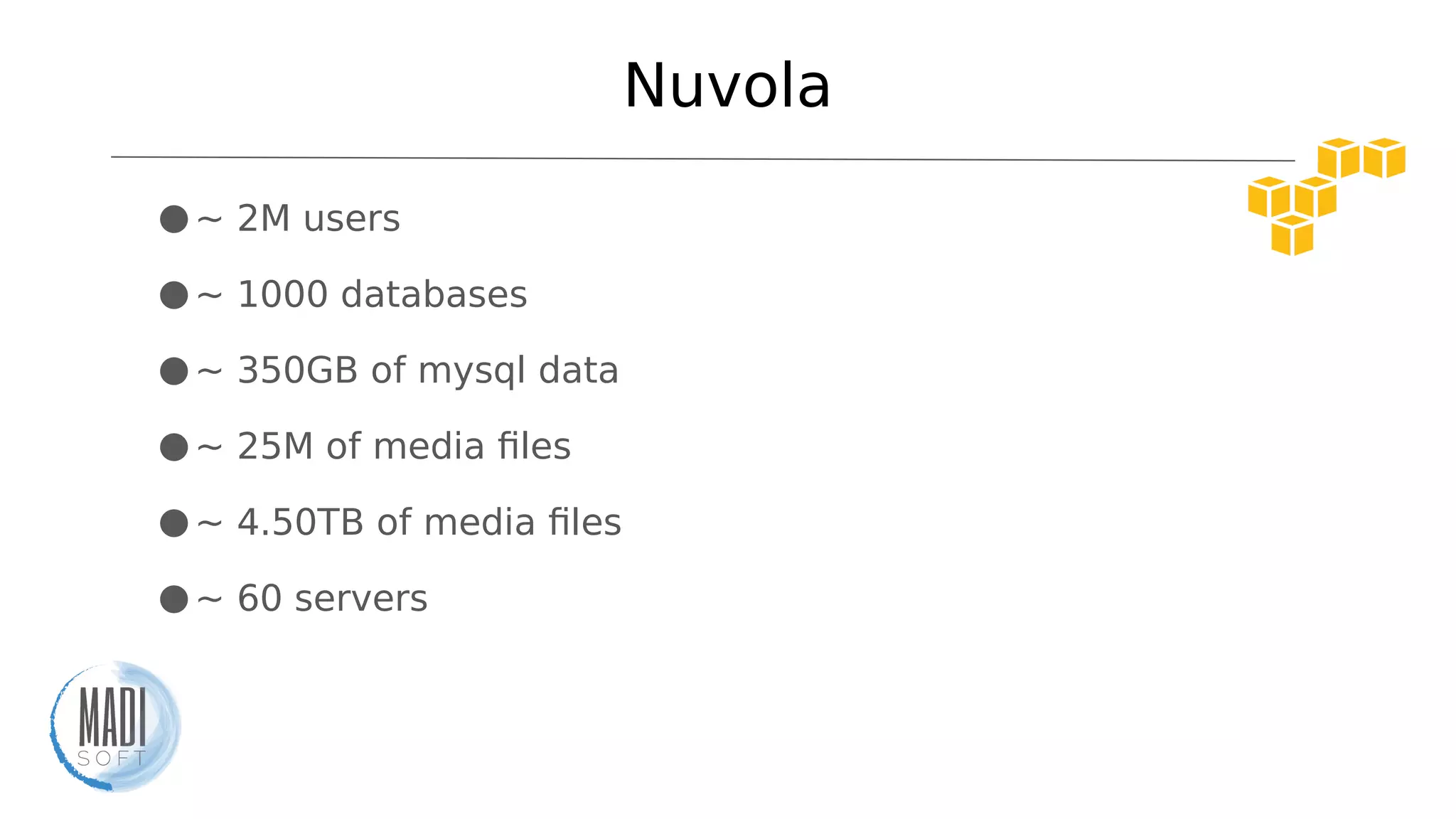

5. Nuvola
●~ 2M users
●~ 1000 databases
●~ 350GB of mysql data
●~ 25M of media files
●~ 4.50TB of media files
●~ 60 servers

6. Why a migration?
No automation, flexibility and autoscaling

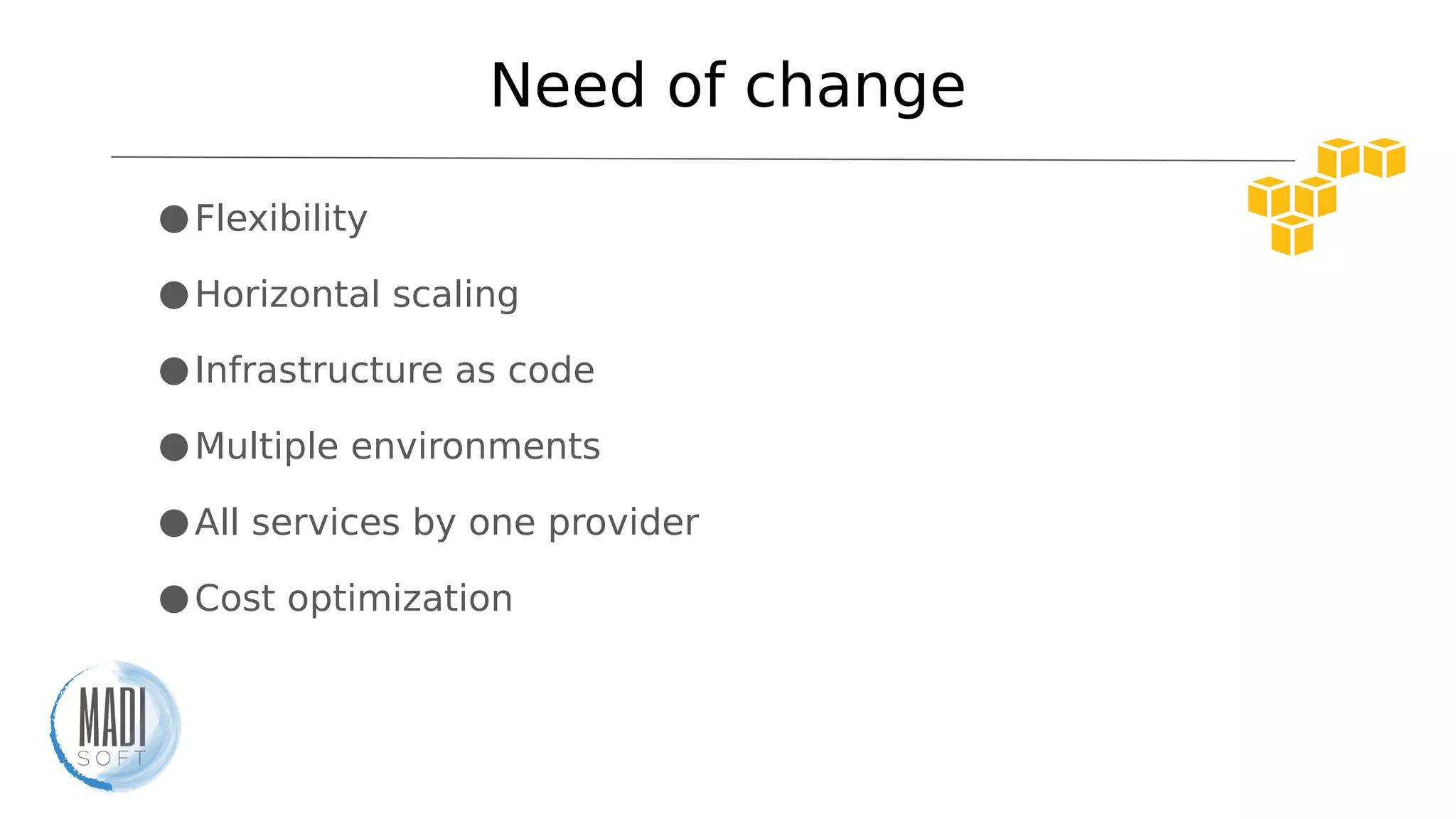

7. Need of change
●Flexibility
●Horizontal scaling
●Infrastructure as code
●Multiple environments
●All services by one provider
●Cost optimization

8. pixabay.com

9. Change is coming
isn’t it?

10. pixabay.com

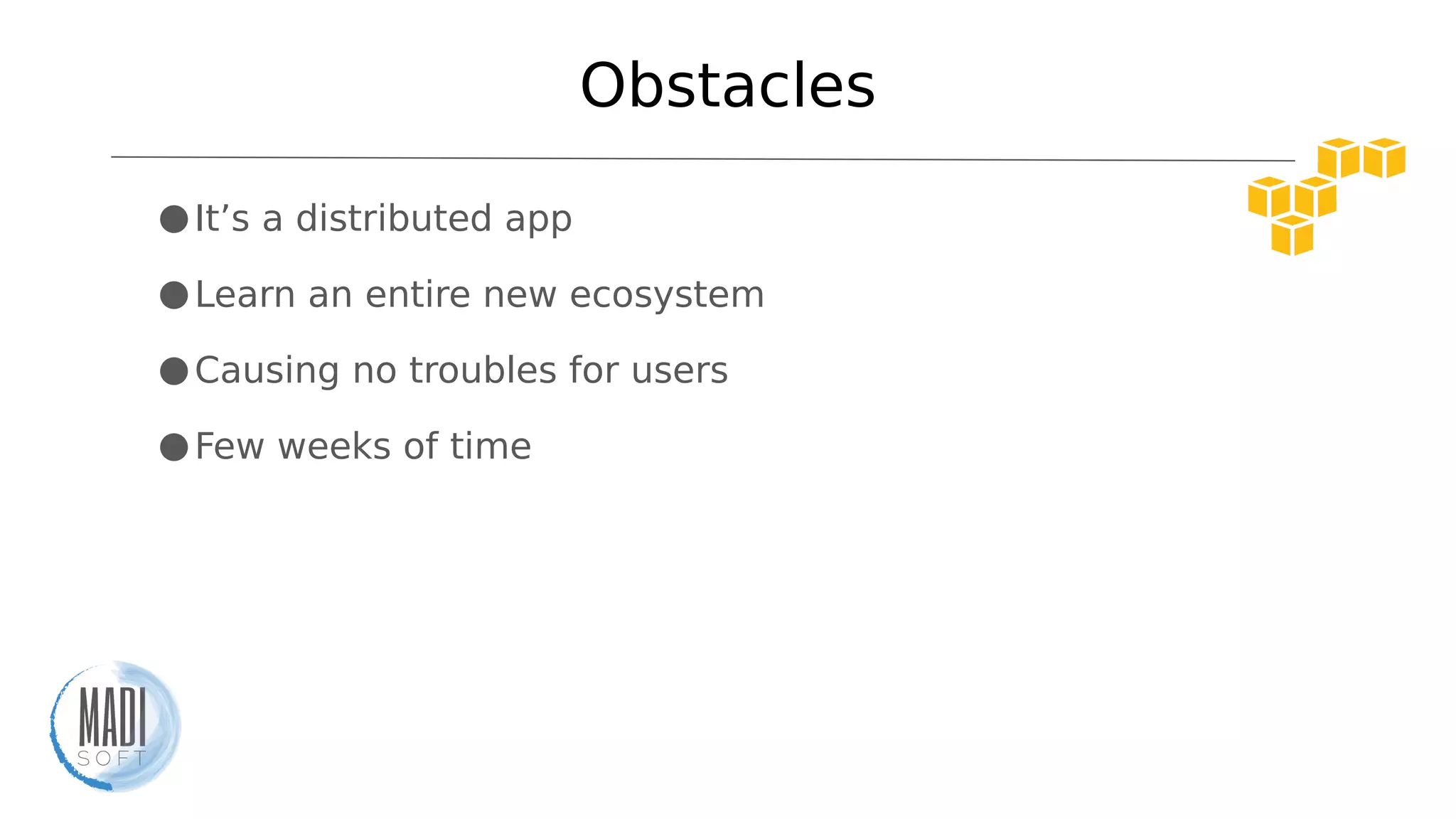

11. Obstacles
●It’s a distributed app
●Learn an entire new ecosystem
●Causing no troubles for users
●Few weeks of time

12. Tools and solutions

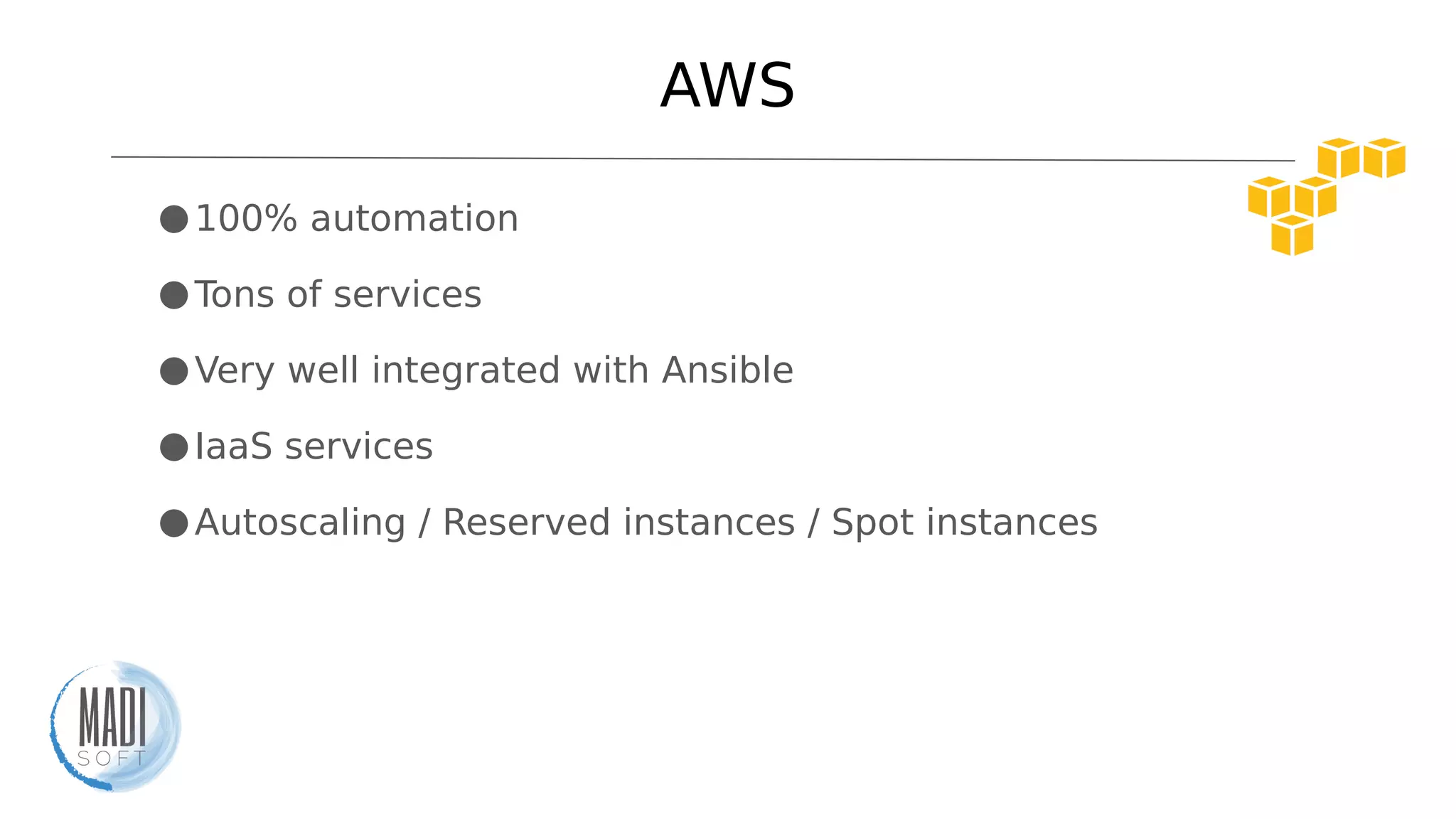

13. AWS
●100% automation
●Tons of services
●Very well integrated with Ansible
●IaaS services
●Autoscaling / Reserved instances / Spot instances

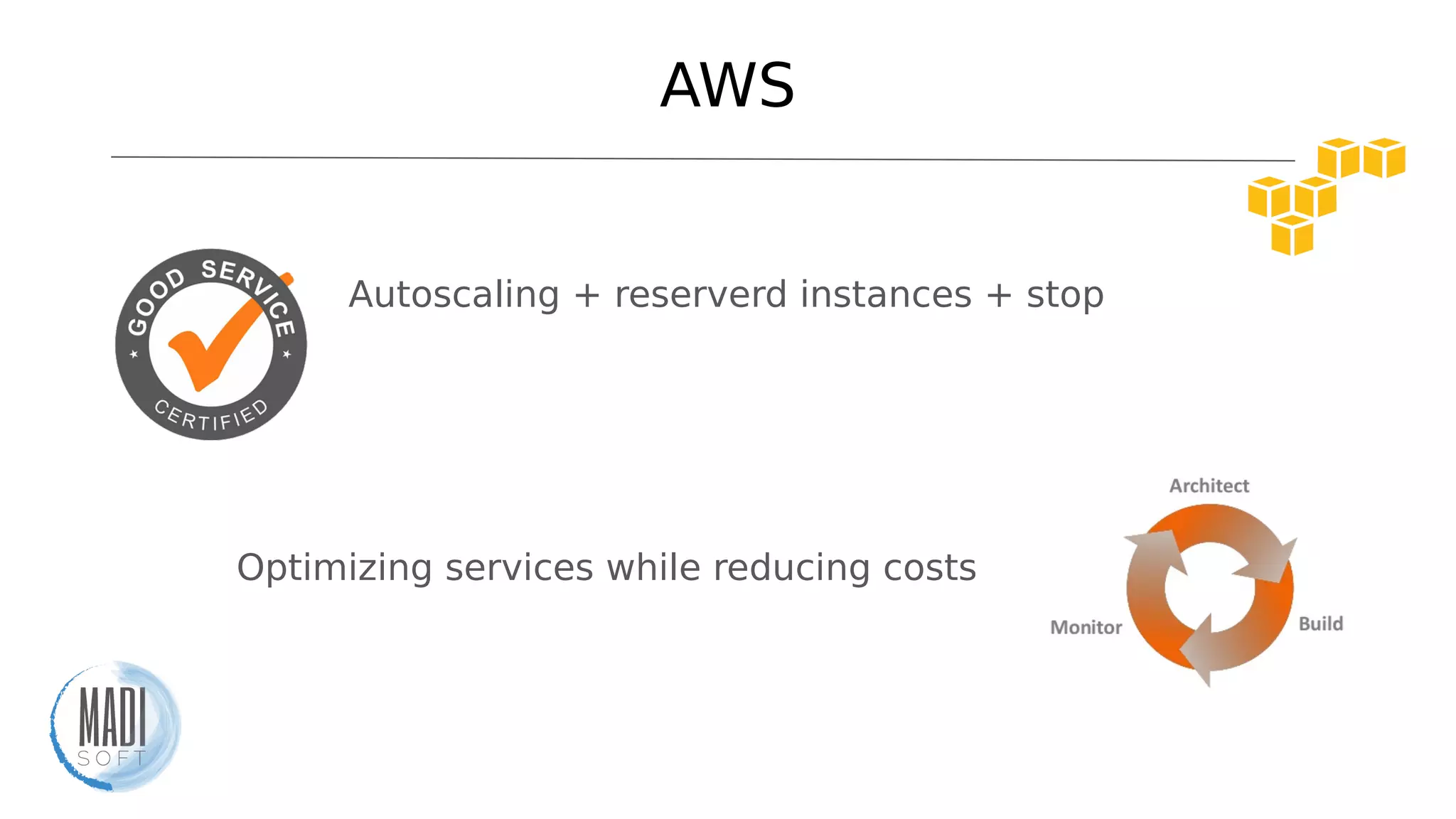

14. AWS
Autoscaling + reserverd instances + spot instances
Optimizing services while reducing costs

15. AWS

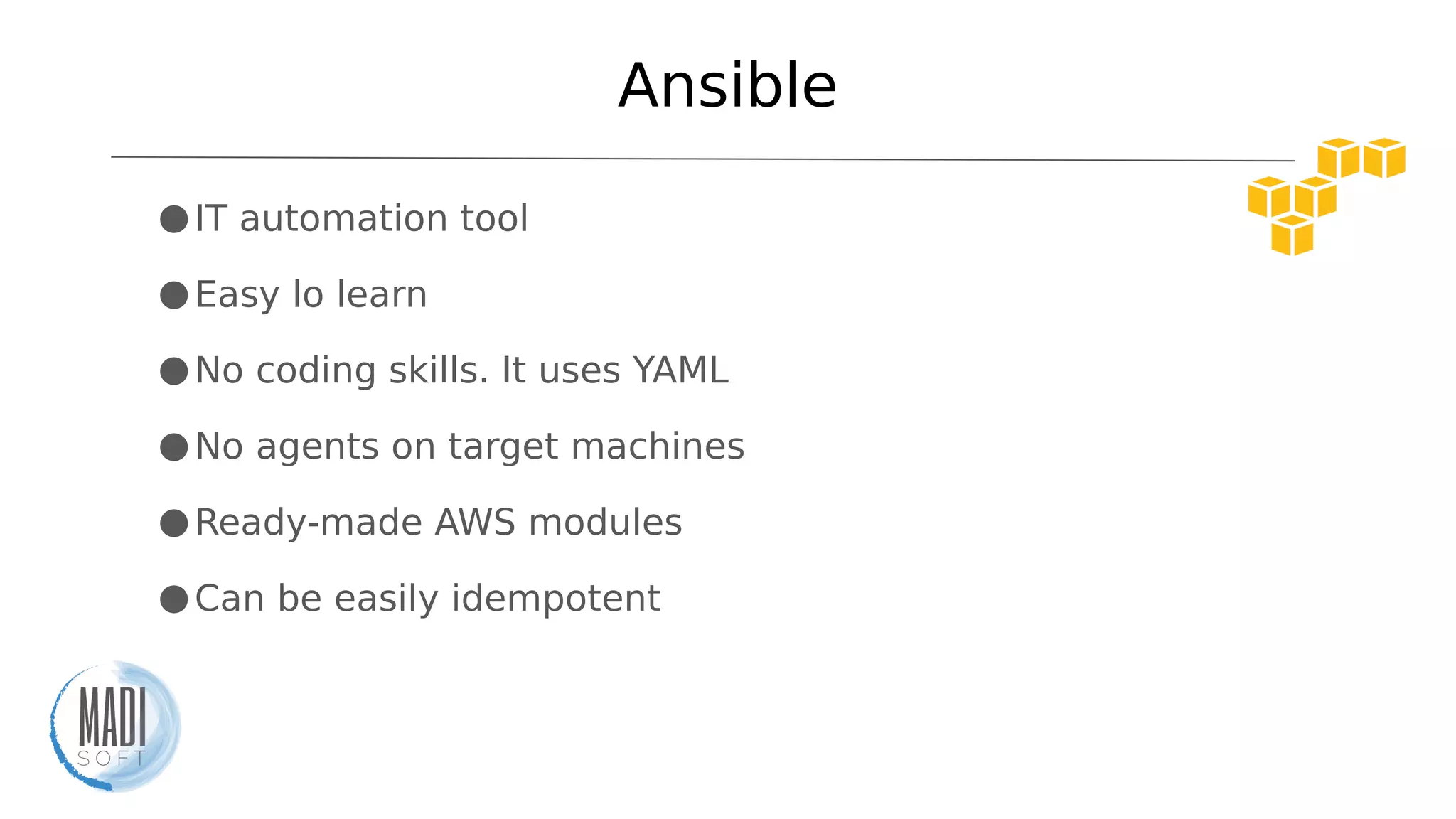

16. Ansible
●IT automation tool
●Easy lo learn
●No coding skills. It uses YAML
●No agents on target machines
●Ready-made AWS modules
●Can be easily idempotent

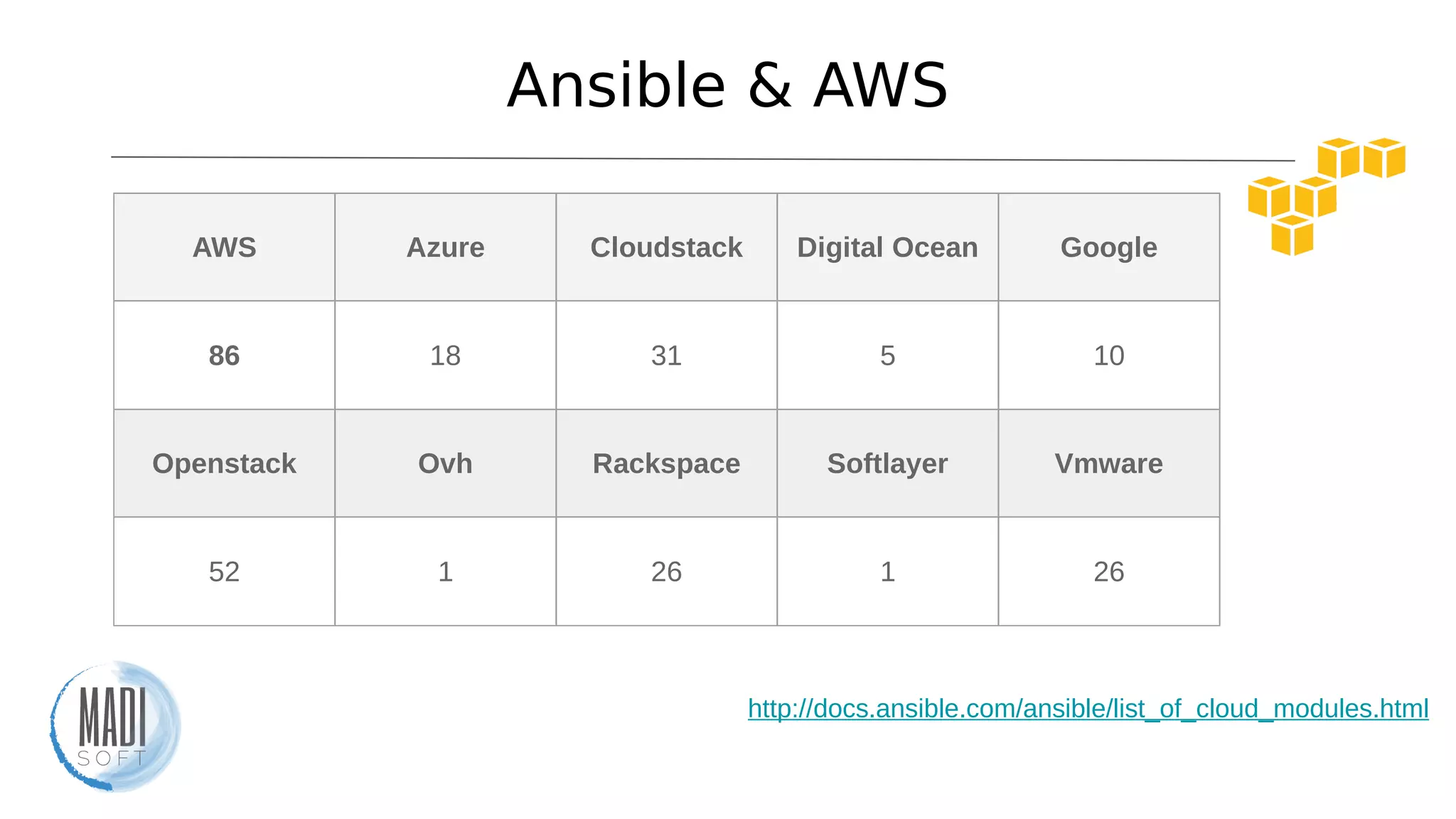

17. Ansible & AWS
AWS Azure Cloudstack Digital Ocean Google
86 18 31 5 10
Openstack Ovh Rackspace Softlayer Vmware
52 1 26 1 26
http://docs.ansible.com/ansible/list_of_cloud_modules.html

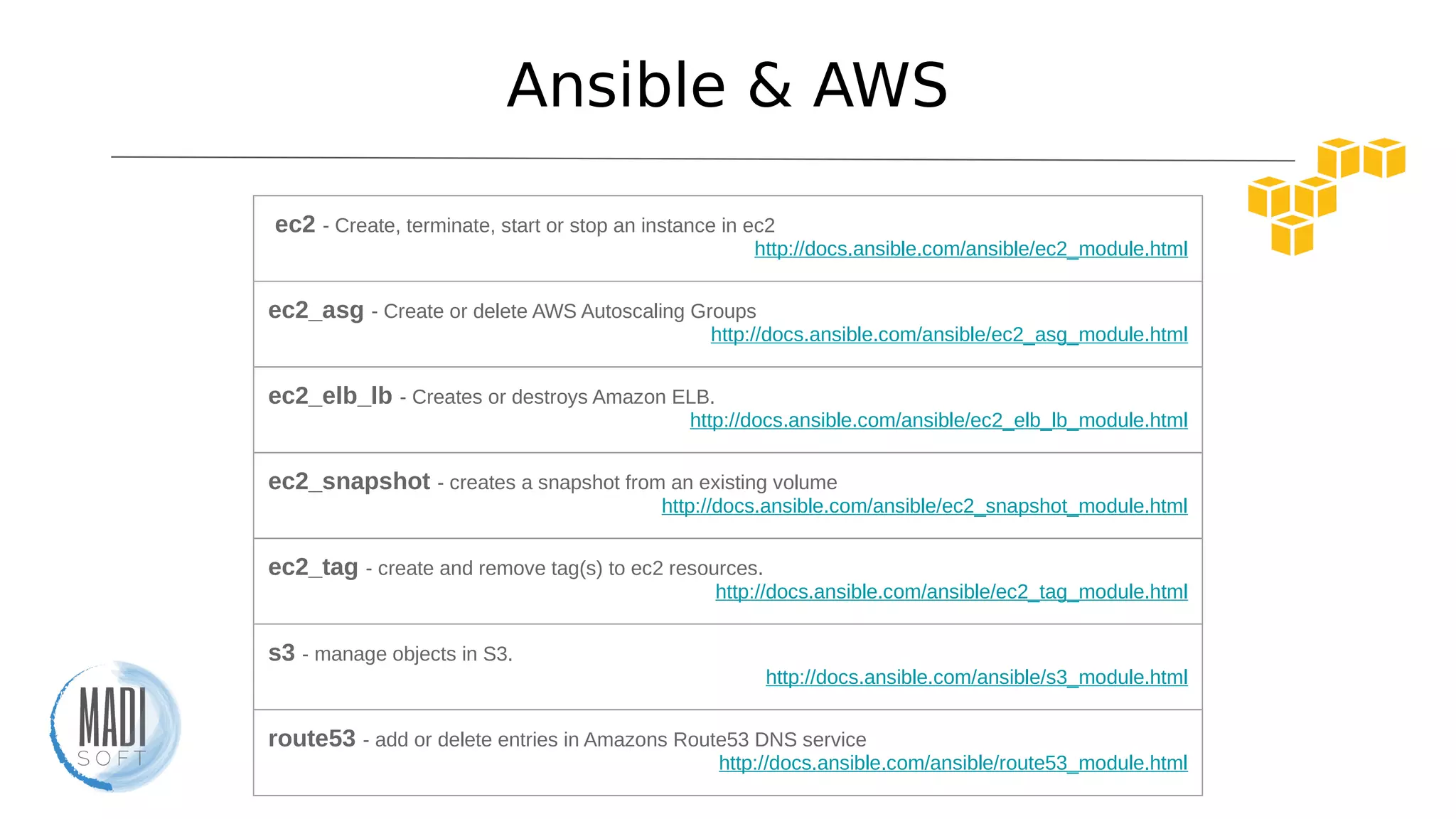

18. Ansible & AWS
ec2 - Create, terminate, start or stop an instance in ec2
http://docs.ansible.com/ansible/ec2_module.html
ec2_asg - Create or delete AWS Autoscaling Groups
http://docs.ansible.com/ansible/ec2_asg_module.html
ec2_elb_lb - Creates or destroys Amazon ELB.
http://docs.ansible.com/ansible/ec2_elb_lb_module.html
ec2_snapshot - creates a snapshot from an existing volume
http://docs.ansible.com/ansible/ec2_snapshot_module.html
ec2_tag - create and remove tag(s) to ec2 resources.
http://docs.ansible.com/ansible/ec2_tag_module.html
s3 - manage objects in S3.
http://docs.ansible.com/ansible/s3_module.html
route53 - add or delete entries in Amazons Route53 DNS service
http://docs.ansible.com/ansible/route53_module.html

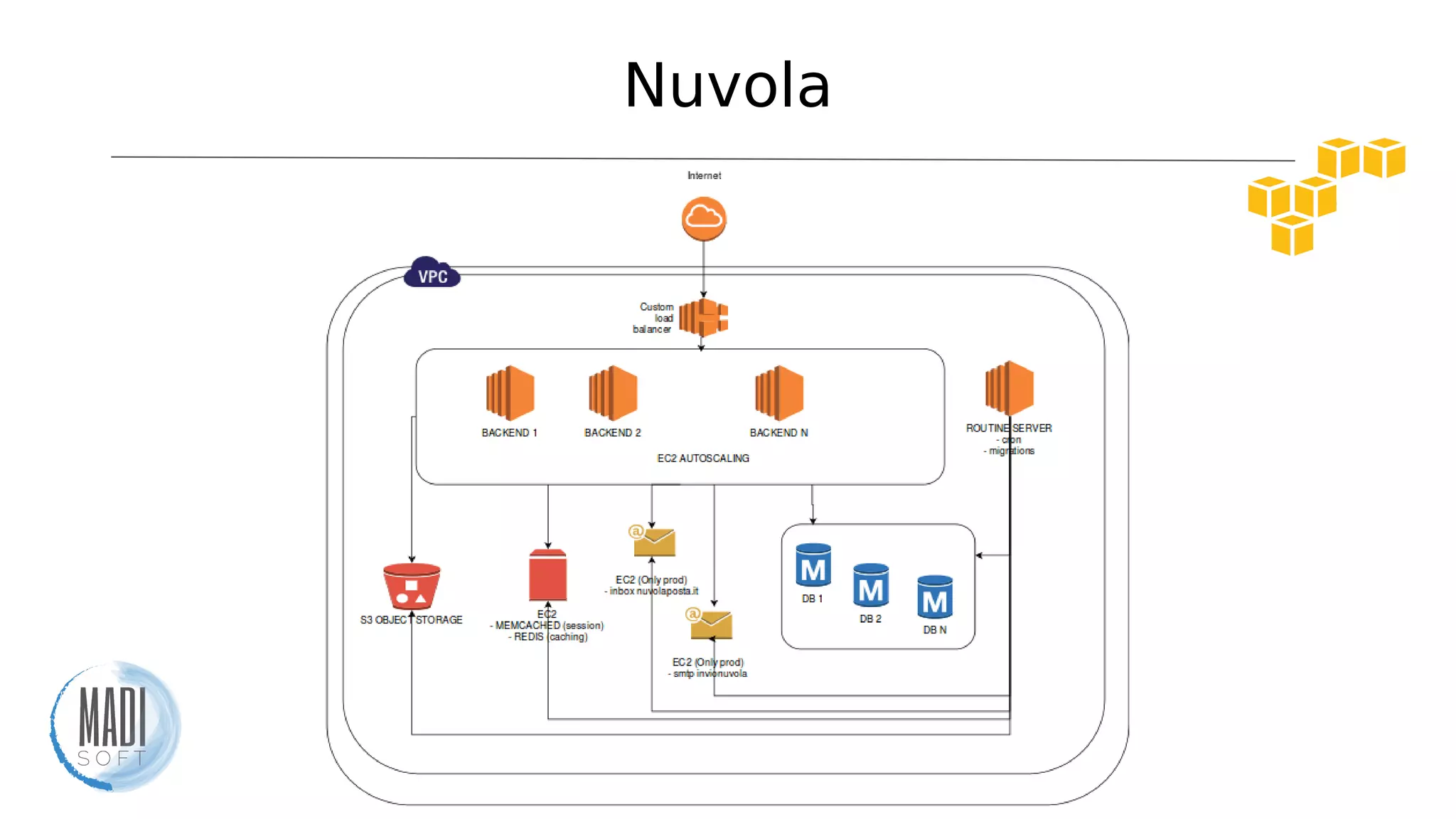

19. Nuvola

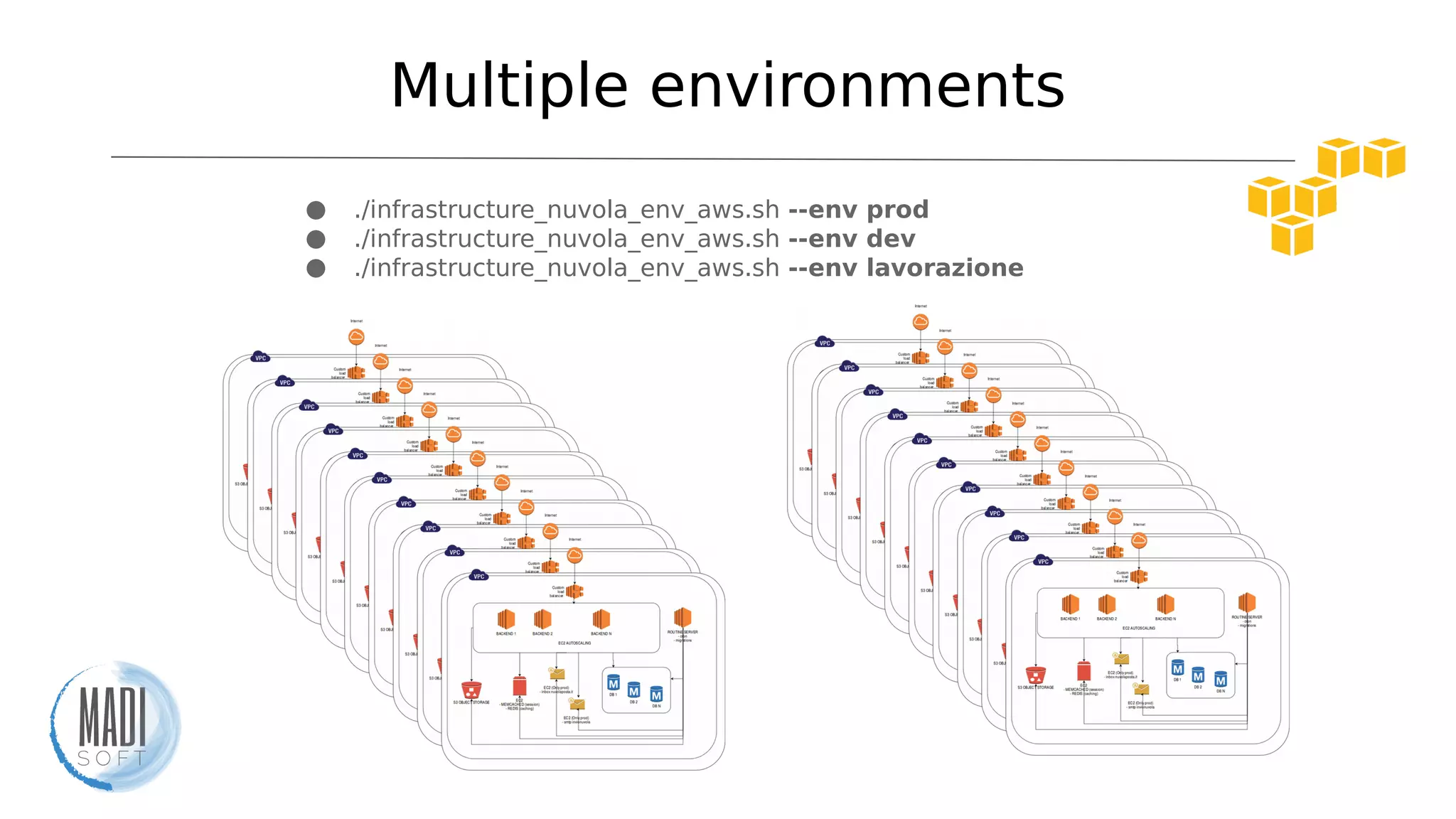

20. Multiple environments
● ./infrastructure_nuvola_env_aws.sh --env prod
● ./infrastructure_nuvola_env_aws.sh --env dev
● ./infrastructure_nuvola_env_aws.sh --env lavorazione

21. Infrastructure
./infrastructure_nuvola_env_aws.sh --env prod
#!/bin/bash
. libs/limit_option_parser.sh
….
ansible-playbook
--vault-password-file secrets/infrastructure_nuvola_env.secret
ansible/infrastucture_nuvola_env.yml
-e"$EXTRA_OPTIONS"
….

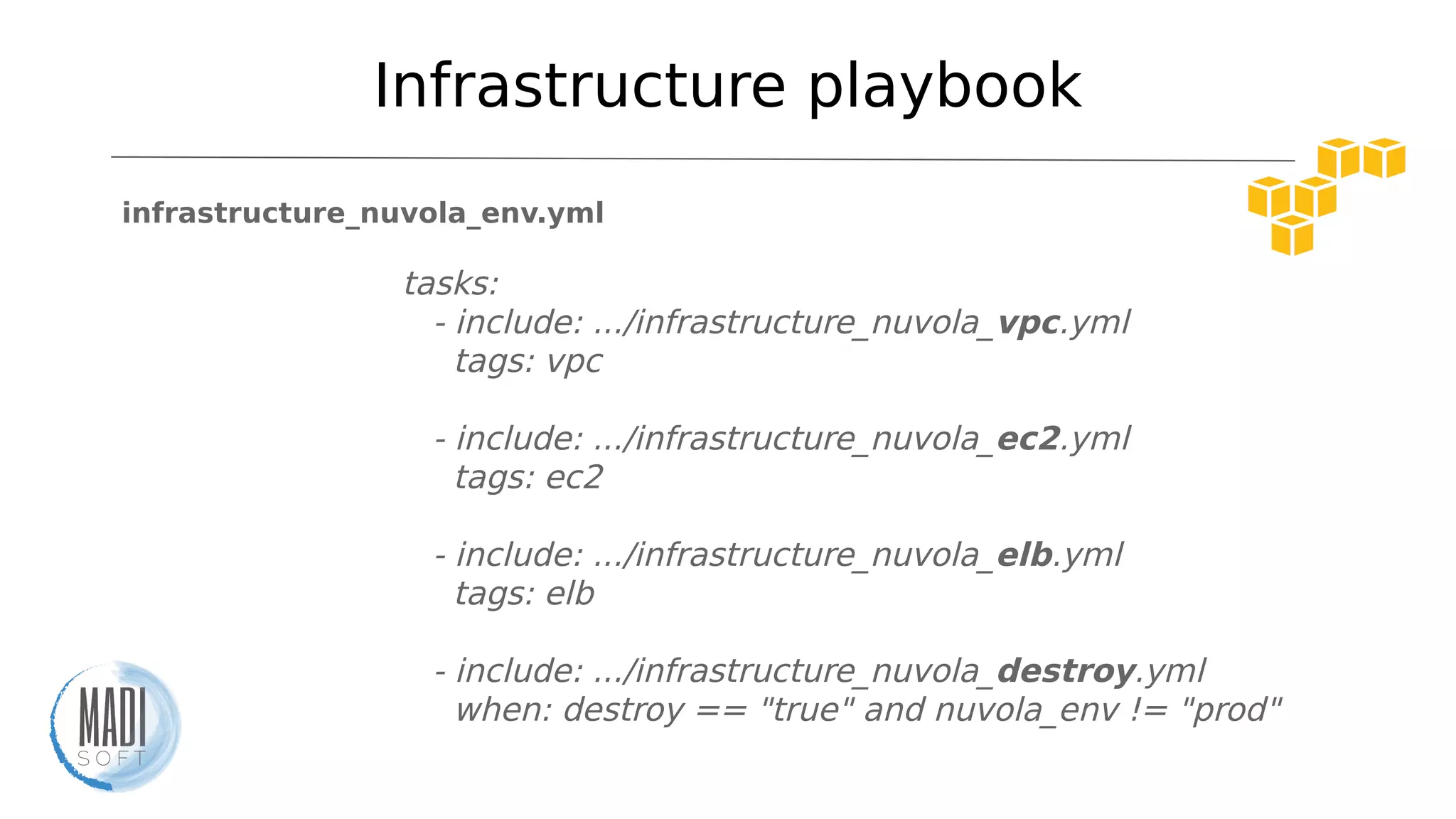

22. Infrastructure playbook
infrastructure_nuvola_env.yml
tasks:
- include: .../infrastructure_nuvola_vpc.yml
tags: vpc
- include: .../infrastructure_nuvola_ec2.yml
tags: ec2
- include: .../infrastructure_nuvola_elb.yml
tags: elb
- include: .../infrastructure_nuvola_destroy.yml
when: destroy == "true" and nuvola_env != "prod"

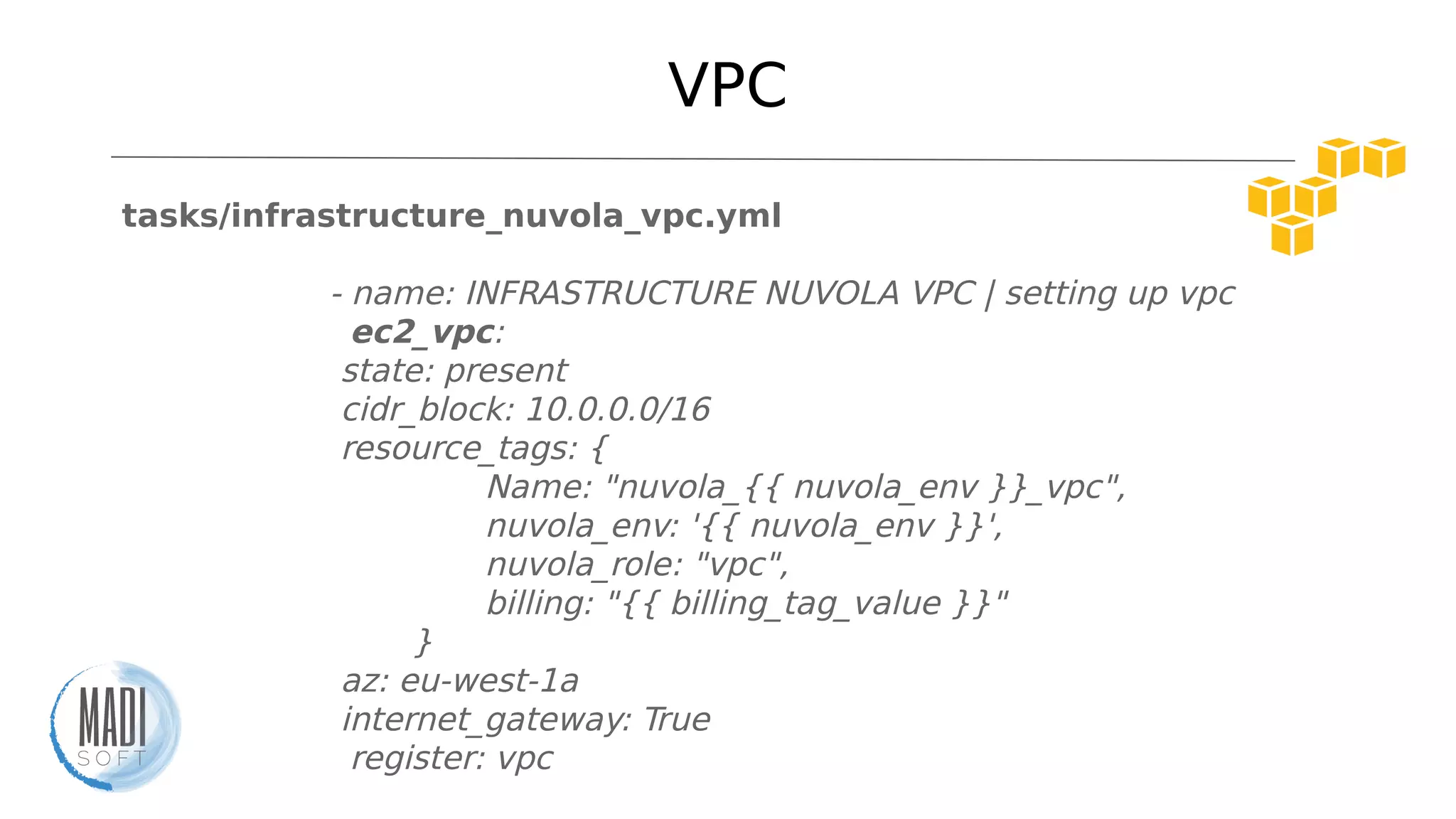

23. VPC
tasks/infrastructure_nuvola_vpc.yml
- name: INFRASTRUCTURE NUVOLA VPC | setting up vpc
ec2_vpc:
state: present
cidr_block: 10.0.0.0/16
resource_tags: {
Name: "nuvola_{{ nuvola_env }}_vpc",
nuvola_env: '{{ nuvola_env }}',
nuvola_role: "vpc",
billing: "{{ billing_tag_value }}"
}
az: eu-west-1a
internet_gateway: True
register: vpc

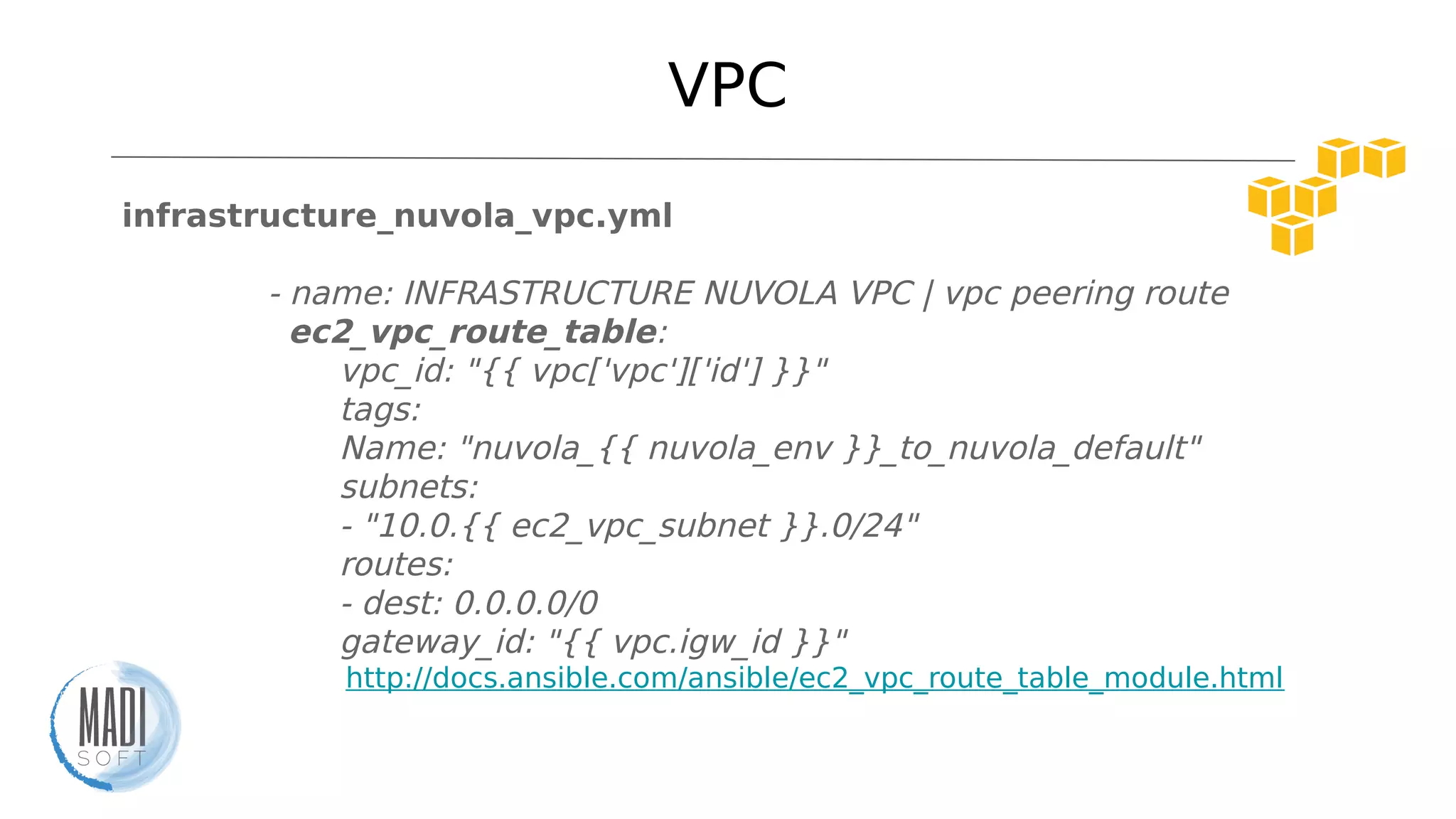

24. VPC
infrastructure_nuvola_vpc.yml
- name: INFRASTRUCTURE NUVOLA VPC | vpc peering route
ec2_vpc_route_table:
vpc_id: "{{ vpc['vpc']['id'] }}"
tags:
Name: "nuvola_{{ nuvola_env }}_to_nuvola_default"
subnets:
- "10.0.{{ ec2_vpc_subnet }}.0/24"
routes:
- dest: 0.0.0.0/0
gateway_id: "{{ vpc.igw_id }}"
http://docs.ansible.com/ansible/ec2_vpc_route_table_module.html

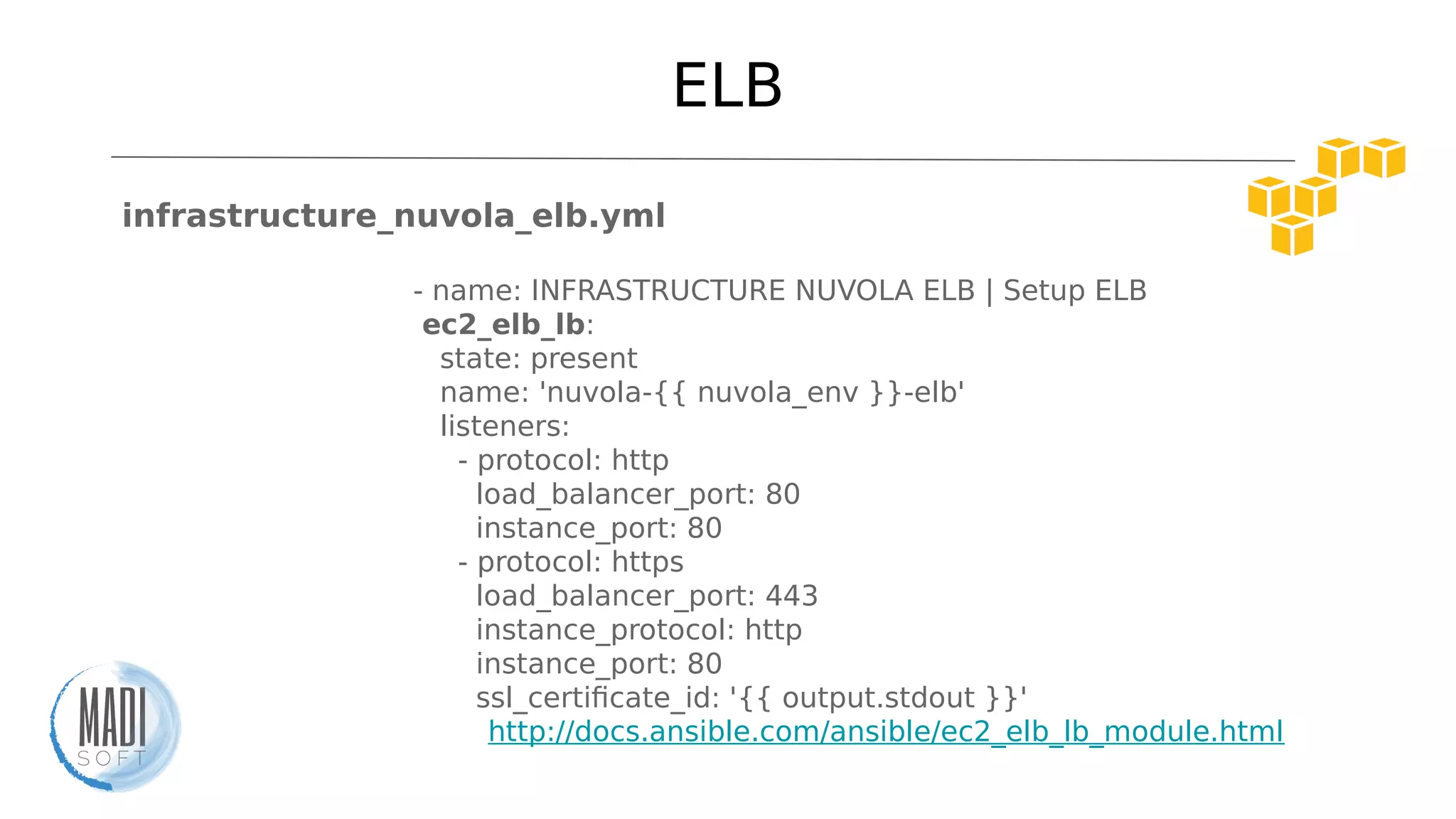

25. ELB
infrastructure_nuvola_elb.yml
- name: INFRASTRUCTURE NUVOLA ELB | Setup ELB
ec2_elb_lb:
state: present
name: 'nuvola-{{ nuvola_env }}-elb'
listeners:
- protocol: http
load_balancer_port: 80
instance_port: 80
- protocol: https
load_balancer_port: 443
instance_protocol: http
instance_port: 80
ssl_certificate_id: '{{ output.stdout }}'
http://docs.ansible.com/ansible/ec2_elb_lb_module.html

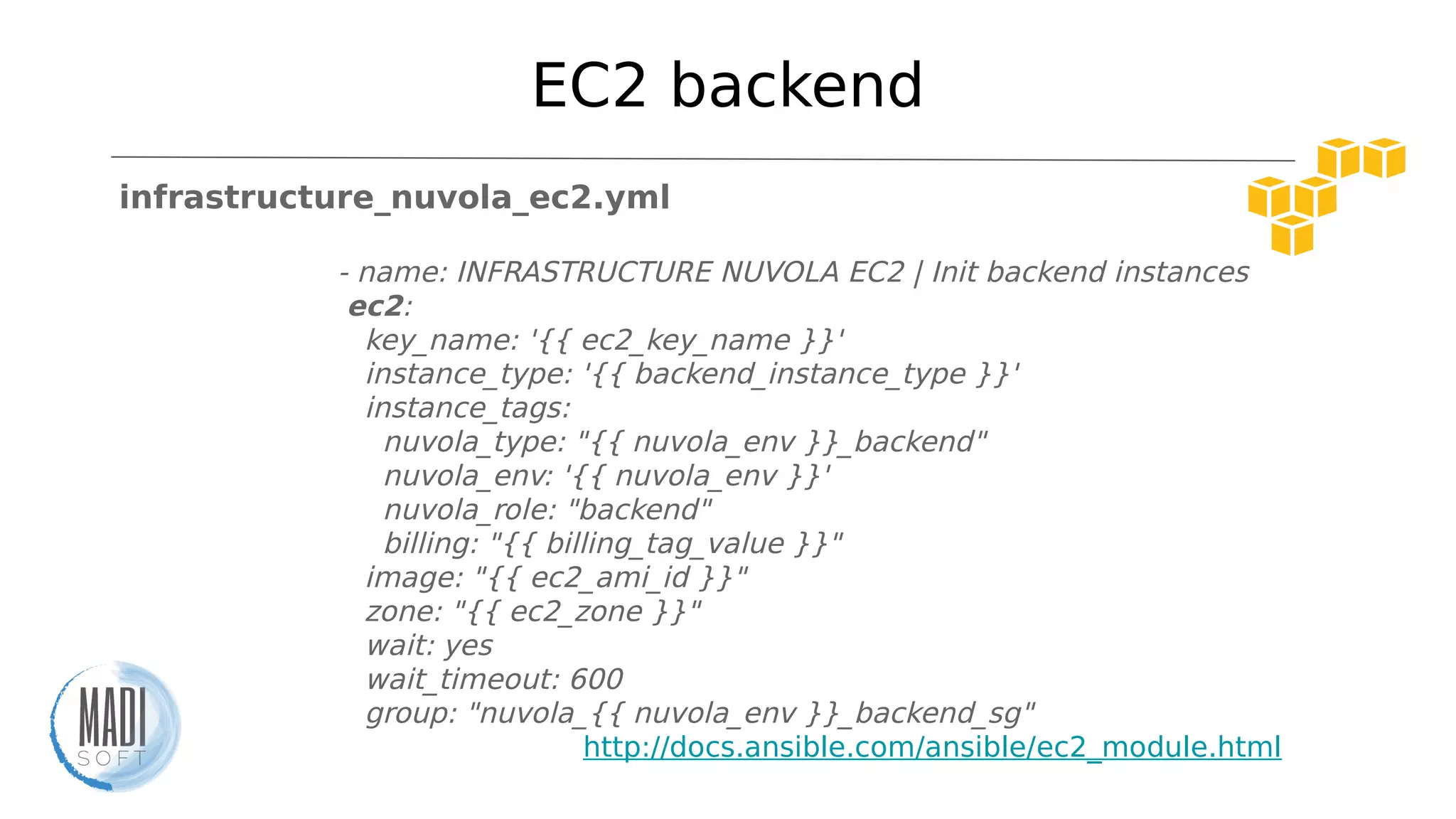

26. EC2 backend
infrastructure_nuvola_ec2.yml
- name: INFRASTRUCTURE NUVOLA EC2 | Init backend instances
ec2:
key_name: '{{ ec2_key_name }}'
instance_type: '{{ backend_instance_type }}'
instance_tags:
nuvola_type: "{{ nuvola_env }}_backend"
nuvola_env: '{{ nuvola_env }}'
nuvola_role: "backend"
billing: "{{ billing_tag_value }}"
image: "{{ ec2_ami_id }}"
zone: "{{ ec2_zone }}"
wait: yes
wait_timeout: 600
group: "nuvola_{{ nuvola_env }}_backend_sg"
http://docs.ansible.com/ansible/ec2_module.html

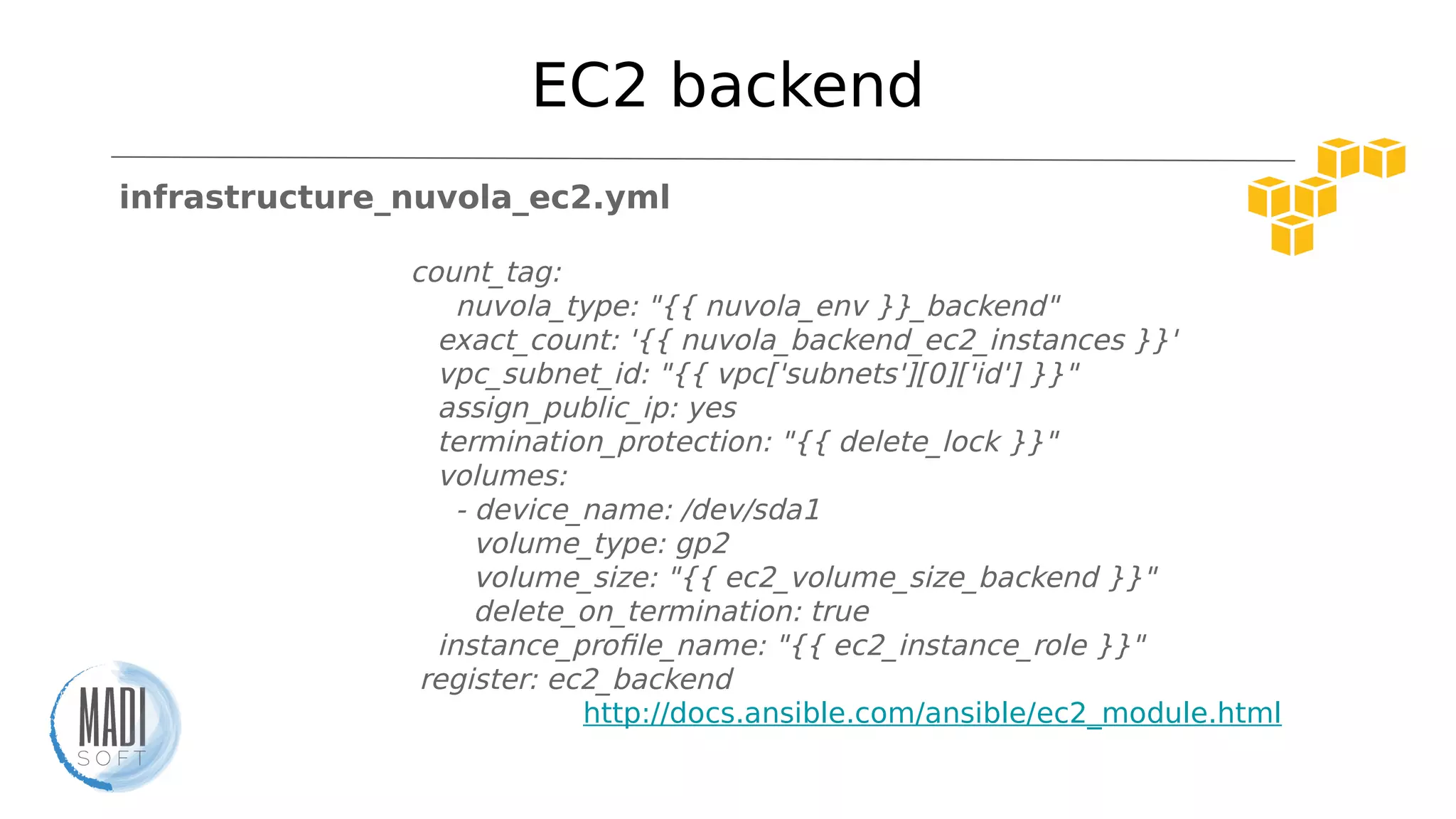

27. EC2 backend
infrastructure_nuvola_ec2.yml
count_tag:
nuvola_type: "{{ nuvola_env }}_backend"
exact_count: '{{ nuvola_backend_ec2_instances }}'
vpc_subnet_id: "{{ vpc['subnets'][0]['id'] }}"
assign_public_ip: yes
termination_protection: "{{ delete_lock }}"
volumes:
- device_name: /dev/sda1
volume_type: gp2
volume_size: "{{ ec2_volume_size_backend }}"
delete_on_termination: true
instance_profile_name: "{{ ec2_instance_role }}"
register: ec2_backend
http://docs.ansible.com/ansible/ec2_module.html

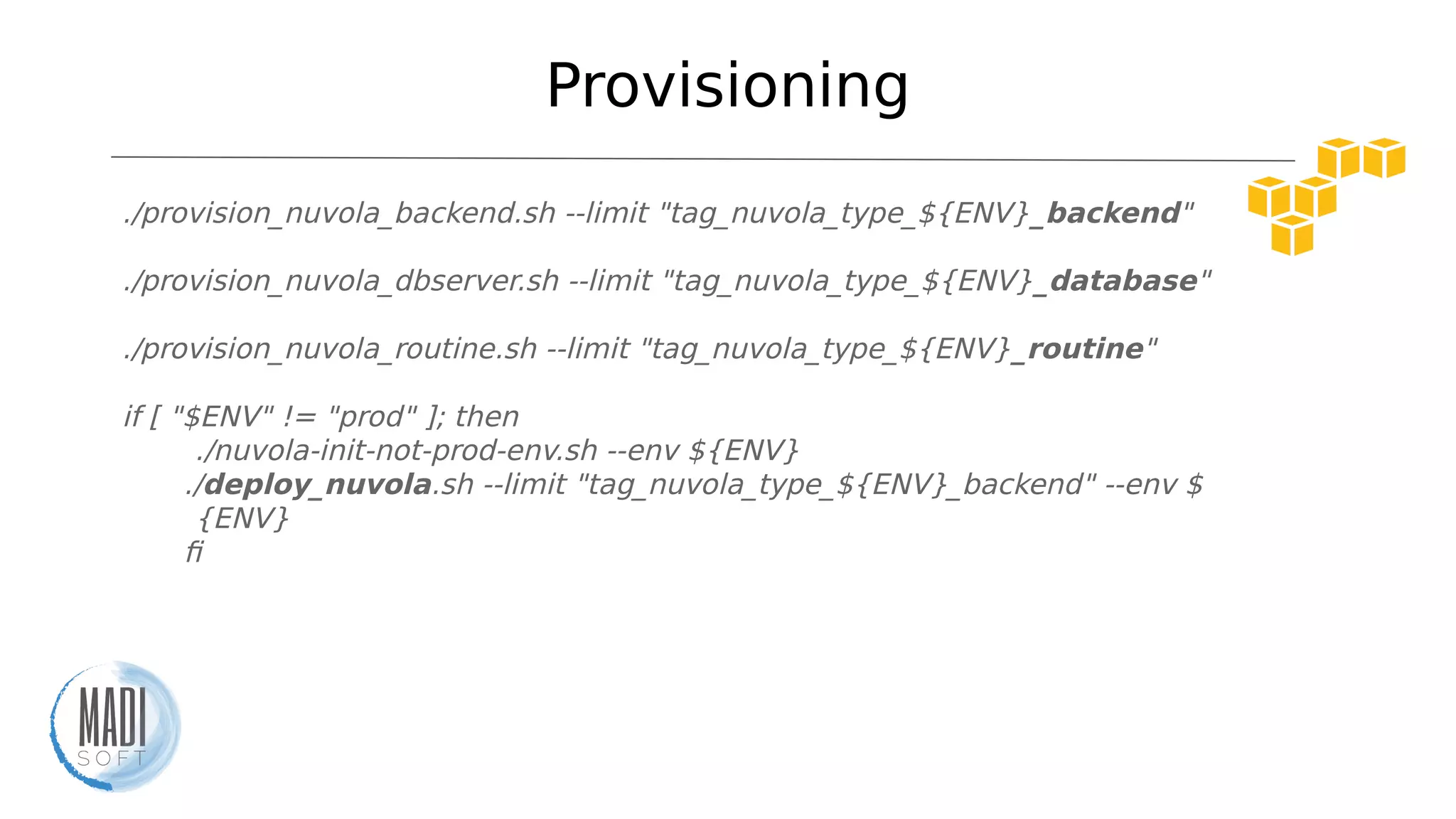

28. Provisioning
./provision_nuvola_backend.sh --limit "tag_nuvola_type_${ENV}_backend"
./provision_nuvola_dbserver.sh --limit "tag_nuvola_type_${ENV}_database"
./provision_nuvola_routine.sh --limit "tag_nuvola_type_${ENV}_routine"
if [ "$ENV" != "prod" ]; then
./nuvola-init-not-prod-env.sh --env ${ENV}
./deploy_nuvola.sh --limit "tag_nuvola_type_${ENV}_backend" --env $
{ENV}
fi

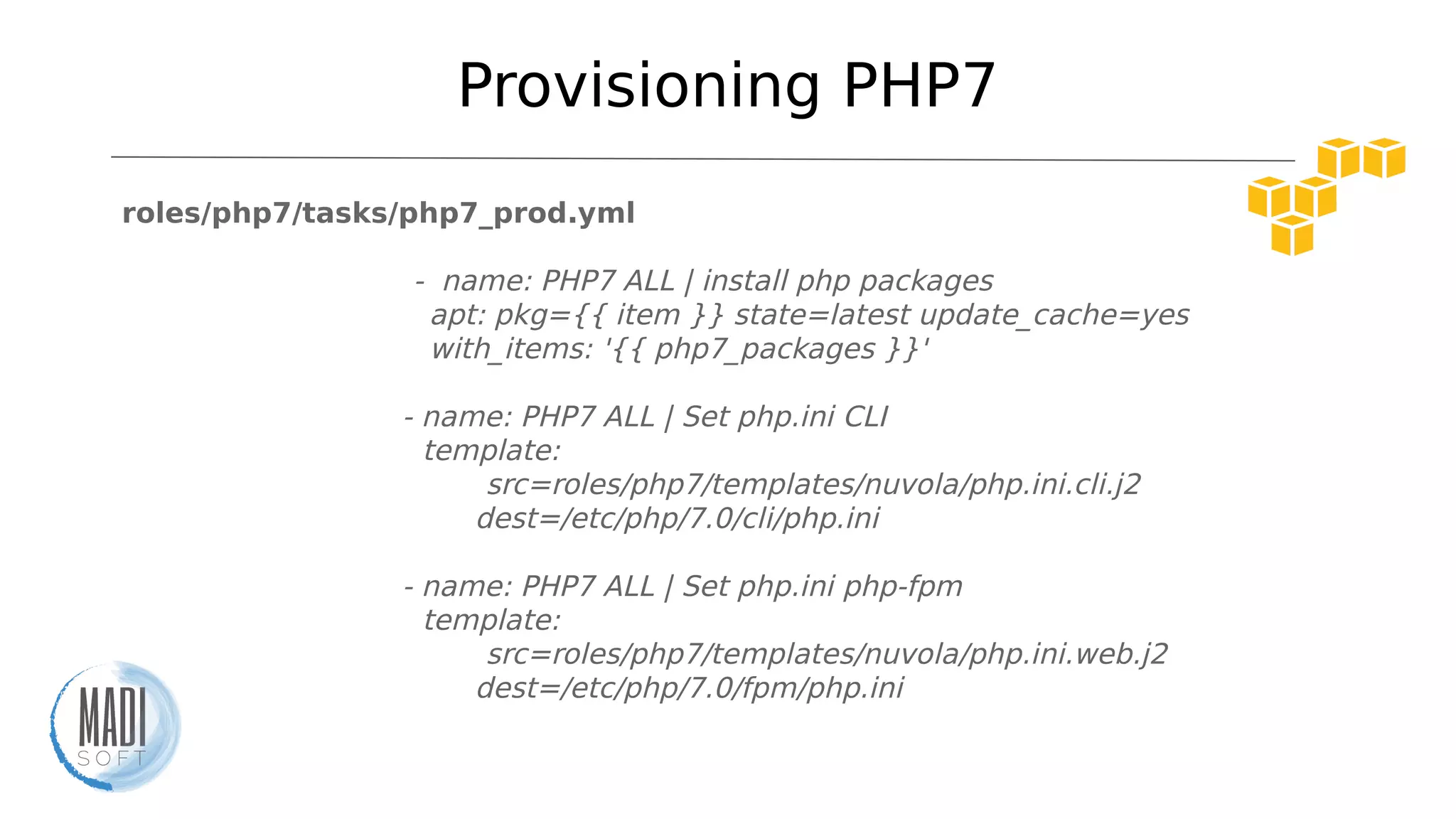

29. Provisioning PHP7
roles/php7/tasks/php7_prod.yml
- name: PHP7 ALL | install php packages
apt: pkg={{ item }} state=latest update_cache=yes
with_items: '{{ php7_packages }}'
- name: PHP7 ALL | Set php.ini CLI
template:
src=roles/php7/templates/nuvola/php.ini.cli.j2
dest=/etc/php/7.0/cli/php.ini
- name: PHP7 ALL | Set php.ini php-fpm
template:
src=roles/php7/templates/nuvola/php.ini.web.j2
dest=/etc/php/7.0/fpm/php.ini

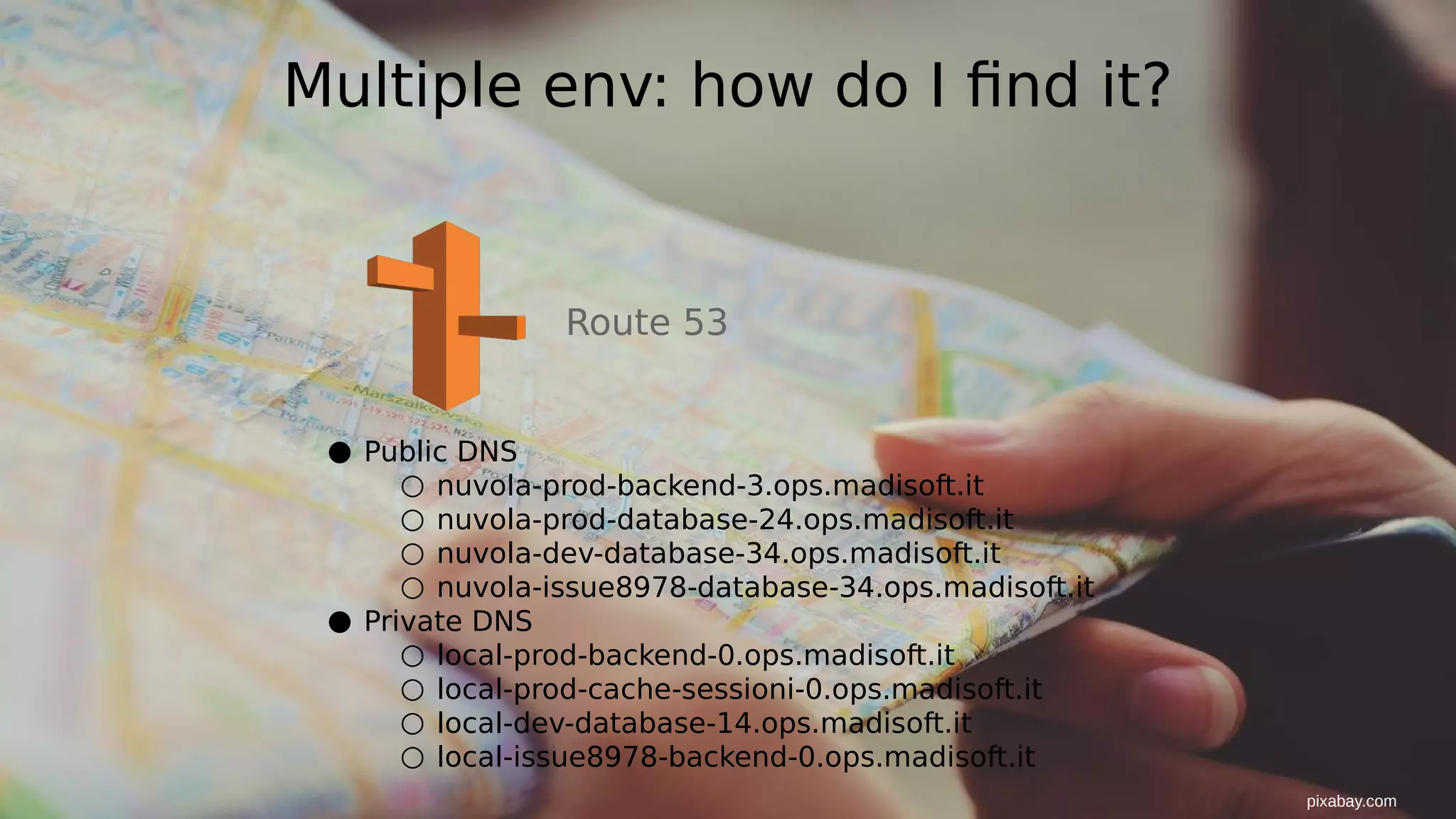

30. Multiple env: how do I find it?
Route 53
● Public DNS
○ nuvola-prod-backend-3.ops.madisoft.it
○ nuvola-prod-database-24.ops.madisoft.it
○ nuvola-dev-database-34.ops.madisoft.it
○ nuvola-issue8978-database-34.ops.madisoft.it
● Private DNS
○ local-prod-backend-0.ops.madisoft.it
○ local-prod-cache-sessioni-0.ops.madisoft.it
○ local-dev-database-14.ops.madisoft.it
○ local-issue8978-backend-0.ops.madisoft.it
pixabay.com

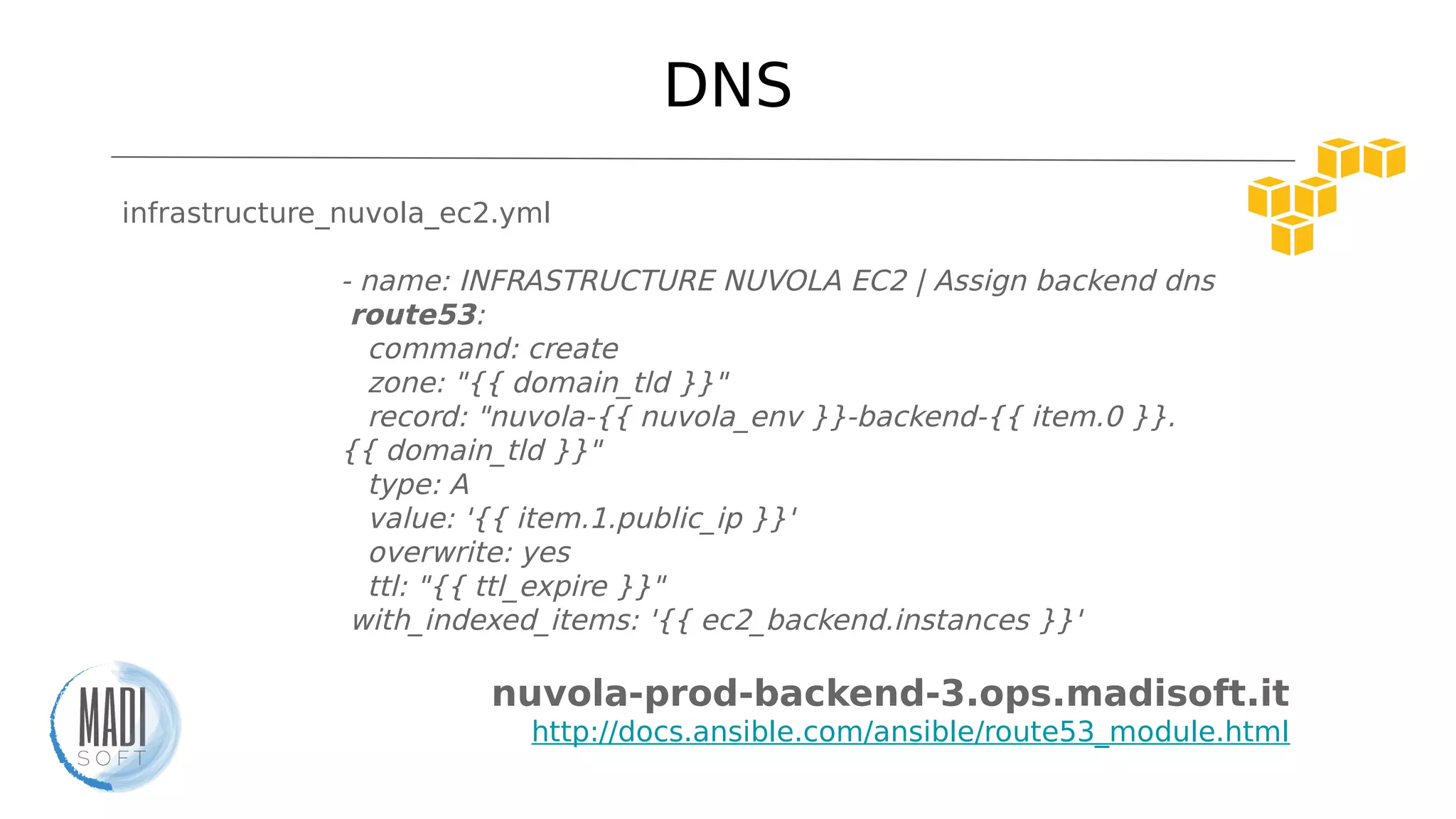

31. DNS
infrastructure_nuvola_ec2.yml
- name: INFRASTRUCTURE NUVOLA EC2 | Assign backend dns
route53:
command: create
zone: "{{ domain_tld }}"
record: "nuvola-{{ nuvola_env }}-backend-{{ item.0 }}.
{{ domain_tld }}"
type: A
value: '{{ item.1.public_ip }}'
overwrite: yes
ttl: "{{ ttl_expire }}"
with_indexed_items: '{{ ec2_backend.instances }}'
nuvola-prod-backend-3.ops.madisoft.it
http://docs.ansible.com/ansible/route53_module.html

32. DNS: local
infrastructure_nuvola_ec2.yml
- name: INFRASTRUCTURE NUVOLA EC2 | Assign database local
dns
route53:
command: create
zone: "{{ domain_tld }}"
record: "local-{{ nuvola_env }}-database-{{ item.0 }}.
{{ domain_tld }}"
type: A
value: '{{ item.1.private_ip }}'
overwrite: yes
with_indexed_items: '{{ ec2_database.instances }}'
local-dev-database-14.ops.madisoft.it
http://docs.ansible.com/ansible/route53_module.html

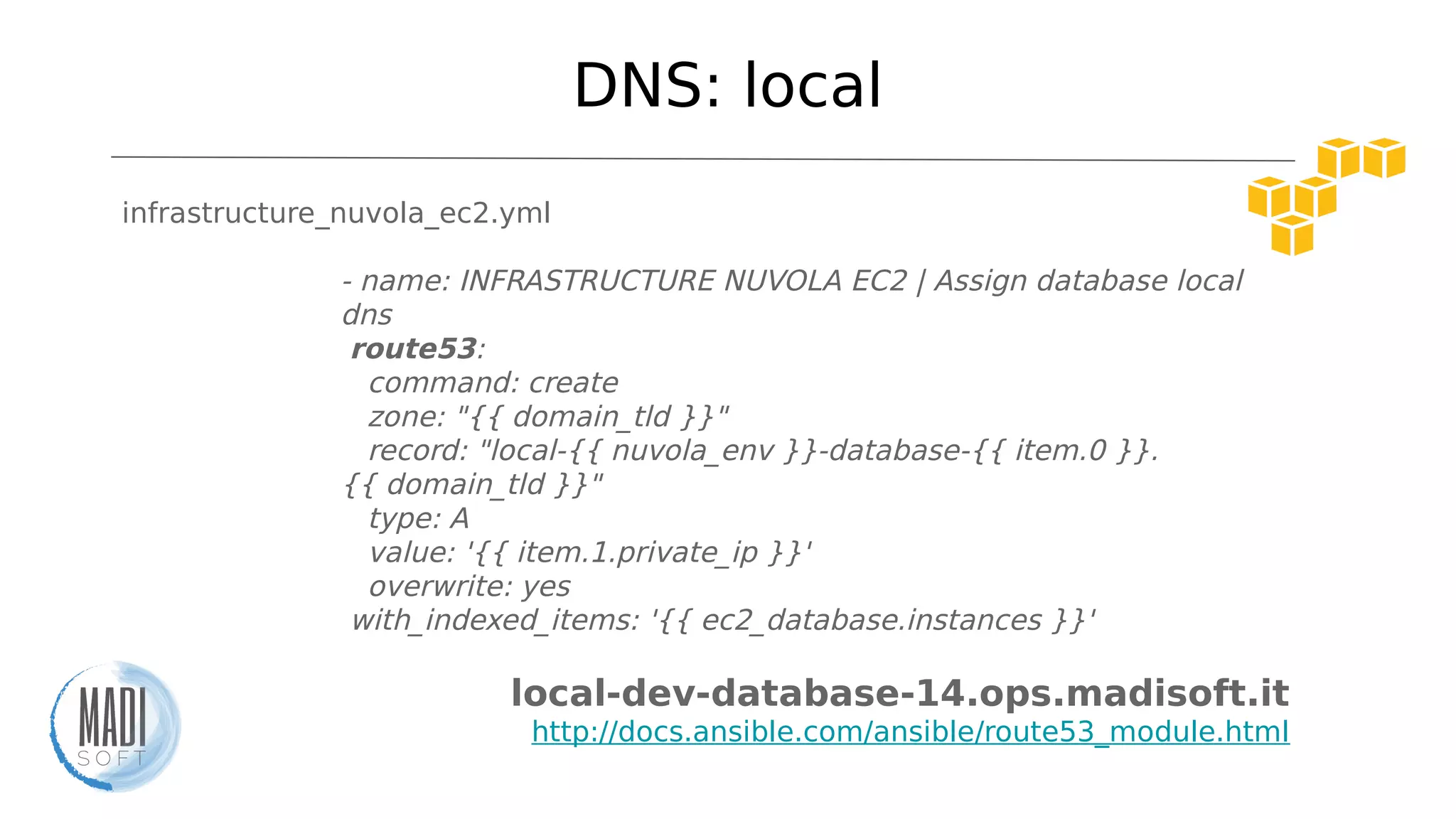

33. DNS: local
infrastructure_nuvola_ec2.yml
- name: INFRASTRUCTURE NUVOLA EC2 | Assign database local
dns
route53:
command: create
zone: "{{ domain_tld }}"
record: "local-{{ nuvola_env }}-database-{{ item.0 }}.
{{ domain_tld }}"
type: A
value: '{{ item.1.private_ip }}'
overwrite: yes
with_indexed_items: '{{ ec2_database.instances }}'
local-dev-database-14.ops.madisoft.it
http://docs.ansible.com/ansible/route53_module.html

34. Ready to move?

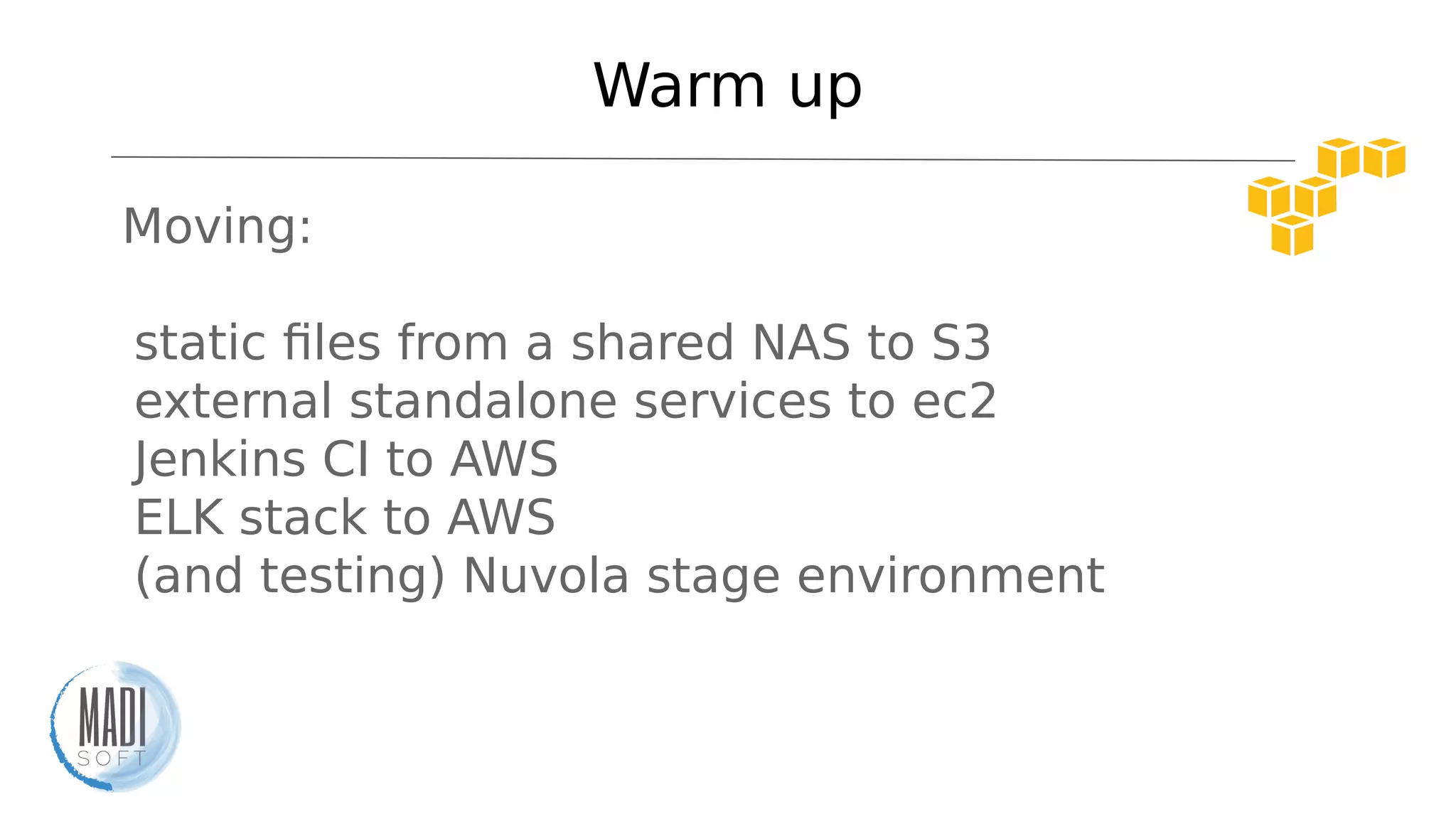

35. Warm up
Moving:
- static files from a shared NAS to S3
- external standalone services to ec2
- Jenkins CI to AWS
- ELK stack to AWS
- (and testing) Nuvola stage environment

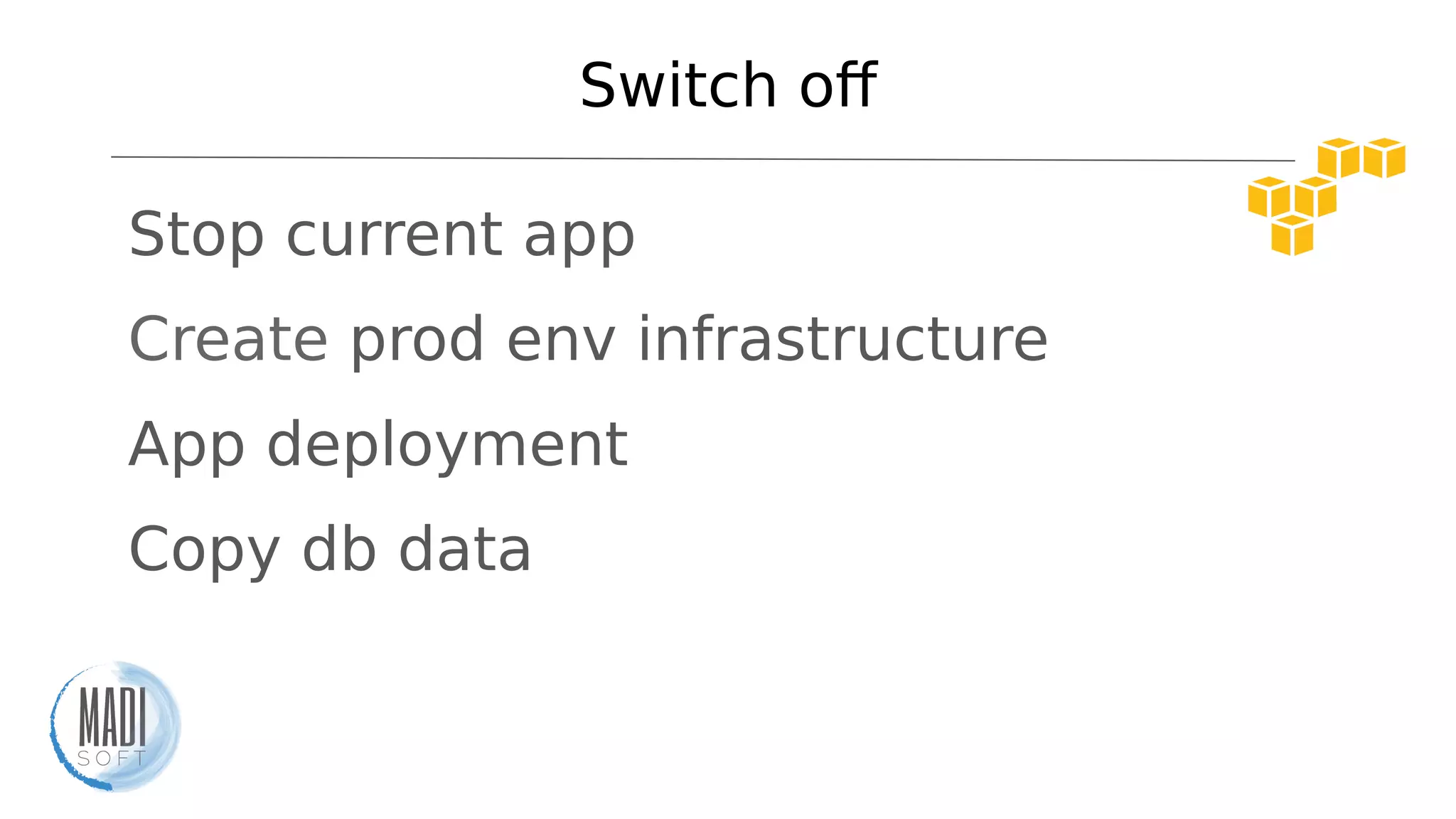

36. Switch of
- Stop current app
- Create prod env infrastructure
- App deployment
- Copy db data

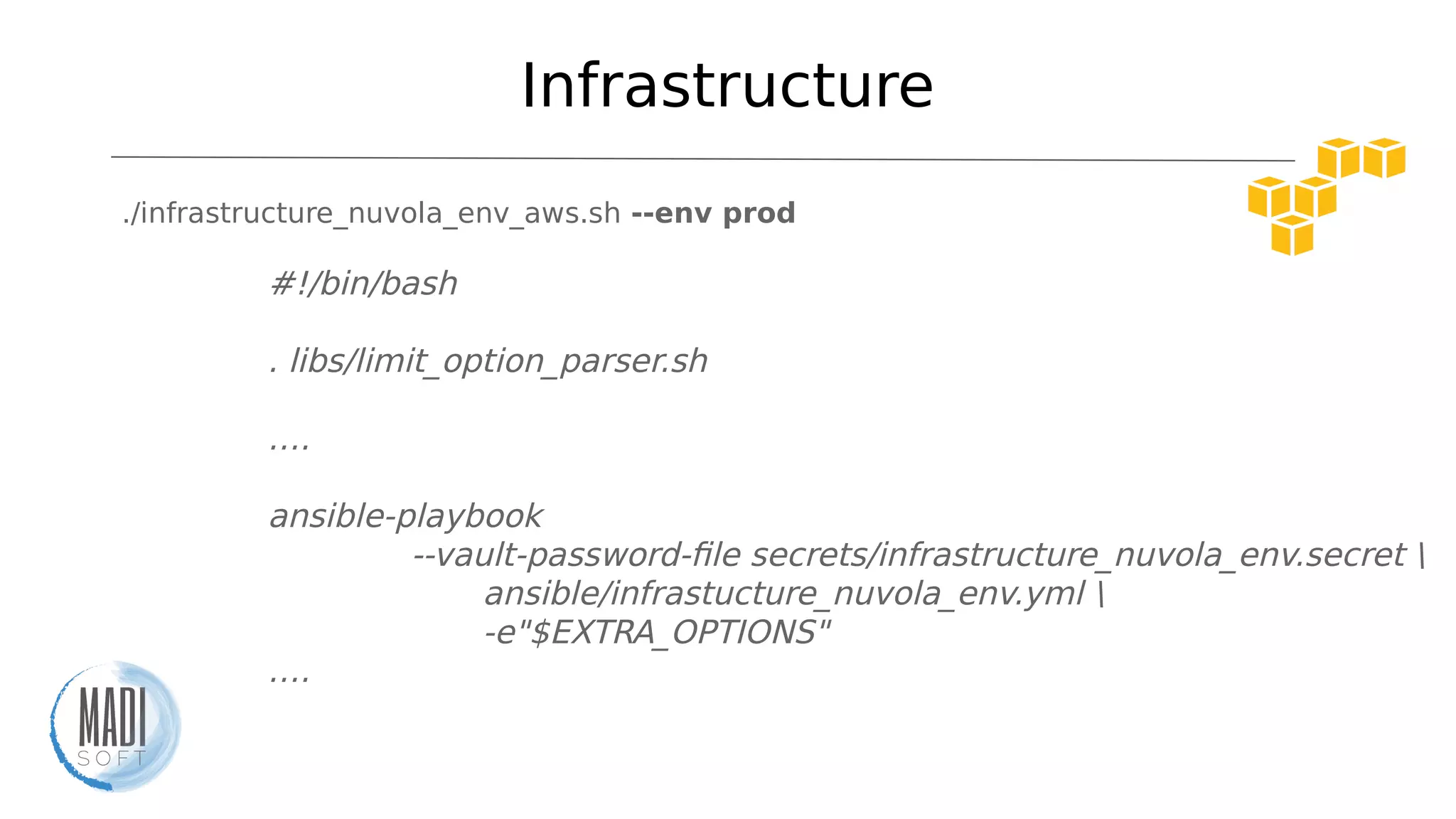

37. Infrastructure
./infrastructure_nuvola_env_aws.sh --env prod
#!/bin/bash
. libs/limit_option_parser.sh
….
ansible-playbook
--vault-password-file secrets/infrastructure_nuvola_env.secret
ansible/infrastucture_nuvola_env.yml
-e"$EXTRA_OPTIONS"
….

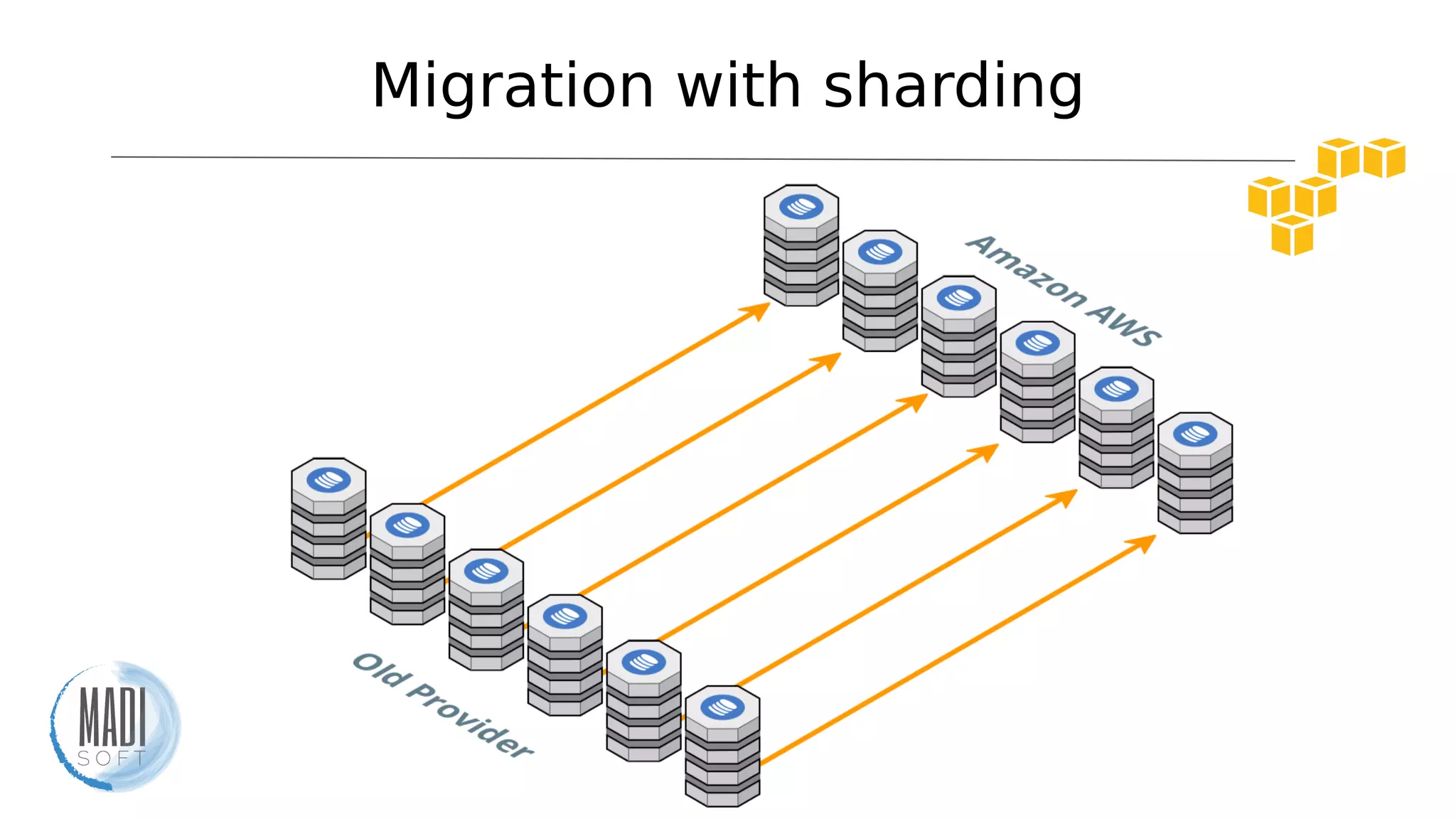

38. Migration with sharding

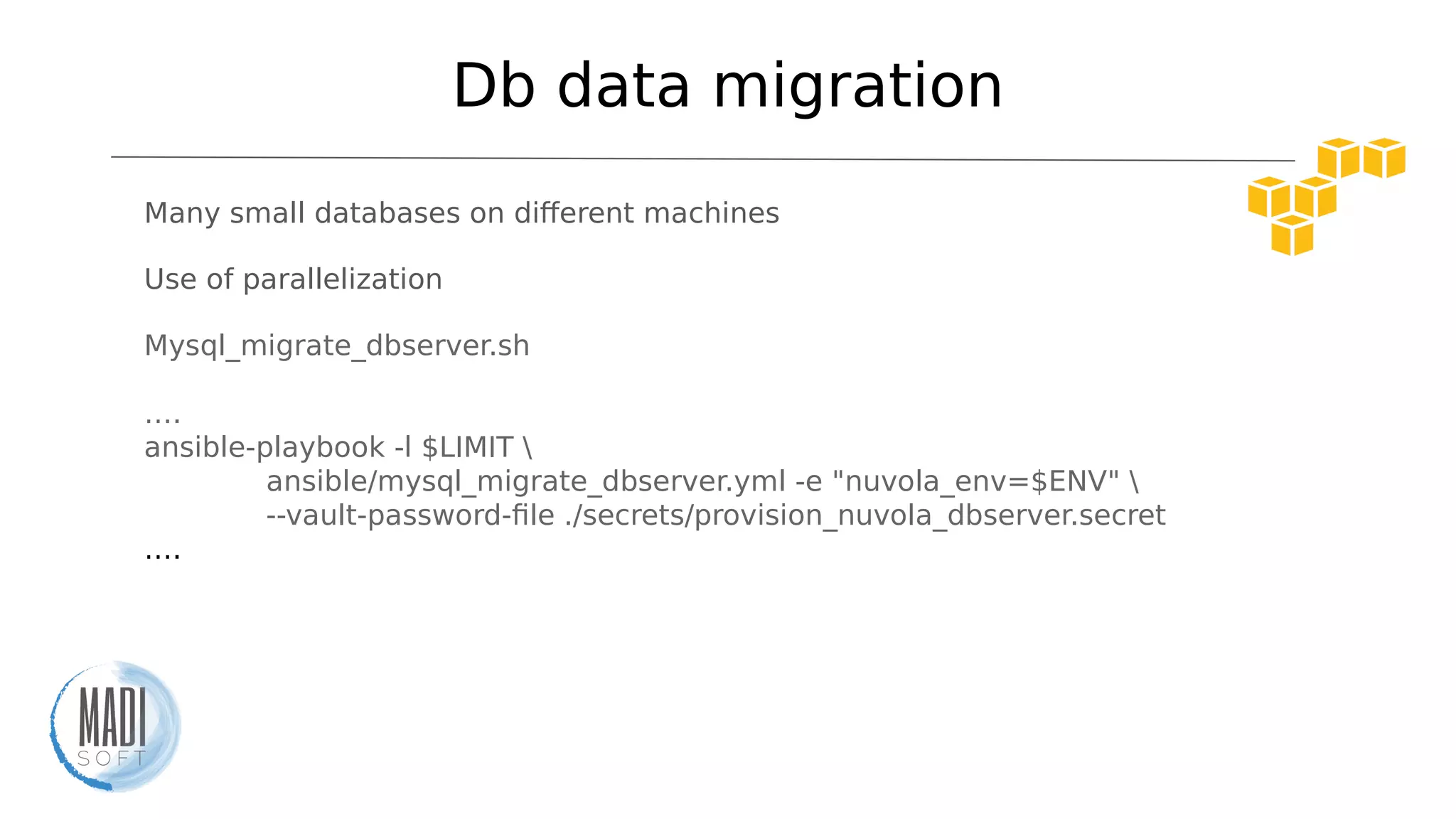

39. Db data migration
Many small databases on diferent machines
Use of parallelization
Mysql_migrate_dbserver.sh
….
ansible-playbook -l $LIMIT
ansible/mysql_migrate_dbserver.yml -e "nuvola_env=$ENV"
--vault-password-file ./secrets/provision_nuvola_dbserver.secret
….

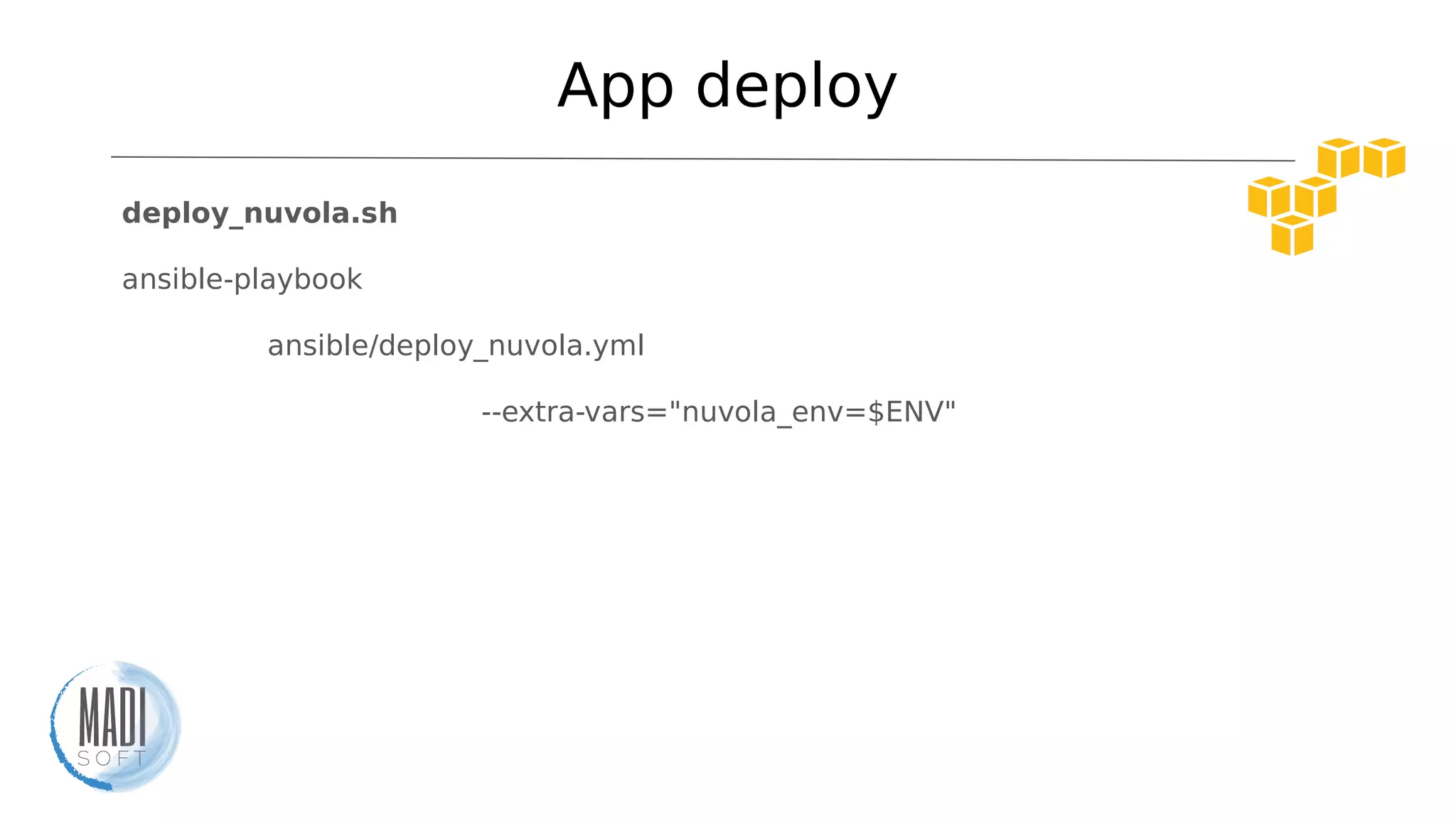

40. App deploy
deploy_nuvola.sh
ansible-playbook
ansible/deploy_nuvola.yml
--extra-vars="nuvola_env=$ENV"

41. Switch of
Total time: ~ 50m

42. Achievement
Amazing
migration!

43. WE ARE
HIRING!(wanna join? ask us at the end of the talk or visit our website)
