Oracle Real Application Cluster

Satishbabu Gunukula
12+ Years of Experience in Oracle, SQLServer Database Technologies
Oracle Certified Professional Oracle 8i,9i,10g
Oracle Certified Expert Oracle 10g RAC
http://www.oracleracexpert.com

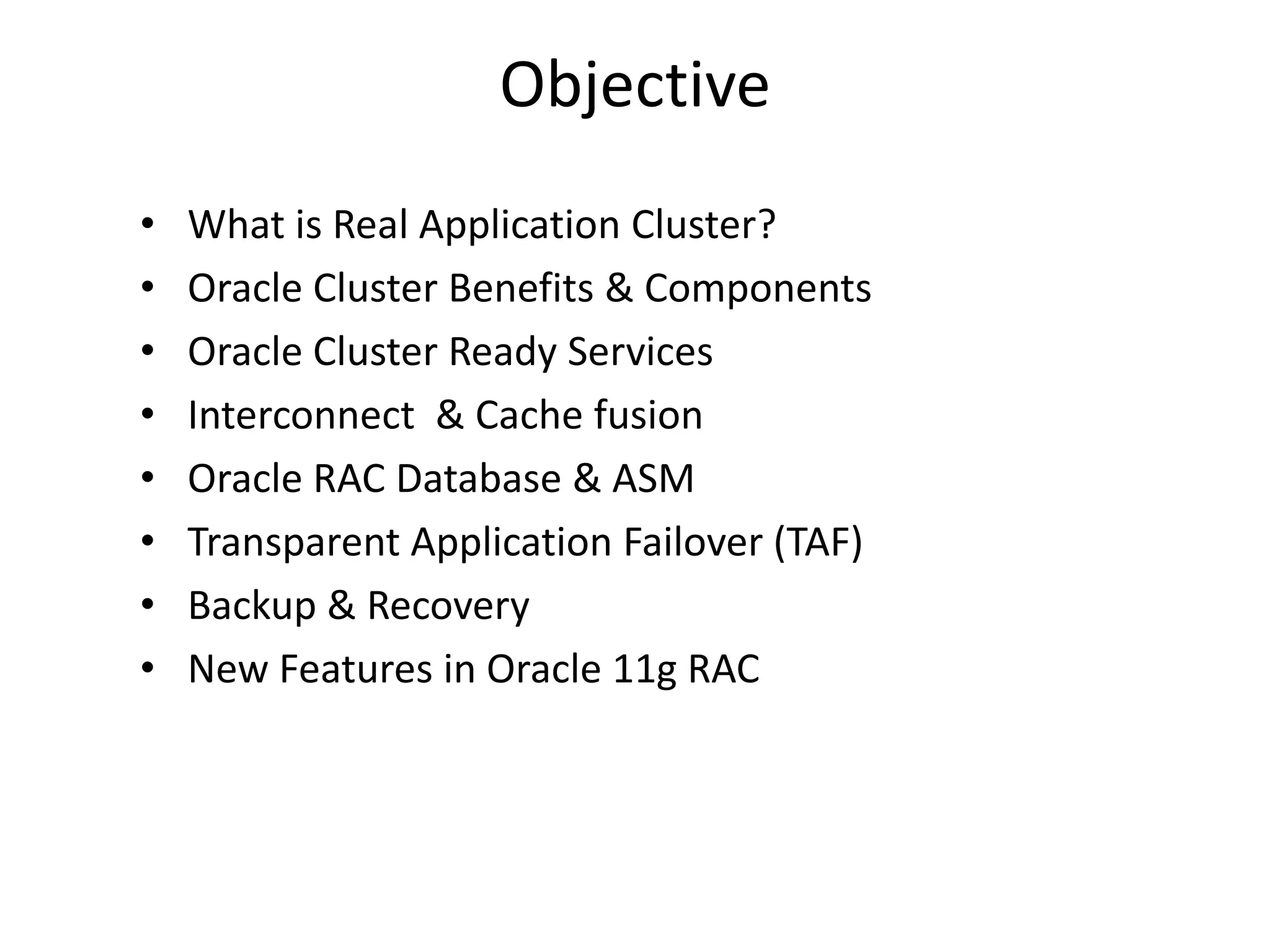

Objective
•   What is Real Application Cluster?
•   Oracle Cluster Benefits & Components
•   Oracle Cluster Ready Services
•   Interconnect & Cache fusion
•   Oracle RAC Database & ASM
•   Transparent Application Failover (TAF)
•   Backup & Recovery
•   New Features in Oracle 11g RAC
What is Real Application Cluster
•   Lower Cost
•   Scalability
•   High Availability
•   Ease Of Administration
•   Transparent to users
•   GRID computing
•   More than one instance per database.
•   Instances are running on different nodes.
•   Instances on different nodes writes to the same physical
    Database
What is Real Application Cluster
• Control file, Data files, Temp Files and Spfiles are on a
  shared storage
• Shared storage may have a Clustered file system or ASM
  or Raw Volumes
• Every Instance will have its own redo log files and Undo
  segments
• Every Instance has its own background process
• All Cache (Data Buffer,Library ,Data Dictionary ) are
  synchronized by Cache Fusion and resources managed
  globally
• Backup and Recovery databases from any instance in the
  Cluster.
What is Real Application Cluster
• Sessions failover using Transparent Application Failover
  (TAF)
• Users can connect to any active instance (load balance)
• Additional waits due to interconnect traffic
     Node1                                           Node2
         Instance 1                                    Instance 2
        Archived Logs                                 Archived Logs
       (Local Storage)                               (Local Storage)

     Undo Tablespace               Data Files       Undo Tables pace
     for Instance 1               Temp Files        for Instance 2
                                  Control Files

      Online Redo log       Flash Recovery AreaFiles Online Redo log
     files for Instance 1       Change Tracking File files for Instance2
                                     Spfile

                              Shared Storage
Shared Storage
Shared store is very critical component in Oracle RAC. Both
SAN/NAS are supported.
• Supported file storage
       - Raw volumes
       - Cluster File system(Oracle ACFS,OCFS,OCFS2)
       - Oracle ASM (Automatic Storage Management)
       - Direct NFS (new feature in 11g)
• Physical Connections to shared storage
       - Fully redundant active –active IO paths
• For iSCSI - Fully redundant IO paths for iSCSI with multiple
  NIC card each server and Gigabit Ethernet switches.
Shared Storage
Oracle Clusterware
• Oracle Clusterware enables servers to communicate
  with each other
• Each server in cluster has addition processes that
  communicate with other servers.
• Oracle clusterware manages the resources, such as
  Virtual IP
  Addresses, Instances, databases, listeners, services..etc.
• You can also use Oracle Clusterware to manage the user
  applications.
Benefits of using Cluster
• Scalability of Applications
• Use of less expensive commodity hardware
• Ability of failover
• Ability to program the startup of applications in planned
  order
• Ability to monitor processes
• Ability to restart the process if they stop
• Ability to increase capacity over time by adding servers
Oracle Clusterware Benefits

• Eliminate unplanned downtime
• Reduce or eliminate planned downtime for maintenance
• Increase throughput by enabling applications to run on
  all the nodes in a cluster
• Increase the throughput on demand for clustware
  applications by adding serves
• Reduce the total cost for infrastructure
Oracle clusterware components
• Software components
    Voting Disk- Oracle clusterware uses this component to
     determine the which nodes are members of a cluster
    Oracle Cluster Registry(OCR) – Oracle clusterware uses OCR to
     sore and mange information about high-availability
     components in the cluster, such as cluster node list, cluster
     database instance to node mapping, VIP address, services and
     applications.
• Both Vote and OCR must reside on shared storage that is
  accessible by all nodes in a cluster
• At least 3 voting disks and maximum of 15 disks
• To ensure high availability multiplex OCR location up to 5
  locations
Oracle clusterware Network Config
• The VIP addresses must be resolved by the clients. The
  (Grid Naming Service) GNS is linked to the corporate
  Domain Name Service (DNS) so that clients can easily
  connect to the cluster and the databases running there
• Single Client Access Name (SCAN) - The SCAN is a single
  name that resolves to three IP addresses in the public
  network. When using GNS and DHCP, Oracle Clusterware
  configures the VIP addresses for the SCAN name that is
  provided during cluster configuration
• Oracle 11g R2 supports the use of DHCP for all private
  interconnect addresses, as well as for most of the VIP
  addresses.
Interconnects
• Cluster Interconnect is very important private network
  used for communication between all other nodes
• Network pings are performed by Cluster Synchronization
  Services (ocssd.bin)
• Connected via switch to other nodes
• New wait events due to traffic over interconnect
• Enhanced technology has helped Cache Fusion
• You can use OS dependent methods like Bonding on
  Unix and teaming on Windows
• OS independent redundant interconnect available from
  11.2.0.2 onwards (Not on Windows)
Cache Fusion
• Cache coherency is the technique used to keep multiple
  copies of a block consistent between different oracle
  instance.
• GCS implements the cache coherency by using Cache
  fusion algorithm
• GES maintains all non-cache fusion resource operations
• Cache Fusion addresses several types of concurrency as
  below:
   – Concurrent Reads on Multiple Nodes
   – Concurrent Reads and Writes on Different Nodes
   – Concurrent Writes on Different Nodes
• Cache Fusion partially implemented in Oracle 8i OPS
Cache Fusion
• Request a block for a Modification




1. Instance1 submits a request to GCS to modify the block.
2. The GCS transmits the request to the holder, i.e. instance 2
3. Instance 2 receives the request message and the LMS process
   sends the block to instance 1.
4. On receipt of the block, instance 1 informs the GCS that it holds
   the block in exclusive mode
Cache Fusion
• Write a Block to Disk




1.   Instance2 sends a request to GCS to write block to disk
2.   The GCS forwards the request to instance 1
3.   Instance 1 receives the request and writes the block to disk.
4.   Instance 1 notifies the write operation to GCS
5.   After receipt of notification GCS orders PI holders to discard their
     PI’s
Block Access and Buffer states
• To see a buffer's state, query the STATUS column of the
  V$BH dynamic performance view.
• Block access mode - NULL and buffer state name – CR
   – An instance can perform a consistent read of the block. That is, if the instance
     holds an older version of the data.
• Block access mode -S and buffer state name – SCUR
   – An instance has shared access to the block and can only perform
     reads.
• Block access mode - X and buffer state name – XCUR
   – An instance has exclusive access to the block and can modify it.
• Block access mode - NULL and buffer state name is – PI
   – An instance has made changes to the block but retains copies of
     it as past images to record its state before changes.
Block Access and Buffer states
• SCUR and PI buffer states are RAC specific
• There can be only one copy of any one block buffered in the XCUR
  state
• To perform modifications on a block, a process must assign an
  XCUR buffer state to the buffer containing the data block.
Cluster ready services
Below processes must run after CRS installation In order for
Cluster Ready Services to function
• evmd -- Event manager daemon that starts the racgevt
   process to manage callouts.
• ocssd -- Manages cluster node membership and runs as
   oracle user; failure of this process results in cluster
   restart.
• crsd -- Performs high availability recovery and
   management operations such as maintaining the OCR.
   Also manages application resources and runs as root
   user and restarts automatically upon failure.
Oracle Clusterware Stack
Cluster ready service Stack
• Cluster Ready Services (CRS): For managing high
  availability operations in a cluster.
• Cluster Synchronization Services (CSS): Manages the
  cluster configuration by controlling which nodes are
  members of the cluster and by notifying members when
  a node joins or leaves the cluster.
• Automatic Storage Management (ASM): Provides disk
  management for Oracle Clusterware.
• Cluster Time Synchronization Service (CTSS): Provides
  time management in a cluster for Oracle Clusterware.
• Event Management (EVM): A background process that
  publishes events that Oracle Clusterware creates.
Cluster ready service Stack
• Oracle Notification Service (ONS): Publish and
  subscribes service for communicating Fast Application
  Notification (FAN) events.
• Oracle Agent (oraagent): To support Oracle-specific
  requirements and complex resources. Runs server
  callout scripts when FAN events occur. This process was
  known as RACG in Oracle11g R1
• Oracle Root Agent (orarootagent): oraagent process
  that helps crsd to manage resources owned by root,
  such as the network, and the Grid virtual IP address
High Availability Services Stack
• Grid Plug and Play (gpnpd): Provides access to the Grid
  Plug and Play profile, and coordinates updates to the
  profile among the nodes of the cluster to ensure that all
  of the nodes node have the most recent profile.
• Grid Interprocess Communication (GIPC): A helper
  daemon for communications infrastructure. Currently
  has no functionality; to be activated in a later release.
• Multicast Domain Name Service (mDNS): Allows DNS
  requests. The mDNS process is a background process on
  Linux and UNIX, and a service on Windows.
• Oracle Grid Naming Service (GNS): A gateway between
  the cluster mDNS and external DNS servers. The gnsd
  process performs name resolution within the cluster.
RAC Database
• Use DBCA (Database Configuration Assistant) to create
  database and you can also configure listeners and
  Enterprise Manager
• Before you create Database
   – The Oracle Cluster Ready services must be installed and
     configured. Share disk must be in place.
   – If planning to use ASM then ASM resources should be available.
   – Oracle Database software must be installed
• DBCA Automatically recognized the cluster environment
  and will provide the options of configuring the RAC
  environment.
• If database created manually then use srvctl to register
  the database in the OCR
RAC Database
• Use DBCA (Database Configuration Assistant) to create
  database and you can also configure listeners and
  Enterprise Manager
• Before you create Database
   – The Oracle Cluster Ready services must be installed and
     configured. Share disk must be in place.
   – If planning to use ASM then ASM resources should be available.
   – Oracle Database software must be installed
• DBCA Automatically recognized the cluster environment
  and will provide the options of configuring the RAC
  environment.
• If database created manually then use srvctl to register
  the database in the OCR
RAC Specific Background Processes
• LMON: Global Enque Service Monitor
   – Maintains instance membership within Oracle RAC.
   – All non-cache fusion interinstance resource
     operations
   – The process detects instance transitions and
     performs reconfiguration of GES and GCS resources.
• LMD: Global Enque Service Demon
   – Manages incoming enqueue request messages and
     controls access to global enqueues.
   – It also performs distributed deadlock detections
• Global Cache Service and Global enqueue service
  manages Global Resource Directory (GRD)
RAC Specific Background Processes
• LMSx: Global Cache Service Processes, where x can be 0
  to 10
   – Managing the resource requests and cross-instance
     call operation
   – block transfers and other GCS-related messages
• LCKx: Lock processes
   – This process manages the global enqueue requests
     and the cross-instance broadcast
• DIAG : Diagnosability process
   – Monitors the health of the instance and captures the
     data for process failures
Automatic Storage Management(ASM)
 • ASM provides portable and high performance database file
   system and simplifies database administration
 • ASM spread data across the disks and distributes I/O load
   across all available resources to optimize performance
 • ASM provides integrated mirroring across disks
 • Dynamically add the space without shutdown of the
   database
 • It is advised to use separate ORACLE_HOME for ASM install
 • You can configure the ASM using DBCA
 • A separate instance (ASM) starts in order to manage ASM
   disks, resources and connectivity
 • Both ASM and Database instances have access to common
   set of disks called disk groups
ASM background processes
ASM background Process
• ARBn : Performs the actual rebalance data extent movements in an
  Automatic Storage Management instance. More than one process
  can run at a time, named ARB0, ARB1, and so on.
• ASMB : Runs in a database instance that is using an ASM disk group
  and communicates with the ASM instance in managing storage and
  providing statistics.
• GMON: Maintains disk membership in ASM disk groups.
• MARK: This process marks ASM allocation units as stale following a
  missed write to an offline disk. This essentially tracks which extents
  require resync for offline disks.
• RBAL: This process runs in both database and ASM instances. In the
  database instance, it does a global open of ASM disks and in an ASM
  instance, it also coordinates rebalance activity for disk groups
New initialization parameters
Unique parameters in RAC Instance
• instance_name- Specifies the unique name of this instance
• instance_number- Specifies the unique number that maps to
  instance
• thread – Specifies the number of the redo thread used by the
  instance
Non-Unique parameters in RAC Instance
• cluster_database – specifies weather RAC enabled or not
• cluster_database_instance – equal to the number of instances in a
  cluster
• cluster_interconnects – Specifies the additional interconnects
  available for use
• active_instance_count– specifies the number of instances that will
  be active within a cluster
New parameters
• remote_listener -specifies a network name that resolves to an
  address or address list of Oracle Net remote listeners
• local_listener - specifies a network name that resolves to an address
  or address list of Oracle Net local listeners
Parameters in ASM Instance
• instance_type – This parameter must be set to ASM
• asm_diskgroups – lists the name of the disk groups that will be
  mounted by ASM instance
• asm_diskstring – This parameter limits the set of disks that ASM
  consider for discovery
• asm_power_limit – specifies the Maximum power on an ASN
  instance for disk rebalance operations
• asm_preferred_read_failure_groups - specifies the failure groups
  that contain preferred read disks
Transparent Application Failover(TAF)
• Transparent Application Failover (TAF) is a client-side
  feature that allows for clients to reconnect to surviving
  nodes in the event of a failure of an instance.
• The reconnect happens automatically from within the
  OCI (Oracle Call Interface) library. Any uncommitted
  transactions are rolled back and server side program
  variables and session properties will be lost.
• In some case the select statements automatically re-
  executed on the new connection with the cursor
  positioned on the row on which it was positioned prior
  to the failover.
• The failover is configured in tnsnames.ora file, the TAF
  settings are placed in CONNECT_DATA section of the
  tnsnames.ora using FAILOVER_MODES parameters
TAF failover & load balance methods
• Failover modes
  - TYPE: TAF supports three types of failover types
  SESSION: If a user's connection is lost, SESSION failover establishes
  a new session automatically created for the user on the backup
  node. This type of failover does not attempt to recover selects
  SELECT: If the connection is lost, Oracle Net establishes a
  connection to another node and re-executes the SELECT
  statements with cursor positioned on the row on which it was
  positioned prior to the failover
  NONE: This setting is the default and failover functionality is
  provided. Use this setting to prevent failover.
  - METHOD: This parameters determines how failover
  occurs from the primary node to the backup node
  BASIC: Use this mode to establish connections at failover time, no
  work on the backup server until failover time
TAF failover & load balance methods
  PRECONNECT: Use this mode to pre-established connections.
  - RETRIES: Use this parameter to specify number of
  times to attempt to connect after a failover
  - DELAY: Use this parameter to Specify the amount of
  time in seconds to wait between connect attempts.
• LOAD_BALANCE:YES,NO,OFF,TRUE
• There are two methods of load balancing
  - Client load balancing - Distributes new connections
  among Oracle RAC nodes so that no one server is
  overloaded with connection requests
  - Server load balancing – Distributes processing
  workload among RAC nodes and new user session
  connection requests to the least loaded listener.
• For failover information query view GV$SESSION –
  failover_type,failover_method,failed_over
OCR & Vote Backup and Recovery
• Oracle recommends that you back up your OCR & voting
  disk after initial cluster creation
• OCR - There are two methods to backup OCR
 1. Automatically generated OCR backup files under
       $CRS_HOME/cdata/crs
 2. OCR export/logical backup
       # ocrconfig -export export_file_name
• Use ocrconfig to restore OCR from backup
  # ocrconfig –restore $CRS_HOME/cdata/crs/day.ocr
  or
  # ocrconfig –import export_file_name
• Vote –Use dd or ocopy command
  Backup - $ dd if=vote_disk_name of=backup_file_name
  Recovery- $ dd if=backup_file_name of=vote_disk_name
RAC Database Backup
• Backup RAC Database from any node in a Cluster
• You can take Full and incremental backup using RMAN
• You can backup to Tape,Disk and Cloud (using Media
  Management Library from Oracle 11g)
• You can use Flash Recovery Area(FRA) for your backups
• As a Best practice, the backup device should be shared
  between the nodes for easy recovery
• Perform backups of your RAC database using Enterprise
  Manager
• Scale up the Backup load onto multiple Instances of RAC
  RMAN> CONFIGURE DEVICE TYPE DISK PARALLELISM 2;
  RMAN> CONFIGURE CHANNEL C1 CONNECT ‘sys/xxxx@inst1’;
  RMAN> CONFIGURE CHANNEL C2 CONNECT ‘sys/xxx@Inst2’;
RAC Database Recovery
• Automatic instance recovery occurs for failed instances
  due to hardware or software problems
   – SMON Determines the block needed for recovery and Global
     Resource Directory (GRD) is forgen
   – GES remasters enqueues and GCS remasters the resources
   – Buffer space for recovery allocated and block not in recovery
     will be accessible, oracle performs roll forward recovery.
• As long as one instance survives, RAC performs instance
  recovery for any other failed instances
• In case of any Media failure recovery the database from
  any instance in the Cluster. After recovery manually start
  the other instance in cluster.
• If using Flashbak Recovery Area then you can SWTICH
  the database, in case of media recovery.
Performance tuning
• ADDM (Automatic Database Diagnostic Monitor) is a
  performance monitor tool, which proactively monitors the
  performance and also captures RAC related issues
• The statistical data needed for diagnosis of a problem is
  saved in the Automatic Workload Repository (AWR).
• Oracle Database 10g uses a scheduled job,
  GATHER_STATS_JOB(GATHER_DATABASE_STATS_JOB_PROC
  ) to collect AWR statistics
• The ADDM Analyzed the data in AWR on regular basis to
  find the root cause of performance problems and provides
  recommendations to correct the problems.
• ADDM is enabled by default and is controlled by the
  STATISTICS_LEVEL initialization parameter. This parameter
  should be set to the TYPICAL or ALL to enable the ADDM,
  default setting is TYPICAL.
• For ADDM Analysis you can run addmrpt.sql
Performance tuning
• For AWR reports you can run awrrpt.sql, awrrpti.sql for
  RAC
• ADDM provides the following benefits:
   – Automatic performance diagnostic report every hour by default
   – Problem diagnosis based on decades of tuning expertise
   – Time-based quantification of problem impacts and
     recommendation benefits
   – Identification of root cause, not symptoms
   – Recommendations for treating the root causes of problems
   – Identification of non-problem areas of the system
   – Minimal overhead to the system during the diagnostic process
• The v$cache_transfer and v$file_cache_transfer views
  are used to examine RAC statistics
Performance tuning
•       In RAC, the global services directory processes is the
        most important tuning area. GSD is communicates
        through cluster interconnect. If cluster interconnects
        do not perform properly, the entire RAC will suffer no
        matter how well everything else is tuned.
•       The Global Enqueue Services (GES) and Global Cache
        Services (GCS) are the main process
•       Wait events can be divided as three categories
    –      1.Time-based event
    –      2.System-wide event
    –      3.Session wait
•       The major wait events in Oracle RAC are:
    –      gc cr request
    –      gc buffer busy
Performance tuning
•       The most important wait events for RAC include
        various categories, such as:
•       Block-oriented
    –     gc current block 2-way
    –     gc current block 3-way
    –     gc cr block 2-way
    –     gc cr block 3-way
•       Message-oriented
    –     gc current grant 2-way
    –     gc cr grant 2-way
•       Contention-oriented
    –     gc current block busy
    –     gc cr block busy
    –     gc current buffer busy
Performance tuning
•       Load-oriented
    –     gc current block congested
    –     gc cr block congested
Questions & Answers

More Related Content

What's hot

Oracle RAC 19c: Best Practices and Secret Internals
Oracle RAC 19c: Best Practices and Secret InternalsOracle RAC 19c: Best Practices and Secret Internals
Oracle RAC 19c: Best Practices and Secret InternalsAnil Nair

AIOUG : OTNYathra - Troubleshooting and Diagnosing Oracle Database 12.2 and O...
AIOUG : OTNYathra - Troubleshooting and Diagnosing Oracle Database 12.2 and O...AIOUG : OTNYathra - Troubleshooting and Diagnosing Oracle Database 12.2 and O...
AIOUG : OTNYathra - Troubleshooting and Diagnosing Oracle Database 12.2 and O...Sandesh Rao

Understanding oracle rac internals part 2 - slides
Understanding oracle rac internals   part 2 - slidesUnderstanding oracle rac internals   part 2 - slides
Understanding oracle rac internals part 2 - slidesMohamed Farouk

Standard Edition High Availability (SEHA) - The Why, What & How
Standard Edition High Availability (SEHA) - The Why, What & HowStandard Edition High Availability (SEHA) - The Why, What & How
Standard Edition High Availability (SEHA) - The Why, What & HowMarkus Michalewicz

Oracle 12c PDB insights
Oracle 12c PDB insightsOracle 12c PDB insights
Oracle 12c PDB insightsKirill Loifman

What to Expect From Oracle database 19c
What to Expect From Oracle database 19cWhat to Expect From Oracle database 19c
What to Expect From Oracle database 19cMaria Colgan

Why oracle data guard new features in oracle 18c, 19c
Why oracle data guard new features in oracle 18c, 19cWhy oracle data guard new features in oracle 18c, 19c
Why oracle data guard new features in oracle 18c, 19cSatishbabu Gunukula

Oracle RAC 19c - the Basis for the Autonomous Database
Oracle RAC 19c - the Basis for the Autonomous DatabaseOracle RAC 19c - the Basis for the Autonomous Database
Oracle RAC 19c - the Basis for the Autonomous DatabaseMarkus Michalewicz

Oracle RAC 12c Practical Performance Management and Tuning OOW13 [CON8825]
Oracle RAC 12c Practical Performance Management and Tuning OOW13 [CON8825]Oracle RAC 12c Practical Performance Management and Tuning OOW13 [CON8825]
Oracle RAC 12c Practical Performance Management and Tuning OOW13 [CON8825]Markus Michalewicz

Oracle Real Application Clusters 19c- Best Practices and Internals- EMEA Tour...
Oracle Real Application Clusters 19c- Best Practices and Internals- EMEA Tour...Oracle Real Application Clusters 19c- Best Practices and Internals- EMEA Tour...
Oracle Real Application Clusters 19c- Best Practices and Internals- EMEA Tour...Sandesh Rao

The Top 5 Reasons to Deploy Your Applications on Oracle RAC
The Top 5 Reasons to Deploy Your Applications on Oracle RACThe Top 5 Reasons to Deploy Your Applications on Oracle RAC
The Top 5 Reasons to Deploy Your Applications on Oracle RACMarkus Michalewicz

Oracle RAC Internals - The Cache Fusion Edition
Oracle RAC Internals - The Cache Fusion EditionOracle RAC Internals - The Cache Fusion Edition
Oracle RAC Internals - The Cache Fusion EditionMarkus Michalewicz

Performance Stability, Tips and Tricks and Underscores
Performance Stability, Tips and Tricks and UnderscoresPerformance Stability, Tips and Tricks and Underscores
Performance Stability, Tips and Tricks and UnderscoresJitendra Singh

What's new in Oracle 19c & 18c Recovery Manager (RMAN)
What's new in Oracle 19c & 18c Recovery Manager (RMAN)What's new in Oracle 19c & 18c Recovery Manager (RMAN)
What's new in Oracle 19c & 18c Recovery Manager (RMAN)Satishbabu Gunukula

Oracle Extended Clusters for Oracle RAC
Oracle Extended Clusters for Oracle RACOracle Extended Clusters for Oracle RAC
Oracle Extended Clusters for Oracle RACMarkus Michalewicz

AskTom: How to Make and Test Your Application "Oracle RAC Ready"?
AskTom: How to Make and Test Your Application "Oracle RAC Ready"?AskTom: How to Make and Test Your Application "Oracle RAC Ready"?
AskTom: How to Make and Test Your Application "Oracle RAC Ready"?Markus Michalewicz

Oracle RAC - New Generation
Oracle RAC - New GenerationOracle RAC - New Generation
Oracle RAC - New GenerationAnil Nair


What's hot (20)

Oracle RAC 19c: Best Practices and Secret Internals
Oracle RAC 19c: Best Practices and Secret InternalsOracle RAC 19c: Best Practices and Secret Internals
Oracle RAC 19c: Best Practices and Secret Internals

ASM
ASMASM
ASM

AIOUG : OTNYathra - Troubleshooting and Diagnosing Oracle Database 12.2 and O...
AIOUG : OTNYathra - Troubleshooting and Diagnosing Oracle Database 12.2 and O...AIOUG : OTNYathra - Troubleshooting and Diagnosing Oracle Database 12.2 and O...
AIOUG : OTNYathra - Troubleshooting and Diagnosing Oracle Database 12.2 and O...

Understanding oracle rac internals part 2 - slides
Understanding oracle rac internals   part 2 - slidesUnderstanding oracle rac internals   part 2 - slides
Understanding oracle rac internals part 2 - slides

Standard Edition High Availability (SEHA) - The Why, What & How
Standard Edition High Availability (SEHA) - The Why, What & HowStandard Edition High Availability (SEHA) - The Why, What & How
Standard Edition High Availability (SEHA) - The Why, What & How

Oracle 12c PDB insights
Oracle 12c PDB insightsOracle 12c PDB insights
Oracle 12c PDB insights

What to Expect From Oracle database 19c
What to Expect From Oracle database 19cWhat to Expect From Oracle database 19c
What to Expect From Oracle database 19c

Why oracle data guard new features in oracle 18c, 19c
Why oracle data guard new features in oracle 18c, 19cWhy oracle data guard new features in oracle 18c, 19c
Why oracle data guard new features in oracle 18c, 19c

Oracle RAC 19c - the Basis for the Autonomous Database
Oracle RAC 19c - the Basis for the Autonomous DatabaseOracle RAC 19c - the Basis for the Autonomous Database
Oracle RAC 19c - the Basis for the Autonomous Database

Oracle RAC 12c Practical Performance Management and Tuning OOW13 [CON8825]
Oracle RAC 12c Practical Performance Management and Tuning OOW13 [CON8825]Oracle RAC 12c Practical Performance Management and Tuning OOW13 [CON8825]
Oracle RAC 12c Practical Performance Management and Tuning OOW13 [CON8825]

Oracle Real Application Clusters 19c- Best Practices and Internals- EMEA Tour...
Oracle Real Application Clusters 19c- Best Practices and Internals- EMEA Tour...Oracle Real Application Clusters 19c- Best Practices and Internals- EMEA Tour...
Oracle Real Application Clusters 19c- Best Practices and Internals- EMEA Tour...

Oracle ASM Training
Oracle ASM TrainingOracle ASM Training
Oracle ASM Training

The Top 5 Reasons to Deploy Your Applications on Oracle RAC
The Top 5 Reasons to Deploy Your Applications on Oracle RACThe Top 5 Reasons to Deploy Your Applications on Oracle RAC
The Top 5 Reasons to Deploy Your Applications on Oracle RAC

Oracle RAC Internals - The Cache Fusion Edition
Oracle RAC Internals - The Cache Fusion EditionOracle RAC Internals - The Cache Fusion Edition
Oracle RAC Internals - The Cache Fusion Edition

Performance Stability, Tips and Tricks and Underscores
Performance Stability, Tips and Tricks and UnderscoresPerformance Stability, Tips and Tricks and Underscores
Performance Stability, Tips and Tricks and Underscores

What's new in Oracle 19c & 18c Recovery Manager (RMAN)
What's new in Oracle 19c & 18c Recovery Manager (RMAN)What's new in Oracle 19c & 18c Recovery Manager (RMAN)
What's new in Oracle 19c & 18c Recovery Manager (RMAN)

Oracle Extended Clusters for Oracle RAC
Oracle Extended Clusters for Oracle RACOracle Extended Clusters for Oracle RAC
Oracle Extended Clusters for Oracle RAC

AskTom: How to Make and Test Your Application "Oracle RAC Ready"?
AskTom: How to Make and Test Your Application "Oracle RAC Ready"?AskTom: How to Make and Test Your Application "Oracle RAC Ready"?
AskTom: How to Make and Test Your Application "Oracle RAC Ready"?

Data Guard Architecture & Setup
Data Guard Architecture & SetupData Guard Architecture & Setup
Data Guard Architecture & Setup

Oracle RAC - New Generation
Oracle RAC - New GenerationOracle RAC - New Generation
Oracle RAC - New Generation


Viewers also liked

Oracle 11g R2 RAC implementation and concept
Oracle 11g R2 RAC implementation and conceptOracle 11g R2 RAC implementation and concept
Oracle 11g R2 RAC implementation and conceptSantosh Kangane

RMAN best practices for RAC
RMAN best practices for RACRMAN best practices for RAC
RMAN best practices for RACSyed Hussain

Backup and Restore of database on 2-Node RAC
Backup and Restore of database on 2-Node RACBackup and Restore of database on 2-Node RAC
Backup and Restore of database on 2-Node RACPaulo Fagundes

Oracle RAC 12c (12.1.0.2) Operational Best Practices - A result of true colla...
Oracle RAC 12c (12.1.0.2) Operational Best Practices - A result of true colla...Oracle RAC 12c (12.1.0.2) Operational Best Practices - A result of true colla...
Oracle RAC 12c (12.1.0.2) Operational Best Practices - A result of true colla...Markus Michalewicz

Time for Change: Migrate your Non-RAC Database to RAC
Time for Change: Migrate your Non-RAC Database to RACTime for Change: Migrate your Non-RAC Database to RAC
Time for Change: Migrate your Non-RAC Database to RACSatishbabu Gunukula

Install oracle binaris or clonse oracle home
Install oracle binaris or clonse oracle homeInstall oracle binaris or clonse oracle home
Install oracle binaris or clonse oracle homeSatishbabu Gunukula

Oracle clusterware overview_11g_en
Oracle clusterware overview_11g_enOracle clusterware overview_11g_en
Oracle clusterware overview_11g_en小新 制造

Deploying Oracle 11g R2 on Linux RHEL6
Deploying Oracle 11g R2 on Linux RHEL6Deploying Oracle 11g R2 on Linux RHEL6
Deploying Oracle 11g R2 on Linux RHEL6Mc Cloud

Installation and configuration 11g r2 asm using job role separation(grid & or...
Installation and configuration 11g r2 asm using job role separation(grid & or...Installation and configuration 11g r2 asm using job role separation(grid & or...
Installation and configuration 11g r2 asm using job role separation(grid & or...Zhaoyang Wang

Fonctionnalités JBoss ESB
Fonctionnalités JBoss ESBFonctionnalités JBoss ESB
Fonctionnalités JBoss ESBFourat Zouari

Oracle RAC 12c and Policy-Managed Databases, a Technical Overview
Oracle RAC 12c and Policy-Managed Databases, a Technical OverviewOracle RAC 12c and Policy-Managed Databases, a Technical Overview
Oracle RAC 12c and Policy-Managed Databases, a Technical OverviewLudovico Caldara

Oracle Clusterware Node Management and Voting Disks
Oracle Clusterware Node Management and Voting DisksOracle Clusterware Node Management and Voting Disks
Oracle Clusterware Node Management and Voting DisksMarkus Michalewicz

RAC Attack 12c Installation Instruction
RAC Attack 12c Installation InstructionRAC Attack 12c Installation Instruction
RAC Attack 12c Installation InstructionYury Velikanov

11g r2 rac grid clusterware doug presentation 10 21-10
11g r2 rac grid clusterware doug presentation 10 21-1011g r2 rac grid clusterware doug presentation 10 21-10
11g r2 rac grid clusterware doug presentation 10 21-10admdbarac

RACAttack 12c Advanced Lab: Server Pools and Policy-managed databases
RACAttack 12c Advanced Lab: Server Pools and Policy-managed databasesRACAttack 12c Advanced Lab: Server Pools and Policy-managed databases
RACAttack 12c Advanced Lab: Server Pools and Policy-managed databasesLudovico Caldara

ORACLE 12C DATA GUARD: FAR SYNC, REAL-TIME CASCADE STANDBY AND OTHER GOODIES
ORACLE 12C DATA GUARD: FAR SYNC, REAL-TIME CASCADE STANDBY AND OTHER GOODIESORACLE 12C DATA GUARD: FAR SYNC, REAL-TIME CASCADE STANDBY AND OTHER GOODIES
ORACLE 12C DATA GUARD: FAR SYNC, REAL-TIME CASCADE STANDBY AND OTHER GOODIESLudovico Caldara

Oracle RAC - Standard Edition, Enterprise Edition & One Node
Oracle RAC - Standard Edition, Enterprise Edition & One NodeOracle RAC - Standard Edition, Enterprise Edition & One Node
Oracle RAC - Standard Edition, Enterprise Edition & One NodeLeighton Nelson


Viewers also liked (20)

Oracle 11g R2 RAC implementation and concept
Oracle 11g R2 RAC implementation and conceptOracle 11g R2 RAC implementation and concept
Oracle 11g R2 RAC implementation and concept

RMAN best practices for RAC
RMAN best practices for RACRMAN best practices for RAC
RMAN best practices for RAC

Ioug tip book11_gunukula
Ioug tip book11_gunukulaIoug tip book11_gunukula
Ioug tip book11_gunukula

Backup and Restore of database on 2-Node RAC
Backup and Restore of database on 2-Node RACBackup and Restore of database on 2-Node RAC
Backup and Restore of database on 2-Node RAC

Oracle RAC 12c (12.1.0.2) Operational Best Practices - A result of true colla...
Oracle RAC 12c (12.1.0.2) Operational Best Practices - A result of true colla...Oracle RAC 12c (12.1.0.2) Operational Best Practices - A result of true colla...
Oracle RAC 12c (12.1.0.2) Operational Best Practices - A result of true colla...

Rac questions
Rac questionsRac questions
Rac questions

Time for Change: Migrate your Non-RAC Database to RAC
Time for Change: Migrate your Non-RAC Database to RACTime for Change: Migrate your Non-RAC Database to RAC
Time for Change: Migrate your Non-RAC Database to RAC

Install oracle binaris or clonse oracle home
Install oracle binaris or clonse oracle homeInstall oracle binaris or clonse oracle home
Install oracle binaris or clonse oracle home

Oracle clusterware overview_11g_en
Oracle clusterware overview_11g_enOracle clusterware overview_11g_en
Oracle clusterware overview_11g_en

Deploying Oracle 11g R2 on Linux RHEL6
Deploying Oracle 11g R2 on Linux RHEL6Deploying Oracle 11g R2 on Linux RHEL6
Deploying Oracle 11g R2 on Linux RHEL6

Resume
ResumeResume
Resume

Installation and configuration 11g r2 asm using job role separation(grid & or...
Installation and configuration 11g r2 asm using job role separation(grid & or...Installation and configuration 11g r2 asm using job role separation(grid & or...
Installation and configuration 11g r2 asm using job role separation(grid & or...

Fonctionnalités JBoss ESB
Fonctionnalités JBoss ESBFonctionnalités JBoss ESB
Fonctionnalités JBoss ESB

Oracle RAC 12c and Policy-Managed Databases, a Technical Overview
Oracle RAC 12c and Policy-Managed Databases, a Technical OverviewOracle RAC 12c and Policy-Managed Databases, a Technical Overview
Oracle RAC 12c and Policy-Managed Databases, a Technical Overview

Oracle Clusterware Node Management and Voting Disks
Oracle Clusterware Node Management and Voting DisksOracle Clusterware Node Management and Voting Disks
Oracle Clusterware Node Management and Voting Disks

RAC Attack 12c Installation Instruction
RAC Attack 12c Installation InstructionRAC Attack 12c Installation Instruction
RAC Attack 12c Installation Instruction

11g r2 rac grid clusterware doug presentation 10 21-10
11g r2 rac grid clusterware doug presentation 10 21-1011g r2 rac grid clusterware doug presentation 10 21-10
11g r2 rac grid clusterware doug presentation 10 21-10

RACAttack 12c Advanced Lab: Server Pools and Policy-managed databases
RACAttack 12c Advanced Lab: Server Pools and Policy-managed databasesRACAttack 12c Advanced Lab: Server Pools and Policy-managed databases
RACAttack 12c Advanced Lab: Server Pools and Policy-managed databases

ORACLE 12C DATA GUARD: FAR SYNC, REAL-TIME CASCADE STANDBY AND OTHER GOODIES
ORACLE 12C DATA GUARD: FAR SYNC, REAL-TIME CASCADE STANDBY AND OTHER GOODIESORACLE 12C DATA GUARD: FAR SYNC, REAL-TIME CASCADE STANDBY AND OTHER GOODIES
ORACLE 12C DATA GUARD: FAR SYNC, REAL-TIME CASCADE STANDBY AND OTHER GOODIES

Oracle RAC - Standard Edition, Enterprise Edition & One Node
Oracle RAC - Standard Edition, Enterprise Edition & One NodeOracle RAC - Standard Edition, Enterprise Edition & One Node
Oracle RAC - Standard Edition, Enterprise Edition & One Node


Similar to Understand oracle real application cluster

UKOUG Tech15 - Overheads of RAC?
UKOUG Tech15 - Overheads of RAC?UKOUG Tech15 - Overheads of RAC?
UKOUG Tech15 - Overheads of RAC?Zahid Anwar (OCM)

Oracle db architecture
Oracle db architectureOracle db architecture
Oracle db architectureSimon Huang

Cosmos DB at VLDB 2019
Cosmos DB at VLDB 2019Cosmos DB at VLDB 2019
Cosmos DB at VLDB 2019Dharma Shukla

RAC - The Savior of DBA
RAC - The Savior of DBARAC - The Savior of DBA
RAC - The Savior of DBANikhil Kumar

Realtime olap architecture in apache kylin 3.0
Realtime olap architecture in apache kylin 3.0Realtime olap architecture in apache kylin 3.0
Realtime olap architecture in apache kylin 3.0Shi Shao Feng

Ippevent : openshift Introduction
Ippevent : openshift IntroductionIppevent : openshift Introduction
Ippevent : openshift Introductionkanedafromparis

Open stack ha design & deployment kilo
Open stack ha design & deployment   kiloOpen stack ha design & deployment   kilo
Open stack ha design & deployment kiloSteven Li

OpenStack High Availability
OpenStack High AvailabilityOpenStack High Availability
OpenStack High AvailabilityJakub Pavlik

OpenStack HA
OpenStack HAOpenStack HA
OpenStack HAtcp cloud

Tips Tricks and Tactics with Cells and Scaling OpenStack - May, 2015
Tips Tricks and Tactics with Cells and Scaling OpenStack - May, 2015Tips Tricks and Tactics with Cells and Scaling OpenStack - May, 2015
Tips Tricks and Tactics with Cells and Scaling OpenStack - May, 2015Belmiro Moreira

Racsig rac internals
Racsig rac internalsRacsig rac internals
Racsig rac internalspv_narayanan

Inter connect2016 yss1841-cloud-storage-options-v4
Inter connect2016 yss1841-cloud-storage-options-v4Inter connect2016 yss1841-cloud-storage-options-v4
Inter connect2016 yss1841-cloud-storage-options-v4Tony Pearson

D108636GC10_les01.pptx
D108636GC10_les01.pptxD108636GC10_les01.pptx
D108636GC10_les01.pptxSuresh569521

Migration challenges and process
Migration challenges and processMigration challenges and process
Migration challenges and processAndrejs Vorobjovs

Revolutionary Storage for Modern Databases, Applications and Infrastrcture
Revolutionary Storage for Modern Databases, Applications and InfrastrctureRevolutionary Storage for Modern Databases, Applications and Infrastrcture
Revolutionary Storage for Modern Databases, Applications and Infrastrcturesabnees

Tuning for Oracle RAC Wait Events
Tuning for Oracle RAC Wait EventsTuning for Oracle RAC Wait Events
Tuning for Oracle RAC Wait EventsConfio Software


Similar to Understand oracle real application cluster (20)

final_rac
final_racfinal_rac
final_rac

UKOUG Tech15 - Overheads of RAC?
UKOUG Tech15 - Overheads of RAC?UKOUG Tech15 - Overheads of RAC?
UKOUG Tech15 - Overheads of RAC?

Oracle db architecture
Oracle db architectureOracle db architecture
Oracle db architecture

Cosmos DB at VLDB 2019
Cosmos DB at VLDB 2019Cosmos DB at VLDB 2019
Cosmos DB at VLDB 2019

Cnam azure 2014 storage
Cnam azure 2014   storageCnam azure 2014   storage
Cnam azure 2014 storage

RAC - The Savior of DBA
RAC - The Savior of DBARAC - The Savior of DBA
RAC - The Savior of DBA

Cnam azure 2015 storage
Cnam azure 2015  storageCnam azure 2015  storage
Cnam azure 2015 storage

Realtime olap architecture in apache kylin 3.0
Realtime olap architecture in apache kylin 3.0Realtime olap architecture in apache kylin 3.0
Realtime olap architecture in apache kylin 3.0

Ippevent : openshift Introduction
Ippevent : openshift IntroductionIppevent : openshift Introduction
Ippevent : openshift Introduction

Open stack ha design & deployment kilo
Open stack ha design & deployment   kiloOpen stack ha design & deployment   kilo
Open stack ha design & deployment kilo

OpenStack High Availability
OpenStack High AvailabilityOpenStack High Availability
OpenStack High Availability

OpenStack HA
OpenStack HAOpenStack HA
OpenStack HA

Tips Tricks and Tactics with Cells and Scaling OpenStack - May, 2015
Tips Tricks and Tactics with Cells and Scaling OpenStack - May, 2015Tips Tricks and Tactics with Cells and Scaling OpenStack - May, 2015
Tips Tricks and Tactics with Cells and Scaling OpenStack - May, 2015

Racsig rac internals
Racsig rac internalsRacsig rac internals
Racsig rac internals

Fault tolerance
Fault toleranceFault tolerance
Fault tolerance

Inter connect2016 yss1841-cloud-storage-options-v4
Inter connect2016 yss1841-cloud-storage-options-v4Inter connect2016 yss1841-cloud-storage-options-v4
Inter connect2016 yss1841-cloud-storage-options-v4

D108636GC10_les01.pptx
D108636GC10_les01.pptxD108636GC10_les01.pptx
D108636GC10_les01.pptx

Migration challenges and process
Migration challenges and processMigration challenges and process
Migration challenges and process

Revolutionary Storage for Modern Databases, Applications and Infrastrcture
Revolutionary Storage for Modern Databases, Applications and InfrastrctureRevolutionary Storage for Modern Databases, Applications and Infrastrcture
Revolutionary Storage for Modern Databases, Applications and Infrastrcture

Tuning for Oracle RAC Wait Events
Tuning for Oracle RAC Wait EventsTuning for Oracle RAC Wait Events
Tuning for Oracle RAC Wait Events


More from Satishbabu Gunukula

Oracle Database 23c Security New Features.pptx
Oracle Database 23c Security New Features.pptxOracle Database 23c Security New Features.pptx
Oracle Database 23c Security New Features.pptxSatishbabu Gunukula

Oracle Data Pump Enhancements in Oracle 21c.pptx
Oracle Data Pump Enhancements in Oracle 21c.pptxOracle Data Pump Enhancements in Oracle 21c.pptx
Oracle Data Pump Enhancements in Oracle 21c.pptxSatishbabu Gunukula

Cloning an Oracle Home or Oracle Install.pptx
Cloning an Oracle Home or Oracle Install.pptxCloning an Oracle Home or Oracle Install.pptx
Cloning an Oracle Home or Oracle Install.pptxSatishbabu Gunukula

What’s New in Oracle Database 19c - Part 1
What’s New in Oracle Database 19c - Part 1What’s New in Oracle Database 19c - Part 1
What’s New in Oracle Database 19c - Part 1Satishbabu Gunukula

Oracle database upgrade to 12c and available methods
Oracle database upgrade to 12c and available methodsOracle database upgrade to 12c and available methods
Oracle database upgrade to 12c and available methodsSatishbabu Gunukula

One database solution for your enterprise business - Oracle 12c
One database solution for your enterprise business - Oracle 12cOne database solution for your enterprise business - Oracle 12c
One database solution for your enterprise business - Oracle 12cSatishbabu Gunukula

What’s new in oracle 12c recovery manager (rman)
What’s new in oracle 12c recovery manager (rman)What’s new in oracle 12c recovery manager (rman)
What’s new in oracle 12c recovery manager (rman)Satishbabu Gunukula

Oracle golden gate 12c New Features
Oracle golden gate 12c New FeaturesOracle golden gate 12c New Features
Oracle golden gate 12c New FeaturesSatishbabu Gunukula

Sql server mission_critical_performance_tdm_white_paper
Sql server mission_critical_performance_tdm_white_paperSql server mission_critical_performance_tdm_white_paper
Sql server mission_critical_performance_tdm_white_paperSatishbabu Gunukula


More from Satishbabu Gunukula (11)

Oracle Database 23c Security New Features.pptx
Oracle Database 23c Security New Features.pptxOracle Database 23c Security New Features.pptx
Oracle Database 23c Security New Features.pptx

Oracle Data Pump Enhancements in Oracle 21c.pptx
Oracle Data Pump Enhancements in Oracle 21c.pptxOracle Data Pump Enhancements in Oracle 21c.pptx
Oracle Data Pump Enhancements in Oracle 21c.pptx

Cloning an Oracle Home or Oracle Install.pptx
Cloning an Oracle Home or Oracle Install.pptxCloning an Oracle Home or Oracle Install.pptx
Cloning an Oracle Home or Oracle Install.pptx

What’s New in Oracle Database 19c - Part 1
What’s New in Oracle Database 19c - Part 1What’s New in Oracle Database 19c - Part 1
What’s New in Oracle Database 19c - Part 1

Oracle database upgrade to 12c and available methods
Oracle database upgrade to 12c and available methodsOracle database upgrade to 12c and available methods
Oracle database upgrade to 12c and available methods

One database solution for your enterprise business - Oracle 12c
One database solution for your enterprise business - Oracle 12cOne database solution for your enterprise business - Oracle 12c
One database solution for your enterprise business - Oracle 12c

What’s new in oracle 12c recovery manager (rman)
What’s new in oracle 12c recovery manager (rman)What’s new in oracle 12c recovery manager (rman)
What’s new in oracle 12c recovery manager (rman)

Why virtual private catalog?
Why virtual private catalog?Why virtual private catalog?
Why virtual private catalog?

Oracle golden gate 12c New Features
Oracle golden gate 12c New FeaturesOracle golden gate 12c New Features
Oracle golden gate 12c New Features

Sql server mission_critical_performance_tdm_white_paper
Sql server mission_critical_performance_tdm_white_paperSql server mission_critical_performance_tdm_white_paper
Sql server mission_critical_performance_tdm_white_paper

Convert single instance to RAC
Convert single instance to RACConvert single instance to RAC
Convert single instance to RAC


Recently uploaded

Simplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdf
Simplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdfSimplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdf
Simplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdfFIDO Alliance

JavaScript Usage Statistics 2024 - The Ultimate Guide
JavaScript Usage Statistics 2024 - The Ultimate GuideJavaScript Usage Statistics 2024 - The Ultimate Guide
JavaScript Usage Statistics 2024 - The Ultimate GuidePixlogix Infotech

The Value of Certifying Products for FDO _ Paul at FIDO Alliance.pdf
The Value of Certifying Products for FDO _ Paul at FIDO Alliance.pdfThe Value of Certifying Products for FDO _ Paul at FIDO Alliance.pdf
The Value of Certifying Products for FDO _ Paul at FIDO Alliance.pdfFIDO Alliance

Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...panagenda

Continuing Bonds Through AI: A Hermeneutic Reflection on Thanabots
Continuing Bonds Through AI: A Hermeneutic Reflection on ThanabotsContinuing Bonds Through AI: A Hermeneutic Reflection on Thanabots
Continuing Bonds Through AI: A Hermeneutic Reflection on ThanabotsLeah Henrickson

Hyatt driving innovation and exceptional customer experiences with FIDO passw...
Hyatt driving innovation and exceptional customer experiences with FIDO passw...Hyatt driving innovation and exceptional customer experiences with FIDO passw...
Hyatt driving innovation and exceptional customer experiences with FIDO passw...FIDO Alliance

Introduction to FIDO Authentication and Passkeys.pptx
Introduction to FIDO Authentication and Passkeys.pptxIntroduction to FIDO Authentication and Passkeys.pptx
Introduction to FIDO Authentication and Passkeys.pptxFIDO Alliance

Intro to Passkeys and the State of Passwordless.pptx
Intro to Passkeys and the State of Passwordless.pptxIntro to Passkeys and the State of Passwordless.pptx
Intro to Passkeys and the State of Passwordless.pptxFIDO Alliance

Event-Driven Architecture Masterclass: Challenges in Stream Processing
Event-Driven Architecture Masterclass: Challenges in Stream ProcessingEvent-Driven Architecture Masterclass: Challenges in Stream Processing
Event-Driven Architecture Masterclass: Challenges in Stream ProcessingScyllaDB

TrustArc Webinar - Unified Trust Center for Privacy, Security, Compliance, an...
TrustArc Webinar - Unified Trust Center for Privacy, Security, Compliance, an...TrustArc Webinar - Unified Trust Center for Privacy, Security, Compliance, an...
TrustArc Webinar - Unified Trust Center for Privacy, Security, Compliance, an...TrustArc

The Zero-ETL Approach: Enhancing Data Agility and Insight
The Zero-ETL Approach: Enhancing Data Agility and InsightThe Zero-ETL Approach: Enhancing Data Agility and Insight
The Zero-ETL Approach: Enhancing Data Agility and InsightSafe Software

Using IESVE for Room Loads Analysis - UK & Ireland
Using IESVE for Room Loads Analysis - UK & IrelandUsing IESVE for Room Loads Analysis - UK & Ireland
Using IESVE for Room Loads Analysis - UK & IrelandIES VE

Choosing the Right FDO Deployment Model for Your Application _ Geoffrey at In...
Choosing the Right FDO Deployment Model for Your Application _ Geoffrey at In...Choosing the Right FDO Deployment Model for Your Application _ Geoffrey at In...
Choosing the Right FDO Deployment Model for Your Application _ Geoffrey at In...FIDO Alliance

“Iamnobody89757” Understanding the Mysterious of Digital Identity.pdf
“Iamnobody89757” Understanding the Mysterious of Digital Identity.pdf“Iamnobody89757” Understanding the Mysterious of Digital Identity.pdf
“Iamnobody89757” Understanding the Mysterious of Digital Identity.pdfMuhammad Subhan

Design and Development of a Provenance Capture Platform for Data Science
Design and Development of a Provenance Capture Platform for Data ScienceDesign and Development of a Provenance Capture Platform for Data Science
Design and Development of a Provenance Capture Platform for Data SciencePaolo Missier

Event-Driven Architecture Masterclass: Engineering a Robust, High-performance...
Event-Driven Architecture Masterclass: Engineering a Robust, High-performance...Event-Driven Architecture Masterclass: Engineering a Robust, High-performance...
Event-Driven Architecture Masterclass: Engineering a Robust, High-performance...ScyllaDB

Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptx
Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptxHarnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptx
Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptxFIDO Alliance

Vector Search @ sw2con for slideshare.pptx
Vector Search @ sw2con for slideshare.pptxVector Search @ sw2con for slideshare.pptx
Vector Search @ sw2con for slideshare.pptxjbellis

Linux Foundation Edge _ Overview of FDO Software Components _ Randy at Intel.pdf
Linux Foundation Edge _ Overview of FDO Software Components _ Randy at Intel.pdfLinux Foundation Edge _ Overview of FDO Software Components _ Randy at Intel.pdf
Linux Foundation Edge _ Overview of FDO Software Components _ Randy at Intel.pdfFIDO Alliance

Event-Driven Architecture Masterclass: Integrating Distributed Data Stores Ac...
Event-Driven Architecture Masterclass: Integrating Distributed Data Stores Ac...Event-Driven Architecture Masterclass: Integrating Distributed Data Stores Ac...
Event-Driven Architecture Masterclass: Integrating Distributed Data Stores Ac...ScyllaDB


Recently uploaded (20)

Simplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdf
Simplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdfSimplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdf
Simplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdf

JavaScript Usage Statistics 2024 - The Ultimate Guide
JavaScript Usage Statistics 2024 - The Ultimate GuideJavaScript Usage Statistics 2024 - The Ultimate Guide
JavaScript Usage Statistics 2024 - The Ultimate Guide

The Value of Certifying Products for FDO _ Paul at FIDO Alliance.pdf
The Value of Certifying Products for FDO _ Paul at FIDO Alliance.pdfThe Value of Certifying Products for FDO _ Paul at FIDO Alliance.pdf
The Value of Certifying Products for FDO _ Paul at FIDO Alliance.pdf

Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...

Continuing Bonds Through AI: A Hermeneutic Reflection on Thanabots
Continuing Bonds Through AI: A Hermeneutic Reflection on ThanabotsContinuing Bonds Through AI: A Hermeneutic Reflection on Thanabots
Continuing Bonds Through AI: A Hermeneutic Reflection on Thanabots

Hyatt driving innovation and exceptional customer experiences with FIDO passw...
Hyatt driving innovation and exceptional customer experiences with FIDO passw...Hyatt driving innovation and exceptional customer experiences with FIDO passw...
Hyatt driving innovation and exceptional customer experiences with FIDO passw...

Introduction to FIDO Authentication and Passkeys.pptx
Introduction to FIDO Authentication and Passkeys.pptxIntroduction to FIDO Authentication and Passkeys.pptx
Introduction to FIDO Authentication and Passkeys.pptx

Intro to Passkeys and the State of Passwordless.pptx
Intro to Passkeys and the State of Passwordless.pptxIntro to Passkeys and the State of Passwordless.pptx
Intro to Passkeys and the State of Passwordless.pptx

Event-Driven Architecture Masterclass: Challenges in Stream Processing
Event-Driven Architecture Masterclass: Challenges in Stream ProcessingEvent-Driven Architecture Masterclass: Challenges in Stream Processing
Event-Driven Architecture Masterclass: Challenges in Stream Processing

TrustArc Webinar - Unified Trust Center for Privacy, Security, Compliance, an...
TrustArc Webinar - Unified Trust Center for Privacy, Security, Compliance, an...TrustArc Webinar - Unified Trust Center for Privacy, Security, Compliance, an...
TrustArc Webinar - Unified Trust Center for Privacy, Security, Compliance, an...

The Zero-ETL Approach: Enhancing Data Agility and Insight
The Zero-ETL Approach: Enhancing Data Agility and InsightThe Zero-ETL Approach: Enhancing Data Agility and Insight
The Zero-ETL Approach: Enhancing Data Agility and Insight

Using IESVE for Room Loads Analysis - UK & Ireland
Using IESVE for Room Loads Analysis - UK & IrelandUsing IESVE for Room Loads Analysis - UK & Ireland
Using IESVE for Room Loads Analysis - UK & Ireland

Choosing the Right FDO Deployment Model for Your Application _ Geoffrey at In...
Choosing the Right FDO Deployment Model for Your Application _ Geoffrey at In...Choosing the Right FDO Deployment Model for Your Application _ Geoffrey at In...
Choosing the Right FDO Deployment Model for Your Application _ Geoffrey at In...

“Iamnobody89757” Understanding the Mysterious of Digital Identity.pdf
“Iamnobody89757” Understanding the Mysterious of Digital Identity.pdf“Iamnobody89757” Understanding the Mysterious of Digital Identity.pdf
“Iamnobody89757” Understanding the Mysterious of Digital Identity.pdf

Design and Development of a Provenance Capture Platform for Data Science
Design and Development of a Provenance Capture Platform for Data ScienceDesign and Development of a Provenance Capture Platform for Data Science
Design and Development of a Provenance Capture Platform for Data Science

Event-Driven Architecture Masterclass: Engineering a Robust, High-performance...
Event-Driven Architecture Masterclass: Engineering a Robust, High-performance...Event-Driven Architecture Masterclass: Engineering a Robust, High-performance...
Event-Driven Architecture Masterclass: Engineering a Robust, High-performance...

Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptx
Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptxHarnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptx
Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptx

Vector Search @ sw2con for slideshare.pptx
Vector Search @ sw2con for slideshare.pptxVector Search @ sw2con for slideshare.pptx
Vector Search @ sw2con for slideshare.pptx

Linux Foundation Edge _ Overview of FDO Software Components _ Randy at Intel.pdf
Linux Foundation Edge _ Overview of FDO Software Components _ Randy at Intel.pdfLinux Foundation Edge _ Overview of FDO Software Components _ Randy at Intel.pdf
Linux Foundation Edge _ Overview of FDO Software Components _ Randy at Intel.pdf

Event-Driven Architecture Masterclass: Integrating Distributed Data Stores Ac...
Event-Driven Architecture Masterclass: Integrating Distributed Data Stores Ac...Event-Driven Architecture Masterclass: Integrating Distributed Data Stores Ac...
Event-Driven Architecture Masterclass: Integrating Distributed Data Stores Ac...


Understand oracle real application cluster

  • 1. Oracle Real Application Cluster Satishbabu Gunukula 12+ Years of Experience in Oracle, SQLServer Database Technologies Oracle Certified Professional Oracle 8i,9i,10g Oracle Certified Expert Oracle 10g RAC http://www.oracleracexpert.com
  • 2. Objective • What is Real Application Cluster? • Oracle Cluster Benefits & Components • Oracle Cluster Ready Services • Interconnect & Cache fusion • Oracle RAC Database & ASM • Transparent Application Failover (TAF) • Backup & Recovery • New Features in Oracle 11g RAC
  • 3. What is Real Application Cluster • Lower Cost • Scalability • High Availability • Ease Of Administration • Transparent to users • GRID computing • More than one instance per database. • Instances are running on different nodes. • Instances on different nodes writes to the same physical Database
  • 4. What is Real Application Cluster • Control file, Data files, Temp Files and Spfiles are on a shared storage • Shared storage may have a Clustered file system or ASM or Raw Volumes • Every Instance will have its own redo log files and Undo segments • Every Instance has its own background process • All Cache (Data Buffer,Library ,Data Dictionary ) are synchronized by Cache Fusion and resources managed globally • Backup and Recovery databases from any instance in the Cluster.
  • 5. What is Real Application Cluster • Sessions failover using Transparent Application Failover (TAF) • Users can connect to any active instance (load balance) • Additional waits due to interconnect traffic Node1 Node2 Instance 1 Instance 2 Archived Logs Archived Logs (Local Storage) (Local Storage) Undo Tablespace Data Files Undo Tables pace for Instance 1 Temp Files for Instance 2 Control Files Online Redo log Flash Recovery AreaFiles Online Redo log files for Instance 1 Change Tracking File files for Instance2 Spfile Shared Storage
  • 6. Shared Storage Shared store is very critical component in Oracle RAC. Both SAN/NAS are supported. • Supported file storage - Raw volumes - Cluster File system(Oracle ACFS,OCFS,OCFS2) - Oracle ASM (Automatic Storage Management) - Direct NFS (new feature in 11g) • Physical Connections to shared storage - Fully redundant active –active IO paths • For iSCSI - Fully redundant IO paths for iSCSI with multiple NIC card each server and Gigabit Ethernet switches.
  • 8. Oracle Clusterware • Oracle Clusterware enables servers to communicate with each other • Each server in cluster has addition processes that communicate with other servers. • Oracle clusterware manages the resources, such as Virtual IP Addresses, Instances, databases, listeners, services..etc. • You can also use Oracle Clusterware to manage the user applications.
  • 9. Benefits of using Cluster • Scalability of Applications • Use of less expensive commodity hardware • Ability of failover • Ability to program the startup of applications in planned order • Ability to monitor processes • Ability to restart the process if they stop • Ability to increase capacity over time by adding servers
  • 10. Oracle Clusterware Benefits • Eliminate unplanned downtime • Reduce or eliminate planned downtime for maintenance • Increase throughput by enabling applications to run on all the nodes in a cluster • Increase the throughput on demand for clustware applications by adding serves • Reduce the total cost for infrastructure
  • 11. Oracle clusterware components • Software components  Voting Disk- Oracle clusterware uses this component to determine the which nodes are members of a cluster  Oracle Cluster Registry(OCR) – Oracle clusterware uses OCR to sore and mange information about high-availability components in the cluster, such as cluster node list, cluster database instance to node mapping, VIP address, services and applications. • Both Vote and OCR must reside on shared storage that is accessible by all nodes in a cluster • At least 3 voting disks and maximum of 15 disks • To ensure high availability multiplex OCR location up to 5 locations
  • 12. Oracle clusterware Network Config • The VIP addresses must be resolved by the clients. The (Grid Naming Service) GNS is linked to the corporate Domain Name Service (DNS) so that clients can easily connect to the cluster and the databases running there • Single Client Access Name (SCAN) - The SCAN is a single name that resolves to three IP addresses in the public network. When using GNS and DHCP, Oracle Clusterware configures the VIP addresses for the SCAN name that is provided during cluster configuration • Oracle 11g R2 supports the use of DHCP for all private interconnect addresses, as well as for most of the VIP addresses.
  • 13. Interconnects • Cluster Interconnect is very important private network used for communication between all other nodes • Network pings are performed by Cluster Synchronization Services (ocssd.bin) • Connected via switch to other nodes • New wait events due to traffic over interconnect • Enhanced technology has helped Cache Fusion • You can use OS dependent methods like Bonding on Unix and teaming on Windows • OS independent redundant interconnect available from 11.2.0.2 onwards (Not on Windows)
  • 14. Cache Fusion • Cache coherency is the technique used to keep multiple copies of a block consistent between different oracle instance. • GCS implements the cache coherency by using Cache fusion algorithm • GES maintains all non-cache fusion resource operations • Cache Fusion addresses several types of concurrency as below: – Concurrent Reads on Multiple Nodes – Concurrent Reads and Writes on Different Nodes – Concurrent Writes on Different Nodes • Cache Fusion partially implemented in Oracle 8i OPS
  • 15. Cache Fusion • Request a block for a Modification 1. Instance1 submits a request to GCS to modify the block. 2. The GCS transmits the request to the holder, i.e. instance 2 3. Instance 2 receives the request message and the LMS process sends the block to instance 1. 4. On receipt of the block, instance 1 informs the GCS that it holds the block in exclusive mode
  • 16. Cache Fusion • Write a Block to Disk 1. Instance2 sends a request to GCS to write block to disk 2. The GCS forwards the request to instance 1 3. Instance 1 receives the request and writes the block to disk. 4. Instance 1 notifies the write operation to GCS 5. After receipt of notification GCS orders PI holders to discard their PI’s
  • 17. Block Access and Buffer states • To see a buffer's state, query the STATUS column of the V$BH dynamic performance view. • Block access mode - NULL and buffer state name – CR – An instance can perform a consistent read of the block. That is, if the instance holds an older version of the data. • Block access mode -S and buffer state name – SCUR – An instance has shared access to the block and can only perform reads. • Block access mode - X and buffer state name – XCUR – An instance has exclusive access to the block and can modify it. • Block access mode - NULL and buffer state name is – PI – An instance has made changes to the block but retains copies of it as past images to record its state before changes.
  • 18. Block Access and Buffer states • SCUR and PI buffer states are RAC specific • There can be only one copy of any one block buffered in the XCUR state • To perform modifications on a block, a process must assign an XCUR buffer state to the buffer containing the data block.
  • 19. Cluster ready services Below processes must run after CRS installation In order for Cluster Ready Services to function • evmd -- Event manager daemon that starts the racgevt process to manage callouts. • ocssd -- Manages cluster node membership and runs as oracle user; failure of this process results in cluster restart. • crsd -- Performs high availability recovery and management operations such as maintaining the OCR. Also manages application resources and runs as root user and restarts automatically upon failure.
  • 21. Cluster ready service Stack • Cluster Ready Services (CRS): For managing high availability operations in a cluster. • Cluster Synchronization Services (CSS): Manages the cluster configuration by controlling which nodes are members of the cluster and by notifying members when a node joins or leaves the cluster. • Automatic Storage Management (ASM): Provides disk management for Oracle Clusterware. • Cluster Time Synchronization Service (CTSS): Provides time management in a cluster for Oracle Clusterware. • Event Management (EVM): A background process that publishes events that Oracle Clusterware creates.
  • 22. Cluster ready service Stack • Oracle Notification Service (ONS): Publish and subscribes service for communicating Fast Application Notification (FAN) events. • Oracle Agent (oraagent): To support Oracle-specific requirements and complex resources. Runs server callout scripts when FAN events occur. This process was known as RACG in Oracle11g R1 • Oracle Root Agent (orarootagent): oraagent process that helps crsd to manage resources owned by root, such as the network, and the Grid virtual IP address
  • 23. High Availability Services Stack • Grid Plug and Play (gpnpd): Provides access to the Grid Plug and Play profile, and coordinates updates to the profile among the nodes of the cluster to ensure that all of the nodes node have the most recent profile. • Grid Interprocess Communication (GIPC): A helper daemon for communications infrastructure. Currently has no functionality; to be activated in a later release. • Multicast Domain Name Service (mDNS): Allows DNS requests. The mDNS process is a background process on Linux and UNIX, and a service on Windows. • Oracle Grid Naming Service (GNS): A gateway between the cluster mDNS and external DNS servers. The gnsd process performs name resolution within the cluster.
  • 24. RAC Database • Use DBCA (Database Configuration Assistant) to create database and you can also configure listeners and Enterprise Manager • Before you create Database – The Oracle Cluster Ready services must be installed and configured. Share disk must be in place. – If planning to use ASM then ASM resources should be available. – Oracle Database software must be installed • DBCA Automatically recognized the cluster environment and will provide the options of configuring the RAC environment. • If database created manually then use srvctl to register the database in the OCR
  • 25. RAC Database • Use DBCA (Database Configuration Assistant) to create database and you can also configure listeners and Enterprise Manager • Before you create Database – The Oracle Cluster Ready services must be installed and configured. Share disk must be in place. – If planning to use ASM then ASM resources should be available. – Oracle Database software must be installed • DBCA Automatically recognized the cluster environment and will provide the options of configuring the RAC environment. • If database created manually then use srvctl to register the database in the OCR
  • 26. RAC Specific Background Processes • LMON: Global Enque Service Monitor – Maintains instance membership within Oracle RAC. – All non-cache fusion interinstance resource operations – The process detects instance transitions and performs reconfiguration of GES and GCS resources. • LMD: Global Enque Service Demon – Manages incoming enqueue request messages and controls access to global enqueues. – It also performs distributed deadlock detections • Global Cache Service and Global enqueue service manages Global Resource Directory (GRD)
  • 27. RAC Specific Background Processes • LMSx: Global Cache Service Processes, where x can be 0 to 10 – Managing the resource requests and cross-instance call operation – block transfers and other GCS-related messages • LCKx: Lock processes – This process manages the global enqueue requests and the cross-instance broadcast • DIAG : Diagnosability process – Monitors the health of the instance and captures the data for process failures
  • 28. Automatic Storage Management(ASM) • ASM provides portable and high performance database file system and simplifies database administration • ASM spread data across the disks and distributes I/O load across all available resources to optimize performance • ASM provides integrated mirroring across disks • Dynamically add the space without shutdown of the database • It is advised to use separate ORACLE_HOME for ASM install • You can configure the ASM using DBCA • A separate instance (ASM) starts in order to manage ASM disks, resources and connectivity • Both ASM and Database instances have access to common set of disks called disk groups
  • 29. ASM background processes ASM background Process • ARBn : Performs the actual rebalance data extent movements in an Automatic Storage Management instance. More than one process can run at a time, named ARB0, ARB1, and so on. • ASMB : Runs in a database instance that is using an ASM disk group and communicates with the ASM instance in managing storage and providing statistics. • GMON: Maintains disk membership in ASM disk groups. • MARK: This process marks ASM allocation units as stale following a missed write to an offline disk. This essentially tracks which extents require resync for offline disks. • RBAL: This process runs in both database and ASM instances. In the database instance, it does a global open of ASM disks and in an ASM instance, it also coordinates rebalance activity for disk groups
  • 30. New initialization parameters Unique parameters in RAC Instance • instance_name- Specifies the unique name of this instance • instance_number- Specifies the unique number that maps to instance • thread – Specifies the number of the redo thread used by the instance Non-Unique parameters in RAC Instance • cluster_database – specifies weather RAC enabled or not • cluster_database_instance – equal to the number of instances in a cluster • cluster_interconnects – Specifies the additional interconnects available for use • active_instance_count– specifies the number of instances that will be active within a cluster
  • 31. New parameters • remote_listener -specifies a network name that resolves to an address or address list of Oracle Net remote listeners • local_listener - specifies a network name that resolves to an address or address list of Oracle Net local listeners Parameters in ASM Instance • instance_type – This parameter must be set to ASM • asm_diskgroups – lists the name of the disk groups that will be mounted by ASM instance • asm_diskstring – This parameter limits the set of disks that ASM consider for discovery • asm_power_limit – specifies the Maximum power on an ASN instance for disk rebalance operations • asm_preferred_read_failure_groups - specifies the failure groups that contain preferred read disks
  • 32. Transparent Application Failover(TAF) • Transparent Application Failover (TAF) is a client-side feature that allows for clients to reconnect to surviving nodes in the event of a failure of an instance. • The reconnect happens automatically from within the OCI (Oracle Call Interface) library. Any uncommitted transactions are rolled back and server side program variables and session properties will be lost. • In some case the select statements automatically re- executed on the new connection with the cursor positioned on the row on which it was positioned prior to the failover. • The failover is configured in tnsnames.ora file, the TAF settings are placed in CONNECT_DATA section of the tnsnames.ora using FAILOVER_MODES parameters
  • 33. TAF failover & load balance methods • Failover modes - TYPE: TAF supports three types of failover types SESSION: If a user's connection is lost, SESSION failover establishes a new session automatically created for the user on the backup node. This type of failover does not attempt to recover selects SELECT: If the connection is lost, Oracle Net establishes a connection to another node and re-executes the SELECT statements with cursor positioned on the row on which it was positioned prior to the failover NONE: This setting is the default and failover functionality is provided. Use this setting to prevent failover. - METHOD: This parameters determines how failover occurs from the primary node to the backup node BASIC: Use this mode to establish connections at failover time, no work on the backup server until failover time
  • 34. TAF failover & load balance methods PRECONNECT: Use this mode to pre-established connections. - RETRIES: Use this parameter to specify number of times to attempt to connect after a failover - DELAY: Use this parameter to Specify the amount of time in seconds to wait between connect attempts. • LOAD_BALANCE:YES,NO,OFF,TRUE • There are two methods of load balancing - Client load balancing - Distributes new connections among Oracle RAC nodes so that no one server is overloaded with connection requests - Server load balancing – Distributes processing workload among RAC nodes and new user session connection requests to the least loaded listener. • For failover information query view GV$SESSION – failover_type,failover_method,failed_over
  • 35. OCR & Vote Backup and Recovery • Oracle recommends that you back up your OCR & voting disk after initial cluster creation • OCR - There are two methods to backup OCR 1. Automatically generated OCR backup files under $CRS_HOME/cdata/crs 2. OCR export/logical backup # ocrconfig -export export_file_name • Use ocrconfig to restore OCR from backup # ocrconfig –restore $CRS_HOME/cdata/crs/day.ocr or # ocrconfig –import export_file_name • Vote –Use dd or ocopy command Backup - $ dd if=vote_disk_name of=backup_file_name Recovery- $ dd if=backup_file_name of=vote_disk_name
  • 36. RAC Database Backup • Backup RAC Database from any node in a Cluster • You can take Full and incremental backup using RMAN • You can backup to Tape,Disk and Cloud (using Media Management Library from Oracle 11g) • You can use Flash Recovery Area(FRA) for your backups • As a Best practice, the backup device should be shared between the nodes for easy recovery • Perform backups of your RAC database using Enterprise Manager • Scale up the Backup load onto multiple Instances of RAC RMAN> CONFIGURE DEVICE TYPE DISK PARALLELISM 2; RMAN> CONFIGURE CHANNEL C1 CONNECT ‘sys/xxxx@inst1’; RMAN> CONFIGURE CHANNEL C2 CONNECT ‘sys/xxx@Inst2’;
  • 37. RAC Database Recovery • Automatic instance recovery occurs for failed instances due to hardware or software problems – SMON Determines the block needed for recovery and Global Resource Directory (GRD) is forgen – GES remasters enqueues and GCS remasters the resources – Buffer space for recovery allocated and block not in recovery will be accessible, oracle performs roll forward recovery. • As long as one instance survives, RAC performs instance recovery for any other failed instances • In case of any Media failure recovery the database from any instance in the Cluster. After recovery manually start the other instance in cluster. • If using Flashbak Recovery Area then you can SWTICH the database, in case of media recovery.
  • 38. Performance tuning • ADDM (Automatic Database Diagnostic Monitor) is a performance monitor tool, which proactively monitors the performance and also captures RAC related issues • The statistical data needed for diagnosis of a problem is saved in the Automatic Workload Repository (AWR). • Oracle Database 10g uses a scheduled job, GATHER_STATS_JOB(GATHER_DATABASE_STATS_JOB_PROC ) to collect AWR statistics • The ADDM Analyzed the data in AWR on regular basis to find the root cause of performance problems and provides recommendations to correct the problems. • ADDM is enabled by default and is controlled by the STATISTICS_LEVEL initialization parameter. This parameter should be set to the TYPICAL or ALL to enable the ADDM, default setting is TYPICAL. • For ADDM Analysis you can run addmrpt.sql
  • 39. Performance tuning • For AWR reports you can run awrrpt.sql, awrrpti.sql for RAC • ADDM provides the following benefits: – Automatic performance diagnostic report every hour by default – Problem diagnosis based on decades of tuning expertise – Time-based quantification of problem impacts and recommendation benefits – Identification of root cause, not symptoms – Recommendations for treating the root causes of problems – Identification of non-problem areas of the system – Minimal overhead to the system during the diagnostic process • The v$cache_transfer and v$file_cache_transfer views are used to examine RAC statistics
  • 40. Performance tuning • In RAC, the global services directory processes is the most important tuning area. GSD is communicates through cluster interconnect. If cluster interconnects do not perform properly, the entire RAC will suffer no matter how well everything else is tuned. • The Global Enqueue Services (GES) and Global Cache Services (GCS) are the main process • Wait events can be divided as three categories – 1.Time-based event – 2.System-wide event – 3.Session wait • The major wait events in Oracle RAC are: – gc cr request – gc buffer busy
  • 41. Performance tuning • The most important wait events for RAC include various categories, such as: • Block-oriented – gc current block 2-way – gc current block 3-way – gc cr block 2-way – gc cr block 3-way • Message-oriented – gc current grant 2-way – gc cr grant 2-way • Contention-oriented – gc current block busy – gc cr block busy – gc current buffer busy
  • 42. Performance tuning • Load-oriented – gc current block congested – gc cr block congested

Editor's Notes

  1. 1
