NAVY RESERVE ORDER WRITING SYSTEM
(NROWS) SAILOR ORDERS GUIDE
AUGUST 2014
1
TABLE OF CONTENTS
•Section 1- Initial Order Application/Submission…………….Page 3
•Section 2- Pullback Order Application……………………………Page 29
•Section 3- Modify Order………………………………………………..Page 39
•Section 4- Cancelling Order……………………………………………Page 51
•Section 5- Changing User Information in NROWS ………….Page 57
(phone number, email, name, etc.)
•Section 6- “For Further Assignment” Orders……………….…Page 61
•Section 7- Questions, Comments, Concerns…………….……Page 73
2

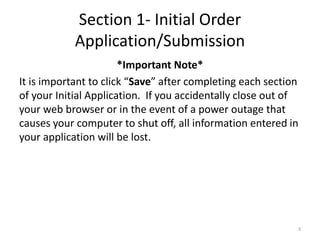

Section 1- Initial Order Application/Submission
*Important Note*
It is important to click “Save” after completing each section of your Initial Application. If you accidentally close out of your web browser or in the event of a power outage that causes your computer to shut off, all information entered in your application will be lost.
3
Section 1- Initial Order Application/Submission
Step 1- Getting Logged in/ NROWS can be accessed by visiting the private side of the Navy Reserve site https://private.navyreserve.navy.mil or by direct link
https://nrows.sscno.nmci.navy.mil/nrows/
*When logging on to the Navy Reserve Homeport site, select your EMAIL certificate*
Your login ID and password are CAC enabled; you must have a CAC and CAC reader to access NROWS.
If you have not accessed your account in the past 60 days (deactivated) or if this is your very first time logging into NROWS, contact:
Deactivated Users- Navy Reserve Helpdesk 1(800)537-4617
Initial Users- Navy Operational Support Center
4

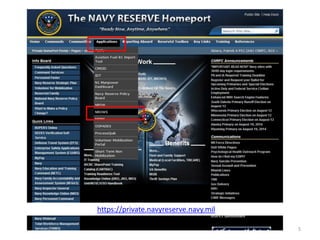

https://private.navyreserve.navy.mil
5
https://nrows.sscno.nmci.navy.mil/nrows/secure/login.jsp
6
*Note*
Routing for all applications will be displayed here
Resource Owners contact information will be displayed here
Step 2- From the “Welcome” screen select “Sailor” from the drop-down menu
7
Step 3- From the “Sailor Menu” screen select “Create Application”
8

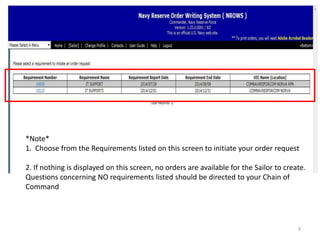

*Note* 1. Choose from the Requirements listed on this screen to initiate your order request 2. If nothing is displayed on this screen, no orders are available for the Sailor to create. Questions concerning NO requirements listed should be directed to your Chain of Command
9

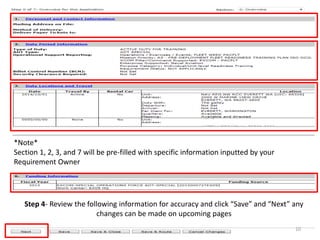

*Note*
Section 1, 2, 3, and 7 will be pre-filled with specific information inputted by your Requirement Owner
Step 4- Review the following information for accuracy and click “Save” and “Next” any changes can be made on upcoming pages
10

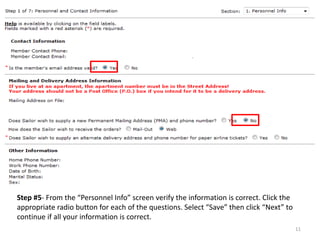

Step #5- From the “Personnel Info” screen verify the information is correct. Click the appropriate radio button for each of the questions. Select “Save” then click “Next” to continue if all your information is correct.
11

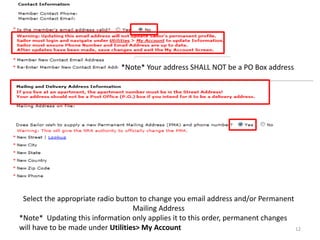

Select the appropriate radio button to change you email address and/or Permanent Mailing Address
*Note* Updating this information only applies it to this order, permanent changes will have to be made under Utilities> My Account
*Note* Your address SHALL NOT be a PO Box address
12
•NOTE: Using the “Change of Address” feature for the purposes of traveling from a location while on AT/ADT other than Home of Record due to business or personal reasons is NOT AUTHORIZED. If executing IDTT orders and traveling from a location other than your HOR, reference COMNAVRESFORCOMINST 1571.1 (Series)
•Changing the Permanent Mailing Address for unauthorized purposes will be considered a violation of the Uniform Code of Military Justice and may result in disciplinary action against the offending member
To update your address, contact your personnel department at the NOSC to have NSIPS updated. NSIPS will import the correction into NROWS via RHS
13
Step 6- From the “Duty Period Information” screen verify this information for accuracy. Changes should only be made after contacting your NOSC for all AT Orders or the Requirement Owner for all ADT/IDTT.
Select “Save” then click “Next” to continue if all your information is correct.
14

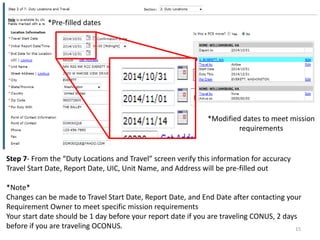

Step 7- From the “Duty Locations and Travel” screen verify this information for accuracy Travel Start Date, Report Date, UIC, Unit Name, and Address will be pre-filled out *Note* Changes can be made to Travel Start Date, Report Date, and End Date after contacting your Requirement Owner to meet specific mission requirements Your start date should be 1 day before your report date if you are traveling CONUS, 2 days before if you are traveling OCONUS.
*Pre-filled dates
*Modified dates to meet mission requirements
15

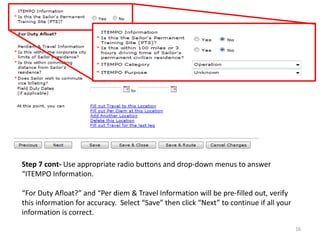

Step 7 cont- Use appropriate radio buttons and drop-down menus to answer “ITEMPO Information.
“For Duty Afloat?” and “Per diem & Travel Information will be pre-filled out, verify this information for accuracy. Select “Save” then click “Next” to continue if all your information is correct.
16
Step 8- On the “Travel Options” screen “Mode of Transportation” will have been pre-selected by your Requirement Owner but can be changed to accommodate mission requirements
“Desired Departure Date”, “Departure Airport” and “Arrival Airport” are required if traveling via “Commercial Airline.”
Use the “Lookup” hyperlinks to select the correct airports.
The “No Earlier and No Later Than Times” are not required, but should be filled in.
If “Airport Justification” or “Special Instructions to Travel” are necessary then type it in the appropriate fields
17
Step 8 cont- *Note* Desired departure times are only a request and will be honored only if government contracted seats are available. Click “Save” then click the hyperlink “Fill out Per Diem at this Location” or “Next” to continue
18

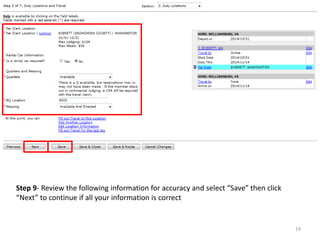

Step 9- Review the following information for accuracy and select “Save” then click “Next” to continue if all your information is correct
19

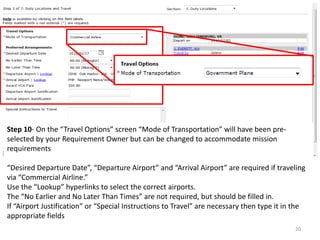

Step 10- On the “Travel Options” screen “Mode of Transportation” will have been pre- selected by your Requirement Owner but can be changed to accommodate mission requirements
“Desired Departure Date”, “Departure Airport” and “Arrival Airport” are required if traveling via “Commercial Airline.”
Use the “Lookup” hyperlinks to select the correct airports.
The “No Earlier and No Later Than Times” are not required, but should be filled in.
If “Airport Justification” or “Special Instructions to Travel” are necessary then type it in the appropriate fields
20

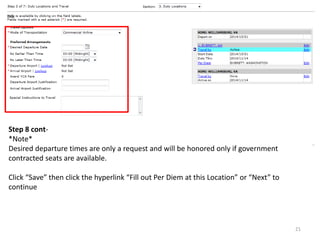

Step 8 cont-
*Note*
Desired departure times are only a request and will be honored only if government contracted seats are available.
Click “Save” then click the hyperlink “Fill out Per Diem at this Location” or “Next” to continue
21

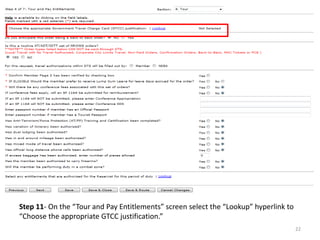

Step 11- On the “Tour and Pay Entitlements” screen select the “Lookup” hyperlink to “Choose the appropriate GTCC justification.”
22

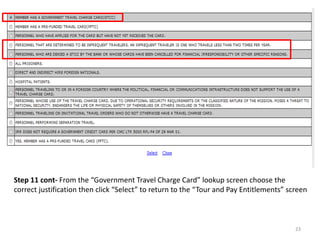

Step 11 cont- From the “Government Travel Charge Card” lookup screen choose the correct justification then click “Select” to return to the “Tour and Pay Entitlements” screen
23

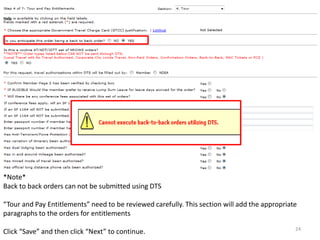

*Note*
Back to back orders can not be submitted using DTS
“Tour and Pay Entitlements” need to be reviewed carefully. This section will add the appropriate paragraphs to the orders for entitlements
Click “Save” and then click “Next” to continue.
24

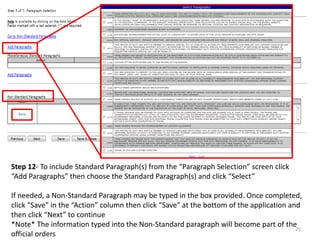

Step 12- To include Standard Paragraph(s) from the “Paragraph Selection” screen click “Add Paragraphs” then choose the Standard Paragraph(s) and click “Select”
If needed, a Non-Standard Paragraph may be typed in the box provided. Once completed, click “Save” in the “Action” column then click “Save” at the bottom of the application and then click “Next” to continue
*Note* The information typed into the Non-Standard paragraph will become part of the official orders
25
Step 13- Review the following information for accuracy and select “Save” then click “Next” to continue if all your information is correct *Note* Changes to Command and Funding Source should only be made after contacting your NOSC for all AT Orders or the Requirement Owner for all ADT/IDTT
26

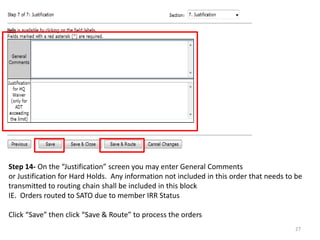

Step 14- On the “Justification” screen you may enter General Comments or Justification for Hard Holds. Any information not included in this order that needs to be transmitted to routing chain shall be included in this block IE. Orders routed to SATO due to member IRR Status Click “Save” then click “Save & Route” to process the orders
27
Step 15- On the “Order Information” screen, review and verify the orders then click “Return to Application” to make additional changes or “Route Application Forward” to forward the orders for approval
*Note* Above information will display travel system, DTS or SATO
28
*Note*
Unit Approver will be displayed here
Track order progression by following these steps

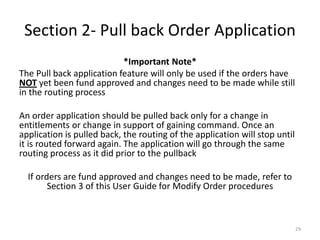

Section 2- Pull back Order Application
*Important Note*
The Pull back application feature will only be used if the orders have NOT yet been fund approved and changes need to be made while still in the routing process
An order application should be pulled back only for a change in entitlements or change in support of gaining command. Once an application is pulled back, the routing of the application will stop until it is routed forward again. The application will go through the same routing process as it did prior to the pullback
If orders are fund approved and changes need to be made, refer to Section 3 of this User Guide for Modify Order procedures
29
Step 1- From the “Welcome” screen select “Sailor” from the drop-down menu
30

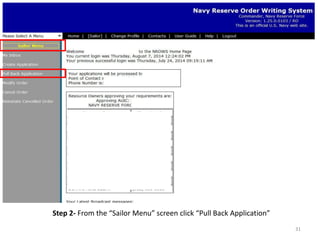

Step 2- From the “Sailor Menu” screen click “Pull Back Application”
31
Step 3- Enter the “Tracking Number” for the orders you wish to pull back then click “Search”
32

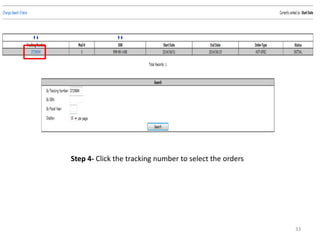

Step 4- Click the tracking number to select the orders
33

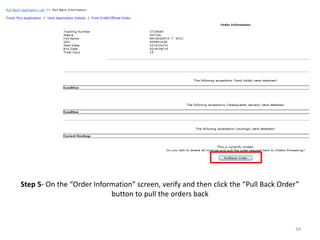

Step 5- On the “Order Information” screen, verify and then click the “Pull Back Order” button to pull the orders back
34

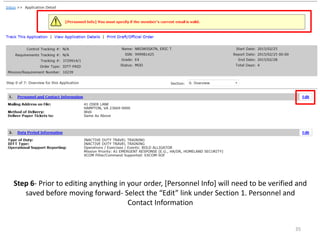

Step 6- Prior to editing anything in your order, [Personnel Info] will need to be verified and saved before moving forward- Select the “Edit” link under Section 1. Personnel and Contact Information
35

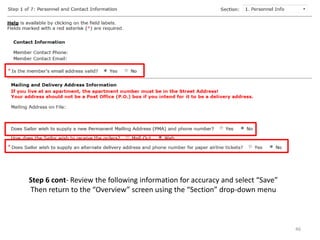

Step 6 cont- Review the following information for accuracy and select “Save”
Then return to the “Overview” screen using the “Section” drop-down menu
36
Step 6 cont- From the “Overview” screen click the corresponding “Edit” hyperlink to make changes to that section. When complete, click “Save & Route”
37
Step 7- On the “Order Information” screen, review and verify the orders then click “Return to Application” to make additional changes or “Route Application Forward” to forward the orders for approval
38
Section 3- Modify Order
*Important Note*
The Modify Order feature will only be used if the orders have been FUND APPROVED and changes need to be made
An order application should be modified to change: Start/end dates, modes of travel, the addition/removal of a FFA location, add rental car etc.
Per JFTR Vol 1 Ch 2 U2205 a.1.b- RETROACTIVE ORDER MODIFICATION AND AUTHORIZATION/APPROVAL, Must not be revoked/modified retroactively to create/deny/change an allowance
IE. If NO per diem is authorized on the initial order and fund approved, YOU CAN NOT modify this order to add per diem
Once an application is modified, the routing of the application will stop until it is routed forward again. The application will go through the same routing process as it did prior to the modification
If orders are not fund approved and changes need to be made, refer to Section 2 of this User Guide for Pull back procedures
39
Step 1- From the “Welcome” screen select “Sailor” from the drop-down menu
40

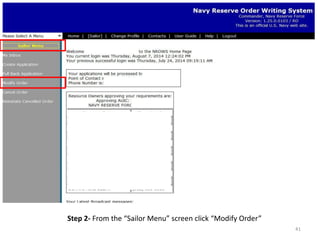

Step 2- From the “Sailor Menu” screen click “Modify Order”
41
Step 3- Enter the “Tracking Number” for the orders you wish to modify then click “Search”
42
Step 4- Click the tracking number to select the orders
43
Step 5- On the “Order Information” screen verify and click the “Modify Order” button to modify the orders
44
Step 6- Prior to modifying anything in your order, [Personnel Info] will need to be verified and saved before moving forward- Select the “Edit” link under Section 1. Personnel and Contact Information
45
Step 6 cont- Review the following information for accuracy and select “Save”
Then return to the “Overview” screen using the “Section” drop-down menu
46

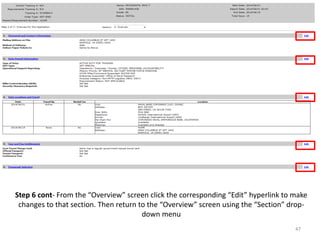

Step 6 cont- From the “Overview” screen click the corresponding “Edit” hyperlink to make changes to that section. Then return to the “Overview” screen using the “Section” drop- down menu
47

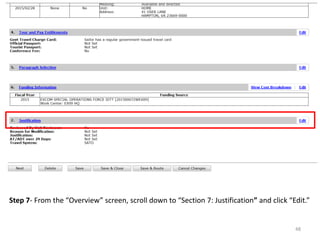

Step 7- From the “Overview” screen, scroll down to “Section 7: Justification” and click “Edit.”
48

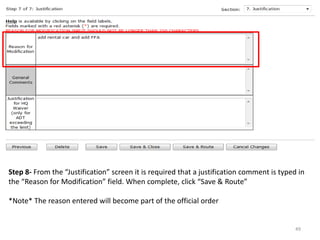

Step 8- From the “Justification” screen it is required that a justification comment is typed in the “Reason for Modification” field. When complete, click “Save & Route” *Note* The reason entered will become part of the official order
49

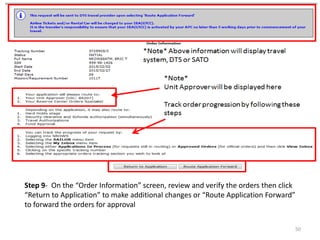

Step 9- On the “Order Information” screen, review and verify the orders then click “Return to Application” to make additional changes or “Route Application Forward” to forward the orders for approval
50

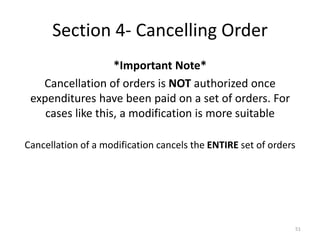

Section 4- Cancelling Order
*Important Note*
Cancellation of orders is NOT authorized once expenditures have been paid on a set of orders. For cases like this, a modification is more suitable
Cancellation of a modification cancels the ENTIRE set of orders
51
Step 1- From the “Welcome” screen select “Sailor” from the drop-down menu
52
Step 2- From the “Sailor Menu” screen click “Cancel Order”
53

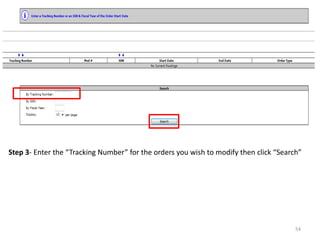

Step 3- Enter the “Tracking Number” for the orders you wish to modify then click “Search”
54
Step 4- Click the tracking number to select the orders
55

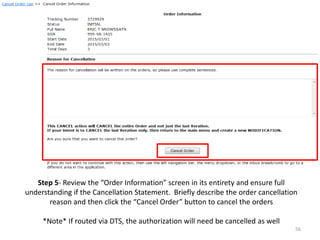

Step 5- Review the “Order Information” screen in its entirety and ensure full understanding if the Cancellation Statement. Briefly describe the order cancellation reason and then click the “Cancel Order” button to cancel the orders
*Note* If routed via DTS, the authorization will need be cancelled as well
56

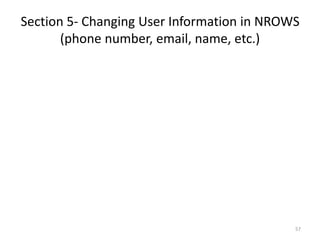

Section 5- Changing User Information in NROWS (phone number, email, name, etc.)
57

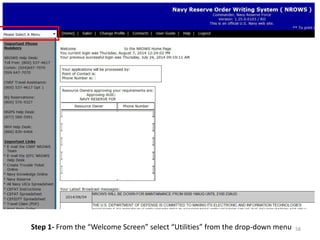

Step 1- From the “Welcome Screen” select “Utilities” from the drop-down menu
58

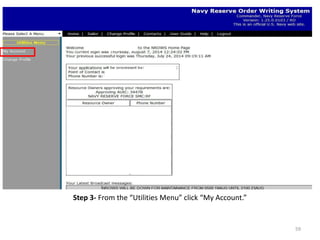

Step 3- From the “Utilities Menu” click “My Account.”
59

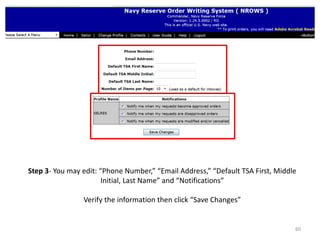

Step 3- You may edit: “Phone Number,” “Email Address,” “Default TSA First, Middle Initial, Last Name” and “Notifications”
Verify the information then click “Save Changes”
60

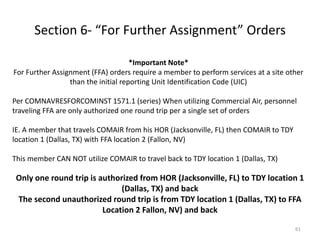

Section 6- “For Further Assignment” Orders
*Important Note* For Further Assignment (FFA) orders require a member to perform services at a site other than the initial reporting Unit Identification Code (UIC) Per COMNAVRESFORCOMINST 1571.1 (series) When utilizing Commercial Air, personnel traveling FFA are only authorized one round trip per a single set of orders IE. A member that travels COMAIR from his HOR (Jacksonville, FL) then COMAIR to TDY location 1 (Dallas, TX) with FFA location 2 (Fallon, NV) This member CAN NOT utilize COMAIR to travel back to TDY location 1 (Dallas, TX)
Only one round trip is authorized from HOR (Jacksonville, FL) to TDY location 1 (Dallas, TX) and back
The second unauthorized round trip is from TDY location 1 (Dallas, TX) to FFA Location 2 Fallon, NV) and back
61
Step 1- Reference Section 1 (Steps 1-9) to arrive at Section 3: Duty Locations Step 3 of 7
Select “Yes” to add a “For further assignment” location and then select “Next”
62

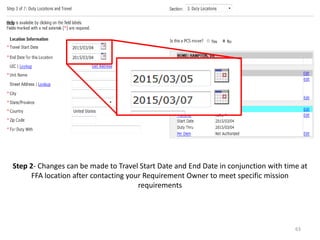

Step 2- Changes can be made to Travel Start Date and End Date in conjunction with time at FFA location after contacting your Requirement Owner to meet specific mission requirements
63

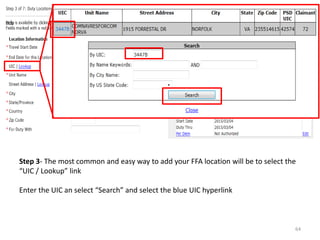

Step 3- The most common and easy way to add your FFA location will be to select the “UIC / Lookup” link
Enter the UIC an select “Search” and select the blue UIC hyperlink
64

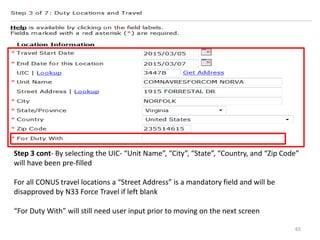

Step 3 cont- By selecting the UIC- “Unit Name”, “City”, “State”, “Country, and “Zip Code” will have been pre-filled
For all CONUS travel locations a “Street Address” is a mandatory field and will be disapproved by N33 Force Travel if left blank
“For Duty With” will still need user input prior to moving on the next screen
65

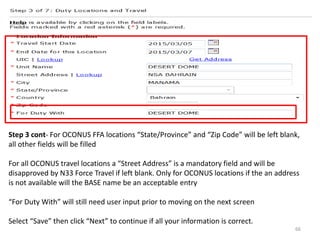

Step 3 cont- For OCONUS FFA locations “State/Province” and “Zip Code” will be left blank, all other fields will be filled
For all OCONUS travel locations a “Street Address” is a mandatory field and will be disapproved by N33 Force Travel if left blank. Only for OCONUS locations if the an address is not available will the BASE name be an acceptable entry
“For Duty With” will still need user input prior to moving on the next screen
Select “Save” then click “Next” to continue if all your information is correct.
66
Step 4- On the “Travel Options” screen “Mode of Transportation” can be changed to accommodate mission requirements
“Desired Departure Date”, “Departure Airport” and “Arrival Airport” are required if traveling via “Commercial Airline.”
Use the “Lookup” hyperlinks to select the correct airports.
The “No Earlier and No Later Than Times” are not required, but should be filled in.
If “Airport Justification” or “Special Instructions to Travel” are necessary then type it in the appropriate fields
67

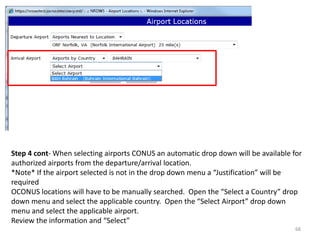

Step 4 cont- When selecting airports CONUS an automatic drop down will be available for authorized airports from the departure/arrival location.
*Note* If the airport selected is not in the drop down menu a “Justification” will be required
OCONUS locations will have to be manually searched. Open the “Select a Country” drop down menu and select the applicable country. Open the “Select Airport” drop down menu and select the applicable airport.
Review the information and “Select”
68
Step 4 cont-
*Note*
Desired departure times are only a request and will be honored only if government contracted seats are available.
Click “Save” then click the hyperlink “Fill out Per Diem at this Location” or “Next” to continue
69

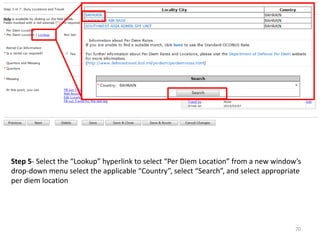

Step 5- Select the “Lookup” hyperlink to select “Per Diem Location” from a new window’s drop-down menu select the applicable “Country”, select “Search”, and select appropriate per diem location
70

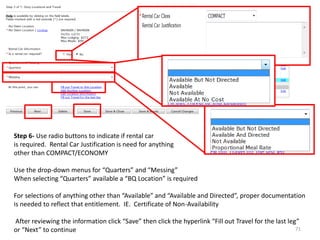

Step 6- Use radio buttons to indicate if rental car
is required. Rental Car Justification is need for anything
other than COMPACT/ECONOMY
Use the drop-down menus for “Quarters” and “Messing”
When selecting “Quarters” available a “BQ Location” is required
For selections of anything other than “Available” and “Available and Directed”, proper documentation is needed to reflect that entitlement. IE. Certificate of Non-Availability
After reviewing the information click “Save” then click the hyperlink “Fill out Travel for the last leg” or “Next” to continue
71

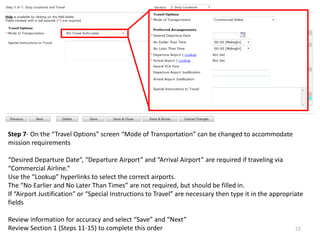

Step 7- On the “Travel Options” screen “Mode of Transportation” can be changed to accommodate mission requirements
“Desired Departure Date”, “Departure Airport” and “Arrival Airport” are required if traveling via “Commercial Airline.”
Use the “Lookup” hyperlinks to select the correct airports.
The “No Earlier and No Later Than Times” are not required, but should be filled in.
If “Airport Justification” or “Special Instructions to Travel” are necessary then type it in the appropriate fields
Review information for accuracy and select “Save” and “Next”
Review Section 1 (Steps 11-15) to complete this order
72
Section 7 - Questions, Comments, Concerns?
*Note*
-Please utilize your Chain of Command when issue arise during the order writing process
-Contact your Resource Owner, Unit, NRA, and RCC
-Trouble tickets/Remedy tickets can be submitted via NROWS to N33
-NROWS Helpdesk 1-(800)-537-4617
73

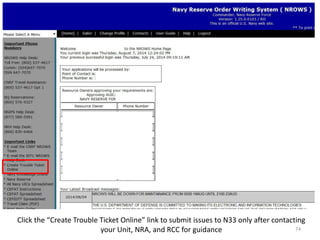

Click the “Create Trouble Ticket Online” link to submit issues to N33 only after contacting your Unit, NRA, and RCC for guidance
74

More Related Content

Viewers also liked

FY15 Senior chief results
FY15 Senior chief resultsFY15 Senior chief results
FY15 Senior chief results
NavyMentor.org

Dr. szekely edmond el_evangelio_de_los_esenios (1)
Dr. szekely edmond el_evangelio_de_los_esenios (1)Dr. szekely edmond el_evangelio_de_los_esenios (1)
Dr. szekely edmond el_evangelio_de_los_esenios (1)
manetzji

Tcxdvn239 2006 900663
Tcxdvn239 2006 900663Tcxdvn239 2006 900663
Tcxdvn239 2006 900663Love Vinh

Documenting cdb's in cims
Documenting cdb's in cimsDocumenting cdb's in cims
Documenting cdb's in cimsNavyMentor.org

Spring 2015 Navy Petty Officer Advancement Results - Active Duty
Spring 2015 Navy Petty Officer Advancement Results - Active DutySpring 2015 Navy Petty Officer Advancement Results - Active Duty
Spring 2015 Navy Petty Officer Advancement Results - Active Duty
NavyMentor.org

Spring 2015 Navy Petty Officer Advancement Results - SELRES
Spring 2015 Navy Petty Officer Advancement Results - SELRESSpring 2015 Navy Petty Officer Advancement Results - SELRES
Spring 2015 Navy Petty Officer Advancement Results - SELRES
NavyMentor.org

Spring 2015 Navy Petty Officer Advancement Results - FTS
Spring 2015 Navy Petty Officer Advancement Results - FTSSpring 2015 Navy Petty Officer Advancement Results - FTS
Spring 2015 Navy Petty Officer Advancement Results - FTS
NavyMentor.org

Fy16 chief results
Fy16 chief resultsFy16 chief results
Fy16 chief results
NavyMentor.org

Navy Reserve Petty Officer Advancement Results - Cycle 223 Spring 2014
Navy Reserve Petty Officer Advancement Results - Cycle 223 Spring 2014Navy Reserve Petty Officer Advancement Results - Cycle 223 Spring 2014
Navy Reserve Petty Officer Advancement Results - Cycle 223 Spring 2014
NavyMentor.org

Conflicto fronterizo entre colombia y venezuela
Conflicto fronterizo entre colombia y venezuelaConflicto fronterizo entre colombia y venezuela
Conflicto fronterizo entre colombia y venezuela
manetzji

Cpo 365 guidance 2014-2015
Cpo 365 guidance 2014-2015Cpo 365 guidance 2014-2015
Cpo 365 guidance 2014-2015
NavyMentor.org

Culture the SEI Way
Culture the SEI WayCulture the SEI Way
Culture the SEI Way
theSEIway

Power sector ,devlopment
Power sector ,devlopmentPower sector ,devlopment
Power sector ,devlopmentBhakti Parida


Viewers also liked (14)

My dream man
My dream manMy dream man
My dream man

FY15 Senior chief results
FY15 Senior chief resultsFY15 Senior chief results
FY15 Senior chief results

Dr. szekely edmond el_evangelio_de_los_esenios (1)
Dr. szekely edmond el_evangelio_de_los_esenios (1)Dr. szekely edmond el_evangelio_de_los_esenios (1)
Dr. szekely edmond el_evangelio_de_los_esenios (1)

Tcxdvn239 2006 900663
Tcxdvn239 2006 900663Tcxdvn239 2006 900663
Tcxdvn239 2006 900663

Documenting cdb's in cims
Documenting cdb's in cimsDocumenting cdb's in cims
Documenting cdb's in cims

Spring 2015 Navy Petty Officer Advancement Results - Active Duty
Spring 2015 Navy Petty Officer Advancement Results - Active DutySpring 2015 Navy Petty Officer Advancement Results - Active Duty
Spring 2015 Navy Petty Officer Advancement Results - Active Duty

Spring 2015 Navy Petty Officer Advancement Results - SELRES
Spring 2015 Navy Petty Officer Advancement Results - SELRESSpring 2015 Navy Petty Officer Advancement Results - SELRES
Spring 2015 Navy Petty Officer Advancement Results - SELRES

Spring 2015 Navy Petty Officer Advancement Results - FTS
Spring 2015 Navy Petty Officer Advancement Results - FTSSpring 2015 Navy Petty Officer Advancement Results - FTS
Spring 2015 Navy Petty Officer Advancement Results - FTS

Fy16 chief results
Fy16 chief resultsFy16 chief results
Fy16 chief results

Navy Reserve Petty Officer Advancement Results - Cycle 223 Spring 2014
Navy Reserve Petty Officer Advancement Results - Cycle 223 Spring 2014Navy Reserve Petty Officer Advancement Results - Cycle 223 Spring 2014
Navy Reserve Petty Officer Advancement Results - Cycle 223 Spring 2014

Conflicto fronterizo entre colombia y venezuela
Conflicto fronterizo entre colombia y venezuelaConflicto fronterizo entre colombia y venezuela
Conflicto fronterizo entre colombia y venezuela

Cpo 365 guidance 2014-2015
Cpo 365 guidance 2014-2015Cpo 365 guidance 2014-2015
Cpo 365 guidance 2014-2015

Culture the SEI Way
Culture the SEI WayCulture the SEI Way
Culture the SEI Way

Power sector ,devlopment
Power sector ,devlopmentPower sector ,devlopment
Power sector ,devlopment


Similar to Nrows New user guide aug 14

WTE accuracy and safety
WTE accuracy and safetyWTE accuracy and safety
WTE accuracy and safety
Fernando Méndez

Preventive Maintenance System - Rig Maintenance
Preventive Maintenance System - Rig MaintenancePreventive Maintenance System - Rig Maintenance
Preventive Maintenance System - Rig Maintenance
nfra erp

Docket v1
Docket v1Docket v1
Docket v1
Hasan Jawaid

WTE Overview slide
WTE Overview slideWTE Overview slide
WTE Overview slide
Fernando Méndez

Tms
TmsTms
Easc Claims Submission Procedure
Easc Claims Submission ProcedureEasc Claims Submission Procedure
Easc Claims Submission Procedureninahazren

Fleet management marketing document
Fleet management marketing documentFleet management marketing document
Fleet management marketing documentFrancois Naude

Preventive Maintenance System (Plant Maintaintenance)
Preventive Maintenance System (Plant Maintaintenance)Preventive Maintenance System (Plant Maintaintenance)
Preventive Maintenance System (Plant Maintaintenance)
nfra erp

RFP Database User Manual for Sales
RFP Database User Manual for SalesRFP Database User Manual for Sales
RFP Database User Manual for Sales
delyne2009

srs for railway reservation system
 srs for railway reservation system srs for railway reservation system
srs for railway reservation system
khushi kalaria

Revenue Memorandum Circular No 14 2015
Revenue Memorandum Circular No 14 2015Revenue Memorandum Circular No 14 2015
Revenue Memorandum Circular No 14 2015
raissarobles

Air import and export operations and documentations v1.4
Air import and export operations and documentations v1.4Air import and export operations and documentations v1.4
Air import and export operations and documentations v1.4
UploadFiles2

E-Application of CST Forms
E-Application of CST FormsE-Application of CST Forms
E-Application of CST Forms
Nimesh Dedhia

Create invoice by Oracle iSupplier portal
Create invoice by Oracle iSupplier portalCreate invoice by Oracle iSupplier portal
Create invoice by Oracle iSupplier portal
Hamdy Elbana

BMW CIC programming using Autel MaxiSys Pro
BMW CIC programming using Autel MaxiSys ProBMW CIC programming using Autel MaxiSys Pro
BMW CIC programming using Autel MaxiSys Pro
buyobdii

bmw cip programming with Autel maxisys pro MS908P
bmw cip programming with Autel maxisys pro MS908Pbmw cip programming with Autel maxisys pro MS908P
bmw cip programming with Autel maxisys pro MS908P
buyobdii

Bus Ticket Management System Documentation
Bus Ticket Management System DocumentationBus Ticket Management System Documentation
Bus Ticket Management System Documentationmuzammil siddiq


Similar to Nrows New user guide aug 14 (20)

User manual airport web
User manual airport webUser manual airport web
User manual airport web

WTE accuracy and safety
WTE accuracy and safetyWTE accuracy and safety
WTE accuracy and safety

Preventive Maintenance System - Rig Maintenance
Preventive Maintenance System - Rig MaintenancePreventive Maintenance System - Rig Maintenance
Preventive Maintenance System - Rig Maintenance

Docket v1
Docket v1Docket v1
Docket v1

WTE Overview slide
WTE Overview slideWTE Overview slide
WTE Overview slide

Tms
TmsTms
Tms

Easc Claims Submission Procedure
Easc Claims Submission ProcedureEasc Claims Submission Procedure
Easc Claims Submission Procedure

Fleet management marketing document
Fleet management marketing documentFleet management marketing document
Fleet management marketing document

Preventive Maintenance System (Plant Maintaintenance)
Preventive Maintenance System (Plant Maintaintenance)Preventive Maintenance System (Plant Maintaintenance)
Preventive Maintenance System (Plant Maintaintenance)

RFP Database User Manual for Sales
RFP Database User Manual for SalesRFP Database User Manual for Sales
RFP Database User Manual for Sales

srs for railway reservation system
 srs for railway reservation system srs for railway reservation system
srs for railway reservation system

Revenue Memorandum Circular No 14 2015
Revenue Memorandum Circular No 14 2015Revenue Memorandum Circular No 14 2015
Revenue Memorandum Circular No 14 2015

Using the Daily Shift Report
Using the Daily Shift ReportUsing the Daily Shift Report
Using the Daily Shift Report

Air import and export operations and documentations v1.4
Air import and export operations and documentations v1.4Air import and export operations and documentations v1.4
Air import and export operations and documentations v1.4

BikeOrderProcessV2
BikeOrderProcessV2BikeOrderProcessV2
BikeOrderProcessV2

E-Application of CST Forms
E-Application of CST FormsE-Application of CST Forms
E-Application of CST Forms

Create invoice by Oracle iSupplier portal
Create invoice by Oracle iSupplier portalCreate invoice by Oracle iSupplier portal
Create invoice by Oracle iSupplier portal

BMW CIC programming using Autel MaxiSys Pro
BMW CIC programming using Autel MaxiSys ProBMW CIC programming using Autel MaxiSys Pro
BMW CIC programming using Autel MaxiSys Pro

bmw cip programming with Autel maxisys pro MS908P
bmw cip programming with Autel maxisys pro MS908Pbmw cip programming with Autel maxisys pro MS908P
bmw cip programming with Autel maxisys pro MS908P

Bus Ticket Management System Documentation
Bus Ticket Management System DocumentationBus Ticket Management System Documentation
Bus Ticket Management System Documentation


More from NavyMentor.org

Navy Cycle 225 active e9 mcpo quotas
Navy Cycle 225 active e9 mcpo quotasNavy Cycle 225 active e9 mcpo quotas
Navy Cycle 225 active e9 mcpo quotas
NavyMentor.org

Facebook Privacy and Account Settings - Navy OPSEC
Facebook Privacy and Account Settings - Navy OPSECFacebook Privacy and Account Settings - Navy OPSEC
Facebook Privacy and Account Settings - Navy OPSEC
NavyMentor.org

Fy15 apply-board-results
Fy15 apply-board-resultsFy15 apply-board-results
Fy15 apply-board-results
NavyMentor.org

Fy15 active duty chief results cycle 222
Fy15 active duty chief results cycle 222Fy15 active duty chief results cycle 222
Fy15 active duty chief results cycle 222
NavyMentor.org

FY15 Active Duty CPO Quotas
FY15 Active Duty CPO QuotasFY15 Active Duty CPO Quotas
FY15 Active Duty CPO Quotas
NavyMentor.org

LDO CWO Application Brief FY16
LDO CWO Application Brief FY16LDO CWO Application Brief FY16
LDO CWO Application Brief FY16NavyMentor.org

Navy reserve force e7 board results fy15
Navy reserve force e7 board results fy15Navy reserve force e7 board results fy15
Navy reserve force e7 board results fy15
NavyMentor.org

FY-15 Active Duty CPO Board Quotas
FY-15 Active Duty CPO Board QuotasFY-15 Active Duty CPO Board Quotas
FY-15 Active Duty CPO Board Quotas
NavyMentor.org

FY15 Active Duty Senior Chief Quotas (Cycle 221)
FY15 Active Duty Senior Chief Quotas (Cycle 221)FY15 Active Duty Senior Chief Quotas (Cycle 221)
FY15 Active Duty Senior Chief Quotas (Cycle 221)
NavyMentor.org

Cycle 223 Active Duty Advancement Quotas Spring 2014
Cycle 223 Active Duty Advancement Quotas Spring 2014Cycle 223 Active Duty Advancement Quotas Spring 2014
Cycle 223 Active Duty Advancement Quotas Spring 2014
NavyMentor.org

Navy Canvasser Recruiter Advancement Exam Results - Cycle 223 Spring 2014
Navy Canvasser Recruiter Advancement Exam Results - Cycle 223 Spring 2014Navy Canvasser Recruiter Advancement Exam Results - Cycle 223 Spring 2014
Navy Canvasser Recruiter Advancement Exam Results - Cycle 223 Spring 2014
NavyMentor.org

Active Duty Petty Officer Advancement Results - Cycle 223
Active Duty Petty Officer Advancement Results - Cycle 223Active Duty Petty Officer Advancement Results - Cycle 223
Active Duty Petty Officer Advancement Results - Cycle 223
NavyMentor.org


More from NavyMentor.org (13)

Navy Cycle 225 active e9 mcpo quotas
Navy Cycle 225 active e9 mcpo quotasNavy Cycle 225 active e9 mcpo quotas
Navy Cycle 225 active e9 mcpo quotas

Facebook Privacy and Account Settings - Navy OPSEC
Facebook Privacy and Account Settings - Navy OPSECFacebook Privacy and Account Settings - Navy OPSEC
Facebook Privacy and Account Settings - Navy OPSEC

Fy15 apply-board-results
Fy15 apply-board-resultsFy15 apply-board-results
Fy15 apply-board-results

Fy15 active duty chief results cycle 222
Fy15 active duty chief results cycle 222Fy15 active duty chief results cycle 222
Fy15 active duty chief results cycle 222

FY15 Active Duty CPO Quotas
FY15 Active Duty CPO QuotasFY15 Active Duty CPO Quotas
FY15 Active Duty CPO Quotas

LDO CWO Application Brief FY16
LDO CWO Application Brief FY16LDO CWO Application Brief FY16
LDO CWO Application Brief FY16

Navy reserve force e7 board results fy15
Navy reserve force e7 board results fy15Navy reserve force e7 board results fy15
Navy reserve force e7 board results fy15

FY-15 Active Duty CPO Board Quotas
FY-15 Active Duty CPO Board QuotasFY-15 Active Duty CPO Board Quotas
FY-15 Active Duty CPO Board Quotas

FY15 Active Duty Senior Chief Quotas (Cycle 221)
FY15 Active Duty Senior Chief Quotas (Cycle 221)FY15 Active Duty Senior Chief Quotas (Cycle 221)
FY15 Active Duty Senior Chief Quotas (Cycle 221)

Cycle 223 Active Duty Advancement Quotas Spring 2014
Cycle 223 Active Duty Advancement Quotas Spring 2014Cycle 223 Active Duty Advancement Quotas Spring 2014
Cycle 223 Active Duty Advancement Quotas Spring 2014

Navy Canvasser Recruiter Advancement Exam Results - Cycle 223 Spring 2014
Navy Canvasser Recruiter Advancement Exam Results - Cycle 223 Spring 2014Navy Canvasser Recruiter Advancement Exam Results - Cycle 223 Spring 2014
Navy Canvasser Recruiter Advancement Exam Results - Cycle 223 Spring 2014

Cy223 fts nt
Cy223 fts ntCy223 fts nt
Cy223 fts nt

Active Duty Petty Officer Advancement Results - Cycle 223
Active Duty Petty Officer Advancement Results - Cycle 223Active Duty Petty Officer Advancement Results - Cycle 223
Active Duty Petty Officer Advancement Results - Cycle 223


Recently uploaded

PPT Item # 7 - BB Inspection Services Agmt
PPT Item # 7 - BB Inspection Services AgmtPPT Item # 7 - BB Inspection Services Agmt
PPT Item # 7 - BB Inspection Services Agmt
ahcitycouncil

一比一原版(UQ毕业证)昆士兰大学毕业证成绩单
一比一原版(UQ毕业证)昆士兰大学毕业证成绩单一比一原版(UQ毕业证)昆士兰大学毕业证成绩单
一比一原版(UQ毕业证)昆士兰大学毕业证成绩单
ehbuaw

PD-1602-as-amended-by-RA-9287-Anti-Illegal-Gambling-Law.pptx
PD-1602-as-amended-by-RA-9287-Anti-Illegal-Gambling-Law.pptxPD-1602-as-amended-by-RA-9287-Anti-Illegal-Gambling-Law.pptx
PD-1602-as-amended-by-RA-9287-Anti-Illegal-Gambling-Law.pptx
RIDPRO11

PACT launching workshop presentation-Final.pdf
PACT launching workshop presentation-Final.pdfPACT launching workshop presentation-Final.pdf
PACT launching workshop presentation-Final.pdf
Mohammed325561

Up the Ratios Bylaws - a Comprehensive Process of Our Organization
Up the Ratios Bylaws - a Comprehensive Process of Our OrganizationUp the Ratios Bylaws - a Comprehensive Process of Our Organization
Up the Ratios Bylaws - a Comprehensive Process of Our Organization
uptheratios

Russian anarchist and anti-war movement in the third year of full-scale war
Russian anarchist and anti-war movement in the third year of full-scale warRussian anarchist and anti-war movement in the third year of full-scale war
Russian anarchist and anti-war movement in the third year of full-scale war
Antti Rautiainen

PPT Item # 9 - 2024 Street Maintenance Program(SMP) Amendment
PPT Item # 9 - 2024 Street Maintenance Program(SMP) AmendmentPPT Item # 9 - 2024 Street Maintenance Program(SMP) Amendment
PPT Item # 9 - 2024 Street Maintenance Program(SMP) Amendment
ahcitycouncil

What is the point of small housing associations.pptx
What is the point of small housing associations.pptxWhat is the point of small housing associations.pptx
What is the point of small housing associations.pptx
Paul Smith

一比一原版(Adelaide毕业证)阿德莱德大学毕业证成绩单
一比一原版(Adelaide毕业证)阿德莱德大学毕业证成绩单一比一原版(Adelaide毕业证)阿德莱德大学毕业证成绩单
一比一原版(Adelaide毕业证)阿德莱德大学毕业证成绩单
ehbuaw

Effects of Extreme Temperatures From Climate Change on the Medicare Populatio...
Effects of Extreme Temperatures From Climate Change on the Medicare Populatio...Effects of Extreme Temperatures From Climate Change on the Medicare Populatio...
Effects of Extreme Temperatures From Climate Change on the Medicare Populatio...
Congressional Budget Office

如何办理(uoit毕业证书)加拿大安大略理工大学毕业证文凭证书录取通知原版一模一样
如何办理(uoit毕业证书)加拿大安大略理工大学毕业证文凭证书录取通知原版一模一样如何办理(uoit毕业证书)加拿大安大略理工大学毕业证文凭证书录取通知原版一模一样
如何办理(uoit毕业证书)加拿大安大略理工大学毕业证文凭证书录取通知原版一模一样
850fcj96

PPT Item # 5 - 5330 Broadway ARB Case # 930F
PPT Item # 5 - 5330 Broadway ARB Case # 930FPPT Item # 5 - 5330 Broadway ARB Case # 930F
PPT Item # 5 - 5330 Broadway ARB Case # 930F
ahcitycouncil

Many ways to support street children.pptx
Many ways to support street children.pptxMany ways to support street children.pptx
Many ways to support street children.pptx
SERUDS INDIA

Canadian Immigration Tracker March 2024 - Key Slides
Canadian Immigration Tracker March 2024 - Key SlidesCanadian Immigration Tracker March 2024 - Key Slides
Canadian Immigration Tracker March 2024 - Key Slides
Andrew Griffith

Uniform Guidance 3.0 - The New 2 CFR 200
Uniform Guidance 3.0 - The New 2 CFR 200Uniform Guidance 3.0 - The New 2 CFR 200
Uniform Guidance 3.0 - The New 2 CFR 200
GrantManagementInsti

一比一原版(UOW毕业证)伍伦贡大学毕业证成绩单
一比一原版(UOW毕业证)伍伦贡大学毕业证成绩单一比一原版(UOW毕业证)伍伦贡大学毕业证成绩单
一比一原版(UOW毕业证)伍伦贡大学毕业证成绩单
ehbuaw

PPT Item # 6 - 7001 Broadway ARB Case # 933F
PPT Item # 6 - 7001 Broadway ARB Case # 933FPPT Item # 6 - 7001 Broadway ARB Case # 933F
PPT Item # 6 - 7001 Broadway ARB Case # 933F
ahcitycouncil

一比一原版(ANU毕业证)澳大利亚国立大学毕业证成绩单
一比一原版(ANU毕业证)澳大利亚国立大学毕业证成绩单一比一原版(ANU毕业证)澳大利亚国立大学毕业证成绩单
一比一原版(ANU毕业证)澳大利亚国立大学毕业证成绩单
ehbuaw

Get Government Grants and Assistance Program
Get Government Grants and Assistance ProgramGet Government Grants and Assistance Program
Get Government Grants and Assistance Program
Get Government Grants

2024: The FAR - Federal Acquisition Regulations, Part 37
2024: The FAR - Federal Acquisition Regulations, Part 372024: The FAR - Federal Acquisition Regulations, Part 37
2024: The FAR - Federal Acquisition Regulations, Part 37
JSchaus & Associates


Recently uploaded (20)

PPT Item # 7 - BB Inspection Services Agmt
PPT Item # 7 - BB Inspection Services AgmtPPT Item # 7 - BB Inspection Services Agmt
PPT Item # 7 - BB Inspection Services Agmt

一比一原版(UQ毕业证)昆士兰大学毕业证成绩单
一比一原版(UQ毕业证)昆士兰大学毕业证成绩单一比一原版(UQ毕业证)昆士兰大学毕业证成绩单
一比一原版(UQ毕业证)昆士兰大学毕业证成绩单

PD-1602-as-amended-by-RA-9287-Anti-Illegal-Gambling-Law.pptx
PD-1602-as-amended-by-RA-9287-Anti-Illegal-Gambling-Law.pptxPD-1602-as-amended-by-RA-9287-Anti-Illegal-Gambling-Law.pptx
PD-1602-as-amended-by-RA-9287-Anti-Illegal-Gambling-Law.pptx

PACT launching workshop presentation-Final.pdf
PACT launching workshop presentation-Final.pdfPACT launching workshop presentation-Final.pdf
PACT launching workshop presentation-Final.pdf

Up the Ratios Bylaws - a Comprehensive Process of Our Organization
Up the Ratios Bylaws - a Comprehensive Process of Our OrganizationUp the Ratios Bylaws - a Comprehensive Process of Our Organization
Up the Ratios Bylaws - a Comprehensive Process of Our Organization

Russian anarchist and anti-war movement in the third year of full-scale war
Russian anarchist and anti-war movement in the third year of full-scale warRussian anarchist and anti-war movement in the third year of full-scale war
Russian anarchist and anti-war movement in the third year of full-scale war

PPT Item # 9 - 2024 Street Maintenance Program(SMP) Amendment
PPT Item # 9 - 2024 Street Maintenance Program(SMP) AmendmentPPT Item # 9 - 2024 Street Maintenance Program(SMP) Amendment
PPT Item # 9 - 2024 Street Maintenance Program(SMP) Amendment

What is the point of small housing associations.pptx
What is the point of small housing associations.pptxWhat is the point of small housing associations.pptx
What is the point of small housing associations.pptx

一比一原版(Adelaide毕业证)阿德莱德大学毕业证成绩单
一比一原版(Adelaide毕业证)阿德莱德大学毕业证成绩单一比一原版(Adelaide毕业证)阿德莱德大学毕业证成绩单
一比一原版(Adelaide毕业证)阿德莱德大学毕业证成绩单

Effects of Extreme Temperatures From Climate Change on the Medicare Populatio...
Effects of Extreme Temperatures From Climate Change on the Medicare Populatio...Effects of Extreme Temperatures From Climate Change on the Medicare Populatio...
Effects of Extreme Temperatures From Climate Change on the Medicare Populatio...

如何办理(uoit毕业证书)加拿大安大略理工大学毕业证文凭证书录取通知原版一模一样
如何办理(uoit毕业证书)加拿大安大略理工大学毕业证文凭证书录取通知原版一模一样如何办理(uoit毕业证书)加拿大安大略理工大学毕业证文凭证书录取通知原版一模一样
如何办理(uoit毕业证书)加拿大安大略理工大学毕业证文凭证书录取通知原版一模一样

PPT Item # 5 - 5330 Broadway ARB Case # 930F
PPT Item # 5 - 5330 Broadway ARB Case # 930FPPT Item # 5 - 5330 Broadway ARB Case # 930F
PPT Item # 5 - 5330 Broadway ARB Case # 930F

Many ways to support street children.pptx
Many ways to support street children.pptxMany ways to support street children.pptx
Many ways to support street children.pptx

Canadian Immigration Tracker March 2024 - Key Slides
Canadian Immigration Tracker March 2024 - Key SlidesCanadian Immigration Tracker March 2024 - Key Slides
Canadian Immigration Tracker March 2024 - Key Slides

Uniform Guidance 3.0 - The New 2 CFR 200
Uniform Guidance 3.0 - The New 2 CFR 200Uniform Guidance 3.0 - The New 2 CFR 200
Uniform Guidance 3.0 - The New 2 CFR 200

一比一原版(UOW毕业证)伍伦贡大学毕业证成绩单
一比一原版(UOW毕业证)伍伦贡大学毕业证成绩单一比一原版(UOW毕业证)伍伦贡大学毕业证成绩单
一比一原版(UOW毕业证)伍伦贡大学毕业证成绩单

PPT Item # 6 - 7001 Broadway ARB Case # 933F
PPT Item # 6 - 7001 Broadway ARB Case # 933FPPT Item # 6 - 7001 Broadway ARB Case # 933F
PPT Item # 6 - 7001 Broadway ARB Case # 933F

一比一原版(ANU毕业证)澳大利亚国立大学毕业证成绩单
一比一原版(ANU毕业证)澳大利亚国立大学毕业证成绩单一比一原版(ANU毕业证)澳大利亚国立大学毕业证成绩单
一比一原版(ANU毕业证)澳大利亚国立大学毕业证成绩单

Get Government Grants and Assistance Program
Get Government Grants and Assistance ProgramGet Government Grants and Assistance Program
Get Government Grants and Assistance Program

2024: The FAR - Federal Acquisition Regulations, Part 37
2024: The FAR - Federal Acquisition Regulations, Part 372024: The FAR - Federal Acquisition Regulations, Part 37
2024: The FAR - Federal Acquisition Regulations, Part 37


Nrows New user guide aug 14

  • 1. NAVY RESERVE ORDER WRITING SYSTEM (NROWS) SAILOR ORDERS GUIDE AUGUST 2014 1
  • 2. TABLE OF CONTENTS •Section 1- Initial Order Application/Submission…………….Page 3 •Section 2- Pullback Order Application……………………………Page 29 •Section 3- Modify Order………………………………………………..Page 39 •Section 4- Cancelling Order……………………………………………Page 51 •Section 5- Changing User Information in NROWS ………….Page 57 (phone number, email, name, etc.) •Section 6- “For Further Assignment” Orders……………….…Page 61 •Section 7- Questions, Comments, Concerns…………….……Page 73 2
  • 3. Section 1- Initial Order Application/Submission *Important Note* It is important to click “Save” after completing each section of your Initial Application. If you accidentally close out of your web browser or in the event of a power outage that causes your computer to shut off, all information entered in your application will be lost. 3
  • 4. Section 1- Initial Order Application/Submission Step 1- Getting Logged in/ NROWS can be accessed by visiting the private side of the Navy Reserve site https://private.navyreserve.navy.mil or by direct link https://nrows.sscno.nmci.navy.mil/nrows/ *When logging on to the Navy Reserve Homeport site, select your EMAIL certificate* Your login ID and password are CAC enabled; you must have a CAC and CAC reader to access NROWS. If you have not accessed your account in the past 60 days (deactivated) or if this is your very first time logging into NROWS, contact: Deactivated Users- Navy Reserve Helpdesk 1(800)537-4617 Initial Users- Navy Operational Support Center 4
  • 7. *Note* Routing for all applications will be displayed here Resource Owners contact information will be displayed here Step 2- From the “Welcome” screen select “Sailor” from the drop-down menu 7
  • 8. Step 3- From the “Sailor Menu” screen select “Create Application” 8
  • 9. *Note* 1. Choose from the Requirements listed on this screen to initiate your order request 2. If nothing is displayed on this screen, no orders are available for the Sailor to create. Questions concerning NO requirements listed should be directed to your Chain of Command 9
  • 10. *Note* Section 1, 2, 3, and 7 will be pre-filled with specific information inputted by your Requirement Owner Step 4- Review the following information for accuracy and click “Save” and “Next” any changes can be made on upcoming pages 10
  • 11. Step #5- From the “Personnel Info” screen verify the information is correct. Click the appropriate radio button for each of the questions. Select “Save” then click “Next” to continue if all your information is correct. 11
  • 12. Select the appropriate radio button to change you email address and/or Permanent Mailing Address *Note* Updating this information only applies it to this order, permanent changes will have to be made under Utilities> My Account *Note* Your address SHALL NOT be a PO Box address 12
  • 13. •NOTE: Using the “Change of Address” feature for the purposes of traveling from a location while on AT/ADT other than Home of Record due to business or personal reasons is NOT AUTHORIZED. If executing IDTT orders and traveling from a location other than your HOR, reference COMNAVRESFORCOMINST 1571.1 (Series) •Changing the Permanent Mailing Address for unauthorized purposes will be considered a violation of the Uniform Code of Military Justice and may result in disciplinary action against the offending member To update your address, contact your personnel department at the NOSC to have NSIPS updated. NSIPS will import the correction into NROWS via RHS 13
  • 14. Step 6- From the “Duty Period Information” screen verify this information for accuracy. Changes should only be made after contacting your NOSC for all AT Orders or the Requirement Owner for all ADT/IDTT. Select “Save” then click “Next” to continue if all your information is correct. 14
  • 15. Step 7- From the “Duty Locations and Travel” screen verify this information for accuracy Travel Start Date, Report Date, UIC, Unit Name, and Address will be pre-filled out *Note* Changes can be made to Travel Start Date, Report Date, and End Date after contacting your Requirement Owner to meet specific mission requirements Your start date should be 1 day before your report date if you are traveling CONUS, 2 days before if you are traveling OCONUS. *Pre-filled dates *Modified dates to meet mission requirements 15
  • 16. Step 7 cont- Use appropriate radio buttons and drop-down menus to answer “ITEMPO Information. “For Duty Afloat?” and “Per diem & Travel Information will be pre-filled out, verify this information for accuracy. Select “Save” then click “Next” to continue if all your information is correct. 16
  • 17. Step 8- On the “Travel Options” screen “Mode of Transportation” will have been pre-selected by your Requirement Owner but can be changed to accommodate mission requirements “Desired Departure Date”, “Departure Airport” and “Arrival Airport” are required if traveling via “Commercial Airline.” Use the “Lookup” hyperlinks to select the correct airports. The “No Earlier and No Later Than Times” are not required, but should be filled in. If “Airport Justification” or “Special Instructions to Travel” are necessary then type it in the appropriate fields 17
  • 18. Step 8 cont- *Note* Desired departure times are only a request and will be honored only if government contracted seats are available. Click “Save” then click the hyperlink “Fill out Per Diem at this Location” or “Next” to continue 18
  • 19. Step 9- Review the following information for accuracy and select “Save” then click “Next” to continue if all your information is correct 19
  • 20. Step 10- On the “Travel Options” screen “Mode of Transportation” will have been pre- selected by your Requirement Owner but can be changed to accommodate mission requirements “Desired Departure Date”, “Departure Airport” and “Arrival Airport” are required if traveling via “Commercial Airline.” Use the “Lookup” hyperlinks to select the correct airports. The “No Earlier and No Later Than Times” are not required, but should be filled in. If “Airport Justification” or “Special Instructions to Travel” are necessary then type it in the appropriate fields 20
  • 21. Step 8 cont- *Note* Desired departure times are only a request and will be honored only if government contracted seats are available. Click “Save” then click the hyperlink “Fill out Per Diem at this Location” or “Next” to continue 21
  • 22. Step 11- On the “Tour and Pay Entitlements” screen select the “Lookup” hyperlink to “Choose the appropriate GTCC justification.” 22
  • 23. Step 11 cont- From the “Government Travel Charge Card” lookup screen choose the correct justification then click “Select” to return to the “Tour and Pay Entitlements” screen 23
  • 24. *Note* Back to back orders can not be submitted using DTS “Tour and Pay Entitlements” need to be reviewed carefully. This section will add the appropriate paragraphs to the orders for entitlements Click “Save” and then click “Next” to continue. 24
  • 25. Step 12- To include Standard Paragraph(s) from the “Paragraph Selection” screen click “Add Paragraphs” then choose the Standard Paragraph(s) and click “Select” If needed, a Non-Standard Paragraph may be typed in the box provided. Once completed, click “Save” in the “Action” column then click “Save” at the bottom of the application and then click “Next” to continue *Note* The information typed into the Non-Standard paragraph will become part of the official orders 25
  • 26. Step 13- Review the following information for accuracy and select “Save” then click “Next” to continue if all your information is correct *Note* Changes to Command and Funding Source should only be made after contacting your NOSC for all AT Orders or the Requirement Owner for all ADT/IDTT 26
  • 27. Step 14- On the “Justification” screen you may enter General Comments or Justification for Hard Holds. Any information not included in this order that needs to be transmitted to routing chain shall be included in this block IE. Orders routed to SATO due to member IRR Status Click “Save” then click “Save & Route” to process the orders 27
  • 28. Step 15- On the “Order Information” screen, review and verify the orders then click “Return to Application” to make additional changes or “Route Application Forward” to forward the orders for approval *Note* Above information will display travel system, DTS or SATO 28 *Note* Unit Approver will be displayed here Track order progression by following these steps
  • 29. Section 2- Pull back Order Application *Important Note* The Pull back application feature will only be used if the orders have NOT yet been fund approved and changes need to be made while still in the routing process An order application should be pulled back only for a change in entitlements or change in support of gaining command. Once an application is pulled back, the routing of the application will stop until it is routed forward again. The application will go through the same routing process as it did prior to the pullback If orders are fund approved and changes need to be made, refer to Section 3 of this User Guide for Modify Order procedures 29
  • 30. Step 1- From the “Welcome” screen select “Sailor” from the drop-down menu 30
  • 31. Step 2- From the “Sailor Menu” screen click “Pull Back Application” 31
  • 32. Step 3- Enter the “Tracking Number” for the orders you wish to pull back then click “Search” 32
  • 33. Step 4- Click the tracking number to select the orders 33
  • 34. Step 5- On the “Order Information” screen, verify and then click the “Pull Back Order” button to pull the orders back 34
  • 35. Step 6- Prior to editing anything in your order, [Personnel Info] will need to be verified and saved before moving forward- Select the “Edit” link under Section 1. Personnel and Contact Information 35
  • 36. Step 6 cont- Review the following information for accuracy and select “Save” Then return to the “Overview” screen using the “Section” drop-down menu 36
  • 37. Step 6 cont- From the “Overview” screen click the corresponding “Edit” hyperlink to make changes to that section. When complete, click “Save & Route” 37
  • 38. Step 7- On the “Order Information” screen, review and verify the orders then click “Return to Application” to make additional changes or “Route Application Forward” to forward the orders for approval 38
  • 39. Section 3- Modify Order *Important Note* The Modify Order feature will only be used if the orders have been FUND APPROVED and changes need to be made An order application should be modified to change: Start/end dates, modes of travel, the addition/removal of a FFA location, add rental car etc. Per JFTR Vol 1 Ch 2 U2205 a.1.b- RETROACTIVE ORDER MODIFICATION AND AUTHORIZATION/APPROVAL, Must not be revoked/modified retroactively to create/deny/change an allowance IE. If NO per diem is authorized on the initial order and fund approved, YOU CAN NOT modify this order to add per diem Once an application is modified, the routing of the application will stop until it is routed forward again. The application will go through the same routing process as it did prior to the modification If orders are not fund approved and changes need to be made, refer to Section 2 of this User Guide for Pull back procedures 39
  • 40. Step 1- From the “Welcome” screen select “Sailor” from the drop-down menu 40
  • 41. Step 2- From the “Sailor Menu” screen click “Modify Order” 41
  • 42. Step 3- Enter the “Tracking Number” for the orders you wish to modify then click “Search” 42
  • 43. Step 4- Click the tracking number to select the orders 43
  • 44. Step 5- On the “Order Information” screen verify and click the “Modify Order” button to modify the orders 44
  • 45. Step 6- Prior to modifying anything in your order, [Personnel Info] will need to be verified and saved before moving forward- Select the “Edit” link under Section 1. Personnel and Contact Information 45
  • 46. Step 6 cont- Review the following information for accuracy and select “Save” Then return to the “Overview” screen using the “Section” drop-down menu 46
  • 47. Step 6 cont- From the “Overview” screen click the corresponding “Edit” hyperlink to make changes to that section. Then return to the “Overview” screen using the “Section” drop- down menu 47
  • 48. Step 7- From the “Overview” screen, scroll down to “Section 7: Justification” and click “Edit.” 48
  • 49. Step 8- From the “Justification” screen it is required that a justification comment is typed in the “Reason for Modification” field. When complete, click “Save & Route” *Note* The reason entered will become part of the official order 49
  • 50. Step 9- On the “Order Information” screen, review and verify the orders then click “Return to Application” to make additional changes or “Route Application Forward” to forward the orders for approval 50
  • 51. Section 4- Cancelling Order *Important Note* Cancellation of orders is NOT authorized once expenditures have been paid on a set of orders. For cases like this, a modification is more suitable Cancellation of a modification cancels the ENTIRE set of orders 51
  • 52. Step 1- From the “Welcome” screen select “Sailor” from the drop-down menu 52
  • 53. Step 2- From the “Sailor Menu” screen click “Cancel Order” 53
  • 54. Step 3- Enter the “Tracking Number” for the orders you wish to modify then click “Search” 54
  • 55. Step 4- Click the tracking number to select the orders 55
  • 56. Step 5- Review the “Order Information” screen in its entirety and ensure full understanding if the Cancellation Statement. Briefly describe the order cancellation reason and then click the “Cancel Order” button to cancel the orders *Note* If routed via DTS, the authorization will need be cancelled as well 56
  • 57. Section 5- Changing User Information in NROWS (phone number, email, name, etc.) 57
  • 58. Step 1- From the “Welcome Screen” select “Utilities” from the drop-down menu 58
  • 59. Step 3- From the “Utilities Menu” click “My Account.” 59
  • 60. Step 3- You may edit: “Phone Number,” “Email Address,” “Default TSA First, Middle Initial, Last Name” and “Notifications” Verify the information then click “Save Changes” 60
  • 61. Section 6- “For Further Assignment” Orders *Important Note* For Further Assignment (FFA) orders require a member to perform services at a site other than the initial reporting Unit Identification Code (UIC) Per COMNAVRESFORCOMINST 1571.1 (series) When utilizing Commercial Air, personnel traveling FFA are only authorized one round trip per a single set of orders IE. A member that travels COMAIR from his HOR (Jacksonville, FL) then COMAIR to TDY location 1 (Dallas, TX) with FFA location 2 (Fallon, NV) This member CAN NOT utilize COMAIR to travel back to TDY location 1 (Dallas, TX) Only one round trip is authorized from HOR (Jacksonville, FL) to TDY location 1 (Dallas, TX) and back The second unauthorized round trip is from TDY location 1 (Dallas, TX) to FFA Location 2 Fallon, NV) and back 61
  • 62. Step 1- Reference Section 1 (Steps 1-9) to arrive at Section 3: Duty Locations Step 3 of 7 Select “Yes” to add a “For further assignment” location and then select “Next” 62
  • 63. Step 2- Changes can be made to Travel Start Date and End Date in conjunction with time at FFA location after contacting your Requirement Owner to meet specific mission requirements 63
  • 64. Step 3- The most common and easy way to add your FFA location will be to select the “UIC / Lookup” link Enter the UIC an select “Search” and select the blue UIC hyperlink 64
  • 65. Step 3 cont- By selecting the UIC- “Unit Name”, “City”, “State”, “Country, and “Zip Code” will have been pre-filled For all CONUS travel locations a “Street Address” is a mandatory field and will be disapproved by N33 Force Travel if left blank “For Duty With” will still need user input prior to moving on the next screen 65
  • 66. Step 3 cont- For OCONUS FFA locations “State/Province” and “Zip Code” will be left blank, all other fields will be filled For all OCONUS travel locations a “Street Address” is a mandatory field and will be disapproved by N33 Force Travel if left blank. Only for OCONUS locations if the an address is not available will the BASE name be an acceptable entry “For Duty With” will still need user input prior to moving on the next screen Select “Save” then click “Next” to continue if all your information is correct. 66
  • 67. Step 4- On the “Travel Options” screen “Mode of Transportation” can be changed to accommodate mission requirements “Desired Departure Date”, “Departure Airport” and “Arrival Airport” are required if traveling via “Commercial Airline.” Use the “Lookup” hyperlinks to select the correct airports. The “No Earlier and No Later Than Times” are not required, but should be filled in. If “Airport Justification” or “Special Instructions to Travel” are necessary then type it in the appropriate fields 67
  • 68. Step 4 cont- When selecting airports CONUS an automatic drop down will be available for authorized airports from the departure/arrival location. *Note* If the airport selected is not in the drop down menu a “Justification” will be required OCONUS locations will have to be manually searched. Open the “Select a Country” drop down menu and select the applicable country. Open the “Select Airport” drop down menu and select the applicable airport. Review the information and “Select” 68
  • 69. Step 4 cont- *Note* Desired departure times are only a request and will be honored only if government contracted seats are available. Click “Save” then click the hyperlink “Fill out Per Diem at this Location” or “Next” to continue 69
  • 70. Step 5- Select the “Lookup” hyperlink to select “Per Diem Location” from a new window’s drop-down menu select the applicable “Country”, select “Search”, and select appropriate per diem location 70
  • 71. Step 6- Use radio buttons to indicate if rental car is required. Rental Car Justification is need for anything other than COMPACT/ECONOMY Use the drop-down menus for “Quarters” and “Messing” When selecting “Quarters” available a “BQ Location” is required For selections of anything other than “Available” and “Available and Directed”, proper documentation is needed to reflect that entitlement. IE. Certificate of Non-Availability After reviewing the information click “Save” then click the hyperlink “Fill out Travel for the last leg” or “Next” to continue 71
  • 72. Step 7- On the “Travel Options” screen “Mode of Transportation” can be changed to accommodate mission requirements “Desired Departure Date”, “Departure Airport” and “Arrival Airport” are required if traveling via “Commercial Airline.” Use the “Lookup” hyperlinks to select the correct airports. The “No Earlier and No Later Than Times” are not required, but should be filled in. If “Airport Justification” or “Special Instructions to Travel” are necessary then type it in the appropriate fields Review information for accuracy and select “Save” and “Next” Review Section 1 (Steps 11-15) to complete this order 72
  • 73. Section 7 - Questions, Comments, Concerns? *Note* -Please utilize your Chain of Command when issue arise during the order writing process -Contact your Resource Owner, Unit, NRA, and RCC -Trouble tickets/Remedy tickets can be submitted via NROWS to N33 -NROWS Helpdesk 1-(800)-537-4617 73
  • 74. Click the “Create Trouble Ticket Online” link to submit issues to N33 only after contacting your Unit, NRA, and RCC for guidance 74
