Notes of Software engineering and Project Management

Unit I, SEPM Truba College of Science and Technology, Bhopal
By: Nandini Sharma Page 1

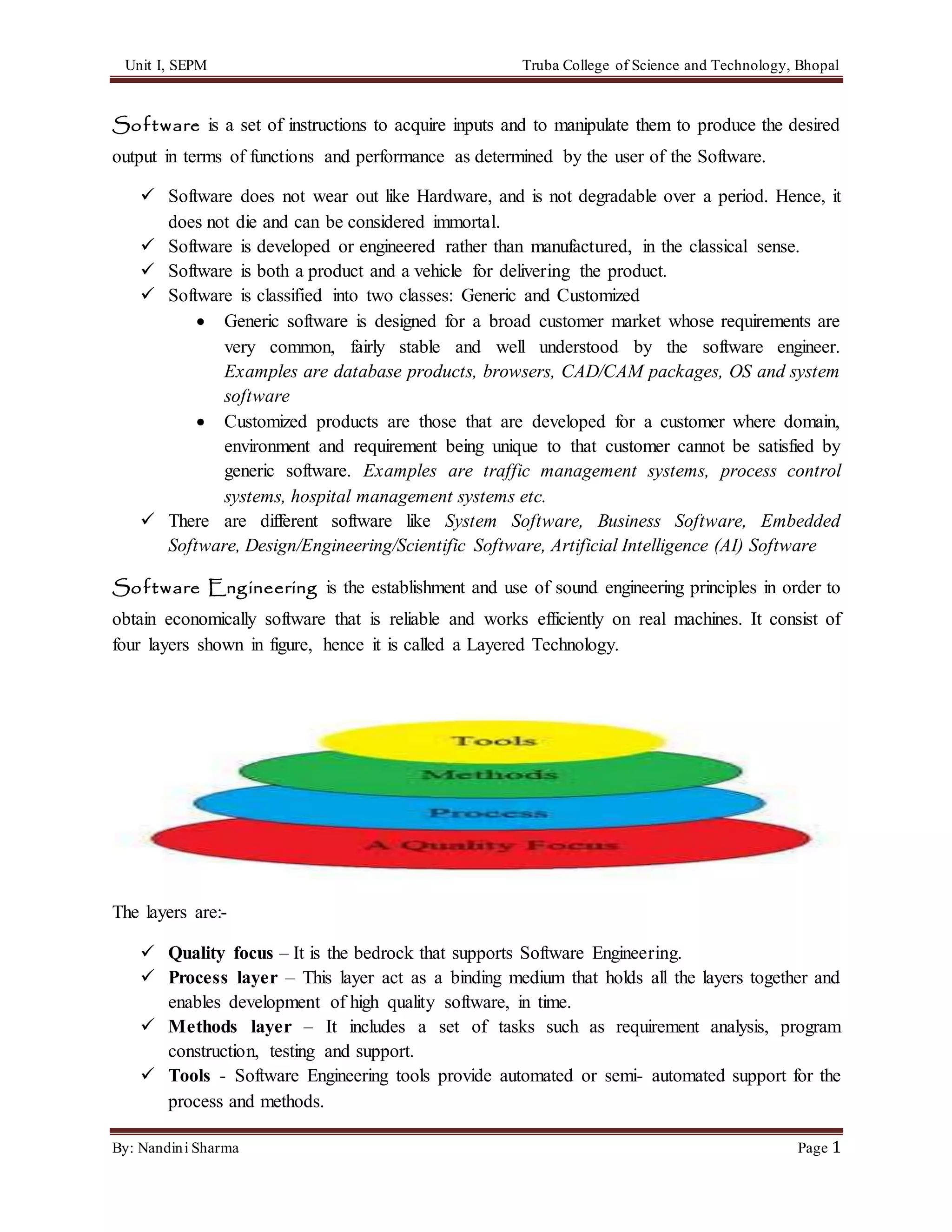

Software is a set of instructions to acquire inputs and to manipulate them to produce the desired
output in terms of functions and performance as determined by the user of the Software.
 Software does not wear out like Hardware, and is not degradable over a period. Hence, it
does not die and can be considered immortal.
 Software is developed or engineered rather than manufactured, in the classical sense.
 Software is both a product and a vehicle for delivering the product.
 Software is classified into two classes: Generic and Customized
 Generic software is designed for a broad customer market whose requirements are
very common, fairly stable and well understood by the software engineer.
Examples are database products, browsers, CAD/CAM packages, OS and system
software
 Customized products are those that are developed for a customer where domain,
environment and requirement being unique to that customer cannot be satisfied by
generic software. Examples are traffic management systems, process control
systems, hospital management systems etc.
 There are different software like System Software, Business Software, Embedded
Software, Design/Engineering/Scientific Software, Artificial Intelligence (AI) Software
Software Engineering is the establishment and use of sound engineering principles in order to
obtain economically software that is reliable and works efficiently on real machines. It consist of
four layers shown in figure, hence it is called a Layered Technology.
The layers are:-
 Quality focus – It is the bedrock that supports Software Engineering.
 Process layer – This layer act as a binding medium that holds all the layers together and
enables development of high quality software, in time.
 Methods layer – It includes a set of tasks such as requirement analysis, program
construction, testing and support.
 Tools - Software Engineering tools provide automated or semi- automated support for the
process and methods.

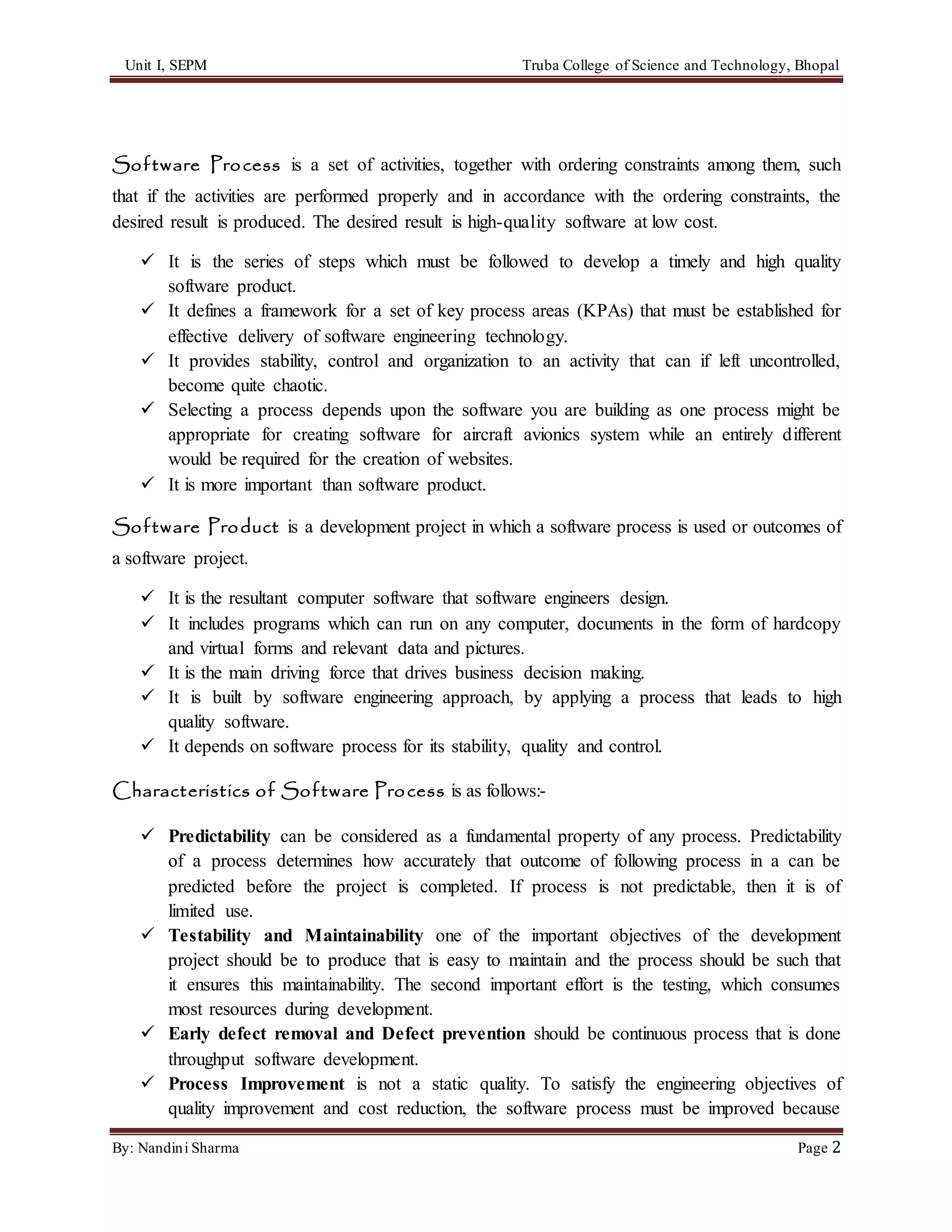

Software Process is a set of activities, together with ordering constraints among them, such
that if the activities are performed properly and in accordance with the ordering constraints, the
desired result is produced. The desired result is high-quality software at low cost.
 It is the series of steps which must be followed to develop a timely and high quality
software product.
 It defines a framework for a set of key process areas (KPAs) that must be established for
effective delivery of software engineering technology.
 It provides stability, control and organization to an activity that can if left uncontrolled,
become quite chaotic.
 Selecting a process depends upon the software you are building as one process might be
appropriate for creating software for aircraft avionics system while an entirely different
would be required for the creation of websites.
 It is more important than software product.
Software Product is a development project in which a software process is used or outcomes of
a software project.
 It is the resultant computer software that software engineers design.
 It includes programs which can run on any computer, documents in the form of hardcopy
and virtual forms and relevant data and pictures.
 It is the main driving force that drives business decision making.
 It is built by software engineering approach, by applying a process that leads to high
quality software.
 It depends on software process for its stability, quality and control.
Characteristics of Software Process is as follows:-
 Predictability can be considered as a fundamental property of any process. Predictability
of a process determines how accurately that outcome of following process in a can be
predicted before the project is completed. If process is not predictable, then it is of
limited use.
 Testability and Maintainability one of the important objectives of the development
project should be to produce that is easy to maintain and the process should be such that
it ensures this maintainability. The second important effort is the testing, which consumes
most resources during development.
 Early defect removal and Defect prevention should be continuous process that is done
throughput software development.
 Process Improvement is not a static quality. To satisfy the engineering objectives of
quality improvement and cost reduction, the software process must be improved because

in the context of software, the productivity and quality are determined largely by the
process.

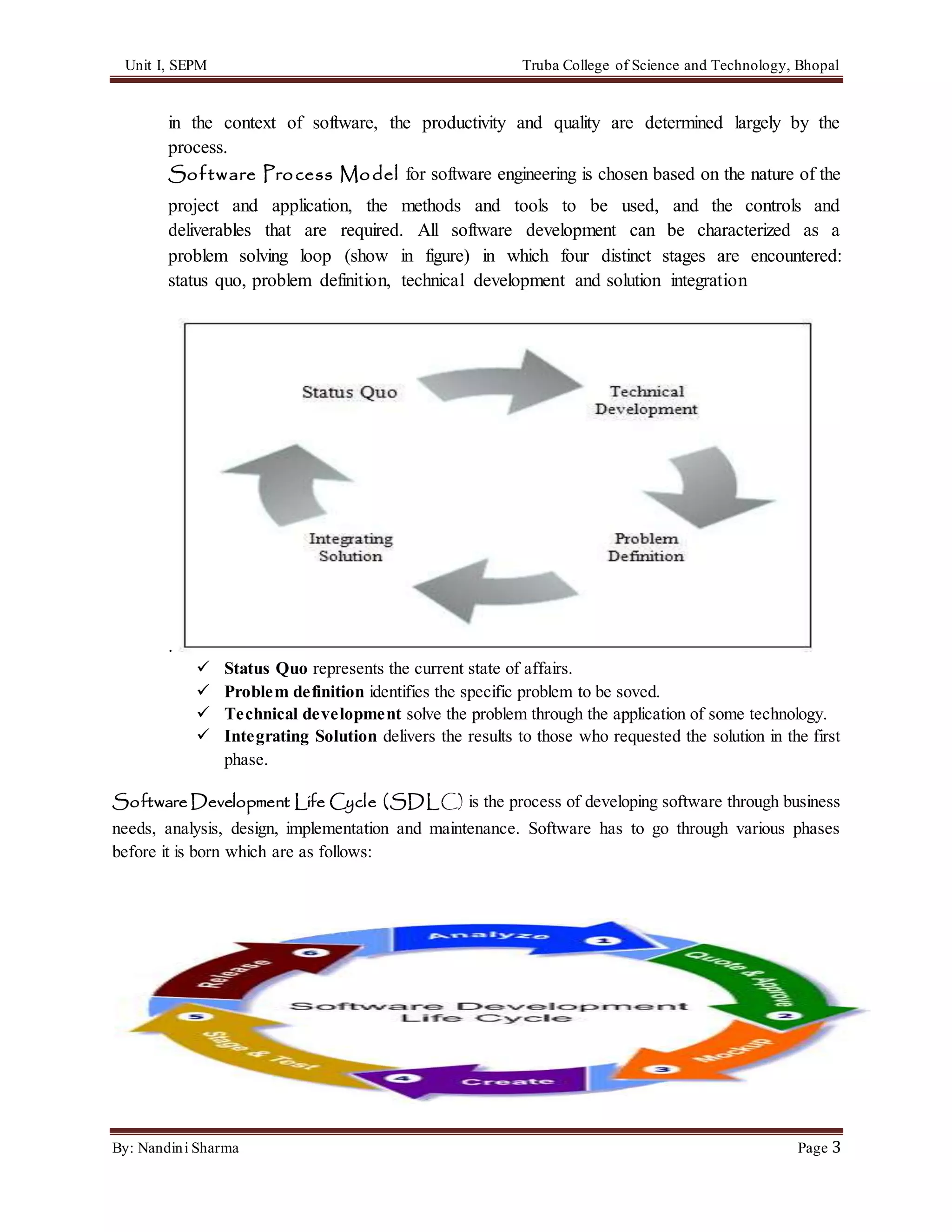

Software Process Model for software engineering is chosen based on the nature of the
project and application, the methods and tools to be used, and the controls and
deliverables that are required. All software development can be characterized as a
problem solving loop (show in figure) in which four distinct stages are encountered:
status quo, problem definition, technical development and solution integration
.
 Status Quo represents the current state of affairs.
 Problem definition identifies the specific problem to be soved.
 Technical development solve the problem through the application of some technology.
 Integrating Solution delivers the results to those who requested the solution in the first
phase.
Software Development Life Cycle (SDLC) is the process of developing software through business
needs, analysis, design, implementation and maintenance. Software has to go through various phases
before it is born which are as follows:

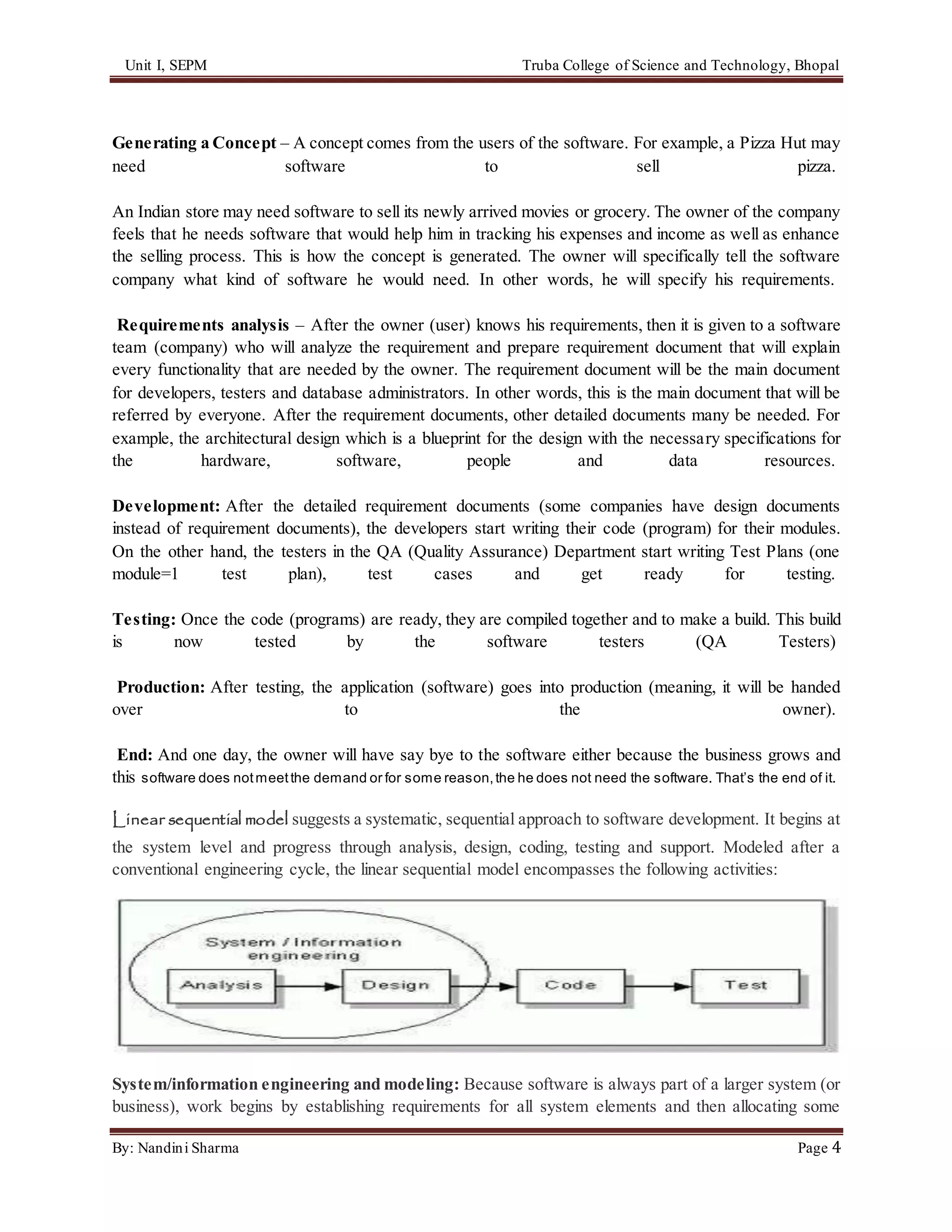

Generating a Concept – A concept comes from the users of the software. For example, a Pizza Hut may
need software to sell pizza.
An Indian store may need software to sell its newly arrived movies or grocery. The owner of the company
feels that he needs software that would help him in tracking his expenses and income as well as enhance
the selling process. This is how the concept is generated. The owner will specifically tell the software
company what kind of software he would need. In other words, he will specify his requirements.
Requirements analysis – After the owner (user) knows his requirements, then it is given to a software
team (company) who will analyze the requirement and prepare requirement document that will explain
every functionality that are needed by the owner. The requirement document will be the main document
for developers, testers and database administrators. In other words, this is the main document that will be
referred by everyone. After the requirement documents, other detailed documents many be needed. For
example, the architectural design which is a blueprint for the design with the necessary specifications for
the hardware, software, people and data resources.
Development: After the detailed requirement documents (some companies have design documents
instead of requirement documents), the developers start writing their code (program) for their modules.
On the other hand, the testers in the QA (Quality Assurance) Department start writing Test Plans (one
module=1 test plan), test cases and get ready for testing.
Testing: Once the code (programs) are ready, they are compiled together and to make a build. This build
is now tested by the software testers (QA Testers)
Production: After testing, the application (software) goes into production (meaning, it will be handed
over to the owner).
End: And one day, the owner will have say bye to the software either because the business grows and
this software does notmeetthe demand or for some reason,the he does not need the software. That’s the end of it.
Linear sequential model suggests a systematic, sequential approach to software development. It begins at
the system level and progress through analysis, design, coding, testing and support. Modeled after a
conventional engineering cycle, the linear sequential model encompasses the following activities:
System/information engineering and modeling: Because software is always part of a larger system (or
business), work begins by establishing requirements for all system elements and then allocating some

subset of these requirements to software. This system view is essential when software must interact with
other elements such as hardware, people and databases.
Software requirements analysis: The requirements gathering process is intensified and focused
specifically on software. To understand the nature of the program(s) to be built, the software engineer
(“analyst”) must understand the information domain for the software, as well as required function,
behavior, performance and interface.
Design: Software design is actually a multistep process that focuses on four distinct attributes of a
program: data structure, software architecture, interface representations and procedural detail. The design
process translates requirements into a representation of the software that can be assessed for quality
before coding begins.
Code generation: The design must be translated into a machine-readable form. The code generation step
performs this task.
Testing: Once the code has been generated, program testing begins. The testing process focuses on the
logical internals of the software, ensuring that all statements have been tested and on the functional
externals, that is, conducting tests to uncover errors and ensure that defined input will produce actual
results that agree with the required results.

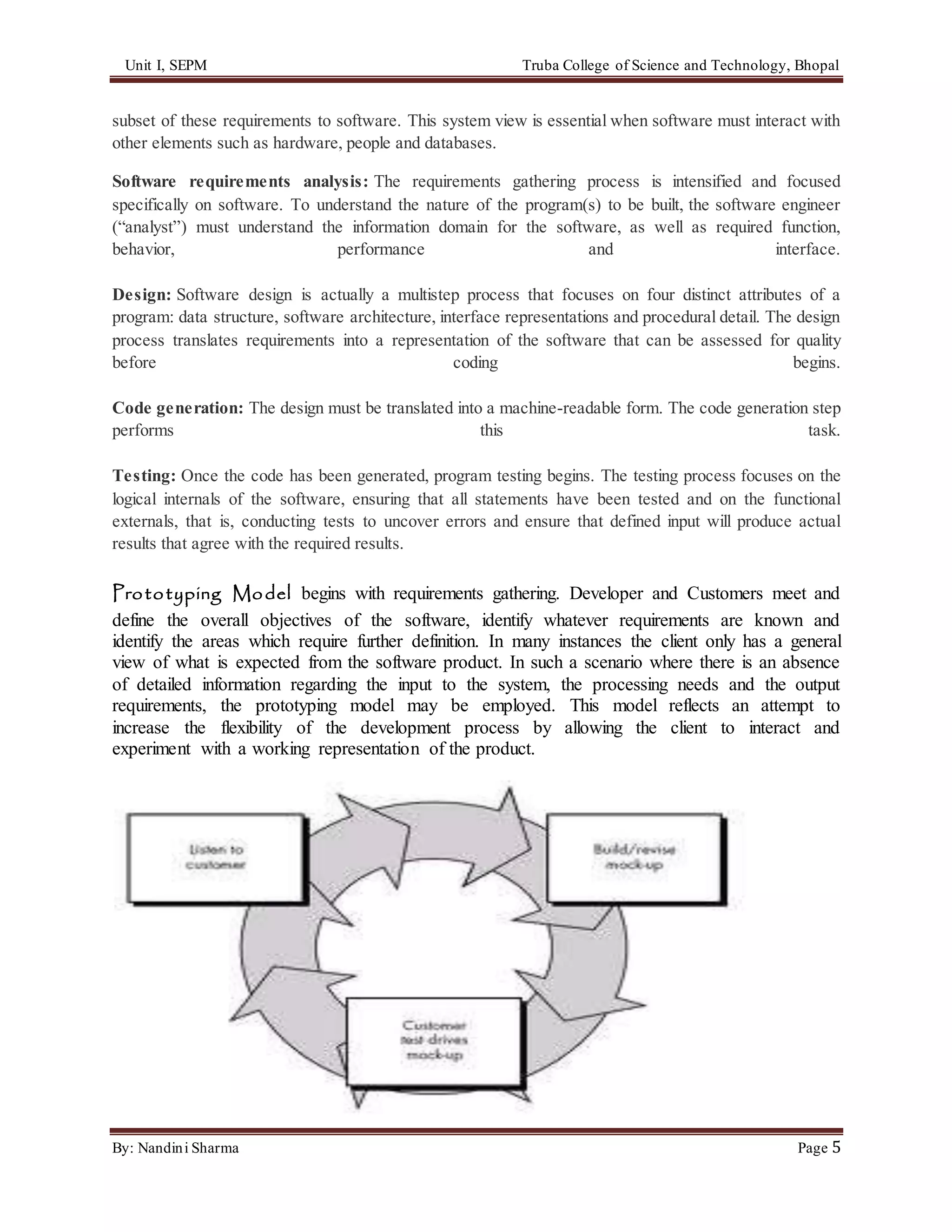

Prototyping Model begins with requirements gathering. Developer and Customers meet and
define the overall objectives of the software, identify whatever requirements are known and
identify the areas which require further definition. In many instances the client only has a general
view of what is expected from the software product. In such a scenario where there is an absence
of detailed information regarding the input to the system, the processing needs and the output
requirements, the prototyping model may be employed. This model reflects an attempt to
increase the flexibility of the development process by allowing the client to interact and
experiment with a working representation of the product.

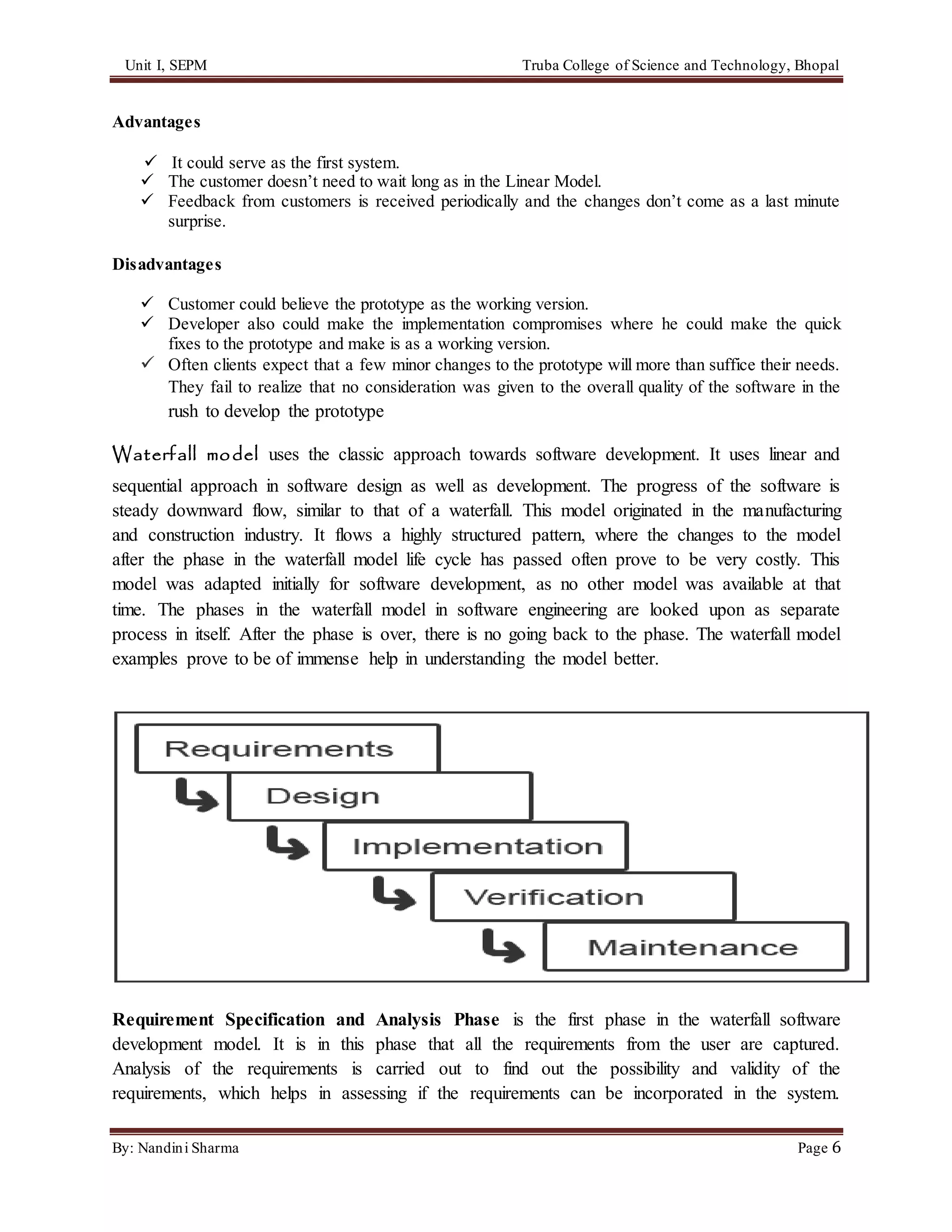

Advantages
 It could serve as the first system.
 The customer doesn’t need to wait long as in the Linear Model.
 Feedback from customers is received periodically and the changes don’t come as a last minute
surprise.
Disadvantages
 Customer could believe the prototype as the working version.
 Developer also could make the implementation compromises where he could make the quick
fixes to the prototype and make is as a working version.
 Often clients expect that a few minor changes to the prototype will more than suffice their needs.
They fail to realize that no consideration was given to the overall quality of the software in the
rush to develop the prototype
Waterfall model uses the classic approach towards software development. It uses linear and
sequential approach in software design as well as development. The progress of the software is
steady downward flow, similar to that of a waterfall. This model originated in the manufacturing
and construction industry. It flows a highly structured pattern, where the changes to the model
after the phase in the waterfall model life cycle has passed often prove to be very costly. This
model was adapted initially for software development, as no other model was available at that
time. The phases in the waterfall model in software engineering are looked upon as separate
process in itself. After the phase is over, there is no going back to the phase. The waterfall model
examples prove to be of immense help in understanding the model better.
Requirement Specification and Analysis Phase is the first phase in the waterfall software
development model. It is in this phase that all the requirements from the user are captured.
Analysis of the requirements is carried out to find out the possibility and validity of the
requirements, which helps in assessing if the requirements can be incorporated in the system.

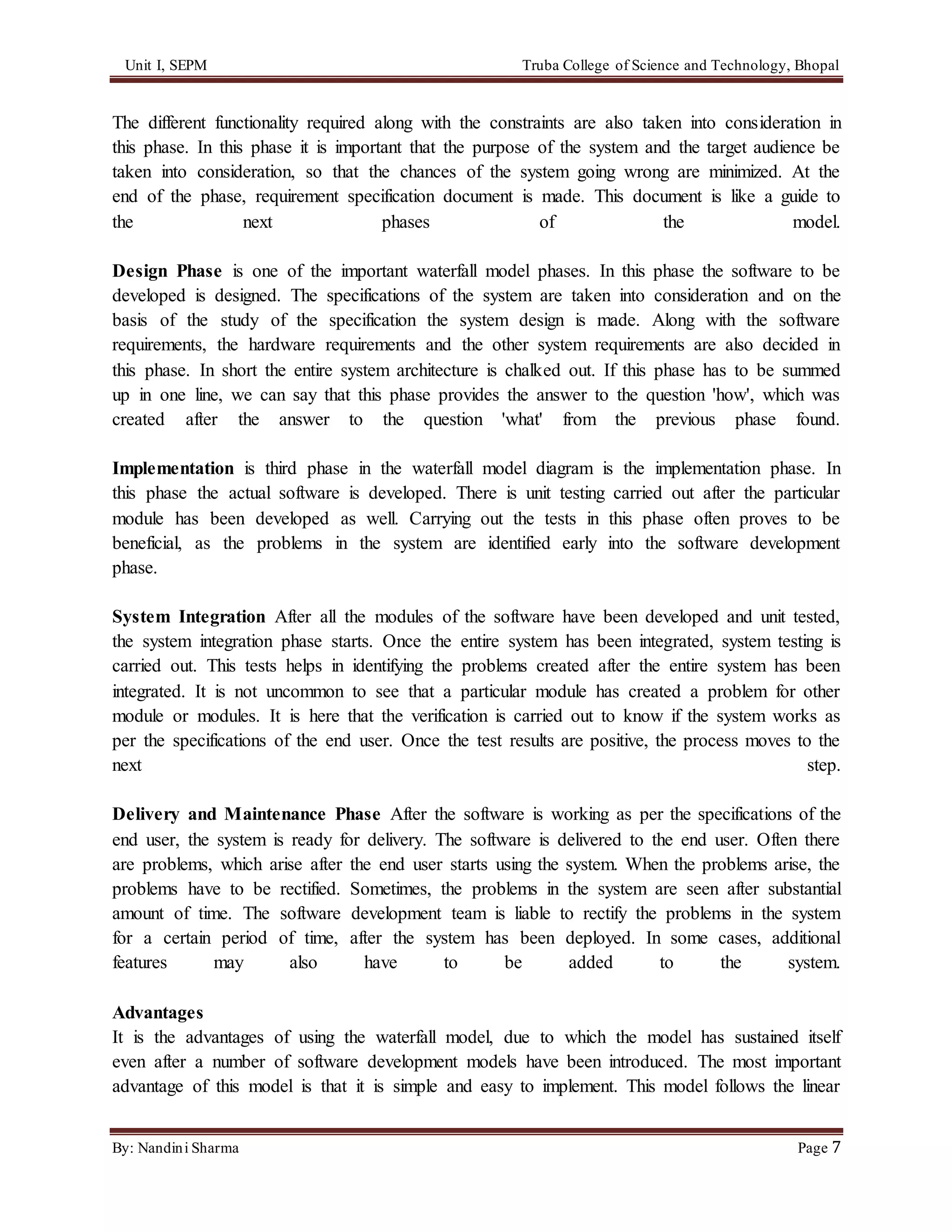

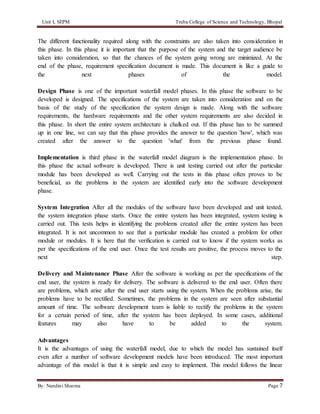

The different functionality required along with the constraints are also taken into consideration in
this phase. In this phase it is important that the purpose of the system and the target audience be
taken into consideration, so that the chances of the system going wrong are minimized. At the
end of the phase, requirement specification document is made. This document is like a guide to
the next phases of the model.
Design Phase is one of the important waterfall model phases. In this phase the software to be
developed is designed. The specifications of the system are taken into consideration and on the
basis of the study of the specification the system design is made. Along with the software
requirements, the hardware requirements and the other system requirements are also decided in
this phase. In short the entire system architecture is chalked out. If this phase has to be summed
up in one line, we can say that this phase provides the answer to the question 'how', which was
created after the answer to the question 'what' from the previous phase found.
Implementation is third phase in the waterfall model diagram is the implementation phase. In
this phase the actual software is developed. There is unit testing carried out after the particular
module has been developed as well. Carrying out the tests in this phase often proves to be
beneficial, as the problems in the system are identified early into the software development
phase.
System Integration After all the modules of the software have been developed and unit tested,
the system integration phase starts. Once the entire system has been integrated, system testing is
carried out. This tests helps in identifying the problems created after the entire system has been
integrated. It is not uncommon to see that a particular module has created a problem for other
module or modules. It is here that the verification is carried out to know if the system works as
per the specifications of the end user. Once the test results are positive, the process moves to the
next step.
Delivery and Maintenance Phase After the software is working as per the specifications of the
end user, the system is ready for delivery. The software is delivered to the end user. Often there
are problems, which arise after the end user starts using the system. When the problems arise, the
problems have to be rectified. Sometimes, the problems in the system are seen after substantial
amount of time. The software development team is liable to rectify the problems in the system
for a certain period of time, after the system has been deployed. In some cases, additional
features may also have to be added to the system.
Advantages
It is the advantages of using the waterfall model, due to which the model has sustained itself
even after a number of software development models have been introduced. The most important
advantage of this model is that it is simple and easy to implement. This model follows the linear

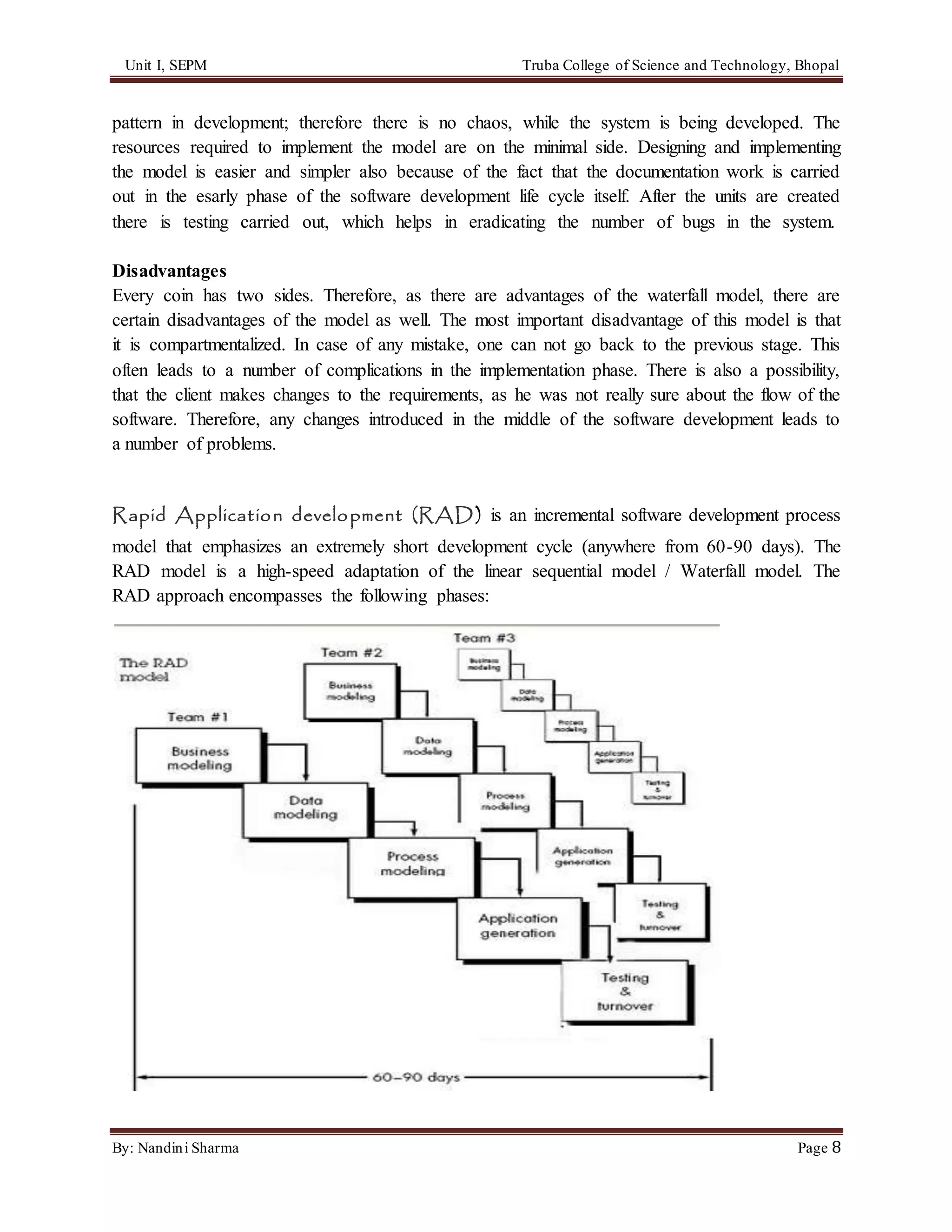

pattern in development; therefore there is no chaos, while the system is being developed. The
resources required to implement the model are on the minimal side. Designing and implementing
the model is easier and simpler also because of the fact that the documentation work is carried
out in the esarly phase of the software development life cycle itself. After the units are created
there is testing carried out, which helps in eradicating the number of bugs in the system.
Disadvantages
Every coin has two sides. Therefore, as there are advantages of the waterfall model, there are
certain disadvantages of the model as well. The most important disadvantage of this model is that
it is compartmentalized. In case of any mistake, one can not go back to the previous stage. This
often leads to a number of complications in the implementation phase. There is also a possibility,
that the client makes changes to the requirements, as he was not really sure about the flow of the
software. Therefore, any changes introduced in the middle of the software development leads to
a number of problems.
Rapid Application development (RAD) is an incremental software development process
model that emphasizes an extremely short development cycle (anywhere from 60-90 days). The
RAD model is a high-speed adaptation of the linear sequential model / Waterfall model. The
RAD approach encompasses the following phases:

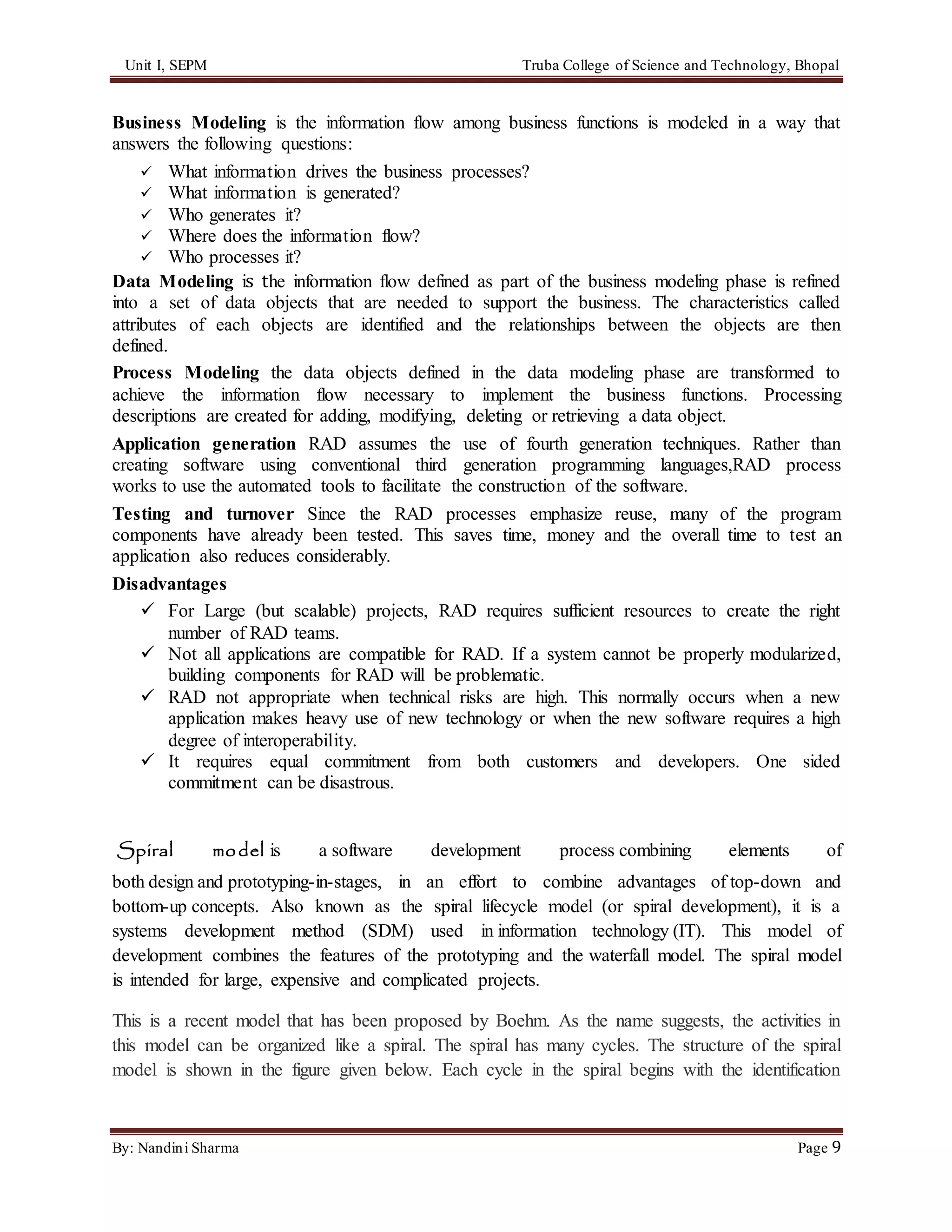

Business Modeling is the information flow among business functions is modeled in a way that
answers the following questions:
 What information drives the business processes?
 What information is generated?
 Who generates it?
 Where does the information flow?
 Who processes it?
Data Modeling is the information flow defined as part of the business modeling phase is refined
into a set of data objects that are needed to support the business. The characteristics called
attributes of each objects are identified and the relationships between the objects are then
defined.
Process Modeling the data objects defined in the data modeling phase are transformed to
achieve the information flow necessary to implement the business functions. Processing
descriptions are created for adding, modifying, deleting or retrieving a data object.
Application generation RAD assumes the use of fourth generation techniques. Rather than
creating software using conventional third generation programming languages,RAD process
works to use the automated tools to facilitate the construction of the software.
Testing and turnover Since the RAD processes emphasize reuse, many of the program
components have already been tested. This saves time, money and the overall time to test an
application also reduces considerably.
Disadvantages
 For Large (but scalable) projects, RAD requires sufficient resources to create the right
number of RAD teams.
 Not all applications are compatible for RAD. If a system cannot be properly modularized,
building components for RAD will be problematic.
 RAD not appropriate when technical risks are high. This normally occurs when a new
application makes heavy use of new technology or when the new software requires a high
degree of interoperability.
 It requires equal commitment from both customers and developers. One sided
commitment can be disastrous.
Spiral model is a software development process combining elements of
both design and prototyping-in-stages, in an effort to combine advantages of top-down and
bottom-up concepts. Also known as the spiral lifecycle model (or spiral development), it is a
systems development method (SDM) used in information technology (IT). This model of
development combines the features of the prototyping and the waterfall model. The spiral model
is intended for large, expensive and complicated projects.

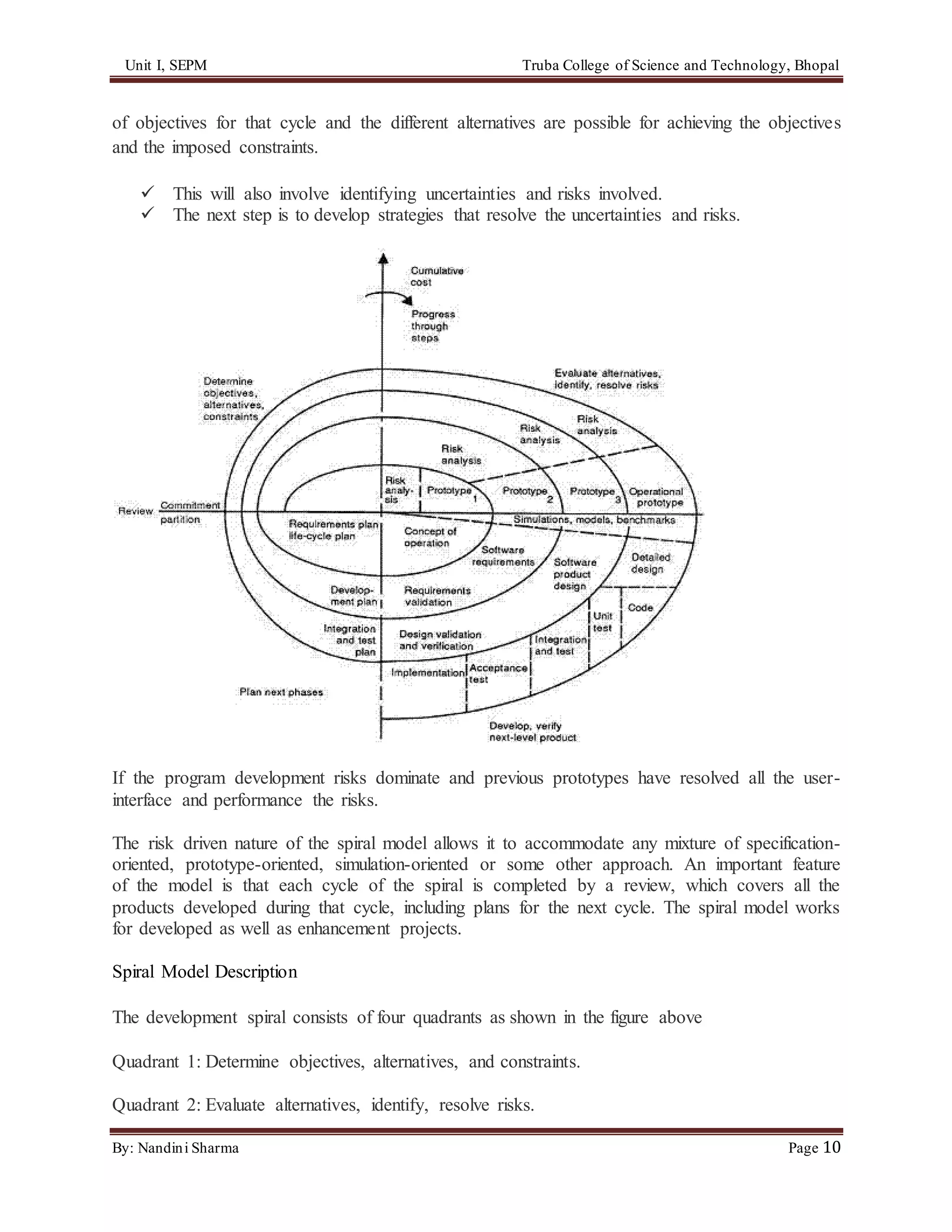

This is a recent model that has been proposed by Boehm. As the name suggests, the activities in
this model can be organized like a spiral. The spiral has many cycles. The structure of the spiral
model is shown in the figure given below. Each cycle in the spiral begins with the identification

of objectives for that cycle and the different alternatives are possible for achieving the objectives
and the imposed constraints.
 This will also involve identifying uncertainties and risks involved.
 The next step is to develop strategies that resolve the uncertainties and risks.
If the program development risks dominate and previous prototypes have resolved all the user-
interface and performance the risks.
The risk driven nature of the spiral model allows it to accommodate any mixture of specification-
oriented, prototype-oriented, simulation-oriented or some other approach. An important feature
of the model is that each cycle of the spiral is completed by a review, which covers all the
products developed during that cycle, including plans for the next cycle. The spiral model works
for developed as well as enhancement projects.
Spiral Model Description
The development spiral consists of four quadrants as shown in the figure above
Quadrant 1: Determine objectives, alternatives, and constraints.
Quadrant 2: Evaluate alternatives, identify, resolve risks.

Quadrant 3: Develop, verify, next-level product.
Quadrant 4: Plan next phases.
Although the spiral, as depicted, is oriented toward software development, the concept is equally
applicable to systems, hardware, and training, for example. To better understand the scope of
each spiral development quadrant, let’s briefly address each one.

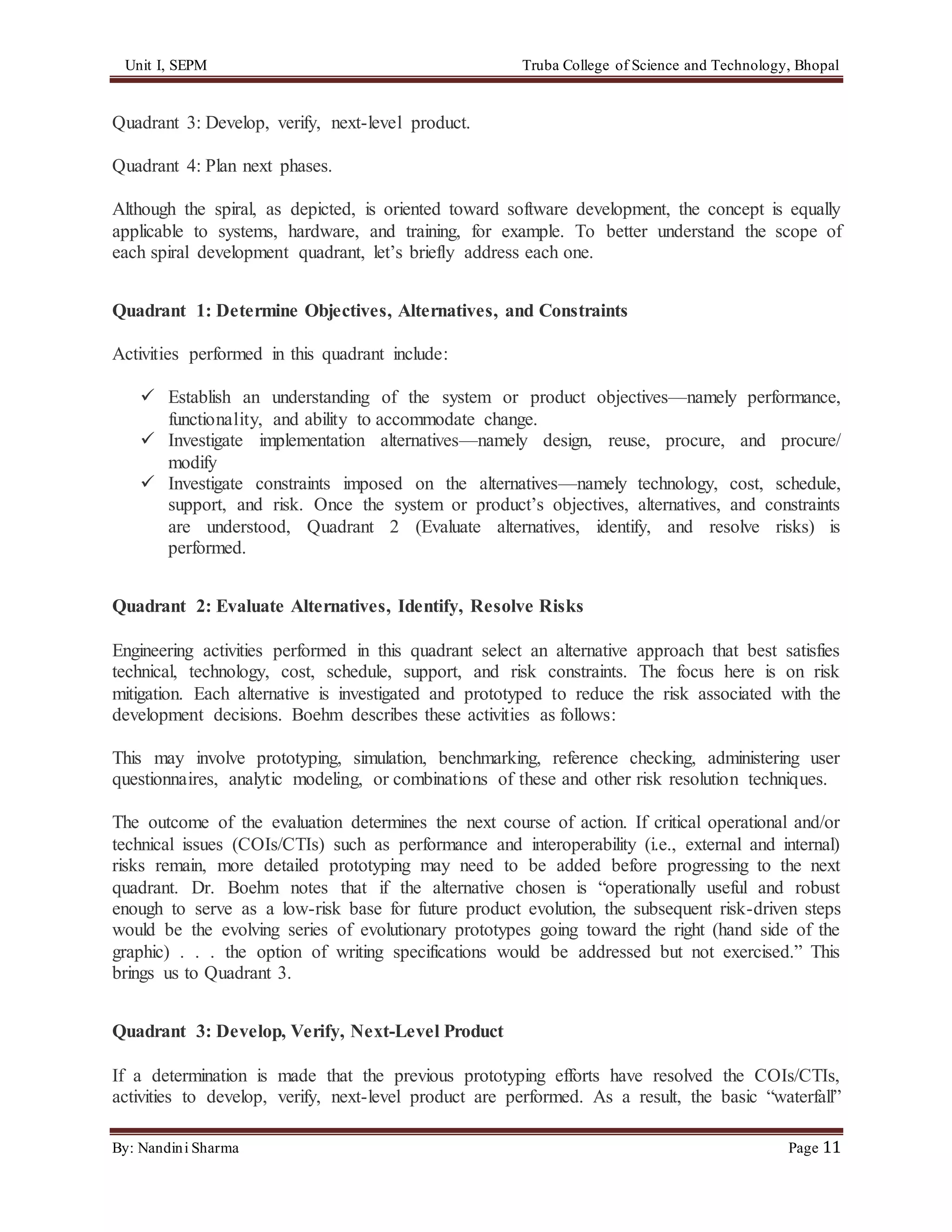

Quadrant 1: Determine Objectives, Alternatives, and Constraints
Activities performed in this quadrant include:
 Establish an understanding of the system or product objectives—namely performance,
functionality, and ability to accommodate change.
 Investigate implementation alternatives—namely design, reuse, procure, and procure/
modify
 Investigate constraints imposed on the alternatives—namely technology, cost, schedule,
support, and risk. Once the system or product’s objectives, alternatives, and constraints
are understood, Quadrant 2 (Evaluate alternatives, identify, and resolve risks) is
performed.
Quadrant 2: Evaluate Alternatives, Identify, Resolve Risks
Engineering activities performed in this quadrant select an alternative approach that best satisfies
technical, technology, cost, schedule, support, and risk constraints. The focus here is on risk
mitigation. Each alternative is investigated and prototyped to reduce the risk associated with the
development decisions. Boehm describes these activities as follows:
This may involve prototyping, simulation, benchmarking, reference checking, administering user
questionnaires, analytic modeling, or combinations of these and other risk resolution techniques.
The outcome of the evaluation determines the next course of action. If critical operational and/or
technical issues (COIs/CTIs) such as performance and interoperability (i.e., external and internal)
risks remain, more detailed prototyping may need to be added before progressing to the next
quadrant. Dr. Boehm notes that if the alternative chosen is “operationally useful and robust
enough to serve as a low-risk base for future product evolution, the subsequent risk-driven steps
would be the evolving series of evolutionary prototypes going toward the right (hand side of the
graphic) . . . the option of writing specifications would be addressed but not exercised.” This
brings us to Quadrant 3.
Quadrant 3: Develop, Verify, Next-Level Product
If a determination is made that the previous prototyping efforts have resolved the COIs/CTIs,
activities to develop, verify, next-level product are performed. As a result, the basic “waterfall”

approach may be employed—meaning concept of operations, design, development, integration,
and test of the next system or product iteration. If appropriate, incremental development
approaches may also be applicable.

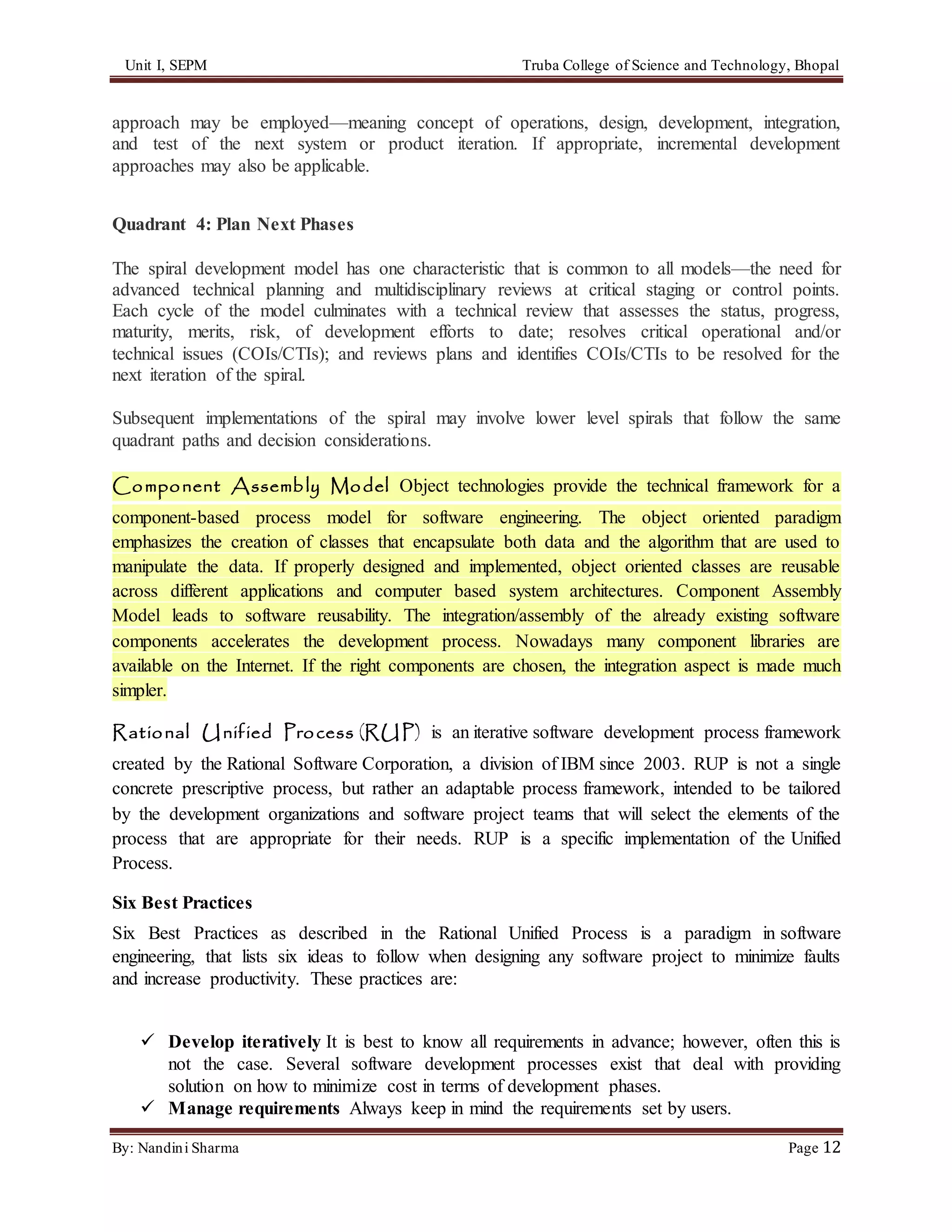

Quadrant 4: Plan Next Phases
The spiral development model has one characteristic that is common to all models—the need for
advanced technical planning and multidisciplinary reviews at critical staging or control points.
Each cycle of the model culminates with a technical review that assesses the status, progress,
maturity, merits, risk, of development efforts to date; resolves critical operational and/or
technical issues (COIs/CTIs); and reviews plans and identifies COIs/CTIs to be resolved for the
next iteration of the spiral.
Subsequent implementations of the spiral may involve lower level spirals that follow the same
quadrant paths and decision considerations.
Component Assembly Model Object technologies provide the technical framework for a
component-based process model for software engineering. The object oriented paradigm
emphasizes the creation of classes that encapsulate both data and the algorithm that are used to
manipulate the data. If properly designed and implemented, object oriented classes are reusable
across different applications and computer based system architectures. Component Assembly
Model leads to software reusability. The integration/assembly of the already existing software
components accelerates the development process. Nowadays many component libraries are
available on the Internet. If the right components are chosen, the integration aspect is made much
simpler.
Rational Unified Process (RUP) is an iterative software development process framework
created by the Rational Software Corporation, a division of IBM since 2003. RUP is not a single
concrete prescriptive process, but rather an adaptable process framework, intended to be tailored
by the development organizations and software project teams that will select the elements of the
process that are appropriate for their needs. RUP is a specific implementation of the Unified
Process.
Six Best Practices
Six Best Practices as described in the Rational Unified Process is a paradigm in software
engineering, that lists six ideas to follow when designing any software project to minimize faults
and increase productivity. These practices are:
 Develop iteratively It is best to know all requirements in advance; however, often this is
not the case. Several software development processes exist that deal with providing
solution on how to minimize cost in terms of development phases.
 Manage requirements Always keep in mind the requirements set by users.

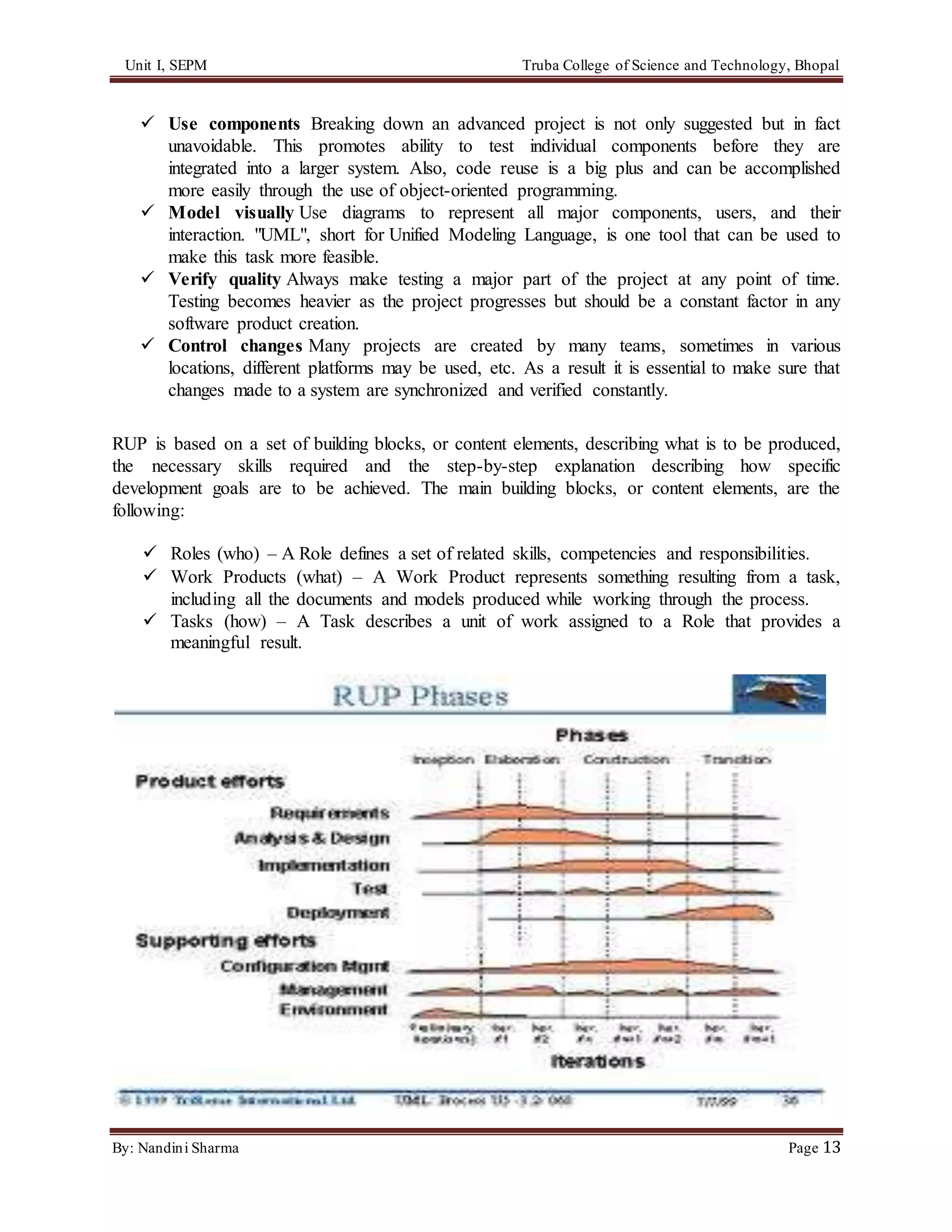

 Use components Breaking down an advanced project is not only suggested but in fact
unavoidable. This promotes ability to test individual components before they are
integrated into a larger system. Also, code reuse is a big plus and can be accomplished
more easily through the use of object-oriented programming.
 Model visually Use diagrams to represent all major components, users, and their
interaction. "UML", short for Unified Modeling Language, is one tool that can be used to
make this task more feasible.
 Verify quality Always make testing a major part of the project at any point of time.
Testing becomes heavier as the project progresses but should be a constant factor in any
software product creation.
 Control changes Many projects are created by many teams, sometimes in various
locations, different platforms may be used, etc. As a result it is essential to make sure that
changes made to a system are synchronized and verified constantly.
RUP is based on a set of building blocks, or content elements, describing what is to be produced,
the necessary skills required and the step-by-step explanation describing how specific
development goals are to be achieved. The main building blocks, or content elements, are the
following:
 Roles (who) – A Role defines a set of related skills, competencies and responsibilities.
 Work Products (what) – A Work Product represents something resulting from a task,
including all the documents and models produced while working through the process.
 Tasks (how) – A Task describes a unit of work assigned to a Role that provides a
meaningful result.

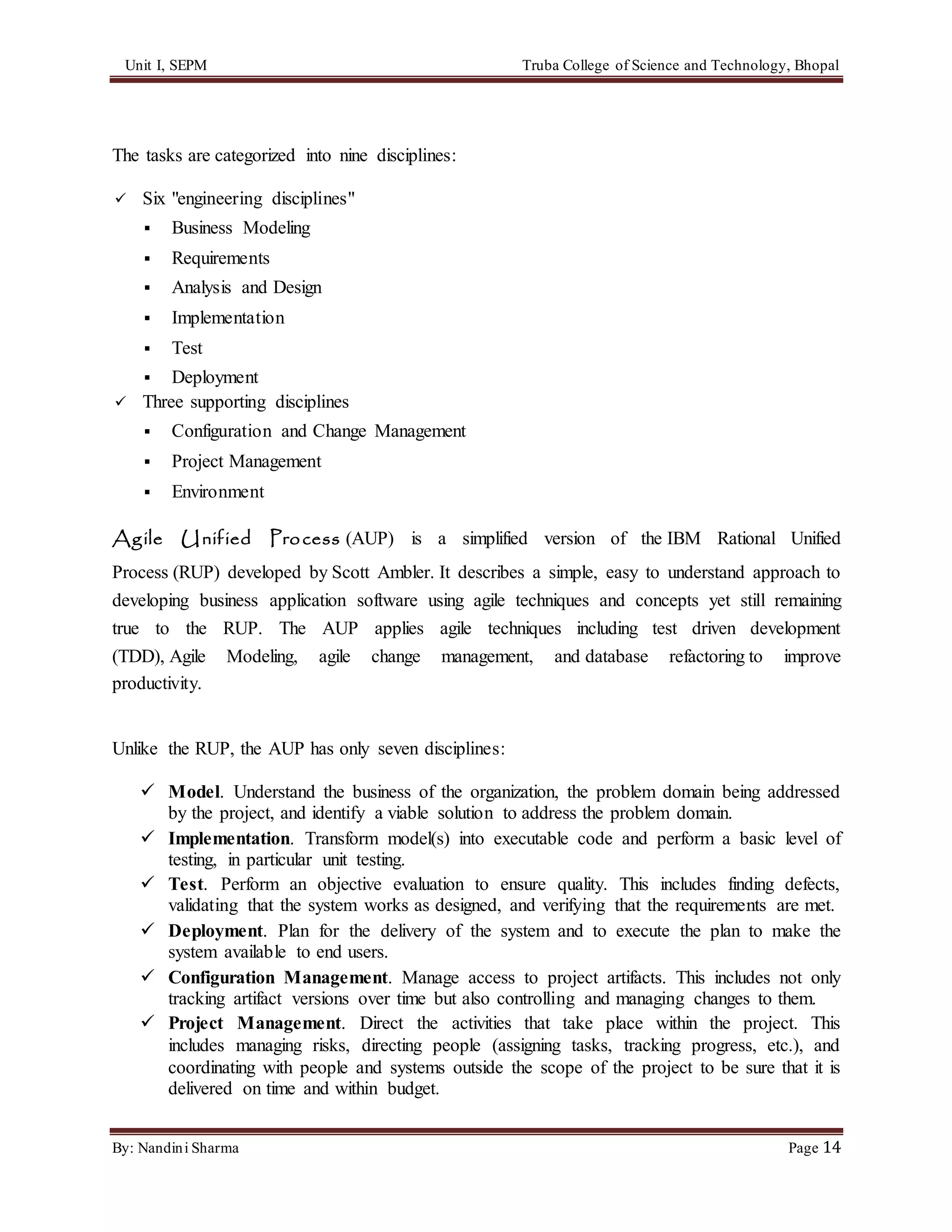

The tasks are categorized into nine disciplines:
 Six "engineering disciplines"
 Business Modeling
 Requirements
 Analysis and Design
 Implementation
 Test
 Deployment
 Three supporting disciplines
 Configuration and Change Management
 Project Management
 Environment
Agile Unified Process (AUP) is a simplified version of the IBM Rational Unified
Process (RUP) developed by Scott Ambler. It describes a simple, easy to understand approach to
developing business application software using agile techniques and concepts yet still remaining
true to the RUP. The AUP applies agile techniques including test driven development
(TDD), Agile Modeling, agile change management, and database refactoring to improve
productivity.
Unlike the RUP, the AUP has only seven disciplines:
 Model. Understand the business of the organization, the problem domain being addressed
by the project, and identify a viable solution to address the problem domain.
 Implementation. Transform model(s) into executable code and perform a basic level of
testing, in particular unit testing.
 Test. Perform an objective evaluation to ensure quality. This includes finding defects,
validating that the system works as designed, and verifying that the requirements are met.
 Deployment. Plan for the delivery of the system and to execute the plan to make the
system available to end users.
 Configuration Management. Manage access to project artifacts. This includes not only
tracking artifact versions over time but also controlling and managing changes to them.
 Project Management. Direct the activities that take place within the project. This
includes managing risks, directing people (assigning tasks, tracking progress, etc.), and
coordinating with people and systems outside the scope of the project to be sure that it is
delivered on time and within budget.

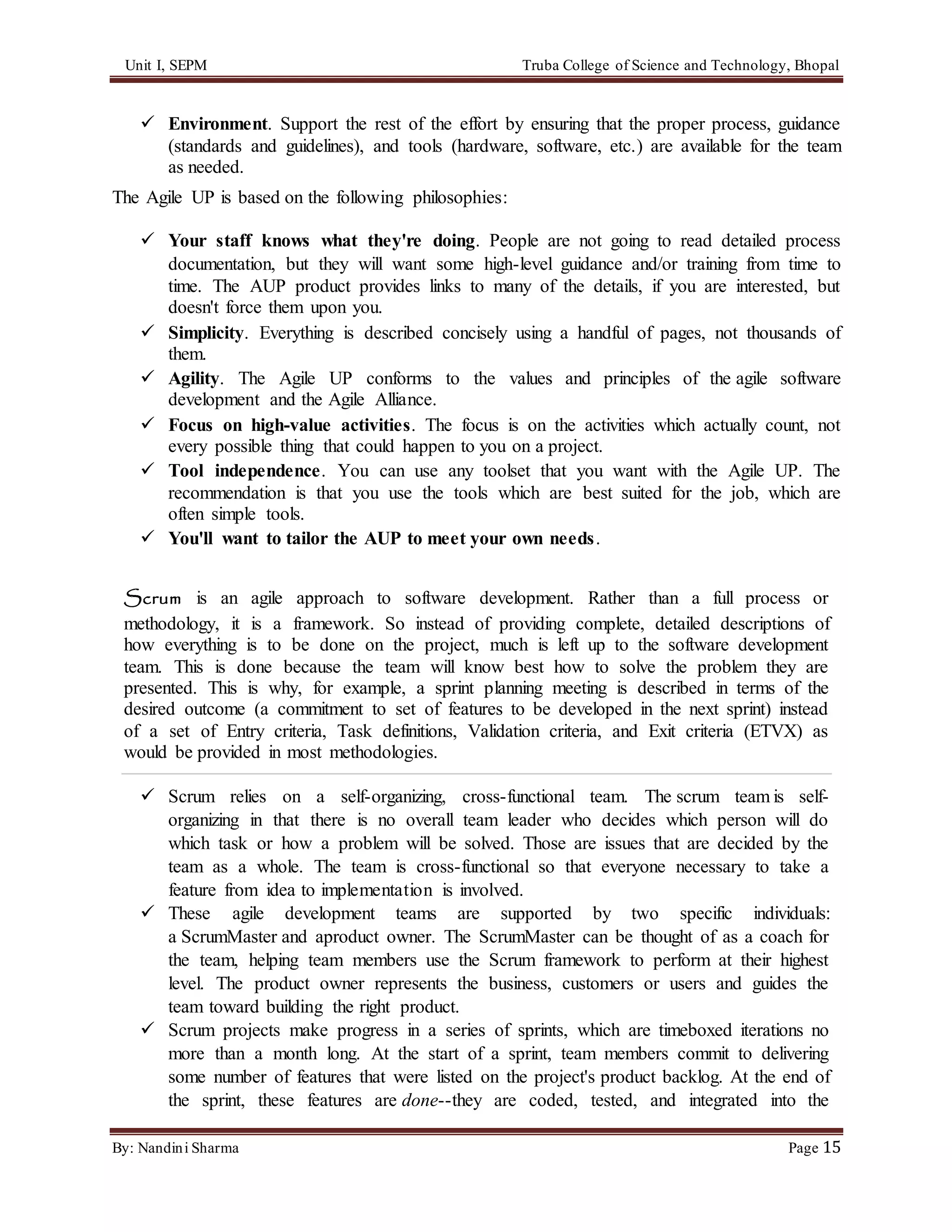

 Environment. Support the rest of the effort by ensuring that the proper process, guidance
(standards and guidelines), and tools (hardware, software, etc.) are available for the team
as needed.
The Agile UP is based on the following philosophies:
 Your staff knows what they're doing. People are not going to read detailed process
documentation, but they will want some high-level guidance and/or training from time to
time. The AUP product provides links to many of the details, if you are interested, but
doesn't force them upon you.
 Simplicity. Everything is described concisely using a handful of pages, not thousands of
them.
 Agility. The Agile UP conforms to the values and principles of the agile software
development and the Agile Alliance.
 Focus on high-value activities. The focus is on the activities which actually count, not
every possible thing that could happen to you on a project.
 Tool independence. You can use any toolset that you want with the Agile UP. The
recommendation is that you use the tools which are best suited for the job, which are
often simple tools.
 You'll want to tailor the AUP to meet your own needs.
Scrum is an agile approach to software development. Rather than a full process or
methodology, it is a framework. So instead of providing complete, detailed descriptions of
how everything is to be done on the project, much is left up to the software development
team. This is done because the team will know best how to solve the problem they are
presented. This is why, for example, a sprint planning meeting is described in terms of the
desired outcome (a commitment to set of features to be developed in the next sprint) instead
of a set of Entry criteria, Task definitions, Validation criteria, and Exit criteria (ETVX) as
would be provided in most methodologies.
 Scrum relies on a self-organizing, cross-functional team. The scrum team is self-
organizing in that there is no overall team leader who decides which person will do
which task or how a problem will be solved. Those are issues that are decided by the
team as a whole. The team is cross-functional so that everyone necessary to take a
feature from idea to implementation is involved.
 These agile development teams are supported by two specific individuals:
a ScrumMaster and aproduct owner. The ScrumMaster can be thought of as a coach for
the team, helping team members use the Scrum framework to perform at their highest
level. The product owner represents the business, customers or users and guides the
team toward building the right product.
 Scrum projects make progress in a series of sprints, which are timeboxed iterations no
more than a month long. At the start of a sprint, team members commit to delivering
some number of features that were listed on the project's product backlog. At the end of
the sprint, these features are done--they are coded, tested, and integrated into the

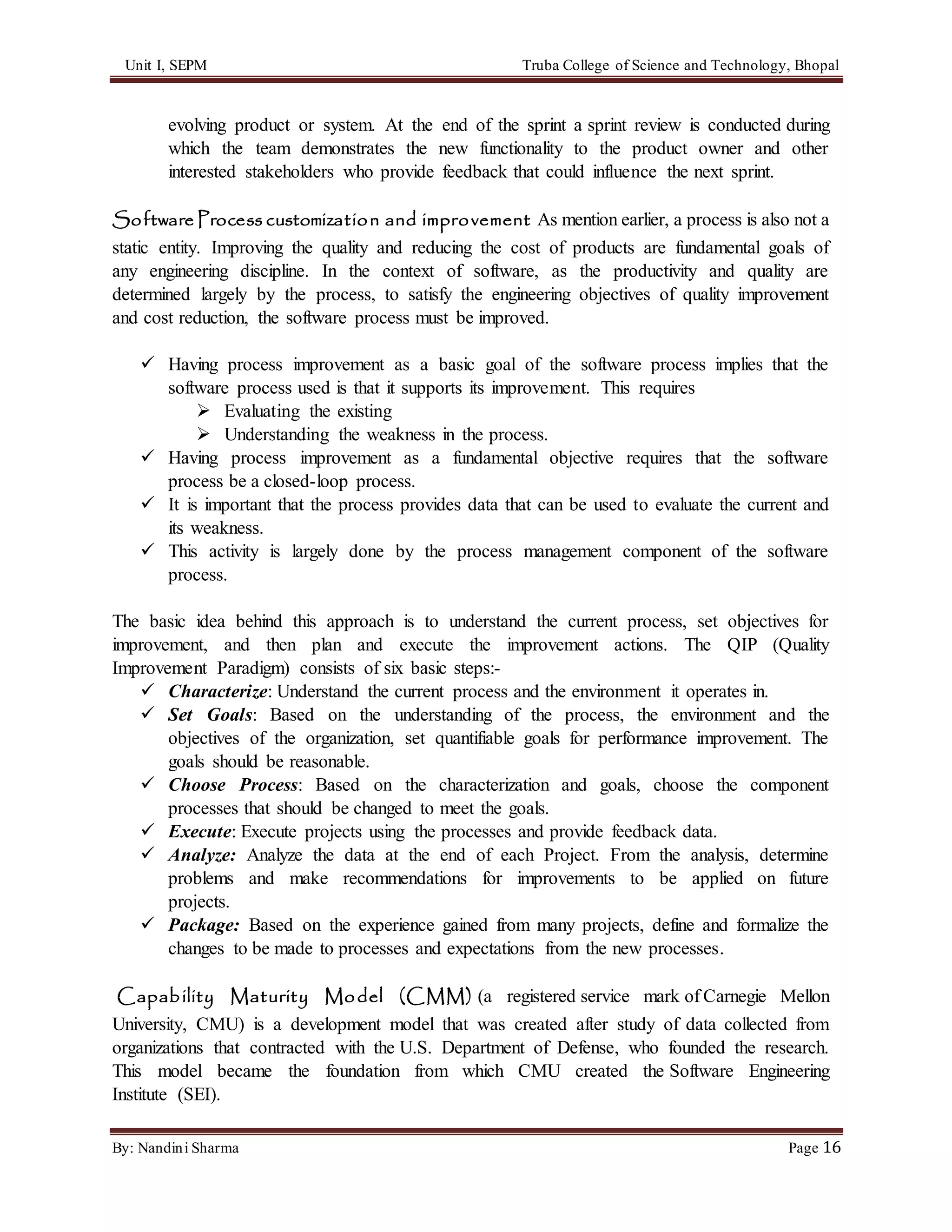

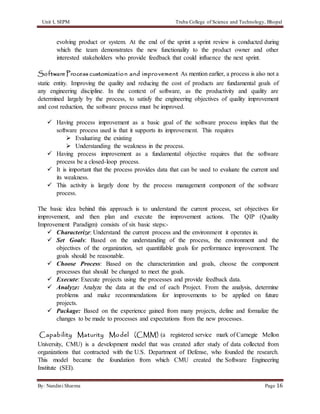

evolving product or system. At the end of the sprint a sprint review is conducted during
which the team demonstrates the new functionality to the product owner and other
interested stakeholders who provide feedback that could influence the next sprint.
Software Process customization and improvement As mention earlier, a process is also not a
static entity. Improving the quality and reducing the cost of products are fundamental goals of
any engineering discipline. In the context of software, as the productivity and quality are
determined largely by the process, to satisfy the engineering objectives of quality improvement
and cost reduction, the software process must be improved.
 Having process improvement as a basic goal of the software process implies that the
software process used is that it supports its improvement. This requires
 Evaluating the existing
 Understanding the weakness in the process.
 Having process improvement as a fundamental objective requires that the software
process be a closed-loop process.
 It is important that the process provides data that can be used to evaluate the current and
its weakness.
 This activity is largely done by the process management component of the software
process.
The basic idea behind this approach is to understand the current process, set objectives for
improvement, and then plan and execute the improvement actions. The QIP (Quality
Improvement Paradigm) consists of six basic steps:-
 Characterize: Understand the current process and the environment it operates in.
 Set Goals: Based on the understanding of the process, the environment and the
objectives of the organization, set quantifiable goals for performance improvement. The
goals should be reasonable.
 Choose Process: Based on the characterization and goals, choose the component
processes that should be changed to meet the goals.
 Execute: Execute projects using the processes and provide feedback data.
 Analyze: Analyze the data at the end of each Project. From the analysis, determine
problems and make recommendations for improvements to be applied on future
projects.
 Package: Based on the experience gained from many projects, define and formalize the
changes to be made to processes and expectations from the new processes.
Capability Maturity Model (CMM) (a registered service mark of Carnegie Mellon
University, CMU) is a development model that was created after study of data collected from
organizations that contracted with the U.S. Department of Defense, who founded the research.
This model became the foundation from which CMU created the Software Engineering
Institute (SEI).

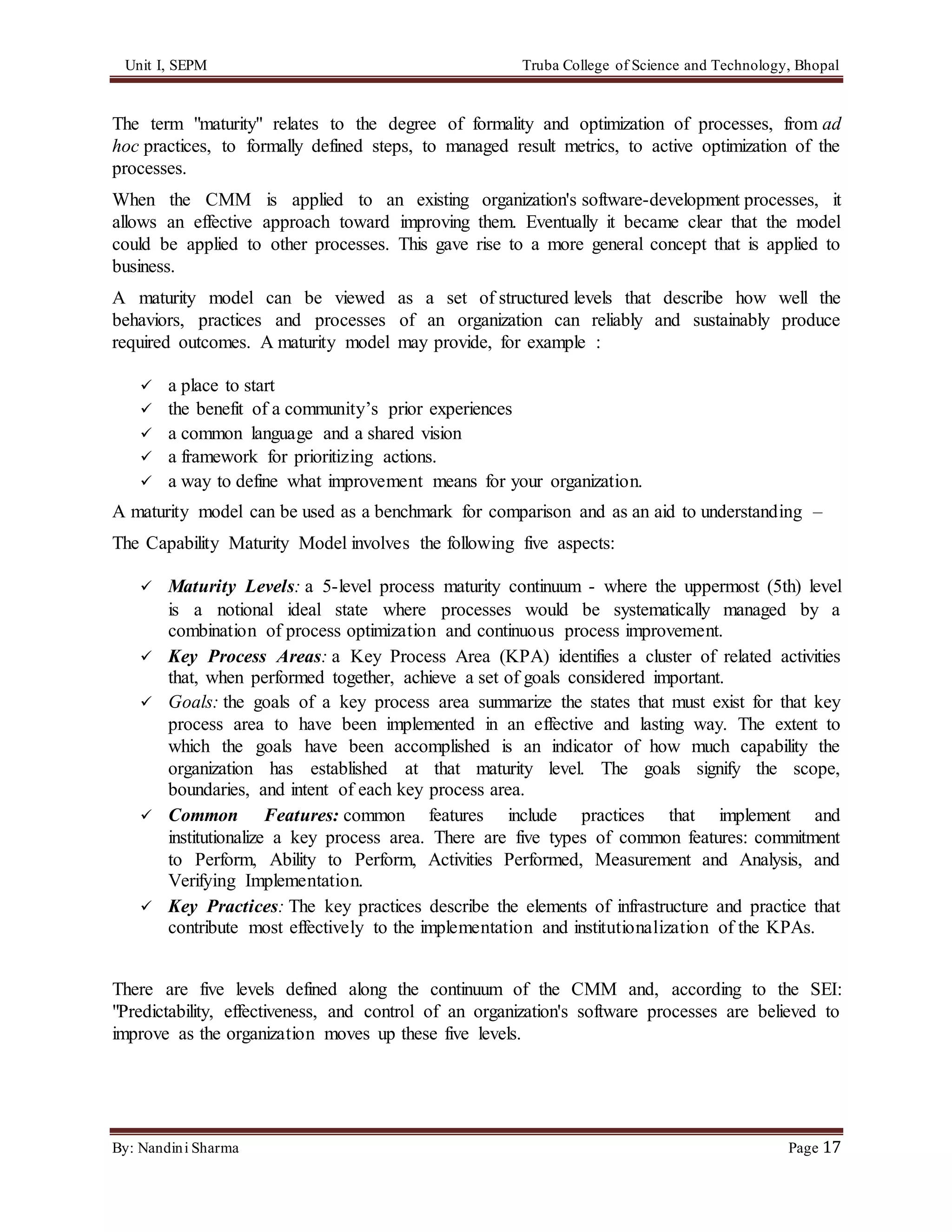

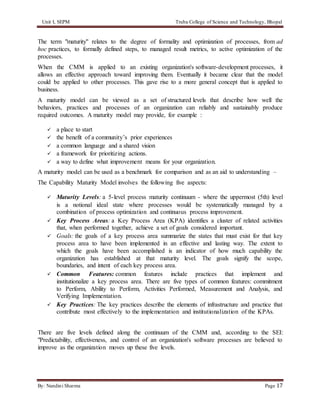

The term "maturity" relates to the degree of formality and optimization of processes, from ad
hoc practices, to formally defined steps, to managed result metrics, to active optimization of the
processes.
When the CMM is applied to an existing organization's software-development processes, it
allows an effective approach toward improving them. Eventually it became clear that the model
could be applied to other processes. This gave rise to a more general concept that is applied to
business.
A maturity model can be viewed as a set of structured levels that describe how well the
behaviors, practices and processes of an organization can reliably and sustainably produce
required outcomes. A maturity model may provide, for example :
 a place to start
 the benefit of a community’s prior experiences
 a common language and a shared vision
 a framework for prioritizing actions.
 a way to define what improvement means for your organization.
A maturity model can be used as a benchmark for comparison and as an aid to understanding –
The Capability Maturity Model involves the following five aspects:
 Maturity Levels: a 5-level process maturity continuum - where the uppermost (5th) level
is a notional ideal state where processes would be systematically managed by a
combination of process optimization and continuous process improvement.
 Key Process Areas: a Key Process Area (KPA) identifies a cluster of related activities
that, when performed together, achieve a set of goals considered important.
 Goals: the goals of a key process area summarize the states that must exist for that key
process area to have been implemented in an effective and lasting way. The extent to
which the goals have been accomplished is an indicator of how much capability the
organization has established at that maturity level. The goals signify the scope,
boundaries, and intent of each key process area.
 Common Features: common features include practices that implement and
institutionalize a key process area. There are five types of common features: commitment
to Perform, Ability to Perform, Activities Performed, Measurement and Analysis, and
Verifying Implementation.
 Key Practices: The key practices describe the elements of infrastructure and practice that
contribute most effectively to the implementation and institutionalization of the KPAs.
There are five levels defined along the continuum of the CMM and, according to the SEI:
"Predictability, effectiveness, and control of an organization's software processes are believed to
improve as the organization moves up these five levels.

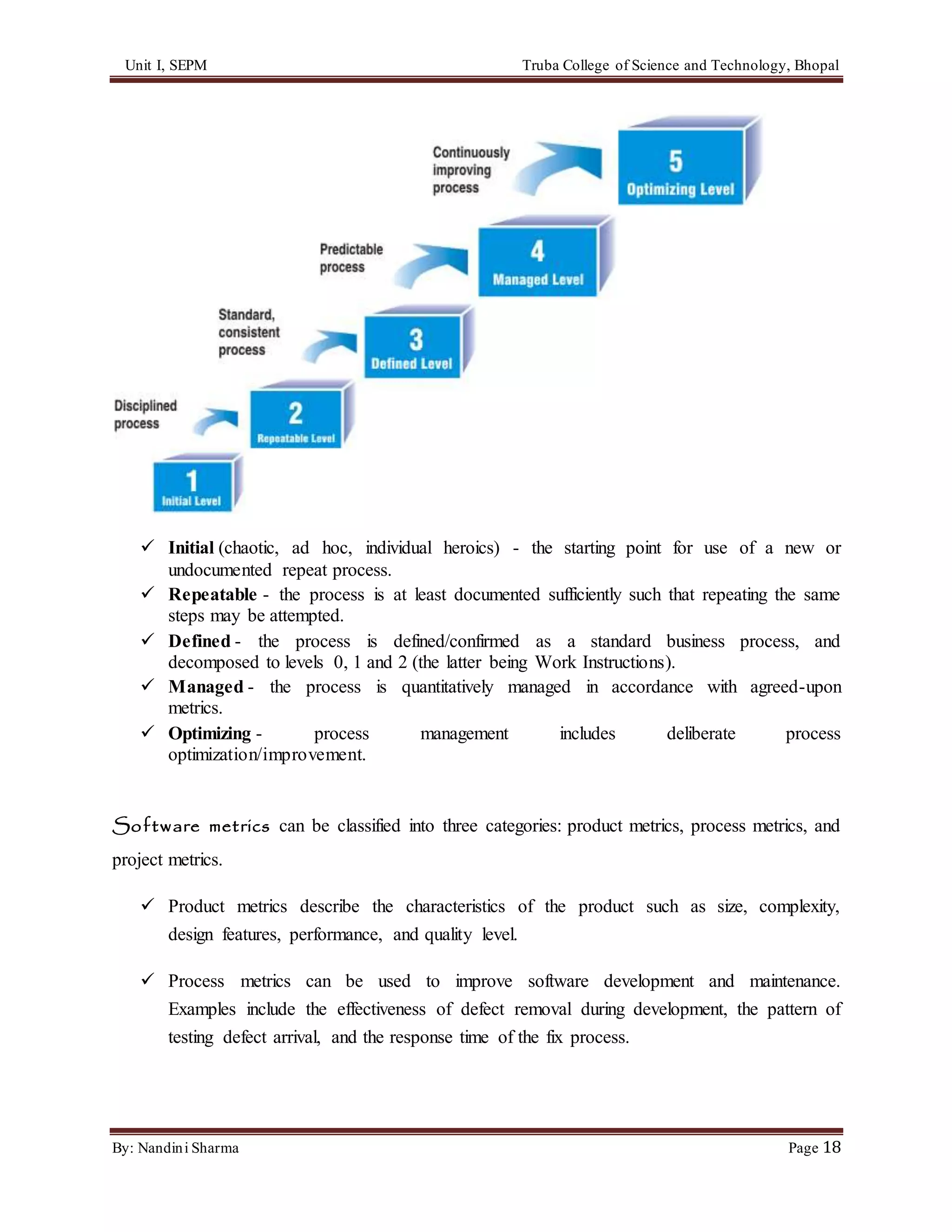

 Initial (chaotic, ad hoc, individual heroics) - the starting point for use of a new or
undocumented repeat process.
 Repeatable - the process is at least documented sufficiently such that repeating the same
steps may be attempted.
 Defined - the process is defined/confirmed as a standard business process, and
decomposed to levels 0, 1 and 2 (the latter being Work Instructions).
 Managed - the process is quantitatively managed in accordance with agreed-upon
metrics.
 Optimizing - process management includes deliberate process
optimization/improvement.
Software metrics can be classified into three categories: product metrics, process metrics, and
project metrics.
 Product metrics describe the characteristics of the product such as size, complexity,
design features, performance, and quality level.
 Process metrics can be used to improve software development and maintenance.
Examples include the effectiveness of defect removal during development, the pattern of
testing defect arrival, and the response time of the fix process.

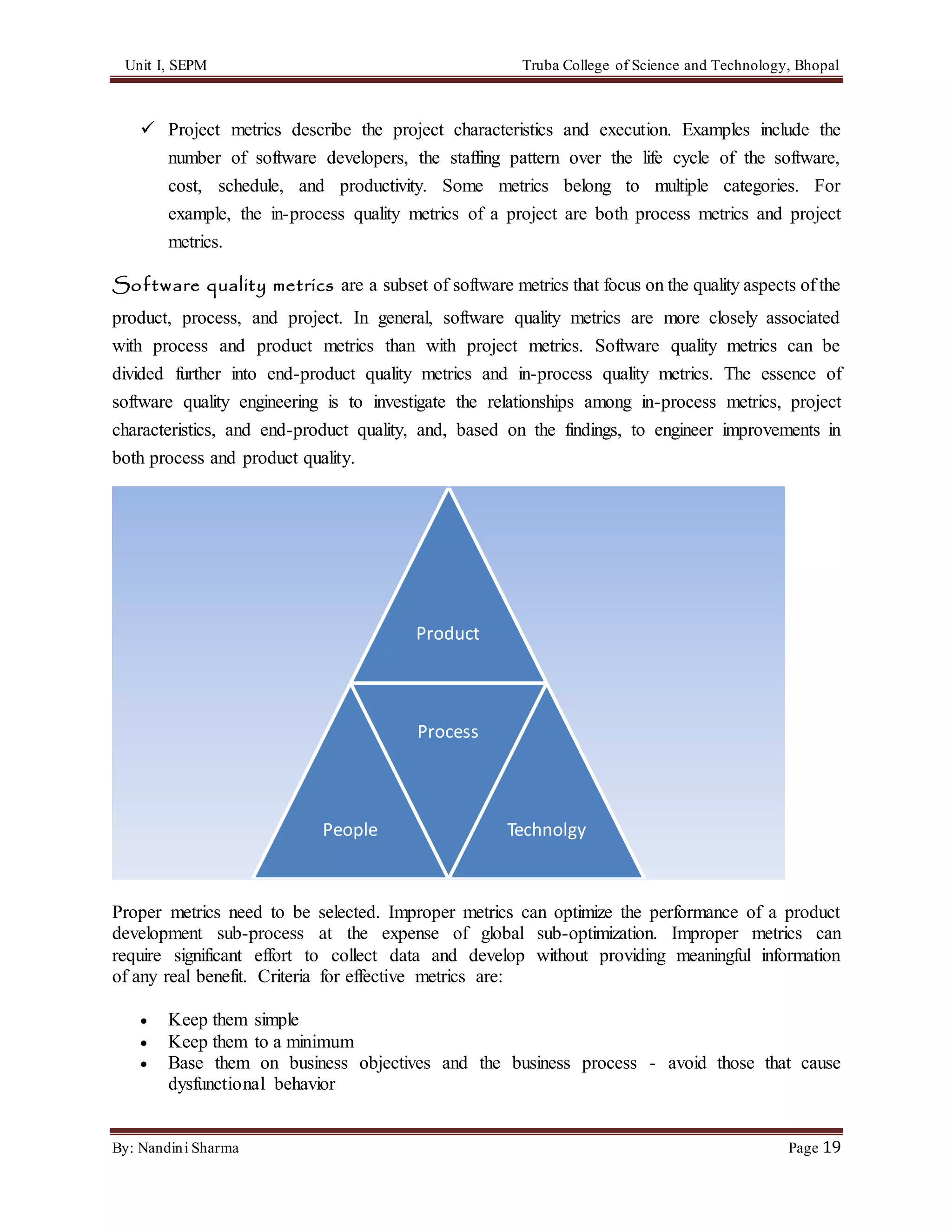

 Project metrics describe the project characteristics and execution. Examples include the
number of software developers, the staffing pattern over the life cycle of the software,
cost, schedule, and productivity. Some metrics belong to multiple categories. For
example, the in-process quality metrics of a project are both process metrics and project
metrics.
Software quality metrics are a subset of software metrics that focus on the quality aspects of the
product, process, and project. In general, software quality metrics are more closely associated
with process and product metrics than with project metrics. Software quality metrics can be
divided further into end-product quality metrics and in-process quality metrics. The essence of
software quality engineering is to investigate the relationships among in-process metrics, project
characteristics, and end-product quality, and, based on the findings, to engineer improvements in
both process and product quality.
Proper metrics need to be selected. Improper metrics can optimize the performance of a product
development sub-process at the expense of global sub-optimization. Improper metrics can
require significant effort to collect data and develop without providing meaningful information
of any real benefit. Criteria for effective metrics are:
 Keep them simple
 Keep them to a minimum
 Base them on business objectives and the business process - avoid those that cause
dysfunctional behavior
Product
People
Process
Technolgy

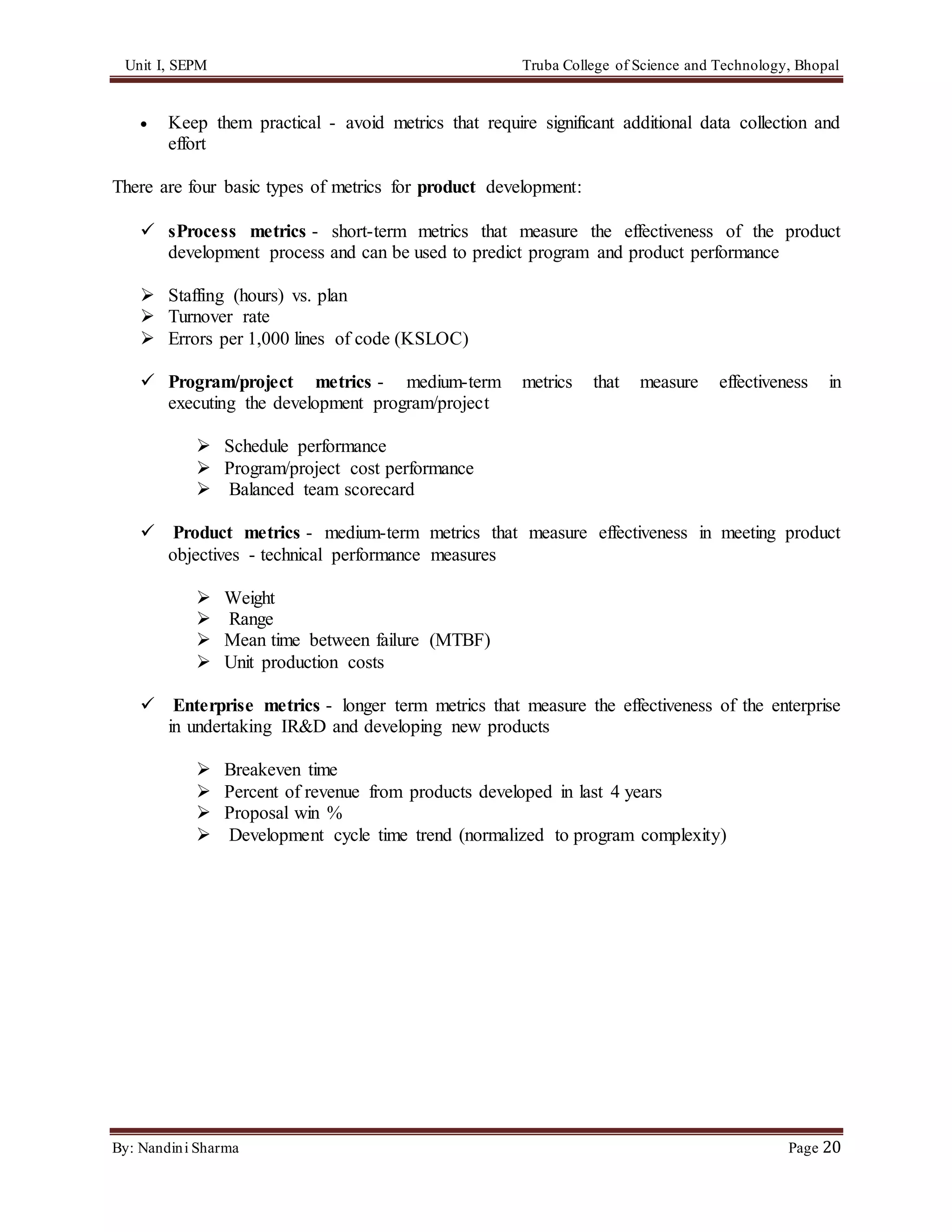

 Keep them practical - avoid metrics that require significant additional data collection and
effort
There are four basic types of metrics for product development:
 sProcess metrics - short-term metrics that measure the effectiveness of the product
development process and can be used to predict program and product performance
 Staffing (hours) vs. plan
 Turnover rate
 Errors per 1,000 lines of code (KSLOC)
 Program/project metrics - medium-term metrics that measure effectiveness in
executing the development program/project
 Schedule performance
 Program/project cost performance
 Balanced team scorecard
 Product metrics - medium-term metrics that measure effectiveness in meeting product
objectives - technical performance measures
 Weight
 Range
 Mean time between failure (MTBF)
 Unit production costs
 Enterprise metrics - longer term metrics that measure the effectiveness of the enterprise
in undertaking IR&D and developing new products
 Breakeven time
 Percent of revenue from products developed in last 4 years
 Proposal win %
 Development cycle time trend (normalized to program complexity)

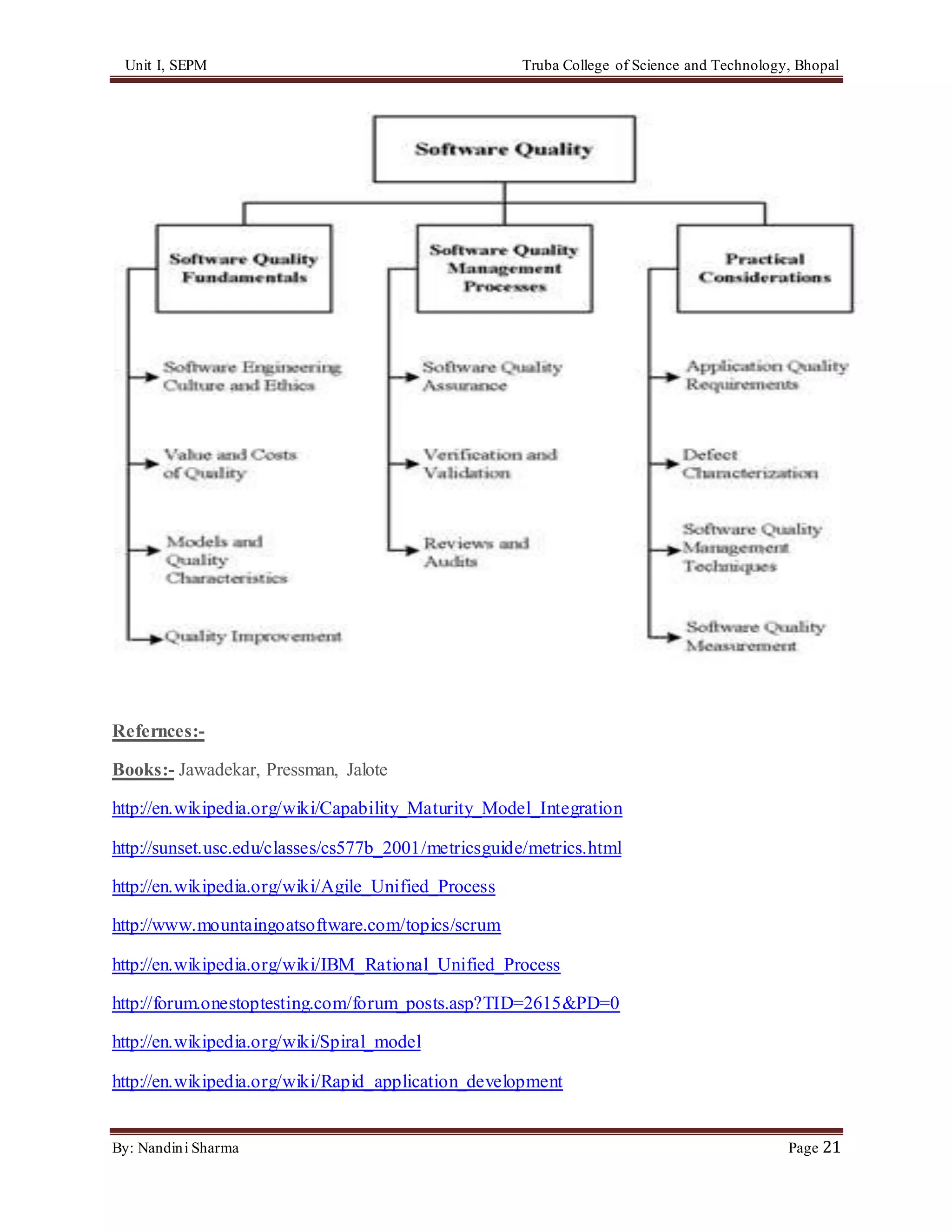

Refernces:-
Books:- Jawadekar, Pressman, Jalote
http://en.wikipedia.org/wiki/Capability_Maturity_Model_Integration
http://sunset.usc.edu/classes/cs577b_2001/metricsguide/metrics.html
http://en.wikipedia.org/wiki/Agile_Unified_Process
http://www.mountaingoatsoftware.com/topics/scrum
http://en.wikipedia.org/wiki/IBM_Rational_Unified_Process
http://forum.onestoptesting.com/forum_posts.asp?TID=2615&PD=0
http://en.wikipedia.org/wiki/Spiral_model
http://en.wikipedia.org/wiki/Rapid_application_development

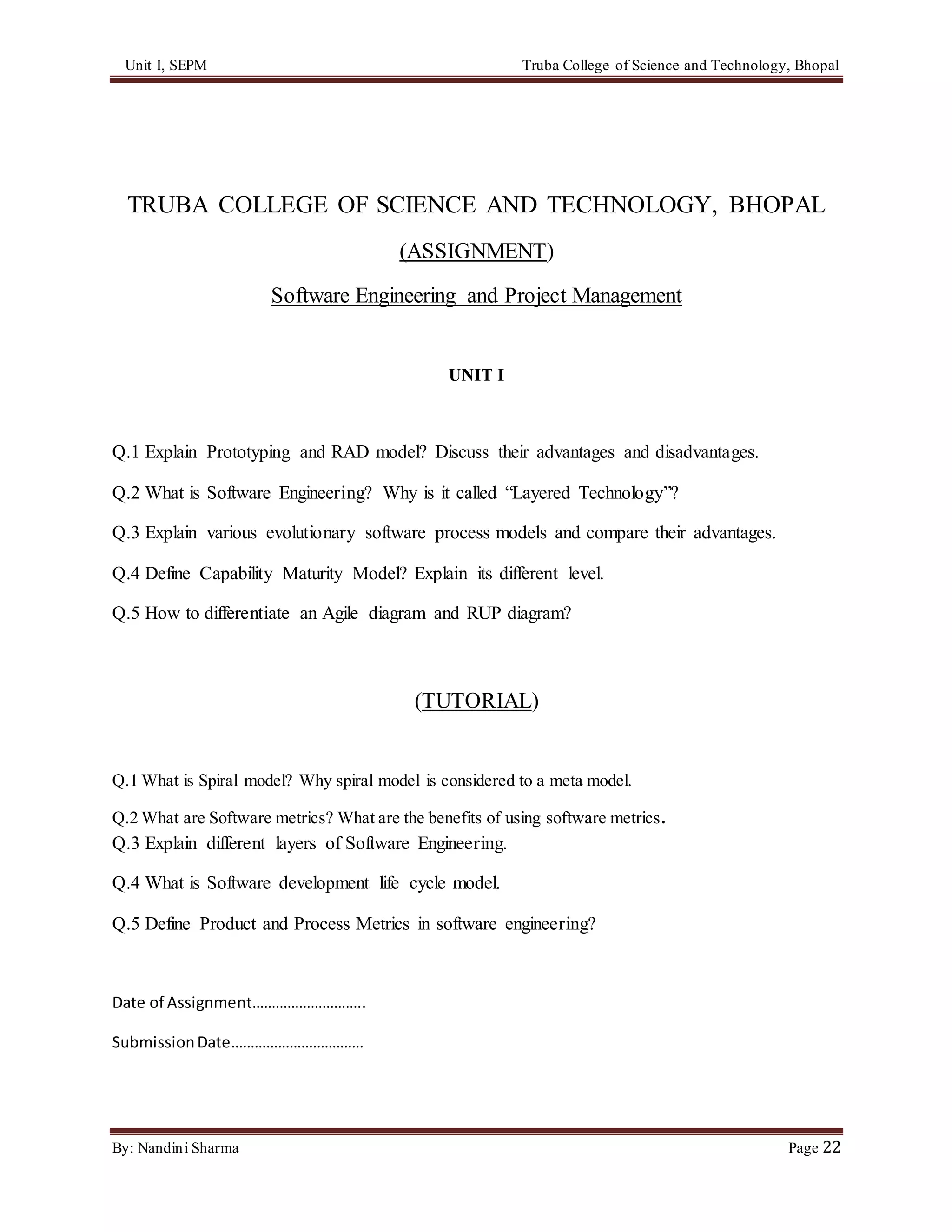

TRUBA COLLEGE OF SCIENCE AND TECHNOLOGY, BHOPAL
(ASSIGNMENT)
Software Engineering and Project Management
UNIT I
Q.1 Explain Prototyping and RAD model? Discuss their advantages and disadvantages.
Q.2 What is Software Engineering? Why is it called “Layered Technology”?
Q.3 Explain various evolutionary software process models and compare their advantages.
Q.4 Define Capability Maturity Model? Explain its different level.
Q.5 How to differentiate an Agile diagram and RUP diagram?
(TUTORIAL)
Q.1 What is Spiral model? Why spiral model is considered to a meta model.
Q.2 What are Software metrics? What are the benefits of using software metrics.
Q.3 Explain different layers of Software Engineering.
Q.4 What is Software development life cycle model.
Q.5 Define Product and Process Metrics in software engineering?
Date of Assignment………………………..
SubmissionDate…………………………….

Notes of Software engineering and Project Management

More Related Content

What's hot

Viewers also liked

Similar to Notes of Software engineering and Project Management

More from NANDINI SHARMA

Recently uploaded

Notes of Software engineering and Project Management
