1. Friday, January 25, 2013
SOLID GEOMETRY
AIRIL BIN AHMAD

2. Friday, January 25, 2013
Volume of a right prism
Formula for Prism
Volume = base area x height
AIRIL BIN AHMAD

3. Friday, January 25, 2013
Volume of a right prism
Given base area= 35cm2
8cm
Formula for Prism
Volume = base area x height
= 35 cm2 x 8 cm
= 280 cm3
AIRIL BIN AHMAD

4. Friday, January 25, 2013
Exercise
 1. Find the volume of the given prisms.
 a. Base area = 40 cm 2 Height = 7 cm
 b. Base area = 34 cm 2 Height = 6 cm
 c. Base area = 47 cm 2 Height = 2.5 cm
 d. Base area = 79 cm 2 Height = 10.5 cm
AIRIL BIN AHMAD

5. Friday, January 25, 2013
CYLINDER
AIRIL BIN AHMAD

6. Friday, January 25, 2013

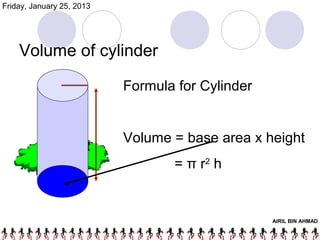

Volume of cylinder
Formula for Cylinder
Volume = base area x height
= π r2 h
AIRIL BIN AHMAD

7. Friday, January 25, 2013

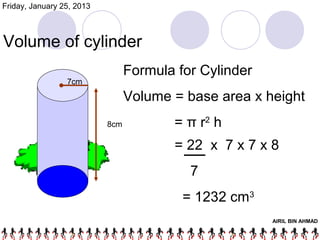

Volume of cylinder
Formula for Cylinder
7cm
Volume = base area x height
8cm = π r2 h
= 22 x 7 x 7 x 8
7
= 1232 cm3
AIRIL BIN AHMAD

8. Friday, January 25, 2013

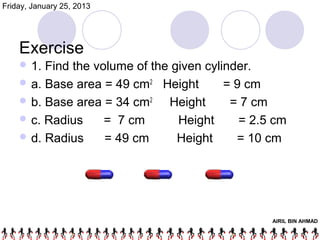

Exercise
 1. Find the volume of the given cylinder.
 a. Base area = 49 cm2 Height = 9 cm
 b. Base area = 34 cm2 Height = 7 cm
 c. Radius = 7 cm Height = 2.5 cm
 d. Radius = 49 cm Height = 10 cm
AIRIL BIN AHMAD

9. Friday, January 25, 2013

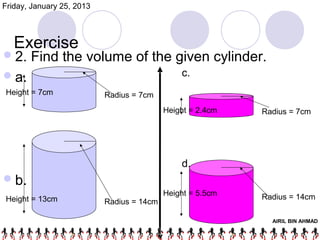

Exercise
 2. Find the volume of the given cylinder.
 a. c.
Height = 7cm Radius = 7cm
Height = 2.4cm Radius = 7cm
d.
 b.
Height = 5.5cm Radius = 14cm
Height = 13cm Radius = 14cm
AIRIL BIN AHMAD

10. Friday, January 25, 2013

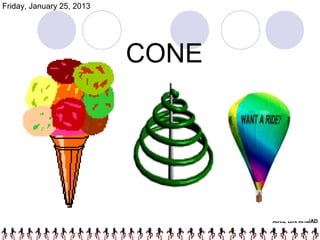

CONE
AIRIL BIN AHMAD

11. Friday, January 25, 2013
Volume of CONE
Formula for Cone
Volume = 1 x base area x height
3
= 1 π r2 h
3
AIRIL BIN AHMAD

12. Friday, January 25, 2013
Exercise
 1. Find the volume of the given cone.
 a. Base area = 63 cm2 Height = 9 cm
 b. Base area = 72 cm2 Height = 7 cm
 c. Radius = 7 cm Height = 3 cm
 d. Radius = 49 cm Height = 15 cm
1a. Volume = (63 x 9 ) / 3 = 189cm3 1c. Volume = 1 x 22 x 7 x 7 x 3 = 154cm3
1b. Volume = (72 x 7 ) / 3 = 168 cm3 3 7
1d. Volume = 1 x 22 x 49 x 49 x 15 = 37730 cm3
3 7
AIRIL BIN AHMAD

13. Friday, January 25, 2013
Exercise
 2. Find the volume of the given cone.
2b.
 a.
Height = 4cm Volume Cone= 1 x 22 x 7 x 7 x 14
Radius = 7cm
3 7
= 15092
2a.
21
Volume Cone= 1 x 22 x 7 x 7 x 4 b.
= 718.67cm3
3 7
= 4312
21 Height = 14cm Radius = 7cm
= 205.33cm3
AIRIL BIN AHMAD

14. Friday, January 25, 2013
SOLID GEOMETRY
AIRIL BIN AHMAD

15. Friday, January 25, 2013
PYRAMID
Formula for Volume of Pyramid
height
Volume = base area x height
3
width
Volume = length x width x h
length
3
AIRIL BIN AHMAD

16. Friday, January 25, 2013

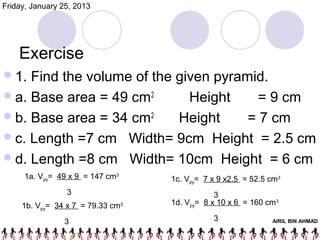

Exercise
 1. Find the volume of the given pyramid.
 a. Base area = 49 cm 2 Height = 9 cm
 b. Base area = 34 cm 2 Height = 7 cm
 c. Length =7 cm Width= 9cm Height = 2.5 cm
 d. Length =8 cm Width= 10cm Height = 6 cm
1a. Vpy= 49 x 9 = 147 cm3 1c. Vpy= 7 x 9 x2.5 = 52.5 cm3
3 3
1b. Vpy= 34 x 7 = 79.33 cm3 1d. Vpy= 8 x 10 x 6 = 160 cm3
3 3 AIRIL BIN AHMAD

17. Friday, January 25, 2013
Exercise
 2. Find the volume of the given pyramid.
 a. b.
6 cm 8 cm
8cm 10cm
6cm 5cm
AIRIL BIN AHMAD

18. Friday, January 25, 2013
SPHERE
Volume of Sphere
Volume = 4 π r3
3
AIRIL BIN AHMAD

19. Friday, January 25, 2013

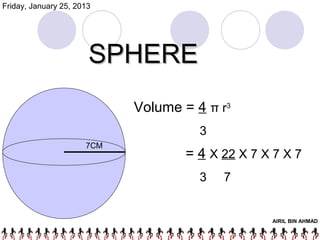

SPHERE
Volume = 4 π r3
3
7CM
= 4 X 22 X 7 X 7 X 7
3 7
AIRIL BIN AHMAD

20. Friday, January 25, 2013
Exercise
 1. Find the volume of the given sphere.
 a. radius = 3.5cm Ans: 179.67cm 3
 b. radius = 2.1cm Ans: 38.81cm e. 3
 c. radius = 5 cm Ans: 523.81cm 3
8
 d.
3
Ans: 113.14cm3 Ans: 268.19cm3
AIRIL BIN AHMAD

21. Friday, January 25, 2013

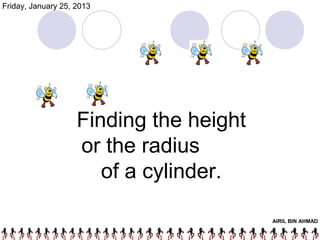

Finding the height
or the radius
of a cylinder.
AIRIL BIN AHMAD

22. Friday, January 25, 2013

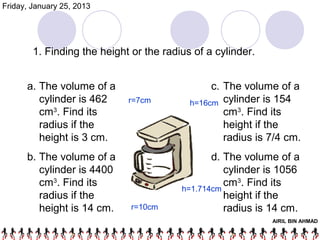

1. Finding the height or the radius of a cylinder.
a. The volume of a c. The volume of a
cylinder is 462 r=7cm h=16cm cylinder is 154
cm3. Find its cm3. Find its
radius if the height if the
height is 3 cm. radius is 7/4 cm.
b. The volume of a d. The volume of a
cylinder is 4400 cylinder is 1056
cm3. Find its cm3. Find its
h=1.714cm
radius if the height if the
height is 14 cm. r=10cm radius is 14 cm.
AIRIL BIN AHMAD

23. Friday, January 25, 2013
AIRIL BIN AHMAD

24. Friday, January 25, 2013
Finding the height
or the radius
of a cone.
AIRIL BIN AHMAD

25. Friday, January 25, 2013
2. Finding the height or the radius of a cone.
a. The volume of a c. The volume of a
cone is 132 cm3. cone is 154 cm3.
Find its radius if the Find its height if the
height is 14 cm. radius is 7 cm.
b. The volume of a d. The volume of a
cone is 77 cm3. cone is 297 cm3.
Find its radius if the Find its height if the
height is 6 cm. radius is 9 cm.
2a. 3cm 2b. 3.5cm 2c. 3cm 2d. 3.5cm
AIRIL BIN AHMAD

26. Friday, January 25, 2013

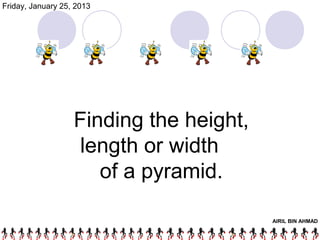

Finding the height,
length or width
of a pyramid.
AIRIL BIN AHMAD

27. Friday, January 25, 2013
3. Finding the height or length or width of a pyramid.
c. The volume of a
a. The volume of a pyramid is 64 cm3.
pyramid is 180 cm3. Find its height if the
Find its height if the length is 4 cm and
base area is 60 cm2. the width is 8cm.
b. The volume of a d. The volume of a
pyramid is 40 cm3. pyramid is 40 cm3.
Find its height if the Find its length if the
base area is 20 cm2. height is 6 cm and
3a. 9cm 3b. 6cm the width is 4cm.
3c. 6cm 3d. 5cm
AIRIL BIN AHMAD

28. Friday, January 25, 2013
VOLUME OF COMBINED
SOLID
BY
AIRIL BIN AHMAD
AIRIL BIN AHMAD

29. Friday, January 25, 2013
Volume = volume of cylinder + volume of cone
Volume = πr2h + 1 πr2h
3cm
3
Volume = 22 x 7 x 7 x 10 + 1 x 22 x 7 x 7 x 3
7 3 7
Volume = 22 x 7 x 10 + 1 x 22 x 7
10cm Volume = 1540 + 154
Volume = 1694 cm3
14 cm
AIRIL BIN AHMAD

30. Friday, January 25, 2013

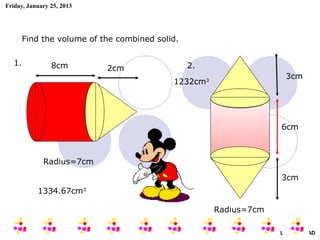

Find the volume of the combined solid.
1. 8cm 2.
2cm
3cm
1232cm3
6cm
Radius=7cm
3cm
1334.67cm3
Radius=7cm
AIRIL BIN AHMAD

31. Friday, January 25, 2013

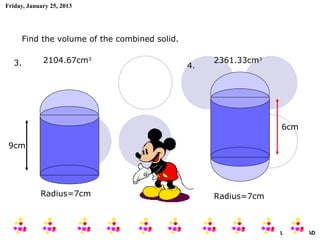

Find the volume of the combined solid.
3. 2104.67cm3 2361.33cm3
4.
6cm
9cm
Radius=7cm Radius=7cm
AIRIL BIN AHMAD

32. Friday, January 25, 2013
Find the volume of the combined solid.
5. 1026.67cm3
6. 9cm
2720.67cm3
10cm
6cm
Radius=7cm Diameter=14cm
AIRIL BIN AHMAD

33. Friday, January 25, 2013
CONE
AIRIL BIN AHMAD

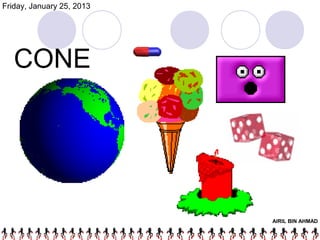

34. Friday, January 25, 2013
CONE
AIRIL BIN AHMAD
