Nokia NFC Presentation

NFC Technology for Partners
ChunAn Li
Content Portfolio Manager
Ecosystem Developer Experience, Nokia greater China

Email: chunan.li@nokia.com
Cellular: +86 13601028331
1 © 2011 Nokia NFC Technology for Partners 1.0 Nov. 2011 ChunAn Li

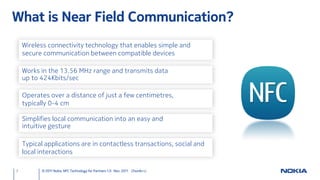

What is Near Field Communication?
Wireless connectivity technology that enables simple and
secure communication between compatible devices

Works in the 13.56 MHz range and transmits data
up to 424Kbits/sec

Operates over a distance of just a few centimetres,
typically 0-4 cm

Simplifies local communication into an easy and
intuitive gesture

Typical applications are in contactless transactions, social and
local interactions


NFC Offering starts with Nokia C7 Symbian Anna

Open NFC Third party apps
Discover and access services Games, social media apps
Share media among friends and other apps, pre-installed
or available for download
Connect easily to
accessories

Nokia gear Developer APIs
Several compatible SDK with NFC APIs available
fashionable accessories to developers for building
available apps


Portfolio of NFC devices
Symbian Anna Symbian Belle (Q3/4) MeeGo
Open NFC Open NFC Open NFC
Content Sharing Simplified UI flows Content Sharing

Easy Pairing Implicit sharing Easy Pairing

Tag Reading Performance improvements Tag Reading*

Nokia Nokia Nokia
Nokia C7 Nokia Nokia N9
701 700 603
Oro

P7 P7

Note! Designs, graphics and plans are subject to change

Other SW platforms and NFC
Company Situation
Google Android • Google have released Gingerbread or Android 2.3 with Tag reading functionality. Most discussion is around Places
• Google purchased Zetawire focusing on Mobile Payment

Samsung • Samsung Nexus S running Gingerbread 2.3 (tag reading) shipping since Dec 16 at Best Buy and CPW, Galaxy S2
announced in MWC
• Samsung also announced Bada 2.0 with NFC support
• Samsung is implementing the NXP PN544 which will allow secure NFC later
• Samsung are active with Orange & Telefonica trials
Apple • Numerous patents filed for payment & PC synch
• Currently enables NFC via third party hw accessories from suppliers like Device Fidelity, Mophie, Icarte (cases ,
accessory attachments). These NFC solutions used commercially in Japan & trialed in USA with Visa

RIM • Limited trials with stickers (trialled with Bank of Montreal) , handsets have been used by banks (Visa, Mastercard) and
NFC enabled with MicroSD cards- but has not required active RIM support.
• Recruiting NFC test engineers
HTC • Taiwan’s Chungwa Telecom and HTC are partnering on NFC in Taiwan: costs subsidised by the government, HTC
manufacturing the device.

Estimate: NFC shipments will reach 500m units by 2014, with some 75m expected to be shipped in 2011 alone
(source: Juniper Research, NXP semiconductors)

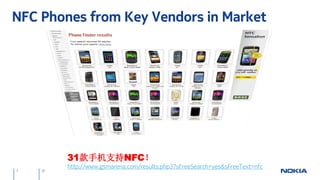

NFC Phones from Key Vendors in Market

31款手机支持NFC！
http://www.gsmarena.com/results.php3?sFreeSearch=yes&sFreeText=nfc
7 © 2011 Nokia NFC Technology for Partners 1.0 July 2011 Jure Sustersic

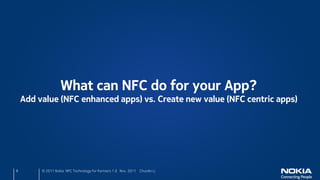

What can NFC do for your App?
Add value (NFC enhanced apps) vs. Create new value (NFC centric apps)


Nokia Key NFC Experiences
Service Initiation Sharing

Start a service Transfer content
or an application between any
two NFC devices

Reader/writer mode Peer to peer mode

Pairing Secure NFC

Connect easily Mobile device
with other NFC is a credit card
devices and travel card

Reader mode Card emulation mode


Put tag into your
Treasure hunt game
merchandise to unlock
with tags spread
bonus content in your
around the city
game
Museum or tourist
guide: touch tags to
get more info* Augment an interactive
multimedia installation
Social networking app:
with touch
touch friend’s phone

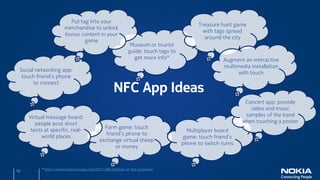

NFC App Ideas
to connect

Concert app: provide
video and music
Virtual message board: samples of the band
people post short when touching a poster
Farm game: touch
texts at specific, real- Multiplayer board
friend’s phone to
world places game: touch friend’s
exchange virtual sheep
phone to switch turns
or money

10 * http://conversations.nokia.com/2011/09/26/byte-at-the-museum/

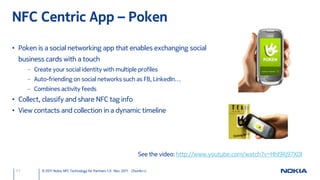

NFC Centric App – Poken

• Poken is a social networking app that enables exchanging social
business cards with a touch
– Create your social identity with multiple profiles
– Auto-friending on social networks such as FB, LinkedIn…
– Combines activity feeds
• Collect, classify and share NFC tag info
• View contacts and collection in a dynamic timeline

See the video: http://www.youtube.com/watch?v=HhI9Rj97X0I


NFC Enhanced App – Angry Birds Magic

Comes with 20 levels
• First 5 levels available for play
• Remaining 15 levels are locked
Unlock 5 levels at a time with NFC interaction
• Touch your C7 with another C7 or certain NFC
tags
More info: http://conversations.nokia.com/2011/04/19/angry-birds-magic-hatches-at-wima/

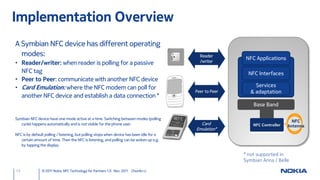

Implementation Overview
A Symbian NFC device has different operating
modes: Reader
NFC Applications
• Reader/writer: when reader is polling for a passive /writer

NFC tag NFC Interfaces
• Peer to Peer: communicate with another NFC device
• Card Emulation: where the NFC modem can poll for Services
Peer to Peer & adaptation
another NFC device and establish a data connection *
Base Band

Symbian NFC device have one mode active at a time. Switching between modes (polling
NFC
cycle) happens automatically and is not visible for the phone user. Card NFC Controller Antenna
Emulation*
NFC is by default polling / listening, but polling stops when device has been idle for a
certain amount of time. Then the NFC is listening, and polling can be woken up e.g.
by tapping the display.

* not supported in
Symbian Anna / Belle

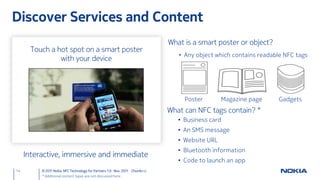

Discover Services and Content
What is a smart poster or object?
Touch a hot spot on a smart poster
• Any object which contains readable NFC tags
with your device

Poster Magazine page Gadgets
What can NFC tags contain? *
• Business card
• An SMS message
• Website URL
• Bluetooth information
Interactive, immersive and immediate
• Code to launch an app
* Additional content types are not discussed here.

Peer to Peer

• The Symbian platform implements the NFC Forum
Standard for exchanging data between two devices
– Implements the NFC forum standard Logical Link
Communication Protocol (LLCP)
– Enables connectionless and connection oriented
communication between two NFC Forum Devices
• Use cases
– Exchanging data between applications (credentials,
virtual goods, sessions)
– Easy handover to Bluetooth transfer

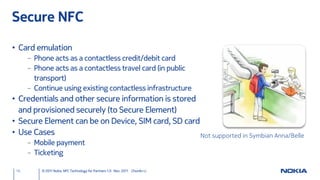

Secure NFC

• Card emulation
– Phone acts as a contactless credit/debit card
– Phone acts as a contactless travel card (in public
transport)
– Continue using existing contactless infrastructure
• Credentials and other secure information is stored
and provisioned securely (to Secure Element)
• Secure Element can be on Device, SIM card, SD card
• Use Cases Not supported in Symbian Anna/Belle
– Mobile payment
– Ticketing

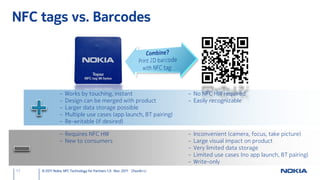

NFC tags vs. Barcodes

– Works by touching, instant – No NFC HW required
– Design can be merged with product – Easily recognizable
– Larger data storage possible
– Multiple use cases (app launch, BT pairing)
– Re-writable (if desired)

– Requires NFC HW – Inconvenient (camera, focus, take picture)
– New to consumers – Large visual impact on product
– Very limited data storage
– Limited use cases (no app launch, BT pairing)
– Write-only

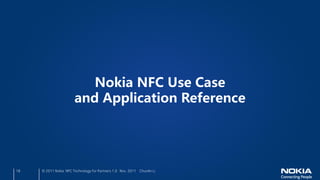

Nokia NFC Use Case
and Application Reference

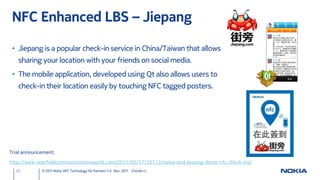

NFC Enhanced LBS – Jiepang

• Jiepang is a popular check-in service in China/Taiwan that allows
sharing your location with your friends on social media.
• The mobile application, developed using Qt also allows users to
check-in their location easily by touching NFC tagged posters.

Trial announcement:

http://www.nearfieldcommunicationsworld.com/2011/06/17/38113/nokia-and-jiepang-demo-nfc-check-ins/

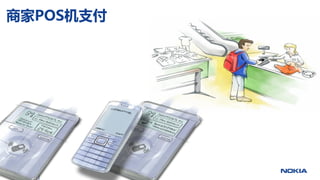

商家POS机支付

1) The client takes the goods to cashier
2) User touches the POS terminal with the mobile

3) The amount appears on the display
and the user confirms to start payment

25

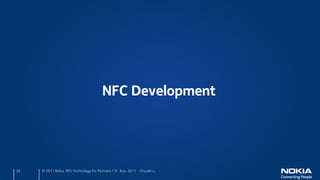

NFC Development


NFC Development Alternatives

Java ME Qt Mobility Symbian Native

Works on Series 40 and Cross-platform API. Low level control over
Symbian devices. devices’ NFC support.
Limited use of
Best flexibility and More complex, platform
smartphone features. ease of app knowledge required.
development.

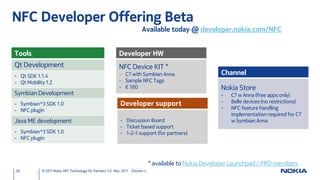

NFC Developer Offering Beta
Available today @ developer.nokia.com/NFC

Tools Developer HW
Qt Development NFC Device KIT *
- Qt SDK 1.1.4 – C7 with Symbian Anna Channel
- Qt Mobility 1.2 – Sample NFC Tags
– € 180 Nokia Store
Symbian Development - C7 w Anna (free apps only)
- Symbian^3 SDK 1.0 Developer support - Belle devices (no restrictions)
- NFC plugin - NFC feature handling
implementation required for C7
Java ME development - Discussion Board w Symbian Anna
- Ticket based support
- Symbian^3 SDK 1.0 - 1-2-1 support (for partners)
- NFC plugin

* available to Nokia Developer Launchpad / PRO members

Thank You.

Want to learn more?
http://developer.nokia.com/NFC
