This document provides an overview of NodeJS and NoSQL with CouchDB. It includes a 3-minute introduction to NoSQL, initial NoSQL choices, using Node.js with CouchDB, and introductions to CouchDB Map/Reduce and administration. It discusses why NoSQL is needed compared to relational databases and file storage. CouchDB is presented as a choice due to its implementation of ACID properties using multi-version concurrency control and B-tree indexes, as well as its schema-free and RESTful capabilities. The document also covers basic CouchDB CRUD operations and examples of using Map/Reduce views to transform raw data.

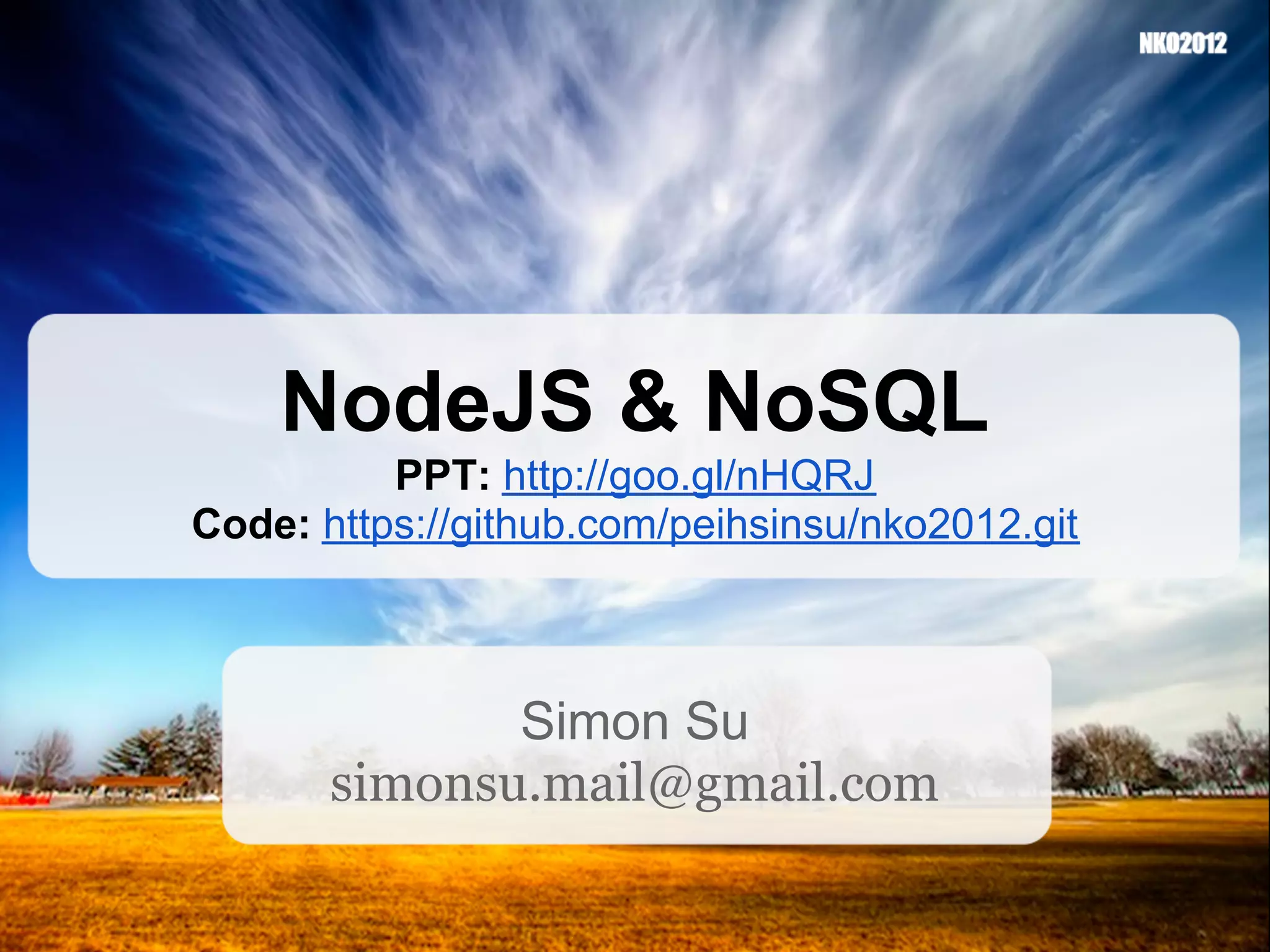

1. NodeJS & NoSQL
PPT: http://goo.gl/nHQRJ
Code: https://github.com/peihsinsu/nko2012.git
Simon Su
simonsu.mail@gmail.com

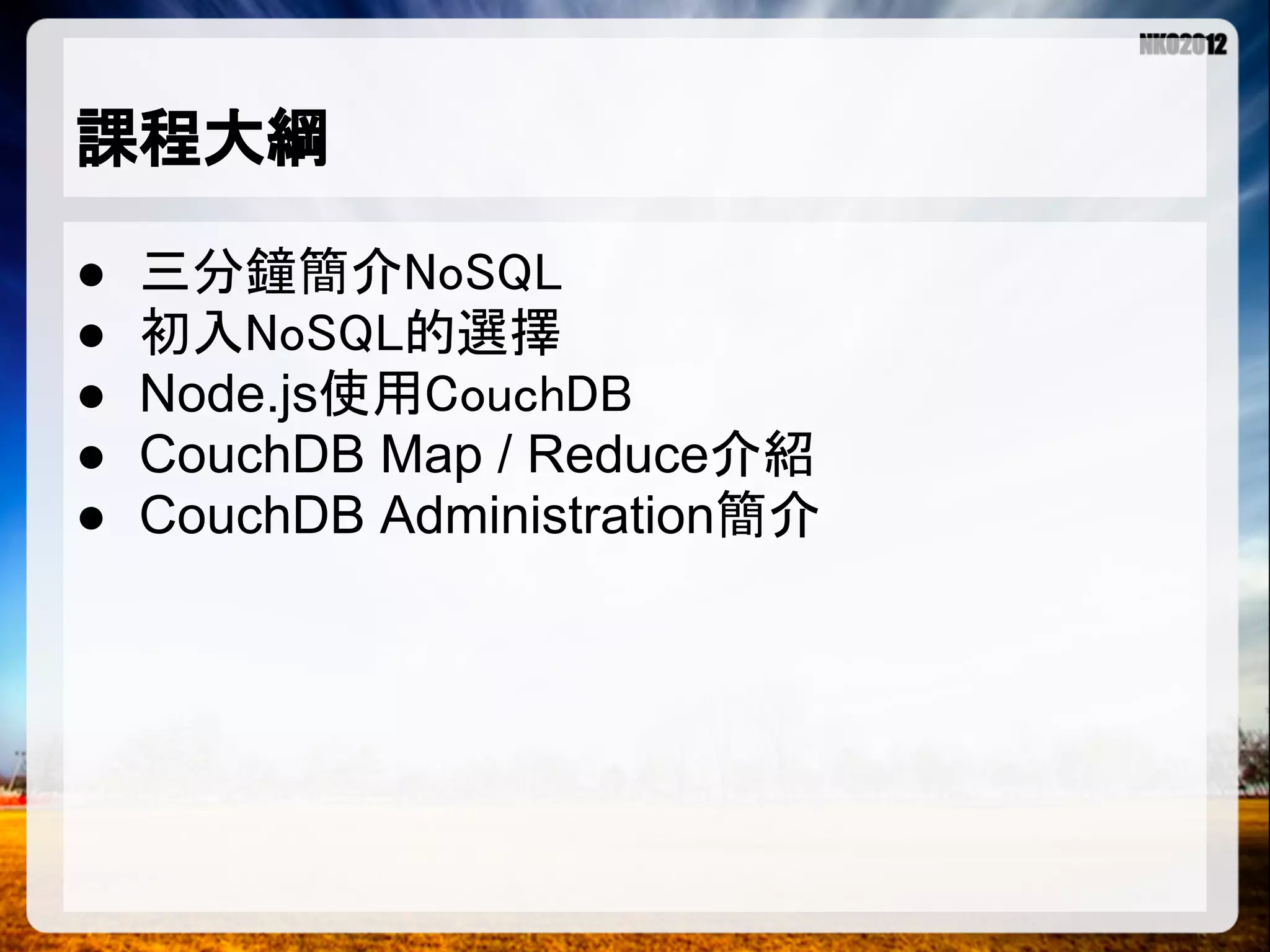

2. 課程大綱
● 三分鐘簡介NoSQL
● 初入NoSQL的選擇
● Node.js使用CouchDB
● CouchDB Map / Reduce介紹
● CouchDB Administration簡介

3. Why NoSQL - We Need Store...
File Store (R)DBMS

4. We Need Store - Trouble in RDBMS
From: http://www.slideshare.net/quipo/nosql-databases-why-what-and-when

5. What is NoSQL
NoSQL = Not-Only-SQL

7. About NoSQL

8. NoSQL Size vs Complexity
From: http://www.slideshare.net/quipo/nosql-databases-why-what-and-when

9. relax
My Choice

10. Why CouchDB
● Implemention for ACID Properties
○ Multi-Version Concurrency Control (MVCC)
○ B-Tree indexes
● Schema-Free document-oriented database
● RESTful default support (JSON document)
● View model / JavaScript View Functions
● Replication (Peer-based distributed
databases), Distributed, featuring robust,
incremental replication with bi-directional
conflict detection and management.

11. User Friendly of CouchDB
● Install: http://wiki.apache.org/couchdb/Installation
configuration
status check
query
user auth.
management
replocate
REST server

12. User Friendly of CouchDB
● [GET] http://ipaddress:5984/database/column_key

13. CouchDB PaaS Services
● Cloudant
http://cloudant.com
● IrisCouch
http://www.iriscouch.com/

14. Node Knock Out 2012
Start to using NoSQL

15. Node.js NoSQL environment
# express product
# vi package.json (add cradle and other package relations...)
# cd product
# npm install
https://github.com/cloudhead/cradle

16. Connect to NoSQL
db = new(cradle.Connection)(
db_address,
db_port,
{auth: { username: dbusername, password: dbpassword},
cache: true,
raw: false
}).database(databasename);

17. NoSQL Basic CRUD
● [C] 新增一筆資料，id=PK，doc=欲儲存文件，callback=回傳
觸發事件：
db.save(id, doc, callback);
● [R] 查詢資料，id=欲查詢的資料id，callback=同上：
db.get(id, callback);
● [U] 修改一筆資料，id=欲修改之資料id，doc=欲修改的文件
內容，callback同上：
db.merge(id, doc, callback);
● [D] 刪除資料，id=PK，rev=版本號碼，callback同上：
db.remove(id, rev, callback);

18. Schema-Free
var cradle = require('cradle');
var db = new(cradle.Connection)().database('starwars');
db.save('skywalker', doc-key
{
force: 'light',
name: 'Luke Skywalker' document
}, callback);
starwars
Key skywalker
Value force name
light Luke
Skywalker

19. Schema mapping to RDBMS
Document to save, free schema and dynamic
NoSQL change.
Key skywalker
Value force name ---
light Luke Skywalker ---
force name sex
light Richard W. M
Schema create first, insert later...
Every column add, need schema update, and all
RDBMS data effected DML
id (pk) force name sex
skywalker light Luke Skywalker
... ... ... ...

20. NoSQL最佳使用方式
● 離散資料 - 無特定規則可循
● 原始資料 - 不正規化、不特別處理
● 以Map / Reduce重新規劃資料呈現方式
● 搭配RESTful使用(http://goo.gl/iEKDR)

21. Node Knock Out 2012
NoSQL Map / Reduce

22. View Model - Map / Reduce

23. View Model - Map / Reduce

24. Example Data - Guess Game Raw
{
"_id":"1350783674236",
"_rev":"1-fed6ba9a837d66c8fb086b32294d5f7d",
"sessionid":"1350783674236",
"data":[
{
"player":"3WAUD..EZOHQ",
"name":"Caesar Chi",
"score":2
}
]
}

25. CouchDB Design - Map Function
function(doc) {
if(doc.data){
列舉data並以
for(var i = 0 ; i < doc.data.length ; i++ ) { ({player: player_id, name: player_name}: score)
if(doc.data[i].player && doc.data[i].score){ 建立View
emit({player:doc.data[i].player,name:doc.data[i].name}, doc.data[i].score);
}
}
}
}
Source:
一筆scores資料
Result:
一筆view資料

26. CouchDB Design - Reduce Function
function(key, values, rereduce){
將原資料型態({player: player_id, name:
return sum(values); player_name}: score)其中的Score以作分
} 組(group by key)加總
Source:
以{user資訊: 答對題目數}
為資料型態的資料
Result:
以user資訊為群組，加總答對題目
數，建立相同資料型態的資料

27. Node Knock Out 2012
NoSQL Administration

28. Replicate Database
Replicate

29. Single Server Replicate

30. CouchDB Cluster Service

31. Node Knock Out 2012
Q&A

32. Reference
● 不做NoSQL的CouchDB: http://www.openfoundry.org/tw/tech-column/8301--nosql-couchdb
● nosql-databases-why-what-and-when: http://www.slideshare.net/quipo/nosql-databases-why-
what-and-when
● Neo4J: http://neo4j.tw/
● Couchdb REST samples: http://peihsinsu.blogspot.tw/search?q=couchdb
● Couch View: http://wiki.apache.org/couchdb/Introduction_to_CouchDB_views

33. Reference 2: Some Acronyms
● RDBMS: Relational Database Management System.
● SQL: Structured Query Language, also used to refer to
databases that use SQL as their query language.
● NoSQL: Also called Distributed Database Management
Systems, used to refer to a class of databases that are
non-relational and do not use SQL as their query
language.
● ACID: Atomicity, Consistency, Isolation, Durability.
● CAP: Consistency, Availability, Partition tolerance.
● MVCC: Multi-Version Concurency Control

34. Node Knock Out 2012
附錄

35. 範例與執行
● Code: test-couchdb.js
● Execute:

36. Node Knock Out 2012
After Class...

37. CouchDB Related
● CouchDB sorting related - View Collection
http://wiki.apache.org/couchdb/View_collation?
action=show&redirect=ViewCollation
