1. MongoDB and DynamoDB
September 8, 2020
Md Minhazul Haque
hello@mdminhazulhaque.io

2. What is NoSQL
● Stands for Not SQL
● No relational form, No schema
● No storing data in tables
● Supports sharding for data partitioning
● Different adaption to NoSQL
○ Document Based: MongoDB, CouchDB
○ Key-value Based: DynamoDB, Redis

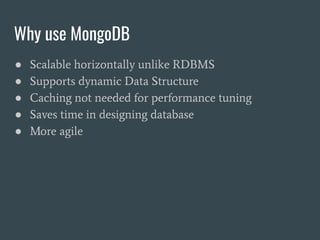

3. Why use MongoDB
● Scalable horizontally unlike RDBMS
● Supports dynamic Data Structure
● Caching not needed for performance tuning
● Saves time in designing database
● More agile

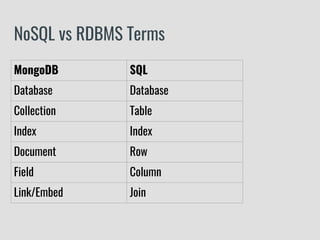

4. NoSQL vs RDBMS Terms
MongoDB SQL
Database Database
Collection Table
Index Index
Document Row
Field Column
Link/Embed Join

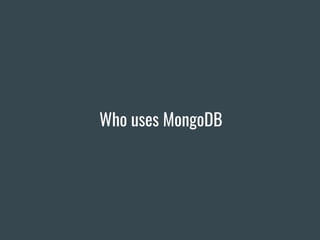

5. Who uses MongoDB

6. Who uses MongoDB

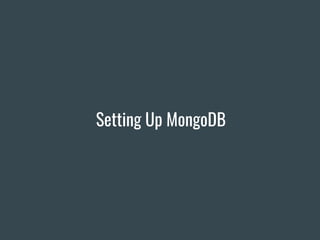

7. Setting Up MongoDB

8. Setting Up MongoDB
# ubuntu
sudo apt install mongodb-server mongodb-clients
# centos
sudo yum install -y mongodb-org-4.4.0
mongodb-org-server-4.4.0 mongodb-org-shell-4.4.0
mongodb-org-mongos-4.4.0 mongodb-org-tools-4.4.0

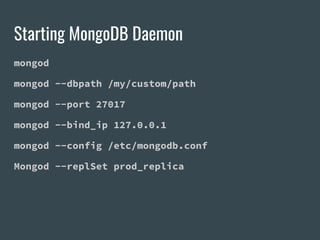

9. Starting MongoDB Daemon
mongod
mongod --dbpath /my/custom/path
mongod --port 27017
mongod --bind_ip 127.0.0.1
mongod --config /etc/mongodb.conf
Mongod --replSet prod_replica

10. Accessing MongoDB using Client
mongo
mongo 127.0.0.1
mongo 127.0.0.1:27017
mongo 127.0.0.1:27017/formapply

11. MongoDB: Create Query
> show dbs
admin 0.000GB
config 0.000GB
local 0.000GB
> use users
switched to db users
> db.users.insert({name:"Foo Bar"})
WriteResult({ "nInserted" : 1 })

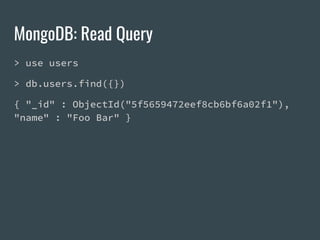

12. MongoDB: Read Query
> use users
> db.users.find({})
{ "_id" : ObjectId("5f5659472eef8cb6bf6a02f1"),
"name" : "Foo Bar" }

13. MongoDB: Update Query
> db.users.update({}, {$set: {name:"Tanvir
JurisTech"}})
WriteResult({ "nMatched" : 1, "nUpserted" : 0,
"nModified" : 1 })
> db.users.find({})
{ "_id" : ObjectId("5f5659472eef8cb6bf6a02f1"),
"name" : "Tanvir JurisTech" }

14. MongoDB: Delete Query
> db.users.remove({name:"Tanvir JurisTech"})
WriteResult({ "nRemoved" : 1 })
> db.users.find({})
>

15. MongoDB: Replica Set
mongod --dbpath /data/db1 --port 27001 --replSet
prod
mongod --dbpath /data/db2 --port 27002 --replSet
prod
mongod --dbpath /data/db3 --port 27003 --replSet
prod

16. MongoDB: Replica Set
> rs.initiate( {
_id : "prod",
members: [
{ _id: 0, host: "127.0.0.1:27001" },
{ _id: 1, host: "127.0.0.1:27002" }
]
})
{
"ok" : 1,
"operationTime" : Timestamp(1599495296, 1),
...
}

17. MongoDB: Replica Set
> mongo 127.0.0.1:27001
prod:PRIMARY> use messages
switched to db messages
prod:PRIMARY> db.messages.find({})
prod:PRIMARY> db.messages.insert({message:"Hello World!"})
WriteResult({ "nInserted" : 1 })
> mongo 127.0.0.1:27002
prod:SECONDARY> rs.slaveOk()
prod:SECONDARY> use messages
switched to db messages
prod:SECONDARY> db.messages.find({})
{ "_id" : ObjectId("5f565dcc832cf9e810aeea2d"), "message" :
"Hello World!" }

18. MongoDB: Replica Set
> mongo 127.0.0.1:27001
prod:PRIMARY> rs.add({ _id: 2, host: "127.0.0.1:27003" }
> prod:SECONDARY> rs.conf()
{
"_id" : "prod",
"members" : [
{
"host" : "127.0.0.1:27001",
},
{
"host" : "127.0.0.1:27002",
},
{
"host" : "127.0.0.1:27003",
}
]
}

19. MongoDB: Replica Set
> mongo 127.0.0.1:27001
prod:PRIMARY>
2020-09-08T00:28:05.646+0800 I NETWORK [thread1] trying
reconnect to 127.0.0.1:27001 (127.0.0.1) failed
2020-09-08T00:28:05.646+0800 W NETWORK [thread1] Failed to
connect to 127.0.0.1:27001, in(checking socket for error after
poll), reason: Connection refused
2020-09-08T00:28:05.646+0800 I NETWORK [thread1] reconnect
127.0.0.1:27001 (127.0.0.1) failed failed
# stop mongodb on port 27001
> mongo 127.0.0.1:27002
prod:SECONDARY>
prod:SECONDARY>
prod:PRIMARY>
prod:PRIMARY>
prod:PRIMARY>
prod:PRIMARY>

20. DynamoDB

21. Why use DynamoDB
● Key-value based database at scale
● Serverless (managed by AWS)
● Auto scaling on enterprise level
● Read/Write capacity mode
● Realtime Trigger/Streams
● Priced on Read/Write operation*
● Automatic replication among AZ
● Handy HTTP API

22. Who uses DynamoDB

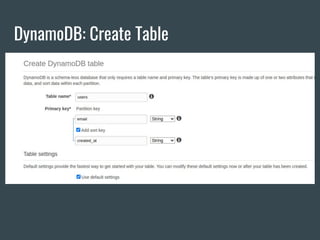

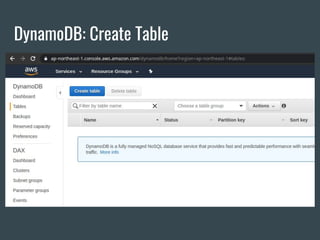

23. DynamoDB: Create Table

24. DynamoDB: Create Table

25. DynamoDB: Create Table

26. DynamoDB: Insert Item

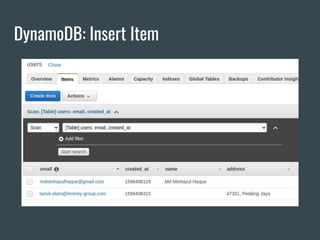

27. DynamoDB: Insert Item

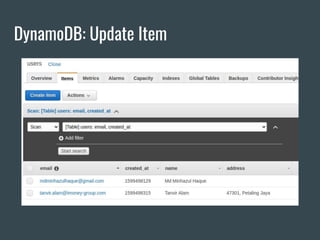

28. DynamoDB: Update Item

29. DynamoDB: Delete Item

30. Q&A

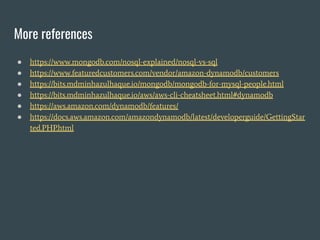

31. More references
● https://www.mongodb.com/nosql-explained/nosql-vs-sql
● https://www.featuredcustomers.com/vendor/amazon-dynamodb/customers
● https://bits.mdminhazulhaque.io/mongodb/mongodb-for-mysql-people.html
● https://bits.mdminhazulhaque.io/aws/aws-cli-cheatsheet.html#dynamodb
● https://aws.amazon.com/dynamodb/features/
● https://docs.aws.amazon.com/amazondynamodb/latest/developerguide/GettingStar
ted.PHP.html
