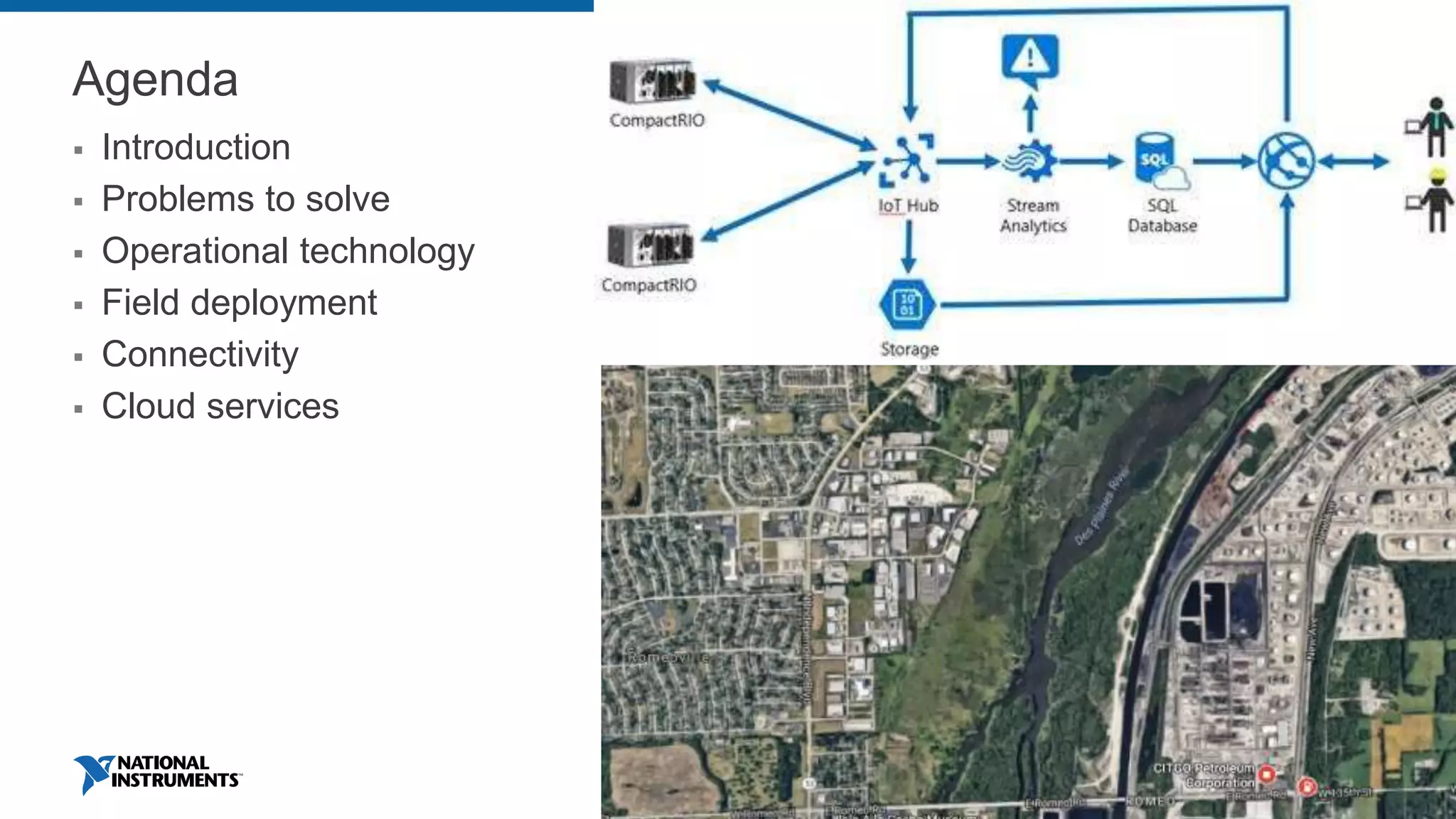

• #11 Theme: IoT brings a lot of great technology to our hands. Our goal here today is to bring this down to earth a bit, and discuss real problems and real practical considerations that may not be part of your normal Test & Measurement project. On the bottom you’ll see a real location where these tools were put into place. NOT going to go into a lot of depth with these– looking to share a variety of practical considerations based on our experience for those who have done some more typical T&M applications, and may be embarking on another level of connectivity.
• #14 MANUFACTURING AUTOMATION & INTELLIGENCE Our Manufacturing Automation offerings make your production systems more efficient, flexible, and reliable using the latest technologies. As premier automation integrators our manufacturing intelligence solutions provide you the information you need to make more effective business decisions.     TEST & MEASUREMENT AUTOMATION Our Test & Measurement Automation Services help automate laboratory testing using the latest technologies. We deliver world class solutions to leaders in research, development, production, quality, and certification testing. We develop efficient, accurate, robust test systems, and the tools to leverage test data for effective results analysis.     CUSTOM SOFTWARE & HARDWARE DEVELOPMENT We can help with your product or application development needs. Our services include product conception, custom electronic hardware development, application development for web, desktop, embedded, and mobile, and the development of developer tools (SDK, Drivers, API, etc.).     MICROSOFT CONSULTING SERVICES DMC has been a certified Microsoft Gold Partner since 2005. Gold is an elite status that represents the highest level of expertise with Microsoft technologies. We excel at helping clients understand software capabilities, put structure around business processes, and extend & integrate software solutions using Microsoft-centric technologies (SharePoint, Office 365, Azure, CRM, .NET, etc.).
• #15 MANUFACTURING AUTOMATION & INTELLIGENCE Our Manufacturing Automation offerings make your production systems more efficient, flexible, and reliable using the latest technologies. As premier automation integrators our manufacturing intelligence solutions provide you the information you need to make more effective business decisions.     TEST & MEASUREMENT AUTOMATION Our Test & Measurement Automation Services help automate laboratory testing using the latest technologies. We deliver world class solutions to leaders in research, development, production, quality, and certification testing. We develop efficient, accurate, robust test systems, and the tools to leverage test data for effective results analysis.     CUSTOM SOFTWARE & HARDWARE DEVELOPMENT We can help with your product or application development needs. Our services include product conception, custom electronic hardware development, application development for web, desktop, embedded, and mobile, and the development of developer tools (SDK, Drivers, API, etc.).     MICROSOFT CONSULTING SERVICES DMC has been a certified Microsoft Gold Partner since 2005. Gold is an elite status that represents the highest level of expertise with Microsoft technologies. We excel at helping clients understand software capabilities, put structure around business processes, and extend & integrate software solutions using Microsoft-centric technologies (SharePoint, Office 365, Azure, CRM, .NET, etc.).

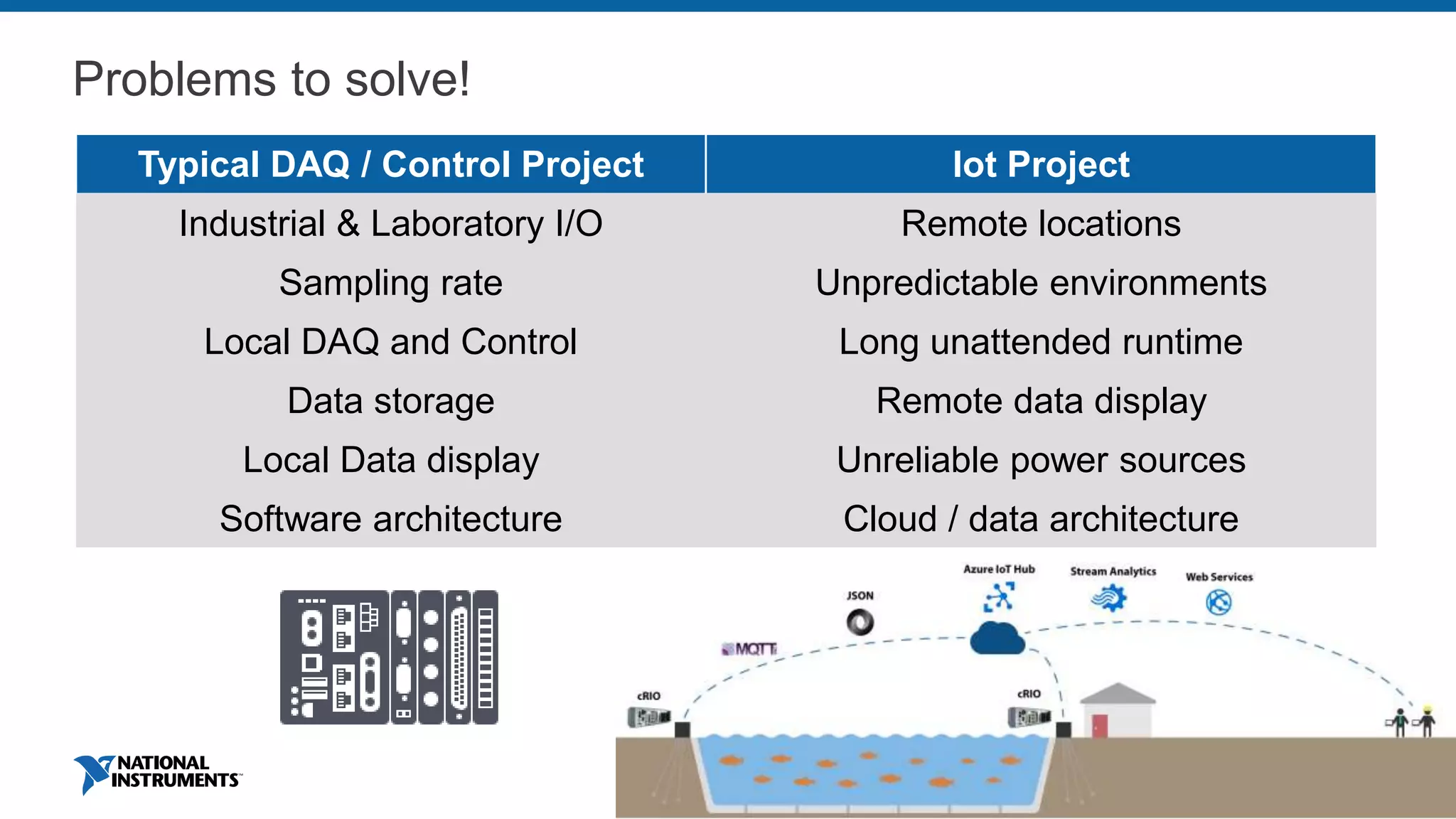

• #19 So, let’s talk about problems. As Engineers, Programmers, and Scientists, the problems are the typically where the fun starts. On the left: more typical DAQ and control projects Click On the right: a few new types of problems that you may not be automatically thinking about, though might need to tackle to deliver your solution
• #20 Wind, Solar. Control and monitoring. Production and operational asset optimization, including predictive maintenance Infrastructure development and monitoring Agriculture.. crop health monitoring, equipment performance maintenance, chemical metering controls, etc Unattended long term data acquisition

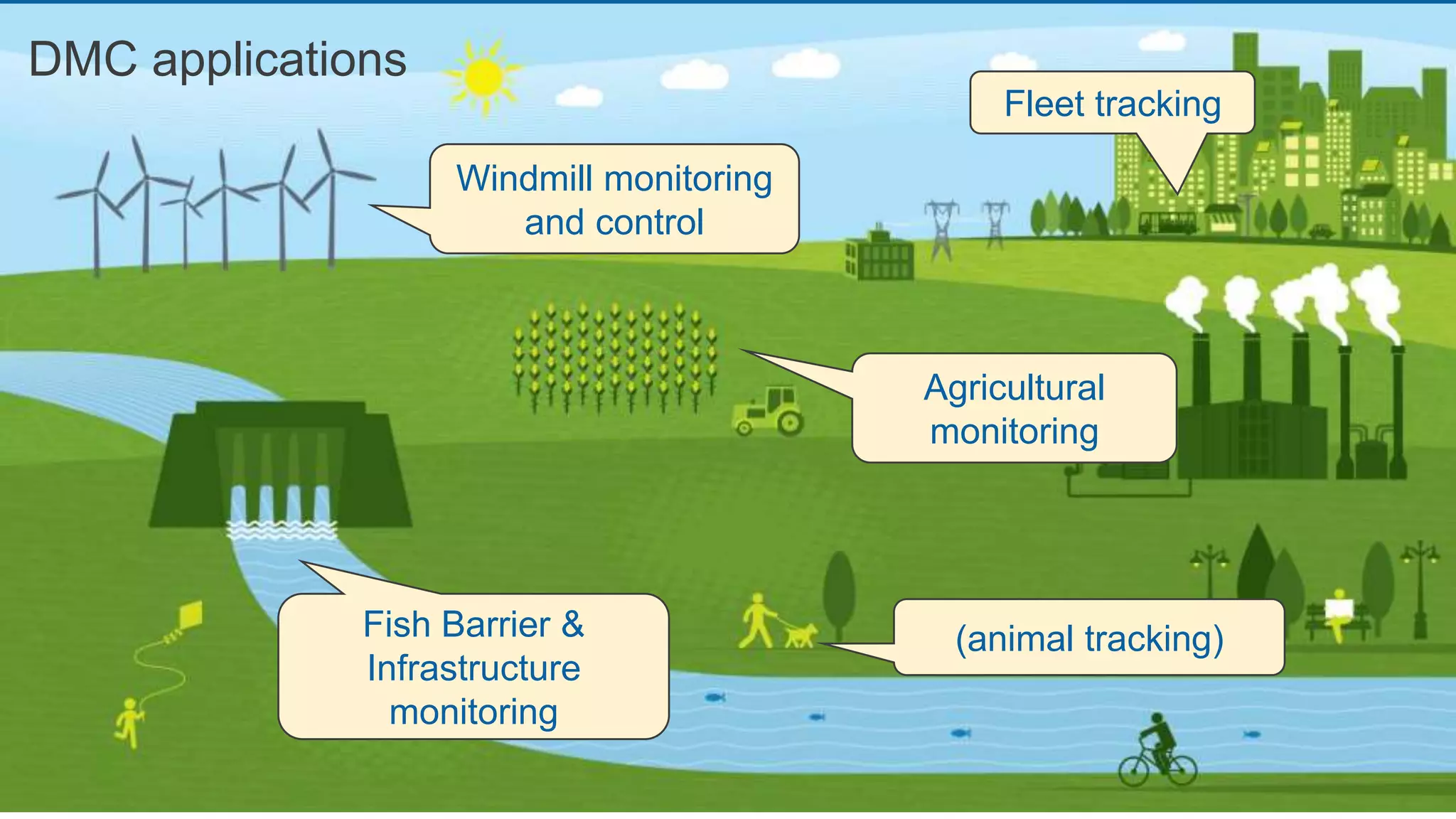

• #21 So, what has DMC done? Why are we up here talking about practical considerations? Modern physical world has modern physical problems. Here are a few problems that came our way in the few couple years. Where we’ve encountered a variety of applications and challenges along the way. ( DMC has had multiple project request for tracking animals…. Mice, frogs, cows, bats… )

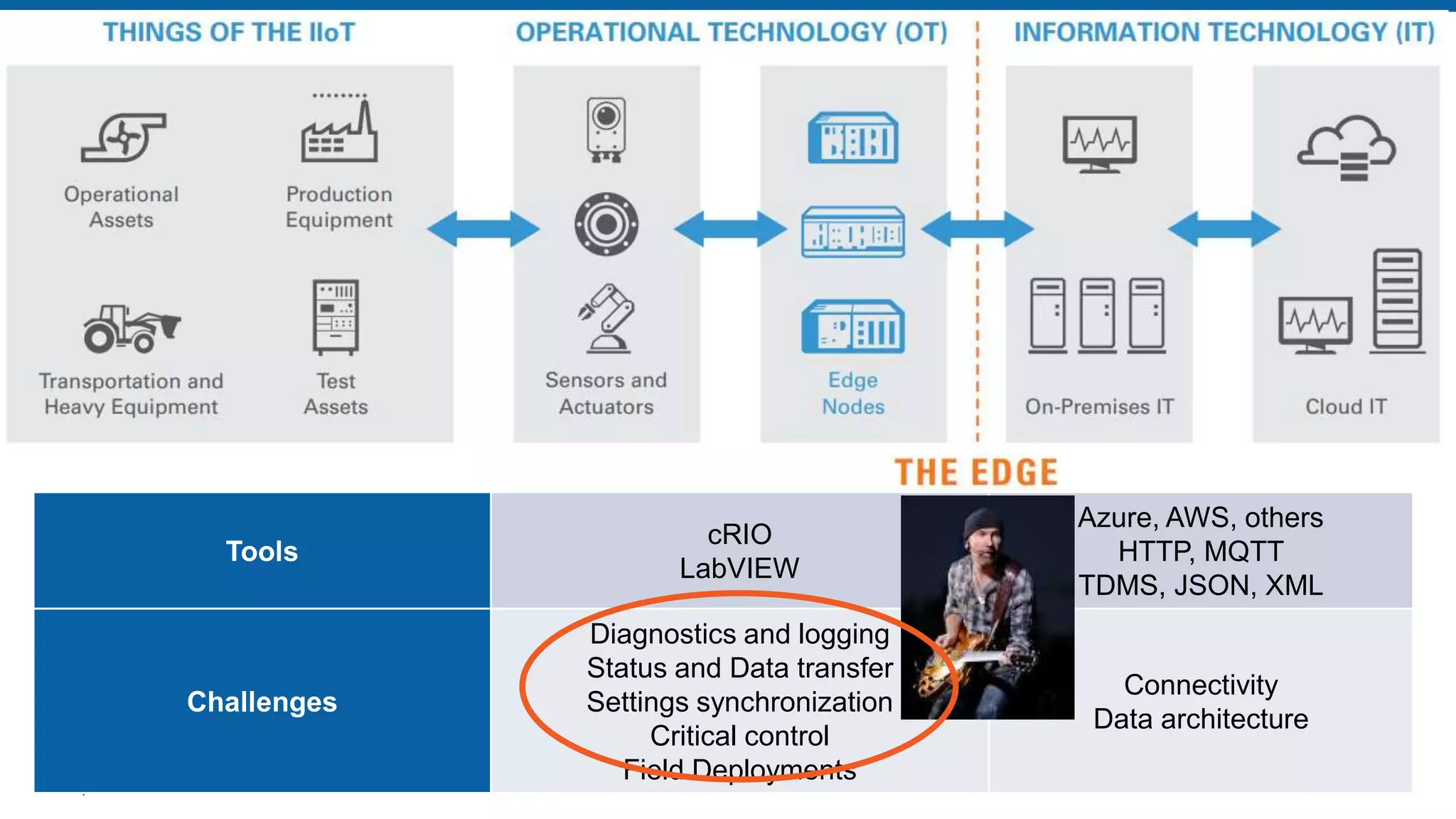

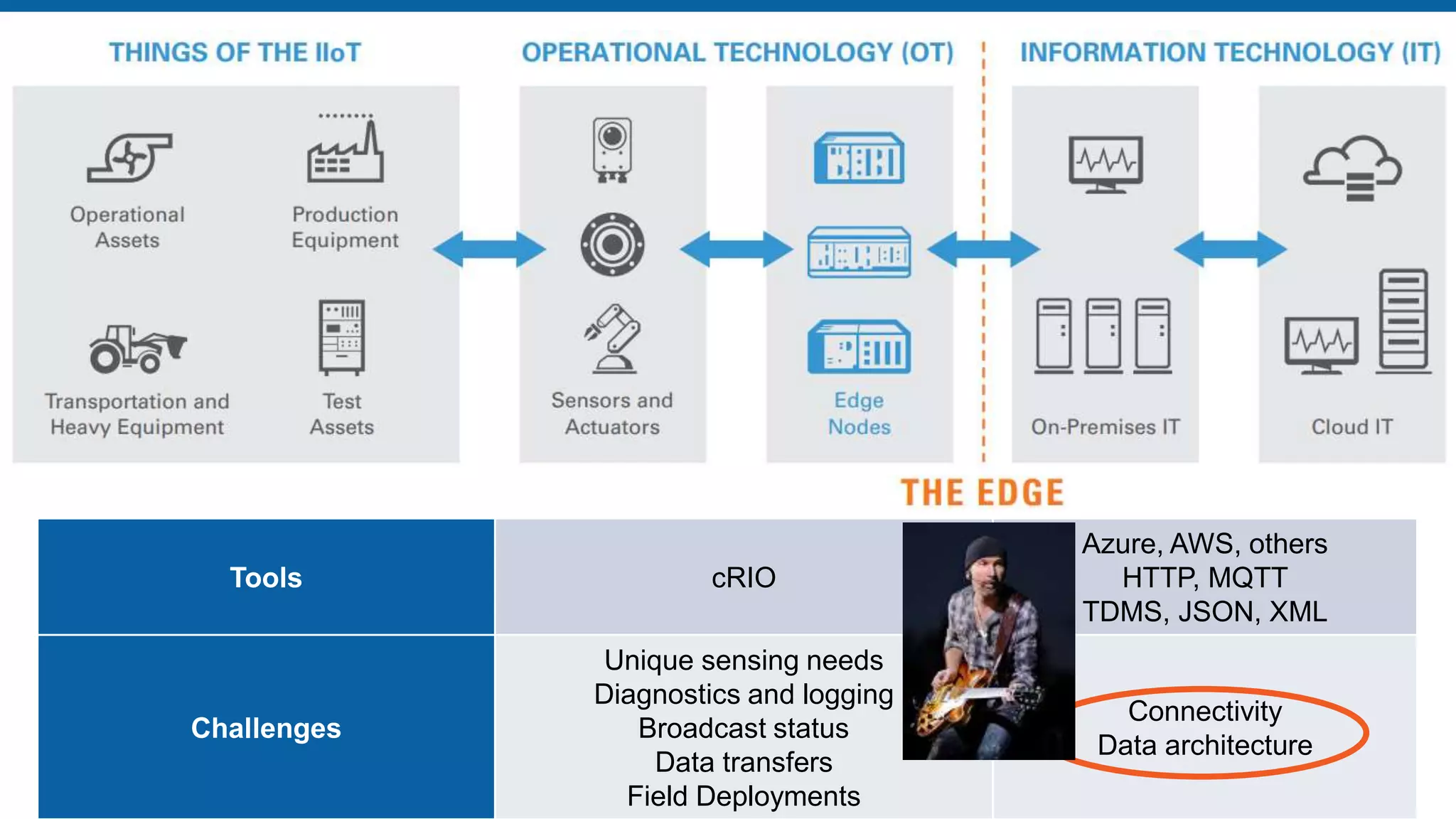

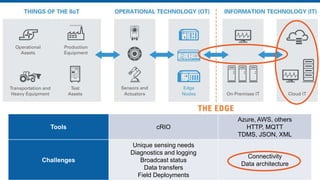

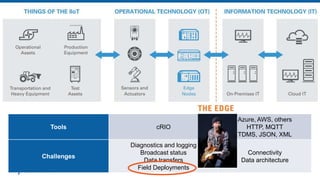

• #22 So, in talking about IoT, it is useful to have a rough framework to visualize the big picture. Here is graphic you may have seen. On the left, the “things” of the world are represented. In the Industrial Internet of Things, this includes things like heavy equipment, production equipment, test assets, etc. In the middle we have “Operational Technology”, which is where most people in this room typically operate. This encompasses sensors and actuators, to acquire data from and control the things, to solve our engineering and business challenges. So this is where the story typically ends, right? You have things, you have DAQ and Control. but you need more--- more systems, more visibility, more INSIGHT. When you still haven’t found what you’re looking for… it’s time to embrace “The Edge”. , and move into connectivity and cloud services. This is where we move on to Information Technology on the right. Which covers both On premise and Cloud IT. So in this presentation, we’ll focus on some practical considerations on either side of the Edge. We’ll leverage some of the project stories regarding field deployments, connectivity, and cloud services. Here is a short list of challenges we’ve encountered, which we’ll be digging in Please note, this is not meant to be an end-all be-all instruction set. It is meant as a guide for some of the unique challenges to IoT and IIoT And of course, the Edge will be back to help us navigate.

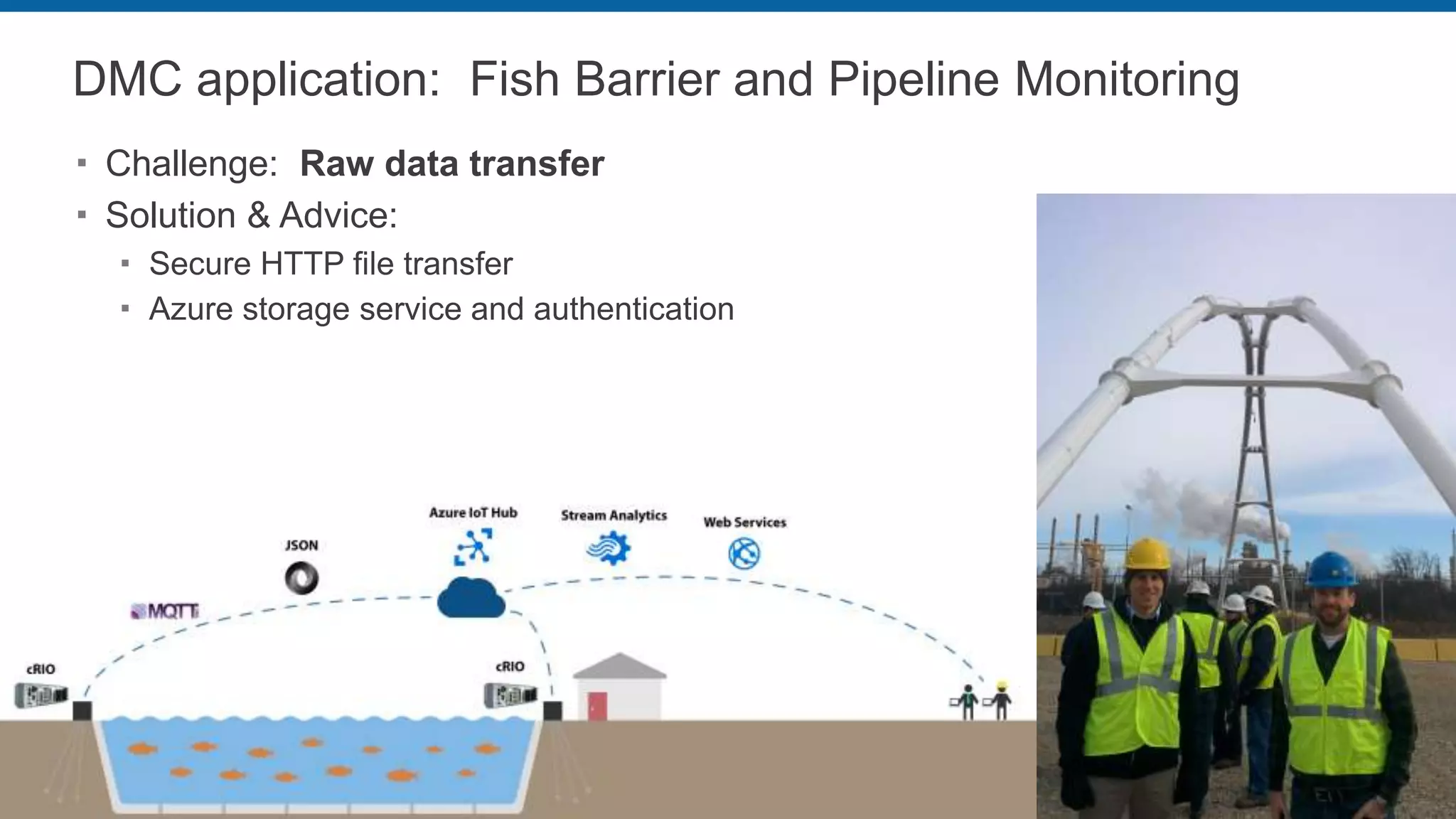

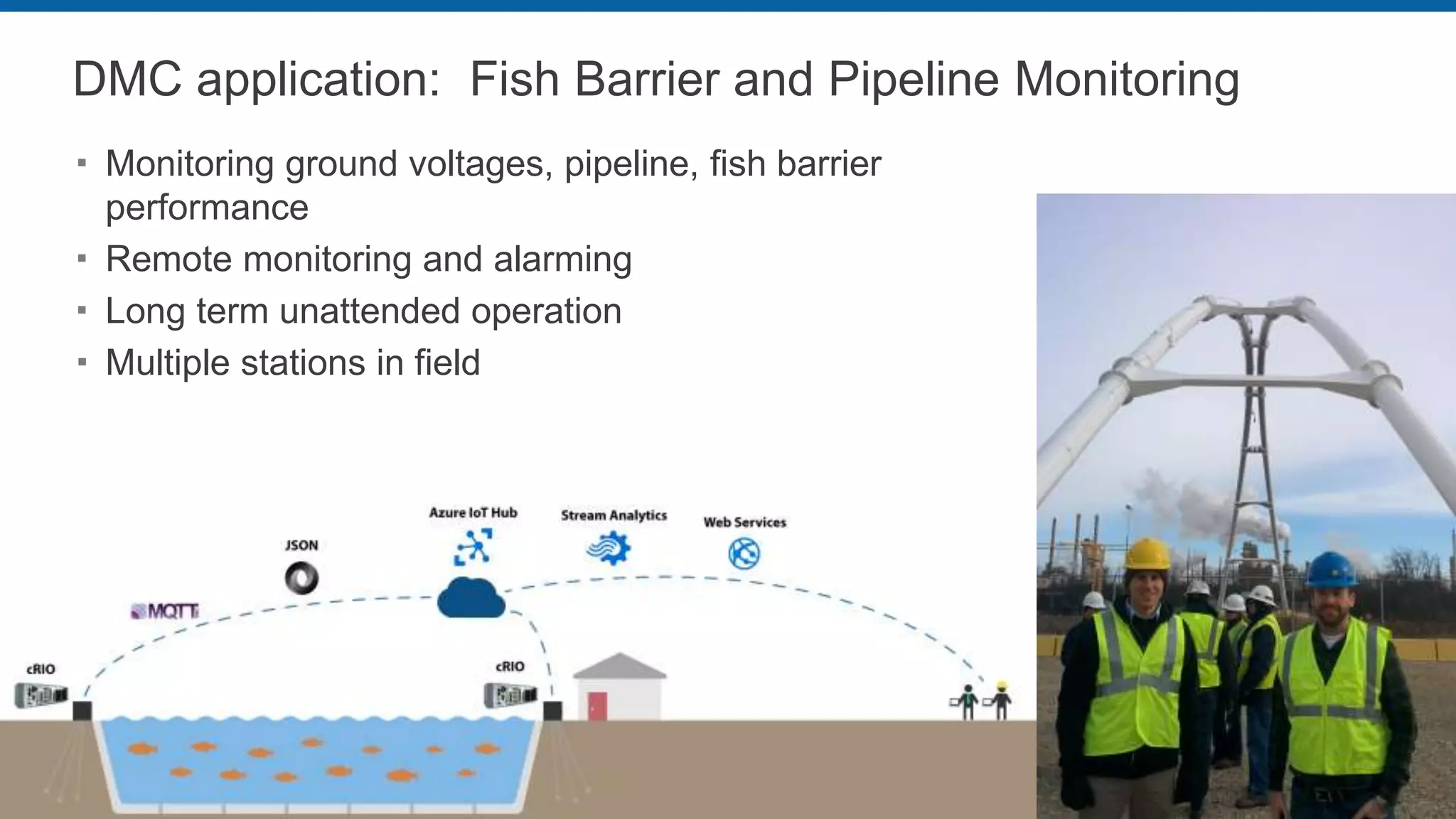

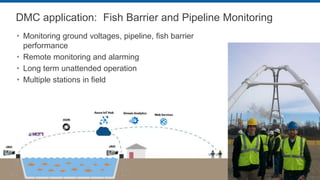

• #23 Primary problem is invasive fish in the Midwest, specifically, keeping them out of the great lakes. USACE installed Electric Fish Barriers in rivers in the Midwest to prevent the spread of invasive fish. In this case, there is an electric current imparted in the river, the fish swim in, don’t like it, swim back out. Derivative problem is, where does this current go, and what problems might it cause. In this vicinity there is a bridge, a pipeline, a few neighborhoods. It’s important to monitor the area for effects on surrounding infrastructure, see how the barrier is performing.
• #24 Sensors already in field Challenge: non-typical sensing applications– very noisy low voltage signals, questionable power source, in-line fuses, Solution: range of c-series modules Testing in lab and in field Interim report to share with stakeholders Buy-in on data Power regulator (?) Challenge: detect defibrillator Project: medical device containers Solution: Another unique IoT project we had was a box to detect the presence of various electronics. We designed a method of reading electromagnetic energy in the immediate area. This required a fair amount of experiementation in our labs, working closely with the end customer to ensure the full scope of possible devices were considered. ***the only time you know if it didn’t happen is when you need it most*** Get clever about the sensing Use EME

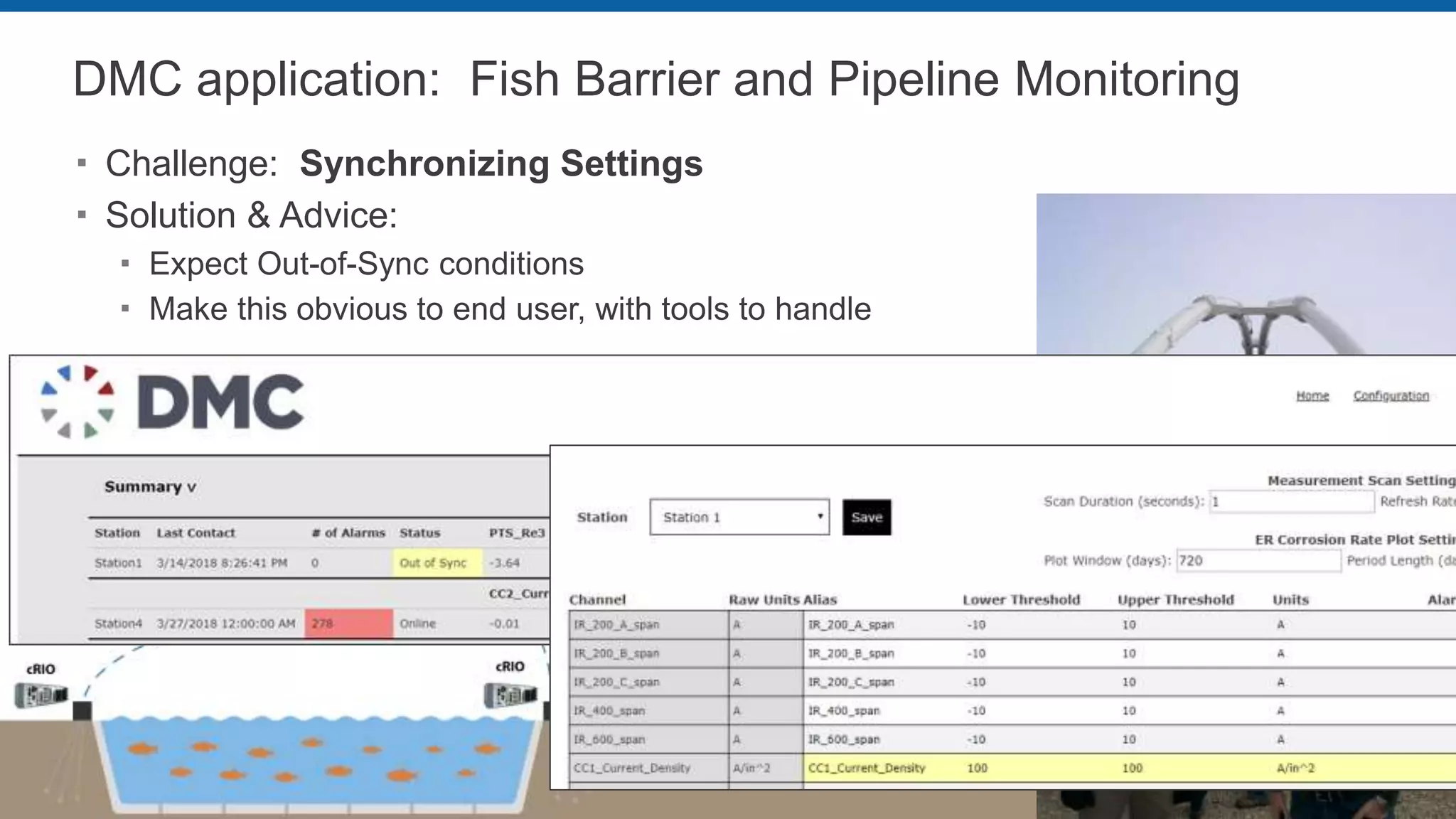

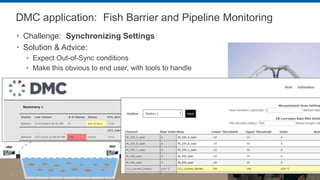

• #25 >>frame the need more, in terms of Fish Barrier. 1 sentence summary, “this is the problem, this is the solution” Sensors already in field Project: Fish barrier / pipeline monitoring, Challenge: non-typical sensing applications– very noisy low voltage signals, questionable power source, in-line fuses, Solution: range of c-series modules Testing in lab and in field Interim report to share with stakeholders Buy-in on data Power regulator (?) Challenge: detect defibrillator Project: medical device containers Solution: Another unique IoT project we had was a box to detect the presence of various electronics. We designed a method of reading electromagnetic energy in the immediate area. This required a fair amount of experiementation in our labs, working closely with the end customer to ensure the full scope of possible devices were considered.

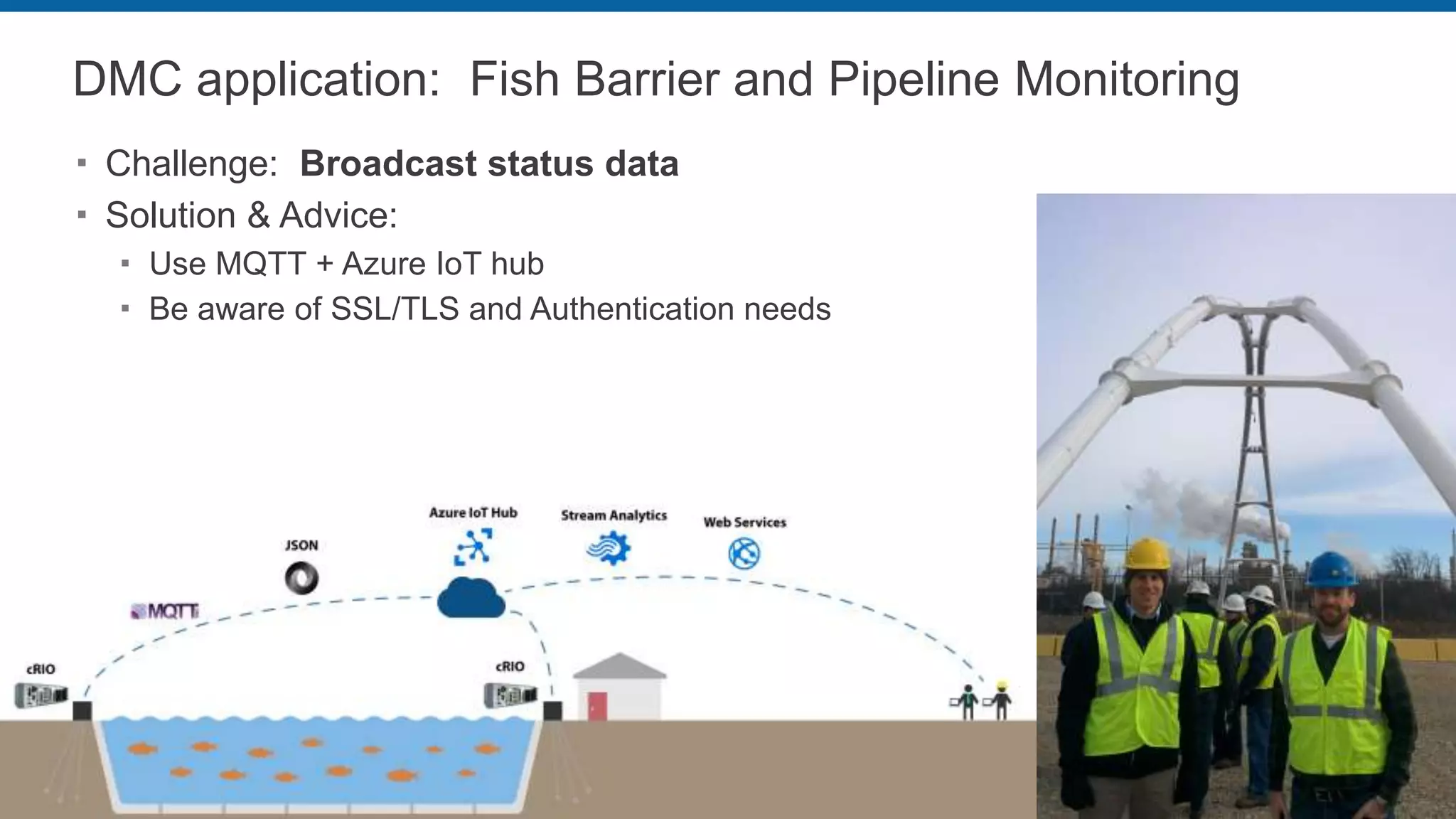

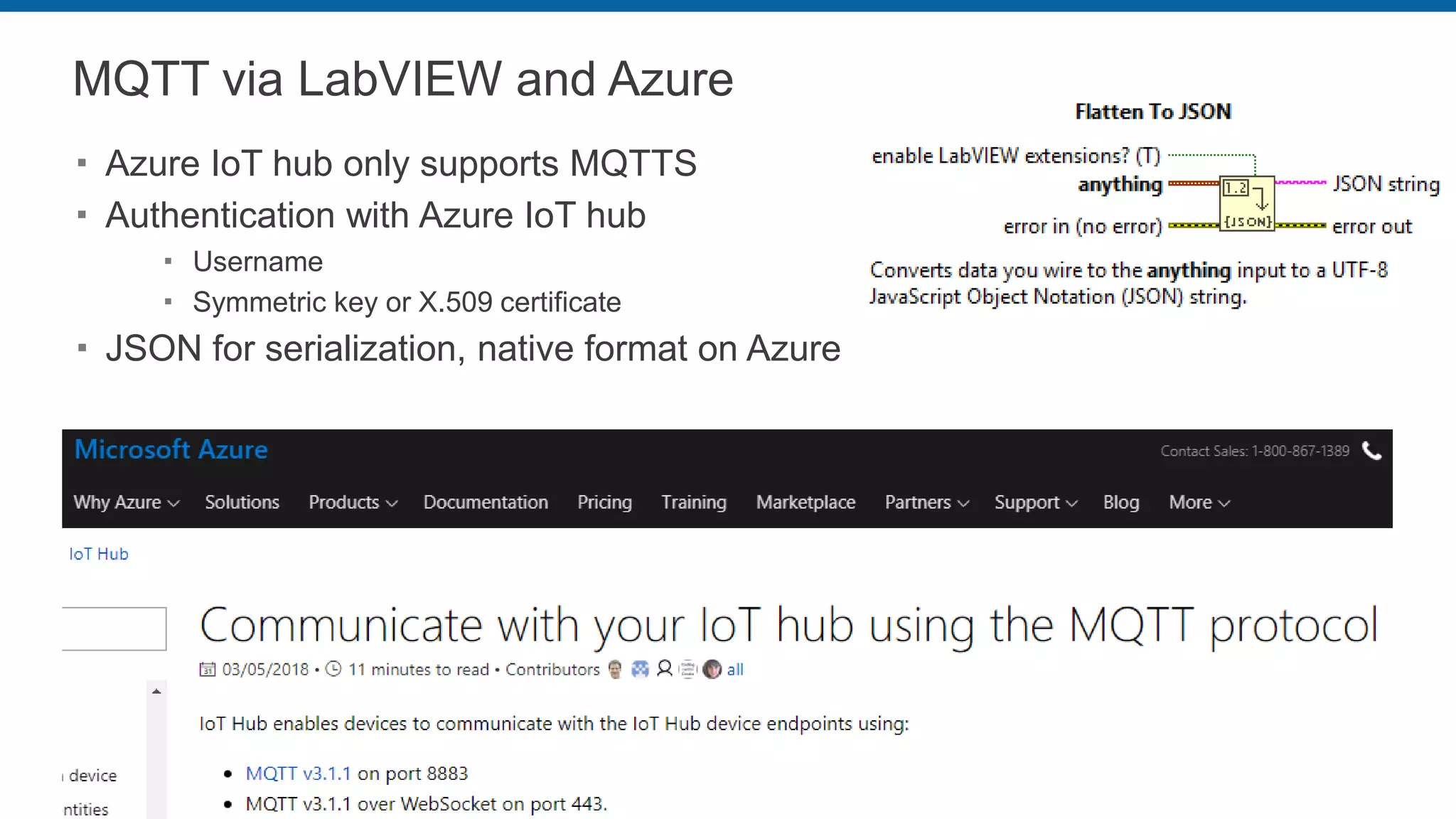

• #26 Note: Azure uses different types of authentication for different services Azure IoT hub only supports MQTT over a secure channel
• #27 Unlike many IoT projects, as a LabVIEW programmer you will likely have an interest in high speed data. The status broadcasts 10kHz

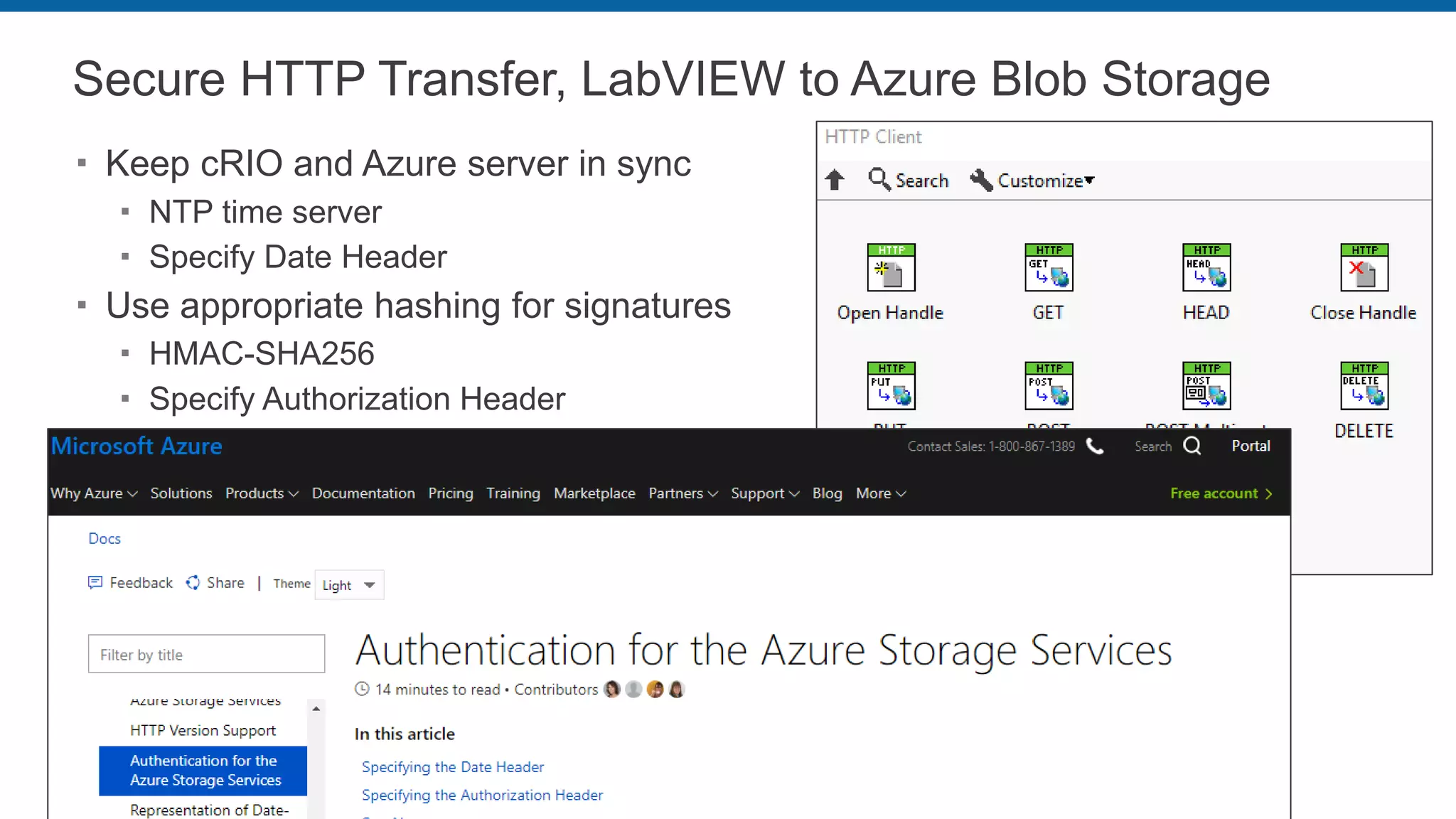

• #28 LabVIEW has a toolkit for HTTP transfers. This works great. However, it only works great with cloud services if you can sort out the appropriate rules about what Date Header– if out of sync, you will not get a message that says, “hey, everything is great but your device is out of sync”…. You will just get a message that says the authentication failed. *Bottom line. Do your homework and expect a fair amount of trial and error. Or, reach out to someone who’s already done it (like us.) There is a fair amount of code out there that does this in other languages, Python, etc. Though not in LabVIEW Also--- cloud platforms that do not have official libraries would be interfaced in the same manner. https://docs.microsoft.com/en-us/rest/api/storageservices/authentication-for-the-azure-storage-services *Another option: NI Cloud Toolkit for Azure. ? Has anyone used this yet?
• #29 LabVIEW has a toolkit for HTTP transfers. This works great. However, it only works great with cloud services if you can sort out the appropriate rules about what Date Header– if out of sync, you will not get a message that says, “hey, everything is great but your device is out of sync”…. You will just get a message that says the authentication failed. *Bottom line. Do your homework and expect a fair amount of trial and error. Or, reach out to someone who’s already done it (like us.) Also--- many other cloud platforms do not have official libraries would be interfaced in the same manner. https://docs.microsoft.com/en-us/rest/api/storageservices/authentication-for-the-azure-storage-services Why to use it. *Another option: NI Cloud Toolkit for Azure. ? Has anyone used this yet? Probably makes some of this easier

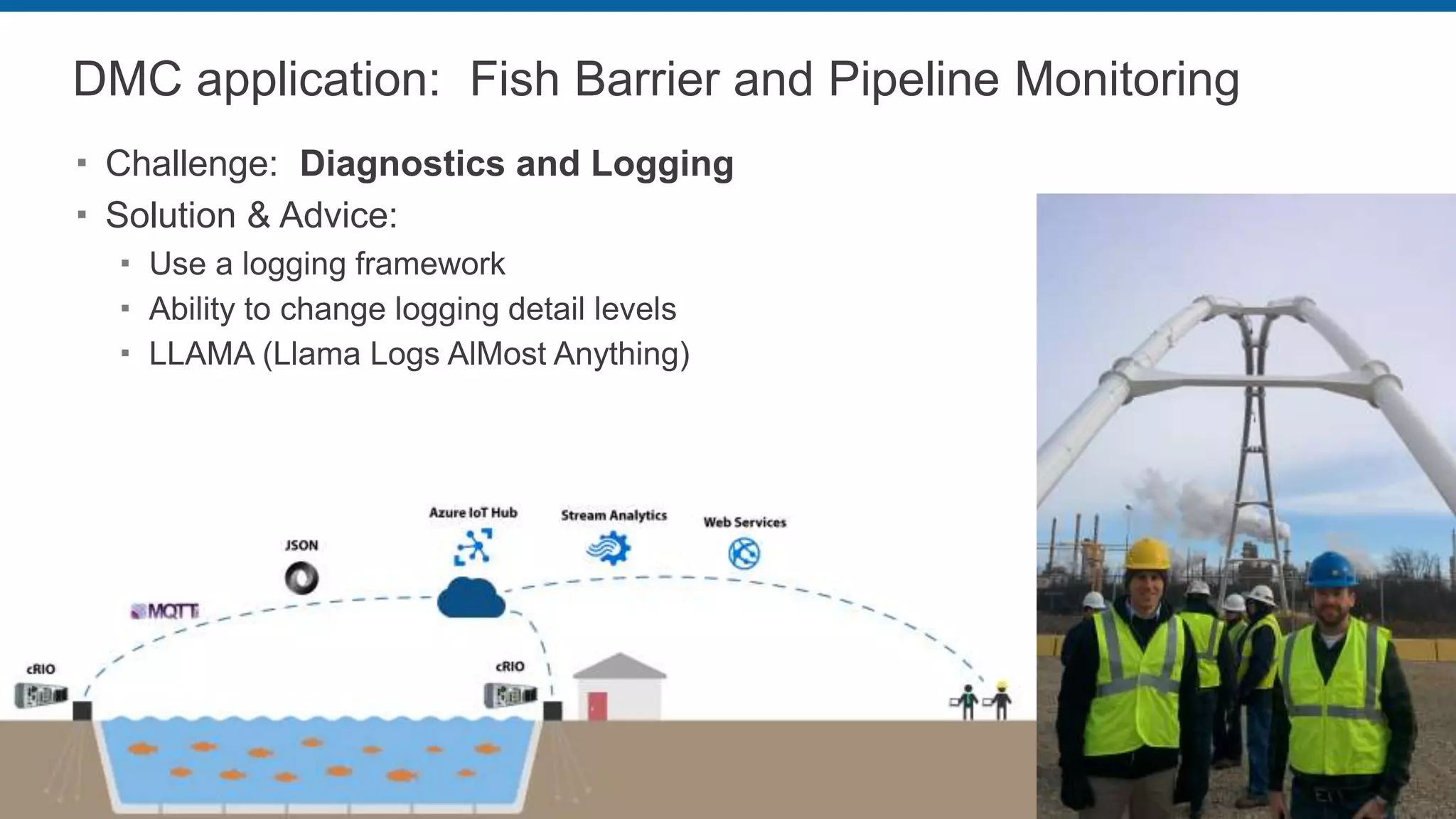

• #30 Solution: LLAMA Consistent tool Easy for developers Easy to collect and view logged data Ability to change log levels remotely. ***More verbose logging is available as needed.*** Ability to change logging detail levels programmatically or remotely Example: if a status message fails, there could be a variety of reasons--- connectivity to the modem, to the internet, the data plan, the storage service.. A trace level of logging could help diagnose where the issue might be. This log can be generated and then sent to the server. If attention is needed then a person can get involved, addressing the data plan or ISP, or other action. MQTT communication might have lot's of retries or other events that could be logged. Example 2: For the daq sequence, we go through several states, switching DOs for instance off, measuring shunt resistor voltage to verify continuity in the circuit, measurement retry events if instant off unsuccessful, etc. Having verbose logging for the full DAQ sequence could be useful, but would likely fill up logs if left on all the time Example 3: Remote debug in general. We would also put our general state machine actions and events at a different log level in case we had to remotely monitor or debug our program logic in more detail On the Fish Barrier project, these are sent on demand by request via the remote web server

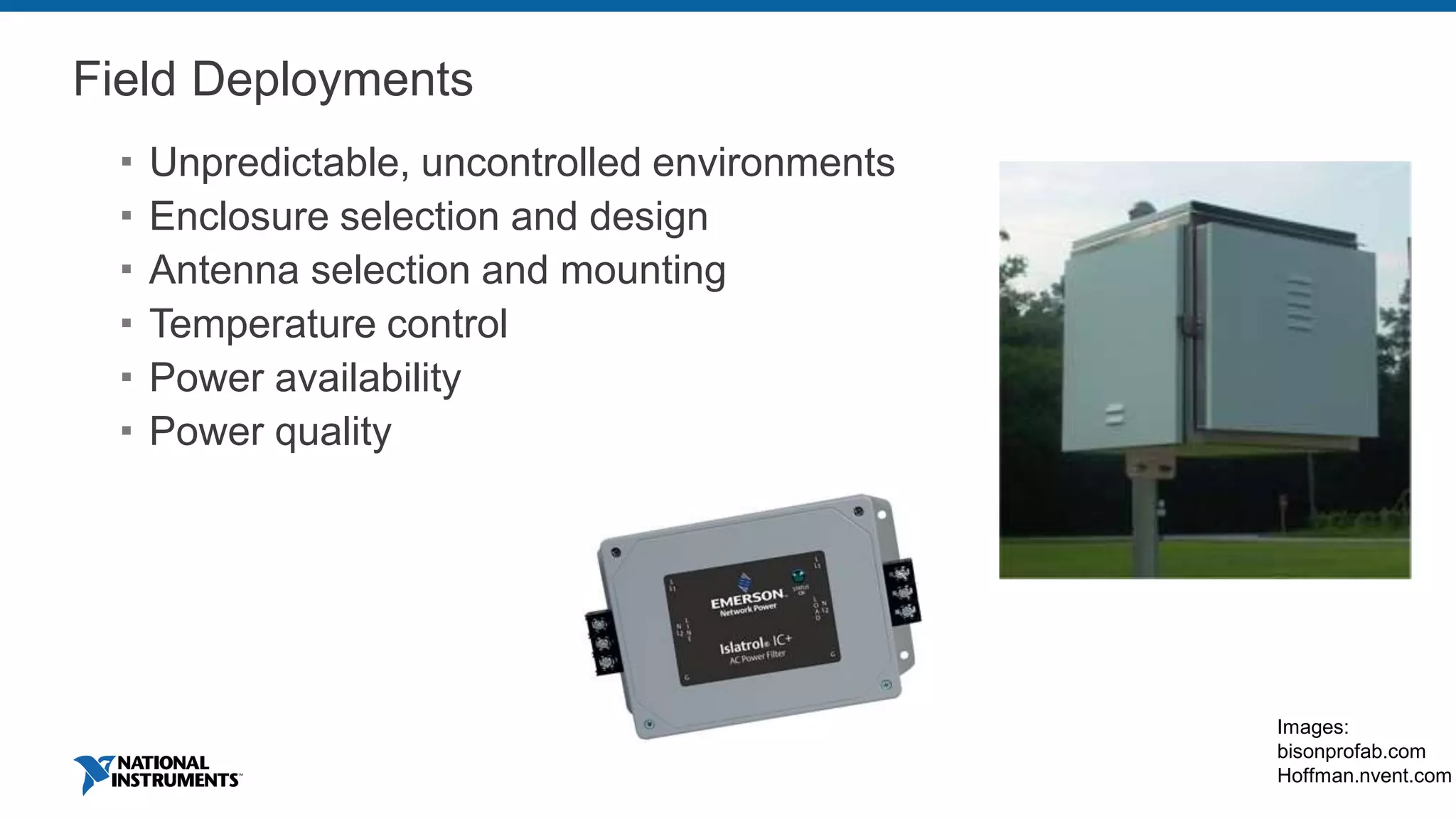

• #31 Chance of lightning strike on pipeline Power fluctuations

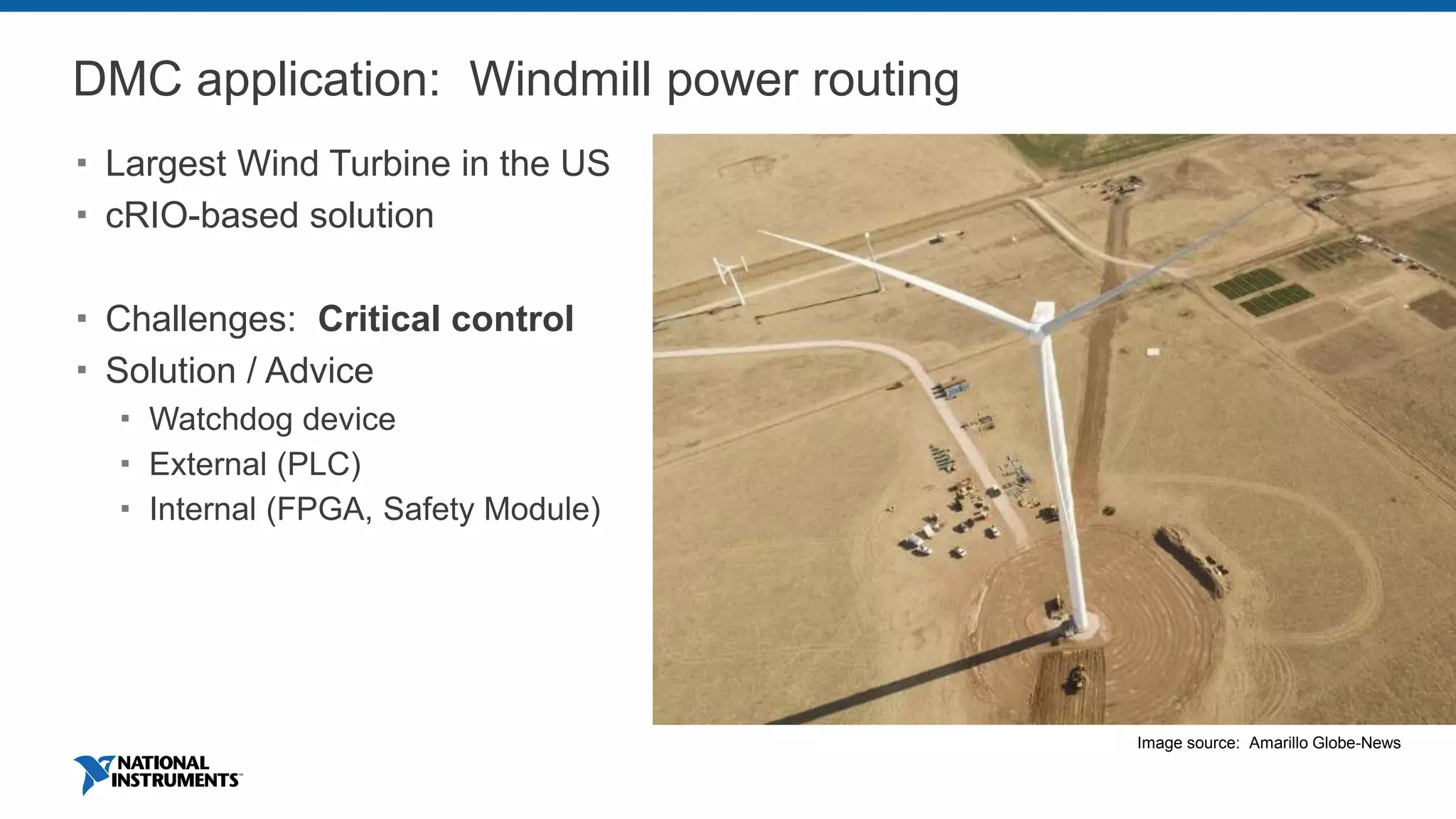

• #33 UL Advanced Wind Turbine Test Facility at West Texas A&M University Largest wind turbine in the United States. It’s a monster. height of the hub is 426.5 feet above the ground. The height of the tip of one of its three blades at its tallest is 653.5 feet above the West Texas plains. The diameter of the rotor is 446.2 feet. Challenge is critical control Watchdog device FPGA External C-series safety-rated cards as an option http://www.amarillo.com/news/20180509/wts-wind-turbine-is-largest-in-us

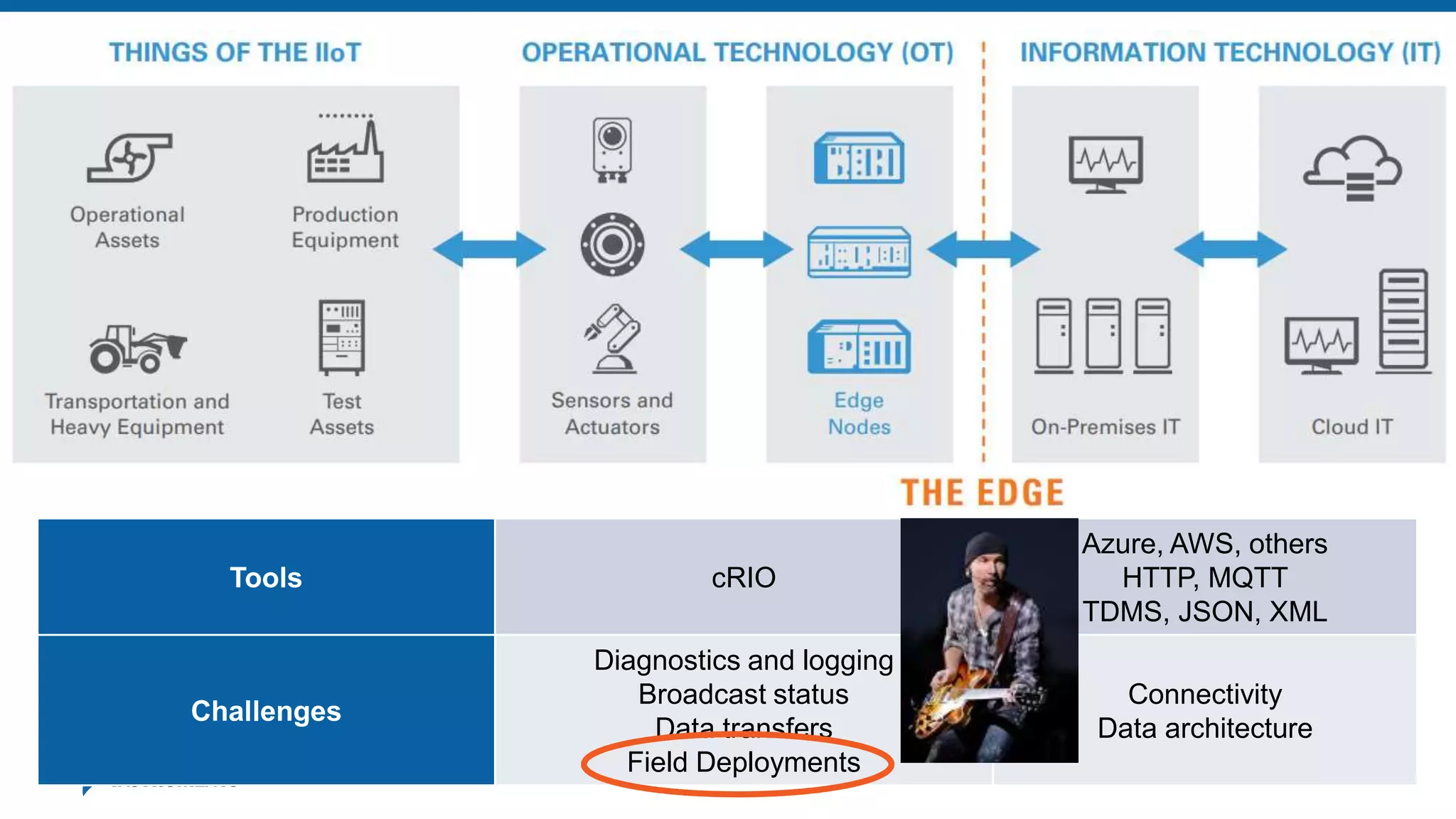

• #34 So, in talking about IoT, it is useful to have a rough framework to visualize the big picture. Here is graphic you may have seen On the left, the “things” of the world are represented. In the Industrial Internet of Things, this includes things like heavy equipment, production equipment, test assets, etc. In the middle we have “Operational Technology”, which is where most people in this room typically operate. This encompasses sensors and actuators, to acquire data from and control the things, according to our big challenges. So this is where the story typically ends, right? You have something in the physical world, you collect data. You’ve got local data and local control, but you need more access, broader analytics and visibility. You need INSIGHT on your data. This is where we move on to Information Technology on the right. Which covers both On premise and Cloud IT. This is called “The Edge”. When you still haven’t found what you’re looking for… it’s time to embrace the edge, and move into connectivity and cloud services. So in this presentation, we’ll focus on some practical considerations on either end of this graphic. We’ll leverage some of the project stories regarding field deployments, connectivity, and cloud services. Please note, thisis not meant to be an end-all be-all instruction set, though

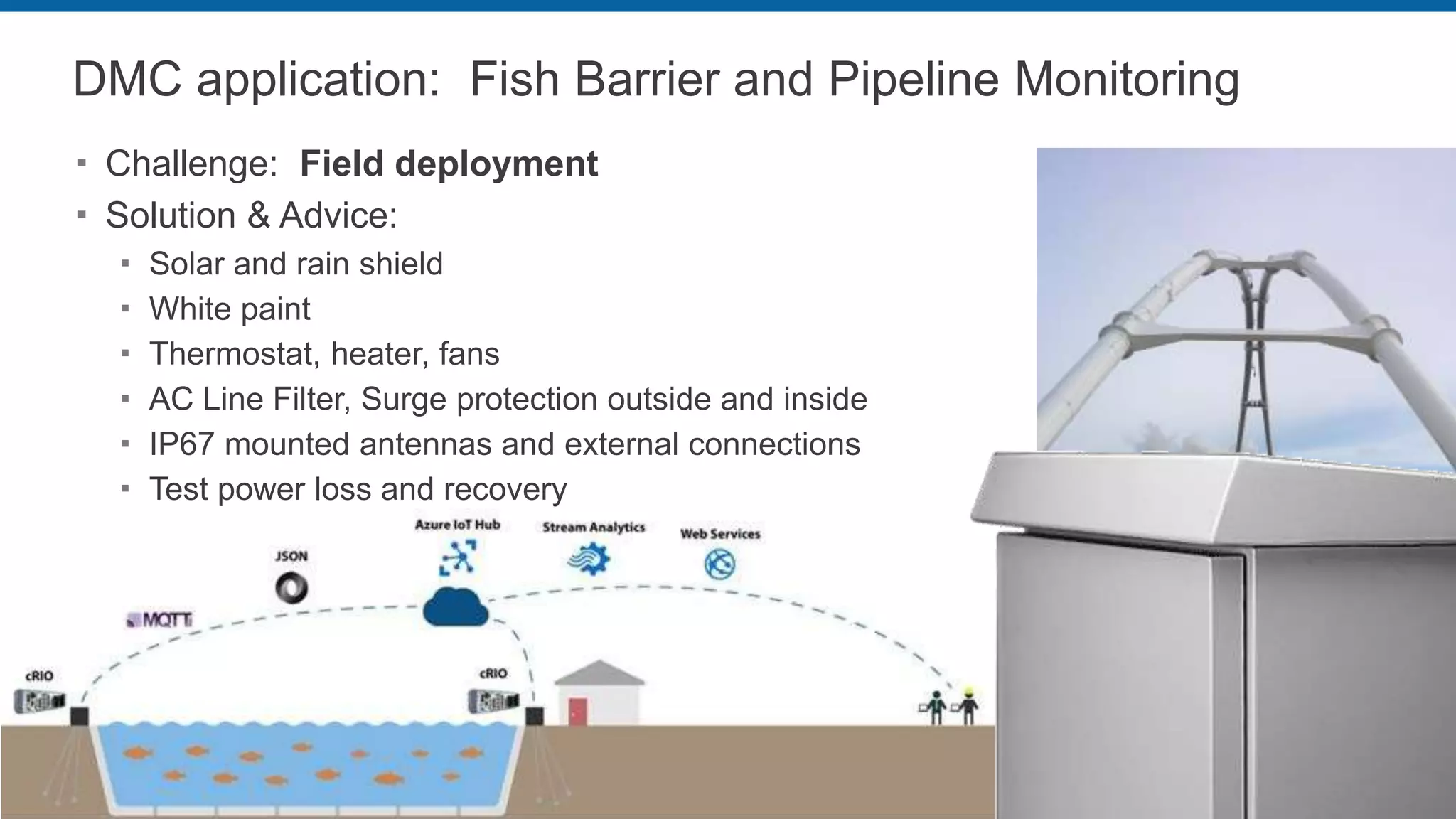

• #35 Solar / rain shield
• #36 Sensors already in field Project: Fish barrier / pipeline monitoring, Challenge: non-typical sensing applications– very noisy low voltage signals, questionable power source, in-line fuses, Solution: range of c-series modules Testing in lab and in field Interim report to share with stakeholders Buy-in on data Power regulator (?) Challenge: detect defibrillator Project: medical device containers Solution: Another unique IoT project we had was a box to detect the presence of various electronics. We designed a method of reading electromagnetic energy in the immediate area. This required a fair amount of experiementation in our labs, working closely with the end customer to ensure the full scope of possible devices were considered.

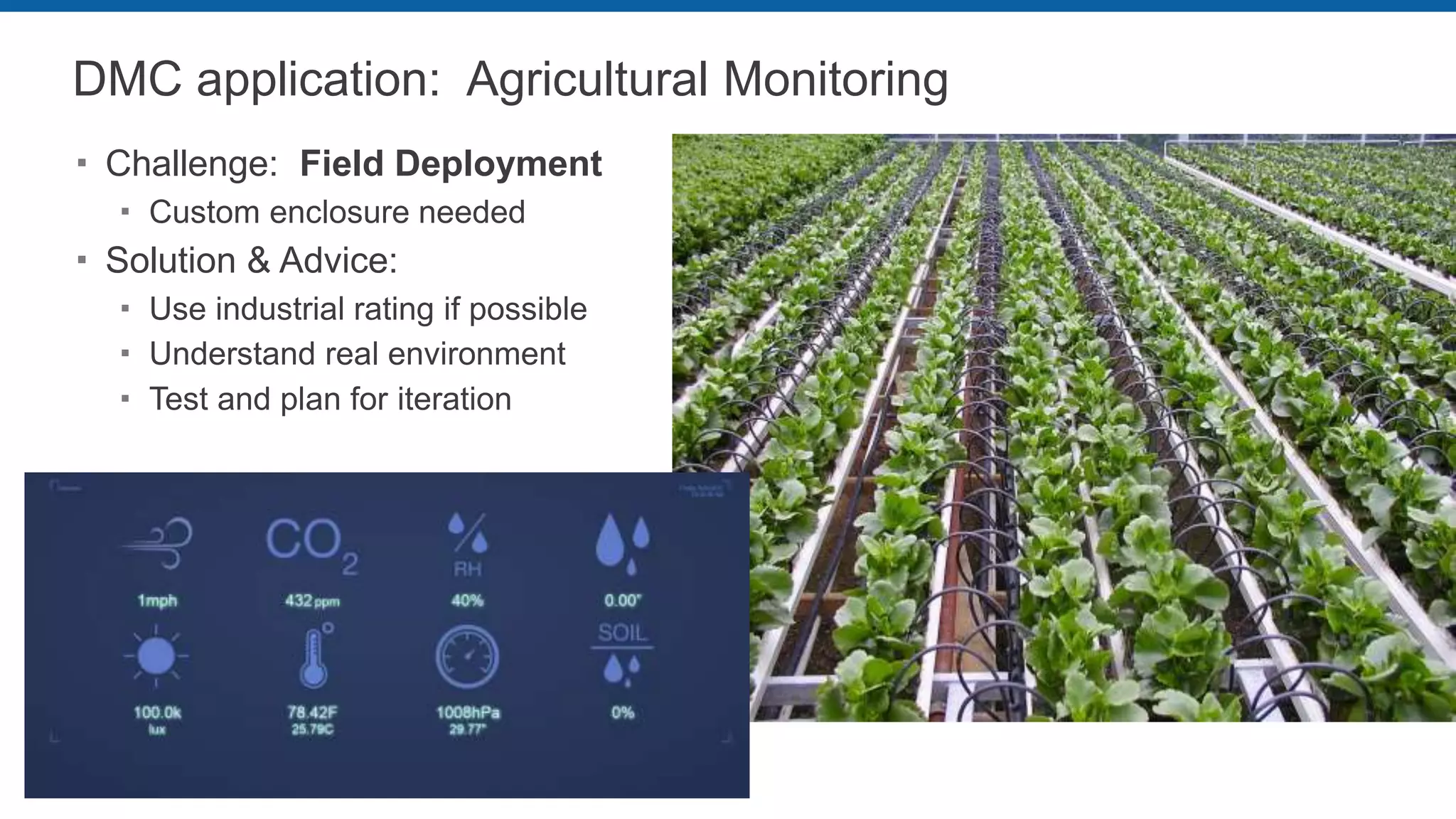

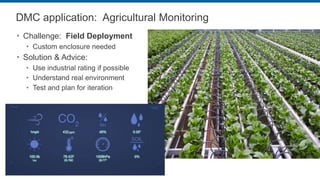

• #37 Application: monitor soil levels, weather conditions, take pictures at certain intervals. Customer wanted a cool-looking custom enclosure, non-nema Though, this was unknowingly subject to higher water pressures, as it was exposed to a Water pressure from irrigation system can be high Looked great but leaked, required rework Challenge is water. It leaked, which is why it failed. Irrigation systems can be high pressure. In addition to rain.
• #39 Now that we have this data collected... The challenge is, how do we get this data from lots of devices in different locations? You might need a cloud service.. .but which one, and how to get started? Pete will talk through cloud service options and considerations…

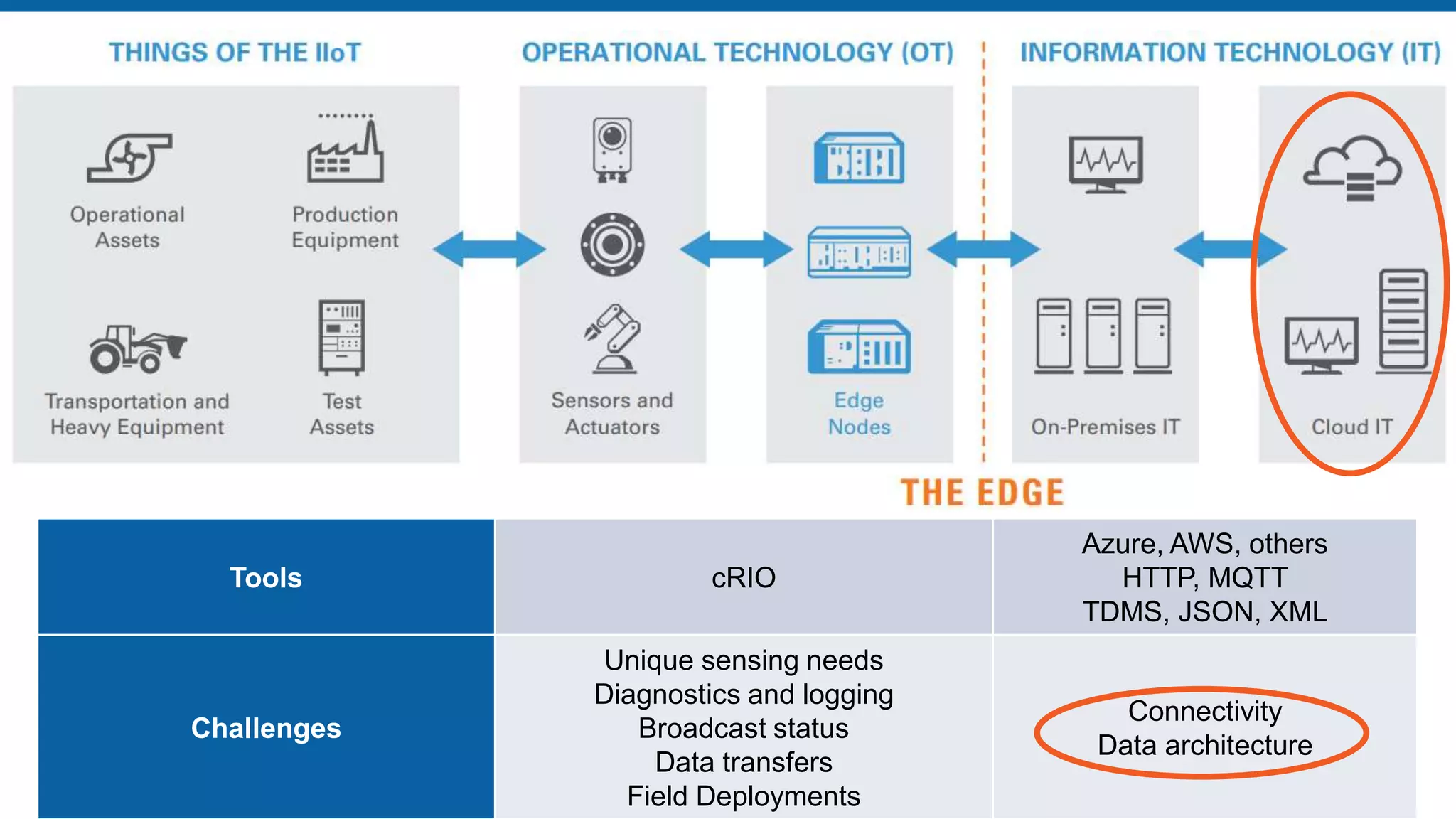

• #41 Beyond the Edge. The two big challenges are how to get your data from your device and then what to do with it. Going from data to insight.
• #42 When it comes to getting data from your devices to your users
• #43 When it c
• #44 When it c

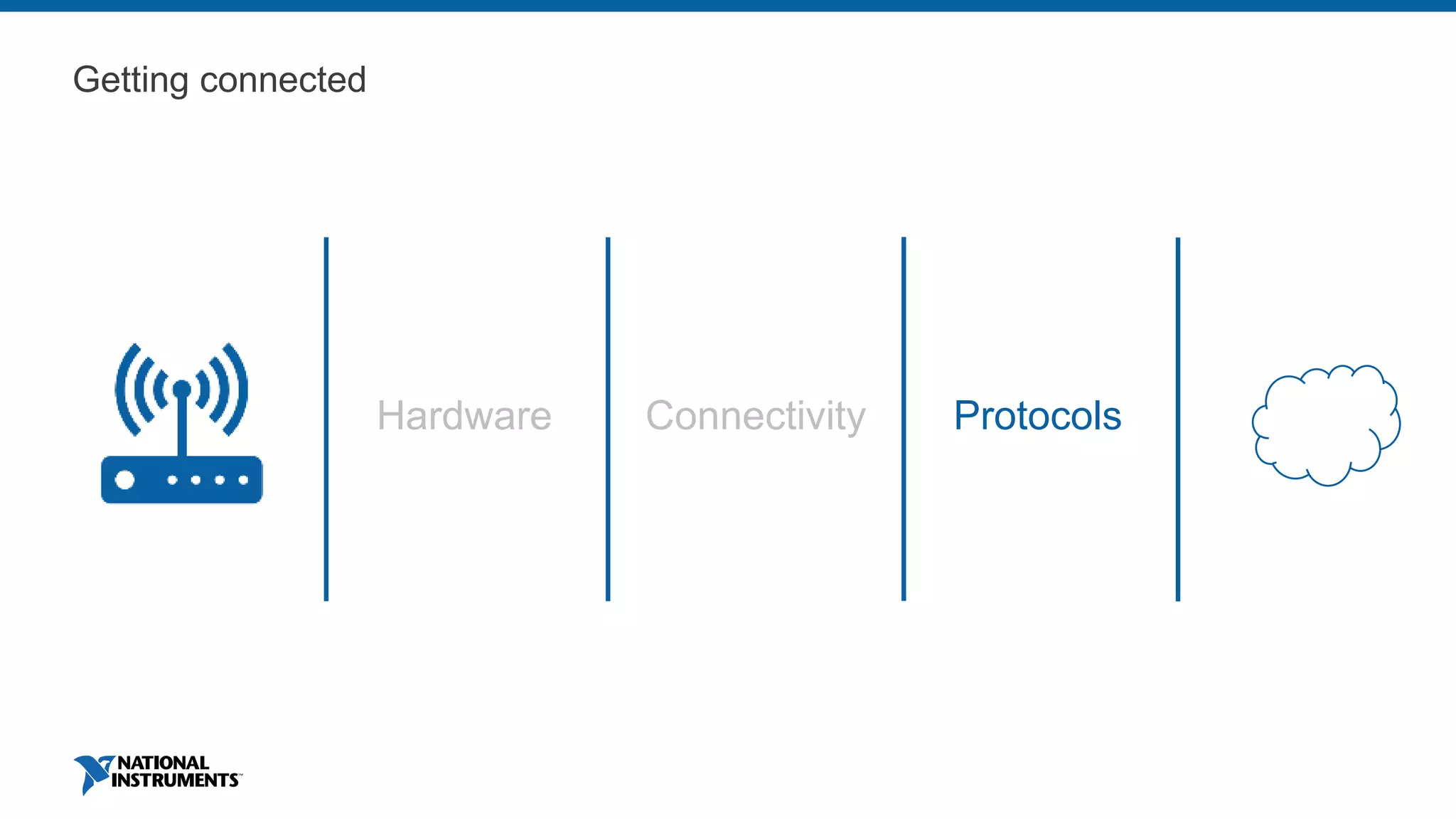

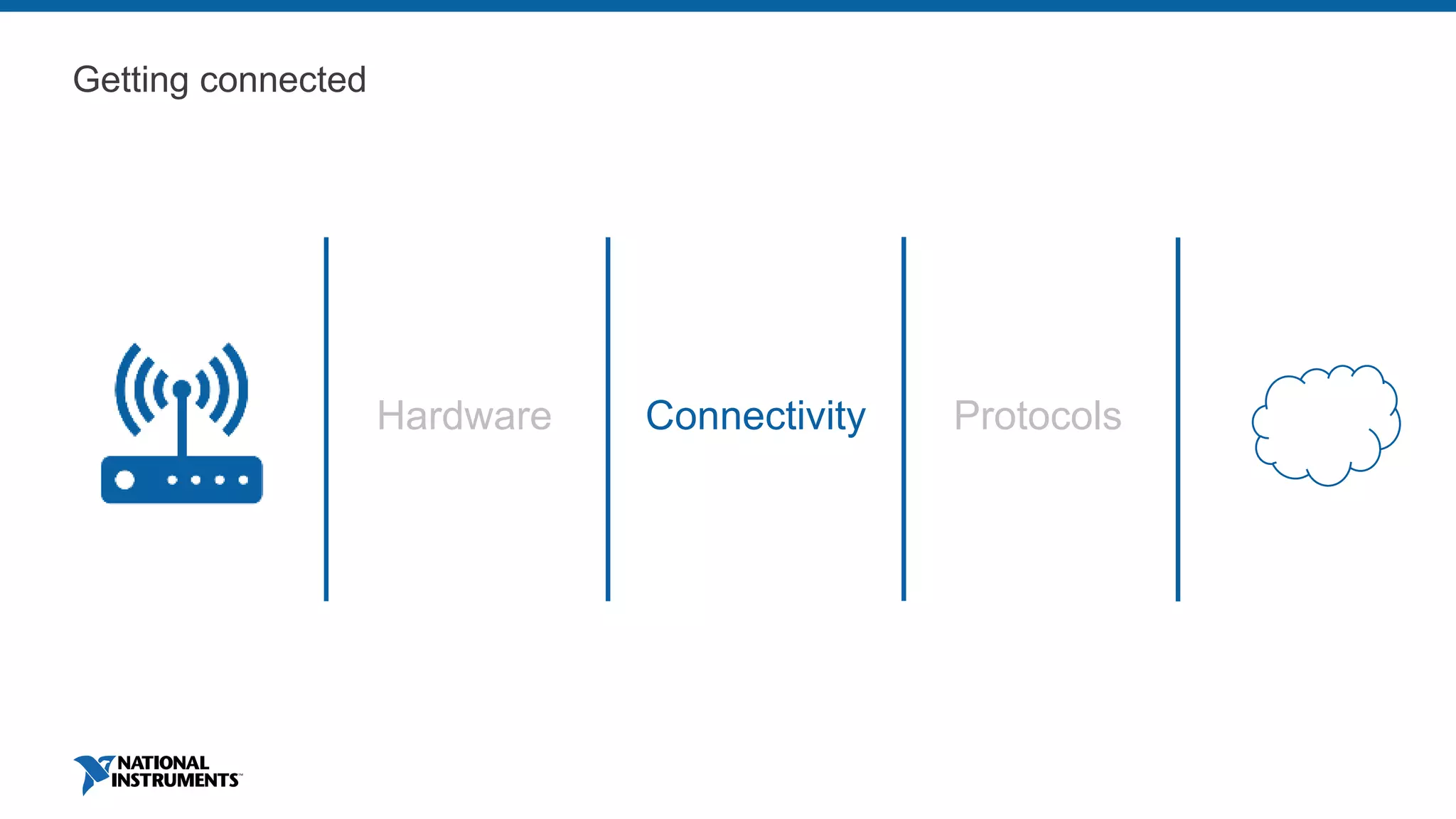

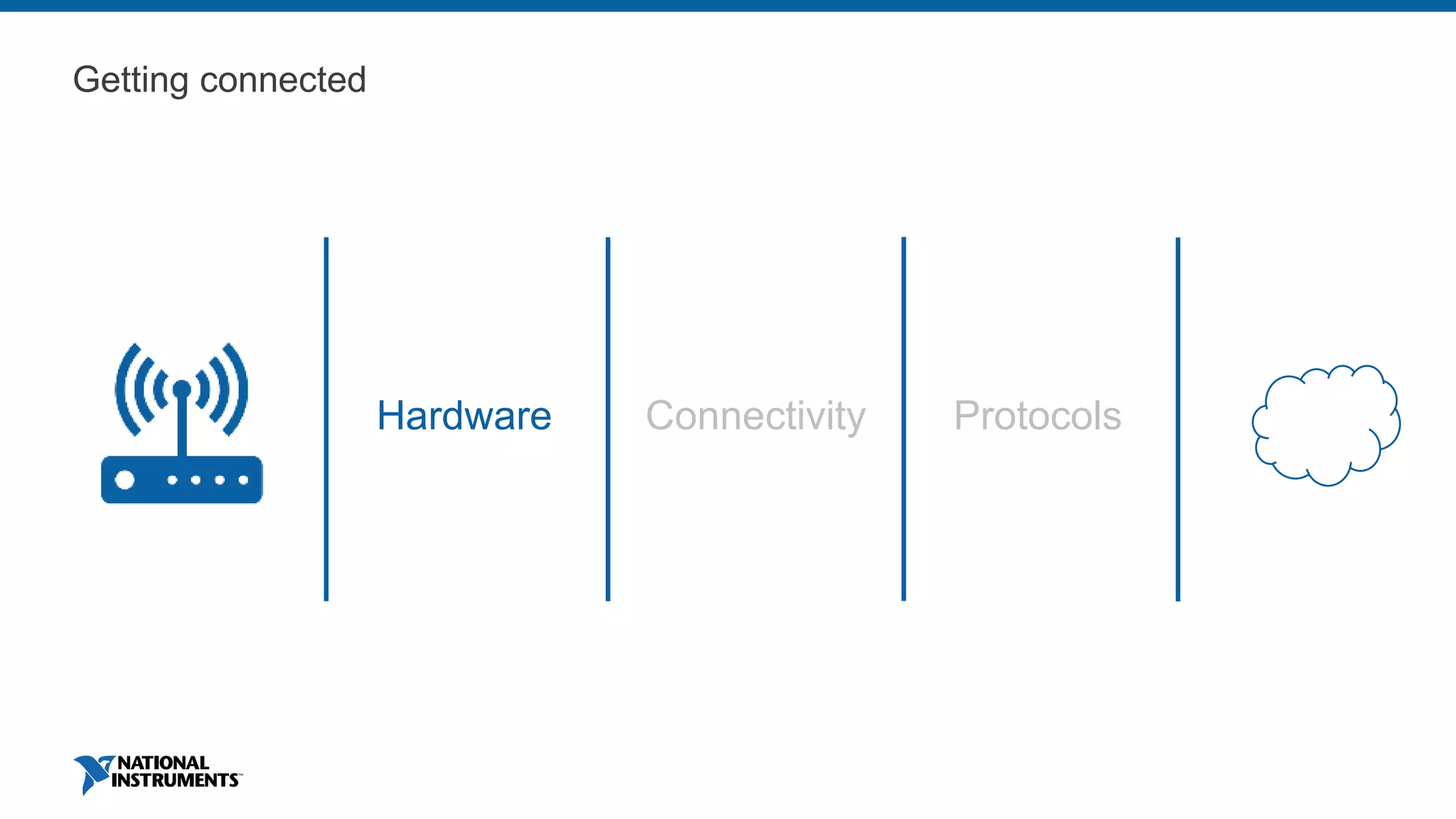

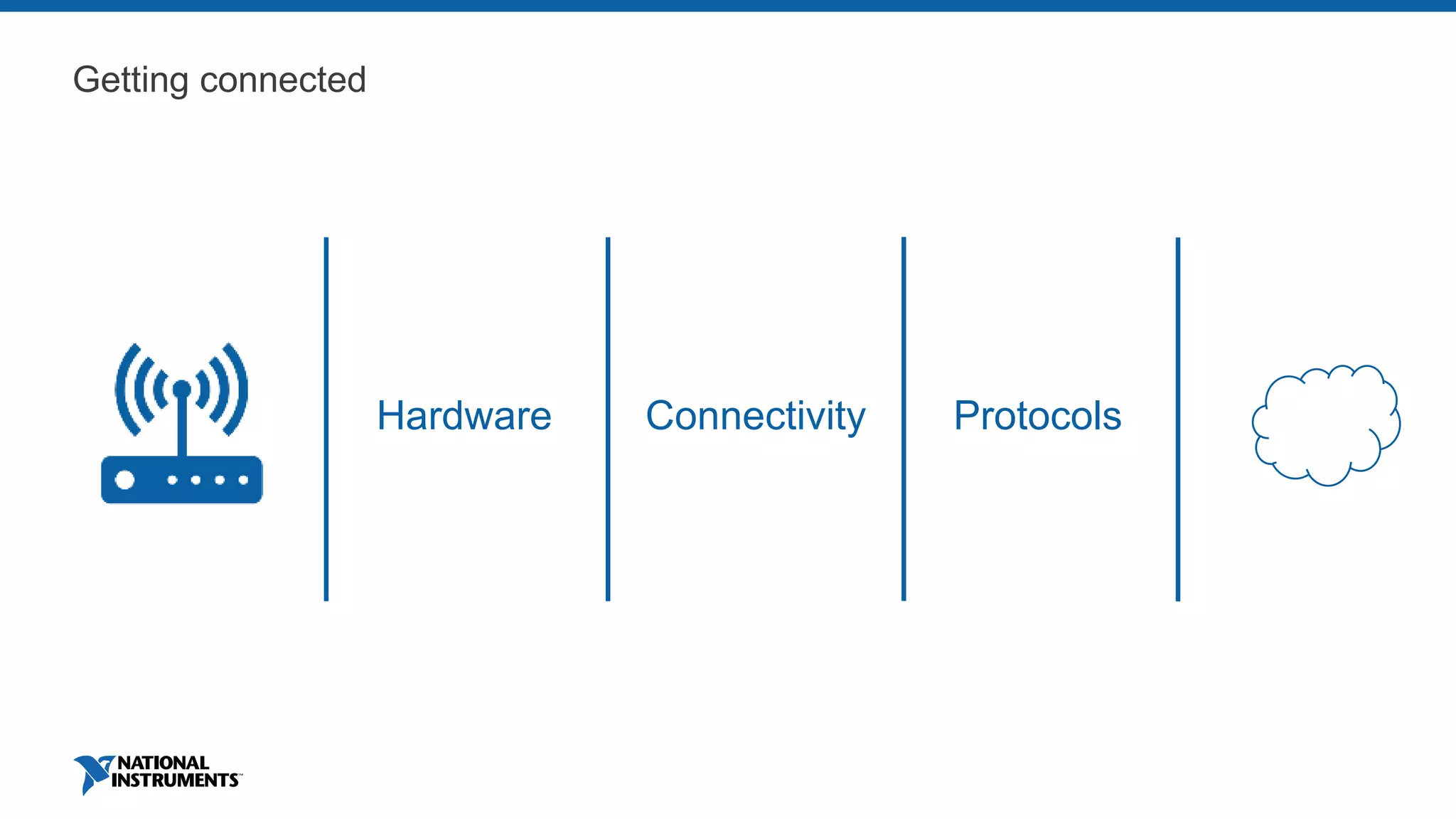

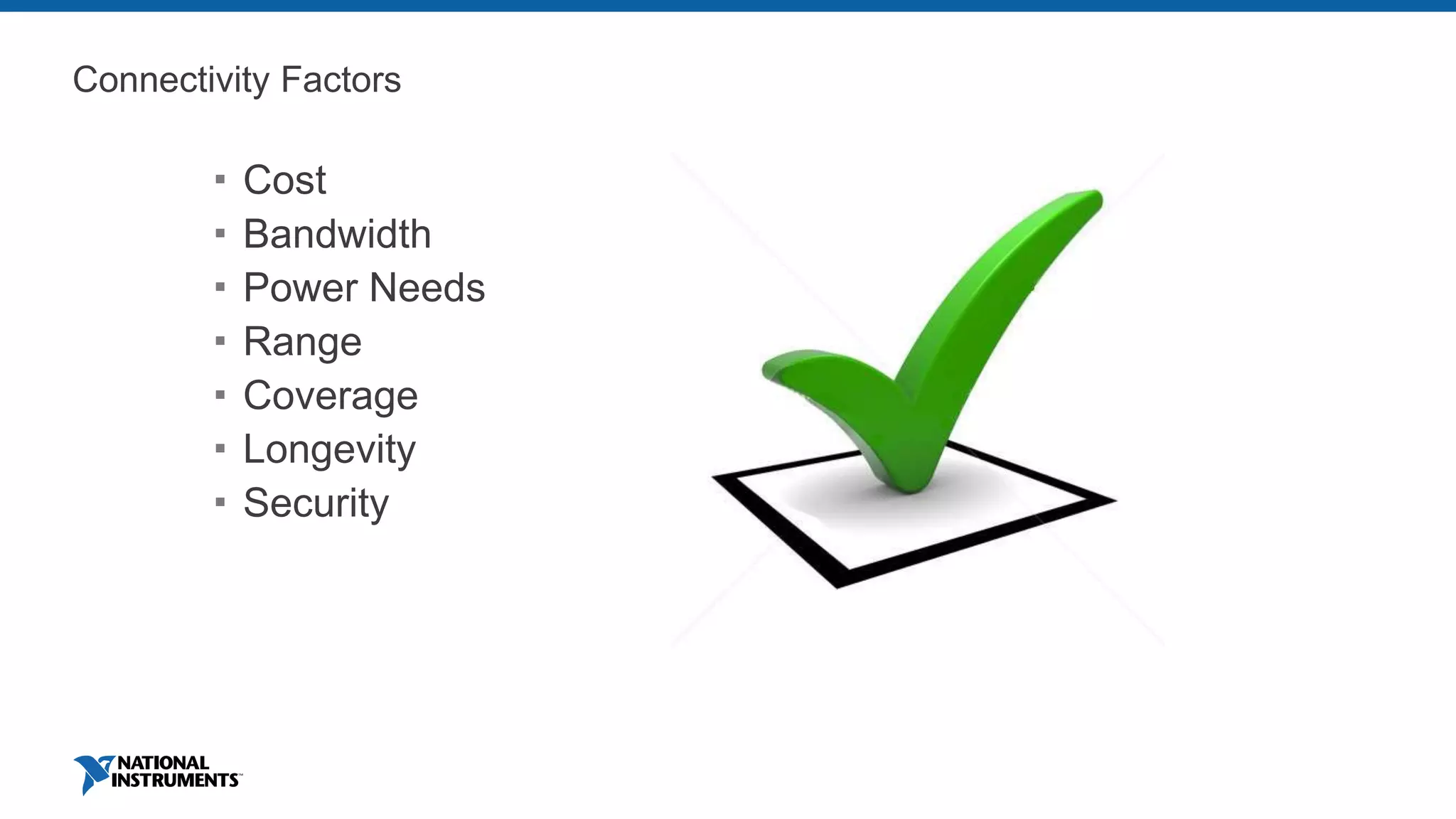

• #45 When it comes to getting your device online, there are many options available for how to connect it. These options fall into several categories. For example, some of these options will not give you a direct internet connection, but instead connect you to a gateway device that is connected to the internet.

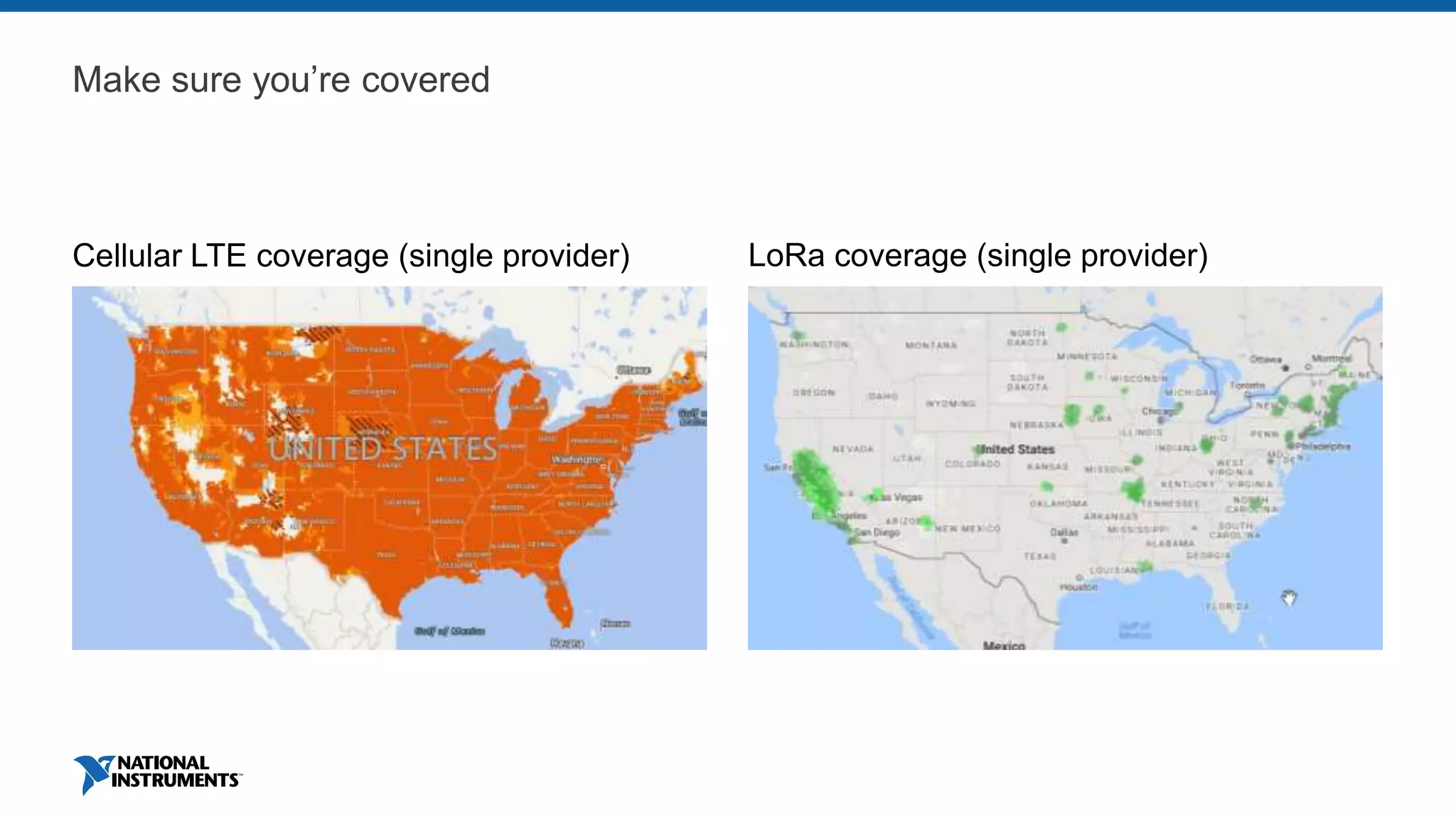

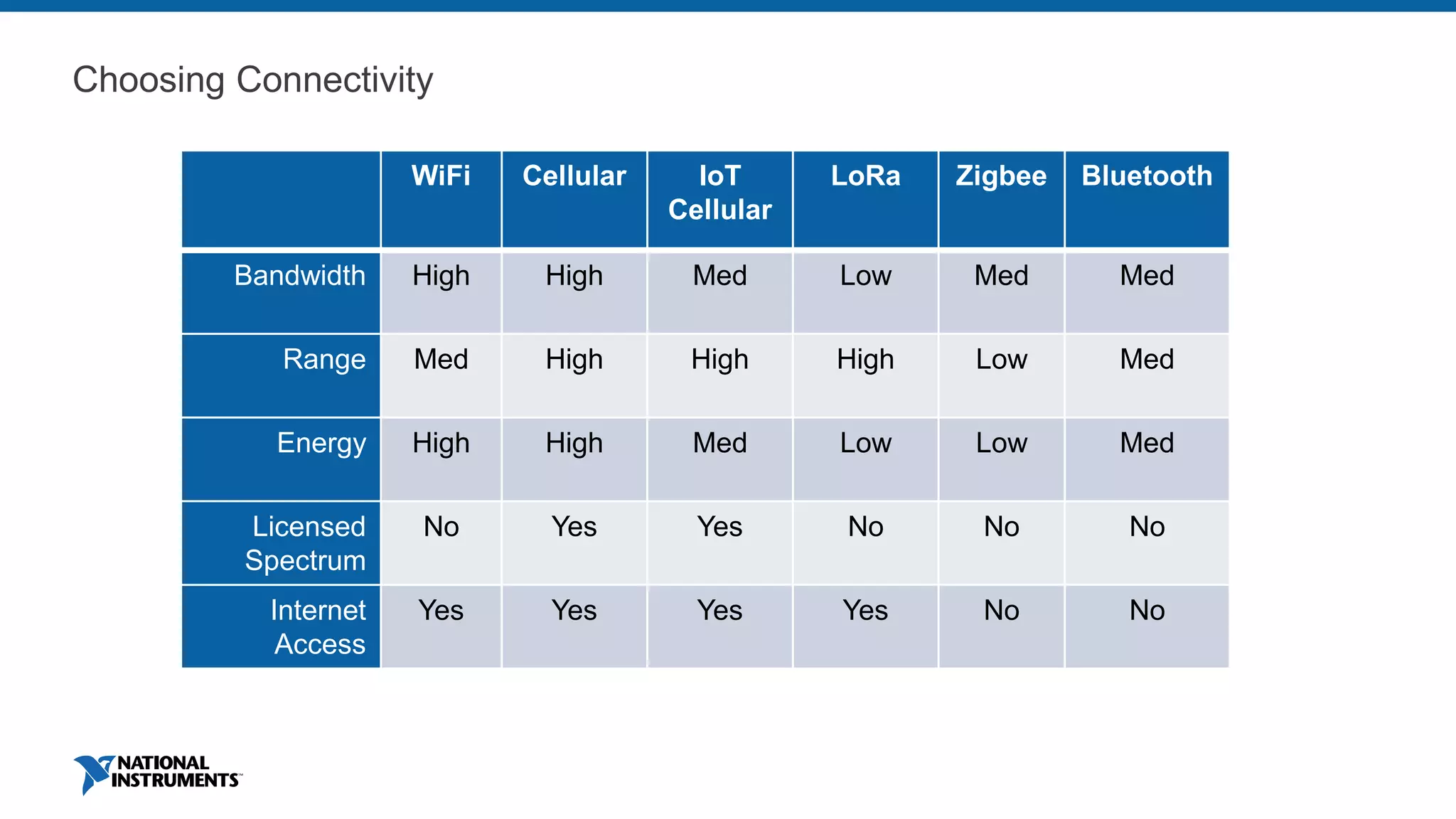

• #49 These are just some of the connectivity types available. LTE-M (LTE Cat-M1) allows for cheaper hardware, less power consumption, lower service costs, longer range.
• #53 When it c

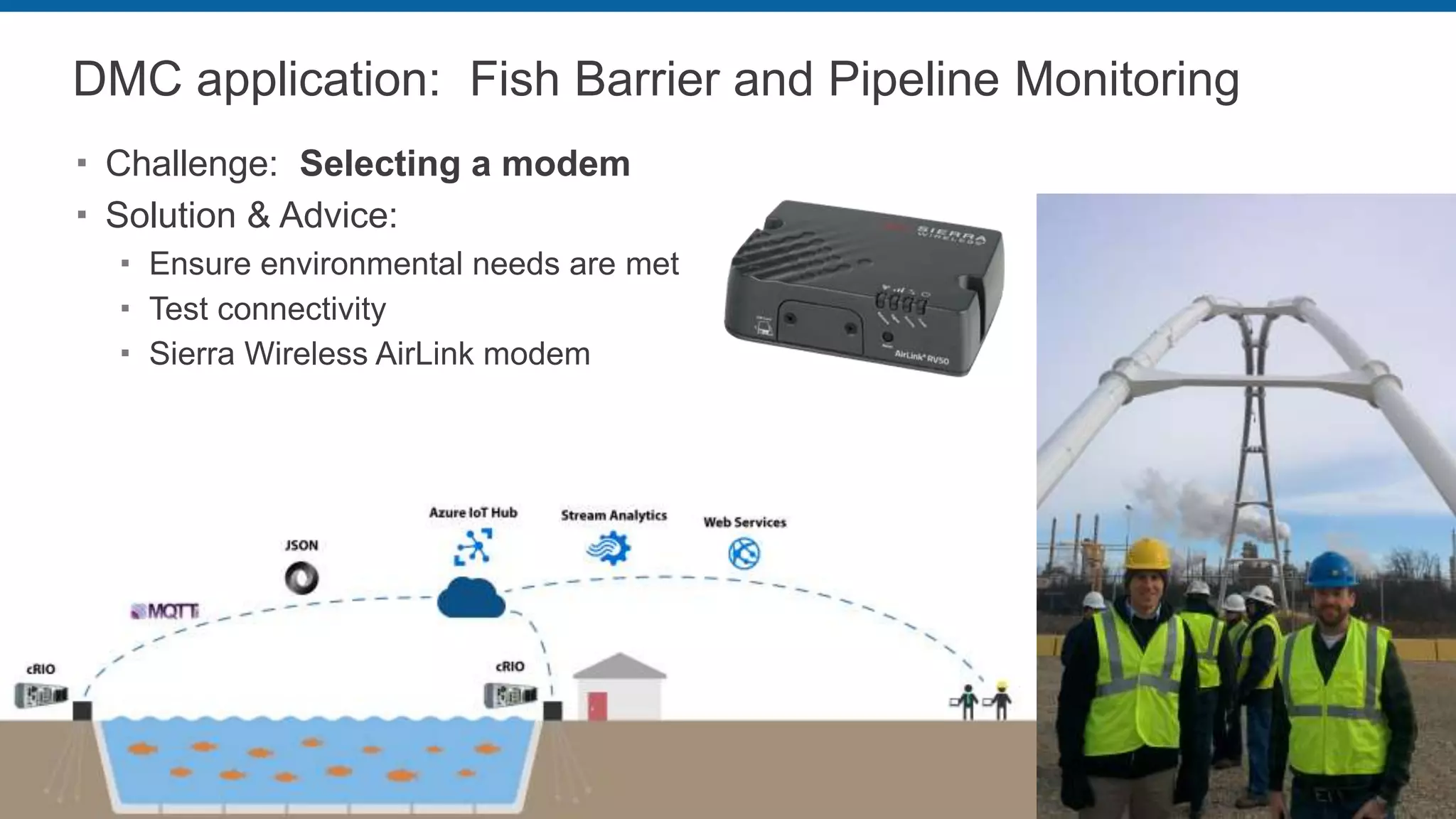

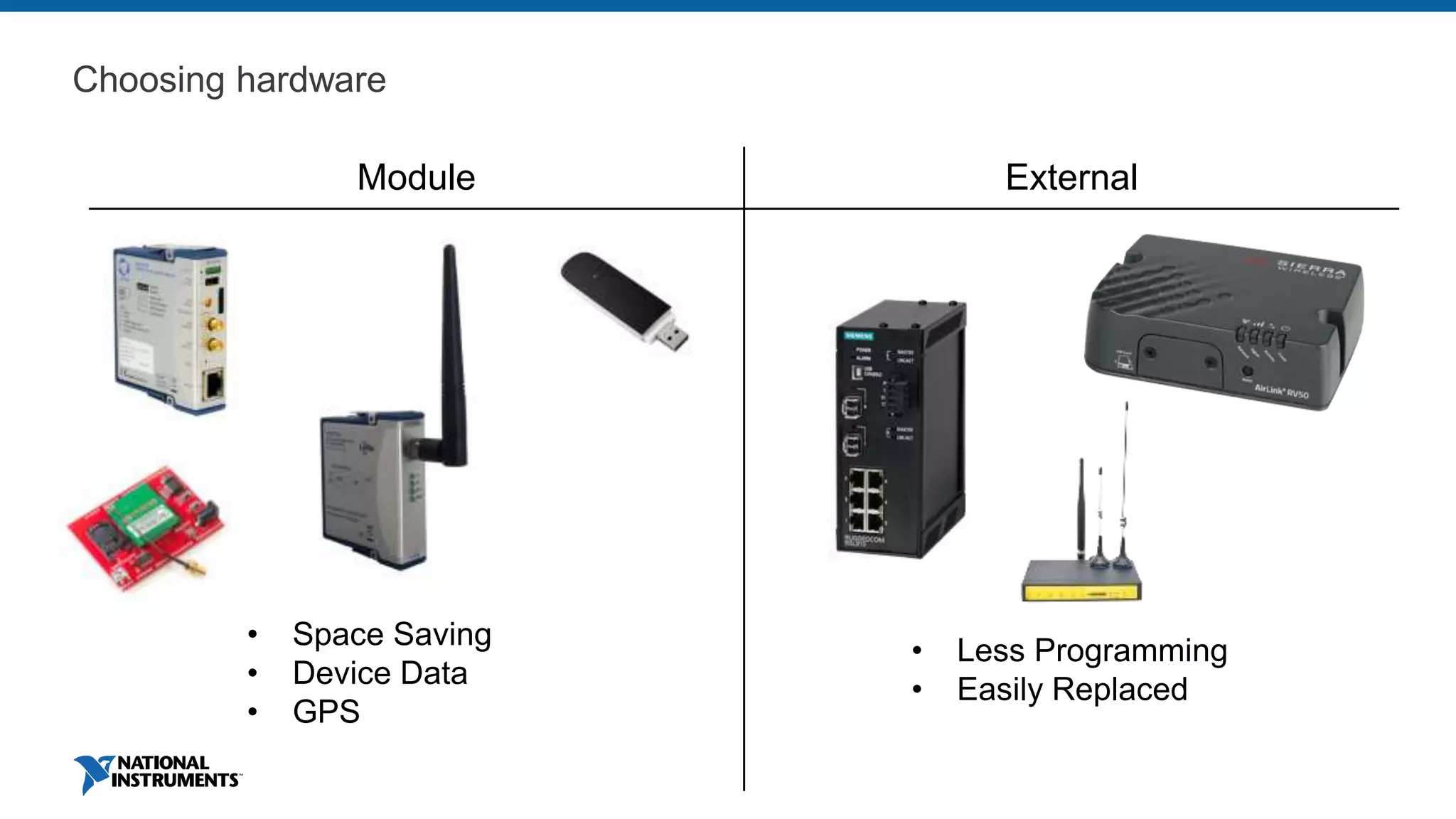

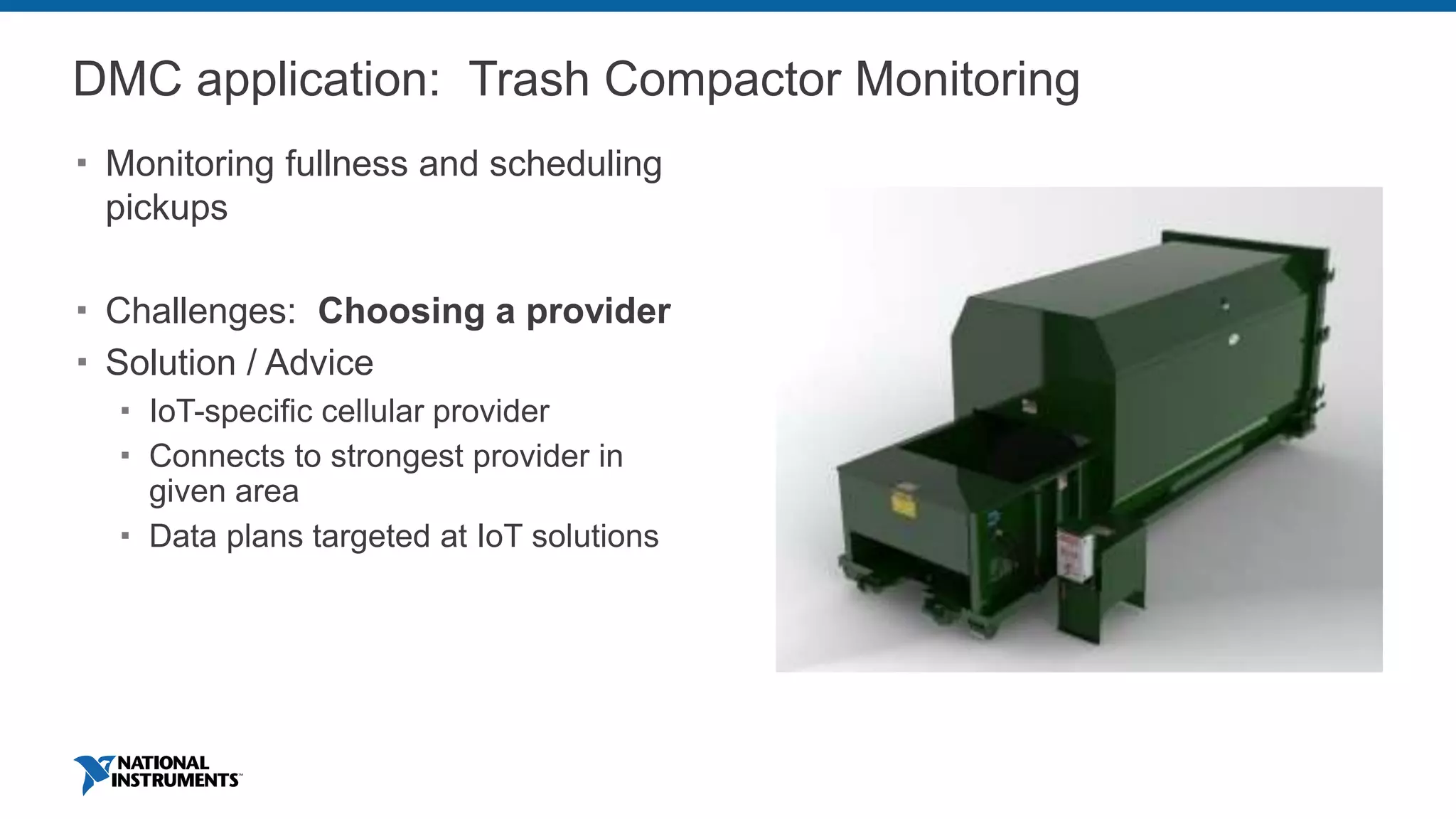

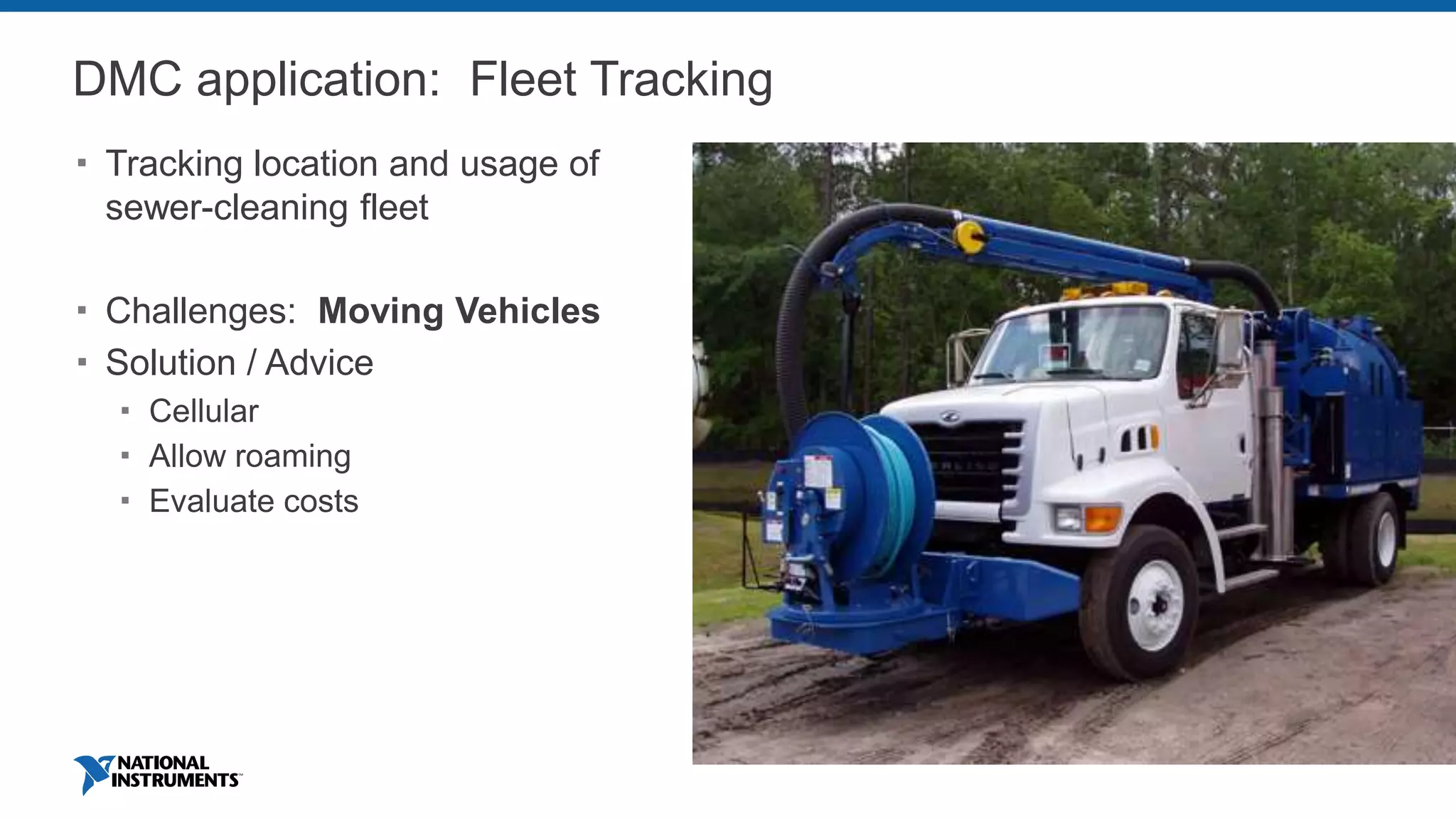

• #54 Carrier/protocol/country support Module vs external VPN capabilities Environmental factors
• #55 We’ve used Siemens, u-blox and others
• #56 When it c

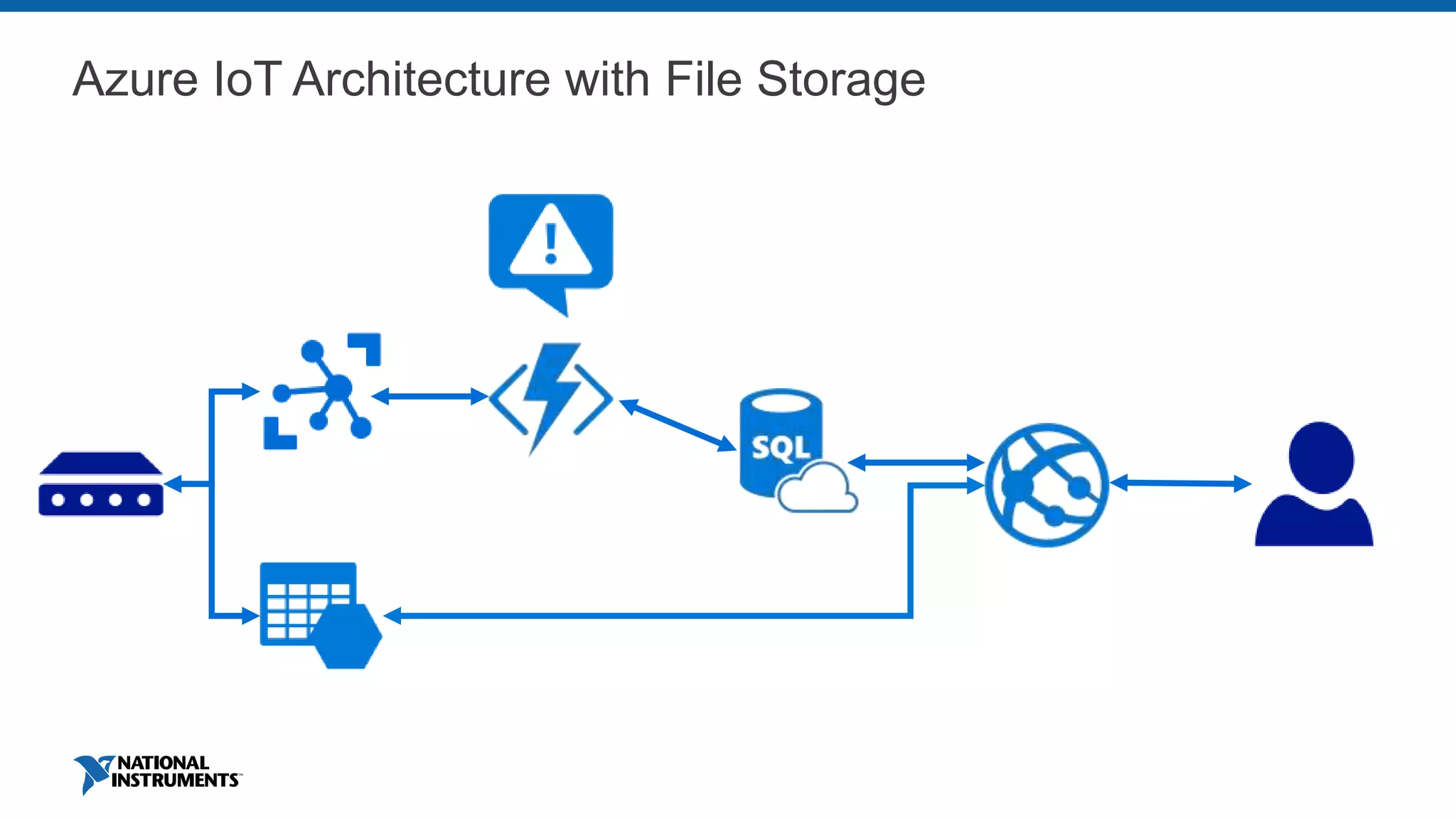

• #57 Fish Barrier: we used a combo of streaming and file uploads

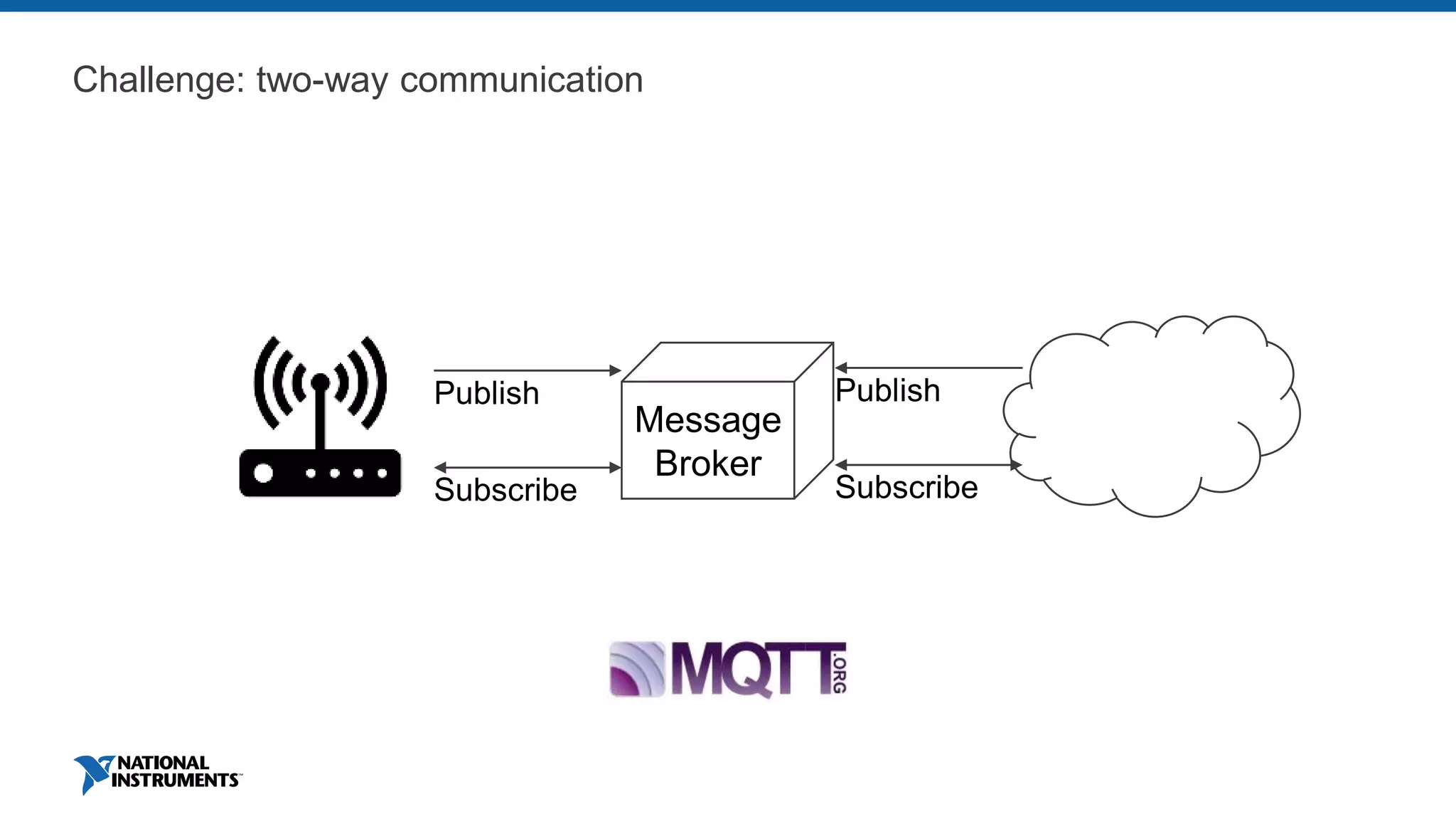

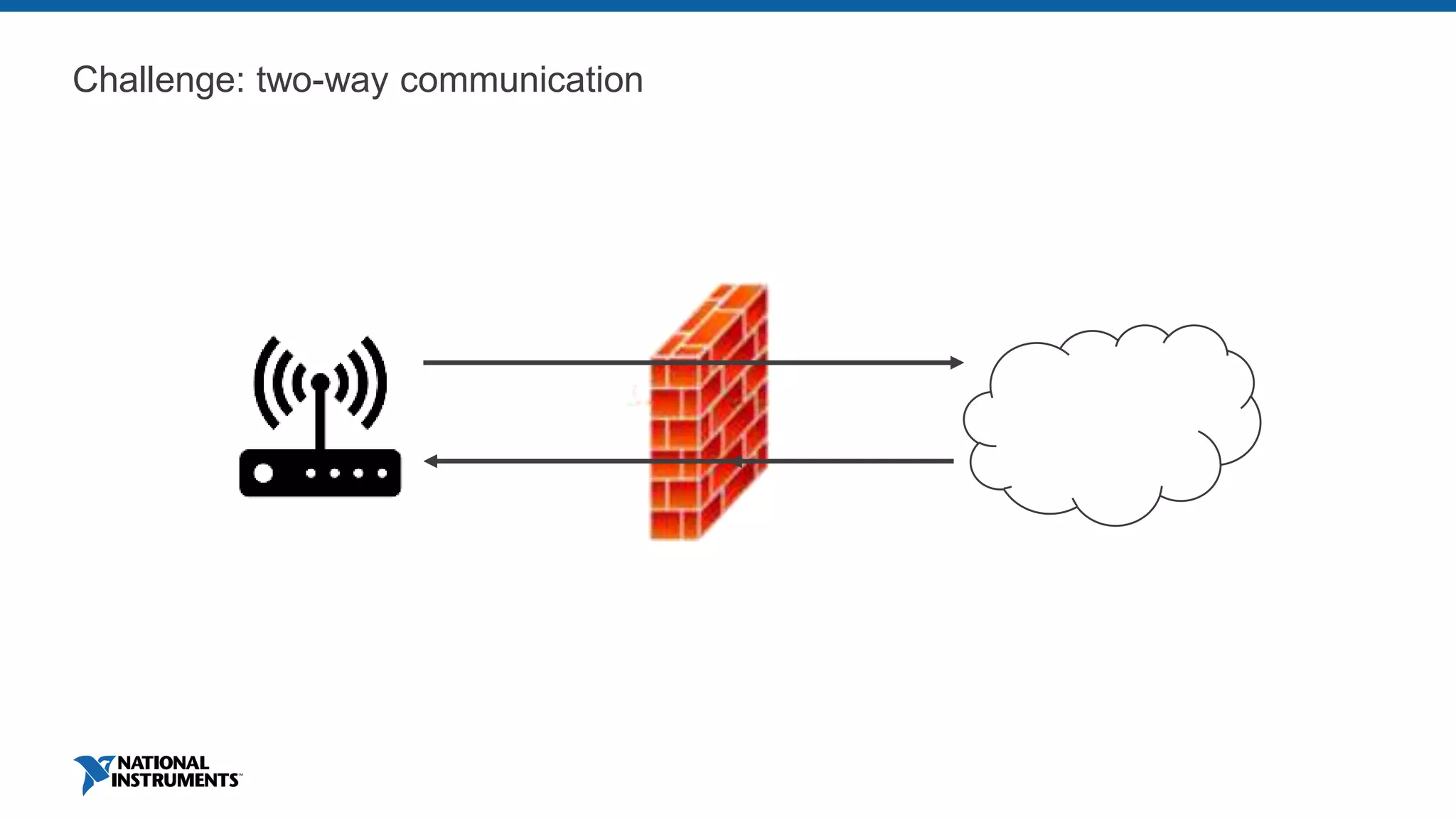

• #58 One challenge you may encounter is that you want two-way communication between your device and the cloud. You want your device not only to send data, but also to receive configuration changes or commands. However, often communication can only be initiated from the device side. This may be because the device is only occasionally connected, but often this is because there is either a firewall in front of the device that prevents inbound connections, or because the device may use a dynamic IP address.
• #59 One challenge you may encounter is that you want two-way communication between your device and the cloud. You want your device not only to send data, but also to receive configuration changes or commands. However, often communication can only be initiated from the device side. This may be because the device is only occasionally connected, but often this is because there is either a firewall in front of the device that prevents inbound connections, or because the device may use a dynamic IP address.
• #60 Beyond the Edge. The two big challenges are how to get your data from your device and then what to do with it. Going from data to insight.
• #61 What is the cloud? Connectivity, storage, apps, analytics, automated control, reporting,

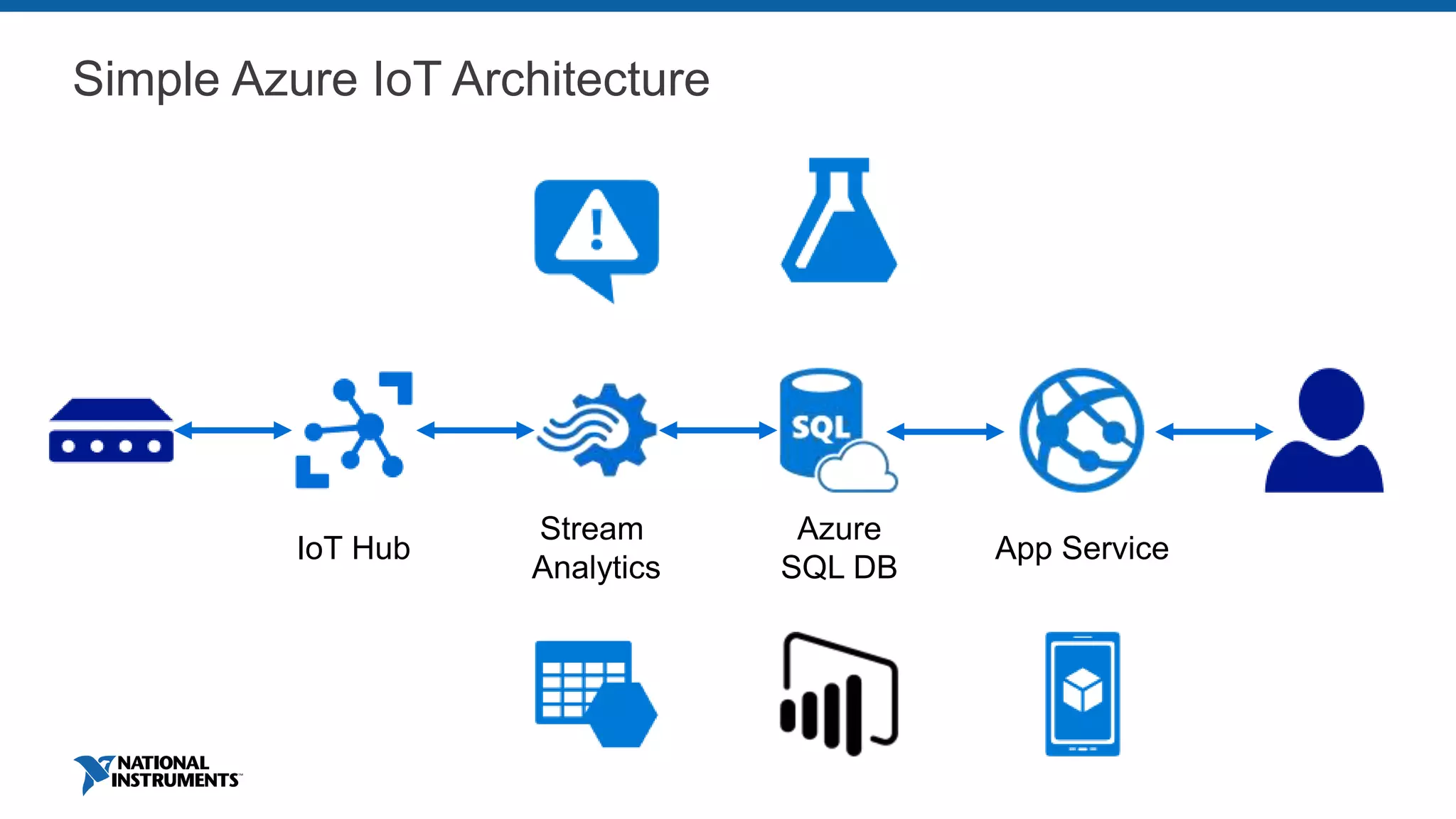

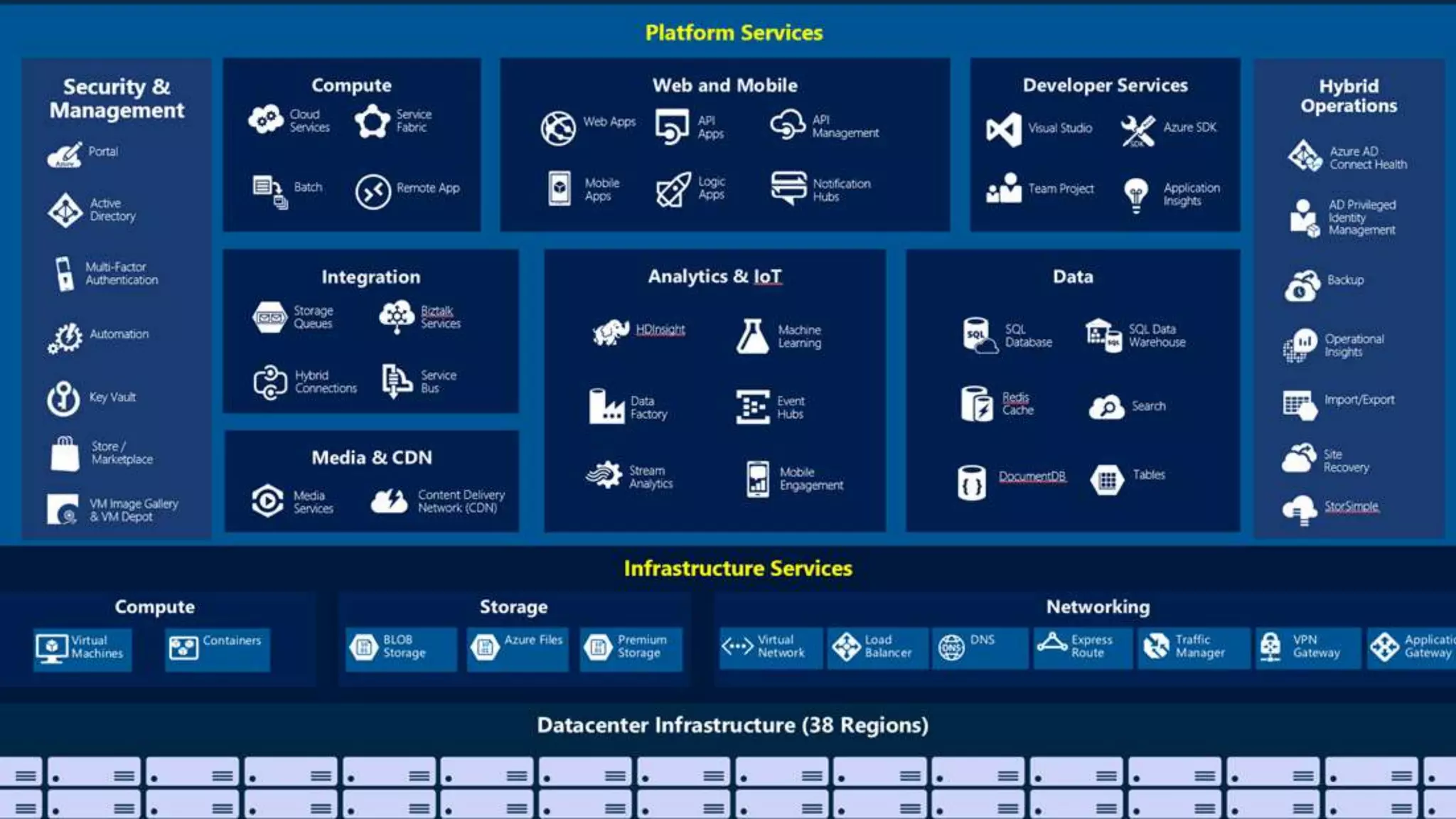

• #63 There are a number of IoT platforms available. Some platforms are targeted at specific industries or technologies, while others are general purpose platforms. AWS and Azure are the industry leaders and mostly feature-equivalent. As a Microsoft partner, we have had success with the Azure platform.
• #71 Get an end-to-end test working early and with real hardware. On a recent project, we had communication working from a simulated device, only to discover much later in the project that the real device behaved slightly differently than the simulated device, forcing us to rework part of our stack to get things working.
• #72 So bringing this back to our modern physical world. Test & Measurement is moving well beyond the typical laboratory or stand-alone factory application. Hopefully you gained some insight into challenges unique to IoT / IIoT applications. So we encourage you to embrace these challenges… do some research try it out And if you STILL haven’t found what you’re looking for, reach out to us, and other solution partners to help navigate these IoT challenges.
