1. Network
Programming Languages
Author: Flavio Vit
Course: UNICAMP –MO611
Teleprocessamento e Redes
Professor: Nelson da Fonseca
June 18, 2014

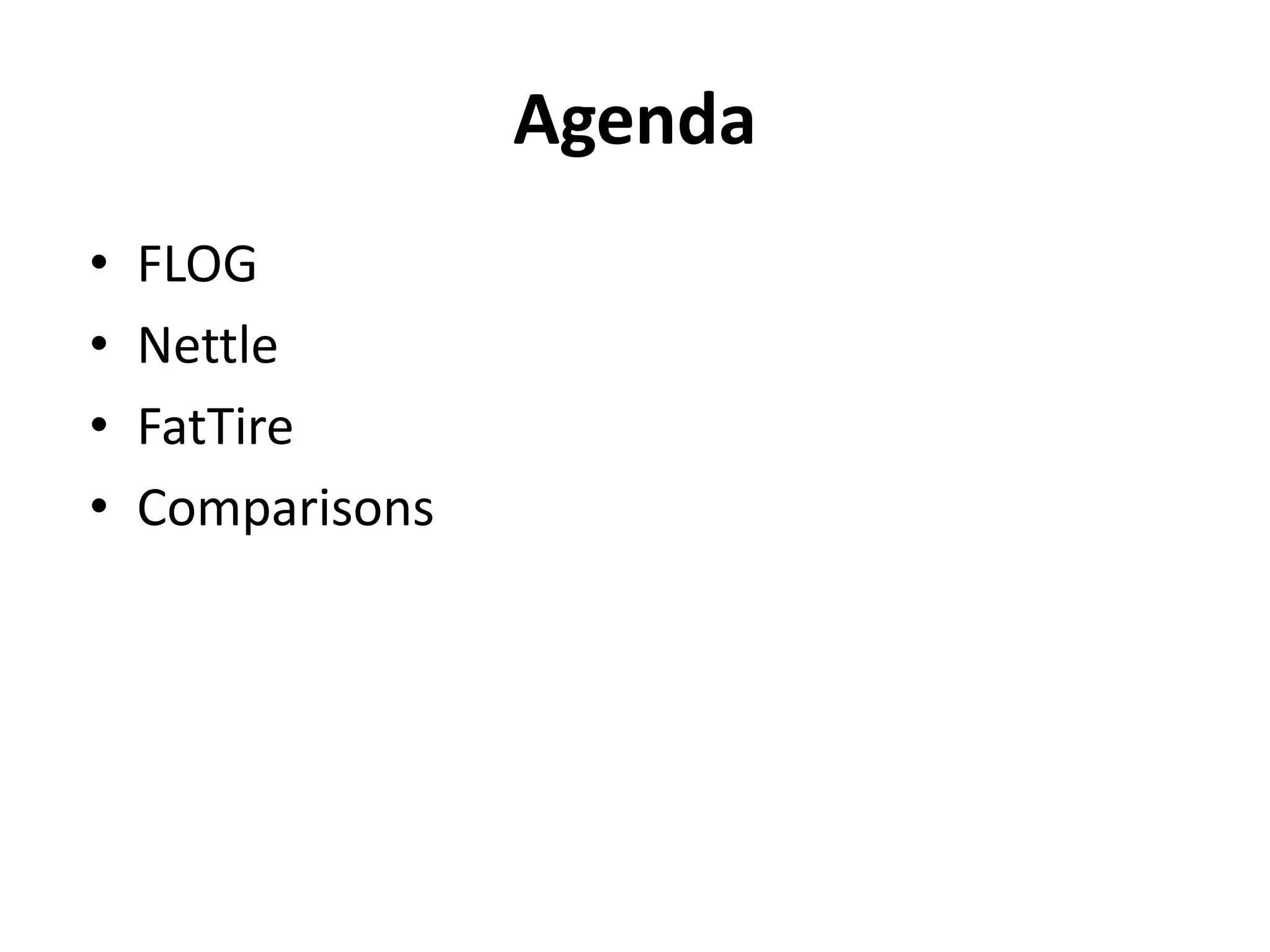

2. Agenda
• Introduction
• Flog
• Nettle
• FatTire
• Comparisons

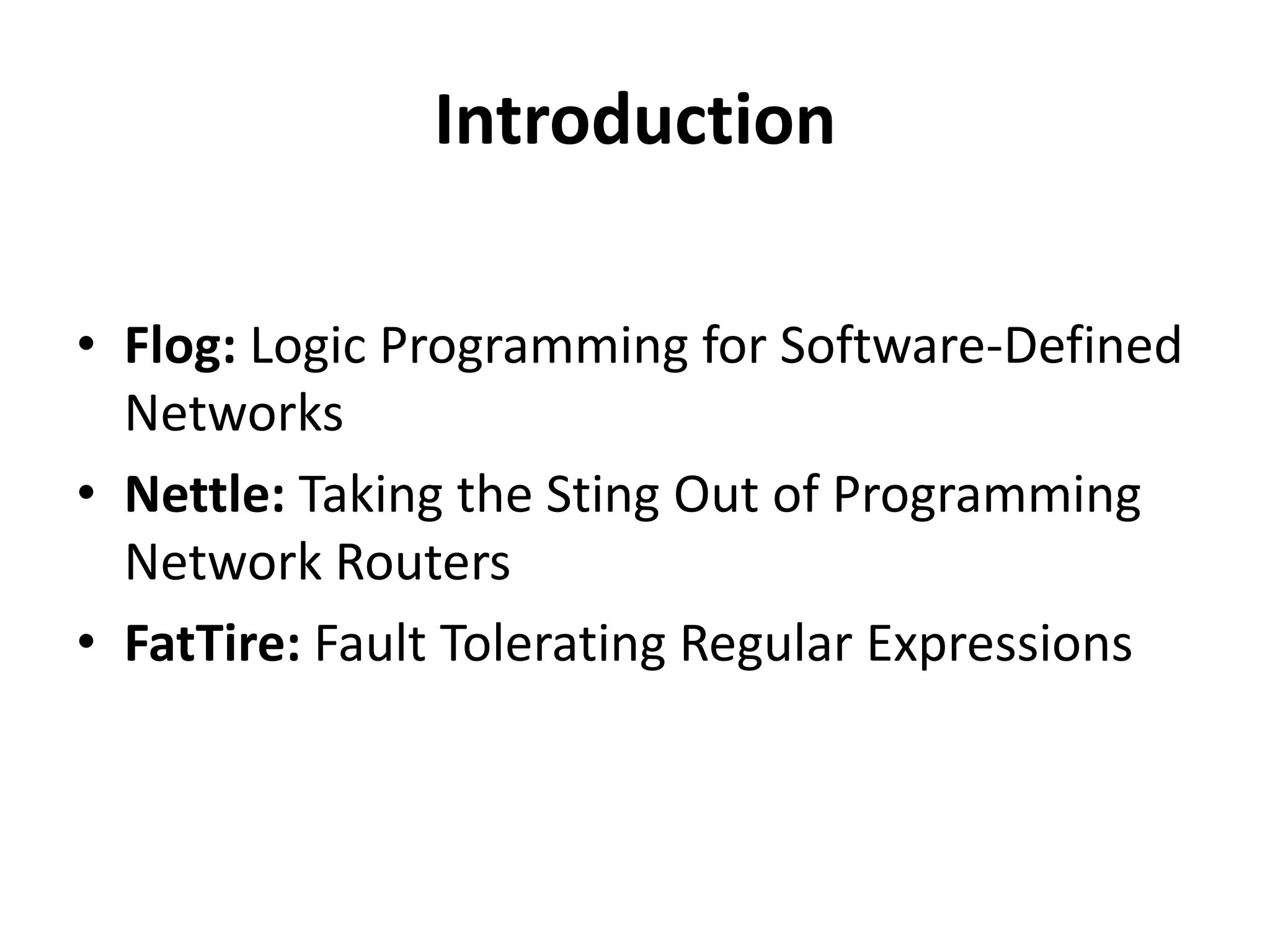

3. Introduction
• Flog: Logic Programming for Software-Defined
Networks
• Nettle: Taking the Sting Out of Programming
Network Routers
• FatTire: Fault Tolerating Regular Expressions

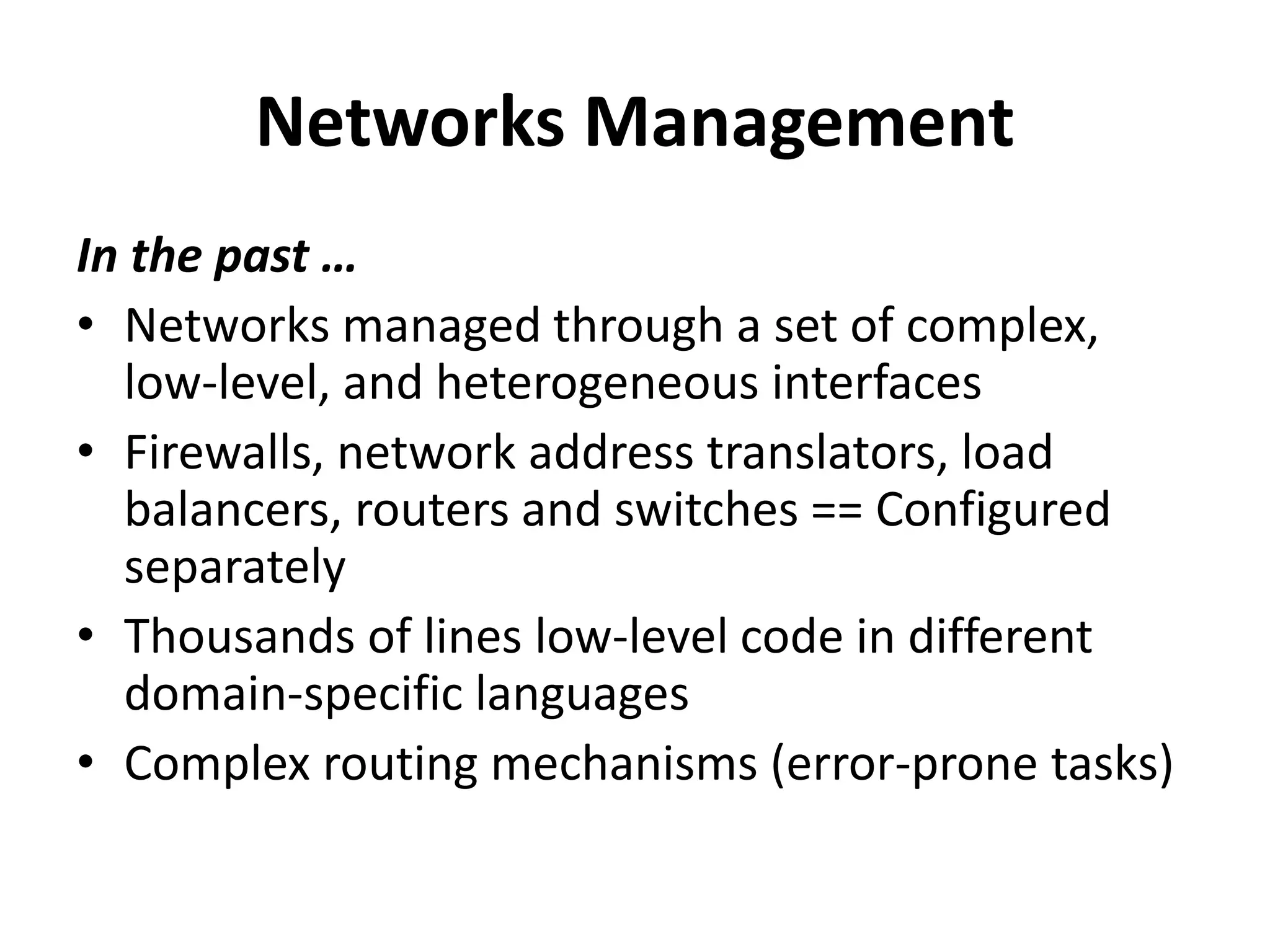

4. Networks Management
In the past …
• Networks managed through a set of complex,
low-level, and heterogeneous interfaces
• Firewalls + network address translators + load
balancers + routers + switches == Configured
separately
• Thousands of lines low-level code in different
domain-specific languages
• Complex routing mechanisms (error-prone tasks)

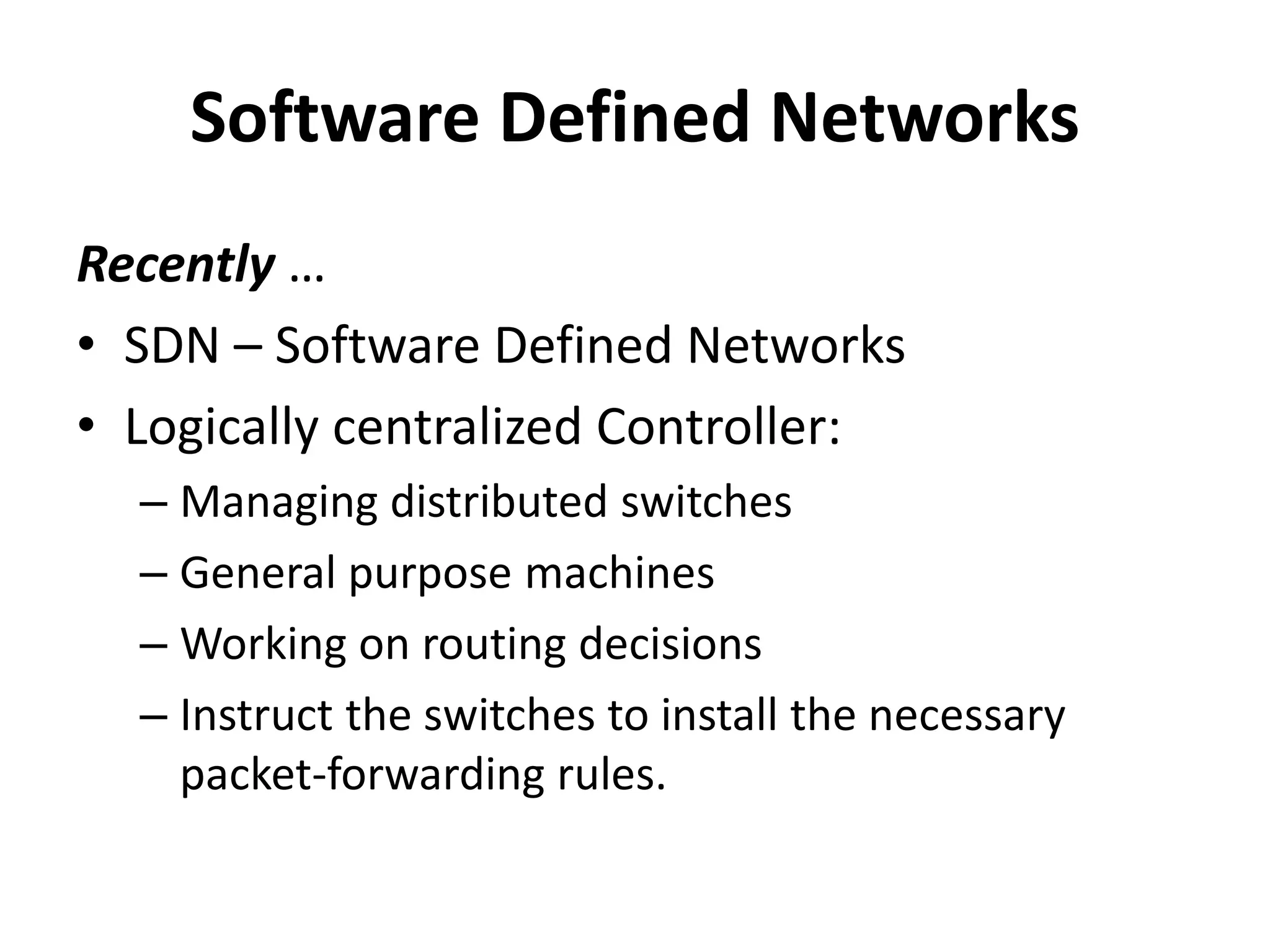

5. Software Defined Networks
Recently …
• SDN – Software Defined Networks
• Logically centralized Controller:
– Managing distributed switches
– General purpose machines
– Working on routing decisions
– Instruct the switches to install the necessary
packet-forwarding rules.

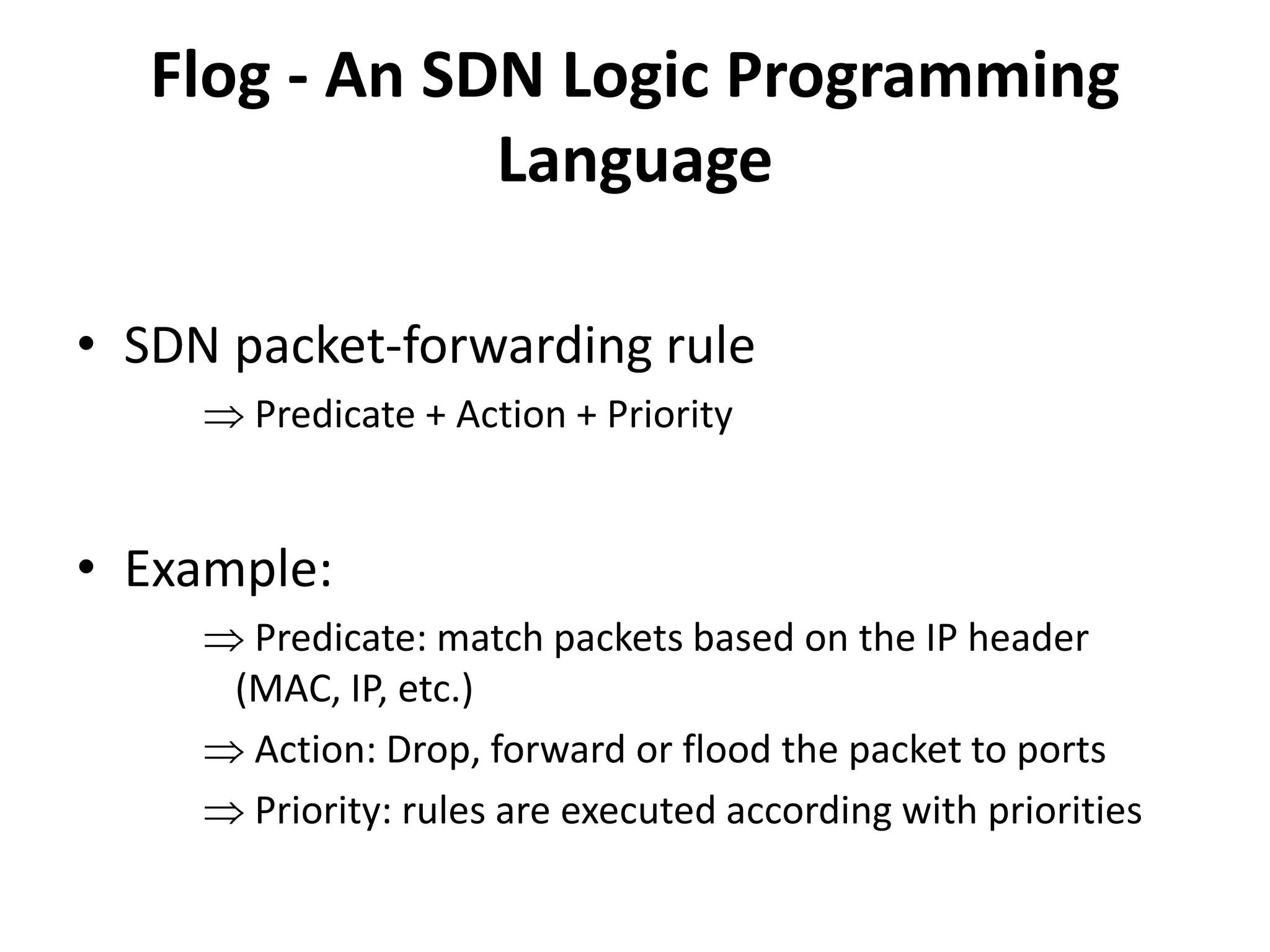

6. Flog - An SDN Logic Programming
Language
• SDN packet-forwarding rule
 Predicate + Action + Priority
• Example:
 Predicate: match packets based on the IP header
(MAC, IP, etc.)
 Action: Drop, forward or flood the packet to ports
 Priority: rules are executed according with priorities

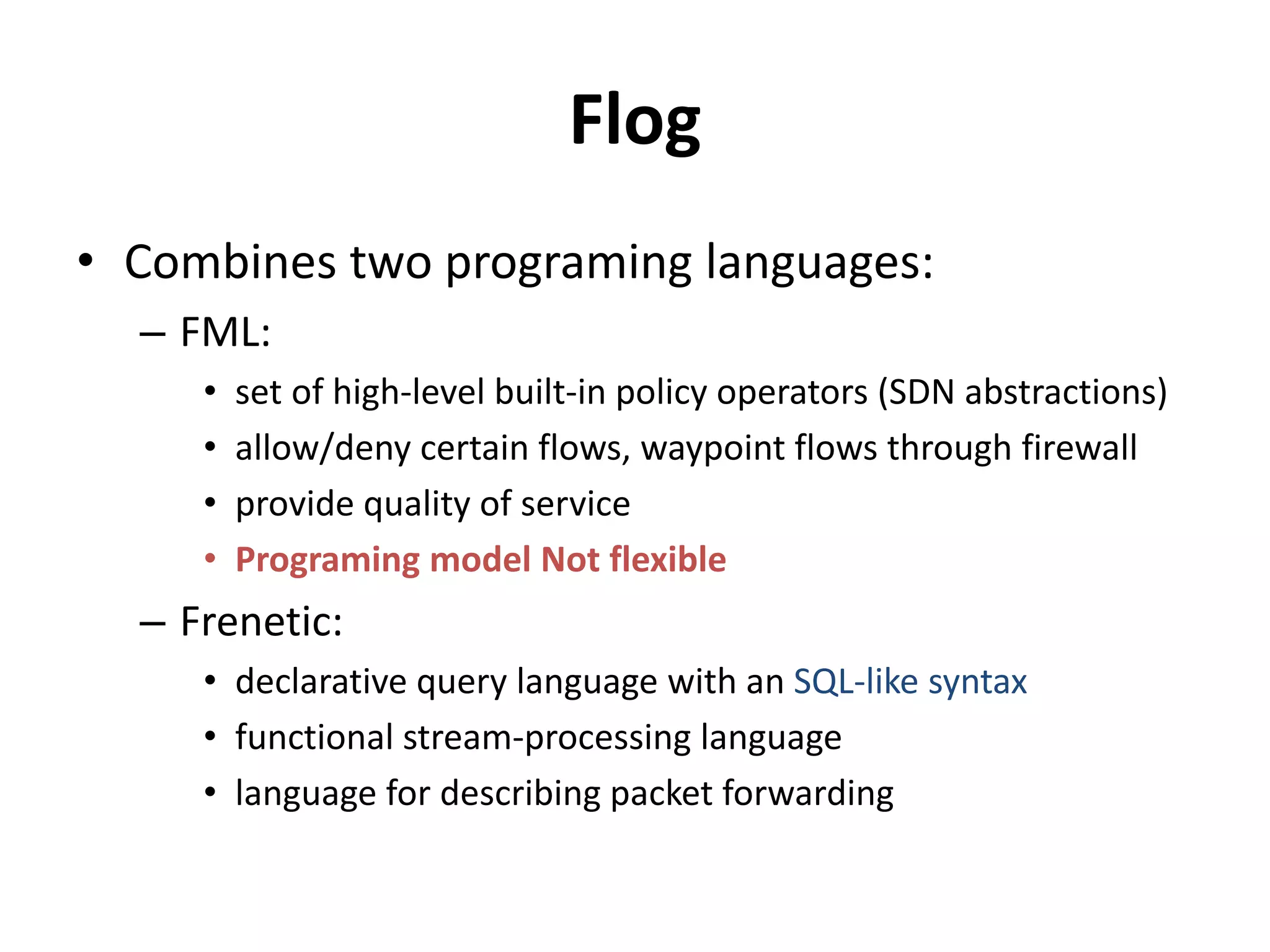

7. Flog
• Combines two programing languages:
– FML:
• set of high-level built-in policy operators (SDN abstractions)
• allow/deny certain flows
• provide quality of service
• Programing model Not flexible
– Frenetic:
• declarative query language - SQL-like syntax
• functional stream-processing language
• language for describing packet forwarding

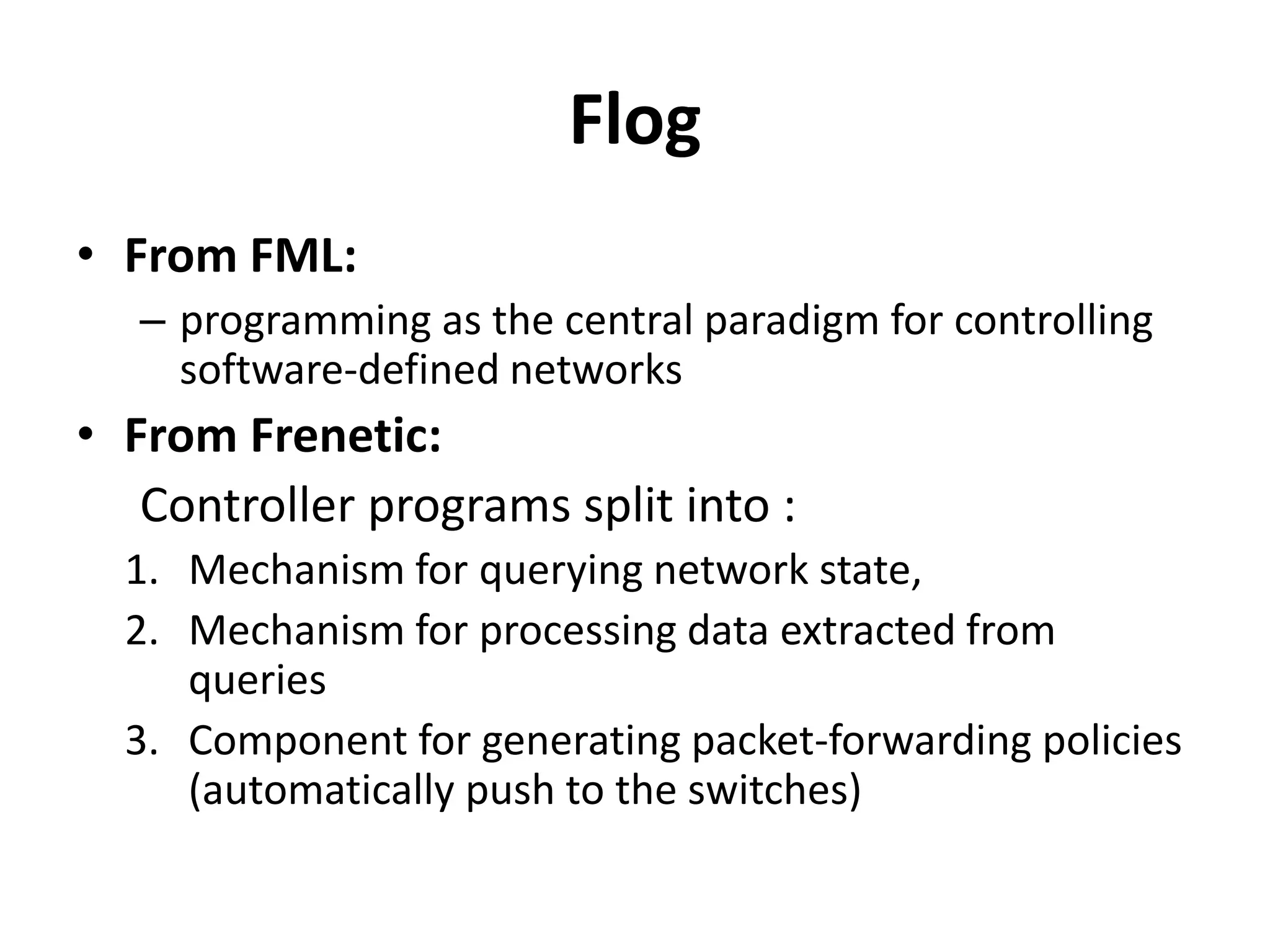

8. Flog
• From FML:
– Programming for controlling software-defined
networks
• From Frenetic:
Controller programs split into :
1. Mechanism for querying network state
2. Mechanism for processing data extracted from
queries
3. Component for generating packet-forwarding policies
(automatically push to the switches)

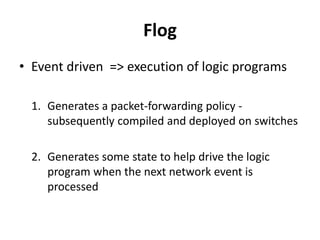

9. Flog
• Event driven => execution of logic programs
1. Generates a packet-forwarding policy
compiled and deployed on switches
2. Generates states : drive the logic program when
the next network event is processed

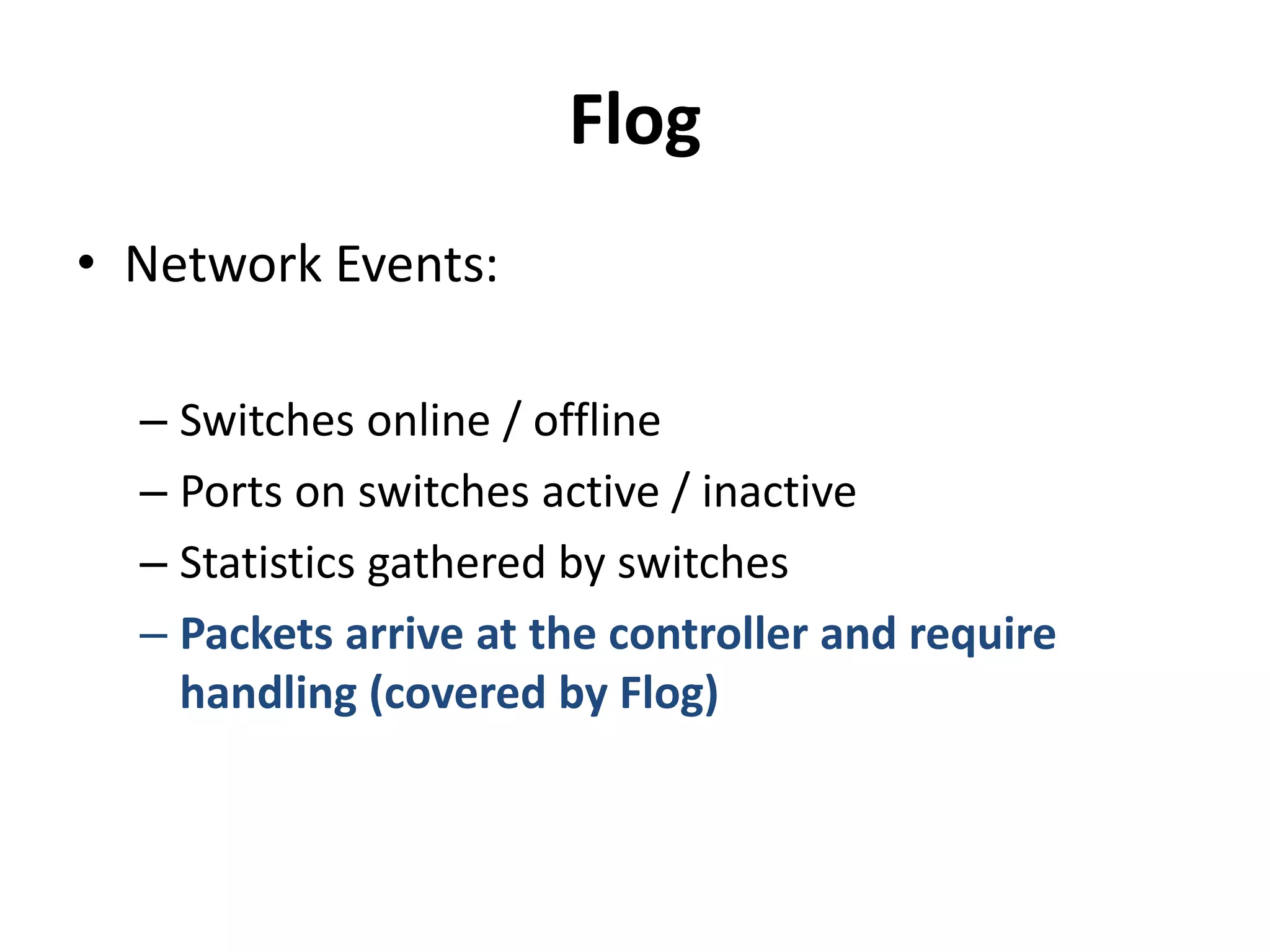

10. Flog
• Network Events:
– Switches online / offline
– Ports on switches active / inactive
– Statistics gathered by switches
– Packets arrive at the controller and require
handling

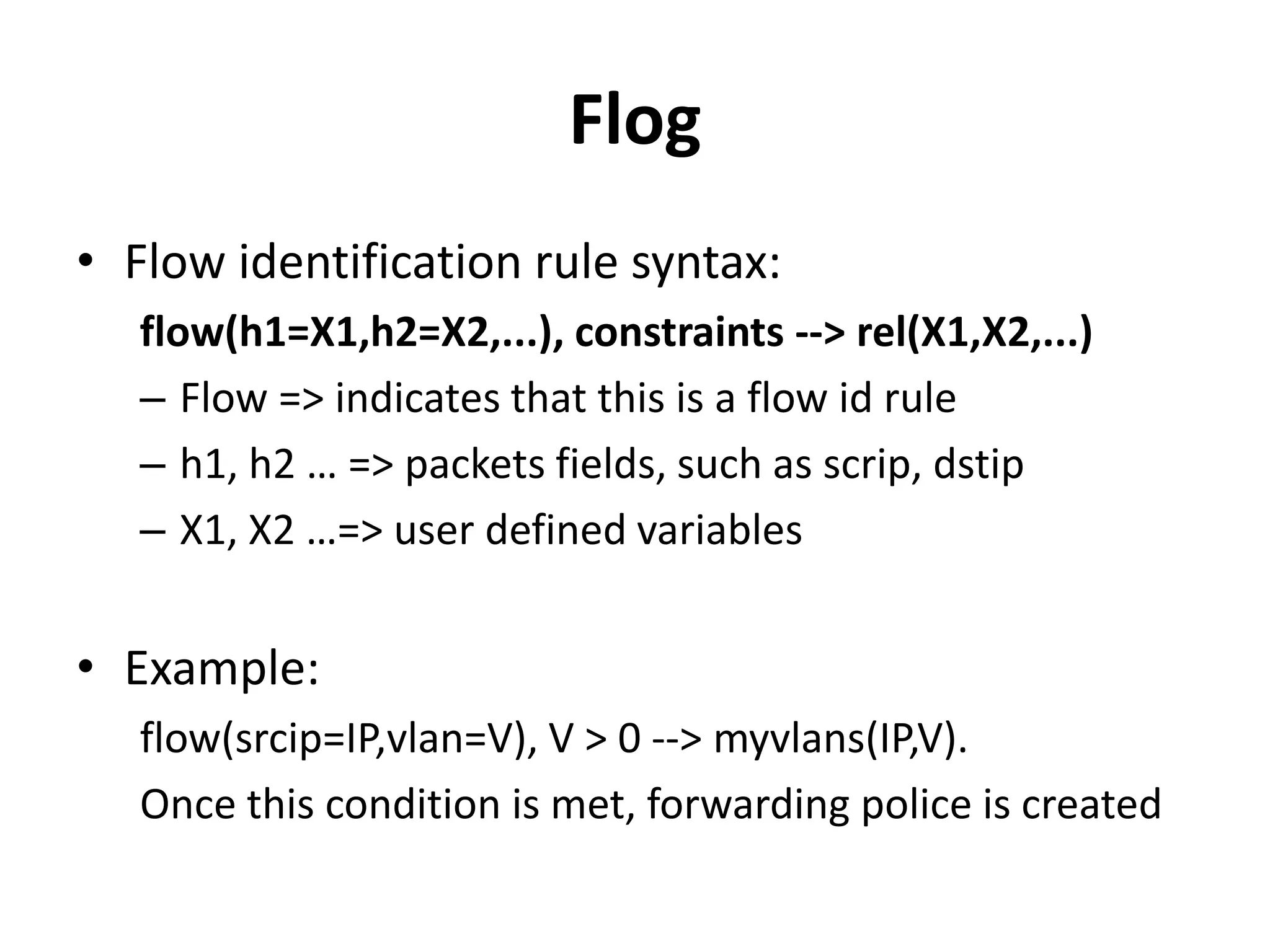

11. Flog
• Flow rule syntax example:
flow(srcip=IP,vlan=V), V > 0 --> myvlans(IP,V)
• When vlan tag is greater than 0, generate a
network event every time a packet with a new
srcip - vlan tag pair is detected
• When this event generated, the rest of the
logic program will be executed.
• The initial data for the logic program will
include the tuple myvlans(IP,V)

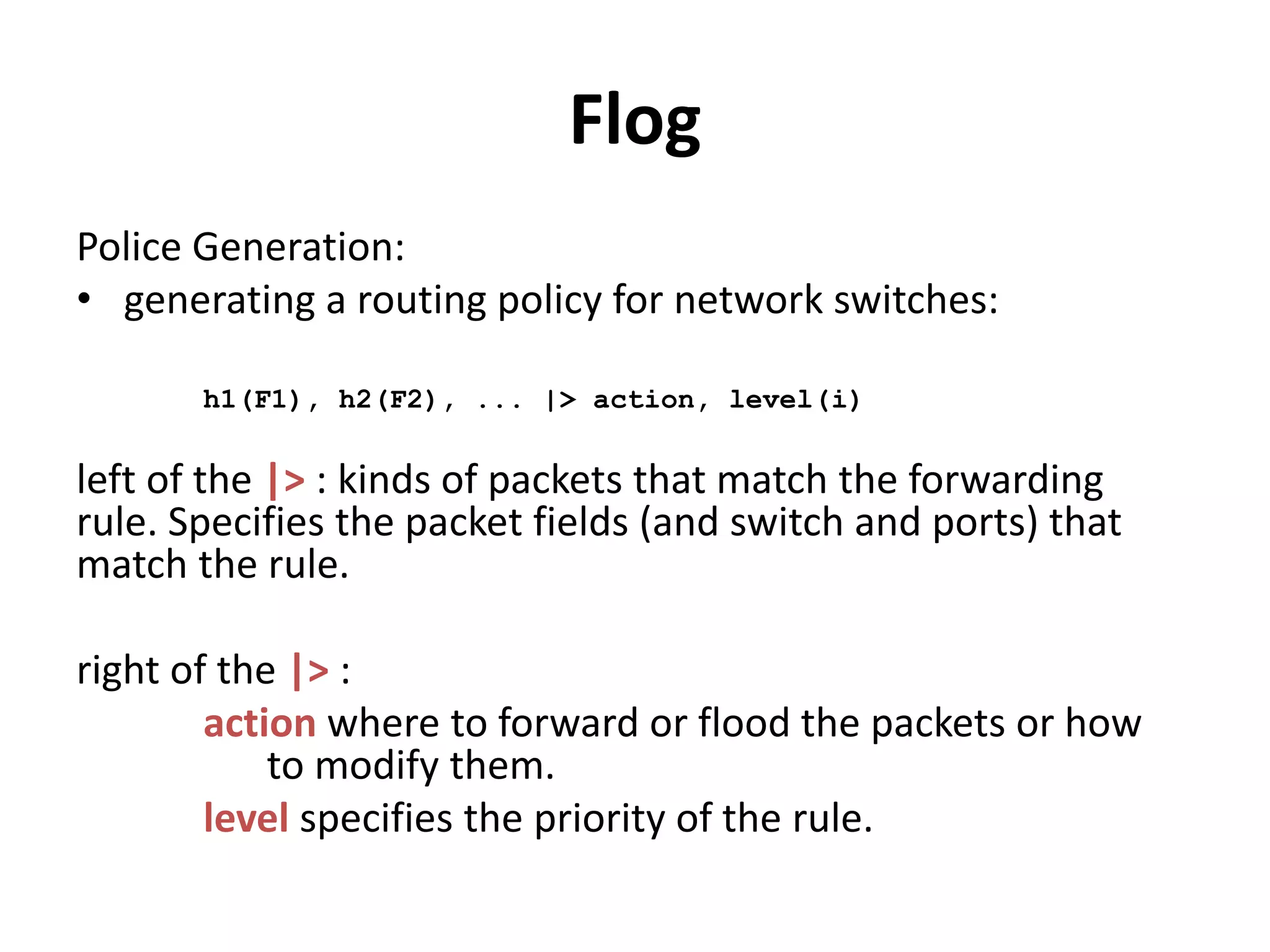

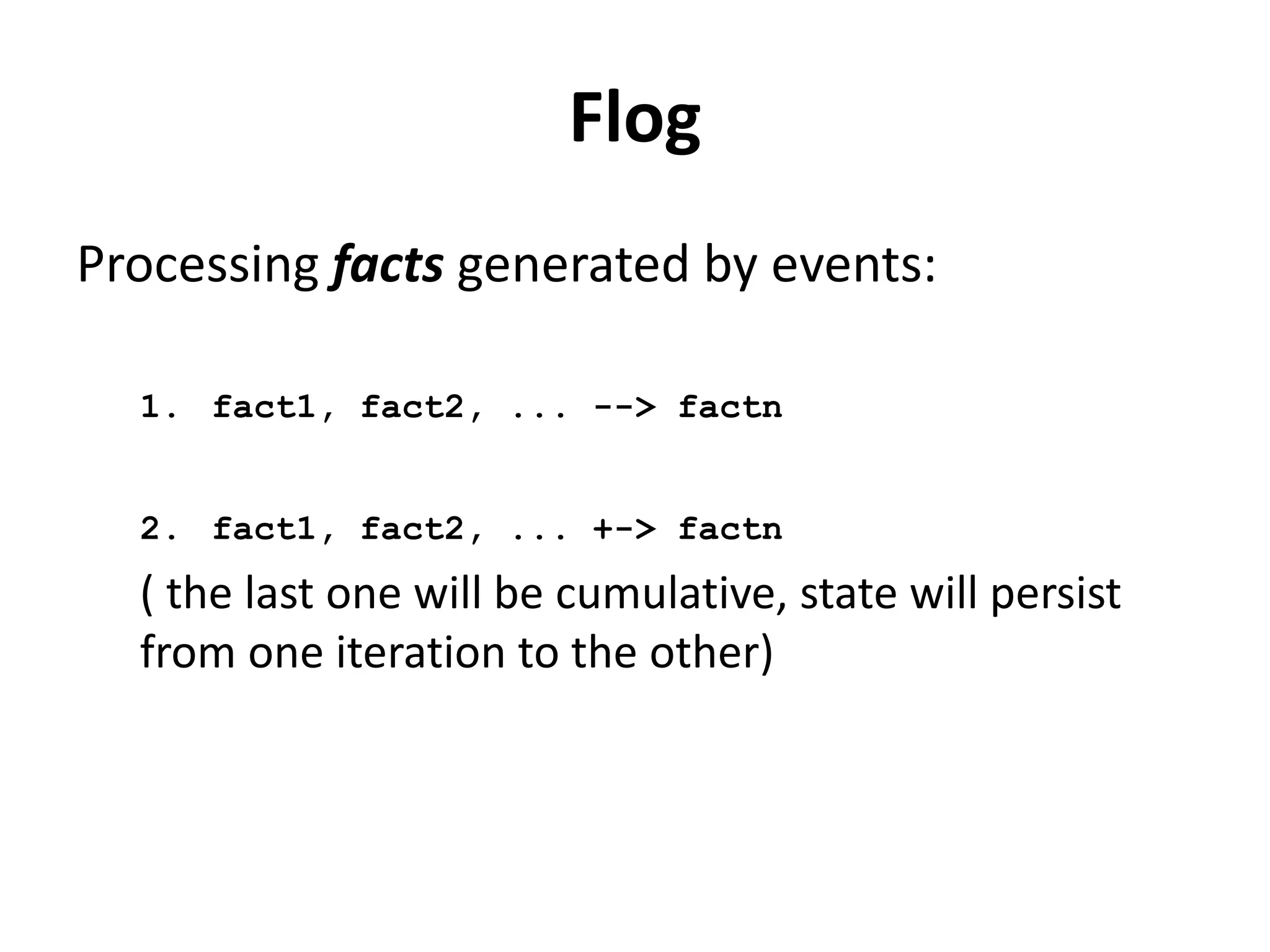

12. Flog
Police Generation:
• generating a routing policy for network switches:
h1(F1), h2(F2), ... |> action, level(i)
left of the |> : kinds of packets that match the forwarding
rule. Specifies the packet fields (and switch and ports) that
match the rule.
right of the |> :
action where to forward or flood the packets or how
to modify them.
level specifies the priority of the rule.

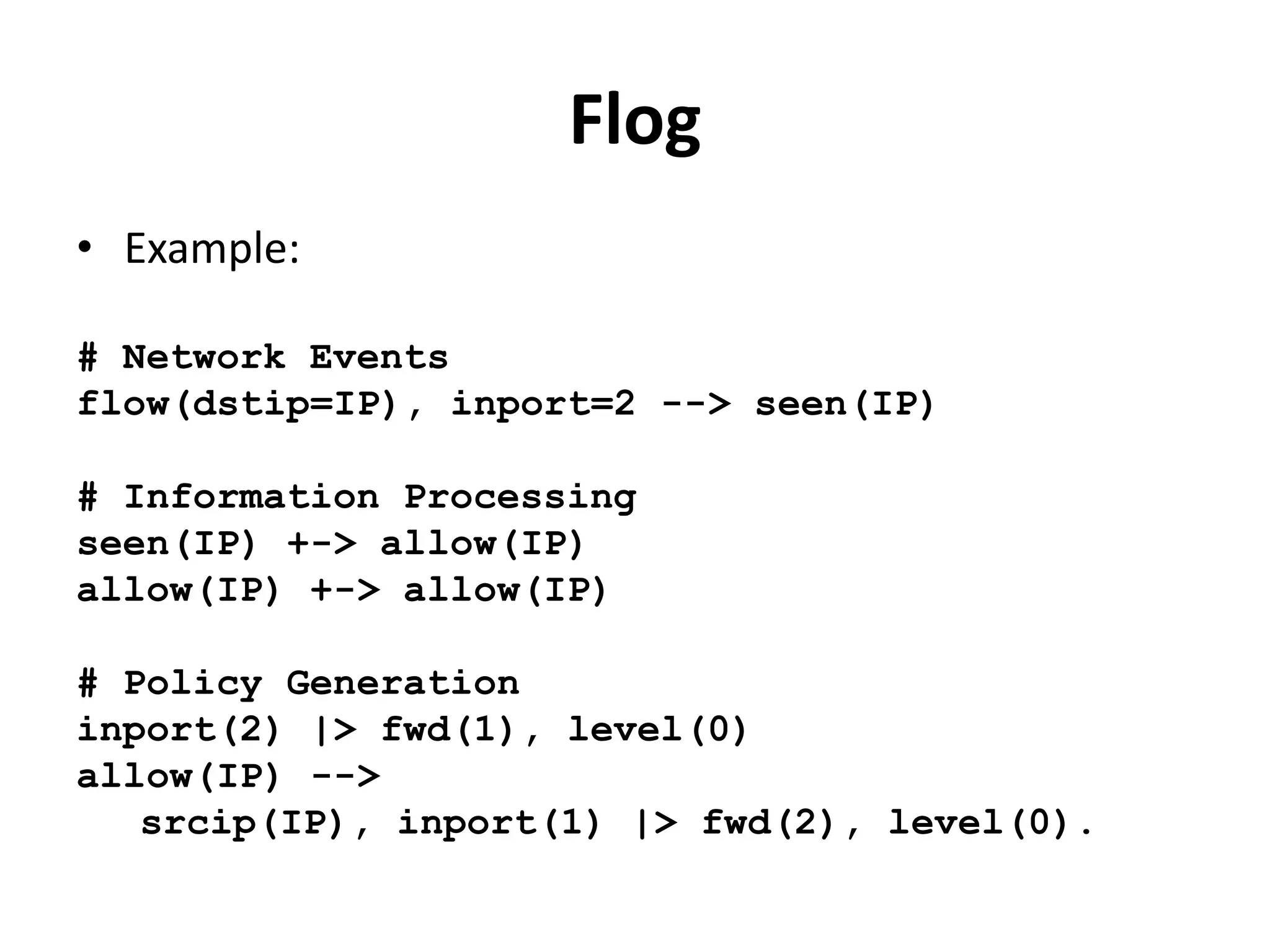

13. Flog
• Example:
# Network Events
flow(dstip=IP), inport=2 --> seen(IP)
# Information Processing
seen(IP) +-> allow(IP)
allow(IP) +-> allow(IP)
# Policy Generation
inport(2) |> fwd(1), level(0)
allow(IP) -->
srcip(IP), inport(1) |> fwd(2), level(0).

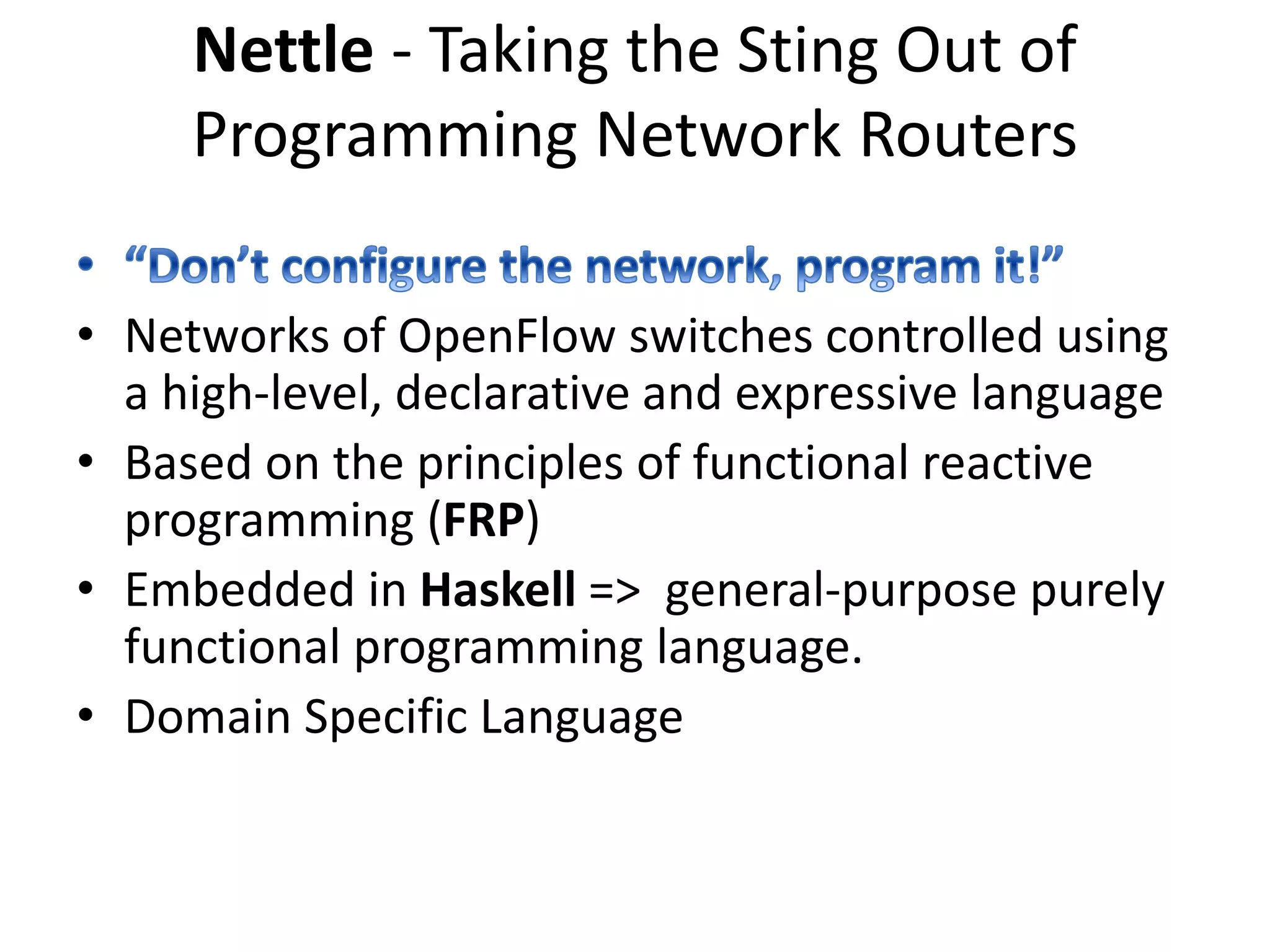

14. Nettle - Taking the Sting Out of
Programming Network Routers
• Networks of OpenFlow switches controlled using
a high-level, declarative and expressive language
• Based on the principles of functional reactive
programming (FRP)
• Embedded in Haskell => general-purpose purely
functional programming language.
• Domain Specific Language

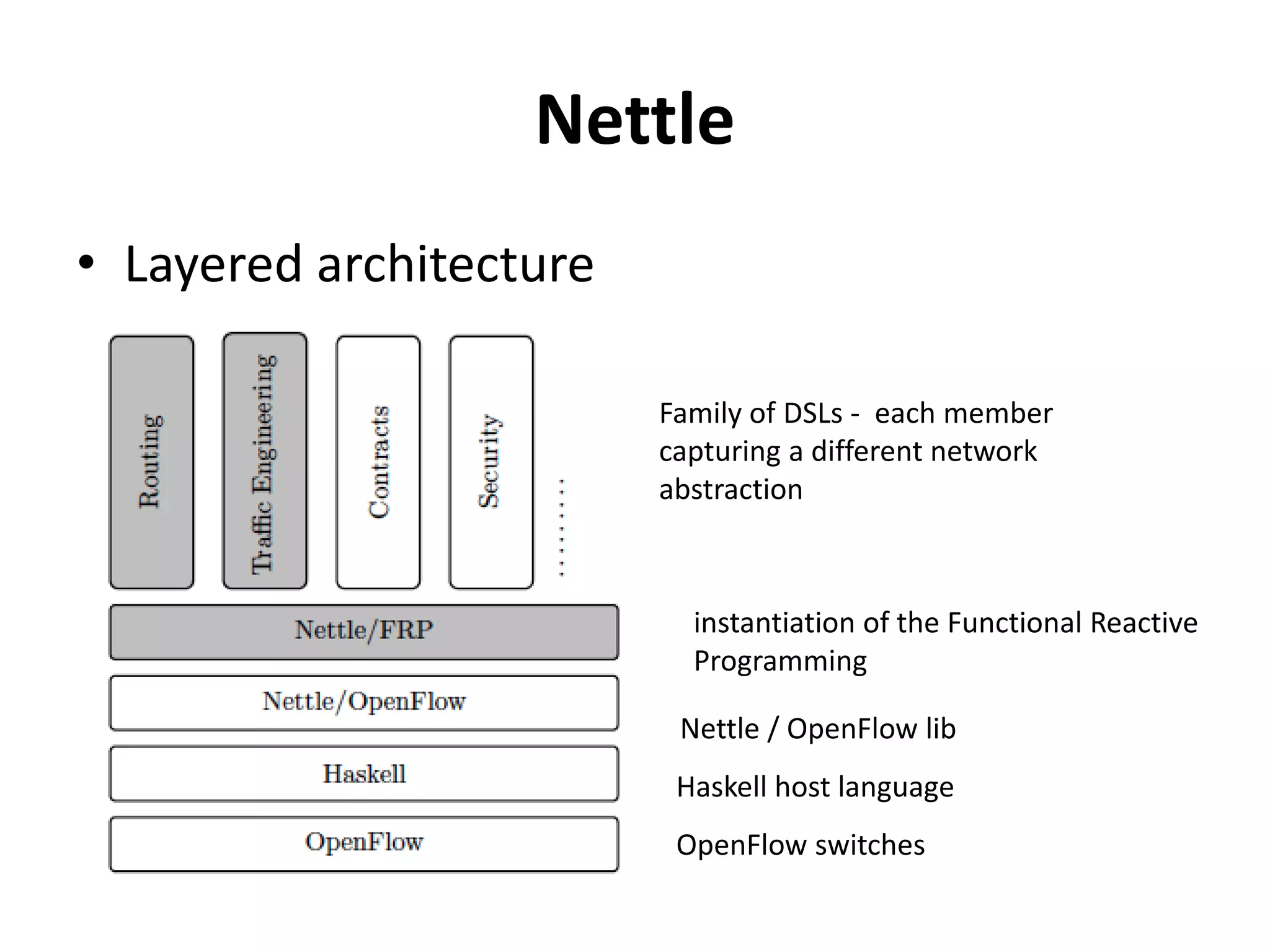

15. Nettle
• Layered architecture
Family of DSLs - each member
capturing a different network
abstraction
Haskell host language
OpenFlow switches
Nettle / OpenFlow lib
instantiation of the Functional Reactive
Programming

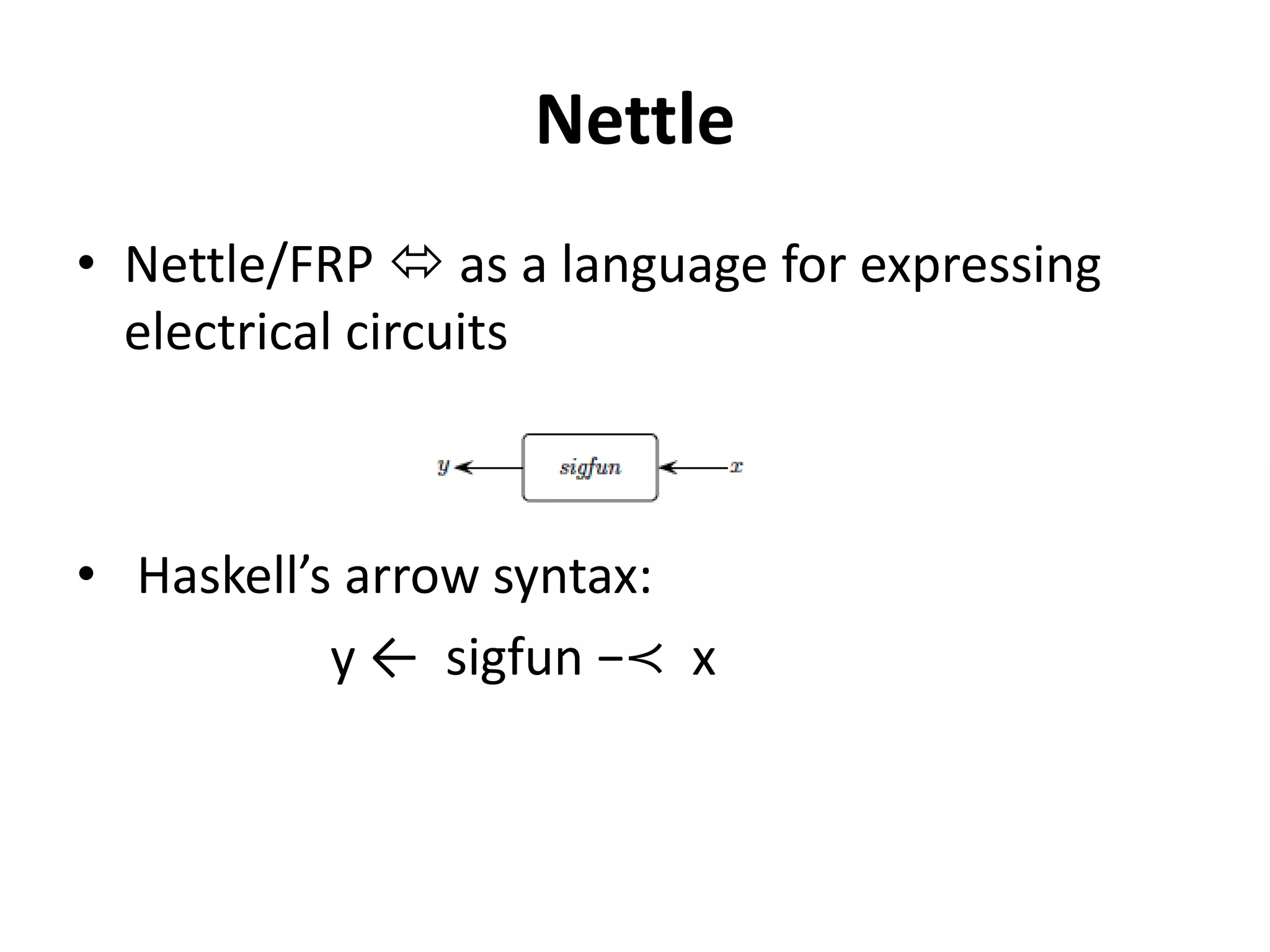

16. Nettle
• Nettle/FRP  as a language for expressing
electrical circuits
• Haskell’s arrow syntax:
y ← sigfun −≺ x

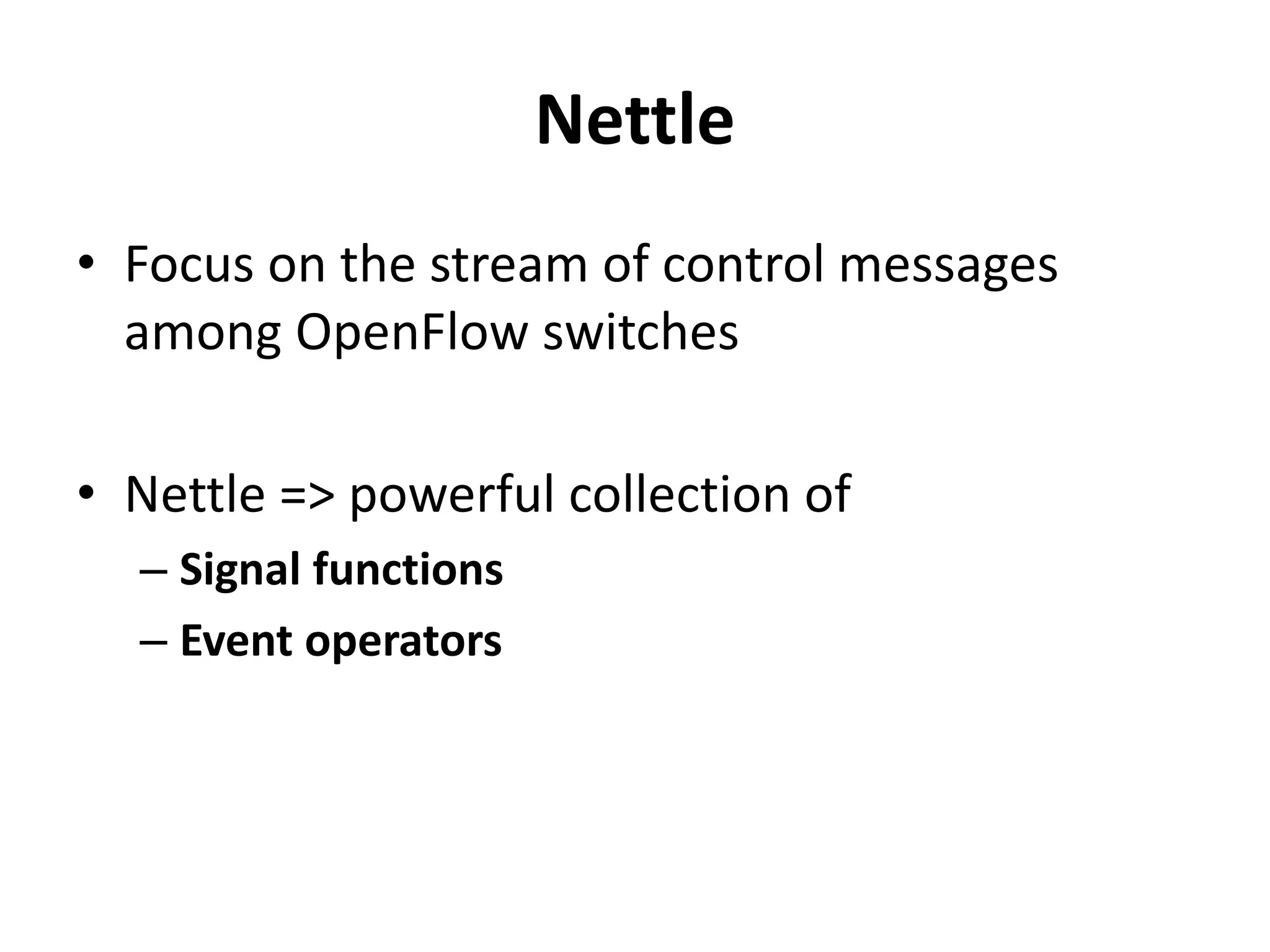

17. Nettle
• Focus on the stream of control messages
among OpenFlow switches
• Nettle => powerful collection of
– Signal functions
– Event operators

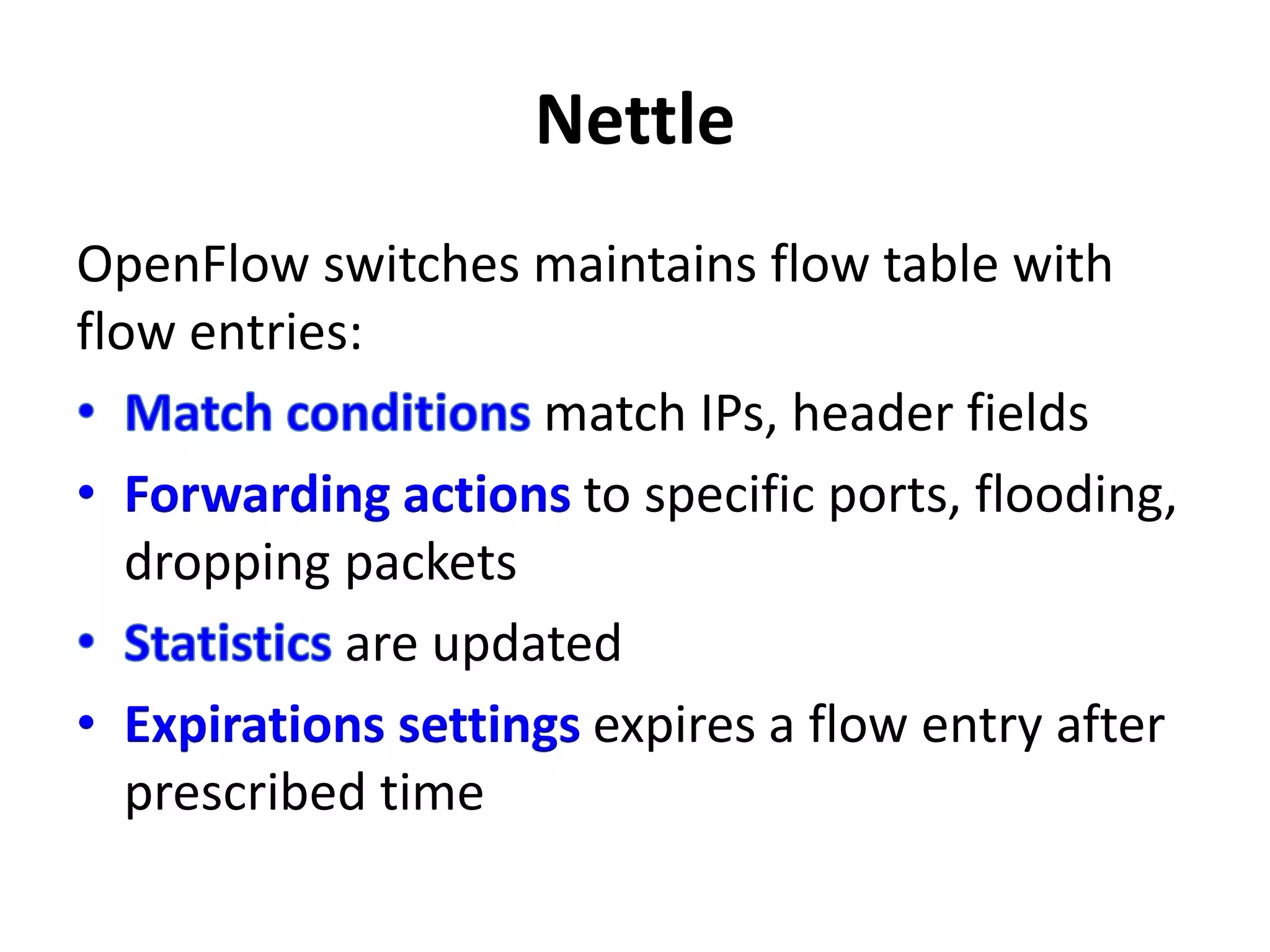

18. Nettle
OpenFlow switches maintains flow table with
flow entries:
match IPs, header fields
• Forwarding actions to specific ports, flooding,
dropping packets
are updated
• Expirations settings expires a flow entry after
prescribed time

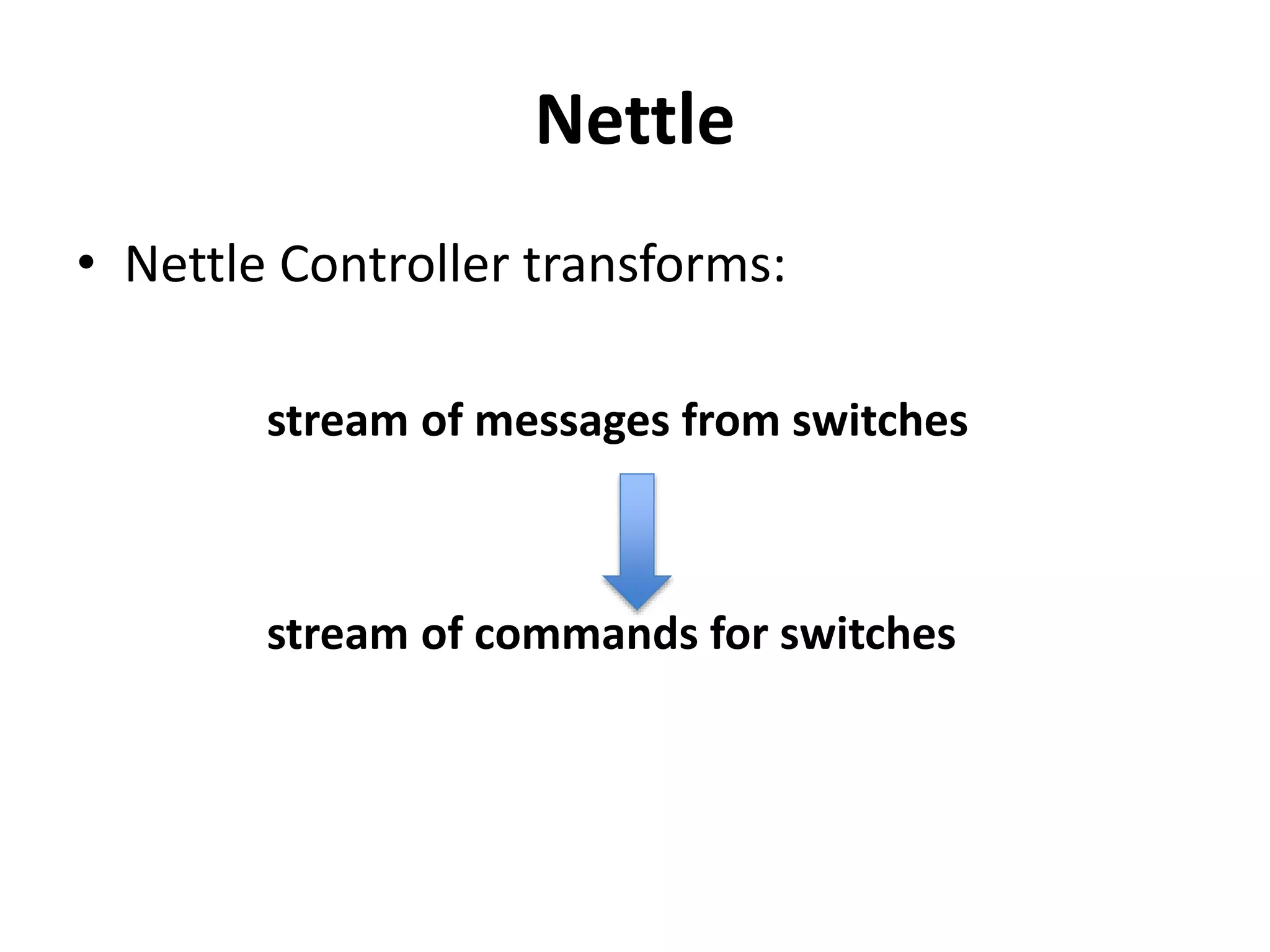

19. Nettle
• Nettle Controller transforms:
stream of messages from switches
stream of commands for switches

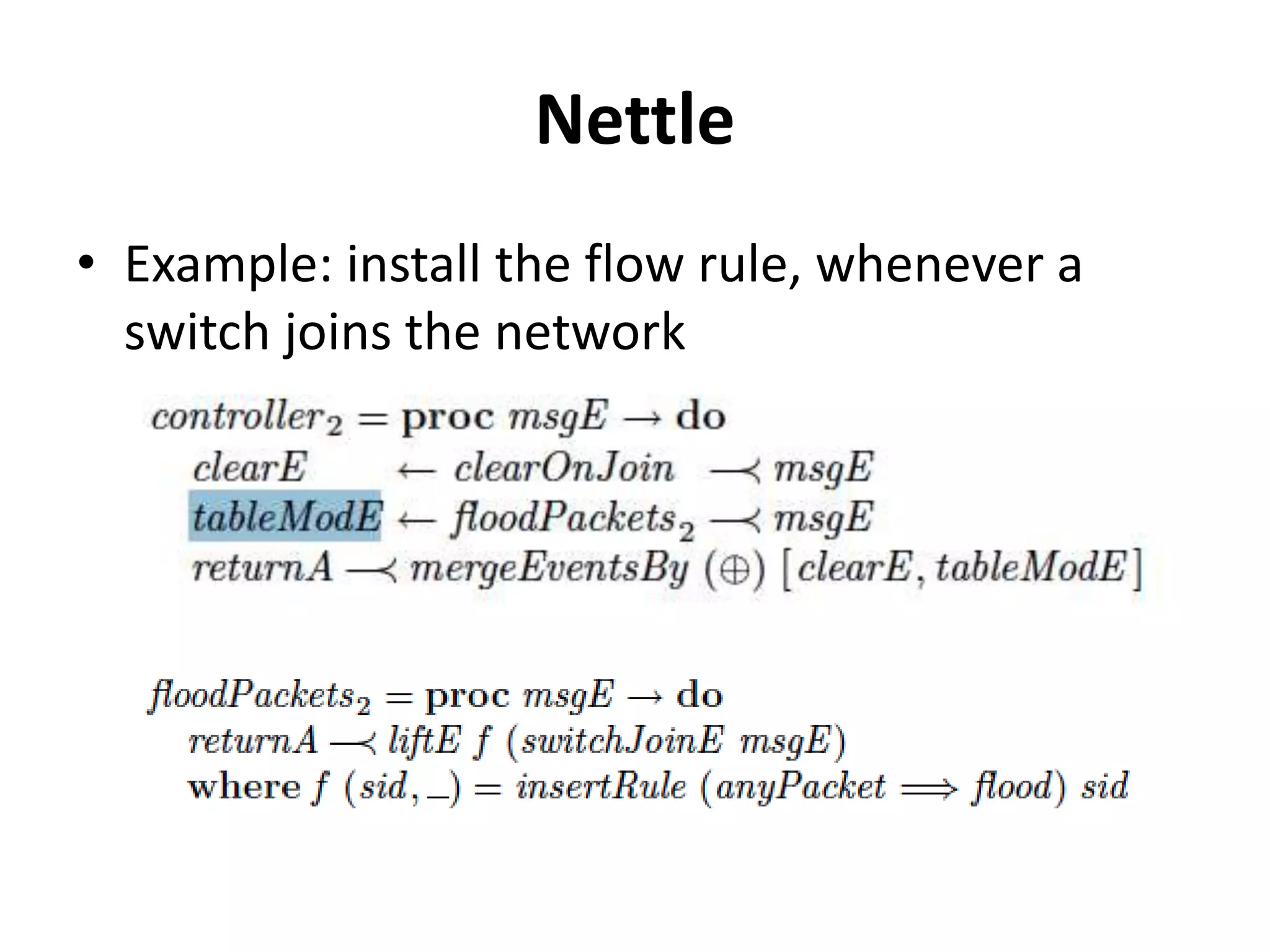

20. Nettle
• Example: install the flow rule, whenever a
switch joins the network

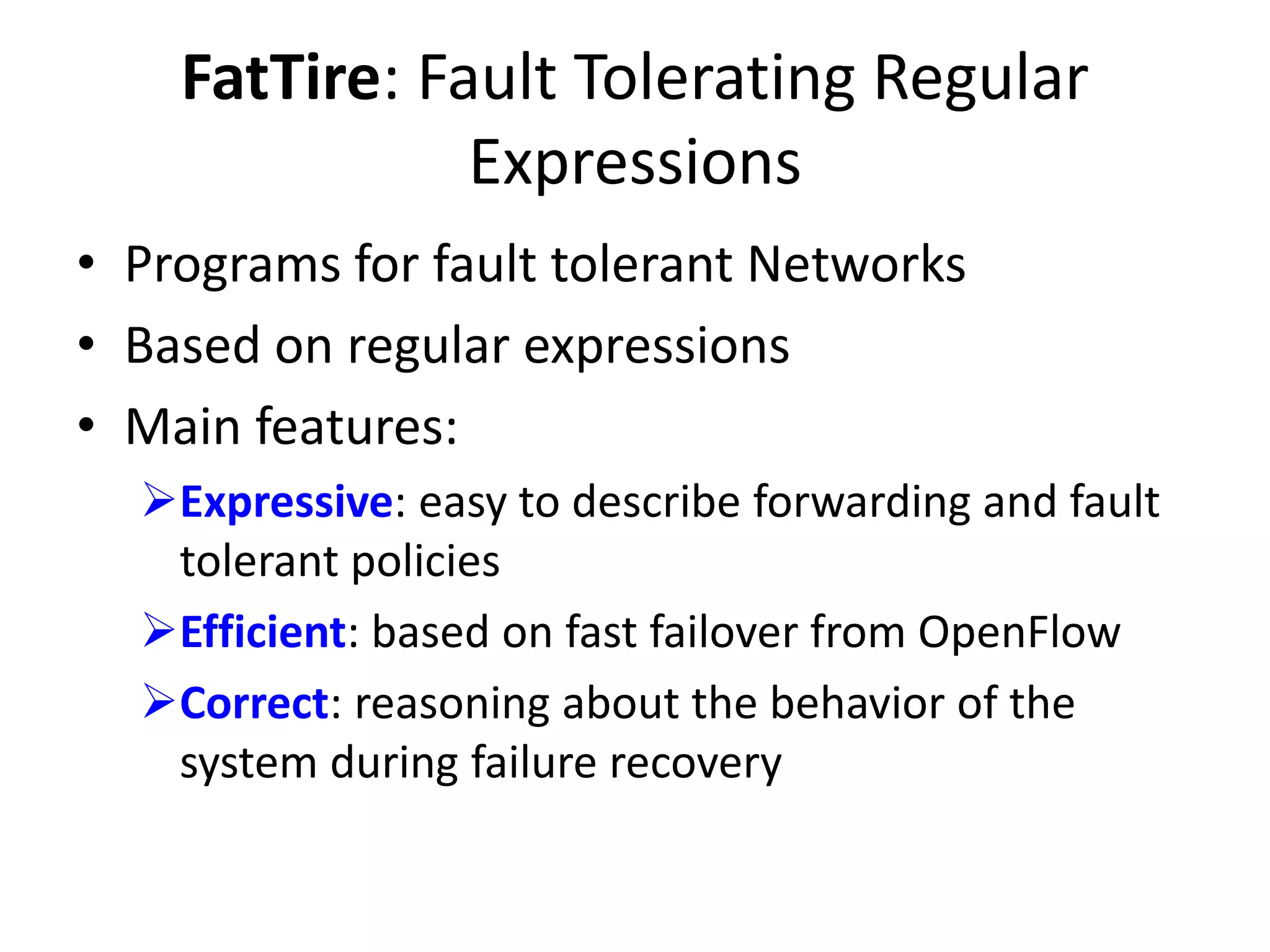

21. FatTire: Fault Tolerating Regular
Expressions
• Programs for fault tolerant Networks
• Based on regular expressions
• Main features:
Expressive: easy to describe forwarding and fault
tolerant policies
Efficient: based on fast failover from OpenFlow
Correct: reasoning about the behavior of the
system during failure recovery

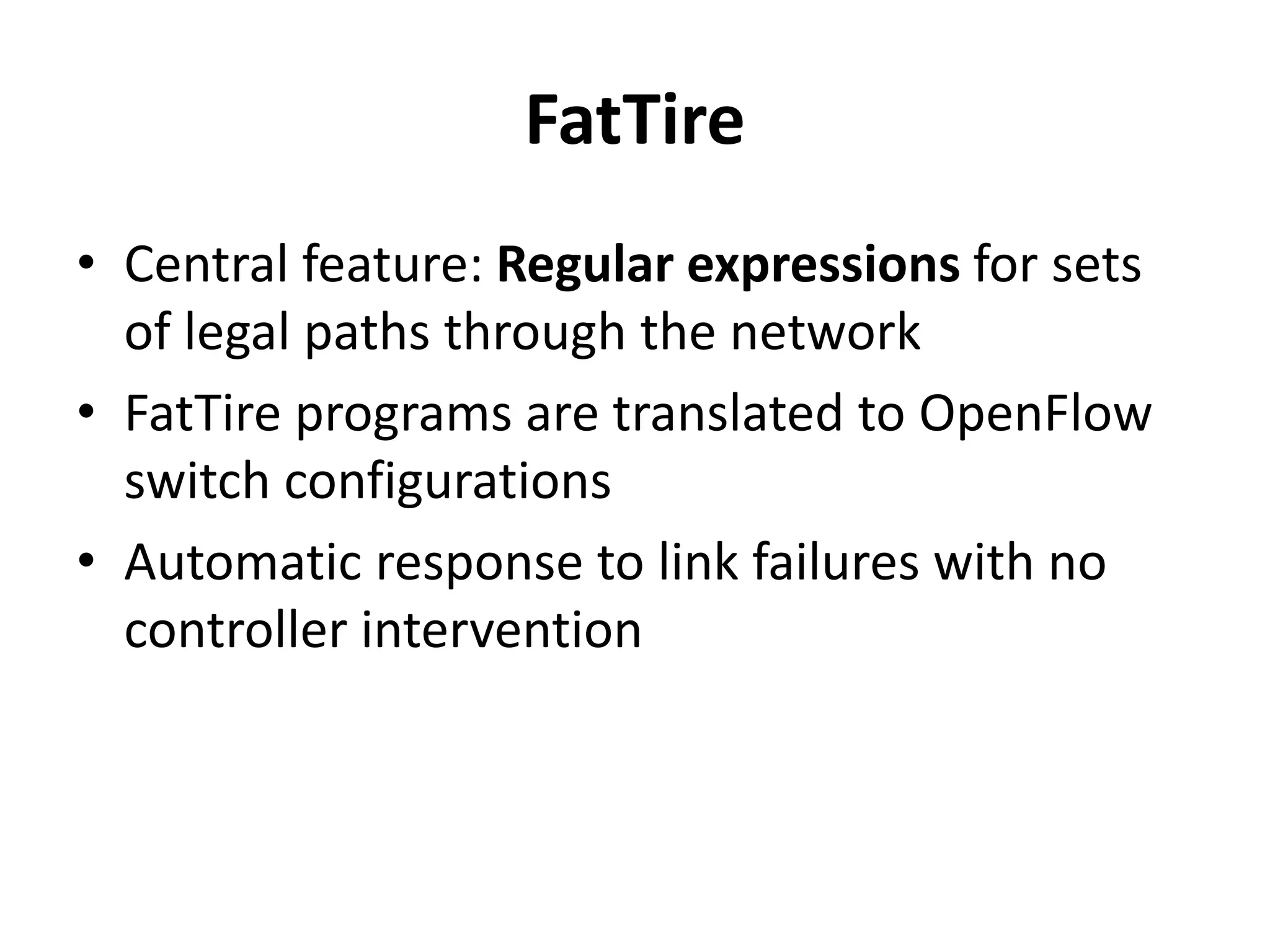

22. FatTire
• Central feature: Regular expressions for sets
of legal paths through the network
• FatTire programs are translated to OpenFlow
switch configurations
• Automatic response to link failures with no
controller intervention

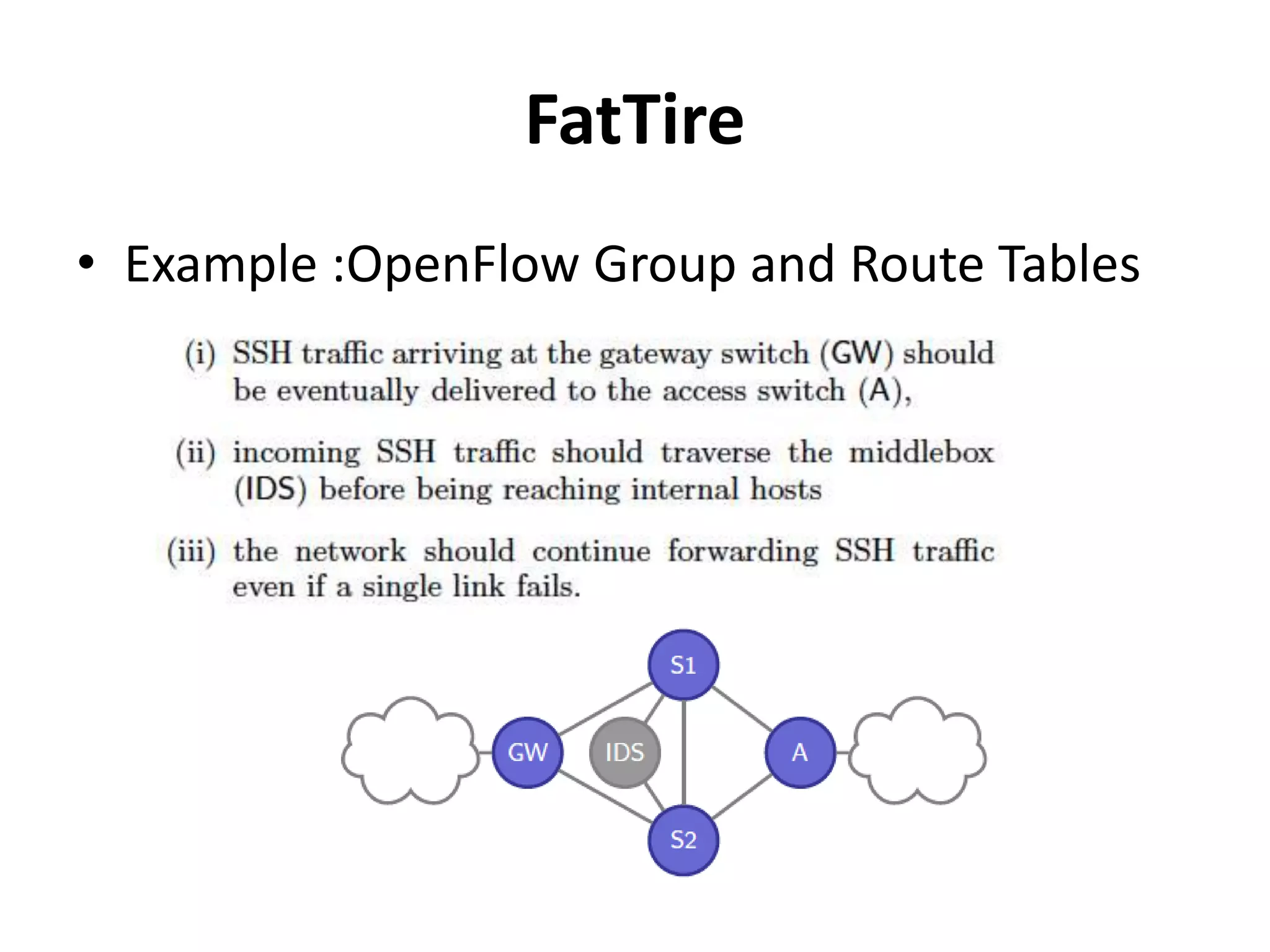

23. FatTire
• Example :OpenFlow Group and Route Tables

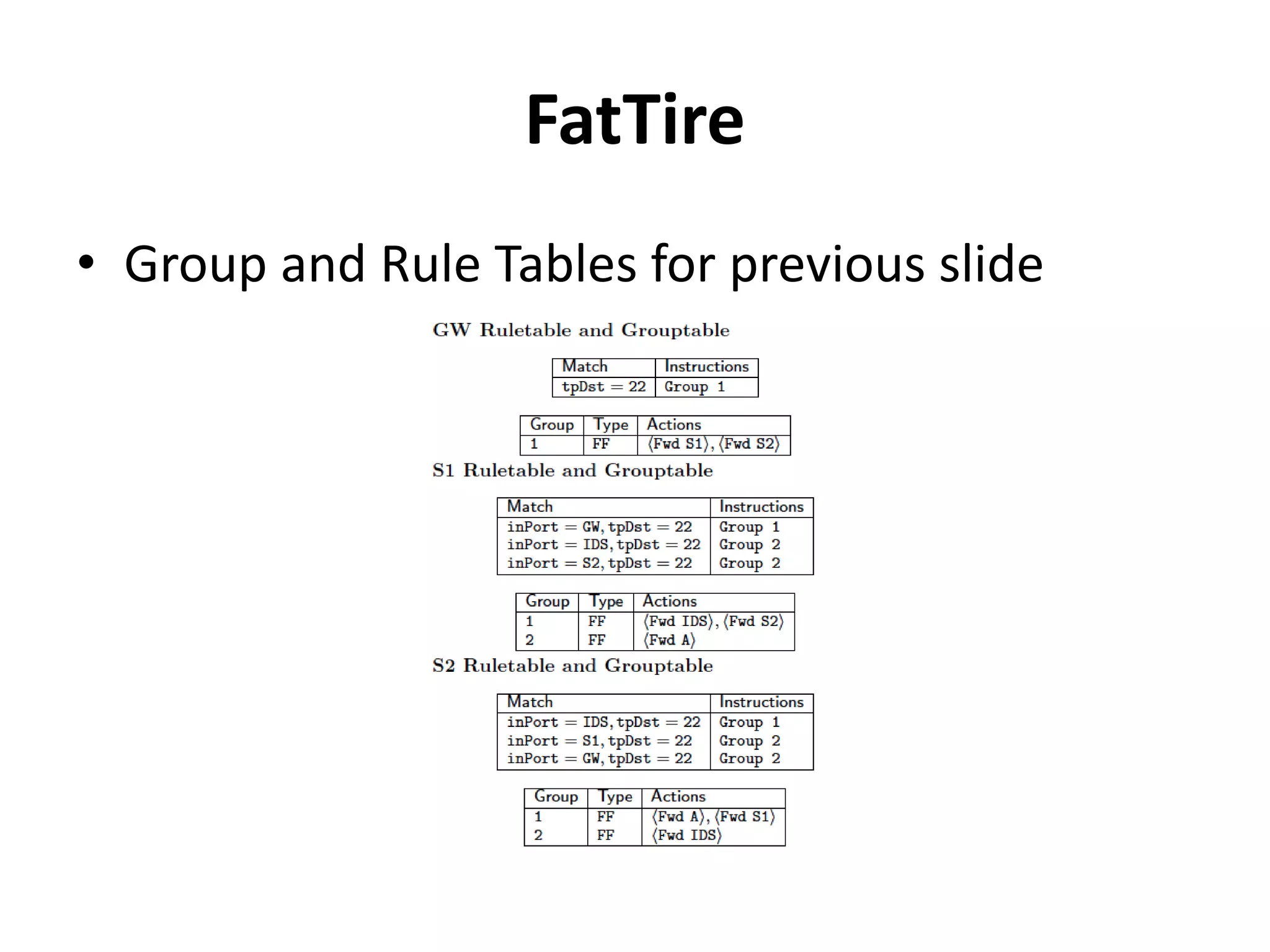

24. FatTire
• Group and Rule Tables for previous slide

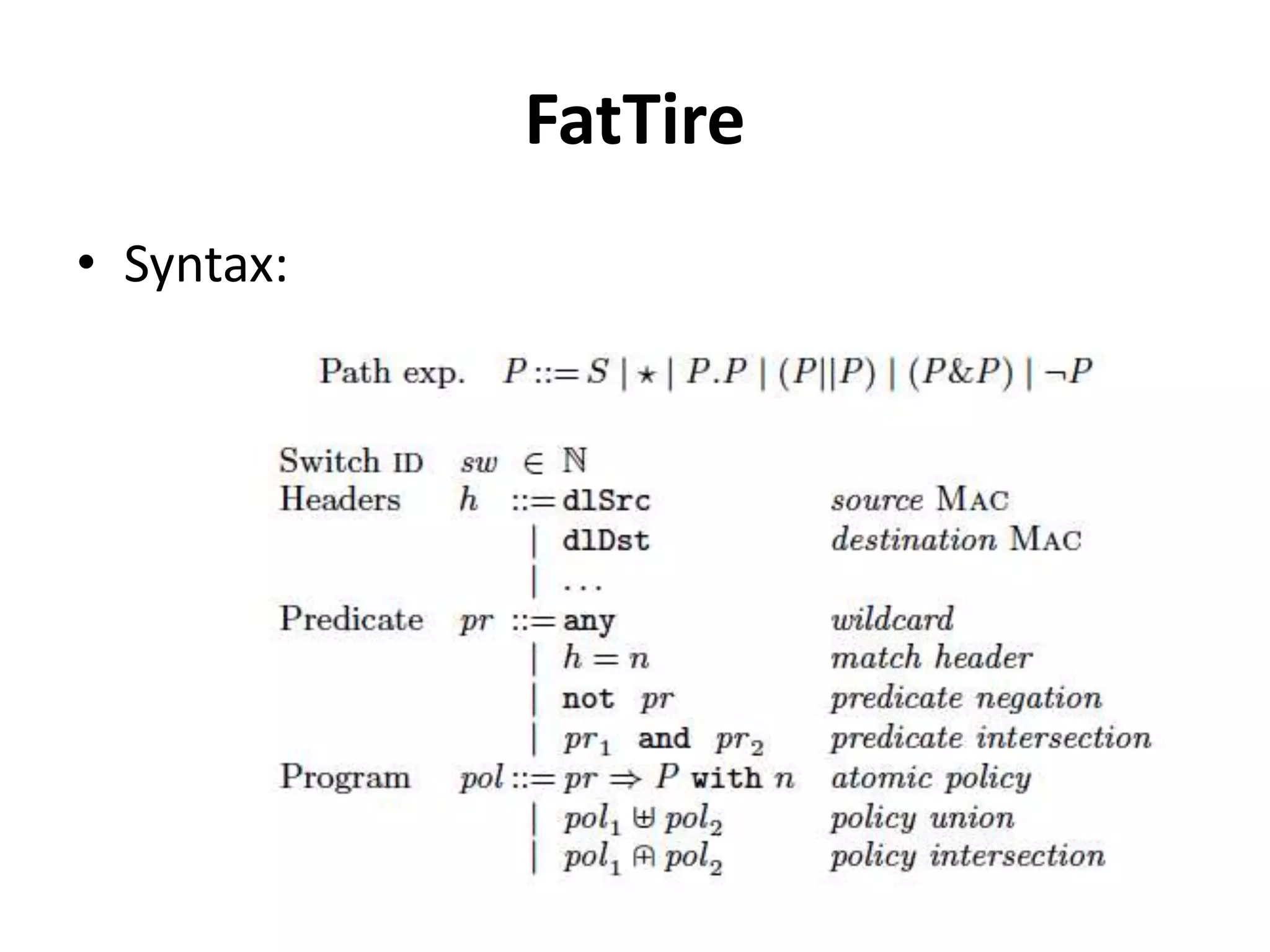

25. FatTire
• Syntax:

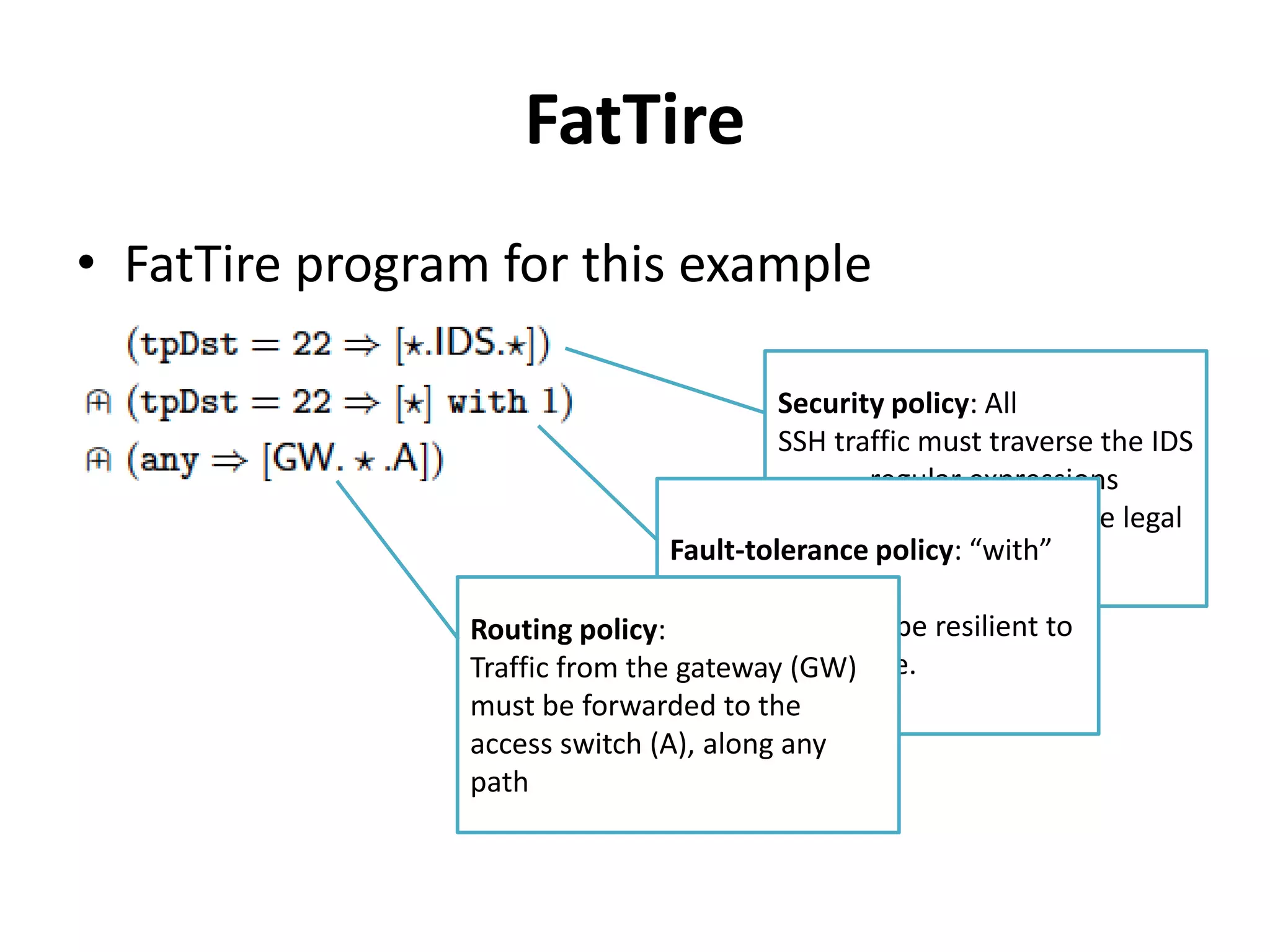

26. FatTire
• FatTire program for this example
Security policy: All
SSH traffic must traverse the IDS
- regular expressions
over switches to describe legal
paths
Fault-tolerance policy: “with”
annotation
Forwarding must be resilient to
a single link failure.
Routing policy:
Traffic from the gateway (GW)
must be forwarded to the
access switch (A), along any
path

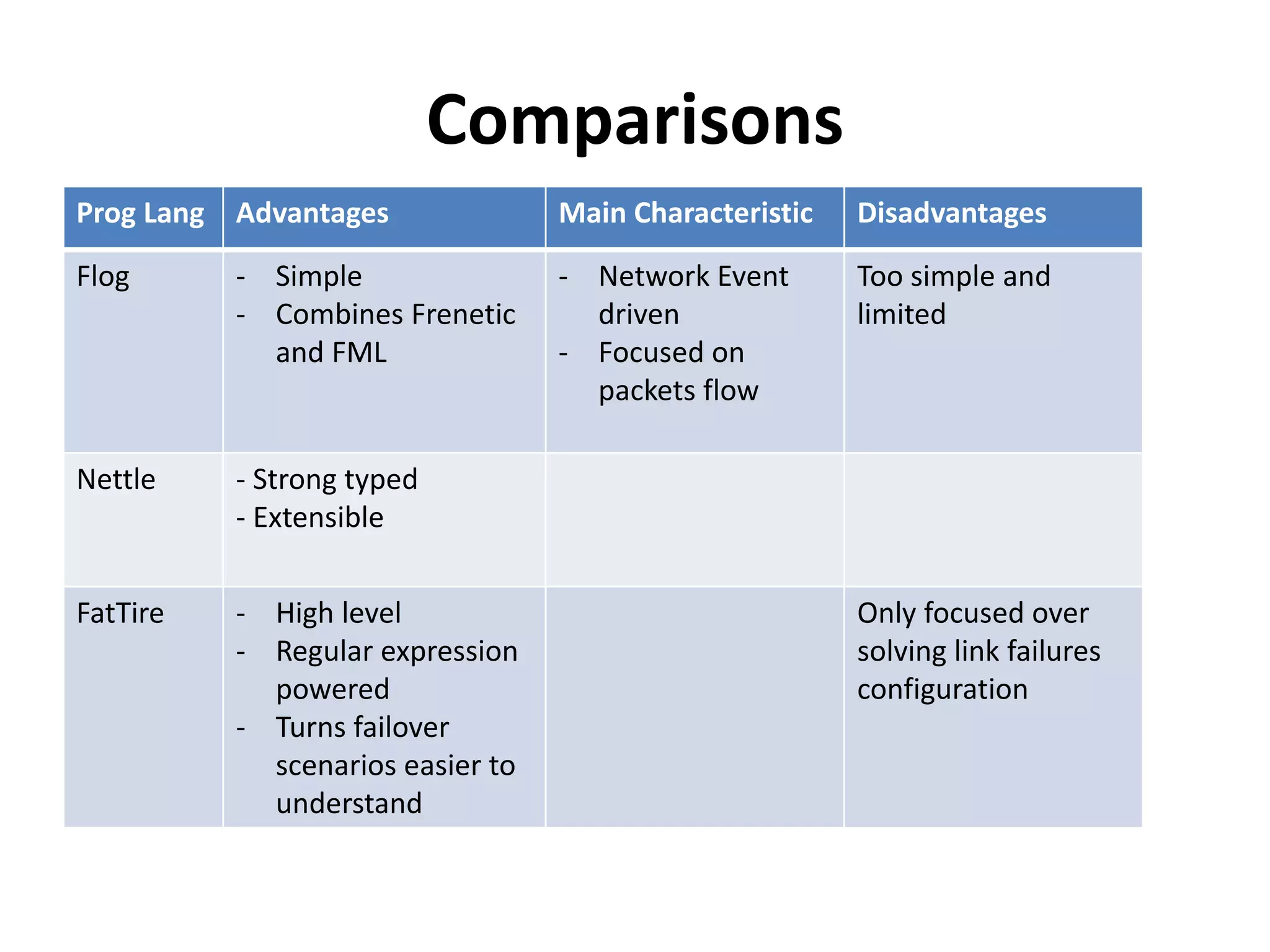

27. Comparisons
Prog Lang Main Characteristic Advantages Disadvantages
Flog - Network Event
driven
- Focused on packets
flow
- Simple
- Combines Frenetic
and FML
Too simple and
limited to flow
control
FatTire Targets fast failover
mechanisms provided
by OpenFlow standard
- High level
- Regular expression
powered
- Turns failover
scenarios easier to
understand
Only focused over
solving link failures
configuration
Nettle - allow fine-grained
control over switch
behavior
- event-based
programming model
- Strong typed
- Extensible
Good question!!!
I buy it!

28. References
1. Naga Praveen Katta, Jennifer Rexford, and David Walker. Logic
Programming for Software-Defined Networks
1. Mark Reitblatt, Marco Canini, Arjun Guha, and Nate Foster.
Fattire: Declarative fault tolerance for software defined
networks
1. Andreas Voellmy and Paul Hudak. Nettle: Taking the Sting Out
of Programming Network Routers
