New ALS70/80 Series & Press-Fit

© KEMET Electronics. All Rights Reserved.
KEMET Webinar
New ALS70/80 Series & Press-Fit
01.12.2017

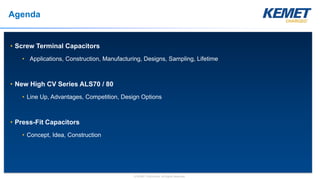

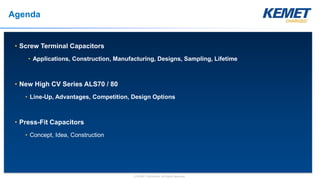

Agenda
• Screw Terminal Capacitors
• Applications, Construction, Manufacturing, Designs, Sampling, Lifetime
• New High CV Series ALS70 / 80
• Line Up, Advantages, Competition, Design Options
• Press-Fit Capacitors
• Concept, Idea, Construction

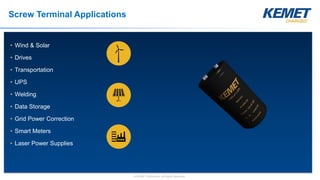

Screw Terminal Applications
• Wind & Solar
• Drives
• Transportation
• UPS
• Welding
• Data Storage
• Grid Power Correction
• Smart Meters
• Laser Power Supplies

Cathode
Foil
Anode
Foil
Separator
Paper
Foil
Tabs
Safety
Vent

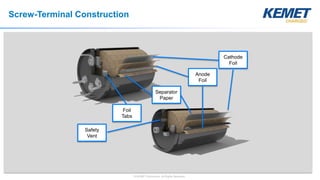

Screw-Terminal Construction

General Manufacturing Process
• Winding Wind anode, cathode, papers together with connecting tabs
• Decking Attach winding to terminals on deck
• Impregnation Impregnate winding with electrolyte
• Assembly Fit winding and deck to can and seal
• Ageing Repair oxide damage from slitting and winding
• Testing Measure capacitance, ESR, Z and leakage current
• Finishing Fit external insulation and marking
• Packing Pack ready for shipping
• Slitting Cut foil to the needed width

Aluminum Foil
Cathode Plate
Electrolyte / Paper
Aluminum Foil
Anode Plate
Aluminium Oxide Dielectric
• Thicker dielectric reduces maximum capacitance potential
• Dielectric thickness determines voltage rating
Aluminium Oxide Dielectric

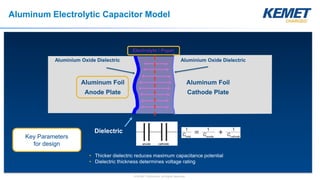

Aluminum Electrolytic Capacitor Model
Key Parameters
for design

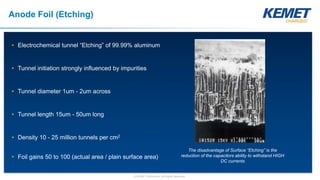

Anode Foil (Etching)
• Electrochemical tunnel “Etching” of 99.99% aluminum
• Tunnel initiation strongly influenced by impurities
• Tunnel diameter 1um - 2um across
• Tunnel length 15um - 50um long
• Density 10 - 25 million tunnels per cm2
• Foil gains 50 to 100 (actual area / plain surface area)
The disadvantage of Surface “Etching” is the
reduction of the capacitors ability to withstand HIGH
DC currents

• High conductivity, neutral pH
– Acid + Base -> Salt
• Wide operational temperature range
– Stay conductive across range
• Provides ability to reform oxide
– Controlled level of water
• Compatibility with paper and deck material
– Hydrogen gas absorber
• Low flammability, low toxicity
Electrolyte Composition

Separator Papers
• Materials (pulp)
– Kraft, manila, esparto, hemp
– Combinations of pulp are often used
• Properties
– Thickness 12µm to 90µm
– Density 0.3 to 0.8 g/cm3, uniform density, minimum
pinholes
– Simplex – single type of paper
– Duplex – two papers joined together
• Usage
– 1 to 3 papers used between anode and cathode
– Up to 5 actual layers when duplex paper used

• Relevant Capabilities for IEC Standards
• AECQ200 Testing Capabilities
• Risk Analysis Capability
• Technology Knowledge to lead design capability
innovation
• Competitive Cost Service Provider per High School Level
• Automotive, Specialties and testing knowledge
• Chemical: Small Lab Reactor, Development and
Electrolyte Characterization
• Construction: Materials – Pull/Push, Pressure, Resistivity,
Permeability, TGA and Hardness, etc.
• Electrical Characterization: Frequency Sweep; Ripple
• Life Testing: Electrolytic facility
Worldwide Electrolytic Capacitor Engineering Center
• Based in EMEA / Portugal / Evora
• Electrolytic Capacitor HQ and Main Production

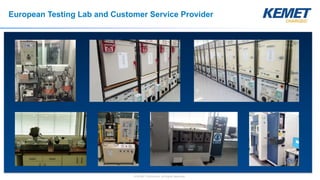

European Testing Lab and Customer Service Provider

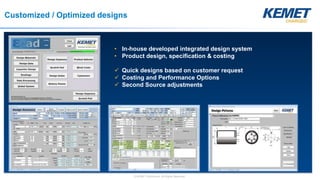

Customized / Optimized designs
• In-house developed integrated design system
• Product design, specification & costing
 Quick designs based on customer request
 Costing and Performance Options
 Second Source adjustments

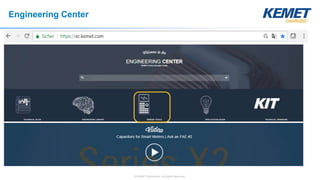

Engineering Center

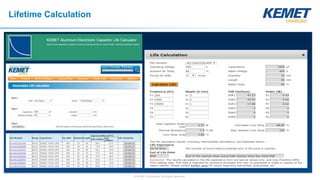

Lifetime Calculation

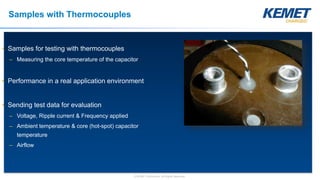

Samples with Thermocouples
• Samples for testing with thermocouples
– Measuring the core temperature of the capacitor
• Performance in a real application environment
• Sending test data for evaluation
– Voltage, Ripple current & Frequency applied
– Ambient temperature & core (hot-spot) capacitor
temperature
– Airflow

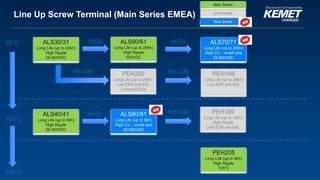

Line Up Screw Terminal (Main Series EMEA)
ALS30/31
Long Life (up to 20kh)
High Ripple
25-500VDC
ALS60/61
High Ripple
550VDC
ALS40/41
High Ripple
25-500VDC
PEH169
Low ESR and ESL
PEH200
Low ESR and ESL
Compact Size
PEH169
High Ripple
LoW ESR and ESL
PEH205
High Ripple
125°C
85°C
125°C
105°C
Inc. Life
550V
Inc. Life
Inc. Life
ALS70/71
High CV – small size
25-550VDC
H-CV
ALS80/81
High CV – small size
25-500VDC
H-CV Inc. Life
Main Series
on demand
New Series

• Compact size with High CV
− Capacitance: 300 – 1,300,000µF
− Voltage: 25 – 550VDC
− Operating Temperature: -40°C to 85°C
• Long life, up to 20,000 hours at +85°C
(Rated voltage and ripple current applied)
• High ripple current
• Excellent surge voltage capability
• Optimized designs available upon request
Anode Foil
Extended Cathode
Foil Tabs
Tissues
Cathode Foil
New High Capacitance 85°C Screw Terminal Range
ALS70 / ALS71 series
Operational
Lifetime
D (mm)
Rated Voltage and Ripple
Current at + 85°C (hours)
Rated Voltage
at + 85°C (hours)
36 11,000 22,000
51 18,000 36,000
63.5; 66 19,000 38,000
77; 90 20,000 40,000

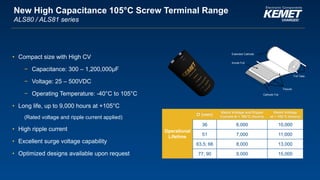

• Compact size with High CV
− Capacitance: 300 – 1,200,000µF
− Voltage: 25 – 500VDC
− Operating Temperature: -40°C to 105°C
• Long life, up to 9,000 hours at +105°C
(Rated voltage and ripple current applied)
• High ripple current
• Excellent surge voltage capability
• Optimized designs available upon request
Operational
Lifetime
D (mm)
Rated Voltage and Ripple
Current at + 105°C (hours)
Rated Voltage
at + 105°C (hours)
36 6,000 10,000
51 7,000 11,000
63.5; 66 8,000 13,000
77; 90 9,000 15,000
Anode Foil
Extended Cathode
Foil Tabs
Tissues
Cathode Foil
New High Capacitance 105°C Screw Terminal Range
ALS80 / ALS81 series

 New ranges exceeds the competition
Screw Terminal 85°C
Capacitance/ Voltage / Case Size Screw Terminal Range
85°C Screw Terminal
77x146mm
25V 40V 63V 100V 200V 250V 350V 400V 450V 500V 550V
KEMET Current Range 330,000 220,000 100,000 68,000 22,000 15,000 10,000 8,200 8,200 3,900 3,300
KEMET New range 560,000 330,000 160,000 62,000 22,000 16,000 10,000 9,100 7,500 5,600 5,100
KEMET Max Cap Range 680,000 410,000 190,000 78,000 26,000 21,000 13,000 11,000 9,300 8,000 6,400
Major European Competitor 330,000 220,000 100,000 47,000 18,000 12,000 12,000 11,000 8,200 4,700 4,700
Major Japanese Competitor 330,000 220,000 100,000 47,000 10,000 8,200 4,700 3,300
Major Chinese Competitor 470,000 150,000 56,000 22,000 18,000 8,200 8,200 6,800 4,700

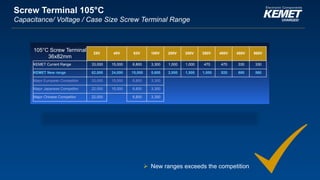

Screw Terminal 105°C
Capacitance/ Voltage / Case Size Screw Terminal Range
105°C Screw Terminal
36x82mm
25V 40V 63V 100V 200V 250V 350V 400V 450V 500V
KEMET Current Range 33,000 15,000 6,800 3,300 1,000 1,000 470 470 330 330
KEMET New range 62,000 24,000 15,000 5,600 2,000 1,500 1,000 820 680 560
Major European Competitor 33,000 15,000 6,800 3,300
Major Japanese Competitor 22,000 15,000 6,800 3,300
Major Chinese Competitor 22,000 6,800 3,300
 New ranges exceeds the competition

VDC
Rated
Capacitance Size
Code
Case
Size
LOP
Ripple
Current
Ripple
Current
ESR
Maximum
Impedance
Maximum
Part Number
Price
(%)100Hz 20°C
(µF)
D x L
(mm)
100Hz
85°C (A)
10kHz
85°C (A)
100Hz 20°C
(mΩ)
10kHz 20°C
(mΩ)
450 2200 MF 66 x 105 19kh 11.1 19.3 67 47 ALS31A222MF450 100%
Increase capacitance and
performance in same case size
Reduce case size and cost
by keeping CV value
ALS31
ALS71
ALS71

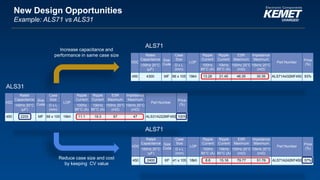

New Design Opportunities
Example: ALS71 vs ALS31
VDC
Rated
Capacitance Size
Code
Case
Size
LOP
Ripple
Current
Ripple
Current
ESR
Maximum
Impedance
Maximum
Part Number
Price
(%)100Hz 20°C
(µF)
D x L
(mm)
100Hz
85°C (A)
10kHz
85°C (A)
100Hz 20°C
(mΩ)
10kHz 20°C
(mΩ)
450 4300 MF 66 x 105 19kh 13.28 21.45 46.35 30.35 ALS71A432MF450 93%
VDC
Rated
Capacitance Size
Code
Case
Size
LOP
Ripple
Current
Ripple
Current
ESR
Maximum
Impedance
Maximum
Part Number
Price
(%)100Hz 20°C
(µF)
D x L
(mm)
100Hz
85°C (A)
10kHz
85°C (A)
100Hz 20°C
(mΩ)
10kHz 20°C
(mΩ)
450 2400 KF 41 x 105 18kh 8.8 15.16 79.77 51.76 ALS71A242KF450 57%

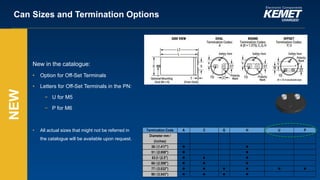

Can Sizes and Termination Options
Termination Code A C G H U P
Diameter mm /
(inches)
36 / (1.417") l l
51 / (2.008") l l
63.5 / (2.5") l l l
66 / (2.598") l l l
77 / (3.032") l l l l l l
90 / (3.543") l l l l
New in the catalogue:
• Option for Off-Set Terminals
• Letters for Off-Set Terminals in the PN:
− U for M5
− P for M6
• All actual sizes that might not be referred in
the catalogue will be available upon request.
NEW

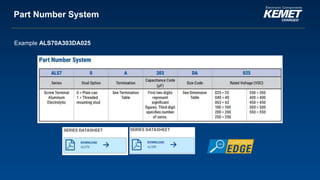

Part Number System
Example ALS70A303DA025

Applications
• UPS Systems for Servers
• Data Storage
• Grid Power Correction
• Smart Meters
• Wind & Solar
• Drives
• Transportation
• UPS
• Welding
• Laser Power Supplies
 Long Life Expectancy
 High Transient Voltage Performance
 High Ripple Current
 Wide Range of Mounting & Assembly Options
 Full Design Flexibility / Customized Solutions
 Leading the Design In – Fast Approach

Agenda
• Screw Terminal Capacitors
• Applications, Construction, Manufacturing, Designs, Sampling, Lifetime
• New High CV Series ALS70 / 80
• Line-Up, Advantages, Competition, Design Options
• Press-Fit Capacitors
• Concept, Idea, Construction

Features and Benefits:
• Capacitor is pressed into the PCB, not soldered
• Quick exchange of components
• Eliminates soldering process problems
• Can be mounted after washing process
• Reliable electrical contacts
• Meets BS EN 60352-5:2012
Press-Fit Aluminum Electrolytic Capacitors

Insertion/Retention Forces:
Tests performed on 4 and 5 pin press-fit decks show a consistent insertion force of 100 N per pin.
• 4 pin press-fit deck requires 400 N insertion force
• 5 pin press-fit deck requires 500 N insertion force

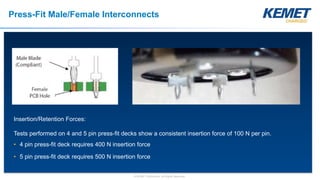

Press-Fit Male/Female Interconnects

For Sampling KEMET will start with following Part Numbers, but other values are available on request as well.
MANUFACTURER
PART NUMBER
KEMET ALIAS
PART NUMBER
DESCRIPTION
ALF20C103EC063 A533HE103M063C Press-Fit, 63V, 10000uF, -40/+85C, 18K hrs life, 4 pin, 40x35mm
ALF20C102EL400 A533HP102M400C Press-Fit, 400V, 1000uF, -40/+85C, 18K hrs life, 4 pin, 40x80mm
ALF20C102EL450 A533HP102M450C Press-Fit, 450V, 1000uF, -40/+85C, 18K hrs life, 4 pin, 40x80mm
ALF20G223EH063 A533HK223M063G Press-Fit, 63V, 22000uF, -40/+85C, 18K hrs life, 5 pin, 40x60mm
ALF20G302KP400 A533KW302M400G Press-Fit, 400V, 3000uF, -40/+85C, 18K hrs life, 5 pin, 50x105mm
ALF20 & ALF40 Series

Electrolytic Product Portfolio
Axial / CrownScrew Terminal Snap-In
Radial / Single Ended SMD
Press-Fit
Conductive Polymer
Single Ended
Conductive Polymer
SMD
