1. if ( 47µF == 47µF)
{ true; }
else
{false;}

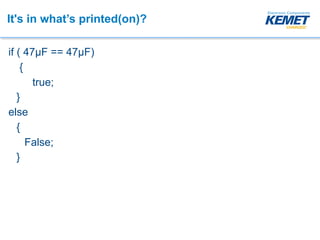

2. It's in what’s printed(on)?
if ( 47µF == 47µF)
{
true;
}
else
{
False;
}

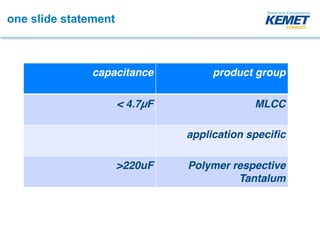

3. one slide statement
capacitance product group
< 4.7µF MLCC
application specific
>220uF Polymer respective
Tantalum

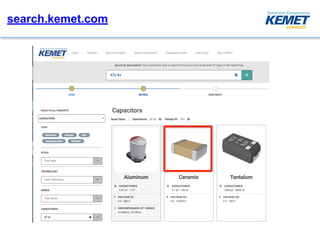

4. search.kemet.com

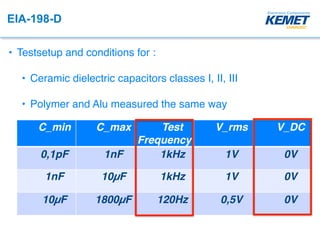

5. EIA-198-D
• Testsetup and conditions for :
• Ceramic dielectric capacitors classes I, II, III
• Polymer and Alu measured the same way
C_min C_max Test
Frequency
V_rms V_DC
0,1pF 1nF 1kHz 1V 0V
1nF 10µF 1kHz 1V 0V
10µF 1800µF 120Hz 0,5V 0V

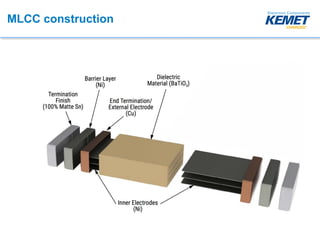

6. MLCC construction

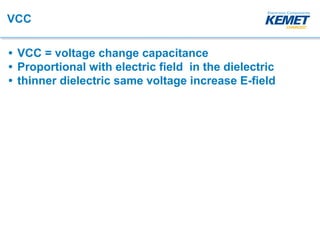

7. VCC
• VCC = voltage change capacitance
• Proportional with electric field in the dielectric
• thinner dielectric same voltage increase E-field

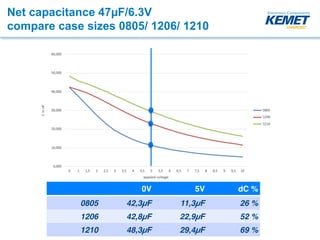

8. Net capacitance 47µF/6.3V
compare case sizes 0805/ 1206/ 1210
0V 5V dC %
0805 42,3µF 11,3µF 26 %
1206 42,8µF 22,9µF 52 %
1210 48,3µF 29,4µF 69 %

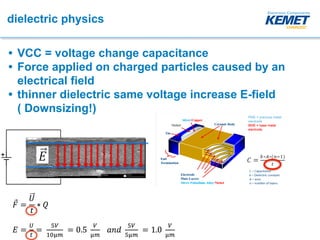

9. dielectric physics
• VCC = voltage change capacitance
• Force applied on charged particles caused by an
electrical field
• thinner dielectric same voltage increase E-field
( Downsizing!)

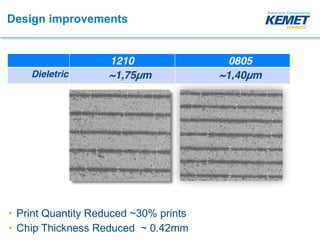

10. Design improvements
• Print Quantity Reduced ~30% prints
• Chip Thickness Reduced ~ 0.42mm
1210 0805
Dieletric ~1,75µm ~1,40µm

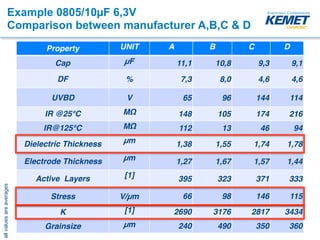

11. Example 0805/10µF 6,3V
Comparison between manufacturer A,B,C & D
allvaluesareaverages
Property UNIT A B C D
Cap µF 11,1 10,8 9,3 9,1
DF % 7,3 8,0 4,6 4,6
UVBD V 65 96 144 114
IR @25°C MΩ 148 105 174 216
IR@125°C MΩ 112 13 46 94
Dielectric Thickness µm 1,38 1,55 1,74 1,78
Electrode Thickness µm 1,27 1,67 1,57 1,44
Active Layers [1] 395 323 371 333
Stress V/µm 66 98 146 115
K [1] 2690 3176 2817 3434
Grainsize µm 240 490 350 360

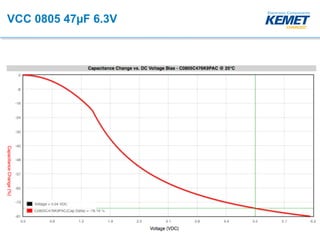

12. VCC 0805 47µF 6.3V

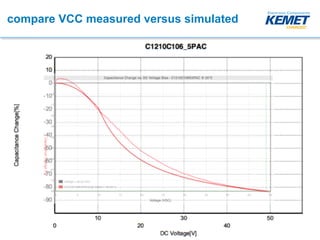

13. compare VCC measured versus simulated

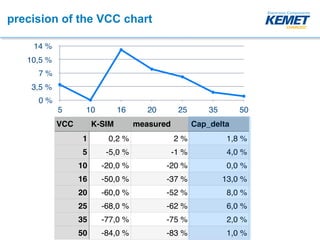

14. precision of the VCC chart
VCC K-SIM measured Cap_delta
1 0,2 % 2 % 1,8 %
5 -5,0 % -1 % 4,0 %
10 -20,0 % -20 % 0,0 %
16 -50,0 % -37 % 13,0 %
20 -60,0 % -52 % 8,0 %
25 -68,0 % -62 % 6,0 %
35 -77,0 % -75 % 2,0 %
50 -84,0 % -83 % 1,0 %
0 %
3,5 %
7 %
10,5 %
14 %
5 10 16 20 25 35 50

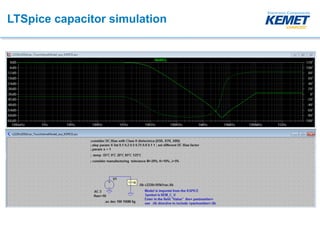

15. LTSpice capacitor simulation

16. C - Model in LT-SPICE
• VCC is not yet included in this models

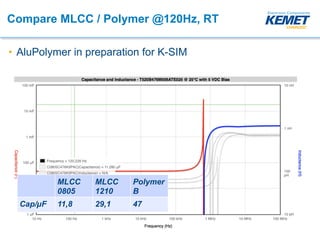

17. Compare MLCC / Polymer @120Hz, RT
• AluPolymer in preparation for K-SIM
MLCC
0805
MLCC
1210
Polymer
B
Cap/µF 11,8 29,1 47

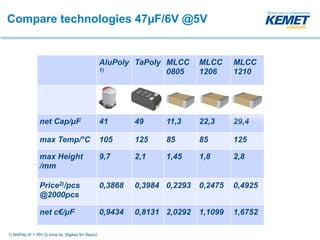

18. Compare technologies 47µF/6V @5V
AluPoly
1)
TaPoly MLCC
0805
MLCC
1206
MLCC
1210
net Cap/µF 41 49 11,3 22,3 29,4
max Temp/°C 105 125 85 85 125
max Height
/mm
9,7 2,1 1,45 1,8 2,8
Price2)/pcs
@2000pcs
0,3868 0,3984 0,2293 0,2475 0,4925
net c€/µF 0,9434 0,8131 2,0292 1,1099 1,6752
1) AluPoly Vr = 35V 2) price by Digikey for 2kpcs)

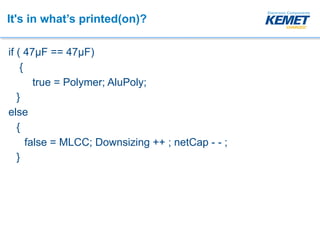

19. It's in what’s printed(on)?
if ( 47µF == 47µF)
{
true = Polymer; AluPoly;
}
else
{
false = MLCC; Downsizing ++ ; netCap - - ;
}

20. Thank You!
Axel Schmidt
Field application Engineer
Cell +49 172 89 25 284
email: AxelSchmidt@kemet.com
Hermann-Köhl-Str. 2
86899 Landsberg am Lech
Germany
www.kemet.com

21. VCC explanation
• Nominal capacitance is measured 1kHz/0VDC/1VAC
• Capacitance drop thru locked dipoles
• Ripple current decrease
• E-Field is voltage between electrode plates (distance)
• Downsizing requires thinner dielectric
• Thinner dielectric increase electrical field
• capacitane loss is higher
