1. KEMET ConfidentialTPM – Ta Technical Product Marketing
New Features for Polymer
COTS Products
T540 / T541 Series
Kemet Propriety & Confidential Information
Content not to be shared with 3rd part without express
written consent of KEMET Electronics Corporation.
Webinar
September 21, 2017

2. • KIT – Simpsonville, SC September 26 – 27
• KIT – Poing, Germany October 10
• KIT – Vienna, Austria October 12
• KIT – Strasbourg, France October 17
• KIT – Grenoble, France October 19
• KIT – Helsinki, Finland October 19
• Space Tech Expo Europe October 24-26
• KIT – Bologna, Italy October 26
ANNOUNCEMENT
KEMET EVENTS – September and October

3. Search Over 6.4 Million Part Numbers
search.kemet.com
ANNOUNCEMENT

4. Capacitor Simulation Tool
ksim.kemet.com
ANNOUNCEMENT

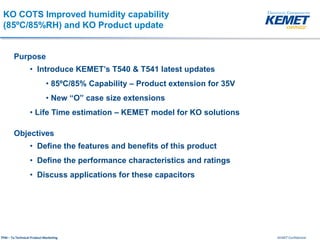

5. KEMET ConfidentialTPM – Ta Technical Product Marketing
KO COTS Improved humidity capability
(85ºC/85%RH) and KO Product update
Purpose
• Introduce KEMET’s T540 & T541 latest updates
• 85ºC/85% Capability – Product extension for 35V
• New “O” case size extensions
• Life Time estimation – KEMET model for KO solutions
Objectives
• Define the features and benefits of this product
• Define the performance characteristics and ratings
• Discuss applications for these capacitors

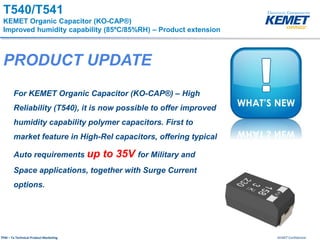

6. KEMET ConfidentialTPM – Ta Technical Product Marketing
T540/T541
KEMET Organic Capacitor (KO-CAP®)
Improved humidity capability (85ºC/85%RH) – Product extension
For KEMET Organic Capacitor (KO-CAP®) – High
Reliability (T540), it is now possible to offer improved
humidity capability polymer capacitors. First to
market feature in High-Rel capacitors, offering typical
Auto requirements up to 35V for Military and
Space applications, together with Surge Current
options.
PRODUCT UPDATE

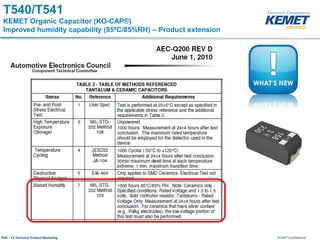

7. KEMET ConfidentialTPM – Ta Technical Product Marketing
T540/T541
KEMET Organic Capacitor (KO-CAP®)
Improved humidity capability (85ºC/85%RH) – Product extension

8. KEMET ConfidentialTPM – Ta Technical Product Marketing
T540/T541
KEMET Organic Capacitor (KO-CAP®)
New “O” Case Size – Product extension
PRODUCT UPDATE
Ex:
• 47uF 50V
• 22uF 63V
…28V ..40V
…48V

9. KEMET ConfidentialTPM – Ta Technical Product Marketing
Where can we..
that information?
T540/T541
KEMET Organic Capacitor (KO-CAP®)
Improved humidity capability (85ºC/85%RH) – Product extension

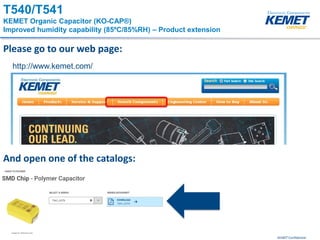

10. KEMET ConfidentialTPM – Ta Technical Product Marketing
Please go to our web page:
http://www.kemet.com/
And open one of the catalogs:
T540/T541
KEMET Organic Capacitor (KO-CAP®)
Improved humidity capability (85ºC/85%RH) – Product extension

11. KEMET ConfidentialTPM – Ta Technical Product Marketing
In the series benefits are now visible:
T540/T541
KEMET Organic Capacitor (KO-CAP®)
Improved humidity capability (85ºC/85%RH) – Product extension

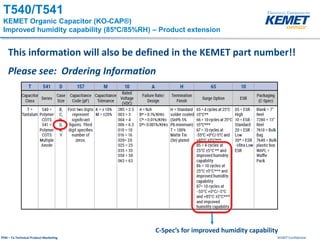

12. KEMET ConfidentialTPM – Ta Technical Product Marketing
This information will also be defined in the KEMET part number!!
Please see: Ordering Information
C-Spec’s for improved humidity capability
T540/T541
KEMET Organic Capacitor (KO-CAP®)
Improved humidity capability (85ºC/85%RH) – Product extension

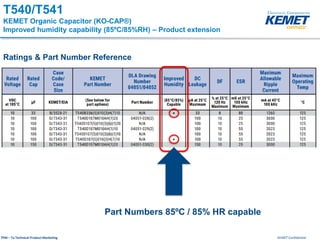

13. KEMET ConfidentialTPM – Ta Technical Product Marketing
T540/T541
KEMET Organic Capacitor (KO-CAP®)
Improved humidity capability (85ºC/85%RH) – Product extension
Ratings & Part Number Reference
Part Numbers 85ºC / 85% HR capable

14. KEMET ConfidentialTPM – Ta Technical Product Marketing
T540/T541
KEMET Organic Capacitor (KO-CAP®) Reliability Grading
Additional information about KO COTS

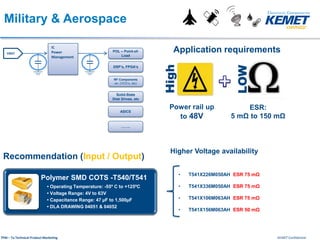

15. KEMET ConfidentialTPM – Ta Technical Product Marketing
Military & Aerospace
VBAT
IC
Power
Management
POL – Point-of-
Load
DSP’s, FPGA’s
RF Components
ex: (VCO’s, etc)
Solid-State
Disk Drives, etc
ASICS
……..
Application requirements
Power rail up
to 48V
Polymer SMD COTS -T540/T541
• Operating Temperature: -55º C to +125ºC
• Voltage Range: 4V to 63V
• Capacitance Range: 47 µF to 1,500µF
• DLA DRAWING 04051 & 04052
Recommendation (Input / Output)
ESR:
5 mΩ to 150 mΩ
• T541X226M050AH ESR 75 mΩ
• T541X336M050AH ESR 75 mΩ
• T541X106M063AH ESR 75 mΩ
• T541X156M063AH ESR 50 mΩ
Higher Voltage availability

16. KEMET ConfidentialTPM – Ta Technical Product Marketing
Space, Avionics & Defense
Capacitor Usage (ex.)
Requirements
High Ripple
High Voltage
Long Life
Low ESR
High Frequency
Long Life
High Energy
Ultra Low ESR
Long Life
Recommended
Capacitor
T540/T541
PHS Her.
Sealed
T543
T540/T541
/T543
T583
PHS Her. Sealed
T583
T540/T541
T543
1 2 3
1 2
3
POL 1
FPGA
DC-DC
REGULATOR
Input
28V - 100V
Power Management
POL 2
POL 3
Core voltage
1.0V @ 10A
I/O Voltage
1.8V @ 6A
Aux
Voltage
2.5V @ 2A
3
3
Different form factor

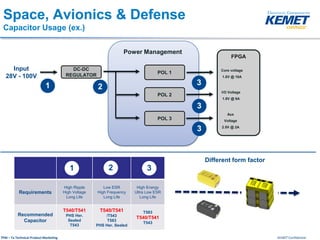

17. KEMET ConfidentialTPM – Ta Technical Product Marketing
Space, Avionics & Defense
Capacitor Usage (ex.)
Solutions for High Power
High Power Amplifiers (HPA’s)
GaN Power Amplifier Applications
• Military and Commercial Radar
• Communications Transmitters
• Jamming Systems
• Electronic Warfare
High capacitance solutions for power
rails up to 50V (or more..)
GaN-Based Power
Amplifiers
for TWT Amplifier Replacement
Offering:
• longer life,
• better efficiencies and reduced size and
weight

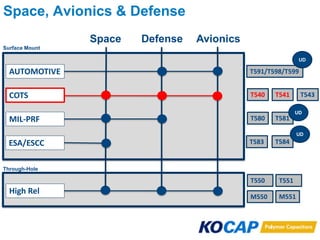

18. Space, Avionics & Defense
Space Defense Avionics
AUTOMOTIVE T591/T598/T599
T540 T541 T543
T580 T581
T583 T584
Surface Mount
Through-Hole
T550 T551
M550 M551
COTS
MIL-PRF
ESA/ESCC
High Rel
UD
UD
UD

19. KEMET ConfidentialTPM – Ta Technical Product Marketing
Questions & Answers
Questions?
