Policy-based routing (PBR) on Juniper NetScreen firewalls allows routing decisions to be based on various packet attributes like source/destination addresses, ports, and protocols. This provides flexibility to redirect traffic in different ways, such as sending all HTTP traffic through a transparent proxy server or distributing traffic across multiple internet connections. The configuration involves creating extended ACLs to match traffic, match groups to group ACLs, action groups to define routing actions, policies to combine matches and actions, and binding policies to interfaces or virtual routers. Keeping PBR configurations simple and leaving room for future policies is recommended.

1. Policy Based Routing
on Juniper netscreen firewalls

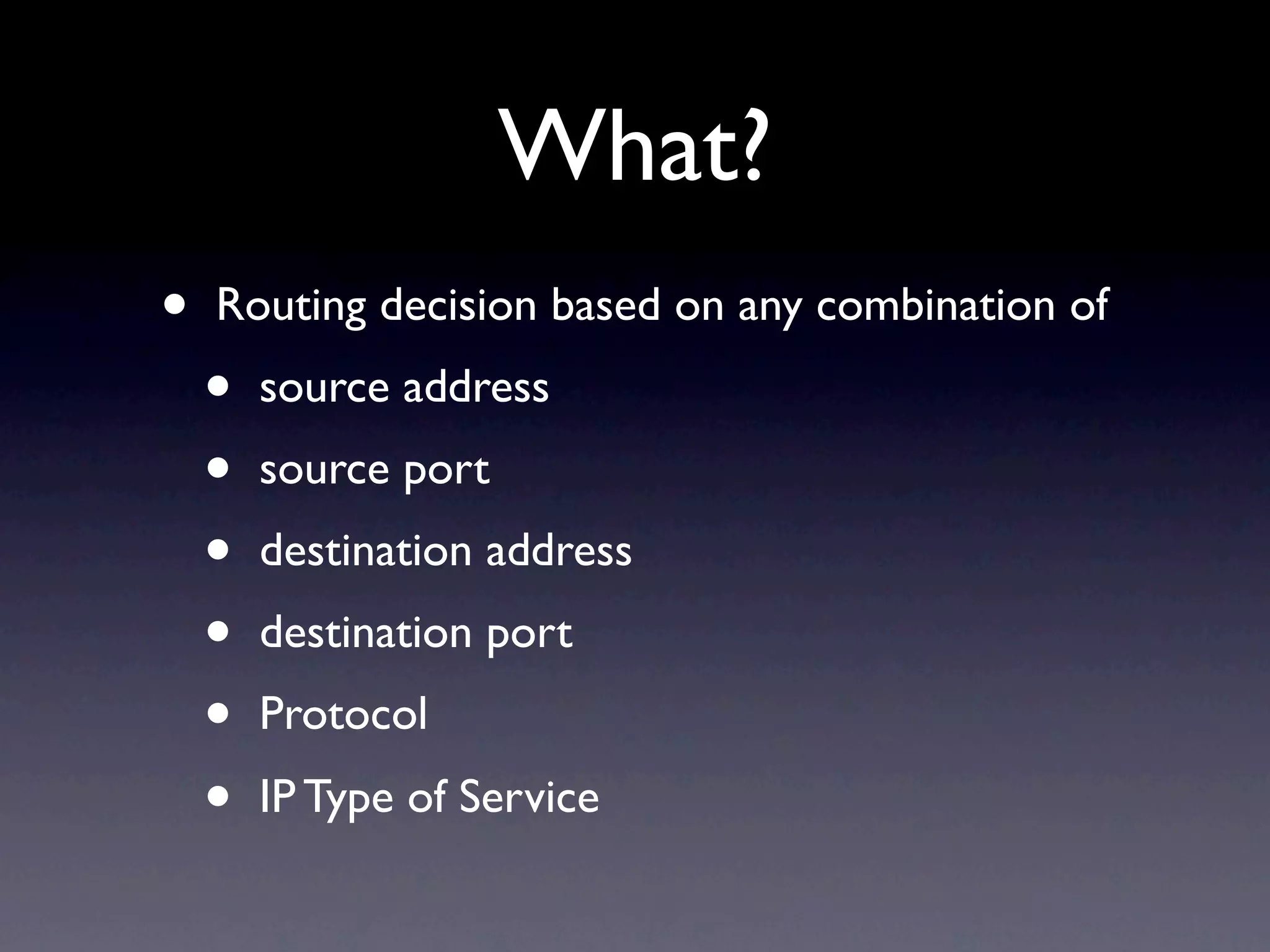

2. What?
• Routing decision based on any combination of
• source address
• source port
• destination address
• destination port
• Protocol
• IP Type of Service

3. Why?
• Redirect all HTTP traffic via a transparent
proxy server
• Distribute traffic across multiple internet
connections

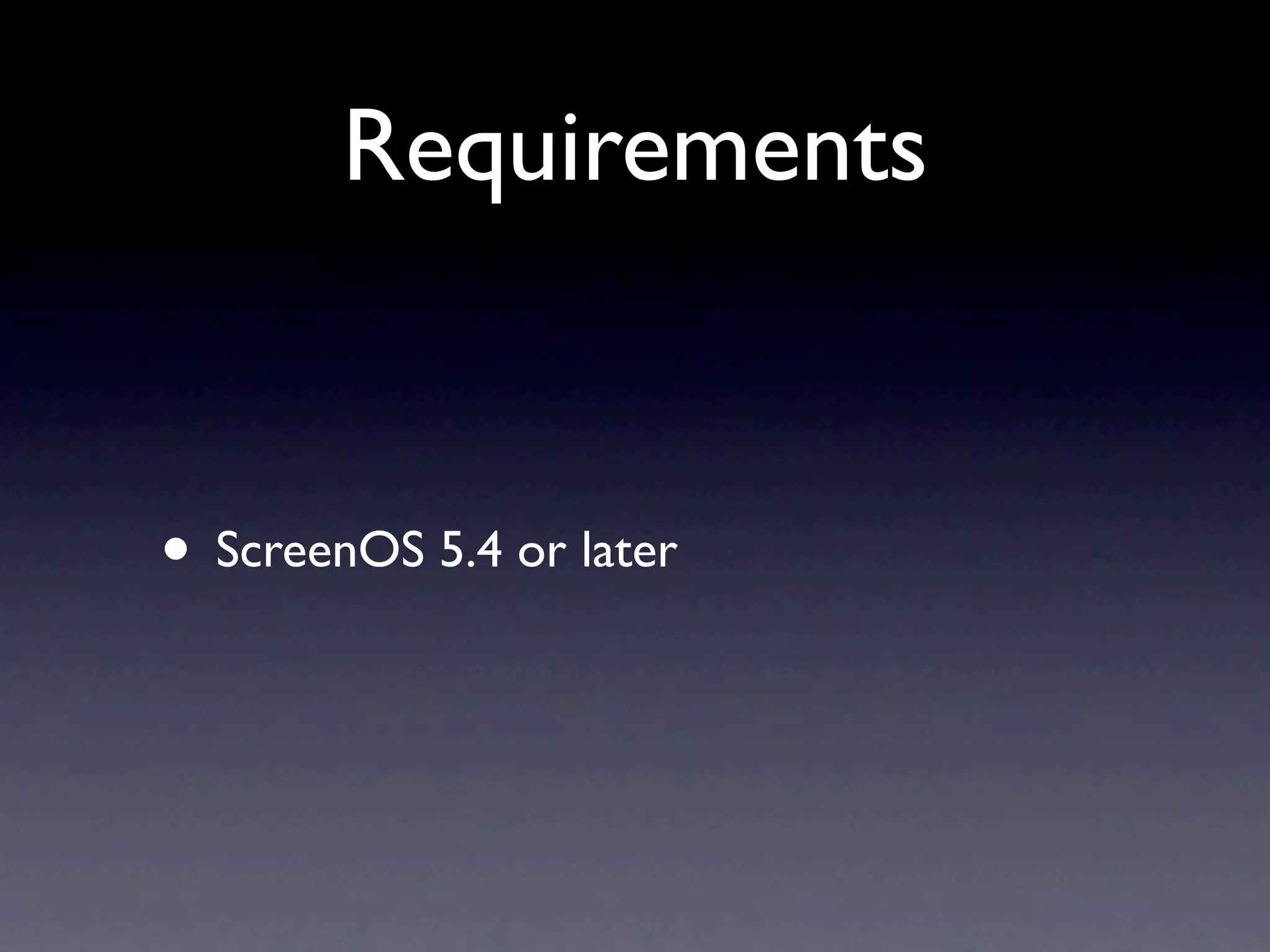

4. Requirements
• ScreenOS 5.4 or later

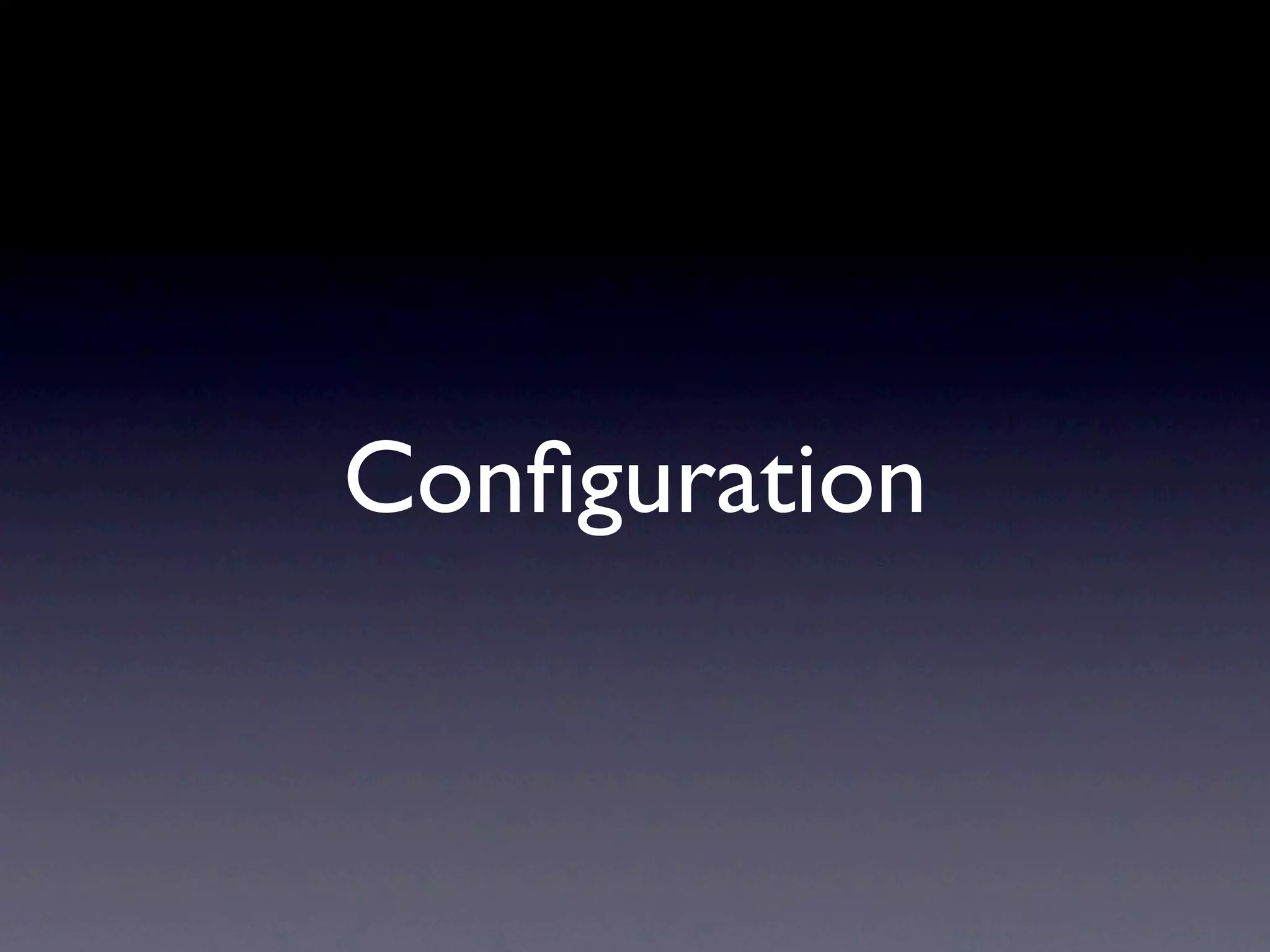

5. Configuration

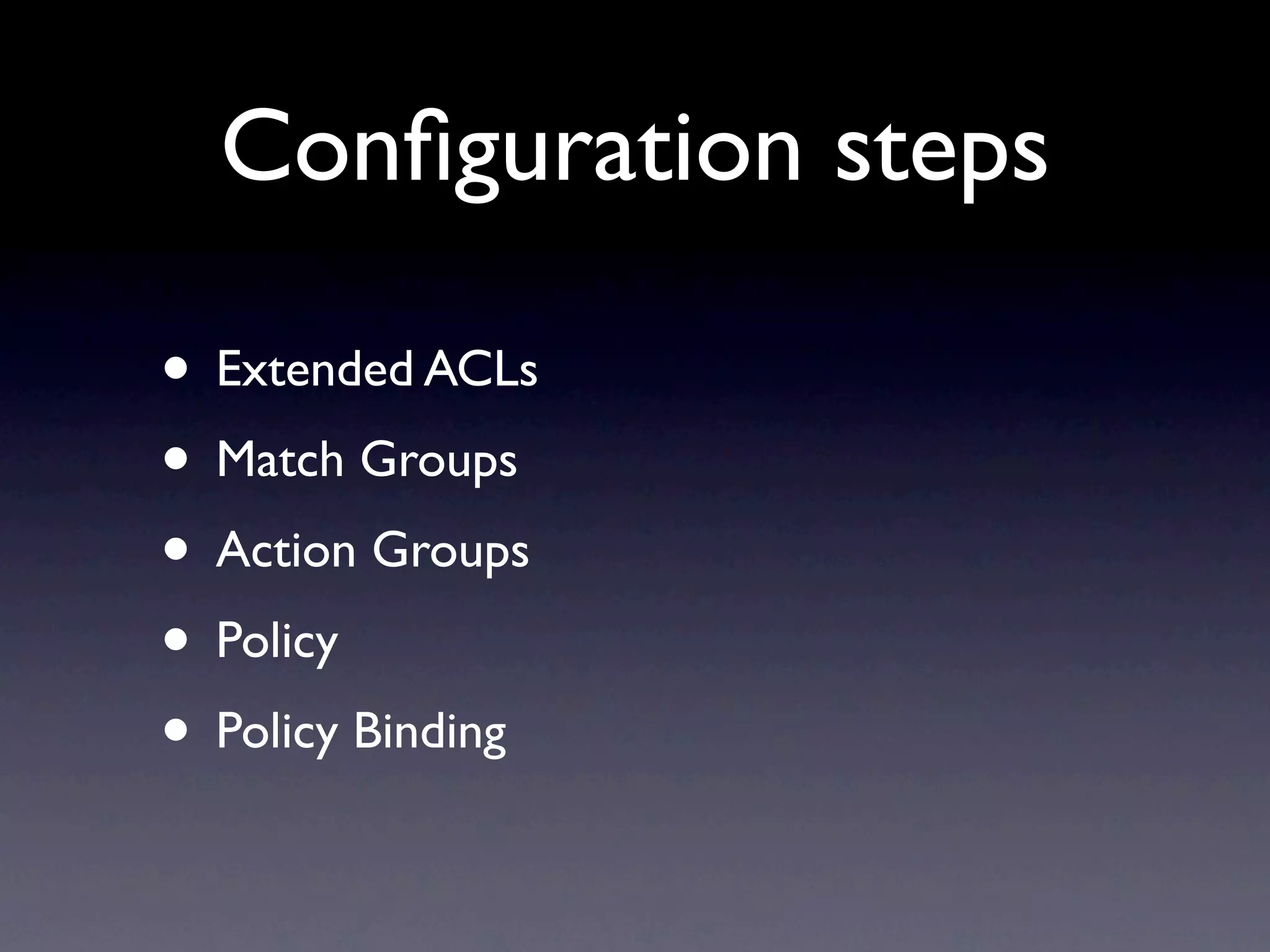

6. Configuration steps
• Extended ACLs
• Match Groups
• Action Groups
• Policy
• Policy Binding

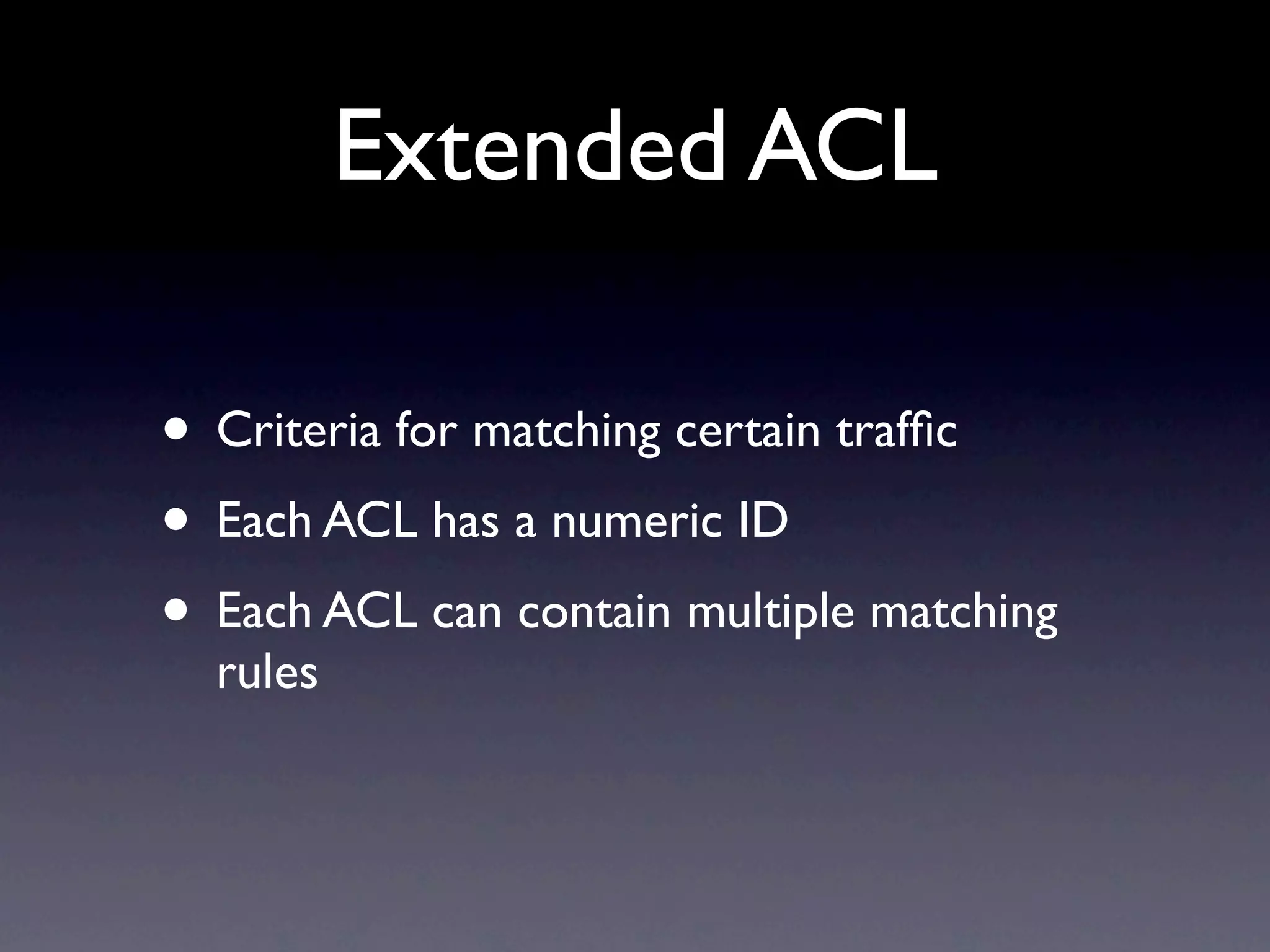

7. Extended ACL
• Criteria for matching certain traffic
• Each ACL has a numeric ID
• Each ACL can contain multiple matching
rules

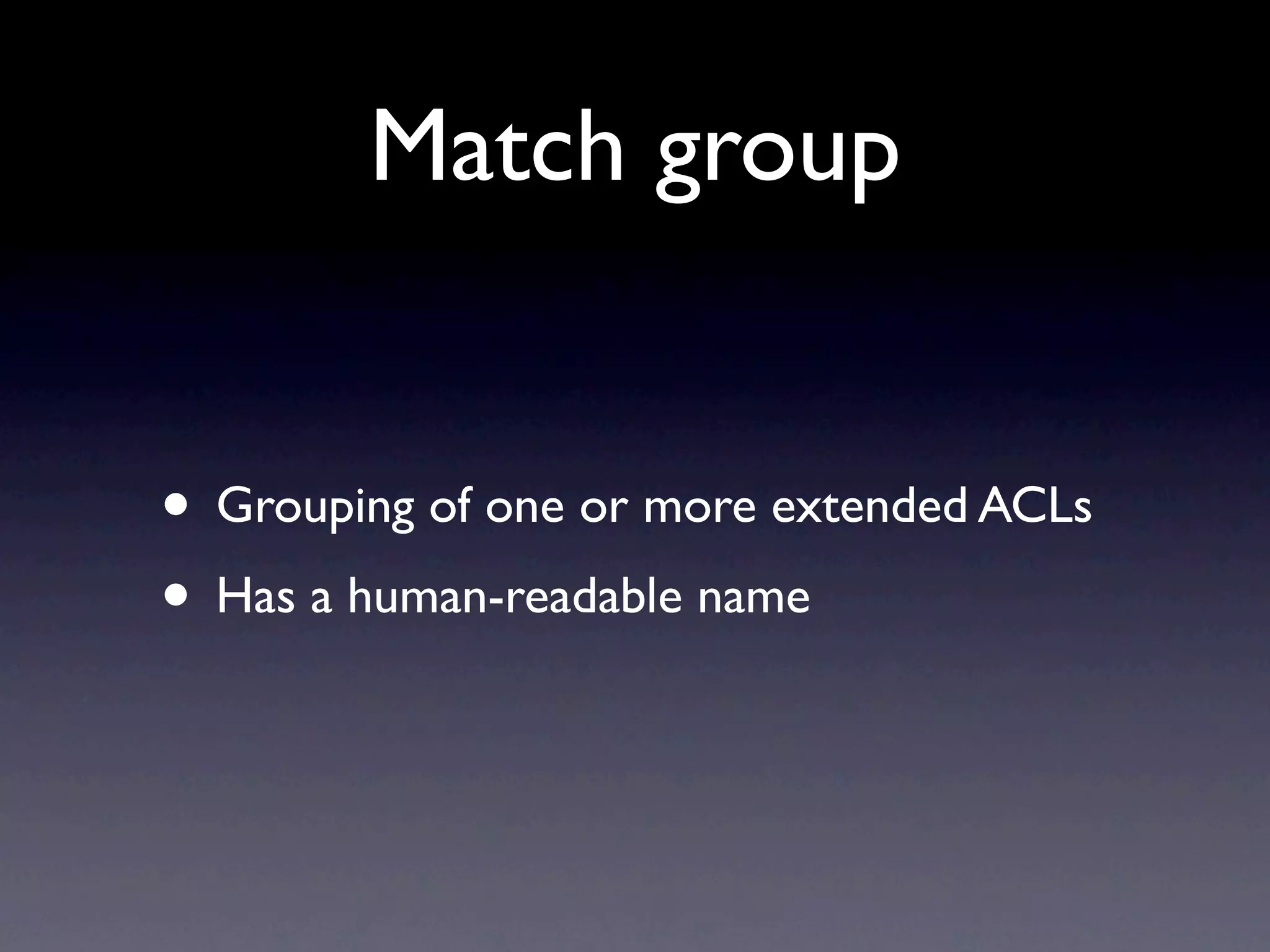

8. Match group
• Grouping of one or more extended ACLs
• Has a human-readable name

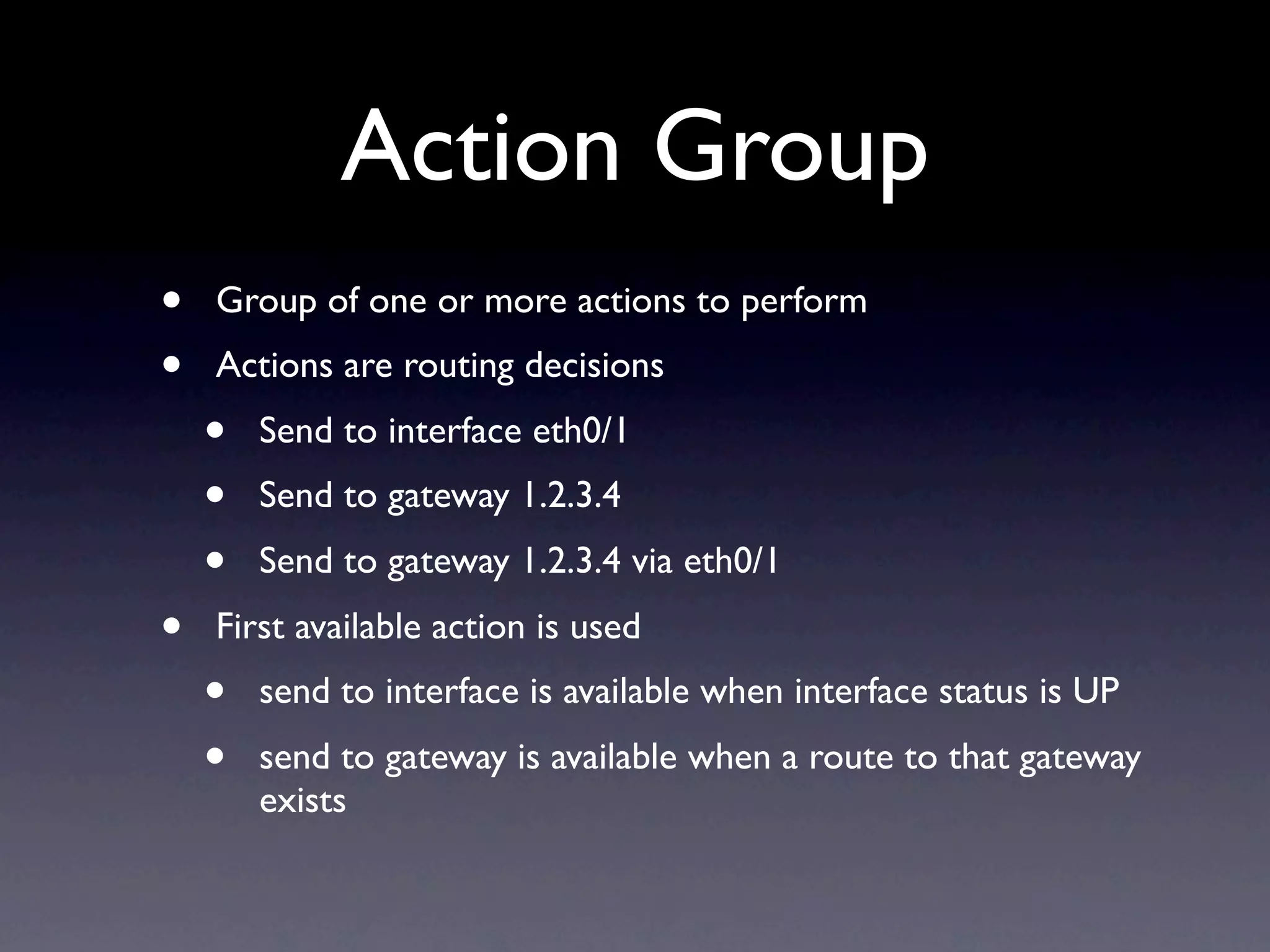

9. Action Group
• Group of one or more actions to perform
• Actions are routing decisions
• Send to interface eth0/1
• Send to gateway 1.2.3.4
• Send to gateway 1.2.3.4 via eth0/1
• First available action is used
• send to interface is available when interface status is UP
• send to gateway is available when a route to that gateway
exists

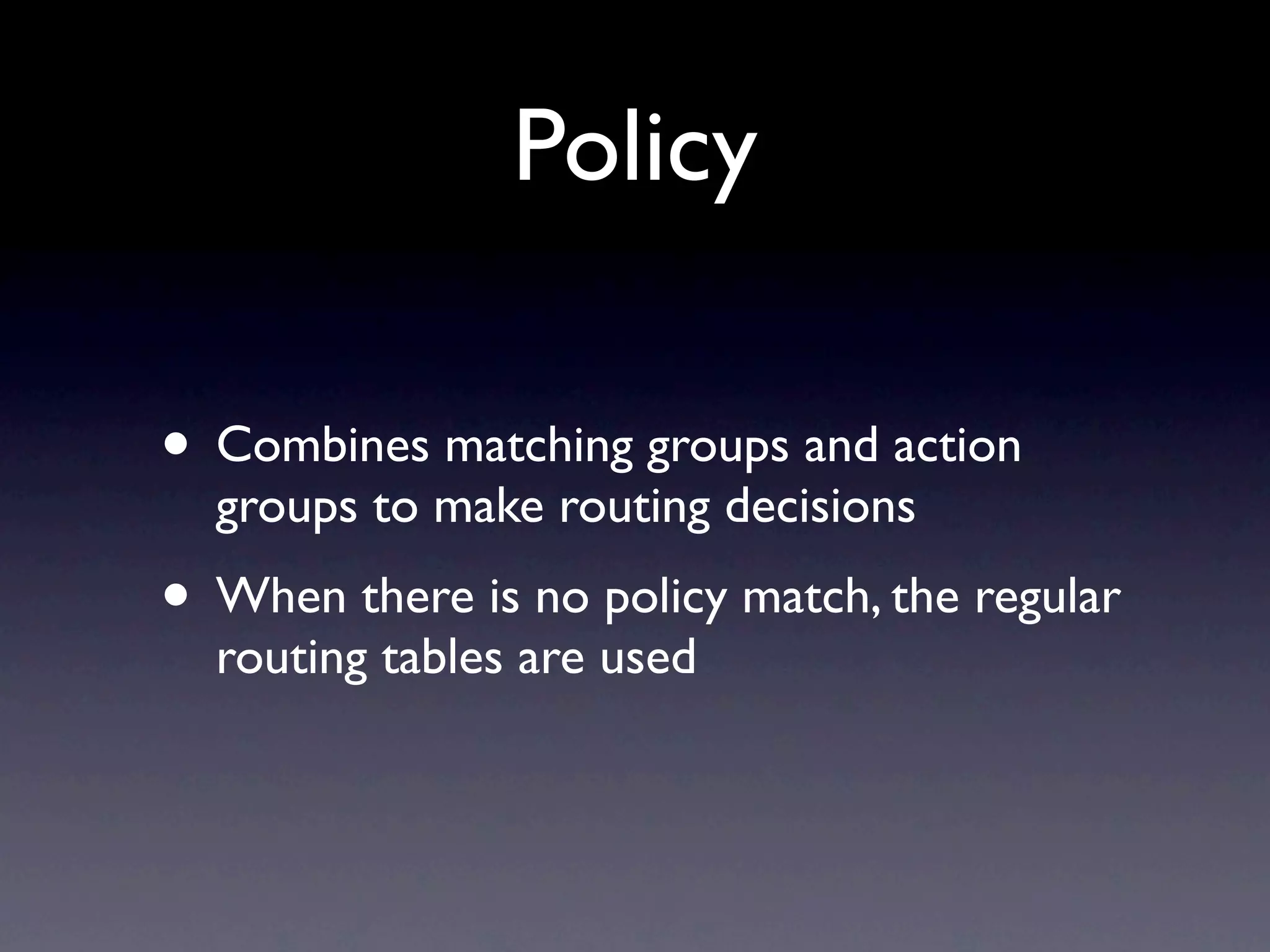

10. Policy
• Combines matching groups and action
groups to make routing decisions
• When there is no policy match, the regular
routing tables are used

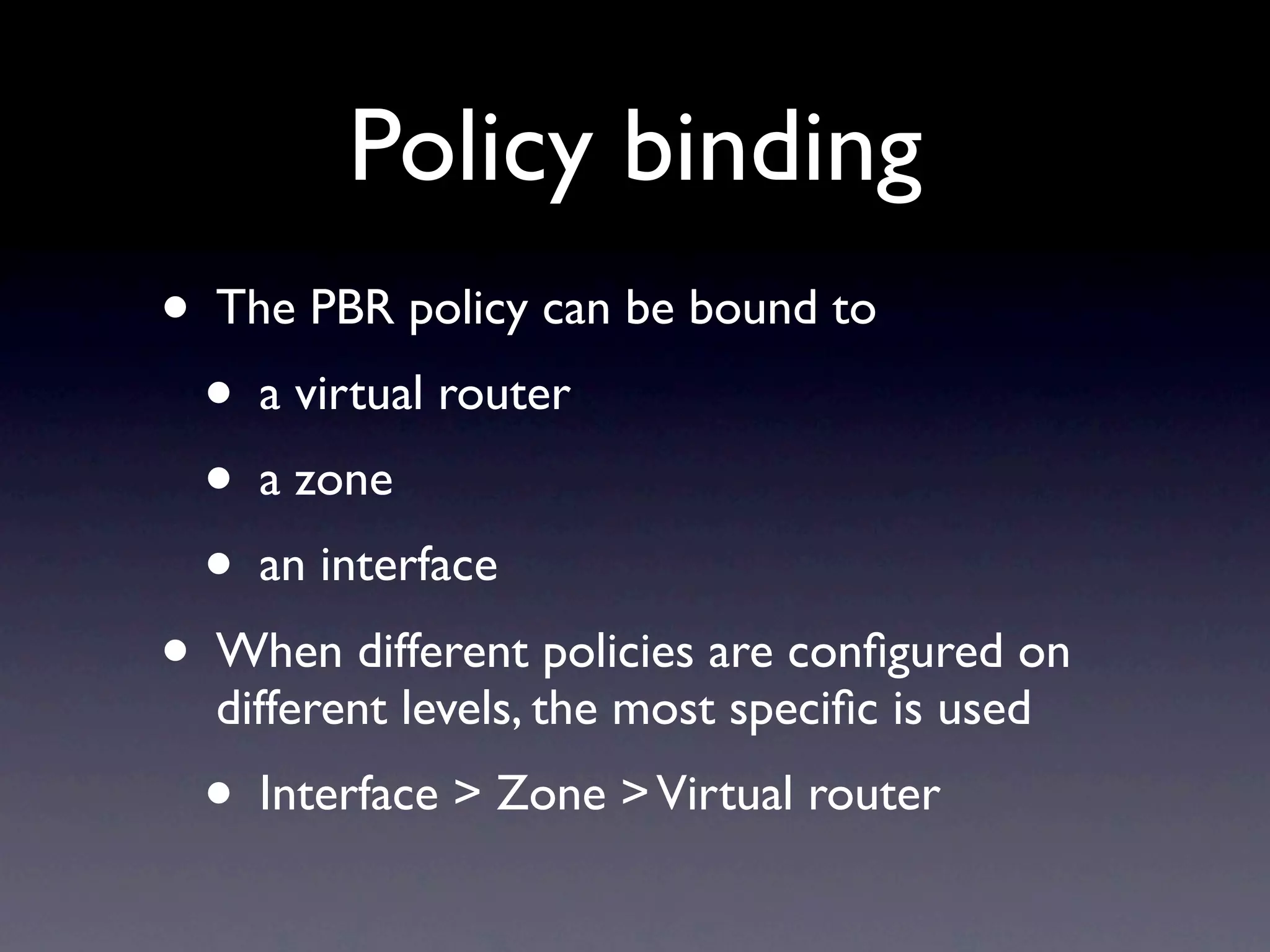

11. Policy binding
• The PBR policy can be bound to
• a virtual router
• a zone
• an interface
• When different policies are configured on
different levels, the most specific is used
• Interface > Zone > Virtual router

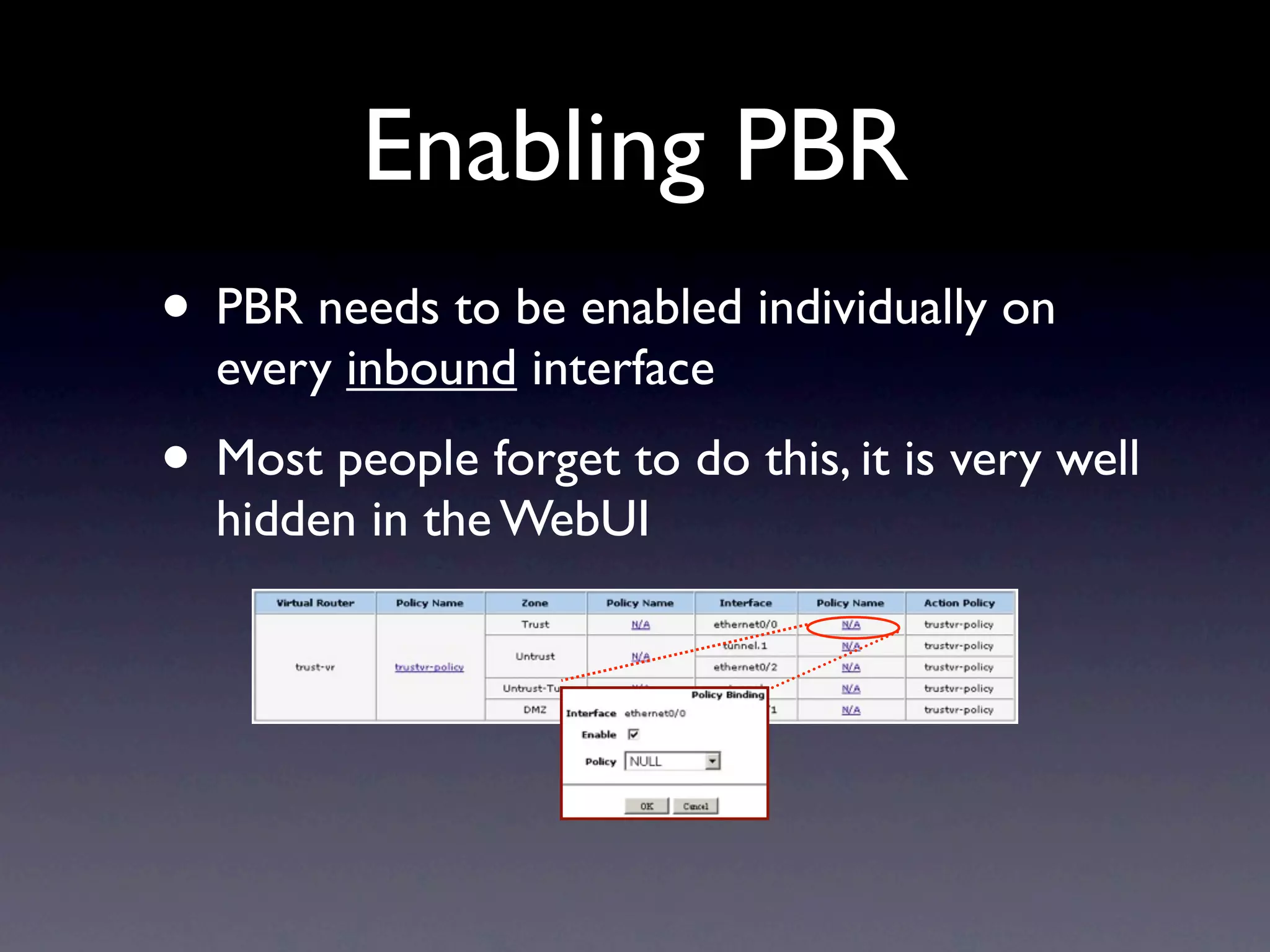

12. Enabling PBR
• PBR needs to be enabled individually on
every inbound interface
• Most people forget to do this, it is very well
hidden in the WebUI

13. Tips & Tricks

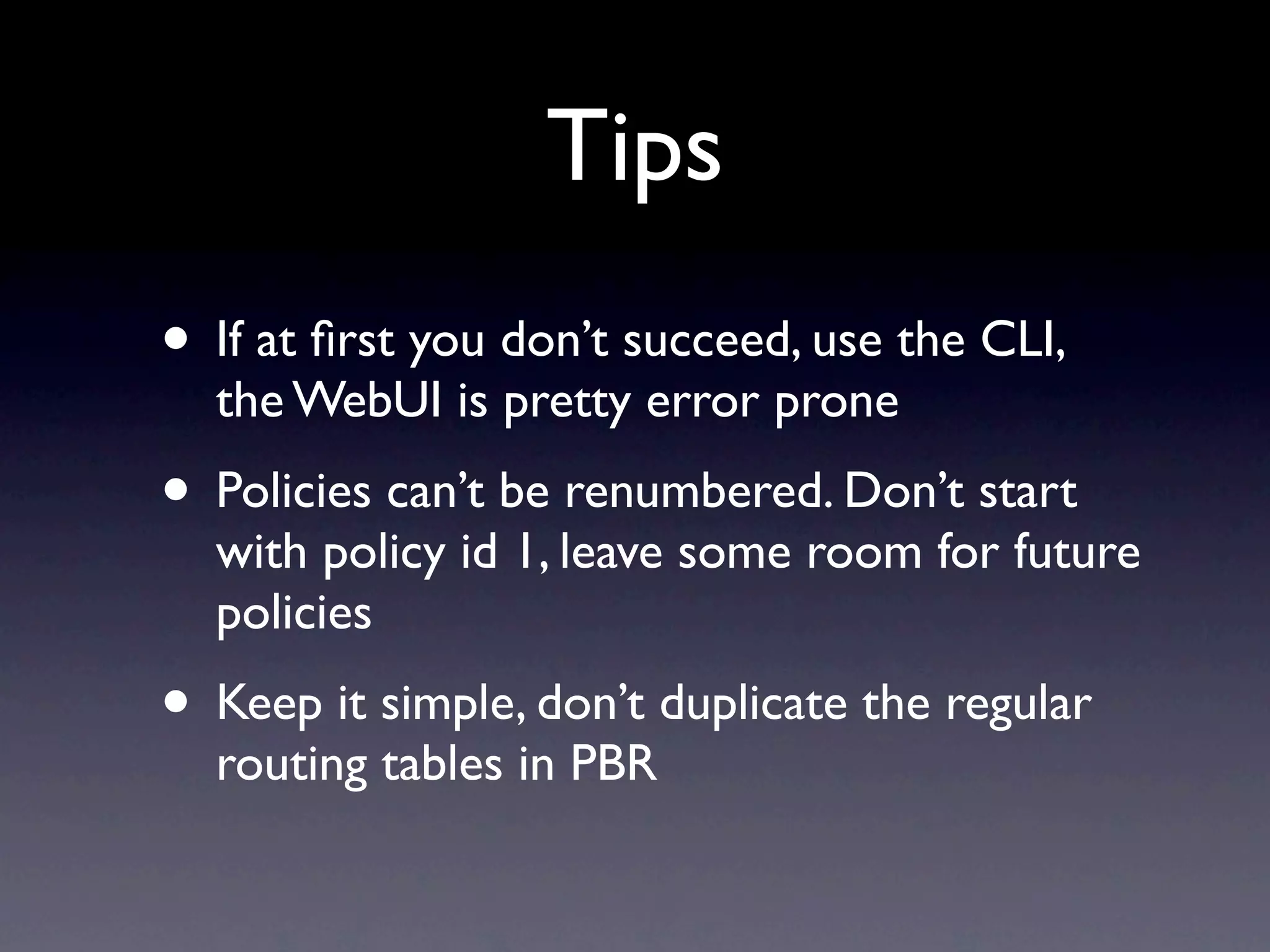

14. Tips
• If at first you don’t succeed, use the CLI,
the WebUI is pretty error prone
• Policies can’t be renumbered. Don’t start
with policy id 1, leave some room for future
policies
• Keep it simple, don’t duplicate the regular
routing tables in PBR

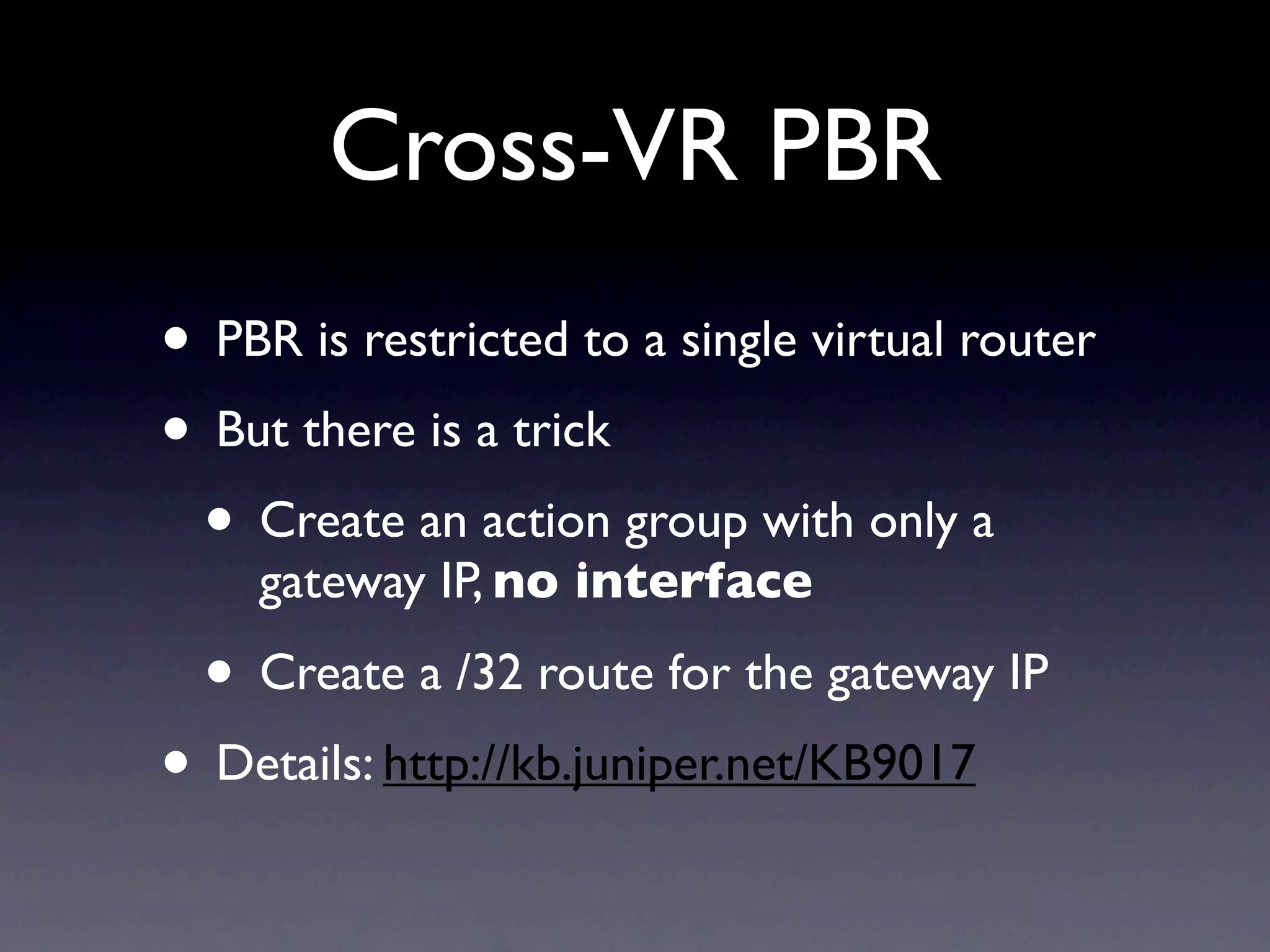

15. Cross-VR PBR
• PBR is restricted to a single virtual router
• But there is a trick
• Create an action group with only a
gateway IP, no interface
• Create a /32 route for the gateway IP
• Details: http://kb.juniper.net/KB9017

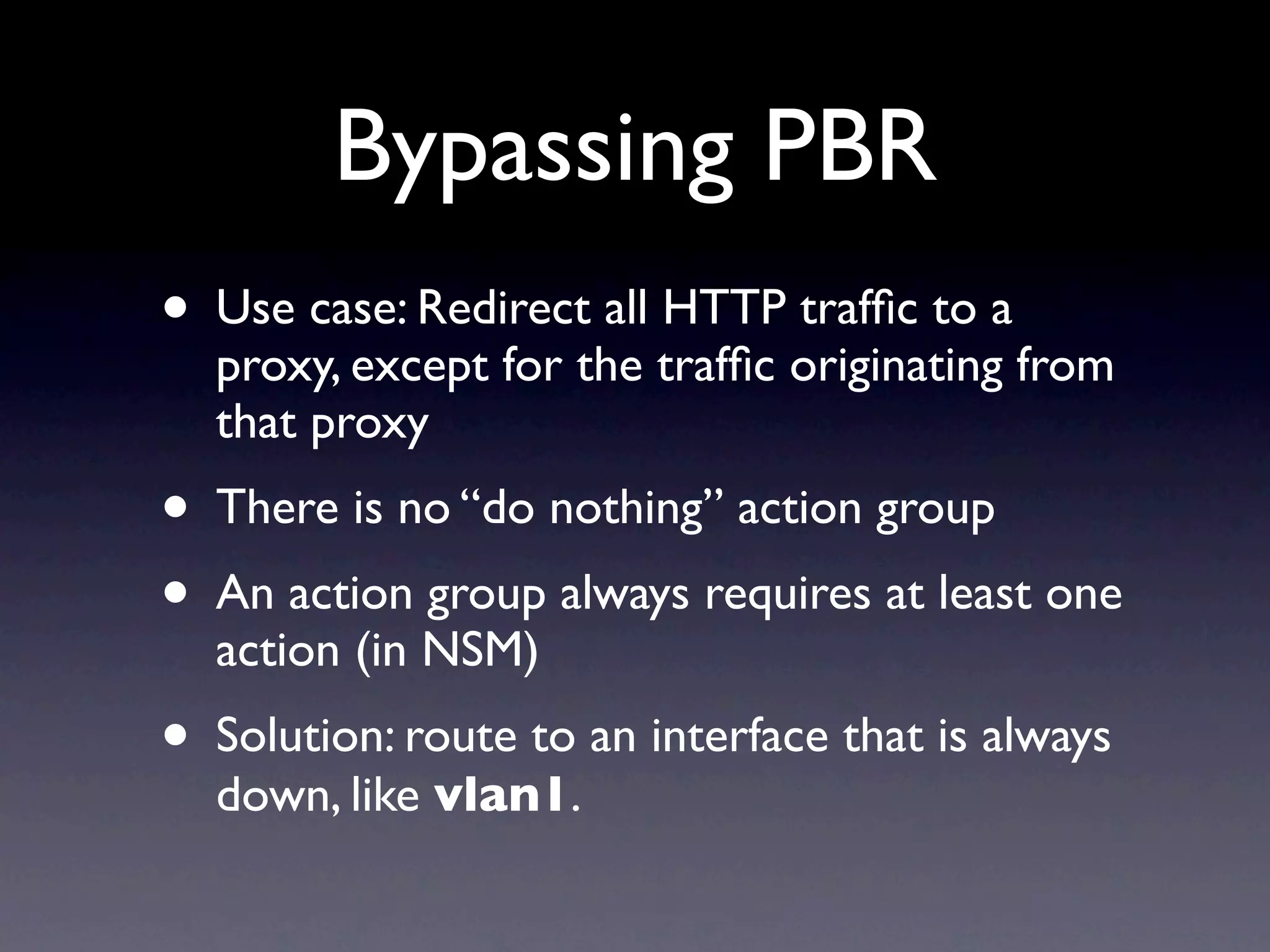

16. Bypassing PBR
• Use case: Redirect all HTTP traffic to a
proxy, except for the traffic originating from
that proxy
• There is no “do nothing” action group
• An action group always requires at least one
action (in NSM)
• Solution: route to an interface that is always
down, like vlan1.

17. Examples

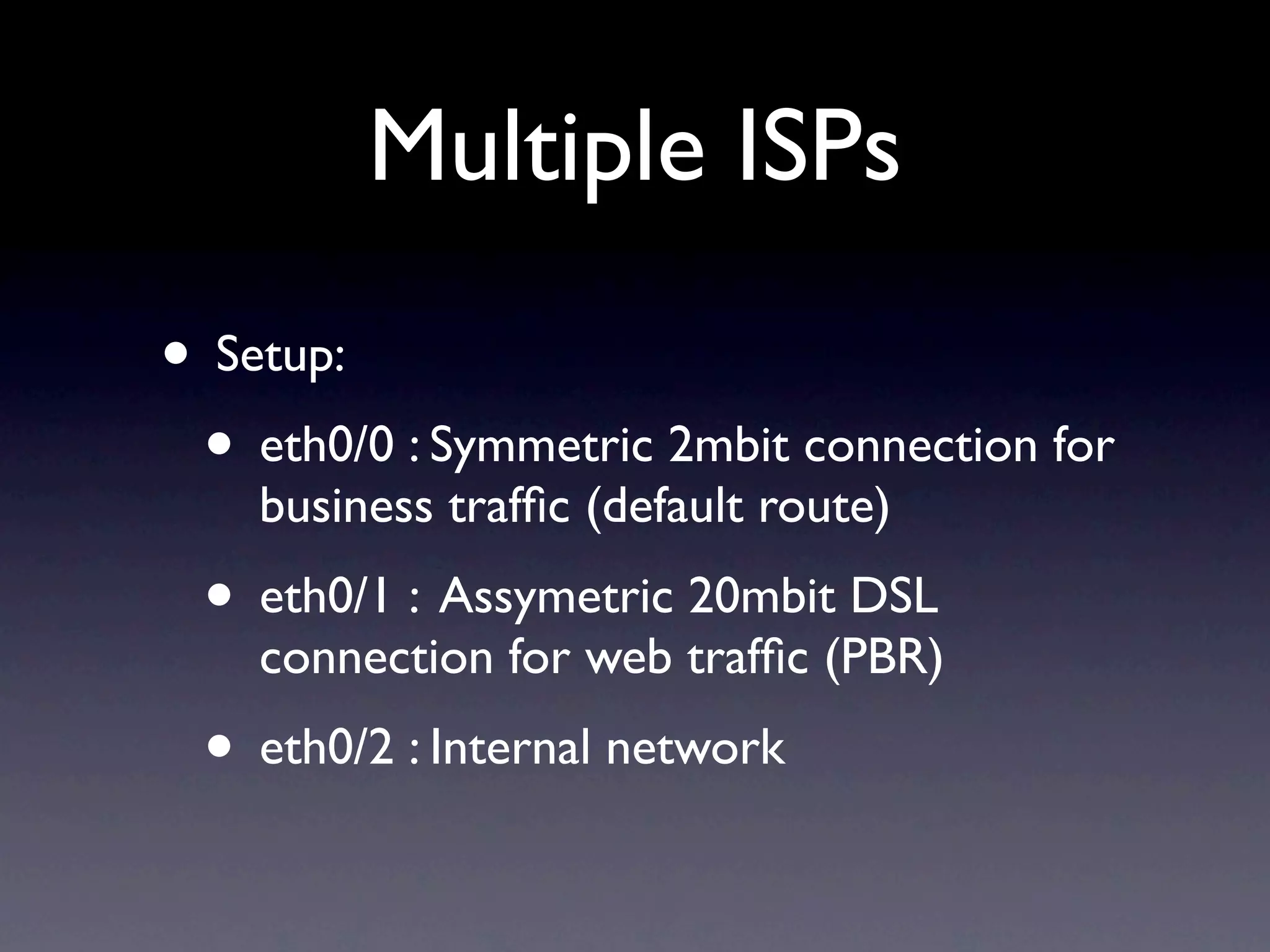

18. Multiple ISPs
• Setup:
• eth0/0 : Symmetric 2mbit connection for
business traffic (default route)
• eth0/1 : Assymetric 20mbit DSL
connection for web traffic (PBR)
• eth0/2 : Internal network

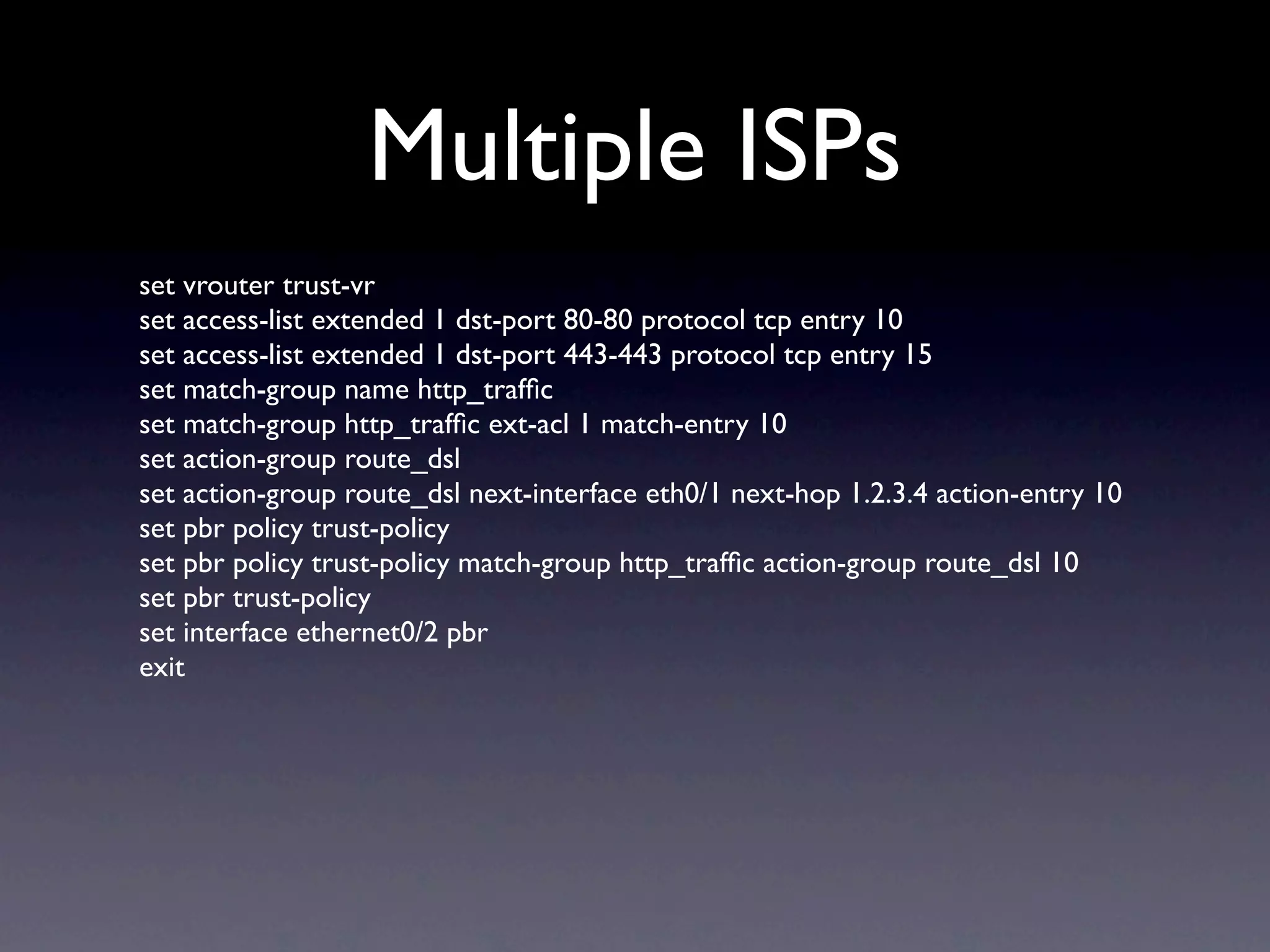

19. Multiple ISPs
set vrouter trust-vr
set access-list extended 1 dst-port 80-80 protocol tcp entry 10
set access-list extended 1 dst-port 443-443 protocol tcp entry 15
set match-group name http_traffic
set match-group http_traffic ext-acl 1 match-entry 10
set action-group route_dsl
set action-group route_dsl next-interface eth0/1 next-hop 1.2.3.4 action-entry 10
set pbr policy trust-policy
set pbr policy trust-policy match-group http_traffic action-group route_dsl 10
set pbr trust-policy
set interface ethernet0/2 pbr
exit

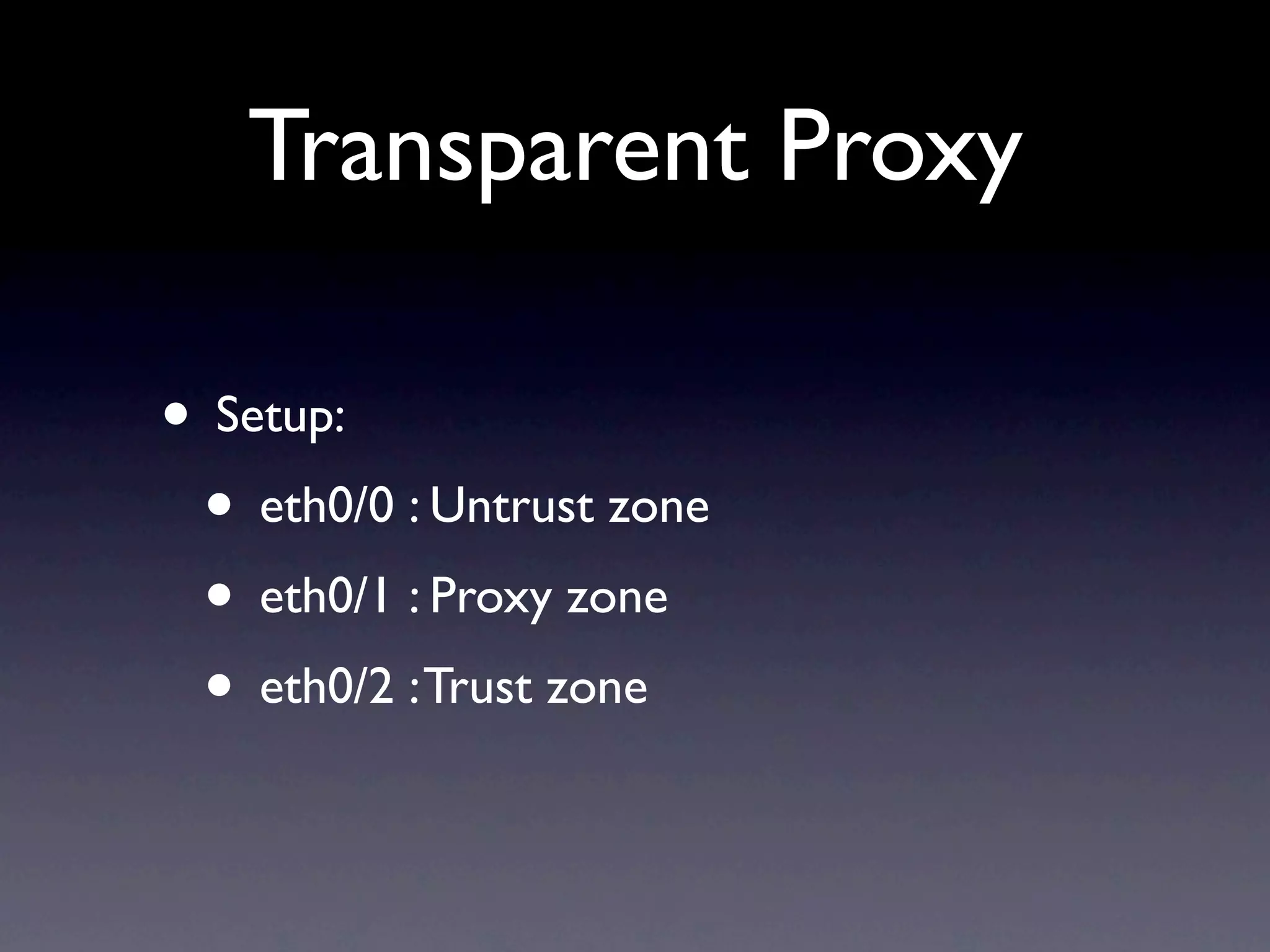

20. Transparent Proxy
• Setup:
• eth0/0 : Untrust zone
• eth0/1 : Proxy zone
• eth0/2 : Trust zone

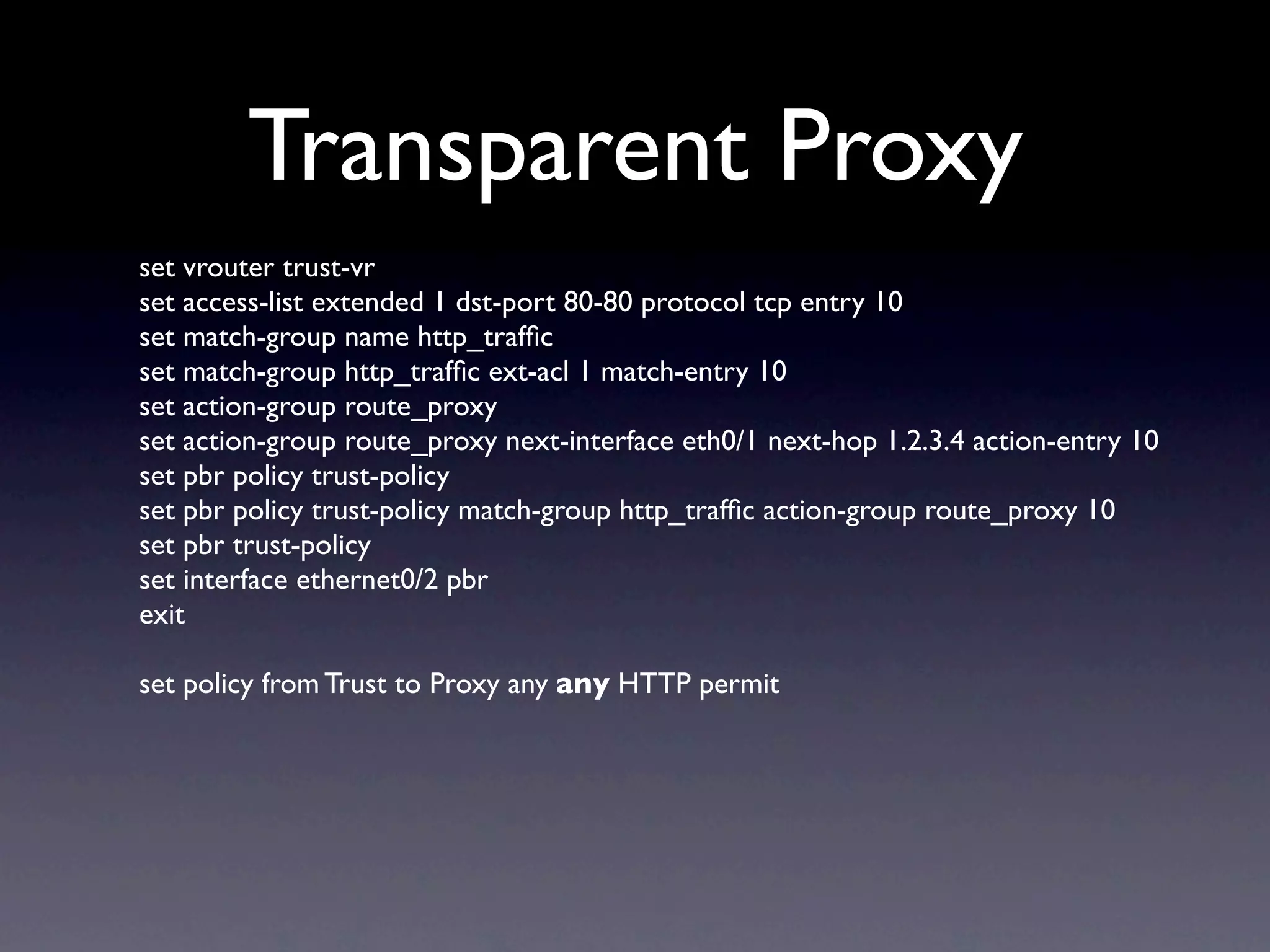

21. Transparent Proxy
set vrouter trust-vr
set access-list extended 1 dst-port 80-80 protocol tcp entry 10
set match-group name http_traffic
set match-group http_traffic ext-acl 1 match-entry 10
set action-group route_proxy
set action-group route_proxy next-interface eth0/1 next-hop 1.2.3.4 action-entry 10
set pbr policy trust-policy
set pbr policy trust-policy match-group http_traffic action-group route_proxy 10
set pbr trust-policy
set interface ethernet0/2 pbr
exit
set policy from Trust to Proxy any any HTTP permit

22. Questions?
bart@motd.be
http://bart.motd.be
