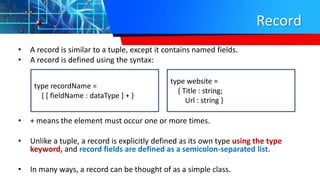

3. Record
• A record is similar to a tuple, except it contains named fields.
• A record is defined using the syntax:
• + means the element must occur one or more times.
• Unlike a tuple, a record is explicitly defined as its own type using the type
keyword, and record fields are defined as a semicolon-separated list.
• In many ways, a record can be thought of as a simple class.
type recordName =
{ [ fieldName : dataType ] + }
type website =
{ Title : string;
Url : string }

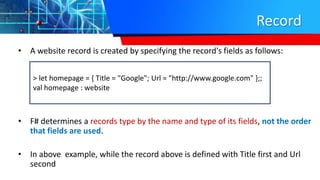

4. Record
• A website record is created by specifying the record's fields as follows:
• F# determines a records type by the name and type of its fields, not the order
that fields are used.
• In above example, while the record above is defined with Title first and Url
second
> let homepage = { Title = "Google"; Url = "http://www.google.com" };;
val homepage : website

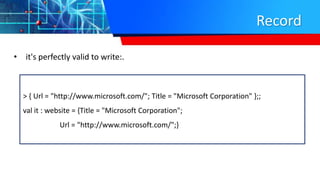

5. Record
• it's perfectly valid to write:.
> { Url = "http://www.microsoft.com/"; Title = "Microsoft Corporation" };;
val it : website = {Title = "Microsoft Corporation";
Url = "http://www.microsoft.com/";}

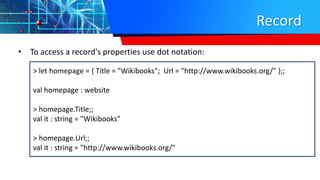

6. Record
• To access a record's properties use dot notation:
> let homepage = { Title = "Wikibooks"; Url = "http://www.wikibooks.org/" };;
val homepage : website
> homepage.Title;;
val it : string = "Wikibooks"
> homepage.Url;;
val it : string = "http://www.wikibooks.org/"

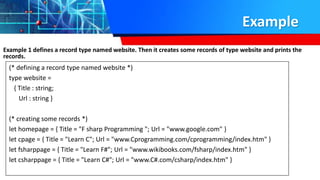

7. Example
Example 1 defines a record type named website. Then it creates some records of type website and prints the
records.
(* defining a record type named website *)
type website =
{ Title : string;
Url : string }
(* creating some records *)
let homepage = { Title = "F sharp Programming "; Url = "www.google.com" }
let cpage = { Title = "Learn C"; Url = "www.Cprogramming.com/cprogramming/index.htm" }
let fsharppage = { Title = "Learn F#"; Url = "www.wikibooks.com/fsharp/index.htm" }
let csharppage = { Title = "Learn C#"; Url = "www.C#.com/csharp/index.htm" }

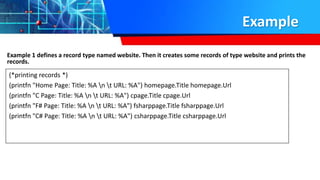

8. Example
Example 1 defines a record type named website. Then it creates some records of type website and prints the
records.
(*printing records *)
(printfn "Home Page: Title: %A n t URL: %A") homepage.Title homepage.Url
(printfn "C Page: Title: %A n t URL: %A") cpage.Title cpage.Url
(printfn "F# Page: Title: %A n t URL: %A") fsharppage.Title fsharppage.Url
(printfn "C# Page: Title: %A n t URL: %A") csharppage.Title csharppage.Url

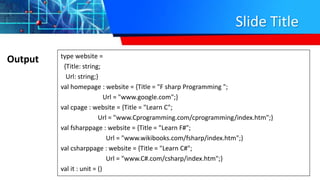

9. Slide Title
Output type website =
{Title: string;
Url: string;}
val homepage : website = {Title = "F sharp Programming ";
Url = "www.google.com";}
val cpage : website = {Title = "Learn C";
Url = "www.Cprogramming.com/cprogramming/index.htm";}
val fsharppage : website = {Title = "Learn F#";
Url = "www.wikibooks.com/fsharp/index.htm";}
val csharppage : website = {Title = "Learn C#";
Url = "www.C#.com/csharp/index.htm";}
val it : unit = ()
10. Example 2:
F# program that uses records
type Animal = { Name:string; Weight:int; Wings:bool }
// Create an instance of Animal named cat.
let cat = { Name="cat"; Weight=12; Wings=false }
// Display the cat record.
printfn "%A" cat
// Display the Name, Weight and Wings properties.
printfn "%A" cat.Name
printfn "%A" cat.Weight
printfn "%A" cat.Wings
// Modify an existing record.
// ... Set name to "dog."
let dog = { cat with Name="dog" }
printfn "%A" dog
let bird = { cat with Name="bird"; Wings=true }
printfn "%A" bird

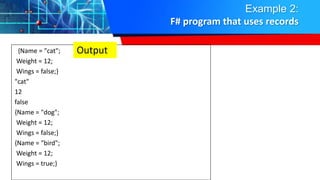

11. Example 2:
F# program that uses records
{Name = "cat";
Weight = 12;
Wings = false;}
"cat"
12
false
{Name = "dog";
Weight = 12;
Wings = false;}
{Name = "bird";
Weight = 12;
Wings = true;}
Output

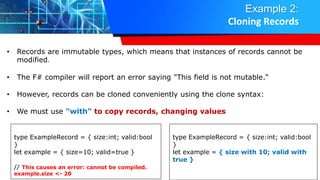

12. Example 2:
Cloning Records
• Records are immutable types, which means that instances of records cannot be
modified.
• The F# compiler will report an error saying "This field is not mutable.“
• However, records can be cloned conveniently using the clone syntax:
• We must use "with" to copy records, changing values
type ExampleRecord = { size:int; valid:bool
}
let example = { size=10; valid=true }
// This causes an error: cannot be compiled.
example.size <- 20
type ExampleRecord = { size:int; valid:bool
}
let example = { size with 10; valid with
true }

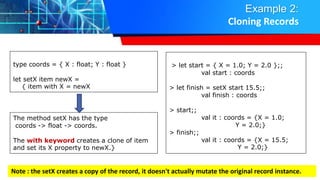

13. Example 2:
Cloning Records
type coords = { X : float; Y : float }
let setX item newX =
{ item with X = newX
The method setX has the type
coords -> float -> coords.
The with keyword creates a clone of item
and set its X property to newX.}
> let start = { X = 1.0; Y = 2.0 };;
val start : coords
> let finish = setX start 15.5;;
val finish : coords
> start;;
val it : coords = {X = 1.0;
Y = 2.0;}
> finish;;
val it : coords = {X = 15.5;
Y = 2.0;}
Note : the setX creates a copy of the record, it doesn't actually mutate the original record instance.

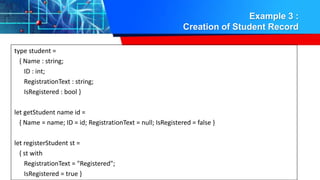

14. Example 3 :
Creation of Student Record
type student =
{ Name : string;
ID : int;
RegistrationText : string;
IsRegistered : bool }
let getStudent name id =
{ Name = name; ID = id; RegistrationText = null; IsRegistered = false }
let registerStudent st =
{ st with
RegistrationText = "Registered";
IsRegistered = true }
15. Example 3 :
Creation of Student Record
let printStudent msg st =
printfn "%s: %A" msg st
let main() =
let preRegisteredStudent = getStudent "Ruchita" 10
let postRegisteredStudent = registerStudent preRegisteredStudent
printStudent "Before Registration: " preRegisteredStudent
printStudent "After Registration: " postRegisteredStudent
16. Example 3 :
Creation of Student Record
Before Registration: : {Name = "Ruchita";
ID = 10;
RegistrationText = null;
IsRegistered = false;}
After Registration: : {Name = "Ruchita";
ID = 10;
RegistrationText = "Registered";
IsRegistered = true;}
type student =
{Name: string;
ID: int;
RegistrationText: string;
IsRegistered: bool;}
val getStudent : name:string -> id:int -> student
val registerStudent : st:student -> student
val printStudent : msg:string -> st:'a -> unit
val main : unit -> unit
val it : unit = ()
>

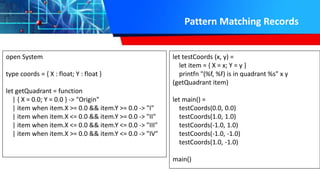

17. Pattern Matching Records
open System
type coords = { X : float; Y : float }
let getQuadrant = function
| { X = 0.0; Y = 0.0 } -> "Origin"
| item when item.X >= 0.0 && item.Y >= 0.0 -> "I"
| item when item.X <= 0.0 && item.Y >= 0.0 -> "II"
| item when item.X <= 0.0 && item.Y <= 0.0 -> "III"
| item when item.X >= 0.0 && item.Y <= 0.0 -> "IV"
let testCoords (x, y) =
let item = { X = x; Y = y }
printfn "(%f, %f) is in quadrant %s" x y
(getQuadrant item)
let main() =
testCoords(0.0, 0.0)
testCoords(1.0, 1.0)
testCoords(-1.0, 1.0)
testCoords(-1.0, -1.0)
testCoords(1.0, -1.0)
main()

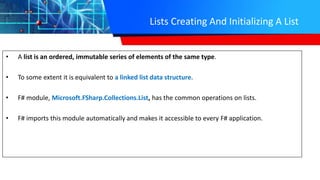

18. Lists Creating And Initializing A List
• A list is an ordered, immutable series of elements of the same type.
• To some extent it is equivalent to a linked list data structure.
• F# module, Microsoft.FSharp.Collections.List, has the common operations on lists.
• F# imports this module automatically and makes it accessible to every F# application.

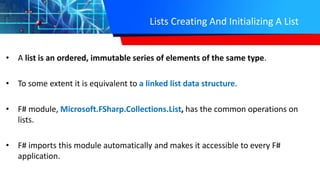

19. Lists Creating And Initializing A List
• A list is an ordered, immutable series of elements of the same type.
• To some extent it is equivalent to a linked list data structure.
• F# module, Microsoft.FSharp.Collections.List, has the common operations on
lists.
• F# imports this module automatically and makes it accessible to every F#
application.

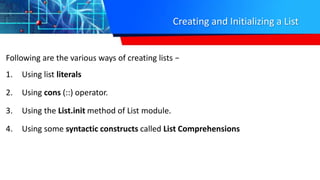

20. Creating and Initializing a List
Following are the various ways of creating lists −
1. Using list literals
2. Using cons (::) operator.
3. Using the List.init method of List module.
4. Using some syntactic constructs called List Comprehensions
21. Creating and Initializing a List
1. Using list literals
• Most straightforward method is specify a semicolon-delimited sequence of
values in square brackets
• All the values in the list must have the same type:
• Example
let numbers = [1; 2; 3; 4; 5; 6; 7; 8; 9; 10]

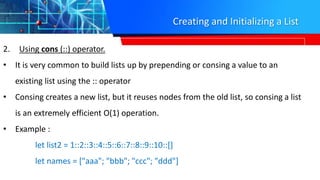

22. Creating and Initializing a List
2. Using cons (::) operator.
• It is very common to build lists up by prepending or consing a value to an
existing list using the :: operator
• Consing creates a new list, but it reuses nodes from the old list, so consing a list
is an extremely efficient O(1) operation.
• Example :
let list2 = 1::2::3::4::5::6::7::8::9::10::[]
let names = ["aaa"; "bbb"; "ccc"; "ddd"]

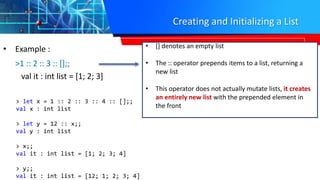

23. Creating and Initializing a List
• Example :
>1 :: 2 :: 3 :: [];;
val it : int list = [1; 2; 3]
• [] denotes an empty list
• The :: operator prepends items to a list, returning a
new list
• This operator does not actually mutate lists, it creates
an entirely new list with the prepended element in
the front
> let x = 1 :: 2 :: 3 :: 4 :: [];;
val x : int list
> let y = 12 :: x;;
val y : int list
> x;;
val it : int list = [1; 2; 3; 4]
> y;;
val it : int list = [12; 1; 2; 3; 4]

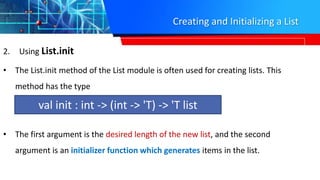

24. Creating and Initializing a List
2. Using List.init
• The List.init method of the List module is often used for creating lists. This
method has the type
• The first argument is the desired length of the new list, and the second
argument is an initializer function which generates items in the list.
val init : int -> (int -> 'T) -> 'T list

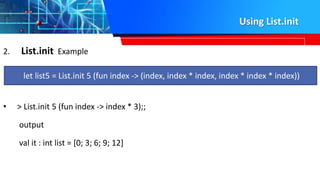

25. Using List.init
2. List.init Example
• > List.init 5 (fun index -> index * 3);;
output
val it : int list = [0; 3; 6; 9; 12]
let list5 = List.init 5 (fun index -> (index, index * index, index * index * index))
