U.S. Green Building Council Colorado Chapter is a 501(c)3 non-profit organization established in the state of Colorado in 2003. USGBC Colorado depends on the support of our members to advance our mission… MISSION …to advance and promote sustainable planning, design, construction and operation of the built environment through education, improving industry guidelines, policy, advocacy, and information and resource sharing
Our Members Make A Difference!  Access high quality continuing education  Vote in Chapter Elections  Eligibility to Run for Chapter and Branch Leadership Positions  Attend Events and Activities throughout the State  Have a voice in public policy issues  Network with Colorado’s top green building experts  Get the latest updates from USGBC and GBCI  Receive the Chapter Newsletter 2012 Member Support the work of the Chapter MAKE A DIFFERENCE!!!! $50 National Member Employees $65 Regular $45 Emerging Professionals $25 Students Join Today
USGBC Colorado Chapter Principles of LEED ND + Course ID# (change Color) x.x

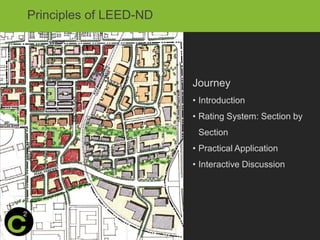

Principles of LEED-ND Journey • Introduction • Rating System: Section by Section • Practical Application • Interactive Discussion

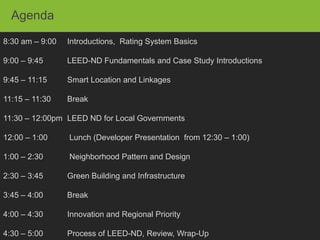

Agenda 8:30 am – 9:00 Introductions, Rating System Basics 9:00 – 9:45 LEED-ND Fundamentals and Case Study Introductions 9:45 – 11:15 Smart Location and Linkages 11:15 – 11:30 Break 11:30 – 12:00pm LEED ND for Local Governments 12:00 – 1:00 Lunch (Developer Presentation from 12:30 – 1:00) 1:00 – 2:30 Neighborhood Pattern and Design 2:30 – 3:45 Green Building and Infrastructure 3:45 – 4:00 Break 4:00 – 4:30 Innovation and Regional Priority 4:30 – 5:00 Process of LEED-ND, Review, Wrap-Up

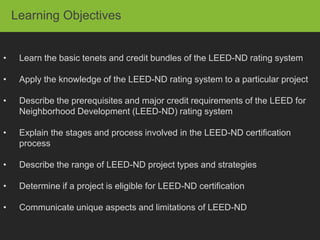

Learning Objectives • Learn the basic tenets and credit bundles of the LEED-ND rating system • Apply the knowledge of the LEED-ND rating system to a particular project • Describe the prerequisites and major credit requirements of the LEED for Neighborhood Development (LEED-ND) rating system • Explain the stages and process involved in the LEED-ND certification process • Describe the range of LEED-ND project types and strategies • Determine if a project is eligible for LEED-ND certification • Communicate unique aspects and limitations of LEED-ND
LEED for Neighborhood Development (LEED-ND) Joint effort of the US Green Building Council, the Congress for New Urbanism, and the Natural Resources Defense Council

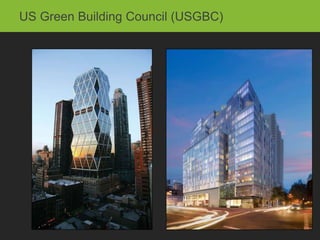

US Green Building Council (USGBC)

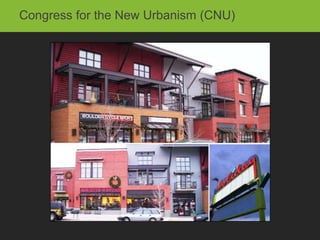

Congress for the New Urbanism (CNU)
Natural Resources Defense Council (NRDC)
Why LEED-ND?

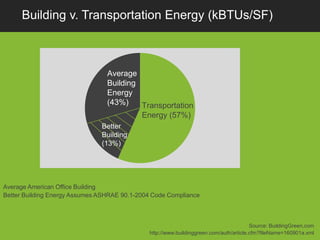

Building v. Transportation Energy (kBTUs/SF) Average Building Energy (43%) Transportation Energy (57%) Better Building (13%) Average American Office Building Better Building Energy Assumes ASHRAE 90.1-2004 Code Compliance Source: BuildingGreen,com http://www.buildinggreen.com/auth/article.cfm?fileName=160901a.xml

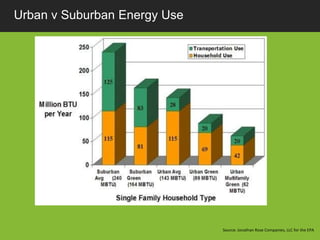

Urban v Suburban Energy Use Source: Jonathan Rose Companies, LLC for the EPA
Report: 98 Percent Of U.S. Commuters Favor Public Transportation For Others "With traffic congestion, pollution, and oil shortages all getting worse, now is the time to shift to affordable, efficient public transportation," APTA director Howard Collier said. "Fortunately, as this report shows, Americans have finally recognized the need for everyone else to do exactly that." Source: The Onion, November 29, 2000 | Issue 36•43

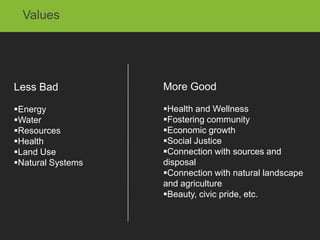

Values Less Bad More Good Energy Health and Wellness Water Fostering community Resources Economic growth Health Social Justice Land Use Connection with sources and Natural Systems disposal Connection with natural landscape and agriculture Beauty, civic pride, etc.

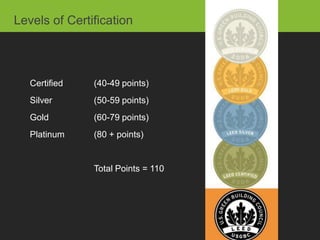

Levels of Certification Certified (40-49 points) Silver (50-59 points) Gold (60-79 points) Platinum (80 + points) Total Points = 110
LEED-ND: Quantifiable Sustainability Planning
Phases and Stages

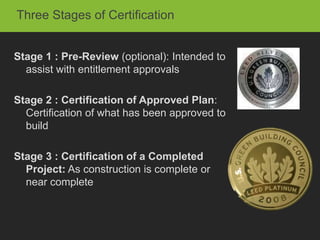

Three Stages of Certification Stage 1 : Pre-Review (optional): Intended to assist with entitlement approvals Stage 2 : Certification of Approved Plan: Certification of what has been approved to build Stage 3 : Certification of a Completed Project: As construction is complete or near complete

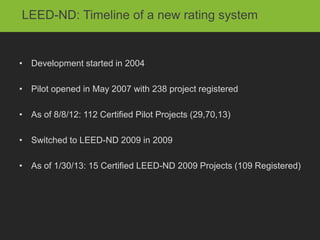

LEED-ND: Timeline of a new rating system • Development started in 2004 • Pilot opened in May 2007 with 238 project registered • As of 8/8/12: 112 Certified Pilot Projects (29,70,13) • Switched to LEED-ND 2009 in 2009 • As of 1/30/13: 15 Certified LEED-ND 2009 Projects (109 Registered)
Enhanced Assistance Program

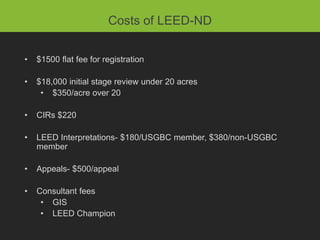

Costs of LEED-ND • $1500 flat fee for registration • $18,000 initial stage review under 20 acres • $350/acre over 20 • CIRs $220 • LEED Interpretations- $180/USGBC member, $380/non-USGBC member • Appeals- $500/appeal • Consultant fees • GIS • LEED Champion
SLL Prerequisite Review • Covers both the Project Information Forms and SLL Prerequisites • Additional fee: $2,250

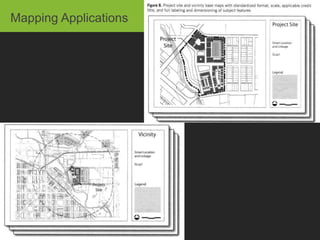

Mapping Applications

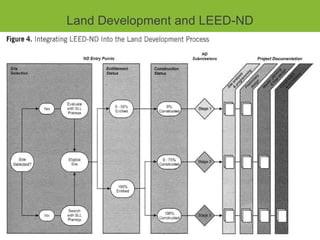

Land Development and LEED-ND

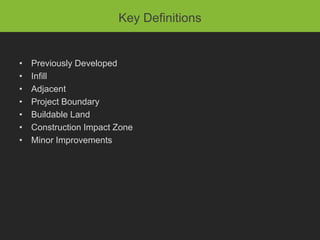

Key Definitions • Previously Developed • Infill • Adjacent • Project Boundary • Buildable Land • Construction Impact Zone • Minor Improvements

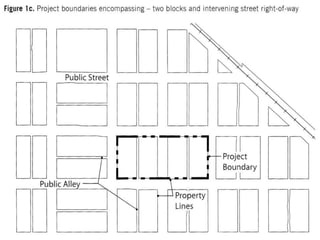

Project Boundary

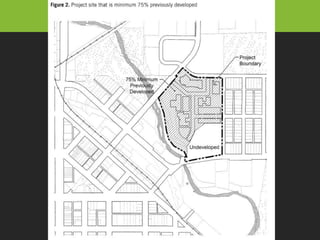

Previously Developed

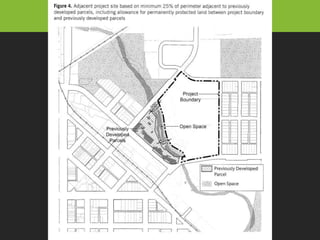

Adjacent Site
Buildable Land

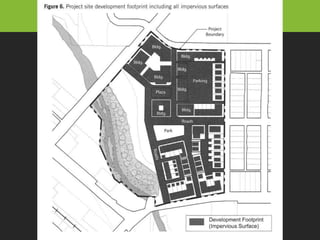

Development Footprint

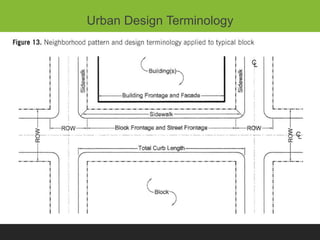

Urban Design Terminology

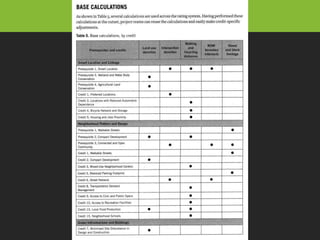

Base Calculations

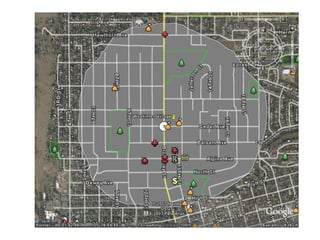

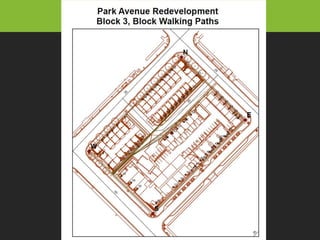

Walking Distances
Case Studies
Park Avenue Redevelopment Block 3B, Denver (Five Points)  2.41 Acres  51 DUs/ Acre  7,301 SF of Non-residential  MU-30 Zoning Developer: Denver Housing Authority Architect: Studio Completiva LA: Studio Insite

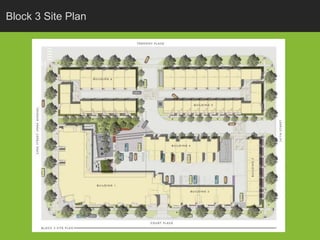

Block 3 Site Plan

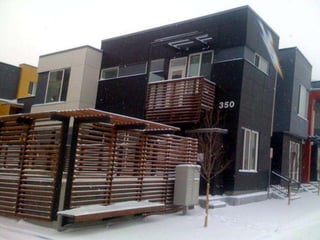

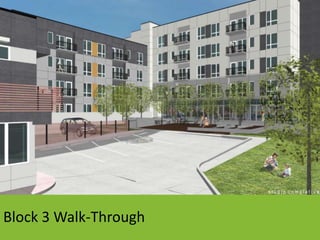

Block 3 Walk-Through

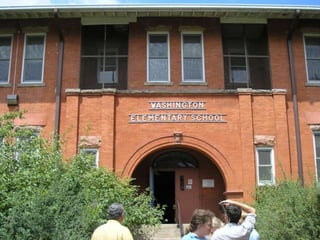

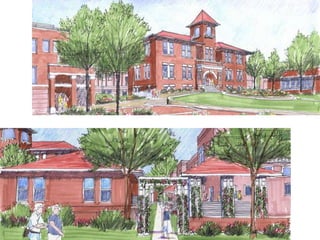

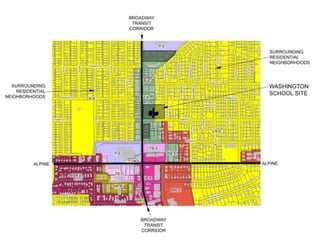

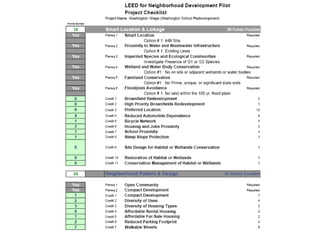

Washington Village Cohousing Project

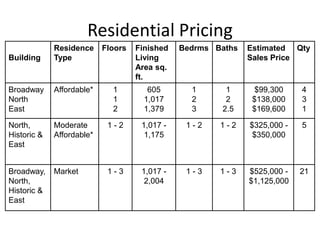

Residential Pricing Residence Floors Finished Bedrms Baths Estimated Qty Building Type Living Sales Price Area sq. ft. Broadway Affordable* 1 605 1 1 $99,300 4 North 1 1,017 2 2 $138,000 3 East 2 1,379 3 2.5 $169,600 1 North, Moderate 1-2 1,017 - 1-2 1-2 $325,000 - 5 Historic & Affordable* 1,175 $350,000 East Broadway, Market 1-3 1,017 - 1-3 1-3 $525,000 - 21 North, 2,004 $1,125,000 Historic & East

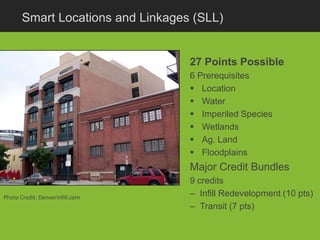

Smart Locations and Linkages (SLL) 27 Points Possible 6 Prerequisites  Location  Water  Imperiled Species  Wetlands  Ag. Land  Floodplains Major Credit Bundles 9 credits Photo Credit: DenverInfill.com – Infill Redevelopment (10 pts) – Transit (7 pts)

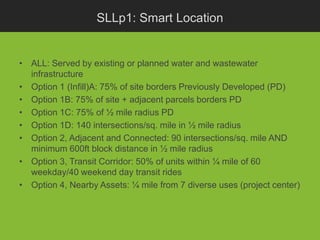

SLLp1: Smart Location • ALL: Served by existing or planned water and wastewater infrastructure • Option 1 (Infill)A: 75% of site borders Previously Developed (PD) • Option 1B: 75% of site + adjacent parcels borders PD • Option 1C: 75% of ½ mile radius PD • Option 1D: 140 intersections/sq. mile in ½ mile radius • Option 2, Adjacent and Connected: 90 intersections/sq. mile AND minimum 600ft block distance in ½ mile radius • Option 3, Transit Corridor: 50% of units within ¼ mile of 60 weekday/40 weekend day transit rides • Option 4, Nearby Assets: ¼ mile from 7 diverse uses (project center)
1 SLLp1: Smart Location

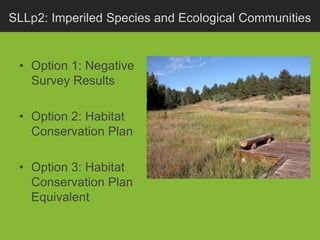

SLLp2: Imperiled Species and Ecological Communities • Option 1: Negative Survey Results • Option 2: Habitat Conservation Plan • Option 3: Habitat Conservation Plan Equivalent
SLLp2: Imperiled Species and Ecological Communities

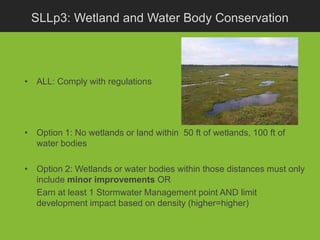

SLLp3: Wetland and Water Body Conservation • ALL: Comply with regulations • Option 1: No wetlands or land within 50 ft of wetlands, 100 ft of water bodies • Option 2: Wetlands or water bodies within those distances must only include minor improvements OR Earn at least 1 Stormwater Management point AND limit development impact based on density (higher=higher)

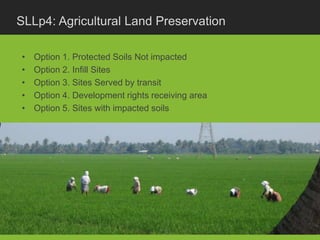

SLLp4: Agricultural Land Preservation • Option 1. Protected Soils Not impacted • Option 2. Infill Sites • Option 3. Sites Served by transit • Option 4. Development rights receiving area • Option 5. Sites with impacted soils

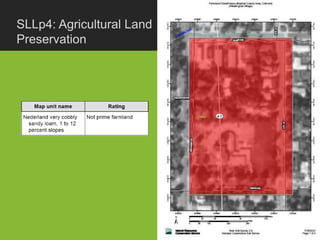

SLLp4: Agricultural Land Preservation

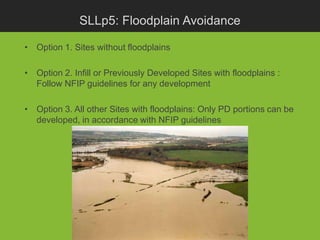

SLLp5: Floodplain Avoidance • Option 1. Sites without floodplains • Option 2. Infill or Previously Developed Sites with floodplains : Follow NFIP guidelines for any development • Option 3. All other Sites with floodplains: Only PD portions can be developed, in accordance with NFIP guidelines

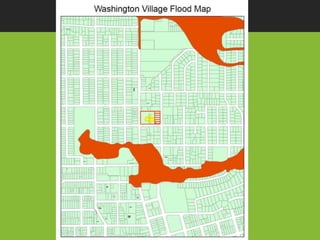

SLLp5: Floodplain Avoidance

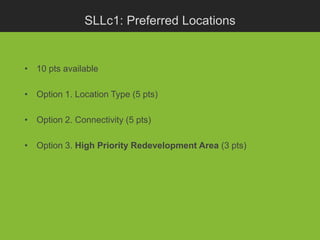

SLLc1: Preferred Locations • 10 pts available • Option 1. Location Type (5 pts) • Option 2. Connectivity (5 pts) • Option 3. High Priority Redevelopment Area (3 pts)

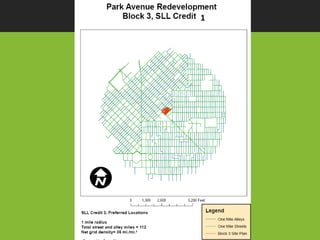

1 SLLc1: Preferred Locations

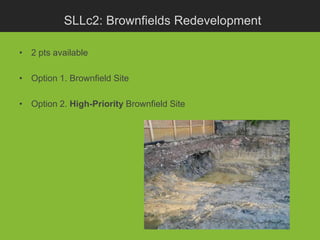

SLLc2: Brownfields Redevelopment • 2 pts available • Option 1. Brownfield Site • Option 2. High-Priority Brownfield Site

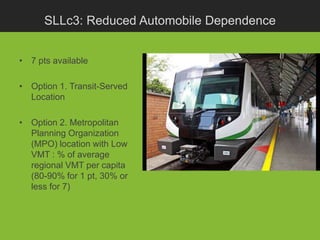

SLLc3: Reduced Automobile Dependence • 7 pts available • Option 1. Transit-Served Location • Option 2. Metropolitan Planning Organization (MPO) location with Low VMT : % of average regional VMT per capita (80-90% for 1 pt, 30% or less for 7)
SLLc3: Reduced Automobile Dependence 3

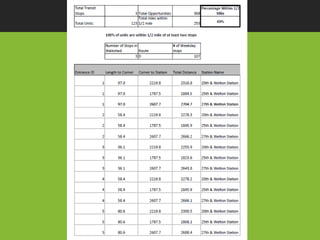

SLLc3 Documentation

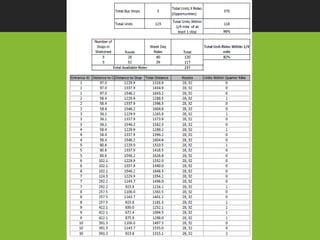

SLLc3 Documentation cont.

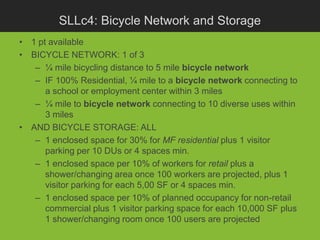

SLLc4: Bicycle Network and Storage • 1 pt available • BICYCLE NETWORK: 1 of 3 – ¼ mile bicycling distance to 5 mile bicycle network – IF 100% Residential, ¼ mile to a bicycle network connecting to a school or employment center within 3 miles – ¼ mile to bicycle network connecting to 10 diverse uses within 3 miles • AND BICYCLE STORAGE: ALL – 1 enclosed space for 30% for MF residential plus 1 visitor parking per 10 DUs or 4 spaces min. – 1 enclosed space per 10% of workers for retail plus a shower/changing area once 100 workers are projected, plus 1 visitor parking for each 5,00 SF or 4 spaces min. – 1 enclosed space per 10% of planned occupancy for non-retail commercial plus 1 visitor parking space for each 10,000 SF plus 1 shower/changing room once 100 users are projected

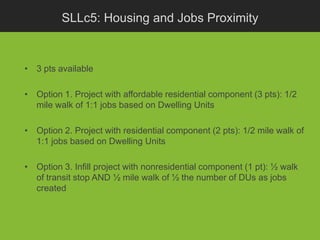

SLLc5: Housing and Jobs Proximity • 3 pts available • Option 1. Project with affordable residential component (3 pts): 1/2 mile walk of 1:1 jobs based on Dwelling Units • Option 2. Project with residential component (2 pts): 1/2 mile walk of 1:1 jobs based on Dwelling Units • Option 3. Infill project with nonresidential component (1 pt): ½ walk of transit stop AND ½ mile walk of ½ the number of DUs as jobs created
SLLc5: Housing and Jobs Proximity 5
SLLc6: Steep Slope Protection • 1 pt available • Option 1. No disturbance of slopes over 15% • Option 2. Previously developed sites with slope over 15%: Restore % of slope area based on slope (Greater slope, greater restoration) AND follow Option 3 for any undeveloped slopes • Option 3. Undeveloped sites with slopes over 15%: Do not disturb any over 40%, see rating guide for additional guidance
SLLc6: Steep Slope6Protection

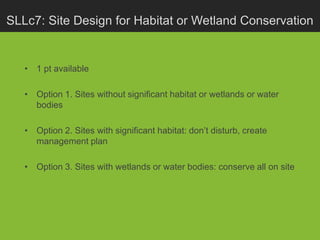

SLLc7: Site Design for Habitat or Wetland Conservation • 1 pt available • Option 1. Sites without significant habitat or wetlands or water bodies • Option 2. Sites with significant habitat: don’t disturb, create management plan • Option 3. Sites with wetlands or water bodies: conserve all on site
SLLc8: Restoration of Habitat or Wetlands • 1 pt available • Restore 10% of development footprint and protect in perpetuity

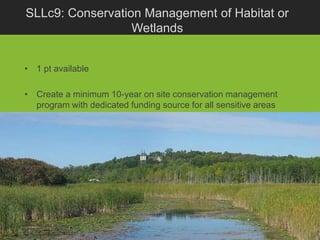

SLLc9: Conservation Management of Habitat or Wetlands • 1 pt available • Create a minimum 10-year on site conservation management program with dedicated funding source for all sensitive areas
Neighborhood Pattern and Design (NPD) 44 Points Possible 3 Prerequisites  Urban Design  Density  Connectivity Major Point Bundles 15 credits – Urban Design (12 pts) – Density (6 pts) – Mixed-Income AND/OR Diverse Housing Types (7 pts)

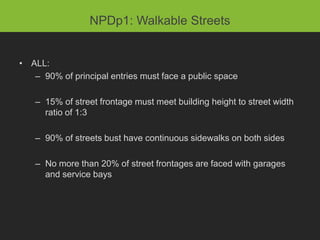

NPDp1: Walkable Streets • ALL: – 90% of principal entries must face a public space – 15% of street frontage must meet building height to street width ratio of 1:3 – 90% of streets bust have continuous sidewalks on both sides – No more than 20% of street frontages are faced with garages and service bays

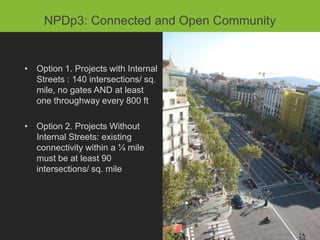

NPDp3: Connected and Development NPDp2: Compact Open Community • Option 1. Projects in Transit Corridors: higher thresholds than Option • Option 1. Projects with Internal 2 for proximate dwelling units Streets : 140 intersections/ sq. mile, no gates AND at least • Option 2. All Otherevery 800 minimum residential density of 7 one throughway Projects: ft DUs/acre AND 0.5 FAR nonresidential • Option 2. Projects Without • EXCLUDES parking structures Internal Streets: existing connectivity within a ¼ mile must be at least 90 intersections/ sq. mile
NPDp3: Connected and Open Community

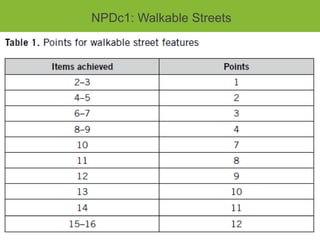

NPDc1: Walkable Streets • 12 points available • Urban Design credit

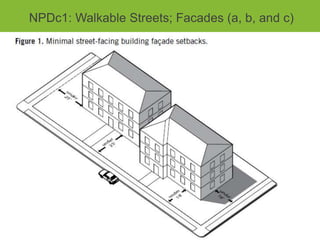

NPDc1: Walkable Streets; Facades (a, b, and c)

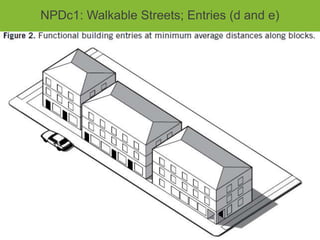

NPDc1: Walkable Streets; Entries (d and e)

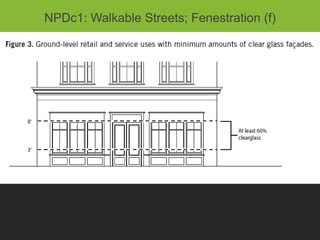

NPDc1: Walkable Streets; Fenestration (f)
NPDc1: Walkable Streets; No Blank Walls (g)
NPDc1: Walkable Streets; Un-shuttered Retail (h) • Must be specified in CC&R or other binding documents

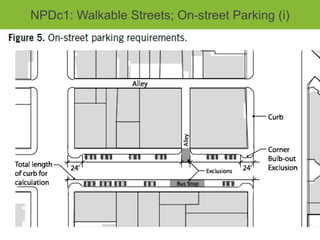

NPDc1: Walkable Streets; On-street Parking (i)

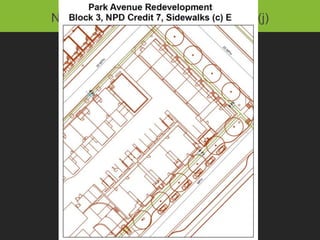

NPDc1: Walkable Streets; Sidewalks (j)
NPDc1: Walkable Streets; Elevated Finish Floor (k)

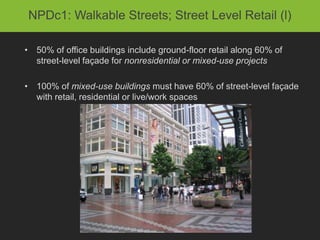

NPDc1: Walkable Streets; Street Level Retail (l) • 50% of office buildings include ground-floor retail along 60% of street-level façade for nonresidential or mixed-use projects • 100% of mixed-use buildings must have 60% of street-level façade with retail, residential or live/work spaces

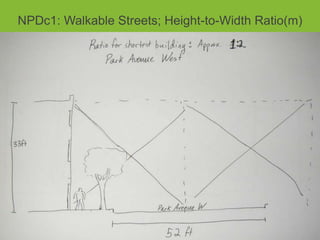

NPDc1: Walkable Streets; Height-to-Width Ratio(m)

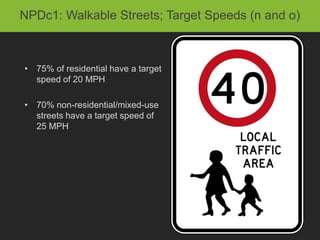

NPDc1: Walkable Streets; Target Speeds (n and o) • 75% of residential have a target speed of 20 MPH • 70% non-residential/mixed-use streets have a target speed of 25 MPH

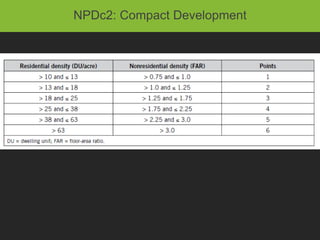

NPDc2: Compact Development
NPDc3: Mixed-Use Neighborhood Centers 3
NPDc4: Mixed-income Diverse Communities 4
Mixed-Income Documentation

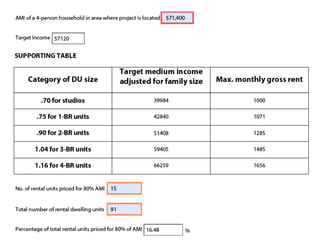

Mixed-Income Documentation cont.
NPDc5: Reduced Parking Footprint • 1 pt available • Residential: If any lots, locate at the rear or side of buildings • AND use no more than 20% of development footprint for new off- street parking and no lot larger than 2 acres • AND provide bicycle facilities per the bicycle network credit
NPDc5: Reduced Parking Footprint 5

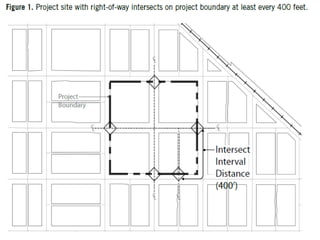

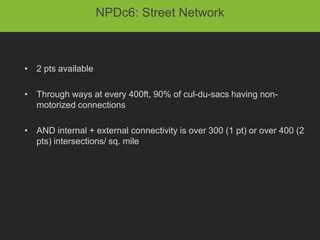

NPDc6: Street Network • 2 pts available • Through ways at every 400ft, 90% of cul-du-sacs having non- motorized connections • AND internal + external connectivity is over 300 (1 pt) or over 400 (2 pts) intersections/ sq. mile
NPDc6: Street Network
NPDc7: Transit Facilities • 1 pt available • All working with local transit authority • Shelters must be covered and include seating and illumination • AND reserve spaces for future transit stops • AND provide kiosks etc.
NPDc8: Transportation Demand Management • 2 pts available (.5 pts per requirements met) • Option 1. TDM program • Option 2. Transit Passes • Option 3. Developer-sponsored transit • Option 4. Vehicle sharing • Option 5. Unbundling of parking

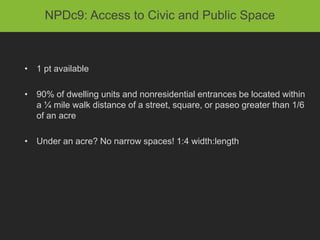

NPDc9: Access to Civic and Public Space • 1 pt available • 90% of dwelling units and nonresidential entrances be located within a ¼ mile walk distance of a street, square, or paseo greater than 1/6 of an acre • Under an acre? No narrow spaces! 1:4 width:length
NPDc10: Access to Recreation facilities • 1 pt available • 90% of dwelling units and nonresidential entrances be located within a 1/2 mile walk distance of an active recreation field at least one acre in size or publically accessible recreation center at least 25,000 SF

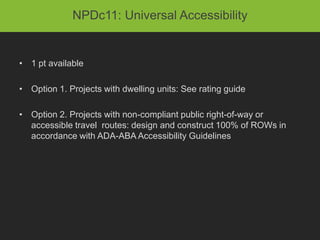

NPDc11: Universal Accessibility • 1 pt available • Option 1. Projects with dwelling units: See rating guide • Option 2. Projects with non-compliant public right-of-way or accessible travel routes: design and construct 100% of ROWs in accordance with ADA-ABA Accessibility Guidelines
NPDc12: Community Outreach and Involvement • 2 pts available • Option 1. Community Oureach: open meetings, modified design, ongoing communication • Option 2. Charrette: at least 2 day long charrette
NPDc13: Local Food Production • 1 pt available • ALL: Allow gardening in the project • Option 1. Neighborhood Farms and Gardens • Option 2. Community-Supported Agriculture • Option 3. Proximity to Farmer’s Market
NPDc14: Tree-lined and Shaded Streets • 2 pts available • Option 1. Tree-lined streets: 60% of new and existing streets should have 40 ft spacing (1 pt) • Option 2. Shaded streets: 40% of length of sidewalks shaded (1 pt)

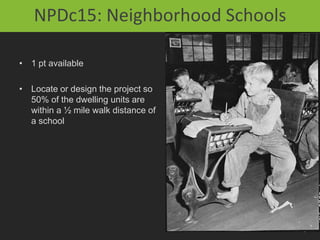

NPDc15: Neighborhood Schools • 1 pt available • Locate or design the project so 50% of the dwelling units are within a ½ mile walk distance of a school
Green Infrastructure and Building (GIB) 29 Points Possible 4 Prerequisites  Certified Green Building  Energy Efficiency  Water Efficiency  Construction Pollution Plan Major Bundles 17 credits – Green Buildings (5 pts) – Stormwater Management (4pts)

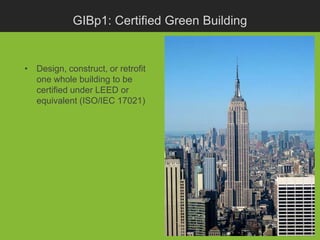

GIBp1: Certified Green Building • Design, construct, or retrofit one whole building to be certified under LEED or equivalent (ISO/IEC 17021)

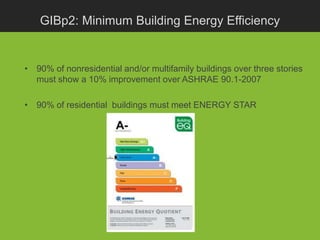

GIBp2: Minimum Building Energy Efficiency • 90% of nonresidential and/or multifamily buildings over three stories must show a 10% improvement over ASHRAE 90.1-2007 • 90% of residential buildings must meet ENERGY STAR

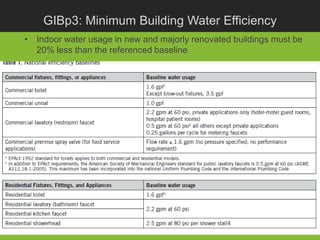

GIBp3: Minimum Building Water Efficiency • Indoor water usage in new and majorly renovated buildings must be 20% less than the referenced baseline

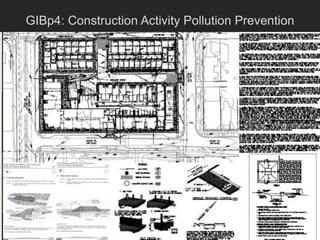

GIBp4: Construction Activity Pollution Prevention

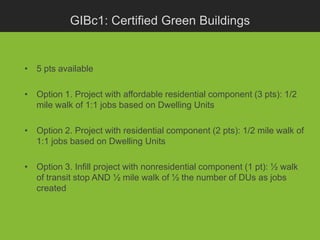

GIBc1: Certified Green Buildings • 5 pts available • Option 1. Project with affordable residential component (3 pts): 1/2 mile walk of 1:1 jobs based on Dwelling Units • Option 2. Project with residential component (2 pts): 1/2 mile walk of 1:1 jobs based on Dwelling Units • Option 3. Infill project with nonresidential component (1 pt): ½ walk of transit stop AND ½ mile walk of ½ the number of DUs as jobs created
GIBc2: Building Energy Efficiency • 2 pts available • 90% of nonresidential and/or multifamily buildings over three stories must show a 18% (1 pt) or 26% (2 pt) improvement over ASHRAE 90.1-2007 • 90% of residential buildings must meet a HERS score of 75

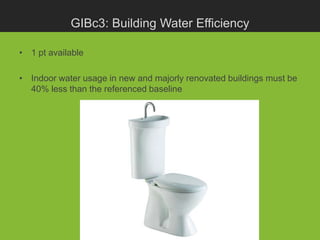

GIBc3: Building Water Efficiency • 1 pt available • Indoor water usage in new and majorly renovated buildings must be 40% less than the referenced baseline

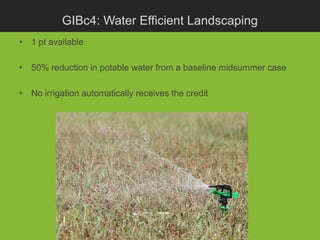

GIBc4: Water Efficient Landscaping • 1 pt available • 50% reduction in potable water from a baseline midsummer case • No irrigation automatically receives the credit

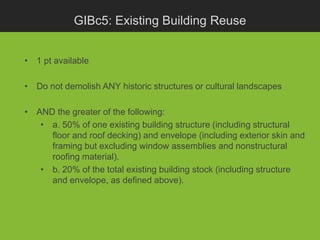

GIBc5: Existing Building Reuse • 1 pt available • Do not demolish ANY historic structures or cultural landscapes • AND the greater of the following: • a. 50% of one existing building structure (including structural floor and roof decking) and envelope (including exterior skin and framing but excluding window assemblies and nonstructural roofing material). • b. 20% of the total existing building stock (including structure and envelope, as defined above).

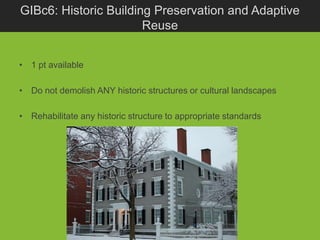

GIBc6: Historic Building Preservation and Adaptive Reuse • 1 pt available • Do not demolish ANY historic structures or cultural landscapes • Rehabilitate any historic structure to appropriate standards

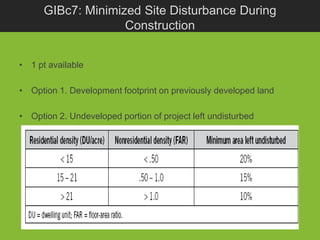

GIBc7: Minimized Site Disturbance During Construction • 1 pt available • Option 1. Development footprint on previously developed land • Option 2. Undeveloped portion of project left undisturbed

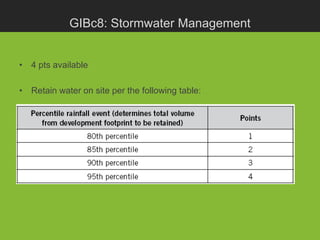

GIBc8: Stormwater Management • 4 pts available • Retain water on site per the following table:

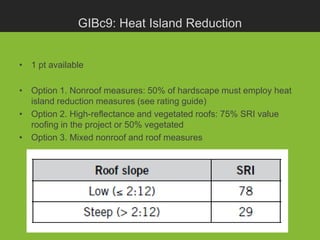

GIBc9: Heat Island Reduction • 1 pt available • Option 1. Nonroof measures: 50% of hardscape must employ heat island reduction measures (see rating guide) • Option 2. High-reflectance and vegetated roofs: 75% SRI value roofing in the project or 50% vegetated • Option 3. Mixed nonroof and roof measures

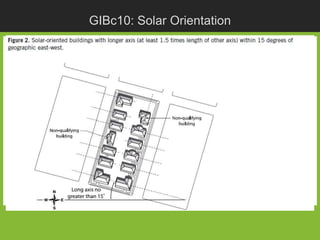

GIBc10: Solar Orientation

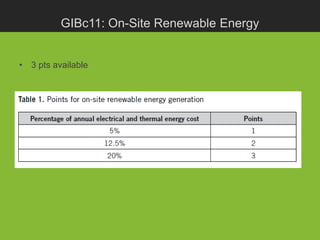

GIBc11: On-Site Renewable Energy • 3 pts available

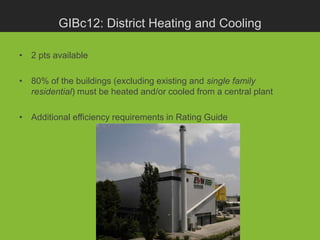

GIBc12: District Heating and Cooling • 2 pts available • 80% of the buildings (excluding existing and single family residential) must be heated and/or cooled from a central plant • Additional efficiency requirements in Rating Guide
GIBc13: Infrastructure Energy Efficiency • 1 pt available • All water and wastewater pumps, street lights, and traffic lights must be 15% more efficient than the least-cost options

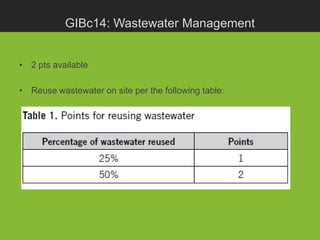

GIBc14: Wastewater Management • 2 pts available • Reuse wastewater on site per the following table:

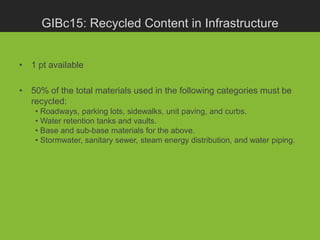

GIBc15: Recycled Content in Infrastructure • 1 pt available • 50% of the total materials used in the following categories must be recycled: • Roadways, parking lots, sidewalks, unit paving, and curbs. • Water retention tanks and vaults. • Base and sub-base materials for the above. • Stormwater, sanitary sewer, steam energy distribution, and water piping.
GIBc16: Solid Waste Management Infrastructure • 1 pt available • Meet 4 of 5: • Include at least one recycling drop-off point • Include at least one hazardous materials drop-off point • Include a compost station • Include recycling containers on every block next to trash cans • Recycle/salvage 50% of construction waste

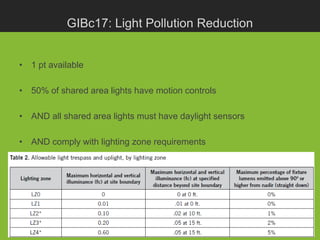

GIBc17: Light Pollution Reduction • 1 pt available • 50% of shared area lights have motion controls • AND all shared area lights must have daylight sensors • AND comply with lighting zone requirements

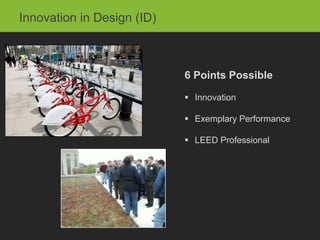

Innovation in Design (ID) 6 Points Possible  Innovation  Exemplary Performance  LEED Professional

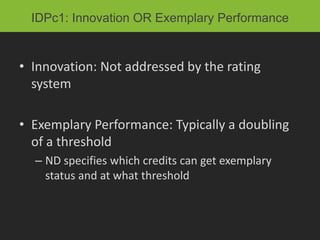

IDPc1: Innovation OR Exemplary Performance • Innovation: Not addressed by the rating system • Exemplary Performance: Typically a doubling of a threshold – ND specifies which credits can get exemplary status and at what threshold

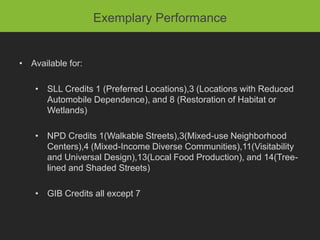

Exemplary Performance • Available for: • SLL Credits 1 (Preferred Locations),3 (Locations with Reduced Automobile Dependence), and 8 (Restoration of Habitat or Wetlands) • NPD Credits 1(Walkable Streets),3(Mixed-use Neighborhood Centers),4 (Mixed-Income Diverse Communities),11(Visitability and Universal Design),13(Local Food Production), and 14(Tree- lined and Shaded Streets) • GIB Credits all except 7

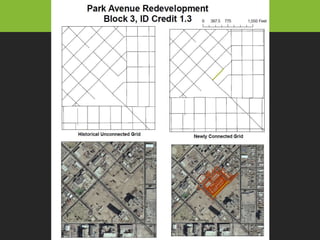

Innovation Credit Example

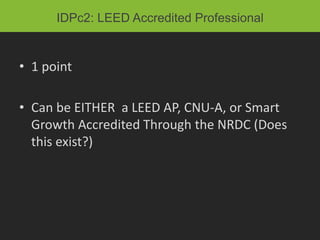

IDPc2: LEED Accredited Professional • 1 point • Can be EITHER a LEED AP, CNU-A, or Smart Growth Accredited Through the NRDC (Does this exist?)

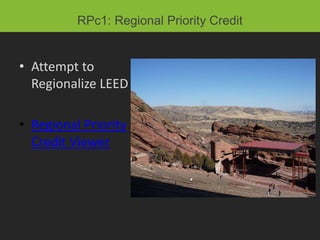

RPc1: Regional Priority Credit • Attempt to Regionalize LEED • Regional Priority Credit Viewer
Regional Priority (RP) 4 Points Possible (out of 6) For 80203 GIBc15 Recycled Content in Infrastructure GIBc4 Water-Efficient Landscaping NPDc2 Compact Development (>38 DUs/acre ) NPDc5 Reduced Parking Footprint NPDc8 Transportation Demand Management SLLc4 Bicycle Network and Storage
Learning Objectives • Learn the basic tenets and credit bundles of the LEED-ND rating system • Apply the knowledge of the LEED-ND rating system to a particular project • Describe the prerequisites and major credit requirements of the LEED for Neighborhood Development (LEED-ND) rating system • Explain the stages and process involved in the LEED-ND certification process • Describe the range of LEED-ND project types and strategies • Determine if a project is eligible for LEED-ND certification • Communicate unique aspects and limitations of LEED-ND

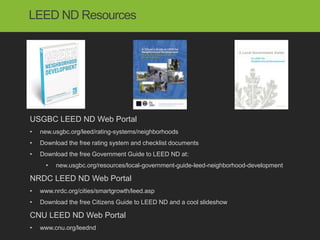

LEED ND Resources USGBC LEED ND Web Portal • new.usgbc.org/leed/rating-systems/neighborhoods • Download the free rating system and checklist documents • Download the free Government Guide to LEED ND at: • new.usgbc.org/resources/local-government-guide-leed-neighborhood-development NRDC LEED ND Web Portal • www.nrdc.org/cities/smartgrowth/leed.asp • Download the free Citizens Guide to LEED ND and a cool slideshow CNU LEED ND Web Portal • www.cnu.org/leednd
Thank You! C2 Sustainability Conor Merrigan | conor@c2sustainability.com www.c2sustainability.com Cliff Lind | cliff@c2sustainability.com
