1. My two cents about
Mysql backup
Aleksandrs Asafovs

2. MySQL 5 Database Administrator
Oracle Database 11g Administrator Certified Master
Oracle9i Database Administrator Certified Professional
Oracle Database 10g Administrator Certified Professional
Oracle Database 11g Administrator Certified Professional
Oracle Database 12c Administrator Certified Professional
Oracle9i Database Administrator Certified Professional - Special Accreditation:
Managing Oracle9i on Linux
Oracle RAC 11g Release 2 and Grid Infrastructure Administration
Oracle Database 10g Real Application Clusters Administrator Certified Expert
Oracle Application Server 10g Administrator Certified Associate
Oracle Weblogic Server 11g: System Administration I
Certified Ethical Hacker(CEH)
About me
My name is Aleksandrs Asafovs
Working with Oracle for over 15 years
MySQL 5 years

4. Certificate experts 200+
Competence

5. 5
8 GB RAM
35 GB database
SSD disk
Environment
Oracle VM 5.1.8
Oracle Linux 7.2
MySql 5.7.14

6. 6
Environment

7. 7
SQL Dump
mysqldump -u root -p --databases stream1 > backup-test-file.sql
#procedure or function
mysqldump -u root -p --databases stream1 --routines > backup-test-file.sql
#Users + point in time recovery
mysqldump -u root -p --databases mysql > backup-test-file.sql
mysqldump -u root -p --databases stream1 --single-transaction --routines
--master-data=2> backup-test-mysql.sql

8. 8
SQL Dump
Full DB
Backup
Restore
with
bin_logs
Restore
without
binlogs
Sql Dump 20m 1h36m 1h04m
File size 28G*
*The size before we use any compression,
After pigz compression 3.0G

9. 9
File system snapshot
Logical Volume Manager(LVM)
#!/bin/sh
#make snapshot script , execute manually
#script freeze DB, flush buffers , crate snapshot , then unfreeze DB
echo "Flushing tables"
/usr/bin/mysql --login-path=/backup/user_l -e "FLUSH TABLES WITH READ LOCK;"
echo "Syncing"
/bin/sync
echo "Show master status"
/usr/bin/mysql --login-path=/backup/user_l -e "SHOW MASTER STATUS;"
echo "Creating snapshot"
/sbin/lvcreate -L1G -s -n dbsnapshot /dev/ol/home
echo "Unlocking tables"
/usr/bin/mysql --login-path=/backup/user_l -e "UNLOCK TABLES;"
echo "Mounting filesystem "
mount /dev/ol/dbsnapshot /snapshot/ -onouuid,ro

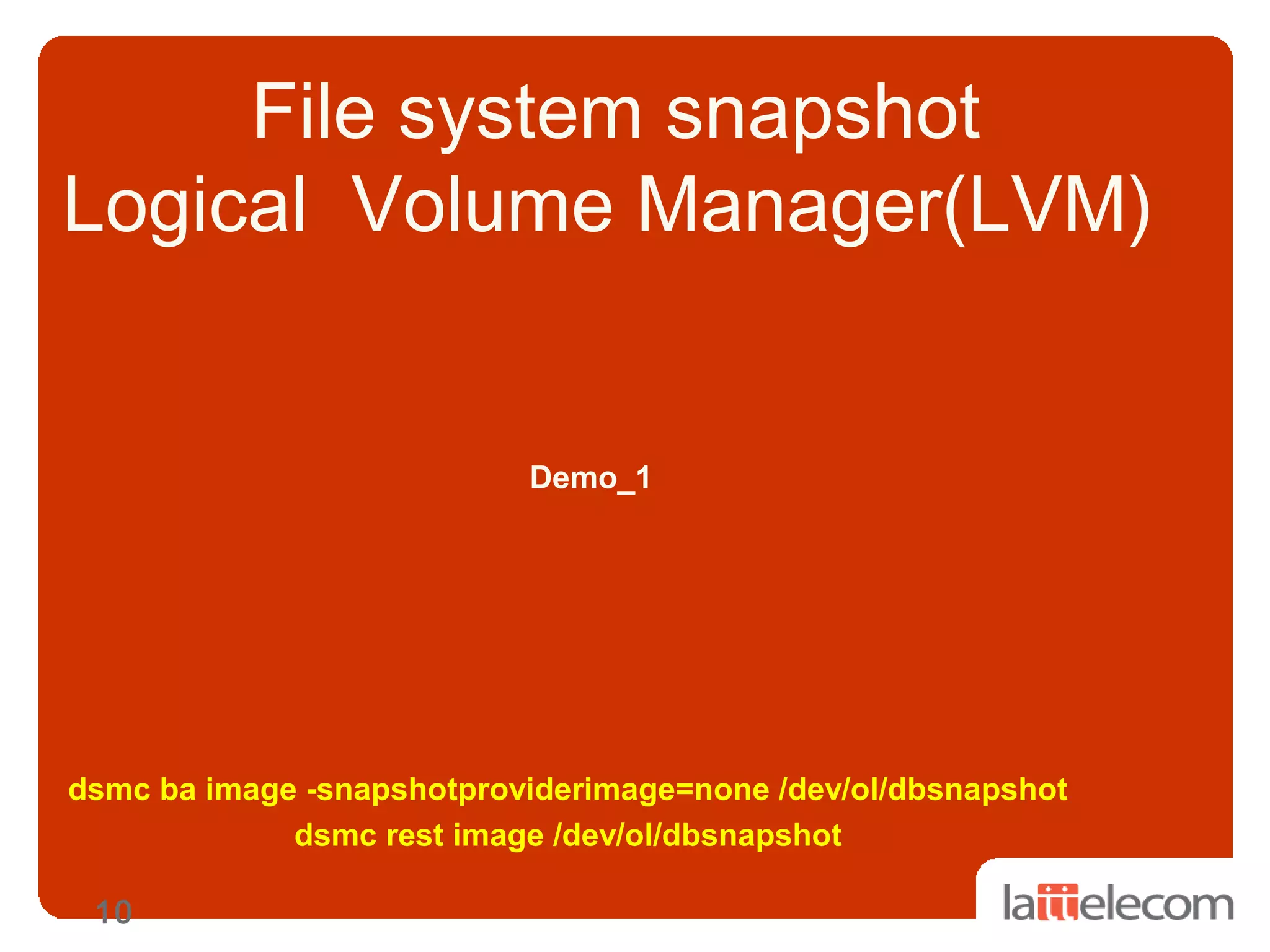

10. 10
File system snapshot
Logical Volume Manager(LVM)
Demo_1
dsmc ba image -snapshotproviderimage=none /dev/ol/dbsnapshot
dsmc rest image /dev/ol/dbsnapshot

11. 11
Percona
XtraBackup
Install Percona XtraBackup
https://www.percona.com/software/mysql-database/percona-xtrabackup
Create user for backup
mysql> CREATE USER 'bkpuser'@'localhost' IDENTIFIED BY 's3cret';
mysql> GRANT RELOAD, LOCK TABLES, REPLICATION CLIENT ON *.* TO 'bkpuser'@'localhost';
DEMO_2

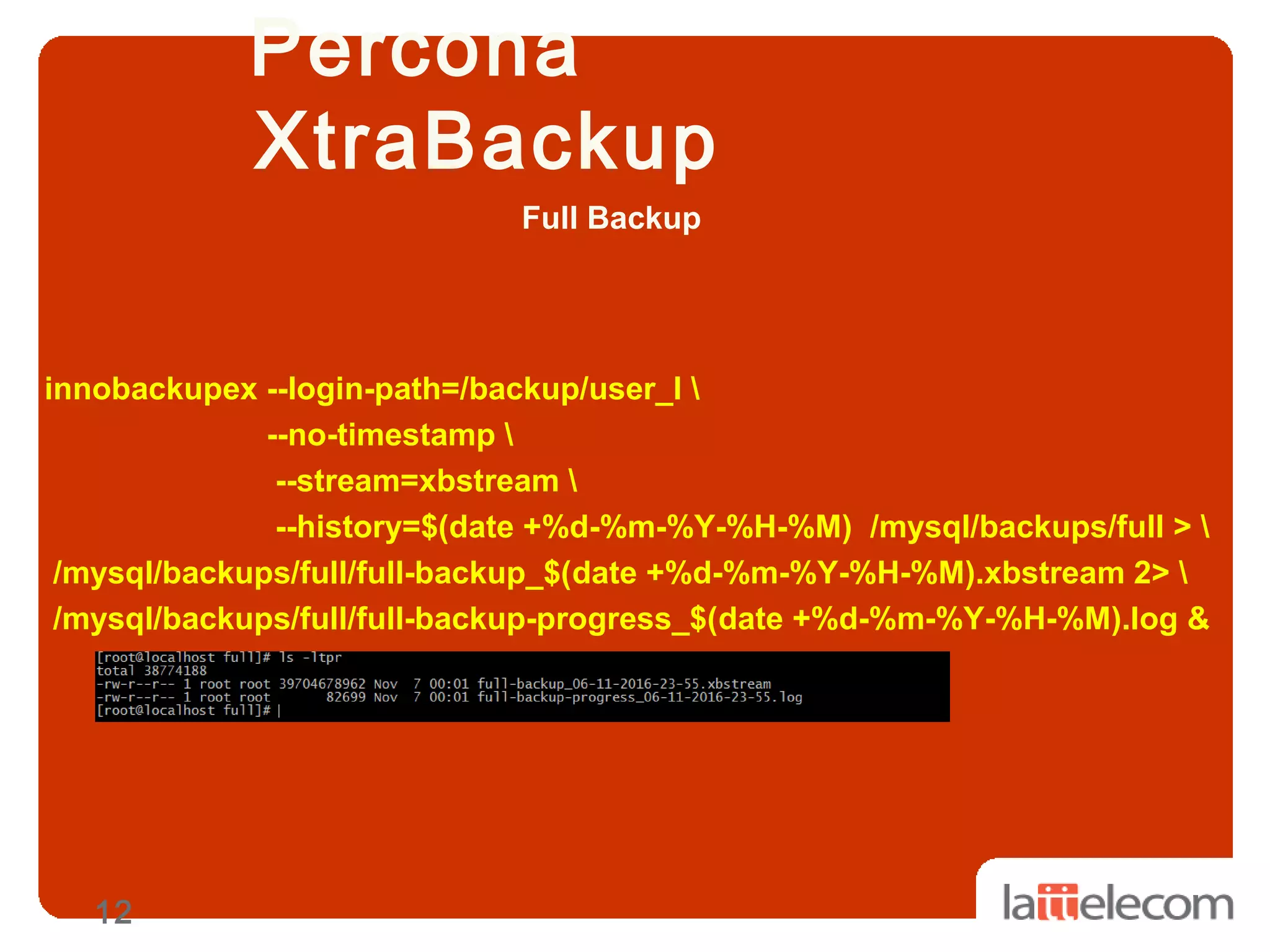

12. 12
Percona
XtraBackup
innobackupex --login-path=/backup/user_l
--no-timestamp
--stream=xbstream
--history=$(date +%d-%m-%Y-%H-%M) /mysql/backups/full >
/mysql/backups/full/full-backup_$(date +%d-%m-%Y-%H-%M).xbstream 2>
/mysql/backups/full/full-backup-progress_$(date +%d-%m-%Y-%H-%M).log &
Full Backup

13. 13
Percona
XtraBackup
innobackupex --login-path=/backup/user_l
--no-timestamp
--use-memory=1G
--stream=xbstream
--parallel=4
--incremental
--incremental-history-name=$(date +%d-%m-%Y-%H-%M)
--history=$(date +%d-%m-%Y-%H-%M) /mysql/backups/full >
/mysql/backups/full/incremental-$(date +%H)-mysqlbackup$(date +%d-%m-%Y-%H-%M).xbstream 2>
/mysql/backups/full/incbackup_progress$(date +%d-%m-%Y-%H-%M).log &
xbstream -x < incremental.xbstream
Incremental Backup
--incremental-history-name: Searches the PERCONA_SCHEMA.XtraBackup_history table for the mostrecent backup record containing t
the defined name value, and then starts the backup using its innodb_to_lsn value.

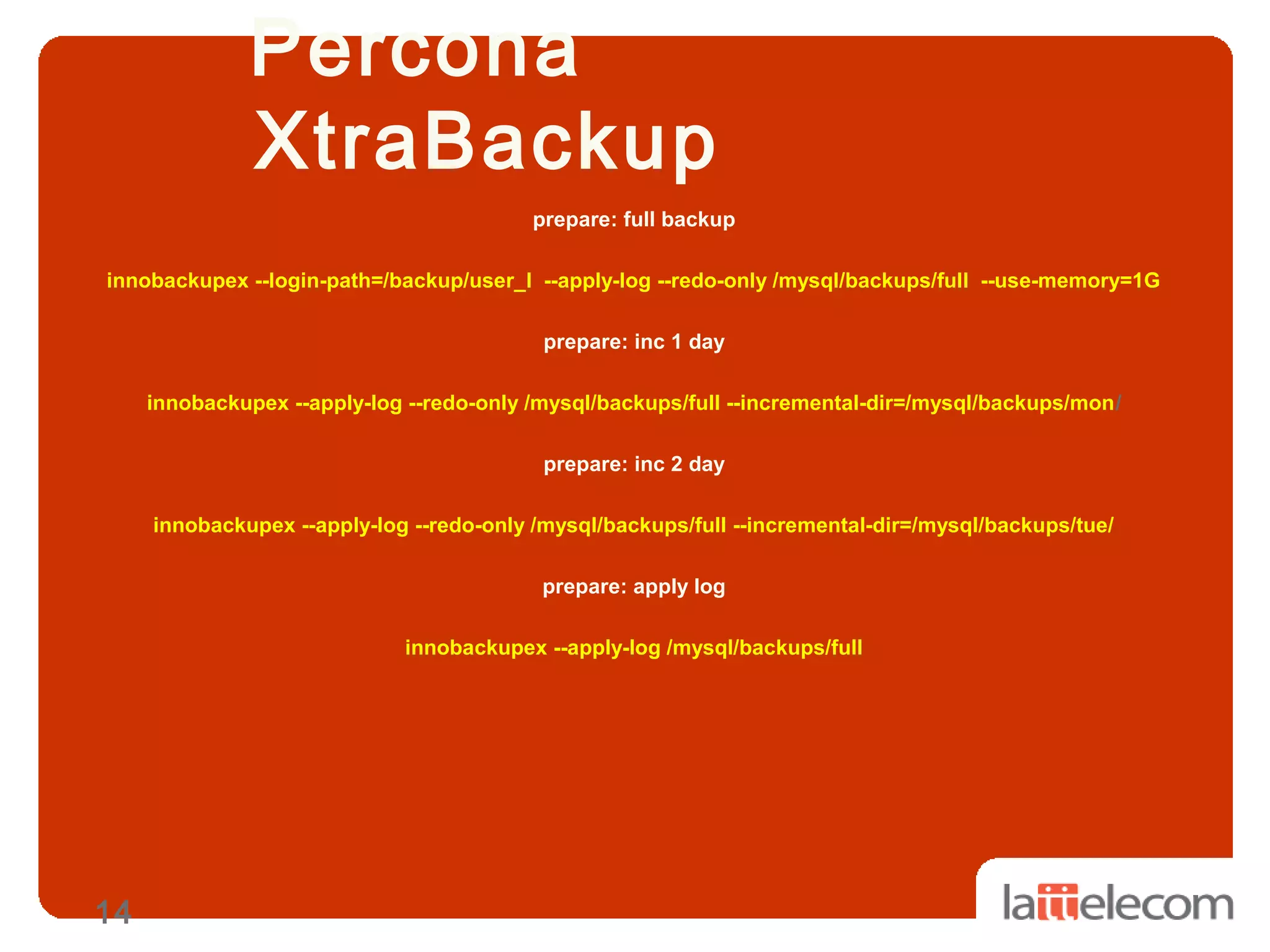

14. 14
Percona
XtraBackup
prepare: full backup
innobackupex --login-path=/backup/user_l --apply-log --redo-only /mysql/backups/full --use-memory=1G
prepare: inc 1 day
innobackupex --apply-log --redo-only /mysql/backups/full --incremental-dir=/mysql/backups/mon/
prepare: inc 2 day
innobackupex --apply-log --redo-only /mysql/backups/full --incremental-dir=/mysql/backups/tue/
prepare: apply log
innobackupex --apply-log /mysql/backups/full

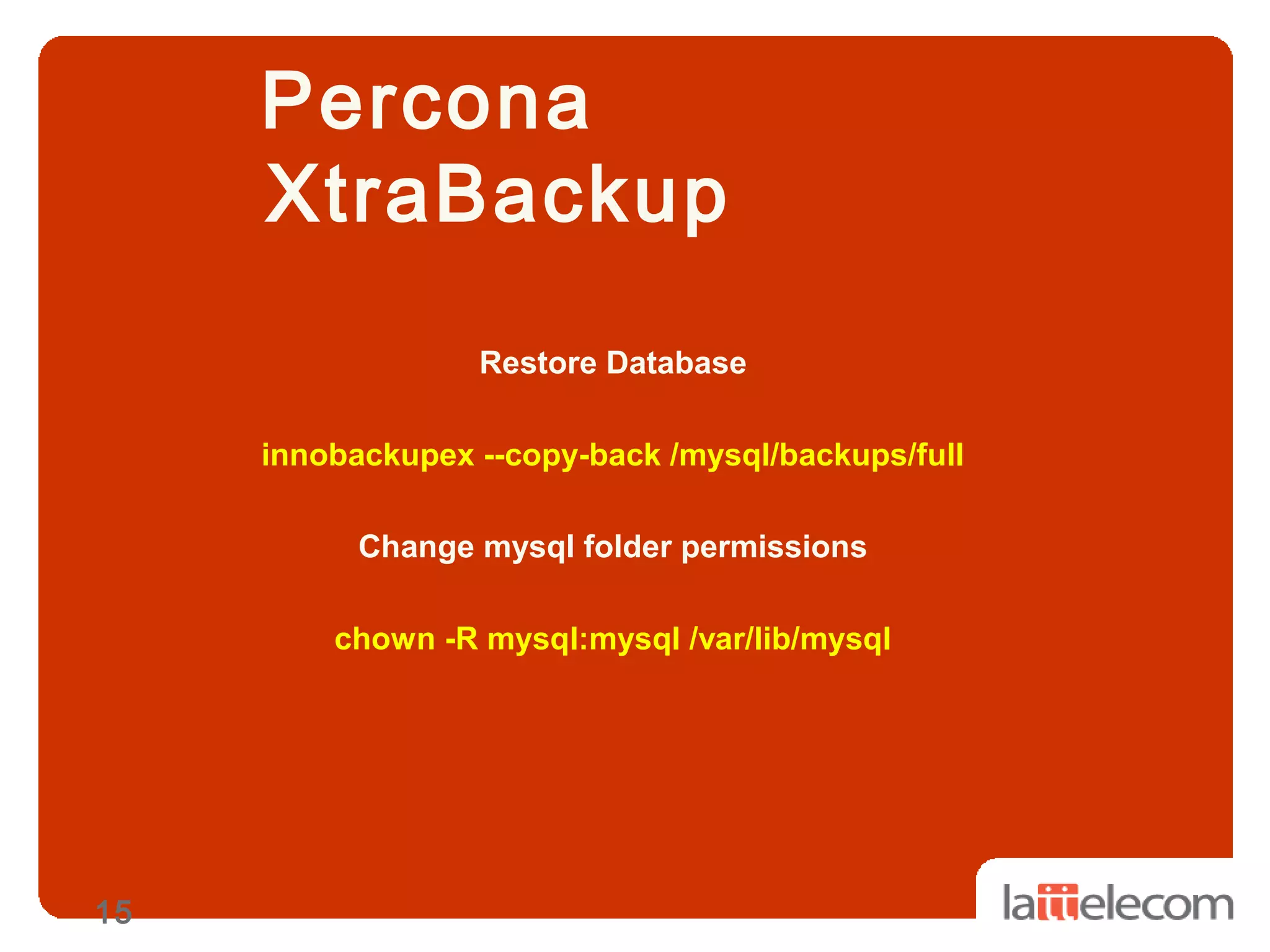

15. 15
Percona
XtraBackup
Restore Database
innobackupex --copy-back /mysql/backups/full
Change mysql folder permissions
chown -R mysql:mysql /var/lib/mysql

16. 16
Percona
XtraBackup
Partial Backup
innobackupex --login-path=/backup/user_l
--include='^stream[.]vod_log ' /mysql/backups/one_table
Prepare
innobackupex --apply-log --export /mysql/backups/one_table

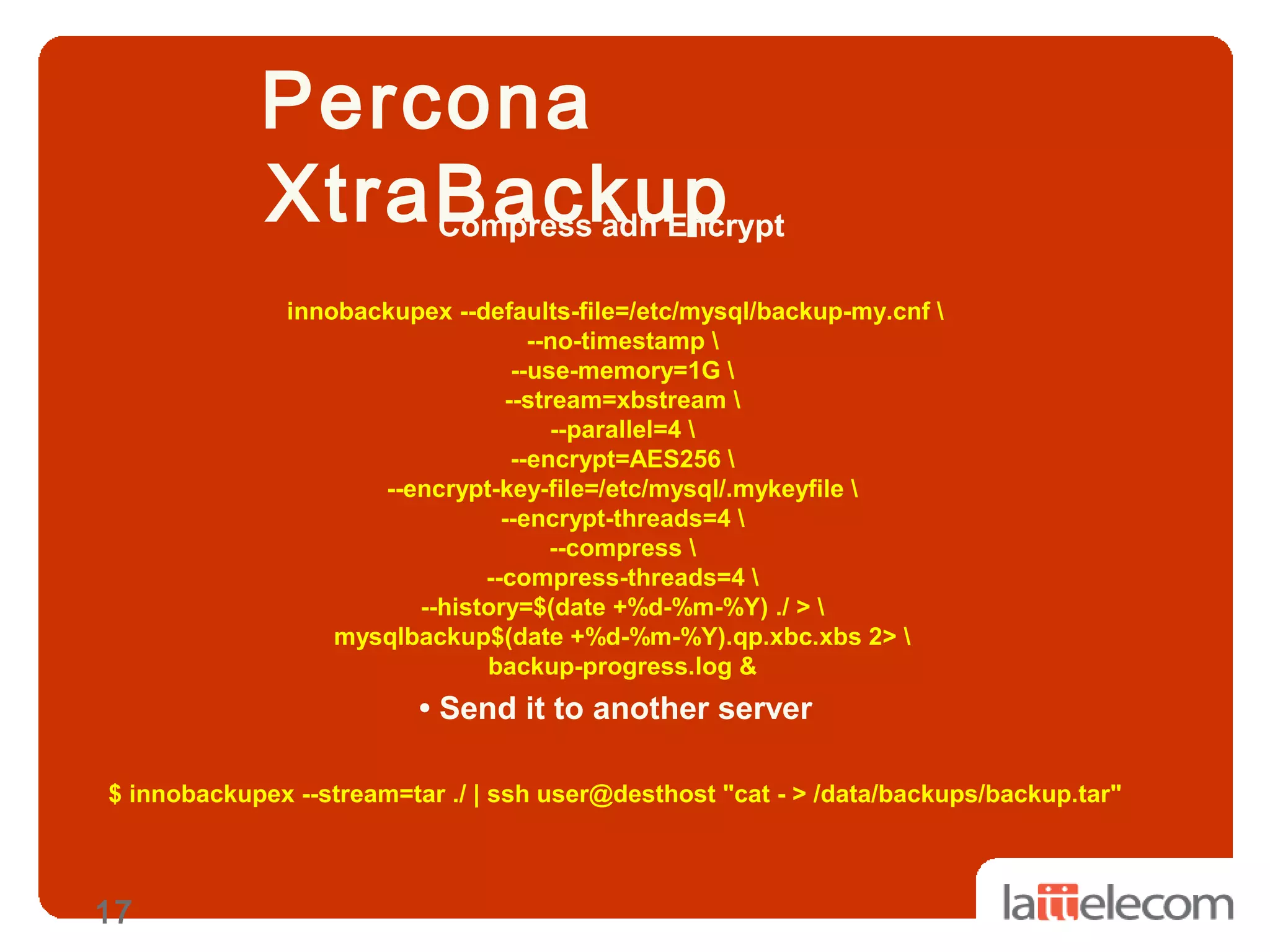

17. 17
Percona
XtraBackupCompress adn Encrypt
innobackupex --defaults-file=/etc/mysql/backup-my.cnf
--no-timestamp
--use-memory=1G
--stream=xbstream
--parallel=4
--encrypt=AES256
--encrypt-key-file=/etc/mysql/.mykeyfile
--encrypt-threads=4
--compress
--compress-threads=4
--history=$(date +%d-%m-%Y) ./ >
mysqlbackup$(date +%d-%m-%Y).qp.xbc.xbs 2>
backup-progress.log &
• Send it to another server
$ innobackupex --stream=tar ./ | ssh user@desthost "cat - > /data/backups/backup.tar"

18. 18
No single backup optionversion 5.7
• Filesystem cold backup
• Datadir
• innodb_data_home_dir
• innodb_data_file_path
• innodb_undo_directory
• innodb_temp_data_file_path
• Log-bin
• My.cnf
• http://dev.mysql.com/doc/refman/5.7/en/server-system-variables.html

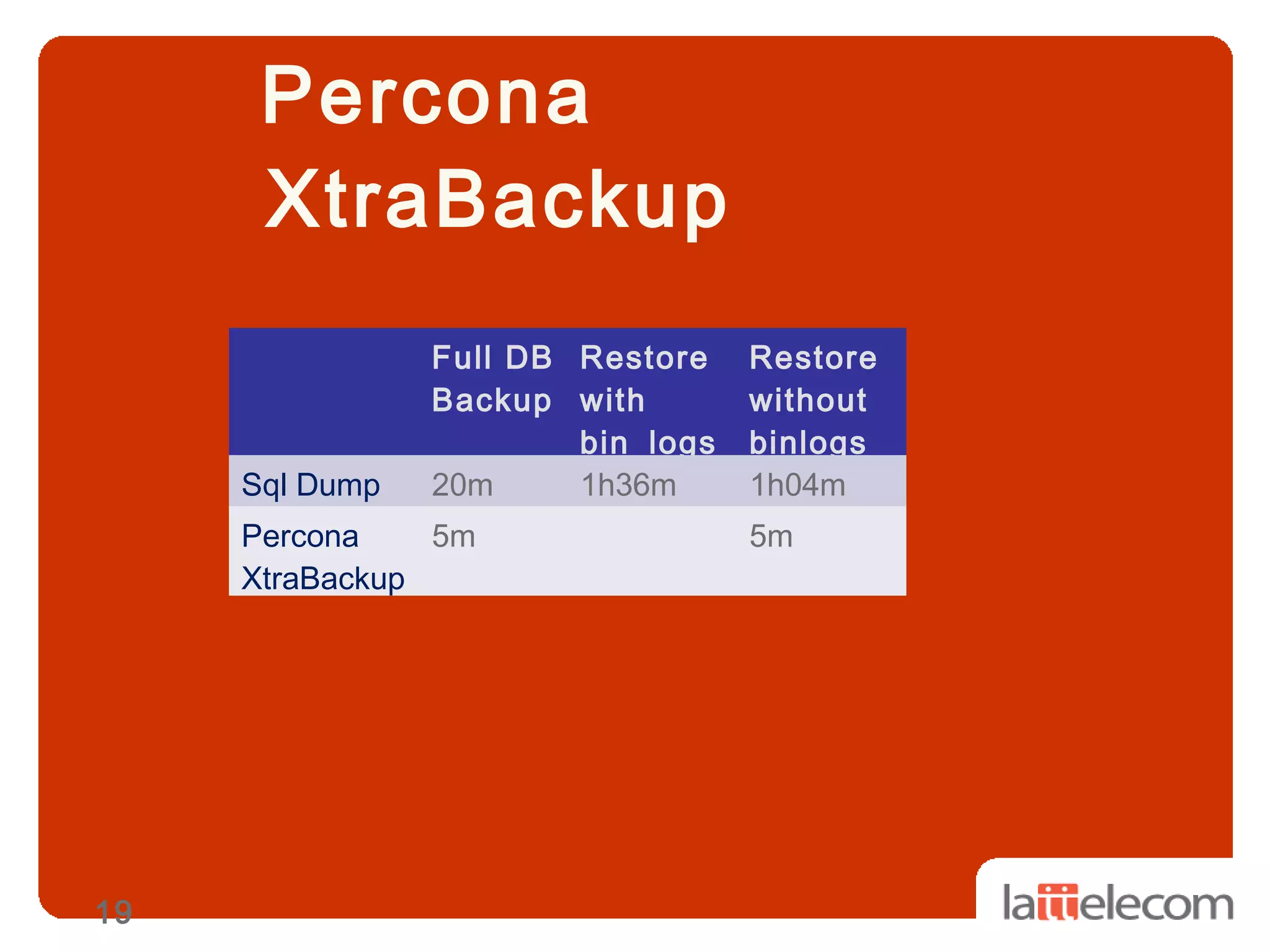

19. 19
Full DB
Backup
Restore
with
bin_logs
Restore
without
binlogs
Sql Dump 20m 1h36m 1h04m
Percona
XtraBackup
5m 5m
Percona
XtraBackup

20. 20
MySQL Enterprise $Backup
Download from
https://edelivery.oracle.com
Create user
CREATE USER 'mysqlbackup'@'localhost' IDENTIFIED BY 'new-password';
GRANT RELOAD ON *.* TO 'mysqlbackup'@'localhost';
GRANT CREATE, INSERT, DROP, UPDATE ON mysql.backup_progress TO 'mysqlbackup'@'localhost';
GRANT CREATE, INSERT, SELECT, DROP, UPDATE ON mysql.backup_history TO 'mysqlbackup'@'localhost';
GRANT REPLICATION CLIENT ON *.* TO 'mysqlbackup'@'localhost';
GRANT SUPER ON *.* TO 'mysqlbackup'@'localhost';
GRANT PROCESS ON *.* TO 'mysqlbackup'@'localhost';
mysqlbackup is copying InnoDBtables, reads and writes to both InnoDB and
MyISAM tables can continue. During the copying of MyISAM tables, reads (but not writes)
to those tables are permitted.

21. 21
MySQL Enterprise Backup
FULL DB BACKUP(37G)
./mysqlbackup --login-path=/backup/user_l --host=127.0.0.1
--backup-image=/mysql/ent_back/$(hostname)_mysql.mbi
--backup-dir=/mysql/ent_files backup-to-image
Incremental backup
./mysqlbackup --login-path=/backup/user_l --host=127.0.0.1
--incremental --incremental-base=history:last_backup --backup-dir=/mysql/ent_inc2
--backup-image=/mysql/ent_back/$(hostname)_incremental_$(date +%d-%m-%Y-%H-%M).mbi backup-to-image

22. 22
MySQL Enterprise Backup
FULL DB RESTORE
./mysqlbackup --datadir=/mysql/mysql/ --backup-image=/mysql/ent_back/localhost.localdomain_mysql.mbi
--backup-dir=/mysql/restore-tmp copy-back-and-apply-log
Incremental backup
./mysqlbackup --datadir=/mysql/mysql/
--backup-image=/mysql/ent_back/localhost.localdomain_incremental_06-11-2016-23-33.mbi
--backup-dir=/mysql/restore-tmp --incremental copy-back-and-apply-log

23. 23
MySQL Enterprise Backup
Include table1 and table2
--include-tables=^test.table[12]$
Exclude table1 and table2
--exclude-tables=^mydb.t[12]$
* selective restore is only supported for backups created using transportable tablespaces (TTS)

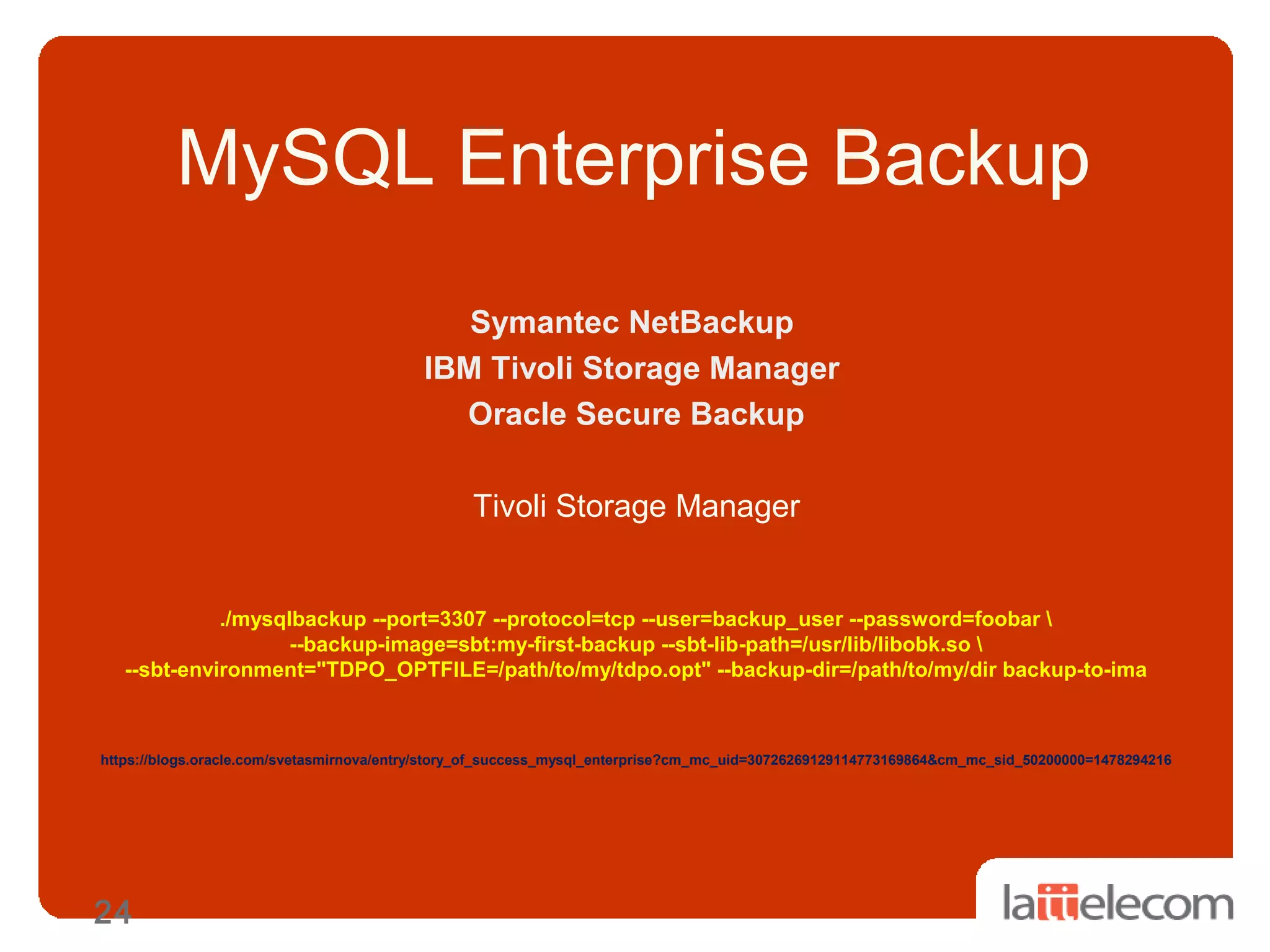

24. 24
MySQL Enterprise Backup
Symantec NetBackup
IBM Tivoli Storage Manager
Oracle Secure Backup
Tivoli Storage Manager
./mysqlbackup --port=3307 --protocol=tcp --user=backup_user --password=foobar
--backup-image=sbt:my-first-backup --sbt-lib-path=/usr/lib/libobk.so
--sbt-environment="TDPO_OPTFILE=/path/to/my/tdpo.opt" --backup-dir=/path/to/my/dir backup-to-ima
https://blogs.oracle.com/svetasmirnova/entry/story_of_success_mysql_enterprise?cm_mc_uid=30726269129114773169864&cm_mc_sid_50200000=1478294216

25. 25
MySQL Enterprise Backup
mysqlbackup --backup-image=/backups/image.enc --encrypt
--key=23D987F3A047B475C900127148F9E0394857983645192874A2B3049570C12A34
--backup-dir=/var/tmp/backup backup-to-image
To use a key file for the same task:
mysqlbackup --backup-image=/backups/image.enc
--encrypt --key-file=/meb/key --backup-dir=/var/tmp/backup backup-to-image
To decrypt a backup when extracting it:
mysqlbackup --backup-image=/backups/image.enc
--decrypt --key-file=/meb/key --backup-dir=/backups/extract-dir extract

26. 26
Point in time Recovery
Mysqldump ---master-data=2
LVM_snapshot

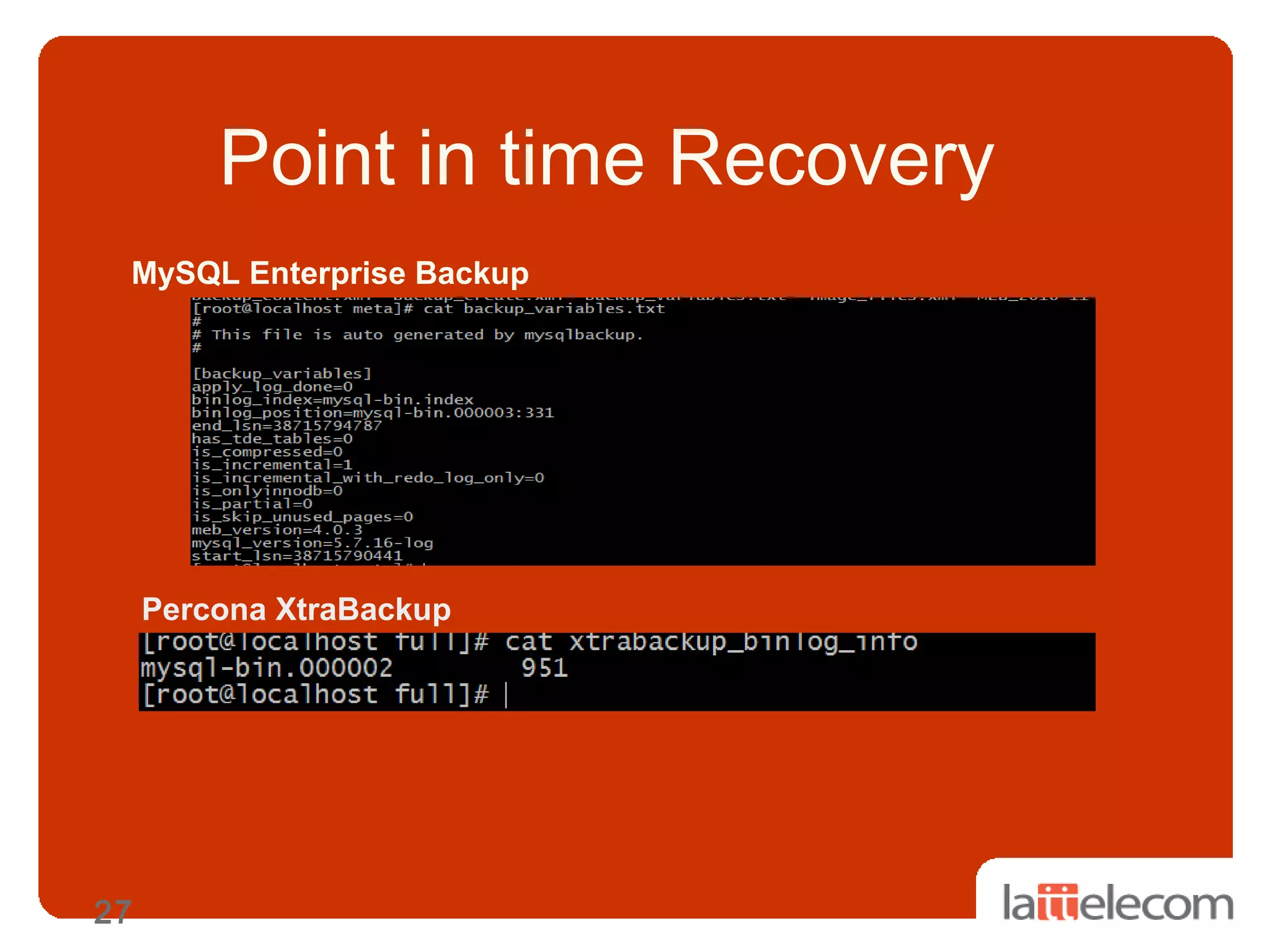

27. 27
Point in time Recovery
MySQL Enterprise Backup
Percona XtraBackup

28. 28
Point in time Recovery
mysqlbinlog mysql-bin.000001 --start-position=11872
--stop-datetime="2016-11-6 16:00:00"

29. 29
TIME
https://www.mysql.com/products/enterprise/backup.html

30. 30
Full DB
Backup
Restore
with
bin_logs
Restore
without
binlogs
Sql Dump 20m 1h36m 1h04m
Percona
XtraBackup
5m 5m
MySQL
Enterprise
Backup
5m 4m
TIME

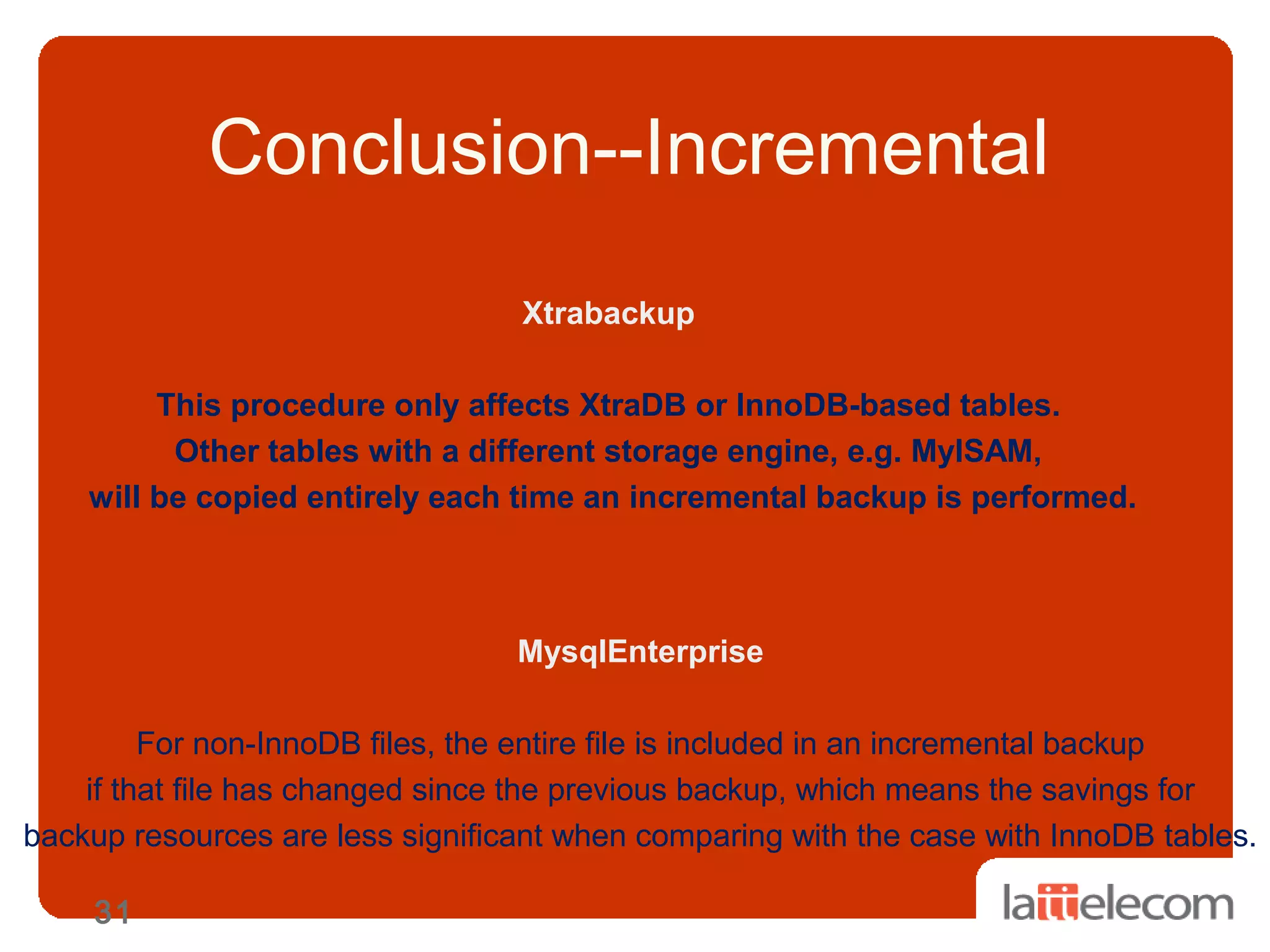

31. 31
Conclusion--Incremental
Xtrabackup
This procedure only affects XtraDB or InnoDB-based tables.
Other tables with a different storage engine, e.g. MyISAM,
will be copied entirely each time an incremental backup is performed.
MysqlEnterprise
For non-InnoDB files, the entire file is included in an incremental backup
if that file has changed since the previous backup, which means the savings for
backup resources are less significant when comparing with the case with InnoDB tables.

32. Thank You!
Aleksandrs Asafovs
Mob. +371 28353668
ASAFOVS@GMAIL.COM
Q & A
