Autonomous Landing of Unmanned Aerial Vehicles A Thesis Submitted For the Degree of Master of Science in the Faculty of Engineering by Shashiprakash Singh Department of Aerospace Engineering Indian Institute of Science BANGALORE – 560 012 February 2009

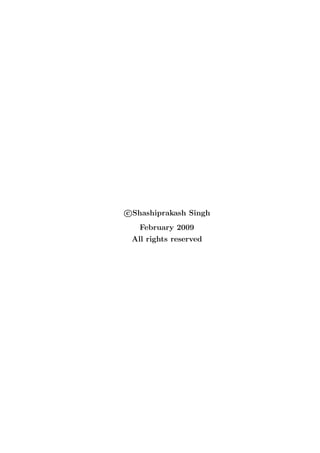

c Shashiprakash Singh February 2009 All rights reserved

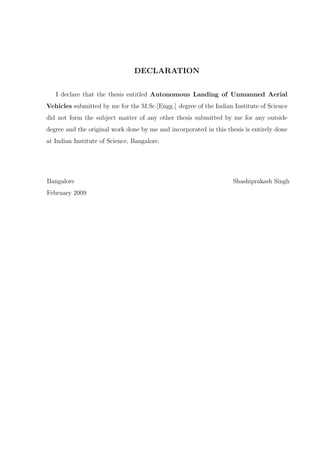

DECLARATION I declare that the thesis entitled Autonomous Landing of Unmanned Aerial Vehicles submitted by me for the M.Sc.[Engg.] degree of the Indian Institute of Science did not form the subject matter of any other thesis submitted by me for any outside degree and the original work done by me and incorporated in this thesis is entirely done at Indian Institute of Science, Bangalore. Bangalore Shashiprakash Singh February 2009

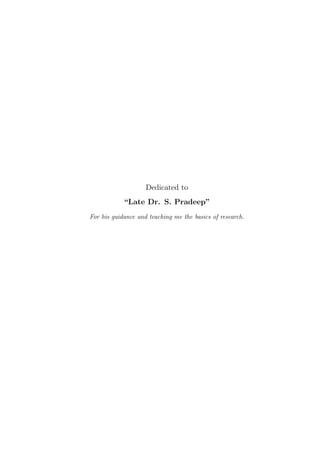

Dedicated to “Late Dr. S. Pradeep” For his guidance and teaching me the basics of research.
Acknowledgements I would like to thank my research advisor Dr. Radhakant Padhi for his constant guidance, discussions, support and constructive criticism. I am also thankful to Prof. M. S. Bhat and Prof. D. Ghose for their valuable advice at various instances. I also want to thank all my course instructors for having enriched my knowledge on various research topics. My thanks to Mr. V. Surendranath and all the staff at the wind tunnel facility, for carrying out the wind tunnel test and for letting us use their facility at UAV lab. I also want to thank Prof. S. P. Govindaraju for answering many of my queries related to aerodynamic data. I am grateful to all my lab members for creating a constructive research environment in the lab. It is through the discussions with lab members that I have gained the knowledge on various problems in the areas of aerospace and control design. I would like to take this opportunity to thank Prof. B. N. Raghunandan for all the research facilities at department and his motivating talks. I will not miss to thank the staff at aerospace main office who have been most humble and have always shown readiness to help. I am grateful to my family for their patience and support of my decision to pursue higher studies. They have always understood my position in spite of my less frequent visits to home. In the last I thank all the trees, plants and flowers of IISc for making the institute a beautiful and silent place, where the researchers can think freely in the peaceful air. i

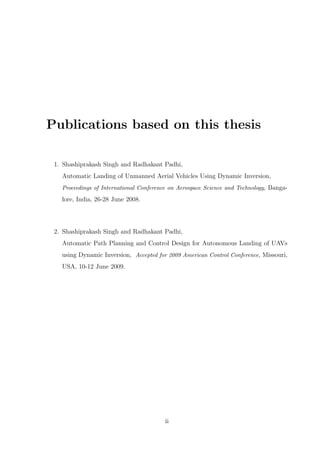

Publications based on this thesis 1. Shashiprakash Singh and Radhakant Padhi, Automatic Landing of Unmanned Aerial Vehicles Using Dynamic Inversion, Proceedings of International Conference on Aerospace Science and Technology, Banga- lore, India, 26-28 June 2008. 2. Shashiprakash Singh and Radhakant Padhi, Automatic Path Planning and Control Design for Autonomous Landing of UAVs using Dynamic Inversion, Accepted for 2009 American Control Conference, Missouri, USA, 10-12 June 2009. ii

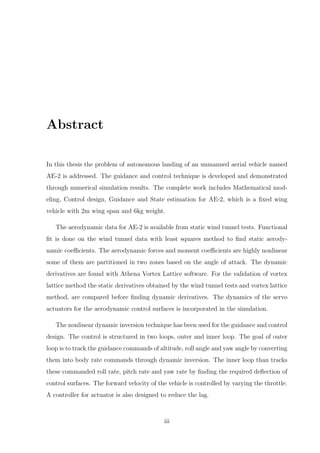

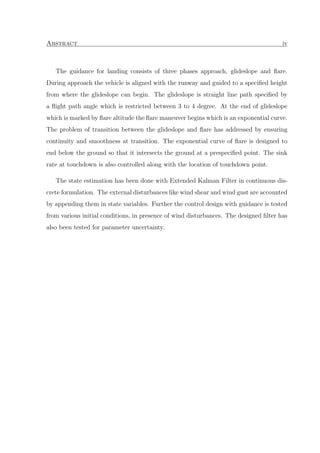

Abstract In this thesis the problem of autonomous landing of an unmanned aerial vehicle named AE-2 is addressed. The guidance and control technique is developed and demonstrated through numerical simulation results. The complete work includes Mathematical mod- eling, Control design, Guidance and State estimation for AE-2, which is a fixed wing vehicle with 2m wing span and 6kg weight. The aerodynamic data for AE-2 is available from static wind tunnel tests. Functional fit is done on the wind tunnel data with least squares method to find static aerody- namic coefficients. The aerodynamic forces and moment coefficients are highly nonlinear some of them are partitioned in two zones based on the angle of attack. The dynamic derivatives are found with Athena Vortex Lattice software. For the validation of vortex lattice method the static derivatives obtained by the wind tunnel tests and vortex lattice method, are compared before finding dynamic derivatives. The dynamics of the servo actuators for the aerodynamic control surfaces is incorporated in the simulation. The nonlinear dynamic inversion technique has been used for the guidance and control design. The control is structured in two loops, outer and inner loop. The goal of outer loop is to track the guidance commands of altitude, roll angle and yaw angle by converting them into body rate commands through dynamic inversion. The inner loop than tracks these commanded roll rate, pitch rate and yaw rate by finding the required deflection of control surfaces. The forward velocity of the vehicle is controlled by varying the throttle. A controller for actuator is also designed to reduce the lag. iii
Abstract iv The guidance for landing consists of three phases approach, glideslope and flare. During approach the vehicle is aligned with the runway and guided to a specified height from where the glideslope can begin. The glideslope is straight line path specified by a flight path angle which is restricted between 3 to 4 degree. At the end of glideslope which is marked by flare altitude the flare maneuver begins which is an exponential curve. The problem of transition between the glideslope and flare has addressed by ensuring continuity and smoothness at transition. The exponential curve of flare is designed to end below the ground so that it intersects the ground at a prespecified point. The sink rate at touchdown is also controlled along with the location of touchdown point. The state estimation has been done with Extended Kalman Filter in continuous dis- crete formulation. The external disturbances like wind shear and wind gust are accounted by appending them in state variables. Further the control design with guidance is tested from various initial conditions, in presence of wind disturbances. The designed filter has also been tested for parameter uncertainty.

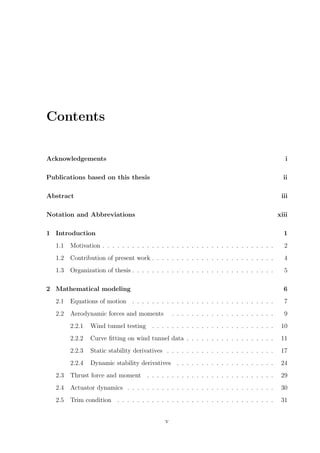

Contents Acknowledgements i Publications based on this thesis ii Abstract iii Notation and Abbreviations xiii 1 Introduction 1 1.1 Motivation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 1.2 Contribution of present work . . . . . . . . . . . . . . . . . . . . . . . . . 4 1.3 Organization of thesis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 2 Mathematical modeling 6 2.1 Equations of motion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2.2 Aerodynamic forces and moments . . . . . . . . . . . . . . . . . . . . . 9 2.2.1 Wind tunnel testing . . . . . . . . . . . . . . . . . . . . . . . . . 10 2.2.2 Curve fitting on wind tunnel data . . . . . . . . . . . . . . . . . . 11 2.2.3 Static stability derivatives . . . . . . . . . . . . . . . . . . . . . . 17 2.2.4 Dynamic stability derivatives . . . . . . . . . . . . . . . . . . . . 24 2.3 Thrust force and moment . . . . . . . . . . . . . . . . . . . . . . . . . . 29 2.4 Actuator dynamics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 2.5 Trim condition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 v
CONTENTS vi 2.6 Simulation results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 2.6.1 Open loop simulation . . . . . . . . . . . . . . . . . . . . . . . . . 32 2.6.2 Perturbation around trim condition . . . . . . . . . . . . . . . . . 33 3 Control design 35 3.1 Dynamic inversion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 3.2 Outer loop control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 3.2.1 Roll angle control . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 3.2.2 Pitch angle control . . . . . . . . . . . . . . . . . . . . . . . . . . 39 3.2.3 Heading angle control . . . . . . . . . . . . . . . . . . . . . . . . . 40 3.3 Inner loop control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 3.3.1 Body rates control . . . . . . . . . . . . . . . . . . . . . . . . . . 41 3.3.2 Forward velocity control . . . . . . . . . . . . . . . . . . . . . . . 43 3.4 Actuator controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 3.5 Control structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 3.6 Simulation results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 3.6.1 Pitch angle command . . . . . . . . . . . . . . . . . . . . . . . . . 46 3.6.2 Heading angle command . . . . . . . . . . . . . . . . . . . . . . . 48 3.6.3 Bank angle command . . . . . . . . . . . . . . . . . . . . . . . . . 50 4 Path planning and guidance 53 4.1 Path planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 4.1.1 Approach . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 4.1.2 Glideslope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 4.1.3 Flare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 4.2 Guidance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 4.2.1 Sideward distance control . . . . . . . . . . . . . . . . . . . . . . 58 4.2.2 Altitude control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 4.2.3 Coordinated turn constraint . . . . . . . . . . . . . . . . . . . . . 60

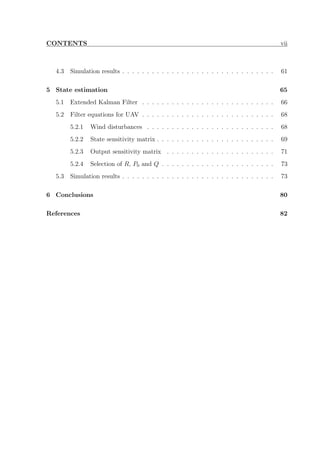

CONTENTS vii 4.3 Simulation results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 5 State estimation 65 5.1 Extended Kalman Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 5.2 Filter equations for UAV . . . . . . . . . . . . . . . . . . . . . . . . . . . 68 5.2.1 Wind disturbances . . . . . . . . . . . . . . . . . . . . . . . . . . 68 5.2.2 State sensitivity matrix . . . . . . . . . . . . . . . . . . . . . . . . 69 5.2.3 Output sensitivity matrix . . . . . . . . . . . . . . . . . . . . . . 71 5.2.4 Selection of R, P0 and Q . . . . . . . . . . . . . . . . . . . . . . . 73 5.3 Simulation results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73 6 Conclusions 80 References 82

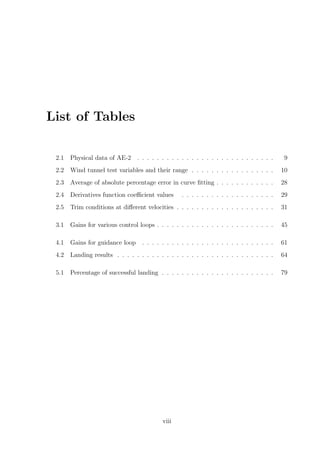

List of Tables 2.1 Physical data of AE-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 2.2 Wind tunnel test variables and their range . . . . . . . . . . . . . . . . . 10 2.3 Average of absolute percentage error in curve fitting . . . . . . . . . . . . 28 2.4 Derivatives function coefficient values . . . . . . . . . . . . . . . . . . . 29 2.5 Trim conditions at different velocities . . . . . . . . . . . . . . . . . . . . 31 3.1 Gains for various control loops . . . . . . . . . . . . . . . . . . . . . . . . 45 4.1 Gains for guidance loop . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 4.2 Landing results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 5.1 Percentage of successful landing . . . . . . . . . . . . . . . . . . . . . . . 79 viii

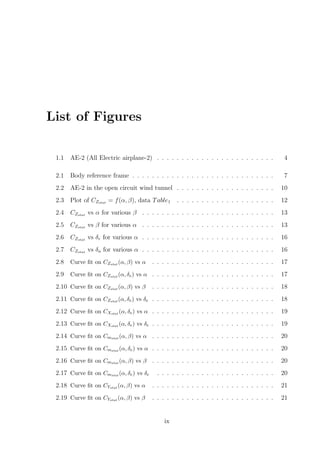

List of Figures 1.1 AE-2 (All Electric airplane-2) . . . . . . . . . . . . . . . . . . . . . . . . 4 2.1 Body reference frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2.2 AE-2 in the open circuit wind tunnel . . . . . . . . . . . . . . . . . . . . 10 2.3 Plot of CZstat = f(α, β), data Table1 . . . . . . . . . . . . . . . . . . . . 12 2.4 CZstat vs α for various β . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 2.5 CZstat vs β for various α . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 2.6 CZstat vs δr for various α . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 2.7 CZstat vs δa for various α . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 2.8 Curve fit on CZstat (α, β) vs α . . . . . . . . . . . . . . . . . . . . . . . . . 17 2.9 Curve fit on CZstat (α, δe) vs α . . . . . . . . . . . . . . . . . . . . . . . . . 17 2.10 Curve fit on CZstat (α, β) vs β . . . . . . . . . . . . . . . . . . . . . . . . . 18 2.11 Curve fit on CZstat (α, δe) vs δe . . . . . . . . . . . . . . . . . . . . . . . . . 18 2.12 Curve fit on CXstat (α, δe) vs α . . . . . . . . . . . . . . . . . . . . . . . . . 19 2.13 Curve fit on CXstat (α, δe) vs δe . . . . . . . . . . . . . . . . . . . . . . . . . 19 2.14 Curve fit on Cmstat (α, β) vs α . . . . . . . . . . . . . . . . . . . . . . . . . 20 2.15 Curve fit on Cmstat (α, δe) vs α . . . . . . . . . . . . . . . . . . . . . . . . . 20 2.16 Curve fit on Cmstat (α, β) vs β . . . . . . . . . . . . . . . . . . . . . . . . . 20 2.17 Curve fit on Cmstat (α, δe) vs δe . . . . . . . . . . . . . . . . . . . . . . . . 20 2.18 Curve fit on CYstat (α, β) vs α . . . . . . . . . . . . . . . . . . . . . . . . . 21 2.19 Curve fit on CYstat (α, β) vs β . . . . . . . . . . . . . . . . . . . . . . . . . 21 ix

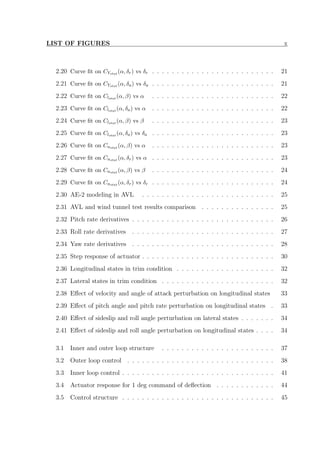

LIST OF FIGURES x 2.20 Curve fit on CYstat (α, δr) vs δr . . . . . . . . . . . . . . . . . . . . . . . . . 21 2.21 Curve fit on CYstat (α, δa) vs δa . . . . . . . . . . . . . . . . . . . . . . . . . 21 2.22 Curve fit on Clstat (α, β) vs α . . . . . . . . . . . . . . . . . . . . . . . . . 22 2.23 Curve fit on Clstat (α, δa) vs α . . . . . . . . . . . . . . . . . . . . . . . . . 22 2.24 Curve fit on Clstat (α, β) vs β . . . . . . . . . . . . . . . . . . . . . . . . . 23 2.25 Curve fit on Clstat (α, δa) vs δa . . . . . . . . . . . . . . . . . . . . . . . . . 23 2.26 Curve fit on Cnstat (α, β) vs α . . . . . . . . . . . . . . . . . . . . . . . . . 23 2.27 Curve fit on Cnstat (α, δr) vs α . . . . . . . . . . . . . . . . . . . . . . . . . 23 2.28 Curve fit on Cnstat (α, β) vs β . . . . . . . . . . . . . . . . . . . . . . . . . 24 2.29 Curve fit on Cnstat (α, δr) vs δr . . . . . . . . . . . . . . . . . . . . . . . . . 24 2.30 AE-2 modeling in AVL . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 2.31 AVL and wind tunnel test results comparison . . . . . . . . . . . . . . . 25 2.32 Pitch rate derivatives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 2.33 Roll rate derivatives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 2.34 Yaw rate derivatives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 2.35 Step response of actuator . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 2.36 Longitudinal states in trim condition . . . . . . . . . . . . . . . . . . . . 32 2.37 Lateral states in trim condition . . . . . . . . . . . . . . . . . . . . . . . 32 2.38 Effect of velocity and angle of attack perturbation on longitudinal states 33 2.39 Effect of pitch angle and pitch rate perturbation on longitudinal states . 33 2.40 Effect of sideslip and roll angle perturbation on lateral states . . . . . . . 34 2.41 Effect of sideslip and roll angle perturbation on longitudinal states . . . . 34 3.1 Inner and outer loop structure . . . . . . . . . . . . . . . . . . . . . . . 37 3.2 Outer loop control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 3.3 Inner loop control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 3.4 Actuator response for 1 deg command of deflection . . . . . . . . . . . . 44 3.5 Control structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

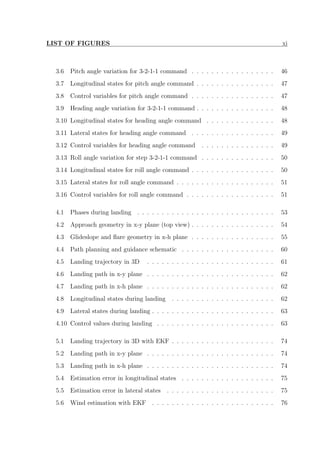

LIST OF FIGURES xi 3.6 Pitch angle variation for 3-2-1-1 command . . . . . . . . . . . . . . . . . 46 3.7 Longitudinal states for pitch angle command . . . . . . . . . . . . . . . . 47 3.8 Control variables for pitch angle command . . . . . . . . . . . . . . . . . 47 3.9 Heading angle variation for 3-2-1-1 command . . . . . . . . . . . . . . . . 48 3.10 Longitudinal states for heading angle command . . . . . . . . . . . . . . 48 3.11 Lateral states for heading angle command . . . . . . . . . . . . . . . . . 49 3.12 Control variables for heading angle command . . . . . . . . . . . . . . . 49 3.13 Roll angle variation for step 3-2-1-1 command . . . . . . . . . . . . . . . 50 3.14 Longitudinal states for roll angle command . . . . . . . . . . . . . . . . . 50 3.15 Lateral states for roll angle command . . . . . . . . . . . . . . . . . . . . 51 3.16 Control variables for roll angle command . . . . . . . . . . . . . . . . . . 51 4.1 Phases during landing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 4.2 Approach geometry in x-y plane (top view) . . . . . . . . . . . . . . . . . 54 4.3 Glideslope and flare geometry in x-h plane . . . . . . . . . . . . . . . . . 55 4.4 Path planning and guidance schematic . . . . . . . . . . . . . . . . . . . 60 4.5 Landing trajectory in 3D . . . . . . . . . . . . . . . . . . . . . . . . . . 61 4.6 Landing path in x-y plane . . . . . . . . . . . . . . . . . . . . . . . . . . 62 4.7 Landing path in x-h plane . . . . . . . . . . . . . . . . . . . . . . . . . . 62 4.8 Longitudinal states during landing . . . . . . . . . . . . . . . . . . . . . 62 4.9 Lateral states during landing . . . . . . . . . . . . . . . . . . . . . . . . . 63 4.10 Control values during landing . . . . . . . . . . . . . . . . . . . . . . . . 63 5.1 Landing trajectory in 3D with EKF . . . . . . . . . . . . . . . . . . . . . 74 5.2 Landing path in x-y plane . . . . . . . . . . . . . . . . . . . . . . . . . . 74 5.3 Landing path in x-h plane . . . . . . . . . . . . . . . . . . . . . . . . . . 74 5.4 Estimation error in longitudinal states . . . . . . . . . . . . . . . . . . . 75 5.5 Estimation error in lateral states . . . . . . . . . . . . . . . . . . . . . . 75 5.6 Wind estimation with EKF . . . . . . . . . . . . . . . . . . . . . . . . . 76

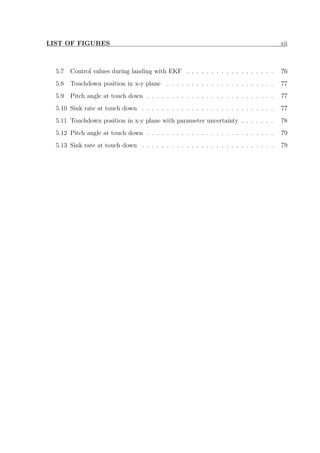

LIST OF FIGURES xii 5.7 Control values during landing with EKF . . . . . . . . . . . . . . . . . . 76 5.8 Touchdown position in x-y plane . . . . . . . . . . . . . . . . . . . . . . 77 5.9 Pitch angle at touch down . . . . . . . . . . . . . . . . . . . . . . . . . . 77 5.10 Sink rate at touch down . . . . . . . . . . . . . . . . . . . . . . . . . . . 77 5.11 Touchdown position in x-y plane with parameter uncertainty . . . . . . . 78 5.12 Pitch angle at touch down . . . . . . . . . . . . . . . . . . . . . . . . . . 79 5.13 Sink rate at touch down . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Notation and Abbreviations English Alphabet ax − Acceleration in body axis X direction ay − Acceleration in body axis Y direction az − Acceleration in body axis Z direction b − Wing span c − Mean aerodynamic chord Cl − Rolling moment coefficient Cm − Pitching moment coefficient Cn − Yawing moment coefficient CX − Axial force coefficient CY − Side force coefficient CZ − Normal force coefficient d − Offset of the thrust line from CG in the Z axis h − Altitude above ground Ixx, Iyy, Izz − Moment of inertia around body fixed X, Y and Z axis Ixz − Product of inertia between body fixed x and z axis kh − proportional gain for altitude error kp − proportional gain for rolling moment error kq − proportional gain for pitching moment error kr − proportional gain for yawing moment error ku − proportional gain for forward velocity error xiii

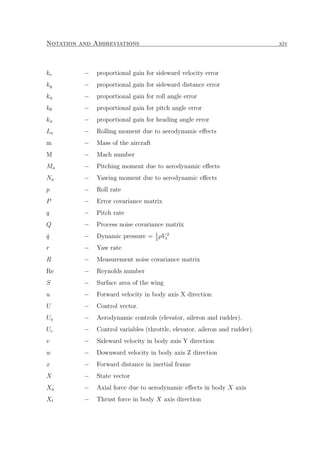

Notation and Abbreviations xiv kv − proportional gain for sideward velocity error ky − proportional gain for sideward distance error kφ − proportional gain for roll angle error kθ − proportional gain for pitch angle error kψ − proportional gain for heading angle error La − Rolling moment due to aerodynamic effects m − Mass of the aircraft M − Mach number Ma − Pitching moment due to aerodynamic effects Na − Yawing moment due to aerodynamic effects p − Roll rate P − Error covariance matrix q − Pitch rate Q − Process noise covariance matrix ˆq − Dynamic pressure = 1 2 ρV 2 t r − Yaw rate R − Measurement noise covariance matrix Re − Reynolds number S − Surface area of the wing u − Forward velocity in body axis X direction U − Control vector. Ua − Aerodynamic controls (elevator, aileron and rudder). Uc − Control variables (throttle, elevator, aileron and rudder). v − Sideward velocity in body axis Y direction w − Downward velocity in body axis Z direction x − Forward distance in inertial frame X − State vector Xa − Axial force due to aerodynamic effects in body X axis Xt − Thrust force in body X axis direction

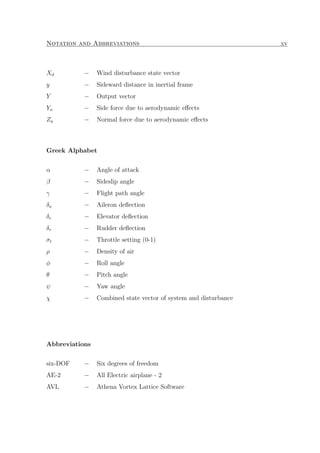

Notation and Abbreviations xv Xd − Wind disturbance state vector y − Sideward distance in inertial frame Y − Output vector Ya − Side force due to aerodynamic effects Za − Normal force due to aerodynamic effects Greek Alphabet α − Angle of attack β − Sideslip angle γ − Flight path angle δa − Aileron deflection δe − Elevator deflection δr − Rudder deflection σt − Throttle setting (0-1) ρ − Density of air φ − Roll angle θ − Pitch angle ψ − Yaw angle χ − Combined state vector of system and disturbance Abbreviations six-DOF − Six degrees of freedom AE-2 − All Electric airplane - 2 AVL − Athena Vortex Lattice Software

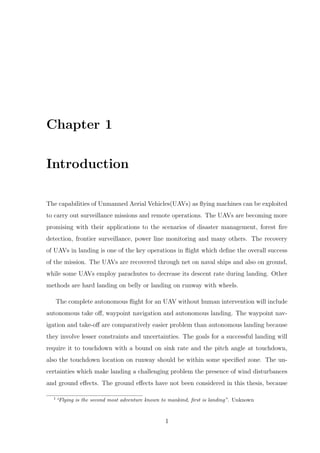

Chapter 1 Introduction The capabilities of Unmanned Aerial Vehicles(UAVs) as flying machines can be exploited to carry out surveillance missions and remote operations. The UAVs are becoming more promising with their applications to the scenarios of disaster management, forest fire detection, frontier surveillance, power line monitoring and many others. The recovery of UAVs in landing is one of the key operations in flight which define the overall success of the mission. The UAVs are recovered through net on naval ships and also on ground, while some UAVs employ parachutes to decrease its descent rate during landing. Other methods are hard landing on belly or landing on runway with wheels. The complete autonomous flight for an UAV without human intervention will include autonomous take off, waypoint navigation and autonomous landing. The waypoint nav- igation and take-off are comparatively easier problem than autonomous landing because they involve lesser constraints and uncertainties. The goals for a successful landing will require it to touchdown with a bound on sink rate and the pitch angle at touchdown, also the touchdown location on runway should be within some specified zone. The un- certainties which make landing a challenging problem the presence of wind disturbances and ground effects. The ground effects have not been considered in this thesis, because 1 “Flying is the second most adventure known to mankind, first is landing”. Unknown 1

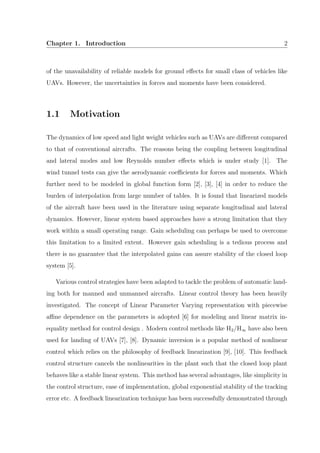

Chapter 1. Introduction 2 of the unavailability of reliable models for ground effects for small class of vehicles like UAVs. However, the uncertainties in forces and moments have been considered. 1.1 Motivation The dynamics of low speed and light weight vehicles such as UAVs are different compared to that of conventional aircrafts. The reasons being the coupling between longitudinal and lateral modes and low Reynolds number effects which is under study [1]. The wind tunnel tests can give the aerodynamic coefficients for forces and moments. Which further need to be modeled in global function form [2], [3], [4] in order to reduce the burden of interpolation from large number of tables. It is found that linearized models of the aircraft have been used in the literature using separate longitudinal and lateral dynamics. However, linear system based approaches have a strong limitation that they work within a small operating range. Gain scheduling can perhaps be used to overcome this limitation to a limited extent. However gain scheduling is a tedious process and there is no guarantee that the interpolated gains can assure stability of the closed loop system [5]. Various control strategies have been adapted to tackle the problem of automatic land- ing both for manned and unmanned aircrafts. Linear control theory has been heavily investigated. The concept of Linear Parameter Varying representation with piecewise affine dependence on the parameters is adopted [6] for modeling and linear matrix in- equality method for control design . Modern control methods like H2/H∞ have also been used for landing of UAVs [7], [8]. Dynamic inversion is a popular method of nonlinear control which relies on the philosophy of feedback linearization [9], [10]. This feedback control structure cancels the nonlinearities in the plant such that the closed loop plant behaves like a stable linear system. This method has several advantages, like simplicity in the control structure, ease of implementation, global exponential stability of the tracking error etc. A feedback linearization technique has been successfully demonstrated through
Chapter 1. Introduction 3 simulation for automatic landing of a high performance aircraft [11]. The dynamic in- version has also been used for the design of longitudinal landing [12] and for the control of micro aerial vehicles [13]. The robustness with nonlinear control [14], [15] have also been studied and reported. The autonomous landing requires an intelligent path planning and guidance. Landing trajectories of aerial vehicles typically consists of approach, glideslope and flare [11]. A successful landing would depend upon the good selection of landing trajectory and closely following it. The problems associated with following glideslope and flare is the change in slope at the transition. Which put requirement of different gains for following glideslope and flare. To overcome this blending function [16] for gains at the transition of glideslope and flare has been reported in literature. It is found in literature that the desired landing trajectory can be made function of time [11] or forward distance from runway [6], [17]. The other requirements on landing are controlling the sink rate at touchdown and the location of touchdown. The landing requires sensors for position location and height with the help of which it can be achieved successfully. The sensors for height include pressure altitude sensors or laser altimeter [18]. Vision based algorithms for autonomous landing of UAVs have been also been designed [19]. The vision sensor is used to extract the relative position of the UAV from a landing pad than this information is used to direct the UAV to land [20]. The use of vision based precision target detection and recognition along with the GPS for navigation [21] have also been shown. More advance algorithms have combined the data from optical flow sensors and pressure based sensor to estimate the HAG [22] for relatively unknown terrains. The other challenges for landing are uncertainties in measurement and process noise in form of wind disturbances. The state estimation will be required to account for non availability for all the sensors. The estimation can be carried out with Extended Kalman filter [23]. The aircraft landing control and estimation in presence of wind shear [24], [25] has been reported. The estimation with EKF for landing of UAV is carried out in presence wind disturbance [26].

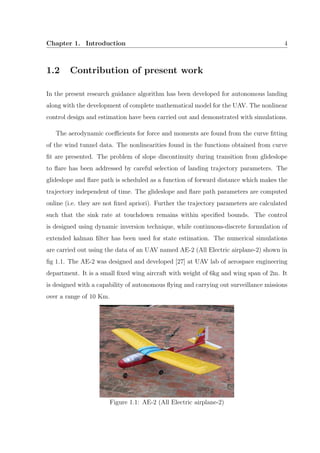

Chapter 1. Introduction 4 1.2 Contribution of present work In the present research guidance algorithm has been developed for autonomous landing along with the development of complete mathematical model for the UAV. The nonlinear control design and estimation have been carried out and demonstrated with simulations. The aerodynamic coefficients for force and moments are found from the curve fitting of the wind tunnel data. The nonlinearities found in the functions obtained from curve fit are presented. The problem of slope discontinuity during transition from glideslope to flare has been addressed by careful selection of landing trajectory parameters. The glideslope and flare path is scheduled as a function of forward distance which makes the trajectory independent of time. The glideslope and flare path parameters are computed online (i.e. they are not fixed apriori). Further the trajectory parameters are calculated such that the sink rate at touchdown remains within specified bounds. The control is designed using dynamic inversion technique, while continuous-discrete formulation of extended kalman filter has been used for state estimation. The numerical simulations are carried out using the data of an UAV named AE-2 (All Electric airplane-2) shown in fig 1.1. The AE-2 was designed and developed [27] at UAV lab of aerospace engineering department. It is a small fixed wing aircraft with weight of 6kg and wing span of 2m. It is designed with a capability of autonomous flying and carrying out surveillance missions over a range of 10 Km. Figure 1.1: AE-2 (All Electric airplane-2)

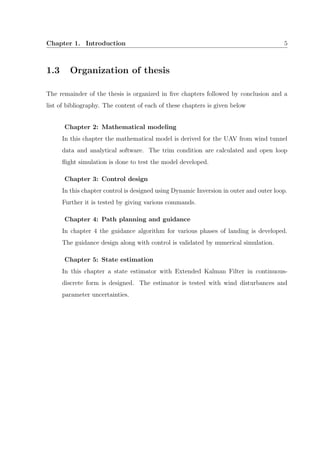

Chapter 1. Introduction 5 1.3 Organization of thesis The remainder of the thesis is organized in five chapters followed by conclusion and a list of bibliography. The content of each of these chapters is given below Chapter 2: Mathematical modeling In this chapter the mathematical model is derived for the UAV from wind tunnel data and analytical software. The trim condition are calculated and open loop flight simulation is done to test the model developed. Chapter 3: Control design In this chapter control is designed using Dynamic Inversion in outer and outer loop. Further it is tested by giving various commands. Chapter 4: Path planning and guidance In chapter 4 the guidance algorithm for various phases of landing is developed. The guidance design along with control is validated by numerical simulation. Chapter 5: State estimation In this chapter a state estimator with Extended Kalman Filter in continuous- discrete form is designed. The estimator is tested with wind disturbances and parameter uncertainties.

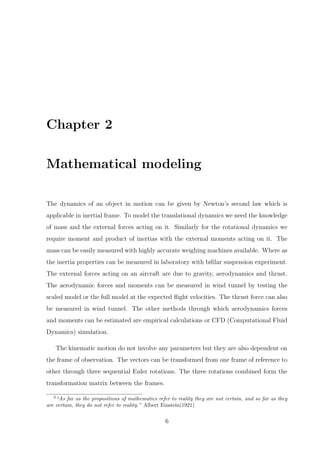

Chapter 2 Mathematical modeling The dynamics of an object in motion can be given by Newton’s second law which is applicable in inertial frame. To model the translational dynamics we need the knowledge of mass and the external forces acting on it. Similarly for the rotational dynamics we require moment and product of inertias with the external moments acting on it. The mass can be easily measured with highly accurate weighing machines available. Where as the inertia properties can be measured in laboratory with bifilar suspension experiment. The external forces acting on an aircraft are due to gravity, aerodynamics and thrust. The aerodynamic forces and moments can be measured in wind tunnel by testing the scaled model or the full model at the expected flight velocities. The thrust force can also be measured in wind tunnel. The other methods through which aerodynamics forces and moments can be estimated are empirical calculations or CFD (Computational Fluid Dynamics) simulation. The kinematic motion do not involve any parameters but they are also dependent on the frame of observation. The vectors can be transformed from one frame of reference to other through three sequential Euler rotations. The three rotations combined form the transformation matrix between the frames. 2 “As far as the propositions of mathematics refer to reality they are not certain, and so far as they are certain, they do not refer to reality.” Albert Einstein(1921) 6
Chapter 2. Mathematical modeling 7 The dynamic and kinematic equations for rotational and translational motion of aircraft is discussed in next section. 2.1 Equations of motion The reference frame for body axis coordinate system is shown in Fig. 2.1. Where positive X axis is in forward direction through nose of the aircraft. The positive Y axis protrudes through the right wing. The positive Z axis is perpendicular to X and Y in downward direction. Figure 2.1: Body reference frame The variables defined with respect to body axis frame are given below. u, v, w are velocity components along the body axis X, Y , Z direction. p, q, r are roll, pitch and yaw rates respectively about the body axis X, Y , Z direction. φ, θ, ψ are roll, pitch and yaw angles around the body axis X, Y , Z direction. The rotational rates and angles are defined with respect to right hand grip rule. The position coordinates of the aircraft are defined with respect to earth fixed inertial frame. x, y, h are defined as position coordinates with respect to inertial frame. Where x is forward distance, y is sideward distance and h is the height above ground.
Chapter 2. Mathematical modeling 8 Six-DOF equations Under the assumptions of airplane to be a rigid body and earth to be flat, the complete set of six-DOF equations of motion [28] are given by following differential equations. Translational dynamic equations ˙u = rv − qw − gsinθ + Xa + Xt m (2.1) ˙v = pw − ru + gsinφcosθ + Ya m (2.2) ˙w = qu − pv + gcosφcosθ + Za m (2.3) Rotational dynamic equations ˙p = c1rq + c2pq + c3La + c4Na (2.4) ˙q = c5pr + c6(p2 − r2 ) + c7(Ma + Mt) (2.5) ˙r = c8pq − c2rq + c4La + c9Na (2.6) Rotational kinematic equations ˙φ = p + qsinφtanθ + rcosφtanθ (2.7) ˙θ = qcosφ − rsinφ (2.8) ˙ψ = qsinφsecθ + rcosφsecθ (2.9) Translational kinematic equations ˙x = u cosθcosψ + v(sinφsinθsinψ − cosφsinψ) + w(cosφsinθcosψ + sinφsinψ)(2.10) ˙y = u cosθsinψ + v(sinφsinθsinψ + cosφcosψ) + w(cosφsinθsinψ − sinφcosψ)(2.11) ˙h = u sinθ − vsinφcosθ − wcosφcosθ (2.12) In above equations Xa, Ya, Za are the aerodynamic forces and La, Ma, Na are the moments about the body axis. m is the mass of the vehicle. Xt is the thrust force in body axis X direction and Mt is the moment around the Y axis caused by thrust, as it does not pass through the center of gravity of the aircraft.

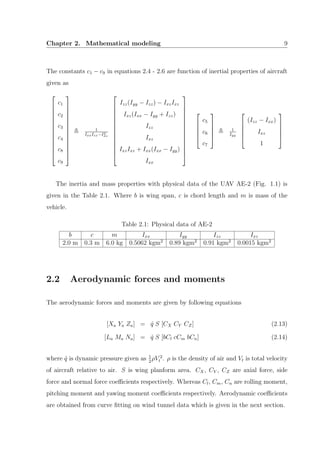

Chapter 2. Mathematical modeling 9 The constants c1 − c9 in equations 2.4 - 2.6 are function of inertial properties of aircraft given as               c1 c2 c3 c4 c8 c9               1 IxxIzz−I2 xz               Izz(Iyy − Izz) − IxzIxz Ixz(Ixx − Iyy + Izz) Izz Ixz IxzIxz + Ixx(Ixx − Iyy) Ixx                    c5 c6 c7      1 Iyy      (Izz − Ixx) Ixz 1      The inertia and mass properties with physical data of the UAV AE-2 (Fig. 1.1) is given in the Table 2.1. Where b is wing span, c is chord length and m is mass of the vehicle. Table 2.1: Physical data of AE-2 b c m Ixx Iyy Izz Ixz 2.0 m 0.3 m 6.0 kg 0.5062 kgm2 0.89 kgm2 0.91 kgm2 0.0015 kgm2 2.2 Aerodynamic forces and moments The aerodynamic forces and moments are given by following equations [Xa Ya Za] = ˆq S [CX CY CZ] (2.13) [La Ma Na] = ˆq S [bCl cCm bCn] (2.14) where ˆq is dynamic pressure given as 1 2 ρV 2 t . ρ is the density of air and Vt is total velocity of aircraft relative to air. S is wing planform area. CX, CY , CZ are axial force, side force and normal force coefficients respectively. Whereas Cl, Cm, Cn are rolling moment, pitching moment and yawing moment coefficients respectively. Aerodynamic coefficients are obtained from curve fitting on wind tunnel data which is given in the next section.

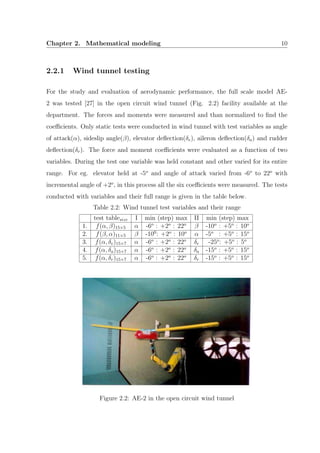

Chapter 2. Mathematical modeling 10 2.2.1 Wind tunnel testing For the study and evaluation of aerodynamic performance, the full scale model AE- 2 was tested [27] in the open circuit wind tunnel (Fig. 2.2) facility available at the department. The forces and moments were measured and than normalized to find the coefficients. Only static tests were conducted in wind tunnel with test variables as angle of attack(α), sideslip angle(β), elevator deflection(δe), aileron deflection(δa) and rudder deflection(δr). The force and moment coefficients were evaluated as a function of two variables. During the test one variable was held constant and other varied for its entire range. For eg. elevator held at -5o and angle of attack varied from -6o to 22o with incremental angle of +2o , in this process all the six coefficients were measured. The tests conducted with variables and their full range is given in the table below. Table 2.2: Wind tunnel test variables and their range test tablesize I min (step) max II min (step) max 1. f(α, β)15×5 α -6o : +2o : 22o β -10o : +5o : 10o 2. f(β, α)11×5 β -100 : +2o : 10o α -5o : +5o : 15o 3. f(α, δe)15×7 α -6o : +2o : 22o δe -25o : +5o : 5o 4. f(α, δa)15×7 α -6o : +2o : 22o δa -15o : +5o : 15o 5. f(α, δr)15×7 α -6o : +2o : 22o δr -15o : +5o : 15o Figure 2.2: AE-2 in the open circuit wind tunnel

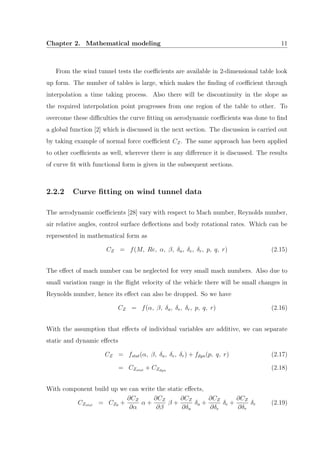

Chapter 2. Mathematical modeling 11 From the wind tunnel tests the coefficients are available in 2-dimensional table look up form. The number of tables is large, which makes the finding of coefficient through interpolation a time taking process. Also there will be discontinuity in the slope as the required interpolation point progresses from one region of the table to other. To overcome these difficulties the curve fitting on aerodynamic coefficients was done to find a global function [2] which is discussed in the next section. The discussion is carried out by taking example of normal force coefficient CZ. The same approach has been applied to other coefficients as well, wherever there is any difference it is discussed. The results of curve fit with functional form is given in the subsequent sections. 2.2.2 Curve fitting on wind tunnel data The aerodynamic coefficients [28] vary with respect to Mach number, Reynolds number, air relative angles, control surface deflections and body rotational rates. Which can be represented in mathematical form as CZ = f(M, Re, α, β, δa, δe, δr, p, q, r) (2.15) The effect of mach number can be neglected for very small mach numbers. Also due to small variation range in the flight velocity of the vehicle there will be small changes in Reynolds number, hence its effect can also be dropped. So we have CZ = f(α, β, δa, δe, δr, p, q, r) (2.16) With the assumption that effects of individual variables are additive, we can separate static and dynamic effects CZ = fstat(α, β, δa, δe, δr) + fdyn(p, q, r) (2.17) = CZstat + CZdyn (2.18) With component build up we can write the static effects, CZstat = CZ0 + ∂CZ ∂α α + ∂CZ ∂β β + ∂CZ ∂δa δa + ∂CZ ∂δe δe + ∂CZ ∂δr δr (2.19)

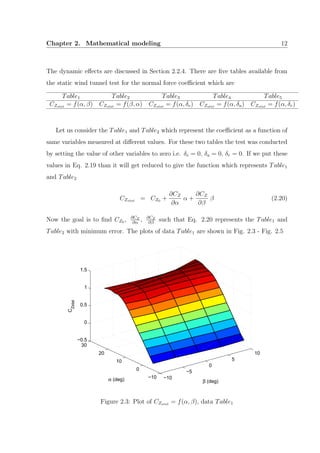

Chapter 2. Mathematical modeling 12 The dynamic effects are discussed in Section 2.2.4. There are five tables available from the static wind tunnel test for the normal force coefficient which are Table1 Table2 Table3 Table4 Table5 CZstat = f(α, β) CZstat = f(β, α) CZstat = f(α, δe) CZstat = f(α, δa) CZstat = f(α, δr) Let us consider the Table1 and Table2 which represent the coefficient as a function of same variables measured at different values. For these two tables the test was conducted by setting the value of other variables to zero i.e. δe = 0, δa = 0, δr = 0. If we put these values in Eq. 2.19 than it will get reduced to give the function which represents Table1 and Table2 CZstat = CZ0 + ∂CZ ∂α α + ∂CZ ∂β β (2.20) Now the goal is to find CZ0 , ∂CZ ∂α , ∂CZ ∂β such that Eq. 2.20 represents the Table1 and Table2 with minimum error. The plots of data Table1 are shown in Fig. 2.3 - Fig. 2.5 −10 −5 0 5 10 −10 0 10 20 30 −0.5 0 0.5 1 1.5 β (deg)α (deg) C Zstat Figure 2.3: Plot of CZstat = f(α, β), data Table1

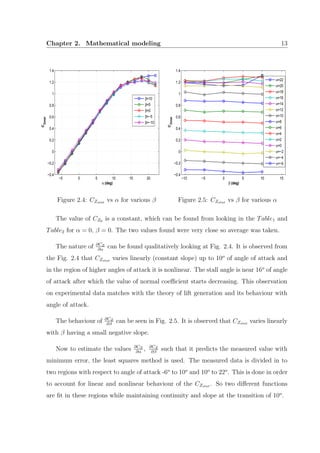

Chapter 2. Mathematical modeling 13 −5 0 5 10 15 20 −0.4 −0.2 0 0.2 0.4 0.6 0.8 1 1.2 1.4 α (deg) CZstat β=10 β=5 β=0 β=−5 β=−10 Figure 2.4: CZstat vs α for various β −10 −5 0 5 10 15 −0.4 −0.2 0 0.2 0.4 0.6 0.8 1 1.2 1.4 β (deg) C Zstat α=22 α=20 α=18 α=16 α=14 α=12 α=10 α=8 α=6 α=4 α=2 α=0 α=−2 α=−4 α=−6 Figure 2.5: CZstat vs β for various α The value of CZ0 is a constant, which can be found from looking in the Table1 and Table2 for α = 0, β = 0. The two values found were very close so average was taken. The nature of ∂CZ ∂α can be found qualitatively looking at Fig. 2.4. It is observed from the Fig. 2.4 that CZstat varies linearly (constant slope) up to 10o of angle of attack and in the region of higher angles of attack it is nonlinear. The stall angle is near 16o of angle of attack after which the value of normal coefficient starts decreasing. This observation on experimental data matches with the theory of lift generation and its behaviour with angle of attack. The behaviour of ∂CZ ∂β can be seen in Fig. 2.5. It is observed that CZstat varies linearly with β having a small negative slope. Now to estimate the values ∂CZ ∂α , ∂CZ ∂β such that it predicts the measured value with minimum error, the least squares method is used. The measured data is divided in to two regions with respect to angle of attack -6o to 10o and 10o to 22o . This is done in order to account for linear and nonlinear behaviour of the CZstat . So two different functions are fit in these regions while maintaining continuity and slope at the transition of 10o .
Chapter 2. Mathematical modeling 14 Least squares estimation Let us denote the measured value of normal force coefficient as CZmij . Which is the measured value of CZstat at αi and βj. The function which predicts the measured value is given by Eq. 2.20 CZpij = CZ0 + CZα αi + CZβ βj (2.21) where CZpij is the predicted value of CZstat at measured values of αi and βj. The constants CZα and CZβ represent ∂CZ ∂α and ∂CZ ∂β respectively. Here CZα and CZβ are constants as we have observed above that the slopes of normal force coefficient vary linearly with α and β in the range of -6o to 10o of angle of attack. Where the slopes vary, the derivatives are expanded in power series of the depending variables. The error in measured value and predicted value can be written as error = C0 Zmij − C0 Zpij (2.22) where C0 Zmij CZmij − CZ0 and C0 Zpij CZpij − CZ0 = CZα αi + CZβ βj (from Eq. 2.21) The value of CZ0 is subtracted as it is found directly from the table as discussed above and assumed that is measured to a very good accuracy. The total sum of square errors will be J = Σ(C0 Zmij − C0 Zpij )2 (2.23) Taking the derivative of the above cost function with free variables CZα and CZβ and equating them to zero for minimum ∂J ∂CZα = 2Σ(C0 Zmij − C0 Zpij )αi = 0 (2.24) ∂J ∂CZβ = 2Σ(C0 Zmij − C0 Zpij )βj = 0 (2.25)

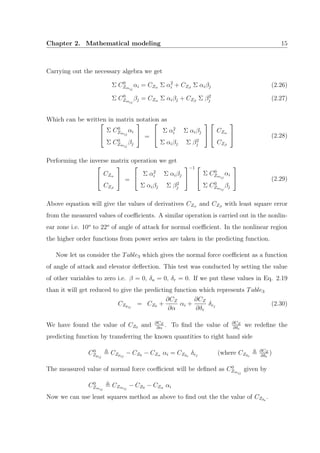

Chapter 2. Mathematical modeling 15 Carrying out the necessary algebra we get Σ C0 Zmij αi = CZα Σ α2 i + CZβ Σ αiβj (2.26) Σ C0 Zmij βj = CZα Σ αiβj + CZβ Σ β2 j (2.27) Which can be written in matrix notation as  Σ C0 Zmij αi Σ C0 Zmij βj   =   Σ α2 i Σ αiβj Σ αiβj Σ β2 j     CZα CZβ   (2.28) Performing the inverse matrix operation we get   CZα CZβ   =   Σ α2 i Σ αiβj Σ αiβj Σ β2 j   −1   Σ C0 Zmij αi Σ C0 Zmij βj   (2.29) Above equation will give the values of derivatives CZα and CZβ with least square error from the measured values of coefficients. A similar operation is carried out in the nonlin- ear zone i.e. 10o to 22o of angle of attack for normal coefficient. In the nonlinear region the higher order functions from power series are taken in the predicting function. Now let us consider the Table3 which gives the normal force coefficient as a function of angle of attack and elevator deflection. This test was conducted by setting the value of other variables to zero i.e. β = 0, δa = 0, δr = 0. If we put these values in Eq. 2.19 than it will get reduced to give the predicting function which represents Table3 CZpij = CZ0 + ∂CZ ∂α αi + ∂CZ ∂δe δej (2.30) We have found the value of CZ0 and ∂CZ ∂α . To find the value of ∂CZ ∂δe we redefine the predicting function by transferring the known quantities to right hand side C0 Zpij CZpij − CZ0 − CZα αi = CZδe δej (where CZδe ∂CZ ∂δe ) The measured value of normal force coefficient will be defined as C0 Zmij given by C0 Zmij CZmij − CZ0 − CZα αi Now we can use least squares method as above to find out the the value of CZδe .

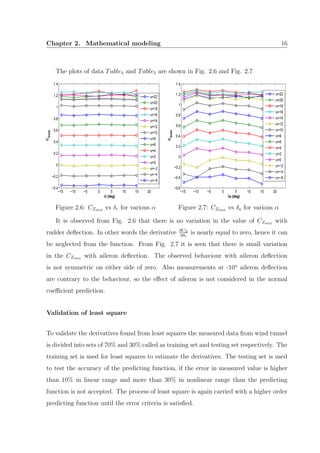

Chapter 2. Mathematical modeling 16 The plots of data Table4 and Table5 are shown in Fig. 2.6 and Fig. 2.7 −15 −10 −5 0 5 10 15 20 −0.4 −0.2 0 0.2 0.4 0.6 0.8 1 1.2 1.4 δr (deg) C Zstat α=22 α=20 α=18 α=16 α=14 α=12 α=10 α=8 α=6 α=4 α=2 α=0 α=−2 α=−4 α=−6 Figure 2.6: CZstat vs δr for various α −15 −10 −5 0 5 10 15 20 −0.6 −0.4 −0.2 0 0.2 0.4 0.6 0.8 1 1.2 1.4 δa (deg) C Zstat α=22 α=20 α=18 α=16 α=14 α=12 α=10 α=8 α=6 α=4 α=2 α=0 α=−2 α=−4 α=−6 Figure 2.7: CZstat vs δa for various α It is observed from Fig. 2.6 that there is no variation in the value of CZstat with rudder deflection. In other words the derivative ∂CZ ∂δr is nearly equal to zero, hence it can be neglected from the function. From Fig. 2.7 it is seen that there is small variation in the CZstat with aileron deflection. The observed behaviour with aileron deflection is not symmetric on either side of zero. Also measurements at -10o aileron deflection are contrary to the behaviour, so the effect of aileron is not considered in the normal coefficient prediction. Validation of least square To validate the derivatives found from least squares the measured data from wind tunnel is divided into sets of 70% and 30% called as training set and testing set respectively. The training set is used for least squares to estimate the derivatives. The testing set is used to test the accuracy of the predicting function, if the error in measured value is higher than 10% in linear range and more than 30% in nonlinear range than the predicting function is not accepted. The process of least square is again carried with a higher order predicting function until the error criteria is satisfied.
Chapter 2. Mathematical modeling 17 2.2.3 Static stability derivatives The results of curve fitting on wind tunnel data is presented in this section. First the results for normal force coefficient is presented followed by axial force, pitching moment, side force, rolling moment and yawing moment coefficient. Some of the derivatives are partitioned with respect to angle of attack into linear region and nonlinear region. The α value for partition was found to be 10 degree. In expanded derivative functions α10 0 if α <= 10 α − 10 if α > 10 The values of derivatives and their constants found is given in Table 2.4. The result plots are shown below where circles in plots show the wind tunnel data and solid lines are the curves obtained by function fit. CZstat : Normal force coefficient Fig 2.8 and Fig. 2.9 show the results for curve fit on CZstat with angle of attack. −5 0 5 10 15 20 −0.4 −0.2 0 0.2 0.4 0.6 0.8 1 1.2 1.4 α (deg) C Zstat β=10 β=5 β=0 β=−5 β=−10 Figure 2.8: Curve fit on CZstat (α, β) vs α −5 0 5 10 15 20 −0.6 −0.4 −0.2 0 0.2 0.4 0.6 0.8 1 1.2 1.4 α (deg) C Zstat δ e=5 δ e=0 δ e=−5 δ e=−10 δ e=−15 δ e=−20 δ e=−25 Figure 2.9: Curve fit on CZstat (α, δe) vs α

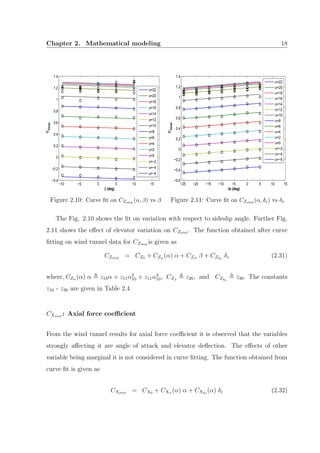

Chapter 2. Mathematical modeling 18 −10 −5 0 5 10 15 −0.4 −0.2 0 0.2 0.4 0.6 0.8 1 1.2 1.4 β (deg) C Zstat α=22 α=20 α=18 α=16 α=14 α=12 α=10 α=8 α=6 α=4 α=2 α=0 α=−2 α=−4 α=−6 Figure 2.10: Curve fit on CZstat (α, β) vs β −25 −20 −15 −10 −5 0 5 10 15 −0.6 −0.4 −0.2 0 0.2 0.4 0.6 0.8 1 1.2 1.4 δe (deg) C Zstat α=22 α=20 α=18 α=16 α=14 α=12 α=10 α=8 α=6 α=4 α=2 α=0 α=−2 α=−4 α=−6 Figure 2.11: Curve fit on CZstat (α, δe) vs δe The Fig. 2.10 shows the fit on variation with respect to sideslip angle. Further Fig. 2.11 shows the effect of elevator variation on CZstat . The function obtained after curve fitting on wind tunnel data for CZstat is given as CZstat = CZ0 + CZα (α) α + CZβ β + CZδe δe (2.31) where, CZα (α) α z10α + z11α2 10 + z11α3 10, CZβ z20, and CZδe z30. The constants z10 - z30 are given in Table 2.4 CXstat : Axial force coefficient From the wind tunnel results for axial force coefficient it is observed that the variables strongly affecting it are angle of attack and elevator deflection. The effects of other variable being marginal it is not considered in curve fitting. The function obtained from curve fit is given as CXstat = CX0 + CXα (α) α + CXδe (α) δe (2.32)
Chapter 2. Mathematical modeling 19 where, CXα (α) α x10α + x11α2 + x12α2 10 + x13α3 10 + x14α4 10 CXδe x20 + x21α + x22α2 10 The coefficient is divided in two zones on basis of angle of attack as the coefficient is highly nonlinear after 10o angle of attack, which can also be observed from Fig. 2.12. The effectiveness of elevator changes in higher angle of attack region which is accounted in CXδe by making it a function of angle of attack. −5 0 5 10 15 20 −0.2 −0.1 0 0.1 α (deg) C Xstat δ e=5 δ e=0 δ e=−5 δ e=−10 δ e=−15 δ e=−20 δ e=−25 Figure 2.12: Curve fit on CXstat (α, δe) vs α −25 −20 −15 −10 −5 0 5 10 −0.2 −0.1 0 0.1 δe (deg) C Xstat α=22 α=20 α=18 α=16 α=14 α=12 α=10 α=8 α=6 α=4 α=2 α=0 α=−2 α=−4 α=−6 Figure 2.13: Curve fit on CXstat (α, δe) vs δe Cmstat : Pitching moment coefficient It is observed from wind tunnel data of pitching moment coefficient that aileron and rud- der have negligible effect, hence not considered for curve fitting. The function obtained from curve fit is given as Cmstat = Cm0 + Cmα (α) α + Cmβ (α, β) β + Cmδe (α) δe (2.33) where, Cmα m10 + m11α + m12α2 + m13α3 + m14α4 Cmβ m20 + m21β + m22αβ Cmδe m30 + m31α

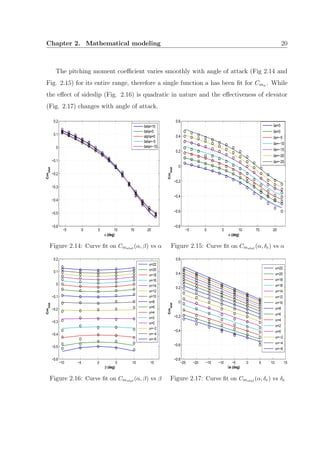

Chapter 2. Mathematical modeling 20 The pitching moment coefficient varies smoothly with angle of attack (Fig 2.14 and Fig. 2.15) for its entire range, therefore a single function a has been fit for Cmα . While the effect of sideslip (Fig. 2.16) is quadratic in nature and the effectiveness of elevator (Fig. 2.17) changes with angle of attack. −5 0 5 10 15 20 −0.6 −0.5 −0.4 −0.3 −0.2 −0.1 0 0.1 0.2 α (deg) Cm stat beta=10 beta=5 alpha=0 beta=−5 beta=−10 Figure 2.14: Curve fit on Cmstat (α, β) vs α −5 0 5 10 15 20 −0.8 −0.6 −0.4 −0.2 0 0.2 0.4 0.6 α (deg) Cm stat δe=5 δe=0 δe=−5 δe=−10 δe=−15 δe=−20 δe=−25 Figure 2.15: Curve fit on Cmstat (α, δe) vs α −10 −5 0 5 10 15 −0.6 −0.5 −0.4 −0.3 −0.2 −0.1 0 0.1 0.2 β (deg) Cm stat α=22 α=20 α=18 α=16 α=14 α=12 α=10 α=8 α=6 α=4 α=2 α=0 α=−2 α=−4 α=−6 Figure 2.16: Curve fit on Cmstat (α, β) vs β −25 −20 −15 −10 −5 0 5 10 15 −0.8 −0.6 −0.4 −0.2 0 0.2 0.4 0.6 δe (deg) Cm stat α=22 α=20 α=18 α=16 α=14 α=12 α=10 α=8 α=6 α=4 α=2 α=0 α=−2 α=−4 α=−6 Figure 2.17: Curve fit on Cmstat (α, δe) vs δe
Chapter 2. Mathematical modeling 21 CYstat : Side force coefficient The side force coefficient obtained from wind tunnel data had non zero values even when the sideslip angle was zero along with control surfaces. This non zero side force could result from asymmetric manufacturing of vehicle or non alignment with wind direction in wind tunnel. Therefor this error was subtracted from the data table to make the coefficient symmetric with sideslip. −5 0 5 10 15 20 −0.2 −0.15 −0.1 −0.05 0 0.05 0.1 0.15 α (deg) CYstat β=10 β=5 β=0 β=−5 β=−10 Figure 2.18: Curve fit on CYstat (α, β) vs α −10 −5 0 5 10 15 −0.2 −0.15 −0.1 −0.05 0 0.05 0.1 0.15 β (deg) C Ystat α=22 α=20 α=18 α=16 α=14 α=12 α=10 α=8 α=6 α=4 α=2 α=0 α=−2 α=−4 α=−6 Figure 2.19: Curve fit on CYstat (α, β) vs β −15 −10 −5 0 5 10 15 20 −0.05 −0.04 −0.03 −0.02 −0.01 0 0.01 0.02 0.03 0.04 0.05 δr (deg) CYstat α=22 α=20 α=18 α=16 α=14 α=12 α=10 α=8 α=6 α=4 α=2 α=0 α=−2 α=−4 α=−6 Figure 2.20: Curve fit on CYstat (α, δr) vs δr −15 −10 −5 0 5 10 15 20 −0.2 −0.15 −0.1 −0.05 0 0.05 0.1 0.15 δa (deg) C Ystat α=22 α=20 α=18 α=16 α=14 α=12 α=10 α=8 α=6 α=4 α=2 α=0 α=−2 α=−4 α=−6 Figure 2.21: Curve fit on CYstat (α, δa) vs δa

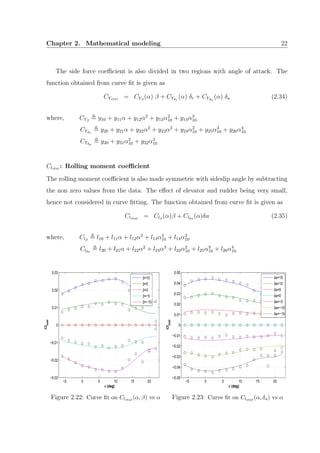

Chapter 2. Mathematical modeling 22 The side force coefficient is also divided in two regions with angle of attack. The function obtained from curve fit is given as CYstat = CYβ (α) β + CYδr (α) δr + CYδa (α) δa (2.34) where, CYβ y10 + y11α + y12α2 + y13α2 10 + y14α3 10 CYδr y20 + y21α + y22α2 + y23α2 + y24α2 10 + y25α3 10 + y26α4 10 CYδa y30 + y31α2 10 + y32α3 10 Clstat : Rolling moment coefficient The rolling moment coefficient is also made symmetric with sideslip angle by subtracting the non zero values from the data. The effect of elevator and rudder being very small, hence not considered in curve fitting. The function obtained from curve fit is given as Clstat = Clβ (α)β + Clδa (α)δa (2.35) where, Clβ l10 + l11α + l12α2 + l13α2 10 + l14α3 10 Clδa l20 + l21α + l22α2 + l23α3 + l24α2 10 + l25α3 10 + l26α4 10 −5 0 5 10 15 20 −0.03 −0.02 −0.01 0 0.01 0.02 0.03 α (deg) Clstat β=10 β=5 β=0 β=−5 β=−10 Figure 2.22: Curve fit on Clstat (α, β) vs α −5 0 5 10 15 20 −0.05 −0.04 −0.03 −0.02 −0.01 0 0.01 0.02 0.03 0.04 0.05 α (deg) Cl stat δa=15 δa=10 δa=5 δa=0 δa=−5 δa=−10 δa=−15 Figure 2.23: Curve fit on Clstat (α, δa) vs α
Chapter 2. Mathematical modeling 23 −10 −5 0 5 10 15 −0.03 −0.02 −0.01 0 0.01 0.02 0.03 β (deg) Clstat α=22 α=20 α=18 α=16 α=14 α=12 α=10 α=8 α=6 α=4 α=2 α=0 α=−2 α=−4 α=−6 Figure 2.24: Curve fit on Clstat (α, β) vs β −15 −10 −5 0 5 10 15 20 −0.05 −0.04 −0.03 −0.02 −0.01 0 0.01 0.02 0.03 0.04 0.05 δa (deg) Clstat α=22 α=20 α=18 α=16 α=14 α=12 α=10 α=8 α=6 α=4 α=2 α=0 α=−2 α=−4 α=−6 Figure 2.25: Curve fit on Clstat (α, δa) vs δa Cnstat : Yawing moment coefficient The function obtained from curve fit for yawing moment coefficient is given as Cnstat = Cnβ (α)β + Cnδr (α)δr (2.36) where, Cnβ n10 + n11α + n12α2 + n13α2 10 Cnδr n20 + n21α2 10 + n22α3 10 −5 0 5 10 15 20 −0.025 −0.02 −0.015 −0.01 −0.005 0 0.005 0.01 0.015 0.02 0.025 α (deg) Cnstat β=10 β=5 β=0 β=−5 β=−10 Figure 2.26: Curve fit on Cnstat (α, β) vs α −5 0 5 10 15 20 −0.015 −0.01 −0.005 0 0.005 0.01 0.015 α (deg) Cn stat δr=15 δr=10 δr=5 δr=0 δr=−5 δr=−10 δr=−15 Figure 2.27: Curve fit on Cnstat (α, δr) vs α

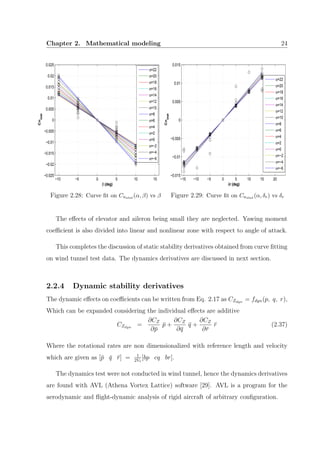

Chapter 2. Mathematical modeling 24 −10 −5 0 5 10 15 −0.025 −0.02 −0.015 −0.01 −0.005 0 0.005 0.01 0.015 0.02 0.025 β (deg) Cnstat α=22 α=20 α=18 α=16 α=14 α=12 α=10 α=8 α=6 α=4 α=2 α=0 α=−2 α=−4 α=−6 Figure 2.28: Curve fit on Cnstat (α, β) vs β −15 −10 −5 0 5 10 15 20 −0.015 −0.01 −0.005 0 0.005 0.01 0.015 δr (deg) Cn stat α=22 α=20 α=18 α=16 α=14 α=12 α=10 α=8 α=6 α=4 α=2 α=0 α=−2 α=−4 α=−6 Figure 2.29: Curve fit on Cnstat (α, δr) vs δr The effects of elevator and aileron being small they are neglected. Yawing moment coefficient is also divided into linear and nonlinear zone with respect to angle of attack. This completes the discussion of static stability derivatives obtained from curve fitting on wind tunnel test data. The dynamics derivatives are discussed in next section. 2.2.4 Dynamic stability derivatives The dynamic effects on coefficients can be written from Eq. 2.17 as CZdyn = fdyn(p, q, r), Which can be expanded considering the individual effects are additive CZdyn = ∂CZ ∂¯p ¯p + ∂CZ ∂¯q ¯q + ∂CZ ∂¯r ¯r (2.37) Where the rotational rates are non dimensionalized with reference length and velocity which are given as [¯p ¯q ¯r] = 1 2Vt [bp cq br]. The dynamics test were not conducted in wind tunnel, hence the dynamics derivatives are found with AVL (Athena Vortex Lattice) software [29]. AVL is a program for the aerodynamic and flight-dynamic analysis of rigid aircraft of arbitrary configuration.

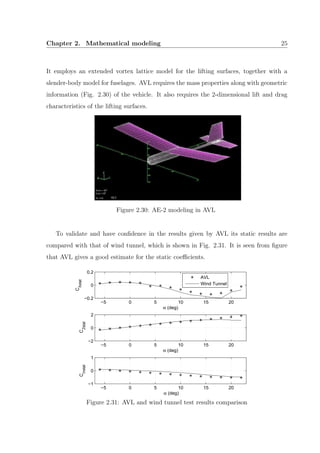

Chapter 2. Mathematical modeling 25 It employs an extended vortex lattice model for the lifting surfaces, together with a slender-body model for fuselages. AVL requires the mass properties along with geometric information (Fig. 2.30) of the vehicle. It also requires the 2-dimensional lift and drag characteristics of the lifting surfaces. Figure 2.30: AE-2 modeling in AVL To validate and have confidence in the results given by AVL its static results are compared with that of wind tunnel, which is shown in Fig. 2.31. It is seen from figure that AVL gives a good estimate for the static coefficients. −5 0 5 10 15 20 −0.2 0 0.2 α (deg) CXstat AVL Wind Tunnel −5 0 5 10 15 20 −2 0 2 α (deg) CZstat −5 0 5 10 15 20 −1 0 1 α (deg) Cmstat Figure 2.31: AVL and wind tunnel test results comparison

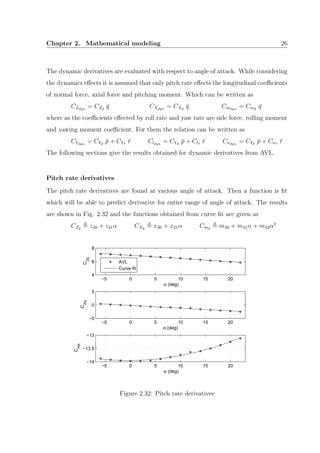

Chapter 2. Mathematical modeling 26 The dynamic derivatives are evaluated with respect to angle of attack. While considering the dynamics effects it is assumed that only pitch rate effects the longitudinal coefficients of normal force, axial force and pitching moment. Which can be written as CZdyn = CZ¯q ¯q CXdyn = CX¯q ¯q Cmdyn = Cm¯q ¯q where as the coefficients effected by roll rate and yaw rate are side force, rolling moment and yawing moment coefficient. For them the relation can be written as CYdyn = CY¯p ¯p + CY¯r ¯r Cldyn = CY¯p ¯p + Cl¯r ¯r Cndyn = CY¯p ¯p + Cn¯r ¯r The following sections give the results obtained for dynamic derivatives from AVL. Pitch rate derivatives The pitch rate derivatives are found at various angle of attack. Then a function is fit which will be able to predict derivative for entire range of angle of attack. The results are shown in Fig. 2.32 and the functions obtained from curve fit are given as CZ¯q z40 + z41α CX¯q x30 + x31α Cm¯q m40 + m41α + m42α2 −5 0 5 10 15 20 4 6 8 α (deg) C Zq AVL Curve fit −5 0 5 10 15 20 −5 0 5 α (deg) C Xq −5 0 5 10 15 20 −14 −13.5 −13 α (deg) C mq Figure 2.32: Pitch rate derivatives

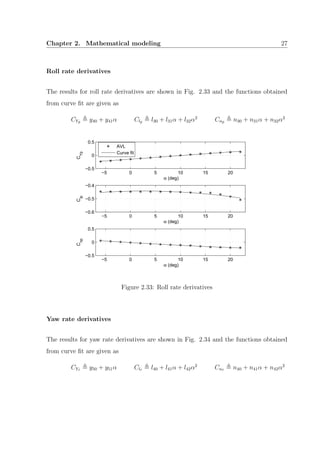

Chapter 2. Mathematical modeling 27 Roll rate derivatives The results for roll rate derivatives are shown in Fig. 2.33 and the functions obtained from curve fit are given as CY¯p y40 + y41α Cl¯p l30 + l31α + l32α2 Cn¯p n30 + n31α + n32α2 −5 0 5 10 15 20 −0.5 0 0.5 α (deg) C Yp AVL Curve fit −5 0 5 10 15 20 −0.6 −0.5 −0.4 α (deg) C lp −5 0 5 10 15 20 −0.5 0 0.5 α (deg) C np Figure 2.33: Roll rate derivatives Yaw rate derivatives The results for yaw rate derivatives are shown in Fig. 2.34 and the functions obtained from curve fit are given as CY¯r y50 + y51α Cl¯r l40 + l41α + l42α2 Cn¯r n40 + n41α + n42α2

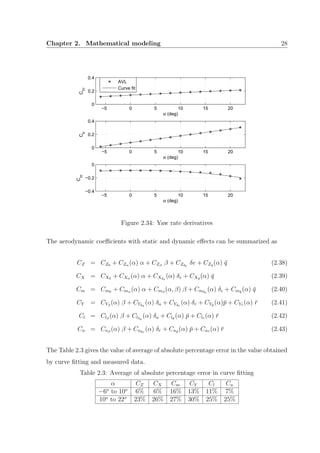

Chapter 2. Mathematical modeling 28 −5 0 5 10 15 20 0 0.2 0.4 α (deg) C Yr AVL Curve fit −5 0 5 10 15 20 0 0.2 0.4 α (deg) C lr −5 0 5 10 15 20 −0.4 −0.2 0 α (deg) C nr Figure 2.34: Yaw rate derivatives The aerodynamic coefficients with static and dynamic effects can be summarized as CZ = CZ0 + CZα (α) α + CZβ β + CZδe δe + CZ¯q (α) ¯q (2.38) CX = CX0 + CXα (α) α + CXδe (α) δe + CX¯q (α) ¯q (2.39) Cm = Cm0 + Cmα (α) α + Cmβ (α, β) β + Cmδe (α) δe + Cm¯q (α) ¯q (2.40) CY = CYβ (α) β + CYδa (α) δa + CYδr (α) δr + CY¯p (α)¯p + CY¯r (α) ¯r (2.41) Cl = Clβ (α) β + Clδa (α) δa + Cl¯p (α) ¯p + Cl¯r (α) ¯r (2.42) Cn = Cnβ (α) β + Cnδr (α) δr + Cn¯p (α) ¯p + Cn¯r (α) ¯r (2.43) The Table 2.3 gives the value of average of absolute percentage error in the value obtained by curve fitting and measured data. Table 2.3: Average of absolute percentage error in curve fitting α CZ CX Cm CY Cl Cn −6o to 10o 6% 6% 16% 13% 11% 7% 10o to 22o 23% 26% 27% 30% 25% 25%

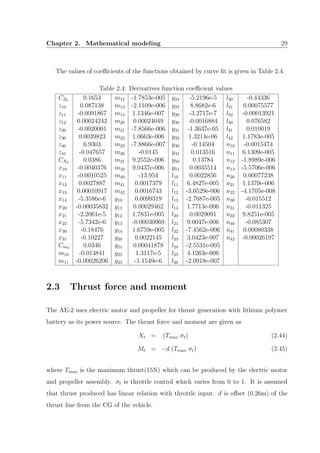

Chapter 2. Mathematical modeling 29 The values of coefficients of the functions obtained by curve fit is given in Table 2.4. Table 2.4: Derivatives function coefficient values CZ0 0.1653 m12 -1.7853e-005 y24 -5.2196e-5 l30 -0.44336 z10 0.087138 m13 -2.1109e-006 y25 8.8682e-6 l31 0.00075577 z11 -0.0091867 m14 1.1346e-007 y26 -3.2717e-7 l32 -0.00013921 z12 0.00024242 m20 0.00024049 y30 -0.0016884 l40 0.076582 z20 -0.0020001 m21 -7.8566e-006 y31 -1.3637e-05 l41 0.010019 z30 0.0039823 m22 1.0663e-006 y32 1.3214e-06 l42 1.1783e-005 z40 6.9303 m23 -7.8866e-007 y40 -0.14504 n10 -0.0015474 z41 -0.047657 m30 -0.0145 y41 0.013516 n11 6.1309e-005 CX0 0.0386 m31 9.2552e-006 y50 0.13784 n12 -1.8989e-006 x10 -0.0040376 m32 9.0437e-006 y51 0.0035514 n13 -5.5706e-006 x11 -0.0010525 m40 -13.954 l10 0.0022856 n20 0.00077238 x12 0.0027887 m41 0.0017379 l11 6.4827e-005 n21 1.1379e-006 x13 0.00010917 m42 0.0016743 l12 -3.0529e-006 n22 -4.1705e-008 x14 -5.3586e-6 y10 0.0099319 l13 -2.7687e-005 n30 -0.015512 x20 -0.00035832 y11 0.00029462 l14 1.7713e-006 n31 -0.011325 x21 -2.2061e-5 y12 1.7831e-005 l20 0.0029091 n32 9.8251e-005 x22 -5.7342e-6 y13 -0.00030969 l21 9.0047e-006 n40 -0.085307 x30 -0.18476 y14 1.6759e-005 l22 -7.4562e-006 n41 0.00080338 x31 -0.10227 y20 0.0022145 l23 3.0423e-007 n42 -0.00026197 Cm0 0.0346 y21 0.00041878 l24 -2.5531e-005 m10 -0.013841 y22 1.3117e-5 l25 4.1263e-006 m11 -0.00026206 y23 -1.1549e-6 l26 -2.0918e-007 2.3 Thrust force and moment The AE-2 uses electric motor and propeller for thrust generation with lithium polymer battery as its power source. The thrust force and moment are given as Xt = (Tmax σt) (2.44) Mt = −d (Tmax σt) (2.45) where Tmax is the maximum thrust(15N) which can be produced by the electric motor and propeller assembly. σt is throttle control which varies from 0 to 1. It is assumed that thrust produced has linear relation with throttle input. d is offset (0.26m) of the thrust line from the CG of the vehicle.

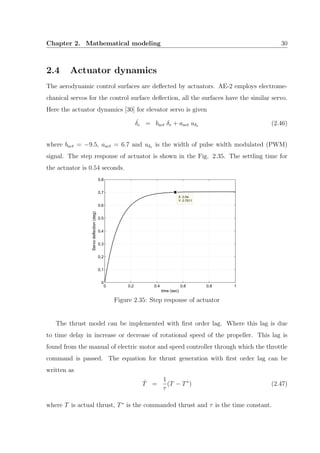

Chapter 2. Mathematical modeling 30 2.4 Actuator dynamics The aerodynamic control surfaces are deflected by actuators. AE-2 employs electrome- chanical servos for the control surface deflection, all the surfaces have the similar servo. Here the actuator dynamics [30] for elevator servo is given ˙δe = bact δe + aact uδe (2.46) where bact = −9.5, aact = 6.7 and uδe is the width of pulse width modulated (PWM) signal. The step response of actuator is shown in the Fig. 2.35. The settling time for the actuator is 0.54 seconds. 0 0.2 0.4 0.6 0.8 1 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 X: 0.54 Y: 0.7011 time (sec) Servodeflection(deg) Figure 2.35: Step response of actuator The thrust model can be implemented with first order lag. Where this lag is due to time delay in increase or decrease of rotational speed of the propeller. This lag is found from the manual of electric motor and speed controller through which the throttle command is passed. The equation for thrust generation with first order lag can be written as ˙T = 1 τ (T − T∗ ) (2.47) where T is actual thrust, T∗ is the commanded thrust and τ is the time constant.
Chapter 2. Mathematical modeling 31 2.5 Trim condition The trim condition for steady and level flight can be found at a given velocity and altitude. In order to find trim conditions we equate the dynamic equations to zero ( ˙X = 0) and solve for the unknown variables. Here the given conditions are velocity and altitude. The steady and level flight condition demand that the body angular rates and roll angle be equal to zero (p = q = r = φ = 0). The unknown quantities to be found are angle of attack, sideslip angle, pitch angle, throttle value and deflections of elevator, aileron and rudder control. The equations used to solve for the unknowns are [ ˙u ˙v ˙w ˙p ˙q ˙r ˙h] = 0, taken from the six-DOF equation of motion. Since the equations are nonlinear the fsolve function of Matlab is used for finding solution. The trim conditions at three different velocities and same altitude are found and given in table below. Table 2.5: Trim conditions at different velocities Vt h α β θ σt δe δa δr m/s m deg deg deg (0-1) deg deg deg 15 100 7.21 0 7.21 0.28 -9.81 0 0 20 100 3.15 0 3.15 0.36 -3.29 0 0 25 100 1.29 0 1.29 0.36 -1.17 0 0 The trim condition found can be verified with numerical simulation, by initializing the system states with trim condition and integrating it for some time. The states of the system will remain in the trim condition (Fig. 2.36 - 2.37) if the solution found is correct. 2.6 Simulation results The open loop simulation and analysis is done in this section. There are twelve states in the simulation and four controls X = [u v w p q r φ θ ψ x y h] Uc = [σt δe δa δr] The states u, v, w are replace by Vt, α, β in simulation results for better insight and correlation. The results of the simulation have been clubbed in to three groups. → Longitudinal states = (Vt α q θ x h) → Lateral states = (β p r φ ψ y) → Control variables = (σt δe δa δr)

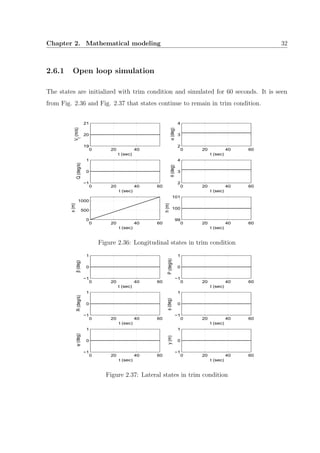

Chapter 2. Mathematical modeling 32 2.6.1 Open loop simulation The states are initialized with trim condition and simulated for 60 seconds. It is seen from Fig. 2.36 and Fig. 2.37 that states continue to remain in trim condition. 0 20 40 19 20 21 t (sec) V t (m/s) 0 20 40 60 2 3 4 t (sec) α(deg) 0 20 40 60 −1 0 1 t (sec) Q(deg/s) 0 20 40 60 2 3 4 t (sec) θ(deg) 0 20 40 60 0 500 1000 t (sec) x(m) 0 20 40 60 99 100 101 t (sec) h(m) Figure 2.36: Longitudinal states in trim condition 0 20 40 60 −1 0 1 t (sec) β(deg) 0 20 40 60 −1 0 1 t (sec) P(deg/s) 0 20 40 60 −1 0 1 t (sec) R(deg/s) 0 20 40 60 −1 0 1 t (sec) φ(deg) 0 20 40 60 −1 0 1 t (sec) ψ(deg) 0 20 40 60 −1 0 1 t (sec) y(m) Figure 2.37: Lateral states in trim condition
Chapter 2. Mathematical modeling 33 2.6.2 Perturbation around trim condition To study the stability of the system various perturbations are given around trim condi- tion. A stable aircraft should return to the same or a near by equilibrium point after oscillations. Fig. 2.38 and Fig. 2.39 show the stability of the vehicle with respect to velocity, angle of attack, pitch angle and pitch rate perturbations. 0 50 100 18 20 22 t (sec) Vt (m/s) 0 50 100 2 4 6 t (sec) α(deg) Vt (+2 m/s) α(+2 deg) 0 50 100 −10 0 10 t (sec) Q(deg/s) 0 50 100 −20 0 20 t (sec) θ(deg) 0 50 100 0 2000 4000 t (sec) x(m) 0 50 100 90 100 110 t (sec) h(m) Figure 2.38: Effect of velocity and angle of attack perturbation on longitudinal states 0 50 100 19 20 21 t (sec) V t (m/s) 0 50 100 2.5 3 3.5 t (sec) α(deg) θ(+3 deg) Q(−5 deg/s) 0 50 100 −5 0 5 t (sec) Q(deg/s) 0 50 100 0 5 10 t (sec) θ(deg) 0 50 100 0 2000 4000 t (sec) x(m) 0 50 100 98 100 102 t (sec) h(m) Figure 2.39: Effect of pitch angle and pitch rate perturbation on longitudinal states

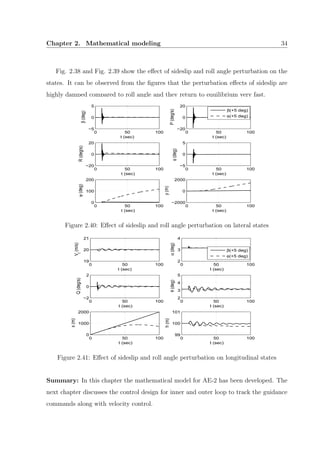

Chapter 2. Mathematical modeling 34 Fig. 2.38 and Fig. 2.39 show the effect of sideslip and roll angle perturbation on the states. It can be observed from the figures that the perturbation effects of sideslip are highly damped compared to roll angle and they return to equilibrium very fast. 0 50 100 −5 0 5 t (sec) β(deg) 0 50 100 −20 0 20 t (sec) P(deg/s) β(+5 deg) φ(+5 deg) 0 50 100 −20 0 20 t (sec) R(deg/s) 0 50 100 −5 0 5 t (sec)φ(deg) 0 50 100 0 100 200 t (sec) ψ(deg) 0 50 100 −2000 0 2000 t (sec) y(m) Figure 2.40: Effect of sideslip and roll angle perturbation on lateral states 0 50 100 19 20 21 t (sec) V t (m/s) 0 50 100 2 3 4 t (sec) α(deg) β(+5 deg) φ(+5 deg) 0 50 100 −2 0 2 t (sec) Q(deg/s) 0 50 100 2 3 4 5 t (sec) θ(deg) 0 50 100 0 1000 2000 t (sec) x(m) 0 50 100 99 100 101 t (sec) h(m) Figure 2.41: Effect of sideslip and roll angle perturbation on longitudinal states Summary: In this chapter the mathematical model for AE-2 has been developed. The next chapter discusses the control design for inner and outer loop to track the guidance commands along with velocity control.

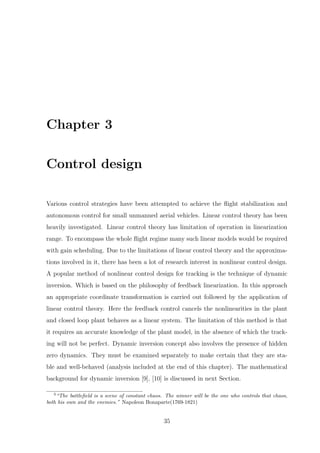

Chapter 3 Control design Various control strategies have been attempted to achieve the flight stabilization and autonomous control for small unmanned aerial vehicles. Linear control theory has been heavily investigated. Linear control theory has limitation of operation in linearization range. To encompass the whole flight regime many such linear models would be required with gain scheduling. Due to the limitations of linear control theory and the approxima- tions involved in it, there has been a lot of research interest in nonlinear control design. A popular method of nonlinear control design for tracking is the technique of dynamic inversion. Which is based on the philosophy of feedback linearization. In this approach an appropriate coordinate transformation is carried out followed by the application of linear control theory. Here the feedback control cancels the nonlinearities in the plant and closed loop plant behaves as a linear system. The limitation of this method is that it requires an accurate knowledge of the plant model, in the absence of which the track- ing will not be perfect. Dynamic inversion concept also involves the presence of hidden zero dynamics. They must be examined separately to make certain that they are sta- ble and well-behaved (analysis included at the end of this chapter). The mathematical background for dynamic inversion [9], [10] is discussed in next Section. 3 “The battlefield is a scene of constant chaos. The winner will be the one who controls that chaos, both his own and the enemies.” Napoleon Bonaparte(1769-1821) 35

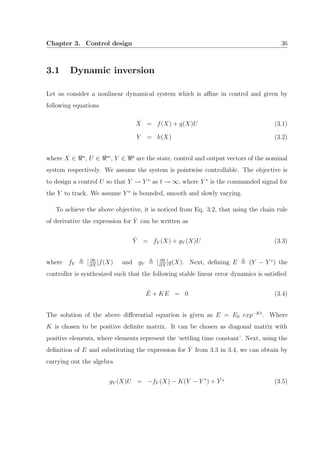

Chapter 3. Control design 36 3.1 Dynamic inversion Let us consider a nonlinear dynamical system which is affine in control and given by following equations ˙X = f(X) + g(X)U (3.1) Y = h(X) (3.2) where X ∈ n , U ∈ m , Y ∈ p are the state, control and output vectors of the nominal system respectively. We assume the system is pointwise controllable. The objective is to design a control U so that Y → Y ∗ as t → ∞, where Y ∗ is the commanded signal for the Y to track. We assume Y ∗ is bounded, smooth and slowly varying. To achieve the above objective, it is noticed from Eq. 3.2, that using the chain rule of derivative the expression for ˙Y can be written as ˙Y = fY (X) + gY (X)U (3.3) where fY [ ∂h ∂X ]f(X) and gY [ ∂h ∂X ]g(X). Next, defining E (Y − Y ∗ ) the controller is synthesized such that the following stable linear error dynamics is satisfied ˙E + KE = 0 (3.4) The solution of the above differential equation is given as E = E0 exp−Kt . Where K is chosen to be positive definite matrix. It can be chosen as diagonal matrix with positive elements, where elements represent the ‘settling time constant’. Next, using the definition of E and substituting the expression for ˙Y from 3.3 in 3.4, we can obtain by carrying out the algebra gY (X)U = −fY (X) − K(Y − Y ∗ ) + ˙Y ∗ (3.5)

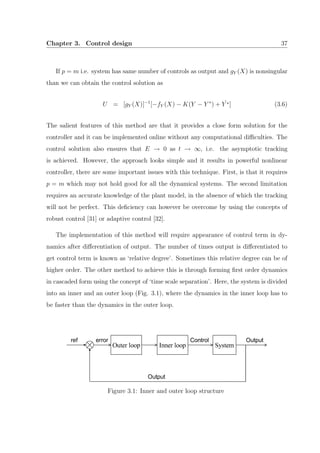

Chapter 3. Control design 37 If p = m i.e. system has same number of controls as output and gY (X) is nonsingular than we can obtain the control solution as U = [gY (X)]−1 [−fY (X) − K(Y − Y ∗ ) + ˙Y ∗] (3.6) The salient features of this method are that it provides a close form solution for the controller and it can be implemented online without any computational difficulties. The control solution also ensures that E → 0 as t → ∞, i.e. the asymptotic tracking is achieved. However, the approach looks simple and it results in powerful nonlinear controller, there are some important issues with this technique. First, is that it requires p = m which may not hold good for all the dynamical systems. The second limitation requires an accurate knowledge of the plant model, in the absence of which the tracking will not be perfect. This deficiency can however be overcome by using the concepts of robust control [31] or adaptive control [32]. The implementation of this method will require appearance of control term in dy- namics after differentiation of output. The number of times output is differentiated to get control term is known as ‘relative degree’. Sometimes this relative degree can be of higher order. The other method to achieve this is through forming first order dynamics in cascaded form using the concept of ‘time scale separation’. Here, the system is divided into an inner and an outer loop (Fig. 3.1), where the dynamics in the inner loop has to be faster than the dynamics in the outer loop. Figure 3.1: Inner and outer loop structure

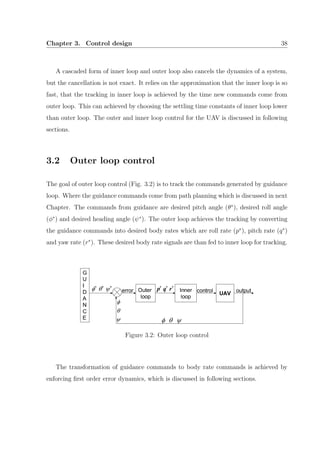

Chapter 3. Control design 38 A cascaded form of inner loop and outer loop also cancels the dynamics of a system, but the cancellation is not exact. It relies on the approximation that the inner loop is so fast, that the tracking in inner loop is achieved by the time new commands come from outer loop. This can achieved by choosing the settling time constants of inner loop lower than outer loop. The outer and inner loop control for the UAV is discussed in following sections. 3.2 Outer loop control The goal of outer loop control (Fig. 3.2) is to track the commands generated by guidance loop. Where the guidance commands come from path planning which is discussed in next Chapter. The commands from guidance are desired pitch angle (θ∗ ), desired roll angle (φ∗ ) and desired heading angle (ψ∗ ). The outer loop achieves the tracking by converting the guidance commands into desired body rates which are roll rate (p∗ ), pitch rate (q∗ ) and yaw rate (r∗ ). These desired body rate signals are than fed to inner loop for tracking. Figure 3.2: Outer loop control The transformation of guidance commands to body rate commands is achieved by enforcing first order error dynamics, which is discussed in following sections.

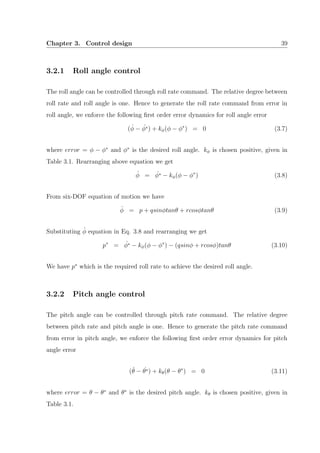

Chapter 3. Control design 39 3.2.1 Roll angle control The roll angle can be controlled through roll rate command. The relative degree between roll rate and roll angle is one. Hence to generate the roll rate command from error in roll angle, we enforce the following first order error dynamics for roll angle error ( ˙φ − ˙φ∗) + kφ(φ − φ∗ ) = 0 (3.7) where error = φ − φ∗ and φ∗ is the desired roll angle. kφ is chosen positive, given in Table 3.1. Rearranging above equation we get ˙φ = ˙φ∗ − kφ(φ − φ∗ ) (3.8) From six-DOF equation of motion we have ˙φ = p + qsinφtanθ + rcosφtanθ (3.9) Substituting ˙φ equation in Eq. 3.8 and rearranging we get p∗ = ˙φ∗ − kφ(φ − φ∗ ) − (qsinφ + rcosφ)tanθ (3.10) We have p∗ which is the required roll rate to achieve the desired roll angle. 3.2.2 Pitch angle control The pitch angle can be controlled through pitch rate command. The relative degree between pitch rate and pitch angle is one. Hence to generate the pitch rate command from error in pitch angle, we enforce the following first order error dynamics for pitch angle error ( ˙θ − ˙θ∗) + kθ(θ − θ∗ ) = 0 (3.11) where error = θ − θ∗ and θ∗ is the desired pitch angle. kθ is chosen positive, given in Table 3.1.

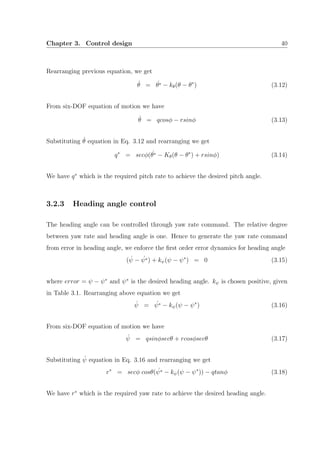

Chapter 3. Control design 40 Rearranging previous equation, we get ˙θ = ˙θ∗ − kθ(θ − θ∗ ) (3.12) From six-DOF equation of motion we have ˙θ = qcosφ − rsinφ (3.13) Substituting ˙θ equation in Eq. 3.12 and rearranging we get q∗ = secφ( ˙θ∗ − Kθ(θ − θ∗ ) + rsinφ) (3.14) We have q∗ which is the required pitch rate to achieve the desired pitch angle. 3.2.3 Heading angle control The heading angle can be controlled through yaw rate command. The relative degree between yaw rate and heading angle is one. Hence to generate the yaw rate command from error in heading angle, we enforce the first order error dynamics for heading angle ( ˙ψ − ˙ψ∗) + kψ(ψ − ψ∗ ) = 0 (3.15) where error = ψ − ψ∗ and ψ∗ is the desired heading angle. kψ is chosen positive, given in Table 3.1. Rearranging above equation we get ˙ψ = ˙ψ∗ − kψ(ψ − ψ∗ ) (3.16) From six-DOF equation of motion we have ˙ψ = qsinφsecθ + rcosφsecθ (3.17) Substituting ˙ψ equation in Eq. 3.16 and rearranging we get r∗ = secφ cosθ( ˙ψ∗ − kψ(ψ − ψ∗ )) − qtanφ (3.18) We have r∗ which is the required yaw rate to achieve the desired heading angle.

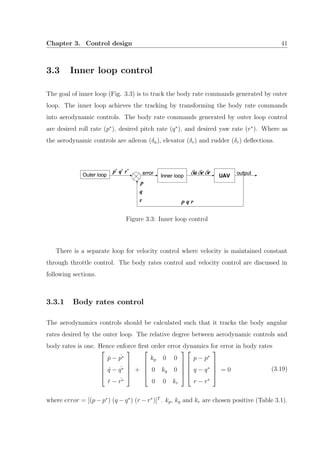

Chapter 3. Control design 41 3.3 Inner loop control The goal of inner loop (Fig. 3.3) is to track the body rate commands generated by outer loop. The inner loop achieves the tracking by transforming the body rate commands into aerodynamic controls. The body rate commands generated by outer loop control are desired roll rate (p∗ ), desired pitch rate (q∗ ), and desired yaw rate (r∗ ). Where as the aerodynamic controls are aileron (δa), elevator (δe) and rudder (δr) deflections. Figure 3.3: Inner loop control There is a separate loop for velocity control where velocity is maintained constant through throttle control. The body rates control and velocity control are discussed in following sections. 3.3.1 Body rates control The aerodynamics controls should be calculated such that it tracks the body angular rates desired by the outer loop. The relative degree between aerodynamic controls and body rates is one. Hence enforce first order error dynamics for error in body rates      ˙p − ˙p∗ ˙q − ˙q∗ ˙r − ˙r∗      +      kp 0 0 0 kq 0 0 0 kr           p − p∗ q − q∗ r − r∗      = 0 (3.19) where error = [(p − p∗ ) (q − q∗ ) (r − r∗ )]T . kp, kq and kr are chosen positive (Table 3.1).

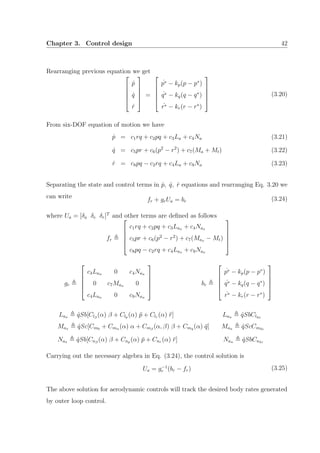

Chapter 3. Control design 42 Rearranging previous equation we get      ˙p ˙q ˙r      =      ˙p∗ − kp(p − p∗ ) ˙q∗ − kq(q − q∗ ) ˙r∗ − kr(r − r∗ )      (3.20) From six-DOF equation of motion we have ˙p = c1rq + c2pq + c3La + c4Na (3.21) ˙q = c5pr + c6(p2 − r2 ) + c7(Ma + Mt) (3.22) ˙r = c8pq − c2rq + c4La + c9Na (3.23) Separating the state and control terms in ˙p, ˙q, ˙r equations and rearranging Eq. 3.20 we can write fr + grUa = br (3.24) where Ua = [δa δe δr]T and other terms are defined as follows fr      c1rq + c2pq + c3Lax + c4Nax c5pr + c6(p2 − r2 ) + c7(Max − Mt) c8pq − c2rq + c4Lax + c9Nax      gr      c3Lau 0 c4Nau 0 c7Mau 0 c4Lau 0 c9Nau      br      ˙p∗ − kp(p − p∗ ) ˙q∗ − kq(q − q∗ ) ˙r∗ − kr(r − r∗ )      Lax ˆqSb[Clβ (α) β + Clp (α) ¯p + Clr (α) ¯r] Lau ˆqSbClδa Max ˆqSc[Cm0 + Cmα (α) α + Cmβ (α, β) β + Cmq (α) ¯q] Mau ˆqScCmδe Nax ˆqSb[Cnβ (α) β + Cnp (α) ¯p + Cnr (α) ¯r] Nau ˆqSbCnδr Carrying out the necessary algebra in Eq. (3.24), the control solution is Ua = g−1 r (br − fr) (3.25) The above solution for aerodynamic controls will track the desired body rates generated by outer loop control.
Chapter 3. Control design 43 3.3.2 Forward velocity control The forward velocity can be controlled by varying the thrust through throttle control. The relative degree between throttle control and forward velocity is one. Enforcing the following first order error dynamics for error in forward velocity ( ˙u − ˙u∗ ) + ku(u − u∗ ) = 0 (3.26) where error = (u − u∗ ) and u∗ is the velocity which has to be maintained during the flight. ku is chosen positive, given in Table 3.1. Rearranging above equation we get ˙u = ˙u∗ − ku(u − u∗ ) (3.27) From six-DOF equation of motion we have ˙u = rv − qw − gsinθ + Xa + Xt m (3.28) Substituting ˙u equation in Eq. (3.27) and rearranging fu + guσt = bu (3.29) Where σt is throttle control value and other terms are defined as follows fu rv − qw − gsinθ + Xa m gu Tmax m bu ˙u∗ − ku(u − u∗ ) Rearranging the Eq. (3.29) we get the control solution as σt = g−1 u [bu − fu] (3.30) The above solution for throttle control will track the desired velocity.

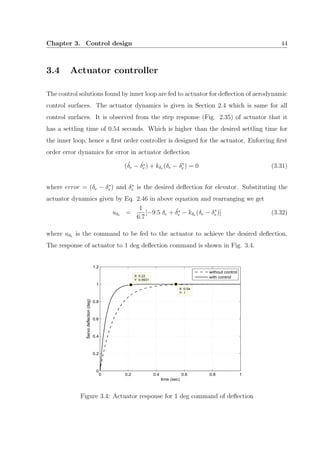

Chapter 3. Control design 44 3.4 Actuator controller The control solutions found by inner loop are fed to actuator for deflection of aerodynamic control surfaces. The actuator dynamics is given in Section 2.4 which is same for all control surfaces. It is observed from the step response (Fig. 2.35) of actuator that it has a settling time of 0.54 seconds. Which is higher than the desired settling time for the inner loop, hence a first order controller is designed for the actuator. Enforcing first order error dynamics for error in actuator deflection ( ˙δe − ˙δ∗ e ) + kδe (δe − δ∗ e ) = 0 (3.31) where error = (δe − δ∗ e ) and δ∗ e is the desired deflection for elevator. Substituting the actuator dynamics given by Eq. 2.46 in above equation and rearranging we get uδe = 1 6.7 [−9.5 δe + ˙δ∗ e − kδe (δe − δ∗ e )] (3.32) where uδe is the command to be fed to the actuator to achieve the desired deflection. The response of actuator to 1 deg deflection command is shown in Fig. 3.4. 0 0.2 0.4 0.6 0.8 1 0 0.2 0.4 0.6 0.8 1 1.2 X: 0.22 Y: 0.9931 time (sec) Servodeflection(deg) X: 0.54 Y: 1 without control with control Figure 3.4: Actuator response for 1 deg command of deflection

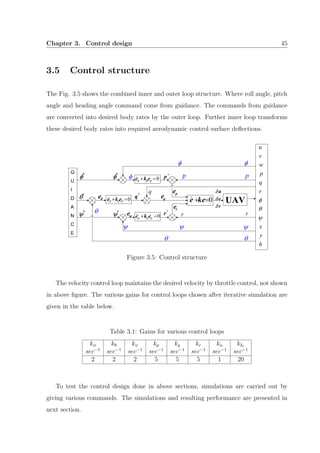

Chapter 3. Control design 45 3.5 Control structure The Fig. 3.5 shows the combined inner and outer loop structure. Where roll angle, pitch angle and heading angle command come from guidance. The commands from guidance are converted into desired body rates by the outer loop. Further inner loop transforms these desired body rates into required aerodynamic control surface deflections. Figure 3.5: Control structure The velocity control loop maintains the desired velocity by throttle control, not shown in above figure. The various gains for control loops chosen after iterative simulation are given in the table below. Table 3.1: Gains for various control loops kφ kθ kψ kp kq kr ku kδe sec−1 sec−1 sec−1 sec−1 sec−1 sec−1 sec−1 sec−1 2 2 2 5 5 5 1 20 To test the control design done in above sections, simulations are carried out by giving various commands. The simulations and resulting performance are presented in next section.

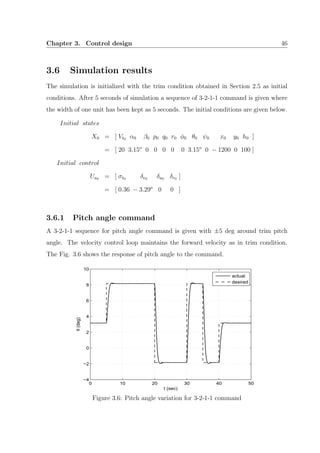

Chapter 3. Control design 46 3.6 Simulation results The simulation is initialized with the trim condition obtained in Section 2.5 as initial conditions. After 5 seconds of simulation a sequence of 3-2-1-1 command is given where the width of one unit has been kept as 5 seconds. The initial conditions are given below. Initial states X0 = [ Vt0 α0 β0 p0 q0 r0 φ0 θ0 ψ0 x0 y0 h0 ] = [ 20 3.15o 0 0 0 0 0 3.15o 0 − 1200 0 100 ] Initial control Ua0 = [ σt0 δe0 δa0 δr0 ] = [ 0.36 − 3.29o 0 0 ] 3.6.1 Pitch angle command A 3-2-1-1 sequence for pitch angle command is given with ±5 deg around trim pitch angle. The velocity control loop maintains the forward velocity as in trim condition. The Fig. 3.6 shows the response of pitch angle to the command. 0 10 20 30 40 50 −4 −2 0 2 4 6 8 10 t (sec) θ(deg) actual desired Figure 3.6: Pitch angle variation for 3-2-1-1 command

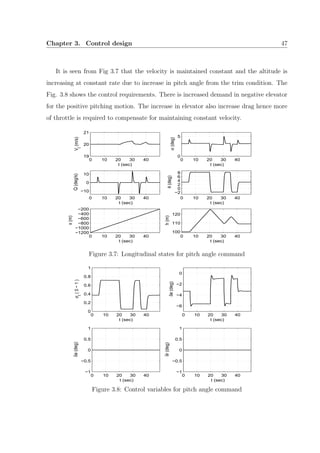

Chapter 3. Control design 47 It is seen from Fig 3.7 that the velocity is maintained constant and the altitude is increasing at constant rate due to increase in pitch angle from the trim condition. The Fig. 3.8 shows the control requirements. There is increased demand in negative elevator for the positive pitching motion. The increase in elevator also increase drag hence more of throttle is required to compensate for maintaining constant velocity. 0 10 20 30 40 19 20 21 t (sec) V t (m/s) 0 10 20 30 40 0 5 t (sec) α(deg) 0 10 20 30 40 −10 0 10 t (sec) Q(deg/s) 0 10 20 30 40 −2 0 2 4 6 8 t (sec) θ(deg) 0 10 20 30 40 −1200 −1000 −800 −600 −400 −200 t (sec) x(m) 0 10 20 30 40 100 110 120 t (sec) h(m) Figure 3.7: Longitudinal states for pitch angle command 0 10 20 30 40 0 0.2 0.4 0.6 0.8 1 t (sec) σt (0−1) 0 10 20 30 40 −6 −4 −2 0 t (sec) δe(deg) 0 10 20 30 40 −1 −0.5 0 0.5 1 t (sec) δa(deg) 0 10 20 30 40 −1 −0.5 0 0.5 1 t (sec) δr(deg) Figure 3.8: Control variables for pitch angle command

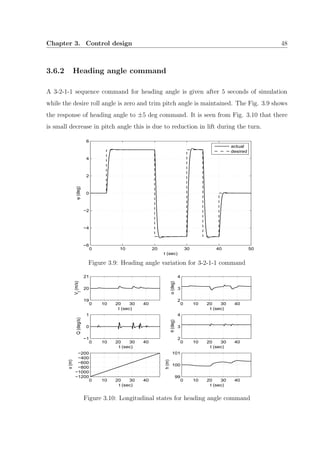

Chapter 3. Control design 48 3.6.2 Heading angle command A 3-2-1-1 sequence command for heading angle is given after 5 seconds of simulation while the desire roll angle is zero and trim pitch angle is maintained. The Fig. 3.9 shows the response of heading angle to ±5 deg command. It is seen from Fig. 3.10 that there is small decrease in pitch angle this is due to reduction in lift during the turn. 0 10 20 30 40 50 −6 −4 −2 0 2 4 6 t (sec) ψ(deg) actual desired Figure 3.9: Heading angle variation for 3-2-1-1 command 0 10 20 30 40 19 20 21 t (sec) V t (m/s) 0 10 20 30 40 2 3 4 t (sec) α(deg) 0 10 20 30 40 −1 0 1 t (sec) Q(deg/s) 0 10 20 30 40 2 3 4 t (sec) θ(deg) 0 10 20 30 40 −1200 −1000 −800 −600 −400 −200 t (sec) x(m) 0 10 20 30 40 99 100 101 t (sec) h(m) Figure 3.10: Longitudinal states for heading angle command
Chapter 3. Control design 49 Fig. 3.11 shows the yaw rate required for the heading angle command. Also the sideslip angle is non zero for some time as the coordinated turn constraint has not been enforced. The control plots in Fig. 3.12 show the requirement in rudder deflection and also aileron in an effort to maintain zero roll angle. 0 10 20 30 40 −5 0 5 t (sec) β(deg) 0 10 20 30 40 −2 0 2 t (sec) P(deg/s) 0 10 20 30 40 −10 0 10 t (sec) R(deg/s) 0 10 20 30 40 −2 0 2 t (sec) φ(deg) 0 10 20 30 40 −5 0 5 t (sec) ψ(deg) 0 10 20 30 40 0 10 20 t (sec) y(m) Figure 3.11: Lateral states for heading angle command 0 10 20 30 40 0 0.2 0.4 0.6 0.8 1 t (sec) σ t (0−1) 0 10 20 30 40 −5 −4 −3 −2 −1 t (sec) δe(deg) 0 10 20 30 40 −5 0 5 t (sec) δa(deg) 0 10 20 30 40 −10 −5 0 5 10 t (sec) δr(deg) Figure 3.12: Control variables for heading angle command

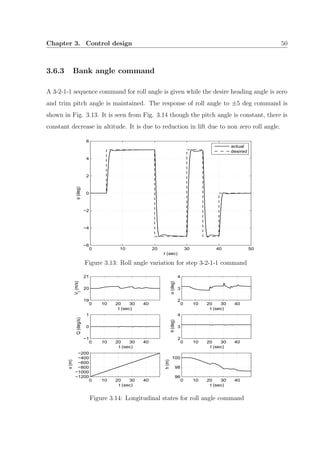

Chapter 3. Control design 50 3.6.3 Bank angle command A 3-2-1-1 sequence command for roll angle is given while the desire heading angle is zero and trim pitch angle is maintained. The response of roll angle to ±5 deg command is shown in Fig. 3.13. It is seen from Fig. 3.14 though the pitch angle is constant, there is constant decrease in altitude. It is due to reduction in lift due to non zero roll angle. 0 10 20 30 40 50 −6 −4 −2 0 2 4 6 t (sec) φ(deg) actual desired Figure 3.13: Roll angle variation for step 3-2-1-1 command 0 10 20 30 40 19 20 21 t (sec) V t (m/s) 0 10 20 30 40 2 3 4 t (sec) α(deg) 0 10 20 30 40 −1 0 1 t (sec) Q(deg/s) 0 10 20 30 40 2 3 4 t (sec) θ(deg) 0 10 20 30 40 −1200 −1000 −800 −600 −400 −200 t (sec) x(m) 0 10 20 30 40 96 98 100 t (sec) h(m) Figure 3.14: Longitudinal states for roll angle command

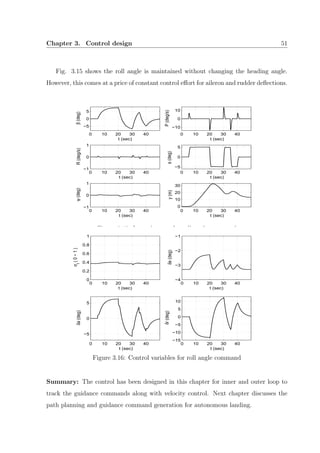

Chapter 3. Control design 51 Fig. 3.15 shows the roll angle is maintained without changing the heading angle. However, this comes at a price of constant control effort for aileron and rudder deflections. 0 10 20 30 40 −5 0 5 t (sec) β(deg) 0 10 20 30 40 −10 0 10 t (sec) P(deg/s) 0 10 20 30 40 −1 0 1 t (sec) R(deg/s) 0 10 20 30 40 −5 0 5 t (sec) φ(deg) 0 10 20 30 40 −1 0 1 t (sec) ψ(deg) 0 10 20 30 40 0 10 20 30 t (sec) y(m) Figure 3.15: Lateral states for roll angle command 0 10 20 30 40 0 0.2 0.4 0.6 0.8 1 t (sec) σ t (0−1) 0 10 20 30 40 −4 −3 −2 −1 t (sec) δe(deg) 0 10 20 30 40 −5 0 5 t (sec) δa(deg) 0 10 20 30 40 −15 −10 −5 0 5 10 t (sec) δr(deg) Figure 3.16: Control variables for roll angle command Summary: The control has been designed in this chapter for inner and outer loop to track the guidance commands along with velocity control. Next chapter discusses the path planning and guidance command generation for autonomous landing.

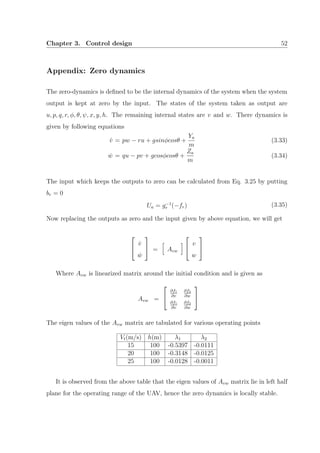

Chapter 3. Control design 52 Appendix: Zero dynamics The zero-dynamics is defined to be the internal dynamics of the system when the system output is kept at zero by the input. The states of the system taken as output are u, p, q, r, φ, θ, ψ, x, y, h. The remaining internal states are v and w. There dynamics is given by following equations ˙v = pw − ru + gsinφcosθ + Ya m (3.33) ˙w = qu − pv + gcosφcosθ + Za m (3.34) The input which keeps the outputs to zero can be calculated from Eq. 3.25 by putting br = 0 Ua = g−1 r (−fr) (3.35) Now replacing the outputs as zero and the input given by above equation, we will get   ˙v ˙w   = Avw   v w   Where Avw is linearized matrix around the initial condition and is given as Avw =   ∂f1 ∂v ∂f2 ∂w ∂f1 ∂v ∂f2 ∂w   The eigen values of the Avw matrix are tabulated for various operating points Vt(m/s) h(m) λ1 λ2 15 100 -0.5397 -0.0111 20 100 -0.3148 -0.0125 25 100 -0.0128 -0.0011 It is observed from the above table that the eigen values of Avw matrix lie in left half plane for the operating range of the UAV, hence the zero dynamics is locally stable.

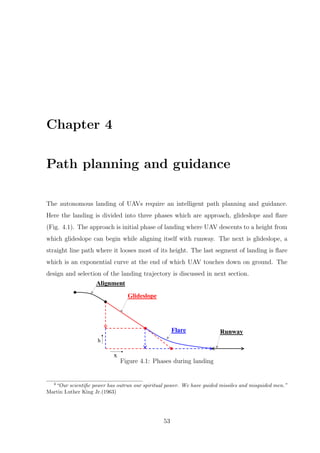

Chapter 4 Path planning and guidance The autonomous landing of UAVs require an intelligent path planning and guidance. Here the landing is divided into three phases which are approach, glideslope and flare (Fig. 4.1). The approach is initial phase of landing where UAV descents to a height from which glideslope can begin while aligning itself with runway. The next is glideslope, a straight line path where it looses most of its height. The last segment of landing is flare which is an exponential curve at the end of which UAV touches down on ground. The design and selection of the landing trajectory is discussed in next section. Figure 4.1: Phases during landing 4 “Our scientific power has outrun our spiritual power. We have guided missiles and misguided men.” Martin Luther King Jr.(1963) 53

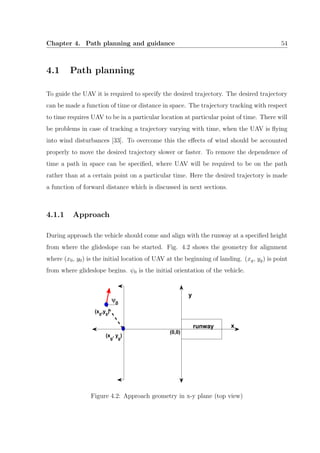

Chapter 4. Path planning and guidance 54 4.1 Path planning To guide the UAV it is required to specify the desired trajectory. The desired trajectory can be made a function of time or distance in space. The trajectory tracking with respect to time requires UAV to be in a particular location at particular point of time. There will be problems in case of tracking a trajectory varying with time, when the UAV is flying into wind disturbances [33]. To overcome this the effects of wind should be accounted properly to move the desired trajectory slower or faster. To remove the dependence of time a path in space can be specified, where UAV will be required to be on the path rather than at a certain point on a particular time. Here the desired trajectory is made a function of forward distance which is discussed in next sections. 4.1.1 Approach During approach the vehicle should come and align with the runway at a specified height from where the glideslope can be started. Fig. 4.2 shows the geometry for alignment where (x0, y0) is the initial location of UAV at the beginning of landing. (xg, yg) is point from where glideslope begins. ψ0 is the initial orientation of the vehicle. y runway x (0,0) (x0 ,y0 ) (xg , yg ) ψ0 Figure 4.2: Approach geometry in x-y plane (top view)
Chapter 4. Path planning and guidance 55 The initial condition (x0) for landing has bounds from which landing can be started though there is no such constraint for the initial orientation (ψ0) and sideward distance (y0). This constraint is due to the fact that UAV will require a minimum distance to take turn and align before reaching the glideslope. The margin for initial condition has been kept as (x0 − xg) > 400m, i.e. the alignment should begin 400m before the glideslope initiation point. The equation for path of approach can be written as a straight line function of forward distance. y∗ = y0 + yg − y0 xg − x0 (x − x0) (4.1) This is the desired value of sideward distance during approach which UAV has to follow. The desired value of sideward distance during glideslope and flare is zero (y∗ = 0) i.e. aligned with the runway centerline. The UAV may also require to loose height during approach to reach the glideslope height. 4.1.2 Glideslope The glideslope is a straight line path whose slope is defined by the flight path angle. The desired height is also scheduled as a function of forward distance. (0, 0) h (x g , h g ) (xf , hf ) (x ∞ ,h c ) xγ∗ (x g0 , h g0 ) (x td , h td ) Figure 4.3: Glideslope and flare geometry in x-h plane

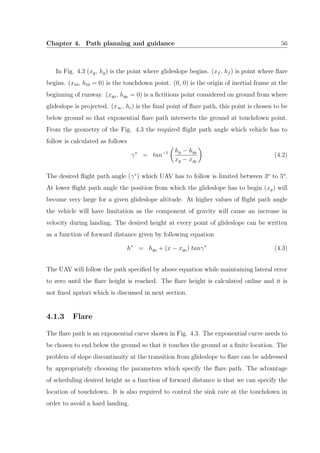

Chapter 4. Path planning and guidance 56 In Fig. 4.3 (xg, hg) is the point where glideslope begins. (xf , hf ) is point where flare begins. (xtd, htd = 0) is the touchdown point. (0, 0) is the origin of inertial frame at the beginning of runway. (xg0 , hg0 = 0) is a fictitious point considered on ground from where glideslope is projected. (x∞, hc) is the final point of flare path, this point is chosen to be below ground so that exponential flare path intersects the ground at touchdown point. From the geometry of the Fig. 4.3 the required flight path angle which vehicle has to follow is calculated as follows γ∗ = tan−1 hg − hg0 xg − xg0 (4.2) The desired flight path angle (γ∗ ) which UAV has to follow is limited between 3o to 5o . At lower flight path angle the position from which the glideslope has to begin (xg) will become very large for a given glideslope altitude. At higher values of flight path angle the vehicle will have limitation as the component of gravity will cause an increase in velocity during landing. The desired height at every point of glideslope can be written as a function of forward distance given by following equation h∗ = hg0 + (x − xg0 ) tanγ∗ (4.3) The UAV will follow the path specified by above equation while maintaining lateral error to zero until the flare height is reached. The flare height is calculated online and it is not fixed apriori which is discussed in next section. 4.1.3 Flare The flare path is an exponential curve shown in Fig. 4.3. The exponential curve needs to be chosen to end below the ground so that it touches the ground at a finite location. The problem of slope discontinuity at the transition from glideslope to flare can be addressed by appropriately choosing the parameters which specify the flare path. The advantage of scheduling desired height as a function of forward distance is that we can specify the location of touchdown. It is also required to control the sink rate at the touchdown in order to avoid a hard landing.

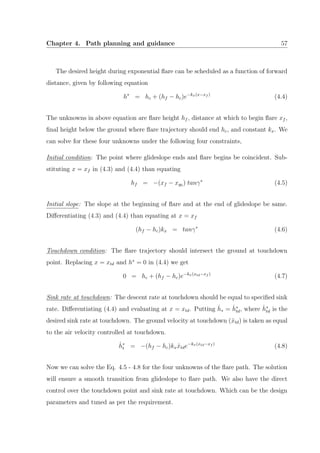

Chapter 4. Path planning and guidance 57 The desired height during exponential flare can be scheduled as a function of forward distance, given by following equation h∗ = hc + (hf − hc)e−kx(x−xf ) (4.4) The unknowns in above equation are flare height hf , distance at which to begin flare xf , final height below the ground where flare trajectory should end hc, and constant kx. We can solve for these four unknowns under the following four constraints, Initial condition: The point where glideslope ends and flare begins be coincident. Sub- stituting x = xf in (4.3) and (4.4) than equating hf = −(xf − xg0 ) tanγ∗ (4.5) Initial slope: The slope at the beginning of flare and at the end of glideslope be same. Differentiating (4.3) and (4.4) than equating at x = xf (hf − hc)kx = tanγ∗ (4.6) Touchdown condition: The flare trajectory should intersect the ground at touchdown point. Replacing x = xtd and h∗ = 0 in (4.4) we get 0 = hc + (hf − hc)e−kx(xtd−xf ) (4.7) Sink rate at touchdown: The descent rate at touchdown should be equal to specified sink rate. Differentiating (4.4) and evaluating at x = xtd. Putting ˙h∗ = ˙h∗ td, where ˙h∗ td is the desired sink rate at touchdown. The ground velocity at touchdown ( ˙xtd) is taken as equal to the air velocity controlled at touchdown. ˙h∗ t = −(hf − hc)kx ˙xtde−kx(xtd−xf ) (4.8) Now we can solve the Eq. 4.5 - 4.8 for the four unknowns of the flare path. The solution will ensure a smooth transition from glideslope to flare path. We also have the direct control over the touchdown point and sink rate at touchdown. Which can be the design parameters and tuned as per the requirement.

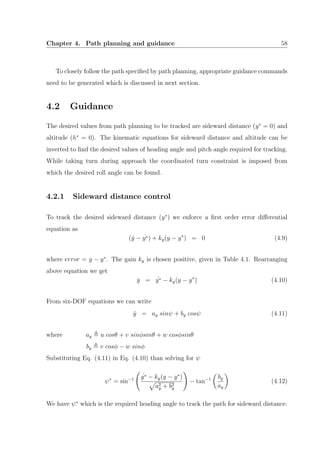

Chapter 4. Path planning and guidance 58 To closely follow the path specified by path planning, appropriate guidance commands need to be generated which is discussed in next section. 4.2 Guidance The desired values from path planning to be tracked are sideward distance (y∗ = 0) and altitude (h∗ = 0). The kinematic equations for sideward distance and altitude can be inverted to find the desired values of heading angle and pitch angle required for tracking. While taking turn during approach the coordinated turn constraint is imposed from which the desired roll angle can be found. 4.2.1 Sideward distance control To track the desired sideward distance (y∗ ) we enforce a first order error differential equation as ( ˙y − ˙y∗) + ky(y − y∗ ) = 0 (4.9) where error = y − y∗ . The gain ky is chosen positive, given in Table 4.1. Rearranging above equation we get ˙y = ˙y∗ − ky(y − y∗ ) (4.10) From six-DOF equations we can write ˙y = ay sinψ + by cosψ (4.11) where ay u cosθ + v sinφsinθ + w cosφsinθ by v cosφ − w sinφ Substituting Eq. (4.11) in Eq. (4.10) than solving for ψ ψ∗ = sin−1 ˙y∗ − ky(y − y∗ ) a2 y + b2 y − tan−1 by ay (4.12) We have ψ∗ which is the required heading angle to track the path for sideward distance.

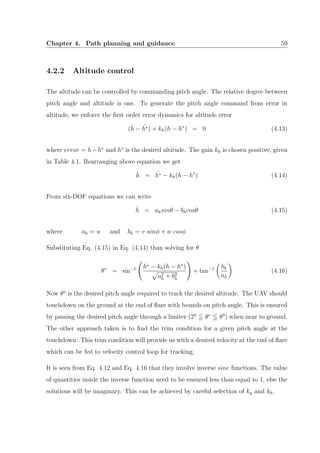

Chapter 4. Path planning and guidance 59 4.2.2 Altitude control The altitude can be controlled by commanding pitch angle. The relative degree between pitch angle and altitude is one. To generate the pitch angle command from error in altitude, we enforce the first order error dynamics for altitude error (˙h − ˙h∗) + kh(h − h∗ ) = 0 (4.13) where error = h−h∗ and h∗ is the desired altitude. The gain kh is chosen positive, given in Table 4.1. Rearranging above equation we get ˙h = ˙h∗ − kh(h − h∗ ) (4.14) From six-DOF equations we can write ˙h = ahsinθ − bhcosθ (4.15) where ah = u and bh = v sinφ + w cosφ Substituting Eq. (4.15) in Eq. (4.14) than solving for θ θ∗ = sin−1 ˙h∗ − kh(h − h∗ ) a2 h + b2 h + tan−1 bh ah (4.16) Now θ∗ is the desired pitch angle required to track the desired altitude. The UAV should touchdown on the ground at the end of flare with bounds on pitch angle. This is ensured by passing the desired pitch angle through a limiter (20 θ∗ 80 ) when near to ground. The other approach taken is to find the trim condition for a given pitch angle at the touchdown. This trim condition will provide us with a desired velocity at the end of flare which can be fed to velocity control loop for tracking. It is seen from Eq. 4.12 and Eq. 4.16 that they involve inverse sine functions. The value of quantities inside the inverse function need to be ensured less than equal to 1, else the solutions will be imaginary. This can be achieved by careful selection of ky and kh.
Chapter 4. Path planning and guidance 60 4.2.3 Coordinated turn constraint The coordinated turn requires the sideslip angle be equal to zero, equivalently it can enforced by maintaining side velocity in body frame to be zero. This can be achieved by finding an equivalent roll angle from the enforced first order error dynamics for side velocity. (˙v − ˙v∗) + kv(v − v∗ ) = 0 (4.17) where error = v − v∗ and v∗ = 0 is the desired side velocity. From six-DOF equations of motion we have ˙v = pw − ru + gsinφcosθ + Ya m (4.18) Substituting Eq. 4.18 in Eq. 4.17 and than solving for φ, we will get φ∗ = sin−1 ˙v∗ − kv(v − v∗ ) + ru − pw − Ya m gcosθ (4.19) This desired roll angle will ensure the coordinated turn and sideslip angle to be zero. Schematic of path planning and guidance Fig. 4.4 shows the complete structure of path planning and guidance. Figure 4.4: Path planning and guidance schematic

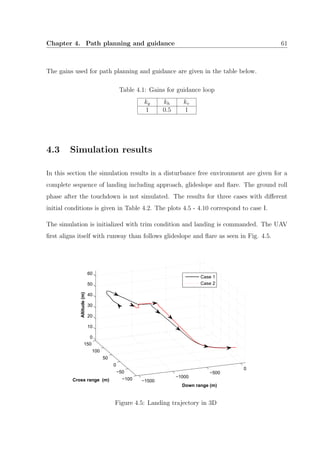

Chapter 4. Path planning and guidance 61 The gains used for path planning and guidance are given in the table below. Table 4.1: Gains for guidance loop ky kh kv 1 0.5 1 4.3 Simulation results In this section the simulation results in a disturbance free environment are given for a complete sequence of landing including approach, glideslope and flare. The ground roll phase after the touchdown is not simulated. The results for three cases with different initial conditions is given in Table 4.2. The plots 4.5 - 4.10 correspond to case I. The simulation is initialized with trim condition and landing is commanded. The UAV first aligns itself with runway than follows glideslope and flare as seen in Fig. 4.5. −1500 −1000 −500 0 −100 −50 0 50 100 150 0 10 20 30 40 50 60 Down range (m) Cross range (m) Altitude(m) Case 1 Case 2 Figure 4.5: Landing trajectory in 3D

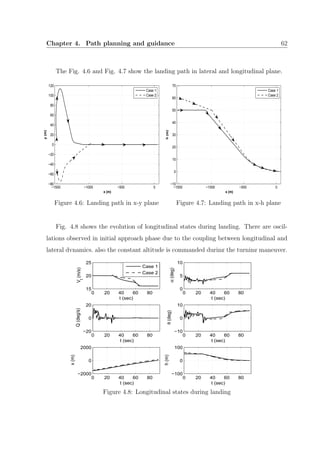

Chapter 4. Path planning and guidance 62 The Fig. 4.6 and Fig. 4.7 show the landing path in lateral and longitudinal plane. −1500 −1000 −500 0 −80 −60 −40 −20 0 20 40 60 80 100 120 x (m) y(m) Case 1 Case 2 Figure 4.6: Landing path in x-y plane −1500 −1000 −500 0 −10 0 10 20 30 40 50 60 70 x (m) h(m) Case 1 Case 2 Figure 4.7: Landing path in x-h plane Fig. 4.8 shows the evolution of longitudinal states during landing. There are oscil- lations observed in initial approach phase due to the coupling between longitudinal and lateral dynamics, also the constant altitude is commanded during the turning maneuver. 0 20 40 60 80 15 20 25 t (sec) Vt (m/s) 0 20 40 60 80 0 5 10 t (sec) α(deg) Case 1 Case 2 0 20 40 60 80 −20 0 20 t (sec) Q(deg/s) 0 20 40 60 80 −10 0 10 t (sec) θ(deg) 0 20 40 60 80 −2000 0 2000 t (sec) x(m) 0 20 40 60 80 −100 0 100 t (sec) h(m) Figure 4.8: Longitudinal states during landing
Chapter 4. Path planning and guidance 63 Fig. 4.9 shows the evolution of lateral states during landing. The coordinated turn constraint brings the sideslip angle during the turn close to zero. 0 20 40 60 80 −5 0 5 t (sec) β(deg) 0 20 40 60 80 −100 0 100 t (sec) P(deg/s) Case 1 Case 2 0 20 40 60 80 −20 0 20 t (sec) R(deg/s) 0 20 40 60 80 −50 0 50 t (sec)φ(deg) 0 20 40 60 80 −200 0 200 t (sec) ψ(deg) 0 20 40 60 80 −200 0 200 t (sec) y(m) Figure 4.9: Lateral states during landing Fig. 4.10 shows the control values during landing plotted with respect to forward dis- tance. It is seen that there are oscillations in the initial approach phase while maintaining constant altitude. The throttle requirement during glideslope has gone to idle position (5%) as the commanded velocity is decreased (Fig. 4.8). −1500 −1000 −500 0 0 0.2 0.4 0.6 0.8 1 x (m) δt(0−1) Case 1 Case 2 −1500 −1000 −500 0 −20 −10 0 x (m) δe(deg) −1500 −1000 −500 0 −10 0 10 x (m) δa(deg) −1500 −1000 −500 0 −10 0 10 x (m) δr(deg) Figure 4.10: Control values during landing
Chapter 4. Path planning and guidance 64 The numerical results for the two cases of landing which have different initial conditions is given in Table 4.2. The commanded values for path planning are given below. (x∗ g, y∗ g, h∗ g) = (−1000, 0, 50) Location for end of approach and beginning of glideslope. (x∗ td, y∗ td, h∗ td) = (50, 0, 0) Location for touchdown. ˙h∗ td = −0.1 m/s Value of sink rate at touchdown. The values achieved by UAV during simulation are given in table below. Where (xf , hf ) is location at which flare begins and θtd is the pitch angle at touchdown. Table 4.2: Landing results Initial Flare Touchdown (x0, y0, h0) ψ0 (xf , hf ) xtd ˙htd θtd m deg m m m/s deg Case 1 (-1500, 10, 50) 120o (-5.24, 14.04) 48.74 -0.10 5.55o Case 2 (-1500, -50, 60) -45o (-4.88, 13.44) 49.06 -0.08 5.63o It can be observed from the Table 4.2 that the commanded values of touchdown location and sink rate at touchdown are closely followed. The pitch angle at touch down was not enforced directly but it was solved for trim condition at touchdown with 6o of pitch angle. The resulting solution for velocity was controlled at touchdown which has resulted in pitch angles (θtd) close to 6o . Summary: The path planning and guidance command generation for autonomous land- ing has been discussed in this chapter and demonstrated through simulation. In next chapter the state estimation has been done with Extended Kalman Filter, further the design is tested in presence of wind disturbance.

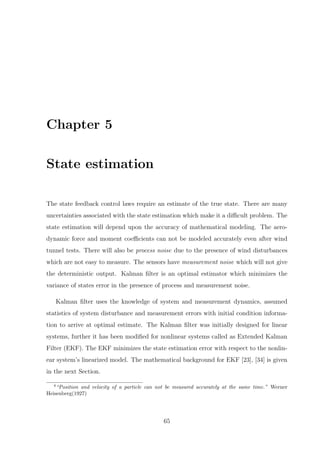

Chapter 5 State estimation The state feedback control laws require an estimate of the true state. There are many uncertainties associated with the state estimation which make it a difficult problem. The state estimation will depend upon the accuracy of mathematical modeling. The aero- dynamic force and moment coefficients can not be modeled accurately even after wind tunnel tests. There will also be process noise due to the presence of wind disturbances which are not easy to measure. The sensors have measurement noise which will not give the deterministic output. Kalman filter is an optimal estimator which minimizes the variance of states error in the presence of process and measurement noise. Kalman filter uses the knowledge of system and measurement dynamics, assumed statistics of system disturbance and measurement errors with initial condition informa- tion to arrive at optimal estimate. The Kalman filter was initially designed for linear systems, further it has been modified for nonlinear systems called as Extended Kalman Filter (EKF). The EKF minimizes the state estimation error with respect to the nonlin- ear system’s linearized model. The mathematical background for EKF [23], [34] is given in the next Section. 4 “Position and velocity of a particle can not be measured accurately at the same time.” Werner Heisenberg(1927) 65

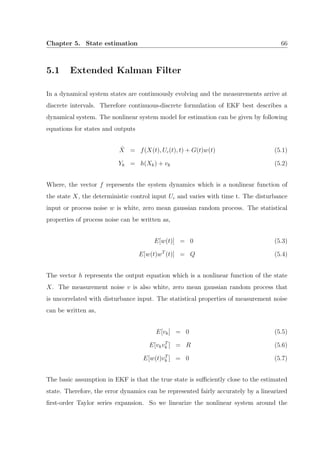

Chapter 5. State estimation 66 5.1 Extended Kalman Filter In a dynamical system states are continuously evolving and the measurements arrive at discrete intervals. Therefore continuous-discrete formulation of EKF best describes a dynamical system. The nonlinear system model for estimation can be given by following equations for states and outputs ˙X = f(X(t), Uc(t), t) + G(t)w(t) (5.1) Yk = h(Xk) + vk (5.2) Where, the vector f represents the system dynamics which is a nonlinear function of the state X, the deterministic control input Uc and varies with time t. The disturbance input or process noise w is white, zero mean gaussian random process. The statistical properties of process noise can be written as, E[w(t)] = 0 (5.3) E[w(t)wT (t)] = Q (5.4) The vector h represents the output equation which is a nonlinear function of the state X. The measurement noise v is also white, zero mean gaussian random process that is uncorrelated with disturbance input. The statistical properties of measurement noise can be written as, E[vk] = 0 (5.5) E[vkvT k ] = R (5.6) E[w(t)vT k ] = 0 (5.7) The basic assumption in EKF is that the true state is sufficiently close to the estimated state. Therefore, the error dynamics can be represented fairly accurately by a linearized first-order Taylor series expansion. So we linearize the nonlinear system around the
Chapter 5. State estimation 67 Kalman filter estimate of the state. The linearized matrices also known as sensitivity matrices are given as F(t) = ∂f ∂X |X(t)= ˆX(t) (5.8) H(t) = ∂h ∂X |X(t)= ˆX(t) (5.9) The expected values of the initial state and its covariance are assumed known and given by following equations E(X0) = ˆX0 (5.10) E[(X0 − ˆX0)(X0 − ˆX0)T ] = P0 (5.11) A weighting factor called the Kalman filter gain is computed using the covariance infor- mation, output sensitivity matrix and the measurement covariance matrix . The Kalman filter gain is used to combine the extrapolated estimate with the new measurement. This gain is defined in such a way that it minimizes the estimation error covariance after the update. The Kalman filter gain [23] is given by following equation Kk = P− k HT k (t− k ) [Hk(t− k ) P− k HT k (t− k ) + Rk]−1 (5.12) New measurements are combined with the extrapolated estimate to generate an updated estimated state. The state covariance also is updated to reflect the information contained in the measurement. The state and covariance update equation are ˆX+ k = ˆX− k + Kk [Yk − h(t− k )] (5.13) P+ k = [I − Kk Hk(t− k )] P− (5.14)

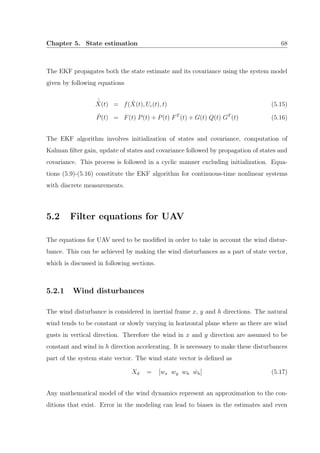

Chapter 5. State estimation 68 The EKF propagates both the state estimate and its covariance using the system model given by following equations ˙ˆX(t) = f( ˆX(t), Uc(t), t) (5.15) ˙P(t) = F(t) P(t) + P(t) FT (t) + G(t) Q(t) GT (t) (5.16) The EKF algorithm involves initialization of states and covariance, computation of Kalman filter gain, update of states and covariance followed by propagation of states and covariance. This process is followed in a cyclic manner excluding initialization. Equa- tions (5.9)-(5.16) constitute the EKF algorithm for continuous-time nonlinear systems with discrete measurements. 5.2 Filter equations for UAV The equations for UAV need to be modified in order to take in account the wind distur- bance. This can be achieved by making the wind disturbances as a part of state vector, which is discussed in following sections. 5.2.1 Wind disturbances The wind disturbance is considered in inertial frame x, y and h directions. The natural wind tends to be constant or slowly varying in horizontal plane where as there are wind gusts in vertical direction. Therefore the wind in x and y direction are assumed to be constant and wind in h direction accelerating. It is necessary to make these disturbances part of the system state vector. The wind state vector is defined as Xd = [wx wy wh ˙wh] (5.17) Any mathematical model of the wind dynamics represent an approximation to the con- ditions that exist. Error in the modeling can lead to biases in the estimates and even

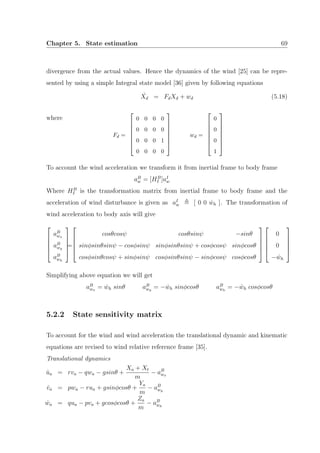

Chapter 5. State estimation 69 divergence from the actual values. Hence the dynamics of the wind [25] can be repre- sented by using a simple Integral state model [36] given by following equations ˙Xd = FdXd + wd (5.18) where Fd =        0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0        wd =        0 0 0 1        To account the wind acceleration we transform it from inertial frame to body frame aB w = [HB I ]aI w Where HB I is the transformation matrix from inertial frame to body frame and the acceleration of wind disturbance is given as aI w [ 0 0 ˙wh ]. The transformation of wind acceleration to body axis will give      aB wx aB wy aB wh      =      cosθcosψ cosθsinψ −sinθ sinφsinθsinψ − cosφsinψ sinφsinθsinψ + cosφcosψ sinφcosθ cosφsinθcosψ + sinφsinψ cosφsinθsinψ − sinφcosψ cosφcosθ           0 0 − ˙wh      Simplifying above equation we will get aB wx = ˙wh sinθ aB wy = − ˙wh sinφcosθ aB wh = − ˙wh cosφcosθ 5.2.2 State sensitivity matrix To account for the wind and wind acceleration the translational dynamic and kinematic equations are revised to wind relative reference frame [35]. Translational dynamics ˙ua = rva − qwa − gsinθ + Xa + Xt m − aB wx ˙va = pwa − rua + gsinφcosθ + Ya m − aB wy ˙wa = qua − pva + gcosφcosθ + Za m − aB wh

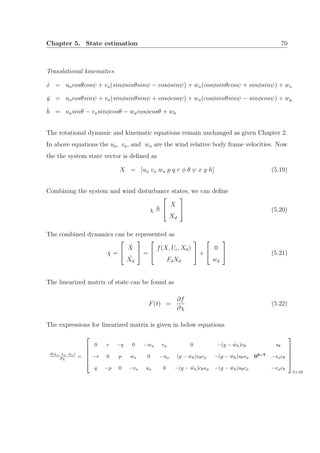

Chapter 5. State estimation 70 Translational kinematics ˙x = uacosθcosψ + va(sinφsinθsinψ − cosφsinψ) + wa(cosφsinθcosψ + sinφsinψ) + wx ˙y = uacosθsinψ + va(sinφsinθsinψ + cosφcosψ) + wa(cosφsinθsinψ − sinφcosψ) + wy ˙h = uasinθ − vasinφcosθ − wacosφcosθ + wh The rotational dynamic and kinematic equations remain unchanged as given Chapter 2. In above equations the ua, va, and wa are the wind relative body frame velocities. Now the the system state vector is defined as X = [ua va wa p q r φ θ ψ x y h] (5.19) Combining the system and wind disturbance states, we can define χ   X Xd   (5.20) The combined dynamics can be represented as ˙χ =   ˙X ˙Xd   =   f(X, Uc, Xd) FdXd   +   0 wd   (5.21) The linearized matrix of state can be found as F(t) = ∂f ∂χ (5.22) The expressions for linearized matrix is given in below equations ∂( ˙ua, ˙va, ˙wa) ∂χ =      0 r −q 0 −wa va 0 −(g − ˙wh)cθ sθ −r 0 p wa 0 −ua (g − ˙wh)cθcφ −(g − ˙wh)sθsφ 03×7 −sφcθ q −p 0 −va ua 0 −(g − ˙wh)cθsφ −(g − ˙wh)sθcφ −cφcθ      3×16

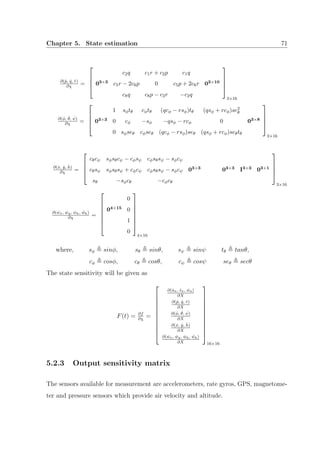

Chapter 5. State estimation 71 ∂( ˙p, ˙q, ˙r) ∂χ =     c2q c1r + c2p c1q 03×3 c5r − 2c6p 0 c5p + 2c6r 03×10 c8q c8p − c2r −c2q     3×16 ∂( ˙φ, ˙θ, ˙ψ) ∂χ =     1 sφtθ cφtθ (qcφ − rsφ)tθ (qsφ + rcφ)se2 θ 03×3 0 cφ −sφ −qsφ − rcφ 0 03×8 0 sφseθ cφseθ (qcφ − rsφ)seθ (qsφ + rcφ)seθtθ     3×16 ∂( ˙x, ˙y, ˙h) ∂χ =     cθcψ sφsθcψ − cφsψ cφsθsψ − sφcψ cθsψ sφsθsψ + cφcψ cφsθsψ − sφcψ 03×3 03×3 I3×3 03×1 sθ −sφcθ −cφcθ     3×16 ∂( ˙wx, ˙wy, ˙wh, ¨wh) ∂χ =        0 04×15 0 1 0        4×16 where, sφ sinφ, sθ sinθ, sψ sinψ tθ tanθ, cφ cosφ, cθ cosθ, cψ cosψ seθ secθ The state sensitivity will be given as F(t) = ∂f ∂χ =            ∂( ˙ua, ˙va, ˙wa) ∂X ∂( ˙p, ˙q, ˙r) ∂X ∂( ˙φ, ˙θ, ˙ψ) ∂X ∂( ˙x, ˙y, ˙h) ∂X ∂( ˙wx, ˙wy, ˙wh, ¨wh) ∂X            16×16 5.2.3 Output sensitivity matrix The sensors available for measurement are accelerometers, rate gyros, GPS, magnetome- ter and pressure sensors which provide air velocity and altitude.
Chapter 5. State estimation 72 The output vector can be written as Y = [vt ax ay az p q r ψ x y h] (5.23) The output sensitivity matrix can be found as H(t) = ∂h ∂χ (5.24) The expressions for linearized matrix is given in below equations ∂(vt, ax, ay az) ∂χ =         ua vt ua Vt ua Vt 0 0 0 0 0 0 0 −r q 0 wa −va 0 (g − ˙wh)cθ −sθ r 0 −p −wa 0 ua −(g − ˙wh)cθcφ (g − ˙wh)sθsφ 04×7 sφcθ −q p 0 va −ua 0 (g − ˙wh)cθsφ (g − ˙wh)sθcφ cφcθ         4×16 ∂(p, q, r) ∂χ =     03×3 I3×3 03×10     3×16 ∂(ψ, x, y, h) ∂χ =     04×8 I4×4 04×4     4×16 The output sensitivity will be given as H(t) = ∂h ∂X =      ∂(vt, ax, ay az) ∂χ ∂(p, q, r) ∂X ∂(ψ, x, y, h) ∂X      11×16

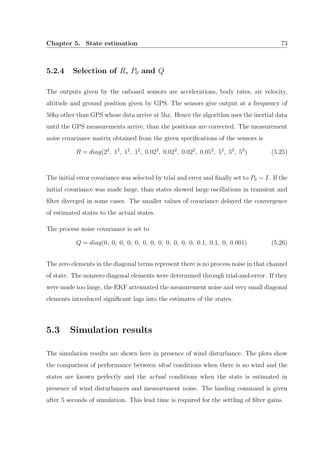

Chapter 5. State estimation 73 5.2.4 Selection of R, P0 and Q The outputs given by the onboard sensors are accelerations, body rates, air velocity, altitude and ground position given by GPS. The sensors give output at a frequency of 50hz other than GPS whose data arrive at 5hz. Hence the algorithm uses the inertial data until the GPS measurements arrive, than the positions are corrected. The measurement noise covariance matrix obtained from the given specifications of the sensors is R = diag(22 , 12 , 12 , 12 , 0.022 , 0.022 , 0.022 , 0.052 , 52 , 52 , 52 ) (5.25) The initial error covariance was selected by trial and error and finally set to P0 = I. If the initial covariance was made large, than states showed large oscillations in transient and filter diverged in some cases. The smaller values of covariance delayed the convergence of estimated states to the actual states. The process noise covariance is set to Q = diag(0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0.1, 0.1, 0, 0.001) (5.26) The zero elements in the diagonal terms represent there is no process noise in that channel of state. The nonzero diagonal elements were determined through trial-and-error. If they were made too large, the EKF attenuated the measurement noise and very small diagonal elements introduced significant lags into the estimates of the states. 5.3 Simulation results The simulation results are shown here in presence of wind disturbance. The plots show the comparison of performance between ideal conditions when there is no wind and the states are known perfectly and the actual conditions when the state is estimated in presence of wind disturbances and measurement noise. The landing command is given after 5 seconds of simulation. This lead time is required for the settling of filter gains.
Chapter 5. State estimation 74 Fig. 5.1 shows the comparison of landing path when there is no wind and states are known perfectly and when there are wind disturbances and state is estimated. −1500 −1000 −500 0 0 50 100 0 10 20 30 40 50 Forward distance (m)Sideward distance (m) Altitude(m) Ideal Actual Figure 5.1: Landing trajectory in 3D with EKF The Fig. 5.2 and Fig. 5.3 show the landing path in lateral and longitudinal plane. In Fig. 5.3 it is seen that altitude drops initially as the wind is introduced, this leads to decrease in air relative velocity hence the lift generated decreases. −1600 −1400 −1200 −1000 −800 −600 −400 −200 0 0 20 40 60 80 100 120 X (m) Y(m) Ideal Actual Figure 5.2: Landing path in x-y plane −1600 −1400 −1200 −1000 −800 −600 −400 −200 0 0 5 10 15 20 25 30 35 40 45 50 X (m) h(m) Ideal Actual Figure 5.3: Landing path in x-h plane

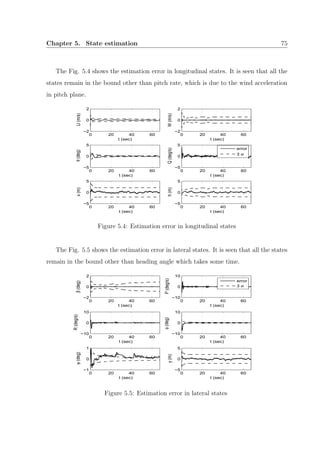

Chapter 5. State estimation 75 The Fig. 5.4 shows the estimation error in longitudinal states. It is seen that all the states remain in the bound other than pitch rate, which is due to the wind acceleration in pitch plane. 0 20 40 60 −2 0 2 t (sec) U(m/s) 0 20 40 60 −2 0 2 t (sec) W(m/s)0 20 40 60 −5 0 5 t (sec) θ(deg) 0 20 40 60 −5 0 5 t (sec) Q(deg/s) error 3 σ 0 20 40 60 −5 0 5 t (sec) x(m) 0 20 40 60 −5 0 5 t (sec) h(m) Figure 5.4: Estimation error in longitudinal states The Fig. 5.5 shows the estimation error in lateral states. It is seen that all the states remain in the bound other than heading angle which takes some time. 0 20 40 60 −2 0 2 t (sec) β(deg) 0 20 40 60 −10 0 10 t (sec) P(deg/s) error 3 σ 0 20 40 60 −10 0 10 t (sec) R(deg/s) 0 20 40 60 −10 0 10 t (sec) φ(deg) 0 20 40 60 −1 0 1 t (sec) ψ(deg) 0 20 40 60 −5 0 5 t (sec) y(m) Figure 5.5: Estimation error in lateral states

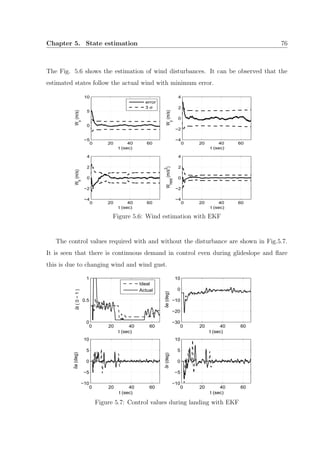

Chapter 5. State estimation 76 The Fig. 5.6 shows the estimation of wind disturbances. It can be observed that the estimated states follow the actual wind with minimum error. 0 20 40 60 −5 0 5 10 t (sec) Wx (m/s) error 3 σ 0 20 40 60 −4 −2 0 2 4 t (sec) W y (m/s) 0 20 40 60 −4 −2 0 2 4 t (sec) Wh (m/s) 0 20 40 60 −4 −2 0 2 4 t (sec) W hdot (m/s2 ) Figure 5.6: Wind estimation with EKF The control values required with and without the disturbance are shown in Fig.5.7. It is seen that there is continuous demand in control even during glideslope and flare this is due to changing wind and wind gust. 0 20 40 60 0 0.5 1 t (sec) δt(0−1) Ideal Actual 0 20 40 60 −30 −20 −10 0 10 t (sec) δe(deg) 0 20 40 60 −10 −5 0 5 10 t (sec) δa(deg) 0 20 40 60 −10 −5 0 5 10 t (sec) δr(deg) Figure 5.7: Control values during landing with EKF

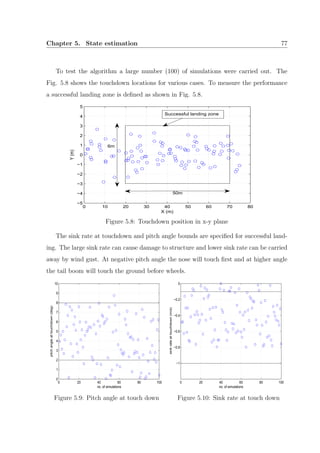

Chapter 5. State estimation 77 To test the algorithm a large number (100) of simulations were carried out. The Fig. 5.8 shows the touchdown locations for various cases. To measure the performance a successful landing zone is defined as shown in Fig. 5.8. 0 10 20 30 40 50 60 70 80 −5 −4 −3 −2 −1 0 1 2 3 4 5 X (m) Y(m) 50m 6m Successful landing zone Figure 5.8: Touchdown position in x-y plane The sink rate at touchdown and pitch angle bounds are specified for successful land- ing. The large sink rate can cause damage to structure and lower sink rate can be carried away by wind gust. At negative pitch angle the nose will touch first and at higher angle the tail boom will touch the ground before wheels. 0 20 40 60 80 100 0 1 2 3 4 5 6 7 8 9 10 no. of simulations pitchangleattouchdown(deg) Figure 5.9: Pitch angle at touch down 0 20 40 60 80 100 −1 −0.8 −0.6 −0.4 −0.2 0 no. of simulations sinkrateattouchdown(m/s) Figure 5.10: Sink rate at touch down

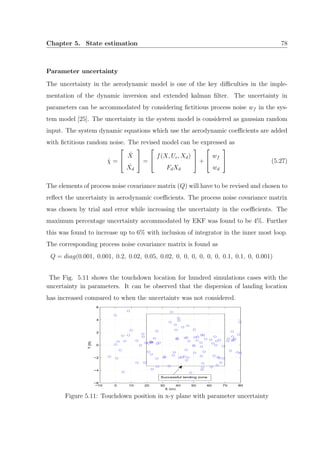

Chapter 5. State estimation 78 Parameter uncertainty The uncertainty in the aerodynamic model is one of the key difficulties in the imple- mentation of the dynamic inversion and extended kalman filter. The uncertainty in parameters can be accommodated by considering fictitious process noise wf in the sys- tem model [25]. The uncertainty in the system model is considered as gaussian random input. The system dynamic equations which use the aerodynamic coefficients are added with fictitious random noise. The revised model can be expressed as ˙χ =   ˙X ˙Xd   =   f(X, Uc, Xd) FdXd   +   wf wd   (5.27) The elements of process noise covariance matrix (Q) will have to be revised and chosen to reflect the uncertainty in aerodynamic coefficients. The process noise covariance matrix was chosen by trial and error while increasing the uncertainty in the coefficients. The maximum percentage uncertainty accommodated by EKF was found to be 4%. Further this was found to increase up to 6% with inclusion of integrator in the inner most loop. The corresponding process noise covariance matrix is found as Q = diag(0.001, 0.001, 0.2, 0.02, 0.05, 0.02, 0, 0, 0, 0, 0, 0, 0.1, 0.1, 0, 0.001) The Fig. 5.11 shows the touchdown location for hundred simulations cases with the uncertainty in parameters. It can be observed that the dispersion of landing location has increased compared to when the uncertainty was not considered. −10 0 10 20 30 40 50 60 70 80 −6 −4 −2 0 2 4 6 X (m) Y(m) Successful landing zone Figure 5.11: Touchdown position in x-y plane with parameter uncertainty

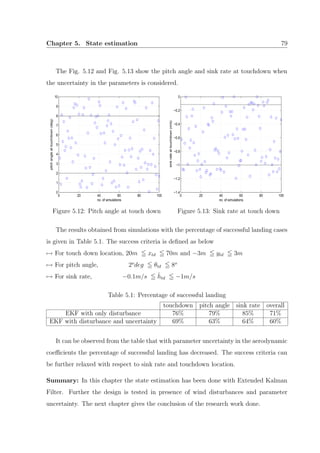

Chapter 5. State estimation 79 The Fig. 5.12 and Fig. 5.13 show the pitch angle and sink rate at touchdown when the uncertainty in the parameters is considered. 0 20 40 60 80 100 0 1 2 3 4 5 6 7 8 9 10 no. of simulations pitchangleattouchdown(deg) Figure 5.12: Pitch angle at touch down 0 20 40 60 80 100 −1.4 −1.2 −1 −0.8 −0.6 −0.4 −0.2 0 no. of simulations sinkrateattouchdown(m/s) Figure 5.13: Sink rate at touch down The results obtained from simulations with the percentage of successful landing cases is given in Table 5.1. The success criteria is defined as below → For touch down location, 20m xtd 70m and −3m ytd 3m → For pitch angle, 2o deg θtd 8o → For sink rate, −0.1m/s ˙htd −1m/s Table 5.1: Percentage of successful landing touchdown pitch angle sink rate overall EKF with only disturbance 76% 79% 85% 71% EKF with disturbance and uncertainty 69% 63% 64% 60% It can be observed from the table that with parameter uncertainty in the aerodynamic coefficients the percentage of successful landing has decreased. The success criteria can be further relaxed with respect to sink rate and touchdown location. Summary: In this chapter the state estimation has been done with Extended Kalman Filter. Further the design is tested in presence of wind disturbances and parameter uncertainty. The next chapter gives the conclusion of the research work done.

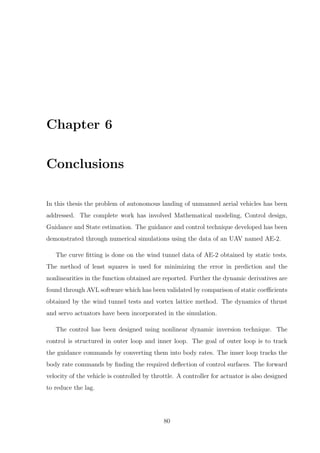

Chapter 6 Conclusions In this thesis the problem of autonomous landing of unmanned aerial vehicles has been addressed. The complete work has involved Mathematical modeling, Control design, Guidance and State estimation. The guidance and control technique developed has been demonstrated through numerical simulations using the data of an UAV named AE-2. The curve fitting is done on the wind tunnel data of AE-2 obtained by static tests. The method of least squares is used for minimizing the error in prediction and the nonlinearities in the function obtained are reported. Further the dynamic derivatives are found through AVL software which has been validated by comparison of static coefficients obtained by the wind tunnel tests and vortex lattice method. The dynamics of thrust and servo actuators have been incorporated in the simulation. The control has been designed using nonlinear dynamic inversion technique. The control is structured in outer loop and inner loop. The goal of outer loop is to track the guidance commands by converting them into body rates. The inner loop tracks the body rate commands by finding the required deflection of control surfaces. The forward velocity of the vehicle is controlled by throttle. A controller for actuator is also designed to reduce the lag. 80

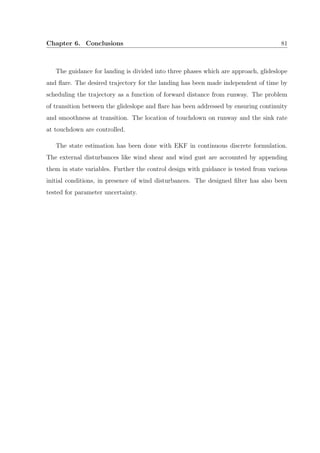

Chapter 6. Conclusions 81 The guidance for landing is divided into three phases which are approach, glideslope and flare. The desired trajectory for the landing has been made independent of time by scheduling the trajectory as a function of forward distance from runway. The problem of transition between the glideslope and flare has been addressed by ensuring continuity and smoothness at transition. The location of touchdown on runway and the sink rate at touchdown are controlled. The state estimation has been done with EKF in continuous discrete formulation. The external disturbances like wind shear and wind gust are accounted by appending them in state variables. Further the control design with guidance is tested from various initial conditions, in presence of wind disturbances. The designed filter has also been tested for parameter uncertainty.

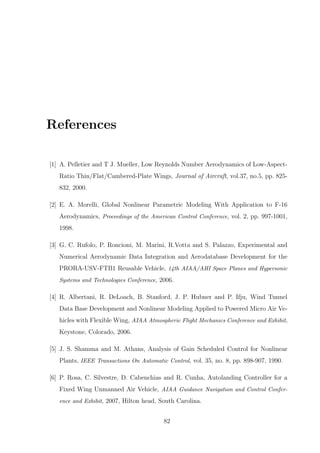

References [1] A. Pelletier and T J. Mueller, Low Reynolds Number Aerodynamics of Low-Aspect- Ratio Thin/Flat/Cambered-Plate Wings, Journal of Aircraft, vol.37, no.5, pp. 825- 832, 2000. [2] E. A. Morelli, Global Nonlinear Parametric Modeling With Application to F-16 Aerodynamics, Proceedings of the American Control Conference, vol. 2, pp. 997-1001, 1998. [3] G. C. Rufolo, P. Roncioni, M. Marini, R.Votta and S. Palazzo, Experimental and Numerical Aerodynamic Data Integration and Aerodatabase Development for the PRORA-USV-FTB1 Reusable Vehicle, 14th AIAA/AHI Space Planes and Hypersonic Systems and Technologies Conference, 2006. [4] R. Albertani, R. DeLoach, B. Stanford, J. P. Hubner and P. Ifju, Wind Tunnel Data Base Development and Nonlinear Modeling Applied to Powered Micro Air Ve- hicles with Flexible Wing, AIAA Atmospheric Flight Mechanics Conference and Exhibit, Keystone, Colorado, 2006. [5] J. S. Shamma and M. Athans, Analysis of Gain Scheduled Control for Nonlinear Plants, IEEE Transactions On Automatic Control, vol. 35, no. 8, pp. 898-907, 1990. [6] P. Rosa, C. Silvestre, D. Cabenchias and R. Cunha, Autolanding Controller for a Fixed Wing Unmanned Air Vehicle, AIAA Guidance Navigation and Control Confer- ence and Exhibit, 2007, Hilton head, South Carolina. 82

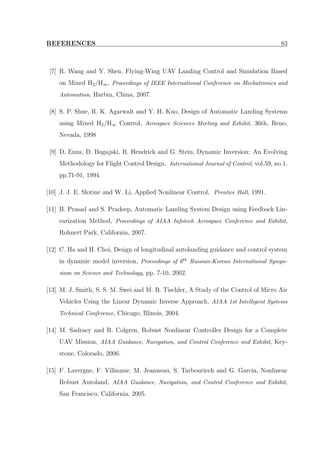

REFERENCES 83 [7] R. Wang and Y. Shen, Flying-Wing UAV Landing Control and Simulation Based on Mixed H2/H∞, Proceedings of IEEE International Conference on Mechatronics and Automation, Harbin, China, 2007. [8] S. P. Shue, R. K. Agarwalt and Y. H. Kuo, Design of Automatic Landing Systems using Mixed H2/H∞ Control, Aerospace Sciences Meeting and Exhibit, 36th, Reno, Nevada, 1998 [9] D. Enns, D. Bugajski, R. Hendrick and G. Stein, Dynamic Inversion: An Evolving Methodology for Flight Control Design, International Journal of Control, vol.59, no.1, pp.71-91, 1994. [10] J. J. E. Slotine and W. Li, Applied Nonlinear Control, Prentice Hall, 1991. [11] B. Prasad and S. Pradeep, Automatic Landing System Design using Feedback Lin- earization Method, Proceedings of AIAA Infotech Aerospace Conference and Exhibit, Rohnert Park, California, 2007. [12] C. Ha and H. Choi, Design of longitudinal autolanding guidance and control system in dynamic model inversion, Proceedings of 6th Russian-Korean International Sympo- sium on Science and Technology, pp. 7-10, 2002. [13] M. J. Smith, S. S. M. Swei and M. B. Tischler, A Study of the Control of Micro Air Vehicles Using the Linear Dynamic Inverse Approach, AIAA 1st Intelligent Systems Technical Conference, Chicago, Illinois, 2004. [14] M. Sadraey and R. Colgren, Robust Nonlinear Controller Design for a Complete UAV Mission, AIAA Guidance, Navigation, and Control Conference and Exhibit, Key- stone, Colorado, 2006. [15] F. Lavergne, F. Villaume, M. Jeanneau, S. Tarbouriech and G. Garcia, Nonlinear Robust Autoland, AIAA Guidance, Navigation, and Control Conference and Exhibit, San Francisco, California, 2005.

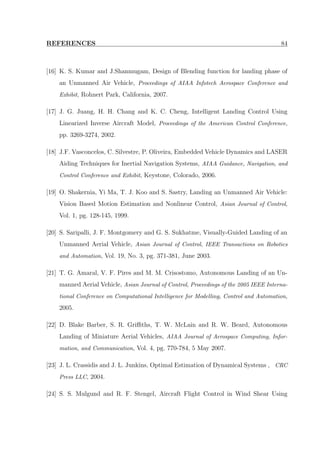

REFERENCES 84 [16] K. S. Kumar and J.Shanmugam, Design of Blending function for landing phase of an Unmanned Air Vehicle, Proceedings of AIAA Infotech Aerospace Conference and Exhibit, Rohnert Park, California, 2007. [17] J. G. Juang, H. H. Chang and K. C. Cheng, Intelligent Landing Control Using Linearized Inverse Aircraft Model, Proceedings of the American Control Conference, pp. 3269-3274, 2002. [18] J.F. Vasconcelos, C. Silvestre, P. Oliveira, Embedded Vehicle Dynamics and LASER Aiding Techniques for Inertial Navigation Systems, AIAA Guidance, Navigation, and Control Conference and Exhibit, Keystone, Colorado, 2006. [19] O. Shakernia, Yi Ma, T. J. Koo and S. Sastry, Landing an Unmanned Air Vehicle: Vision Based Motion Estimation and Nonlinear Control, Asian Journal of Control, Vol. 1, pg. 128-145, 1999. [20] S. Saripalli, J. F. Montgomery and G. S. Sukhatme, Visually-Guided Landing of an Unmanned Aerial Vehicle, Asian Journal of Control, IEEE Transactions on Robotics and Automation, Vol. 19, No. 3, pg. 371-381, June 2003. [21] T. G. Amaral, V. F. Pires and M. M. Crisostomo, Autonomous Landing of an Un- manned Aerial Vehicle, Asian Journal of Control, Proceedings of the 2005 IEEE Interna- tional Conference on Computational Intelligence for Modelling, Control and Automation, 2005. [22] D. Blake Barber, S. R. Griffiths, T. W. McLain and R. W. Beard, Autonomous Landing of Miniature Aerial Vehicles, AIAA Journal of Aerospace Computing, Infor- mation, and Communication, Vol. 4, pg. 770-784, 5 May 2007. [23] J. L. Crassidis and J. L. Junkins, Optimal Estimation of Dynamical Systems , CRC Press LLC, 2004. [24] S. S. Mulgund and R. F. Stengel, Aircraft Flight Control in Wind Shear Using

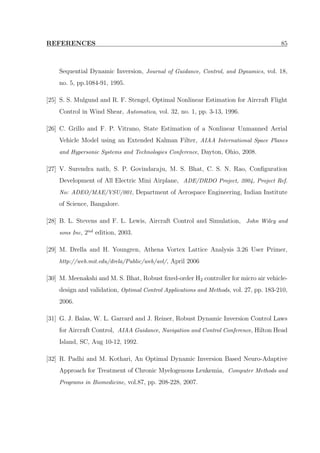

REFERENCES 85 Sequential Dynamic Inversion, Journal of Guidance, Control, and Dynamics, vol. 18, no. 5, pp.1084-91, 1995. [25] S. S. Mulgund and R. F. Stengel, Optimal Nonlinear Estimation for Aircraft Flight Control in Wind Shear, Automatica, vol. 32, no. 1, pp. 3-13, 1996. [26] C. Grillo and F. P. Vitrano, State Estimation of a Nonlinear Unmanned Aerial Vehicle Model using an Extended Kalman Filter, AIAA International Space Planes and Hypersonic Systems and Technologies Conference, Dayton, Ohio, 2008. [27] V. Surendra nath, S. P. Govindaraju, M. S. Bhat, C. S. N. Rao, Configuration Development of All Electric Mini Airplane, ADE/DRDO Project, 2004, Project Ref. No: ADEO/MAE/VSU/001, Department of Aerospace Engineering, Indian Institute of Science, Bangalore. [28] B. L. Stevens and F. L. Lewis, Aircraft Control and Simulation, John Wiley and sons Inc, 2nd edition, 2003. [29] M. Drella and H. Youngren, Athena Vortex Lattice Analysis 3.26 User Primer, http://web.mit.edu/drela/Public/web/avl/, April 2006 [30] M. Meenakshi and M. S. Bhat, Robust fixed-order H2 controller for micro air vehicle- design and validation, Optimal Control Applications and Methods, vol. 27, pp. 183-210, 2006. [31] G. J. Balas, W. L. Garrard and J. Reiner, Robust Dynamic Inversion Control Laws for Aircraft Control, AIAA Guidance, Navigation and Control Conference, Hilton Head Island, SC, Aug 10-12, 1992. [32] R. Padhi and M. Kothari, An Optimal Dynamic Inversion Based Neuro-Adaptive Approach for Treatment of Chronic Myelogenous Leukemia, Computer Methods and Programs in Biomedicine, vol.87, pp. 208-228, 2007.

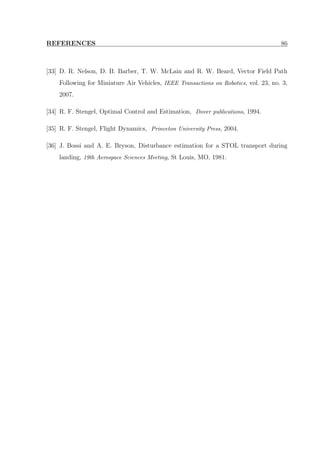

REFERENCES 86 [33] D. R. Nelson, D. B. Barber, T. W. McLain and R. W. Beard, Vector Field Path Following for Miniature Air Vehicles, IEEE Transactions on Robotics, vol. 23, no. 3, 2007. [34] R. F. Stengel, Optimal Control and Estimation, Dover publications, 1994. [35] R. F. Stengel, Flight Dynamics, Princeton University Press, 2004. [36] J. Bossi and A. E. Bryson, Disturbance estimation for a STOL transport during landing, 19th Aerospace Sciences Meeting, St Louis, MO, 1981.

More Related Content

PDF
MSc_Thesis_Wake_Dynamics_Study_of_an_H-type_Vertical_Axis_Wind_Turbine
byChenguang He

PDF
Experimental Investigation of Optimal Aerodynamics of a Flying Wing UAV(Link)
byBaba Kakkar

PDF
Stabilitynotes1
byNarendraSinghMaurya1

PDF
[Sapienza] Development of the Flight Dynamics Model of a Flying Wing Aircraft
byJacopo Tonti

PDF
MastersThesis
byDoug Hunsaker

PDF
Shu thesis
byRangacharyulu Peesapati

PDF
bachelors-thesis
byVishal Gawade

PDF
NUMERICAL SIMULATION OF FLOW THROUGH
byHassan El Sheshtawy

MSc_Thesis_Wake_Dynamics_Study_of_an_H-type_Vertical_Axis_Wind_Turbine
byChenguang He

Experimental Investigation of Optimal Aerodynamics of a Flying Wing UAV(Link)
byBaba Kakkar

Stabilitynotes1
byNarendraSinghMaurya1

[Sapienza] Development of the Flight Dynamics Model of a Flying Wing Aircraft
byJacopo Tonti

MastersThesis
byDoug Hunsaker

Shu thesis
byRangacharyulu Peesapati

bachelors-thesis
byVishal Gawade

NUMERICAL SIMULATION OF FLOW THROUGH
byHassan El Sheshtawy


What's hot

PDF
Mark Quinn Thesis
byMark Quinn

PDF
A Three Dimensional Vortex Particle-Panel Code For Modeling Prope
byJacob Calabretta

PDF
grDirkEkelschotFINAL__2_
byDirk Ekelschot

PDF
Xray 1
byTaufiku Rahman

PDF
Practice guide stopwatches and timer calibrations
byIngrid McKenzie

PDF
Nonlinear Simulation of Rotor-Bearing System Dynamics
byFrederik Budde

PDF
The gage block handbook
bygoyito13

PDF
Left-Turn Elimination to Improve Network Performance
byCunxiang Nicole Mi, E.I.T., LEED GA

PDF
Introduction to physical oceanography
byIvan Vera Montenegro

DOCX
Screw jack project
byshushay hailu

PDF
Ellum, C.M. (2001). The development of a backpack mobile mapping system
byCameron Ellum

PDF
Masters Thesis - Joshua Wilson
byJoshua Wilson

PDF
Charles Tatossian - Thesis
byCharles A. Tatossian

PDF
Durlav Mudbhari - MSME Thesis
byDurlav Mudbhari

PDF
iosdft
byAdrian Matthews

PDF
Numerical Study of Strong Free Surface Flow and Breaking Waves
byYi Liu

PDF
PWang_PhD_Thesis_Final
byPete Wang

Mark Quinn Thesis
byMark Quinn

A Three Dimensional Vortex Particle-Panel Code For Modeling Prope
byJacob Calabretta

grDirkEkelschotFINAL__2_
byDirk Ekelschot

Xray 1
byTaufiku Rahman

Practice guide stopwatches and timer calibrations
byIngrid McKenzie

Nonlinear Simulation of Rotor-Bearing System Dynamics
byFrederik Budde

The gage block handbook
bygoyito13

Left-Turn Elimination to Improve Network Performance
byCunxiang Nicole Mi, E.I.T., LEED GA

Introduction to physical oceanography
byIvan Vera Montenegro

Screw jack project
byshushay hailu

Ellum, C.M. (2001). The development of a backpack mobile mapping system
byCameron Ellum

Masters Thesis - Joshua Wilson
byJoshua Wilson

Charles Tatossian - Thesis
byCharles A. Tatossian

Durlav Mudbhari - MSME Thesis
byDurlav Mudbhari

iosdft
byAdrian Matthews

Numerical Study of Strong Free Surface Flow and Breaking Waves
byYi Liu

PWang_PhD_Thesis_Final
byPete Wang


Viewers also liked

PPTX
Communication in the real world
byEstefaOrtiz23

PDF
Civil Rights
byDustinm97

PPTX
Өкпе рагы
byBilim All

PPTX
Espírito enche a minha vida
bySUSSURRO DE AMOR

PPT
Аралар мен құмырсқалар
byBilim All

DOC
MOMENT OF INERTIA
byAzizul Izham

PPTX
Historic Buildings of the 1920s and 1930s in Budapest
byDavid Baucom

DOC
CV Socrates Freire in English updated
bySocrates S

PDF
Crecimiento del Mercado de
byFerAcevedo11

PDF
2015-advanced-persistent-threat-awareness_whp_eng_1015
byRobin "Montana" Williams

PPT
Curación de--contenidos-cómo-realizarla-y-en-que-te-beneficia
byJosé Luís Casado

PDF
Xpand for General Assembly Hong Kong
byJoanna Cockle

PDF
HSBC-News 34
byJohn Banos

Communication in the real world
byEstefaOrtiz23

Civil Rights
byDustinm97

Өкпе рагы
byBilim All

Espírito enche a minha vida
bySUSSURRO DE AMOR

Аралар мен құмырсқалар
byBilim All

MOMENT OF INERTIA
byAzizul Izham

Historic Buildings of the 1920s and 1930s in Budapest
byDavid Baucom

CV Socrates Freire in English updated
bySocrates S

Crecimiento del Mercado de
byFerAcevedo11

2015-advanced-persistent-threat-awareness_whp_eng_1015
byRobin "Montana" Williams

Curación de--contenidos-cómo-realizarla-y-en-que-te-beneficia
byJosé Luís Casado

Xpand for General Assembly Hong Kong
byJoanna Cockle

HSBC-News 34
byJohn Banos


Similar to MS Thesis ShashiprakashSingh

PDF
Guidance, Control and Trajectory Tracking of Small Fixed Wing Unmanned Aerial...
byAmer Al-Radaideh

PDF
Dmitriy Rivkin Thesis
byDmitriy Rivkin

PDF
ME75-2014-myan076-report
byMicky Yang

PDF
shehabi - A Classical and Fuzzy Logic Control Design and Simulation of a Long...
byAbdul Ghafoor Al Shehabi

PDF
Control of a Quadcopter
byPablo Garcia Au

PDF
A Review on Longitudinal Control Law Design for a Small Fixed-Wing UAV
byIRJET Journal

PDF
Gain scheduling automatic landing system by modeling Ground Effect
byInternational Journal of Engineering Inventions www.ijeijournal.com

PDF
PFM - Pablo Garcia Auñon
byPablo Garcia Au

PDF
TesiFin
bylorenzo vallini

PDF
MSthesis control for system s with bounded actuators.pdf
bywesleybaela

PDF
ASerraMoral_16MS_FlutterSuppressionFlexUAVUsingLESPSensor
byAdrià Serra Moral

PDF
ASerraMoral_16MS_FlutterSuppressionFlexUAVUsingLESPSensor
byAdrià Serra Moral

PDF
ENHANCED DATA DRIVEN MODE-FREE ADAPTIVE YAW CONTROL OF UAV HELICOPTER
byijics

PDF
ENHANCED DATA DRIVEN MODE-FREE ADAPTIVE YAW CONTROL OF UAV HELICOPTER
byijcisjournal

PDF
1 s2.0-s0016003213003104-main
byRamalakshmi Vijay

PDF
Smart aerosonde UAV longitudinal flight control system based on genetic algor...
byjournalBEEI

PDF
Unmanned Airplane Autopilot Tuning
byIJERA Editor

PDF
F04 06 4451
byInternational Journal of Engineering Inventions www.ijeijournal.com

PDF
The International Journal of Engineering and Science (IJES)
bytheijes

PDF
The International Journal of Engineering and Science
bytheijes

Guidance, Control and Trajectory Tracking of Small Fixed Wing Unmanned Aerial...
byAmer Al-Radaideh

Dmitriy Rivkin Thesis
byDmitriy Rivkin

ME75-2014-myan076-report
byMicky Yang

shehabi - A Classical and Fuzzy Logic Control Design and Simulation of a Long...
byAbdul Ghafoor Al Shehabi

Control of a Quadcopter
byPablo Garcia Au

A Review on Longitudinal Control Law Design for a Small Fixed-Wing UAV
byIRJET Journal

Gain scheduling automatic landing system by modeling Ground Effect
byInternational Journal of Engineering Inventions www.ijeijournal.com

PFM - Pablo Garcia Auñon
byPablo Garcia Au

TesiFin
bylorenzo vallini

MSthesis control for system s with bounded actuators.pdf
bywesleybaela

ASerraMoral_16MS_FlutterSuppressionFlexUAVUsingLESPSensor
byAdrià Serra Moral

ASerraMoral_16MS_FlutterSuppressionFlexUAVUsingLESPSensor
byAdrià Serra Moral

ENHANCED DATA DRIVEN MODE-FREE ADAPTIVE YAW CONTROL OF UAV HELICOPTER
byijics

ENHANCED DATA DRIVEN MODE-FREE ADAPTIVE YAW CONTROL OF UAV HELICOPTER
byijcisjournal

1 s2.0-s0016003213003104-main
byRamalakshmi Vijay

Smart aerosonde UAV longitudinal flight control system based on genetic algor...
byjournalBEEI

Unmanned Airplane Autopilot Tuning
byIJERA Editor

F04 06 4451
byInternational Journal of Engineering Inventions www.ijeijournal.com

The International Journal of Engineering and Science (IJES)
bytheijes

The International Journal of Engineering and Science
bytheijes


Recently uploaded

PPTX
An Early Production Facility (EPF) is a modular, temporary system for rapidly...
byDrAdelSalem1

PDF
Life Cycle Analysis of Electric and Internal Combustion Engine Vehicles
byUniversity Institute of Technology, Barkatullah University

PPTX
RTOS_Automatic_Room_Light_Controller_ Exp.no.1.pptx
bySanjivani College of Engineering, Kopargaon, Ahmednagar, Maharashtra, India

PDF
BO139A454SPI 1.39″ Round AMOLED Display Module, 454×454, SPI & MIPI
bySyluxdisplay

PPTX
PEMET 413 KTU 2024 MODULE 2 LECTURE 3.pptx
byVINAY B

PDF
Software Engineering : Nature of Software
byGunjalSanjay

PDF
Requirement Engineering : Capturing the Requirements
byGunjalSanjay

PDF
Performance Benchmarking Strategies for AI/HPC/EdgeAI
byDanny Jiang

PDF
TR095A120SPC 0.95″ AMOLED Display Module, 120×120 Resolution
bySyluxdisplay

PPTX
Embedded_Linux_ARM_Cross_Compilation_Exp.no.3.pptx
bySanjivani College of Engineering, Kopargaon, Ahmednagar, Maharashtra, India

PPTX
MET 464- MICRO AND AND NANO MANUFACTURING -MOD 2.pptx KTU 2019
byVINAY B

PDF
Seminar topic on scaffolding and its types.pdf
byMOTOSIFSHAIKH

PDF
CRYPTOCURRENCY FORENSICS: A COMPREHENSIVE REPORT ON TRACKING ILLICIT DIGITAL ...
byGarima Singh

PDF
22PEOIT4C Artificial Intelligence unit 3 QB Final.pdf
byGuru Nanak Technical Institutions

PPTX
TEST presentation to see if I can share it with notes.
byFernando Benavides

PDF
Retrieval Augmented Generation (RAG) Turning Data into Smart Answers
byYasir Ali

PPTX
Diagram of Control Valves used in Industrial Fluid Power.pptx
bySBM Polytechnic

PDF
22PEOIT4C Artificial Intelligence Unit II notes Final.pdf
byGuru Nanak Technical Institutions

PPTX
Operational Amplifier (op - amp), types of op amp
byVaishaliVaishali14

PPTX
DISINFECTANT & DISINFECTION PROCESS.pptx
byChemical Engineering Dept. NIT Rourkela-769008, Odisha, India

An Early Production Facility (EPF) is a modular, temporary system for rapidly...
byDrAdelSalem1

Life Cycle Analysis of Electric and Internal Combustion Engine Vehicles
byUniversity Institute of Technology, Barkatullah University

RTOS_Automatic_Room_Light_Controller_ Exp.no.1.pptx
bySanjivani College of Engineering, Kopargaon, Ahmednagar, Maharashtra, India

BO139A454SPI 1.39″ Round AMOLED Display Module, 454×454, SPI & MIPI
bySyluxdisplay

PEMET 413 KTU 2024 MODULE 2 LECTURE 3.pptx
byVINAY B

Software Engineering : Nature of Software
byGunjalSanjay

Requirement Engineering : Capturing the Requirements
byGunjalSanjay

Performance Benchmarking Strategies for AI/HPC/EdgeAI
byDanny Jiang

TR095A120SPC 0.95″ AMOLED Display Module, 120×120 Resolution
bySyluxdisplay

Embedded_Linux_ARM_Cross_Compilation_Exp.no.3.pptx
bySanjivani College of Engineering, Kopargaon, Ahmednagar, Maharashtra, India

MET 464- MICRO AND AND NANO MANUFACTURING -MOD 2.pptx KTU 2019
byVINAY B

Seminar topic on scaffolding and its types.pdf
byMOTOSIFSHAIKH

CRYPTOCURRENCY FORENSICS: A COMPREHENSIVE REPORT ON TRACKING ILLICIT DIGITAL ...
byGarima Singh

22PEOIT4C Artificial Intelligence unit 3 QB Final.pdf
byGuru Nanak Technical Institutions

TEST presentation to see if I can share it with notes.
byFernando Benavides

Retrieval Augmented Generation (RAG) Turning Data into Smart Answers
byYasir Ali

Diagram of Control Valves used in Industrial Fluid Power.pptx
bySBM Polytechnic

22PEOIT4C Artificial Intelligence Unit II notes Final.pdf
byGuru Nanak Technical Institutions

Operational Amplifier (op - amp), types of op amp
byVaishaliVaishali14

DISINFECTANT & DISINFECTION PROCESS.pptx
byChemical Engineering Dept. NIT Rourkela-769008, Odisha, India


MS Thesis ShashiprakashSingh

  • 1.
    Autonomous Landing of UnmannedAerial Vehicles A Thesis Submitted For the Degree of Master of Science in the Faculty of Engineering by Shashiprakash Singh Department of Aerospace Engineering Indian Institute of Science BANGALORE – 560 012 February 2009
  • 2.
    c Shashiprakash Singh February2009 All rights reserved
  • 3.
    DECLARATION I declare thatthe thesis entitled Autonomous Landing of Unmanned Aerial Vehicles submitted by me for the M.Sc.[Engg.] degree of the Indian Institute of Science did not form the subject matter of any other thesis submitted by me for any outside degree and the original work done by me and incorporated in this thesis is entirely done at Indian Institute of Science, Bangalore. Bangalore Shashiprakash Singh February 2009
  • 4.
    Dedicated to “Late Dr.S. Pradeep” For his guidance and teaching me the basics of research.
  • 5.
    Acknowledgements I would liketo thank my research advisor Dr. Radhakant Padhi for his constant guidance, discussions, support and constructive criticism. I am also thankful to Prof. M. S. Bhat and Prof. D. Ghose for their valuable advice at various instances. I also want to thank all my course instructors for having enriched my knowledge on various research topics. My thanks to Mr. V. Surendranath and all the staff at the wind tunnel facility, for carrying out the wind tunnel test and for letting us use their facility at UAV lab. I also want to thank Prof. S. P. Govindaraju for answering many of my queries related to aerodynamic data. I am grateful to all my lab members for creating a constructive research environment in the lab. It is through the discussions with lab members that I have gained the knowledge on various problems in the areas of aerospace and control design. I would like to take this opportunity to thank Prof. B. N. Raghunandan for all the research facilities at department and his motivating talks. I will not miss to thank the staff at aerospace main office who have been most humble and have always shown readiness to help. I am grateful to my family for their patience and support of my decision to pursue higher studies. They have always understood my position in spite of my less frequent visits to home. In the last I thank all the trees, plants and flowers of IISc for making the institute a beautiful and silent place, where the researchers can think freely in the peaceful air. i
  • 6.
    Publications based onthis thesis 1. Shashiprakash Singh and Radhakant Padhi, Automatic Landing of Unmanned Aerial Vehicles Using Dynamic Inversion, Proceedings of International Conference on Aerospace Science and Technology, Banga- lore, India, 26-28 June 2008. 2. Shashiprakash Singh and Radhakant Padhi, Automatic Path Planning and Control Design for Autonomous Landing of UAVs using Dynamic Inversion, Accepted for 2009 American Control Conference, Missouri, USA, 10-12 June 2009. ii
  • 7.
    Abstract In this thesisthe problem of autonomous landing of an unmanned aerial vehicle named AE-2 is addressed. The guidance and control technique is developed and demonstrated through numerical simulation results. The complete work includes Mathematical mod- eling, Control design, Guidance and State estimation for AE-2, which is a fixed wing vehicle with 2m wing span and 6kg weight. The aerodynamic data for AE-2 is available from static wind tunnel tests. Functional fit is done on the wind tunnel data with least squares method to find static aerody- namic coefficients. The aerodynamic forces and moment coefficients are highly nonlinear some of them are partitioned in two zones based on the angle of attack. The dynamic derivatives are found with Athena Vortex Lattice software. For the validation of vortex lattice method the static derivatives obtained by the wind tunnel tests and vortex lattice method, are compared before finding dynamic derivatives. The dynamics of the servo actuators for the aerodynamic control surfaces is incorporated in the simulation. The nonlinear dynamic inversion technique has been used for the guidance and control design. The control is structured in two loops, outer and inner loop. The goal of outer loop is to track the guidance commands of altitude, roll angle and yaw angle by converting them into body rate commands through dynamic inversion. The inner loop than tracks these commanded roll rate, pitch rate and yaw rate by finding the required deflection of control surfaces. The forward velocity of the vehicle is controlled by varying the throttle. A controller for actuator is also designed to reduce the lag. iii
  • 8.
    Abstract iv The guidancefor landing consists of three phases approach, glideslope and flare. During approach the vehicle is aligned with the runway and guided to a specified height from where the glideslope can begin. The glideslope is straight line path specified by a flight path angle which is restricted between 3 to 4 degree. At the end of glideslope which is marked by flare altitude the flare maneuver begins which is an exponential curve. The problem of transition between the glideslope and flare has addressed by ensuring continuity and smoothness at transition. The exponential curve of flare is designed to end below the ground so that it intersects the ground at a prespecified point. The sink rate at touchdown is also controlled along with the location of touchdown point. The state estimation has been done with Extended Kalman Filter in continuous dis- crete formulation. The external disturbances like wind shear and wind gust are accounted by appending them in state variables. Further the control design with guidance is tested from various initial conditions, in presence of wind disturbances. The designed filter has also been tested for parameter uncertainty.
  • 9.
    Contents Acknowledgements i Publications basedon this thesis ii Abstract iii Notation and Abbreviations xiii 1 Introduction 1 1.1 Motivation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 1.2 Contribution of present work . . . . . . . . . . . . . . . . . . . . . . . . . 4 1.3 Organization of thesis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 2 Mathematical modeling 6 2.1 Equations of motion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2.2 Aerodynamic forces and moments . . . . . . . . . . . . . . . . . . . . . 9 2.2.1 Wind tunnel testing . . . . . . . . . . . . . . . . . . . . . . . . . 10 2.2.2 Curve fitting on wind tunnel data . . . . . . . . . . . . . . . . . . 11 2.2.3 Static stability derivatives . . . . . . . . . . . . . . . . . . . . . . 17 2.2.4 Dynamic stability derivatives . . . . . . . . . . . . . . . . . . . . 24 2.3 Thrust force and moment . . . . . . . . . . . . . . . . . . . . . . . . . . 29 2.4 Actuator dynamics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 2.5 Trim condition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 v
  • 10.
    CONTENTS vi 2.6 Simulationresults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 2.6.1 Open loop simulation . . . . . . . . . . . . . . . . . . . . . . . . . 32 2.6.2 Perturbation around trim condition . . . . . . . . . . . . . . . . . 33 3 Control design 35 3.1 Dynamic inversion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 3.2 Outer loop control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 3.2.1 Roll angle control . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 3.2.2 Pitch angle control . . . . . . . . . . . . . . . . . . . . . . . . . . 39 3.2.3 Heading angle control . . . . . . . . . . . . . . . . . . . . . . . . . 40 3.3 Inner loop control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 3.3.1 Body rates control . . . . . . . . . . . . . . . . . . . . . . . . . . 41 3.3.2 Forward velocity control . . . . . . . . . . . . . . . . . . . . . . . 43 3.4 Actuator controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 3.5 Control structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 3.6 Simulation results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 3.6.1 Pitch angle command . . . . . . . . . . . . . . . . . . . . . . . . . 46 3.6.2 Heading angle command . . . . . . . . . . . . . . . . . . . . . . . 48 3.6.3 Bank angle command . . . . . . . . . . . . . . . . . . . . . . . . . 50 4 Path planning and guidance 53 4.1 Path planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 4.1.1 Approach . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 4.1.2 Glideslope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 4.1.3 Flare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 4.2 Guidance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 4.2.1 Sideward distance control . . . . . . . . . . . . . . . . . . . . . . 58 4.2.2 Altitude control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 4.2.3 Coordinated turn constraint . . . . . . . . . . . . . . . . . . . . . 60
  • 11.
    CONTENTS vii 4.3 Simulationresults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 5 State estimation 65 5.1 Extended Kalman Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 5.2 Filter equations for UAV . . . . . . . . . . . . . . . . . . . . . . . . . . . 68 5.2.1 Wind disturbances . . . . . . . . . . . . . . . . . . . . . . . . . . 68 5.2.2 State sensitivity matrix . . . . . . . . . . . . . . . . . . . . . . . . 69 5.2.3 Output sensitivity matrix . . . . . . . . . . . . . . . . . . . . . . 71 5.2.4 Selection of R, P0 and Q . . . . . . . . . . . . . . . . . . . . . . . 73 5.3 Simulation results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73 6 Conclusions 80 References 82
  • 12.
    List of Tables 2.1Physical data of AE-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 2.2 Wind tunnel test variables and their range . . . . . . . . . . . . . . . . . 10 2.3 Average of absolute percentage error in curve fitting . . . . . . . . . . . . 28 2.4 Derivatives function coefficient values . . . . . . . . . . . . . . . . . . . 29 2.5 Trim conditions at different velocities . . . . . . . . . . . . . . . . . . . . 31 3.1 Gains for various control loops . . . . . . . . . . . . . . . . . . . . . . . . 45 4.1 Gains for guidance loop . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 4.2 Landing results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 5.1 Percentage of successful landing . . . . . . . . . . . . . . . . . . . . . . . 79 viii
  • 13.
    List of Figures 1.1AE-2 (All Electric airplane-2) . . . . . . . . . . . . . . . . . . . . . . . . 4 2.1 Body reference frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2.2 AE-2 in the open circuit wind tunnel . . . . . . . . . . . . . . . . . . . . 10 2.3 Plot of CZstat = f(α, β), data Table1 . . . . . . . . . . . . . . . . . . . . 12 2.4 CZstat vs α for various β . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 2.5 CZstat vs β for various α . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 2.6 CZstat vs δr for various α . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 2.7 CZstat vs δa for various α . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 2.8 Curve fit on CZstat (α, β) vs α . . . . . . . . . . . . . . . . . . . . . . . . . 17 2.9 Curve fit on CZstat (α, δe) vs α . . . . . . . . . . . . . . . . . . . . . . . . . 17 2.10 Curve fit on CZstat (α, β) vs β . . . . . . . . . . . . . . . . . . . . . . . . . 18 2.11 Curve fit on CZstat (α, δe) vs δe . . . . . . . . . . . . . . . . . . . . . . . . . 18 2.12 Curve fit on CXstat (α, δe) vs α . . . . . . . . . . . . . . . . . . . . . . . . . 19 2.13 Curve fit on CXstat (α, δe) vs δe . . . . . . . . . . . . . . . . . . . . . . . . . 19 2.14 Curve fit on Cmstat (α, β) vs α . . . . . . . . . . . . . . . . . . . . . . . . . 20 2.15 Curve fit on Cmstat (α, δe) vs α . . . . . . . . . . . . . . . . . . . . . . . . . 20 2.16 Curve fit on Cmstat (α, β) vs β . . . . . . . . . . . . . . . . . . . . . . . . . 20 2.17 Curve fit on Cmstat (α, δe) vs δe . . . . . . . . . . . . . . . . . . . . . . . . 20 2.18 Curve fit on CYstat (α, β) vs α . . . . . . . . . . . . . . . . . . . . . . . . . 21 2.19 Curve fit on CYstat (α, β) vs β . . . . . . . . . . . . . . . . . . . . . . . . . 21 ix
  • 14.
    LIST OF FIGURESx 2.20 Curve fit on CYstat (α, δr) vs δr . . . . . . . . . . . . . . . . . . . . . . . . . 21 2.21 Curve fit on CYstat (α, δa) vs δa . . . . . . . . . . . . . . . . . . . . . . . . . 21 2.22 Curve fit on Clstat (α, β) vs α . . . . . . . . . . . . . . . . . . . . . . . . . 22 2.23 Curve fit on Clstat (α, δa) vs α . . . . . . . . . . . . . . . . . . . . . . . . . 22 2.24 Curve fit on Clstat (α, β) vs β . . . . . . . . . . . . . . . . . . . . . . . . . 23 2.25 Curve fit on Clstat (α, δa) vs δa . . . . . . . . . . . . . . . . . . . . . . . . . 23 2.26 Curve fit on Cnstat (α, β) vs α . . . . . . . . . . . . . . . . . . . . . . . . . 23 2.27 Curve fit on Cnstat (α, δr) vs α . . . . . . . . . . . . . . . . . . . . . . . . . 23 2.28 Curve fit on Cnstat (α, β) vs β . . . . . . . . . . . . . . . . . . . . . . . . . 24 2.29 Curve fit on Cnstat (α, δr) vs δr . . . . . . . . . . . . . . . . . . . . . . . . . 24 2.30 AE-2 modeling in AVL . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 2.31 AVL and wind tunnel test results comparison . . . . . . . . . . . . . . . 25 2.32 Pitch rate derivatives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 2.33 Roll rate derivatives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 2.34 Yaw rate derivatives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 2.35 Step response of actuator . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 2.36 Longitudinal states in trim condition . . . . . . . . . . . . . . . . . . . . 32 2.37 Lateral states in trim condition . . . . . . . . . . . . . . . . . . . . . . . 32 2.38 Effect of velocity and angle of attack perturbation on longitudinal states 33 2.39 Effect of pitch angle and pitch rate perturbation on longitudinal states . 33 2.40 Effect of sideslip and roll angle perturbation on lateral states . . . . . . . 34 2.41 Effect of sideslip and roll angle perturbation on longitudinal states . . . . 34 3.1 Inner and outer loop structure . . . . . . . . . . . . . . . . . . . . . . . 37 3.2 Outer loop control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 3.3 Inner loop control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 3.4 Actuator response for 1 deg command of deflection . . . . . . . . . . . . 44 3.5 Control structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
  • 15.
    LIST OF FIGURESxi 3.6 Pitch angle variation for 3-2-1-1 command . . . . . . . . . . . . . . . . . 46 3.7 Longitudinal states for pitch angle command . . . . . . . . . . . . . . . . 47 3.8 Control variables for pitch angle command . . . . . . . . . . . . . . . . . 47 3.9 Heading angle variation for 3-2-1-1 command . . . . . . . . . . . . . . . . 48 3.10 Longitudinal states for heading angle command . . . . . . . . . . . . . . 48 3.11 Lateral states for heading angle command . . . . . . . . . . . . . . . . . 49 3.12 Control variables for heading angle command . . . . . . . . . . . . . . . 49 3.13 Roll angle variation for step 3-2-1-1 command . . . . . . . . . . . . . . . 50 3.14 Longitudinal states for roll angle command . . . . . . . . . . . . . . . . . 50 3.15 Lateral states for roll angle command . . . . . . . . . . . . . . . . . . . . 51 3.16 Control variables for roll angle command . . . . . . . . . . . . . . . . . . 51 4.1 Phases during landing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 4.2 Approach geometry in x-y plane (top view) . . . . . . . . . . . . . . . . . 54 4.3 Glideslope and flare geometry in x-h plane . . . . . . . . . . . . . . . . . 55 4.4 Path planning and guidance schematic . . . . . . . . . . . . . . . . . . . 60 4.5 Landing trajectory in 3D . . . . . . . . . . . . . . . . . . . . . . . . . . 61 4.6 Landing path in x-y plane . . . . . . . . . . . . . . . . . . . . . . . . . . 62 4.7 Landing path in x-h plane . . . . . . . . . . . . . . . . . . . . . . . . . . 62 4.8 Longitudinal states during landing . . . . . . . . . . . . . . . . . . . . . 62 4.9 Lateral states during landing . . . . . . . . . . . . . . . . . . . . . . . . . 63 4.10 Control values during landing . . . . . . . . . . . . . . . . . . . . . . . . 63 5.1 Landing trajectory in 3D with EKF . . . . . . . . . . . . . . . . . . . . . 74 5.2 Landing path in x-y plane . . . . . . . . . . . . . . . . . . . . . . . . . . 74 5.3 Landing path in x-h plane . . . . . . . . . . . . . . . . . . . . . . . . . . 74 5.4 Estimation error in longitudinal states . . . . . . . . . . . . . . . . . . . 75 5.5 Estimation error in lateral states . . . . . . . . . . . . . . . . . . . . . . 75 5.6 Wind estimation with EKF . . . . . . . . . . . . . . . . . . . . . . . . . 76
  • 16.
    LIST OF FIGURESxii 5.7 Control values during landing with EKF . . . . . . . . . . . . . . . . . . 76 5.8 Touchdown position in x-y plane . . . . . . . . . . . . . . . . . . . . . . 77 5.9 Pitch angle at touch down . . . . . . . . . . . . . . . . . . . . . . . . . . 77 5.10 Sink rate at touch down . . . . . . . . . . . . . . . . . . . . . . . . . . . 77 5.11 Touchdown position in x-y plane with parameter uncertainty . . . . . . . 78 5.12 Pitch angle at touch down . . . . . . . . . . . . . . . . . . . . . . . . . . 79 5.13 Sink rate at touch down . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
  • 17.
    Notation and Abbreviations EnglishAlphabet ax − Acceleration in body axis X direction ay − Acceleration in body axis Y direction az − Acceleration in body axis Z direction b − Wing span c − Mean aerodynamic chord Cl − Rolling moment coefficient Cm − Pitching moment coefficient Cn − Yawing moment coefficient CX − Axial force coefficient CY − Side force coefficient CZ − Normal force coefficient d − Offset of the thrust line from CG in the Z axis h − Altitude above ground Ixx, Iyy, Izz − Moment of inertia around body fixed X, Y and Z axis Ixz − Product of inertia between body fixed x and z axis kh − proportional gain for altitude error kp − proportional gain for rolling moment error kq − proportional gain for pitching moment error kr − proportional gain for yawing moment error ku − proportional gain for forward velocity error xiii
  • 18.
    Notation and Abbreviationsxiv kv − proportional gain for sideward velocity error ky − proportional gain for sideward distance error kφ − proportional gain for roll angle error kθ − proportional gain for pitch angle error kψ − proportional gain for heading angle error La − Rolling moment due to aerodynamic effects m − Mass of the aircraft M − Mach number Ma − Pitching moment due to aerodynamic effects Na − Yawing moment due to aerodynamic effects p − Roll rate P − Error covariance matrix q − Pitch rate Q − Process noise covariance matrix ˆq − Dynamic pressure = 1 2 ρV 2 t r − Yaw rate R − Measurement noise covariance matrix Re − Reynolds number S − Surface area of the wing u − Forward velocity in body axis X direction U − Control vector. Ua − Aerodynamic controls (elevator, aileron and rudder). Uc − Control variables (throttle, elevator, aileron and rudder). v − Sideward velocity in body axis Y direction w − Downward velocity in body axis Z direction x − Forward distance in inertial frame X − State vector Xa − Axial force due to aerodynamic effects in body X axis Xt − Thrust force in body X axis direction
  • 19.
    Notation and Abbreviationsxv Xd − Wind disturbance state vector y − Sideward distance in inertial frame Y − Output vector Ya − Side force due to aerodynamic effects Za − Normal force due to aerodynamic effects Greek Alphabet α − Angle of attack β − Sideslip angle γ − Flight path angle δa − Aileron deflection δe − Elevator deflection δr − Rudder deflection σt − Throttle setting (0-1) ρ − Density of air φ − Roll angle θ − Pitch angle ψ − Yaw angle χ − Combined state vector of system and disturbance Abbreviations six-DOF − Six degrees of freedom AE-2 − All Electric airplane - 2 AVL − Athena Vortex Lattice Software
  • 20.
    Chapter 1 Introduction The capabilitiesof Unmanned Aerial Vehicles(UAVs) as flying machines can be exploited to carry out surveillance missions and remote operations. The UAVs are becoming more promising with their applications to the scenarios of disaster management, forest fire detection, frontier surveillance, power line monitoring and many others. The recovery of UAVs in landing is one of the key operations in flight which define the overall success of the mission. The UAVs are recovered through net on naval ships and also on ground, while some UAVs employ parachutes to decrease its descent rate during landing. Other methods are hard landing on belly or landing on runway with wheels. The complete autonomous flight for an UAV without human intervention will include autonomous take off, waypoint navigation and autonomous landing. The waypoint nav- igation and take-off are comparatively easier problem than autonomous landing because they involve lesser constraints and uncertainties. The goals for a successful landing will require it to touchdown with a bound on sink rate and the pitch angle at touchdown, also the touchdown location on runway should be within some specified zone. The un- certainties which make landing a challenging problem the presence of wind disturbances and ground effects. The ground effects have not been considered in this thesis, because 1 “Flying is the second most adventure known to mankind, first is landing”. Unknown 1
  • 21.
    Chapter 1. Introduction2 of the unavailability of reliable models for ground effects for small class of vehicles like UAVs. However, the uncertainties in forces and moments have been considered. 1.1 Motivation The dynamics of low speed and light weight vehicles such as UAVs are different compared to that of conventional aircrafts. The reasons being the coupling between longitudinal and lateral modes and low Reynolds number effects which is under study [1]. The wind tunnel tests can give the aerodynamic coefficients for forces and moments. Which further need to be modeled in global function form [2], [3], [4] in order to reduce the burden of interpolation from large number of tables. It is found that linearized models of the aircraft have been used in the literature using separate longitudinal and lateral dynamics. However, linear system based approaches have a strong limitation that they work within a small operating range. Gain scheduling can perhaps be used to overcome this limitation to a limited extent. However gain scheduling is a tedious process and there is no guarantee that the interpolated gains can assure stability of the closed loop system [5]. Various control strategies have been adapted to tackle the problem of automatic land- ing both for manned and unmanned aircrafts. Linear control theory has been heavily investigated. The concept of Linear Parameter Varying representation with piecewise affine dependence on the parameters is adopted [6] for modeling and linear matrix in- equality method for control design . Modern control methods like H2/H∞ have also been used for landing of UAVs [7], [8]. Dynamic inversion is a popular method of nonlinear control which relies on the philosophy of feedback linearization [9], [10]. This feedback control structure cancels the nonlinearities in the plant such that the closed loop plant behaves like a stable linear system. This method has several advantages, like simplicity in the control structure, ease of implementation, global exponential stability of the tracking error etc. A feedback linearization technique has been successfully demonstrated through
  • 22.
    Chapter 1. Introduction3 simulation for automatic landing of a high performance aircraft [11]. The dynamic in- version has also been used for the design of longitudinal landing [12] and for the control of micro aerial vehicles [13]. The robustness with nonlinear control [14], [15] have also been studied and reported. The autonomous landing requires an intelligent path planning and guidance. Landing trajectories of aerial vehicles typically consists of approach, glideslope and flare [11]. A successful landing would depend upon the good selection of landing trajectory and closely following it. The problems associated with following glideslope and flare is the change in slope at the transition. Which put requirement of different gains for following glideslope and flare. To overcome this blending function [16] for gains at the transition of glideslope and flare has been reported in literature. It is found in literature that the desired landing trajectory can be made function of time [11] or forward distance from runway [6], [17]. The other requirements on landing are controlling the sink rate at touchdown and the location of touchdown. The landing requires sensors for position location and height with the help of which it can be achieved successfully. The sensors for height include pressure altitude sensors or laser altimeter [18]. Vision based algorithms for autonomous landing of UAVs have been also been designed [19]. The vision sensor is used to extract the relative position of the UAV from a landing pad than this information is used to direct the UAV to land [20]. The use of vision based precision target detection and recognition along with the GPS for navigation [21] have also been shown. More advance algorithms have combined the data from optical flow sensors and pressure based sensor to estimate the HAG [22] for relatively unknown terrains. The other challenges for landing are uncertainties in measurement and process noise in form of wind disturbances. The state estimation will be required to account for non availability for all the sensors. The estimation can be carried out with Extended Kalman filter [23]. The aircraft landing control and estimation in presence of wind shear [24], [25] has been reported. The estimation with EKF for landing of UAV is carried out in presence wind disturbance [26].
  • 23.
    Chapter 1. Introduction4 1.2 Contribution of present work In the present research guidance algorithm has been developed for autonomous landing along with the development of complete mathematical model for the UAV. The nonlinear control design and estimation have been carried out and demonstrated with simulations. The aerodynamic coefficients for force and moments are found from the curve fitting of the wind tunnel data. The nonlinearities found in the functions obtained from curve fit are presented. The problem of slope discontinuity during transition from glideslope to flare has been addressed by careful selection of landing trajectory parameters. The glideslope and flare path is scheduled as a function of forward distance which makes the trajectory independent of time. The glideslope and flare path parameters are computed online (i.e. they are not fixed apriori). Further the trajectory parameters are calculated such that the sink rate at touchdown remains within specified bounds. The control is designed using dynamic inversion technique, while continuous-discrete formulation of extended kalman filter has been used for state estimation. The numerical simulations are carried out using the data of an UAV named AE-2 (All Electric airplane-2) shown in fig 1.1. The AE-2 was designed and developed [27] at UAV lab of aerospace engineering department. It is a small fixed wing aircraft with weight of 6kg and wing span of 2m. It is designed with a capability of autonomous flying and carrying out surveillance missions over a range of 10 Km. Figure 1.1: AE-2 (All Electric airplane-2)
  • 24.
    Chapter 1. Introduction5 1.3 Organization of thesis The remainder of the thesis is organized in five chapters followed by conclusion and a list of bibliography. The content of each of these chapters is given below Chapter 2: Mathematical modeling In this chapter the mathematical model is derived for the UAV from wind tunnel data and analytical software. The trim condition are calculated and open loop flight simulation is done to test the model developed. Chapter 3: Control design In this chapter control is designed using Dynamic Inversion in outer and outer loop. Further it is tested by giving various commands. Chapter 4: Path planning and guidance In chapter 4 the guidance algorithm for various phases of landing is developed. The guidance design along with control is validated by numerical simulation. Chapter 5: State estimation In this chapter a state estimator with Extended Kalman Filter in continuous- discrete form is designed. The estimator is tested with wind disturbances and parameter uncertainties.
  • 25.
    Chapter 2 Mathematical modeling Thedynamics of an object in motion can be given by Newton’s second law which is applicable in inertial frame. To model the translational dynamics we need the knowledge of mass and the external forces acting on it. Similarly for the rotational dynamics we require moment and product of inertias with the external moments acting on it. The mass can be easily measured with highly accurate weighing machines available. Where as the inertia properties can be measured in laboratory with bifilar suspension experiment. The external forces acting on an aircraft are due to gravity, aerodynamics and thrust. The aerodynamic forces and moments can be measured in wind tunnel by testing the scaled model or the full model at the expected flight velocities. The thrust force can also be measured in wind tunnel. The other methods through which aerodynamics forces and moments can be estimated are empirical calculations or CFD (Computational Fluid Dynamics) simulation. The kinematic motion do not involve any parameters but they are also dependent on the frame of observation. The vectors can be transformed from one frame of reference to other through three sequential Euler rotations. The three rotations combined form the transformation matrix between the frames. 2 “As far as the propositions of mathematics refer to reality they are not certain, and so far as they are certain, they do not refer to reality.” Albert Einstein(1921) 6
  • 26.
    Chapter 2. Mathematicalmodeling 7 The dynamic and kinematic equations for rotational and translational motion of aircraft is discussed in next section. 2.1 Equations of motion The reference frame for body axis coordinate system is shown in Fig. 2.1. Where positive X axis is in forward direction through nose of the aircraft. The positive Y axis protrudes through the right wing. The positive Z axis is perpendicular to X and Y in downward direction. Figure 2.1: Body reference frame The variables defined with respect to body axis frame are given below. u, v, w are velocity components along the body axis X, Y , Z direction. p, q, r are roll, pitch and yaw rates respectively about the body axis X, Y , Z direction. φ, θ, ψ are roll, pitch and yaw angles around the body axis X, Y , Z direction. The rotational rates and angles are defined with respect to right hand grip rule. The position coordinates of the aircraft are defined with respect to earth fixed inertial frame. x, y, h are defined as position coordinates with respect to inertial frame. Where x is forward distance, y is sideward distance and h is the height above ground.
  • 27.

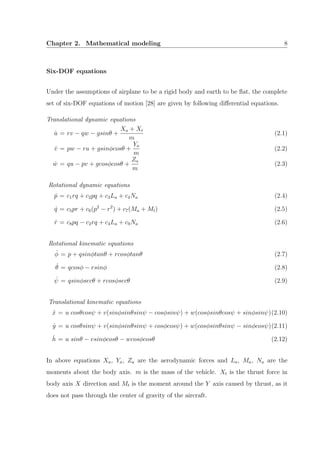

    Chapter 2. Mathematicalmodeling 8 Six-DOF equations Under the assumptions of airplane to be a rigid body and earth to be flat, the complete set of six-DOF equations of motion [28] are given by following differential equations. Translational dynamic equations ˙u = rv − qw − gsinθ + Xa + Xt m (2.1) ˙v = pw − ru + gsinφcosθ + Ya m (2.2) ˙w = qu − pv + gcosφcosθ + Za m (2.3) Rotational dynamic equations ˙p = c1rq + c2pq + c3La + c4Na (2.4) ˙q = c5pr + c6(p2 − r2 ) + c7(Ma + Mt) (2.5) ˙r = c8pq − c2rq + c4La + c9Na (2.6) Rotational kinematic equations ˙φ = p + qsinφtanθ + rcosφtanθ (2.7) ˙θ = qcosφ − rsinφ (2.8) ˙ψ = qsinφsecθ + rcosφsecθ (2.9) Translational kinematic equations ˙x = u cosθcosψ + v(sinφsinθsinψ − cosφsinψ) + w(cosφsinθcosψ + sinφsinψ)(2.10) ˙y = u cosθsinψ + v(sinφsinθsinψ + cosφcosψ) + w(cosφsinθsinψ − sinφcosψ)(2.11) ˙h = u sinθ − vsinφcosθ − wcosφcosθ (2.12) In above equations Xa, Ya, Za are the aerodynamic forces and La, Ma, Na are the moments about the body axis. m is the mass of the vehicle. Xt is the thrust force in body axis X direction and Mt is the moment around the Y axis caused by thrust, as it does not pass through the center of gravity of the aircraft.
  • 28.
    Chapter 2. Mathematicalmodeling 9 The constants c1 − c9 in equations 2.4 - 2.6 are function of inertial properties of aircraft given as               c1 c2 c3 c4 c8 c9               1 IxxIzz−I2 xz               Izz(Iyy − Izz) − IxzIxz Ixz(Ixx − Iyy + Izz) Izz Ixz IxzIxz + Ixx(Ixx − Iyy) Ixx                    c5 c6 c7      1 Iyy      (Izz − Ixx) Ixz 1      The inertia and mass properties with physical data of the UAV AE-2 (Fig. 1.1) is given in the Table 2.1. Where b is wing span, c is chord length and m is mass of the vehicle. Table 2.1: Physical data of AE-2 b c m Ixx Iyy Izz Ixz 2.0 m 0.3 m 6.0 kg 0.5062 kgm2 0.89 kgm2 0.91 kgm2 0.0015 kgm2 2.2 Aerodynamic forces and moments The aerodynamic forces and moments are given by following equations [Xa Ya Za] = ˆq S [CX CY CZ] (2.13) [La Ma Na] = ˆq S [bCl cCm bCn] (2.14) where ˆq is dynamic pressure given as 1 2 ρV 2 t . ρ is the density of air and Vt is total velocity of aircraft relative to air. S is wing planform area. CX, CY , CZ are axial force, side force and normal force coefficients respectively. Whereas Cl, Cm, Cn are rolling moment, pitching moment and yawing moment coefficients respectively. Aerodynamic coefficients are obtained from curve fitting on wind tunnel data which is given in the next section.
  • 29.
    Chapter 2. Mathematicalmodeling 10 2.2.1 Wind tunnel testing For the study and evaluation of aerodynamic performance, the full scale model AE- 2 was tested [27] in the open circuit wind tunnel (Fig. 2.2) facility available at the department. The forces and moments were measured and than normalized to find the coefficients. Only static tests were conducted in wind tunnel with test variables as angle of attack(α), sideslip angle(β), elevator deflection(δe), aileron deflection(δa) and rudder deflection(δr). The force and moment coefficients were evaluated as a function of two variables. During the test one variable was held constant and other varied for its entire range. For eg. elevator held at -5o and angle of attack varied from -6o to 22o with incremental angle of +2o , in this process all the six coefficients were measured. The tests conducted with variables and their full range is given in the table below. Table 2.2: Wind tunnel test variables and their range test tablesize I min (step) max II min (step) max 1. f(α, β)15×5 α -6o : +2o : 22o β -10o : +5o : 10o 2. f(β, α)11×5 β -100 : +2o : 10o α -5o : +5o : 15o 3. f(α, δe)15×7 α -6o : +2o : 22o δe -25o : +5o : 5o 4. f(α, δa)15×7 α -6o : +2o : 22o δa -15o : +5o : 15o 5. f(α, δr)15×7 α -6o : +2o : 22o δr -15o : +5o : 15o Figure 2.2: AE-2 in the open circuit wind tunnel
  • 30.
    Chapter 2. Mathematicalmodeling 11 From the wind tunnel tests the coefficients are available in 2-dimensional table look up form. The number of tables is large, which makes the finding of coefficient through interpolation a time taking process. Also there will be discontinuity in the slope as the required interpolation point progresses from one region of the table to other. To overcome these difficulties the curve fitting on aerodynamic coefficients was done to find a global function [2] which is discussed in the next section. The discussion is carried out by taking example of normal force coefficient CZ. The same approach has been applied to other coefficients as well, wherever there is any difference it is discussed. The results of curve fit with functional form is given in the subsequent sections. 2.2.2 Curve fitting on wind tunnel data The aerodynamic coefficients [28] vary with respect to Mach number, Reynolds number, air relative angles, control surface deflections and body rotational rates. Which can be represented in mathematical form as CZ = f(M, Re, α, β, δa, δe, δr, p, q, r) (2.15) The effect of mach number can be neglected for very small mach numbers. Also due to small variation range in the flight velocity of the vehicle there will be small changes in Reynolds number, hence its effect can also be dropped. So we have CZ = f(α, β, δa, δe, δr, p, q, r) (2.16) With the assumption that effects of individual variables are additive, we can separate static and dynamic effects CZ = fstat(α, β, δa, δe, δr) + fdyn(p, q, r) (2.17) = CZstat + CZdyn (2.18) With component build up we can write the static effects, CZstat = CZ0 + ∂CZ ∂α α + ∂CZ ∂β β + ∂CZ ∂δa δa + ∂CZ ∂δe δe + ∂CZ ∂δr δr (2.19)
  • 31.
    Chapter 2. Mathematicalmodeling 12 The dynamic effects are discussed in Section 2.2.4. There are five tables available from the static wind tunnel test for the normal force coefficient which are Table1 Table2 Table3 Table4 Table5 CZstat = f(α, β) CZstat = f(β, α) CZstat = f(α, δe) CZstat = f(α, δa) CZstat = f(α, δr) Let us consider the Table1 and Table2 which represent the coefficient as a function of same variables measured at different values. For these two tables the test was conducted by setting the value of other variables to zero i.e. δe = 0, δa = 0, δr = 0. If we put these values in Eq. 2.19 than it will get reduced to give the function which represents Table1 and Table2 CZstat = CZ0 + ∂CZ ∂α α + ∂CZ ∂β β (2.20) Now the goal is to find CZ0 , ∂CZ ∂α , ∂CZ ∂β such that Eq. 2.20 represents the Table1 and Table2 with minimum error. The plots of data Table1 are shown in Fig. 2.3 - Fig. 2.5 −10 −5 0 5 10 −10 0 10 20 30 −0.5 0 0.5 1 1.5 β (deg)α (deg) C Zstat Figure 2.3: Plot of CZstat = f(α, β), data Table1
  • 32.
    Chapter 2. Mathematicalmodeling 13 −5 0 5 10 15 20 −0.4 −0.2 0 0.2 0.4 0.6 0.8 1 1.2 1.4 α (deg) CZstat β=10 β=5 β=0 β=−5 β=−10 Figure 2.4: CZstat vs α for various β −10 −5 0 5 10 15 −0.4 −0.2 0 0.2 0.4 0.6 0.8 1 1.2 1.4 β (deg) C Zstat α=22 α=20 α=18 α=16 α=14 α=12 α=10 α=8 α=6 α=4 α=2 α=0 α=−2 α=−4 α=−6 Figure 2.5: CZstat vs β for various α The value of CZ0 is a constant, which can be found from looking in the Table1 and Table2 for α = 0, β = 0. The two values found were very close so average was taken. The nature of ∂CZ ∂α can be found qualitatively looking at Fig. 2.4. It is observed from the Fig. 2.4 that CZstat varies linearly (constant slope) up to 10o of angle of attack and in the region of higher angles of attack it is nonlinear. The stall angle is near 16o of angle of attack after which the value of normal coefficient starts decreasing. This observation on experimental data matches with the theory of lift generation and its behaviour with angle of attack. The behaviour of ∂CZ ∂β can be seen in Fig. 2.5. It is observed that CZstat varies linearly with β having a small negative slope. Now to estimate the values ∂CZ ∂α , ∂CZ ∂β such that it predicts the measured value with minimum error, the least squares method is used. The measured data is divided in to two regions with respect to angle of attack -6o to 10o and 10o to 22o . This is done in order to account for linear and nonlinear behaviour of the CZstat . So two different functions are fit in these regions while maintaining continuity and slope at the transition of 10o .
  • 33.

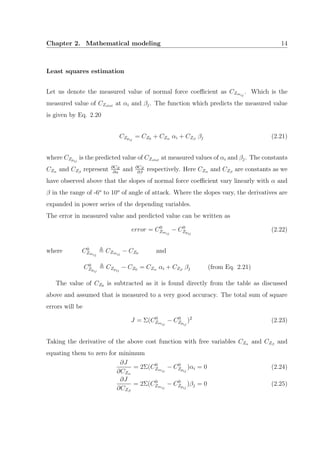

    Chapter 2. Mathematicalmodeling 14 Least squares estimation Let us denote the measured value of normal force coefficient as CZmij . Which is the measured value of CZstat at αi and βj. The function which predicts the measured value is given by Eq. 2.20 CZpij = CZ0 + CZα αi + CZβ βj (2.21) where CZpij is the predicted value of CZstat at measured values of αi and βj. The constants CZα and CZβ represent ∂CZ ∂α and ∂CZ ∂β respectively. Here CZα and CZβ are constants as we have observed above that the slopes of normal force coefficient vary linearly with α and β in the range of -6o to 10o of angle of attack. Where the slopes vary, the derivatives are expanded in power series of the depending variables. The error in measured value and predicted value can be written as error = C0 Zmij − C0 Zpij (2.22) where C0 Zmij CZmij − CZ0 and C0 Zpij CZpij − CZ0 = CZα αi + CZβ βj (from Eq. 2.21) The value of CZ0 is subtracted as it is found directly from the table as discussed above and assumed that is measured to a very good accuracy. The total sum of square errors will be J = Σ(C0 Zmij − C0 Zpij )2 (2.23) Taking the derivative of the above cost function with free variables CZα and CZβ and equating them to zero for minimum ∂J ∂CZα = 2Σ(C0 Zmij − C0 Zpij )αi = 0 (2.24) ∂J ∂CZβ = 2Σ(C0 Zmij − C0 Zpij )βj = 0 (2.25)
  • 34.
    Chapter 2. Mathematicalmodeling 15 Carrying out the necessary algebra we get Σ C0 Zmij αi = CZα Σ α2 i + CZβ Σ αiβj (2.26) Σ C0 Zmij βj = CZα Σ αiβj + CZβ Σ β2 j (2.27) Which can be written in matrix notation as  Σ C0 Zmij αi Σ C0 Zmij βj   =   Σ α2 i Σ αiβj Σ αiβj Σ β2 j     CZα CZβ   (2.28) Performing the inverse matrix operation we get   CZα CZβ   =   Σ α2 i Σ αiβj Σ αiβj Σ β2 j   −1   Σ C0 Zmij αi Σ C0 Zmij βj   (2.29) Above equation will give the values of derivatives CZα and CZβ with least square error from the measured values of coefficients. A similar operation is carried out in the nonlin- ear zone i.e. 10o to 22o of angle of attack for normal coefficient. In the nonlinear region the higher order functions from power series are taken in the predicting function. Now let us consider the Table3 which gives the normal force coefficient as a function of angle of attack and elevator deflection. This test was conducted by setting the value of other variables to zero i.e. β = 0, δa = 0, δr = 0. If we put these values in Eq. 2.19 than it will get reduced to give the predicting function which represents Table3 CZpij = CZ0 + ∂CZ ∂α αi + ∂CZ ∂δe δej (2.30) We have found the value of CZ0 and ∂CZ ∂α . To find the value of ∂CZ ∂δe we redefine the predicting function by transferring the known quantities to right hand side C0 Zpij CZpij − CZ0 − CZα αi = CZδe δej (where CZδe ∂CZ ∂δe ) The measured value of normal force coefficient will be defined as C0 Zmij given by C0 Zmij CZmij − CZ0 − CZα αi Now we can use least squares method as above to find out the the value of CZδe .
  • 35.
    Chapter 2. Mathematicalmodeling 16 The plots of data Table4 and Table5 are shown in Fig. 2.6 and Fig. 2.7 −15 −10 −5 0 5 10 15 20 −0.4 −0.2 0 0.2 0.4 0.6 0.8 1 1.2 1.4 δr (deg) C Zstat α=22 α=20 α=18 α=16 α=14 α=12 α=10 α=8 α=6 α=4 α=2 α=0 α=−2 α=−4 α=−6 Figure 2.6: CZstat vs δr for various α −15 −10 −5 0 5 10 15 20 −0.6 −0.4 −0.2 0 0.2 0.4 0.6 0.8 1 1.2 1.4 δa (deg) C Zstat α=22 α=20 α=18 α=16 α=14 α=12 α=10 α=8 α=6 α=4 α=2 α=0 α=−2 α=−4 α=−6 Figure 2.7: CZstat vs δa for various α It is observed from Fig. 2.6 that there is no variation in the value of CZstat with rudder deflection. In other words the derivative ∂CZ ∂δr is nearly equal to zero, hence it can be neglected from the function. From Fig. 2.7 it is seen that there is small variation in the CZstat with aileron deflection. The observed behaviour with aileron deflection is not symmetric on either side of zero. Also measurements at -10o aileron deflection are contrary to the behaviour, so the effect of aileron is not considered in the normal coefficient prediction. Validation of least square To validate the derivatives found from least squares the measured data from wind tunnel is divided into sets of 70% and 30% called as training set and testing set respectively. The training set is used for least squares to estimate the derivatives. The testing set is used to test the accuracy of the predicting function, if the error in measured value is higher than 10% in linear range and more than 30% in nonlinear range than the predicting function is not accepted. The process of least square is again carried with a higher order predicting function until the error criteria is satisfied.
  • 36.

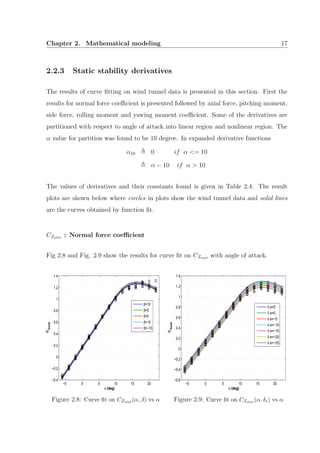

    Chapter 2. Mathematicalmodeling 17 2.2.3 Static stability derivatives The results of curve fitting on wind tunnel data is presented in this section. First the results for normal force coefficient is presented followed by axial force, pitching moment, side force, rolling moment and yawing moment coefficient. Some of the derivatives are partitioned with respect to angle of attack into linear region and nonlinear region. The α value for partition was found to be 10 degree. In expanded derivative functions α10 0 if α <= 10 α − 10 if α > 10 The values of derivatives and their constants found is given in Table 2.4. The result plots are shown below where circles in plots show the wind tunnel data and solid lines are the curves obtained by function fit. CZstat : Normal force coefficient Fig 2.8 and Fig. 2.9 show the results for curve fit on CZstat with angle of attack. −5 0 5 10 15 20 −0.4 −0.2 0 0.2 0.4 0.6 0.8 1 1.2 1.4 α (deg) C Zstat β=10 β=5 β=0 β=−5 β=−10 Figure 2.8: Curve fit on CZstat (α, β) vs α −5 0 5 10 15 20 −0.6 −0.4 −0.2 0 0.2 0.4 0.6 0.8 1 1.2 1.4 α (deg) C Zstat δ e=5 δ e=0 δ e=−5 δ e=−10 δ e=−15 δ e=−20 δ e=−25 Figure 2.9: Curve fit on CZstat (α, δe) vs α
  • 37.
    Chapter 2. Mathematicalmodeling 18 −10 −5 0 5 10 15 −0.4 −0.2 0 0.2 0.4 0.6 0.8 1 1.2 1.4 β (deg) C Zstat α=22 α=20 α=18 α=16 α=14 α=12 α=10 α=8 α=6 α=4 α=2 α=0 α=−2 α=−4 α=−6 Figure 2.10: Curve fit on CZstat (α, β) vs β −25 −20 −15 −10 −5 0 5 10 15 −0.6 −0.4 −0.2 0 0.2 0.4 0.6 0.8 1 1.2 1.4 δe (deg) C Zstat α=22 α=20 α=18 α=16 α=14 α=12 α=10 α=8 α=6 α=4 α=2 α=0 α=−2 α=−4 α=−6 Figure 2.11: Curve fit on CZstat (α, δe) vs δe The Fig. 2.10 shows the fit on variation with respect to sideslip angle. Further Fig. 2.11 shows the effect of elevator variation on CZstat . The function obtained after curve fitting on wind tunnel data for CZstat is given as CZstat = CZ0 + CZα (α) α + CZβ β + CZδe δe (2.31) where, CZα (α) α z10α + z11α2 10 + z11α3 10, CZβ z20, and CZδe z30. The constants z10 - z30 are given in Table 2.4 CXstat : Axial force coefficient From the wind tunnel results for axial force coefficient it is observed that the variables strongly affecting it are angle of attack and elevator deflection. The effects of other variable being marginal it is not considered in curve fitting. The function obtained from curve fit is given as CXstat = CX0 + CXα (α) α + CXδe (α) δe (2.32)
  • 38.

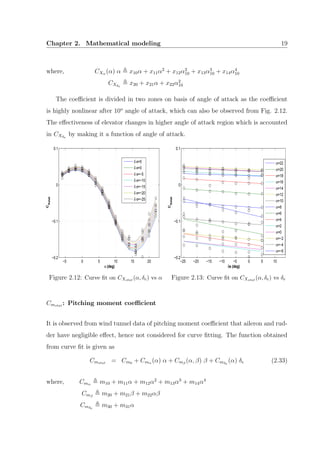

    Chapter 2. Mathematicalmodeling 19 where, CXα (α) α x10α + x11α2 + x12α2 10 + x13α3 10 + x14α4 10 CXδe x20 + x21α + x22α2 10 The coefficient is divided in two zones on basis of angle of attack as the coefficient is highly nonlinear after 10o angle of attack, which can also be observed from Fig. 2.12. The effectiveness of elevator changes in higher angle of attack region which is accounted in CXδe by making it a function of angle of attack. −5 0 5 10 15 20 −0.2 −0.1 0 0.1 α (deg) C Xstat δ e=5 δ e=0 δ e=−5 δ e=−10 δ e=−15 δ e=−20 δ e=−25 Figure 2.12: Curve fit on CXstat (α, δe) vs α −25 −20 −15 −10 −5 0 5 10 −0.2 −0.1 0 0.1 δe (deg) C Xstat α=22 α=20 α=18 α=16 α=14 α=12 α=10 α=8 α=6 α=4 α=2 α=0 α=−2 α=−4 α=−6 Figure 2.13: Curve fit on CXstat (α, δe) vs δe Cmstat : Pitching moment coefficient It is observed from wind tunnel data of pitching moment coefficient that aileron and rud- der have negligible effect, hence not considered for curve fitting. The function obtained from curve fit is given as Cmstat = Cm0 + Cmα (α) α + Cmβ (α, β) β + Cmδe (α) δe (2.33) where, Cmα m10 + m11α + m12α2 + m13α3 + m14α4 Cmβ m20 + m21β + m22αβ Cmδe m30 + m31α
  • 39.
    Chapter 2. Mathematicalmodeling 20 The pitching moment coefficient varies smoothly with angle of attack (Fig 2.14 and Fig. 2.15) for its entire range, therefore a single function a has been fit for Cmα . While the effect of sideslip (Fig. 2.16) is quadratic in nature and the effectiveness of elevator (Fig. 2.17) changes with angle of attack. −5 0 5 10 15 20 −0.6 −0.5 −0.4 −0.3 −0.2 −0.1 0 0.1 0.2 α (deg) Cm stat beta=10 beta=5 alpha=0 beta=−5 beta=−10 Figure 2.14: Curve fit on Cmstat (α, β) vs α −5 0 5 10 15 20 −0.8 −0.6 −0.4 −0.2 0 0.2 0.4 0.6 α (deg) Cm stat δe=5 δe=0 δe=−5 δe=−10 δe=−15 δe=−20 δe=−25 Figure 2.15: Curve fit on Cmstat (α, δe) vs α −10 −5 0 5 10 15 −0.6 −0.5 −0.4 −0.3 −0.2 −0.1 0 0.1 0.2 β (deg) Cm stat α=22 α=20 α=18 α=16 α=14 α=12 α=10 α=8 α=6 α=4 α=2 α=0 α=−2 α=−4 α=−6 Figure 2.16: Curve fit on Cmstat (α, β) vs β −25 −20 −15 −10 −5 0 5 10 15 −0.8 −0.6 −0.4 −0.2 0 0.2 0.4 0.6 δe (deg) Cm stat α=22 α=20 α=18 α=16 α=14 α=12 α=10 α=8 α=6 α=4 α=2 α=0 α=−2 α=−4 α=−6 Figure 2.17: Curve fit on Cmstat (α, δe) vs δe
  • 40.
    Chapter 2. Mathematicalmodeling 21 CYstat : Side force coefficient The side force coefficient obtained from wind tunnel data had non zero values even when the sideslip angle was zero along with control surfaces. This non zero side force could result from asymmetric manufacturing of vehicle or non alignment with wind direction in wind tunnel. Therefor this error was subtracted from the data table to make the coefficient symmetric with sideslip. −5 0 5 10 15 20 −0.2 −0.15 −0.1 −0.05 0 0.05 0.1 0.15 α (deg) CYstat β=10 β=5 β=0 β=−5 β=−10 Figure 2.18: Curve fit on CYstat (α, β) vs α −10 −5 0 5 10 15 −0.2 −0.15 −0.1 −0.05 0 0.05 0.1 0.15 β (deg) C Ystat α=22 α=20 α=18 α=16 α=14 α=12 α=10 α=8 α=6 α=4 α=2 α=0 α=−2 α=−4 α=−6 Figure 2.19: Curve fit on CYstat (α, β) vs β −15 −10 −5 0 5 10 15 20 −0.05 −0.04 −0.03 −0.02 −0.01 0 0.01 0.02 0.03 0.04 0.05 δr (deg) CYstat α=22 α=20 α=18 α=16 α=14 α=12 α=10 α=8 α=6 α=4 α=2 α=0 α=−2 α=−4 α=−6 Figure 2.20: Curve fit on CYstat (α, δr) vs δr −15 −10 −5 0 5 10 15 20 −0.2 −0.15 −0.1 −0.05 0 0.05 0.1 0.15 δa (deg) C Ystat α=22 α=20 α=18 α=16 α=14 α=12 α=10 α=8 α=6 α=4 α=2 α=0 α=−2 α=−4 α=−6 Figure 2.21: Curve fit on CYstat (α, δa) vs δa
  • 41.
    Chapter 2. Mathematicalmodeling 22 The side force coefficient is also divided in two regions with angle of attack. The function obtained from curve fit is given as CYstat = CYβ (α) β + CYδr (α) δr + CYδa (α) δa (2.34) where, CYβ y10 + y11α + y12α2 + y13α2 10 + y14α3 10 CYδr y20 + y21α + y22α2 + y23α2 + y24α2 10 + y25α3 10 + y26α4 10 CYδa y30 + y31α2 10 + y32α3 10 Clstat : Rolling moment coefficient The rolling moment coefficient is also made symmetric with sideslip angle by subtracting the non zero values from the data. The effect of elevator and rudder being very small, hence not considered in curve fitting. The function obtained from curve fit is given as Clstat = Clβ (α)β + Clδa (α)δa (2.35) where, Clβ l10 + l11α + l12α2 + l13α2 10 + l14α3 10 Clδa l20 + l21α + l22α2 + l23α3 + l24α2 10 + l25α3 10 + l26α4 10 −5 0 5 10 15 20 −0.03 −0.02 −0.01 0 0.01 0.02 0.03 α (deg) Clstat β=10 β=5 β=0 β=−5 β=−10 Figure 2.22: Curve fit on Clstat (α, β) vs α −5 0 5 10 15 20 −0.05 −0.04 −0.03 −0.02 −0.01 0 0.01 0.02 0.03 0.04 0.05 α (deg) Cl stat δa=15 δa=10 δa=5 δa=0 δa=−5 δa=−10 δa=−15 Figure 2.23: Curve fit on Clstat (α, δa) vs α
  • 42.

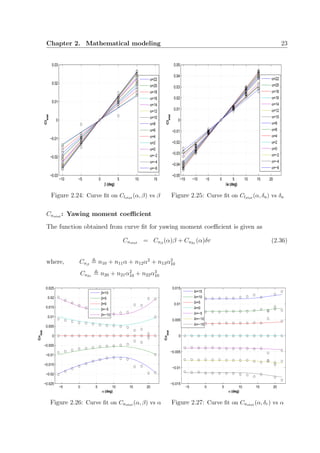

    Chapter 2. Mathematicalmodeling 23 −10 −5 0 5 10 15 −0.03 −0.02 −0.01 0 0.01 0.02 0.03 β (deg) Clstat α=22 α=20 α=18 α=16 α=14 α=12 α=10 α=8 α=6 α=4 α=2 α=0 α=−2 α=−4 α=−6 Figure 2.24: Curve fit on Clstat (α, β) vs β −15 −10 −5 0 5 10 15 20 −0.05 −0.04 −0.03 −0.02 −0.01 0 0.01 0.02 0.03 0.04 0.05 δa (deg) Clstat α=22 α=20 α=18 α=16 α=14 α=12 α=10 α=8 α=6 α=4 α=2 α=0 α=−2 α=−4 α=−6 Figure 2.25: Curve fit on Clstat (α, δa) vs δa Cnstat : Yawing moment coefficient The function obtained from curve fit for yawing moment coefficient is given as Cnstat = Cnβ (α)β + Cnδr (α)δr (2.36) where, Cnβ n10 + n11α + n12α2 + n13α2 10 Cnδr n20 + n21α2 10 + n22α3 10 −5 0 5 10 15 20 −0.025 −0.02 −0.015 −0.01 −0.005 0 0.005 0.01 0.015 0.02 0.025 α (deg) Cnstat β=10 β=5 β=0 β=−5 β=−10 Figure 2.26: Curve fit on Cnstat (α, β) vs α −5 0 5 10 15 20 −0.015 −0.01 −0.005 0 0.005 0.01 0.015 α (deg) Cn stat δr=15 δr=10 δr=5 δr=0 δr=−5 δr=−10 δr=−15 Figure 2.27: Curve fit on Cnstat (α, δr) vs α
  • 43.
    Chapter 2. Mathematicalmodeling 24 −10 −5 0 5 10 15 −0.025 −0.02 −0.015 −0.01 −0.005 0 0.005 0.01 0.015 0.02 0.025 β (deg) Cnstat α=22 α=20 α=18 α=16 α=14 α=12 α=10 α=8 α=6 α=4 α=2 α=0 α=−2 α=−4 α=−6 Figure 2.28: Curve fit on Cnstat (α, β) vs β −15 −10 −5 0 5 10 15 20 −0.015 −0.01 −0.005 0 0.005 0.01 0.015 δr (deg) Cn stat α=22 α=20 α=18 α=16 α=14 α=12 α=10 α=8 α=6 α=4 α=2 α=0 α=−2 α=−4 α=−6 Figure 2.29: Curve fit on Cnstat (α, δr) vs δr The effects of elevator and aileron being small they are neglected. Yawing moment coefficient is also divided into linear and nonlinear zone with respect to angle of attack. This completes the discussion of static stability derivatives obtained from curve fitting on wind tunnel test data. The dynamics derivatives are discussed in next section. 2.2.4 Dynamic stability derivatives The dynamic effects on coefficients can be written from Eq. 2.17 as CZdyn = fdyn(p, q, r), Which can be expanded considering the individual effects are additive CZdyn = ∂CZ ∂¯p ¯p + ∂CZ ∂¯q ¯q + ∂CZ ∂¯r ¯r (2.37) Where the rotational rates are non dimensionalized with reference length and velocity which are given as [¯p ¯q ¯r] = 1 2Vt [bp cq br]. The dynamics test were not conducted in wind tunnel, hence the dynamics derivatives are found with AVL (Athena Vortex Lattice) software [29]. AVL is a program for the aerodynamic and flight-dynamic analysis of rigid aircraft of arbitrary configuration.
  • 44.
    Chapter 2. Mathematicalmodeling 25 It employs an extended vortex lattice model for the lifting surfaces, together with a slender-body model for fuselages. AVL requires the mass properties along with geometric information (Fig. 2.30) of the vehicle. It also requires the 2-dimensional lift and drag characteristics of the lifting surfaces. Figure 2.30: AE-2 modeling in AVL To validate and have confidence in the results given by AVL its static results are compared with that of wind tunnel, which is shown in Fig. 2.31. It is seen from figure that AVL gives a good estimate for the static coefficients. −5 0 5 10 15 20 −0.2 0 0.2 α (deg) CXstat AVL Wind Tunnel −5 0 5 10 15 20 −2 0 2 α (deg) CZstat −5 0 5 10 15 20 −1 0 1 α (deg) Cmstat Figure 2.31: AVL and wind tunnel test results comparison
  • 45.
    Chapter 2. Mathematicalmodeling 26 The dynamic derivatives are evaluated with respect to angle of attack. While considering the dynamics effects it is assumed that only pitch rate effects the longitudinal coefficients of normal force, axial force and pitching moment. Which can be written as CZdyn = CZ¯q ¯q CXdyn = CX¯q ¯q Cmdyn = Cm¯q ¯q where as the coefficients effected by roll rate and yaw rate are side force, rolling moment and yawing moment coefficient. For them the relation can be written as CYdyn = CY¯p ¯p + CY¯r ¯r Cldyn = CY¯p ¯p + Cl¯r ¯r Cndyn = CY¯p ¯p + Cn¯r ¯r The following sections give the results obtained for dynamic derivatives from AVL. Pitch rate derivatives The pitch rate derivatives are found at various angle of attack. Then a function is fit which will be able to predict derivative for entire range of angle of attack. The results are shown in Fig. 2.32 and the functions obtained from curve fit are given as CZ¯q z40 + z41α CX¯q x30 + x31α Cm¯q m40 + m41α + m42α2 −5 0 5 10 15 20 4 6 8 α (deg) C Zq AVL Curve fit −5 0 5 10 15 20 −5 0 5 α (deg) C Xq −5 0 5 10 15 20 −14 −13.5 −13 α (deg) C mq Figure 2.32: Pitch rate derivatives
  • 46.
    Chapter 2. Mathematicalmodeling 27 Roll rate derivatives The results for roll rate derivatives are shown in Fig. 2.33 and the functions obtained from curve fit are given as CY¯p y40 + y41α Cl¯p l30 + l31α + l32α2 Cn¯p n30 + n31α + n32α2 −5 0 5 10 15 20 −0.5 0 0.5 α (deg) C Yp AVL Curve fit −5 0 5 10 15 20 −0.6 −0.5 −0.4 α (deg) C lp −5 0 5 10 15 20 −0.5 0 0.5 α (deg) C np Figure 2.33: Roll rate derivatives Yaw rate derivatives The results for yaw rate derivatives are shown in Fig. 2.34 and the functions obtained from curve fit are given as CY¯r y50 + y51α Cl¯r l40 + l41α + l42α2 Cn¯r n40 + n41α + n42α2
  • 47.
    Chapter 2. Mathematicalmodeling 28 −5 0 5 10 15 20 0 0.2 0.4 α (deg) C Yr AVL Curve fit −5 0 5 10 15 20 0 0.2 0.4 α (deg) C lr −5 0 5 10 15 20 −0.4 −0.2 0 α (deg) C nr Figure 2.34: Yaw rate derivatives The aerodynamic coefficients with static and dynamic effects can be summarized as CZ = CZ0 + CZα (α) α + CZβ β + CZδe δe + CZ¯q (α) ¯q (2.38) CX = CX0 + CXα (α) α + CXδe (α) δe + CX¯q (α) ¯q (2.39) Cm = Cm0 + Cmα (α) α + Cmβ (α, β) β + Cmδe (α) δe + Cm¯q (α) ¯q (2.40) CY = CYβ (α) β + CYδa (α) δa + CYδr (α) δr + CY¯p (α)¯p + CY¯r (α) ¯r (2.41) Cl = Clβ (α) β + Clδa (α) δa + Cl¯p (α) ¯p + Cl¯r (α) ¯r (2.42) Cn = Cnβ (α) β + Cnδr (α) δr + Cn¯p (α) ¯p + Cn¯r (α) ¯r (2.43) The Table 2.3 gives the value of average of absolute percentage error in the value obtained by curve fitting and measured data. Table 2.3: Average of absolute percentage error in curve fitting α CZ CX Cm CY Cl Cn −6o to 10o 6% 6% 16% 13% 11% 7% 10o to 22o 23% 26% 27% 30% 25% 25%
  • 48.
    Chapter 2. Mathematicalmodeling 29 The values of coefficients of the functions obtained by curve fit is given in Table 2.4. Table 2.4: Derivatives function coefficient values CZ0 0.1653 m12 -1.7853e-005 y24 -5.2196e-5 l30 -0.44336 z10 0.087138 m13 -2.1109e-006 y25 8.8682e-6 l31 0.00075577 z11 -0.0091867 m14 1.1346e-007 y26 -3.2717e-7 l32 -0.00013921 z12 0.00024242 m20 0.00024049 y30 -0.0016884 l40 0.076582 z20 -0.0020001 m21 -7.8566e-006 y31 -1.3637e-05 l41 0.010019 z30 0.0039823 m22 1.0663e-006 y32 1.3214e-06 l42 1.1783e-005 z40 6.9303 m23 -7.8866e-007 y40 -0.14504 n10 -0.0015474 z41 -0.047657 m30 -0.0145 y41 0.013516 n11 6.1309e-005 CX0 0.0386 m31 9.2552e-006 y50 0.13784 n12 -1.8989e-006 x10 -0.0040376 m32 9.0437e-006 y51 0.0035514 n13 -5.5706e-006 x11 -0.0010525 m40 -13.954 l10 0.0022856 n20 0.00077238 x12 0.0027887 m41 0.0017379 l11 6.4827e-005 n21 1.1379e-006 x13 0.00010917 m42 0.0016743 l12 -3.0529e-006 n22 -4.1705e-008 x14 -5.3586e-6 y10 0.0099319 l13 -2.7687e-005 n30 -0.015512 x20 -0.00035832 y11 0.00029462 l14 1.7713e-006 n31 -0.011325 x21 -2.2061e-5 y12 1.7831e-005 l20 0.0029091 n32 9.8251e-005 x22 -5.7342e-6 y13 -0.00030969 l21 9.0047e-006 n40 -0.085307 x30 -0.18476 y14 1.6759e-005 l22 -7.4562e-006 n41 0.00080338 x31 -0.10227 y20 0.0022145 l23 3.0423e-007 n42 -0.00026197 Cm0 0.0346 y21 0.00041878 l24 -2.5531e-005 m10 -0.013841 y22 1.3117e-5 l25 4.1263e-006 m11 -0.00026206 y23 -1.1549e-6 l26 -2.0918e-007 2.3 Thrust force and moment The AE-2 uses electric motor and propeller for thrust generation with lithium polymer battery as its power source. The thrust force and moment are given as Xt = (Tmax σt) (2.44) Mt = −d (Tmax σt) (2.45) where Tmax is the maximum thrust(15N) which can be produced by the electric motor and propeller assembly. σt is throttle control which varies from 0 to 1. It is assumed that thrust produced has linear relation with throttle input. d is offset (0.26m) of the thrust line from the CG of the vehicle.
  • 49.
    Chapter 2. Mathematicalmodeling 30 2.4 Actuator dynamics The aerodynamic control surfaces are deflected by actuators. AE-2 employs electrome- chanical servos for the control surface deflection, all the surfaces have the similar servo. Here the actuator dynamics [30] for elevator servo is given ˙δe = bact δe + aact uδe (2.46) where bact = −9.5, aact = 6.7 and uδe is the width of pulse width modulated (PWM) signal. The step response of actuator is shown in the Fig. 2.35. The settling time for the actuator is 0.54 seconds. 0 0.2 0.4 0.6 0.8 1 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 X: 0.54 Y: 0.7011 time (sec) Servodeflection(deg) Figure 2.35: Step response of actuator The thrust model can be implemented with first order lag. Where this lag is due to time delay in increase or decrease of rotational speed of the propeller. This lag is found from the manual of electric motor and speed controller through which the throttle command is passed. The equation for thrust generation with first order lag can be written as ˙T = 1 τ (T − T∗ ) (2.47) where T is actual thrust, T∗ is the commanded thrust and τ is the time constant.
  • 50.

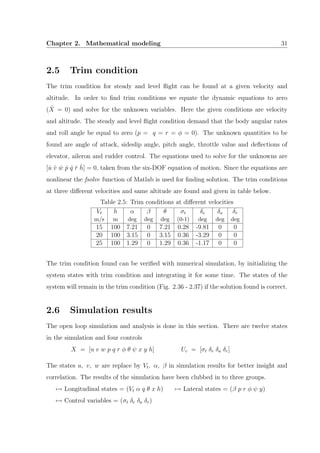

    Chapter 2. Mathematicalmodeling 31 2.5 Trim condition The trim condition for steady and level flight can be found at a given velocity and altitude. In order to find trim conditions we equate the dynamic equations to zero ( ˙X = 0) and solve for the unknown variables. Here the given conditions are velocity and altitude. The steady and level flight condition demand that the body angular rates and roll angle be equal to zero (p = q = r = φ = 0). The unknown quantities to be found are angle of attack, sideslip angle, pitch angle, throttle value and deflections of elevator, aileron and rudder control. The equations used to solve for the unknowns are [ ˙u ˙v ˙w ˙p ˙q ˙r ˙h] = 0, taken from the six-DOF equation of motion. Since the equations are nonlinear the fsolve function of Matlab is used for finding solution. The trim conditions at three different velocities and same altitude are found and given in table below. Table 2.5: Trim conditions at different velocities Vt h α β θ σt δe δa δr m/s m deg deg deg (0-1) deg deg deg 15 100 7.21 0 7.21 0.28 -9.81 0 0 20 100 3.15 0 3.15 0.36 -3.29 0 0 25 100 1.29 0 1.29 0.36 -1.17 0 0 The trim condition found can be verified with numerical simulation, by initializing the system states with trim condition and integrating it for some time. The states of the system will remain in the trim condition (Fig. 2.36 - 2.37) if the solution found is correct. 2.6 Simulation results The open loop simulation and analysis is done in this section. There are twelve states in the simulation and four controls X = [u v w p q r φ θ ψ x y h] Uc = [σt δe δa δr] The states u, v, w are replace by Vt, α, β in simulation results for better insight and correlation. The results of the simulation have been clubbed in to three groups. → Longitudinal states = (Vt α q θ x h) → Lateral states = (β p r φ ψ y) → Control variables = (σt δe δa δr)
  • 51.
    Chapter 2. Mathematicalmodeling 32 2.6.1 Open loop simulation The states are initialized with trim condition and simulated for 60 seconds. It is seen from Fig. 2.36 and Fig. 2.37 that states continue to remain in trim condition. 0 20 40 19 20 21 t (sec) V t (m/s) 0 20 40 60 2 3 4 t (sec) α(deg) 0 20 40 60 −1 0 1 t (sec) Q(deg/s) 0 20 40 60 2 3 4 t (sec) θ(deg) 0 20 40 60 0 500 1000 t (sec) x(m) 0 20 40 60 99 100 101 t (sec) h(m) Figure 2.36: Longitudinal states in trim condition 0 20 40 60 −1 0 1 t (sec) β(deg) 0 20 40 60 −1 0 1 t (sec) P(deg/s) 0 20 40 60 −1 0 1 t (sec) R(deg/s) 0 20 40 60 −1 0 1 t (sec) φ(deg) 0 20 40 60 −1 0 1 t (sec) ψ(deg) 0 20 40 60 −1 0 1 t (sec) y(m) Figure 2.37: Lateral states in trim condition
  • 52.
    Chapter 2. Mathematicalmodeling 33 2.6.2 Perturbation around trim condition To study the stability of the system various perturbations are given around trim condi- tion. A stable aircraft should return to the same or a near by equilibrium point after oscillations. Fig. 2.38 and Fig. 2.39 show the stability of the vehicle with respect to velocity, angle of attack, pitch angle and pitch rate perturbations. 0 50 100 18 20 22 t (sec) Vt (m/s) 0 50 100 2 4 6 t (sec) α(deg) Vt (+2 m/s) α(+2 deg) 0 50 100 −10 0 10 t (sec) Q(deg/s) 0 50 100 −20 0 20 t (sec) θ(deg) 0 50 100 0 2000 4000 t (sec) x(m) 0 50 100 90 100 110 t (sec) h(m) Figure 2.38: Effect of velocity and angle of attack perturbation on longitudinal states 0 50 100 19 20 21 t (sec) V t (m/s) 0 50 100 2.5 3 3.5 t (sec) α(deg) θ(+3 deg) Q(−5 deg/s) 0 50 100 −5 0 5 t (sec) Q(deg/s) 0 50 100 0 5 10 t (sec) θ(deg) 0 50 100 0 2000 4000 t (sec) x(m) 0 50 100 98 100 102 t (sec) h(m) Figure 2.39: Effect of pitch angle and pitch rate perturbation on longitudinal states
  • 53.
    Chapter 2. Mathematicalmodeling 34 Fig. 2.38 and Fig. 2.39 show the effect of sideslip and roll angle perturbation on the states. It can be observed from the figures that the perturbation effects of sideslip are highly damped compared to roll angle and they return to equilibrium very fast. 0 50 100 −5 0 5 t (sec) β(deg) 0 50 100 −20 0 20 t (sec) P(deg/s) β(+5 deg) φ(+5 deg) 0 50 100 −20 0 20 t (sec) R(deg/s) 0 50 100 −5 0 5 t (sec)φ(deg) 0 50 100 0 100 200 t (sec) ψ(deg) 0 50 100 −2000 0 2000 t (sec) y(m) Figure 2.40: Effect of sideslip and roll angle perturbation on lateral states 0 50 100 19 20 21 t (sec) V t (m/s) 0 50 100 2 3 4 t (sec) α(deg) β(+5 deg) φ(+5 deg) 0 50 100 −2 0 2 t (sec) Q(deg/s) 0 50 100 2 3 4 5 t (sec) θ(deg) 0 50 100 0 1000 2000 t (sec) x(m) 0 50 100 99 100 101 t (sec) h(m) Figure 2.41: Effect of sideslip and roll angle perturbation on longitudinal states Summary: In this chapter the mathematical model for AE-2 has been developed. The next chapter discusses the control design for inner and outer loop to track the guidance commands along with velocity control.
  • 54.
    Chapter 3 Control design Variouscontrol strategies have been attempted to achieve the flight stabilization and autonomous control for small unmanned aerial vehicles. Linear control theory has been heavily investigated. Linear control theory has limitation of operation in linearization range. To encompass the whole flight regime many such linear models would be required with gain scheduling. Due to the limitations of linear control theory and the approxima- tions involved in it, there has been a lot of research interest in nonlinear control design. A popular method of nonlinear control design for tracking is the technique of dynamic inversion. Which is based on the philosophy of feedback linearization. In this approach an appropriate coordinate transformation is carried out followed by the application of linear control theory. Here the feedback control cancels the nonlinearities in the plant and closed loop plant behaves as a linear system. The limitation of this method is that it requires an accurate knowledge of the plant model, in the absence of which the track- ing will not be perfect. Dynamic inversion concept also involves the presence of hidden zero dynamics. They must be examined separately to make certain that they are sta- ble and well-behaved (analysis included at the end of this chapter). The mathematical background for dynamic inversion [9], [10] is discussed in next Section. 3 “The battlefield is a scene of constant chaos. The winner will be the one who controls that chaos, both his own and the enemies.” Napoleon Bonaparte(1769-1821) 35
  • 55.
    Chapter 3. Controldesign 36 3.1 Dynamic inversion Let us consider a nonlinear dynamical system which is affine in control and given by following equations ˙X = f(X) + g(X)U (3.1) Y = h(X) (3.2) where X ∈ n , U ∈ m , Y ∈ p are the state, control and output vectors of the nominal system respectively. We assume the system is pointwise controllable. The objective is to design a control U so that Y → Y ∗ as t → ∞, where Y ∗ is the commanded signal for the Y to track. We assume Y ∗ is bounded, smooth and slowly varying. To achieve the above objective, it is noticed from Eq. 3.2, that using the chain rule of derivative the expression for ˙Y can be written as ˙Y = fY (X) + gY (X)U (3.3) where fY [ ∂h ∂X ]f(X) and gY [ ∂h ∂X ]g(X). Next, defining E (Y − Y ∗ ) the controller is synthesized such that the following stable linear error dynamics is satisfied ˙E + KE = 0 (3.4) The solution of the above differential equation is given as E = E0 exp−Kt . Where K is chosen to be positive definite matrix. It can be chosen as diagonal matrix with positive elements, where elements represent the ‘settling time constant’. Next, using the definition of E and substituting the expression for ˙Y from 3.3 in 3.4, we can obtain by carrying out the algebra gY (X)U = −fY (X) − K(Y − Y ∗ ) + ˙Y ∗ (3.5)
  • 56.
    Chapter 3. Controldesign 37 If p = m i.e. system has same number of controls as output and gY (X) is nonsingular than we can obtain the control solution as U = [gY (X)]−1 [−fY (X) − K(Y − Y ∗ ) + ˙Y ∗] (3.6) The salient features of this method are that it provides a close form solution for the controller and it can be implemented online without any computational difficulties. The control solution also ensures that E → 0 as t → ∞, i.e. the asymptotic tracking is achieved. However, the approach looks simple and it results in powerful nonlinear controller, there are some important issues with this technique. First, is that it requires p = m which may not hold good for all the dynamical systems. The second limitation requires an accurate knowledge of the plant model, in the absence of which the tracking will not be perfect. This deficiency can however be overcome by using the concepts of robust control [31] or adaptive control [32]. The implementation of this method will require appearance of control term in dy- namics after differentiation of output. The number of times output is differentiated to get control term is known as ‘relative degree’. Sometimes this relative degree can be of higher order. The other method to achieve this is through forming first order dynamics in cascaded form using the concept of ‘time scale separation’. Here, the system is divided into an inner and an outer loop (Fig. 3.1), where the dynamics in the inner loop has to be faster than the dynamics in the outer loop. Figure 3.1: Inner and outer loop structure
  • 57.
    Chapter 3. Controldesign 38 A cascaded form of inner loop and outer loop also cancels the dynamics of a system, but the cancellation is not exact. It relies on the approximation that the inner loop is so fast, that the tracking in inner loop is achieved by the time new commands come from outer loop. This can achieved by choosing the settling time constants of inner loop lower than outer loop. The outer and inner loop control for the UAV is discussed in following sections. 3.2 Outer loop control The goal of outer loop control (Fig. 3.2) is to track the commands generated by guidance loop. Where the guidance commands come from path planning which is discussed in next Chapter. The commands from guidance are desired pitch angle (θ∗ ), desired roll angle (φ∗ ) and desired heading angle (ψ∗ ). The outer loop achieves the tracking by converting the guidance commands into desired body rates which are roll rate (p∗ ), pitch rate (q∗ ) and yaw rate (r∗ ). These desired body rate signals are than fed to inner loop for tracking. Figure 3.2: Outer loop control The transformation of guidance commands to body rate commands is achieved by enforcing first order error dynamics, which is discussed in following sections.
  • 58.
    Chapter 3. Controldesign 39 3.2.1 Roll angle control The roll angle can be controlled through roll rate command. The relative degree between roll rate and roll angle is one. Hence to generate the roll rate command from error in roll angle, we enforce the following first order error dynamics for roll angle error ( ˙φ − ˙φ∗) + kφ(φ − φ∗ ) = 0 (3.7) where error = φ − φ∗ and φ∗ is the desired roll angle. kφ is chosen positive, given in Table 3.1. Rearranging above equation we get ˙φ = ˙φ∗ − kφ(φ − φ∗ ) (3.8) From six-DOF equation of motion we have ˙φ = p + qsinφtanθ + rcosφtanθ (3.9) Substituting ˙φ equation in Eq. 3.8 and rearranging we get p∗ = ˙φ∗ − kφ(φ − φ∗ ) − (qsinφ + rcosφ)tanθ (3.10) We have p∗ which is the required roll rate to achieve the desired roll angle. 3.2.2 Pitch angle control The pitch angle can be controlled through pitch rate command. The relative degree between pitch rate and pitch angle is one. Hence to generate the pitch rate command from error in pitch angle, we enforce the following first order error dynamics for pitch angle error ( ˙θ − ˙θ∗) + kθ(θ − θ∗ ) = 0 (3.11) where error = θ − θ∗ and θ∗ is the desired pitch angle. kθ is chosen positive, given in Table 3.1.
  • 59.
    Chapter 3. Controldesign 40 Rearranging previous equation, we get ˙θ = ˙θ∗ − kθ(θ − θ∗ ) (3.12) From six-DOF equation of motion we have ˙θ = qcosφ − rsinφ (3.13) Substituting ˙θ equation in Eq. 3.12 and rearranging we get q∗ = secφ( ˙θ∗ − Kθ(θ − θ∗ ) + rsinφ) (3.14) We have q∗ which is the required pitch rate to achieve the desired pitch angle. 3.2.3 Heading angle control The heading angle can be controlled through yaw rate command. The relative degree between yaw rate and heading angle is one. Hence to generate the yaw rate command from error in heading angle, we enforce the first order error dynamics for heading angle ( ˙ψ − ˙ψ∗) + kψ(ψ − ψ∗ ) = 0 (3.15) where error = ψ − ψ∗ and ψ∗ is the desired heading angle. kψ is chosen positive, given in Table 3.1. Rearranging above equation we get ˙ψ = ˙ψ∗ − kψ(ψ − ψ∗ ) (3.16) From six-DOF equation of motion we have ˙ψ = qsinφsecθ + rcosφsecθ (3.17) Substituting ˙ψ equation in Eq. 3.16 and rearranging we get r∗ = secφ cosθ( ˙ψ∗ − kψ(ψ − ψ∗ )) − qtanφ (3.18) We have r∗ which is the required yaw rate to achieve the desired heading angle.
  • 60.
    Chapter 3. Controldesign 41 3.3 Inner loop control The goal of inner loop (Fig. 3.3) is to track the body rate commands generated by outer loop. The inner loop achieves the tracking by transforming the body rate commands into aerodynamic controls. The body rate commands generated by outer loop control are desired roll rate (p∗ ), desired pitch rate (q∗ ), and desired yaw rate (r∗ ). Where as the aerodynamic controls are aileron (δa), elevator (δe) and rudder (δr) deflections. Figure 3.3: Inner loop control There is a separate loop for velocity control where velocity is maintained constant through throttle control. The body rates control and velocity control are discussed in following sections. 3.3.1 Body rates control The aerodynamics controls should be calculated such that it tracks the body angular rates desired by the outer loop. The relative degree between aerodynamic controls and body rates is one. Hence enforce first order error dynamics for error in body rates      ˙p − ˙p∗ ˙q − ˙q∗ ˙r − ˙r∗      +      kp 0 0 0 kq 0 0 0 kr           p − p∗ q − q∗ r − r∗      = 0 (3.19) where error = [(p − p∗ ) (q − q∗ ) (r − r∗ )]T . kp, kq and kr are chosen positive (Table 3.1).
  • 61.
    Chapter 3. Controldesign 42 Rearranging previous equation we get      ˙p ˙q ˙r      =      ˙p∗ − kp(p − p∗ ) ˙q∗ − kq(q − q∗ ) ˙r∗ − kr(r − r∗ )      (3.20) From six-DOF equation of motion we have ˙p = c1rq + c2pq + c3La + c4Na (3.21) ˙q = c5pr + c6(p2 − r2 ) + c7(Ma + Mt) (3.22) ˙r = c8pq − c2rq + c4La + c9Na (3.23) Separating the state and control terms in ˙p, ˙q, ˙r equations and rearranging Eq. 3.20 we can write fr + grUa = br (3.24) where Ua = [δa δe δr]T and other terms are defined as follows fr      c1rq + c2pq + c3Lax + c4Nax c5pr + c6(p2 − r2 ) + c7(Max − Mt) c8pq − c2rq + c4Lax + c9Nax      gr      c3Lau 0 c4Nau 0 c7Mau 0 c4Lau 0 c9Nau      br      ˙p∗ − kp(p − p∗ ) ˙q∗ − kq(q − q∗ ) ˙r∗ − kr(r − r∗ )      Lax ˆqSb[Clβ (α) β + Clp (α) ¯p + Clr (α) ¯r] Lau ˆqSbClδa Max ˆqSc[Cm0 + Cmα (α) α + Cmβ (α, β) β + Cmq (α) ¯q] Mau ˆqScCmδe Nax ˆqSb[Cnβ (α) β + Cnp (α) ¯p + Cnr (α) ¯r] Nau ˆqSbCnδr Carrying out the necessary algebra in Eq. (3.24), the control solution is Ua = g−1 r (br − fr) (3.25) The above solution for aerodynamic controls will track the desired body rates generated by outer loop control.
  • 62.

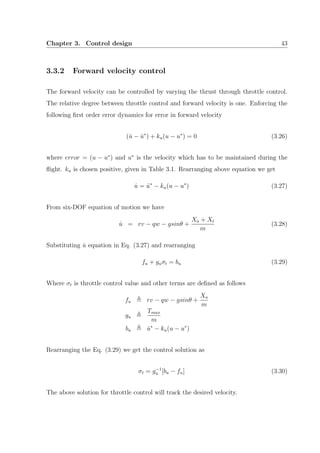

    Chapter 3. Controldesign 43 3.3.2 Forward velocity control The forward velocity can be controlled by varying the thrust through throttle control. The relative degree between throttle control and forward velocity is one. Enforcing the following first order error dynamics for error in forward velocity ( ˙u − ˙u∗ ) + ku(u − u∗ ) = 0 (3.26) where error = (u − u∗ ) and u∗ is the velocity which has to be maintained during the flight. ku is chosen positive, given in Table 3.1. Rearranging above equation we get ˙u = ˙u∗ − ku(u − u∗ ) (3.27) From six-DOF equation of motion we have ˙u = rv − qw − gsinθ + Xa + Xt m (3.28) Substituting ˙u equation in Eq. (3.27) and rearranging fu + guσt = bu (3.29) Where σt is throttle control value and other terms are defined as follows fu rv − qw − gsinθ + Xa m gu Tmax m bu ˙u∗ − ku(u − u∗ ) Rearranging the Eq. (3.29) we get the control solution as σt = g−1 u [bu − fu] (3.30) The above solution for throttle control will track the desired velocity.
  • 63.
    Chapter 3. Controldesign 44 3.4 Actuator controller The control solutions found by inner loop are fed to actuator for deflection of aerodynamic control surfaces. The actuator dynamics is given in Section 2.4 which is same for all control surfaces. It is observed from the step response (Fig. 2.35) of actuator that it has a settling time of 0.54 seconds. Which is higher than the desired settling time for the inner loop, hence a first order controller is designed for the actuator. Enforcing first order error dynamics for error in actuator deflection ( ˙δe − ˙δ∗ e ) + kδe (δe − δ∗ e ) = 0 (3.31) where error = (δe − δ∗ e ) and δ∗ e is the desired deflection for elevator. Substituting the actuator dynamics given by Eq. 2.46 in above equation and rearranging we get uδe = 1 6.7 [−9.5 δe + ˙δ∗ e − kδe (δe − δ∗ e )] (3.32) where uδe is the command to be fed to the actuator to achieve the desired deflection. The response of actuator to 1 deg deflection command is shown in Fig. 3.4. 0 0.2 0.4 0.6 0.8 1 0 0.2 0.4 0.6 0.8 1 1.2 X: 0.22 Y: 0.9931 time (sec) Servodeflection(deg) X: 0.54 Y: 1 without control with control Figure 3.4: Actuator response for 1 deg command of deflection
  • 64.
    Chapter 3. Controldesign 45 3.5 Control structure The Fig. 3.5 shows the combined inner and outer loop structure. Where roll angle, pitch angle and heading angle command come from guidance. The commands from guidance are converted into desired body rates by the outer loop. Further inner loop transforms these desired body rates into required aerodynamic control surface deflections. Figure 3.5: Control structure The velocity control loop maintains the desired velocity by throttle control, not shown in above figure. The various gains for control loops chosen after iterative simulation are given in the table below. Table 3.1: Gains for various control loops kφ kθ kψ kp kq kr ku kδe sec−1 sec−1 sec−1 sec−1 sec−1 sec−1 sec−1 sec−1 2 2 2 5 5 5 1 20 To test the control design done in above sections, simulations are carried out by giving various commands. The simulations and resulting performance are presented in next section.
  • 65.
    Chapter 3. Controldesign 46 3.6 Simulation results The simulation is initialized with the trim condition obtained in Section 2.5 as initial conditions. After 5 seconds of simulation a sequence of 3-2-1-1 command is given where the width of one unit has been kept as 5 seconds. The initial conditions are given below. Initial states X0 = [ Vt0 α0 β0 p0 q0 r0 φ0 θ0 ψ0 x0 y0 h0 ] = [ 20 3.15o 0 0 0 0 0 3.15o 0 − 1200 0 100 ] Initial control Ua0 = [ σt0 δe0 δa0 δr0 ] = [ 0.36 − 3.29o 0 0 ] 3.6.1 Pitch angle command A 3-2-1-1 sequence for pitch angle command is given with ±5 deg around trim pitch angle. The velocity control loop maintains the forward velocity as in trim condition. The Fig. 3.6 shows the response of pitch angle to the command. 0 10 20 30 40 50 −4 −2 0 2 4 6 8 10 t (sec) θ(deg) actual desired Figure 3.6: Pitch angle variation for 3-2-1-1 command
  • 66.
    Chapter 3. Controldesign 47 It is seen from Fig 3.7 that the velocity is maintained constant and the altitude is increasing at constant rate due to increase in pitch angle from the trim condition. The Fig. 3.8 shows the control requirements. There is increased demand in negative elevator for the positive pitching motion. The increase in elevator also increase drag hence more of throttle is required to compensate for maintaining constant velocity. 0 10 20 30 40 19 20 21 t (sec) V t (m/s) 0 10 20 30 40 0 5 t (sec) α(deg) 0 10 20 30 40 −10 0 10 t (sec) Q(deg/s) 0 10 20 30 40 −2 0 2 4 6 8 t (sec) θ(deg) 0 10 20 30 40 −1200 −1000 −800 −600 −400 −200 t (sec) x(m) 0 10 20 30 40 100 110 120 t (sec) h(m) Figure 3.7: Longitudinal states for pitch angle command 0 10 20 30 40 0 0.2 0.4 0.6 0.8 1 t (sec) σt (0−1) 0 10 20 30 40 −6 −4 −2 0 t (sec) δe(deg) 0 10 20 30 40 −1 −0.5 0 0.5 1 t (sec) δa(deg) 0 10 20 30 40 −1 −0.5 0 0.5 1 t (sec) δr(deg) Figure 3.8: Control variables for pitch angle command
  • 67.
    Chapter 3. Controldesign 48 3.6.2 Heading angle command A 3-2-1-1 sequence command for heading angle is given after 5 seconds of simulation while the desire roll angle is zero and trim pitch angle is maintained. The Fig. 3.9 shows the response of heading angle to ±5 deg command. It is seen from Fig. 3.10 that there is small decrease in pitch angle this is due to reduction in lift during the turn. 0 10 20 30 40 50 −6 −4 −2 0 2 4 6 t (sec) ψ(deg) actual desired Figure 3.9: Heading angle variation for 3-2-1-1 command 0 10 20 30 40 19 20 21 t (sec) V t (m/s) 0 10 20 30 40 2 3 4 t (sec) α(deg) 0 10 20 30 40 −1 0 1 t (sec) Q(deg/s) 0 10 20 30 40 2 3 4 t (sec) θ(deg) 0 10 20 30 40 −1200 −1000 −800 −600 −400 −200 t (sec) x(m) 0 10 20 30 40 99 100 101 t (sec) h(m) Figure 3.10: Longitudinal states for heading angle command
  • 68.
    Chapter 3. Controldesign 49 Fig. 3.11 shows the yaw rate required for the heading angle command. Also the sideslip angle is non zero for some time as the coordinated turn constraint has not been enforced. The control plots in Fig. 3.12 show the requirement in rudder deflection and also aileron in an effort to maintain zero roll angle. 0 10 20 30 40 −5 0 5 t (sec) β(deg) 0 10 20 30 40 −2 0 2 t (sec) P(deg/s) 0 10 20 30 40 −10 0 10 t (sec) R(deg/s) 0 10 20 30 40 −2 0 2 t (sec) φ(deg) 0 10 20 30 40 −5 0 5 t (sec) ψ(deg) 0 10 20 30 40 0 10 20 t (sec) y(m) Figure 3.11: Lateral states for heading angle command 0 10 20 30 40 0 0.2 0.4 0.6 0.8 1 t (sec) σ t (0−1) 0 10 20 30 40 −5 −4 −3 −2 −1 t (sec) δe(deg) 0 10 20 30 40 −5 0 5 t (sec) δa(deg) 0 10 20 30 40 −10 −5 0 5 10 t (sec) δr(deg) Figure 3.12: Control variables for heading angle command
  • 69.
    Chapter 3. Controldesign 50 3.6.3 Bank angle command A 3-2-1-1 sequence command for roll angle is given while the desire heading angle is zero and trim pitch angle is maintained. The response of roll angle to ±5 deg command is shown in Fig. 3.13. It is seen from Fig. 3.14 though the pitch angle is constant, there is constant decrease in altitude. It is due to reduction in lift due to non zero roll angle. 0 10 20 30 40 50 −6 −4 −2 0 2 4 6 t (sec) φ(deg) actual desired Figure 3.13: Roll angle variation for step 3-2-1-1 command 0 10 20 30 40 19 20 21 t (sec) V t (m/s) 0 10 20 30 40 2 3 4 t (sec) α(deg) 0 10 20 30 40 −1 0 1 t (sec) Q(deg/s) 0 10 20 30 40 2 3 4 t (sec) θ(deg) 0 10 20 30 40 −1200 −1000 −800 −600 −400 −200 t (sec) x(m) 0 10 20 30 40 96 98 100 t (sec) h(m) Figure 3.14: Longitudinal states for roll angle command
  • 70.
    Chapter 3. Controldesign 51 Fig. 3.15 shows the roll angle is maintained without changing the heading angle. However, this comes at a price of constant control effort for aileron and rudder deflections. 0 10 20 30 40 −5 0 5 t (sec) β(deg) 0 10 20 30 40 −10 0 10 t (sec) P(deg/s) 0 10 20 30 40 −1 0 1 t (sec) R(deg/s) 0 10 20 30 40 −5 0 5 t (sec) φ(deg) 0 10 20 30 40 −1 0 1 t (sec) ψ(deg) 0 10 20 30 40 0 10 20 30 t (sec) y(m) Figure 3.15: Lateral states for roll angle command 0 10 20 30 40 0 0.2 0.4 0.6 0.8 1 t (sec) σ t (0−1) 0 10 20 30 40 −4 −3 −2 −1 t (sec) δe(deg) 0 10 20 30 40 −5 0 5 t (sec) δa(deg) 0 10 20 30 40 −15 −10 −5 0 5 10 t (sec) δr(deg) Figure 3.16: Control variables for roll angle command Summary: The control has been designed in this chapter for inner and outer loop to track the guidance commands along with velocity control. Next chapter discusses the path planning and guidance command generation for autonomous landing.
  • 71.
    Chapter 3. Controldesign 52 Appendix: Zero dynamics The zero-dynamics is defined to be the internal dynamics of the system when the system output is kept at zero by the input. The states of the system taken as output are u, p, q, r, φ, θ, ψ, x, y, h. The remaining internal states are v and w. There dynamics is given by following equations ˙v = pw − ru + gsinφcosθ + Ya m (3.33) ˙w = qu − pv + gcosφcosθ + Za m (3.34) The input which keeps the outputs to zero can be calculated from Eq. 3.25 by putting br = 0 Ua = g−1 r (−fr) (3.35) Now replacing the outputs as zero and the input given by above equation, we will get   ˙v ˙w   = Avw   v w   Where Avw is linearized matrix around the initial condition and is given as Avw =   ∂f1 ∂v ∂f2 ∂w ∂f1 ∂v ∂f2 ∂w   The eigen values of the Avw matrix are tabulated for various operating points Vt(m/s) h(m) λ1 λ2 15 100 -0.5397 -0.0111 20 100 -0.3148 -0.0125 25 100 -0.0128 -0.0011 It is observed from the above table that the eigen values of Avw matrix lie in left half plane for the operating range of the UAV, hence the zero dynamics is locally stable.
  • 72.
    Chapter 4 Path planningand guidance The autonomous landing of UAVs require an intelligent path planning and guidance. Here the landing is divided into three phases which are approach, glideslope and flare (Fig. 4.1). The approach is initial phase of landing where UAV descents to a height from which glideslope can begin while aligning itself with runway. The next is glideslope, a straight line path where it looses most of its height. The last segment of landing is flare which is an exponential curve at the end of which UAV touches down on ground. The design and selection of the landing trajectory is discussed in next section. Figure 4.1: Phases during landing 4 “Our scientific power has outrun our spiritual power. We have guided missiles and misguided men.” Martin Luther King Jr.(1963) 53
  • 73.
    Chapter 4. Pathplanning and guidance 54 4.1 Path planning To guide the UAV it is required to specify the desired trajectory. The desired trajectory can be made a function of time or distance in space. The trajectory tracking with respect to time requires UAV to be in a particular location at particular point of time. There will be problems in case of tracking a trajectory varying with time, when the UAV is flying into wind disturbances [33]. To overcome this the effects of wind should be accounted properly to move the desired trajectory slower or faster. To remove the dependence of time a path in space can be specified, where UAV will be required to be on the path rather than at a certain point on a particular time. Here the desired trajectory is made a function of forward distance which is discussed in next sections. 4.1.1 Approach During approach the vehicle should come and align with the runway at a specified height from where the glideslope can be started. Fig. 4.2 shows the geometry for alignment where (x0, y0) is the initial location of UAV at the beginning of landing. (xg, yg) is point from where glideslope begins. ψ0 is the initial orientation of the vehicle. y runway x (0,0) (x0 ,y0 ) (xg , yg ) ψ0 Figure 4.2: Approach geometry in x-y plane (top view)
  • 74.
    Chapter 4. Pathplanning and guidance 55 The initial condition (x0) for landing has bounds from which landing can be started though there is no such constraint for the initial orientation (ψ0) and sideward distance (y0). This constraint is due to the fact that UAV will require a minimum distance to take turn and align before reaching the glideslope. The margin for initial condition has been kept as (x0 − xg) > 400m, i.e. the alignment should begin 400m before the glideslope initiation point. The equation for path of approach can be written as a straight line function of forward distance. y∗ = y0 + yg − y0 xg − x0 (x − x0) (4.1) This is the desired value of sideward distance during approach which UAV has to follow. The desired value of sideward distance during glideslope and flare is zero (y∗ = 0) i.e. aligned with the runway centerline. The UAV may also require to loose height during approach to reach the glideslope height. 4.1.2 Glideslope The glideslope is a straight line path whose slope is defined by the flight path angle. The desired height is also scheduled as a function of forward distance. (0, 0) h (x g , h g ) (xf , hf ) (x ∞ ,h c ) xγ∗ (x g0 , h g0 ) (x td , h td ) Figure 4.3: Glideslope and flare geometry in x-h plane
  • 75.
    Chapter 4. Pathplanning and guidance 56 In Fig. 4.3 (xg, hg) is the point where glideslope begins. (xf , hf ) is point where flare begins. (xtd, htd = 0) is the touchdown point. (0, 0) is the origin of inertial frame at the beginning of runway. (xg0 , hg0 = 0) is a fictitious point considered on ground from where glideslope is projected. (x∞, hc) is the final point of flare path, this point is chosen to be below ground so that exponential flare path intersects the ground at touchdown point. From the geometry of the Fig. 4.3 the required flight path angle which vehicle has to follow is calculated as follows γ∗ = tan−1 hg − hg0 xg − xg0 (4.2) The desired flight path angle (γ∗ ) which UAV has to follow is limited between 3o to 5o . At lower flight path angle the position from which the glideslope has to begin (xg) will become very large for a given glideslope altitude. At higher values of flight path angle the vehicle will have limitation as the component of gravity will cause an increase in velocity during landing. The desired height at every point of glideslope can be written as a function of forward distance given by following equation h∗ = hg0 + (x − xg0 ) tanγ∗ (4.3) The UAV will follow the path specified by above equation while maintaining lateral error to zero until the flare height is reached. The flare height is calculated online and it is not fixed apriori which is discussed in next section. 4.1.3 Flare The flare path is an exponential curve shown in Fig. 4.3. The exponential curve needs to be chosen to end below the ground so that it touches the ground at a finite location. The problem of slope discontinuity at the transition from glideslope to flare can be addressed by appropriately choosing the parameters which specify the flare path. The advantage of scheduling desired height as a function of forward distance is that we can specify the location of touchdown. It is also required to control the sink rate at the touchdown in order to avoid a hard landing.
  • 76.
    Chapter 4. Pathplanning and guidance 57 The desired height during exponential flare can be scheduled as a function of forward distance, given by following equation h∗ = hc + (hf − hc)e−kx(x−xf ) (4.4) The unknowns in above equation are flare height hf , distance at which to begin flare xf , final height below the ground where flare trajectory should end hc, and constant kx. We can solve for these four unknowns under the following four constraints, Initial condition: The point where glideslope ends and flare begins be coincident. Sub- stituting x = xf in (4.3) and (4.4) than equating hf = −(xf − xg0 ) tanγ∗ (4.5) Initial slope: The slope at the beginning of flare and at the end of glideslope be same. Differentiating (4.3) and (4.4) than equating at x = xf (hf − hc)kx = tanγ∗ (4.6) Touchdown condition: The flare trajectory should intersect the ground at touchdown point. Replacing x = xtd and h∗ = 0 in (4.4) we get 0 = hc + (hf − hc)e−kx(xtd−xf ) (4.7) Sink rate at touchdown: The descent rate at touchdown should be equal to specified sink rate. Differentiating (4.4) and evaluating at x = xtd. Putting ˙h∗ = ˙h∗ td, where ˙h∗ td is the desired sink rate at touchdown. The ground velocity at touchdown ( ˙xtd) is taken as equal to the air velocity controlled at touchdown. ˙h∗ t = −(hf − hc)kx ˙xtde−kx(xtd−xf ) (4.8) Now we can solve the Eq. 4.5 - 4.8 for the four unknowns of the flare path. The solution will ensure a smooth transition from glideslope to flare path. We also have the direct control over the touchdown point and sink rate at touchdown. Which can be the design parameters and tuned as per the requirement.
  • 77.
    Chapter 4. Pathplanning and guidance 58 To closely follow the path specified by path planning, appropriate guidance commands need to be generated which is discussed in next section. 4.2 Guidance The desired values from path planning to be tracked are sideward distance (y∗ = 0) and altitude (h∗ = 0). The kinematic equations for sideward distance and altitude can be inverted to find the desired values of heading angle and pitch angle required for tracking. While taking turn during approach the coordinated turn constraint is imposed from which the desired roll angle can be found. 4.2.1 Sideward distance control To track the desired sideward distance (y∗ ) we enforce a first order error differential equation as ( ˙y − ˙y∗) + ky(y − y∗ ) = 0 (4.9) where error = y − y∗ . The gain ky is chosen positive, given in Table 4.1. Rearranging above equation we get ˙y = ˙y∗ − ky(y − y∗ ) (4.10) From six-DOF equations we can write ˙y = ay sinψ + by cosψ (4.11) where ay u cosθ + v sinφsinθ + w cosφsinθ by v cosφ − w sinφ Substituting Eq. (4.11) in Eq. (4.10) than solving for ψ ψ∗ = sin−1 ˙y∗ − ky(y − y∗ ) a2 y + b2 y − tan−1 by ay (4.12) We have ψ∗ which is the required heading angle to track the path for sideward distance.
  • 78.
    Chapter 4. Pathplanning and guidance 59 4.2.2 Altitude control The altitude can be controlled by commanding pitch angle. The relative degree between pitch angle and altitude is one. To generate the pitch angle command from error in altitude, we enforce the first order error dynamics for altitude error (˙h − ˙h∗) + kh(h − h∗ ) = 0 (4.13) where error = h−h∗ and h∗ is the desired altitude. The gain kh is chosen positive, given in Table 4.1. Rearranging above equation we get ˙h = ˙h∗ − kh(h − h∗ ) (4.14) From six-DOF equations we can write ˙h = ahsinθ − bhcosθ (4.15) where ah = u and bh = v sinφ + w cosφ Substituting Eq. (4.15) in Eq. (4.14) than solving for θ θ∗ = sin−1 ˙h∗ − kh(h − h∗ ) a2 h + b2 h + tan−1 bh ah (4.16) Now θ∗ is the desired pitch angle required to track the desired altitude. The UAV should touchdown on the ground at the end of flare with bounds on pitch angle. This is ensured by passing the desired pitch angle through a limiter (20 θ∗ 80 ) when near to ground. The other approach taken is to find the trim condition for a given pitch angle at the touchdown. This trim condition will provide us with a desired velocity at the end of flare which can be fed to velocity control loop for tracking. It is seen from Eq. 4.12 and Eq. 4.16 that they involve inverse sine functions. The value of quantities inside the inverse function need to be ensured less than equal to 1, else the solutions will be imaginary. This can be achieved by careful selection of ky and kh.
  • 79.

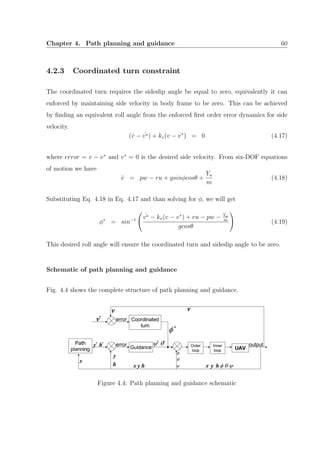

    Chapter 4. Pathplanning and guidance 60 4.2.3 Coordinated turn constraint The coordinated turn requires the sideslip angle be equal to zero, equivalently it can enforced by maintaining side velocity in body frame to be zero. This can be achieved by finding an equivalent roll angle from the enforced first order error dynamics for side velocity. (˙v − ˙v∗) + kv(v − v∗ ) = 0 (4.17) where error = v − v∗ and v∗ = 0 is the desired side velocity. From six-DOF equations of motion we have ˙v = pw − ru + gsinφcosθ + Ya m (4.18) Substituting Eq. 4.18 in Eq. 4.17 and than solving for φ, we will get φ∗ = sin−1 ˙v∗ − kv(v − v∗ ) + ru − pw − Ya m gcosθ (4.19) This desired roll angle will ensure the coordinated turn and sideslip angle to be zero. Schematic of path planning and guidance Fig. 4.4 shows the complete structure of path planning and guidance. Figure 4.4: Path planning and guidance schematic
  • 80.
    Chapter 4. Pathplanning and guidance 61 The gains used for path planning and guidance are given in the table below. Table 4.1: Gains for guidance loop ky kh kv 1 0.5 1 4.3 Simulation results In this section the simulation results in a disturbance free environment are given for a complete sequence of landing including approach, glideslope and flare. The ground roll phase after the touchdown is not simulated. The results for three cases with different initial conditions is given in Table 4.2. The plots 4.5 - 4.10 correspond to case I. The simulation is initialized with trim condition and landing is commanded. The UAV first aligns itself with runway than follows glideslope and flare as seen in Fig. 4.5. −1500 −1000 −500 0 −100 −50 0 50 100 150 0 10 20 30 40 50 60 Down range (m) Cross range (m) Altitude(m) Case 1 Case 2 Figure 4.5: Landing trajectory in 3D
  • 81.
    Chapter 4. Pathplanning and guidance 62 The Fig. 4.6 and Fig. 4.7 show the landing path in lateral and longitudinal plane. −1500 −1000 −500 0 −80 −60 −40 −20 0 20 40 60 80 100 120 x (m) y(m) Case 1 Case 2 Figure 4.6: Landing path in x-y plane −1500 −1000 −500 0 −10 0 10 20 30 40 50 60 70 x (m) h(m) Case 1 Case 2 Figure 4.7: Landing path in x-h plane Fig. 4.8 shows the evolution of longitudinal states during landing. There are oscil- lations observed in initial approach phase due to the coupling between longitudinal and lateral dynamics, also the constant altitude is commanded during the turning maneuver. 0 20 40 60 80 15 20 25 t (sec) Vt (m/s) 0 20 40 60 80 0 5 10 t (sec) α(deg) Case 1 Case 2 0 20 40 60 80 −20 0 20 t (sec) Q(deg/s) 0 20 40 60 80 −10 0 10 t (sec) θ(deg) 0 20 40 60 80 −2000 0 2000 t (sec) x(m) 0 20 40 60 80 −100 0 100 t (sec) h(m) Figure 4.8: Longitudinal states during landing
  • 82.
    Chapter 4. Pathplanning and guidance 63 Fig. 4.9 shows the evolution of lateral states during landing. The coordinated turn constraint brings the sideslip angle during the turn close to zero. 0 20 40 60 80 −5 0 5 t (sec) β(deg) 0 20 40 60 80 −100 0 100 t (sec) P(deg/s) Case 1 Case 2 0 20 40 60 80 −20 0 20 t (sec) R(deg/s) 0 20 40 60 80 −50 0 50 t (sec)φ(deg) 0 20 40 60 80 −200 0 200 t (sec) ψ(deg) 0 20 40 60 80 −200 0 200 t (sec) y(m) Figure 4.9: Lateral states during landing Fig. 4.10 shows the control values during landing plotted with respect to forward dis- tance. It is seen that there are oscillations in the initial approach phase while maintaining constant altitude. The throttle requirement during glideslope has gone to idle position (5%) as the commanded velocity is decreased (Fig. 4.8). −1500 −1000 −500 0 0 0.2 0.4 0.6 0.8 1 x (m) δt(0−1) Case 1 Case 2 −1500 −1000 −500 0 −20 −10 0 x (m) δe(deg) −1500 −1000 −500 0 −10 0 10 x (m) δa(deg) −1500 −1000 −500 0 −10 0 10 x (m) δr(deg) Figure 4.10: Control values during landing
  • 83.

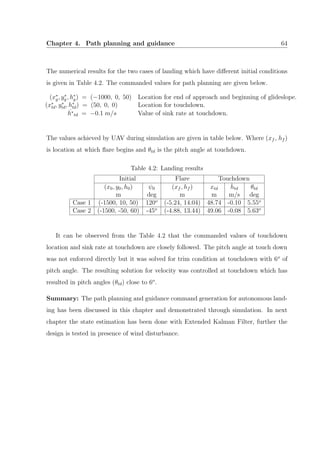

    Chapter 4. Pathplanning and guidance 64 The numerical results for the two cases of landing which have different initial conditions is given in Table 4.2. The commanded values for path planning are given below. (x∗ g, y∗ g, h∗ g) = (−1000, 0, 50) Location for end of approach and beginning of glideslope. (x∗ td, y∗ td, h∗ td) = (50, 0, 0) Location for touchdown. ˙h∗ td = −0.1 m/s Value of sink rate at touchdown. The values achieved by UAV during simulation are given in table below. Where (xf , hf ) is location at which flare begins and θtd is the pitch angle at touchdown. Table 4.2: Landing results Initial Flare Touchdown (x0, y0, h0) ψ0 (xf , hf ) xtd ˙htd θtd m deg m m m/s deg Case 1 (-1500, 10, 50) 120o (-5.24, 14.04) 48.74 -0.10 5.55o Case 2 (-1500, -50, 60) -45o (-4.88, 13.44) 49.06 -0.08 5.63o It can be observed from the Table 4.2 that the commanded values of touchdown location and sink rate at touchdown are closely followed. The pitch angle at touch down was not enforced directly but it was solved for trim condition at touchdown with 6o of pitch angle. The resulting solution for velocity was controlled at touchdown which has resulted in pitch angles (θtd) close to 6o . Summary: The path planning and guidance command generation for autonomous land- ing has been discussed in this chapter and demonstrated through simulation. In next chapter the state estimation has been done with Extended Kalman Filter, further the design is tested in presence of wind disturbance.
  • 84.
    Chapter 5 State estimation Thestate feedback control laws require an estimate of the true state. There are many uncertainties associated with the state estimation which make it a difficult problem. The state estimation will depend upon the accuracy of mathematical modeling. The aero- dynamic force and moment coefficients can not be modeled accurately even after wind tunnel tests. There will also be process noise due to the presence of wind disturbances which are not easy to measure. The sensors have measurement noise which will not give the deterministic output. Kalman filter is an optimal estimator which minimizes the variance of states error in the presence of process and measurement noise. Kalman filter uses the knowledge of system and measurement dynamics, assumed statistics of system disturbance and measurement errors with initial condition informa- tion to arrive at optimal estimate. The Kalman filter was initially designed for linear systems, further it has been modified for nonlinear systems called as Extended Kalman Filter (EKF). The EKF minimizes the state estimation error with respect to the nonlin- ear system’s linearized model. The mathematical background for EKF [23], [34] is given in the next Section. 4 “Position and velocity of a particle can not be measured accurately at the same time.” Werner Heisenberg(1927) 65
  • 85.
    Chapter 5. Stateestimation 66 5.1 Extended Kalman Filter In a dynamical system states are continuously evolving and the measurements arrive at discrete intervals. Therefore continuous-discrete formulation of EKF best describes a dynamical system. The nonlinear system model for estimation can be given by following equations for states and outputs ˙X = f(X(t), Uc(t), t) + G(t)w(t) (5.1) Yk = h(Xk) + vk (5.2) Where, the vector f represents the system dynamics which is a nonlinear function of the state X, the deterministic control input Uc and varies with time t. The disturbance input or process noise w is white, zero mean gaussian random process. The statistical properties of process noise can be written as, E[w(t)] = 0 (5.3) E[w(t)wT (t)] = Q (5.4) The vector h represents the output equation which is a nonlinear function of the state X. The measurement noise v is also white, zero mean gaussian random process that is uncorrelated with disturbance input. The statistical properties of measurement noise can be written as, E[vk] = 0 (5.5) E[vkvT k ] = R (5.6) E[w(t)vT k ] = 0 (5.7) The basic assumption in EKF is that the true state is sufficiently close to the estimated state. Therefore, the error dynamics can be represented fairly accurately by a linearized first-order Taylor series expansion. So we linearize the nonlinear system around the
  • 86.
    Chapter 5. Stateestimation 67 Kalman filter estimate of the state. The linearized matrices also known as sensitivity matrices are given as F(t) = ∂f ∂X |X(t)= ˆX(t) (5.8) H(t) = ∂h ∂X |X(t)= ˆX(t) (5.9) The expected values of the initial state and its covariance are assumed known and given by following equations E(X0) = ˆX0 (5.10) E[(X0 − ˆX0)(X0 − ˆX0)T ] = P0 (5.11) A weighting factor called the Kalman filter gain is computed using the covariance infor- mation, output sensitivity matrix and the measurement covariance matrix . The Kalman filter gain is used to combine the extrapolated estimate with the new measurement. This gain is defined in such a way that it minimizes the estimation error covariance after the update. The Kalman filter gain [23] is given by following equation Kk = P− k HT k (t− k ) [Hk(t− k ) P− k HT k (t− k ) + Rk]−1 (5.12) New measurements are combined with the extrapolated estimate to generate an updated estimated state. The state covariance also is updated to reflect the information contained in the measurement. The state and covariance update equation are ˆX+ k = ˆX− k + Kk [Yk − h(t− k )] (5.13) P+ k = [I − Kk Hk(t− k )] P− (5.14)
  • 87.
    Chapter 5. Stateestimation 68 The EKF propagates both the state estimate and its covariance using the system model given by following equations ˙ˆX(t) = f( ˆX(t), Uc(t), t) (5.15) ˙P(t) = F(t) P(t) + P(t) FT (t) + G(t) Q(t) GT (t) (5.16) The EKF algorithm involves initialization of states and covariance, computation of Kalman filter gain, update of states and covariance followed by propagation of states and covariance. This process is followed in a cyclic manner excluding initialization. Equa- tions (5.9)-(5.16) constitute the EKF algorithm for continuous-time nonlinear systems with discrete measurements. 5.2 Filter equations for UAV The equations for UAV need to be modified in order to take in account the wind distur- bance. This can be achieved by making the wind disturbances as a part of state vector, which is discussed in following sections. 5.2.1 Wind disturbances The wind disturbance is considered in inertial frame x, y and h directions. The natural wind tends to be constant or slowly varying in horizontal plane where as there are wind gusts in vertical direction. Therefore the wind in x and y direction are assumed to be constant and wind in h direction accelerating. It is necessary to make these disturbances part of the system state vector. The wind state vector is defined as Xd = [wx wy wh ˙wh] (5.17) Any mathematical model of the wind dynamics represent an approximation to the con- ditions that exist. Error in the modeling can lead to biases in the estimates and even
  • 88.
    Chapter 5. Stateestimation 69 divergence from the actual values. Hence the dynamics of the wind [25] can be repre- sented by using a simple Integral state model [36] given by following equations ˙Xd = FdXd + wd (5.18) where Fd =        0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0        wd =        0 0 0 1        To account the wind acceleration we transform it from inertial frame to body frame aB w = [HB I ]aI w Where HB I is the transformation matrix from inertial frame to body frame and the acceleration of wind disturbance is given as aI w [ 0 0 ˙wh ]. The transformation of wind acceleration to body axis will give      aB wx aB wy aB wh      =      cosθcosψ cosθsinψ −sinθ sinφsinθsinψ − cosφsinψ sinφsinθsinψ + cosφcosψ sinφcosθ cosφsinθcosψ + sinφsinψ cosφsinθsinψ − sinφcosψ cosφcosθ           0 0 − ˙wh      Simplifying above equation we will get aB wx = ˙wh sinθ aB wy = − ˙wh sinφcosθ aB wh = − ˙wh cosφcosθ 5.2.2 State sensitivity matrix To account for the wind and wind acceleration the translational dynamic and kinematic equations are revised to wind relative reference frame [35]. Translational dynamics ˙ua = rva − qwa − gsinθ + Xa + Xt m − aB wx ˙va = pwa − rua + gsinφcosθ + Ya m − aB wy ˙wa = qua − pva + gcosφcosθ + Za m − aB wh
  • 89.
    Chapter 5. Stateestimation 70 Translational kinematics ˙x = uacosθcosψ + va(sinφsinθsinψ − cosφsinψ) + wa(cosφsinθcosψ + sinφsinψ) + wx ˙y = uacosθsinψ + va(sinφsinθsinψ + cosφcosψ) + wa(cosφsinθsinψ − sinφcosψ) + wy ˙h = uasinθ − vasinφcosθ − wacosφcosθ + wh The rotational dynamic and kinematic equations remain unchanged as given Chapter 2. In above equations the ua, va, and wa are the wind relative body frame velocities. Now the the system state vector is defined as X = [ua va wa p q r φ θ ψ x y h] (5.19) Combining the system and wind disturbance states, we can define χ   X Xd   (5.20) The combined dynamics can be represented as ˙χ =   ˙X ˙Xd   =   f(X, Uc, Xd) FdXd   +   0 wd   (5.21) The linearized matrix of state can be found as F(t) = ∂f ∂χ (5.22) The expressions for linearized matrix is given in below equations ∂( ˙ua, ˙va, ˙wa) ∂χ =      0 r −q 0 −wa va 0 −(g − ˙wh)cθ sθ −r 0 p wa 0 −ua (g − ˙wh)cθcφ −(g − ˙wh)sθsφ 03×7 −sφcθ q −p 0 −va ua 0 −(g − ˙wh)cθsφ −(g − ˙wh)sθcφ −cφcθ      3×16
  • 90.
    Chapter 5. Stateestimation 71 ∂( ˙p, ˙q, ˙r) ∂χ =     c2q c1r + c2p c1q 03×3 c5r − 2c6p 0 c5p + 2c6r 03×10 c8q c8p − c2r −c2q     3×16 ∂( ˙φ, ˙θ, ˙ψ) ∂χ =     1 sφtθ cφtθ (qcφ − rsφ)tθ (qsφ + rcφ)se2 θ 03×3 0 cφ −sφ −qsφ − rcφ 0 03×8 0 sφseθ cφseθ (qcφ − rsφ)seθ (qsφ + rcφ)seθtθ     3×16 ∂( ˙x, ˙y, ˙h) ∂χ =     cθcψ sφsθcψ − cφsψ cφsθsψ − sφcψ cθsψ sφsθsψ + cφcψ cφsθsψ − sφcψ 03×3 03×3 I3×3 03×1 sθ −sφcθ −cφcθ     3×16 ∂( ˙wx, ˙wy, ˙wh, ¨wh) ∂χ =        0 04×15 0 1 0        4×16 where, sφ sinφ, sθ sinθ, sψ sinψ tθ tanθ, cφ cosφ, cθ cosθ, cψ cosψ seθ secθ The state sensitivity will be given as F(t) = ∂f ∂χ =            ∂( ˙ua, ˙va, ˙wa) ∂X ∂( ˙p, ˙q, ˙r) ∂X ∂( ˙φ, ˙θ, ˙ψ) ∂X ∂( ˙x, ˙y, ˙h) ∂X ∂( ˙wx, ˙wy, ˙wh, ¨wh) ∂X            16×16 5.2.3 Output sensitivity matrix The sensors available for measurement are accelerometers, rate gyros, GPS, magnetome- ter and pressure sensors which provide air velocity and altitude.
  • 91.

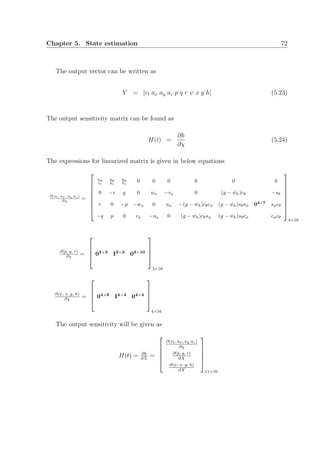

    Chapter 5. Stateestimation 72 The output vector can be written as Y = [vt ax ay az p q r ψ x y h] (5.23) The output sensitivity matrix can be found as H(t) = ∂h ∂χ (5.24) The expressions for linearized matrix is given in below equations ∂(vt, ax, ay az) ∂χ =         ua vt ua Vt ua Vt 0 0 0 0 0 0 0 −r q 0 wa −va 0 (g − ˙wh)cθ −sθ r 0 −p −wa 0 ua −(g − ˙wh)cθcφ (g − ˙wh)sθsφ 04×7 sφcθ −q p 0 va −ua 0 (g − ˙wh)cθsφ (g − ˙wh)sθcφ cφcθ         4×16 ∂(p, q, r) ∂χ =     03×3 I3×3 03×10     3×16 ∂(ψ, x, y, h) ∂χ =     04×8 I4×4 04×4     4×16 The output sensitivity will be given as H(t) = ∂h ∂X =      ∂(vt, ax, ay az) ∂χ ∂(p, q, r) ∂X ∂(ψ, x, y, h) ∂X      11×16
  • 92.
    Chapter 5. Stateestimation 73 5.2.4 Selection of R, P0 and Q The outputs given by the onboard sensors are accelerations, body rates, air velocity, altitude and ground position given by GPS. The sensors give output at a frequency of 50hz other than GPS whose data arrive at 5hz. Hence the algorithm uses the inertial data until the GPS measurements arrive, than the positions are corrected. The measurement noise covariance matrix obtained from the given specifications of the sensors is R = diag(22 , 12 , 12 , 12 , 0.022 , 0.022 , 0.022 , 0.052 , 52 , 52 , 52 ) (5.25) The initial error covariance was selected by trial and error and finally set to P0 = I. If the initial covariance was made large, than states showed large oscillations in transient and filter diverged in some cases. The smaller values of covariance delayed the convergence of estimated states to the actual states. The process noise covariance is set to Q = diag(0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0.1, 0.1, 0, 0.001) (5.26) The zero elements in the diagonal terms represent there is no process noise in that channel of state. The nonzero diagonal elements were determined through trial-and-error. If they were made too large, the EKF attenuated the measurement noise and very small diagonal elements introduced significant lags into the estimates of the states. 5.3 Simulation results The simulation results are shown here in presence of wind disturbance. The plots show the comparison of performance between ideal conditions when there is no wind and the states are known perfectly and the actual conditions when the state is estimated in presence of wind disturbances and measurement noise. The landing command is given after 5 seconds of simulation. This lead time is required for the settling of filter gains.
  • 93.

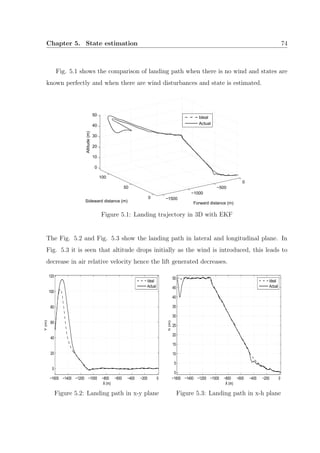

    Chapter 5. Stateestimation 74 Fig. 5.1 shows the comparison of landing path when there is no wind and states are known perfectly and when there are wind disturbances and state is estimated. −1500 −1000 −500 0 0 50 100 0 10 20 30 40 50 Forward distance (m)Sideward distance (m) Altitude(m) Ideal Actual Figure 5.1: Landing trajectory in 3D with EKF The Fig. 5.2 and Fig. 5.3 show the landing path in lateral and longitudinal plane. In Fig. 5.3 it is seen that altitude drops initially as the wind is introduced, this leads to decrease in air relative velocity hence the lift generated decreases. −1600 −1400 −1200 −1000 −800 −600 −400 −200 0 0 20 40 60 80 100 120 X (m) Y(m) Ideal Actual Figure 5.2: Landing path in x-y plane −1600 −1400 −1200 −1000 −800 −600 −400 −200 0 0 5 10 15 20 25 30 35 40 45 50 X (m) h(m) Ideal Actual Figure 5.3: Landing path in x-h plane
  • 94.
    Chapter 5. Stateestimation 75 The Fig. 5.4 shows the estimation error in longitudinal states. It is seen that all the states remain in the bound other than pitch rate, which is due to the wind acceleration in pitch plane. 0 20 40 60 −2 0 2 t (sec) U(m/s) 0 20 40 60 −2 0 2 t (sec) W(m/s)0 20 40 60 −5 0 5 t (sec) θ(deg) 0 20 40 60 −5 0 5 t (sec) Q(deg/s) error 3 σ 0 20 40 60 −5 0 5 t (sec) x(m) 0 20 40 60 −5 0 5 t (sec) h(m) Figure 5.4: Estimation error in longitudinal states The Fig. 5.5 shows the estimation error in lateral states. It is seen that all the states remain in the bound other than heading angle which takes some time. 0 20 40 60 −2 0 2 t (sec) β(deg) 0 20 40 60 −10 0 10 t (sec) P(deg/s) error 3 σ 0 20 40 60 −10 0 10 t (sec) R(deg/s) 0 20 40 60 −10 0 10 t (sec) φ(deg) 0 20 40 60 −1 0 1 t (sec) ψ(deg) 0 20 40 60 −5 0 5 t (sec) y(m) Figure 5.5: Estimation error in lateral states
  • 95.
    Chapter 5. Stateestimation 76 The Fig. 5.6 shows the estimation of wind disturbances. It can be observed that the estimated states follow the actual wind with minimum error. 0 20 40 60 −5 0 5 10 t (sec) Wx (m/s) error 3 σ 0 20 40 60 −4 −2 0 2 4 t (sec) W y (m/s) 0 20 40 60 −4 −2 0 2 4 t (sec) Wh (m/s) 0 20 40 60 −4 −2 0 2 4 t (sec) W hdot (m/s2 ) Figure 5.6: Wind estimation with EKF The control values required with and without the disturbance are shown in Fig.5.7. It is seen that there is continuous demand in control even during glideslope and flare this is due to changing wind and wind gust. 0 20 40 60 0 0.5 1 t (sec) δt(0−1) Ideal Actual 0 20 40 60 −30 −20 −10 0 10 t (sec) δe(deg) 0 20 40 60 −10 −5 0 5 10 t (sec) δa(deg) 0 20 40 60 −10 −5 0 5 10 t (sec) δr(deg) Figure 5.7: Control values during landing with EKF
  • 96.
    Chapter 5. Stateestimation 77 To test the algorithm a large number (100) of simulations were carried out. The Fig. 5.8 shows the touchdown locations for various cases. To measure the performance a successful landing zone is defined as shown in Fig. 5.8. 0 10 20 30 40 50 60 70 80 −5 −4 −3 −2 −1 0 1 2 3 4 5 X (m) Y(m) 50m 6m Successful landing zone Figure 5.8: Touchdown position in x-y plane The sink rate at touchdown and pitch angle bounds are specified for successful land- ing. The large sink rate can cause damage to structure and lower sink rate can be carried away by wind gust. At negative pitch angle the nose will touch first and at higher angle the tail boom will touch the ground before wheels. 0 20 40 60 80 100 0 1 2 3 4 5 6 7 8 9 10 no. of simulations pitchangleattouchdown(deg) Figure 5.9: Pitch angle at touch down 0 20 40 60 80 100 −1 −0.8 −0.6 −0.4 −0.2 0 no. of simulations sinkrateattouchdown(m/s) Figure 5.10: Sink rate at touch down
  • 97.
    Chapter 5. Stateestimation 78 Parameter uncertainty The uncertainty in the aerodynamic model is one of the key difficulties in the imple- mentation of the dynamic inversion and extended kalman filter. The uncertainty in parameters can be accommodated by considering fictitious process noise wf in the sys- tem model [25]. The uncertainty in the system model is considered as gaussian random input. The system dynamic equations which use the aerodynamic coefficients are added with fictitious random noise. The revised model can be expressed as ˙χ =   ˙X ˙Xd   =   f(X, Uc, Xd) FdXd   +   wf wd   (5.27) The elements of process noise covariance matrix (Q) will have to be revised and chosen to reflect the uncertainty in aerodynamic coefficients. The process noise covariance matrix was chosen by trial and error while increasing the uncertainty in the coefficients. The maximum percentage uncertainty accommodated by EKF was found to be 4%. Further this was found to increase up to 6% with inclusion of integrator in the inner most loop. The corresponding process noise covariance matrix is found as Q = diag(0.001, 0.001, 0.2, 0.02, 0.05, 0.02, 0, 0, 0, 0, 0, 0, 0.1, 0.1, 0, 0.001) The Fig. 5.11 shows the touchdown location for hundred simulations cases with the uncertainty in parameters. It can be observed that the dispersion of landing location has increased compared to when the uncertainty was not considered. −10 0 10 20 30 40 50 60 70 80 −6 −4 −2 0 2 4 6 X (m) Y(m) Successful landing zone Figure 5.11: Touchdown position in x-y plane with parameter uncertainty
  • 98.
    Chapter 5. Stateestimation 79 The Fig. 5.12 and Fig. 5.13 show the pitch angle and sink rate at touchdown when the uncertainty in the parameters is considered. 0 20 40 60 80 100 0 1 2 3 4 5 6 7 8 9 10 no. of simulations pitchangleattouchdown(deg) Figure 5.12: Pitch angle at touch down 0 20 40 60 80 100 −1.4 −1.2 −1 −0.8 −0.6 −0.4 −0.2 0 no. of simulations sinkrateattouchdown(m/s) Figure 5.13: Sink rate at touch down The results obtained from simulations with the percentage of successful landing cases is given in Table 5.1. The success criteria is defined as below → For touch down location, 20m xtd 70m and −3m ytd 3m → For pitch angle, 2o deg θtd 8o → For sink rate, −0.1m/s ˙htd −1m/s Table 5.1: Percentage of successful landing touchdown pitch angle sink rate overall EKF with only disturbance 76% 79% 85% 71% EKF with disturbance and uncertainty 69% 63% 64% 60% It can be observed from the table that with parameter uncertainty in the aerodynamic coefficients the percentage of successful landing has decreased. The success criteria can be further relaxed with respect to sink rate and touchdown location. Summary: In this chapter the state estimation has been done with Extended Kalman Filter. Further the design is tested in presence of wind disturbances and parameter uncertainty. The next chapter gives the conclusion of the research work done.
  • 99.
    Chapter 6 Conclusions In thisthesis the problem of autonomous landing of unmanned aerial vehicles has been addressed. The complete work has involved Mathematical modeling, Control design, Guidance and State estimation. The guidance and control technique developed has been demonstrated through numerical simulations using the data of an UAV named AE-2. The curve fitting is done on the wind tunnel data of AE-2 obtained by static tests. The method of least squares is used for minimizing the error in prediction and the nonlinearities in the function obtained are reported. Further the dynamic derivatives are found through AVL software which has been validated by comparison of static coefficients obtained by the wind tunnel tests and vortex lattice method. The dynamics of thrust and servo actuators have been incorporated in the simulation. The control has been designed using nonlinear dynamic inversion technique. The control is structured in outer loop and inner loop. The goal of outer loop is to track the guidance commands by converting them into body rates. The inner loop tracks the body rate commands by finding the required deflection of control surfaces. The forward velocity of the vehicle is controlled by throttle. A controller for actuator is also designed to reduce the lag. 80
  • 100.
    Chapter 6. Conclusions81 The guidance for landing is divided into three phases which are approach, glideslope and flare. The desired trajectory for the landing has been made independent of time by scheduling the trajectory as a function of forward distance from runway. The problem of transition between the glideslope and flare has been addressed by ensuring continuity and smoothness at transition. The location of touchdown on runway and the sink rate at touchdown are controlled. The state estimation has been done with EKF in continuous discrete formulation. The external disturbances like wind shear and wind gust are accounted by appending them in state variables. Further the control design with guidance is tested from various initial conditions, in presence of wind disturbances. The designed filter has also been tested for parameter uncertainty.
  • 101.
    References [1] A. Pelletierand T J. Mueller, Low Reynolds Number Aerodynamics of Low-Aspect- Ratio Thin/Flat/Cambered-Plate Wings, Journal of Aircraft, vol.37, no.5, pp. 825- 832, 2000. [2] E. A. Morelli, Global Nonlinear Parametric Modeling With Application to F-16 Aerodynamics, Proceedings of the American Control Conference, vol. 2, pp. 997-1001, 1998. [3] G. C. Rufolo, P. Roncioni, M. Marini, R.Votta and S. Palazzo, Experimental and Numerical Aerodynamic Data Integration and Aerodatabase Development for the PRORA-USV-FTB1 Reusable Vehicle, 14th AIAA/AHI Space Planes and Hypersonic Systems and Technologies Conference, 2006. [4] R. Albertani, R. DeLoach, B. Stanford, J. P. Hubner and P. Ifju, Wind Tunnel Data Base Development and Nonlinear Modeling Applied to Powered Micro Air Ve- hicles with Flexible Wing, AIAA Atmospheric Flight Mechanics Conference and Exhibit, Keystone, Colorado, 2006. [5] J. S. Shamma and M. Athans, Analysis of Gain Scheduled Control for Nonlinear Plants, IEEE Transactions On Automatic Control, vol. 35, no. 8, pp. 898-907, 1990. [6] P. Rosa, C. Silvestre, D. Cabenchias and R. Cunha, Autolanding Controller for a Fixed Wing Unmanned Air Vehicle, AIAA Guidance Navigation and Control Confer- ence and Exhibit, 2007, Hilton head, South Carolina. 82
  • 102.
    REFERENCES 83 [7] R.Wang and Y. Shen, Flying-Wing UAV Landing Control and Simulation Based on Mixed H2/H∞, Proceedings of IEEE International Conference on Mechatronics and Automation, Harbin, China, 2007. [8] S. P. Shue, R. K. Agarwalt and Y. H. Kuo, Design of Automatic Landing Systems using Mixed H2/H∞ Control, Aerospace Sciences Meeting and Exhibit, 36th, Reno, Nevada, 1998 [9] D. Enns, D. Bugajski, R. Hendrick and G. Stein, Dynamic Inversion: An Evolving Methodology for Flight Control Design, International Journal of Control, vol.59, no.1, pp.71-91, 1994. [10] J. J. E. Slotine and W. Li, Applied Nonlinear Control, Prentice Hall, 1991. [11] B. Prasad and S. Pradeep, Automatic Landing System Design using Feedback Lin- earization Method, Proceedings of AIAA Infotech Aerospace Conference and Exhibit, Rohnert Park, California, 2007. [12] C. Ha and H. Choi, Design of longitudinal autolanding guidance and control system in dynamic model inversion, Proceedings of 6th Russian-Korean International Sympo- sium on Science and Technology, pp. 7-10, 2002. [13] M. J. Smith, S. S. M. Swei and M. B. Tischler, A Study of the Control of Micro Air Vehicles Using the Linear Dynamic Inverse Approach, AIAA 1st Intelligent Systems Technical Conference, Chicago, Illinois, 2004. [14] M. Sadraey and R. Colgren, Robust Nonlinear Controller Design for a Complete UAV Mission, AIAA Guidance, Navigation, and Control Conference and Exhibit, Key- stone, Colorado, 2006. [15] F. Lavergne, F. Villaume, M. Jeanneau, S. Tarbouriech and G. Garcia, Nonlinear Robust Autoland, AIAA Guidance, Navigation, and Control Conference and Exhibit, San Francisco, California, 2005.
  • 103.
    REFERENCES 84 [16] K.S. Kumar and J.Shanmugam, Design of Blending function for landing phase of an Unmanned Air Vehicle, Proceedings of AIAA Infotech Aerospace Conference and Exhibit, Rohnert Park, California, 2007. [17] J. G. Juang, H. H. Chang and K. C. Cheng, Intelligent Landing Control Using Linearized Inverse Aircraft Model, Proceedings of the American Control Conference, pp. 3269-3274, 2002. [18] J.F. Vasconcelos, C. Silvestre, P. Oliveira, Embedded Vehicle Dynamics and LASER Aiding Techniques for Inertial Navigation Systems, AIAA Guidance, Navigation, and Control Conference and Exhibit, Keystone, Colorado, 2006. [19] O. Shakernia, Yi Ma, T. J. Koo and S. Sastry, Landing an Unmanned Air Vehicle: Vision Based Motion Estimation and Nonlinear Control, Asian Journal of Control, Vol. 1, pg. 128-145, 1999. [20] S. Saripalli, J. F. Montgomery and G. S. Sukhatme, Visually-Guided Landing of an Unmanned Aerial Vehicle, Asian Journal of Control, IEEE Transactions on Robotics and Automation, Vol. 19, No. 3, pg. 371-381, June 2003. [21] T. G. Amaral, V. F. Pires and M. M. Crisostomo, Autonomous Landing of an Un- manned Aerial Vehicle, Asian Journal of Control, Proceedings of the 2005 IEEE Interna- tional Conference on Computational Intelligence for Modelling, Control and Automation, 2005. [22] D. Blake Barber, S. R. Griffiths, T. W. McLain and R. W. Beard, Autonomous Landing of Miniature Aerial Vehicles, AIAA Journal of Aerospace Computing, Infor- mation, and Communication, Vol. 4, pg. 770-784, 5 May 2007. [23] J. L. Crassidis and J. L. Junkins, Optimal Estimation of Dynamical Systems , CRC Press LLC, 2004. [24] S. S. Mulgund and R. F. Stengel, Aircraft Flight Control in Wind Shear Using
  • 104.
    REFERENCES 85 Sequential DynamicInversion, Journal of Guidance, Control, and Dynamics, vol. 18, no. 5, pp.1084-91, 1995. [25] S. S. Mulgund and R. F. Stengel, Optimal Nonlinear Estimation for Aircraft Flight Control in Wind Shear, Automatica, vol. 32, no. 1, pp. 3-13, 1996. [26] C. Grillo and F. P. Vitrano, State Estimation of a Nonlinear Unmanned Aerial Vehicle Model using an Extended Kalman Filter, AIAA International Space Planes and Hypersonic Systems and Technologies Conference, Dayton, Ohio, 2008. [27] V. Surendra nath, S. P. Govindaraju, M. S. Bhat, C. S. N. Rao, Configuration Development of All Electric Mini Airplane, ADE/DRDO Project, 2004, Project Ref. No: ADEO/MAE/VSU/001, Department of Aerospace Engineering, Indian Institute of Science, Bangalore. [28] B. L. Stevens and F. L. Lewis, Aircraft Control and Simulation, John Wiley and sons Inc, 2nd edition, 2003. [29] M. Drella and H. Youngren, Athena Vortex Lattice Analysis 3.26 User Primer, http://web.mit.edu/drela/Public/web/avl/, April 2006 [30] M. Meenakshi and M. S. Bhat, Robust fixed-order H2 controller for micro air vehicle- design and validation, Optimal Control Applications and Methods, vol. 27, pp. 183-210, 2006. [31] G. J. Balas, W. L. Garrard and J. Reiner, Robust Dynamic Inversion Control Laws for Aircraft Control, AIAA Guidance, Navigation and Control Conference, Hilton Head Island, SC, Aug 10-12, 1992. [32] R. Padhi and M. Kothari, An Optimal Dynamic Inversion Based Neuro-Adaptive Approach for Treatment of Chronic Myelogenous Leukemia, Computer Methods and Programs in Biomedicine, vol.87, pp. 208-228, 2007.
  • 105.
    REFERENCES 86 [33] D.R. Nelson, D. B. Barber, T. W. McLain and R. W. Beard, Vector Field Path Following for Miniature Air Vehicles, IEEE Transactions on Robotics, vol. 23, no. 3, 2007. [34] R. F. Stengel, Optimal Control and Estimation, Dover publications, 1994. [35] R. F. Stengel, Flight Dynamics, Princeton University Press, 2004. [36] J. Bossi and A. E. Bryson, Disturbance estimation for a STOL transport during landing, 19th Aerospace Sciences Meeting, St Louis, MO, 1981.
