MRP-MCD-Presentation
This document provides an overview of materials requirement planning (MRP) used by Saudi Aramco. It discusses the MRP process flow, master data, batch jobs, and requisition approval workflow. The MRP system tracks inventory levels, plans material requirements and orders, and assigns exception messages. It is used across various departments and customer plants in the company's enterprise structure to ensure correct materials are available when needed.
MRP-MCD-Presentation
- 1. May 2003 YASConfidential Materials Requirement Planning Presented by SAP Supply Chain Management Materials Control Group
- 2. May 2003 YASConfidential Agenda Introduction11 Enterprise Structure22 MRP Master Data33 Processes Flow44 MRP Batch Jobs55 ZMRP Requisition Approval66
- 3. May 2003 YASConfidential Introduction Generic term for procedures in requirements planning which use inventory data to plan material requirements and forecast Tracks inventory levels Recommends replenishment orders Recommends rescheduling open orders Assigns exception messages Material Requirements Planning (MRP) Definition MRP Functions 33 22 11 MRP Users 33 22 11 Scenario 1 (Material Control) Scenario 2 (Workshops) Scenario 3 (Aviation, Drilling and Projects) 44
- 4. May 2003 YASConfidential Material Control Department MRP Users Location Material Control Department in Dhahran area has the highest number of MRP users (MRP Controllers) A number of MRP users located in different areas cross the Kingdom i.e. Riyadh, Jeddah and Yanboo Manage the Saudi Aramco Inventory investment to ensure that the correct materials are available when needed. Material Control Department 22 11
- 5. May 2003 YASConfidential MRP Controller Analyze and Reprocess Forecast Items With Errors Analyze Material History Consumption to maintain optimized stock level Process MRP List Process Purchase Requisition MRP Controller The person responsible for a group of materials in a plant or company Analyze and maintain Planning Data MRP Controller Responsibilities 55 44 33 22 11
- 6. May 2003 YASConfidential Agenda Introduction11 Enterprise Structure22 MRP Master Data33 Processes Flow44 MRP Batch Jobs55 ZMRP Requisition Approval66
- 7. May 2003 YASConfidential Enterprise Structure Storage Location Material Service Center MSC Storage Location Customer Plant CP Customer Plant CP Customer Plant CP Storage Location Storage Location
- 8. May 2003 YASConfidential Enterprise Structure RABIGH AREA SUPPORT (M004) Material Service Center Rabigh Area poject(PS04) Customer Plants Project Plant Admin Plant Material Plant Maintenance Plant Rabigh Marine (K03B) Rabigh R&HE (K02C) Rabigh Community (J008) Rabigh Admin User (AM04) Rabigh Refinery (C005) Power Distribution ( Z02J) Transportation (K01H)
- 9. May 2003 YASConfidential Agenda Introduction11 Enterprise Structure22 MRP Master Data33 Processes Flow44 MRP Batch Jobs55 ZMRP Requisition Approval66
- 10. May 2003 YASConfidential MRP Master Data Client Level MRP ProfileMRP Profile Plant Level Storage Location level MRP View 2MRP View 2MRP View 1MRP View 1 ForecastForecast ProfileProfile MRP View 3MRP View 3 Storage dataStorage data PlanningPlanning File EntryFile EntryForecast ViewForecast ViewMRP View 4MRP View 4

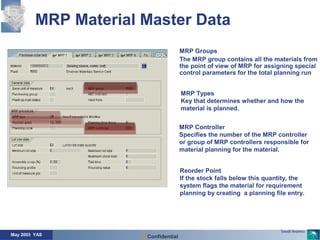

- 11. May 2003 YASConfidential MRP Groups The MRP group contains all the materials from the point of view of MRP for assigning special control parameters for the total planning run MRP Material Master Data MRP Types Key that determines whether and how the material is planned. MRP Controller Specifies the number of the MRP controller or group of MRP controllers responsible for material planning for the material. Reorder Point If the stock falls below this quantity, the system flags the material for requirement planning by creating a planning file entry.

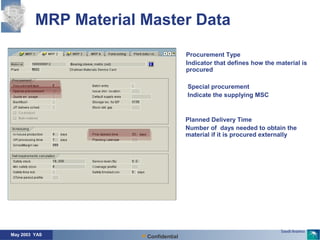

- 12. May 2003 YASConfidential Procurement Type Indicator that defines how the material is procured MRP Material Master Data Special procurement Indicate the supplying MSC Planned Delivery Time Number of days needed to obtain the material if it is procured externally
- 13. May 2003 YASConfidential Availability Check Specifies whether and how the system checks availability and generates requirements for material planning MRP Material Master Data Period Indicator Indicator specifying the periods in which the material's consumption values and forecast values are managed

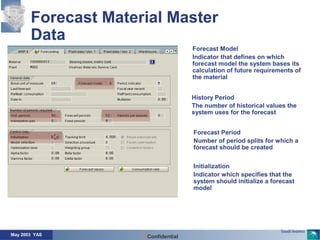

- 14. May 2003 YASConfidential Forecast Model Indicator that defines on which forecast model the system bases its calculation of future requirements of the material Forecast Material Master Data Initialization Indicator which specifies that the system should initialize a forecast model History Period The number of historical values the system uses for the forecast Forecast Period Number of period splits for which a forecast should be created
- 15. May 2003 YASConfidential MRP MRP Elements Reservation Forecast Reorder Point OUT-STO Open PRs Open POs Inventory Balance IN-STO Schedule Line Purchase Requisition
- 16. May 2003 YASConfidential Agenda Introduction11 Enterprise Structure22 MRP Master Data33 Processes Flow44 MRP Batch Jobs55 ZMRP Requisition Approval66
- 17. May 2003 YASConfidential Create reservation MB21, IW31, CN21 MRP run in CP Purchase Requisition CP Process Flow Unique Material Process Unique Materials are planned and procured at the Customer Plant Level Definition Quantity Available MIGO 201,261,281
- 18. May 2003 YASConfidential Create reservation MB21, IW31, CN21 MRP run in CP Shared Material Process Shared Materials are planned in the CP level, and supplied by MSC through schedule line agreement if not available in CP Definition Schedule Line MRP run in MSC Purchase Requisition Process Flow Schedule Line
- 19. May 2003 YASConfidential Create reservation MB21, IW31, CN21 MRP run in CP LDOR Material Process The LDOR material are being planned and procured in the CP level Definition InterceptorPurchase requisition Process Flow MRP Controller Queue List Purchase Requisition released

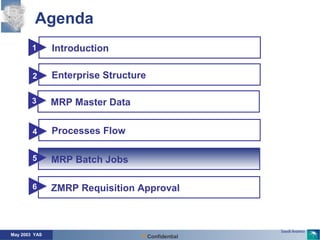

- 20. May 2003 YASConfidential Agenda Introduction11 Enterprise Structure22 MRP Master Data33 Processes Flow44 MRP Batch Jobs55 ZMRP Requisition Approval66
- 21. May 2003 YASConfidential MRP Batch Jobs MRP Daily Batch Jobs Total MRP Planning (Midnight Batch Job) LDOR Three Times a day MRP Weekly Batch Jobs MRP Update x-plant Status MRP Monthly Batch Jobs MRP consistency Check Forecast Update
- 22. May 2003 YASConfidential Agenda Introduction11 Enterprise Structure22 MRP Master Data33 Processes Flow44 MRP Batch Jobs55 ZMRP Requisition Approval66
- 23. May 2003 YASConfidential ZMRP Requisitions Approval M R P C o n t . A d m i n i s t r a t o r Y e s Y e s S e n i o r M R P C o n t . Y e s Y e s S U P V . $ $ $ P u r c h a s i n g $ $ $ P u r c h a s i n g $ $ $ P u r c h a s i n g $ $ $ P u r c h a s i n g S u p p l i e r s S u p p l i e r s S u p p l i e r s M a n a g e r $ $ $ P u r c h a s i n g S u p p l i e r s N O N O N O N O S u p p l i e r s
- 24. May 2003 YASConfidential Q & A Thank You
