1. MOTHERBOARDS
FORM FACTORS

2. Standard ATX

3. Standard ATX
• Advanced Technology eXtended
• 305 mm x 244 mm
• With 1 AGP connector and 6 PCI connectors

4. microATX

5. microATX
• 244 mm x 244 mm
• With 1 AGP connector and 3 PCI connectors
• Smaller format but with the same primary
advantages
• Lower cost

6. FlexATX

7. FlexATX
• 229 mm x 191 mm
• With 1 AGP connector and 2 PCI connectors
• Expansion of microATX

8. MiniATX

9. MiniATX
• 284 mm x 208 mm
• With 1 AGP connector and 4 PCI connectors
• Compact alternative to microATX
• For mini PCs

10. Mini ITX

11. Mini ITX
• Mini Information Technology eXtended
• 170 mm x 170 mm
• With 1 PCI slot

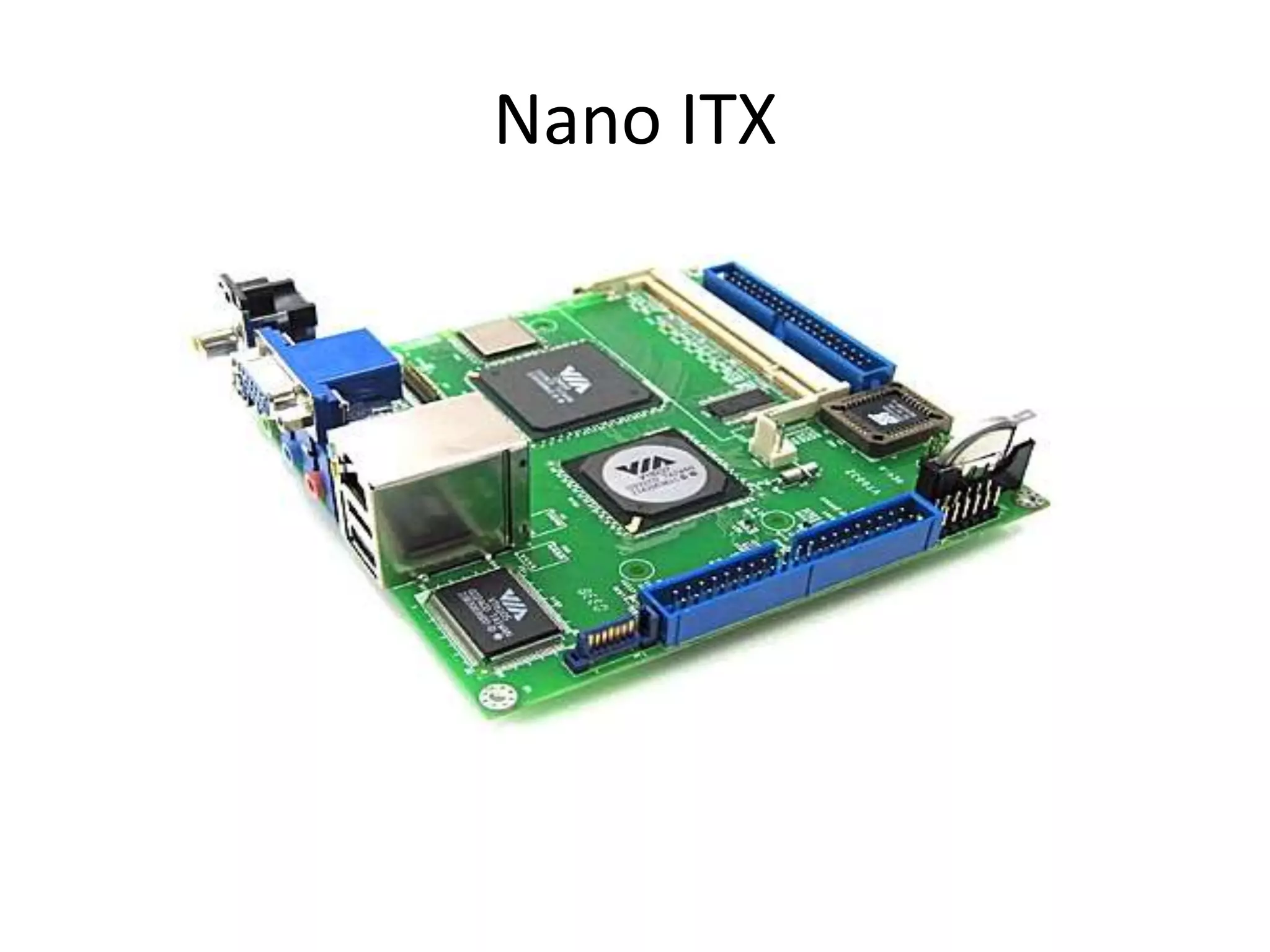

12. Nano ITX

13. Nano ITX
• 120 mm x 120 mm
• With 1 MiniPCI slot

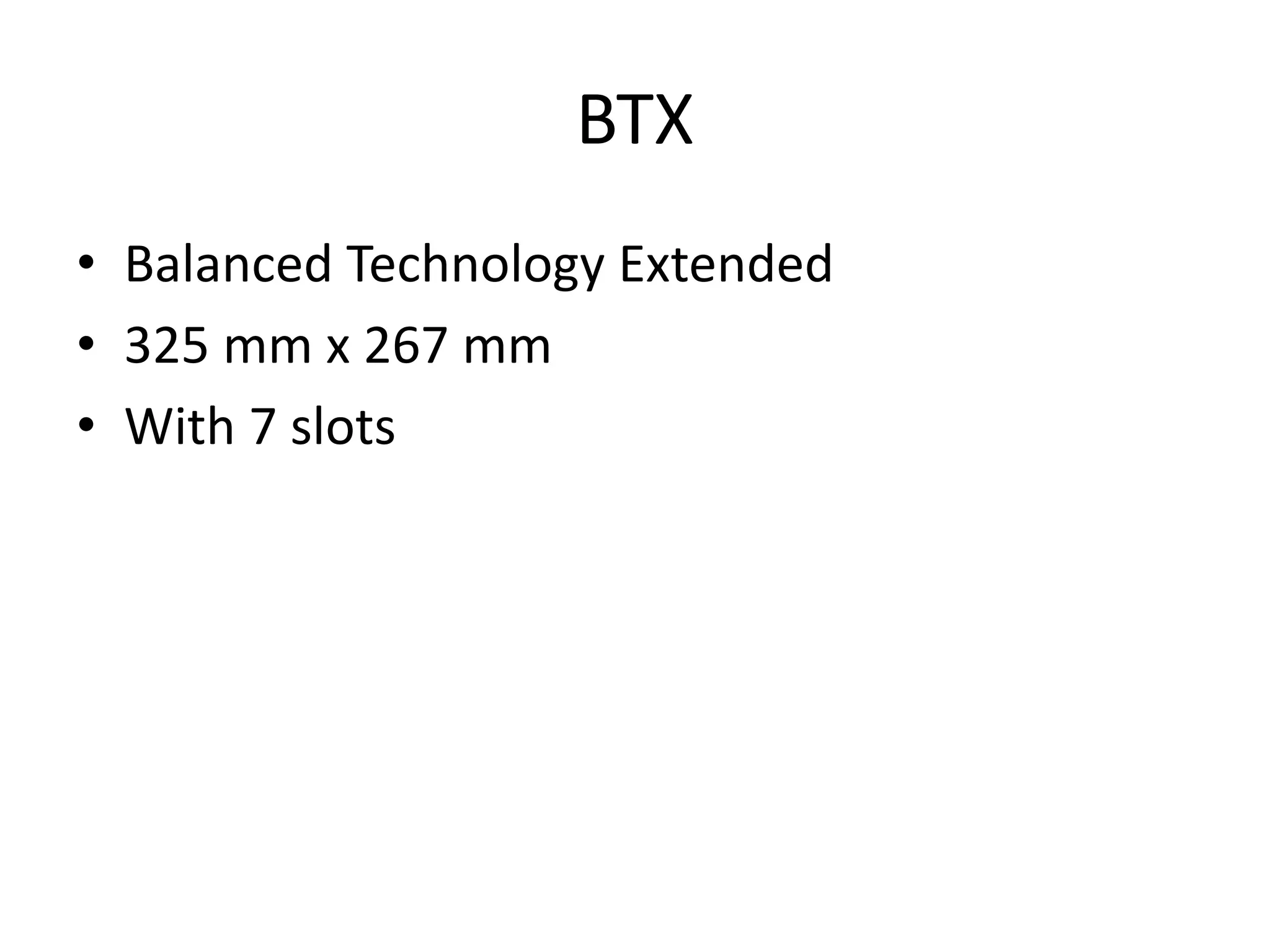

14. BTX

15. BTX
• Balanced Technology Extended
• 325 mm x 267 mm
• With 7 slots

16. microBTX

17. microBTX
• 264 mm x 267 mm
• With 4 slots

18. picoBTX

19. picoBTX
• 203 mm x 267 mm
• With 1 slot
