1. THEORY OF ARCHITECTURE
SUBMITTED BYGARIMA GUPTA
III- YR
ROLL NO- 14

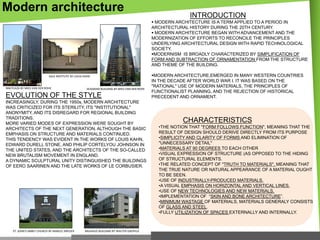

2. Modern architecture
INTRODUCTION
 MODERN ARCHITECTURE IS A TERM APPLIED TO A PERIOD IN
ARCHITECTURAL HISTORY DURING THE 20TH CENTURY.
 MODERN ARCHITECTURE BEGAN WITH ADVANCEMENT AND THE
MODERNIZATION OF EFFORTS TO RECONCILE THE PRINCIPLES
UNDERLYING ARCHITECTURAL DESIGN WITH RAPID TECHNOLOGICAL
SOCIETY.
MODERNISM IS BROADLY CHARACTERIZED BY SIMPLIFICATION OF
FORM AND SUBTRACTION OF ORNAMENTATION FROM THE STRUCTURE
AND THEME OF THE BUILDING.
SALK INSTITUTE BY LOUIS KAHN
IBM PLAZA BY MIES VAN DER ROHE
SEAGRAM BUILDING BY MIES VAN DER ROHE
EVOLUTION OF THE STYLE
INCREASINGLY, DURING THE 1950s, MODERN ARCHITECTURE
WAS CRITICIZED FOR ITS STERILITY, ITS "INSTITUTIONAL"
ANONYMITY, AND ITS DISREGARD FOR REGIONAL BUILDING
TRADITIONS.
MORE VARIED MODES OF EXPRESSION WERE SOUGHT BY
ARCHITECTS OF THE NEXT GENERATION, ALTHOUGH THE BASIC
EMPHASIS ON STRUCTURE AND MATERIALS CONTINUED.
THIS TENDENCY WAS EVIDENT IN THE WORKS OF LOUIS KAHN,
EDWARD DURELL STONE, AND PHILIP CORTELYOU JOHNSON IN
THE UNITED STATES, AND THE ARCHITECTS OF THE SO-CALLED
NEW BRUTALISM MOVEMENT IN ENGLAND.
A DYNAMIC SCULPTURAL UNITY DISTINGUISHED THE BUILDINGS
OF EERO SAARINEN AND THE LATE WORKS OF LE CORBUSIER.
ST. JOHN’S ABBEY CHURCH BY MARCEL BREUER
BAUHAUS BUILDING BY WALTER GROPIUS
MODERN ARCHITECTURE,EMERGED IN MANY WESTERN COUNTRIES
IN THE DECADE AFTER WORLD WAR I. IT WAS BASED ON THE
"RATIONAL" USE OF MODERN MATERIALS, THE PRINCIPLES OF
FUNCTIONALIST PLANNING, AND THE REJECTION OF HISTORICAL
PRECEDENT AND ORNAMENT.
CHARACTERISTICS
•THE NOTION THAT "FORM FOLLOWS FUNCTION", MEANING THAT THE
RESULT OF DESIGN SHOULD DERIVE DIRECTLY FROM ITS PURPOSE
•SIMPLICITY AND CLARITY OF FORMS AND ELIMINATION OF
"UNNECESSARY DETAIL"
•MATERIALS AT 90 DEGREES TO EACH OTHER
•VISUAL EXPRESSION OF STRUCTURE (AS OPPOSED TO THE HIDING
OF STRUCTURAL ELEMENTS.
•THE RELATED CONCEPT OF "TRUTH TO MATERIALS", MEANING THAT
THE TRUE NATURE OR NATURAL APPEARANCE OF A MATERIAL OUGHT
TO BE SEEN.
•USE OF INDUSTRIALLY-PRODUCED MATERIALS.
•A VISUAL EMPHASIS ON HORIZONTAL AND VERTICAL LINES.
•USE OF NEW TECHNOLOGIES AND NEW MATERIALS.
•IMPLEMENTATION OF ―SKIN AND BONE ARCHITECTURE‖.
•MINIMUM WASTAGE OF MATERIALS, MATERIALS GENERALY CONSISTS
OF GLASS AND STEEL.
•FULLY UTILIZATION OF SPACES EXTERNALLY AND INTERNALLY.

3. LE CORBUSIER
INTRODUCTION
CHARLES-ÉDOUARD JEANNERET-GRIS, BETTER KNOWN AS LE CORBUSIER (OCTOBER 6, 1887 –
AUGUST 27, 1965), WAS AN ARCHITECT, DESIGNER, PAINTER, URBAN PLANNER, WRITER, AND ONE
OF THE PIONEERS OF WHAT IS NOW CALLED MODERN ARCHITECTURE.
HE WAS BORN IN SWITZERLAND AND BECAME A FRENCH CITIZEN IN 1930.
HIS CAREER SPANNED FIVE DECADES, WITH HIS BUILDINGS CONSTRUCTED THROUGHOUT
EUROPE, INDIA, AND AMERICA.
HE WAS A PIONEER IN STUDIES OF MODERN HIGH DESIGN AND WAS DEDICATED TO PROVIDING
BETTER LIVING CONDITIONS FOR THE RESIDENTS OF CROWDED CITIES.
HE WAS AWARDED THE FRANK P. BROWN MEDAL AND AIA GOLD MEDAL IN 1961.
LE CORBUSIER ADOPTED HIS PSEUDONYM IN THE 1920S, ALLEGEDLY DERIVING IT IN PART FROM
THE NAME OF AN ANCESTOR, LECORBÉSIER.
LE CORBUSIER (OCTOBER 6, 1887 – AUGUST 27,
1965),
STYLE OF ARCHITECTURE
MECHANICAL ANALOGY
LINGUISTIC ANALOGY
FIVE
POINTS OF ARCHITECTURE
– USE OF PILOTIS I.E. REINFORCED CONCRETE STILTS.
FREE FAÇADE AND LONG RIBBON
WINDOWS IN VILLA SAVOYE
– FREE FAÇADE I.E NON-SUPPORTING WALLS THAT COULD BE
DESIGNED AS THE ARCHITECT WISHED.
ROOF GARDENS
– OPEN FLOOR PLAN , MEANING THAT THE FLOOR SPACE WAS FREE TO
BE CONFIGURED INTO ROOMS WITHOUT CONCERN FOR SUPPORTING
WALLS.
– LONG HORIZONTAL RIBBON WINDOWS THAT ALLOW UNENCUMBERED
VIEWS OF THE LARGE SURROUNDING.
– ROOF GARDEN TO COMPENSATE FOR THE GREEN AREA CONSUMED
BY THE BUILDING AND REPLACING IT ON THE ROOF.
PILOTIS IN CORBUSIER‘S
BUILDINGS
1

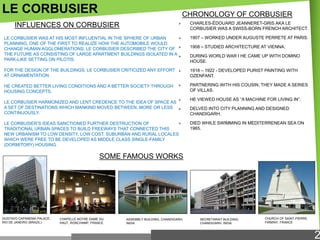

4. LE CORBUSIER
CHRONOLOGY OF CORBUSIER

CHARLES-ÉDOUARD JEANNERET-GRIS AKA LE
CORBUSIER WAS A SWISS-BORN FRENCH ARCHITECT.

LE CORBUSIER WAS AT HIS MOST INFLUENTIAL IN THE SPHERE OF URBAN
PLANNING, ONE OF THE FIRST TO REALIZE HOW THE AUTOMOBILE WOULD
CHANGE HUMAN AGGLOMERATIONS, LE CORBUSIER DESCRIBED THE CITY OF 
THE FUTURE AS CONSISTING OF LARGE APARTMENT BUILDINGS ISOLATED IN A 
PARK-LIKE SETTING ON PILOTIS.
1907 – WORKED UNDER AUGUSTE PERRETE AT PARIS.
FOR THE DESIGN OF THE BUILDINGS, LE CORBUSIER CRITICIZED ANY EFFORT
AT ORNAMENTATION.

1918 – 1922 - DEVELOPED PURIST PAINTING WITH
OZENFANT.
HE CREATED BETTER LIVING CONDITIONS AND A BETTER SOCIETY THROUGH
HOUSING CONCEPTS.

PARTNERING WITH HIS COUSIN, THEY MADE A SERIES
OF VILLAS.

HE VIEWED HOUSE AS ―A MACHINE FOR LIVING IN‖.

DELVED INTO CITY PLANNING AND DESIGNED
CHANDIGARH.
INFLUENCES ON CORBUSIER
LE CORBUSIER HARMONIZED AND LENT CREDENCE TO THE IDEA OF SPACE AS
A SET OF DESTINATIONS WHICH MANKIND MOVED BETWEEN, MORE OR LESS
CONTINUOUSLY.

LE CORBUSIER‘S IDEAS SANCTIONED FURTHER DESTRUCTION OF
TRADITIONAL URBAN SPACES TO BUILD FREEWAYS THAT CONNECTED THIS
NEW URBANISM TO LOW DENSITY, LOW COST, SUBURBAN AND RURAL LOCALES
WHICH WERE FREE TO BE DEVELOPED AS MIDDLE CLASS SINGLE-FAMILY
(DORMITORY) HOUSING.
1908 – STUDIED ARCHITECTURE AT VIENNA.
DURING WORLD WAR I HE CAME UP WITH DOMINO
HOUSE.
DIED WHILE SWIMMING IN MEDITERRENEAN SEA ON
1965.
SOME FAMOUS WORKS
GUSTAVO CAPANEMA PALACE,
RIO DE JANEIRO (BRAZIL)
CHAPELLE NOTRE DAME DU
HAUT, RONCHAMP, FRANCE
ASSEMBLY BUILDING, CHANDIGARH,
INDIA
SECRETARIAT BUILDING,
CHANDIGARH, INDIA
CHURCH OF SAINT-PIERRE,
FIRMINY, FRANCE
2

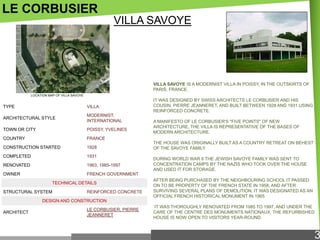

5. LE CORBUSIER
VILLA SAVOYE
VILLA SAVOYE IS A MODERNIST VILLA IN POISSY, IN THE OUTSKIRTS OF
PARIS, FRANCE.
LOCATION MAP OF VILLA SAVOYE
TYPE
VILLA
ARCHITECTURAL STYLE
MODERNIST,
INTERNATIONAL
TOWN OR CITY
POISSY, YVELINES
COUNTRY
IT WAS DESIGNED BY SWISS ARCHITECTS LE CORBUSIER AND HIS
COUSIN, PIERRE JEANNERET, AND BUILT BETWEEN 1928 AND 1931 USING
REINFORCED CONCRETE.
FRANCE
CONSTRUCTION STARTED
1928
COMPLETED
1931
RENOVATED
1963, 1985-1997
OWNER
A MANIFESTO OF LE CORBUSIER'S "FIVE POINTS" OF NEW
ARCHITECTURE, THE VILLA IS REPRESENTATIVE OF THE BASES OF
MODERN ARCHITECTURE.
THE HOUSE WAS ORIGINALLY BUILT AS A COUNTRY RETREAT ON BEHEST
OF THE SAVOYE FAMILY.
FRENCH GOVERNMENT
TECHNICAL DETAILS
STRUCTURAL SYSTEM
REINFORCED CONCRETE
DURING WORLD WAR II THE JEWISH SAVOYE FAMILY WAS SENT TO
CONCENTRATION CAMPS BY THE NAZIS WHO TOOK OVER THE HOUSE
AND USED IT FOR STORAGE.
AFTER BEING PURCHASED BY THE NEIGHBOURING SCHOOL IT PASSED
ON TO BE PROPERTY OF THE FRENCH STATE IN 1958, AND AFTER
SURVIVING SEVERAL PLANS OF DEMOLITION, IT WAS DESIGNATED AS AN
OFFICIAL FRENCH HISTORICAL MONUMENT IN 1965
DESIGN AND CONSTRUCTION
ARCHITECT
LE CORBUSIER, PIERRE
JEANNERET
IT WAS THOROUGHLY RENOVATED FROM 1985 TO 1997, AND UNDER THE
CARE OF THE CENTRE DES MONUMENTS NATIONAUX, THE REFURBISHED
HOUSE IS NOW OPEN TO VISITORS YEAR-ROUND.
3

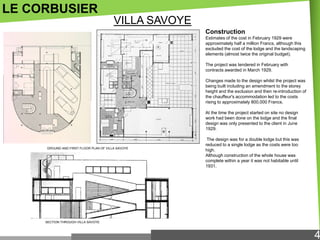

6. LE CORBUSIER
VILLA SAVOYE
Construction
Estimates of the cost in February 1929 were
approximately half a million Francs, although this
excluded the cost of the lodge and the landscaping
elements (almost twice the original budget).
The project was tendered in February with
contracts awarded in March 1929.
Changes made to the design whilst the project was
being built including an amendment to the storey
height and the exclusion and then re-introduction of
the chauffeur's accommodation led to the costs
rising to approximately 800,000 Francs.
At the time the project started on site no design
work had been done on the lodge and the final
design was only presented to the client in June
1929.
GROUND AND FIRST FLOOR PLAN OF VILLA SAVOYE
The design was for a double lodge but this was
reduced to a single lodge as the costs were too
high.
Although construction of the whole house was
complete within a year it was not habitable until
1931.
SECTION THROUGH VILLA SAVOYE
4

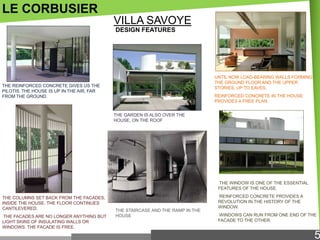

7. LE CORBUSIER
VILLA SAVOYE
DESIGN FEATURES
UNTIL NOW LOAD-BEARING WALLS FORMING
THE GROUND FLOOR AND THE UPPER
STORIES, UP TO EAVES.
THE REINFORCED CONCRETE GIVES US THE
PILOTIS. THE HOUSE IS UP IN THE AIR, FAR
FROM THE GROUND.
REINFORCED CONCRETE IN THE HOUSE
PROVIDES A FREE PLAN.
THE GARDEN IS ALSO OVER THE
HOUSE, ON THE ROOF
THE WINDOW IS ONE OF THE ESSENTIAL
FEATURES OF THE HOUSE.
THE COLUMNS SET BACK FROM THE FACADES,
INSIDE THE HOUSE. THE FLOOR CONTINUES
CANTILEVERED.
THE FACADES ARE NO LONGER ANYTHING BUT
LIGHT SKINS OF INSULATING WALLS OR
WINDOWS. THE FACADE IS FREE.
THE STAIRCASE AND THE RAMP IN THE
HOUSE
REINFORCED CONCRETE PROVIDES A
REVOLUTION IN THE HISTORY OF THE
WINDOW.
WINDOWS CAN RUN FROM ONE END OF THE
FACADE TO THE OTHER.
5

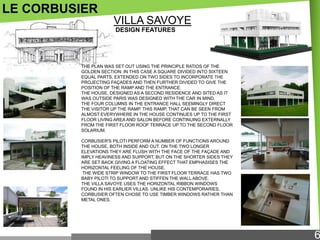

8. LE CORBUSIER
VILLA SAVOYE
DESIGN FEATURES
THE PLAN WAS SET OUT USING THE PRINCIPLE RATIOS OF THE
GOLDEN SECTION: IN THIS CASE A SQUARE DIVIDED INTO SIXTEEN
EQUAL PARTS, EXTENDED ON TWO SIDES TO INCORPORATE THE
PROJECTING FAÇADES AND THEN FURTHER DIVIDED TO GIVE THE
POSITION OF THE RAMP AND THE ENTRANCE.
THE HOUSE, DESIGNED AS A SECOND RESIDENCE AND SITED AS IT
WAS OUTSIDE PARIS WAS DESIGNED WITH THE CAR IN MIND.
THE FOUR COLUMNS IN THE ENTRANCE HALL SEEMINGLY DIRECT
THE VISITOR UP THE RAMP. THIS RAMP, THAT CAN BE SEEN FROM
ALMOST EVERYWHERE IN THE HOUSE CONTINUES UP TO THE FIRST
FLOOR LIVING AREA AND SALON BEFORE CONTINUING EXTERNALLY
FROM THE FIRST FLOOR ROOF TERRACE UP TO THE SECOND FLOOR
SOLARIUM.
CORBUSIER'S PILOTI PERFORM A NUMBER OF FUNCTIONS AROUND
THE HOUSE, BOTH INSIDE AND OUT. ON THE TWO LONGER
ELEVATIONS THEY ARE FLUSH WITH THE FACE OF THE FAÇADE AND
IMPLY HEAVINESS AND SUPPORT, BUT ON THE SHORTER SIDES THEY
ARE SET BACK GIVING A FLOATING EFFECT THAT EMPHASISES THE
HORIZONTAL FEELING OF THE HOUSE.
THE WIDE STRIP WINDOW TO THE FIRST FLOOR TERRACE HAS TWO
BABY PILOTI TO SUPPORT AND STIFFEN THE WALL ABOVE.
THE VILLA SAVOYE USES THE HORIZONTAL RIBBON WINDOWS
FOUND IN HIS EARLIER VILLAS. UNLIKE HIS CONTEMPORARIES,
CORBUSIER OFTEN CHOSE TO USE TIMBER WINDOWS RATHER THAN
METAL ONES.
6

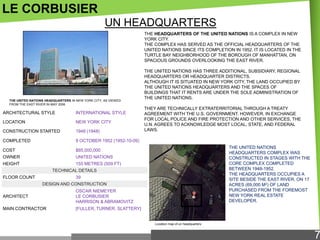

9. LE CORBUSIER
UN HEADQUARTERS
THE HEADQUARTERS OF THE UNITED NATIONS IS A COMPLEX IN NEW
YORK CITY.
THE COMPLEX HAS SERVED AS THE OFFICIAL HEADQUARTERS OF THE
UNITED NATIONS SINCE ITS COMPLETION IN 1952. IT IS LOCATED IN THE
TURTLE BAY NEIGHBORHOOD OF THE BOROUGH OF MANHATTAN, ON
SPACIOUS GROUNDS OVERLOOKING THE EAST RIVER.
THE UNITED NATIONS HEADQUARTERS IN NEW YORK CITY, AS VIEWED
FROM THE EAST RIVER IN MAY 2006
ARCHITECTURAL STYLE
INTERNATIONAL STYLE
LOCATION
NEW YORK CITY
CONSTRUCTION STARTED
1948 (1948)
COMPLETED
$65,000,000
OWNER
UNITED NATIONS
HEIGHT
THEY ARE TECHNICALLY EXTRATERRITORIAL THROUGH A TREATY
AGREEMENT WITH THE U.S. GOVERNMENT. HOWEVER, IN EXCHANGE
FOR LOCAL POLICE AND FIRE PROTECTION AND OTHER SERVICES, THE
U.N. AGREES TO ACKNOWLEDGE MOST LOCAL, STATE, AND FEDERAL
LAWS.
9 OCTOBER 1952 (1952-10-09)
COST
THE UNITED NATIONS HAS THREE ADDITIONAL, SUBSIDIARY, REGIONAL
HEADQUARTERS OR HEADQUARTER DISTRICTS.
ALTHOUGH IT IS SITUATED IN NEW YORK CITY, THE LAND OCCUPIED BY
THE UNITED NATIONS HEADQUARTERS AND THE SPACES OF
BUILDINGS THAT IT RENTS ARE UNDER THE SOLE ADMINISTRATION OF
THE UNITED NATIONS.
155 METRES (509 FT)
THE UNITED NATIONS
HEADQUARTERS COMPLEX WAS
CONSTRUCTED IN STAGES WITH THE
CORE COMPLEX COMPLETED
BETWEEN 1948-1952.
THE HEADQUARTERS OCCUPIES A
SITE BESIDE THE EAST RIVER, ON 17
ACRES (69,000 M2) OF LAND
PURCHASED FROM THE FOREMOST
NEW YORK REAL ESTATE
DEVELOPER.
TECHNICAL DETAILS
FLOOR COUNT
39
DESIGN AND CONSTRUCTION
ARCHITECT
OSCAR NIEMEYER
LE CORBUSIER
HARRISON & ABRAMOVITZ
MAIN CONTRACTOR
[FULLER, TURNER, SLATTERY]
Location map of un headquarters
7

10. LE CORBUSIER
UN HEADQUARTERS
Planning and construction
THE PROPERTY WAS ORIGINALLY A SLAUGHTER HOUSE.
THE DIMINUTIVE SITE ON THE EAST RIVER NECESSITATED A
"ROCKEFELLER CENTER" TYPE VERTICAL COMPLEX, THUS, IT WAS A
GIVEN THAT THE SECRETARIAT WOULD BE HOUSED IN A TALL OFFICE
TOWER.
Plan of the headquarters
DURING DAILY MEETINGS FROM FEBRUARY TO JUNE 1947, THE
COLLABORATIVE TEAM PRODUCED AT LEAST 45 DESIGNS AND
VARIATIONS.
AFTER MUCH DISCUSSION, HARRISON, WHO COORDINATED THE
MEETINGS, DETERMINED THAT A DESIGN BASED ON NIEMEYER'S AND
LE CORBUSIER'S PROJECT WOULD BE DEVELOPED FOR THE FINAL
PROJECT.
LE CORBUSIER'S PROJECT 23 CONSISTED OF A LARGE BLOCK CONTAINING BOTH THE
ASSEMBLY HALL AND THE COUNCIL CHAMBERS NEAR THE CENTRE OF THE SITE WITH THE
SECRETARIAT TOWER EMERGING AS A SLAB FROM THE SOUTH.
NIEMEYER'S PLAN WAS CLOSER TO THAT ACTUALLY CONSTRUCTED, WITH A DISTINCTIVE
GENERAL ASSEMBLY BUILDING, A LONG LOW HORIZONTAL BLOCK HOUSING THE OTHER
MEETING ROOMS, AND A TALL TOWER FOR THE SECRETARIAT.
THE COMPLEX AS BUILT, HOWEVER, REPOSITIONED NIEMEYER'S GENERAL ASSEMBLY
BUILDING TO THE NORTH OF THIS TRIPARTITE COMPOSITION. THIS PLAN INCLUDED A
PUBLIC PLAZA AS WELL.
AS PER AN AGREEMENT WITH THE CITY, THE BUILDINGS MET SOME BUT NOT ALL LOCAL
FIRE SAFETY AND BUILDING CODES. THE OFFICE OF THE SECRETARY-GENERAL IS ON THE
38TH FLOOR.
CONSTRUCTION ON THE INITIAL BUILDINGS BEGAN IN 1948, WITH THE CORNERSTONE LAID
ON 24 OCTOBER 1949, AND WAS COMPLETED IN 1952.
THE CONSTRUCTION OF THE HEADQUARTERS WAS FINANCED BY AN INTEREST-FREE LOAN
OF $65 MILLION MADE BY THE UNITED STATES GOVERNMENT, AND THE COST OF
CONSTRUCTION WAS ALSO REPORTED AS $65 MILLION.
8

11. LE CORBUSIER
UN HEADQUARTERS
Design features
THE COMPLEX INCLUDES A NUMBER OF MAJOR BUILDINGS.WHILE THE
SECRETARIAT BUILDING IS MOST PREDOMINANTLY FEATURED IN
DEPICTIONS OF THE HEADQUARTERS, IT ALSO INCLUDES THE DOMED
GENERAL ASSEMBLY BUILDING, THE DAG HAMMARSKJÖLD LIBRARY, AS
WELL AS THE CONFERENCE AND VISITORS CENTER.
JUST INSIDE THE PERIMETER FENCE OF THE COMPLEX STANDS A LINE OF
FLAGPOLES WHERE THE FLAGS OF ALL 193 UN MEMBER STATES, PLUS THE
U.N. FLAG, ARE FLOWN IN ENGLISH ALPHABETICAL ORDER.
UNITED NATIONS GENERAL
ASSEMBLY HALL.
THE GENERAL ASSEMBLY BUILDING HOLDS THE GENERAL ASSEMBLY HALL
WHICH HAS A SEATING CAPACITY OF 1,800. AT 165 FT (50 M) LONG BY 115 FT
(35 M) WIDE, IT IS THE LARGEST ROOM IN THE COMPLEX.
THE CONFERENCE BUILDING FACES THE EAST RIVER BETWEEN THE
GENERAL ASSEMBLY BUILDING AND THE SECRETARIAT.
THE 39-STORY SECRETARIAT TOWER HOUSES OFFICES FOR THE
SECRETARY GENERAL, THE UNDER-SECRETARY-GENERAL.
THE DAG HAMMARSKJÖLD LIBRARY WAS DEDICATED ON 16 NOVEMBER
1961. THE BUILDING WAS A GIFT FROM THE FORD FOUNDATION AND IS
LOCATED NEXT TO THE SECRETARIAT AT THE SOUTHWEST CORNER OF THE
HEADQUARTERS CAMPUS.
THE LIBRARY HOLDS 400,000 BOOKS, 9,800 NEWSPAPERS AND PERIODICAL
TITLES, 80,000 MAPS AND THE WOODROW WILSON COLLECTION
CONTAINING 8,600 VOLUMES OF LEAGUE OF NATIONS DOCUMENTS AND
6,500 RELATED BOOKS AND PAMPHLETS. THE LIBRARY'S ECONOMIC AND
SOCIAL AFFAIRS COLLECTION IS HOUSED IN THE DC-2 BUILDING.
9

12. LE CORBUSIER
THE SECRETARIAT
INTRODUCTION
LOCATED AT THE OTHER END OF THE CAPITOL, SEPARATING THE PALACE OF JUSTICE AND AT THE
WESTERN END OF THE GOVERNMENT, CALLED THE SECRETARIAT IS A LONG BAR OF 245 M LONG
AND 42 HIGH, WHICH CONTAINS 8-LEVEL ADMINISTRATIVE OFFICES OF TWO PROVINCES PUNJAB
AND HARYANA.
THE SECRETARIAT BUILDING IS A LONG, HORIZONTAL CONCRETE SLAB FORM, 254 METERS LONG
AND 42 METERS HIGH, AND MARKS THE EDGE OF THE CAPITOL COMPLEX ON THE LEFT SIDE.
THE BUILDING IS COMPOSED OF SIX EIGHT-STORY BLOCK DIVIDED BY EXPANSION JOINTS AND
MEASURES OVER 800 FEET LONG, BOOKENDED BY TWO SCULPTURAL RAMPS PROVIDING
VERTICAL CIRCULATION THROUGHOUT THE FACILITIES‘ LEVELS.
COMPLETED IN 1952, THE SECRETARIAT BUILDING FUNCTIONS AS THE HEADQUARTERS OF THE
PUNJAB AND HARYANA MUNICIPAL GOVERNMENTS.
Location map of the secretariat
LOCATION
FUNCTION
CHANDIGARH
THE MASSIVE, HORIZONTAL COMPLEX IS COMPRISED OF 8 STORIES OF ROUGH-CAST
CONCRETE.
GOVERNMENT
CONTRIBUTED BY
BRUNO_VANBESIEN
PROJECT YEAR
: 1951-1962
THE BUILDING HAS NOTABLE SIMILARITIES
WITH CORBUSIER‘S MARSEILLE BLOCK AND
HAD AN EQUALLY LOFTY GOAL: TO
REVOLUTIONIZE THE MODERN OFFICE
BUILDING. THE SECRETARIAT WAS AMONG
THE FIRST BUILDINGS DESIGNED AS A
―HEALTHY BUILDING‖ WITH CAREFUL
ATTENTION PAID TO NATURAL LIGHTING,
VENTILATION, AND ORGANIZATIONAL
EFFICIENCY.
10

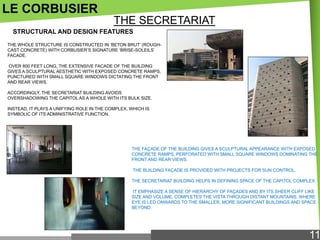

13. LE CORBUSIER
THE SECRETARIAT
STRUCTURAL AND DESIGN FEATURES
THE WHOLE STRUCTURE IS CONSTRUCTED IN ‗BETON BRUT‘ (ROUGHCAST CONCRETE) WITH CORBUSIER‘S SIGNATURE ‗BRISE-SOLEILS‘
FACADE.
OVER 800 FEET LONG, THE EXTENSIVE FACADE OF THE BUILDING
GIVES A SCULPTURAL AESTHETIC WITH EXPOSED CONCRETE RAMPS,
PUNCTURED WITH SMALL SQUARE WINDOWS DICTATING THE FRONT
AND REAR VIEWS.
ACCORDINGLY, THE SECRETARIAT BUILDING AVOIDS
OVERSHADOWING THE CAPITOL AS A WHOLE WITH ITS BULK SIZE.
INSTEAD, IT PLAYS A UNIFYING ROLE IN THE COMPLEX, WHICH IS
SYMBOLIC OF ITS ADMINISTRATIVE FUNCTION.
THE FAÇADE OF THE BUILDING GIVES A SCULPTURAL APPEARANCE WITH EXPOSED
CONCRETE RAMPS, PERFORATED WITH SMALL SQUARE WINDOWS DOMINATING THE
FRONT AND REAR VIEWS.
THE BUILDING FAÇADE IS PROVIDED WITH PROJECTS FOR SUN CONTROL.
THE SECRETARIAT BUILDING HELPS IN DEFINING SPACE OF THE CAPITOL COMPLEX.
IT EMPHASIZE A SENSE OF HIERARCHY OF FAÇADES AND BY ITS SHEER CLIFF LIKE
SIZE AND VOLUME, COMPLETES THE VISTA THROUGH DISTANT MOUNTAINS, WHERE
EYE IS LED ONWARDS TO THE SMALLER, MORE SIGNIFICANT BUILDINGS AND SPACE
BEYOND.
11

14. LE CORBUSIER
THE SECRETARIAT
TO MAXIMIZE NATURAL LIGHTING AND INCREASE CROSS-VENTILATION, A LONG AND
NARROW PLAN WAS IMPLEMENTED BY CORBUSIER — THIS APPROACH ALSO HELPED
DELINEATE BOTH THE ACTUAL AND THE IMPLIED BORDERS OF THE CAPITOL COMPLEX
AS A WHOLE.
TO VISUALLY REDUCE THE SCALE OF ITS MASSIVE FAÇADE, THE SECRETARIAT WAS
DESIGNED WITH A MODULAR FAÇADE THAT FRAGMENTS THE ELEVATION INTO
LEGIBLE, PROGRAMMATIC ELEMENTS.
THIS APPROACH NOT ONLY PREVENTS ONLOOKERS FROM BEING OVERWHELMED BY
ITS SCALE, IT ALSO PLAYS AN IMPORTANT ROLE WITH REGARD TO THE DAYLIGHTING
SCHEME OF THE PROJECT AS A WHOLE.
THE VARIOUS PROJECTIONS, RECESSES, CIRCULATION ELEMENTS, AND MULTI-LEVEL
INTERIOR SPACES ACT AS SUN-BREAKS (‗BRISE-SOLEILS‘) TO MITIGATE SOLAR GAIN.
THE SECRETARIAT IS A SIMPLER AND MORE CONVENTIONAL FORM
WHERE VARIATIONS OF STRUCTURE AND INTERNAL DISTRIBUTION DO
NOT INTERRUPT ITS COMPACT VOLUME, BUT ARE REPRODUCED TWODIMENSIONALLY IN THE VERY ELABORATE DESIGN OF THE ‗BRISE
SOLEILS‘.
THE SECRETARIAT AND THE VIDHAN SABHA (LEGISLATIVE ASSEMBLY)
BUILDING ARE IN SECTOR 1 OF THE COMPLEX. NEARBY IN THE
SECTOR IS A HUGE OPEN HAND SCULPTURE, CONCEIVED AS A
SYMBOL OF UNIT AND THE COLORFUL HIGH COURT, WHICH HAS A
DOUBLE ROOF, PROVIDING PROTECTION FROM THE SUN.
12

15. LE CORBUSIER
THE SECRETARIAT
DESIGN FEATURES
TO VISUALLY REDUCE THE SCALE OF ITS MASSIVE FAÇADE, THE
SECRETARIAT WAS DESIGNED WITH A MODULAR FAÇADE THAT
FRAGMENTS THE ELEVATION INTO LEGIBLE, PROGRAMMATIC
ELEMENTS.
Plan of the capitol complex
13

16. Walter Gropius
INTRODUCTION
WALTER ADOLPH GEORG GROPIUS (MAY 18, 1883 – JULY 5, 1969) WAS A GERMAN ARCHITECT
BORN IN BERLIN AND FOUNDER OF THE BAUHAUS SCHOOL, WHO, ALONG WITH LUDWIG MIES
VAN DER ROHE, LE CORBUSIER AND FRANK LLOYD WRIGHT IS WIDELY REGARDED AS ONE OF
THE PIONEERING MASTERS OF MODERN ARCHITECTURE.
EARLY CAREER
•WALTER GROPIUS, LIKE HIS FATHER AND HIS GREAT-UNCLE MARTIN GROPIUS BEFORE HIM,
BECAME AN ARCHITECT. GROPIUS COULD NOT DRAW, AND WAS DEPENDENT ON
COLLABORATORS AND PARTNER-INTERPRETERS THROUGHOUT HIS CAREER.
•IN 1910 GROPIUS LEFT THE FIRM OF BEHRENS AND TOGETHER WITH FELLOW EMPLOYEE ADOLF
MIYER ESTABLISHED A PRACTICE IN BERLIN.
• TOGETHER THEY SHARE CREDIT FOR ONE OF THE SEMINAL MODERNIST BUILDINGS CREATED
DURING THIS PERIOD: THE FAGUSWERK IN ALFELD AN DER LEINE , GERMANY , A SHOE LAST
FACTORY.
WALTER ADOLPH GEORG GROPIUS (MAY 18, 1883 – JULY 5, 1969)
•ALTHOUGH GROPIUS AND MEYER ONLY DESIGNED THE FACADE, THE GLASS CURTAIN WALLS OF
THIS BUILDING DEMONSTRATED BOTH THE MODERNIST PRINCIPLE THAT FORM REFLECT
FUNCTION AND GROPIUS'S CONCERN WITH PROVIDING HEALTHFUL CONDITIONS FOR THE
WORKING CLASS.
•OTHER WORKS OF THIS EARLY PERIOD INCLUDE THE OFFICE AND FACTORY BUILDING FOR THE
WERKBURN EXHIBITION (1914) IN COLOGNE .
BAUHAUS (BUILT 1925–1926) IN DESSAU,
GERMANY
WALTER GROPIUS'S MONUMENT TO THE
MARCH DEAD (1921)
14

17. Walter Gropius
BAUHAUS PERIOD ( 1919- 1932)
IN 1919, GROPIUS WAS INVOLVED IN THE GLASS CHAIN UTOPIAN EXPRESSIONIST
CORRESPONDENCE UNDER THE PSEUDONYM "MASS." USUALLY MORE NOTABLE FOR HIS
FUNCTIONALIST APPROACH, THE "MONUMENT TO THE MARCH DEAD," DESIGNED IN 1919
AND EXECUTED IN 1920, INDICATES THAT EXPRESSIONISM WAS AN INFLUENCE ON HIM AT
THAT TIME.
ALUMINUM CITY TERRACE
(1944)
IN 1923, GROPIUS DESIGNED HIS FAMOUS DOOR HANDLES, NOW CONSIDERED AN ICON
OF 20TH-CENTURY DESIGN AND OFTEN LISTED AS ONE OF THE MOST INFLUENTIAL
DESIGNS TO EMERGE FROM BAUHAUS. HE ALSO DESIGNED LARGE-SCALE HOUSING
PROJECTS IN BERLIN, KARLSRUHE AND DESSAU IN 1926-32 THAT WERE MAJOR
CONTRIBUTIONS TO THE NEW OBJECTIVITY MOVEMENT, INCLUDING A CONTRIBUTION TO
THE SIEMENSSTADT PROJECT IN BERLIN.
SOME FAMOUS WORKS
1910–1911 THE FAGUS FACTORY,
ALFELD AN DER LEINE, GERMANY
GROPIUS HOUSE (1938) IN LINCOLN, MASSACHUSETTS
1921 SOMMERFELD HOUSE, BERLIN,
GERMANY DESIGNED FOR ADOLF
SOMMERFELD
1914 OFFICE AND FACTORY BUILDINGS AT THE
WERKBUND EXHIBITION, 1914, COLOGNE,
GERMANY
1967– 69 TOWER EAST, SHAKER HEIGHTS, OHIO,
THIS WAS GROPIUS' LAST MAJOR PROJECT.
15

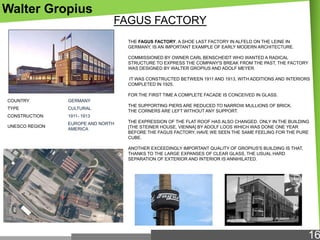

18. Walter Gropius
FAGUS FACTORY
THE FAGUS FACTORY, A SHOE LAST FACTORY IN ALFELD ON THE LEINE IN
GERMANY, IS AN IMPORTANT EXAMPLE OF EARLY MODERN ARCHITECTURE.
COMMISSIONED BY OWNER CARL BENSCHEIDT WHO WANTED A RADICAL
STRUCTURE TO EXPRESS THE COMPANY'S BREAK FROM THE PAST, THE FACTORY
WAS DESIGNED BY WALTER GROPIUS AND ADOLF MEYER.
IT WAS CONSTRUCTED BETWEEN 1911 AND 1913, WITH ADDITIONS AND INTERIORS
COMPLETED IN 1925.
FOR THE FIRST TIME A COMPLETE FACADE IS CONCEIVED IN GLASS.
COUNTRY
GERMANY
TYPE
CULTURAL
CONSTRUCTION
1911- 1913
UNESCO REGION
EUROPE AND NORTH
AMERICA
THE SUPPORTING PIERS ARE REDUCED TO NARROW MULLIONS OF BRICK.
THE CORNERS ARE LEFT WITHOUT ANY SUPPORT.
THE EXPRESSION OF THE FLAT ROOF HAS ALSO CHANGED. ONLY IN THE BUILDING
[THE STEINER HOUSE, VIENNA] BY ADOLF LOOS WHICH WAS DONE ONE YEAR
BEFORE THE FAGUS FACTORY, HAVE WE SEEN THE SAME FEELING FOR THE PURE
CUBE.
ANOTHER EXCEEDINGLY IMPORTANT QUALITY OF GROPIUS'S BUILDING IS THAT,
THANKS TO THE LARGE EXPANSES OF CLEAR GLASS, THE USUAL HARD
SEPARATION OF EXTERIOR AND INTERIOR IS ANNIHILATED.
16

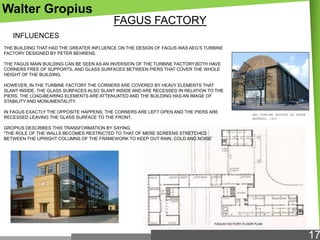

19. Walter Gropius
FAGUS FACTORY
INFLUENCES
THE BUILDING THAT HAD THE GREATER INFLUENCE ON THE DESIGN OF FAGUS WAS AEG‘S TURBINE
FACTORY DESIGNED BY PETER BEHRENS.
THE FAGUS MAIN BUILDING CAN BE SEEN AS AN INVERSION OF THE TURBINE FACTORY.BOTH HAVE
CORNERS FREE OF SUPPORTS, AND GLASS SURFACES BETWEEN PIERS THAT COVER THE WHOLE
HEIGHT OF THE BUILDING.
HOWEVER, IN THE TURBINE FACTORY THE CORNERS ARE COVERED BY HEAVY ELEMENTS THAT
SLANT INSIDE. THE GLASS SURFACES ALSO SLANT INSIDE AND ARE RECESSED IN RELATION TO THE
PIERS. THE LOAD-BEARING ELEMENTS ARE ATTENUATED AND THE BUILDING HAS AN IMAGE OF
STABILITY AND MONUMENTALITY.
IN FAGUS EXACTLY THE OPPOSITE HAPPENS; THE CORNERS ARE LEFT OPEN AND THE PIERS ARE
RECESSED LEAVING THE GLASS SURFACE TO THE FRONT.
AEG TURBINE FACTORY BY PETER
BEHRENS, 1910
GROPIUS DESCRIBES THIS TRANSFORMATION BY SAYING,
"THE ROLE OF THE WALLS BECOMES RESTRICTED TO THAT OF MERE SCREENS STRETCHED
BETWEEN THE UPRIGHT COLUMNS OF THE FRAMEWORK TO KEEP OUT RAIN, COLD AND NOISE‘
FAGUS FACTORY FLOOR PLAN
17

20. Walter Gropius
FAGUS FACTORY
DESIGN FEATURES
THE BUILDING THAT IS COMMONLY REFERRED AS THE FAGUS BUILDING IS THE MAIN
BUILDING.
IT WAS CONSTRUCTED IN 1911 ACCORDING TO WERNER‘S PLAN BUT WITH THE GLASS
FACADES DESIGNED BY GROPIUS AND MEYER AND THEN EXPANDED IN 1913.
THE FAGUS BUILDING IS A 40-CENTIMETER HIGH, DARK BRICK BASE THAT PROJECTS
FROM THE FACADE BY 4 CENTIMETER.
THE ENTRANCE WITH THE CLOCK IS PART OF THE 1913 EXPANSION. THE INTERIORS OF
THE BUILDING, WHICH CONTAINED MAINLY OFFICES, WERE FINISHED IN THE MID 20S.
THE OTHER TWO BIG BUILDINGS ON THE SITE ARE THE PRODUCTION HALL AND THE
WAREHOUSE. BOTH WERE CONSTRUCTED IN 1911 AND EXPANDED IN 1913.
THE PRODUCTION HALL IS A ONE-STOREY BUILDING. IT WAS ALMOST INVISIBLE FROM THE
RAILWAY (NORTH) ELEVATION AND ACQUIRED A PROPER FACADE AFTER THE EXPANSION.
THE WAREHOUSE IS A FOUR-STOREY BUILDING WITH FEW OPENINGS. ITS DESIGN
FOLLOWED CLOSELY THE ORIGINAL PLAN BY WERNER AND IT IS LEFT OUT FROM MANY OF
THE PHOTOGRAPHS.
APART FROM THEM, THE SITE CONTAINS VARIOUS SMALL BUILDINGS DESIGNED BY
GROPIUS AND MEYER.
GROPIUS AND MEYER WERE ABLE TO ENFORCE ONLY MINOR CHANGES IN THE OVERALL
LAYOUT OF THE FACTORY COMPLEX. OVERALL, WERNER'S INTENDED LAYOUT FOR THE
INDIVIDUAL BUILDINGS WITHIN THE COMPLEX WAS CARRIED OUT; GREATER UNIFORMITY
AND COHERENCE WERE ACHIEVED, HOWEVER, THROUGH GROPIUS AND MEYER'S
REDUCTIONISM IN FORM, MATERIAL, AND COLOR.
18

21. Walter Gropius
GROPIUS HOUSE
INTRODUCTION
THE GROPIUS HOUSE WAS THE FAMILY RESIDENCE OF NOTED ARCHITECT WALTER
GROPIUS AT 68 BAKER BRIDGE ROAD, LINCOLN, MASSACHUSETTS.
IT IS NOW OWNED BY HISTORIC NEW ENGLAND AND IS OPEN TO THE PUBLIC
WEDNESDAY THROUGH SUNDAY (JUNE 1 – OCTOBER 15, AND WEEKENDS
(OCTOBER 16 – MAY 31). AN ADMISSION FEE IS CHARGED.
THIS HOUSE WAS HIS FIRST ARCHITECTURAL COMMISSION IN THE UNITED STATES.
HE DESIGNED IT IN 1937, WHEN HE CAME TO TEACH AT HARVARD UNIVERSITY‗S
GRADUATE SCHOOL OF DESIGN, AND IT WAS BUILT IN 1938.
AREA:
68 BAKER BRIDGE ROAD,HE CHOSE THE AREA BECAUSE OF ITS PROXIMITY TO CONCORD ACADEMY WHICH
LINCOLN,
HIS DAUGHTER, ATI, WAS GOING TO ATTEND.
MASSACHUSETTS
IT REMAINED GROPIUS' HOME FROM 1938 UNTIL HIS DEATH IN 1969. THE HOUSE
5.51 ACRES (22,300 M2) CAUSED A SENSATION WHEN BUILT.
NRHP REFERENCE#:
00000709
LOCATION:
IN KEEPING WITH BAUHAUS PHILOSOPHY, EVERY ASPECT OF THE HOUSE AND ITS
SURROUNDING LANDSCAPE WAS PLANNED FOR MAXIMUM EFFICIENCY AND
SIMPLICITY.
LOCATION MAP OF GROPIUS HOUSE
19

22. Walter Gropius
GROPIUS HOUSE
PLAN OF GROPIUS HOUSE
AS TO MY PRACTICE, WHEN I BUILT MY FIRST HOUSE IN THE U.S.A. –
WHICH WAS MY OWN – I MADE IT A POINT TO ABSORB INTO MY OWN
CONCEPTION THOSE FEATURES OF THE NEW ENGLAND
ARCHITECTURAL TRADITION THAT I FOUND STILL ALIVE AND
ADEQUATE. THIS FUSION OF THE REGIONAL SPIRIT WITH A
CONTEMPORARY APPROACH TO DESIGN PRODUCED A HOUSE THAT I
WOULD NEVER HAVE BUILT IN EUROPE WITH ITS ENTIRELY DIFFERENT
CLIMATIC, TECHNICAL AND PSYCHOLOGICAL BACKGROUND.
—WALTER GROPIUS, SCOPE OF TOTAL ARCHITECTURE (1956
20

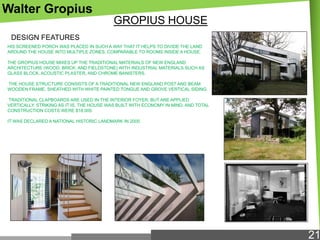

23. Walter Gropius
GROPIUS HOUSE
DESIGN FEATURES
HIS SCREENED PORCH WAS PLACED IN SUCH A WAY THAT IT HELPS TO DIVIDE THE LAND
AROUND THE HOUSE INTO MULTIPLE ZONES, COMPARABLE TO ROOMS INSIDE A HOUSE.
THE GROPIUS HOUSE MIXES UP THE TRADITIONAL MATERIALS OF NEW ENGLAND
ARCHITECTURE (WOOD, BRICK, AND FIELDSTONE) WITH INDUSTRIAL MATERIALS SUCH AS
GLASS BLOCK, ACOUSTIC PLASTER, AND CHROME BANISTERS.
THE HOUSE STRUCTURE CONSISTS OF A TRADITIONAL NEW ENGLAND POST AND BEAM
WOODEN FRAME, SHEATHED WITH WHITE PAINTED TONGUE AND GROVE VERTICAL SIDING.
TRADITIONAL CLAPBOARDS ARE USED IN THE INTERIOR FOYER, BUT ARE APPLIED
VERTICALLY. STRIKING AS IT IS, THE HOUSE WAS BUILT WITH ECONOMY IN MIND, AND TOTAL
CONSTRUCTION COSTS WERE $18,000.
IT WAS DECLARED A NATIONAL HISTORIC LANDMARK IN 2000.
21

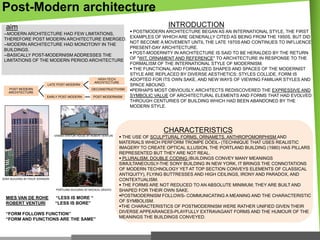

24. Post-Modern architecture
INTRODUCTION
aim
--MODERN ARCHITECTURE HAD FEW LIMITATIONS,
THEREFORE POST MODERN ARCHITECTURE EMERGED.
--MODERN ARCHITECTURE HAD MONOTONY IN THE
BUILDINGS.
--BASICALLY POST-MODERNISM ADDRESSES THE
LIMITATIONS OF THE MODERN PERIOD ARCHITECTURE
HIGH-TECH
ARCHITECTURE
LATE POST-MODERN
POST MODERN
ARCHITECTURE
DECONSTRUCTIVISM
EARLY POST-MODERN
POST MODERNISM
 POSTMODERN ARCHITECTURE BEGAN AS AN INTERNATIONAL STYLE, THE FIRST
EXAMPLES OF WHICH ARE GENERALLY CITED AS BEING FROM THE 1950S, BUT DID
NOT BECOME A MOVEMENT UNTIL THE LATE 1970S AND CONTINUES TO INFLUENCE
PRESENT-DAY ARCHITECTURE.
 POST-MODERNITY IN ARCHITECTURE IS SAID TO BE HERALDED BY THE RETURN
OF "WIT, ORNAMENT AND REFERENCE" TO ARCHITECTURE IN RESPONSE TO THE
FORMALISM OF THE INTERNATIONAL STYLE OF MODERNISM.
 THE FUNCTIONAL AND FORMALIZED SHAPES AND SPACES OF THE MODERNIST
STYLE ARE REPLACED BY DIVERSE AESTHETICS: STYLES COLLIDE, FORM IS
ADOPTED FOR ITS OWN SAKE, AND NEW WAYS OF VIEWING FAMILIAR STYLES AND
SPACE ABOUND.
PERHAPS MOST OBVIOUSLY, ARCHITECTS REDISCOVERED THE EXPRESSIVE AND
SYMBOLIC VALUE OF ARCHITECTURAL ELEMENTS AND FORMS THAT HAD EVOLVED
THROUGH CENTURIES OF BUILDING WHICH HAD BEEN ABANDONED BY THE
MODERN STYLE.
CHARACTERISTICS

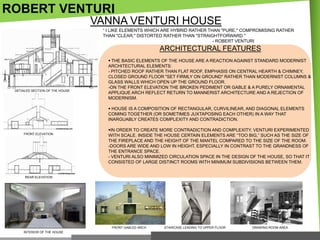

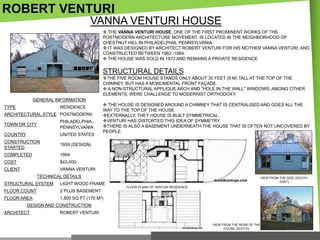

VANNA VENTURI HOUSE BY ROBERT VENTURI
SONY BUILDING BY PHILIP JOHNSON
PORTLAND BUILDING BY MICHEAL GRAVES
MIES VAN DE ROHE

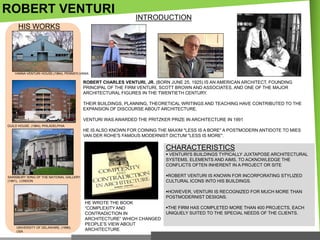

ROBERT VENTURI
“LESS IS MORE “
“LESS IS BORE”
“FORM FOLLOWS FUNCTION”
“FORM AND FUNCTIONS ARE THE SAME”
 THE USE OF SCULPTURAL FORMS, ORNAMETS, ANTHROPOMORPHISM AND
MATERIALS WHICH PERFORM TROMPE DÓEIL- (TECHNIQUE THAT USES REALISTIC
IMAGERY TO CREATE OPTICAL ILLUSION, THE PORTLAND BUILDING (1980) HAS PILLARS
REPRESENTED BUT THEY ARE NOT REAL.
 PLURALISM, DOUBLE CODING (BUILDINGS CONVEY MANY MEANINGS
SIMULTANEOUSLY-THE SONY BUILDING IN NEW YORK, IT BRINGS THE CONNOTATIONS
OF MODERN TECHNOLOGY YET AT TOP SECTION CONVEYS ELEMENTS OF CLASSICAL
ANTIQUITY), FLYING BUTTRESSES AND HIGH CEILINGS, IRONY AND PARADOX, AND
CONTEXTUALISM.
 THE FORMS ARE NOT REDUCED TO AN ABSOLUTE MINIMUM; THEY ARE BUILT AND
SHAPED FOR THEIR OWN SAKE.
POSTMODERNISM FOLLOWS- COMMUNICATING A MEANING AND THE CHARACTERISTIC
OF SYMBOLISM.
THE CHARACTERISTICS OF POSTMODERNISM WERE RATHER UNIFIED GIVEN THEIR
DIVERSE APPEARANCES-PLAYFULLY EXTRAVAGANT FORMS AND THE HUMOUR OF THE
MEANINGS THE BUILDINGS CONVEYED.

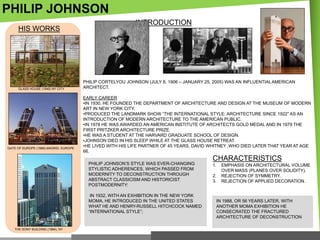

25. PHILIP JOHNSON
HIS WORKS
GLASS HOUSE (1949) NY CITY
GATE OF EUROPE (1989).MADRID, EUROPE
INTRODUCTION
PHILIP CORTELYOU JOHNSON (JULY 8, 1906 – JANUARY 25, 2005) WAS AN INFLUENTIAL AMERICAN
ARCHITECT.
EARLY CAREER
•IN 1930, HE FOUNDED THE DEPARTMENT OF ARCHITECTURE AND DESIGN AT THE MUSEUM OF MODERN
ART IN NEW YORK CITY.
•PRODUCED THE LANDMARK SHOW ―THE INTERNATIONAL STYLE: ARCHITECTURE SINCE 1922‖ AS AN
INTRODUCTION OF MODERN ARCHITECTURE TO THE AMERICAN PUBLIC.
•IN 1978 HE WAS AWARDED AN AMERICAN INSTITUTE OF ARCHITECTS GOLD MEDAL AND IN 1979 THE
FIRST PRITZKER ARCHITECTURE PRIZE.
•HE WAS A STUDENT AT THE HARVARD GRADUATE SCHOOL OF DESIGN.
•JOHNSON DIED IN HIS SLEEP WHILE AT THE GLASS HOUSE RETREAT.
•HE LIVED WITH HIS LIFE PARTNER OF 45 YEARS, DAVID WHITNEY ,WHO DIED LATER THAT YEAR AT AGE
66.
PHILIP JOHNSON‘S STYLE WAS EVER-CHANGING
STYLISTIC ADHERENCES, WHICH PASSED FROM
MODERNITY TO DECONSTRUCTION THROUGH
ABSTRACT CLASSICISM AND HISTORICIST
POSTMODERNITY:
IN 1932, WITH AN EXHIBITION IN THE NEW YORK
MOMA, HE INTRODUCED IN THE UNITED STATES
WHAT HE AND HENRY-RUSSELL HITCHCOCK NAMED
―INTERNATIONAL STYLE‖;

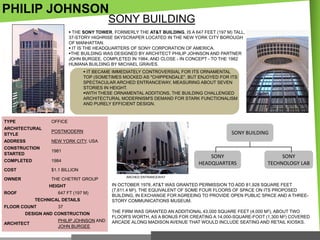

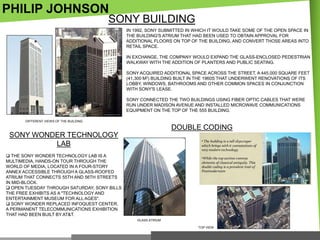

THE SONY BUILDING (1984), NY
CHARACTERISTICS
1.
2.
3.
EMPHASIS ON ARCHITECTURAL VOLUME
OVER MASS (PLANES OVER SOLIDITY).
REJECTION OF SYMMETRY.
REJECTION OF APPLIED DECORATION.
IN 1988, OR 56 YEARS LATER, WITH
ANOTHER MOMA EXHIBITION HE
CONSECRATED THE FRACTURED
ARCHITECTURE OF DECONSTRUCTION

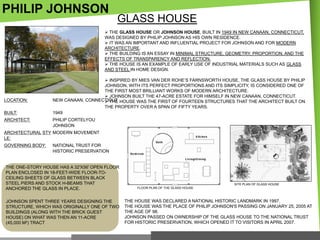

26. PHILIP JOHNSON
GLASS HOUSE
 THE GLASS HOUSE OR JOHNSON HOUSE, BUILT IN 1949 IN NEW CANAAN, CONNECTICUT,
WAS DESIGNED BY PHILIP JOHNSON AS HIS OWN RESIDENCE.
 IT WAS AN IMPORTANT AND INFLUENTIAL PROJECT FOR JOHNSON AND FOR MODERN
ARCHITECTURE.
 THE BUILDING IS AN ESSAY IN MINIMAL STRUCTURE, GEOMETRY, PROPORTION, AND THE
EFFECTS OF TRANSPARENCY AND REFLECTION.
 THE HOUSE IS AN EXAMPLE OF EARLY USE OF INDUSTRIAL MATERIALS SUCH AS GLASS
AND STEEL IN HOME DESIGN.
LOCATION:
BUILT:
ARCHITECT:
 INSPIRED BY MIES VAN DER ROHE‘S FARNSWORTH HOUSE, THE GLASS HOUSE BY PHILIP
JOHNSON, WITH ITS PERFECT PROPORTIONS AND ITS SIMPLICITY, IS CONSIDERED ONE OF
THE FIRST MOST BRILLIANT WORKS OF MODERN ARCHITECTURE.
 JOHNSON BUILT THE 47-ACRE ESTATE FOR HIMSELF IN NEW CANAAN, CONNECTICUT.
NEW CANAAN, CONNECTICUT HOUSE WAS THE FIRST OF FOURTEEN STRUCTURES THAT THE ARCHITECT BUILT ON
 THE
THE PROPERTY OVER A SPAN OF FIFTY YEARS.
1949
PHILIP CORTELYOU
JOHNSON
ARCHITECTURAL STY MODERN MOVEMENT
LE:
GOVERNING BODY:
NATIONAL TRUST FOR
HISTORIC PRESERVATION
THE ONE-STORY HOUSE HAS A 32′X56′ OPEN FLOOR
PLAN ENCLOSED IN 18-FEET-WIDE FLOOR-TOCEILING SHEETS OF GLASS BETWEEN BLACK
STEEL PIERS AND STOCK H-BEAMS THAT
ANCHORED THE GLASS IN PLACE.
JOHNSON SPENT THREE YEARS DESIGNING THE
STRUCTURE, WHICH WAS ORIGINALLY ONE OF TWO
BUILDINGS (ALONG WITH THE BRICK GUEST
HOUSE) ON WHAT WAS THEN AN 11-ACRE
(45,000 M2) TRACT
SITE PLAN OF GLASS HOUSE
FLOOR PLAN OF THE GLASS HOUSE
THE HOUSE WAS DECLARED A NATIONAL HISTORIC LANDMARK IN 1997.
THE HOUSE WAS THE PLACE OF PHILIP JOHNSON'S PASSING ON JANUARY 25, 2005 AT
THE AGE OF 98.
JOHNSON PASSED ON OWNERSHIP OF THE GLASS HOUSE TO THE NATIONAL TRUST
FOR HISTORIC PRESERVATION, WHICH OPENED IT TO VISITORS IN APRIL 2007.

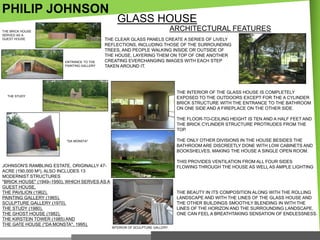

27. PHILIP JOHNSON
GLASS HOUSE
ARCHITECTURAL FEATURES
THE BRICK HOUSE
SERVED AS A
GUEST HOUSE
ENTRANCE TO THE
PAINTING GALLERY
THE CLEAR GLASS PANELS CREATE A SERIES OF LIVELY
REFLECTIONS, INCLUDING THOSE OF THE SURROUNDING
TREES, AND PEOPLE WALKING INSIDE OR OUTSIDE OF
THE HOUSE, LAYERING THEM ON TOP OF ONE ANOTHER
CREATING EVERCHANGING IMAGES WITH EACH STEP
TAKEN AROUND IT.
THE INTERIOR OF THE GLASS HOUSE IS COMPLETELY
EXPOSED TO THE OUTDOORS EXCEPT FOR THE A CYLINDER
BRICK STRUCTURE WITH THE ENTRANCE TO THE BATHROOM
ON ONE SIDE AND A FIREPLACE ON THE OTHER SIDE.
THE STUDY
THE FLOOR-TO-CEILING HEIGHT IS TEN AND A HALF FEET AND
THE BRICK CYLINDER STRUCTURE PROTRUDES FROM THE
TOP.
THE ONLY OTHER DIVISIONS IN THE HOUSE BESIDES THE
BATHROOM ARE DISCREETLY DONE WITH LOW CABINETS AND
BOOKSHELVES, MAKING THE HOUSE A SINGLE OPEN ROOM.
"DA MONSTA"
JOHNSON'S RAMBLING ESTATE, ORIGINALLY 47ACRE (190,000 M2), ALSO INCLUDES 13
MODERNIST STRUCTURES
"BRICK HOUSE" (1949–1950), WHICH SERVES AS A
GUEST HOUSE,
THE PAVILION (1962),
PAINTING GALLERY (1965),
SCULPTURE GALLERY (1970),
THE STUDY (1980),
THE GHOST HOUSE (1982),
THE KIRSTEIN TOWER (1985) AND
THE GATE HOUSE ("DA MONSTA", 1995).
THIS PROVIDES VENTILATION FROM ALL FOUR SIDES
FLOWING THROUGH THE HOUSE AS WELL AS AMPLE LIGHTING
THE BEAUTY IN ITS COMPOSITION ALONG WITH THE ROLLING
LANDSCAPE AND WITH THE LINES OF THE GLASS HOUSE AND
THE OTHER BUILDINGS SMOOTHLY BLENDING IN WITH THE
LINES OF THE HORIZON AND THE SURROUNDING LANDSCAPE,
ONE CAN FEEL A BREATHTAKING SENSATION OF ENDLESSNESS.
INTERIOR OF SCULPTURE GALLERY

28. PHILIP JOHNSON
SONY BUILDING
 THE SONY TOWER, FORMERLY THE AT&T BUILDING, IS A 647 FEET (197 M) TALL,
37-STORY HIGHRISE SKYSCRAPER LOCATED IN THE NEW YORK CITY BOROUGH
OF MANHATTAN.
 IT IS THE HEADQUARTERS OF SONY CORPORATION OF AMERICA.
THE BUILDING WAS DESIGNED BY ARCHITECT PHILIP JOHNSON AND PARTNER
JOHN BURGEE, COMPLETED IN 1984, AND CLOSE - IN CONCEPT - TO THE 1982
HUMANA BUILDING BY MICHAEL GRAVES.
 IT BECAME IMMEDIATELY CONTROVERSIAL FOR ITS ORNAMENTAL
TOP (SOMETIMES MOCKED AS "CHIPPENDALE", BUT ENJOYED FOR ITS
SPECTACULAR ARCHED ENTRANCEWAY, MEASURING ABOUT SEVEN
STORIES IN HEIGHT.
WITH THESE ORNAMENTAL ADDITIONS, THE BUILDING CHALLENGED
ARCHITECTURAL MODERNISM'S DEMAND FOR STARK FUNCTIONALISM
AND PURELY EFFICIENT DESIGN.
TYPE
OFFICE
ARCHITECTURAL
STYLE
POSTMODERN
ADDRESS
NEW YORK CITY, USA
CONSTRUCTION
STARTED
1981
COMPLETED
1984
COST
$1.1 BILLION
OWNER
THE CHETRIT GROUP
HEIGHT
ROOF
647 FT (197 M)
TECHNICAL DETAILS
FLOOR COUNT
SONY
HEADQUARTERS
SONY
TECHNOLOGY LAB
ARCHED ENTRANCEWAY
IN OCTOBER 1978, AT&T WAS GRANTED PERMISSION TO ADD 81,928 SQUARE FEET
(7,611.4 M2), THE EQUIVALENT OF SOME FOUR FLOORS OF SPACE ON ITS PROPOSED
BUILDING, IN EXCHANGE FOR AGREEING TO PROVIDE OPEN PUBLIC SPACE AND A THREESTORY COMMUNICATIONS MUSEUM.
37
DESIGN AND CONSTRUCTION
ARCHITECT
SONY BUILDING
PHILIP JOHNSON AND
JOHN BURGEE
THE FIRM WAS GRANTED AN ADDITIONAL 43,000 SQUARE FEET (4,000 M2), ABOUT TWO
FLOOR'S WORTH, AS A BONUS FOR CREATING A 14,000-SQUARE-FOOT (1,300 M2) COVERED
ARCADE ALONG MADISON AVENUE THAT WOULD INCLUDE SEATING AND RETAIL KIOSKS.

29. PHILIP JOHNSON
SONY BUILDING
IN 1992, SONY SUBMITTED IN WHICH IT WOULD TAKE SOME OF THE OPEN SPACE IN
THE BUILDING'S ATRIUM THAT HAD BEEN USED TO OBTAIN APPROVAL FOR
ADDITIONAL FLOORS ON TOP OF THE BUILDING, AND CONVERT THOSE AREAS INTO
RETAIL SPACE.
IN EXCHANGE, THE COMPANY WOULD EXPAND THE GLASS-ENCLOSED PEDESTRIAN
WALKWAY WITH THE ADDITION OF PLANTERS AND PUBLIC SEATING.
SONY ACQUIRED ADDITIONAL SPACE ACROSS THE STREET, A 445,000 SQUARE FEET
(41,300 M2) BUILDING BUILT IN THE 1960S THAT UNDERWENT RENOVATIONS OF ITS
LOBBY, WINDOWS, BATHROOMS AND OTHER COMMON SPACES IN CONJUNCTION
WITH SONY'S LEASE.
SONY CONNECTED THE TWO BUILDINGS USING FIBER OPTIC CABLES THAT WERE
RUN UNDER MADISON AVENUE AND INSTALLED MICROWAVE COMMUNICATIONS
EQUIPMENT ON THE TOP OF THE 555 BUILDING.
DIFFERENT VIEWS OF THE BUILDING
DOUBLE CODING
SONY WONDER TECHNOLOGY
LAB
 THE SONY WONDER TECHNOLOGY LAB IS A
MULTIMEDIA, HANDS-ON TOUR THROUGH THE
WORLD OF MEDIA, LOCATED IN A FOUR-STORY
ANNEX ACCESSIBLE THROUGH A GLASS-ROOFED
ATRIUM THAT CONNECTS 55TH AND 56TH STREETS
IN MID-BLOCK.
 OPEN TUESDAY THROUGH SATURDAY, SONY BILLS
THE FREE EXHIBITS AS A "TECHNOLOGY AND
ENTERTAINMENT MUSEUM FOR ALL AGES".
 SONY WONDER REPLACED INFOQUEST CENTER,
A PERMANENT TELECOMMUNICATIONS EXHIBITION
THAT HAD BEEN BUILT BY AT&T.
GLASS ATRIUM
TOP VIEW

30. ROBERT VENTURI
INTRODUCTION
HIS WORKS
VANNA VENTURI HOUSE,(1964), PENNSYLVANIA
ROBERT CHARLES VENTURI, JR. (BORN JUNE 25, 1925) IS AN AMERICAN ARCHITECT, FOUNDING
PRINCIPAL OF THE FIRM VENTURI, SCOTT BROWN AND ASSOCIATES, AND ONE OF THE MAJOR
ARCHITECTURAL FIGURES IN THE TWENTIETH CENTURY.
THEIR BUILDINGS, PLANNING, THEORETICAL WRITINGS AND TEACHING HAVE CONTRIBUTED TO THE
EXPANSION OF DISCOURSE ABOUT ARCHITECTURE.
VENTURI WAS AWARDED THE PRITZKER PRIZE IN ARCHITECTURE IN 1991
GUILD HOUSE, (1964), PHILADELPHIA
HE IS ALSO KNOWN FOR COINING THE MAXIM "LESS IS A BORE" A POSTMODERN ANTIDOTE TO MIES
VAN DER ROHE'S FAMOUS MODERNIST DICTUM "LESS IS MORE".
CHARACTERISTICS
 VENTURI'S BUILDINGS TYPICALLY JUXTAPOSE ARCHITECTURAL
SYSTEMS, ELEMENTS AND AIMS, TO ACKNOWLEDGE THE
CONFLICTS OFTEN INHERENT IN A PROJECT OR SITE
ROBERT VENTURI IS KNOWN FOR INCORPORATING STYLIZED
CULTURAL ICONS INTO HIS BUILDINGS.
SAINSBURY WING OF THE NATIONAL GALLERY,
(1991), LONDON
HOWEVER, VENTURI IS RECOGNIZED FOR MUCH MORE THAN
POSTMODERNIST DESIGNS.
UNIVERSITY OF DELAWARE, (1996),
USA
HE WROTE THE BOOK
―COMPLEXITY AND
CONTRADICTION IN
ARCHITECTURE‖ WHICH CHANGED
PEOPLE‘S VIEW ABOUT
ARCHITECTURE
THE FIRM HAS COMPLETED MORE THAN 400 PROJECTS, EACH
UNIQUELY SUITED TO THE SPECIAL NEEDS OF THE CLIENTS.

31. ROBERT VENTURI
VANNA VENTURI HOUSE
 THE VANNA VENTURI HOUSE, ONE OF THE FIRST PROMINENT WORKS OF THE
POSTMODERN ARCHITECTURE MOVEMENT, IS LOCATED IN THE NEIGHBORHOOD OF
CHESTNUT HILL IN PHILADELPHIA, PENNSYLVANIA.
 IT WAS DESIGNED BY ARCHITECT ROBERT VENTURI FOR HIS MOTHER VANNA VENTURI, AND
CONSTRUCTED BETWEEN 1962 -1964.
 THE HOUSE WAS SOLD IN 1973 AND REMAINS A PRIVATE RESIDENCE.
STRUCTURAL DETAILS
THE FIVE ROOM HOUSE STANDS ONLY ABOUT 30 FEET (9 M) TALL AT THE TOP OF THE
CHIMNEY, BUT HAS A MONUMENTAL FRONT FAÇADE.
 A NON-STRUCTURAL APPLIQUE ARCH AND "HOLE IN THE WALL" WINDOWS, AMONG OTHER
ELEMENTS, WERE CHALLENGE TO MODERNIST ORTHODOXY.
GENERAL INFORMATION
TYPE
RESIDENCE
ARCHITECTURAL STYLE POSTMODERN
TOWN OR CITY
PHILADELPHIA,
PENNSYLVANIA
COUNTRY
UNITED STATES
CONSTRUCTION
STARTED
1959 (DESIGN)
COMPLETED
1964
COST
$43,000
CLIENT
 THE HOUSE IS DESIGNED AROUND A CHIMNEY THAT IS CENTRALISED AND GOES ALL THE
WAY TO THE TOP OF THE HOUSE.
EXTERNALLY, THEY HOUSE IS BUILT SYMMETRICAL.
VENTURI HAS DISTORTED THIS IDEA OF SYMMETRY.
THERE IS ALSO A BASEMENT UNDERNEATH THE HOUSE THAT IS OFTEN NOT UNCOVERED BY
PEOPLE.
VANNA VENTURI
TECHNICAL DETAILS
STRUCTURAL SYSTEM
LIGHT WOOD FRAME
FLOOR COUNT
2 PLUS BASEMENT
FLOOR AREA
VIEW FROM THE SIDE (SOUTHEAST)
1,800 SQ FT (170 M2)
FLOOR PLANS OF VENTURI RESIDENCE
DESIGN AND CONSTRUCTION
ARCHITECT
ROBERT VENTURI
VIEW FROM THE REAR OF THE
HOUSE (SOUTH)

32. ROBERT VENTURI
VANNA VENTURI HOUSE
― I LIKE ELEMENTS WHICH ARE HYBRID RATHER THAN "PURE," COMPROMISING RATHER
THAN "CLEAR," DISTORTED RATHER THAN "STRAIGHTFORWARD."
- ROBERT VENTURI
ARCHITECTURAL FEATURES
DETAILED SECTION OF THE HOUSE
 THE BASIC ELEMENTS OF THE HOUSE ARE A REACTION AGAINST STANDARD MODERNIST
ARCHITECTURAL ELEMENTS:
- PITCHED ROOF RATHER THAN FLAT ROOF, EMPHASIS ON CENTRAL HEARTH & CHIMNEY,
CLOSED GROUND FLOOR "SET FIRMLY ON GROUND" RATHER THAN MODERNIST COLUMNS &
GLASS WALLS WHICH OPEN UP THE GROUND FLOOR.
-ON THE FRONT ELEVATION THE BROKEN PEDIMENT OR GABLE & A PURELY ORNAMENTAL
APPLIQUE ARCH REFLECT RETURN TO MANNERIST ARCHITECTURE AND A REJECTION OF
MODERNISM.
 HOUSE IS A COMPOSITION OF RECTANGULAR, CURVILINEAR, AND DIAGONAL ELEMENTS
COMING TOGETHER (OR SOMETIMES JUXTAPOSING EACH OTHER) IN A WAY THAT
INARGUABLY CREATES COMPLEXITY AND CONTRADICTION.
FRONT ELEVATION
IN ORDER TO CREATE MORE CONTRADICTION AND COMPLEXITY, VENTURI EXPERIMENTED
WITH SCALE. INSIDE THE HOUSE CERTAIN ELEMENTS ARE ―TOO BIG,‖ SUCH AS THE SIZE OF
THE FIREPLACE AND THE HEIGHT OF THE MANTEL COMPARED TO THE SIZE OF THE ROOM.
-DOORS ARE WIDE AND LOW IN HEIGHT, ESPECIALLY IN CONTRAST TO THE GRANDNESS OF
THE ENTRANCE SPACE.
- VENTURI ALSO MINIMIZED CIRCULATION SPACE IN THE DESIGN OF THE HOUSE, SO THAT IT
CONSISTED OF LARGE DISTINCT ROOMS WITH MINIMUM SUBDIVISIONS BETWEEN THEM.
REAR ELEVATION
FRONT GABLED ARCH
INTERIOR OF THE HOUSE
STAIRCASE LEADING TO UPPER FLOOR
DRAWING ROOM AREA

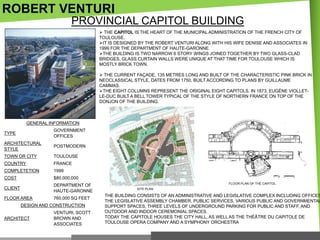

33. ROBERT VENTURI
PROVINCIAL CAPITOL BUILDING
 THE CAPITOL IS THE HEART OF THE MUNICIPAL ADMINISTRATION OF THE FRENCH CITY OF
TOULOUSE.
IT IS DESIGNED BY THE ROBERT VENTURI ALONG WITH HIS WIFE DENISE AND ASSOCIATES IN
1999 FOR THE DEPARTMENT OF HAUTE-GARONNE.
THE BUILDING IS TWO NARROW 6 STORY WINGS JOINED TOGETHER BY TWO GLASS-CLAD
BRIDGES, GLASS CURTAIN WALLS WERE UNIQUE AT THAT TIME FOR TOULOUSE WHICH IS
MOSTLY BRICK TOWN.
 THE CURRENT FAÇADE, 135 METRES LONG AND BUILT OF THE CHARACTERISTIC PINK BRICK IN
NEOCLASSICAL STYLE, DATES FROM 1750, BUILT ACCORDING TO PLANS BY GUILLAUME
CAMMAS.
THE EIGHT COLUMNS REPRESENT THE ORIGINAL EIGHT CAPITOLS. IN 1873, EUGÈNE VIOLLETLE-DUC BUILT A BELL TOWER TYPICAL OF THE STYLE OF NORTHERN FRANCE ON TOP OF THE
DONJON OF THE BUILDING.
GENERAL INFORMATION
TYPE
GOVERNMENT
OFFICES
ARCHITECTURAL
STYLE
POSTMODERN
TOWN OR CITY
TOULOUSE
COUNTRY
FRANCE
COMPLETETION
1999
COST
$80,000,000
CLIENT
DEPARTMENT OF
HAUTE-GARONNE
FLOOR AREA
760,000 SQ FEET
DESIGN AND CONSTRUCTION
ARCHITECT
VENTURI, SCOTT
BROWN AND
ASSOCIATES
FLOOR PLAN OF THE CAPITOL
SITE PLAN
THE BUILDING CONSISTS OF AN ADMINISTRATIVE AND LEGISLATIVE COMPLEX INCLUDING OFFICES
THE LEGISLATIVE ASSEMBLY CHAMBER, PUBLIC SERVICES, VARIOUS PUBLIC AND GOVERNMENTAL
SUPPORT SPACES, THREE LEVELS OF UNDERGROUND PARKING FOR PUBLIC AND STAFF, AND
OUTDOOR AND INDOOR CEREMONIAL SPACES.
TODAY THE CAPITOLE HOUSES THE CITY HALL, AS WELL AS THE THÉÂTRE DU CAPITOLE DE
TOULOUSE OPERA COMPANY AND A SYMPHONY ORCHESTRA

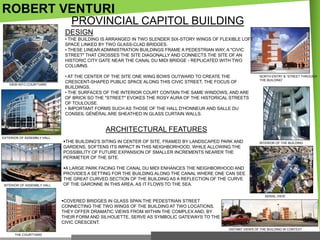

34. ROBERT VENTURI
PROVINCIAL CAPITOL BUILDING
DESIGN
• THE BUILDING IS ARRANGED IN TWO SLENDER SIX-STORY WINGS OF FLEXIBLE LOFT
SPACE LINKED BY TWO GLASS-CLAD BRIDGES.
• THESE LINEAR ADMINISTRATION BUILDINGS FRAME A PEDESTRIAN WAY, A "CIVIC
STREET" THAT CROSSES THE SITE DIAGONALLY AND CONNECTS THE SITE OF AN
HISTORIC CITY GATE NEAR THE CANAL DU MIDI BRIDGE - REPLICATED WITH TWO
COLUMNS.
VIEW INTO COURTYARD
• AT THE CENTER OF THE SITE ONE WING BOWS OUTWARD TO CREATE THE
CRESCENT-SHAPED PUBLIC SPACE ALONG THIS CIVIC STREET, THE FOCUS OF
BUILDINGS.
• THE SURFACES OF THE INTERIOR COURT CONTAIN THE SAME WINDOWS, AND ARE
OF BRICK SO THE "STREET" EVOKES THE ROSY AURA OF THE HISTORICAL STREETS
OF TOULOUSE.
• IMPORTANT FORMS SUCH AS THOSE OF THE HALL D'HONNEUR AND SALLE DU
CONSEIL GÉNÉRAL ARE SHEATHED IN GLASS CURTAIN WALLS.
NORTH ENTRY & ―STREET THROUGH
THE BUILDING‖
ARCHITECTURAL FEATURES
EXTERIOR OF ASSEMBLY HALL
INTERIOR OF ASSEMBLY HALL
THE BUILDING'S SITING IN CENTER OF SITE, FRAMED BY LANDSCAPED PARK AND
GARDENS, SOFTENS ITS IMPACT IN THIS NEIGHBORHOOD, WHILE ALLOWING THE
POSSIBILITY OF FUTURE EXPANSION OF SMALLER INCREMENTS NEARER THE
PERIMETER OF THE SITE.
INTERIOR OF THE BUILDING
A LARGE PARK FACING THE CANAL DU MIDI ENHANCES THE NEIGHBORHOOD AND
PROVIDES A SETTING FOR THE BUILDING ALONG THE CANAL WHERE ONE CAN SEE
THE GREAT CURVED SECTION OF THE BUILDING AS A REFLECTION OF THE CURVE
OF THE GARONNE IN THIS AREA, AS IT FLOWS TO THE SEA.
AERIAL VIEW
COVERED BRIDGES IN GLASS SPAN THE PEDESTRIAN STREET
CONNECTING THE TWO WINGS OF THE BUILDING AT TWO LOCATIONS.
THEY OFFER DRAMATIC VIEWS FROM WITHIN THE COMPLEX AND, BY
THEIR FORM AND SILHOUETTE, SERVE AS SYMBOLIC GATEWAYS TO THE
CIVIC CRESCENT.
DISTANT VIEWS OF THE BUILDING IN CONTEXT
THE COURTYARD

35. DECONSTRUCTIVISM
EVOLUTION
 DECONSTRUCTIVISM CAME TO PUBLIC NOTICE WITH
THE 1982 PARC DE LA VILLETTE ARCHITECTURAL
DESIGN COMPETITION (ESPECIALLY THE ENTRY FROM
JACQUES DERRIDA AND PETER EISENMAN AND
BERNARD TSCHUMI'S WINNING ENTRY).
THE MUSEUM OF MODERN ART‘S 1988
DECONSTRUCTIVIST ARCHITECTURE EXHIBITION IN
NEW YORK, ORGANIZED BY PHILIP JOHNSON AND
MARK WIGLEY.
INTRODUCTION
 DECONSTRUCTIVISM IS A DEVELOPMENT OF POSTMODERN ARCHITECTURE THAT
BEGAN IN THE LATE 1980S.
 IT IS INFLUENCED BY THE THEORY OF "DECONSTRUCTION‖ , WHICH IS A FORM OF
SEMIOTIC ANALYSIS.
CHRACTERISTICS
 IT IS CHARACTERIZED BY FRAGMENTATION, AN INTEREST IN MANIPULATING A
STRUCTURE'S SURFACE OR SKIN, NON-RECTILINEAR SHAPES WHICH APPEAR TO
DISTORT AND DISLOCATE ELEMENTS OF ARCHITECTURE, SUCH AS STRUCTURE
AND ENVELOPE.
THE FINISHED VISUAL APPEARANCE OF BUILDINGS THAT EXHIBIT
DECONSTRUCTIVIST "STYLES" IS CHARACTERIZED BY UNPREDICTABILITY AND
CONTROLLED CHAOS.
AND THE 1989 OPENING OF THE WEXNER CENTER
FOR THE ARTS IN COLUMBUS, DESIGNED BY PETER
EISENMAN.
ARCHITECTS PRACTICING DECONSTRUCTIVISM AREFRANK GEHRY, DANIEL LIBESKIND, REM KOOLHAAS,
PETER EISENMAN, ZAHA HADID, COOP HIMMELB(L)AU,
AND BERNARD TSCHUMI.
CHARACTERISTICS
DECONSTRUCTIVISM ATTEMPTS TO MOVE AWAY FROM THE SUPPOSEDLY
CONSTRICTING 'RULES' OF MODERNISM SUCH AS "FORM FOLLOWS
FUNCTION," "PURITY OF FORM," AND "TRUTH TO MATERIALS.―
IT WAS INFLUENCED BY THE FORMAL EXPERIMENTATION AND GEOMETRIC
IMBALANCES OF RUSSIAN CONSTRUCTIVISM.

36. FRANK OWEN GEHRY
ARCHITECTURAL
STYLE
 DECONSTRUCTIVISM IS FOLLOWED
IN HIS BUILDINGS.
 THE STRUCTURES DOES NOT
REFLECTS SOCIAL OR UNIVERSAL
IDEAS LIKE SPEED OR UNIVERSALITY
OF FORM.
FRANK OWEN GEHRY, (BORN FEBRUARY 28, 1929) IS A CANADIAN-AMERICAN PRITZKER PRIZEWINNING ARCHITECT BASED IN LOS ANGELES.
POST-STRUCTURALISM AS HIS
DESIGNS HAS ABILITY TO GO BEYOND
CURENT MODALITIES OF
STRUCTURAL DEFINITION.
• HIS BUILDINGS, INCLUDING HIS PRIVATE RESIDENCE, HAVE BECOME TOURIST ATTRACTIONS.
• HIS WORKS ARE CITED AS BEING AMONG THE MOST IMPORTANT WORKS OF CONTEMPORARY
ARCHITECTURE IN THE 2010 WORLD ARCHITECTURE SURVEY, WHICH LED VANITY FAIR TO
LABEL HIM AS "THE MOST IMPORTANT ARCHITECT OF OUR AGE".
 GEHRY‘S STYLE AT TIMES SEEMS
UNFINISHED OR EVEN CRUDE.
EARLY CAREER:
BUT HIS WORK IS CONSISTENT WITH
THE CALIFORNIA "FUNK" ART
MOVEMENT IN THE 1960S AND EARLY
1970S.
INTRODUCTION
 IT WAS HIS PRIVATE RESIDENCE IN SANTA MONICA, CALIFORNIA, THAT JUMP-STARTED HIS
CAREER, LIFTING IT FROM THE STATUS OF "PAPER ARCHITECTURE"—A PHENOMENON THAT
MANY FAMOUS ARCHITECTS HAVE EXPERIENCED IN THEIR FORMATIVE DECADES THROUGH
EXPERIMENTATION ALMOST EXCLUSIVELY ON PAPER BEFORE RECEIVING THEIR FIRST MAJOR
COMMISSION IN LATER YEARS.
THE MOVEMENT FEATURED THE USE
OF INEXPENSIVE FOUND OBJECTS
AND NON-TRADITIONAL MEDIA SUCH
AS CLAY TO MAKE SERIOUS ART.
SOME FAMOUS
WORKS
THE GUGGENHEIM MUSEUM IN
BILBAO, SPAIN
THE TOWER AT 8 SPRUCE STREET IN
LOWER MANHATTAN
WALT DISNEY CONCERT HALL
DANCING HOUSE IN
PRAGUE

37. FRANK OWEN GEHRY
GEHRY‘S RESIDENCE
INTRODUCTION
THE GEHRY RESIDENCE IS FRANK GEHRY'S OWN HOUSE.
IT WAS ORIGINALLY AN EXTENSION, DESIGNED BY GEHRY, BUILT AROUND THE EXISTING
HOUSE.
THE GEHRY RESIDENCE IS LOCATED IN SANTA MONICA, CALIFORNIA. IN 1977, FRANK AND
BERTA GEHRY BOUGHT A PINK BUNGALOW THAT WAS ORIGINALLY BUILT IN 1920.
 GEHRY WANTED TO EXPLORE WITH THE MATERIALS HE WAS ALREADY USING: METAL,
PLYWOOD, CHAIN LINK FENCING, AND WOOD FRAMING.
IN 1978, HE CHOSE TO WRAP THE OUTSIDE OF THE HOUSE WITH A NEW EXTERIOR WHILE
STILL LEAVING THE OLD EXTERIOR VISIBLE.
HE HARDLY TOUCHED THE REAR AND SOUTH FACADES AND TO THE OTHER SIDES OF THE
HOUSE HE WEDGED IN TITLED GLASS CUBES.
VIEW OF GEHRY RESIDENCE
GENERAL INFORMATION
CHARACETRISTICS:
TYPE
HOUSE
ARCHITECTURAL
STYLE
DECONSTRUCTIVIST
LOCATION
SANTA MONICA,
CALIFORNIA
IT MAKES USE OF UNCONVENTIONAL MATERIALS SUCH AS CHAIN LINK FENCES AND
CORRUGATED STEEL.
 IT IS SOMETIMES CONSIDERED ONE OF THE EARLIEST DECONSTRUCTIVIST BUILDINGS,
ALTHOUGH GEHRY HIMSELF DENIES THAT IT WAS DECONSTRUCTIVISM.
DESIGN AND CONSTRUCTION
ARCHITECT
FRANK GEHRY
CONSTRUCTION
1978
GROUND FLOOR PLAN OF THE GEHRY‘S RESIDENCE
3D VIEW OF THE HOUSE
AXNOMETRIC VIEW OF THE HOUSE
FIRST FLOOR PLAN
ELEVATION OF THE HOUSE

38. FRANK OWEN GEHRY
GEHRY‘S RESIDENCE
 GEHRY ACTUALLY DID KEEP THE EXISTING HOUSE ALMOST
COMPLETELY IN TACT, BUT NOT IN A CONVENTIONAL MANNER.
THE DUTCH COLONNIAL HOME WAS LEFT IN TACT AND THE NEW
HOUSE WAS BUILT AROUND IT.
HOLES WERE MADE, WALLS WERE STRIPPED, TORN DOWN AND
PUT UP, AND THE OLD QUIET HOUSE BECAME A LOUD SHRIEK OF
CONTEMPORARY STYLE AMONG THE NEIGHBORING MANSIONS.
 NEIGHBORS HATED IT, BUT THAT DID NOT CHANGE THE FACT
THAT THE HOUSE WAS A STATEMENT OF ART ENTWINED WITH
ARCHITECTURE.
DESIGN OF THE RESIDENCE
 THE ENTRANCE IS BARELY DISCERNIBLE AMIDST THE JUTTING
ANGLES OF THE EXTERIOR, WHICH GEHRY CREATED FROM WOOD,
GLASS, ALUMINUM, AND CHAIN-LINK FENCING.
 THE APEX OF THE OLD HOUSE PEEKS OUT FROM WITHIN THIS MIX
OF MATERIALS, GIVING THE IMPRESSION THAT THE HOUSE IS
CONSISTENTLY UNDER CONSTRUCTION.
EVEN THOUGH GEHRY TRIED TO MAINTAIN THE SAME STYLE OF
THE HOUSE, ALLOWING THE ORIGINAL DESIGN TO DETERMINE
THAT OF THE ADDITION, THE HOUSE WENT THROUGH SIGNIFICANT
CHANGES.
THE RESIDENCE BECAME MUCH MORE ―FINISHED‖.
GEHRY‘S IDEAS ABOUT THE RESIDENCE
―I LOVED THE IDEA OF LEAVING THE HOUSE INTACT… I CAME UP WITH THE
IDEA OF BUILDING THE NEW HOUSE AROUND IT. WE WERE TOLD THERE
WERE GHOSTS IN THE HOUSE… I DECIDED THEY WERE GHOSTS OF
CUBISM. THE WINDOWS… I WANTED TO MAKE THEM LOOK LIKE THEY WERE
CRAWLING OUT OF THIS THING. AT NIGHT, BECAUSE THIS GLASS IS TIPPED
IT MIRRORS THE LIGHT IN… SO WHEN YOU‘RE SITTING AT THIS TABLE YOU
SEE ALL THESE CARS GOING BY, YOU SEE THE MOON IN THE WRONG
PLACE… THE MOON IS OVER THERE BUT IT REFLECTS HERE… AND YOU
THINK IT‘S UP THERE AND YOU DON‘T KNOW WHERE THE HELL YOU ARE…‖ –
FRANK GEHRY
VIEWS OF GEHRY RESIDENCE

39. FRANK OWEN GEHRY
WALT DISNEY CONCERT HALL
INTRODUCTION
LOCATION
LOS ANGELES, CALIFORNIA
U.S.A.
TYPE
CONCERT HALL
BUILT
1999–2003
OPENED
OCTOBER 24, 2003
CONSTRUCTION
COST
$130 MILLION (PLUS $110
MILLION FOR PARKING
GARAGE)
SEATING TYPE
RESERVED
CAPACITY
2,265
ARCHITECT
 THE WALT DISNEY CONCERT HALL IN DOWNTOWN OF LOS ANGELES, CALIFORNIA, IS
THE FOURTH HALL OF THE LOS ANGELES MUSIC CENTER AND WAS DESIGNED BY FRANK
GEHRY.
 IT OPENED ON OCTOBER 24, 2003, IT SEATS 2,265 PEOPLE AND SERVES (AMONG OTHER
PURPOSES) AS THE HOME OF THE LOS ANGELES PHILHARMONIC ORCHESTRA AND THE
LOS ANGELES MASTER CHORALE.
BOTH GEHRY'S ARCHITECTURE AND THE ACOUSTICS OF THE CONCERT HALL,
DESIGNED BY YASUHISA TOYOTA, HAVE BEEN PRAISED, IN CONTRAST TO ITS
PREDECESSOR, THE DOROTHY CHANDLER PAVILION.
FRANK OWEN GEHRY
INITIAL SKETCH OF THE HALL BY GEHRY
SITE PLAN OF HALL
 THE PROJECT WAS LAUNCHED IN 1987, WHEN LILLIAN DISNEY,
WIDOW OF WALT DISNEY, DONATED $50 MILLION.
 FRANK GEHRY DELIVERED COMPLETED DESIGNS IN 1991.
 CONSTRUCTION OF THE UNDERGROUND PARKING GARAGE BEGAN
IN 1992 AND WAS COMPLETED IN 1996.
ADDITIONAL FUNDS WERE REQUIRED SINCE THE CONSTRUCTION
COST OF THE FINAL PROJECT FAR EXCEEDED THE ORIGINAL
BUDGET. PLANS WERE REVISED, AND IN A COST-SAVING MOVE THE
ORIGINALLY DESIGNED STONE EXTERIOR WAS REPLACED WITH A
LESS COSTLY METAL SKIN.
SITE PLAN OF HALLSEATING PLAN OF THE HALL
VIEW OF THE CONCERT HALL

40. FRANK OWEN GEHRY
WALT DISNEY CONCERT HALL
 THE STAINLESS STEEL CURVES OF THE WALT DISNEY CONCERT HALL BY
FRANK GEHRY SHINE IN THE SOUTHERN CALIFORNIA SUN.
THEY SHINE IN QUICK FLASHES GLIMPSED THROUGH NONDESCRIPT HIGHRISES, THROWING FORTUITOUS REFLECTIONS AMONG THE SHADOWS.
 THE TALLER FORMS STRETCH UP AND OUT TOWARD THE CITY, WHILE THE
LOWER FORMS BEND DOWN TOWARD PASSERS BY.
THE BUILDING IS A STUNNING PIECE OF ARCHITECTURE, RIPE FOR
METAPHORIC INTERPRETATIONS RANGING FROM BLOOMING FLOWER TO
SAILING SHIP.
THE MAIN AUDITORIUM, DESIGNED BY YASUHISA TOYOTA OF NAGATA
ACOUSTICS, IS BEING LAUDED FOR ITS ACOUSTIC QUALITY.
THE BUILDING'S VERY EXISTENCE IS A MIRACLE OF LOGISTICS AND
PERSEVERANCE.
FEW IMAGES OF THE HALL
DESIGN AND ACOUSTICS OF THE HALL
 THE WALLS OF THE THEATRE, JUST LIKE THE EXTERIOR, LACK RIGHT ANGLES AND FLAT SHAPES.
 THE BACK OF THE HALL BEHIND THE STAGE IS MADE OF THE SAME WOOD AS THE SIDEWALLS AND THE
ROOF BUT HAS DIFFERENT SHAPE AND DESIGN.
 SOME OF THE WALLS OF THE HALL HAVE FABRIC ON THEM THAT ARE COVERED BY SMALL 1X1 WOOD
SQUARES THAT ACT AS DIFFUSERS.
THE COMBINATION OF REFLECTIVE AND ABSORPTIVE MATERIALS USED IN THE HALL MAKES FOR A
CONVEX—OR OUTWARDLY BULGING—CURVES CAN
BE VERY EFFECTIVE, BOUNCING AND DISPERSING ROOM THAT IS A PERFECT BALANCE.
SOUND WAVES PRODUCED BY AN ORCHESTRA.
THE FLOOR OF THE STAGE IS MADE OUT OF BEAUTIFUL CEDAR WOOD AND FEATURES FOUR
CONCENTRIC CIRCLES THAT ARE SET ON RISERS, WHICH CAN BE RAISED OR LOWERED WITH LIFTS
UNDER THE STAGE.
THIS ALLOWS A GREAT DEAL OF FLEXIBILITY IN PERFORMANCES AS DIFFERENT SECTIONS OF THE
ORCHESTRA CAN BE PLACED HIGHER THAN OTHERS SO THEY CAN BE HEARD MORE EASILY.
THE BOTTOMS OF THE CHAIRS WERE SPECIFICALLY CREATED TO HAVE FABRIC ON THE BOTTOM
PANELS RATHER THAN METAL.
