This document discusses how to build mobile games using Google App Engine and Cloud Endpoints. It provides an overview of key components for mobile gaming solutions including client apps, a backend API, and communication between them. Specific features and services are highlighted like push notifications, image serving, scheduled jobs, and using Memcache to optimize data access. The document also discusses Firebase and how it can be integrated with App Engine and Managed VMs for mobile and web applications.

1. 최명근 - mgchoi@google.com
Cloud Sales Engineer
Google Cloud Platform Workshop

2. 01 Google Cloud Platform

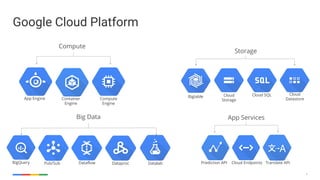

3. 3
BigQuery
Big Data
Pub/Sub Dataflow Dataproc Datalab
Compute
Compute
Engine
App Engine Container
Engine
App Services
Cloud EndpointsPrediction API Translate API
Storage
Cloud
Storage
Cloud SQL Cloud
Datastore
Bigtable
Google Cloud Platform

4. Building what’s next 4
70 edge locations
33 countries
The broadest reaching network
of any Cloud Provider
Google-Grade Networking

5. Live Migration = No Downtime

6. GCE Custom Machine Types
Average Savings: 19%

7. Unique GCE Capabilities
Industry-leading IO performance
Per-minute billing & Sustained Use Discounts
Super-fast startup times: 1000 VMs in < 5 minutes
High throughput to storage at no extra cost
NEW: Resize disks with no downtime

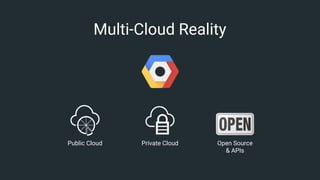

8. Multi-Cloud Reality
Public Cloud Private Cloud Open Source
& APIs

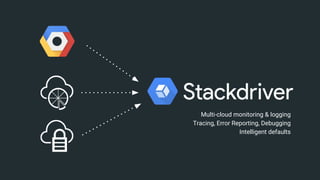

9. Multi-cloud monitoring & logging
Tracing, Error Reporting, Debugging
Intelligent defaults

10. Apps
Kubernetes
Builds on our 10 years of container management
Designed for multi-cloud
Broad industry support

11. 02 Mobile Game Pattern on GCP

12. 12

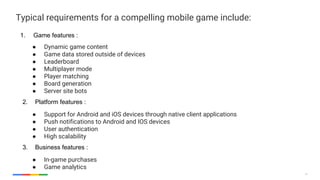

Typical requirements for a compelling mobile game include:
1. Game features :
● Dynamic game content
● Game data stored outside of devices
● Leaderboard
● Multiplayer mode
● Player matching
● Board generation
● Server site bots
2. Platform features :
● Support for Android and iOS devices through native client applications
● Push notifications to Android and IOS devices
● User authentication
● High scalability
3. Business features :
● In-game purchases
● Game analytics

13. 13

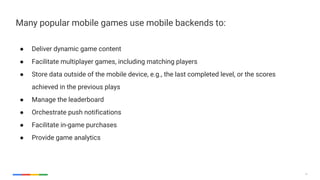

Many popular mobile games use mobile backends to:
● Deliver dynamic game content
● Facilitate multiplayer games, including matching players
● Store data outside of the mobile device, e.g., the last completed level, or the scores
achieved in the previous plays
● Manage the leaderboard
● Orchestrate push notifications
● Facilitate in-game purchases
● Provide game analytics

14. 14

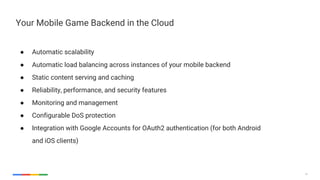

Your Mobile Game Backend in the Cloud
● Automatic scalability
● Automatic load balancing across instances of your mobile backend
● Static content serving and caching
● Reliability, performance, and security features
● Monitoring and management
● Configurable DoS protection
● Integration with Google Accounts for OAuth2 authentication (for both Android
and iOS clients)

15. 15

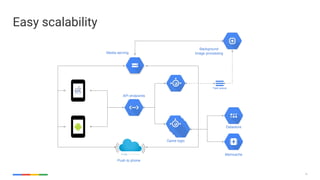

Easy scalability
Task queue
Background
Image processingMedia serving
API endpoints
Push to phone
Game logic
Datastore
Memcache

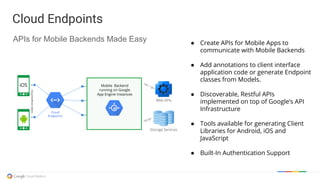

16. Mobile Backend
running on Google
App Engine Instances
iOS
CloudEndPointClients
Cloud Endpoints
● Create APIs for Mobile Apps to
communicate with Mobile Backends
● Add annotations to client interface
application code or generate Endpoint
classes from Models.
● Discoverable, Restful APIs
implemented on top of Google’s API
Infrastructure
● Tools available for generating Client
Libraries for Android, iOS and
JavaScript
● Built-In Authentication Support
APIs for Mobile Backends Made Easy
Storage Services
Web APIs
Cloud
Endpoints

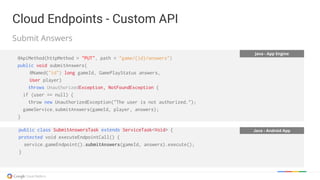

17. Java - App Engine
@ApiMethod(httpMethod = "PUT", path = "game/{id}/answers")
public void submitAnswers(
@Named("id") long gameId, GamePlayStatus answers,
User player)
throws UnauthorizedException, NotFoundException {
if (user == null) {
throw new UnauthorizedException("The user is not authorized.");
gameService.submitAnswers(gameId, player, answers);
}
Java - Android Apppublic class SubmitAnswersTask extends ServiceTask<Void> {
protected void executeEndpointCall() {
service.gameEndpoint().submitAnswers(gameId, answers).execute();
}
Cloud Endpoints - Custom API
Submit Answers
Cloud Endpoints - Custom API

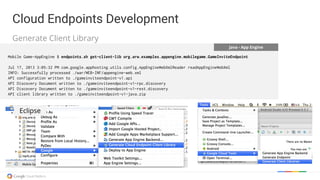

18. Java - App Engine
Mobile Game-AppEngine $ endpoints.sh get-client-lib org.arw.examples.appengine.mobilegame.GameInviteEndpoint
Jul 17, 2013 3:05:32 PM com.google.apphosting.utils.config.AppEngineWebXmlReader readAppEngineWebXml
INFO: Successfully processed ./war/WEB-INF/appengine-web.xml
API configuration written to ./gameinviteendpoint-v1.api
API Discovery Document written to ./gameinviteendpoint-v1-rpc.discovery
API Discovery Document written to ./gameinviteendpoint-v1-rest.discovery
API client library written to ./gameinviteendpoint-v1-java.zip
Eclipse
Cloud Endpoints Development
Generate Client Library
Cloud Endpoints Development

19. 19

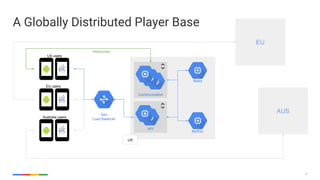

A Globally Distributed Player Base
US users
EU users
Australia users
Communication
MySQL
Redis
API
US
EU
AUS
Websocket
Geo
Load Balancer

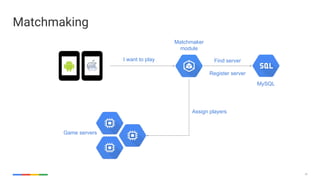

20. 20
Matchmaking
MySQL
Game servers
Matchmaker
module
Find server
Register server
I want to play
Assign players

21. 21

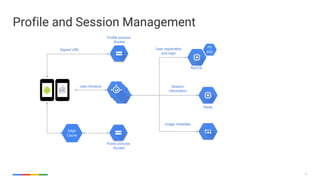

Profile and Session Management
MySQL
Signed URL
Profile pictures
Bucket
Edge
Cache
Public pictures
Bucket
Session
information
Redis
User registration
and login
User frontend
PD
SSD
Image metadata

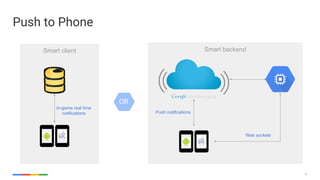

22. 22
Smart client Smart backend
Push to Phone
Web sockets
In-game real time
notifications Push notifications
OR

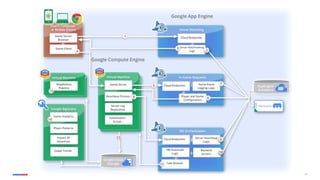

23. 23

24. 03 How to build mobile games using
App Engine and Cloud Endpoints ?

25. 25
Griddler - multiplayer riddle mobile game

26. 26

27. 27

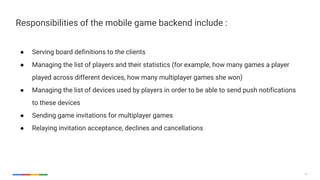

Responsibilities of the mobile game backend include :
● Serving board definitions to the clients
● Managing the list of players and their statistics (for example, how many games a player
played across different devices, how many multiplayer games she won)
● Managing the list of devices used by players in order to be able to send push notifications
to these devices
● Sending game invitations for multiplayer games
● Relaying invitation acceptance, declines and cancellations

28. 28

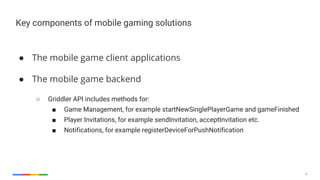

Key components of mobile gaming solutions
● The mobile game client applications
● The mobile game backend
○ Griddler API includes methods for:
■ Game Management, for example startNewSinglePlayerGame and gameFinished
■ Player Invitations, for example sendInvitation, acceptInvitation etc.
■ Notifications, for example registerDeviceForPushNotification

29. 29
Communication between clients apps and your mobile game backend
@Api annotation
API call from the client

30. 30

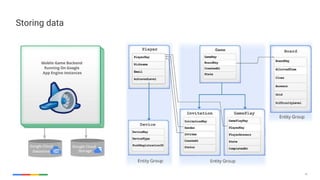

Storing data

31. 31

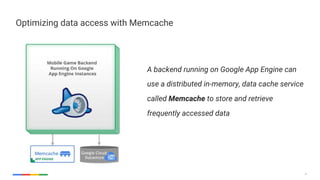

Optimizing data access with Memcache
A backend running on Google App Engine can
use a distributed in-memory, data cache service
called Memcache to store and retrieve
frequently accessed data

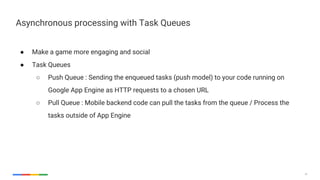

32. 32
● Make a game more engaging and social
● Task Queues
○ Push Queue : Sending the enqueued tasks (push model) to your code running on
Google App Engine as HTTP requests to a chosen URL
○ Pull Queue : Mobile backend code can pull the tasks from the queue / Process the
tasks outside of App Engine
Asynchronous processing with Task Queues

33. 33

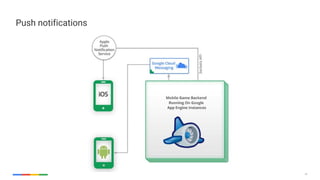

Push notifications

34. 34

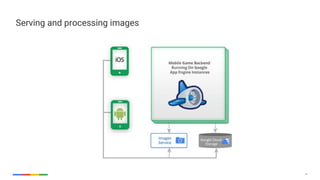

Serving and processing images

35. 35
Scheduled jobs

36. 36

37. 37
Firebase is a powerful platform for
mobile and web applications.

38. Static HostingRealtime Database User Authentication

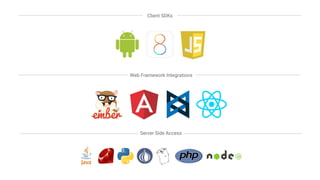

39. Web Framework Integrations
Server Side Access
Client SDKs

40. Realtime Database
NoSQL JSON database

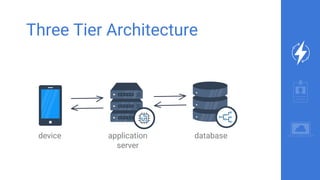

41. Three Tier Architecture
device application
server
database

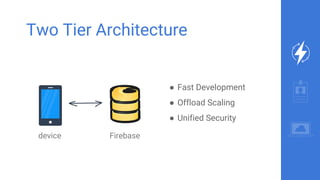

42. Two Tier Architecture
Firebasedevice
● Fast Development
● Offload Scaling
● Unified Security

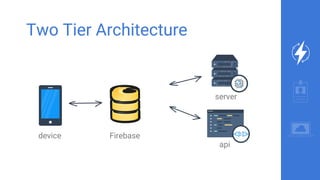

43. Two Tier Architecture
Firebasedevice
server
api

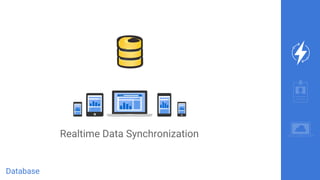

44. Database
Realtime Data Synchronization

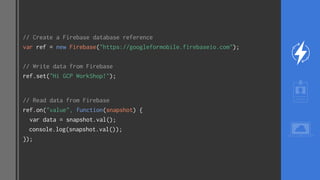

45. // Create a Firebase database reference
var ref = new Firebase("https://googleformobile.firebaseio.com");
// Write data from Firebase
ref.set("Hi GCP WorkShop!");
// Read data from Firebase
ref.on("value", function(snapshot) {
var data = snapshot.val();
console.log(snapshot.val());
});

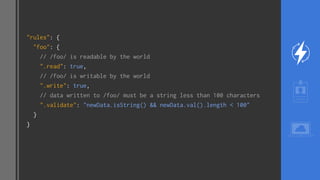

46. "rules": {
"foo": {
// /foo/ is readable by the world
".read": true,
// /foo/ is writable by the world
".write": true,
// data written to /foo/ must be a string less than 100 characters
".validate": "newData.isString() && newData.val().length < 100"
}
}

47. Database: Offline Native

48. Database: Offline Native

49. Database: Offline Native

50. Authentication

51. Authentication
Email & Password
Third Party Providers
(Google, Facebook, Twitter, GitHub)

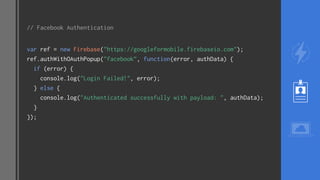

52. // Facebook Authentication
var ref = new Firebase("https://googleformobile.firebaseio.com");
ref.authWithOAuthPopup("facebook”, function(error, authData) {
if (error) {
console.log("Login Failed!", error);
} else {
console.log("Authenticated successfully with payload: ", authData);
}
});

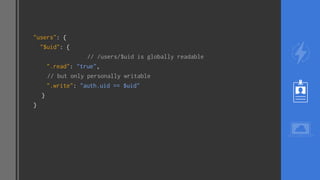

53. "users": {
"$uid": {
// /users/$uid is globally readable
".read": "true",
// but only personally writable
".write": "auth.uid == $uid"
}
}

54. Hosting

55. Hosting
SSL by default
Backed by a global CDN
Custom domain support

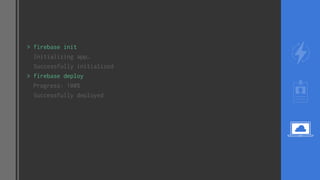

56. > firebase init
Initializing app…
Successfully initialized
> firebase deploy
Progress: 100%
Successfully deployed

57. Let’s write some code!

58. 58
Firebase and Google App Engine

59. 59

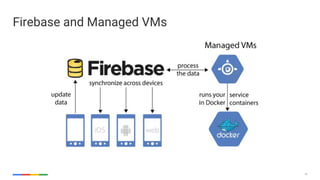

Firebase and Managed VMs

60. 60
Resources
Firebase docs: firebase.com/docs
Cloud docs : cloud.google.com/docs
Join the discussion
bit.ly/gcp-slack bit.ly/gcp-githubbit.ly/gcp-twitter gcpug.kr
