The document describes the Toolkit_MTD package, which contains tools extracted from the larger Science Data Processing (SDP) Toolkit. Toolkit_MTD allows extended data providers to format products in Earth Observing System (EOS) standard formats without requiring the full SDP Toolkit. It contains tools for working with metadata and converting between time/date formats. Examples demonstrate initializing metadata files, setting attribute values, and writing metadata to HDF and ASCII files.

1. EOS
DATA INFORMATION SYSTEM
EARTH PROBES
NASA'S MISSION TO PLANET EARTH
EARTH OBSERVING SYSTEM
Metadata/Time-Date Tools
(Toolkit_MTD)
Abe Taaheri , Megan Donovan Spencer , Larry Klein
(Space Applications Corp.)
Doug Ilg (RSTX)
September 23, 1998

2. NASA'S MISSION TO PLANET EARTH
EARTH PROBES
DATA INFORMATION SYSTEM

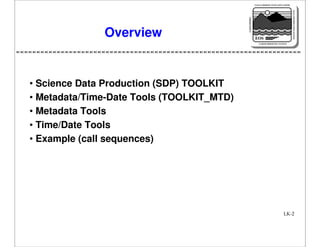

Overview
EOS
EARTH OBSERVING SYSTEM
• Science Data Production (SDP) TOOLKIT
• Metadata/Time-Date Tools (TOOLKIT_MTD)
• Metadata Tools
• Time/Date Tools
• Example (call sequences)
LK-2

3. NASA'S MISSION TO PLANET EARTH
EARTH PROBES
DATA INFORMATION SYSTEM
SDP TOOLKIT
EOS
EARTH OBSERVING SYSTEM
• SDP TOOLKIT is an interface between EOS instrument data
producing software and the ECS production archival system.
• Besides the tools handling metadata and time/date conversion, it
includes many other tools such as :
- File I/O tools (IO)
- Error/Status Reporting (SMF)
- Process Control Tools (PC)
- Shared Memory Management Tools (MEM)
- Spacecraft Ephemeris and Attitude Data Access Tools (EPH)
- Digital Elevation Model Tools (DEM)
- Ancillary Data Tools (AA)
- Celestial Body Position Tools (CBP)
- Geo-Coordinate Transformation Tools (GCT)
LK-3

4. NASA'S MISSION TO PLANET EARTH
EARTH PROBES
DATA INFORMATION SYSTEM

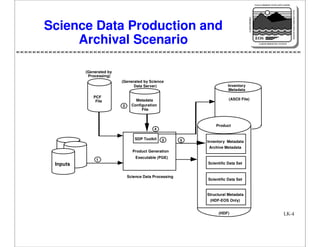

Science Data Production and
Archival Scenario
EOS
EARTH OBSERVING SYSTEM
(Generated by
Processing)
(Generated by Science
Data Server)
PCF
File
2
Inventory
Metadata
(ASCII File)
Metadata
Configuration
File
Product
4
SDP Toolkit
3
5
Inventory Metadata
Archive Metadata
Product Generation
1
Executable (PGE)
Scientific Data Set
Inputs
Science Data Processing
Scientific Data Set
Structural Metadata
(HDF-EOS Only)
(HDF)
LK-4

5. NASA'S MISSION TO PLANET EARTH
EARTH PROBES
DATA INFORMATION SYSTEM
SDP TOOLKIT (cont.)
EOS
EARTH OBSERVING SYSTEM

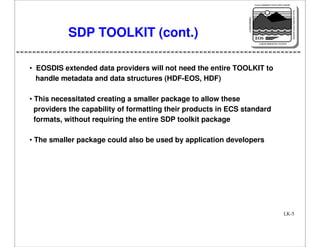

• EOSDIS extended data providers will not need the entire TOOLKIT to
handle metadata and data structures (HDF-EOS, HDF)
• This necessitated creating a smaller package to allow these
providers the capability of formatting their products in ECS standard
formats, without requiring the entire SDP toolkit package
• The smaller package could also be used by application developers
LK-5

6. NASA'S MISSION TO PLANET EARTH
EARTH PROBES
DATA INFORMATION SYSTEM
Toolkit_MTD
EOS
EARTH OBSERVING SYSTEM
• Tools relevant to metadata and time/date conversion tools are
extracted from Science Data Processing (SDP) Toolkit
• Process Control File, that contains Process Control information
for I/O, is replaced by a short file mapping logical identifiers to
physical file names
• Errors are reported as in HDF and HDFEOS
• Installation Scripts are modified for quick installation of HDF,
HDFEOS, and Toolkit_MTD
• New functionality added to read Metadata from ASCII file
• Tested on SUN and SGI platforms, will be ported to other unix
platforms; HP, DEC, IBM, and also Windows and Mac
LK-6

7. NASA'S MISSION TO PLANET EARTH
EARTH PROBES
DATA INFORMATION SYSTEM
Metadata Tools
EOS
EARTH OBSERVING SYSTEM
• PGS_MET_SetFileId()
Sets logical IDs assigned for the user defined files.
• PGS_MET_GetFileId(char *filename)
Retrieves logical ID assigned for a file.
• PGS_MET_Init(PGSt_PC_Logical
PGSt_MET_all_handles
Initializes MCF file containing metadata.
fileId,
mdHandles)
• PGS_MET_Init_NonMCF(PGSt_PC_Logical
fileId,
PGSt_MET_all_handles mdHandles)
Initializes an ASCII file containing metadata.
LK-7

8. NASA'S MISSION TO PLANET EARTH
EARTH PROBES
DATA INFORMATION SYSTEM
Metadata Tools (cont.)
EOS
EARTH OBSERVING SYSTEM

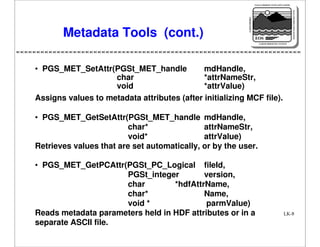

• PGS_MET_SetAttr(PGSt_MET_handle
mdHandle,
char
*attrNameStr,
void
*attrValue)
Assigns values to metadata attributes (after initializing MCF file).
• PGS_MET_GetSetAttr(PGSt_MET_handle mdHandle,
char*
attrNameStr,
void*
attrValue)
Retrieves values that are set automatically, or by the user.
• PGS_MET_GetPCAttr(PGSt_PC_Logical fileId,
PGSt_integer
version,
char
*hdfAttrName,
char*
Name,
void *
parmValue)
Reads metadata parameters held in HDF attributes or in a
separate ASCII file.
LK-8

9. NASA'S MISSION TO PLANET EARTH
EARTH PROBES
DATA INFORMATION SYSTEM
Metadata Tools (cont.)
EOS
EARTH OBSERVING SYSTEM

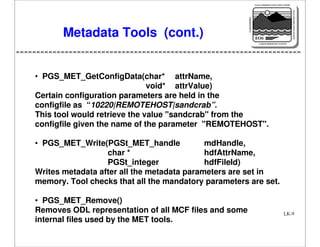

• PGS_MET_GetConfigData(char* attrName,
void* attrValue)
Certain configuration parameters are held in the
configfile as “10220|REMOTEHOST|sandcrab”.
This tool would retrieve the value "sandcrab" from the
configfile given the name of the parameter "REMOTEHOST".
• PGS_MET_Write(PGSt_MET_handle
mdHandle,
char *
hdfAttrName,
PGSt_integer
hdfFileId)
Writes metadata after all the metadata parameters are set in
memory. Tool checks that all the mandatory parameters are set.
• PGS_MET_Remove()
Removes ODL representation of all MCF files and some
internal files used by the MET tools.
LK-9

10. NASA'S MISSION TO PLANET EARTH
EARTH PROBES
DATA INFORMATION SYSTEM
Time/Date Tools
EOS
EARTH OBSERVING SYSTEM
• PGS_TD_UTCtoTAI( char
asciiUTC[28],
PGSt_double *secTAI93 )
Converts UTC time in CCSDS ASCII Time Code (A or B format)
to Toolkit internal time (real continuous seconds since
12AM UTC 1-1-93).
• PGS_TD_TAItoUTC( PGSt_double secTAI93,
char
asciiUTC[28])
Converts Toolkit internal time (real continuous seconds
since 12AM UTC 1-1-93) to UTC time in CCSDS ASCII
Time Code A format.
LK-10

11. NASA'S MISSION TO PLANET EARTH
EARTH PROBES
DATA INFORMATION SYSTEM
Time/Date Tools (cont.)
EOS
EARTH OBSERVING SYSTEM
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•

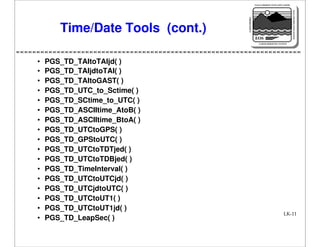

PGS_TD_TAItoTAIjd( )
PGS_TD_TAIjdtoTAI( )
PGS_TD_TAItoGAST( )
PGS_TD_UTC_to_Sctime( )
PGS_TD_SCtime_to_UTC( )
PGS_TD_ASCIItime_AtoB( )
PGS_TD_ASCIItime_BtoA( )
PGS_TD_UTCtoGPS( )
PGS_TD_GPStoUTC( )
PGS_TD_UTCtoTDTjed( )
PGS_TD_UTCtoTDBjed( )
PGS_TD_TimeInterval( )
PGS_TD_UTCtoUTCjd( )
PGS_TD_UTCjdtoUTC( )
PGS_TD_UTCtoUT1( )
PGS_TD_UTCtoUT1jd( )
PGS_TD_LeapSec( )
LK-11

12. NASA'S MISSION TO PLANET EARTH
EARTH PROBES
DATA INFORMATION SYSTEM
Example
EOS
EARTH OBSERVING SYSTEM

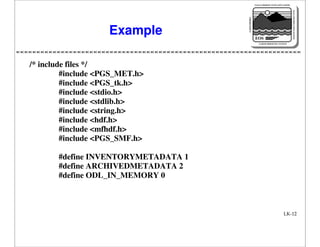

/* include files */
#include <PGS_MET.h>
#include <PGS_tk.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <hdf.h>
#include <mfhdf.h>
#include <PGS_SMF.h>
#define INVENTORYMETADATA 1
#define ARCHIVEDMETADATA 2
#define ODL_IN_MEMORY 0
LK-12

13. NASA'S MISSION TO PLANET EARTH
EARTH PROBES
DATA INFORMATION SYSTEM
Example (cont.)
EOS
EARTH OBSERVING SYSTEM

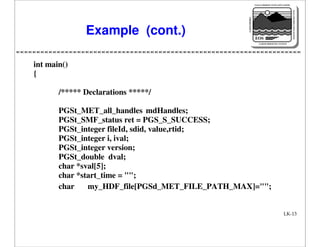

int main()
{
/***** Declarations *****/
PGSt_MET_all_handles mdHandles;
PGSt_SMF_status ret = PGS_S_SUCCESS;
PGSt_integer fileId, sdid, value,rtid;
PGSt_integer i, ival;
PGSt_integer version;
PGSt_double dval;
char *sval[5];
char *start_time = "";
char
my_HDF_file[PGSd_MET_FILE_PATH_MAX]="";
LK-13

14. NASA'S MISSION TO PLANET EARTH
EARTH PROBES
DATA INFORMATION SYSTEM
Example (cont.)
EOS
EARTH OBSERVING SYSTEM
/**********************************

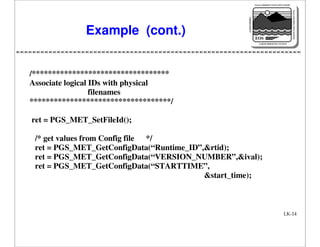

Associate logical IDs with physical
filenames
***********************************/
ret = PGS_MET_SetFileId();
/* get values from Config file */
ret = PGS_MET_GetConfigData(“Runtime_ID”,&rtid);
ret = PGS_MET_GetConfigData(“VERSION_NUMBER”,&ival);
ret = PGS_MET_GetConfigData(“STARTTIME”,
&start_time);
LK-14

15. NASA'S MISSION TO PLANET EARTH
EARTH PROBES
DATA INFORMATION SYSTEM
Example (cont.)
EOS
EARTH OBSERVING SYSTEM

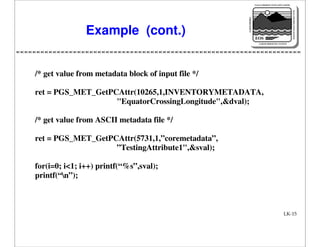

/* get value from metadata block of input file */
ret = PGS_MET_GetPCAttr(10265,1,INVENTORYMETADATA,
"EquatorCrossingLongitude",&dval);
/* get value from ASCII metadata file */
ret = PGS_MET_GetPCAttr(5731,1,”coremetadata”,
”TestingAttribute1",&sval);
for(i=0; i<1; i++) printf(“%s”,sval);
printf(“n”);
LK-15

16. NASA'S MISSION TO PLANET EARTH
EARTH PROBES
DATA INFORMATION SYSTEM
Example (cont.)
EOS
EARTH OBSERVING SYSTEM
/* Initialize MCF file */
fileId = 10250;
ret = PGS_MET_Init(fileId,mdHandles);
if (ret !=PGS_S_SUCCESS)
{
printf("initialization failedn");
exit(1);
}
/* assign value to attribute in MCF */
ret = PGS_MET_SetAttr(mdHandles[1],
"LocalVersionID",&ival);
LK-16

17. NASA'S MISSION TO PLANET EARTH
EARTH PROBES
DATA INFORMATION SYSTEM
Example (cont.)
EOS
EARTH OBSERVING SYSTEM
ret = PGS_MET_SetAttr(mdHandles[1],
”EquatorCrossingLongitude",&dval);
ret = PGS_MET_SetAttr(mdHandles[1],
”RANGEBEGININGDATETIME",&start_time);
ret = PGS_MET_SetAttr(mdHandles[1],
"ParameterValue.1",57.5)
/* assign value to attribute in MCF
in Archive block
*/
ret = PGS_MET_SetAttr(mdHandles[2],
"Runtime_ID",&rtid);
LK-17

18. NASA'S MISSION TO PLANET EARTH
EARTH PROBES
DATA INFORMATION SYSTEM
Example (cont.)
EOS
EARTH OBSERVING SYSTEM
/* Read back in value of attribute in memory */
ret = PGS_MET_GetSetAttr(mdHandles[2],
"Runtime_ID",&rtid);
/* Write metadata to HDF and ASCII files */
version =1;
fileId = 5039;
ret = PGS_PC_GetReference(fileId,
&version, my_HDF_file);
if (ret == PGS_S_SUCCESS)
{
sdid = SDstart(my_HDF_file,DFACC_CREATE);
}
LK-18

19. NASA'S MISSION TO PLANET EARTH
EARTH PROBES
DATA INFORMATION SYSTEM
Example (cont.)
EOS
EARTH OBSERVING SYSTEM

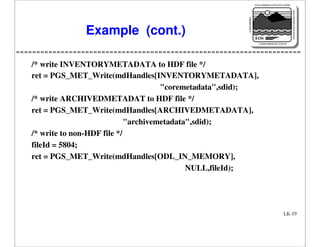

/* write INVENTORYMETADATA to HDF file */
ret = PGS_MET_Write(mdHandles[INVENTORYMETADATA],
"coremetadata",sdid);
/* write ARCHIVEDMETADAT to HDF file */
ret = PGS_MET_Write(mdHandles[ARCHIVEDMETADATA],
"archivemetadata",sdid);
/* write to non-HDF file */
fileId = 5804;
ret = PGS_MET_Write(mdHandles[ODL_IN_MEMORY],
NULL,fileId);
LK-19

20. NASA'S MISSION TO PLANET EARTH
EARTH PROBES
DATA INFORMATION SYSTEM
Example (cont.)
EOS
EARTH OBSERVING SYSTEM
/* write to default non-HDF file */
ret = PGS_MET_Write(mdHandles[ODL_IN_MEMORY],
NULL, NULL);
SDend(sdid);
/* Remove MCF from memory */
ret = PGS_MET_Remove();
}
LK-20
