SlideShare a Scribd company logo
Fabio Filardi
Dynamics AX Technical Architect
ffilardi@msbsgroup.com
Microsoft Dynamics AX 2012
Development Introduction


                             Features


                             Architecture


                             Data Dictionary


                             User Interface


                             X++ Intro


                             X++ Control Statements


                             Objects and Classes


                             Accessing the Database


                             Exception Handling

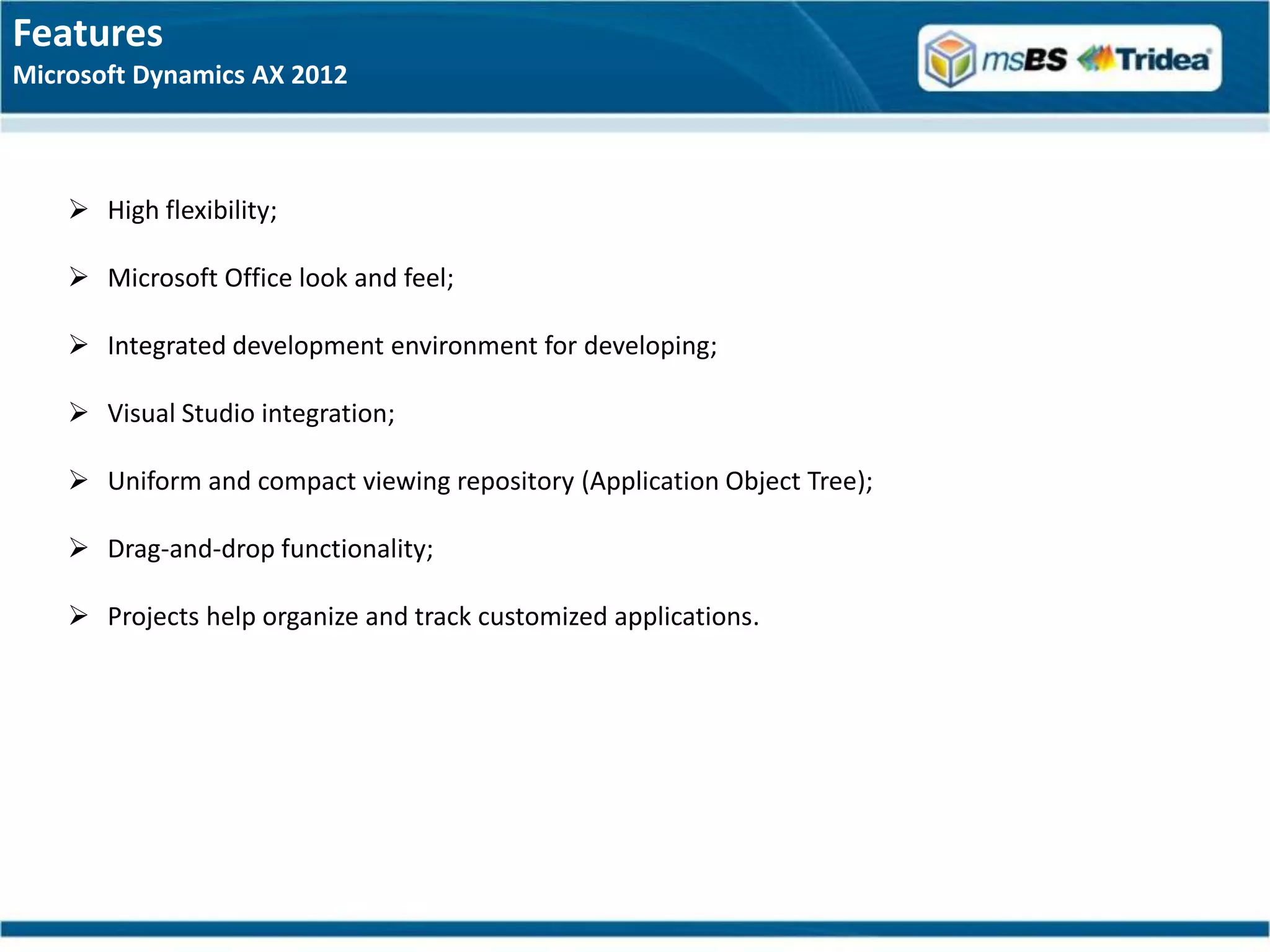

Features
Microsoft Dynamics AX 2012



     High flexibility;

     Microsoft Office look and feel;

     Integrated development environment for developing;

     Visual Studio integration;

     Uniform and compact viewing repository (Application Object Tree);

     Drag-and-drop functionality;

     Projects help organize and track customized applications.

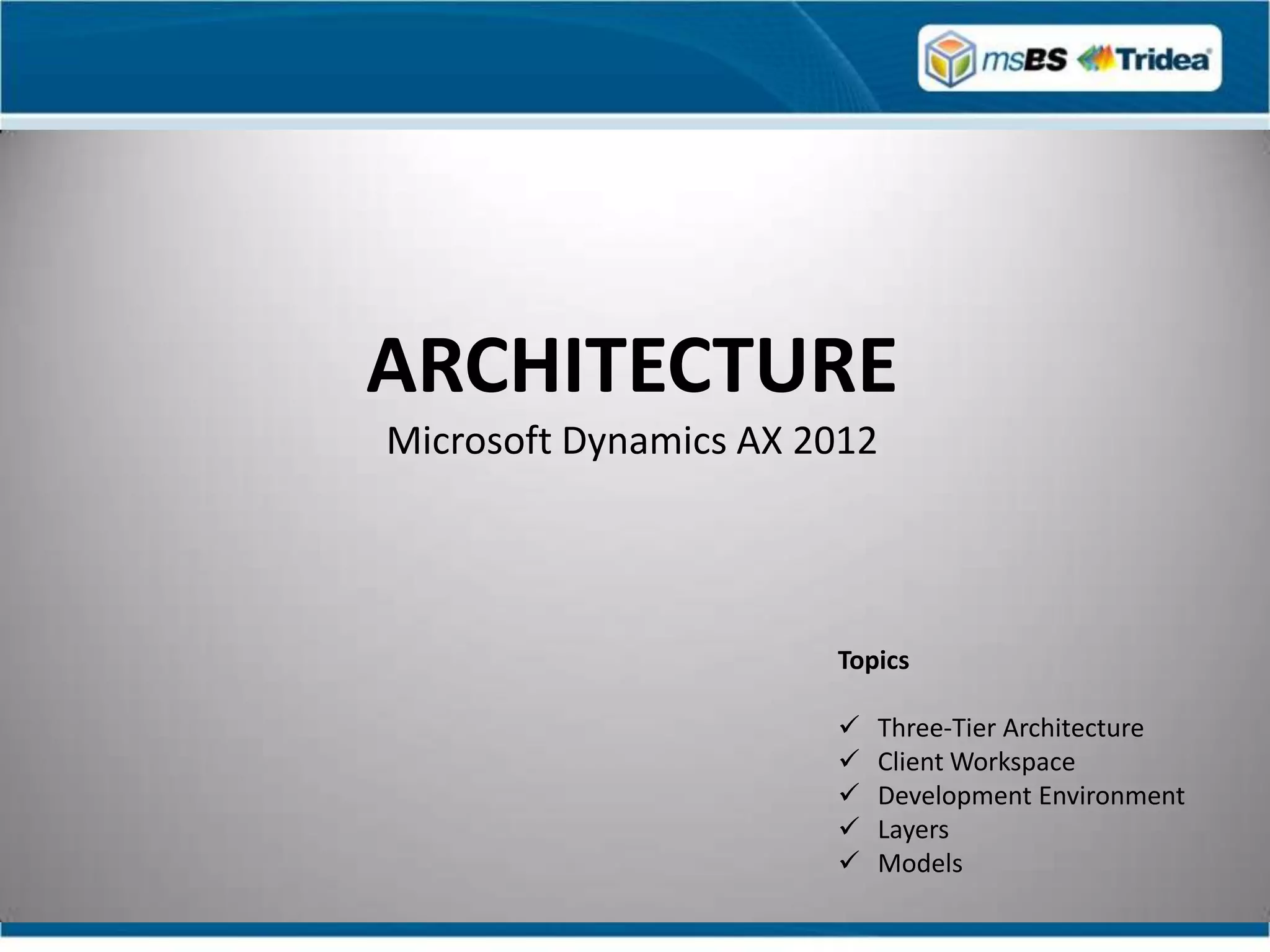

ARCHITECTURE
Microsoft Dynamics AX 2012




                       Topics

                          Three-Tier Architecture
                          Client Workspace
                          Development Environment
                          Layers
                          Models
Architecture
Microsoft Dynamics AX 2012

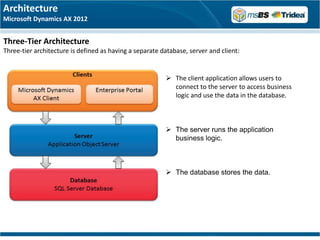

Three-Tier Architecture
Three-tier architecture is defined as having a separate database, server and client:


                                                          The client application allows users to
                                                           connect to the server to access business
                                                           logic and use the data in the database.



                                                          The server runs the application
                                                           business logic.



                                                          The database stores the data.
Architecture
Microsoft Dynamics AX 2012

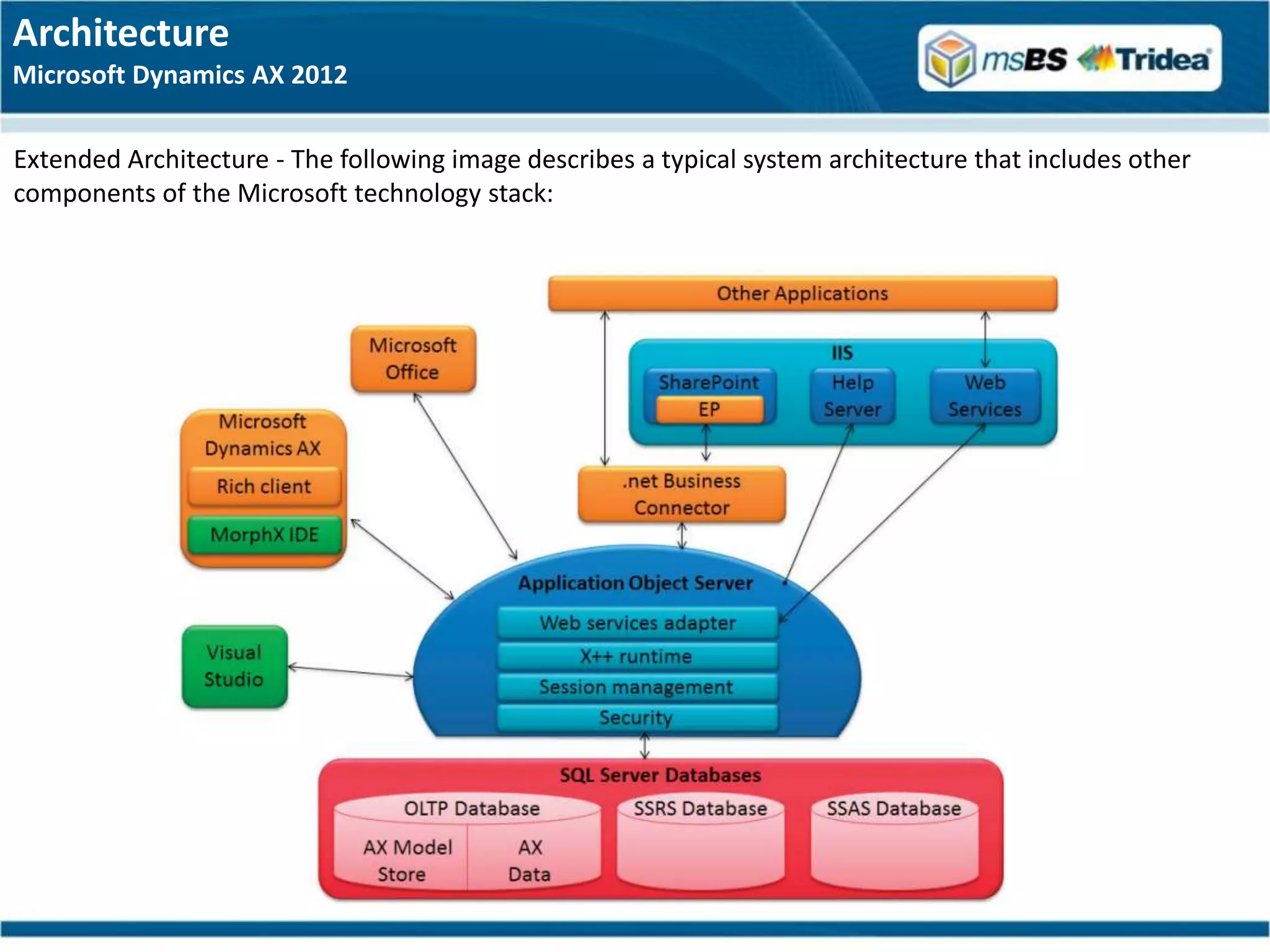

Extended Architecture - The following image describes a typical system architecture that includes other
components of the Microsoft technology stack:
Architecture
Microsoft Dynamics AX 2012

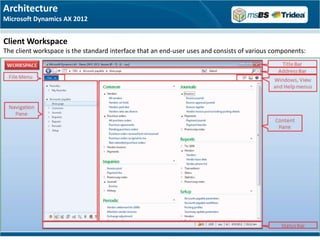

Client Workspace
The client workspace is the standard interface that an end-user uses and consists of various components:
Architecture
Microsoft Dynamics AX 2012

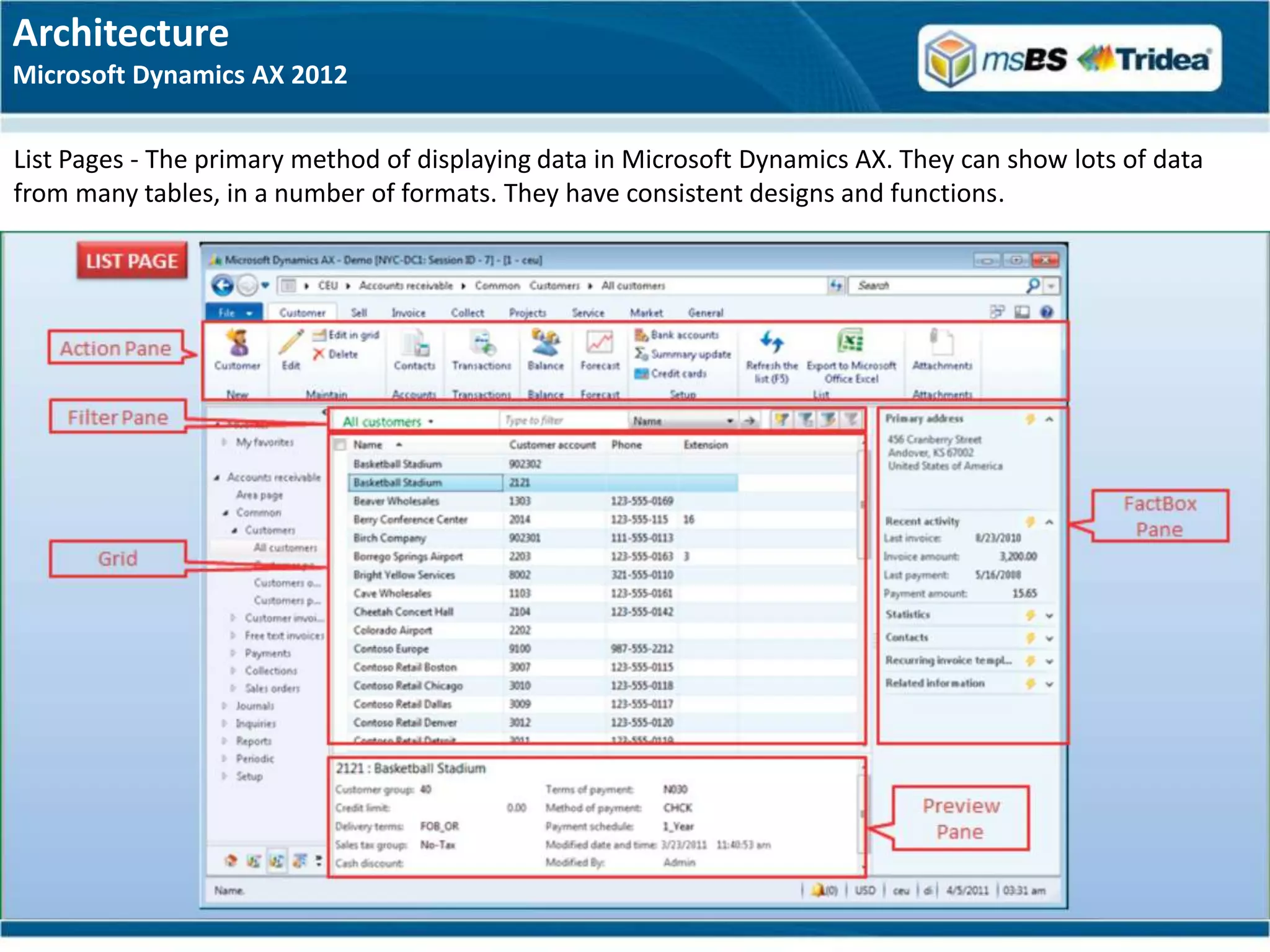

List Pages - The primary method of displaying data in Microsoft Dynamics AX. They can show lots of data
from many tables, in a number of formats. They have consistent designs and functions.
Architecture
Microsoft Dynamics AX 2012


Development Environments
The development environments (IDE) that can be used with AX 2012 are:

 MorphX IDE
    The most commonly used environment;
    Provides easy access to the elements with the Application Object Tree (AOT);
    Drag-and-drop techniques;
    X++ language.

 Microsoft Visual Studio
    Integrated through Visual Studio Tools for Microsoft Dynamics AX;
    Close integration between MorphX and Visual Studio;
    Creating and customizing SSRS reports, Enterprise Portal web development and any managed code
       development.
Architecture
Microsoft Dynamics AX 2012

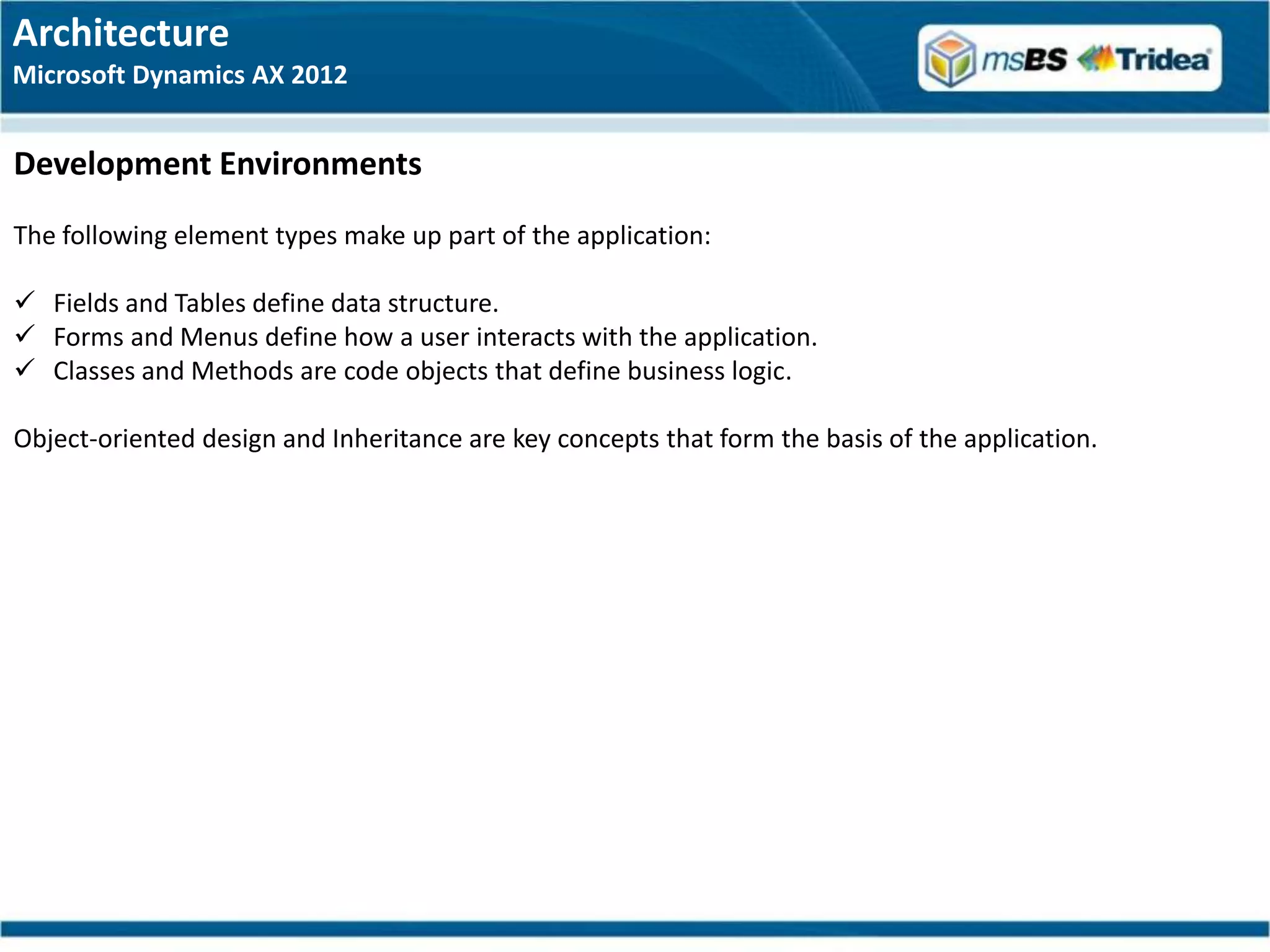

Development Environments
The following element types make up part of the application:

 Fields and Tables define data structure.
 Forms and Menus define how a user interacts with the application.
 Classes and Methods are code objects that define business logic.

Object-oriented design and Inheritance are key concepts that form the basis of the application.
Architecture
Microsoft Dynamics AX 2012

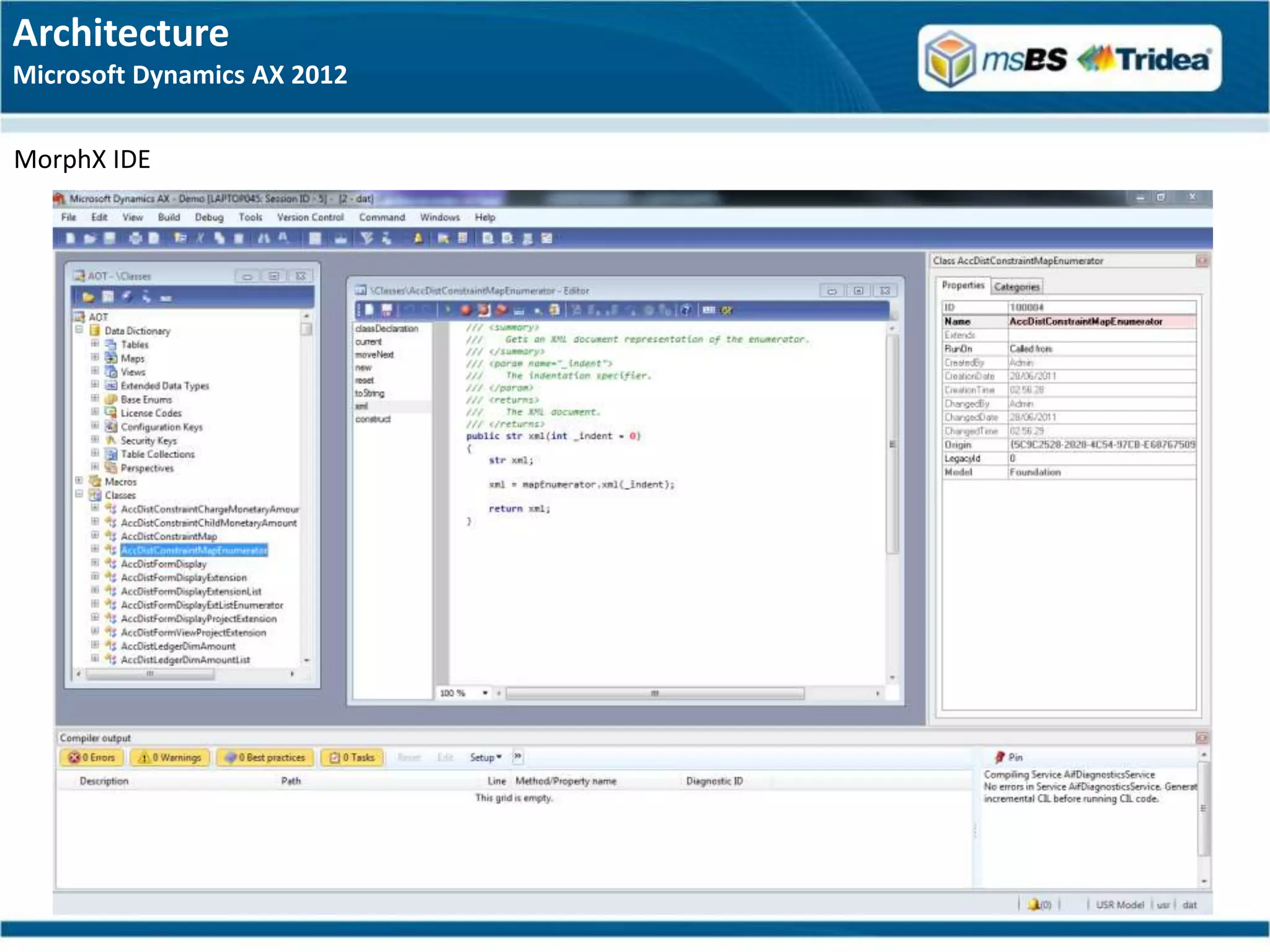

MorphX IDE
Architecture
Microsoft Dynamics AX 2012

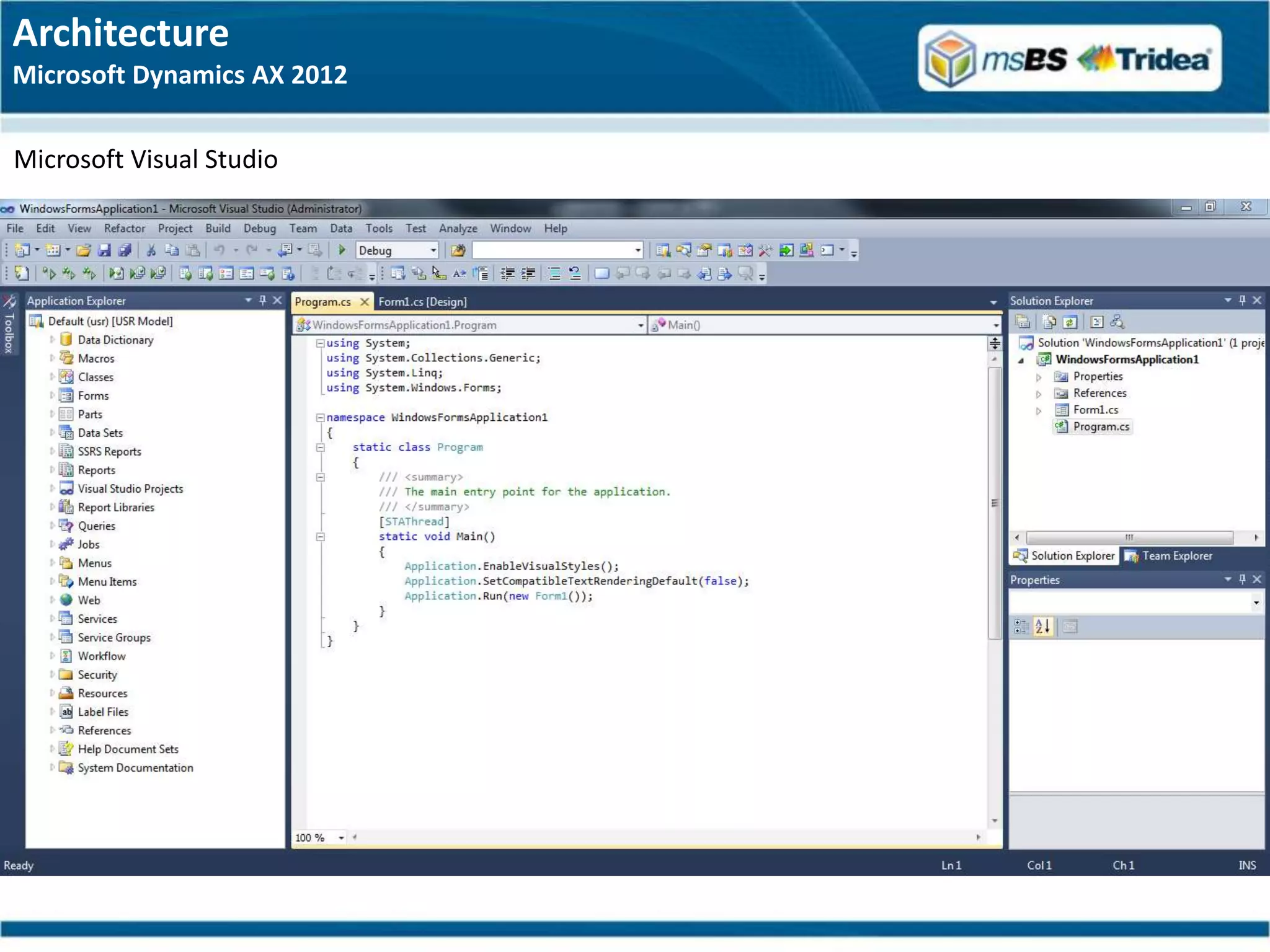

Microsoft Visual Studio
Architecture
Microsoft Dynamics AX 2012

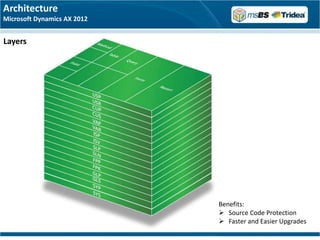

Layers
Application object layers hold all elements that are displayed in the AOT.

There are eight application object layers available. Each of these layers also has a patch layer making a total
of sixteen layers.

     Microsoft-only:
      SYS/SYP: System Layer
      GLS/GLP: Globalization Layer
      FPK/FPP: Feature Pack Layer

     Partners and ISV:
      SLN/SLP: Solution Layer
      ISV/ISP: Independente Software Vendor Layer
      VAR/VAP: Value Added Reseller Layer

     Partners and Customers:
      CUS/CUP: Customer Layer
      USR/USP: User Layer
Architecture
Microsoft Dynamics AX 2012


Layers




                             Benefits:
                              Source Code Protection
                              Faster and Easier Upgrades
Architecture
Microsoft Dynamics AX 2012

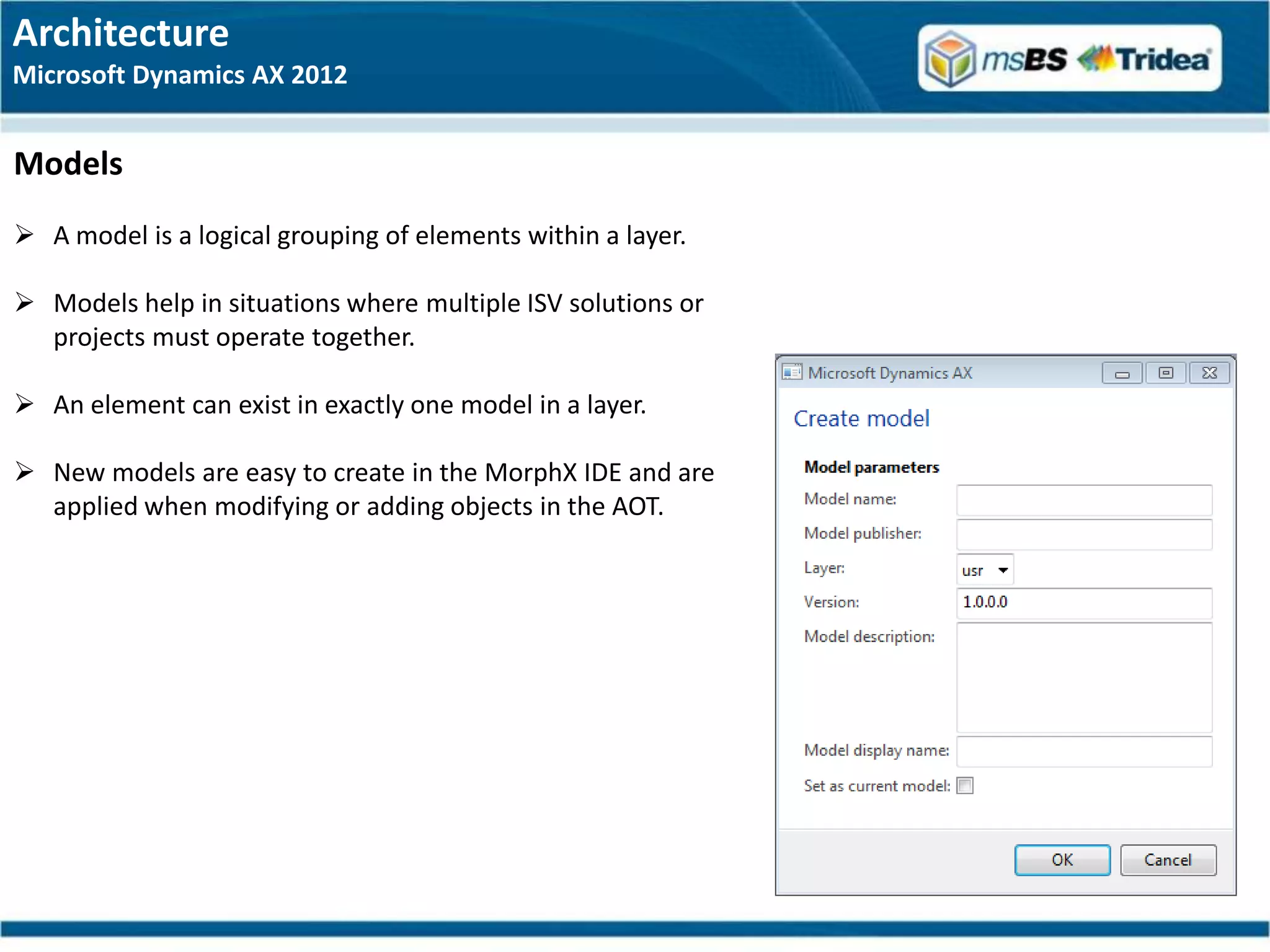

Models
 A model is a logical grouping of elements within a layer.

 Models help in situations where multiple ISV solutions or
  projects must operate together.

 An element can exist in exactly one model in a layer.

 New models are easy to create in the MorphX IDE and are
  applied when modifying or adding objects in the AOT.

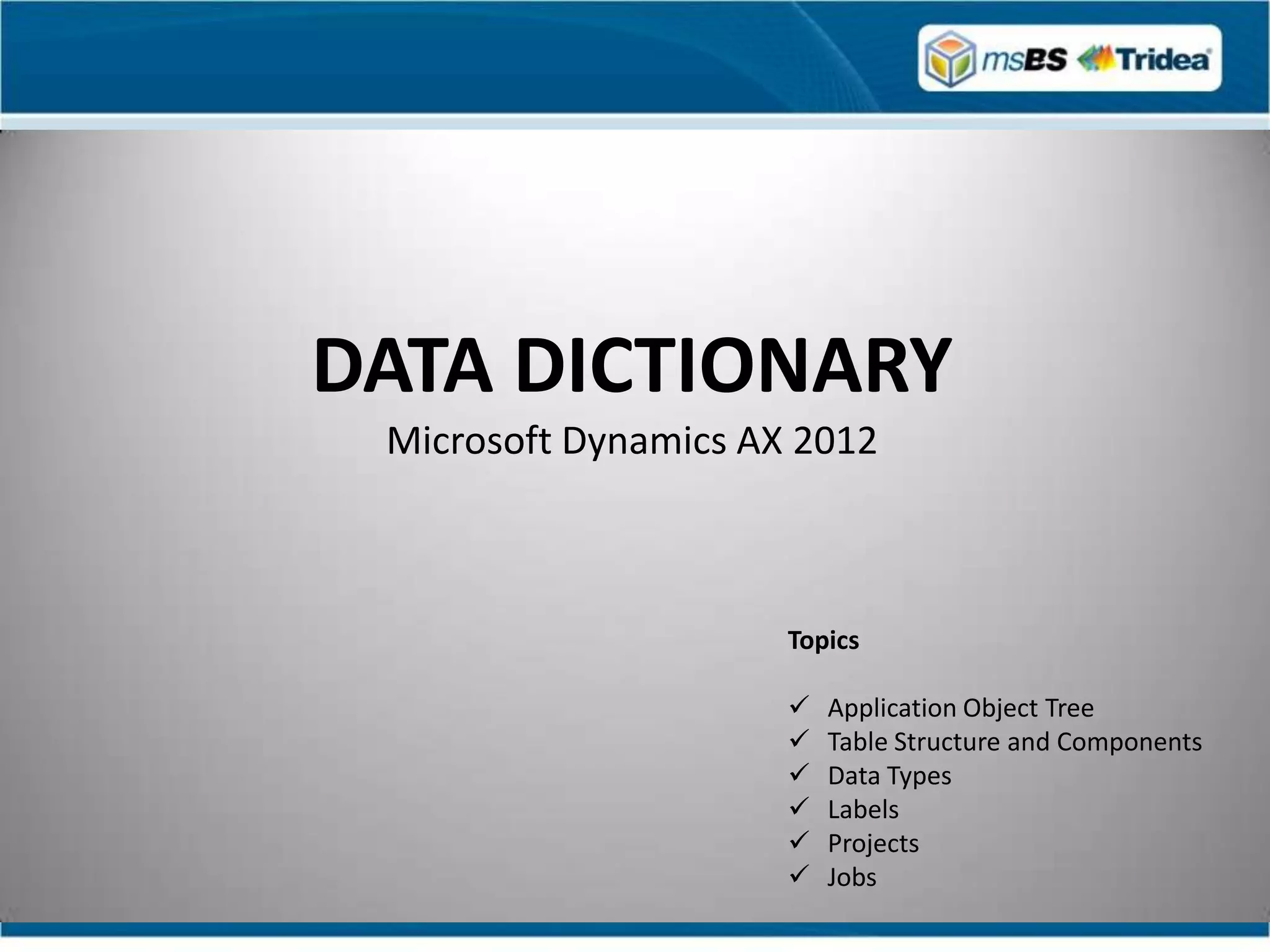

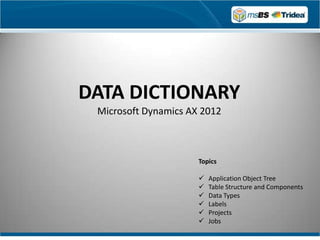

DATA DICTIONARY
 Microsoft Dynamics AX 2012



                      Topics

                         Application Object Tree
                         Table Structure and Components
                         Data Types
                         Labels
                         Projects
                         Jobs
Data Dictionary
Microsoft Dynamics AX 2012

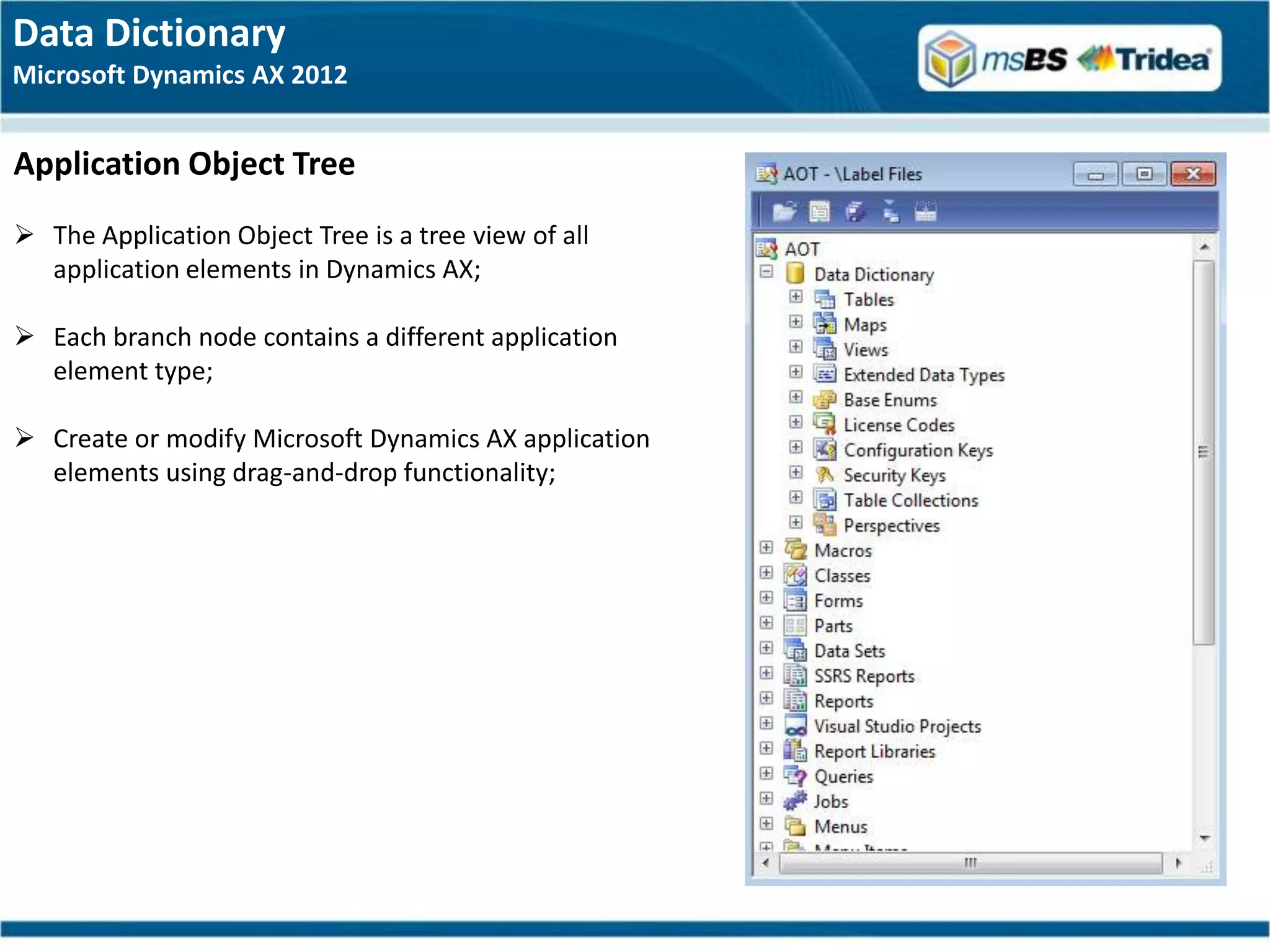

Application Object Tree
 The Application Object Tree is a tree view of all
  application elements in Dynamics AX;

 Each branch node contains a different application
  element type;

 Create or modify Microsoft Dynamics AX application
  elements using drag-and-drop functionality;
Data Dictionary
Microsoft Dynamics AX 2012


Application Object Tree

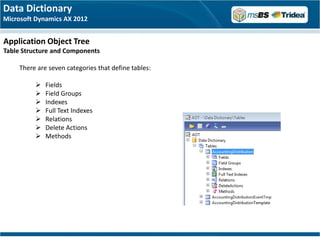

Table Structure and Components

     There are seven categories that define tables:

             Fields
             Field Groups
             Indexes
             Full Text Indexes
             Relations
             Delete Actions
             Methods
Data Dictionary
Microsoft Dynamics AX 2012


Application Object Tree

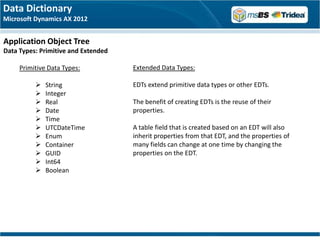

Data Types: Primitive and Extended

     Primitive Data Types:           Extended Data Types:

             String                 EDTs extend primitive data types or other EDTs.
             Integer
             Real                   The benefit of creating EDTs is the reuse of their
             Date                   properties.
             Time
             UTCDateTime            A table field that is created based on an EDT will also
             Enum                   inherit properties from that EDT, and the properties of
             Container              many fields can change at one time by changing the
             GUID                   properties on the EDT.
             Int64
             Boolean
Data Dictionary
Microsoft Dynamics AX 2012


Application Object Tree

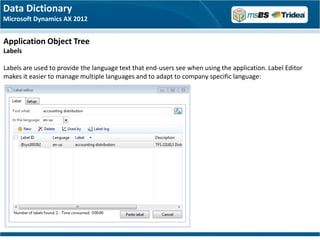

Labels

Labels are used to provide the language text that end-users see when using the application. Label Editor
makes it easier to manage multiple languages and to adapt to company specific language:
Data Dictionary
Microsoft Dynamics AX 2012


Application Object Tree

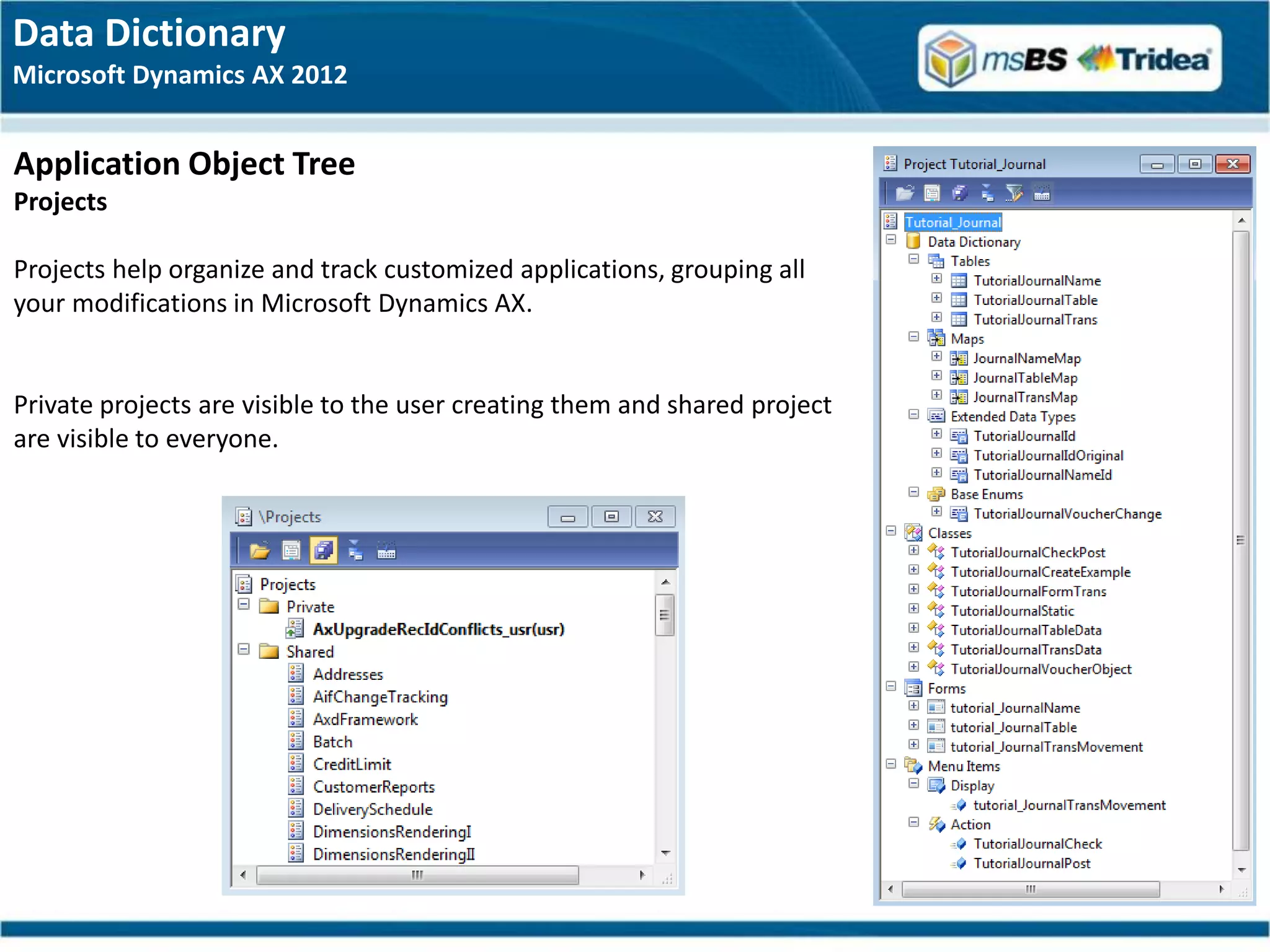

Projects

Projects help organize and track customized applications, grouping all
your modifications in Microsoft Dynamics AX.


Private projects are visible to the user creating them and shared project
are visible to everyone.
Data Dictionary
Microsoft Dynamics AX 2012


Application Object Tree

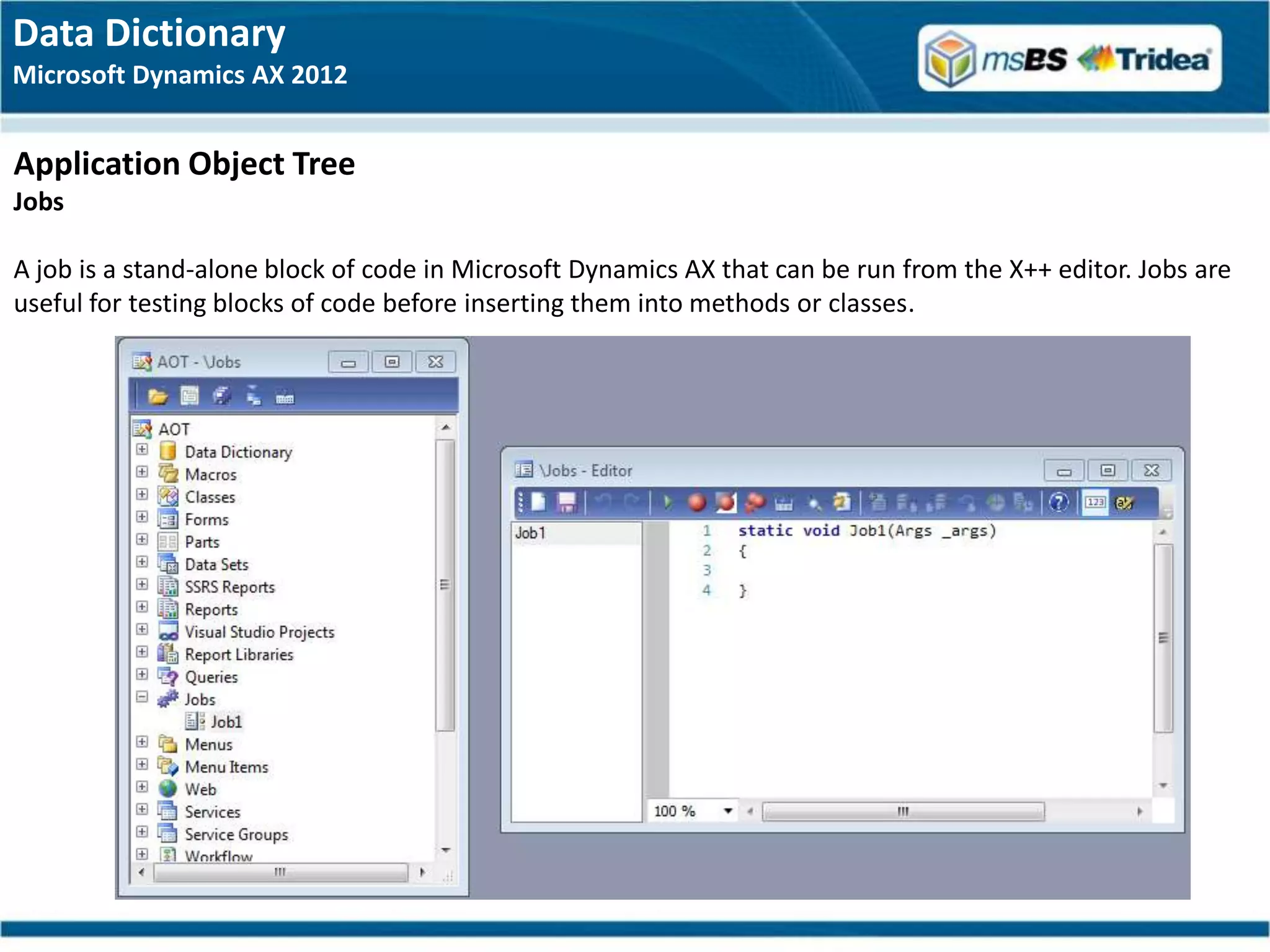

Jobs

A job is a stand-alone block of code in Microsoft Dynamics AX that can be run from the X++ editor. Jobs are
useful for testing blocks of code before inserting them into methods or classes.
