ALV reports are used to display data in grid or list format with predefined formatting options. The document discusses different techniques for developing ALV reports including using structures, field catalogs, layouts, totals, subtotals, and events. Function modules streamline the creation of field catalogs and allow for customization through events.

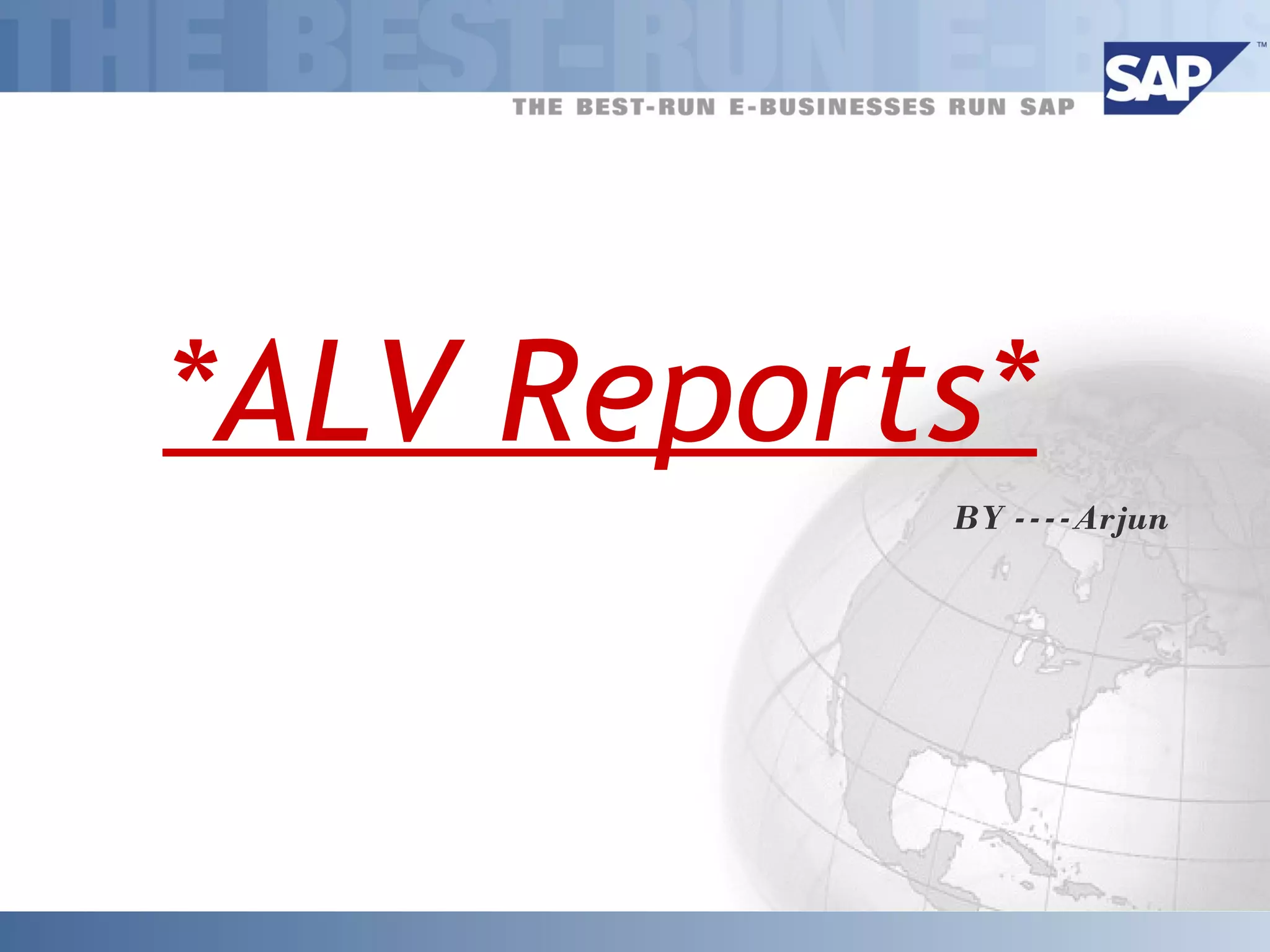

1. *ALV Reports*
BY ----Arjun

2. Review
ALV Reports are mainly used to display the data in the form of either
Grid or List Format with good Look and Feel.
The main advantages of ALV Reports are:
1. Good Look and Feel
2.Predefined options given by SAP like
Asc, Desc,
Filtering,
Downloading,
Changing Layout,
sending Mail…..etc
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 2

3. ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 3
ALV Reports By ARJUN
Function modules for developing ALV Reports
 REUSE_ALV_GRID_DISPLAY  Display ALV data in GRID format
REUSE_ALV_LIST_DISPLAY  Display ALV data in LIST format
REUSE_ALV_COMMENTARY_WRITE  Display TOP-OF-PAGE,
LOGO,END-OF-LIST.
REUSE_ALV_FIELDCATELOG_MERGE Generate field catalog
automatically
REUSE_ALV_EVENTS_GET  Display ALV Events
REUSE_ALV_HIERSEQ_LIST_DISPLAY Display hierarchical ALV
REUSE_ALV_BLOCKED_LIST_DISPLAY  Display blocked ALV

4. List of ALV’s
ALV with structure
ALV with field catalog
ALV with layout options
ALV with field catalog merge
ALV with totals and sub totals
ALV with LOGO/ TOP OF PAGE / END OF LIST
 Interactive ALV
 Interactive ALV by calling a transaction
 hierarchical ALV
Blocked ALV
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 4

5. ALV WITH STRUCTURES
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 5

6. ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 6

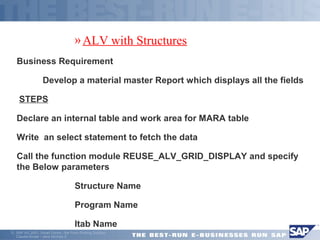

»ALV with Structures
Business Requirement
 Develop a material master Report which displays all the fields
 STEPS
Declare an internal table and work area for MARA table
Write an select statement to fetch the data
Call the function module REUSE_ALV_GRID_DISPLAY and specify
the Below parameters
 Structure Name
 Program Name
 Itab Name

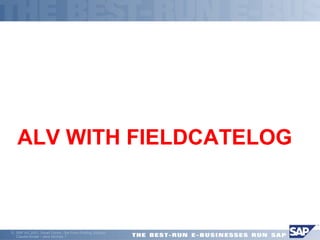

7. ALV WITH FIELDCATELOG
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 7

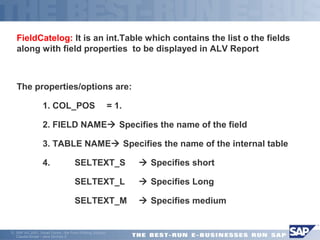

8. FieldCatelog: It is an int.Table which contains the list o the fields
along with field properties to be displayed in ALV Report
The properties/options are:
 1. COL_POS = 1.
 2. FIELD NAME Specifies the name of the field
 3. TABLE NAME Specifies the name of the internal table
 4. SELTEXT_S  Specifies short
 SELTEXT_L  Specifies Long
 SELTEXT_M  Specifies medium
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 8

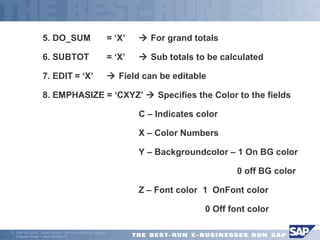

9.  5. DO_SUM = ‘X’  For grand totals
 6. SUBTOT = ‘X’  Sub totals to be calculated
 7. EDIT = ‘X’  Field can be editable
 8. EMPHASIZE = ‘CXYZ’  Specifies the Color to the fields
 C – Indicates color
 X – Color Numbers
 Y – Backgroundcolor – 1 On BG color
 0 off BG color
 Z – Font color 1 OnFont color
 0 Off font color
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 9

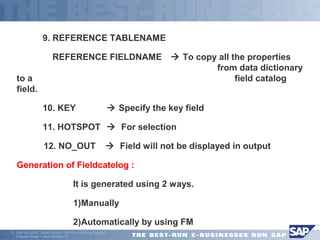

10.  9. REFERENCE TABLENAME
 REFERENCE FIELDNAME  To copy all the properties
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 10
from data dictionary
to a field catalog
field.
 10. KEY  Specify the key field
 11. HOTSPOT  For selection
 12. NO_OUT  Field will not be displayed in output
Generation of Fieldcatelog :
 It is generated using 2 ways.
 1)Manually
 2)Automatically by using FM

11. ALV with Manual field catalog
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 11

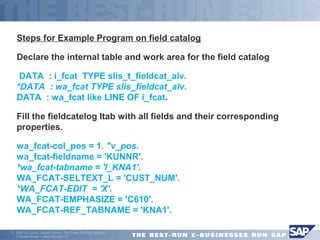

12. Steps for Example Program on field catalog
Declare the internal table and work area for the field catalog
 DATA : i_fcat TYPE slis_t_fieldcat_alv.
*DATA : wa_fcat TYPE slis_fieldcat_alv.
DATA : wa_fcat like LINE OF i_fcat.
Fill the fieldcatelog Itab with all fields and their corresponding
properties.
wa_fcat-col_pos = 1. "v_pos.
wa_fcat-fieldname = 'KUNNR'.
*wa_fcat-tabname = 'I_KNA1'.
WA_FCAT-SELTEXT_L = 'CUST_NUM'.
*WA_FCAT-EDIT = 'X'.
WA_FCAT-EMPHASIZE = 'C610'.
WA_FCAT-REF_TABNAME = 'KNA1'.
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 12

13. 
WA_FCAT-REF_FIELDNAME = 'KUNNR'.
*WA_FCAT-KEY = 'X'.
APPEND WA_FCAT TO I_FCAT.
CLEAR WA_FCAT.
Call the function module and Export the field catalog in internal table
as exporting parameters to IT_FCAT.
CALL FUNCTION 'REUSE_ALV_GRID_DISPLAY'
EXPORTING
I_CALLBACK_PROGRAM = 'SY-REPID'
IT_FIELDCAT = I_FCAT
TABLES
T_OUTTAB = I_KNA1.
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 13

14.  ALV with field catalog merge
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 14

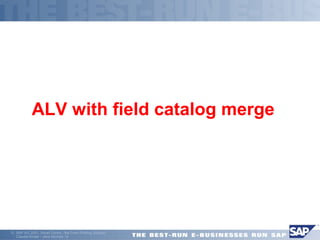

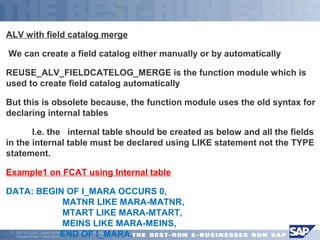

15. ALV with field catalog merge
 We can create a field catalog either manually or by automatically
REUSE_ALV_FIELDCATELOG_MERGE is the function module which is
used to create field catalog automatically
But this is obsolete because, the function module uses the old syntax for
declaring internal tables
 I.e. the internal table should be created as below and all the fields
in the internal table must be declared using LIKE statement not the TYPE
statement.
Example1 on FCAT using Internal table
DATA: BEGIN OF I_MARA OCCURS 0,
MATNR LIKE MARA-MATNR,
MTART LIKE MARA-MTART,
MEINS LIKE MARA-MEINS,
END OF I_MARA.
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 15

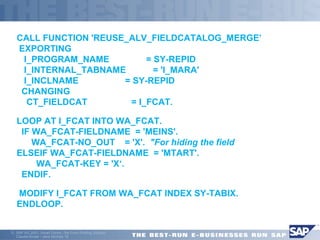

16. CALL FUNCTION 'REUSE_ALV_FIELDCATALOG_MERGE’
EXPORTING
I_PROGRAM_NAME = SY-REPID
I_INTERNAL_TABNAME = 'I_MARA'
I_INCLNAME = SY-REPID
CHANGING
CT_FIELDCAT = I_FCAT.
LOOP AT I_FCAT INTO WA_FCAT.
IF WA_FCAT-FIELDNAME = 'MEINS'.
WA_FCAT-NO_OUT = 'X'. "For hiding the field
ELSEIF WA_FCAT-FIELDNAME = 'MTART'.
WA_FCAT-KEY = 'X‘.
ENDIF.
 MODIFY I_FCAT FROM WA_FCAT INDEX SY-TABIX.
ENDLOOP.
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 16

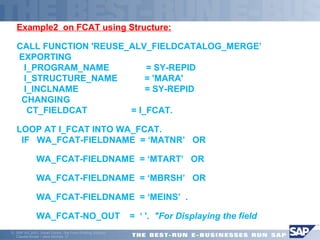

17. Example2 on FCAT using Structure:
CALL FUNCTION 'REUSE_ALV_FIELDCATALOG_MERGE’
EXPORTING
I_PROGRAM_NAME = SY-REPID
I_STRUCTURE_NAME = 'MARA'
I_INCLNAME = SY-REPID
CHANGING
CT_FIELDCAT = I_FCAT.
LOOP AT I_FCAT INTO WA_FCAT.
IF WA_FCAT-FIELDNAME = ‘MATNR’ OR
 WA_FCAT-FIELDNAME = ‘MTART’ OR
 WA_FCAT-FIELDNAME = ‘MBRSH’ OR
 WA_FCAT-FIELDNAME = ‘MEINS’ .
 WA_FCAT-NO_OUT = ‘ '. "For Displaying the field
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 17

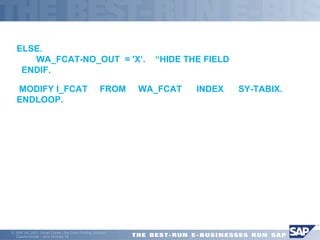

18. 
ELSE.
WA_FCAT-NO_OUT = 'X‘. “HIDE THE FIELD
ENDIF.
 MODIFY I_FCAT FROM WA_FCAT INDEX SY-TABIX.
ENDLOOP.
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 18

19.  ALV WITH LAYOUT
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 19

20. ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 20

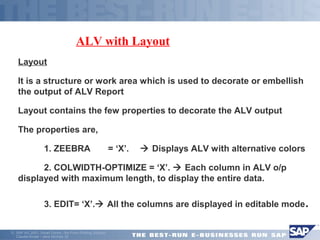

ALV with Layout
Layout
 It is a structure or work area which is used to decorate or embellish
the output of ALV Report
Layout contains the few properties to decorate the ALV output
The properties are,
 1. ZEEBRA = ‘X’.  Displays ALV with alternative colors
 2. COLWIDTH-OPTIMIZE = ‘X’.  Each column in ALV o/p
displayed with maximum length, to display the entire data.
 3. EDIT= ‘X’. All the columns are displayed in editable mode.

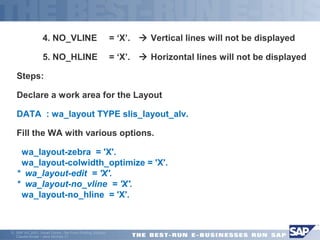

21.  4. NO_VLINE = ‘X’.  Vertical lines will not be displayed
 5. NO_HLINE = ‘X’.  Horizontal lines will not be displayed
Steps:
Declare a work area for the Layout
DATA : wa_layout TYPE slis_layout_alv.
Fill the WA with various options.
 wa_layout-zebra = 'X'.
wa_layout-colwidth_optimize = 'X'.
* wa_layout-edit = 'X'.
* wa_layout-no_vline = 'X'.
wa_layout-no_hline = 'X'.
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 21

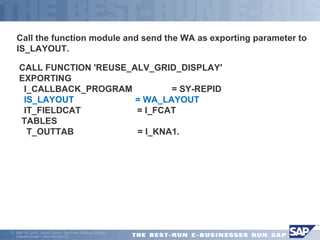

22. Call the function module and send the WA as exporting parameter to
IS_LAYOUT.
 CALL FUNCTION 'REUSE_ALV_GRID_DISPLAY'
EXPORTING
I_CALLBACK_PROGRAM = SY-REPID
IS_LAYOUT = WA_LAYOUT
IT_FIELDCAT = I_FCAT
TABLES
T_OUTTAB = I_KNA1.
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 22

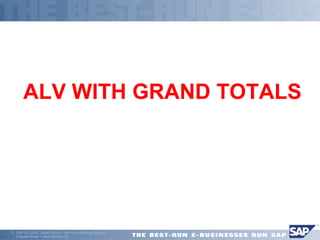

23.  ALV WITH GRAND TOTALS
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 23

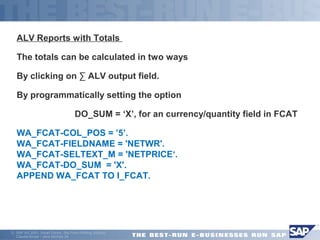

24. ALV Reports with Totals
The totals can be calculated in two ways
By clicking on Σ ALV output field.
By programmatically setting the option
 DO_SUM = ‘X’, for an currency/quantity field in FCAT
WA_FCAT-COL_POS = ’5’.
WA_FCAT-FIELDNAME = 'NETWR'.
WA_FCAT-SELTEXT_M = 'NETPRICE‘.
WA_FCAT-DO_SUM = 'X'.
APPEND WA_FCAT TO I_FCAT.
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 24

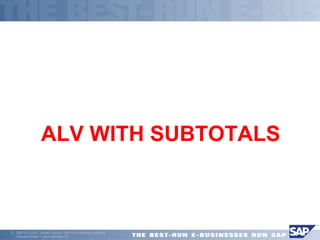

25.  ALV WITH SUBTOTALS
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 25

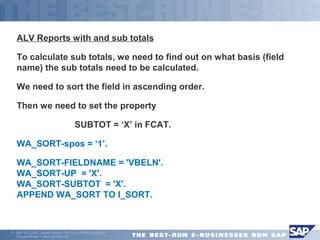

26. ALV Reports with and sub totals
To calculate sub totals, we need to find out on what basis (field
name) the sub totals need to be calculated.
We need to sort the field in ascending order.
Then we need to set the property
 SUBTOT = ‘X’ in FCAT.
WA_SORT-spos = ‘1’.
WA_SORT-FIELDNAME = 'VBELN'.
WA_SORT-UP = 'X'.
WA_SORT-SUBTOT = 'X'.
APPEND WA_SORT TO I_SORT.
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 26

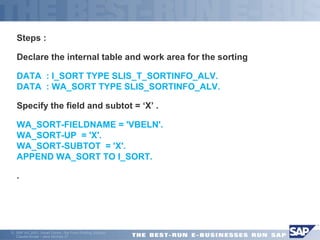

27. Steps :
Declare the internal table and work area for the sorting
DATA : I_SORT TYPE SLIS_T_SORTINFO_ALV.
DATA : WA_SORT TYPE SLIS_SORTINFO_ALV.
Specify the field and subtot = ‘X’ .
WA_SORT-FIELDNAME = 'VBELN'.
WA_SORT-UP = 'X'.
WA_SORT-SUBTOT = 'X'.
APPEND WA_SORT TO I_SORT.
 .
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 27

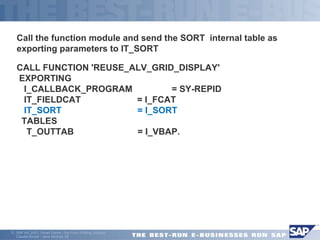

28. Call the function module and send the SORT internal table as
exporting parameters to IT_SORT
CALL FUNCTION 'REUSE_ALV_GRID_DISPLAY'
EXPORTING
I_CALLBACK_PROGRAM = SY-REPID
IT_FIELDCAT = I_FCAT
IT_SORT = I_SORT
TABLES
T_OUTTAB = I_VBAP.
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 28

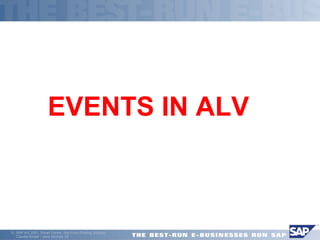

29.  EVENTS IN ALV
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 29

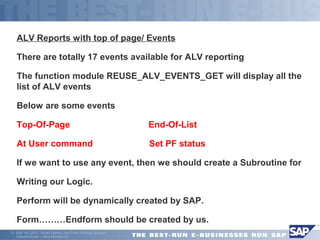

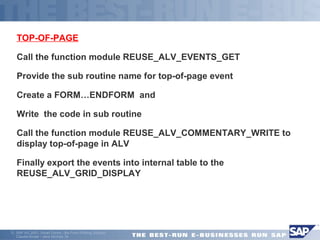

30. ALV Reports with top of page/ Events
There are totally 17 events available for ALV reporting
The function module REUSE_ALV_EVENTS_GET will display all the
list of ALV events
Below are some events
Top-Of-Page End-Of-List
At User command Set PF status
 If we want to use any event, then we should create a Subroutine for
Writing our Logic.
Perform will be dynamically created by SAP.
Form………Endform should be created by us.
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 30

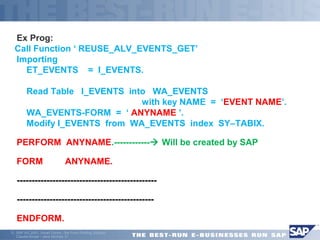

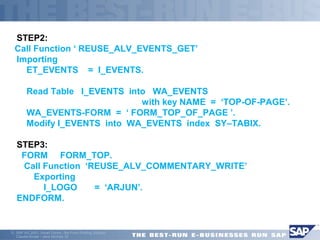

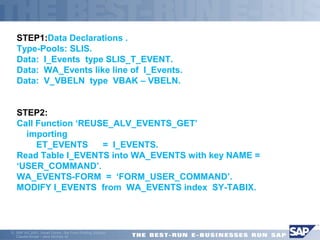

31. Ex Prog:
Call Function ‘ REUSE_ALV_EVENTS_GET’
 Importing
 ET_EVENTS = I_EVENTS.
 Read Table I_EVENTS into WA_EVENTS
 with key NAME = ‘EVENT NAME’.
 WA_EVENTS-FORM = ‘ ANYNAME ’.
 Modify I_EVENTS from WA_EVENTS index SY–TABIX.
PERFORM ANYNAME.------------ Will be created by SAP
FORM ANYNAME.
 -----------------------------------------------
 ----------------------------------------------
ENDFORM.
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 31

32. ALV with LOGO:
For Logo’s in the ALV , We have two steps.
1. Upload the Logo from our system into SAP.
2. Call the FM “Reuse_Alv_Commentary_Write” and Export the Logo
 name under the event TOP-OF-PAGE.
STEP1: “OAER” is the T-Code for upload the Logo’s into SAP.
=> Go to OAER Tcode and specify below values
 ClassName – Pictures
 ClassType – OT
 ObjectKey – ARJUN(LogoName)
 Execute
 Click on the Standard Document Types
 Double Click on the SCREEN Option for browse the image.
 Click on the Save Button.
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 32

33. STEP2:
Call Function ‘ REUSE_ALV_EVENTS_GET’
 Importing
 ET_EVENTS = I_EVENTS.
 Read Table I_EVENTS into WA_EVENTS
 with key NAME = ‘TOP-OF-PAGE’.
 WA_EVENTS-FORM = ‘ FORM_TOP_OF_PAGE ’.
 Modify I_EVENTS into WA_EVENTS index SY–TABIX.
STEP3:
 FORM FORM_TOP.
 Call Function ‘REUSE_ALV_COMMENTARY_WRITE’
 Exporting
 I_LOGO = ‘ARJUN’.
ENDFORM.
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 33

34. TOP-OF-PAGE
Call the function module REUSE_ALV_EVENTS_GET
Provide the sub routine name for top-of-page event
Create a FORM…ENDFORM and
Write the code in sub routine
Call the function module REUSE_ALV_COMMENTARY_WRITE to
display top-of-page in ALV
Finally export the events into internal table to the
REUSE_ALV_GRID_DISPLAY
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 34

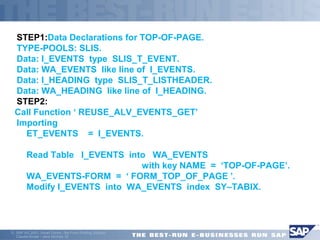

35. STEP1:Data Declarations for TOP-OF-PAGE.
TYPE-POOLS: SLIS.
Data: I_EVENTS type SLIS_T_EVENT.
Data: WA_EVENTS like line of I_EVENTS.
Data: I_HEADING type SLIS_T_LISTHEADER.
Data: WA_HEADING like line of I_HEADING.
STEP2:
Call Function ‘ REUSE_ALV_EVENTS_GET’
 Importing
 ET_EVENTS = I_EVENTS.
 Read Table I_EVENTS into WA_EVENTS
 with key NAME = ‘TOP-OF-PAGE’.
 WA_EVENTS-FORM = ‘ FORM_TOP_OF_PAGE ’.
 Modify I_EVENTS into WA_EVENTS index SY–TABIX.
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 35

36. Form FORM_TOP_OF_PAGE.
WA_HEADING - TYP = ‘H’.
WA_HEADING – INFO = ‘MATERIAL MASTER REPORT’ .
Append WA_HEADING to I_HEADING.
WA_HEADING - TYP = ‘S’.
WA_HEADING – KEY = ‘USERNAME’.
WA_HEADING – INFO = SY – UNAME.
Append WA_HEADING to I_HEADING.
WA_HEADING - TYP = ‘A’.
WA_HEADING – KEY = ‘DATE’.
WA_HEADING – INFO = SY – DATUM.
Append WA_HEADING to I_HEADING.
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 36

37. STEP3:
 Call Function ‘REUSE_ALV_COMMENTARY_WRITE’
 Exporting
 IT_LIST_COMMENTARY = I_HEADING.
EndForm.
STEP4:
 Call Function ‘REUSE_ALV_GRID_DISPLAY’
 Exporting
 I_Callback_Programme = SY – REPID
 IT_Events = I_EVENTS
 Tables
 T_OutTab = I_MARA.
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 37


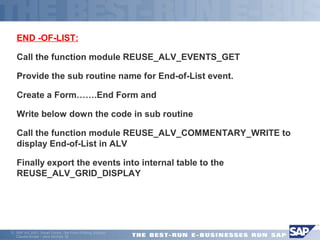

38. END -OF-LIST:
Call the function module REUSE_ALV_EVENTS_GET
Provide the sub routine name for End-of-List event.
Create a Form…….End Form and
Write below down the code in sub routine
Call the function module REUSE_ALV_COMMENTARY_WRITE to
display End-of-List in ALV
Finally export the events into internal table to the
REUSE_ALV_GRID_DISPLAY
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 38

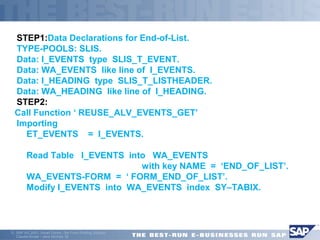

39. STEP1:Data Declarations for End-of-List.
TYPE-POOLS: SLIS.
Data: I_EVENTS type SLIS_T_EVENT.
Data: WA_EVENTS like line of I_EVENTS.
Data: I_HEADING type SLIS_T_LISTHEADER.
Data: WA_HEADING like line of I_HEADING.
STEP2:
Call Function ‘ REUSE_ALV_EVENTS_GET’
 Importing
 ET_EVENTS = I_EVENTS.
 Read Table I_EVENTS into WA_EVENTS
 with key NAME = ‘END_OF_LIST’.
 WA_EVENTS-FORM = ‘ FORM_END_OF_LIST’.
 Modify I_EVENTS into WA_EVENTS index SY–TABIX.
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 39

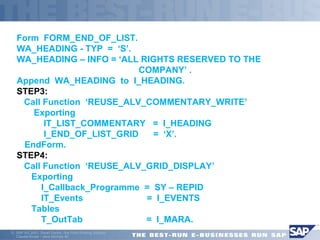

40. Form FORM_END_OF_LIST.
WA_HEADING - TYP = ‘S’.
WA_HEADING – INFO = ‘ALL RIGHTS RESERVED TO THE
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 40
COMPANY’ .
Append WA_HEADING to I_HEADING.
STEP3:
 Call Function ‘REUSE_ALV_COMMENTARY_WRITE’
 Exporting
 IT_LIST_COMMENTARY = I_HEADING
 I_END_OF_LIST_GRID = ‘X’.
EndForm.
STEP4:
 Call Function ‘REUSE_ALV_GRID_DISPLAY’
 Exporting
 I_Callback_Programme = SY – REPID
 IT_Events = I_EVENTS
 Tables
 T_OutTab = I_MARA.

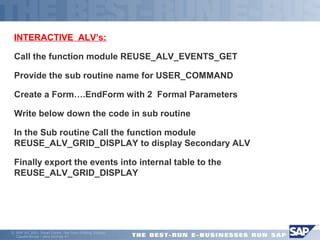

41.  INTERACTIVE ALV’s:
Call the function module REUSE_ALV_EVENTS_GET
Provide the sub routine name for USER_COMMAND
Create a Form….EndForm with 2 Formal Parameters
Write below down the code in sub routine
 In the Sub routine Call the function module
REUSE_ALV_GRID_DISPLAY to display Secondary ALV
Finally export the events into internal table to the
REUSE_ALV_GRID_DISPLAY
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 41

42. STEP1:Data Declarations .
Type-Pools: SLIS.
Data: I_Events type SLIS_T_EVENT.
Data: WA_Events like line of I_Events.
Data: V_VBELN type VBAK – VBELN.
STEP2:
Call Function ‘REUSE_ALV_EVENTS_GET’
 importing
 ET_EVENTS = I_EVENTS.
Read Table I_EVENTS into WA_EVENTS with key NAME =
‘USER_COMMAND’.
WA_EVENTS-FORM = ‘FORM_USER_COMMAND’.
MODIFY I_EVENTS from WA_EVENTS index SY-TABIX.
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 42


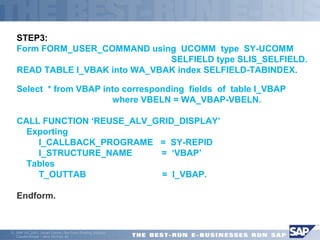

43. STEP3:
Form FORM_USER_COMMAND using UCOMM type SY-UCOMM
 SELFIELD type SLIS_SELFIELD.
READ TABLE I_VBAK into WA_VBAK index SELFIELD-TABINDEX.
Select * from VBAP into corresponding fields of table I_VBAP
 where VBELN = WA_VBAP-VBELN.
CALL FUNCTION ‘REUSE_ALV_GRID_DISPLAY’
 Exporting
 I_CALLBACK_PROGRAME = SY-REPID
 I_STRUCTURE_NAME = ‘VBAP’
 Tables
 T_OUTTAB = I_VBAP.
Endform.
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 43

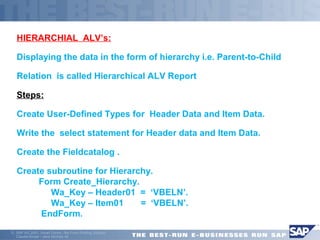

44. HIERARCHIAL ALV’s:
Displaying the data in the form of hierarchy i.e. Parent-to-Child
Relation is called Hierarchical ALV Report
Steps:
Create User-Defined Types for Header Data and Item Data.
Write the select statement for Header data and Item Data.
Create the Fieldcatalog .
Create subroutine for Hierarchy.
 Form Create_Hierarchy.
 Wa_Key – Header01 = ‘VBELN’.
 Wa_Key – Item01 = ‘VBELN’.
 EndForm.
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 44

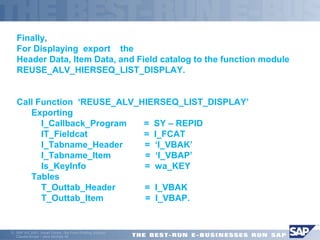

45. Finally,
For Displaying export the
Header Data, Item Data, and Field catalog to the function module
REUSE_ALV_HIERSEQ_LIST_DISPLAY.
Call Function ‘REUSE_ALV_HIERSEQ_LIST_DISPLAY’
 Exporting
 I_Callback_Program = SY – REPID
 IT_Fieldcat = I_FCAT
 I_Tabname_Header = ‘I_VBAK’
 I_Tabname_Item = ‘I_VBAP’
 Is_KeyInfo = wa_KEY
 Tables
 T_Outtab_Header = I_VBAK
 T_Outtab_Item = I_VBAP.
ã SAP AG 2001, Smart Forms - the Form Printing Solution,
Claudia Binder / Jens Stumpe 45
