Microcontroller architecture

1. COURSE: EMBEDDED SYSTEM
TOPIC: MICROCONTROLLER
ARCHITECTURE
HARVARD/ VON-NEUMANN; RISC/CISC
DR. VIKAS J. DONGRE
HOD ELECTRONICS &TELECOMMUNICATION
GOVERNMENT POLYTECHNIC WASHIM (MS)
EMAIL: DONGREVJ1@GMAIL.COM
M: 9370668979

2. 1.2 Harvard and Von-Neumann architecture.
A Basic Computer Model

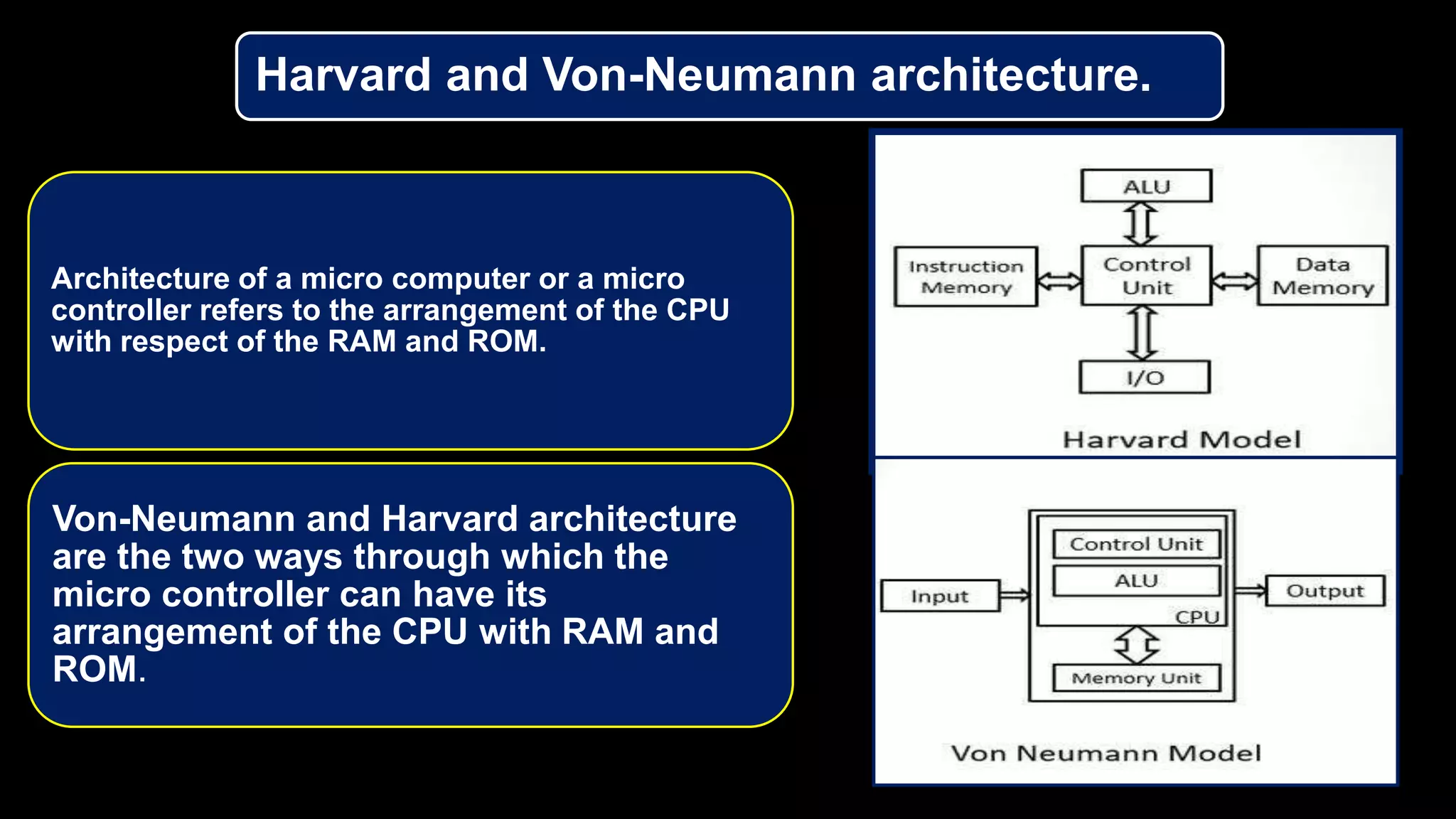

3. Harvard and Von-Neumann architecture.
Architecture of a micro computer or a micro
controller refers to the arrangement of the CPU
with respect of the RAM and ROM.
Von-Neumann and Harvard architecture
are the two ways through which the
micro controller can have its
arrangement of the CPU with RAM and
ROM.

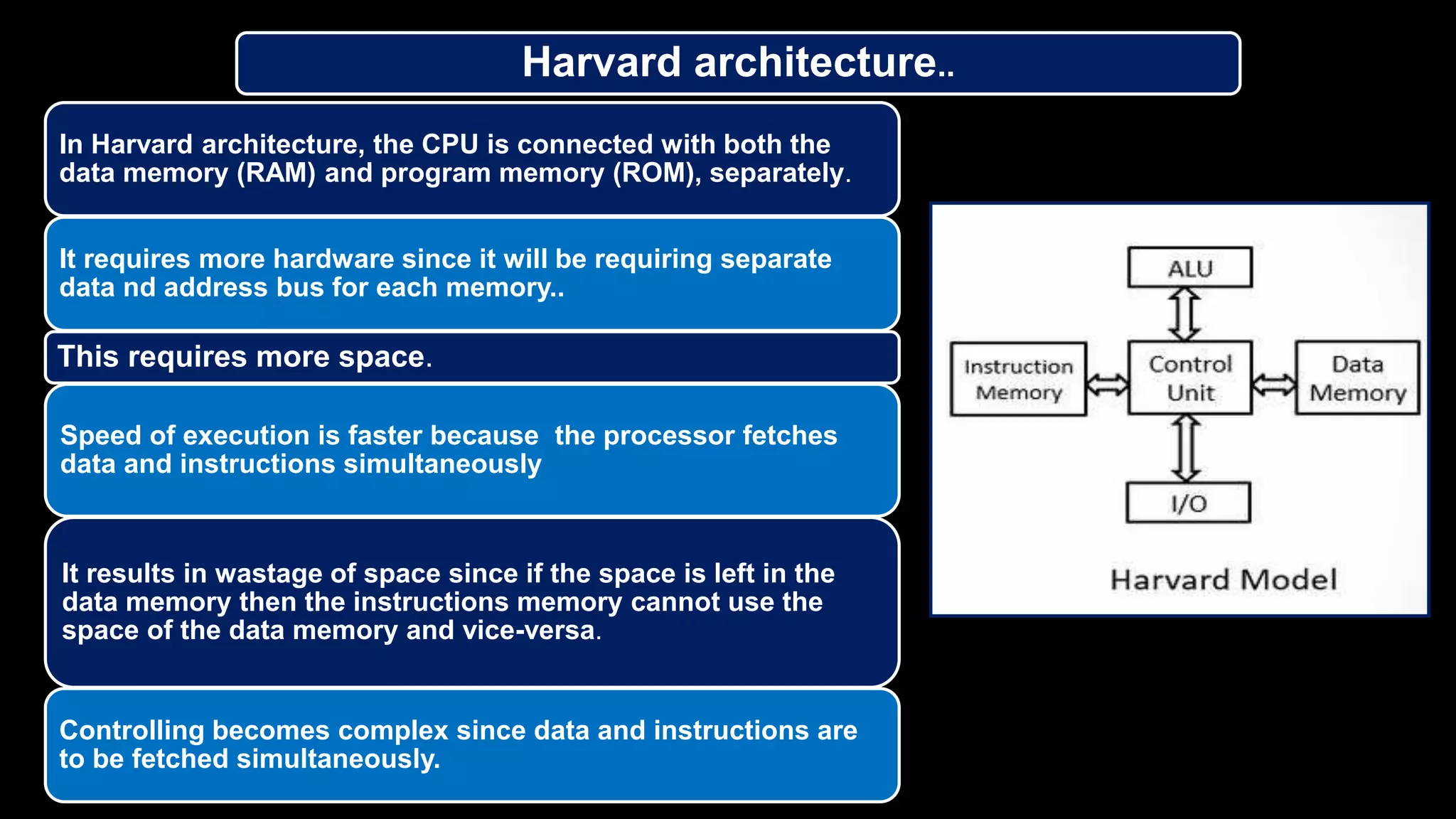

4. Harvard architecture..
In Harvard architecture, the CPU is connected with both the
data memory (RAM) and program memory (ROM), separately.
It requires more hardware since it will be requiring separate
data nd address bus for each memory..
This requires more space.
Speed of execution is faster because the processor fetches
data and instructions simultaneously
It results in wastage of space since if the space is left in the
data memory then the instructions memory cannot use the
space of the data memory and vice-versa.
Controlling becomes complex since data and instructions are
to be fetched simultaneously.

5. Harvard architecture.
Harvard architecture require
separate bus for instruction and data.
Processor can complete an
instruction in one cycle .
Easier to pipeline, so high
performance can be achieve.
Comparatively high cost.

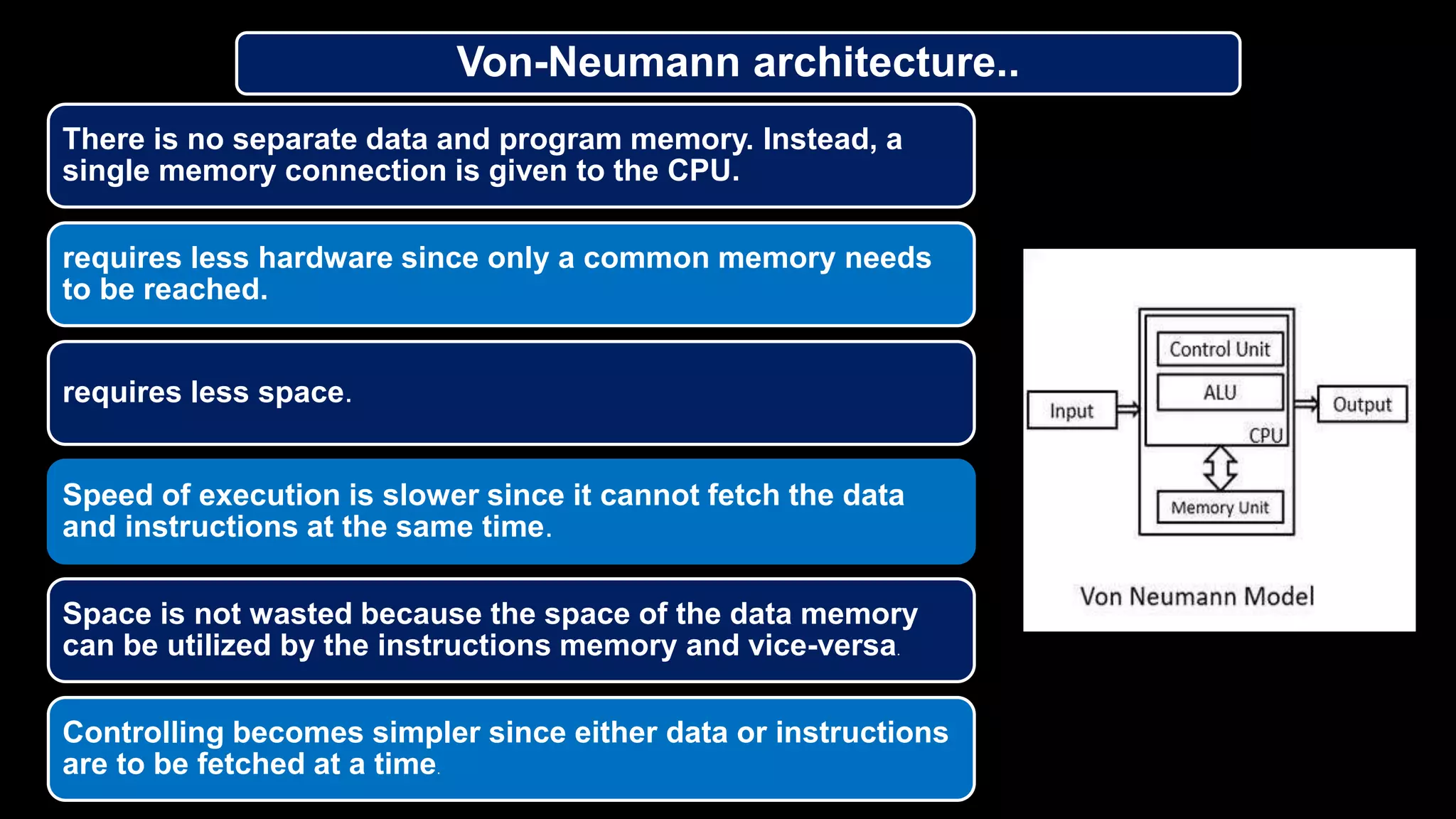

6. Von-Neumann architecture..
There is no separate data and program memory. Instead, a
single memory connection is given to the CPU.
requires less hardware since only a common memory needs
to be reached.
requires less space.
Speed of execution is slower since it cannot fetch the data
and instructions at the same time.
Space is not wasted because the space of the data memory
can be utilized by the instructions memory and vice-versa.
Controlling becomes simpler since either data or instructions
are to be fetched at a time.

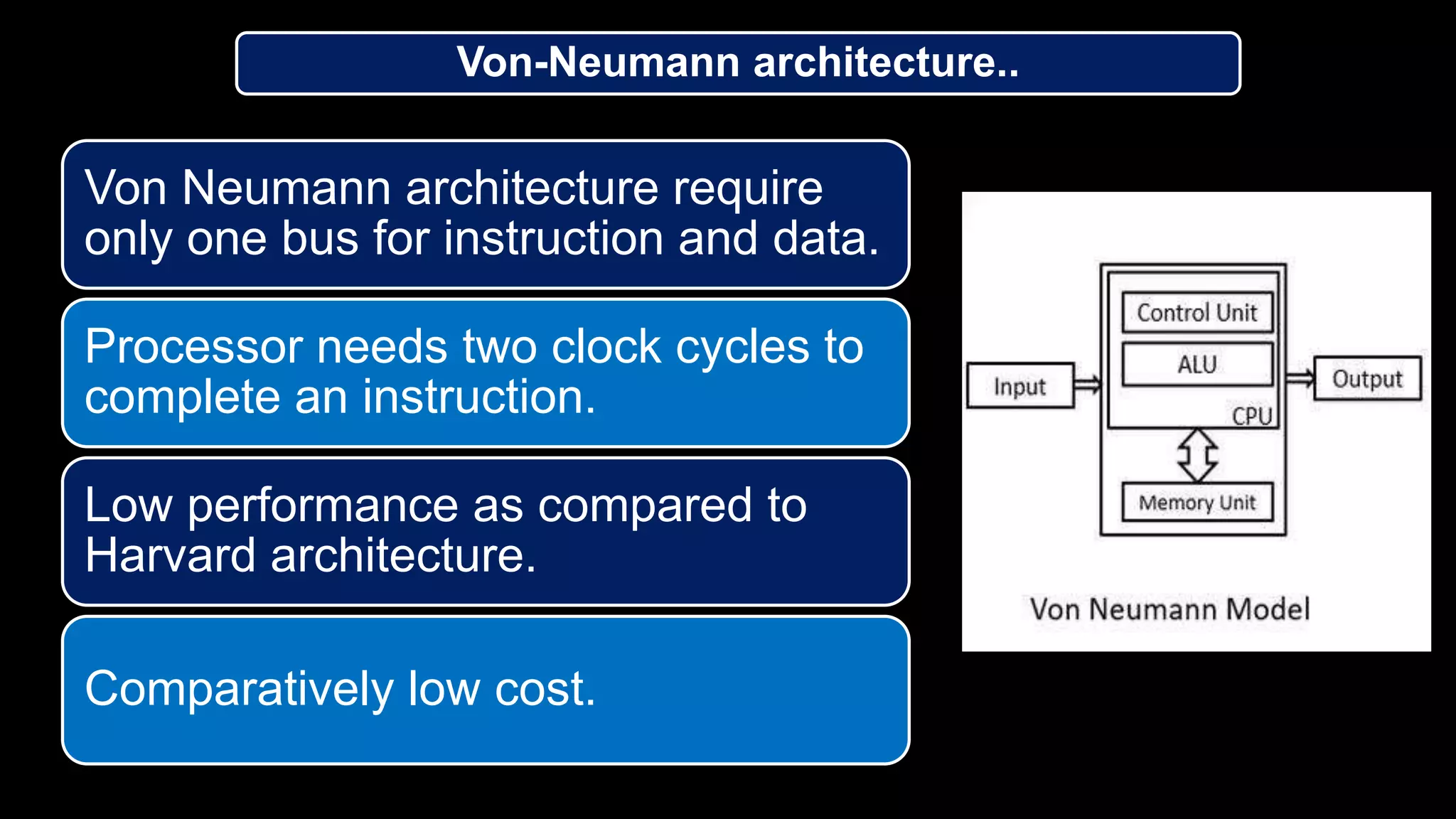

7. Von-Neumann architecture..
Von Neumann architecture require
only one bus for instruction and data.
Processor needs two clock cycles to
complete an instruction.
Low performance as compared to
Harvard architecture.
Comparatively low cost.

8. RISC AND CISC
ARCHITECTURE

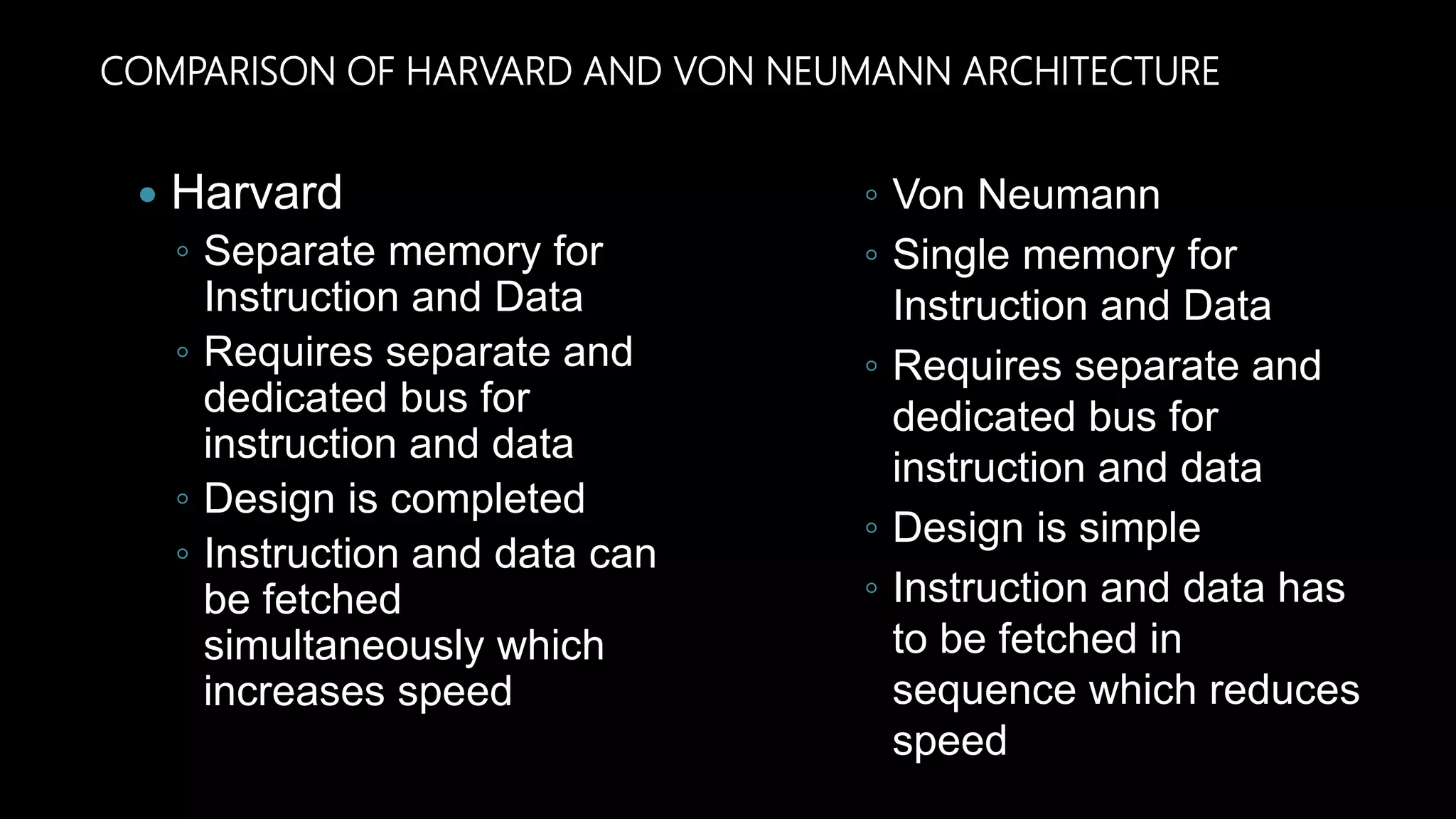

COMPARISON OF HARVARD AND VON NEUMANN ARCHITECTURE
 Harvard
◦ Separate memory for
Instruction and Data
◦ Requires separate and
dedicated bus for
instruction and data
◦ Design is completed
◦ Instruction and data can
be fetched
simultaneously which
increases speed
◦ Von Neumann
◦ Single memory for
Instruction and Data
◦ Requires separate and
dedicated bus for
instruction and data
◦ Design is simple
◦ Instruction and data has
to be fetched in
sequence which reduces
speed

9. RISC AND CISC ARCHITECTURE

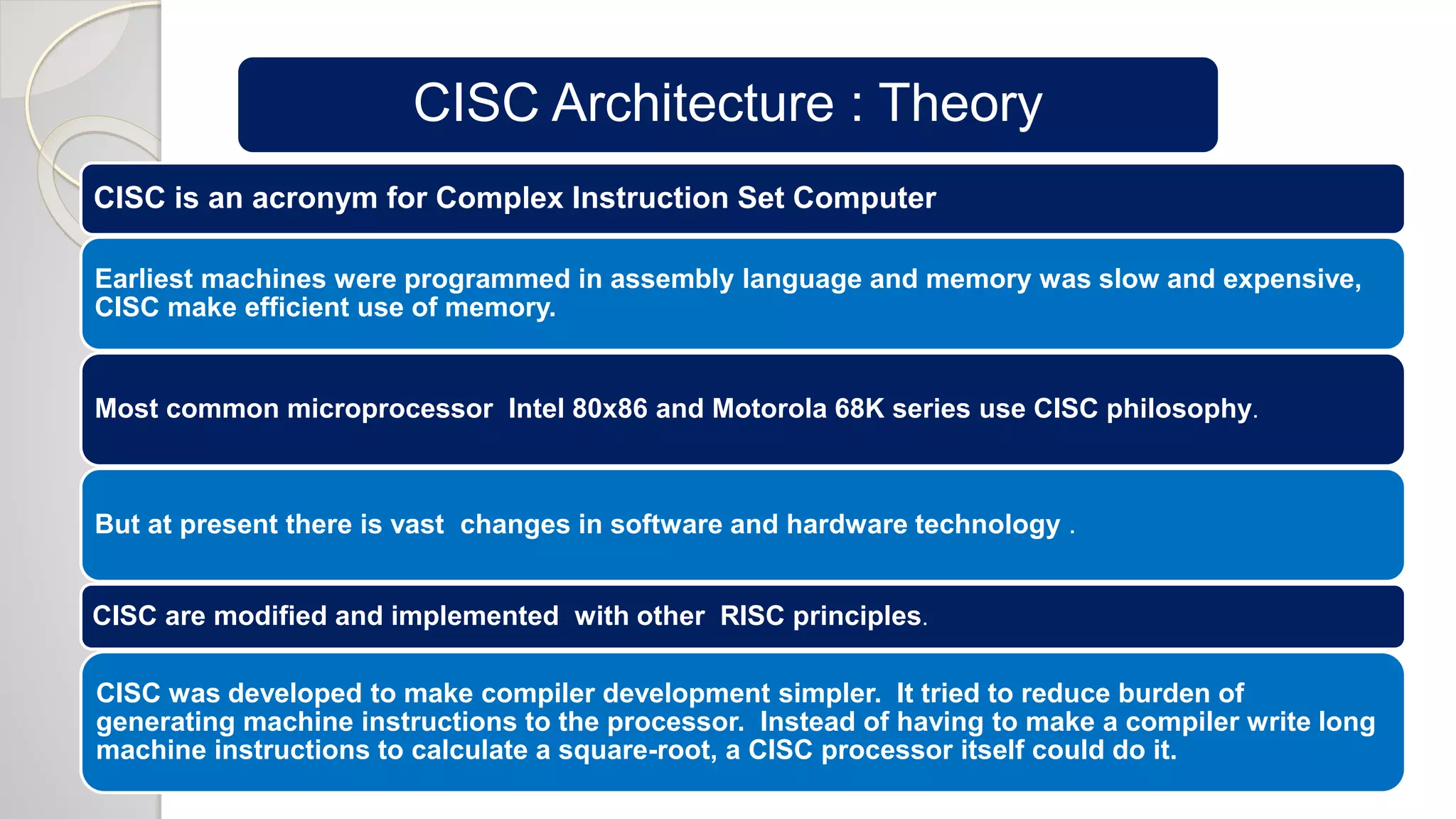

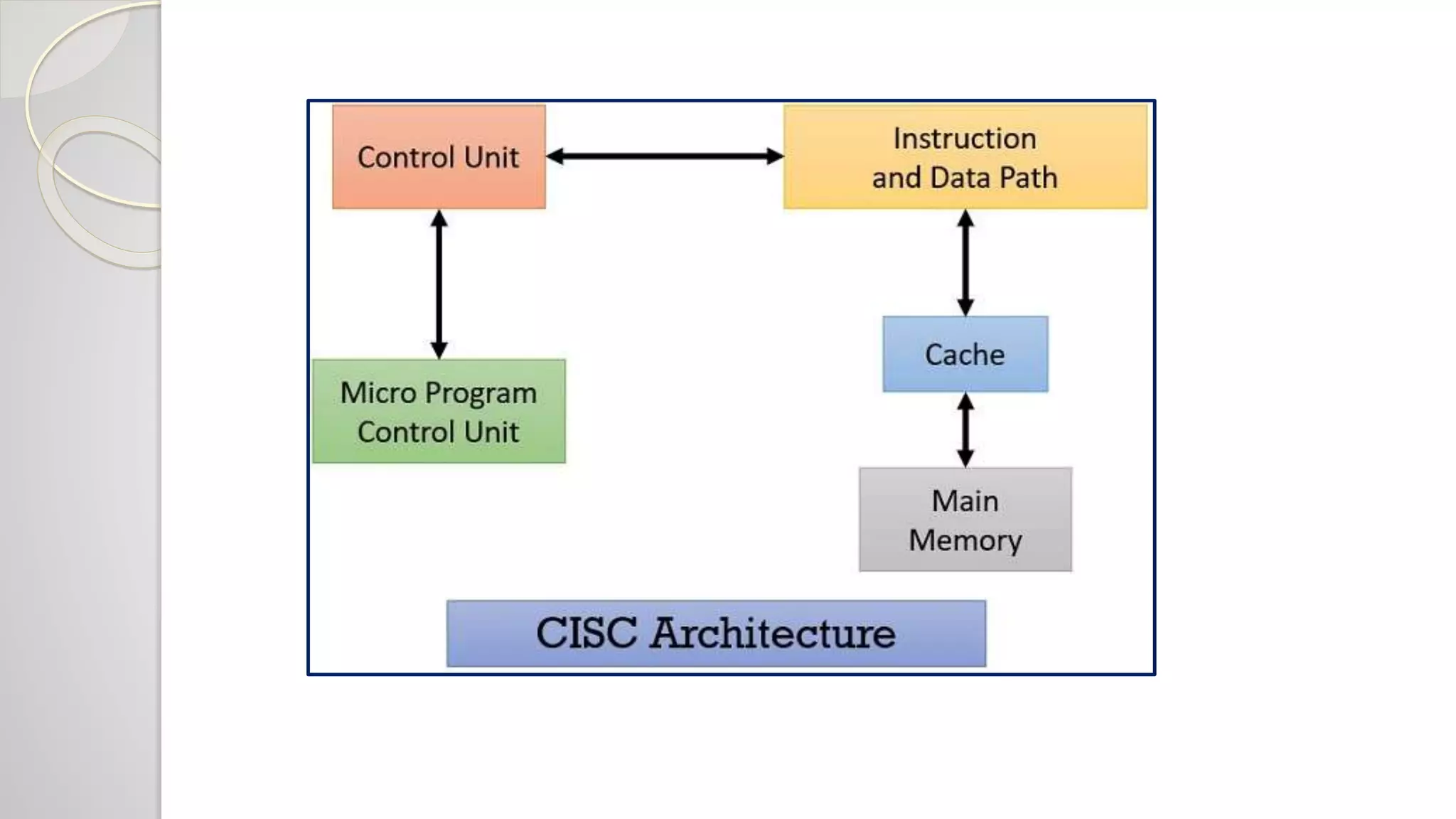

11. CISC Architecture : Theory
CISC is an acronym for Complex Instruction Set Computer
Earliest machines were programmed in assembly language and memory was slow and expensive,
CISC make efficient use of memory.
Most common microprocessor Intel 80x86 and Motorola 68K series use CISC philosophy.
But at present there is vast changes in software and hardware technology .
CISC are modified and implemented with other RISC principles.
CISC was developed to make compiler development simpler. It tried to reduce burden of
generating machine instructions to the processor. Instead of having to make a compiler write long
machine instructions to calculate a square-root, a CISC processor itself could do it.

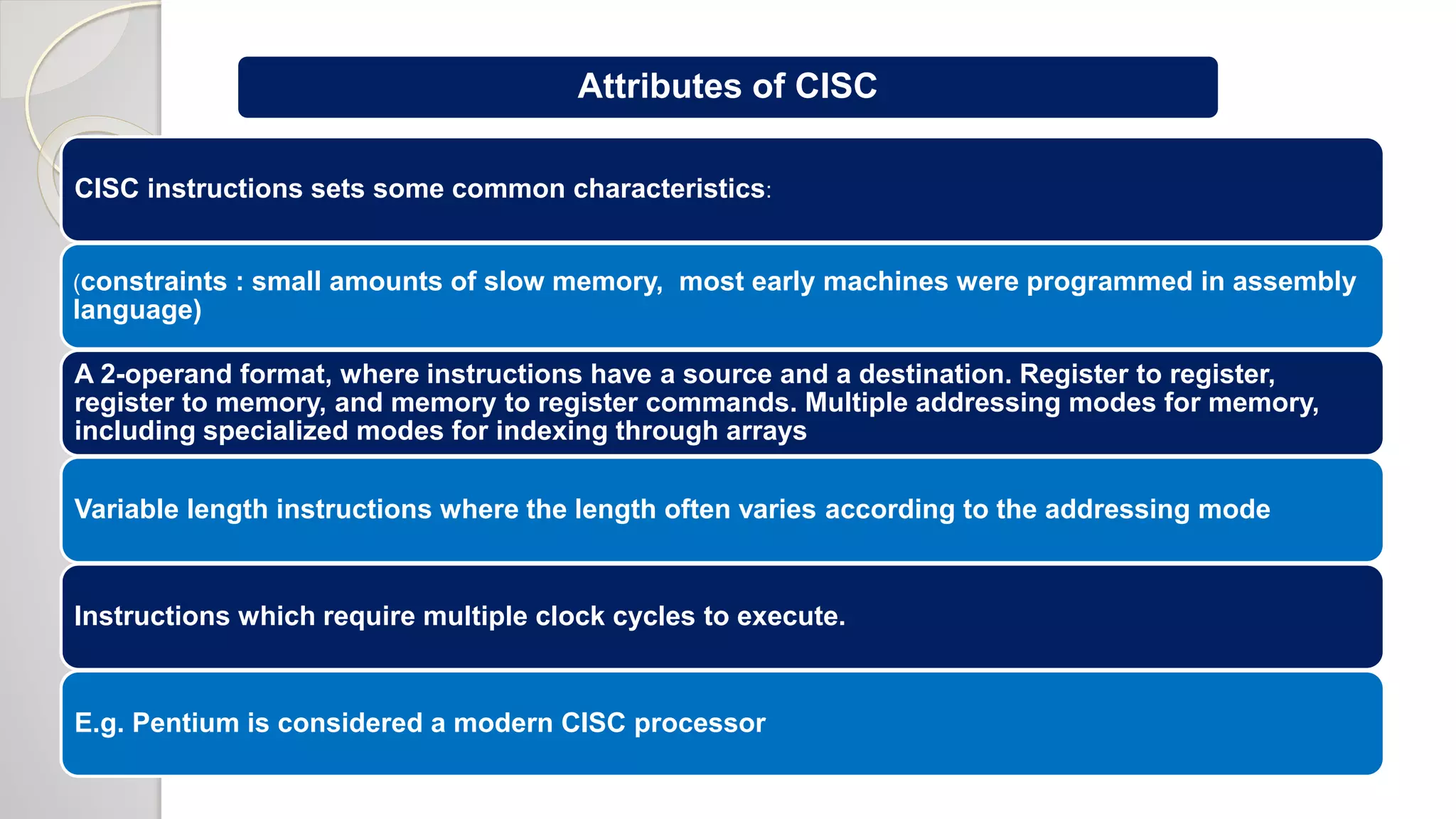

12. Attributes of CISC
CISC instructions sets some common characteristics:
(constraints : small amounts of slow memory, most early machines were programmed in assembly
language)
A 2-operand format, where instructions have a source and a destination. Register to register,
register to memory, and memory to register commands. Multiple addressing modes for memory,
including specialized modes for indexing through arrays
Variable length instructions where the length often varies according to the addressing mode
Instructions which require multiple clock cycles to execute.
E.g. Pentium is considered a modern CISC processor

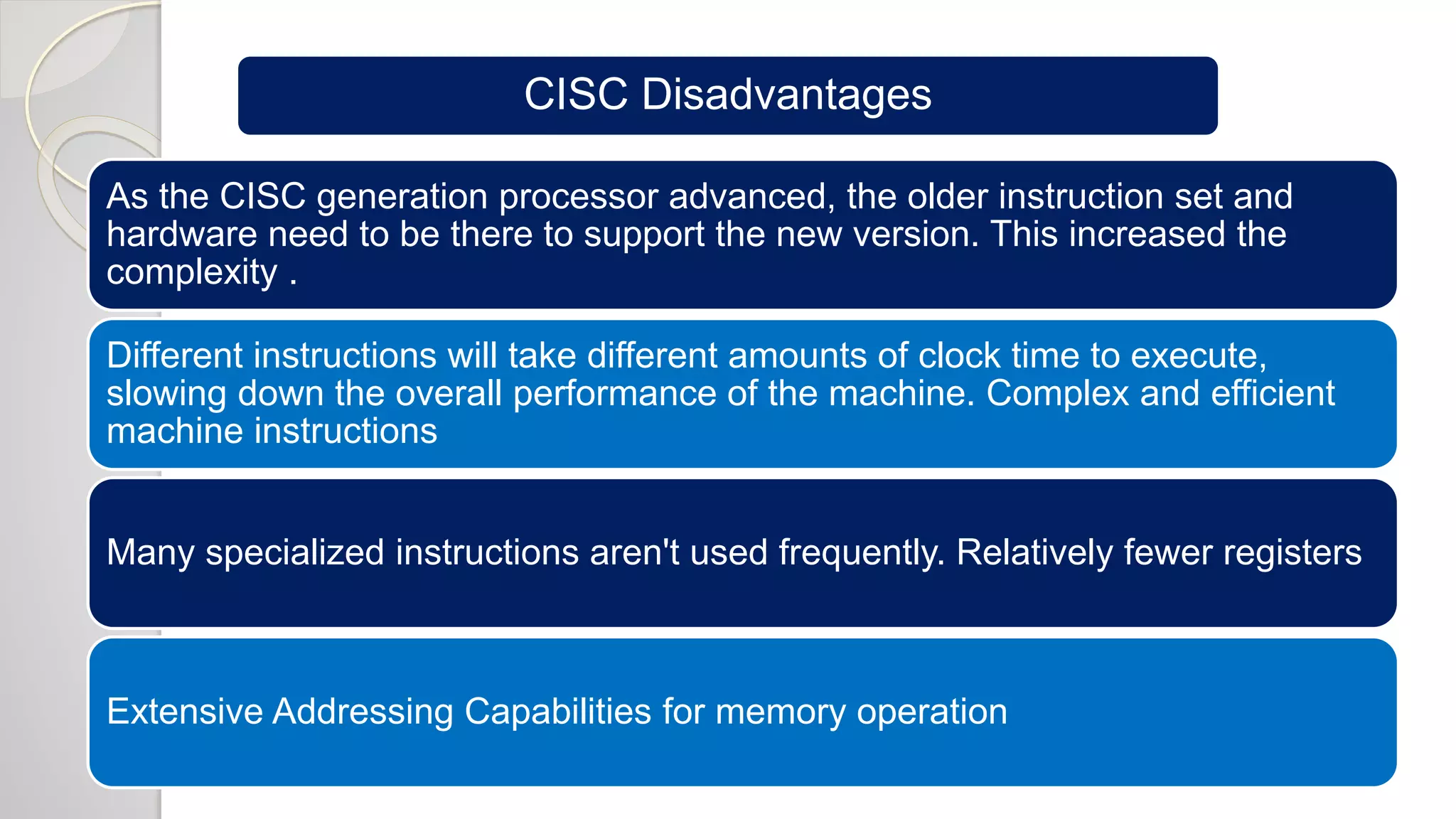

13. CISC Disadvantages
As the CISC generation processor advanced, the older instruction set and
hardware need to be there to support the new version. This increased the
complexity .
Different instructions will take different amounts of clock time to execute,
slowing down the overall performance of the machine. Complex and efficient
machine instructions
Many specialized instructions aren't used frequently. Relatively fewer registers
Extensive Addressing Capabilities for memory operation

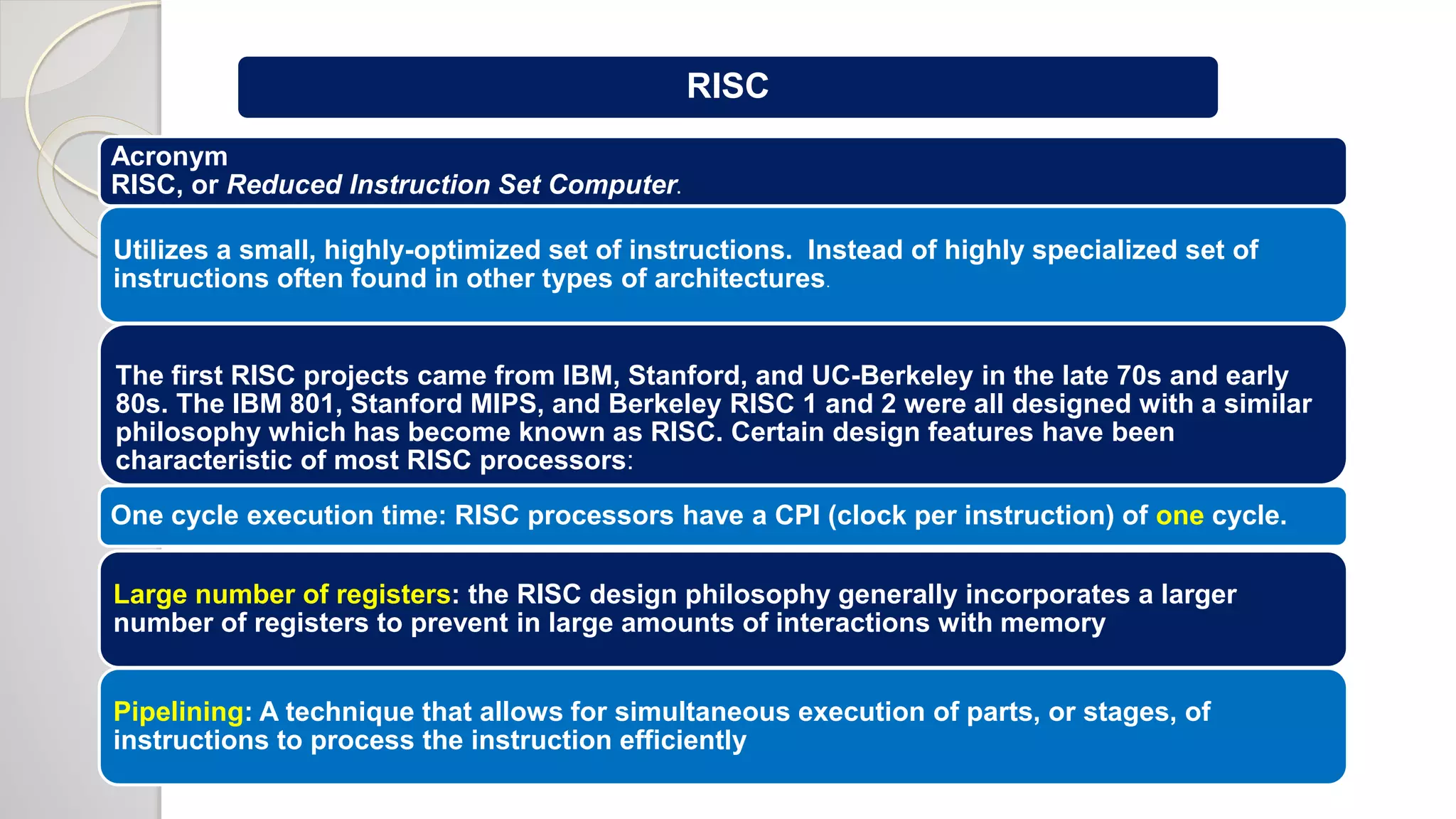

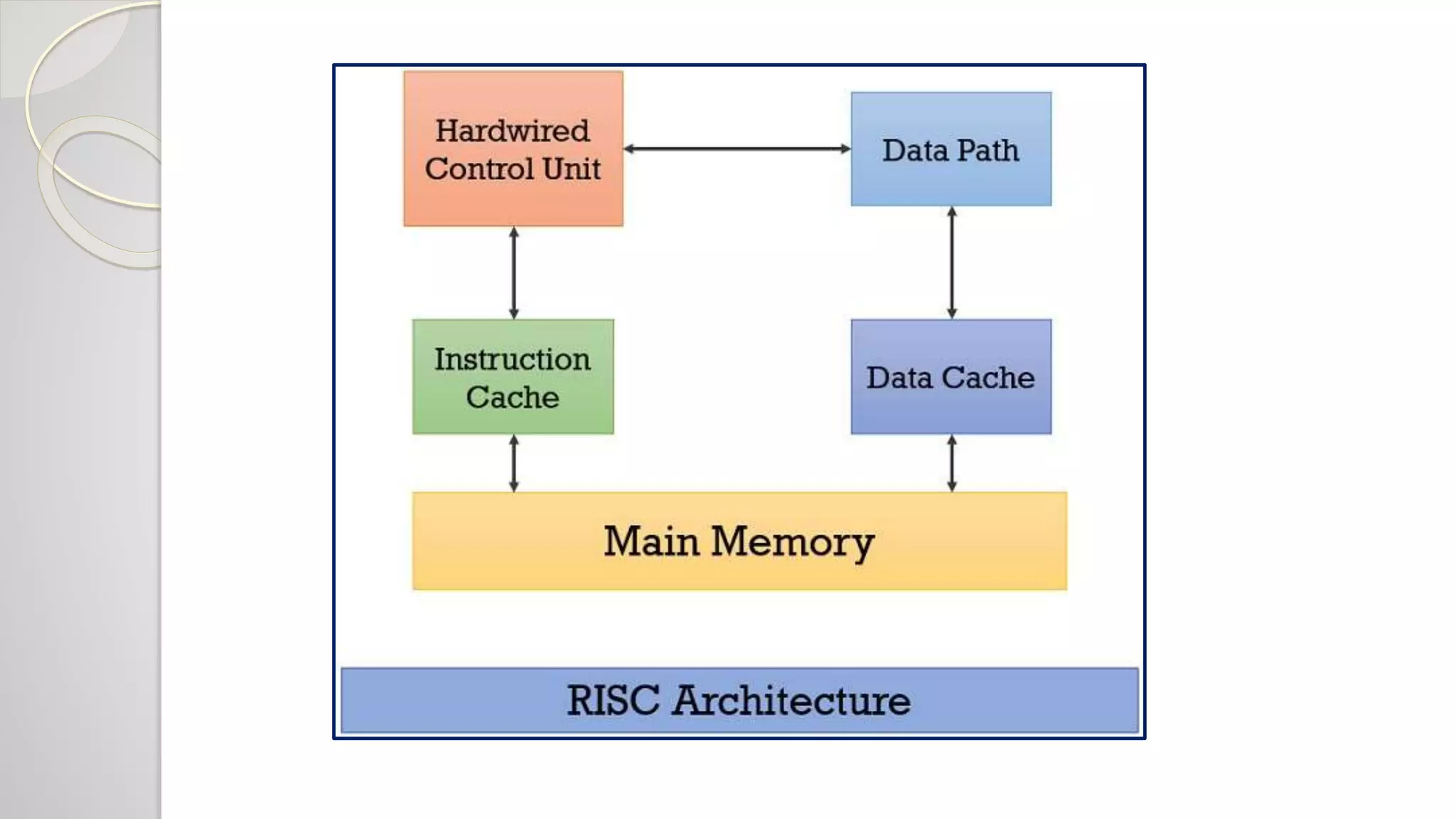

15. RISC
Acronym
RISC, or Reduced Instruction Set Computer.
Utilizes a small, highly-optimized set of instructions. Instead of highly specialized set of
instructions often found in other types of architectures.
The first RISC projects came from IBM, Stanford, and UC-Berkeley in the late 70s and early
80s. The IBM 801, Stanford MIPS, and Berkeley RISC 1 and 2 were all designed with a similar
philosophy which has become known as RISC. Certain design features have been
characteristic of most RISC processors:
One cycle execution time: RISC processors have a CPI (clock per instruction) of one cycle.
Large number of registers: the RISC design philosophy generally incorporates a larger
number of registers to prevent in large amounts of interactions with memory
Pipelining: A technique that allows for simultaneous execution of parts, or stages, of
instructions to process the instruction efficiently

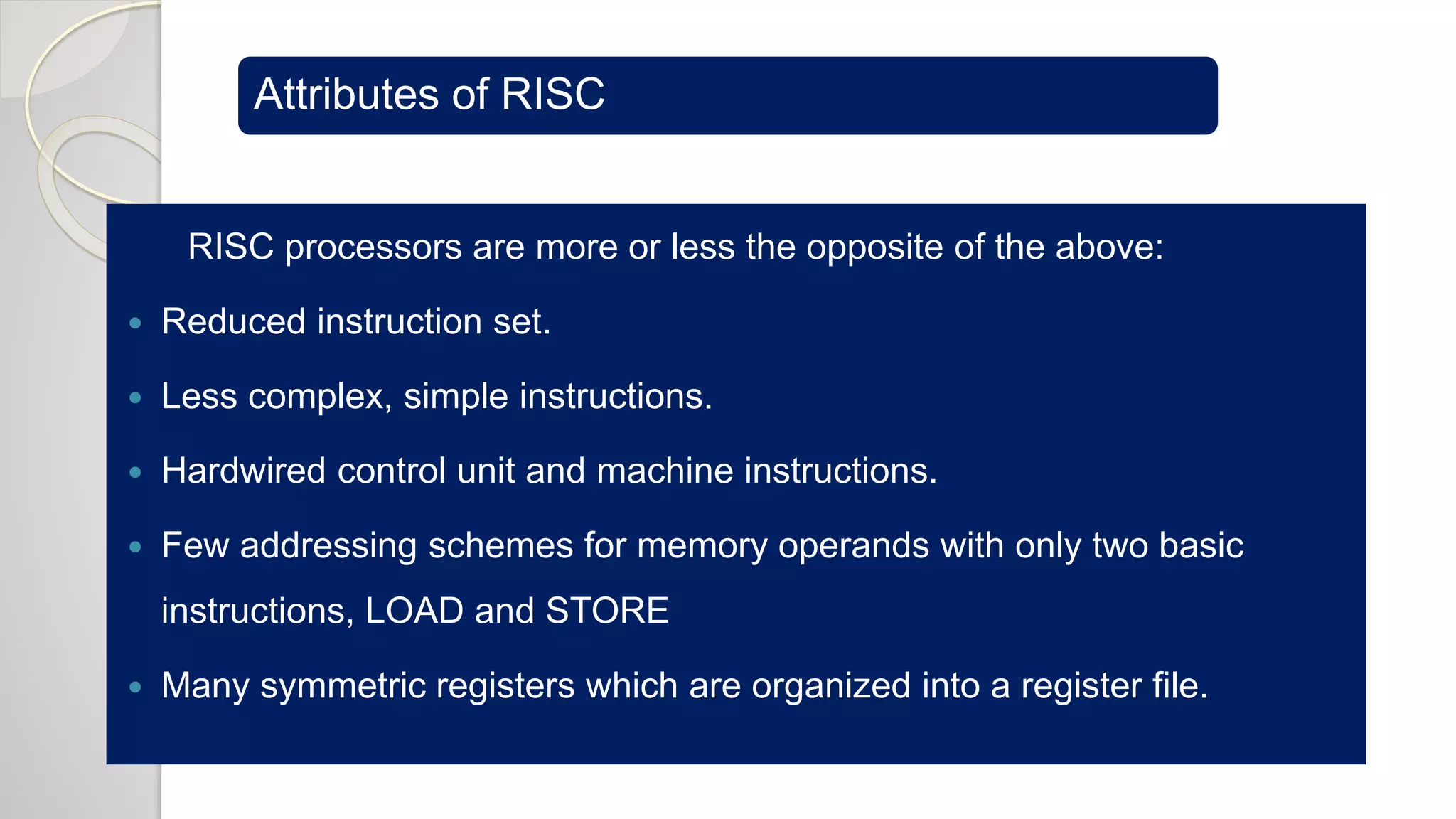

16. Attributes of RISC
RISC processors are more or less the opposite of the above:
 Reduced instruction set.
 Less complex, simple instructions.
 Hardwired control unit and machine instructions.
 Few addressing schemes for memory operands with only two basic
instructions, LOAD and STORE
 Many symmetric registers which are organized into a register file.

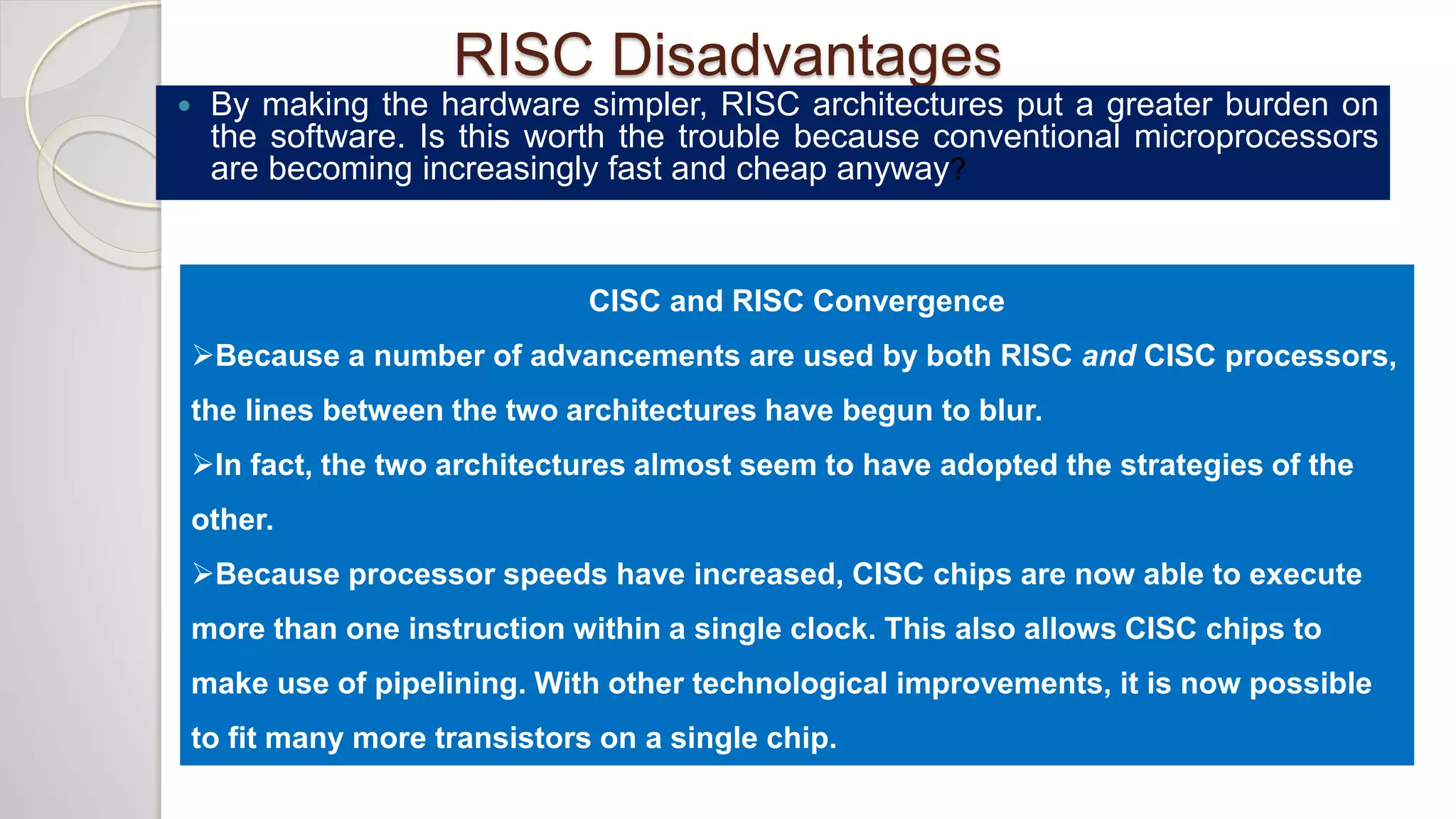

17. RISC Disadvantages
 By making the hardware simpler, RISC architectures put a greater burden on
the software. Is this worth the trouble because conventional microprocessors
are becoming increasingly fast and cheap anyway?
CISC and RISC Convergence
Because a number of advancements are used by both RISC and CISC processors,
the lines between the two architectures have begun to blur.
In fact, the two architectures almost seem to have adopted the strategies of the
other.
Because processor speeds have increased, CISC chips are now able to execute
more than one instruction within a single clock. This also allows CISC chips to
make use of pipelining. With other technological improvements, it is now possible
to fit many more transistors on a single chip.

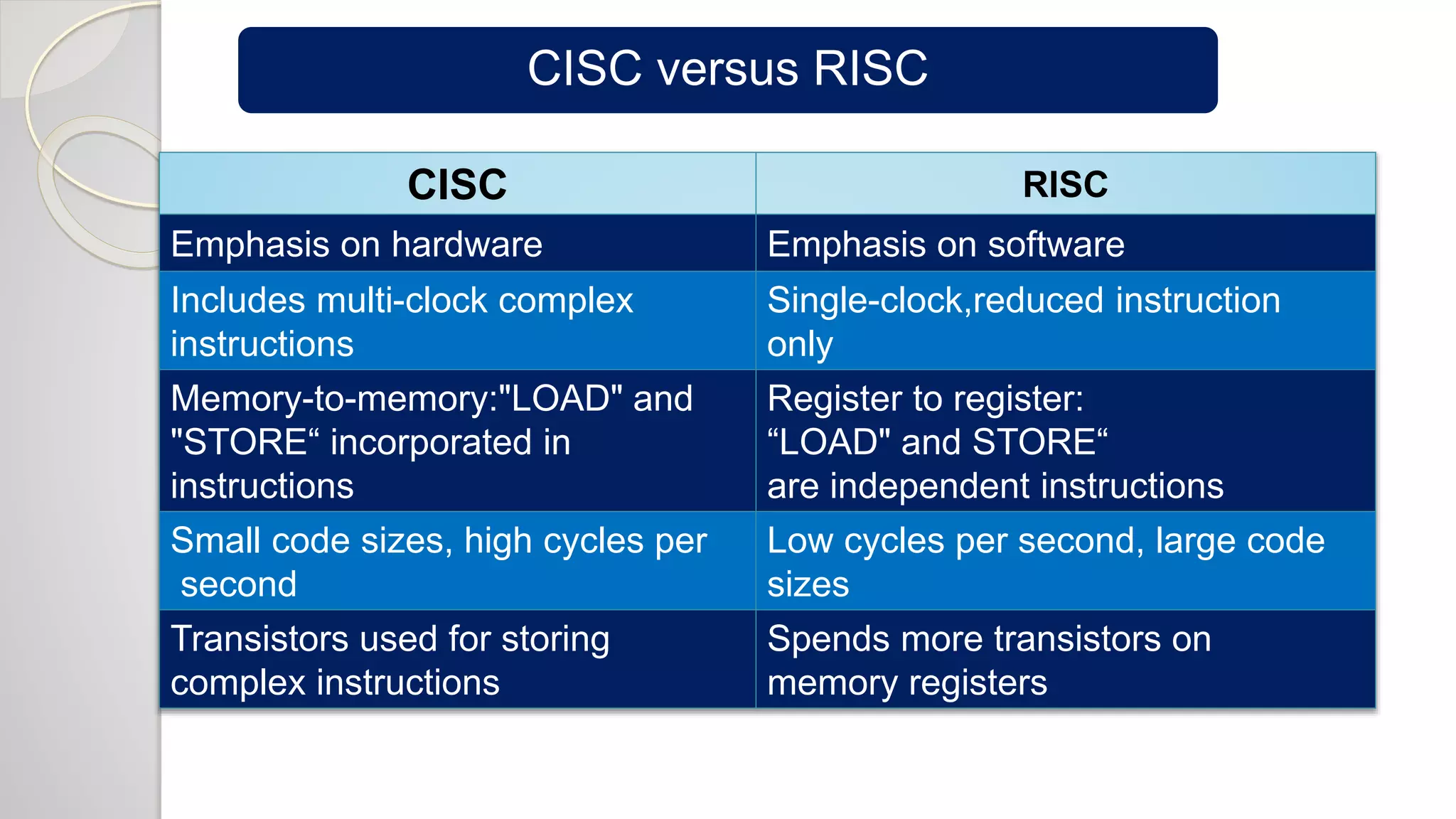

18. CISC versus RISC
CISC RISC
Emphasis on hardware Emphasis on software
Includes multi-clock complex
instructions
Single-clock,reduced instruction
only
Memory-to-memory:"LOAD" and
"STORE“ incorporated in
instructions
Register to register:
“LOAD" and STORE“
are independent instructions
Small code sizes, high cycles per
second
Low cycles per second, large code
sizes
Transistors used for storing
complex instructions
Spends more transistors on
memory registers
