Introduction to Mechatronics

1. INTRODUCTION TO MECHATRONICS
Prepared by:
DEVAN P D

2. What is Mechatronics?

3. Cont...

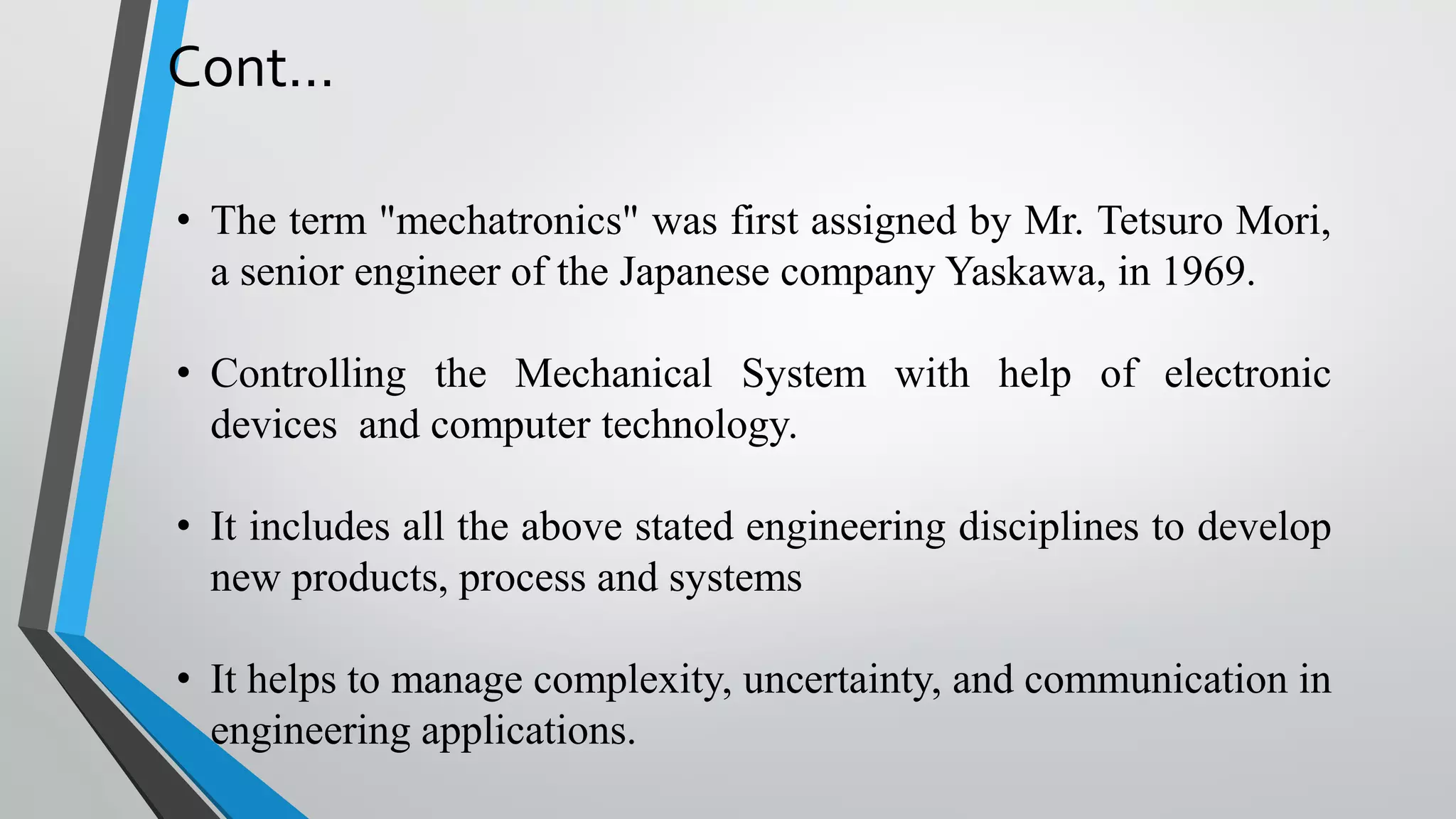

• The term "mechatronics" was first assigned by Mr. Tetsuro Mori,
a senior engineer of the Japanese company Yaskawa, in 1969.
• Controlling the Mechanical System with help of electronic
devices and computer technology.
• It includes all the above stated engineering disciplines to develop
new products, process and systems
• It helps to manage complexity, uncertainty, and communication in
engineering applications.

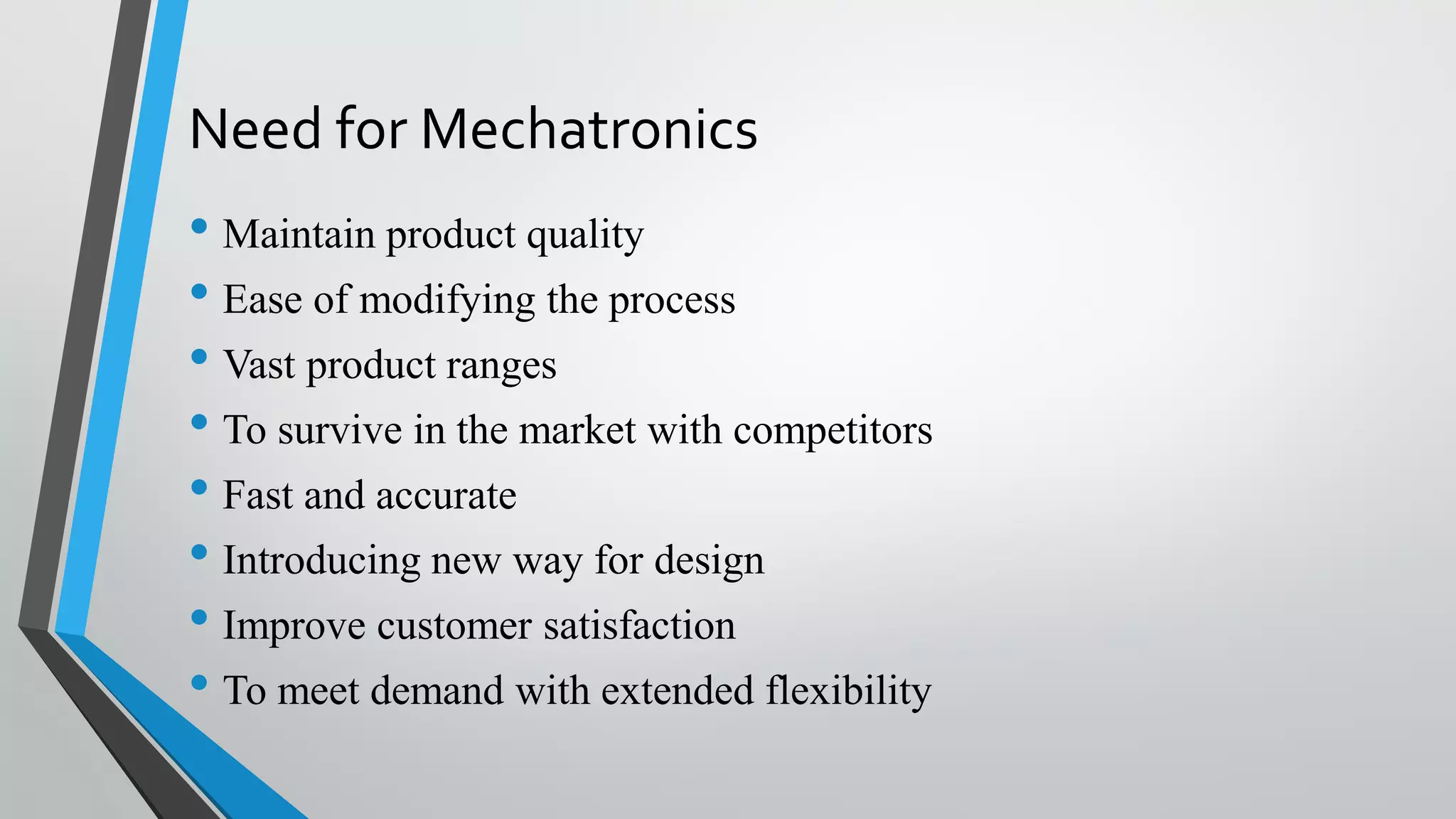

4. Need for Mechatronics
• Maintain product quality
• Ease of modifying the process
• Vast product ranges
• To survive in the market with competitors
• Fast and accurate
• Introducing new way for design
• Improve customer satisfaction
• To meet demand with extended flexibility

5. Mechatronics Design Approach

6. Mechatronics System
SYSTEM
CONTROL
SYSTEM
OPEN LOOP CLOSED LOOP
MEASUREMENT
SYSTEM

7. ------------------> SYSTEM
------------------> MEASUREMENT
SYSTEM
------------------> CONTROL
SYSTEM

8. MEASUREMENT SYSTEM
• Sensor- Produce output signal based on the quantity being measured
• Signal Conditioner- Manipulates the signal into suitable form which is
supported by display
• Display- Shows the output

9. CONTROL SYSTEM

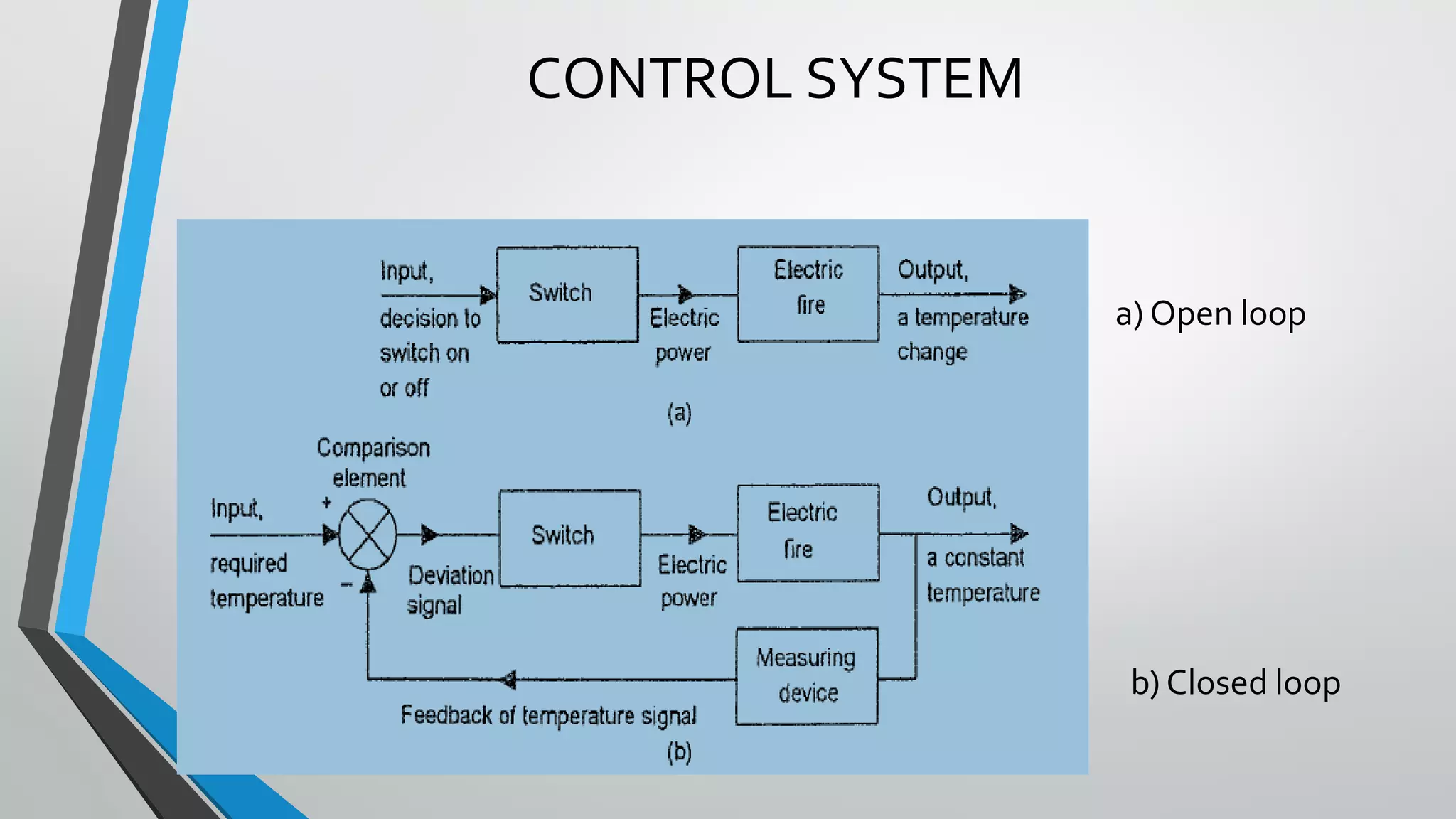

• GHCNBDCNCCDNBVDBVJDBVJBJDFVBJBVJDBJDBVJBV a) Open loop
•
• b) Closed loop

11. Elements of closed loop system
• Comparison Element- Compares reference and measured value
• Control Element- Decides what action to be taken
• Correction element- Correct the process if any deviation is there
• Process Element- What is being controlled?
• Measurement Element- Measure the variable and produces signal
