This chapter introduces and classifies various types of damage that can occur in structures. Damage can be caused by forces, deformations, aggressive environments, or temperatures. It can occur suddenly or over time. The chapter discusses different damage mechanisms including corrosion, excessive deformation, plastic instability, wear, and fracture. It also introduces concepts that will be covered in more detail later such as damage mechanics, fracture mechanics, and the influence of microstructure on damage and fracture. The chapter aims to provide an overview of damage types before exploring specific mechanisms and analyses in later chapters.

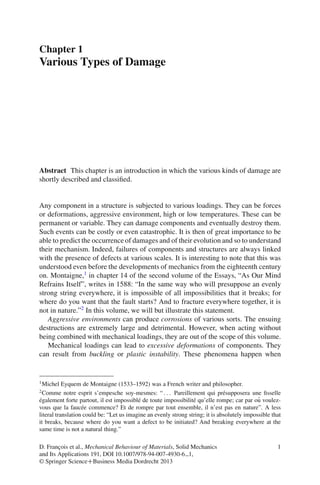

1. Chapter 1
Various Types of Damage
Abstract This chapter is an introduction in which the various kinds of damage are
shortly described and classified.
Any component in a structure is subjected to various loadings. They can be forces
or deformations, aggressive environment, high or low temperatures. These can be
permanent or variable. They can damage components and eventually destroy them.
Such events can be costly or even catastrophic. It is then of great importance to be
able to predict the occurrence of damages and of their evolution and so to understand
their mechanism. Indeed, failures of components and structures are always linked
with the presence of defects at various scales. It is interesting to note that this was
understood even before the developments of mechanics from the eighteenth century
on. Montaigne,1
in chapter 14 of the second volume of the Essays, “As Our Mind
Refrains Itself”, writes in 1588: “In the same way who will presuppose an evenly
strong string everywhere, it is impossible of all impossibilities that it breaks; for
where do you want that the fault starts? And to fracture everywhere together, it is
not in nature.”2
In this volume, we will but illustrate this statement.
Aggressive environments can produce corrosions of various sorts. The ensuing
destructions are extremely large and detrimental. However, when acting without
being combined with mechanical loadings, they are out of the scope of this volume.
Mechanical loadings can lead to excessive deformations of components. They
can result from buckling or plastic instability. These phenomena happen when
1
Michel Eyquem de Montaigne (1533–1592) was a French writer and philosopher.
2
Comme notre esprit s’empesche soy-mesmes: “ : : : Pareillement qui pr´esupposera une fisselle
´egalement forte partout, il est impossibl´e de toute impossibilit´e qu’elle rompe; car par oJu voulez-
vous que la fauc´ee commence? Et de rompre par tout ensemble, il n’est pas en nature”. A less
literal translation could be: “Let us imagine an evenly strong string; it is absolutely impossible that
it breaks, because where do you want a defect to be initiated? And breaking everywhere at the
same time is not a natural thing.”
D. Franc¸ois et al., Mechanical Behaviour of Materials, Solid Mechanics
and Its Applications 191, DOI 10.1007/978-94-007-4930-6 1,
© Springer ScienceCBusiness Media Dordrecht 2013
1

2. 2 1 Various Types of Damage
Table 1.1 Various types of damage
Fracture type Volume damage Mixed damage Surface damage
Sudden Cleavage Liquid metal embrittlement
(Hg, Cd, Ga)Cavities (Trans or
intergranular)
Delayed Creep Creep fatigue Fatigue
Irradiation
embrittlement
Wear
Impurities
embrittlement
Stress corrosion
Hydrogen embrittlement Corrosion fatigue
Wear – Fretting-Fatigue
an increasing deformation takes place without an increase of the applied forces.
Ratcheting is another way to produce excessive deformations. However important
for the stability of structures, we will not deal with these types of collapses.
Nevertheless, plastic instabilities at various scales need to be considered in the
occurrence of damages, so that we will have to account for them in several sections
of this book. The basic treatment of plastic instability can be found in chapter 3 of
the first volume.
Damage is due to initiation and development of surfaces, cracks or cavities at
various scales. Their origin lies in microscopic defects of various kinds. They can
be distributed within the volume of the material or on its surface only. They can grow
and coalesce. In this way macroscopic cracks are created. These can propagate more
or less slowly and eventually in a catastrophic fashion. The various types of damage,
which bring up more or less precise notions in the mind of the reader, are listed and
classified in Table 1.1.
The multiplication or the growth of these defects lead to the development of
cracks and finally to fracture. We must be able to calculate the loads needed for
the various steps in the evolution of damage and cracking, so as to predict when a
failure would take place.
The first step, very often the most critical one, is the initiation of damage. This
requires the production of surface energy, that is the breaking of atomic bonds. This
needs a high local stress. In most cases, homogeneous loading is insufficient. Local
stress raisers must be present. Thus, we need to relate the local stress and strain
fields at their level to the macroscopic mechanical loadings. Chapter 2 of the first
volume gives treatments of this kind of problems.
Damage initiations at various locations leads to a distribution of defects within
the bulk or on the surface, depending on the mechanism. Lazar’ Katchanov and Yurii
Rabotnov3
proposed, for the treatment of creep rupture, a method to deal with small,
distributed defects within the volume of the material. This is damage mechanics.
3
Lazar’ Markovich Katchanov (1914–1993) and Yurii Nikolaievich Rabotnov (1914–1985) were
Russian professors in solid mechanics.

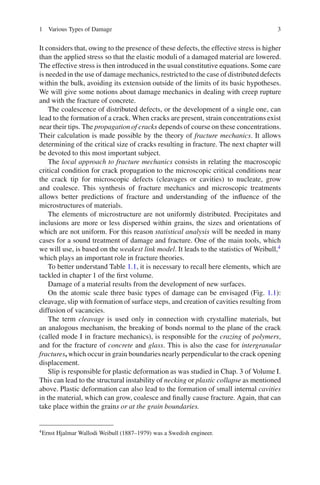

3. 1 Various Types of Damage 3
It considers that, owing to the presence of these defects, the effective stress is higher
than the applied stress so that the elastic moduli of a damaged material are lowered.
The effective stress is then introduced in the usual constitutive equations. Some care
is needed in the use of damage mechanics, restricted to the case of distributed defects
within the bulk, avoiding its extension outside of the limits of its basic hypotheses.
We will give some notions about damage mechanics in dealing with creep rupture
and with the fracture of concrete.
The coalescence of distributed defects, or the development of a single one, can
lead to the formation of a crack. When cracks are present, strain concentrations exist
near their tips. The propagation of cracks depends of course on these concentrations.
Their calculation is made possible by the theory of fracture mechanics. It allows
determining of the critical size of cracks resulting in fracture. The next chapter will
be devoted to this most important subject.
The local approach to fracture mechanics consists in relating the macroscopic
critical condition for crack propagation to the microscopic critical conditions near
the crack tip for microscopic defects (cleavages or cavities) to nucleate, grow
and coalesce. This synthesis of fracture mechanics and microscopic treatments
allows better predictions of fracture and understanding of the influence of the
microstructures of materials.
The elements of microstructure are not uniformly distributed. Precipitates and
inclusions are more or less dispersed within grains, the sizes and orientations of
which are not uniform. For this reason statistical analysis will be needed in many
cases for a sound treatment of damage and fracture. One of the main tools, which
we will use, is based on the weakest link model. It leads to the statistics of Weibull,4
which plays an important role in fracture theories.
To better understand Table 1.1, it is necessary to recall here elements, which are
tackled in chapter 1 of the first volume.
Damage of a material results from the development of new surfaces.
On the atomic scale three basic types of damage can be envisaged (Fig. 1.1):
cleavage, slip with formation of surface steps, and creation of cavities resulting from
diffusion of vacancies.
The term cleavage is used only in connection with crystalline materials, but
an analogous mechanism, the breaking of bonds normal to the plane of the crack
(called mode I in fracture mechanics), is responsible for the crazing of polymers,
and for the fracture of concrete and glass. This is also the case for intergranular
fractures, which occur in grain boundaries nearly perpendicular to the crack opening
displacement.
Slip is responsible for plastic deformation as was studied in Chap. 3 of Volume I.
This can lead to the structural instability of necking or plastic collapse as mentioned
above. Plastic deformation can also lead to the formation of small internal cavities
in the material, which can grow, coalesce and finally cause fracture. Again, that can
take place within the grains or at the grain boundaries.
4
Ernst Hjalmar Wallodi Weibull (1887–1979) was a Swedish engineer.

4. 4 1 Various Types of Damage

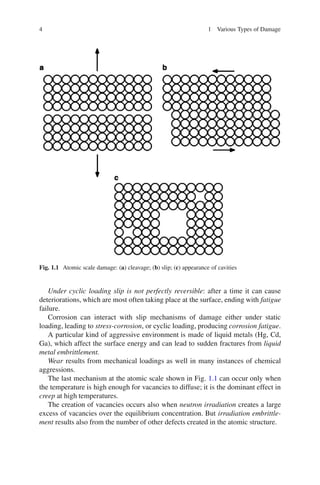

Fig. 1.1 Atomic scale damage: (a) cleavage; (b) slip; (c) appearance of cavities
Under cyclic loading slip is not perfectly reversible: after a time it can cause
deteriorations, which are most often taking place at the surface, ending with fatigue
failure.
Corrosion can interact with slip mechanisms of damage either under static
loading, leading to stress-corrosion, or cyclic loading, producing corrosion fatigue.
A particular kind of aggressive environment is made of liquid metals (Hg, Cd,
Ga), which affect the surface energy and can lead to sudden fractures from liquid
metal embrittlement.
Wear results from mechanical loadings as well in many instances of chemical
aggressions.
The last mechanism at the atomic scale shown in Fig. 1.1 can occur only when
the temperature is high enough for vacancies to diffuse; it is the dominant effect in
creep at high temperatures.
The creation of vacancies occurs also when neutron irradiation creates a large
excess of vacancies over the equilibrium concentration. But irradiation embrittle-
ment results also from the number of other defects created in the atomic structure.

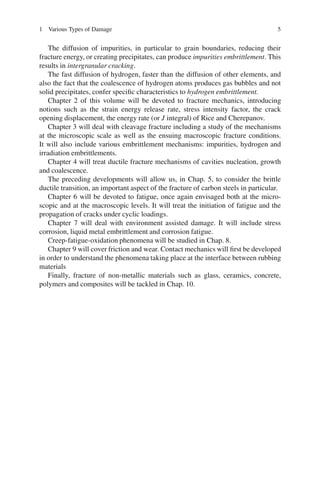

5. 1 Various Types of Damage 5
The diffusion of impurities, in particular to grain boundaries, reducing their
fracture energy, or creating precipitates, can produce impurities embrittlement. This
results in intergranular cracking.
The fast diffusion of hydrogen, faster than the diffusion of other elements, and
also the fact that the coalescence of hydrogen atoms produces gas bubbles and not
solid precipitates, confer specific characteristics to hydrogen embrittlement.
Chapter 2 of this volume will be devoted to fracture mechanics, introducing
notions such as the strain energy release rate, stress intensity factor, the crack
opening displacement, the energy rate (or J integral) of Rice and Cherepanov.
Chapter 3 will deal with cleavage fracture including a study of the mechanisms
at the microscopic scale as well as the ensuing macroscopic fracture conditions.
It will also include various embrittlement mechanisms: impurities, hydrogen and
irradiation embrittlements.
Chapter 4 will treat ductile fracture mechanisms of cavities nucleation, growth
and coalescence.
The preceding developments will allow us, in Chap. 5, to consider the brittle
ductile transition, an important aspect of the fracture of carbon steels in particular.
Chapter 6 will be devoted to fatigue, once again envisaged both at the micro-
scopic and at the macroscopic levels. It will treat the initiation of fatigue and the
propagation of cracks under cyclic loadings.
Chapter 7 will deal with environment assisted damage. It will include stress
corrosion, liquid metal embrittlement and corrosion fatigue.
Creep-fatigue-oxidation phenomena will be studied in Chap. 8.
Chapter 9 will cover friction and wear. Contact mechanics will first be developed
in order to understand the phenomena taking place at the interface between rubbing
materials
Finally, fracture of non-metallic materials such as glass, ceramics, concrete,
polymers and composites will be tackled in Chap. 10.
