The document introduces the ETERNITY line of IP-PBX systems from Matrix. It summarizes the key features and models in the ETERNITY ME series for medium enterprises, including the ME10S and ME16S models which support up to 999 IP users and 516 TDM ports. The document also outlines the system's universal connectivity, expansion cards, digital key phones, and other user terminals.

1. Warm Welcome

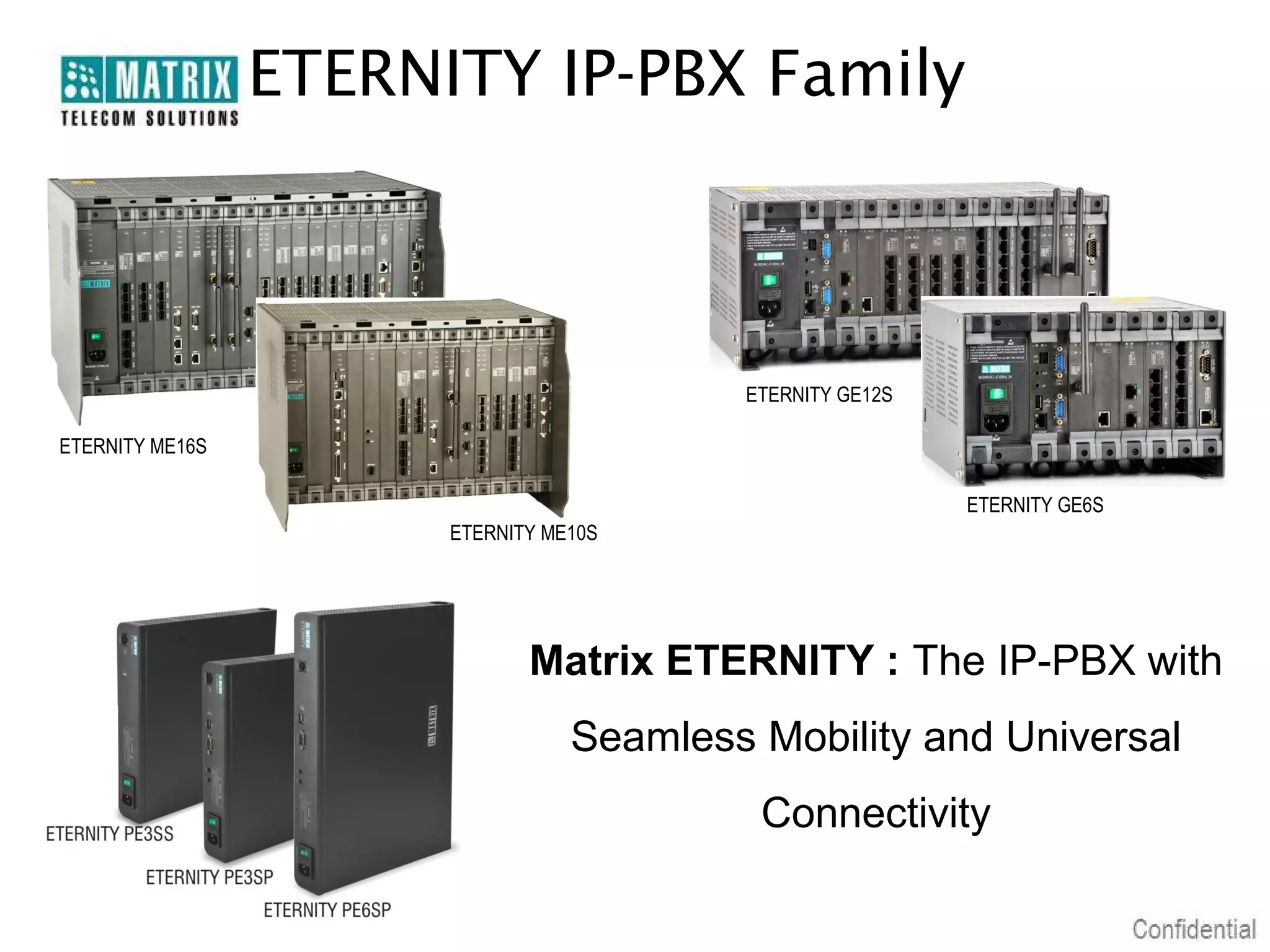

2. ETERNITY IP-PBX Family
ETERNITY GE12S
ETERNITY ME16S
ETERNITY GE6S
ETERNITY ME10S
Matrix ETERNITY : The IP-PBX with
Seamless Mobility and Universal
Connectivity

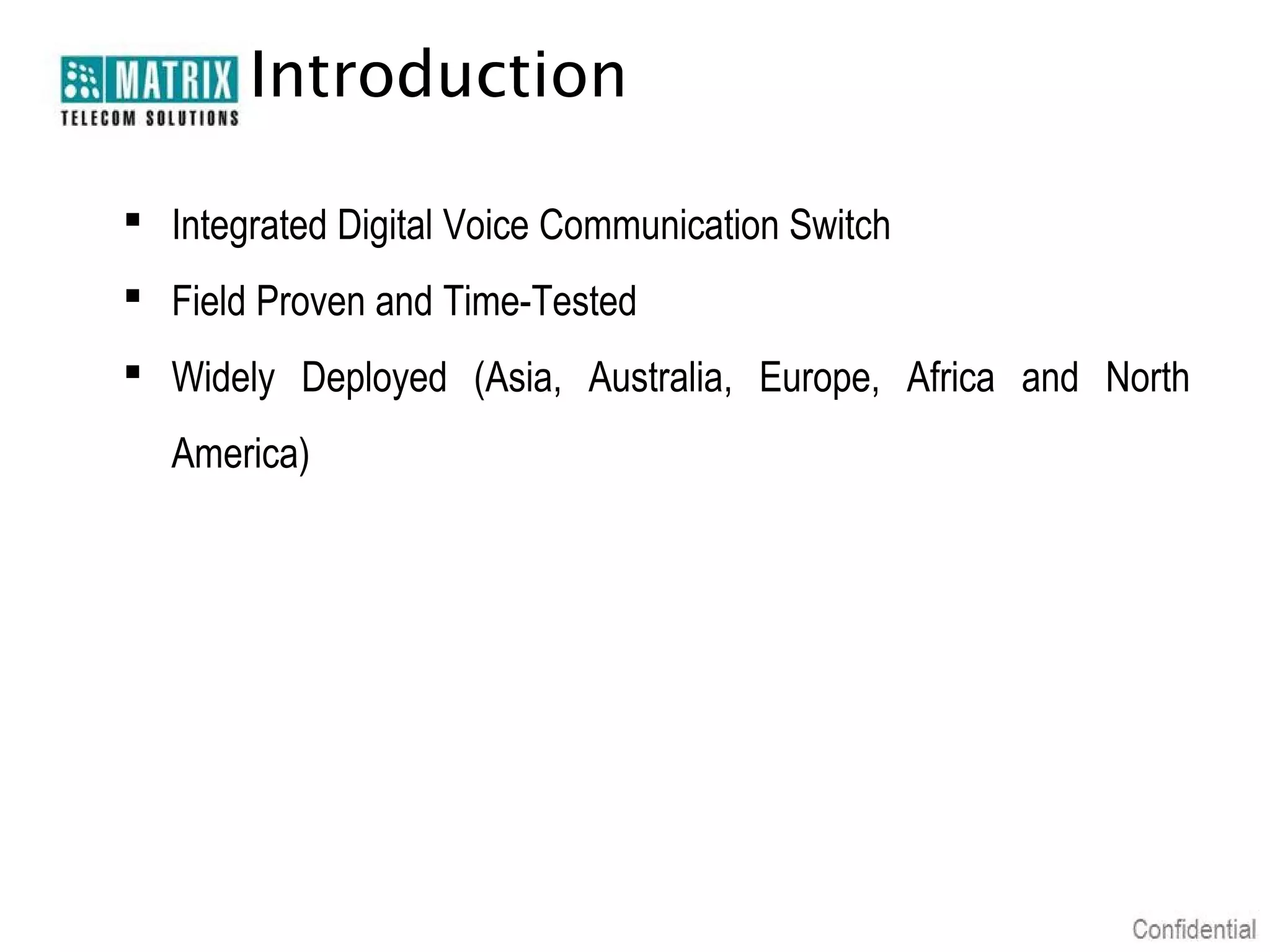

3. Introduction
 Integrated Digital Voice Communication Switch
 Field Proven and Time-Tested
 Widely Deployed (Asia, Australia, Europe, Africa and North
America)

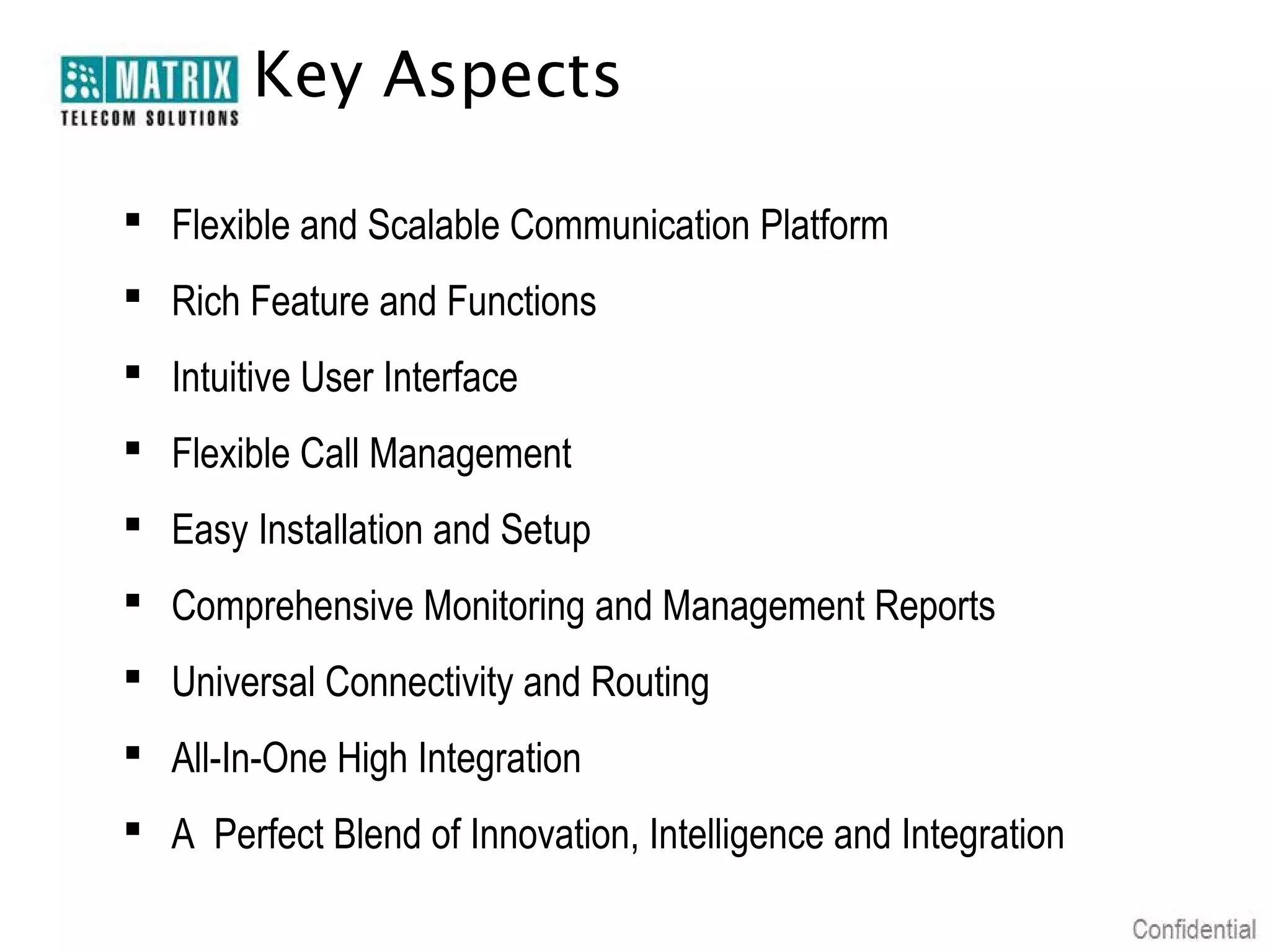

4. Key Aspects
 Flexible and Scalable Communication Platform
 Rich Feature and Functions
 Intuitive User Interface
 Flexible Call Management
 Easy Installation and Setup
 Comprehensive Monitoring and Management Reports
 Universal Connectivity and Routing
 All-In-One High Integration
 A Perfect Blend of Innovation, Intelligence and Integration

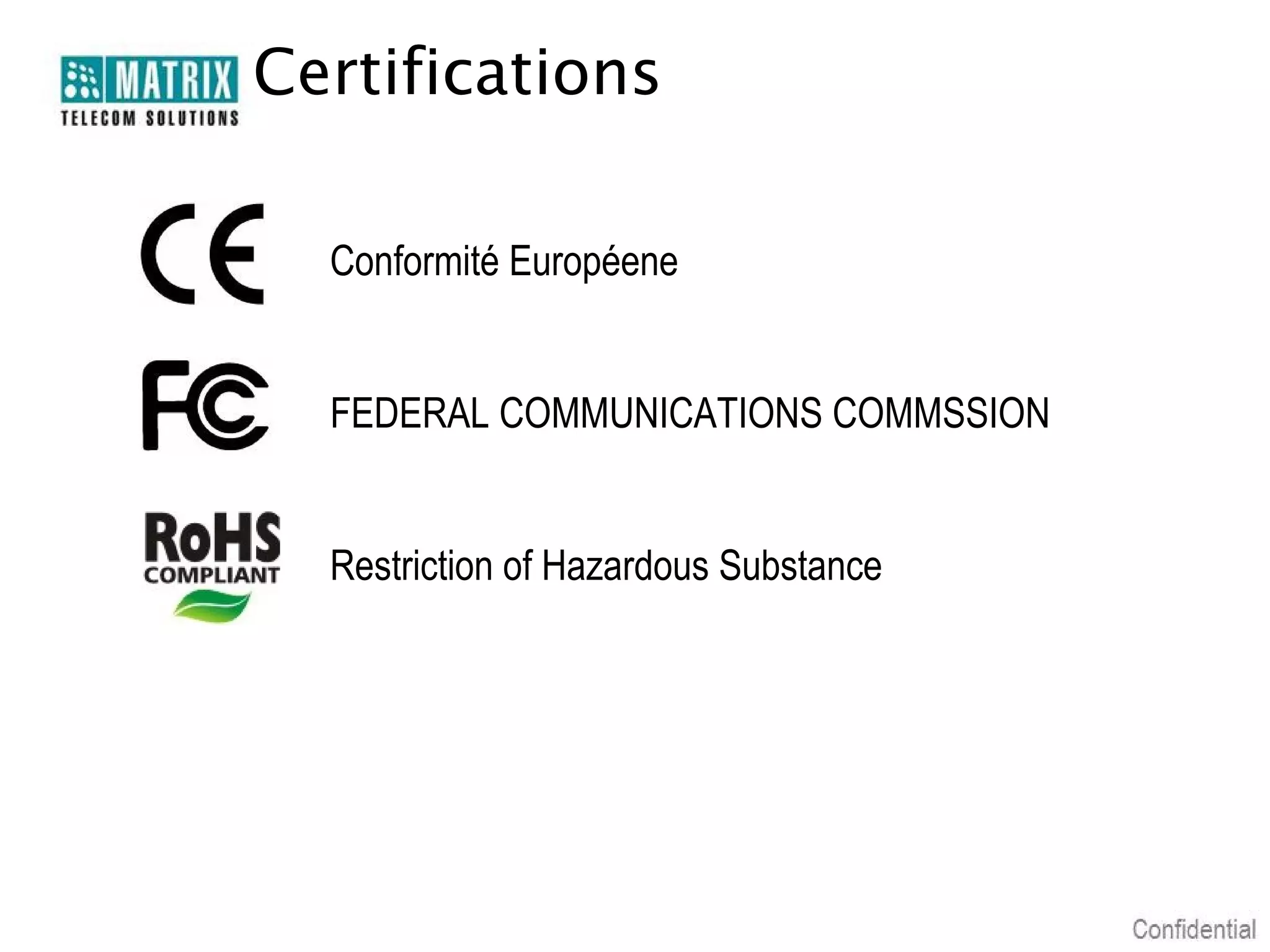

5. Certifications
Conformité Européene
FEDERAL COMMUNICATIONS COMMSSION
Restriction of Hazardous Substance

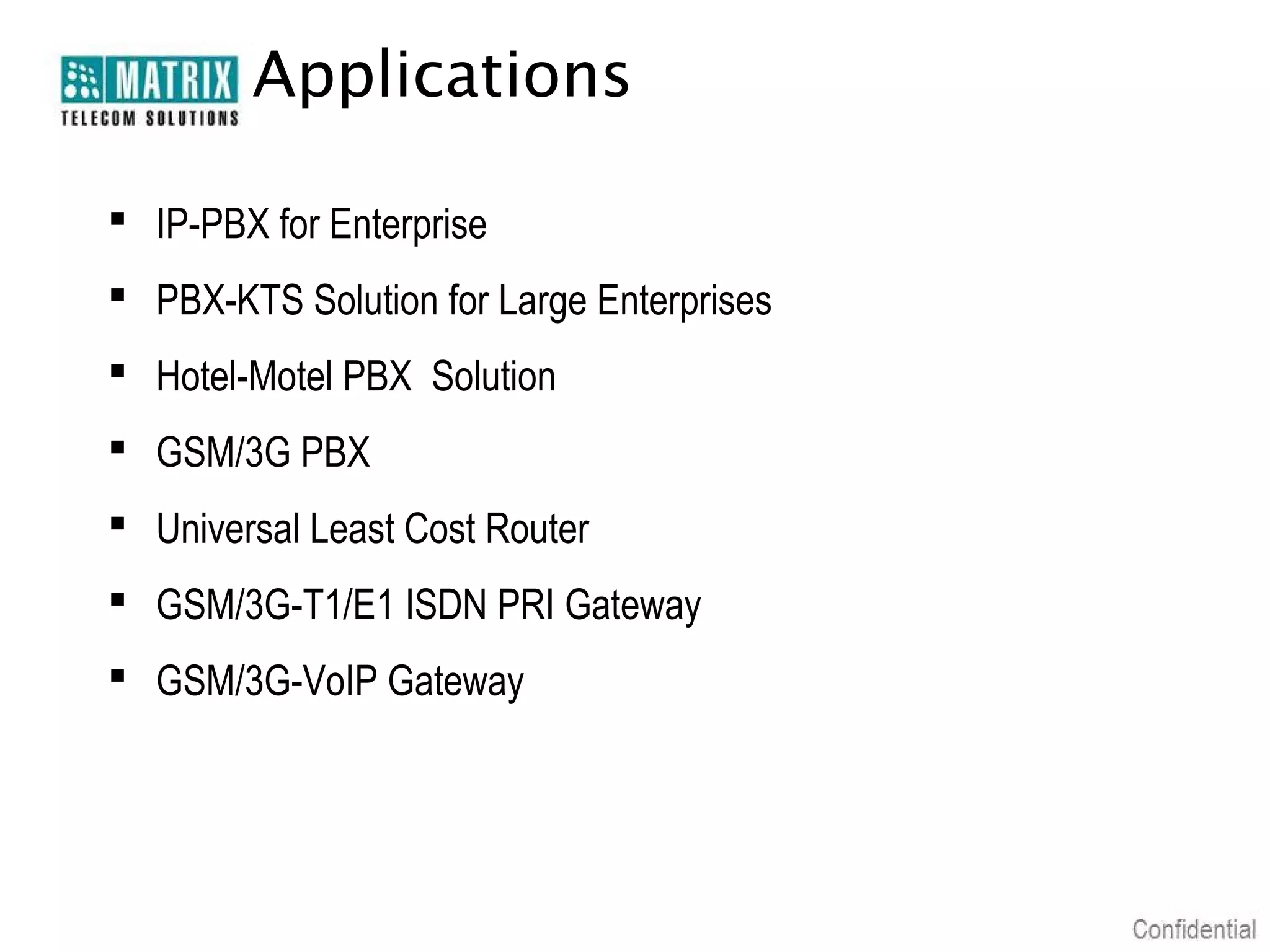

6. Applications
 IP-PBX for Enterprise
 PBX-KTS Solution for Large Enterprises
 Hotel-Motel PBX Solution
 GSM/3G PBX
 Universal Least Cost Router
 GSM/3G-T1/E1 ISDN PRI Gateway
 GSM/3G-VoIP Gateway

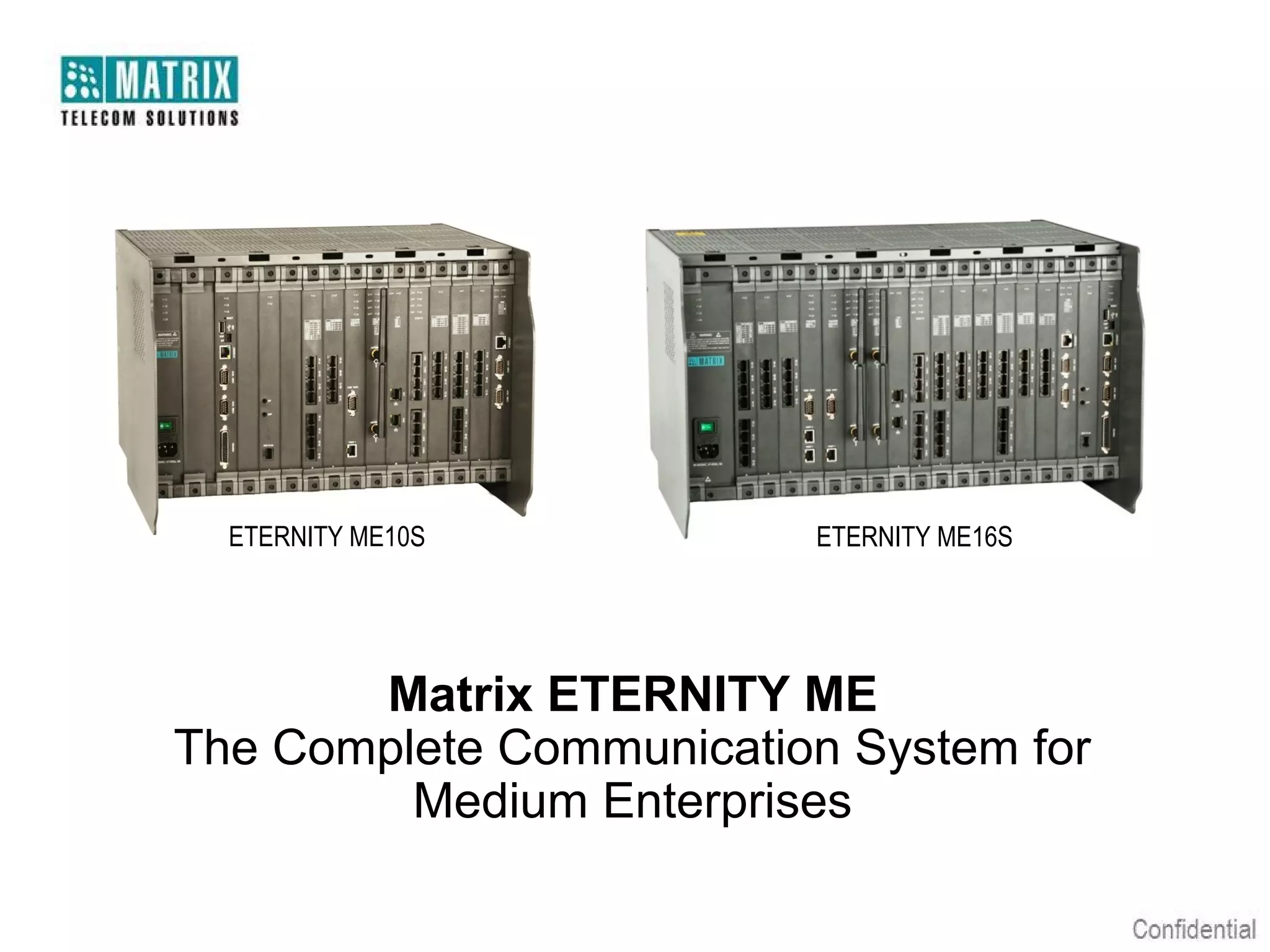

7. ETERNITY ME10S ETERNITY ME16S
Matrix ETERNITY ME
The Complete Communication System for
Medium Enterprises

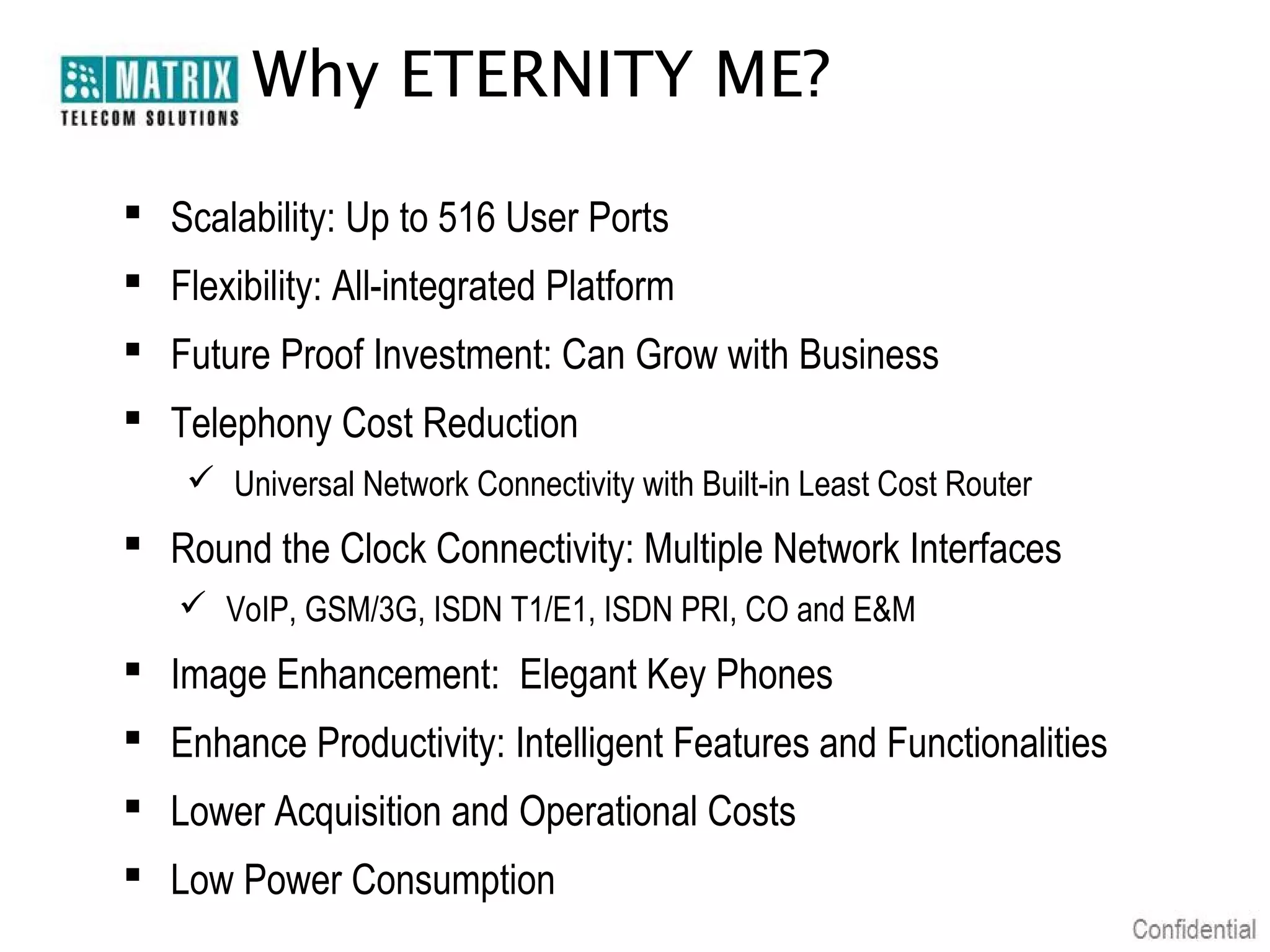

8. Why ETERNITY ME?
 Scalability: Up to 516 User Ports
 Flexibility: All-integrated Platform
 Future Proof Investment: Can Grow with Business
 Telephony Cost Reduction
 Universal Network Connectivity with Built-in Least Cost Router
 Round the Clock Connectivity: Multiple Network Interfaces
 VoIP, GSM/3G, ISDN T1/E1, ISDN PRI, CO and E&M
 Image Enhancement: Elegant Key Phones
 Enhance Productivity: Intelligent Features and Functionalities
 Lower Acquisition and Operational Costs
 Low Power Consumption

9. ETERNITY ME Family

10. ETERNITY ME10S
 10 Universal Hot-Swappable Slots
 999 IP Users
 324 TDM Ports
 Analog Input Port (AIP)
 Analog Output Port (AOP)
 Digital Input Port (DIP)
 Digital Output Port (DOP)
 2 RS232C Ports
 Parallel Printer Port
 Ethernet Port
 21 Participants Conference
 16 Voice Modules (16 Seconds Each)
 Mains or DC Power Supply
 Hot Stand-by (DC Power Supply and Critical Cards)

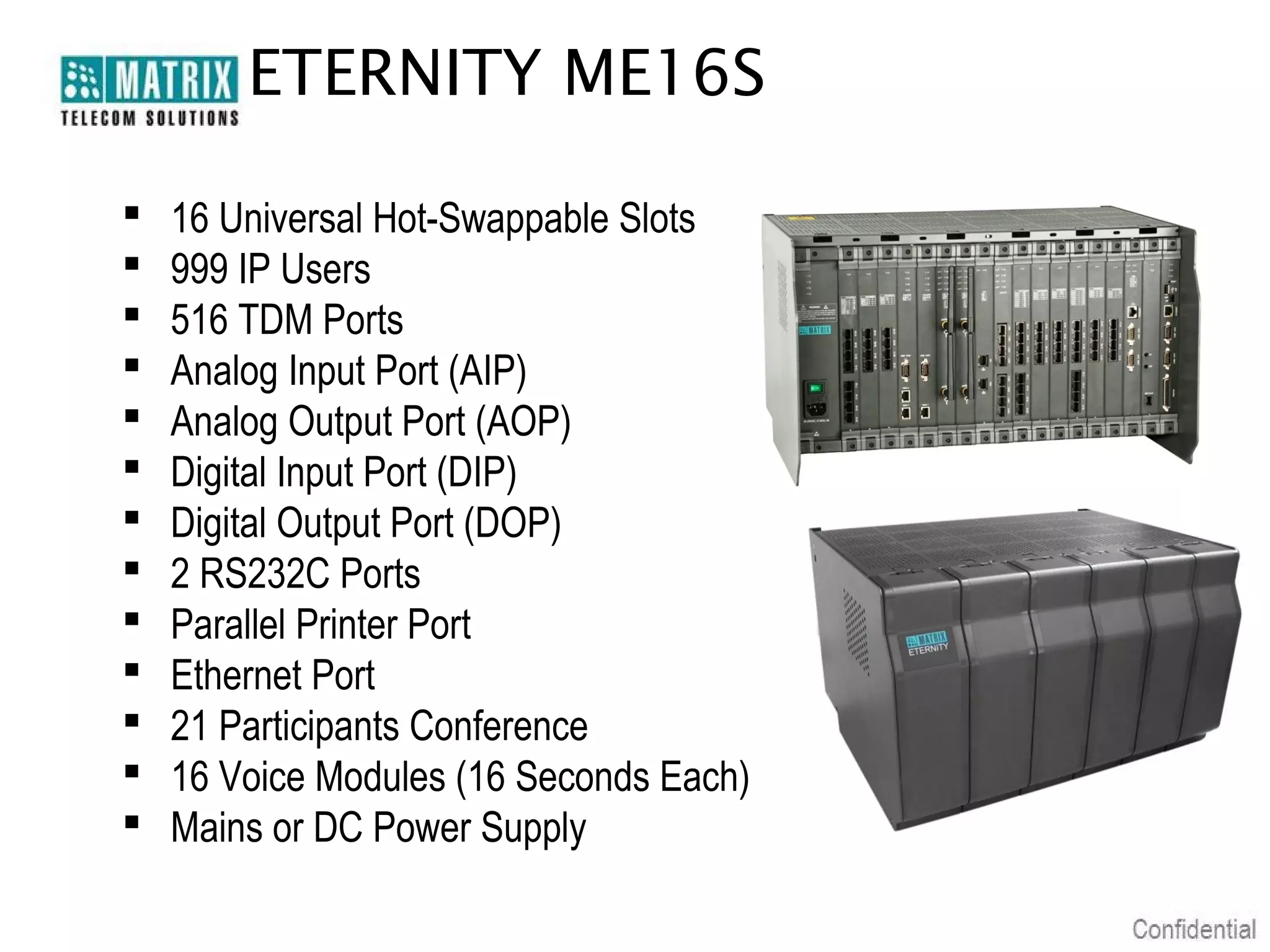

11. ETERNITY ME16S
 16 Universal Hot-Swappable Slots
 999 IP Users
 516 TDM Ports
 Analog Input Port (AIP)
 Analog Output Port (AOP)
 Digital Input Port (DIP)
 Digital Output Port (DOP)
 2 RS232C Ports
 Parallel Printer Port
 Ethernet Port
 21 Participants Conference
 16 Voice Modules (16 Seconds Each)
 Mains or DC Power Supply

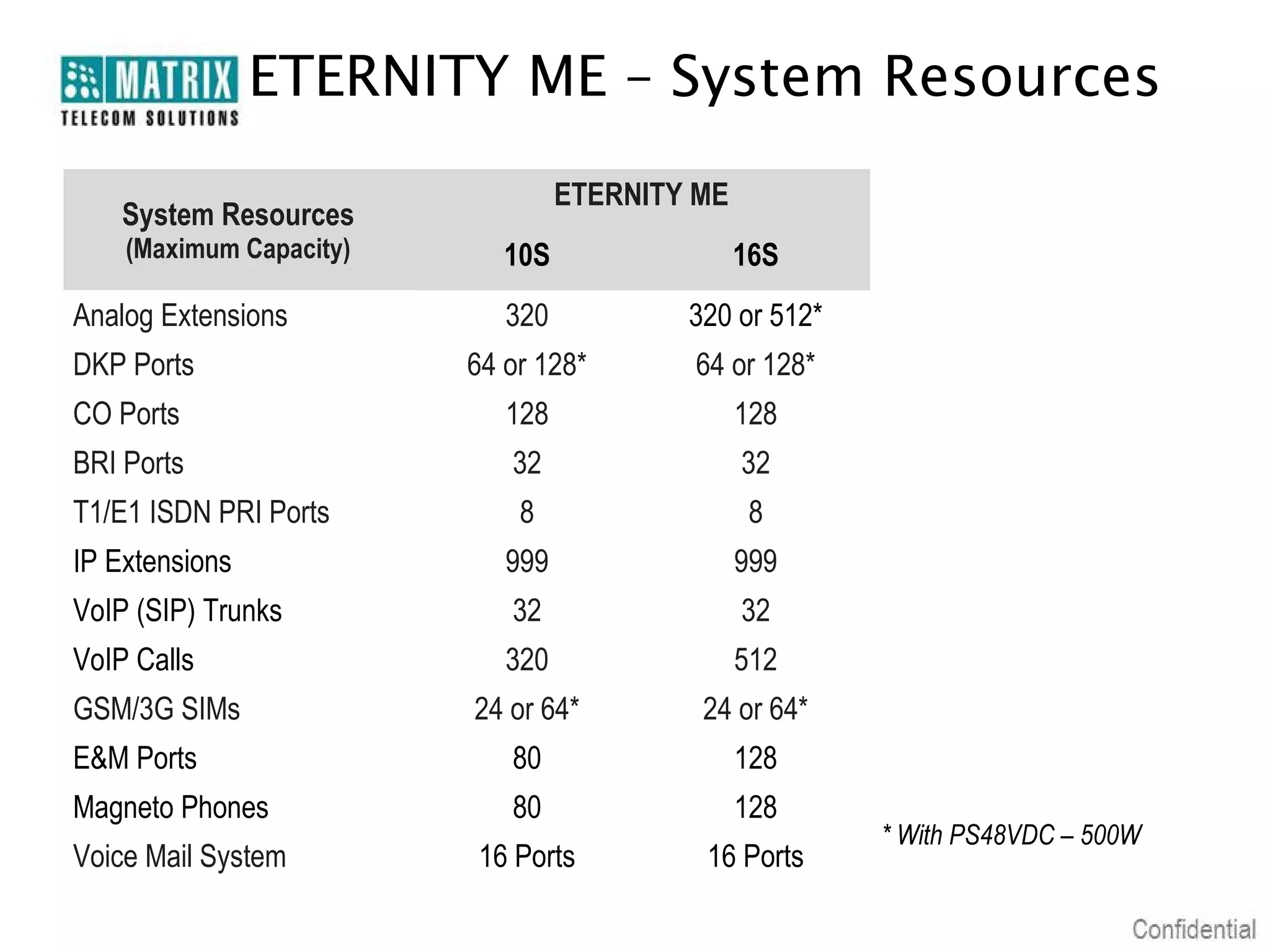

12. ETERNITY ME – System Resources
ETERNITY ME
System Resources
(Maximum Capacity) 10S 16S
Analog Extensions 320 320 or 512*
DKP Ports 64 or 128* 64 or 128*
CO Ports 128 128
BRI Ports 32 32
T1/E1 ISDN PRI Ports 8 8
IP Extensions 999 999
VoIP (SIP) Trunks 32 32
VoIP Calls 320 512
GSM/3G SIMs 24 or 64* 24 or 64*
E&M Ports 80 128
Magneto Phones 80 128
* With PS48VDC – 500W
Voice Mail System 16 Ports 16 Ports

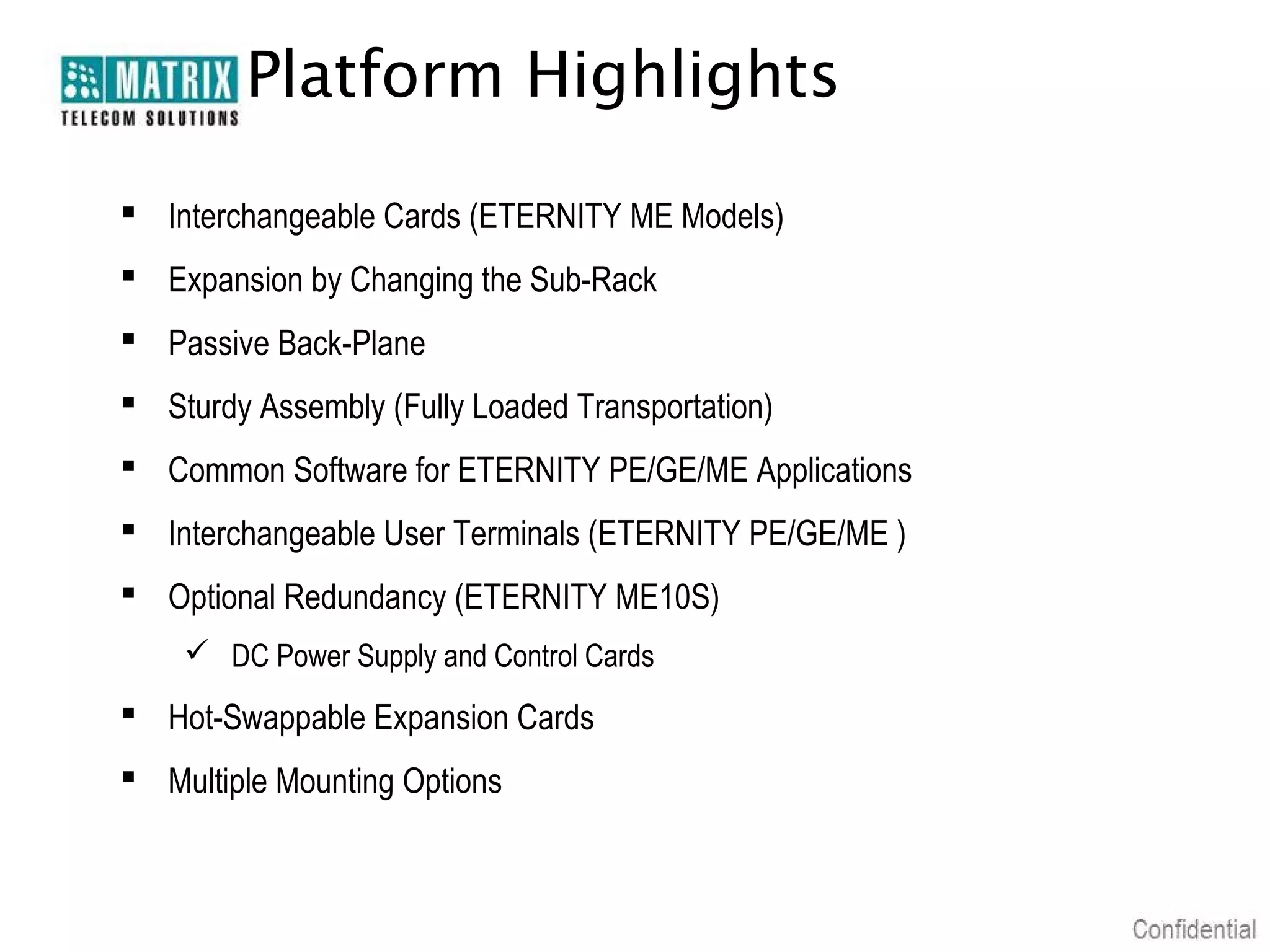

13. Platform Highlights
 Interchangeable Cards (ETERNITY ME Models)
 Expansion by Changing the Sub-Rack
 Passive Back-Plane
 Sturdy Assembly (Fully Loaded Transportation)
 Common Software for ETERNITY PE/GE/ME Applications
 Interchangeable User Terminals (ETERNITY PE/GE/ME )
 Optional Redundancy (ETERNITY ME10S)
 DC Power Supply and Control Cards
 Hot-Swappable Expansion Cards
 Multiple Mounting Options

14. Network Interfaces

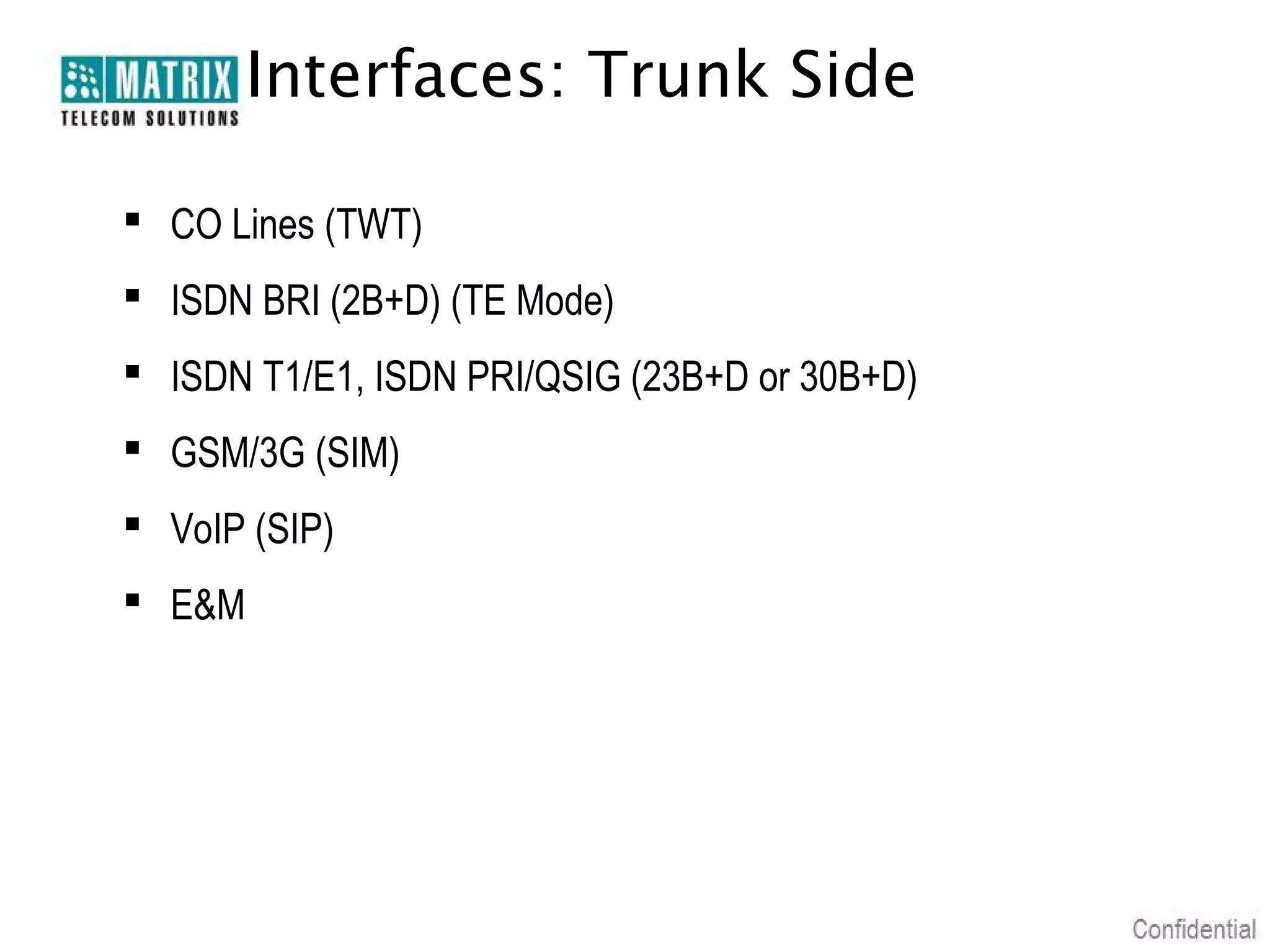

15. Interfaces: Trunk Side
 CO Lines (TWT)
 ISDN BRI (2B+D) (TE Mode)
 ISDN T1/E1, ISDN PRI/QSIG (23B+D or 30B+D)
 GSM/3G (SIM)
 VoIP (SIP)
 E&M

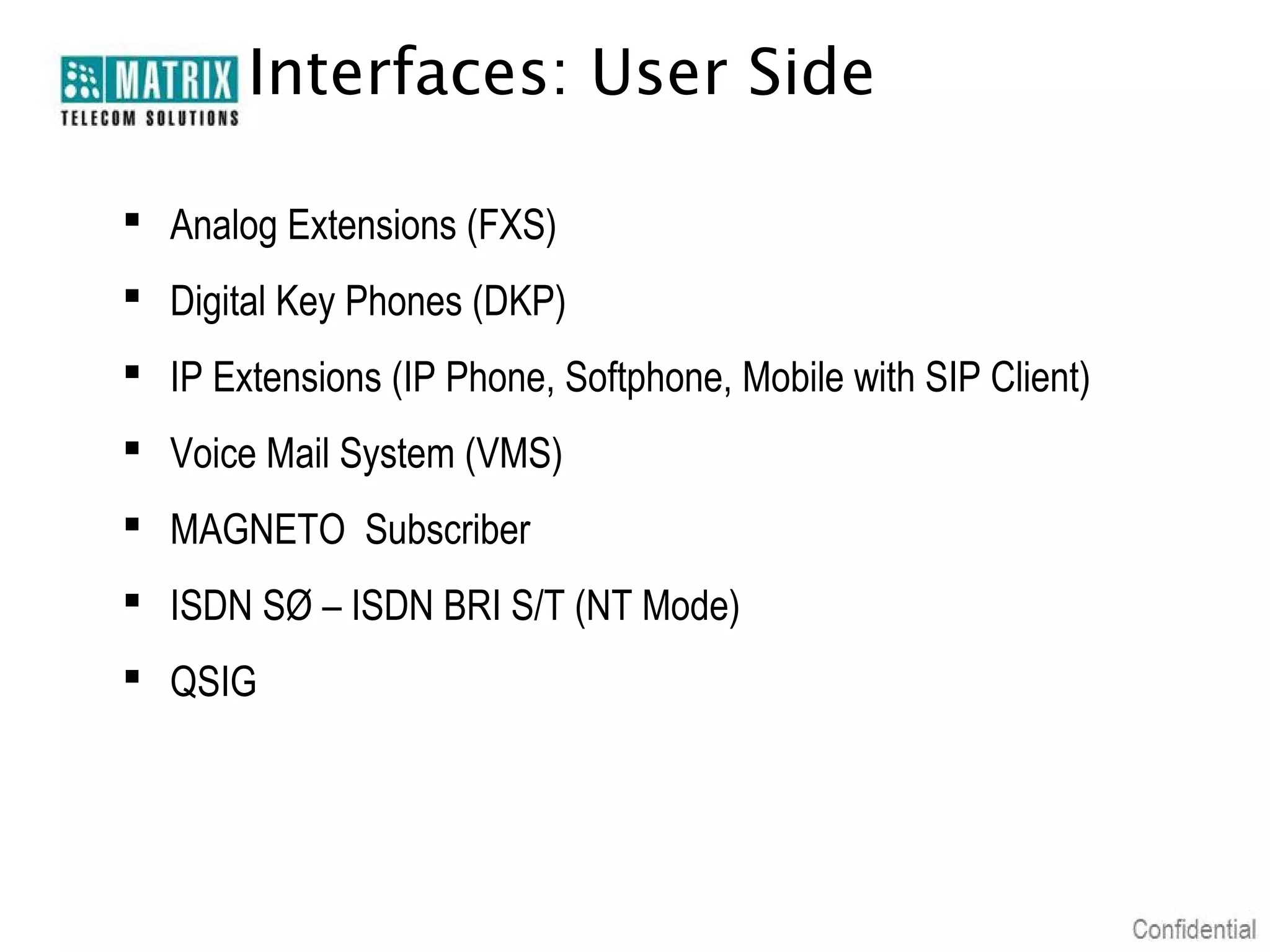

16. Interfaces: User Side
 Analog Extensions (FXS)
 Digital Key Phones (DKP)
 IP Extensions (IP Phone, Softphone, Mobile with SIP Client)
 Voice Mail System (VMS)
 MAGNETO Subscriber
 ISDN SØ – ISDN BRI S/T (NT Mode)
 QSIG

17. System Cards

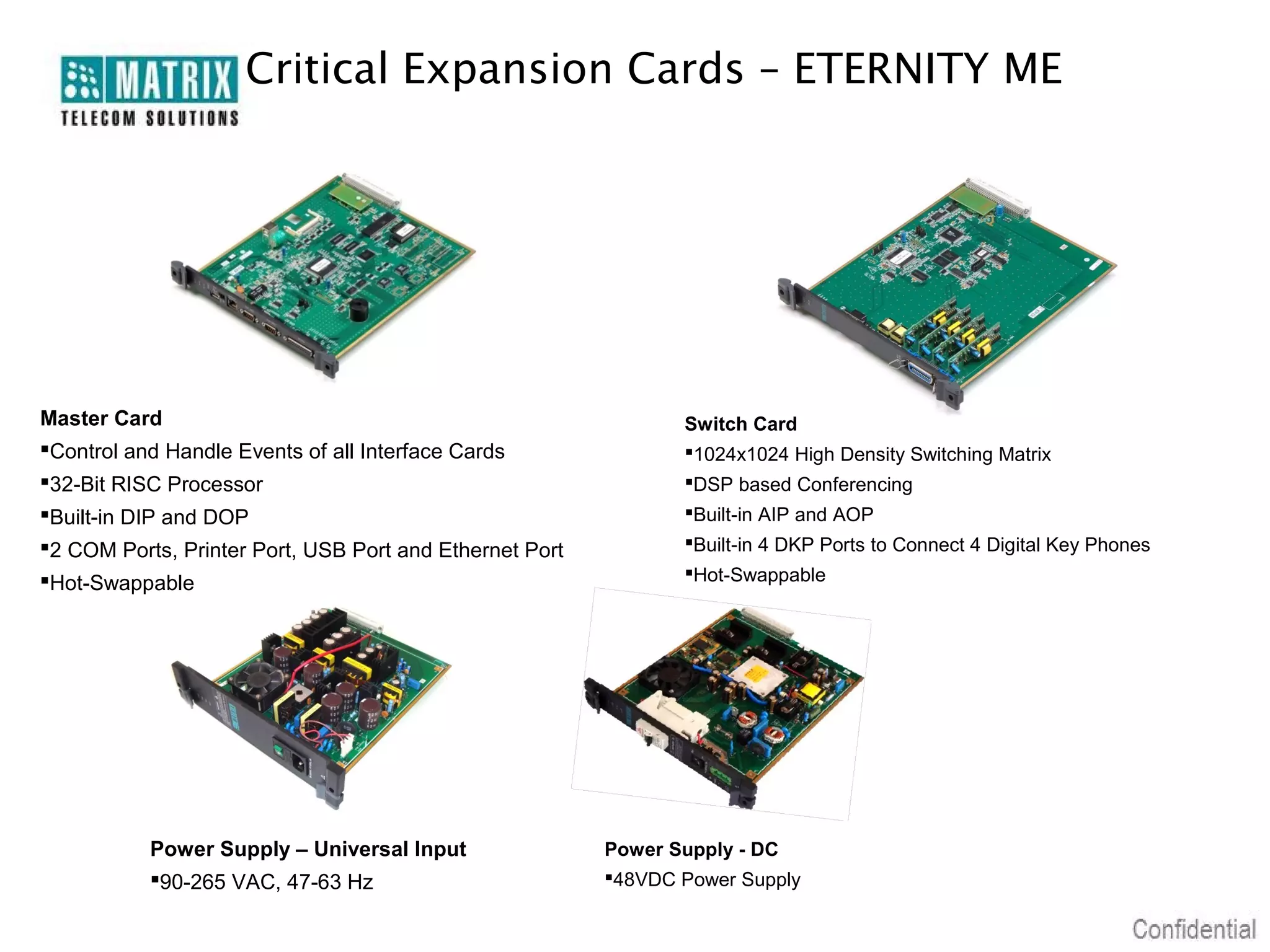

18. Critical Expansion Cards – ETERNITY ME
Master Card Switch Card
Control and Handle Events of all Interface Cards 1024x1024 High Density Switching Matrix
32-Bit RISC Processor DSP based Conferencing
Built-in DIP and DOP Built-in AIP and AOP
2 COM Ports, Printer Port, USB Port and Ethernet Port Built-in 4 DKP Ports to Connect 4 Digital Key Phones
Hot-Swappable Hot-Swappable
Power Supply – Universal Input Power Supply - DC
90-265 VAC, 47-63 Hz 48VDC Power Supply

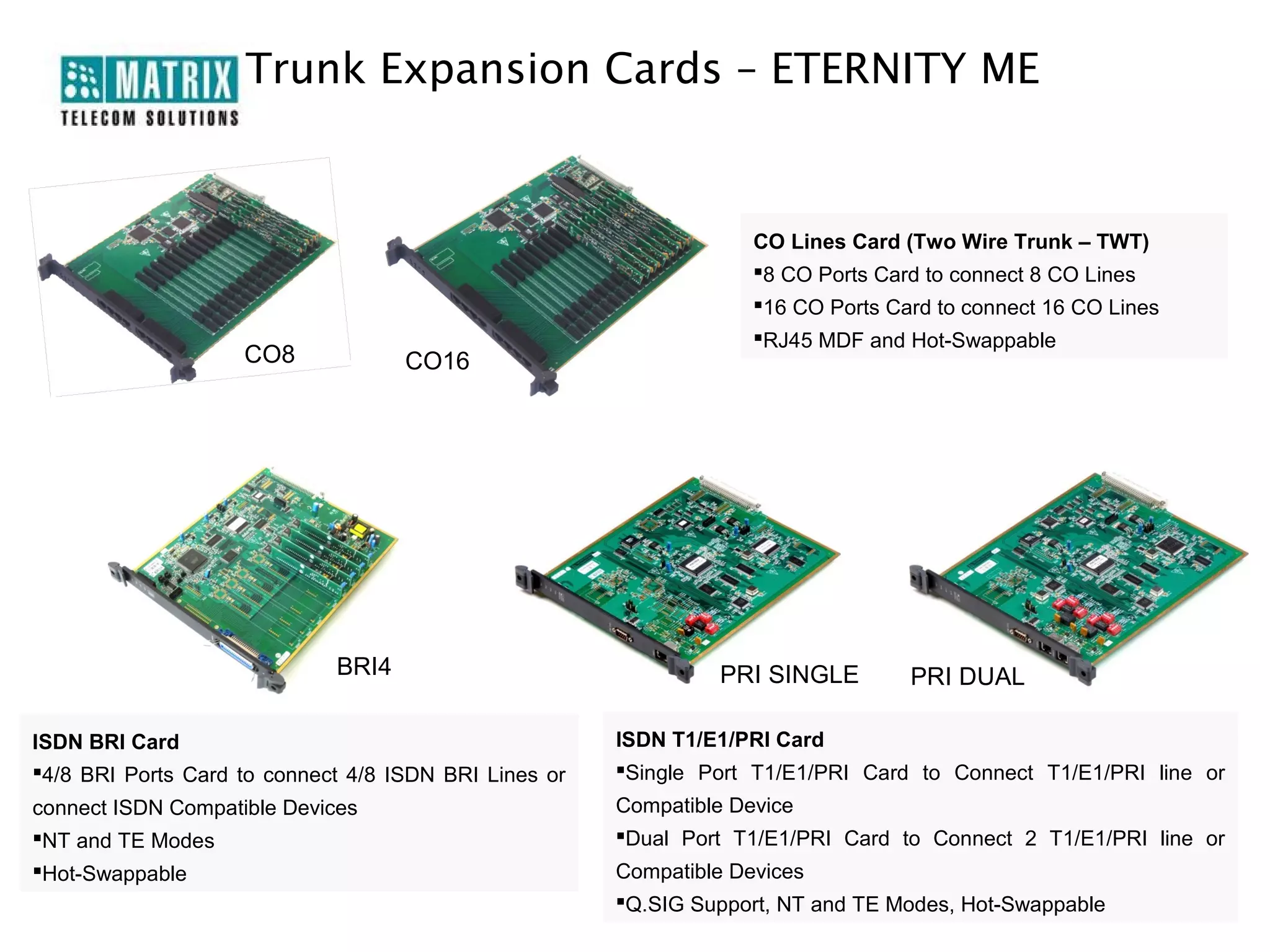

19. Trunk Expansion Cards – ETERNITY ME
CO Lines Card (Two Wire Trunk – TWT)
8 CO Ports Card to connect 8 CO Lines
16 CO Ports Card to connect 16 CO Lines
RJ45 MDF and Hot-Swappable
CO8 CO16
BRI4 PRI SINGLE PRI DUAL
ISDN BRI Card ISDN T1/E1/PRI Card
4/8 BRI Ports Card to connect 4/8 ISDN BRI Lines or Single Port T1/E1/PRI Card to Connect T1/E1/PRI line or
connect ISDN Compatible Devices Compatible Device
NT and TE Modes Dual Port T1/E1/PRI Card to Connect 2 T1/E1/PRI line or
Hot-Swappable Compatible Devices
Q.SIG Support, NT and TE Modes, Hot-Swappable

20. Trunk Expansion Cards – ETERNITY ME
GSM/3G Cards
8 Port GSM Card to insert 8 GSM SIM Cards
4 Port GSM Card to insert 4 GSM SIM Cards
Quad band (850/900/1800/1900 MHz)
Antenna Combiner (1 Antenna for 4 Ports)
GSM4 GSM8 Hot-Swappable
VoIP16 VoIP32
CO8SLT24
VoIP Card
Expansion Card having Server and Trunk Personalities for
Combo Card (Mixed Card)
16/32 Concurrent Calls
To Connect 8 CO Lines and 24 SLTs
Register with any 3rd Party SIP Registrar Proxy or IP PBX
RJ45 MDF and Hot-Swappable
Hot-Swappable

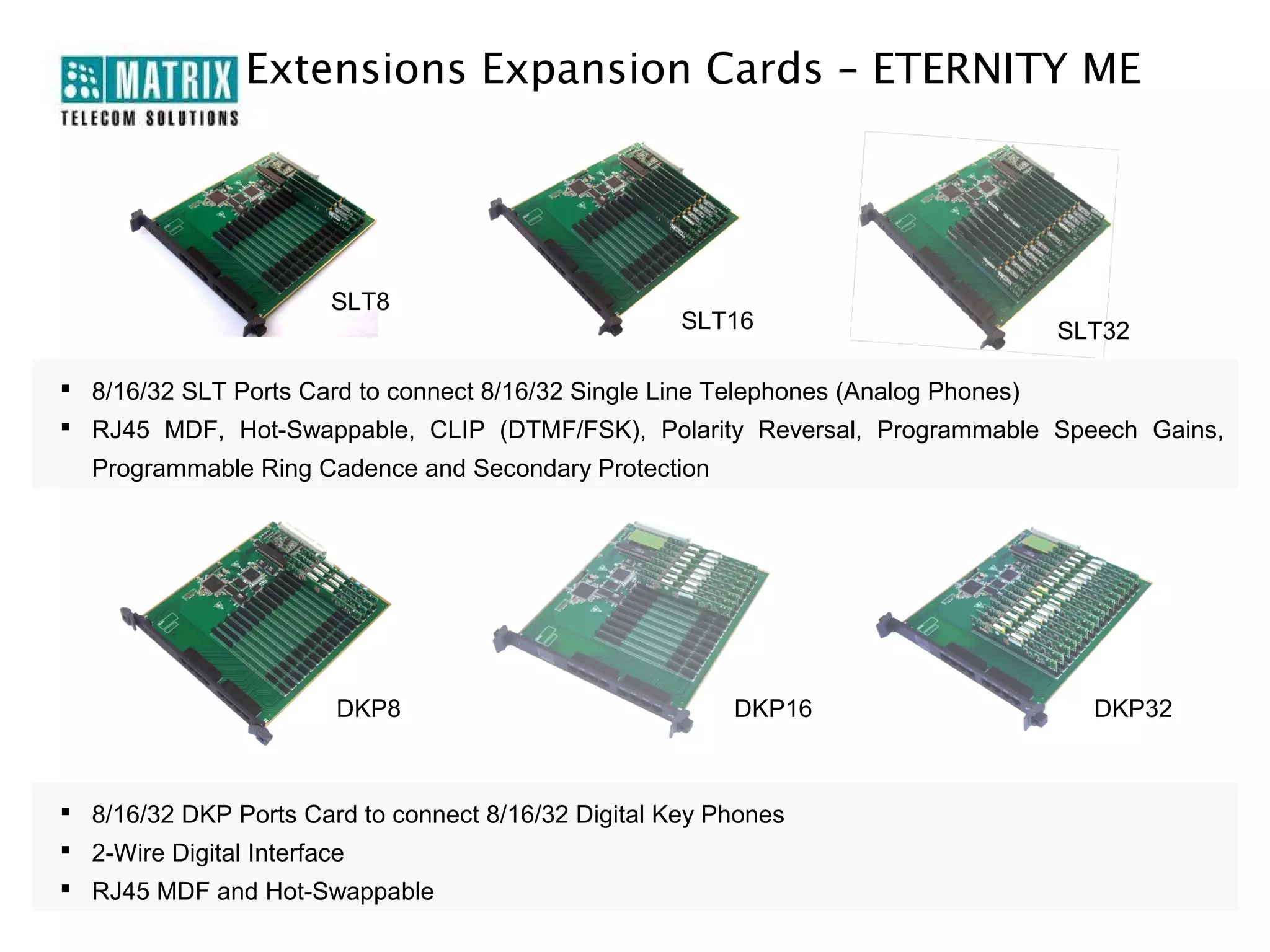

21. Extensions Expansion Cards – ETERNITY ME
SLT8
SLT16 SLT32
 8/16/32 SLT Ports Card to connect 8/16/32 Single Line Telephones (Analog Phones)
 RJ45 MDF, Hot-Swappable, CLIP (DTMF/FSK), Polarity Reversal, Programmable Speech Gains,
Programmable Ring Cadence and Secondary Protection
DKP8 DKP16 DKP32
 8/16/32 DKP Ports Card to connect 8/16/32 Digital Key Phones
 2-Wire Digital Interface
 RJ45 MDF and Hot-Swappable

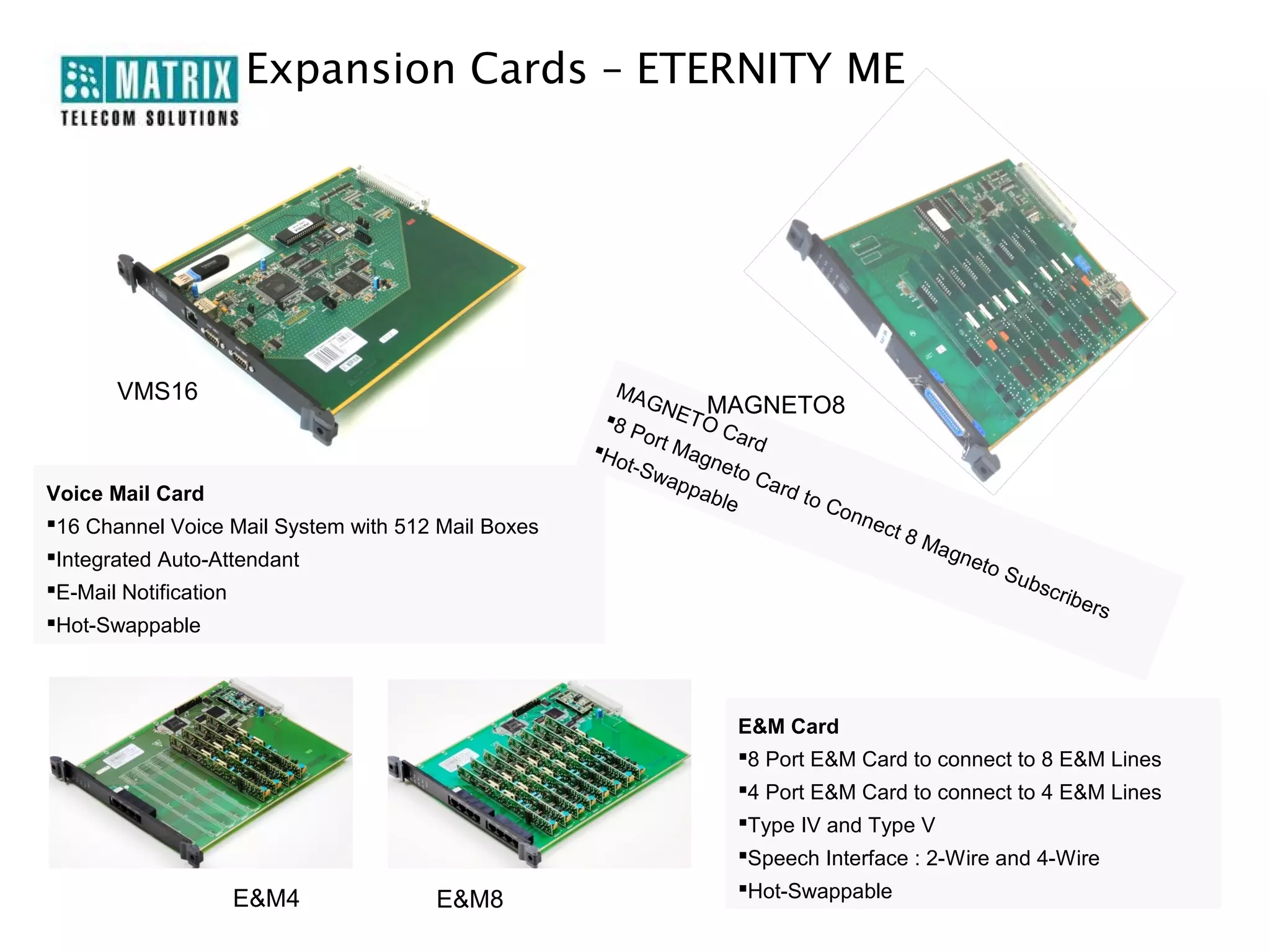

22. Expansion Cards – ETERNITY ME
VMS16 MA
GN MAGNETO8
8 ET O
Po r Ca r
H tM d
ot-S agn
wap eto
pab Car
Voice Mail Card d to
le Con
16 Channel Voice Mail System with 512 Mail Boxes n ect
8M
Integrated Auto-Attendant agn
eto
S ubs
E-Mail Notification crib
ers
Hot-Swappable
E&M Card
8 Port E&M Card to connect to 8 E&M Lines
4 Port E&M Card to connect to 4 E&M Lines
Type IV and Type V
Speech Interface : 2-Wire and 4-Wire
Hot-Swappable
E&M4 E&M8

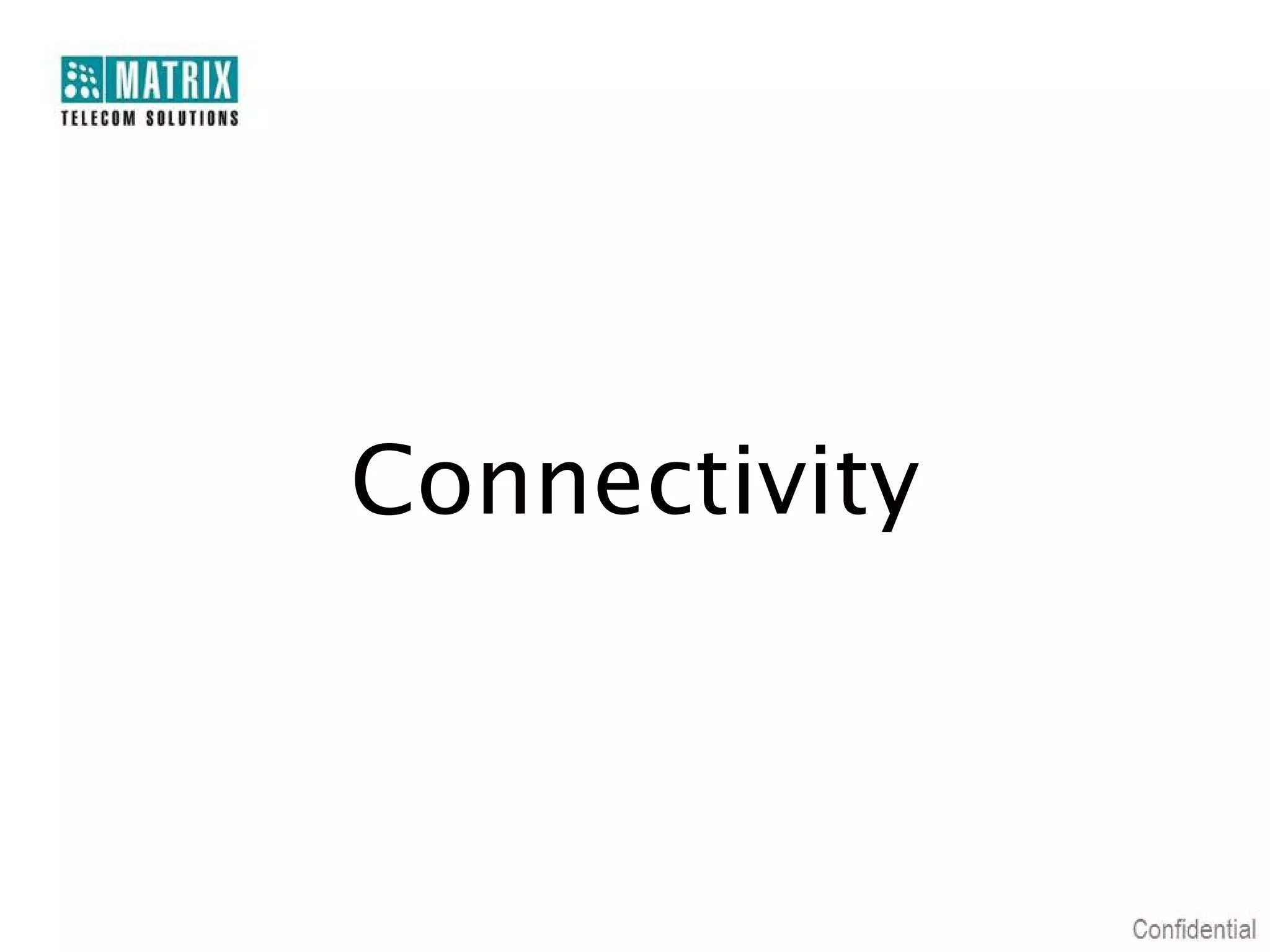

23. Connectivity

24. ETERNITY ME - Universal Connectivity
Trunk Side Interfaces Extension Side Interfaces

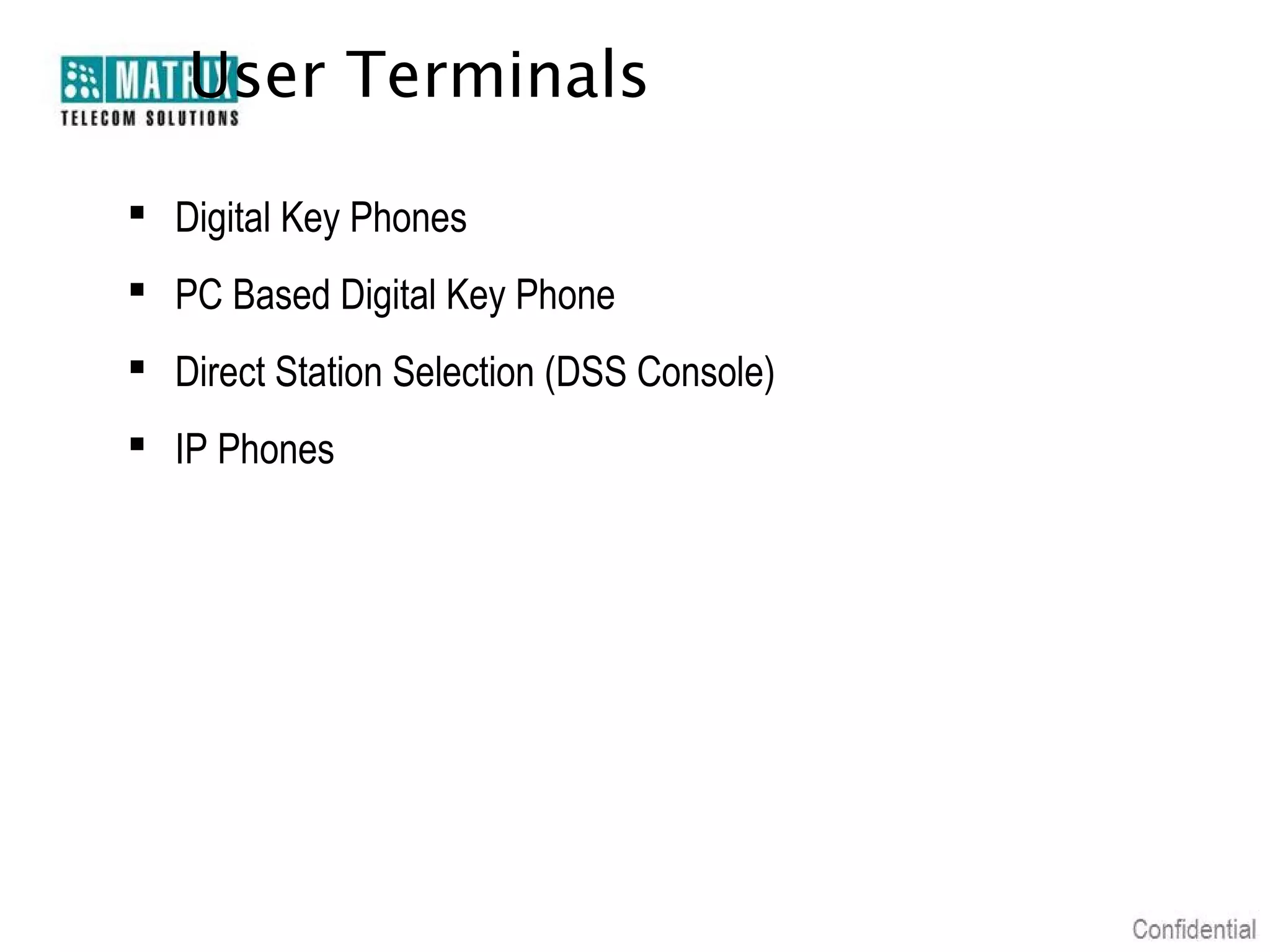

25. User Terminals

26. User Terminals
 Digital Key Phones
 PC Based Digital Key Phone
 Direct Station Selection (DSS Console)
 IP Phones

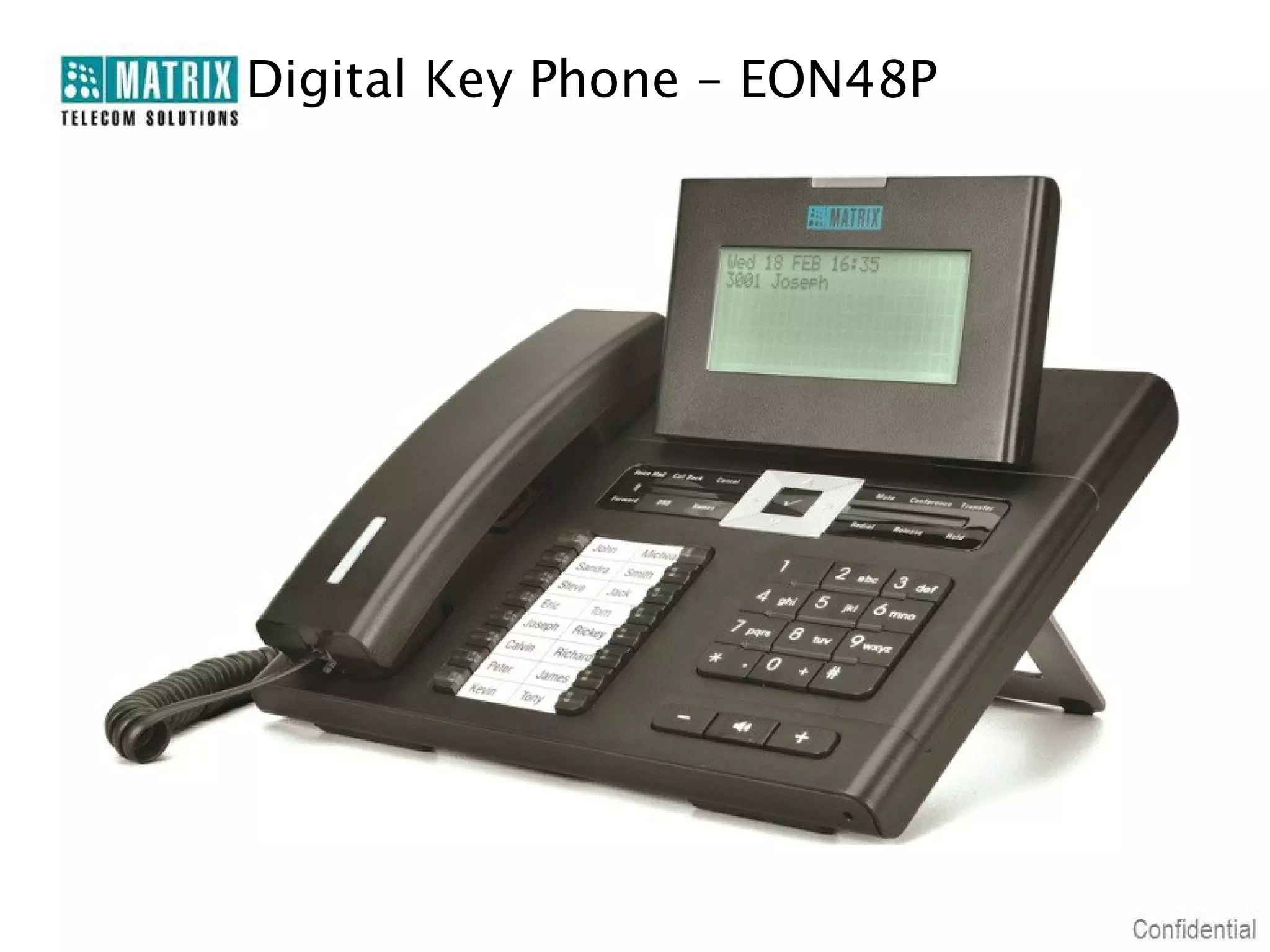

27. Digital Key Phone – EON48P

28. Digital Key Phone – EON48P
 6x24 Character LCD Display
 16 Programmable Keys
 17 Touch-Sense Keys
 Touch-Sense Keys for Navigation and One-touch Feature Access
 Full Duplex Speaker Phone
 Headset Interface
 LCD Contrast and Brightness Control
 English, French, German, Spanish, Portuguese and Italian Language
Support
 3-Position Desktop Mounting
 Wall Mounting

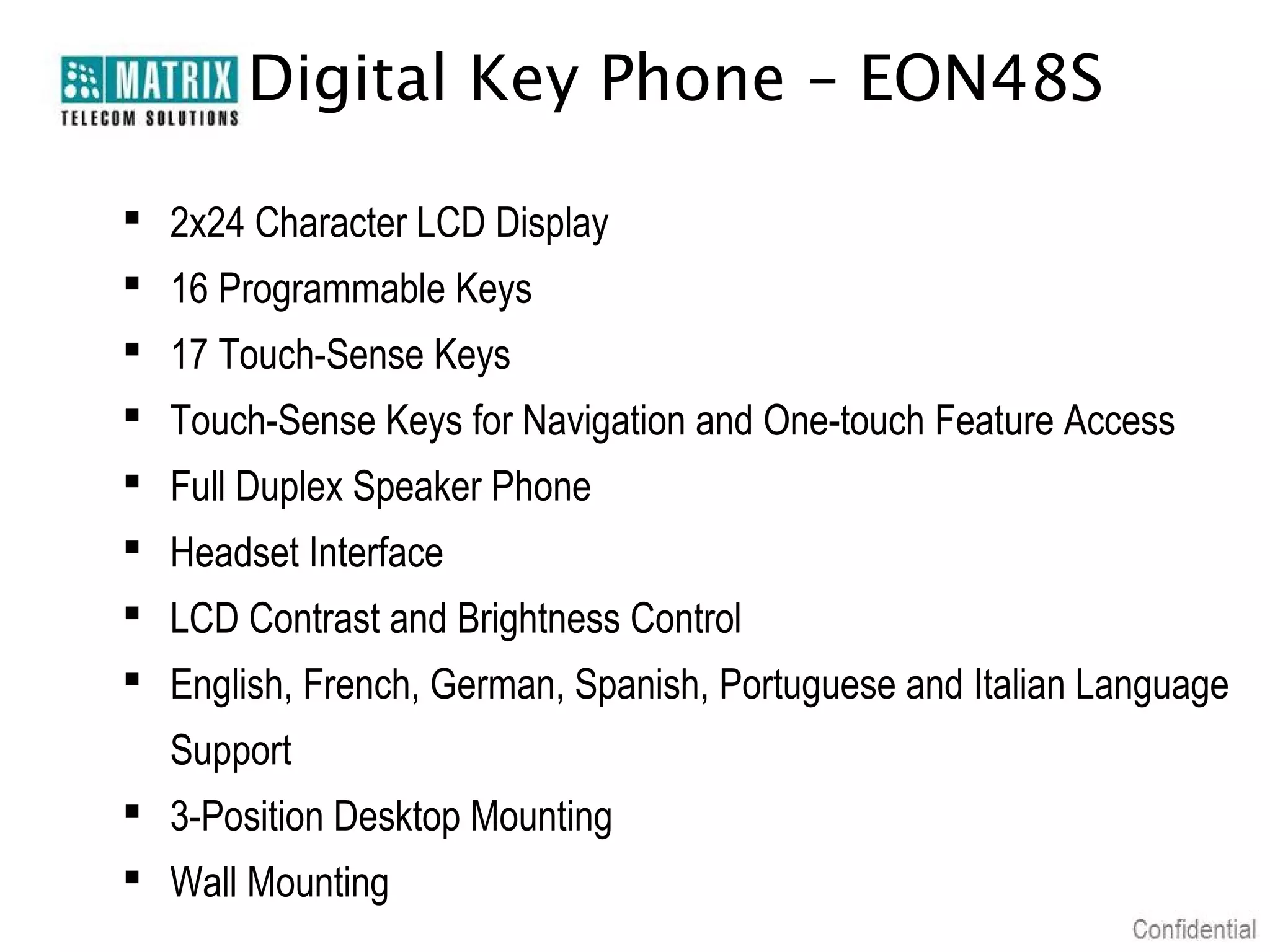

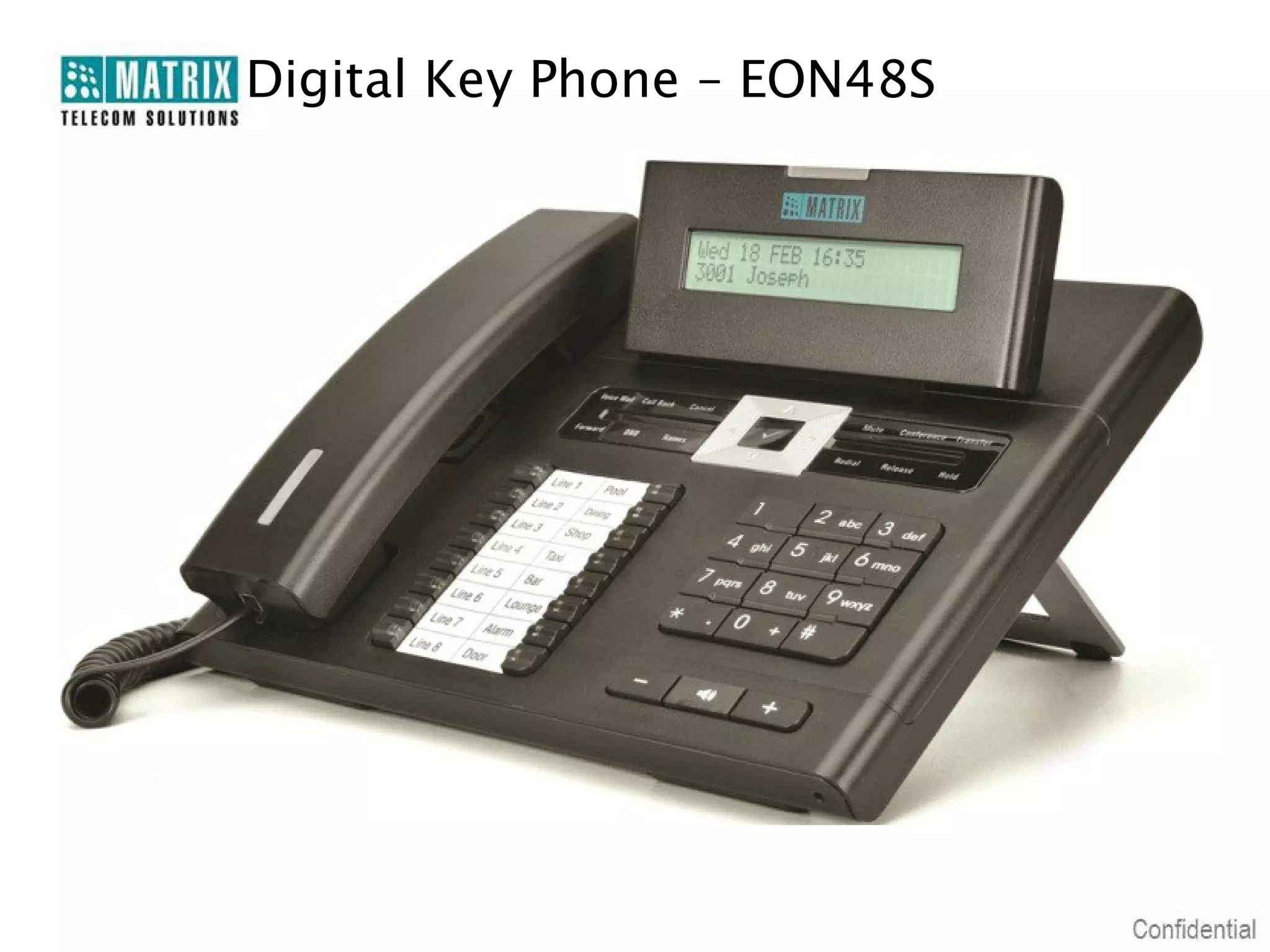

29. Digital Key Phone – EON48S

30. Digital Key Phone – EON48S
 2x24 Character LCD Display
 16 Programmable Keys
 17 Touch-Sense Keys
 Touch-Sense Keys for Navigation and One-touch Feature Access
 Full Duplex Speaker Phone
 Headset Interface
 LCD Contrast and Brightness Control
 English, French, German, Spanish, Portuguese and Italian Language
Support
 3-Position Desktop Mounting
 Wall Mounting

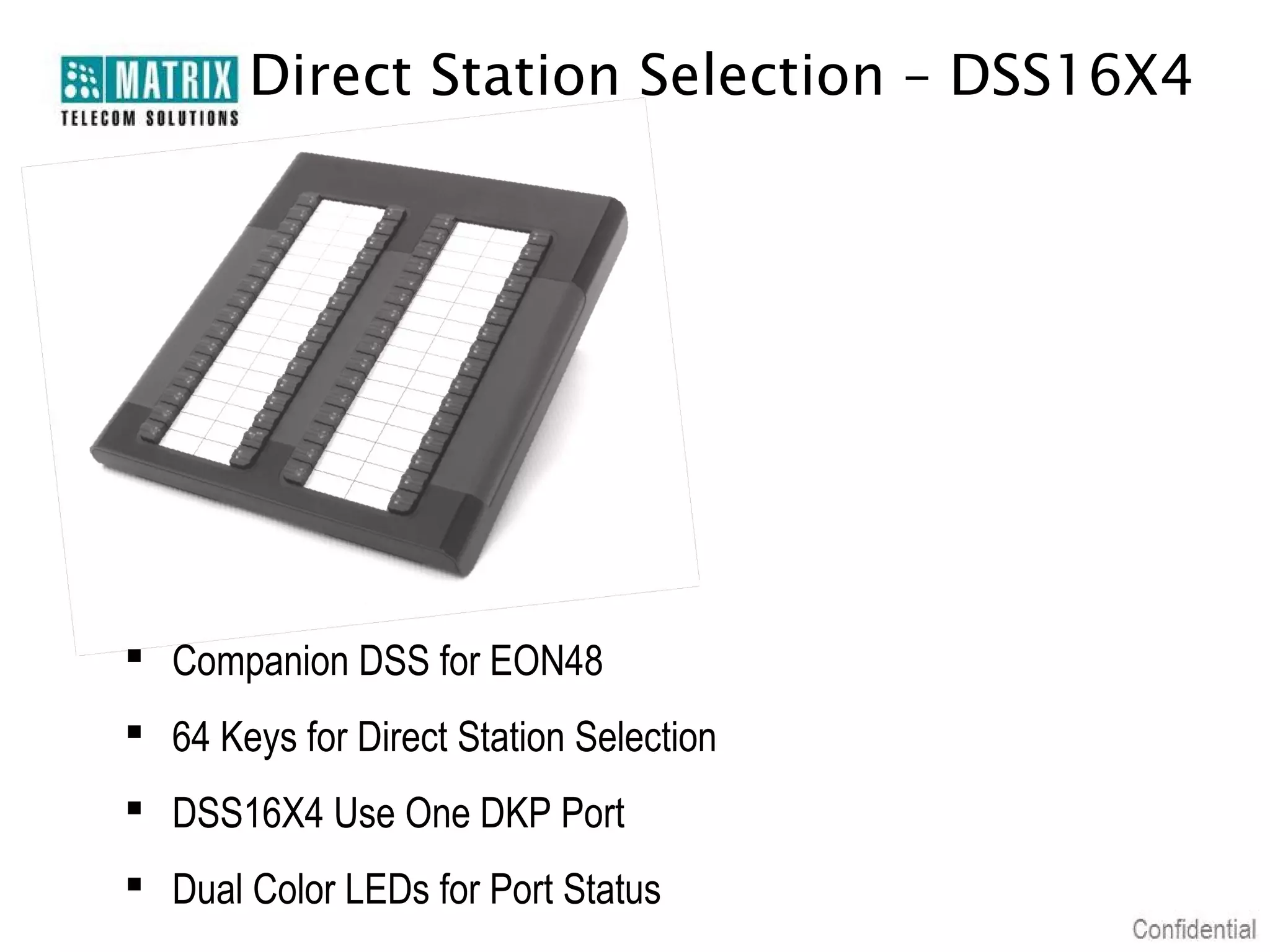

31. Direct Station Selection – DSS16X4
 Companion DSS for EON48
 64 Keys for Direct Station Selection
 DSS16X4 Use One DKP Port
 Dual Color LEDs for Port Status

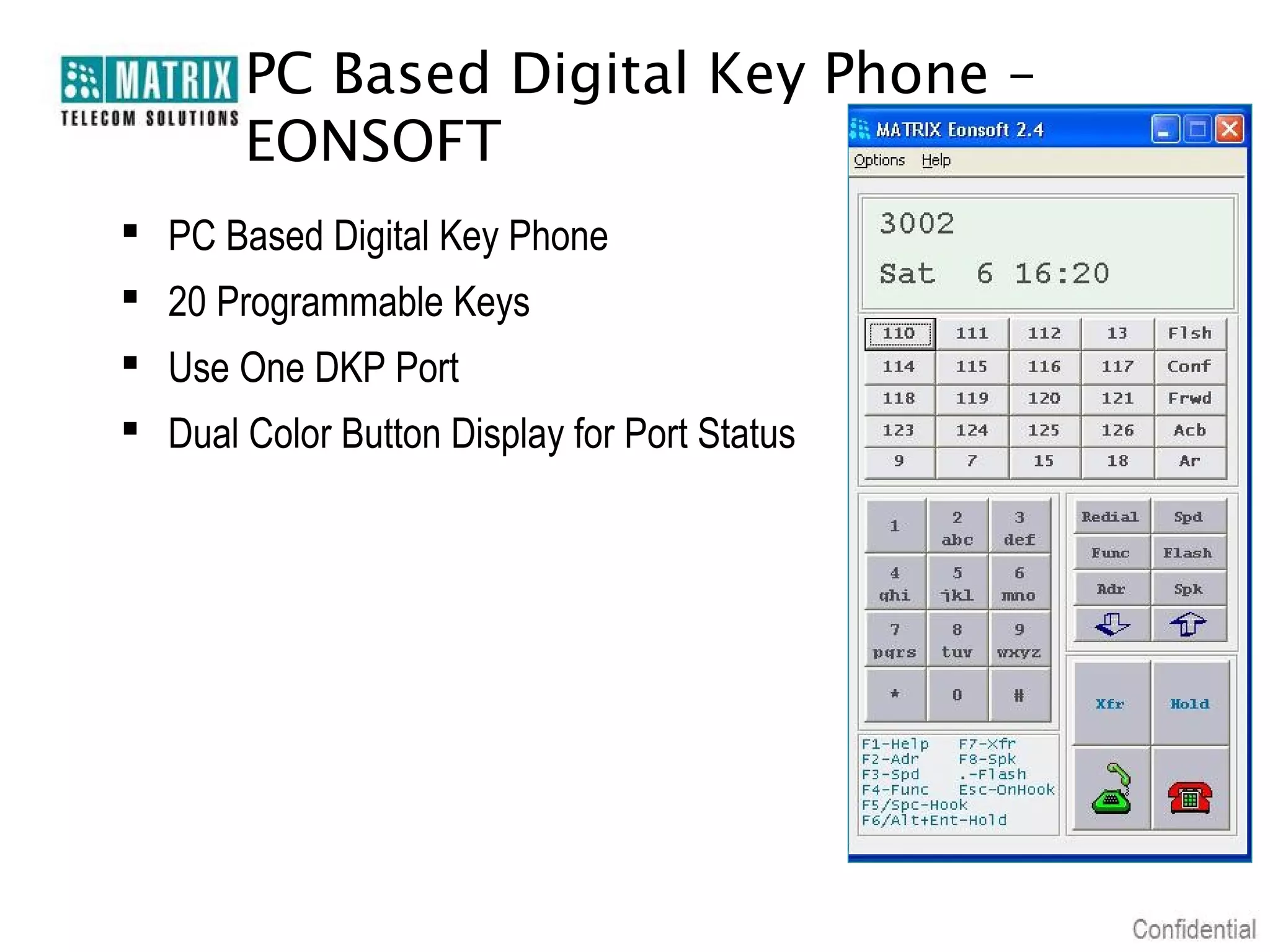

32. PC Based Digital Key Phone –
EONSOFT
 PC Based Digital Key Phone
 20 Programmable Keys
 Use One DKP Port
 Dual Color Button Display for Port Status

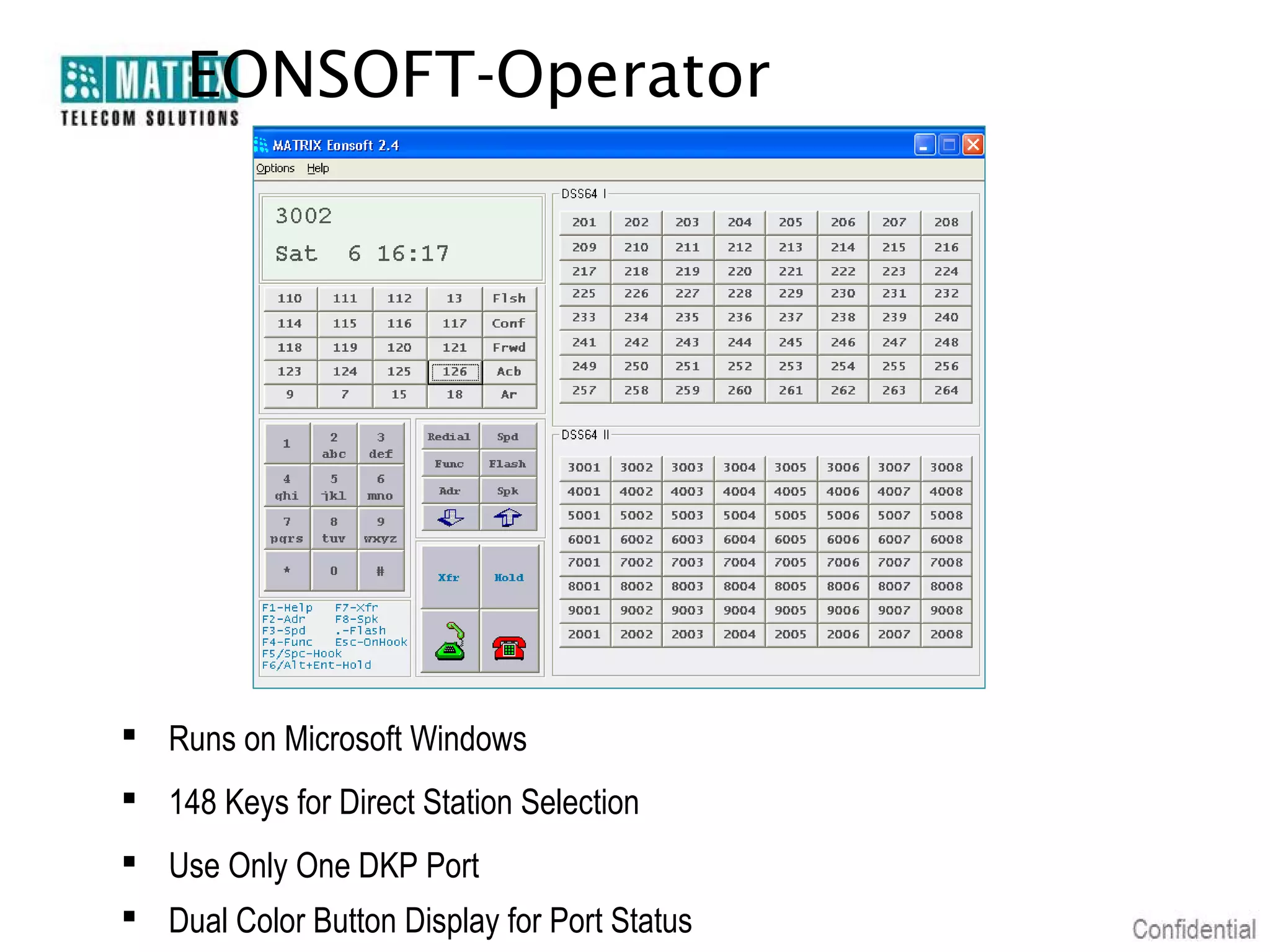

33. EONSOFT-Operator
 Runs on Microsoft Windows
 148 Keys for Direct Station Selection
 Use Only One DKP Port
 Dual Color Button Display for Port Status

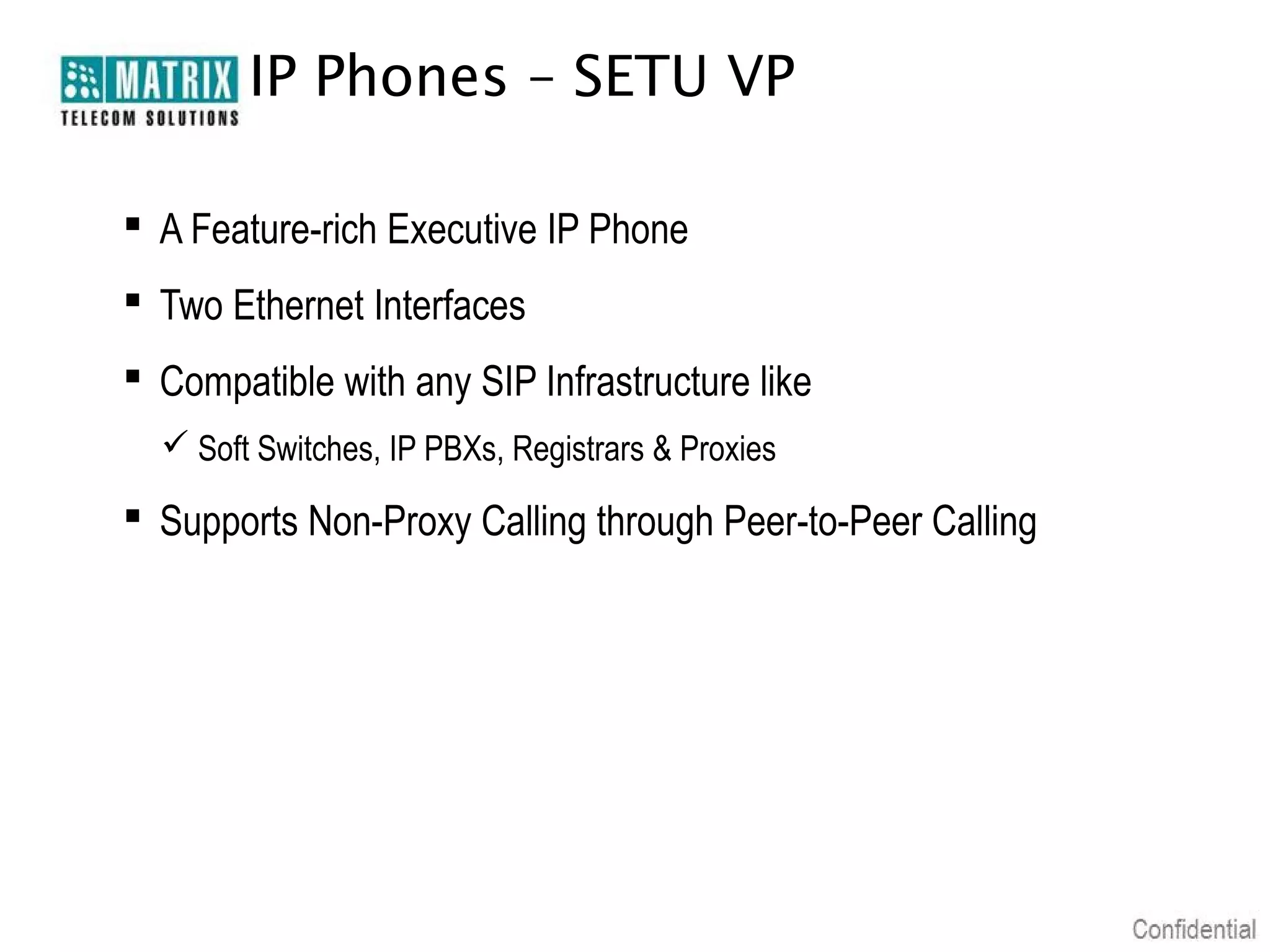

34. IP Phones – SETU VP
 A Feature-rich Executive IP Phone
 Two Ethernet Interfaces
 Compatible with any SIP Infrastructure like
 Soft Switches, IP PBXs, Registrars & Proxies
 Supports Non-Proxy Calling through Peer-to-Peer Calling

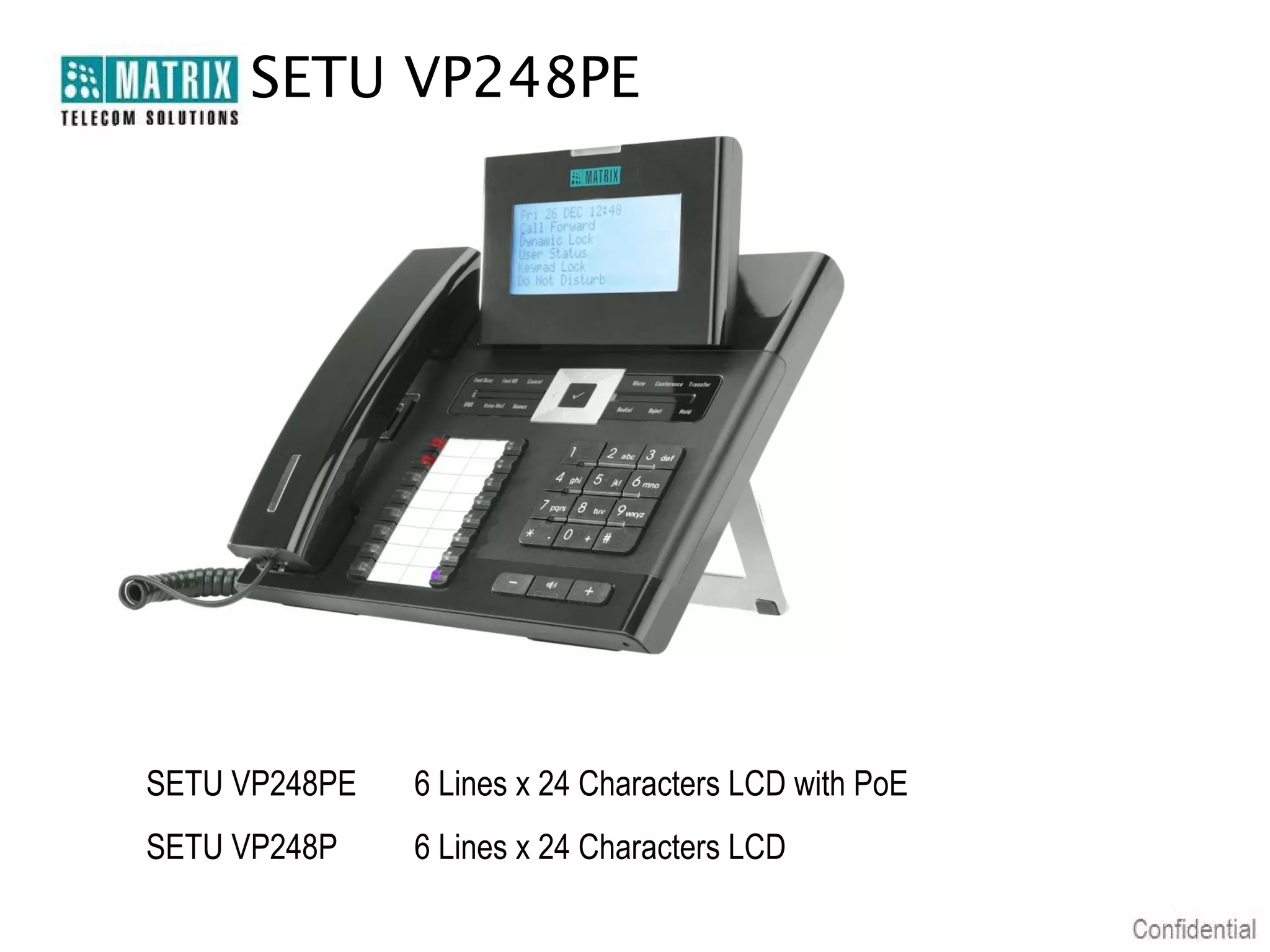

35. SETU VP248PE
SETU VP248PE 6 Lines x 24 Characters LCD with PoE
SETU VP248P 6 Lines x 24 Characters LCD

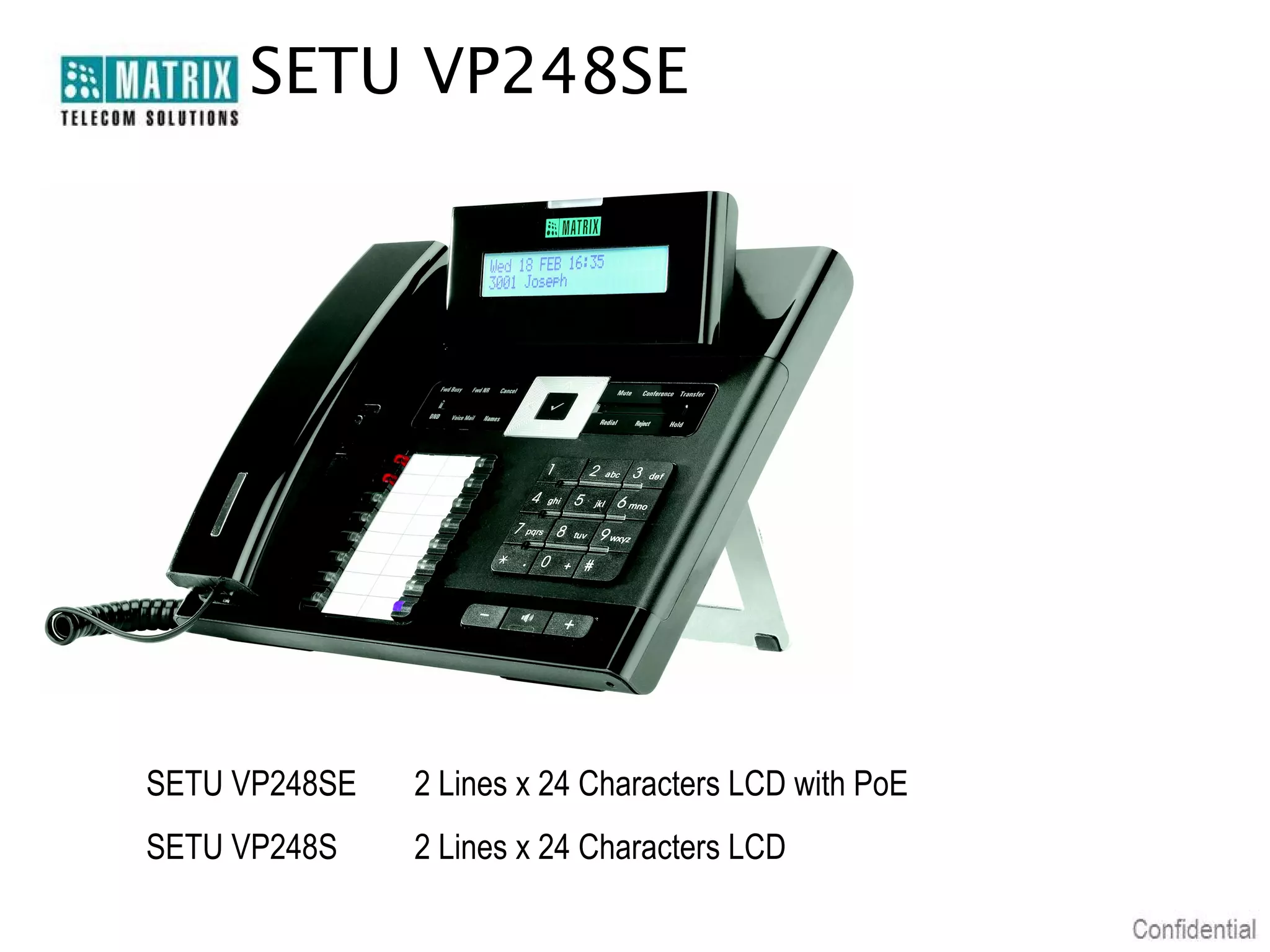

36. SETU VP248SE
SETU VP248SE 2 Lines x 24 Characters LCD with PoE
SETU VP248S 2 Lines x 24 Characters LCD

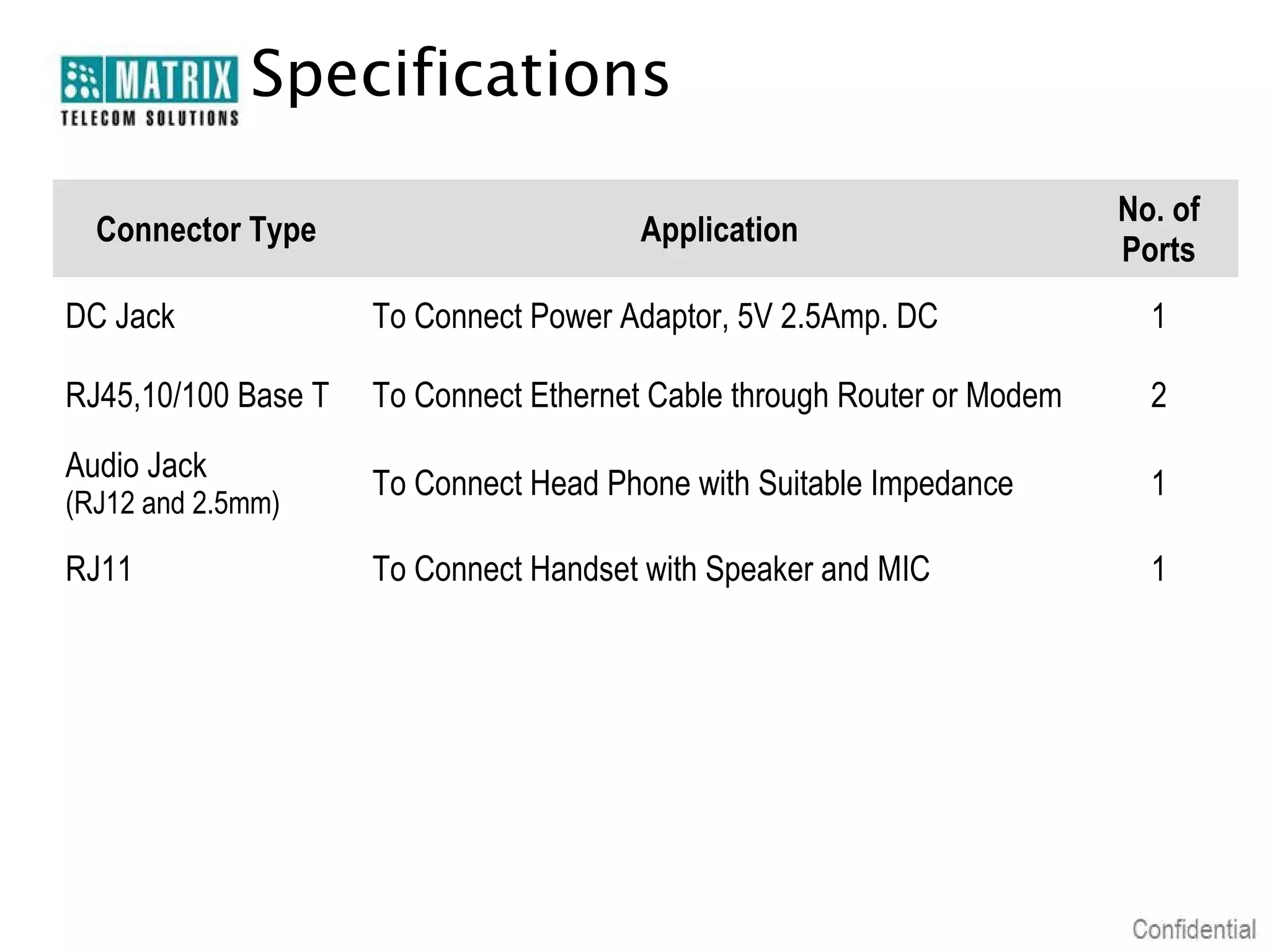

37. Specifications
No. of
Connector Type Application
Ports
DC Jack To Connect Power Adaptor, 5V 2.5Amp. DC 1
RJ45,10/100 Base T To Connect Ethernet Cable through Router or Modem 2
Audio Jack
To Connect Head Phone with Suitable Impedance 1
(RJ12 and 2.5mm)
RJ11 To Connect Handset with Speaker and MIC 1

38. Technical
Specifications

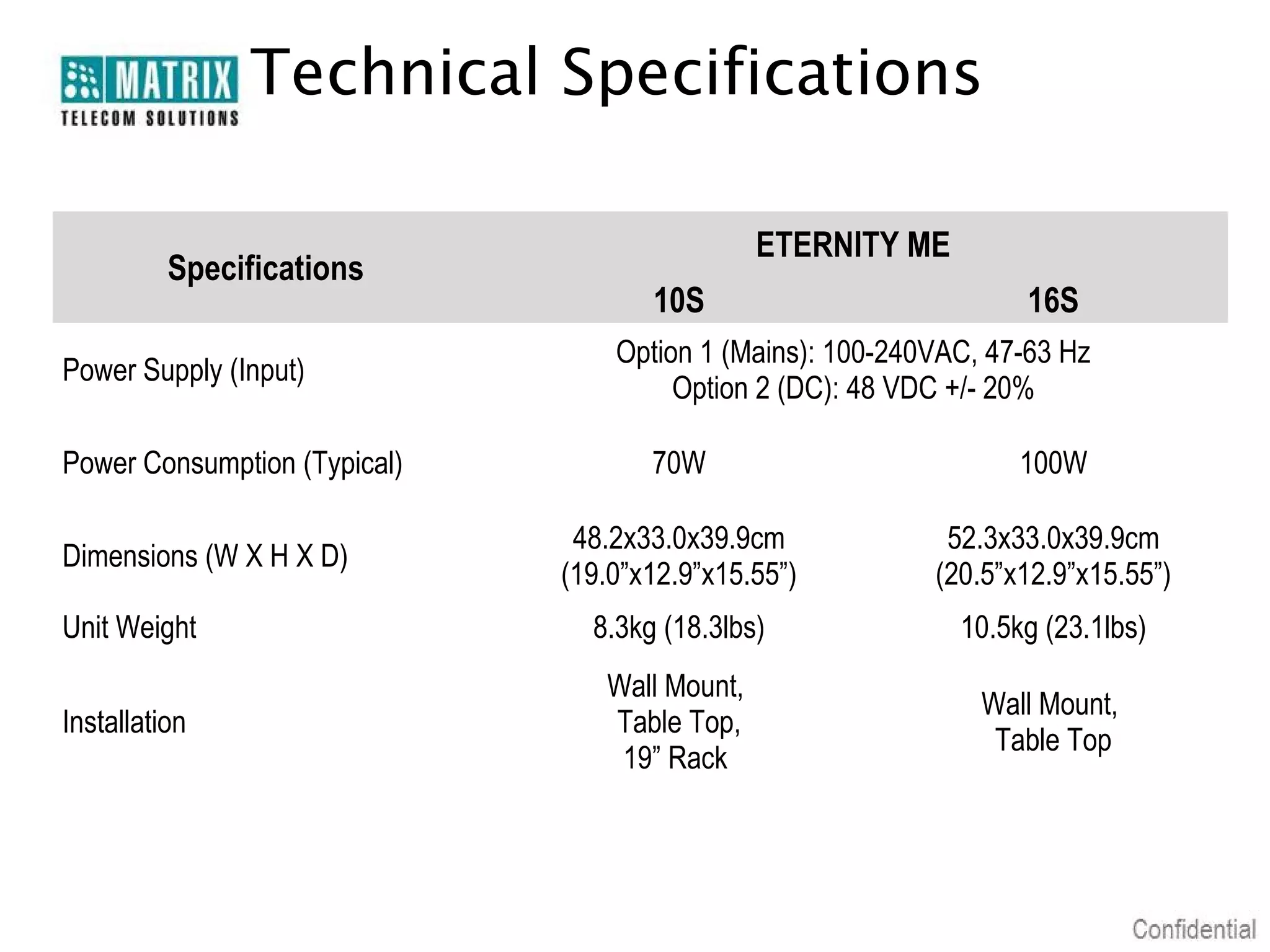

39. Technical Specifications
ETERNITY ME
Specifications
10S 16S
Option 1 (Mains): 100-240VAC, 47-63 Hz
Power Supply (Input)
Option 2 (DC): 48 VDC +/- 20%
Power Consumption (Typical) 70W 100W
48.2x33.0x39.9cm 52.3x33.0x39.9cm
Dimensions (W X H X D)
(19.0”x12.9”x15.55”) (20.5”x12.9”x15.55”)
Unit Weight 8.3kg (18.3lbs) 10.5kg (23.1lbs)
Wall Mount,
Wall Mount,
Installation Table Top,
Table Top
19” Rack

40. Thank You

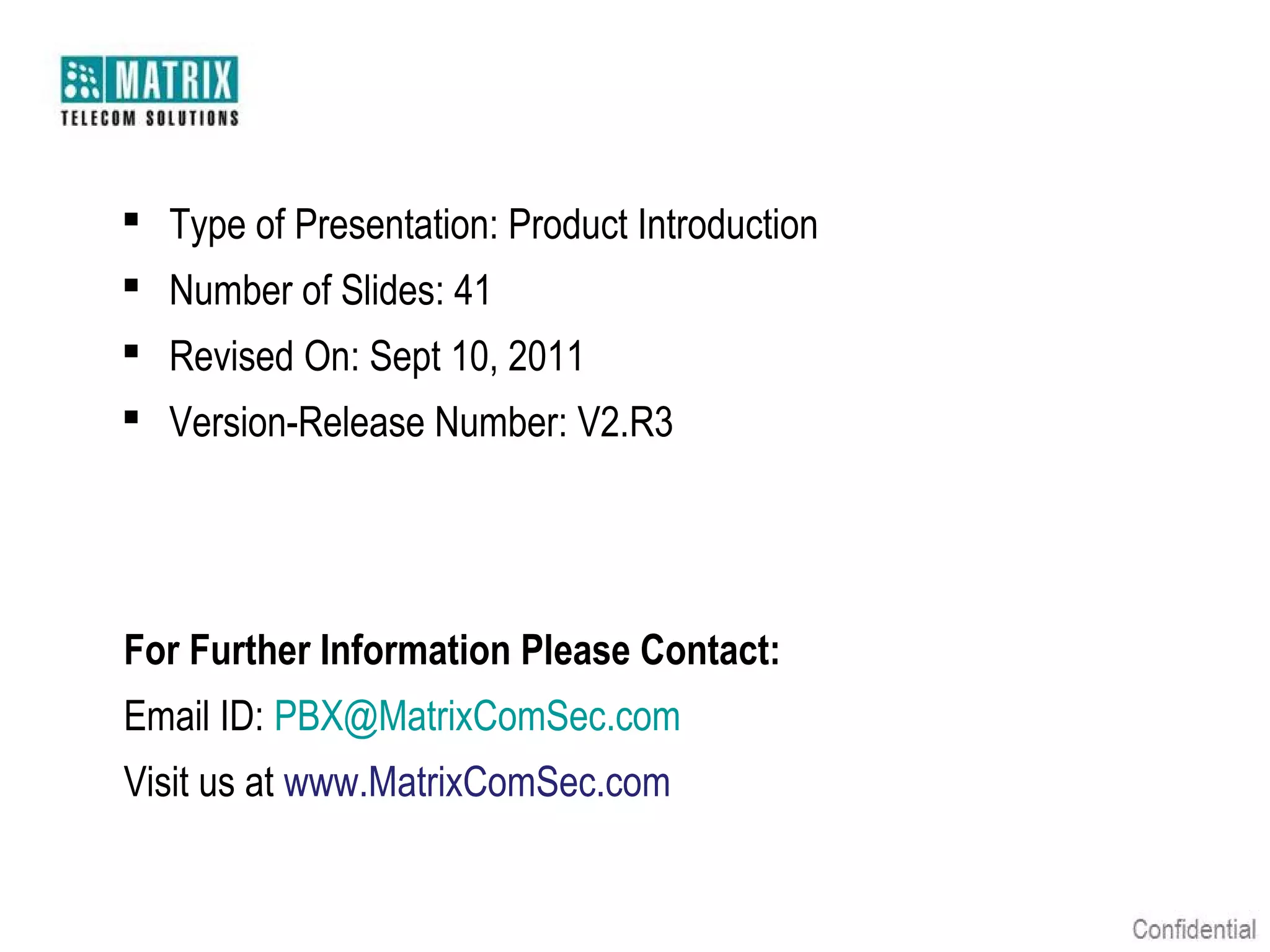

41.  Type of Presentation: Product Introduction
 Number of Slides: 41
 Revised On: Sept 10, 2011
 Version-Release Number: V2.R3
