This document discusses different types of SCADA (Supervisory Control and Data Acquisition) systems and HMI/PLC (Human-Machine Interface/Programmable Logic Controller) systems. It describes traditional standalone SCADA systems used for pipelines and power distribution over long distances, as well as local control SCADA used within plant boundaries. It also discusses typical networked SCADA architectures, standalone and networked HMI/PLC systems, and issues with distributed control, computing, I/O, standards, and life cycle costs.

1. “Any way you want it”
The best of both worlds from Invensys

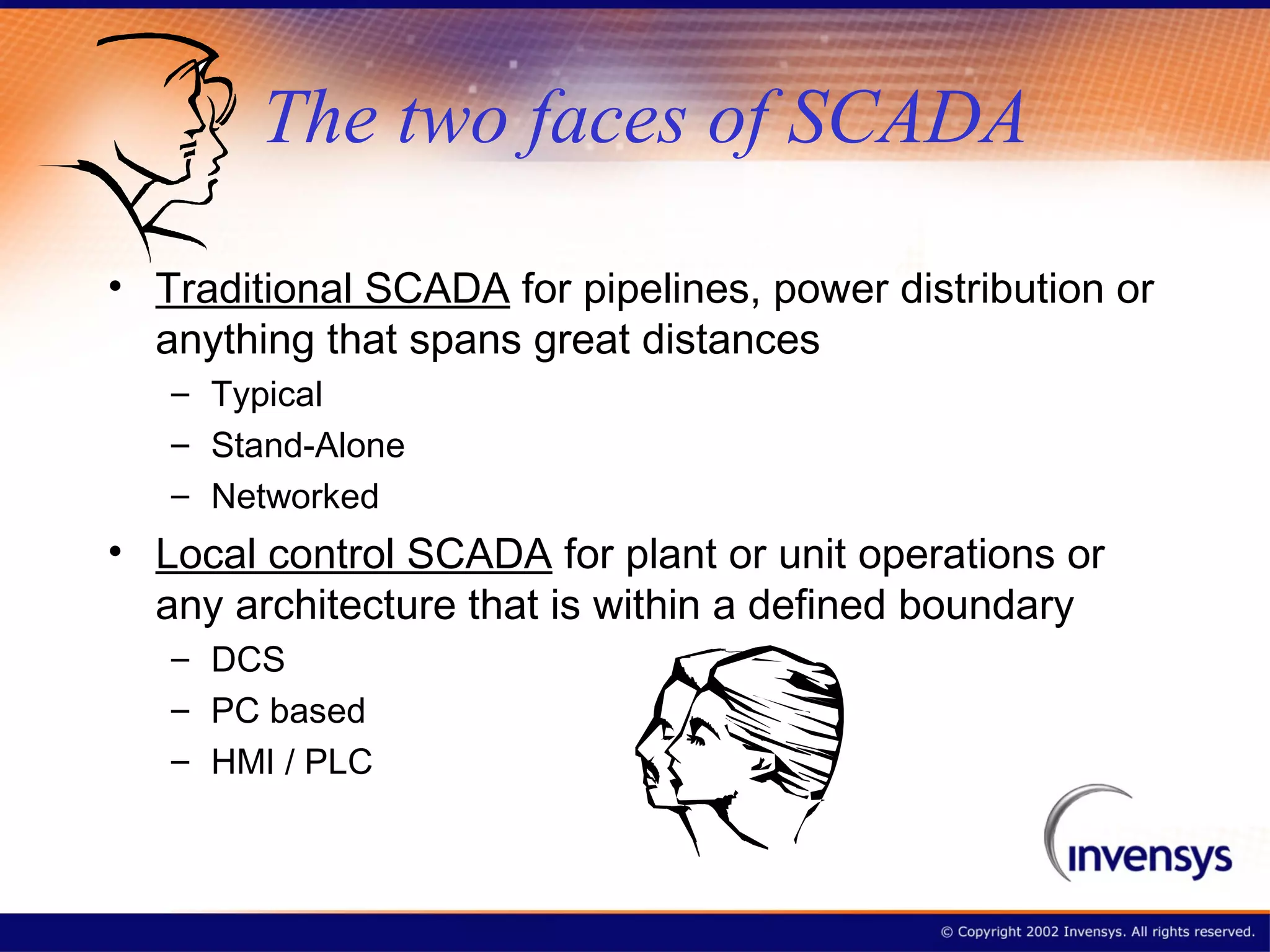

2. The two faces of SCADA
• Traditional SCADA for pipelines, power distribution or
anything that spans great distances
– Typical
– Stand-Alone
– Networked
• Local control SCADA for plant or unit operations or
any architecture that is within a defined boundary
– DCS
– PC based
– HMI / PLC

3. Only Invensys…
…delivering leading brand solutions, from
the production line to the bottom line.

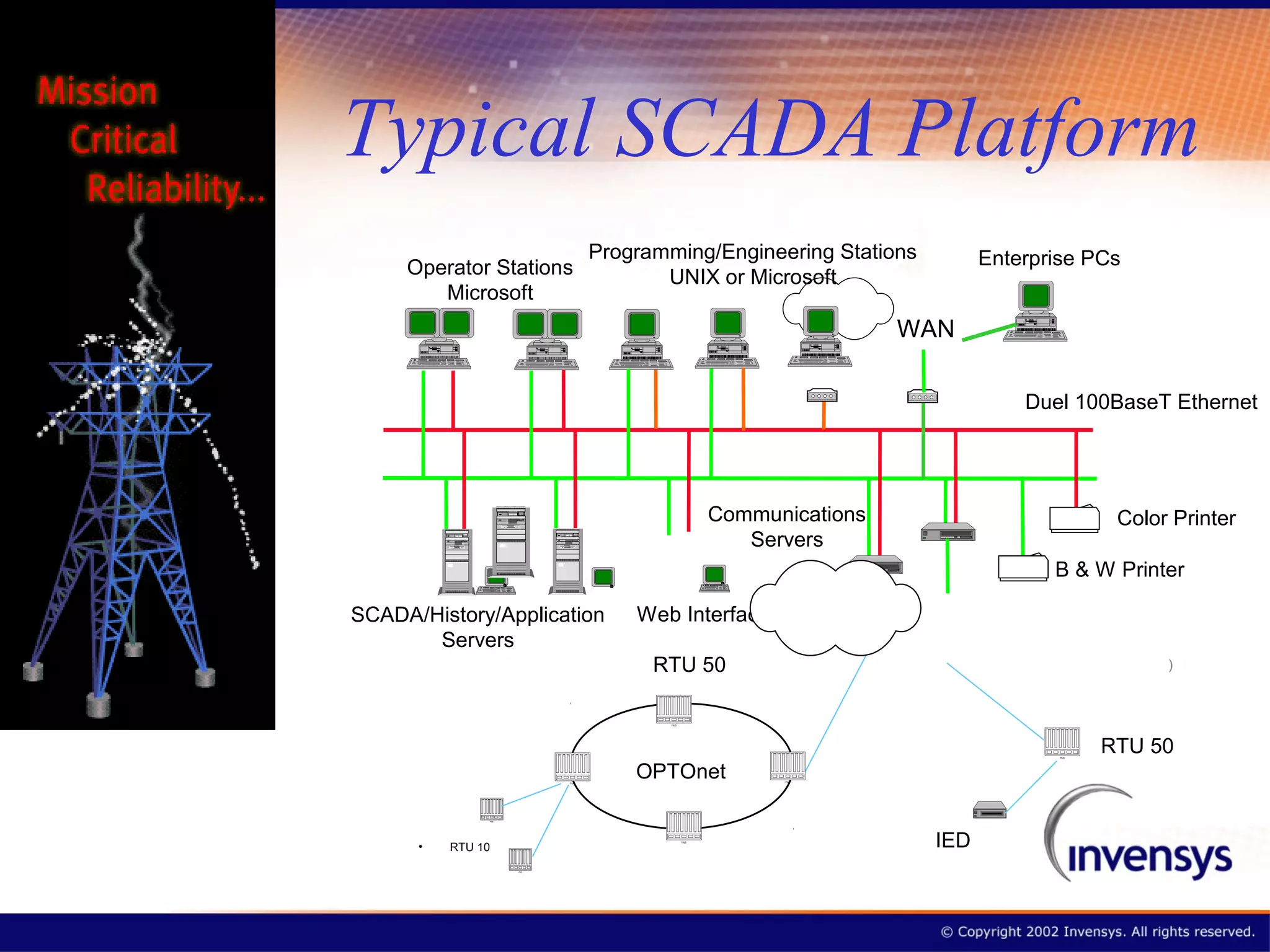

4. Typical SCADA Platform
Programming/Engineering Stations Enterprise PCs
Operator Stations UNIX or Microsoft
Microsoft
WAN
Duel 100BaseT Ethernet
Communications Color Printer
Servers
B & W Printer
SCADA/History/Application Web Interface Server Telecommunications
Servers Circuits
RTU 50 (Multiple Protocols)
Hub
Hub
RTU 50
Hub
OPTOnet Hub
Hub
• RTU 10
Hub
IED
Hub

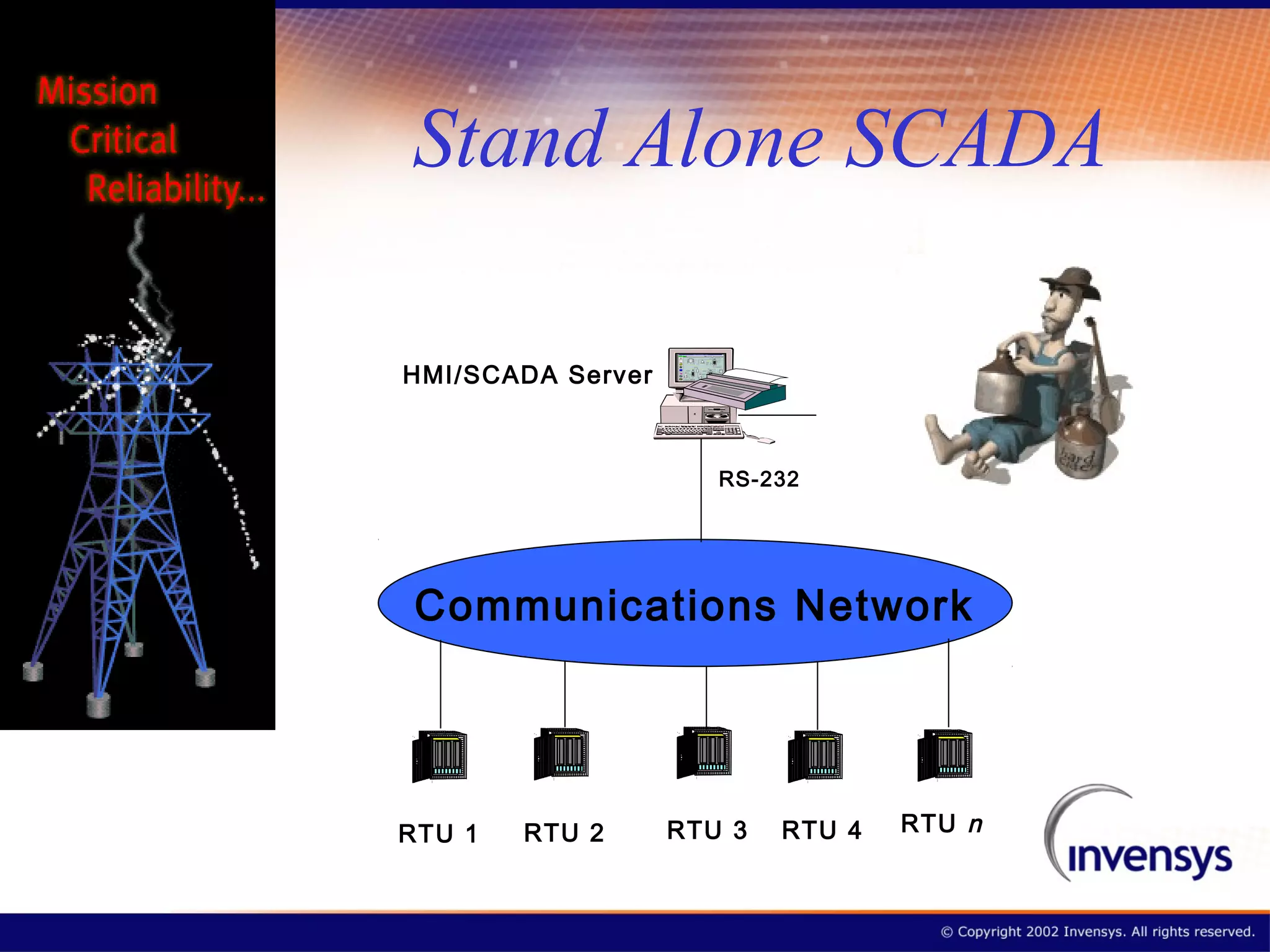

5. Stand Alone SCADA
HMI/SCADA Server
RS-232
Communications Network
RTU 1 RTU 2 RTU 3 RTU 4 RTU n

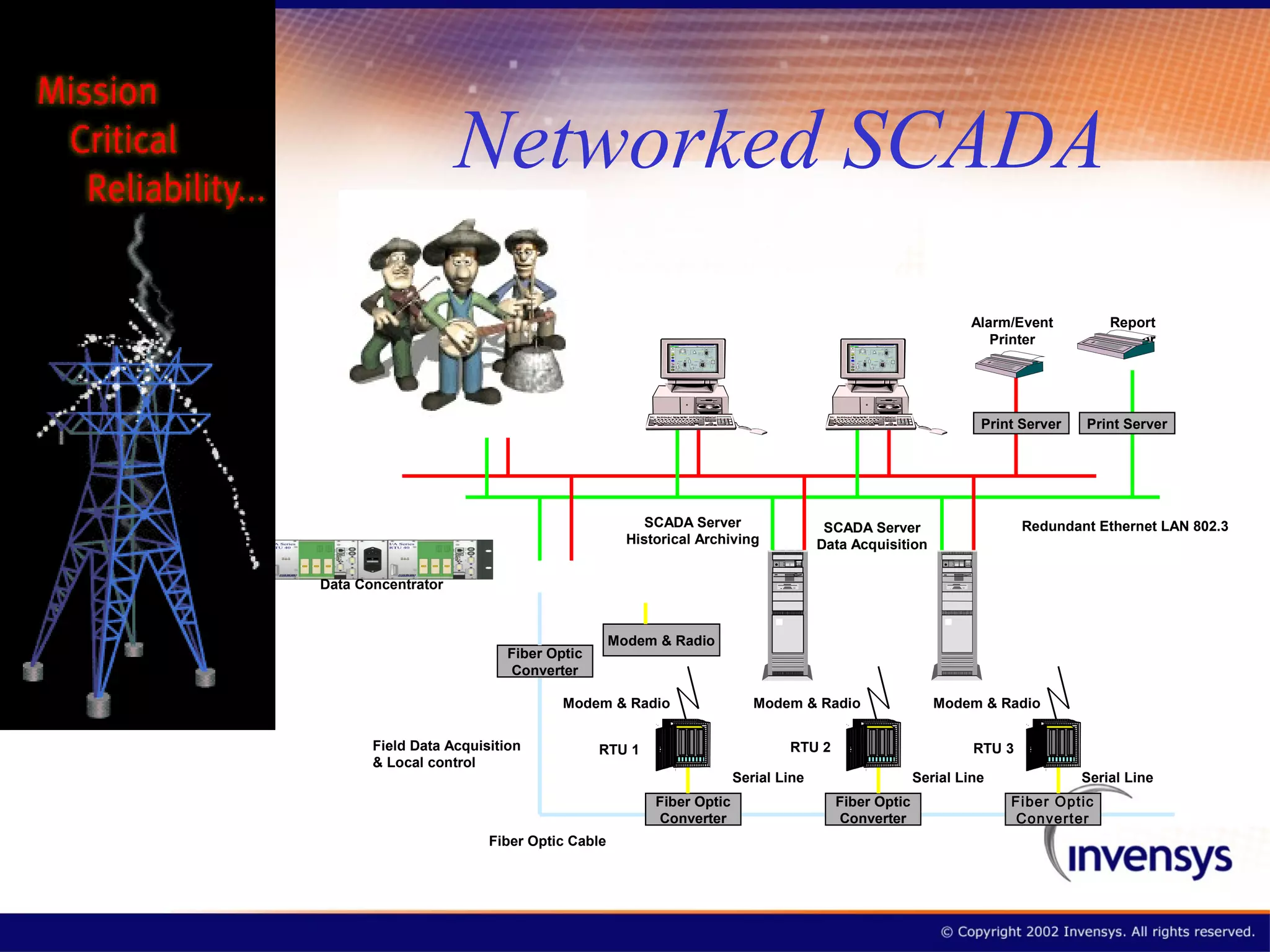

6. Networked SCADA
Alarm/Event Report
Printer Printer
Print Server Print Server
SCADA Server SCADA Server Redundant Ethernet LAN 802.3
Historical Archiving Data Acquisition
Data Concentrator
Modem & Radio
Fiber Optic
Converter
Modem & Radio Modem & Radio Modem & Radio
Field Data Acquisition RTU 1 RTU 2 RTU 3
& Local control
Serial Line Serial Line Serial Line
Fiber Optic Fiber Optic Fi ber Optic
Converter Converter Converter
Fiber Optic Cable

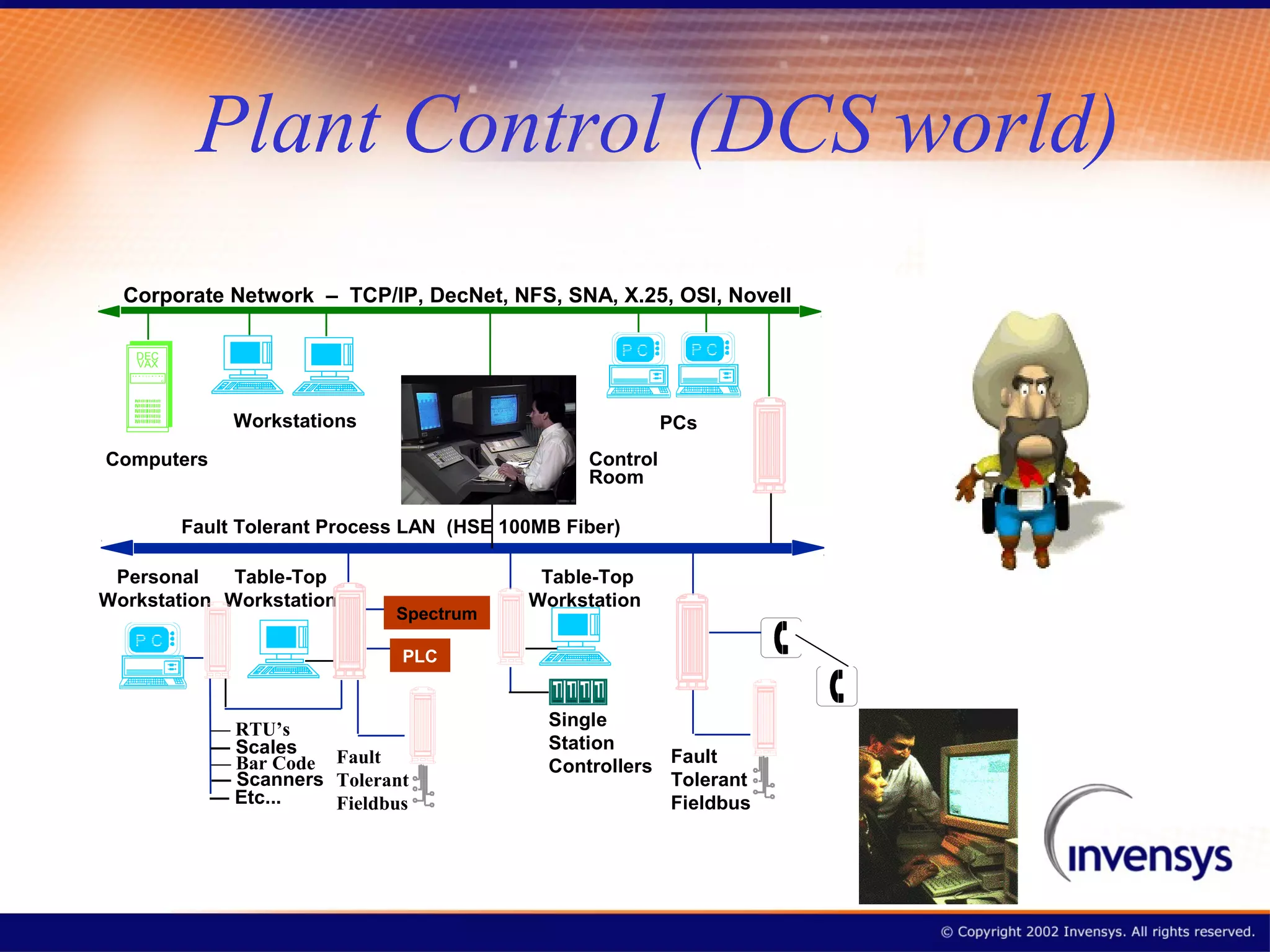

7. Plant Control (DCS world)
Corporate Network – TCP/IP, DecNet, NFS, SNA, X.25, OSI, Novell
DEC PC PC
VAX
Workstations PCs
Computers Control
Room
Fault Tolerant Process LAN (HSE 100MB Fiber)
Personal Table-Top Table-Top
Workstation Workstation Workstation
Spectrum
PC
PLC
— RTU’s Single
— Scales Station
— Bar Code Fault Controllers Fault
— Scanners Tolerant Tolerant
— Etc... Fieldbus Fieldbus

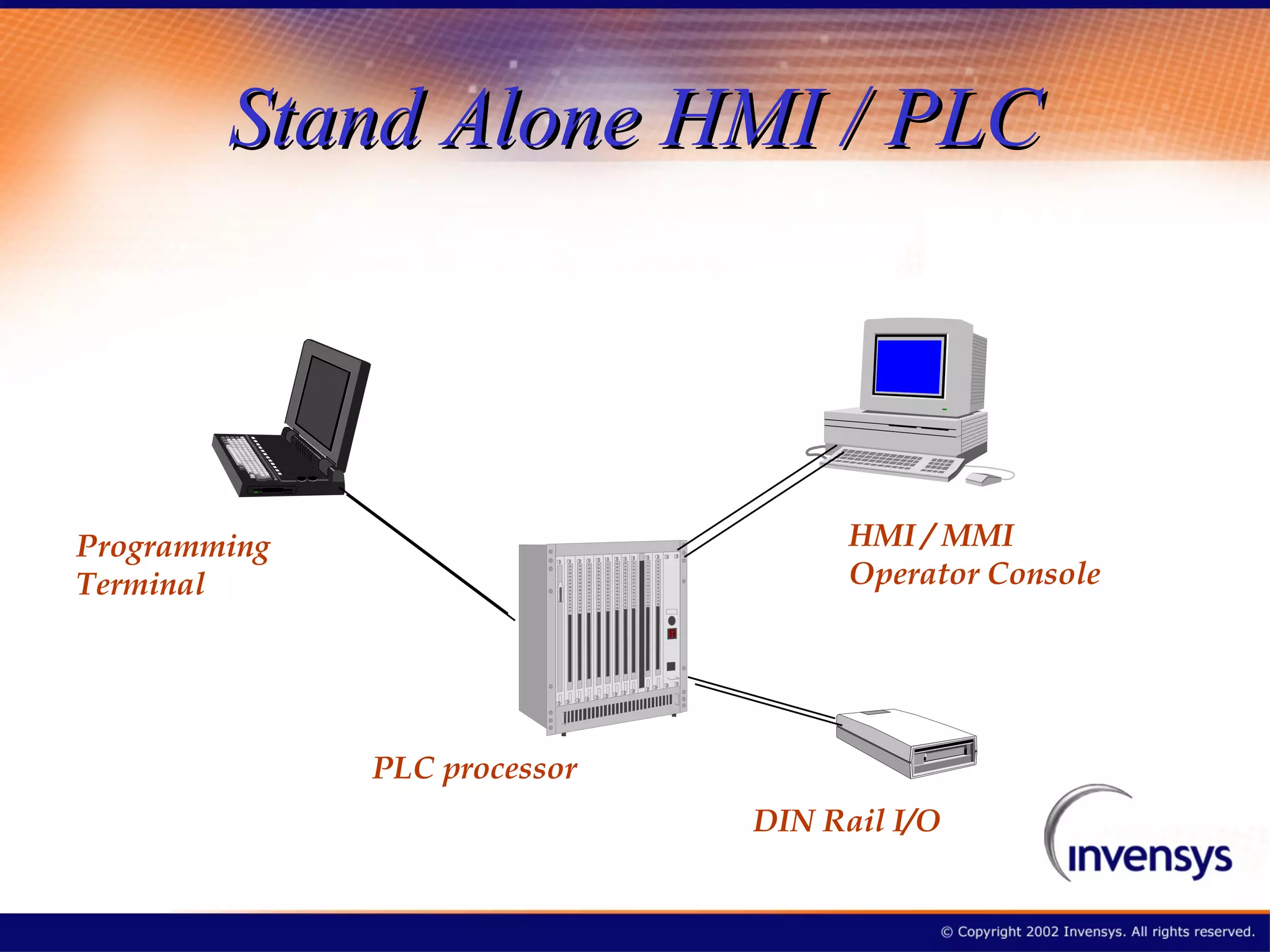

8. Stand Alone HMI / PLC
Programming HMI / MMI
Terminal Operator Console
PLC processor
DIN Rail I/O

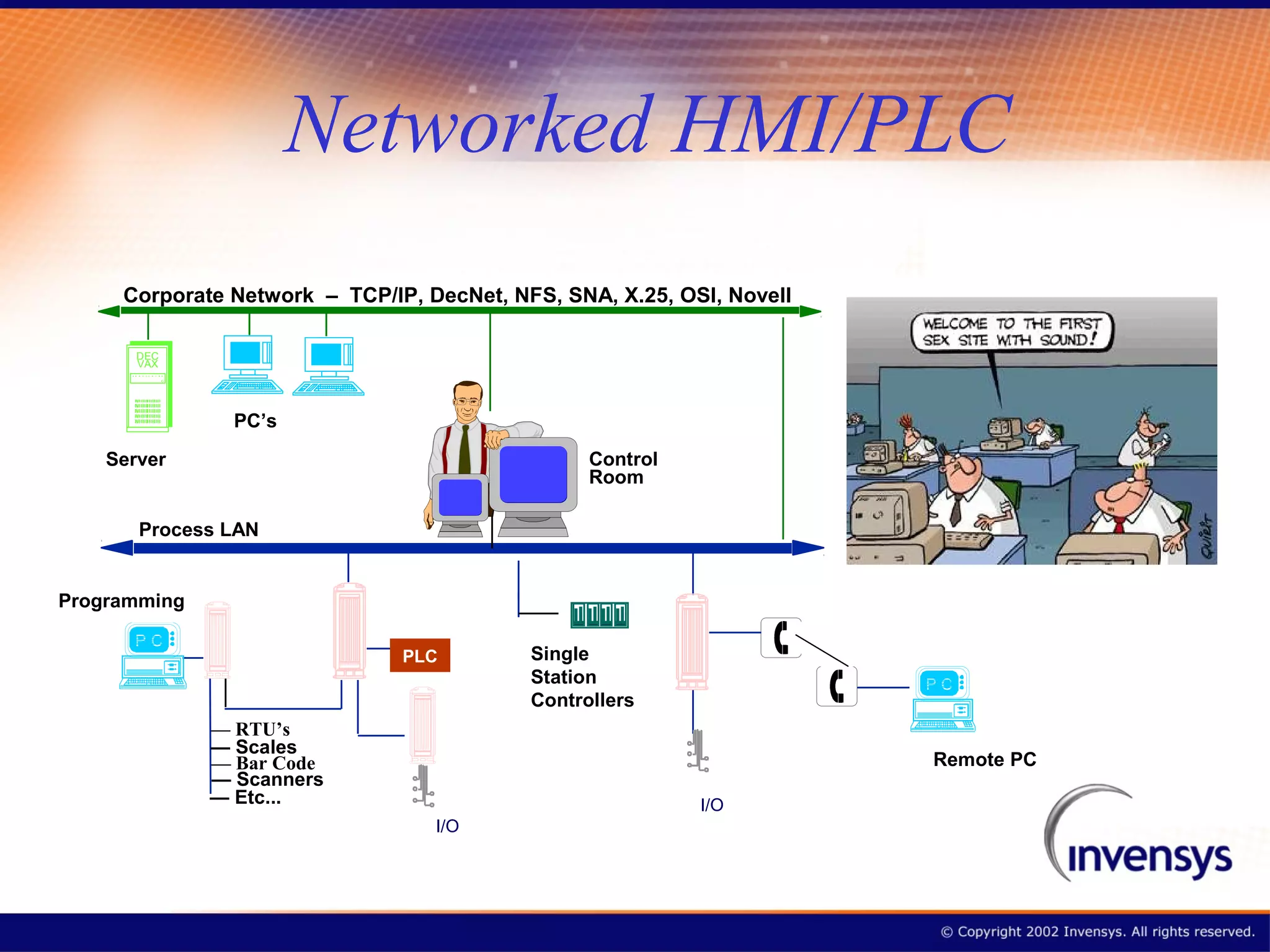

9. Networked HMI/PLC
Corporate Network – TCP/IP, DecNet, NFS, SNA, X.25, OSI, Novell
DEC
VAX
PC’s
Server Control
Room
Process LAN
Programming
PC
PLC Single
Station PC
Controllers
— RTU’s
— Scales
— Bar Code Remote PC
— Scanners
— Etc... I/O
I/O

10. Today’s issues
 Distributed Control into the field
 Distributed Computing
 Distributed I/O into the field
 Services, Applications, Solutions
 Industry Standards
 Configurator tools
 Asset Management
 Performance guarantees ($)
 Life Cycle Costs (scalability / migration / upgrades)
 Digital bus selection

11. Thanks for listening-I'm out of here
