Marker Detection Algorithm
(of aruco)
pknam

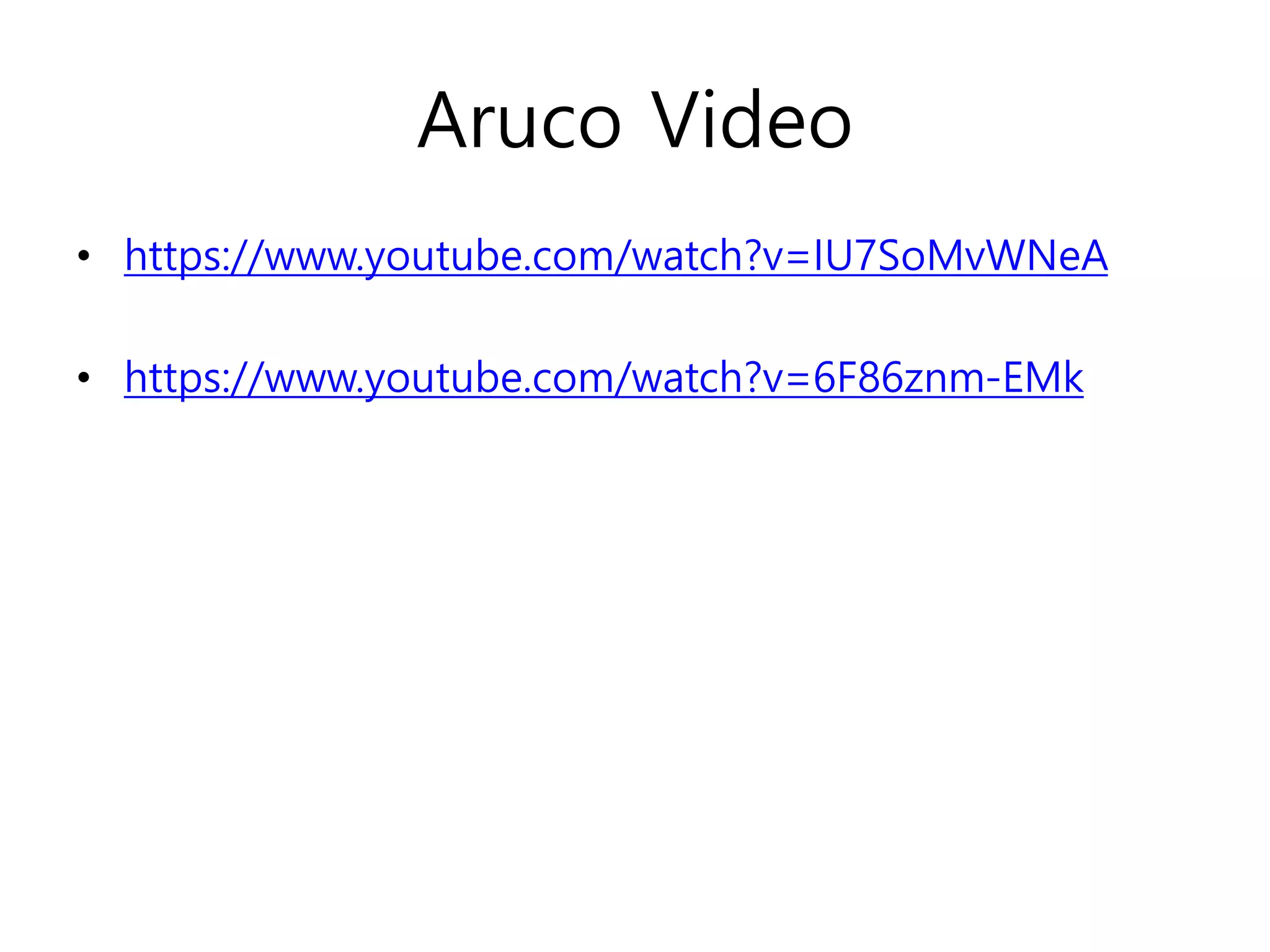

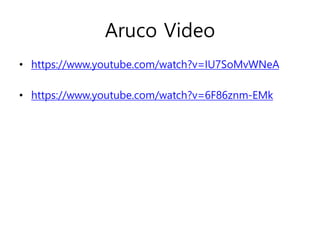

Aruco Video
• https://www.youtube.com/watch?v=IU7SoMvWNeA
• https://www.youtube.com/watch?v=6F86znm-EMk

Overview
1. Convert to gray
2. cv::adaptiveThreshold

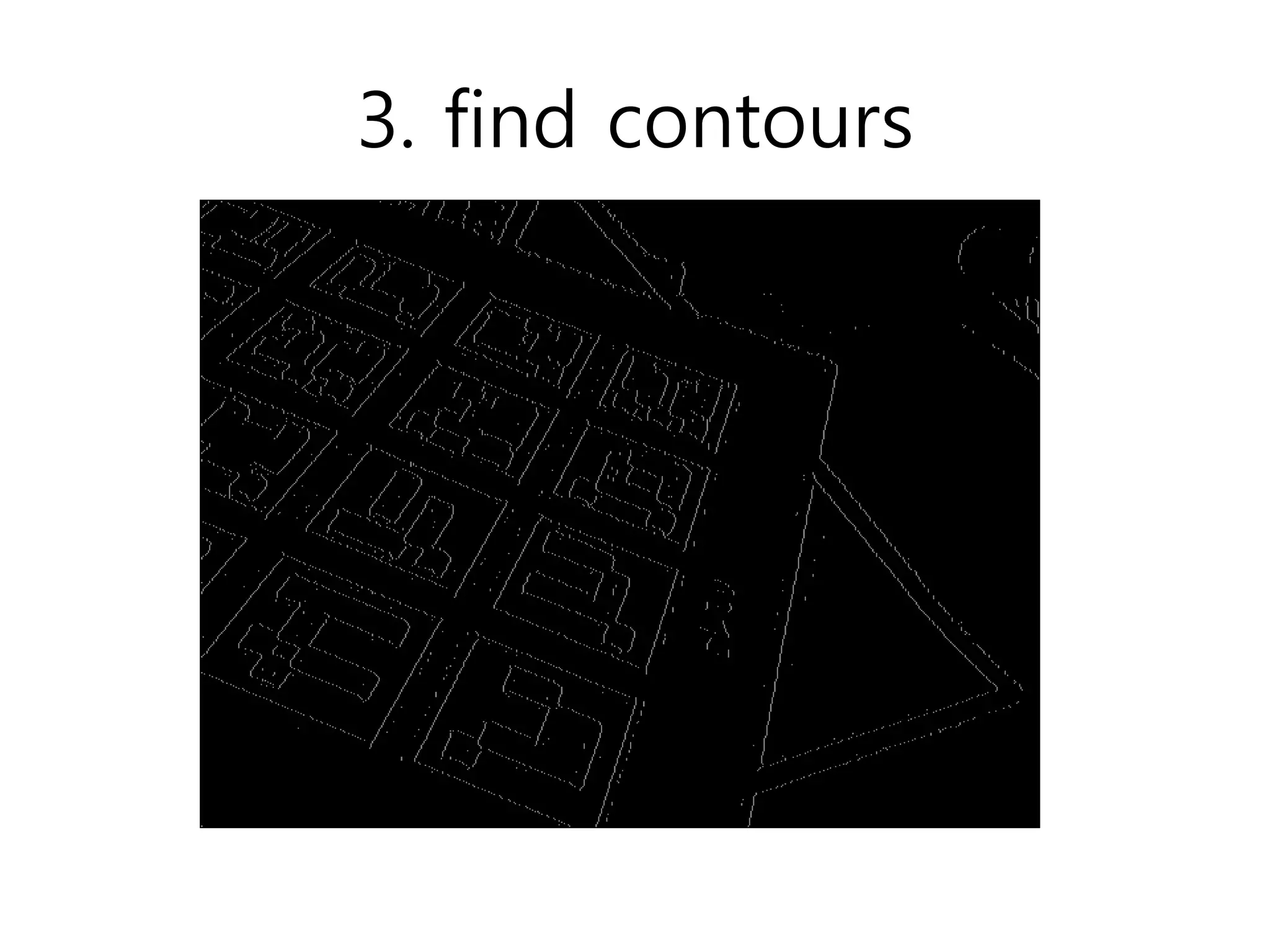

3. cv::findContours

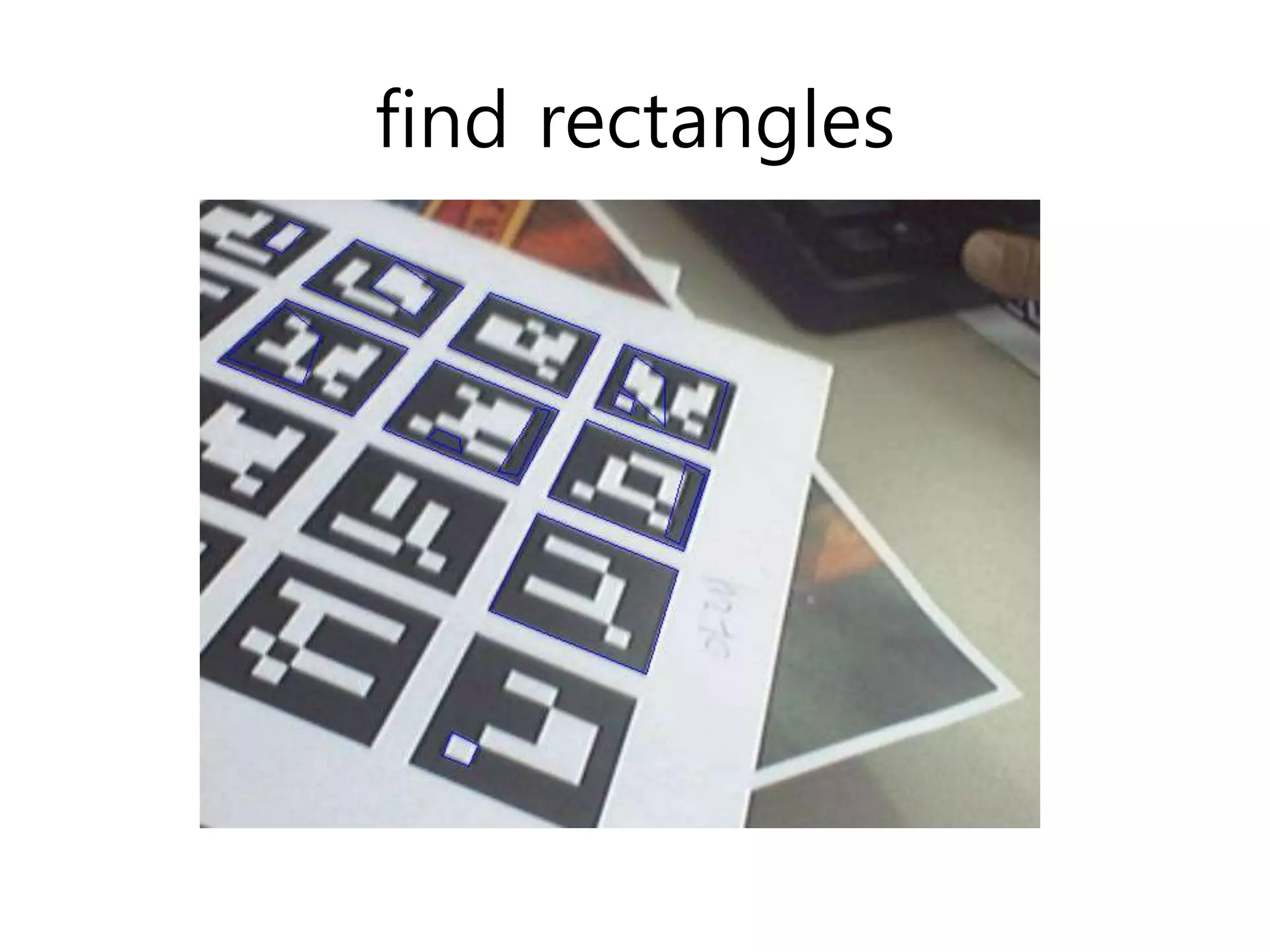

4. Find rectangles
5. Find valid markers
6. Calculate marker’s ID

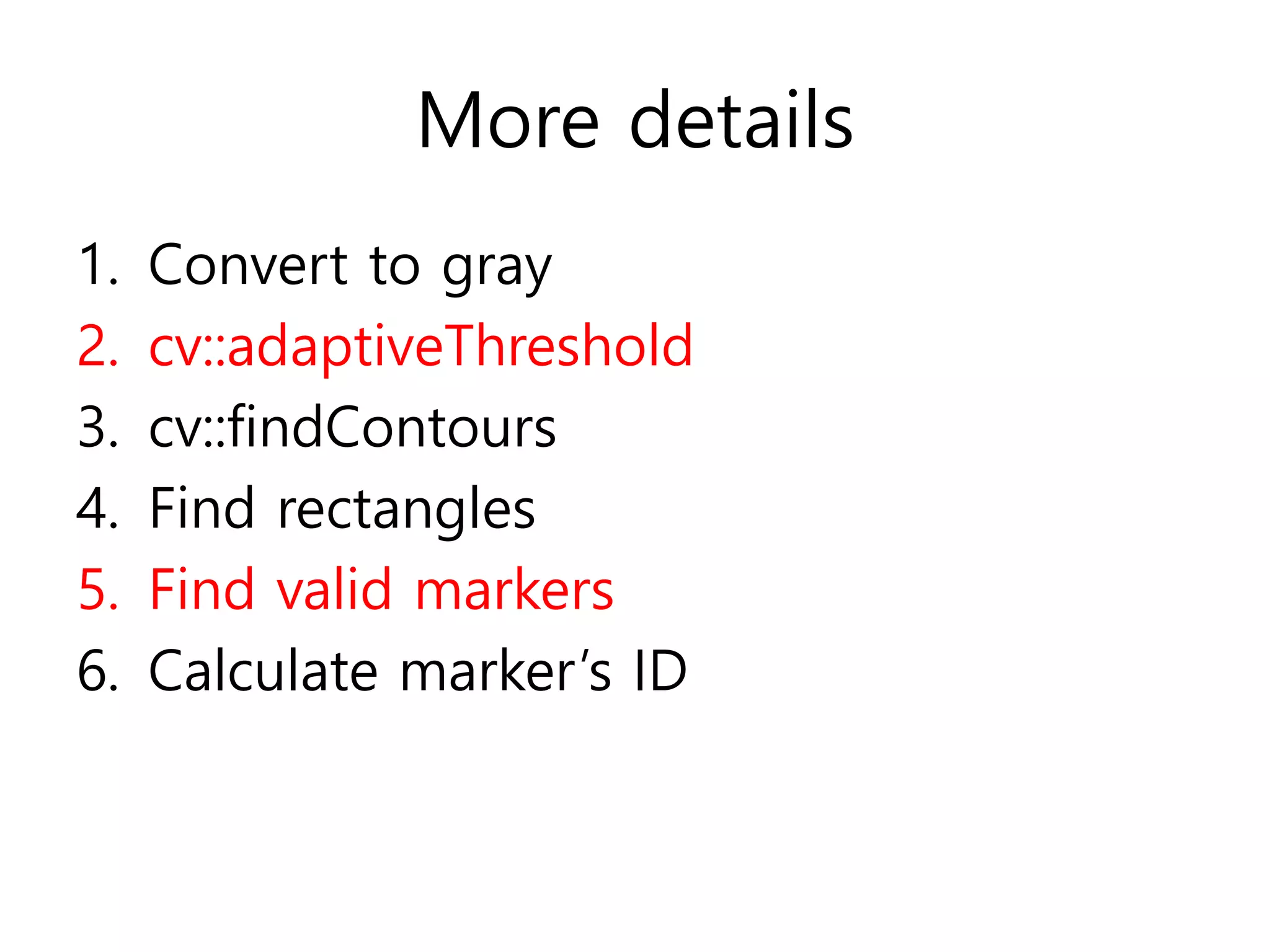

More details

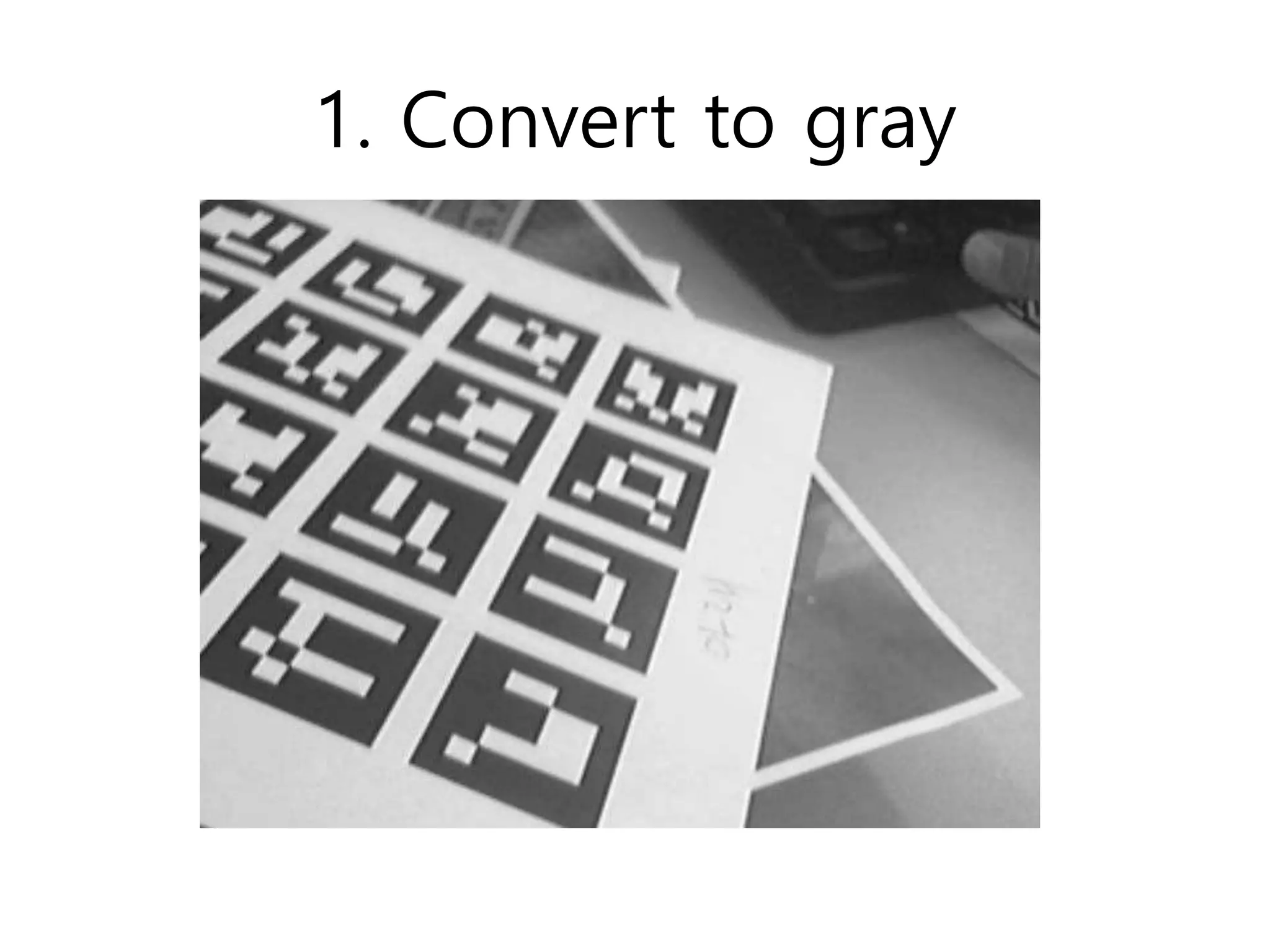

1. Convert to gray

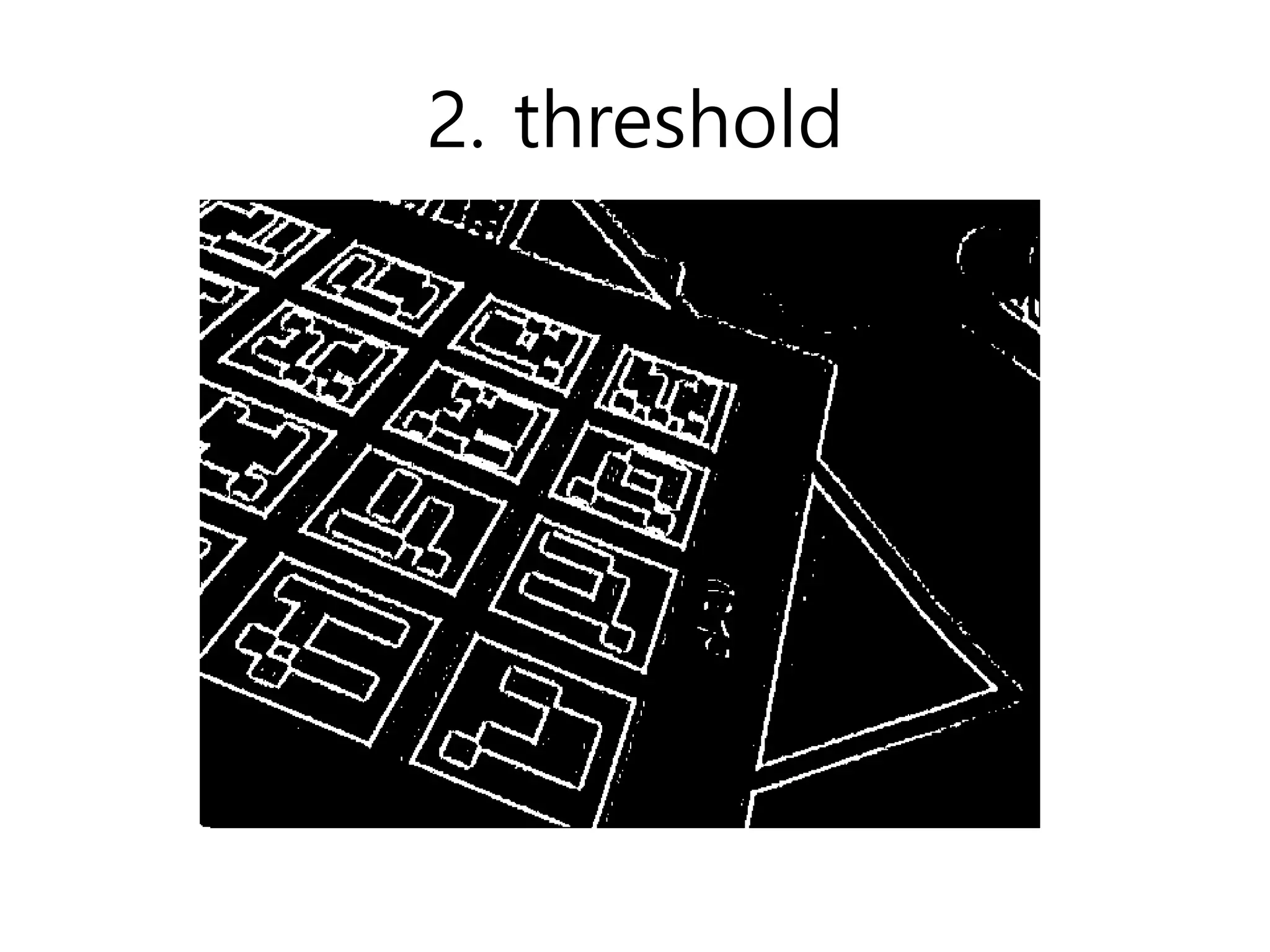

2. cv::adaptiveThreshold
3. cv::findContours
4. Find rectangles
5. Find valid markers
6. Calculate marker’s ID

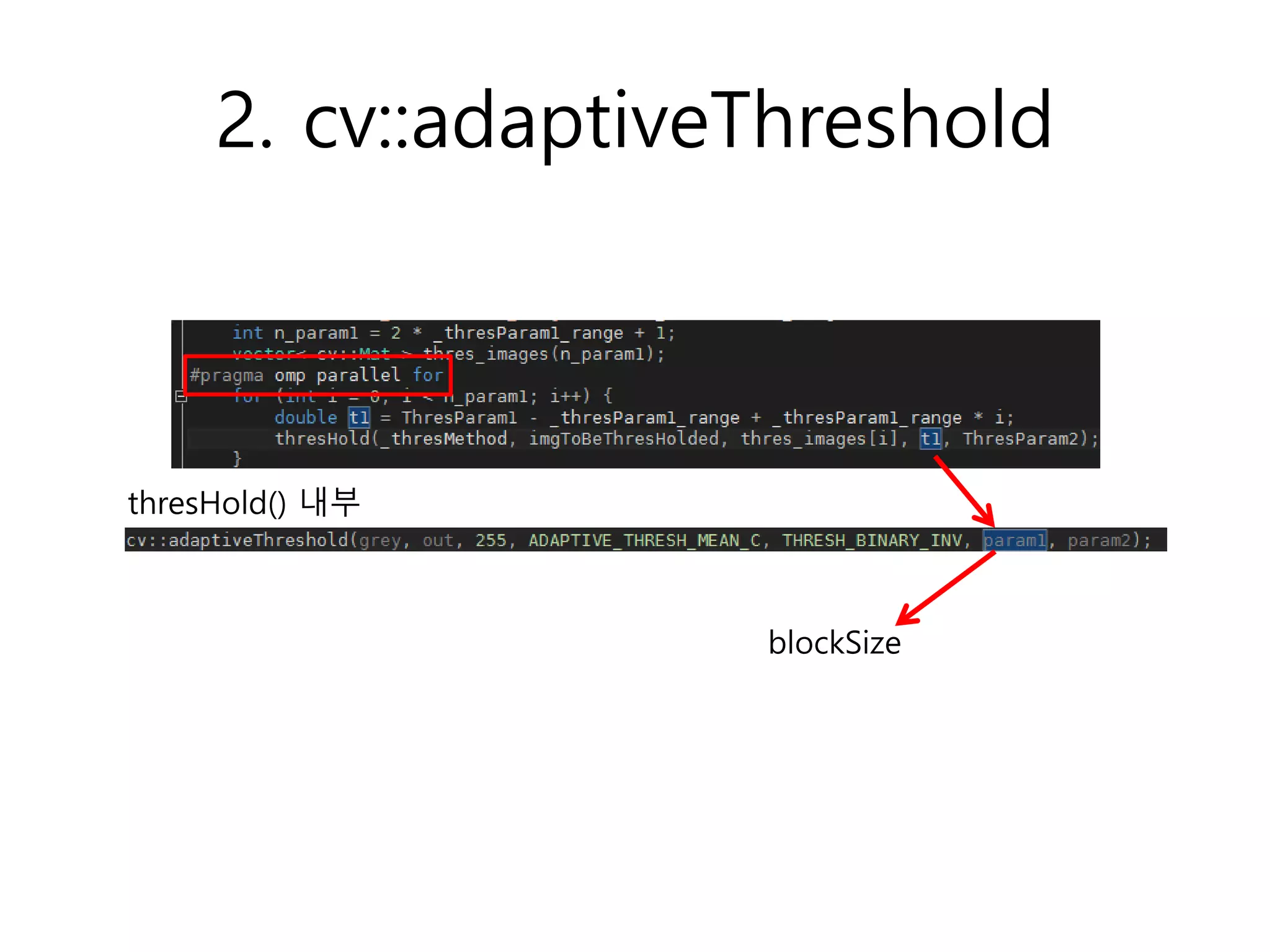

2. cv::adaptiveThreshold
thresHold() 내부
blockSize

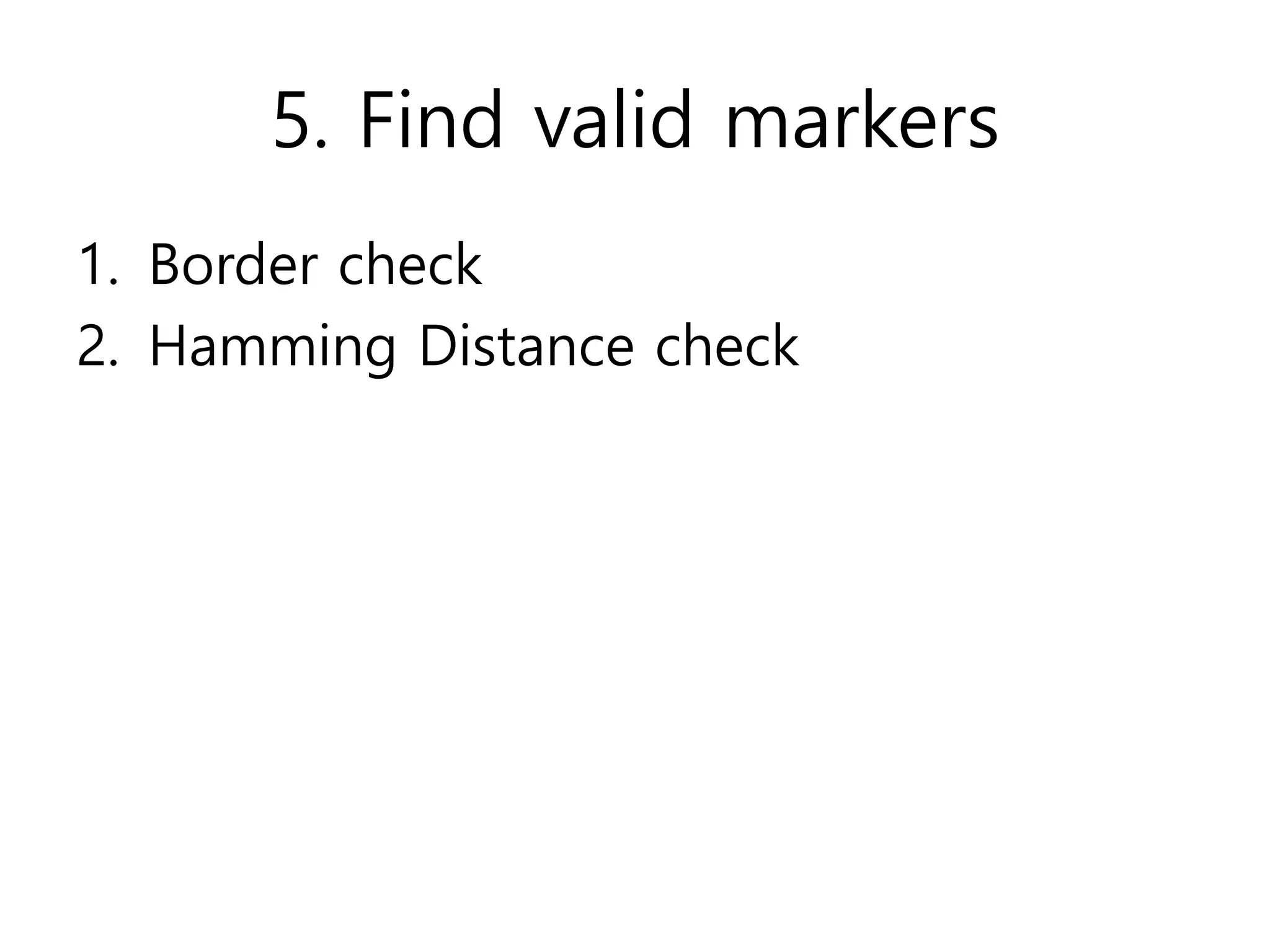

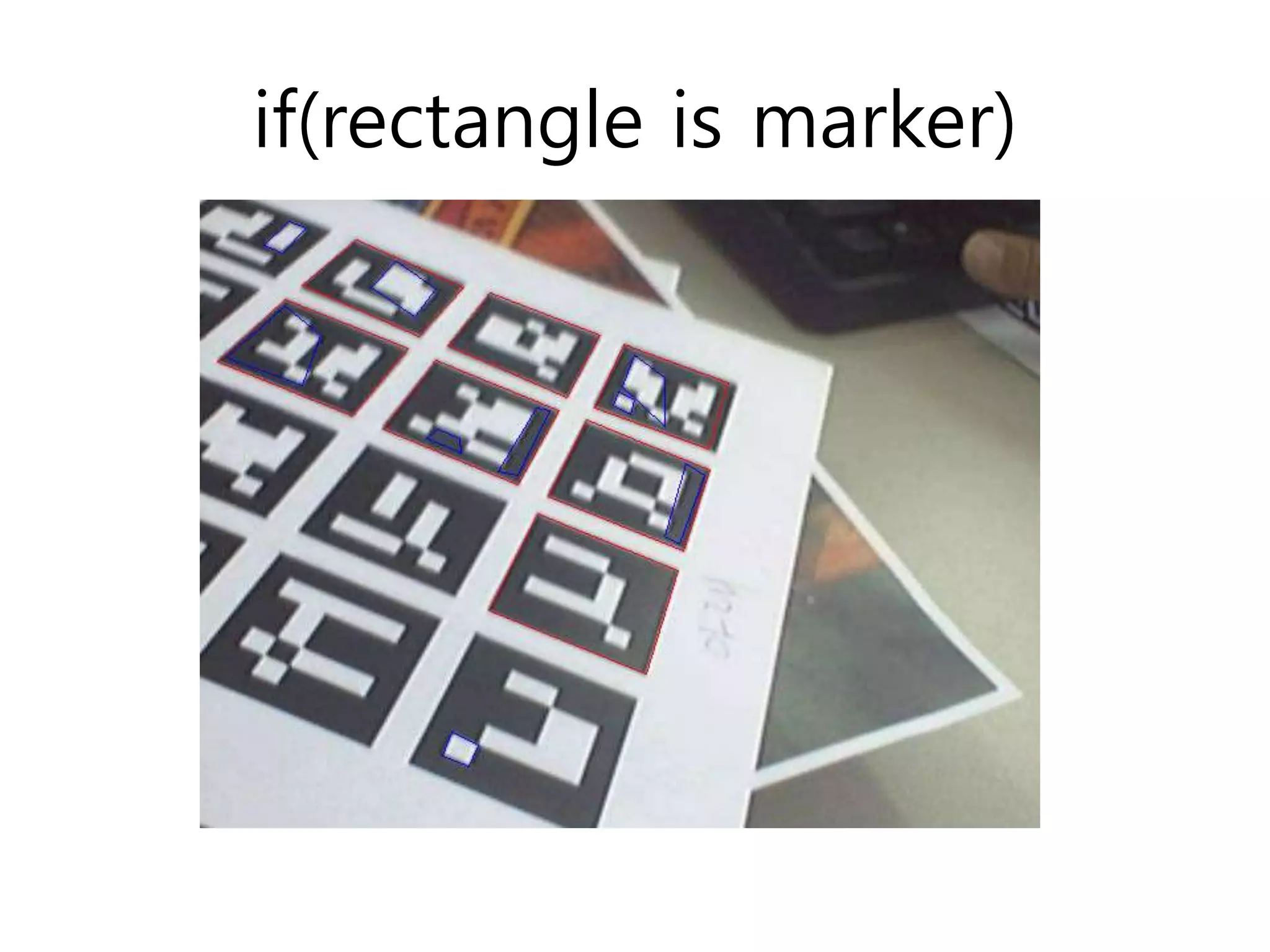

5. Find valid markers
1. Border check
2. Hamming Distance check

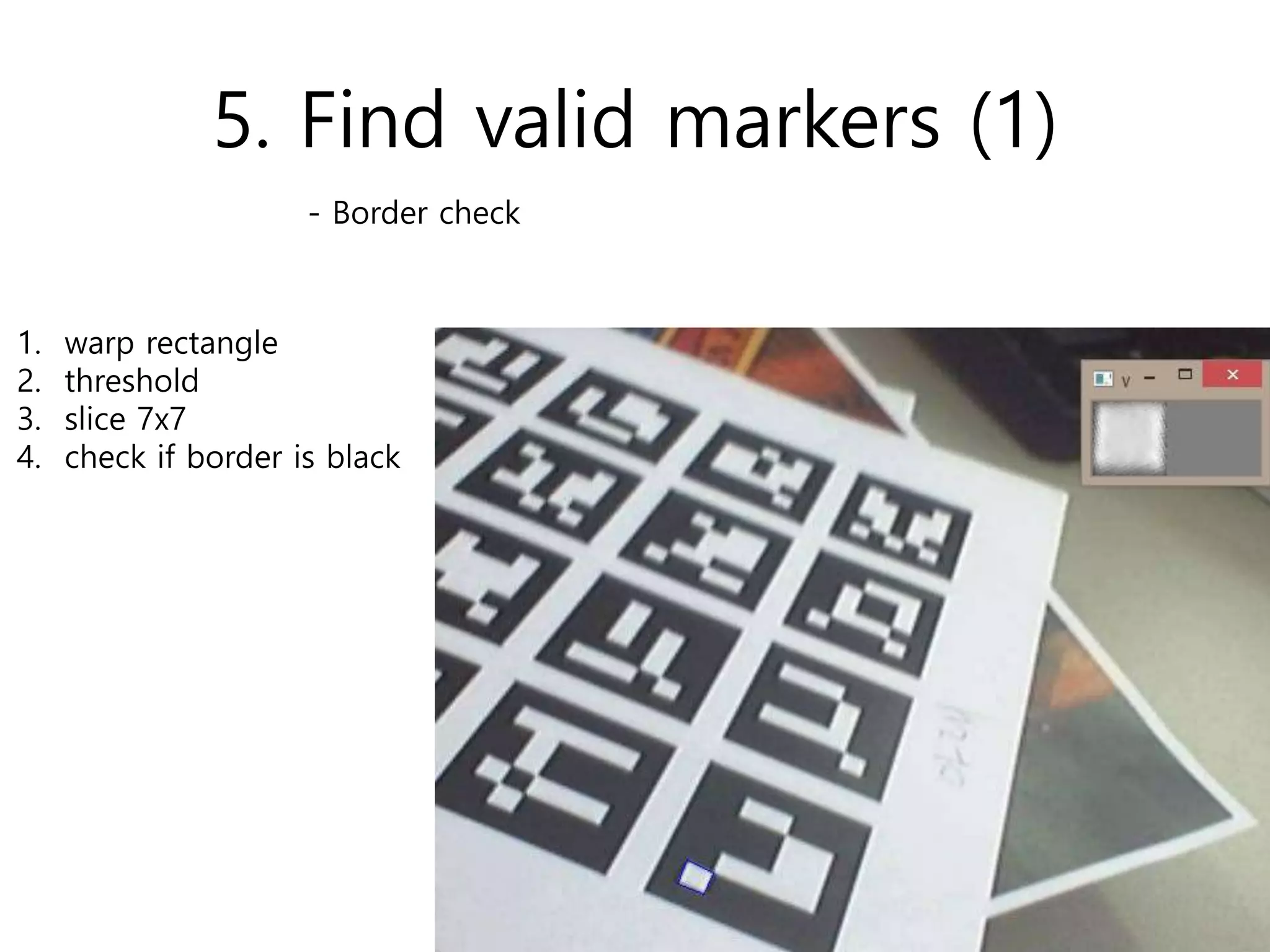

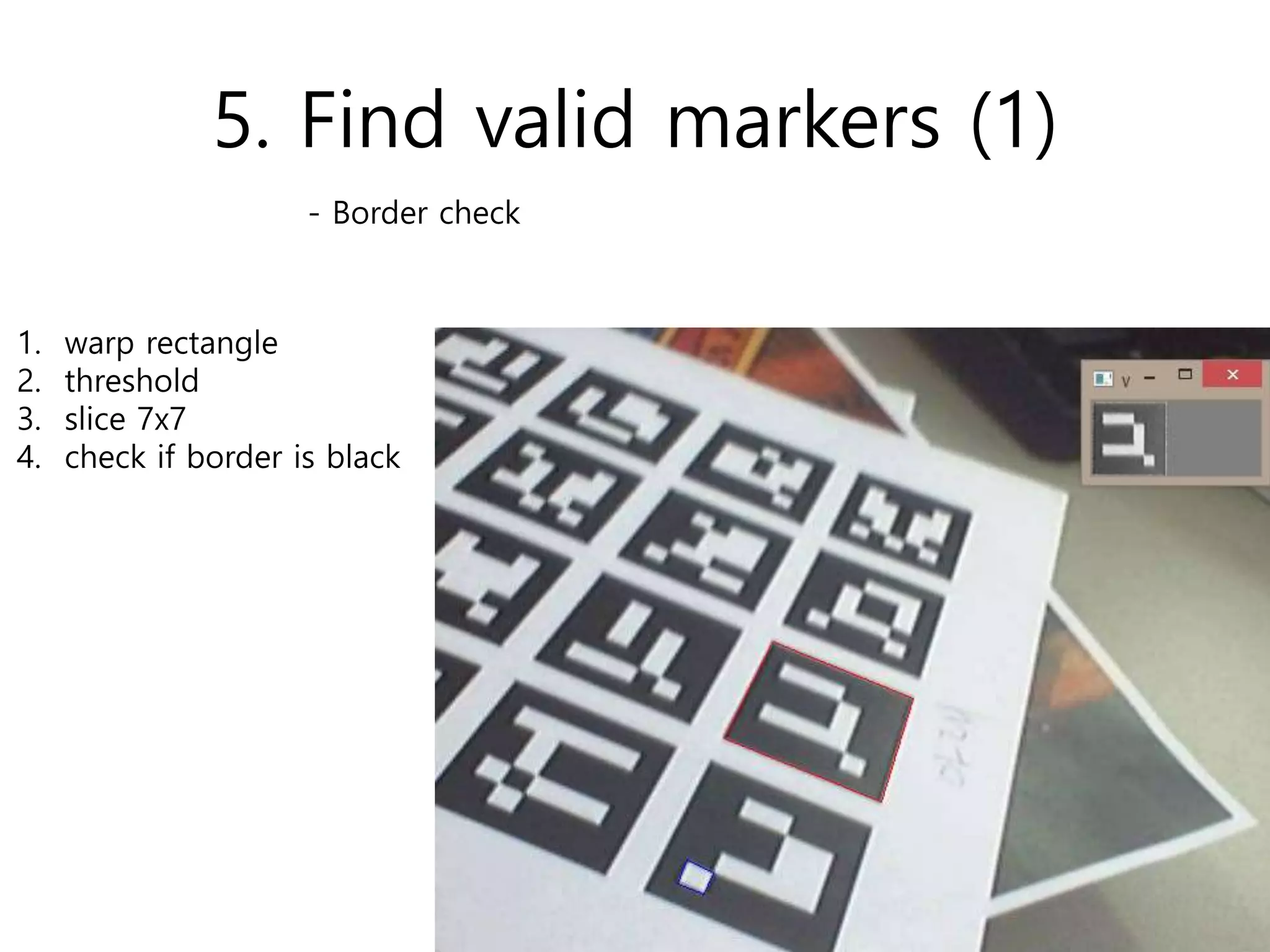

5. Find valid markers (1)
1. warp rectangle
2. threshold
3. slice 7x7
4. check if border is black
- Border check

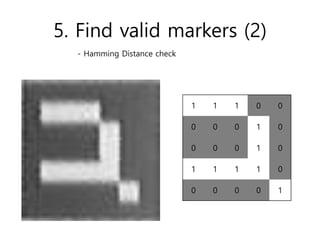

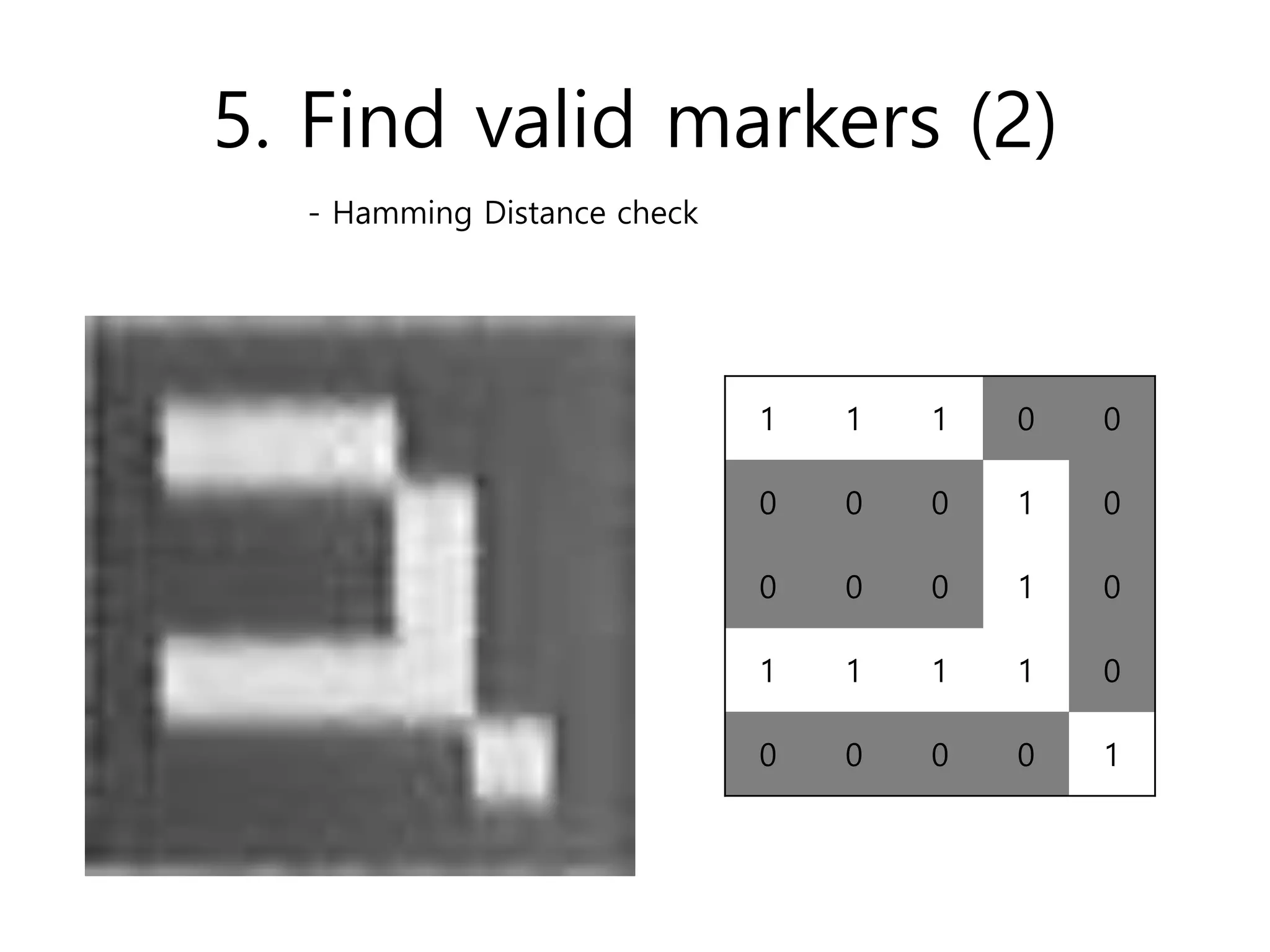

5. Find valid markers (2)
1 1 1 0 0
0 0 0 1 0
0 0 0 1 0
1 1 1 1 0
0 0 0 0 1
- Hamming Distance check

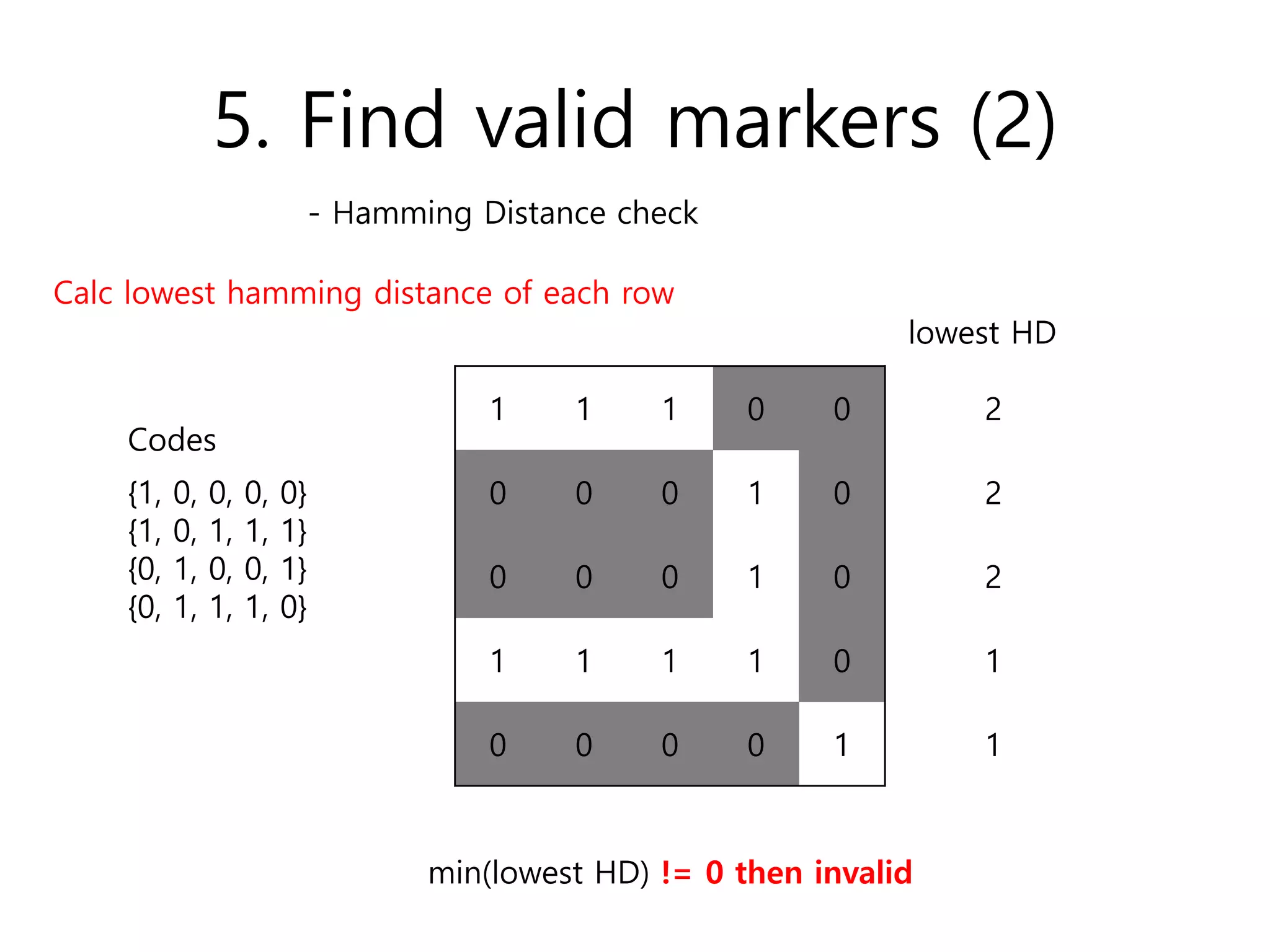

5. Find valid markers (2)
- Hamming Distance check
{1, 0, 0, 0, 0}
{1, 0, 1, 1, 1}
{0, 1, 0, 0, 1}
{0, 1, 1, 1, 0}
1 1 1 0 0
0 0 0 1 0
0 0 0 1 0
1 1 1 1 0
0 0 0 0 1
Calc lowest hamming distance of each row
Codes
lowest HD
2
2
2
1
1
min(lowest HD) != 0 then invalid

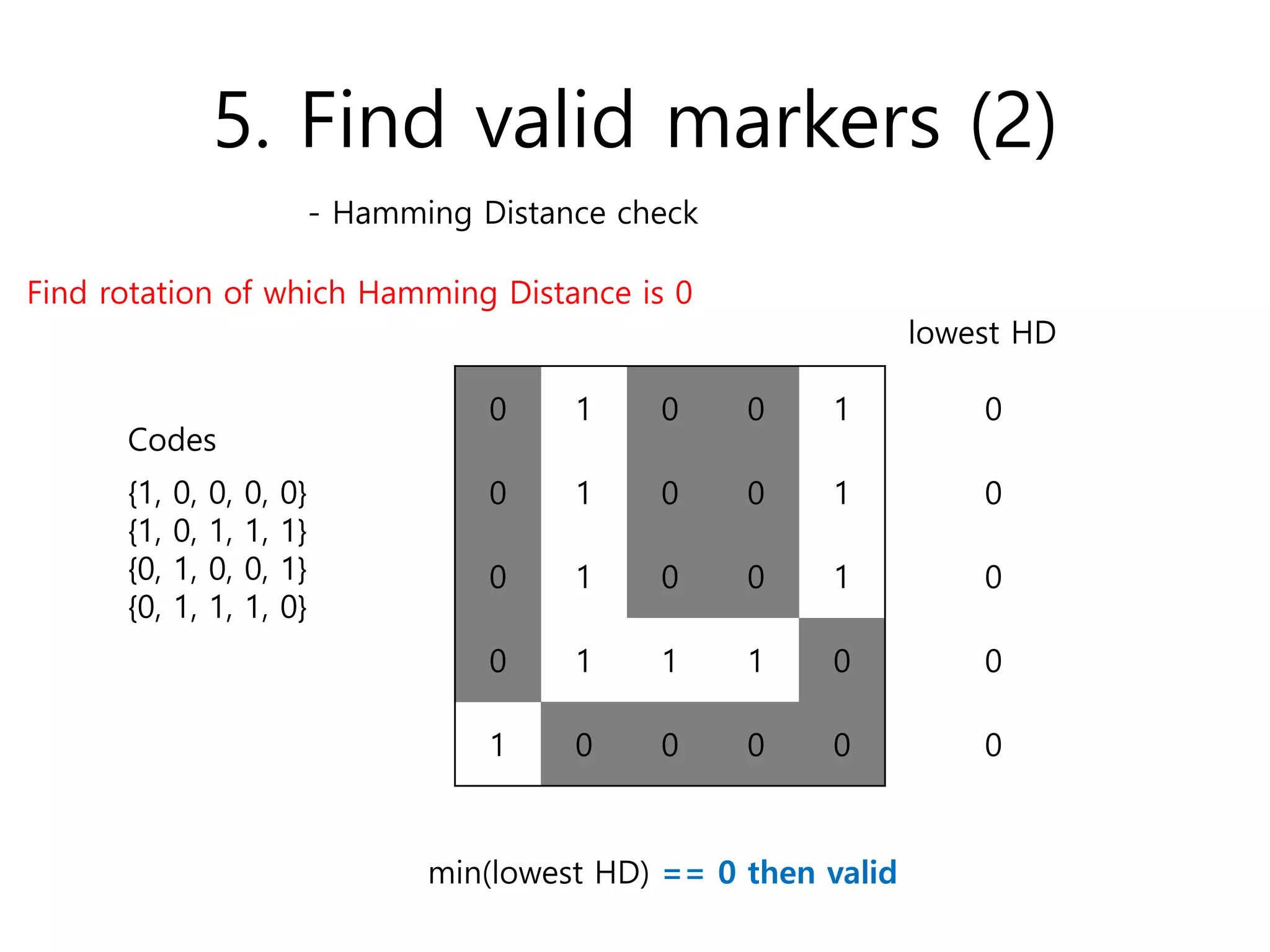

5. Find valid markers (2)
- Hamming Distance check
{1, 0, 0, 0, 0}
{1, 0, 1, 1, 1}
{0, 1, 0, 0, 1}
{0, 1, 1, 1, 0}
0 1 0 0 1
0 1 0 0 1
0 1 0 0 1
0 1 1 1 0
1 0 0 0 0
Codes
Find rotation of which Hamming Distance is 0
lowest HD
0
0
0
0
0
min(lowest HD) == 0 then valid

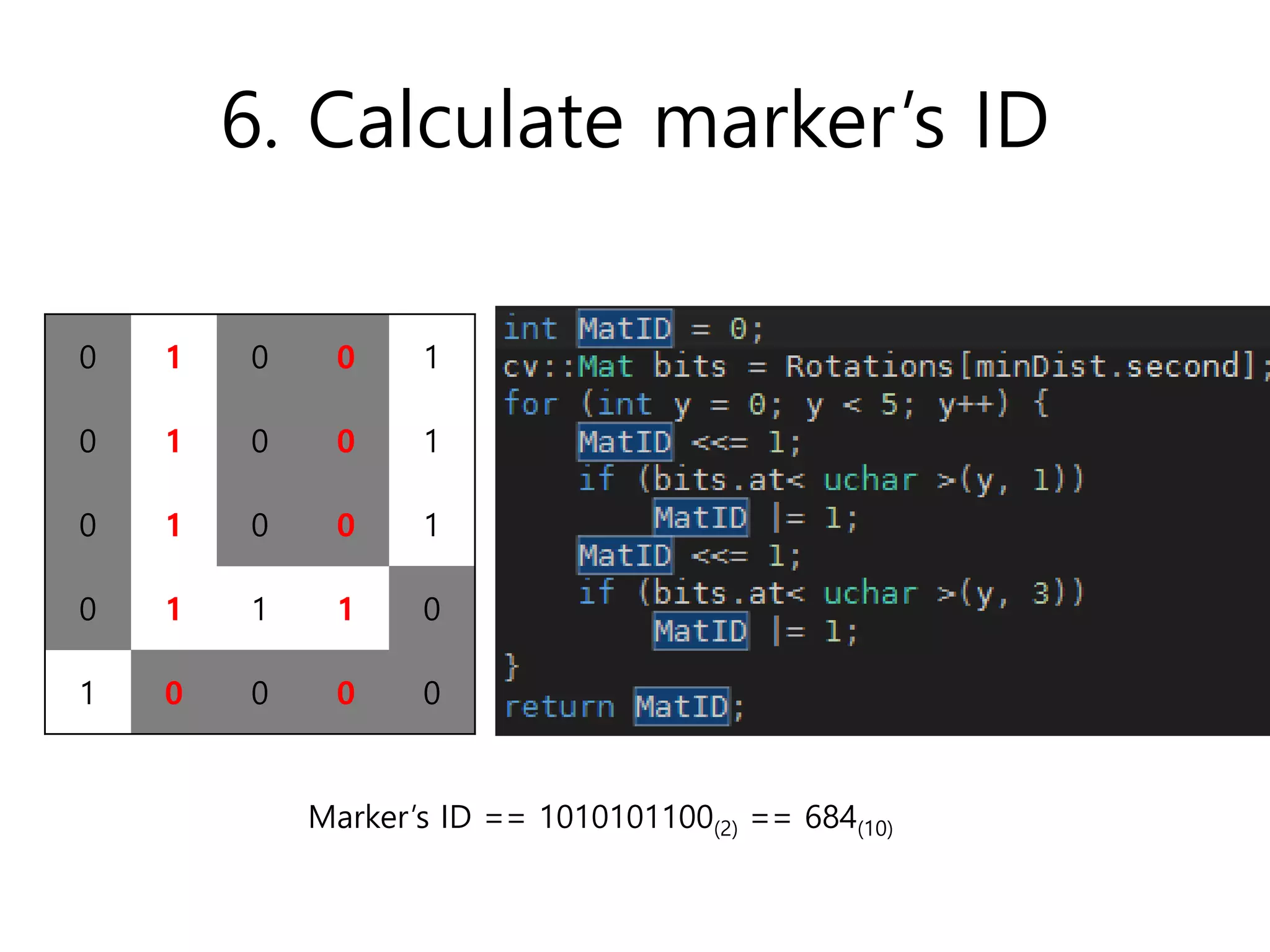

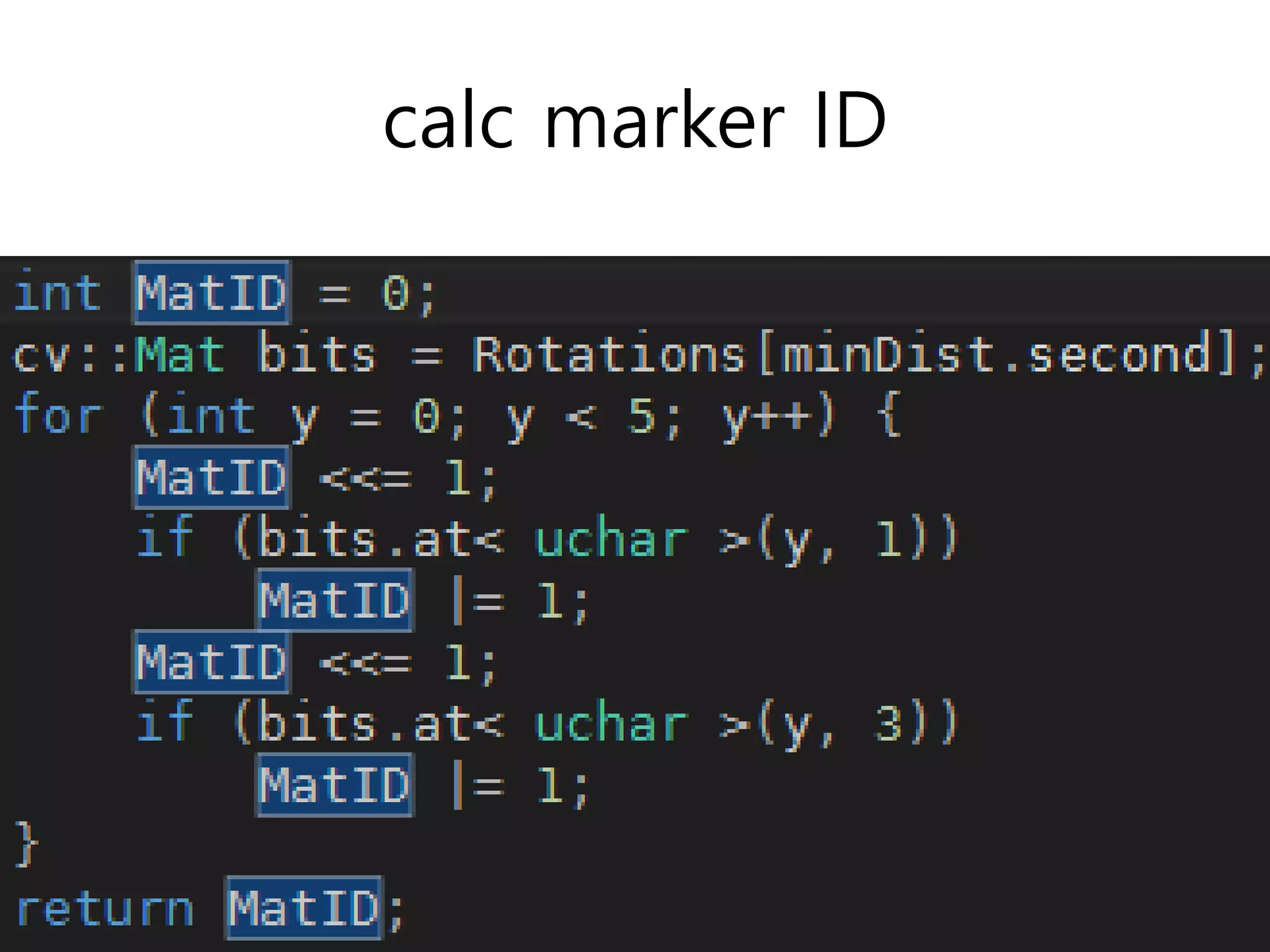

6. Calculate marker’s ID
0 1 0 0 1
0 1 0 0 1
0 1 0 0 1
0 1 1 1 0
1 0 0 0 0
Marker’s ID == 1010101100(2) == 684(10)

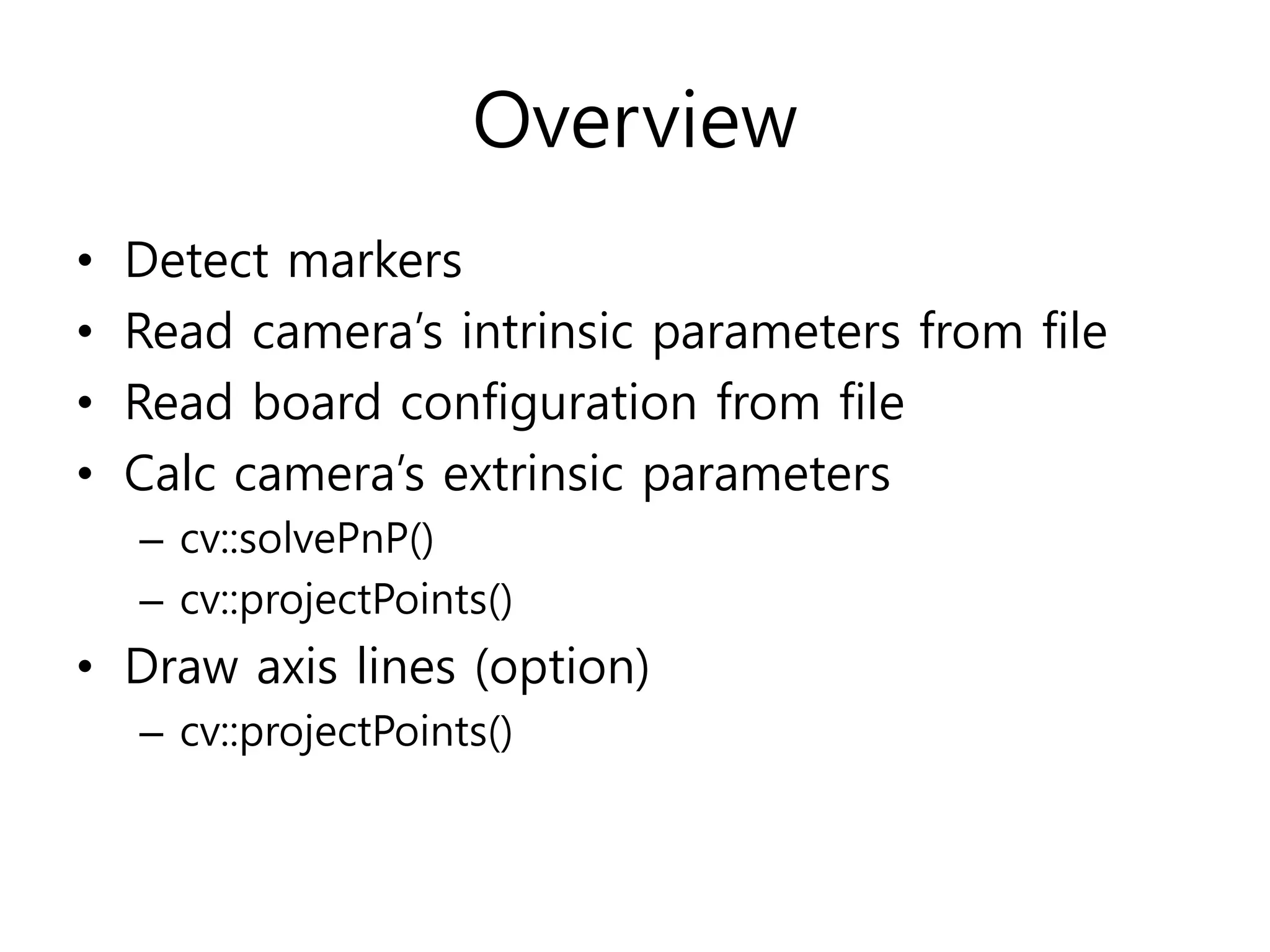

Overview

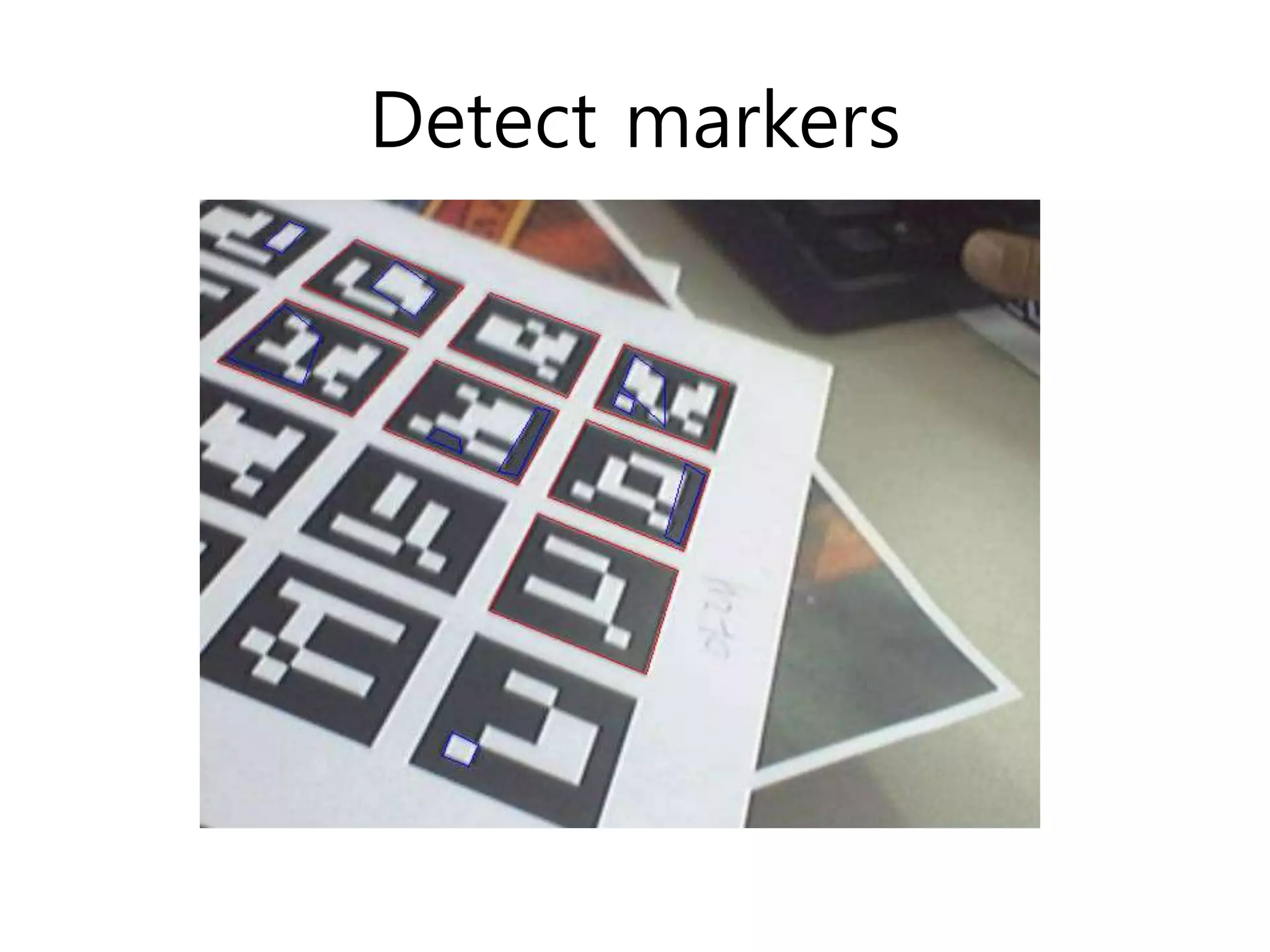

• Detect markers
• Read camera’s intrinsic parameters from file
• Read board configuration from file
• Calc camera’s extrinsic parameters
– cv::solvePnP()
– cv::projectPoints()
• Draw axis lines (option)
– cv::projectPoints()

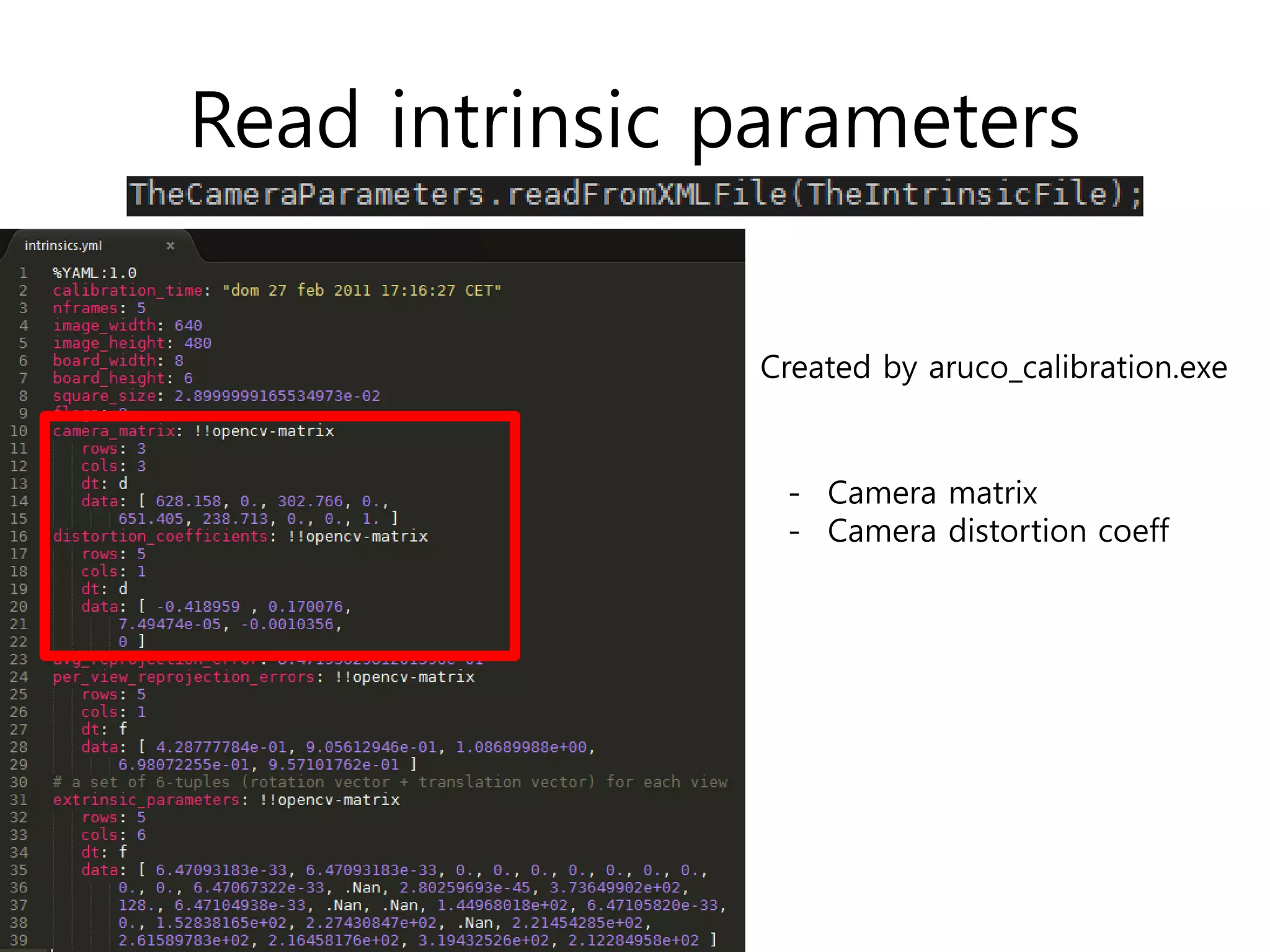

Read intrinsic parameters
Created by aruco_calibration.exe
- Camera matrix
- Camera distortion coeff

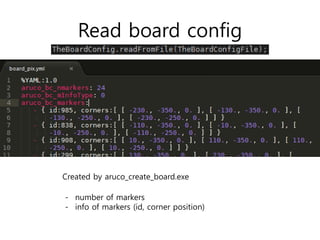

Read board config
- number of markers
- info of markers (id, corner position)
Created by aruco_create_board.exe

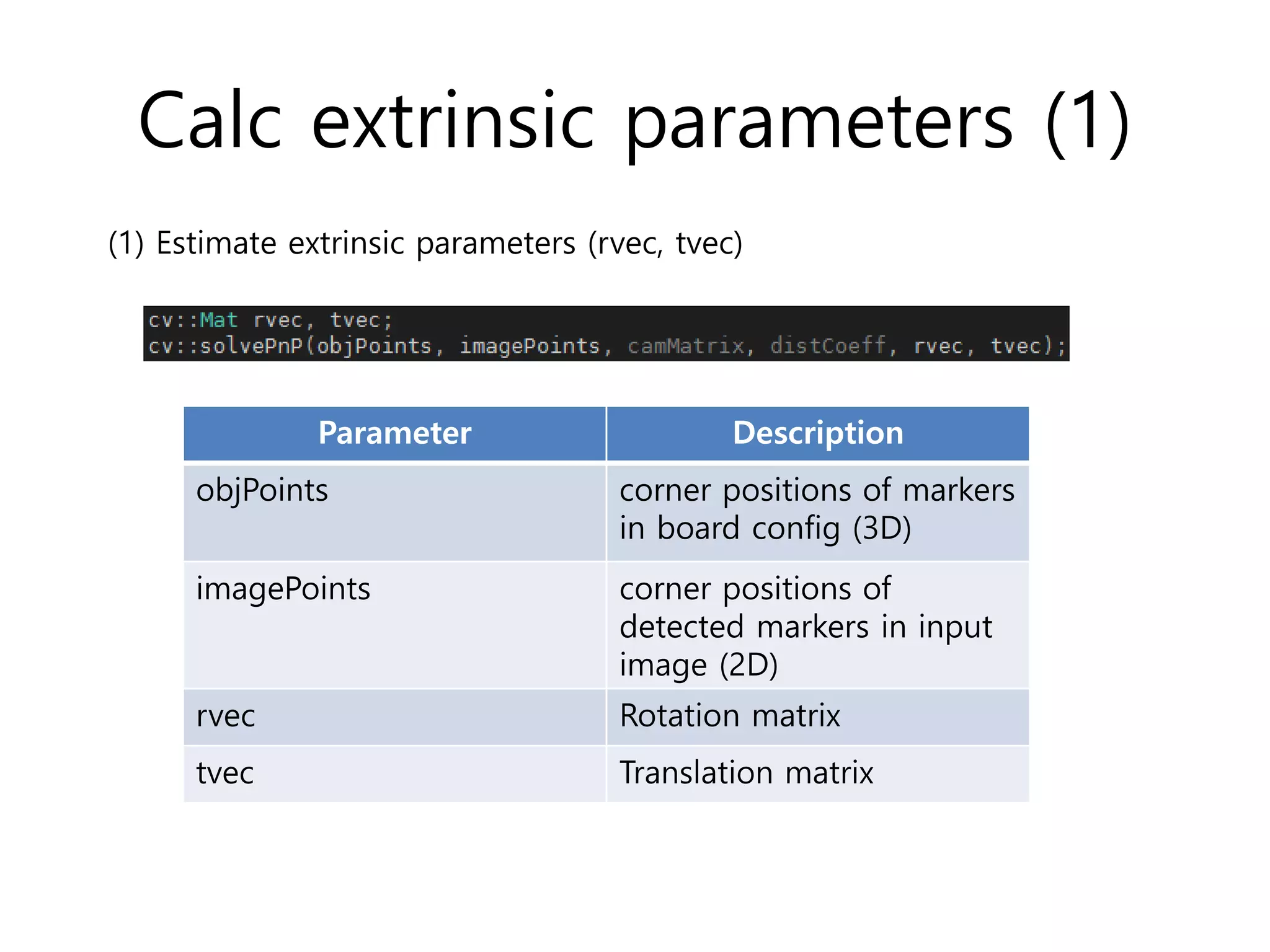

Calc extrinsic parameters (1)
Parameter Description
objPoints corner positions of markers
in board config (3D)
imagePoints corner positions of
detected markers in input
image (2D)
rvec Rotation matrix
tvec Translation matrix
(1) Estimate extrinsic parameters (rvec, tvec)

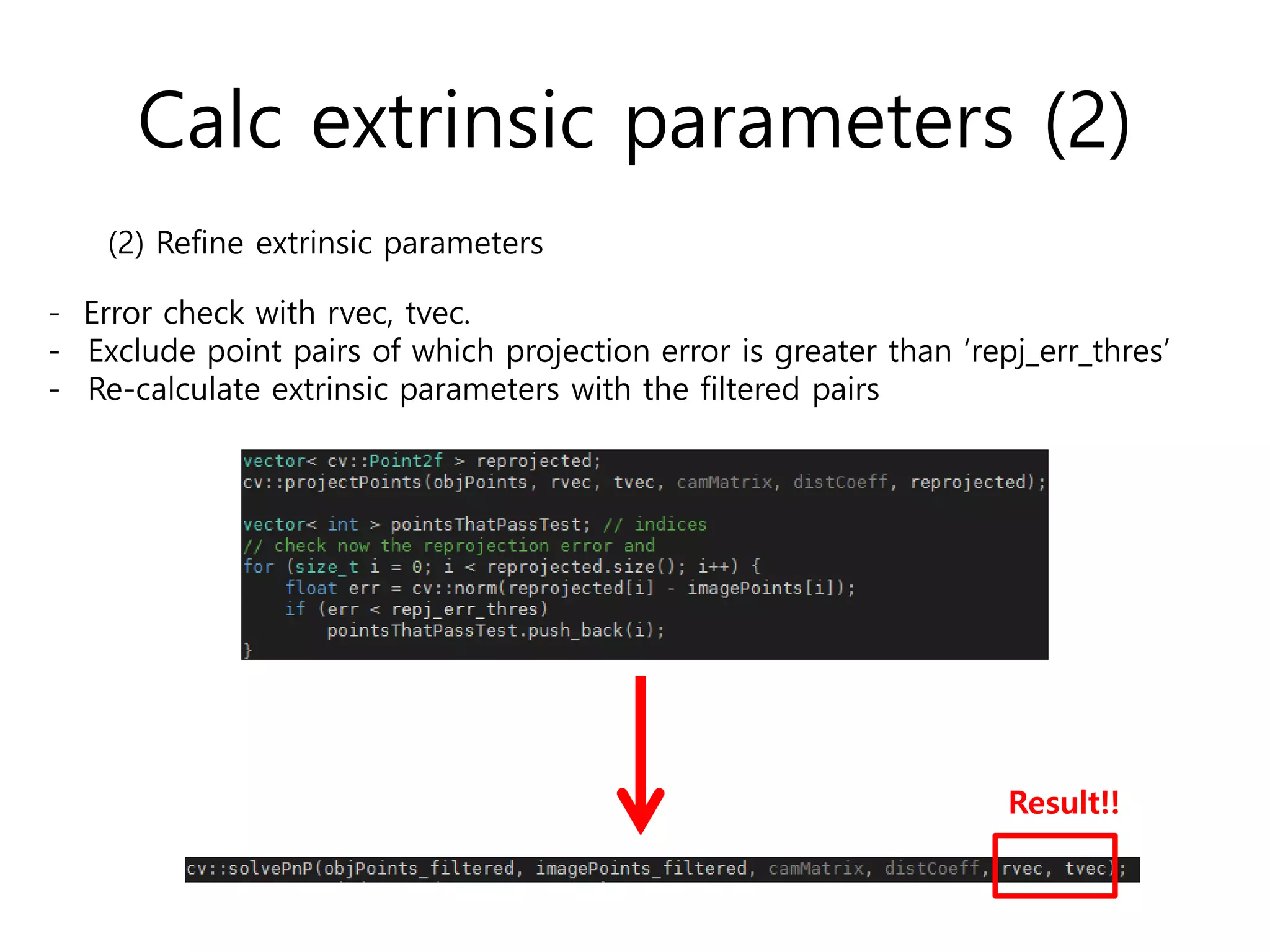

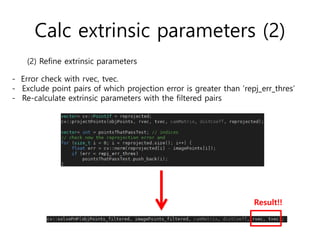

Calc extrinsic parameters (2)
(2) Refine extrinsic parameters
- Error check with rvec, tvec.
- Exclude point pairs of which projection error is greater than ‘repj_err_thres’
- Re-calculate extrinsic parameters with the filtered pairs
Result!!

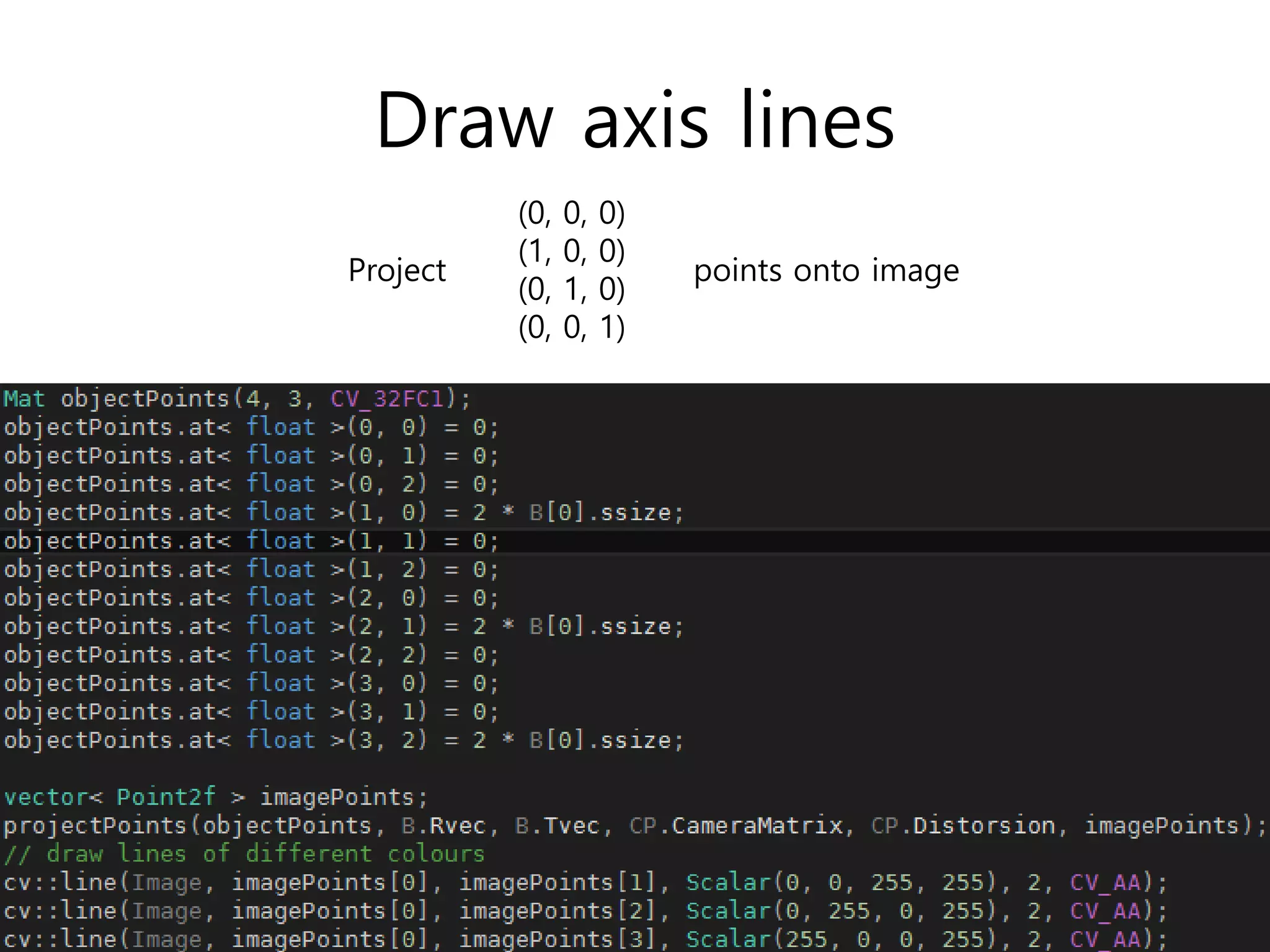

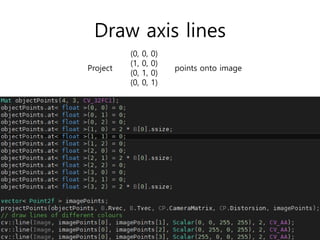

Draw axis lines
(0, 0, 0)
(1, 0, 0)
(0, 1, 0)
(0, 0, 1)
Project points onto image

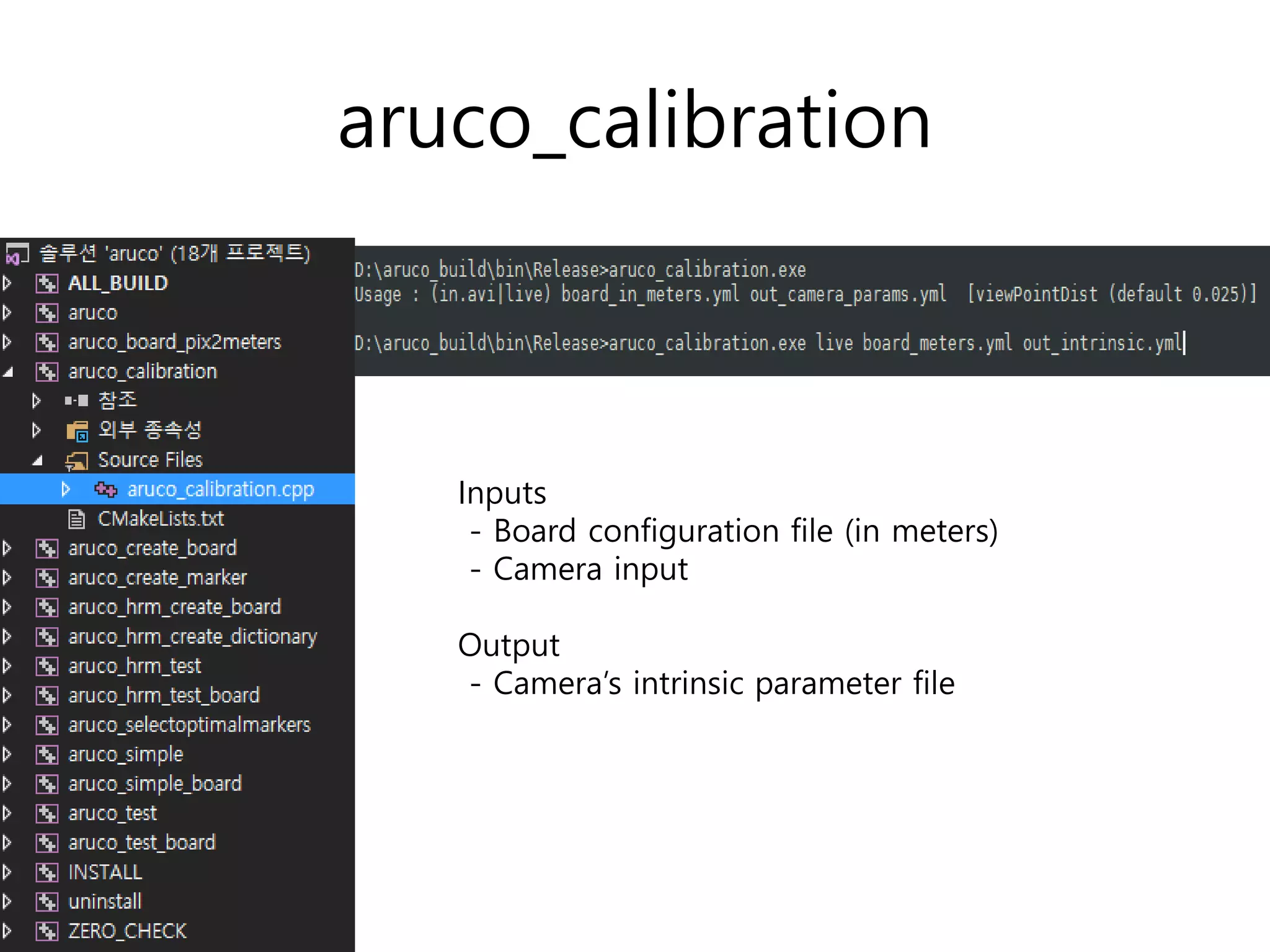

aruco_calibration
Inputs
- Board configuration file (in meters)
- Camera input
Output
- Camera’s intrinsic parameter file

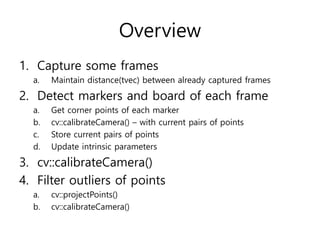

Overview
1. Capture some frames
a. Maintain distance(tvec) between already captured frames
2. Detect markers and board of each frame
a. Get corner points of each marker
b. cv::calibrateCamera() – with current pairs of points
c. Store current pairs of points
d. Update intrinsic parameters
3. cv::calibrateCamera()
4. Filter outliers of points
a. cv::projectPoints()
b. cv::calibrateCamera()

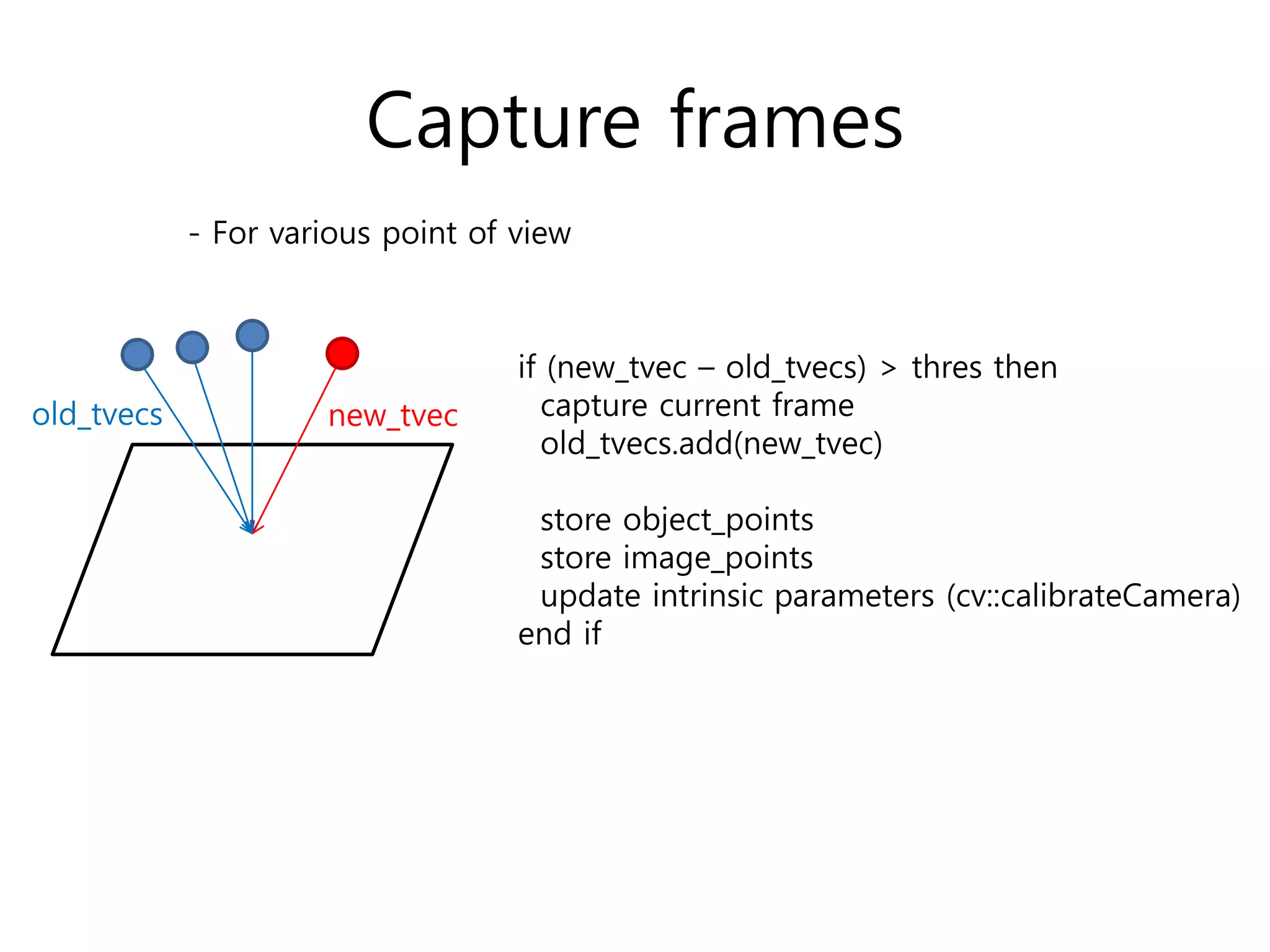

Capture frames
new_tvec
if (new_tvec – old_tvecs) > thres then
capture current frame
old_tvecs.add(new_tvec)
store object_points
store image_points
update intrinsic parameters (cv::calibrateCamera)
end if
old_tvecs
- For various point of view

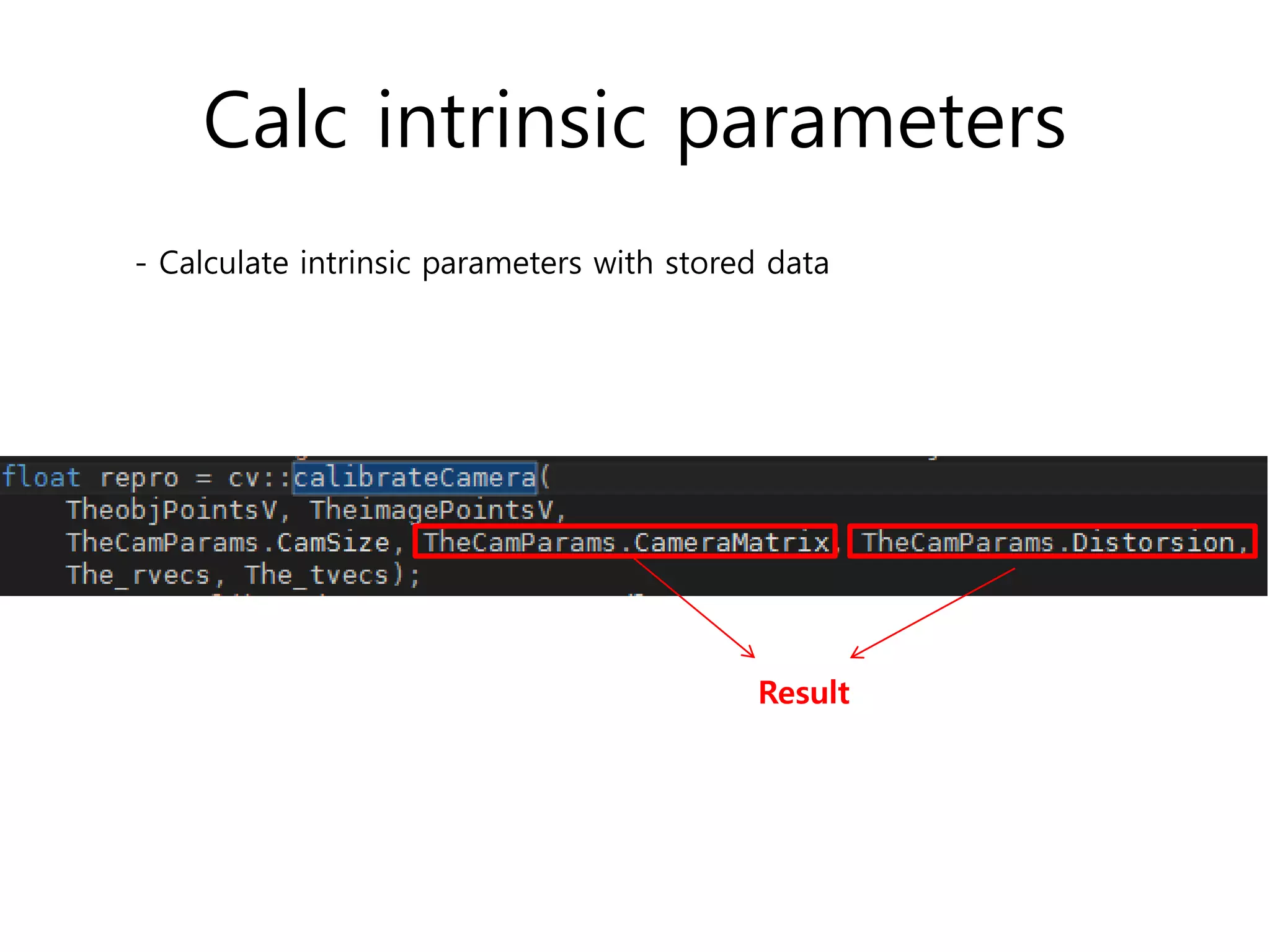

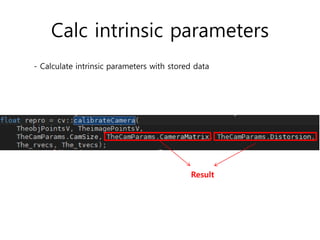

Calc intrinsic parameters
- Calculate intrinsic parameters with stored data
Result

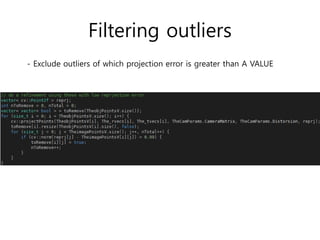

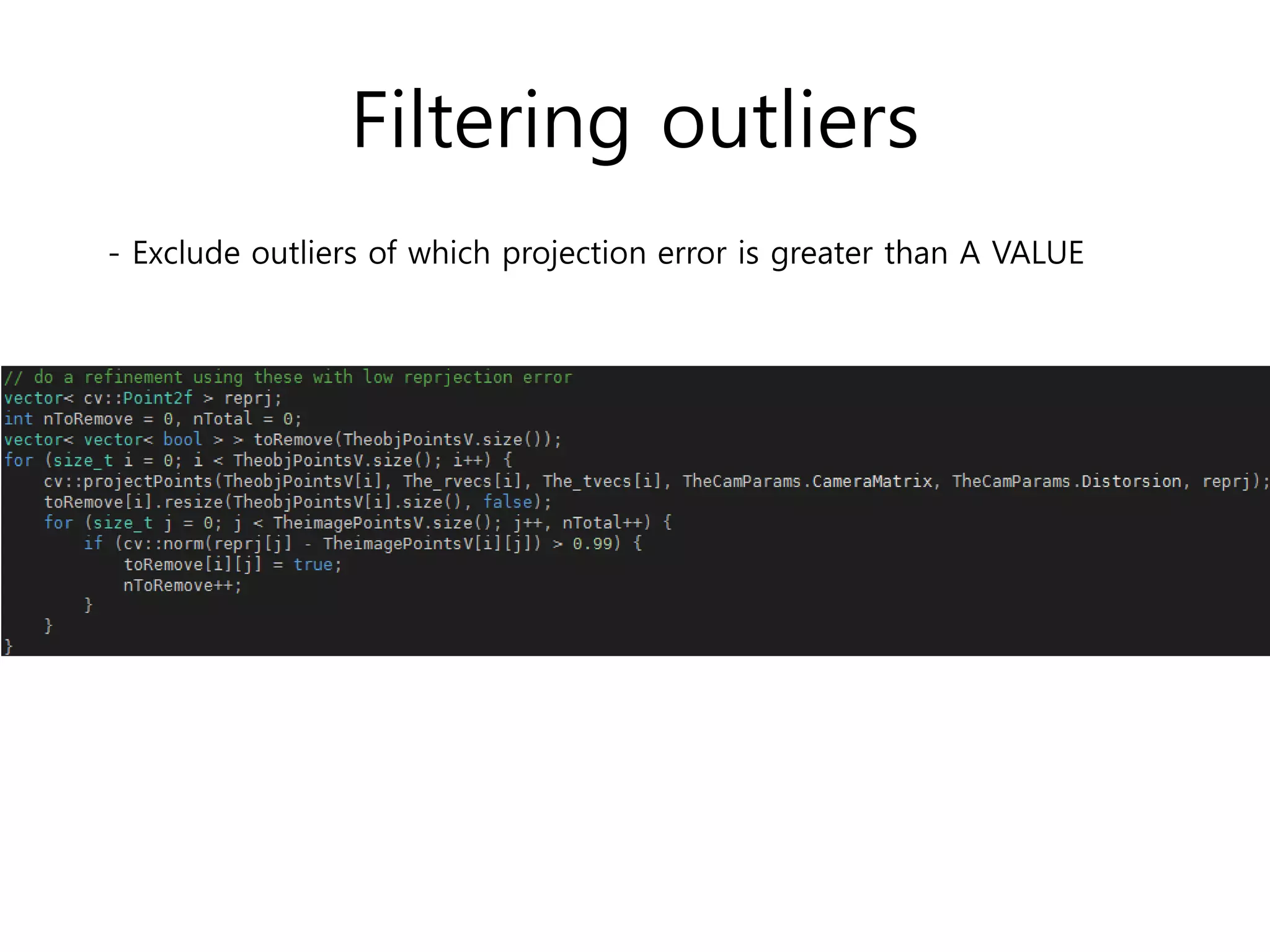

Filtering outliers
- Exclude outliers of which projection error is greater than A VALUE

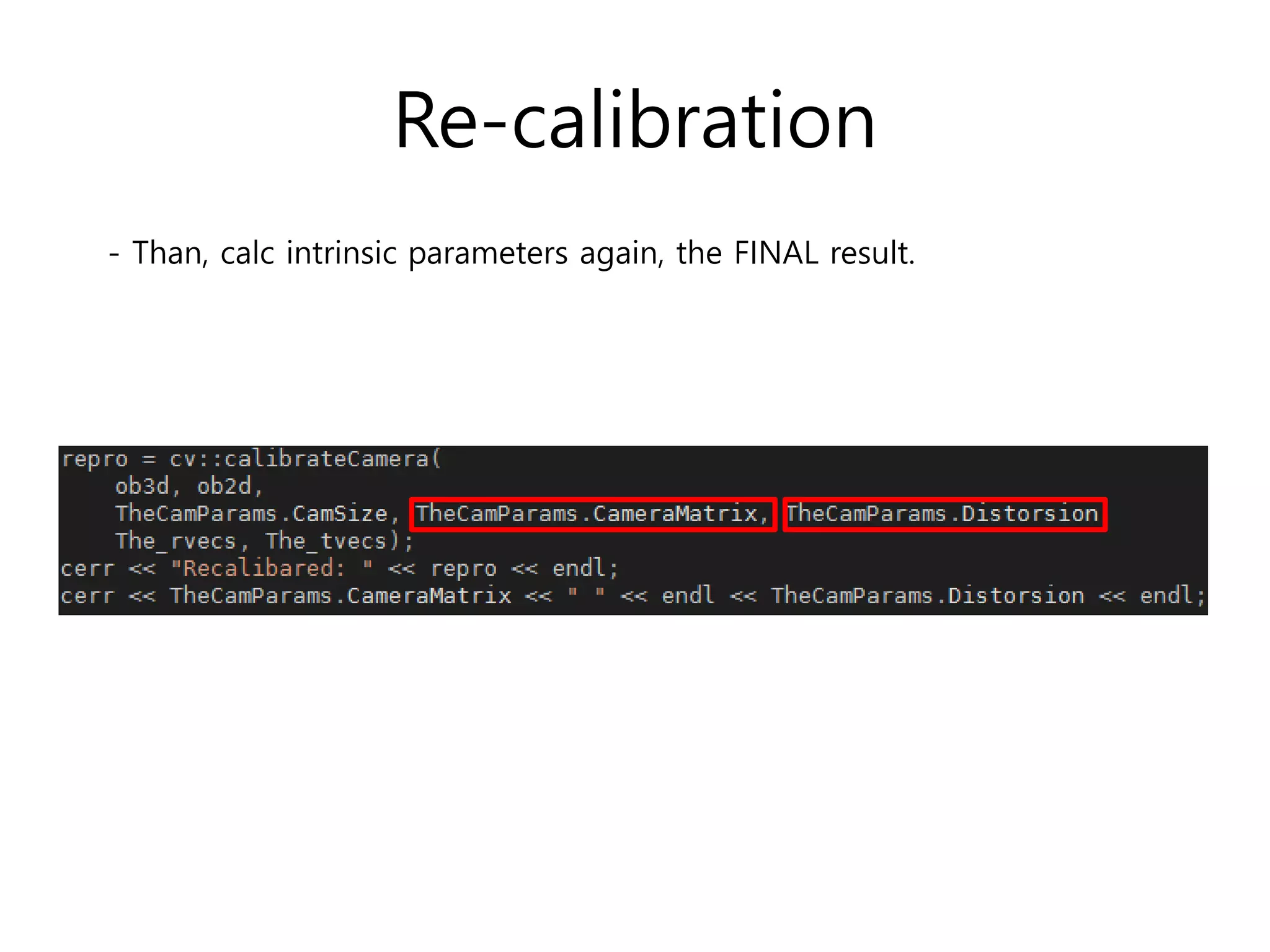

Re-calibration
- Than, calc intrinsic parameters again, the FINAL result.

Object detection is a computer technology related to computer vision and image processing that deals with detecting instances of semantic objects of a certain class (such as humans, buildings, or cars) in digital images and videos. Well-researched domains of object detection include face detection and pedestrian detection. Object detection has applications in many areas of computer vision, including image retrieval and video surveillance.

[DL Hacks 実装]MIDINET: A Convolutional Generative Adversarial Network For Symb...

Deep Learning JP

Hit and-miss transform

Krish Everglades

The hit-and-miss transform is a binary morphological operation that can detect particular patterns in an image. It uses a structuring element containing foreground and background pixels to search an image. If the structuring element pattern matches the image pixels underneath, the output pixel is set to foreground, otherwise it is set to background. The hit-and-miss transform can find features like corners, endpoints, and junctions and is used to implement other morphological operations like thinning and thickening. It is performed by matching the structuring element at all points in the image.

You Only Look Once: Unified, Real-Time Object Detection

DADAJONJURAKUZIEV

Recent Progress on Single-Image Super-Resolution

Hiroto Honda

This document summarizes recent progress in single image super resolution (SISR) techniques using deep convolutional neural networks. It discusses early networks like SRCNN and VDSR, as well as more advanced models such as SRResNet, SRGAN, and EDSR that utilize residual blocks and perceptual loss functions. The document notes that while SISR accuracy has improved significantly in recent years, achieving both high PSNR and natural perceptual quality remains challenging due to a distortion-perception tradeoff. It concludes that the application determines whether more accurate or plausible output is preferred.

Deformable DETR Review [CDM]

Dongmin Choi

Intro to Deep learning - Autoencoders

Akash Goel

This document provides an overview of autoencoders and their use in unsupervised learning for deep neural networks. It discusses the history and development of neural networks, including early work in the 1940s-1980s and more recent advances in deep learning. It then explains how autoencoders work by setting the target values equal to the inputs, describes variants like denoising autoencoders, and how stacking autoencoders can create deep architectures for tasks like document retrieval, facial recognition, and signal denoising.

Mask R-CNN

Chanuk Lim

Mask R-CNN extends Faster R-CNN by adding a branch for predicting segmentation masks in parallel with bounding box recognition and classification. It introduces a new layer called RoIAlign to address misalignment issues in the RoIPool layer of Faster R-CNN. RoIAlign improves mask accuracy by 10-50% by removing quantization and properly aligning extracted features. Mask R-CNN runs at 5fps with only a small overhead compared to Faster R-CNN.

YOLOv4 builds upon previous YOLO models and introduces techniques like CSPDarknet53, SPP, PAN, Mosaic data augmentation, and modifications to existing methods to achieve state-of-the-art object detection speed and accuracy while being trainable on a single GPU. Experiments show that combining these techniques through a "bag of freebies" and "bag of specials" approach improves classifier and detector performance over baselines on standard datasets. The paper contributes an efficient object detection model suitable for production use with limited resources.

You only look once (YOLO) : unified real time object detection

Entrepreneur / Startup

YOLO (You Only Look Once) is a real-time object detection system that frames object detection as a regression problem. It uses a single neural network that predicts bounding boxes and class probabilities directly from full images in one evaluation. This approach allows YOLO to process images and perform object detection over 45 frames per second while maintaining high accuracy compared to previous systems. YOLO was trained on natural images from PASCAL VOC and can generalize to new domains like artwork without significant degradation in performance, unlike other methods that struggle with domain shift.

[PR12] You Only Look Once (YOLO): Unified Real-Time Object Detection

Taegyun Jeon

The document summarizes the You Only Look Once (YOLO) object detection method. YOLO frames object detection as a single regression problem to directly predict bounding boxes and class probabilities from full images in one pass. This allows for extremely fast detection speeds of 45 frames per second. YOLO uses a feedforward convolutional neural network to apply a single neural network to the full image. This allows it to leverage contextual information and makes predictions about bounding boxes and class probabilities for all classes with one network.

Deep learning based object detection basics

Brodmann17

The document discusses different approaches to object detection in images using deep learning. It begins with describing detection as classification, where an image is classified into categories for what objects are present. It then discusses approaches that involve separating detection into a classification head and localization head. The document also covers improvements like R-CNN which uses region proposals to first generate candidate object regions before running classification and bounding box regression on those regions using CNN features. This helps address issues with previous approaches like being too slow when running the CNN over the entire image at multiple locations and scales.

Hog

Anirudh Kanneganti

The document describes the Histogram of Oriented Gradients (HOG) feature descriptor technique. HOG counts occurrences of gradient orientation in localized portions of an image to represent a distribution of intensity fluctuations along different orientations. It works by first calculating gradient images, then calculating histograms of gradients in 8x8 cells, followed by block normalization to account for lighting variations before forming the final HOG feature vector.

Introduction to multiple object tracking

Fan Yang

This document provides an introduction to multiple object tracking (MOT). It discusses the goal of MOT as detecting and linking target objects across frames. It describes common MOT approaches including using boxes or masks to represent objects. The document also categorizes MOT based on factors like whether it tracks a single or multiple classes, in 2D or 3D, using a single or multiple cameras. It reviews old and new evaluation metrics for MOT and highlights state-of-the-art methods on various MOT datasets. In conclusion, it notes that while MOT research is interesting, standardized evaluation metrics and protocols still need improvement.

Noise2Score: Tweedie’s Approach to Self-Supervised Image Denoising without Cl...

KwanyoungKim7

This document presents Noise2Score, a unified framework for self-supervised image denoising without clean images. It discusses how previous approaches like Noise2Noise, SURE, and supervised learning are special cases of Tweedie's formula for the exponential family. Noise2Score estimates the score function using an amortized residual denoising autoencoder, allowing it to denoise images with different noise models like Gaussian, Poisson, and Gamma noise, using the same network training. The framework provides a novel unified approach for self-supervised image denoising without requiring paired clean-noisy images.

A Brief History of Object Detection / Tommi Kerola

Preferred Networks

Object detection is an important computer vision technique with applications in several domains such as autonomous driving, personal and industrial robotics. The below slides cover the history of object detection from before deep learning until recent research. The slides aim to cover the history and future directions of object detection, as well as some guidelines for how to choose which type of object detector to use for your own project.

Yolov3

SHREY MOHAN

Yolo is an end-to-end, real-time object detection system that uses a single convolutional neural network to predict bounding boxes and class probabilities directly from full images. It uses a deeper Darknet-53 backbone network and multi-scale predictions to achieve state-of-the-art accuracy while running faster than other algorithms. Yolo is trained on a merged ImageNet and COCO dataset and predicts bounding boxes using predefined anchor boxes and associated class probabilities at three different scales to localize and classify objects in images with just one pass through the network.

Yolov5

Hochschule Bonn-Rhein-Sieg

Data Science - Part XVII - Deep Learning & Image Processing

Derek Kane

This lecture provides an overview of Image Processing and Deep Learning for the applications of data science and machine learning. We will go through examples of image processing techniques using a couple of different R packages. Afterwards, we will shift our focus and dive into the topics of Deep Neural Networks and Deep Learning. We will discuss topics including Deep Boltzmann Machines, Deep Belief Networks, & Convolutional Neural Networks and finish the presentation with a practical exercise in hand writing recognition technique.

Edge detection using evolutionary algorithms new

Priyanka Sharma

Digital Image Processing: Image Restoration

Mostafa G. M. Mostafa

This document discusses image restoration techniques for noise removal, including: - Spatial domain filtering techniques like mean, median, and order statistics filters to remove random noise. - Frequency domain filtering like band reject filters to remove periodic noise. - Adaptive filtering techniques where the filter size changes depending on image characteristics within the filter region to better handle impulse noise.

Object tracking

Sri vidhya k

The document discusses object tracking in computer vision. It begins with an introduction and overview of applications of object tracking. It then discusses object representation, detection, tracking algorithms and methodologies. It compares different tracking methods and provides an example of object tracking in MATLAB. Key steps in object tracking include object detection, tracking the detected objects across frames using algorithms like point tracking, kernel tracking and silhouette tracking. Common challenges with object tracking are also summarized.

Real-time Face Recognition & Detection Systems 1

Suvadip Shome

The document discusses face detection and recognition. It begins with definitions of face detection as identifying faces in images and locating them, as well as distinguishing faces from non-faces. Face recognition is then defined as identifying known faces versus unknown faces. The document outlines the difference between detection and recognition. It then discusses various methods for face detection, including knowledge-based, feature-based, template matching and appearance-based methods. Finally, it provides an overview of the principal component analysis (PCA) algorithm for face recognition, outlining the main steps of converting images to vectors, normalizing, calculating eigenvectors, selecting eigenfaces, and representing faces as combinations of eigenvectors.

Connected component labeling algorithm

Manas Mantri

The document discusses connected component labeling, which is a fundamental step in image analysis that assigns labels to disjoint components in an image. It describes a basic scanning method that labels pixels from left to right and top to bottom. The algorithm makes two passes over the image: the first pass assigns temporary labels and records equivalence classes, while the second pass replaces temporary labels with the smallest label of each equivalence class. The document provides detailed steps and an example demonstrating how the algorithm labels the pixels in an image.

Basics of edge detection and forier transform

Simranjit Singh

Deep Learning - Convolutional Neural Networks

Christian Perone

This document provides an agenda for a presentation on deep learning, neural networks, convolutional neural networks, and interesting applications. The presentation will include introductions to deep learning and how it differs from traditional machine learning by learning feature representations from data. It will cover the history of neural networks and breakthroughs that enabled training of deeper models. Convolutional neural network architectures will be overviewed, including convolutional, pooling, and dense layers. Applications like recommendation systems, natural language processing, and computer vision will also be discussed. There will be a question and answer section.

異常音検知に対する深層学習適用事例

NU_I_TODALAB

20110220 computer vision_eruhimov_lecture02

Computer Science Club

The document provides an overview of OpenCV including: - It is an open source computer vision and machine learning software library with over 500 algorithms for image processing, video analysis, and more. - It has been used in applications like Google Maps, robotics, and factory inspection systems. - The library contains modules for features, calibration, stereo processing, object detection and more.

Marker-based Augmented Monuments on iPhone and iPad

Enrico Micco

This document discusses marker-based augmented reality on mobile devices. It describes using black and white markers to recognize 3D models and render them over the camera view in real-time. The key steps are importing 3D models, recognizing markers in video frames using OpenCV, and rendering the associated 3D models using OpenGL. The application loads 3D models from XML files, detects markers to identify models, and displays the augmented reality view on iPhone/iPad.

What's hot

Introduction to object detection

Brodmann17

YOLOv4: optimal speed and accuracy of object detection review

LEE HOSEONG

You only look once (YOLO) : unified real time object detection

Entrepreneur / Startup

[PR12] You Only Look Once (YOLO): Unified Real-Time Object Detection

Taegyun Jeon

Deep learning based object detection basics

Brodmann17

Hog

Anirudh Kanneganti

Introduction to multiple object tracking

Fan Yang

Noise2Score: Tweedie’s Approach to Self-Supervised Image Denoising without Cl...

KwanyoungKim7

A Brief History of Object Detection / Tommi Kerola

Preferred Networks

Yolov3

SHREY MOHAN

Yolov5

Hochschule Bonn-Rhein-Sieg

Data Science - Part XVII - Deep Learning & Image Processing

Derek Kane

Edge detection using evolutionary algorithms new

Priyanka Sharma

Digital Image Processing: Image Restoration

Mostafa G. M. Mostafa

Object tracking

Sri vidhya k

Real-time Face Recognition & Detection Systems 1

Suvadip Shome

Connected component labeling algorithm

Manas Mantri

Basics of edge detection and forier transform

Simranjit Singh

Deep Learning - Convolutional Neural Networks

Christian Perone

異常音検知に対する深層学習適用事例

NU_I_TODALAB

What's hot (20)

Introduction to object detection

YOLOv4: optimal speed and accuracy of object detection review

You only look once (YOLO) : unified real time object detection

[PR12] You Only Look Once (YOLO): Unified Real-Time Object Detection

Deep learning based object detection basics

Hog

Introduction to multiple object tracking

Noise2Score: Tweedie’s Approach to Self-Supervised Image Denoising without Cl...

A Brief History of Object Detection / Tommi Kerola

Yolov3

Yolov5

Data Science - Part XVII - Deep Learning & Image Processing

Edge detection using evolutionary algorithms new

Digital Image Processing: Image Restoration

Object tracking

Real-time Face Recognition & Detection Systems 1

Connected component labeling algorithm

Basics of edge detection and forier transform

Deep Learning - Convolutional Neural Networks

異常音検知に対する深層学習適用事例

Similar to Marker detection algorithm

20110220 computer vision_eruhimov_lecture02

Computer Science Club

Marker-based Augmented Monuments on iPhone and iPad

Enrico Micco

Templateless Marked Element Recognition Using Computer Vision

shivam chaurasia

The document describes an algorithm for templateless marked element recognition in documents using computer vision. It discusses preprocessing steps like converting images to grayscale, blurring, and edge detection. It then describes detecting shapes like checkboxes and radio buttons using contour analysis and evaluating pixel thresholds to determine if elements are selected. Pseudocode provides details of the complete algorithm to detect and mark checked checkboxes and radio buttons on input images without predefined templates.

Cvpr2010 open source vision software, intro and training part v open cv and r...

zukun

This document provides an overview of OpenCV, an open source computer vision and machine learning software library. It begins with an introduction to OpenCV and its wide range of algorithms for image processing, computer vision and machine learning tasks. The document then outlines the history and development of OpenCV. It concludes by listing some common uses of OpenCV and providing useful links for more information.

Aocr Hmm Presentation

Mahmoud Elgenedy

The document discusses Arabic optical character recognition (AOCR). It introduces AOCR and its challenges. It then describes the preprocessing steps of image rotation, segmentation, and enhancement. It explains the feature extraction process and the features selected. It details the implementation of an AOCR system using Hidden Markov Models in HTK, including data preparation, model creation, and recognition. It presents experimental results on isolated character recognition with variations in font, size, and length. Recognition accuracy was highest using vertical histograms and modeling each character.

Web-Scale Graph Analytics with Apache® Spark™

Databricks

Graph analytics has a wide range of applications, from information propagation and network flow optimization to fraud and anomaly detection. The rise of social networks and the Internet of Things has given us complex web-scale graphs with billions of vertices and edges. However, in order to extract the hidden gems within those graphs, you need tools to analyze the graphs easily and efficiently. At Spark Summit 2016, Databricks introduced GraphFrames, which implemented graph queries and pattern matching on top of Spark SQL to simplify graph analytics. In this talk, you’ll learn about work that has made graph algorithms in GraphFrames faster and more scalable. For example, new implementations like connected components have received algorithm improvements based on recent research, as well as performance improvements from Spark DataFrames. Discover lessons learned from scaling the implementation from millions to billions of nodes; compare its performance with other popular graph libraries; and hear about real-world applications.

SPARKNaCl: A verified, fast cryptographic library

AdaCore

SPARKNaCl https://github.com/rod-chapman/SPARKNaCl is a new, freely-available, verified and fast reference implementation of the NaCl cryptographic API, based on the TweetNaCl distribution. It has a fully automated, complete and sound proof of type-safety and several key correctness properties. In addition, the code is surprisingly fast - out-performing TweetNaCl's C implementation on an Ed25519 Sign operation by a factor of 3 at all optimisation levels on a 32-bit RISC-V bare-metal machine. This talk will concentrate on how "Proof Driven Optimisation" can result in code that is both correct and fast.

Static analysis and writing C/C++ of high quality code for embedded systems

Andrey Karpov

This document discusses static analysis for improving code quality in embedded systems. It begins by introducing the speaker and providing background on trends in IoT devices and code size growth. Examples are given of potential errors like divide by zero, use of uninitialized variables, and returning addresses of stack variables. Frameworks for finding vulnerabilities like CWE and real vulnerabilities like CVE are described. The value of code reviews and dynamic analysis are discussed but their limitations for embedded code. Finally, standards like MISRA and SEI CERT for preventing errors and examples of correctly using static analysis are provided.

The CppCat Analyzer Checks TortoiseGit

Andrey Karpov

In most of our articles about project checks, we mention that bugs are found by the PVS-Studio static code analyzer. In certain cases – when dealing with projects of a complex structure – it is this particular analyzer that is needed. However, many developers will also appreciate its lightweight version, the CppCat analyzer. In this connection, we decided to use CppCat this time, when checking the TortoiseGit project.

Build Your Own 3D Scanner: 3D Scanning with Structured Lighting

Douglas Lanman

Build Your Own 3D Scanner: 3D Scanning with Structured Lighting http://mesh.brown.edu/byo3d/ SIGGRAPH 2009 Courses Douglas Lanman and Gabriel Taubin This course provides a beginner with the necessary mathematics, software, and practical details to leverage projector-camera systems in their own 3D scanning projects. An example-driven approach is used throughout; each new concept is illustrated using a practical scanner implemented with off-the-shelf parts. The course concludes by detailing how these new approaches are used in rapid prototyping, entertainment, cultural heritage, and web-based applications.

Report

Conor McMenamin

This document appears to be a thesis submitted by Conor McMenamin for their B.Sc. in Computational Thinking at Maynooth University. The thesis investigates existing standards for selecting elliptic curves for use in elliptic curve cryptography (ECC) and whether it is possible to manipulate the standards to exploit weaknesses. It provides background on elliptic curve theory, cryptography, and standards. The document outlines requirements and proposes designing a system to test manipulating the standards by choosing curves with a user-selected parameter ("BADA55") to simulate exploiting a weakness. It describes implementing and testing the system before concluding and discussing future work.

Artifacts Detection by Extracting Edge Features and Error Block Analysis from...

Md. Mehedi Hasan

This document presents a method for edge-based feature extraction to detect artifacts and analyze error patterns in broadcast videos. The method uses edge magnitude and direction features that are less sensitive to noise. Detected error frames are analyzed to classify error blocks based on edge direction, texture content, and shape. Experimental results show the method achieves high accuracy in detecting distorted frames and analyzing error patterns compared to other approaches. Future work will apply the error analysis to video error concealment.

CodeChecker summary 21062021

Olivera Milenkovic

CodeChecker is a static analysis tool that finds bugs in code by performing interprocedural analysis across files and functions. It uses the Clang compiler infrastructure to run checks from tools like the Clang Static Analyzer and Clang Tidy. CodeChecker provides features like cross-translation unit analysis, suppressing and tagging issues, and integration with version control systems. It outputs analysis results that are easy for developers to understand and fix issues.

2018AOI論壇_深度學習於表面瑕疪檢測_元智大學蔡篤銘

CHENHuiMei

1. The document discusses using deep learning techniques for surface defect detection, focusing on strategies for dealing with imbalanced training data. 2. It proposes using generative adversarial networks (GANs) to generate synthetic defect samples in order to address the class imbalance problem. Convolutional neural networks (CNNs) are then used for classification. 3. Autoencoding models like convolutional autoencoders (CAE) and variational autoencoders (VAE) can also be used for unsupervised defect detection based on image reconstruction.

Horst Bruning Exxim Animage Stanford May409

Burton Lee

This document discusses Exxim Computing Corporation, a company founded in 2002 that develops COBRA cone beam tomography software. It provides an overview of the company's founder and his background, the COBRA software which implements Feldkamp's algorithm to reconstruct 3D volumetric images from 2D x-ray projections, performance benchmarks of the software, and the founding of a related company Animage that serves the veterinary radiology market.

Badripatro dissertation 09307903

patrobadri

This document is a dissertation submitted for the degree of Master of Technology. It describes work done to implement real-time video and image processing algorithms for object tracking on the Texas Instruments TMS320DM6437 DaVinci digital media processor. Specifically, algorithms for single object tracking and multiple object tracking were developed and tested on the DaVinci processor. The performance of the algorithms was faster and more accurate compared to implementing the same algorithms on a PC using Matlab. Debugging and profiling results showed that the DaVinci processor provided at least a ten-times speedup for real-time object tracking compared to a PC implementation.

Digging for Android Kernel Bugs

Jiahong Fang

The document discusses analyzing Android kernels for security vulnerabilities. It describes binary analysis techniques like disassembling kernels and fuzzing common targets like mmap and ioctl calls. A case study shows discovering a vulnerability in an audio driver through fuzzing its mmap function. The document also recommends approaches for static source code analysis like preprocessing Android kernel source with LLVM tools and using the Clang static analyzer to find issues. Suggestions are provided for smartphone manufacturers and SOC vendors to improve security practices.

GCC Summit 2010

regehr

The document discusses finding bugs in compilers through random testing. It found serious bugs in all tested C compilers, including 287 bugs reported so far in GCC and commercial compilers. Random testing programs are generated that perform random operations and check results. This uncovered wrong-code bugs where compilers generate code computing incorrect values as well as crash bugs. The majority of bugs were found in optimization levels above -O0. Further work is needed to expand testing to more platforms and language features and make the testing process more accessible to outside contributors.

ASE2023_SCPatcher_Presentation_V5.pptx

jzyNick

The document describes SCPatcher, a system that mines crowd security discussions to enrich secure coding practices (SCP). SCPatcher takes as input security posts from Stack Overflow and outputs SCP specifications extracted from the posts. It does this in three steps: (1) it extracts the areas containing coding examples and explanations, (2) it slices the examples and summarizes the explanations from the areas, and (3) it matches the relevant common weaknesses and vulnerabilities (CWEs) and public SCPs. The document evaluates SCPatcher on a manually labeled dataset of security posts and examines its performance on extracting coding examples and explanations as well as matching CWEs and SCPs.

426 lecture 4: AR Developer Tools

Mark Billinghurst

Similar to Marker detection algorithm (20)

20110220 computer vision_eruhimov_lecture02

Marker-based Augmented Monuments on iPhone and iPad

Templateless Marked Element Recognition Using Computer Vision

Cvpr2010 open source vision software, intro and training part v open cv and r...

Aocr Hmm Presentation

Web-Scale Graph Analytics with Apache® Spark™

SPARKNaCl: A verified, fast cryptographic library

Static analysis and writing C/C++ of high quality code for embedded systems

The CppCat Analyzer Checks TortoiseGit

Build Your Own 3D Scanner: 3D Scanning with Structured Lighting

Report

Artifacts Detection by Extracting Edge Features and Error Block Analysis from...

CodeChecker summary 21062021

2018AOI論壇_深度學習於表面瑕疪檢測_元智大學蔡篤銘

Horst Bruning Exxim Animage Stanford May409

Badripatro dissertation 09307903

Digging for Android Kernel Bugs

GCC Summit 2010

ASE2023_SCPatcher_Presentation_V5.pptx

426 lecture 4: AR Developer Tools

Recently uploaded

New techniques for characterising damage in rock slopes.pdf

wisnuprabawa3

Iron and Steel Technology Roadmap - Towards more sustainable steelmaking.pdf

RadiNasr

Presentation of IEEE Slovenia CIS (Computational Intelligence Society) Chapte...

University of Maribor

Slides from talk presenting: Aleš Zamuda: Presentation of IEEE Slovenia CIS (Computational Intelligence Society) Chapter and Networking. Presentation at IcETRAN 2024 session: "Inter-Society Networking Panel GRSS/MTT-S/CIS Panel Session: Promoting Connection and Cooperation" IEEE Slovenia GRSS IEEE Serbia and Montenegro MTT-S IEEE Slovenia CIS 11TH INTERNATIONAL CONFERENCE ON ELECTRICAL, ELECTRONIC AND COMPUTING ENGINEERING 3-6 June 2024, Niš, Serbia

ML Based Model for NIDS MSc Updated Presentation.v2.pptx

JamalHussainArman

A review on techniques and modelling methodologies used for checking electrom...

nooriasukmaningtyas

The proper function of the integrated circuit (IC) in an inhibiting electromagnetic environment has always been a serious concern throughout the decades of revolution in the world of electronics, from disjunct devices to today’s integrated circuit technology, where billions of transistors are combined on a single chip. The automotive industry and smart vehicles in particular, are confronting design issues such as being prone to electromagnetic interference (EMI). Electronic control devices calculate incorrect outputs because of EMI and sensors give misleading values which can prove fatal in case of automotives. In this paper, the authors have non exhaustively tried to review research work concerned with the investigation of EMI in ICs and prediction of this EMI using various modelling methodologies and measurement setups.

Recycled Concrete Aggregate in Construction Part II

Aditya Rajan Patra

A SYSTEMATIC RISK ASSESSMENT APPROACH FOR SECURING THE SMART IRRIGATION SYSTEMS

IJNSA Journal

The smart irrigation system represents an innovative approach to optimize water usage in agricultural and landscaping practices. The integration of cutting-edge technologies, including sensors, actuators, and data analysis, empowers this system to provide accurate monitoring and control of irrigation processes by leveraging real-time environmental conditions. The main objective of a smart irrigation system is to optimize water efficiency, minimize expenses, and foster the adoption of sustainable water management methods. This paper conducts a systematic risk assessment by exploring the key components/assets and their functionalities in the smart irrigation system. The crucial role of sensors in gathering data on soil moisture, weather patterns, and plant well-being is emphasized in this system. These sensors enable intelligent decision-making in irrigation scheduling and water distribution, leading to enhanced water efficiency and sustainable water management practices. Actuators enable automated control of irrigation devices, ensuring precise and targeted water delivery to plants. Additionally, the paper addresses the potential threat and vulnerabilities associated with smart irrigation systems. It discusses limitations of the system, such as power constraints and computational capabilities, and calculates the potential security risks. The paper suggests possible risk treatment methods for effective secure system operation. In conclusion, the paper emphasizes the significant benefits of implementing smart irrigation systems, including improved water conservation, increased crop yield, and reduced environmental impact. Additionally, based on the security analysis conducted, the paper recommends the implementation of countermeasures and security approaches to address vulnerabilities and ensure the integrity and reliability of the system. By incorporating these measures, smart irrigation technology can revolutionize water management practices in agriculture, promoting sustainability, resource efficiency, and safeguarding against potential security threats.

International Conference on NLP, Artificial Intelligence, Machine Learning an...

gerogepatton

International Conference on NLP, Artificial Intelligence, Machine Learning and Applications (NLAIM 2024) offers a premier global platform for exchanging insights and findings in the theory, methodology, and applications of NLP, Artificial Intelligence, Machine Learning, and their applications. The conference seeks substantial contributions across all key domains of NLP, Artificial Intelligence, Machine Learning, and their practical applications, aiming to foster both theoretical advancements and real-world implementations. With a focus on facilitating collaboration between researchers and practitioners from academia and industry, the conference serves as a nexus for sharing the latest developments in the field.

Engine Lubrication performance System.pdf

mamamaam477

Generative AI leverages algorithms to create various forms of content

Hitesh Mohapatra

哪里办理(csu毕业证书)查尔斯特大学毕业证硕士学历原版一模一样

insn4465

原版一模一样【微信：741003700 】【(csu毕业证书)查尔斯特大学毕业证硕士学历】【微信：741003700 】学位证，留信认证（真实可查，永久存档）offer、雅思、外壳等材料/诚信可靠,可直接看成品样本，帮您解决无法毕业带来的各种难题！外壳，原版制作，诚信可靠，可直接看成品样本。行业标杆！精益求精，诚心合作，真诚制作！多年品质 ,按需精细制作，24小时接单,全套进口原装设备。十五年致力于帮助留学生解决难题，包您满意。本公司拥有海外各大学样板无数，能完美还原海外各大学 Bachelor Diploma degree, Master Degree Diploma 1:1完美还原海外各大学毕业材料上的工艺：水印，阴影底纹，钢印LOGO烫金烫银，LOGO烫金烫银复合重叠。文字图案浮雕、激光镭射、紫外荧光、温感、复印防伪等防伪工艺。材料咨询办理、认证咨询办理请加学历顾问Q/微741003700 留信网认证的作用: 1:该专业认证可证明留学生真实身份 2:同时对留学生所学专业登记给予评定 3:国家专业人才认证中心颁发入库证书 4:这个认证书并且可以归档倒地方 5:凡事获得留信网入网的信息将会逐步更新到个人身份内，将在公安局网内查询个人身份证信息后，同步读取人才网入库信息 6:个人职称评审加20分 7:个人信誉贷款加10分 8:在国家人才网主办的国家网络招聘大会中纳入资料，供国家高端企业选择人才

5214-1693458878915-Unit 6 2023 to 2024 academic year assignment (AutoRecovere...

ihlasbinance2003

Heat Resistant Concrete Presentation ppt

mamunhossenbd75

Electric vehicle and photovoltaic advanced roles in enhancing the financial p...

IJECEIAES

Climate change's impact on the planet forced the United Nations and governments to promote green energies and electric transportation. The deployments of photovoltaic (PV) and electric vehicle (EV) systems gained stronger momentum due to their numerous advantages over fossil fuel types. The advantages go beyond sustainability to reach financial support and stability. The work in this paper introduces the hybrid system between PV and EV to support industrial and commercial plants. This paper covers the theoretical framework of the proposed hybrid system including the required equation to complete the cost analysis when PV and EV are present. In addition, the proposed design diagram which sets the priorities and requirements of the system is presented. The proposed approach allows setup to advance their power stability, especially during power outages. The presented information supports researchers and plant owners to complete the necessary analysis while promoting the deployment of clean energy. The result of a case study that represents a dairy milk farmer supports the theoretical works and highlights its advanced benefits to existing plants. The short return on investment of the proposed approach supports the paper's novelty approach for the sustainable electrical system. In addition, the proposed system allows for an isolated power setup without the need for a transmission line which enhances the safety of the electrical network

The Python for beginners. This is an advance computer language.

sachin chaurasia

CSM Cloud Service Management Presentarion

rpskprasana

Harnessing WebAssembly for Real-time Stateless Streaming Pipelines

Christina Lin

Traditionally, dealing with real-time data pipelines has involved significant overhead, even for straightforward tasks like data transformation or masking. However, in this talk, we’ll venture into the dynamic realm of WebAssembly (WASM) and discover how it can revolutionize the creation of stateless streaming pipelines within a Kafka (Redpanda) broker. These pipelines are adept at managing low-latency, high-data-volume scenarios.

Comparative analysis between traditional aquaponics and reconstructed aquapon...

bijceesjournal

The aquaponic system of planting is a method that does not require soil usage. It is a method that only needs water, fish, lava rocks (a substitute for soil), and plants. Aquaponic systems are sustainable and environmentally friendly. Its use not only helps to plant in small spaces but also helps reduce artificial chemical use and minimizes excess water use, as aquaponics consumes 90% less water than soil-based gardening. The study applied a descriptive and experimental design to assess and compare conventional and reconstructed aquaponic methods for reproducing tomatoes. The researchers created an observation checklist to determine the significant factors of the study. The study aims to determine the significant difference between traditional aquaponics and reconstructed aquaponics systems propagating tomatoes in terms of height, weight, girth, and number of fruits. The reconstructed aquaponics system’s higher growth yield results in a much more nourished crop than the traditional aquaponics system. It is superior in its number of fruits, height, weight, and girth measurement. Moreover, the reconstructed aquaponics system is proven to eliminate all the hindrances present in the traditional aquaponics system, which are overcrowding of fish, algae growth, pest problems, contaminated water, and dead fish.

DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODEL

gerogepatton

As digital technology becomes more deeply embedded in power systems, protecting the communication networks of Smart Grids (SG) has emerged as a critical concern. Distributed Network Protocol 3 (DNP3) represents a multi-tiered application layer protocol extensively utilized in Supervisory Control and Data Acquisition (SCADA)-based smart grids to facilitate real-time data gathering and control functionalities. Robust Intrusion Detection Systems (IDS) are necessary for early threat detection and mitigation because of the interconnection of these networks, which makes them vulnerable to a variety of cyberattacks. To solve this issue, this paper develops a hybrid Deep Learning (DL) model specifically designed for intrusion detection in smart grids. The proposed approach is a combination of the Convolutional Neural Network (CNN) and the Long-Short-Term Memory algorithms (LSTM). We employed a recent intrusion detection dataset (DNP3), which focuses on unauthorized commands and Denial of Service (DoS) cyberattacks, to train and test our model. The results of our experiments show that our CNN-LSTM method is much better at finding smart grid intrusions than other deep learning algorithms used for classification. In addition, our proposed approach improves accuracy, precision, recall, and F1 score, achieving a high detection accuracy rate of 99.50%.

CHINA’S GEO-ECONOMIC OUTREACH IN CENTRAL ASIAN COUNTRIES AND FUTURE PROSPECT

jpsjournal1

The rivalry between prominent international actors for dominance over Central Asia's hydrocarbon reserves and the ancient silk trade route, along with China's diplomatic endeavours in the area, has been referred to as the "New Great Game." This research centres on the power struggle, considering geopolitical, geostrategic, and geoeconomic variables. Topics including trade, political hegemony, oil politics, and conventional and nontraditional security are all explored and explained by the researcher. Using Mackinder's Heartland, Spykman Rimland, and Hegemonic Stability theories, examines China's role in Central Asia. This study adheres to the empirical epistemological method and has taken care of objectivity. This study analyze primary and secondary research documents critically to elaborate role of china’s geo economic outreach in central Asian countries and its future prospect. China is thriving in trade, pipeline politics, and winning states, according to this study, thanks to important instruments like the Shanghai Cooperation Organisation and the Belt and Road Economic Initiative. According to this study, China is seeing significant success in commerce, pipeline politics, and gaining influence on other governments. This success may be attributed to the effective utilisation of key tools such as the Shanghai Cooperation Organisation and the Belt and Road Economic Initiative.

Recently uploaded (20)

New techniques for characterising damage in rock slopes.pdf

Iron and Steel Technology Roadmap - Towards more sustainable steelmaking.pdf

Presentation of IEEE Slovenia CIS (Computational Intelligence Society) Chapte...

ML Based Model for NIDS MSc Updated Presentation.v2.pptx

A review on techniques and modelling methodologies used for checking electrom...

Recycled Concrete Aggregate in Construction Part II

A SYSTEMATIC RISK ASSESSMENT APPROACH FOR SECURING THE SMART IRRIGATION SYSTEMS

International Conference on NLP, Artificial Intelligence, Machine Learning an...

Engine Lubrication performance System.pdf

Generative AI leverages algorithms to create various forms of content

哪里办理(csu毕业证书)查尔斯特大学毕业证硕士学历原版一模一样

5214-1693458878915-Unit 6 2023 to 2024 academic year assignment (AutoRecovere...

Heat Resistant Concrete Presentation ppt

Electric vehicle and photovoltaic advanced roles in enhancing the financial p...

The Python for beginners. This is an advance computer language.

CSM Cloud Service Management Presentarion

Harnessing WebAssembly for Real-time Stateless Streaming Pipelines

Comparative analysis between traditional aquaponics and reconstructed aquapon...

DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODEL

CHINA’S GEO-ECONOMIC OUTREACH IN CENTRAL ASIAN COUNTRIES AND FUTURE PROSPECT

Marker detection algorithm

1. Marker Detection Algorithm (of aruco) pknam

2. Aruco Video • https://www.youtube.com/watch?v=IU7SoMvWNeA • https://www.youtube.com/watch?v=6F86znm-EMk

3. Overview 1. Convert to gray 2. cv::adaptiveThreshold 3. cv::findContours 4. Find rectangles 5. Find valid markers 6. Calculate marker’s ID

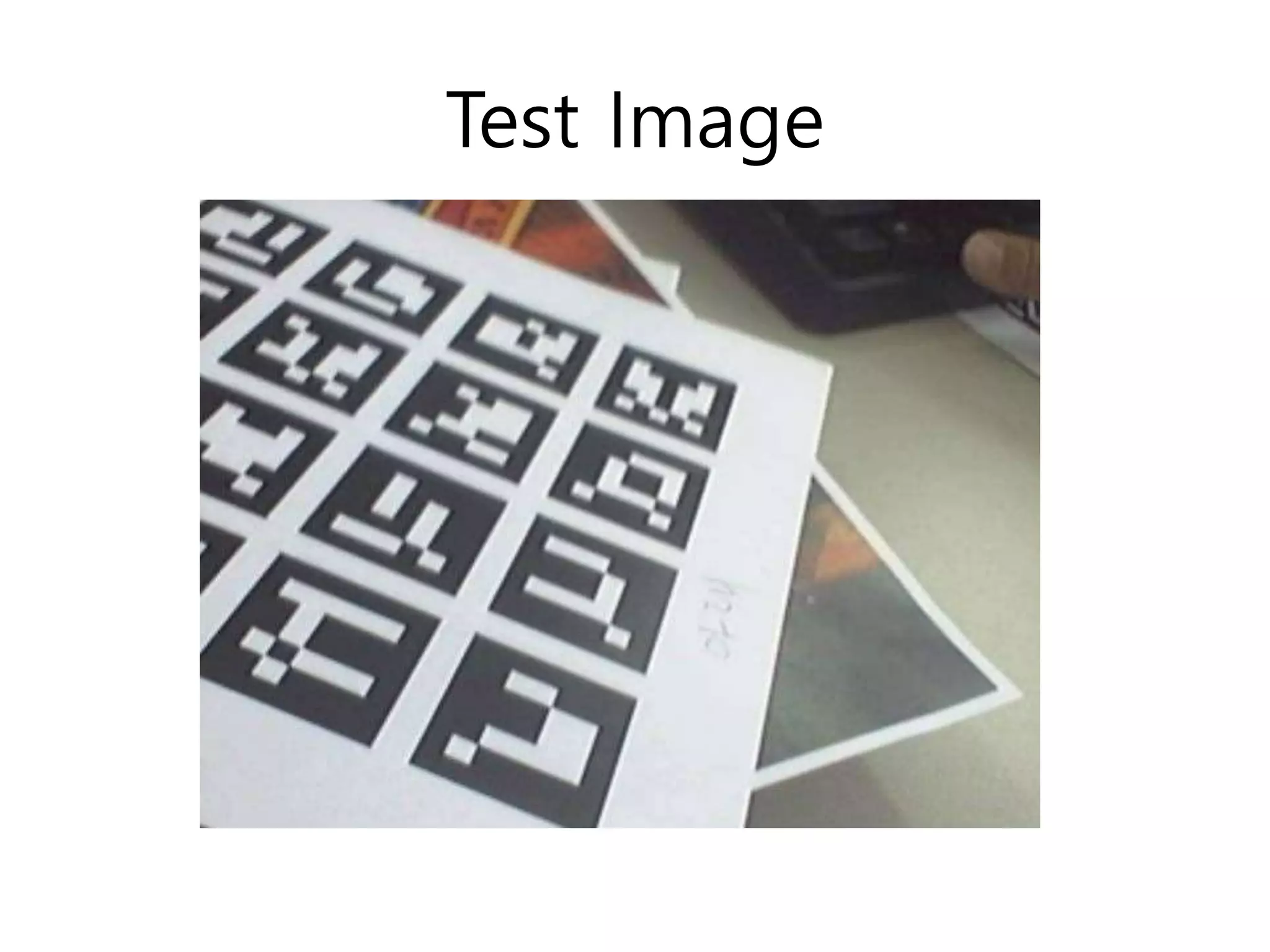

4. Test Image

5. 1. Convert to gray

6. 2. threshold

7. 3. find contours

8. find rectangles

9. if(rectangle is marker)

10. one of the markers

11. calc marker ID

12. More details 1. Convert to gray 2. cv::adaptiveThreshold 3. cv::findContours 4. Find rectangles 5. Find valid markers 6. Calculate marker’s ID

13. 2. cv::adaptiveThreshold thresHold() 내부 blockSize

14. 5. Find valid markers 1. Border check 2. Hamming Distance check

15. 5. Find valid markers (1) 1. warp rectangle 2. threshold 3. slice 7x7 4. check if border is black - Border check

16. 5. Find valid markers (1) 1. warp rectangle 2. threshold 3. slice 7x7 4. check if border is black - Border check

17. 5. Find valid markers (2) 1 1 1 0 0 0 0 0 1 0 0 0 0 1 0 1 1 1 1 0 0 0 0 0 1 - Hamming Distance check

18. 5. Find valid markers (2) - Hamming Distance check {1, 0, 0, 0, 0} {1, 0, 1, 1, 1} {0, 1, 0, 0, 1} {0, 1, 1, 1, 0} 1 1 1 0 0 0 0 0 1 0 0 0 0 1 0 1 1 1 1 0 0 0 0 0 1 Calc lowest hamming distance of each row Codes lowest HD 2 2 2 1 1 min(lowest HD) != 0 then invalid

19. 5. Find valid markers (2) - Hamming Distance check {1, 0, 0, 0, 0} {1, 0, 1, 1, 1} {0, 1, 0, 0, 1} {0, 1, 1, 1, 0} 0 1 0 0 1 0 1 0 0 1 0 1 0 0 1 0 1 1 1 0 1 0 0 0 0 Codes Find rotation of which Hamming Distance is 0 lowest HD 0 0 0 0 0 min(lowest HD) == 0 then valid

20. 6. Calculate marker’s ID 0 1 0 0 1 0 1 0 0 1 0 1 0 0 1 0 1 1 1 0 1 0 0 0 0 Marker’s ID == 1010101100(2) == 684(10)

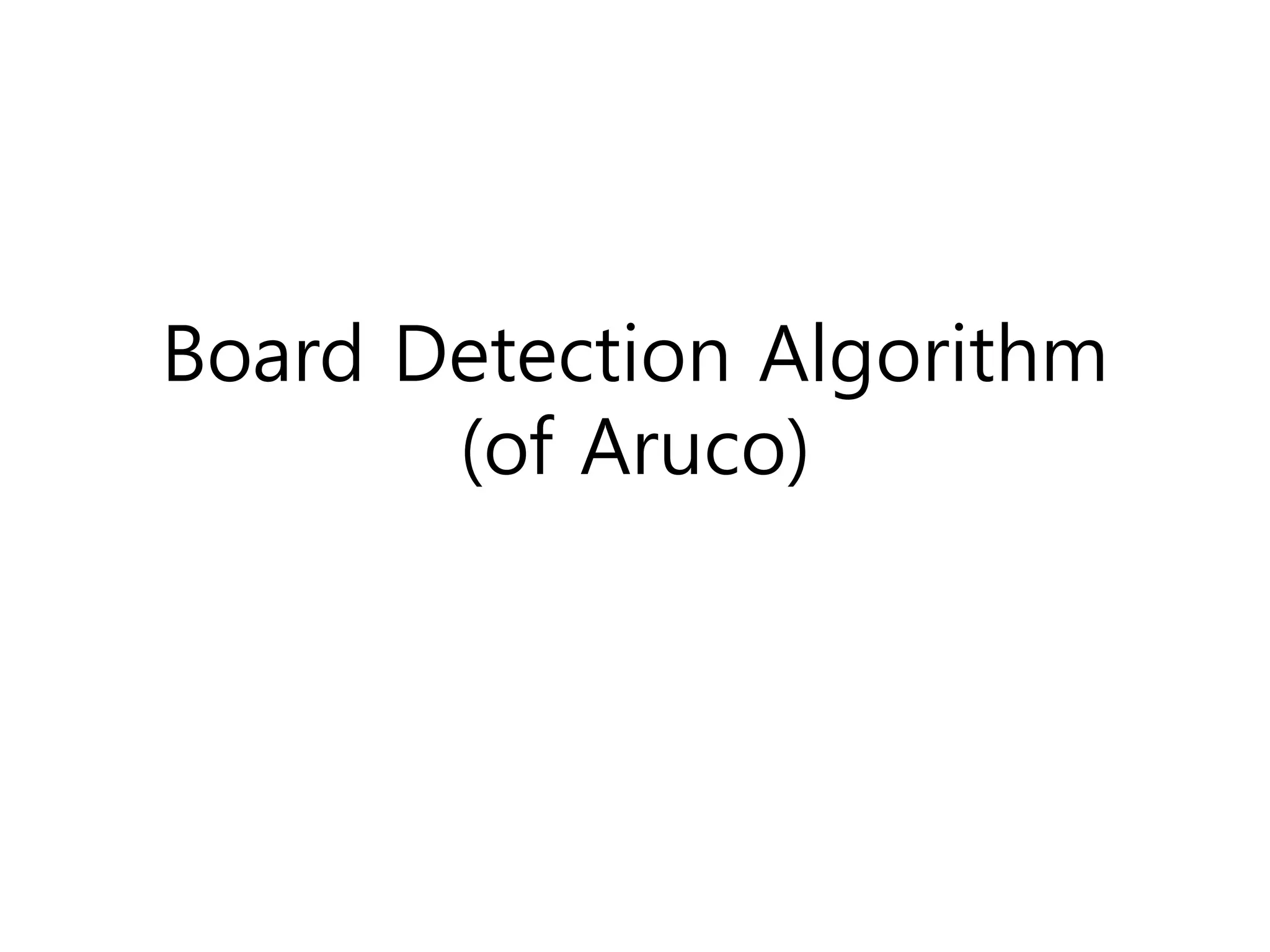

21. Board Detection Algorithm (of Aruco)

22. Overview • Detect markers • Read camera’s intrinsic parameters from file • Read board configuration from file • Calc camera’s extrinsic parameters – cv::solvePnP() – cv::projectPoints() • Draw axis lines (option) – cv::projectPoints()

23. Detect markers

24. Read intrinsic parameters Created by aruco_calibration.exe - Camera matrix - Camera distortion coeff

25. Read board config - number of markers - info of markers (id, corner position) Created by aruco_create_board.exe

26. Calc extrinsic parameters (1) Parameter Description objPoints corner positions of markers in board config (3D) imagePoints corner positions of detected markers in input image (2D) rvec Rotation matrix tvec Translation matrix (1) Estimate extrinsic parameters (rvec, tvec)

27. Calc extrinsic parameters (2) (2) Refine extrinsic parameters - Error check with rvec, tvec. - Exclude point pairs of which projection error is greater than ‘repj_err_thres’ - Re-calculate extrinsic parameters with the filtered pairs Result!!

28. Draw axis lines (0, 0, 0) (1, 0, 0) (0, 1, 0) (0, 0, 1) Project points onto image

29. Camera Calibration Algorithm (of Aruco)

30. aruco_calibration Inputs - Board configuration file (in meters) - Camera input Output - Camera’s intrinsic parameter file

31. Overview 1. Capture some frames a. Maintain distance(tvec) between already captured frames 2. Detect markers and board of each frame a. Get corner points of each marker b. cv::calibrateCamera() – with current pairs of points c. Store current pairs of points d. Update intrinsic parameters 3. cv::calibrateCamera() 4. Filter outliers of points a. cv::projectPoints() b. cv::calibrateCamera()

32. Capture frames new_tvec if (new_tvec – old_tvecs) > thres then capture current frame old_tvecs.add(new_tvec) store object_points store image_points update intrinsic parameters (cv::calibrateCamera) end if old_tvecs - For various point of view

33. Calc intrinsic parameters - Calculate intrinsic parameters with stored data Result

34. Filtering outliers - Exclude outliers of which projection error is greater than A VALUE

35. Re-calibration - Than, calc intrinsic parameters again, the FINAL result.

Marker detection algorithm

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to Marker detection algorithm

Similar to Marker detection algorithm (20)

Recently uploaded

Recently uploaded (20)

Marker detection algorithm
