Map, flatmap and reduce are your new best friends (javaone, svcc)

Map(), flatMap() and reduce() are your
@crichardson
new best friends:
Simpler collections, concurrency, and big
data
Chris Richardson
Author of POJOs in Action
Founder of the original CloudFoundry.com
@crichardson
chris@chrisrichardson.net
http://plainoldobjects.com

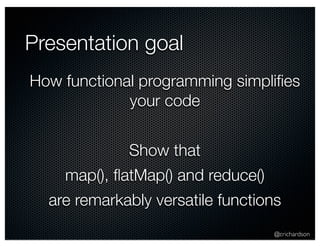

Presentation goal
How functional programming simplifies
@crichardson
your code
Show that
map(), flatMap() and reduce()
are remarkably versatile functions

@crichardson
About Chris
Founder of a buzzword compliant (stealthy, social, mobile,
big data, machine learning, ...) startup
Consultant helping organizations improve how they
architect and deploy applications using cloud, micro
services, polyglot applications, NoSQL, ...

@crichardson

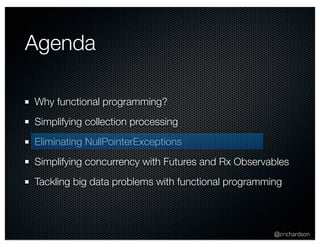

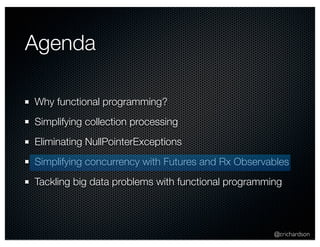

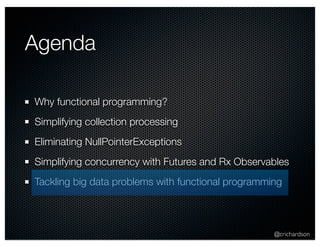

Agenda
Why functional programming?
Simplifying collection processing
Eliminating NullPointerExceptions
Simplifying concurrency with Futures and Rx Observables
Tackling big data problems with functional programming

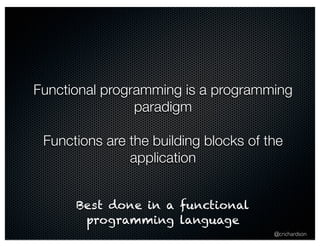

Functional programming is a programming
@crichardson
paradigm
Functions are the building blocks of the
application
Best done in a functional
programming language

@crichardson

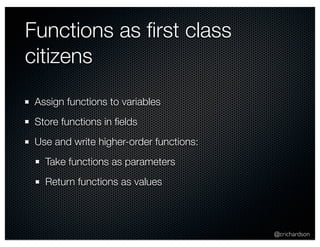

Functions as first class
citizens
Assign functions to variables
Store functions in fields
Use and write higher-order functions:
Take functions as parameters
Return functions as values

@crichardson

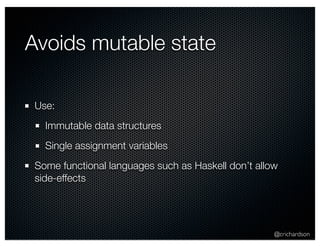

Avoids mutable state
Use:
Immutable data structures
Single assignment variables
Some functional languages such as Haskell don’t allow
side-effects

"the highest goal of
programming-language
design to enable good
ideas to be elegantly
@crichardson
expressed"
http://en.wikipedia.org/wiki/Tony_Hoare

@crichardson

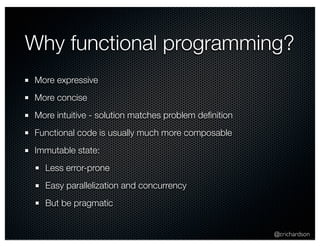

More expressive
More concise
More intuitive - solution matches problem definition
Functional code is usually much more composable
Immutable state:
Less error-prone
Easy parallelization and concurrency
But be pragmatic

@crichardson
An ancient idea that has
recently become popular

@crichardson

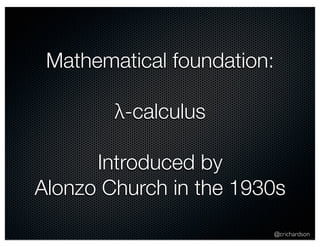

Mathematical foundation:
λ-calculus
Introduced by
Alonzo Church in the 1930s

@crichardson

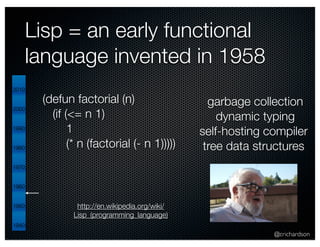

Lisp = an early functional
language invented in 1958
http://en.wikipedia.org/wiki/
Lisp_(programming_language)
2010
2000
1990
1980
1970
1960
1950
1940
garbage collection
dynamic typing
self-hosting compiler
tree data structures
(defun factorial (n)
(if (<= n 1)
1
(* n (factorial (- n 1)))))

My final year project in 1985:
Implementing SASL in LISP
Filter out multiples of p
sieve (p:xs) =
p : sieve [x | x <- xs, rem x p > 0];
primes = sieve [2..]
@crichardson
A list of integers starting with 2

Mostly an Ivory Tower
technology
Lisp was used for AI
FP languages: Miranda,
ML, Haskell, ...
“Side-effects
kills kittens and
puppies”

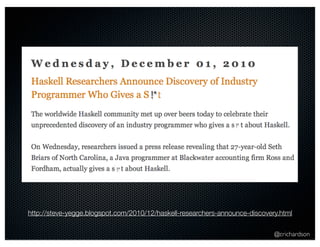

http://steve-yegge.blogspot.com/2010/12/haskell-researchers-announce-discovery.html
@crichardson
!*
!*
!*

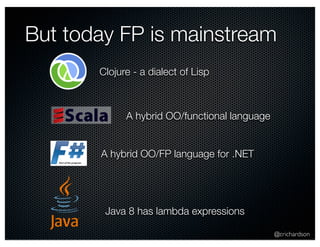

But today FP is mainstream
@crichardson
Clojure - a dialect of Lisp
A hybrid OO/functional language
A hybrid OO/FP language for .NET
Java 8 has lambda expressions

@crichardson

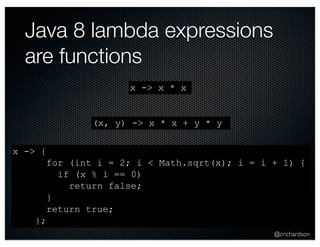

Java 8 lambda expressions
are functions
x -> x * x
x -> {
for (int i = 2; i < Math.sqrt(x); i = i + 1) {
if (x % i == 0)
return false;
}
return true;
};
(x, y) -> x * x + y * y

@crichardson
Lot’s of application code
=
collection processing:
Mapping, filtering, and reducing

@crichardson

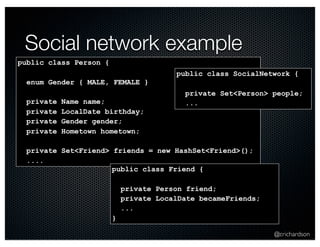

Social network example
public class Person {
enum Gender { MALE, FEMALE }
private Name name;
private LocalDate birthday;
private Gender gender;
private Hometown hometown;
private Set<Friend> friends = new HashSet<Friend>();
....
public class Friend {
private Person friend;
private LocalDate becameFriends;
...
}
public class SocialNetwork {
private Set<Person> people;
...

@crichardson

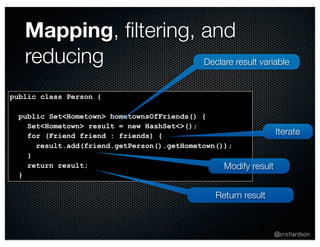

Mapping, filtering, and
reducing
public Set<Hometown> hometownsOfFriends() {
Set<Hometown> result = new HashSet<>();
for (Friend friend : friends) {
result.add(friend.getPerson().getHometown());
}
return result;
}
Declare result variable
Modify result
Return result
Iterate

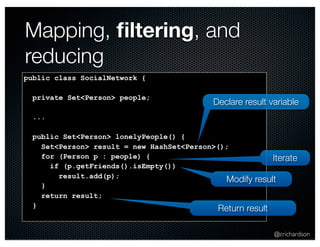

@crichardson
reducing
...
public Set<Person> lonelyPeople() {
Set<Person> result = new HashSet<Person>();
for (Person p : people) {
if (p.getFriends().isEmpty())
result.add(p);
}
return result;
}
Declare result variable
Modify result
Return result
Iterate

Iterate
@crichardson

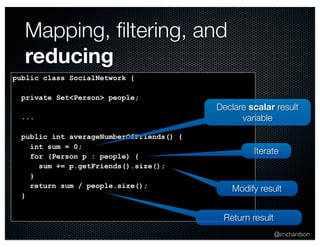

reducing
...
public int averageNumberOfFriends() {
int sum = 0;
for (Person p : people) {
sum += p.getFriends().size();
}
return sum / people.size();
}
Declare scalar result
variable
Modify result
Return result

@crichardson

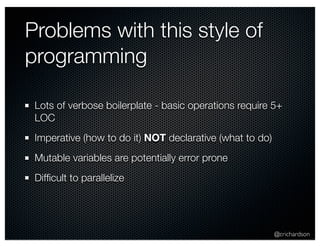

Problems with this style of
programming
Lots of verbose boilerplate - basic operations require 5+
LOC
Imperative (how to do it) NOT declarative (what to do)
Mutable variables are potentially error prone
Difficult to parallelize

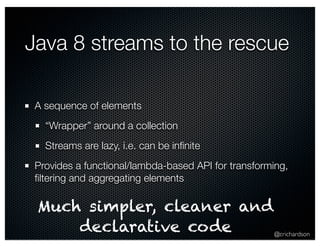

Java 8 streams to the rescue
A sequence of elements
“Wrapper” around a collection
Streams are lazy, i.e. can be infinite
Provides a functional/lambda-based API for transforming,
filtering and aggregating elements
Much simpler, cleaner and
@crichardson
declarative code

@crichardson

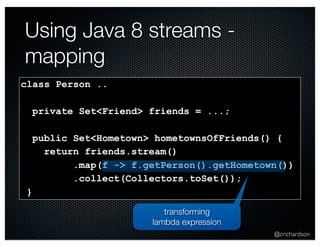

Using Java 8 streams -
mapping
class Person ..
private Set<Friend> friends = ...;
return friends.stream()
.map(f -> f.getPerson().getHometown())
.collect(Collectors.toSet());
}
transforming
lambda expression

@crichardson

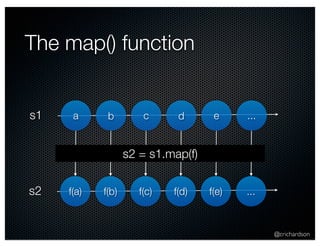

The map() function
s1 a b c d e ...
s2 = s1.map(f)
s2 f(a) f(b) f(c) f(d) f(e) ...

@crichardson

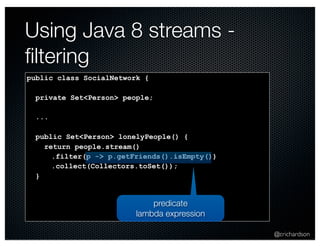

filtering
...
public Set<Person> lonelyPeople() {
return people.stream()
.filter(p -> p.getFriends().isEmpty())
}
predicate
lambda expression

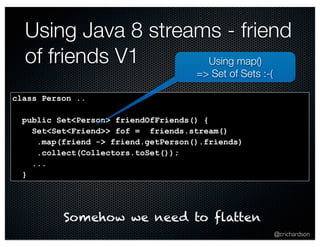

Using Java 8 streams - friend
of friends V1
@crichardson
class Person ..
public Set<Person> friendOfFriends() {
Set<Set<Friend>> fof = friends.stream()
.map(friend -> friend.getPerson().friends)
...
}
Using map()
=> Set of Sets :-(
Somehow we need to flatten

@crichardson

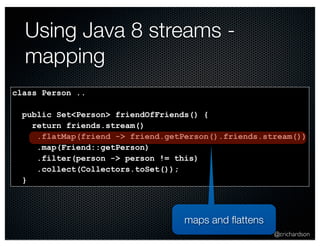

mapping
class Person ..
public Set<Person> friendOfFriends() {
.flatMap(friend -> friend.getPerson().friends.stream())
.map(Friend::getPerson)
.filter(person -> person != this)
}
maps and flattens

@crichardson

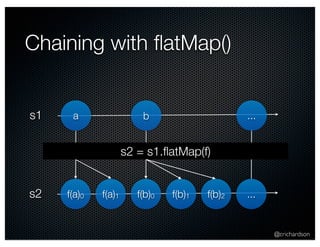

Chaining with flatMap()
s1 a b ...
s2 = s1.flatMap(f)
s2 f(a)0 f(a)1 f(b)0 f(b)1 f(b)2 ...

@crichardson
reducing
...
public long averageNumberOfFriends() {
return people.stream()
.map ( p -> p.getFriends().size() )
.reduce(0, (x, y) -> x + y)
/ people.size();
} int x = 0;
for (int y : inputStream)
x = x + y
return x;

@crichardson

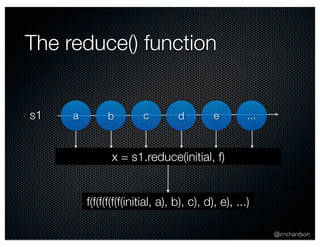

The reduce() function
s1 a b c d e ...
x = s1.reduce(initial, f)
f(f(f(f(f(f(initial, a), b), c), d), e), ...)

@crichardson

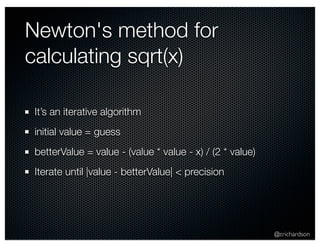

Newton's method for
calculating sqrt(x)
It’s an iterative algorithm
initial value = guess
betterValue = value - (value * value - x) / (2 * value)
Iterate until |value - betterValue| < precision

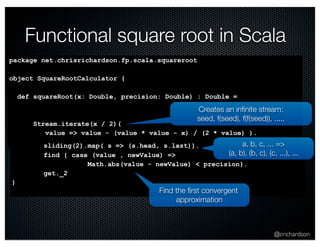

Functional square root in Scala
Creates an infinite stream:
seed, f(seed), f(f(seed)), .....
@crichardson
package net.chrisrichardson.fp.scala.squareroot
object SquareRootCalculator {
def squareRoot(x: Double, precision: Double) : Double =
Stream.iterate(x / 2)(
value => value - (value * value - x) / (2 * value) ).
sliding(2).map( s => (s.head, s.last)).
find { case (value , newValue) =>
Math.abs(value - newValue) < precision}.
get._2
}
a, b, c, ... =>
(a, b), (b, c), (c, ...), ...
Find the first convergent
approximation

@crichardson

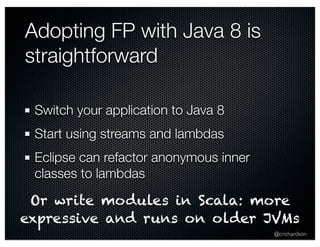

Adopting FP with Java 8 is
straightforward
Switch your application to Java 8
Start using streams and lambdas
Eclipse can refactor anonymous inner
classes to lambdas
Or write modules in Scala: more
expressive and runs on older JVMs

@crichardson
Tony’s $1B mistake
“I call it my billion-dollar mistake.
It was the invention of the null
reference in 1965....But I couldn't
resist the temptation to put in a
null reference, simply because it
was so easy to implement...”
http://qconlondon.com/london-2009/presentation/
Null+References:+The+Billion+Dollar+Mistake

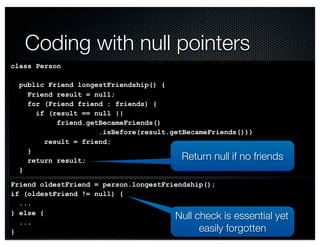

Return null if no friends
@crichardson
Coding with null pointers
class Person
public Friend longestFriendship() {
Friend result = null;
if (result == null ||
friend.getBecameFriends()
.isBefore(result.getBecameFriends()))
result = friend;
}
return result;
}
Friend oldestFriend = person.longestFriendship();
if (oldestFriend != null) {
...
} else {
...
}
Null check is essential yet
easily forgotten

@crichardson
Java 8 Optional<T>
A wrapper for nullable references
It has two states:
empty ⇒ throws an exception if you try to get the reference
non-empty ⇒ contain a non-null reference
Provides methods for: testing whether it has a value, getting the
value, ...
Use an Optional<T> parameter if caller can pass in null
Return reference wrapped in an instance of this type instead of null
Uses the type system to explicitly represent
nullability

@crichardson

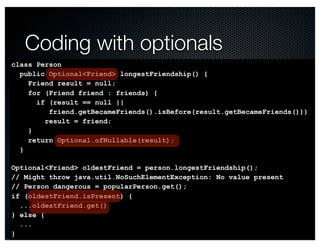

Coding with optionals
class Person
public Optional<Friend> longestFriendship() {
Friend result = null;
if (result == null ||
friend.getBecameFriends().isBefore(result.getBecameFriends()))
result = friend;
}
return Optional.ofNullable(result);
}
Optional<Friend> oldestFriend = person.longestFriendship();
// Might throw java.util.NoSuchElementException: No value present
// Person dangerous = popularPerson.get();
if (oldestFriend.isPresent) {
...oldestFriend.get()
} else {
...
}

Friend whoToCall2 =
oldestFriendship.orElseGet(() -> lazilyFindSomeoneElse());
@crichardson

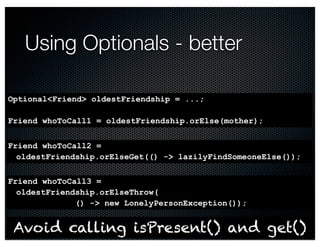

Using Optionals - better
Optional<Friend> oldestFriendship = ...;
Friend whoToCall1 = oldestFriendship.orElse(mother);
Friend whoToCall3 =
oldestFriendship.orElseThrow(
() -> new LonelyPersonException());
Avoid calling isPresent() and get()

@crichardson

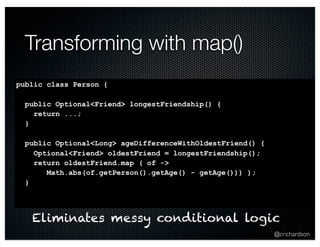

Transforming with map()
public Optional<Friend> longestFriendship() {
return ...;
}
public Optional<Long> ageDifferenceWithOldestFriend() {
Optional<Friend> oldestFriend = longestFriendship();
return oldestFriend.map ( of ->
Math.abs(of.getPerson().getAge() - getAge())) );
}
Eliminates messy conditional logic

@crichardson

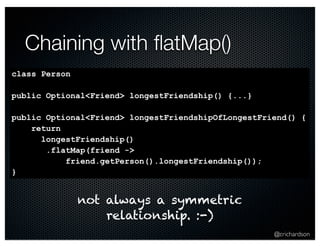

Chaining with flatMap()
class Person
public Optional<Friend> longestFriendship() {...}
public Optional<Friend> longestFriendshipOfLongestFriend() {
return
longestFriendship()
.flatMap(friend ->
friend.getPerson().longestFriendship());
}
not always a symmetric
relationship. :-)

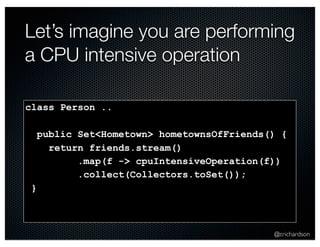

Let’s imagine you are performing
a CPU intensive operation
@crichardson
class Person ..
.map(f -> cpuIntensiveOperation(f))
}

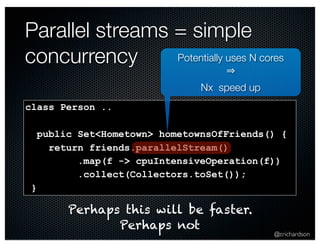

Parallel streams = simple
concurrency Potentially uses N cores
@crichardson
class Person ..
return friends.parallelStream()
.map(f -> cpuIntensiveOperation(f))
}
⇒
Nx speed up
Perhaps this will be faster.
Perhaps not

Let’s imagine that you are
writing code to display the
products in a user’s wish list
@crichardson

@crichardson

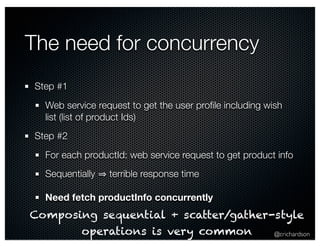

The need for concurrency
Step #1
Web service request to get the user profile including wish
list (list of product Ids)
Step #2
For each productId: web service request to get product info
Sequentially ⇒ terrible response time
Need fetch productInfo concurrently
Composing sequential + scatter/gather-style
operations is very common

@crichardson
Futures are a great
concurrency abstraction
http://en.wikipedia.org/wiki/Futures_and_promises

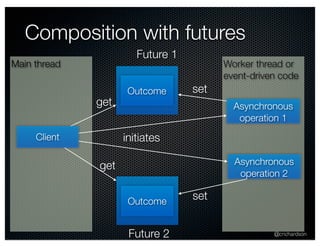

Composition with futures
Worker thread or
event-driven code
@crichardson
Main thread
Future 1
Outcome
Future 2
Client
get Asynchronous
operation 2
set
initiates
Asynchronous
operation 1
Outcome
get
set

@crichardson

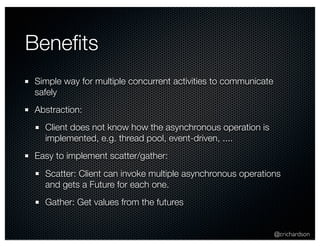

Benefits
Simple way for multiple concurrent activities to communicate
safely
Abstraction:
Client does not know how the asynchronous operation is
implemented, e.g. thread pool, event-driven, ....
Easy to implement scatter/gather:
Scatter: Client can invoke multiple asynchronous operations
and gets a Future for each one.
Gather: Get values from the futures

@crichardson

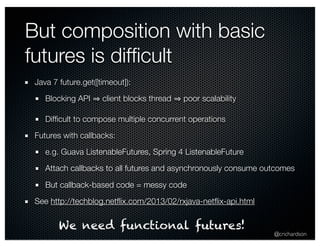

But composition with basic
futures is difficult
Java 7 future.get([timeout]):
Blocking API ⇒ client blocks thread ⇒ poor scalability
Difficult to compose multiple concurrent operations
Futures with callbacks:
e.g. Guava ListenableFutures, Spring 4 ListenableFuture
Attach callbacks to all futures and asynchronously consume outcomes
But callback-based code = messy code
See http://techblog.netflix.com/2013/02/rxjava-netflix-api.html
We need functional futures!

Asynchronously
transforms future
Calls asyncSquare() with the eventual
outcome of asyncPlus(), i.e. chaining
@crichardson

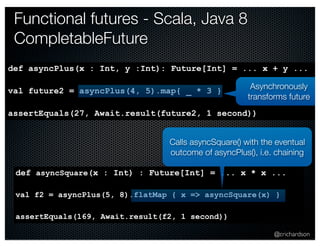

Functional futures - Scala, Java 8
CompletableFuture
def asyncPlus(x : Int, y :Int): Future[Int] = ... x + y ...
val future2 = asyncPlus(4, 5).map{ _ * 3 }
assertEquals(27, Await.result(future2, 1 second))
def asyncSquare(x : Int) : Future[Int] = ... x * x ...
val f2 = asyncPlus(5, 8).flatMap { x => asyncSquare(x) }
assertEquals(169, Await.result(f2, 1 second))

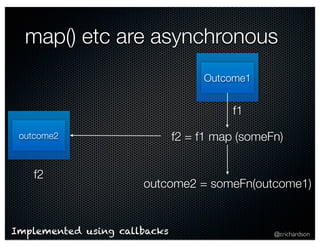

map() etc are asynchronous
outcome2 = someFn(outcome1)
@crichardson
outcome2
f2
Outcome1
f1
f2 = f1 map (someFn)
Implemented using callbacks

@crichardson

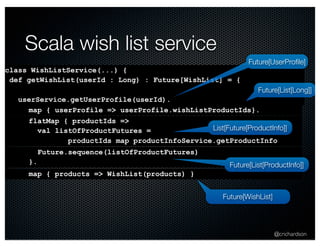

Scala wish list service
class WishListService(...) {
def getWishList(userId : Long) : Future[WishList] = {
userService.getUserProfile(userId).
Future[UserProfile]
map { userProfile => userProfile.wishListProductIds}.
flatMap { productIds =>
val listOfProductFutures =
productIds map productInfoService.getProductInfo
Future.sequence(listOfProductFutures)
}.
map { products => WishList(products) }
Future[List[Long]]
List[Future[ProductInfo]]
Future[List[ProductInfo]]
Future[WishList]

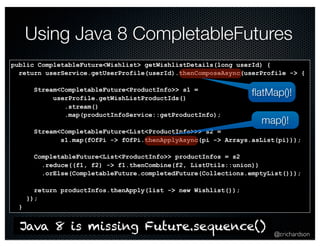

Using Java 8 CompletableFutures
flatMap()!
map()!
@crichardson
public CompletableFuture<Wishlist> getWishlistDetails(long userId) {
return userService.getUserProfile(userId).thenComposeAsync(userProfile -> {
Stream<CompletableFuture<ProductInfo>> s1 =
userProfile.getWishListProductIds()
.stream()
.map(productInfoService::getProductInfo);
Stream<CompletableFuture<List<ProductInfo>>> s2 =
s1.map(fOfPi -> fOfPi.thenApplyAsync(pi -> Arrays.asList(pi)));
CompletableFuture<List<ProductInfo>> productInfos = s2
.reduce((f1, f2) -> f1.thenCombine(f2, ListUtils::union))
.orElse(CompletableFuture.completedFuture(Collections.emptyList()));
return productInfos.thenApply(list -> new Wishlist());
});
}
Java 8 is missing Future.sequence()

Your mouse is your database
@crichardson
Erik Meijer
http://queue.acm.org/detail.cfm?id=2169076

@crichardson

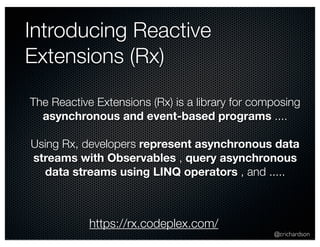

Introducing Reactive
Extensions (Rx)
The Reactive Extensions (Rx) is a library for composing
asynchronous and event-based programs ....
Using Rx, developers represent asynchronous data
streams with Observables , query asynchronous
data streams using LINQ operators , and .....
https://rx.codeplex.com/

@crichardson
About RxJava
Reactive Extensions (Rx) for the JVM
Developed by Netflix
Original motivation was to provide rich, functional Futures
Implemented in Java
Adaptors for Scala, Groovy and Clojure
Embraced by Akka and Spring Reactor: http://www.reactive-streams.
org/
https://github.com/Netflix/RxJava

An asynchronous stream of items
@crichardson

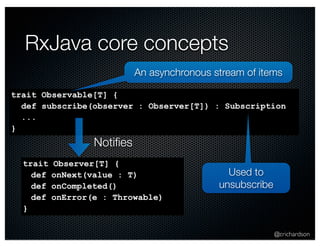

RxJava core concepts
trait Observable[T] {
def subscribe(observer : Observer[T]) : Subscription
...
}
Notifies
trait Observer[T] {
def onNext(value : T)
def onCompleted()
def onError(e : Throwable)
}
Used to
unsubscribe

Comparing Observable to...
Observer pattern - similar but
adds
Observer.onComplete()
Observer.onError()
Iterator pattern - mirror image
Push rather than pull
Futures - similar
Can be used as Futures
But Observables = a stream
of multiple values
Collections and Streams -
similar
Functional API supporting
map(), flatMap(), ...
But Observables are
asynchronous

val subscription = ticker.subscribe { (value: Long) => println("value=" + value) }
...
subscription.unsubscribe()
@crichardson

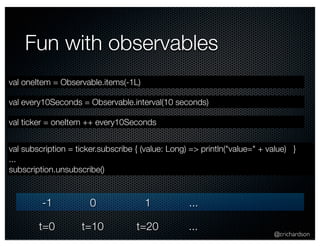

Fun with observables
val oneItem = Observable.items(-1L)
val every10Seconds = Observable.interval(10 seconds)
val ticker = oneItem ++ every10Seconds
-1 0 1 ...
t=0 t=10 t=20 ...

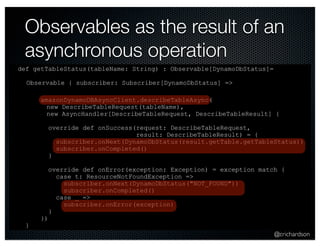

Observables as the result of an
asynchronous operation
@crichardson
def getTableStatus(tableName: String) : Observable[DynamoDbStatus]=
Observable { subscriber: Subscriber[DynamoDbStatus] =>
}
amazonDynamoDBAsyncClient.describeTableAsync(
new DescribeTableRequest(tableName),
new AsyncHandler[DescribeTableRequest, DescribeTableResult] {
override def onSuccess(request: DescribeTableRequest,
result: DescribeTableResult) = {
subscriber.onNext(DynamoDbStatus(result.getTable.getTableStatus))
subscriber.onCompleted()
}
override def onError(exception: Exception) = exception match {
case t: ResourceNotFoundException =>
subscriber.onNext(DynamoDbStatus("NOT_FOUND"))
subscriber.onCompleted()
case _ =>
subscriber.onError(exception)
}
})
}

@crichardson

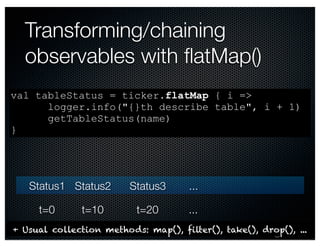

Transforming/chaining
observables with flatMap()
val tableStatus = ticker.flatMap { i =>
logger.info("{}th describe table", i + 1)
getTableStatus(name)
}
Status1 Status2 Status3 ...
t=0 t=10 t=20 ...
+ Usual collection methods: map(), filter(), take(), drop(), ...

@crichardson

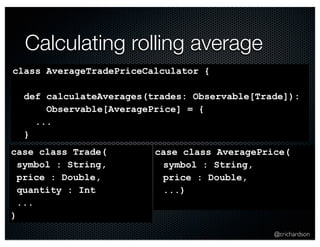

Calculating rolling average
class AverageTradePriceCalculator {
def calculateAverages(trades: Observable[Trade]):
Observable[AveragePrice] = {
...
}
case class Trade(
symbol : String,
price : Double,
quantity : Int
...
)
case class AveragePrice(
symbol : String,
price : Double,
...)

@crichardson

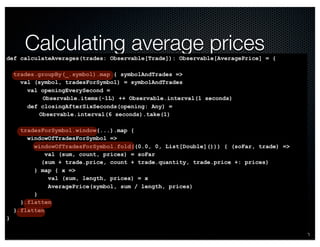

Calculating average prices
def calculateAverages(trades: Observable[Trade]): Observable[AveragePrice] = {
trades.groupBy(_.symbol).map { symbolAndTrades =>
val (symbol, tradesForSymbol) = symbolAndTrades
val openingEverySecond =
Observable.items(-1L) ++ Observable.interval(1 seconds)
def closingAfterSixSeconds(opening: Any) =
Observable.interval(6 seconds).take(1)
tradesForSymbol.window(...).map {
windowOfTradesForSymbol =>
windowOfTradesForSymbol.fold((0.0, 0, List[Double]())) { (soFar, trade) =>
val (sum, count, prices) = soFar
(sum + trade.price, count + trade.quantity, trade.price +: prices)
} map { x =>
val (sum, length, prices) = x
AveragePrice(symbol, sum / length, prices)
}
}.flatten
}.flatten
}

Let’s imagine that you want
to count word frequencies
@crichardson

@crichardson
Scala Word Count
val frequency : Map[String, Int] =
Source.fromFile("gettysburgaddress.txt").getLines()
.flatMap { _.split(" ") }.toList
.groupBy(identity)
.mapValues(_.length))
frequency("THE") should be(11)
frequency("LIBERTY") should be(1)
Map
Reduce

But how to scale to a cluster
@crichardson
of machines?

@crichardson
Apache Hadoop
Open-source ecosystem for reliable, scalable, distributed computing
Hadoop Distributed File System (HDFS)
Efficiently stores very large amounts of data
Files are partitioned and replicated across multiple machines
Hadoop MapReduce
Batch processing system
Provides plumbing for writing distributed jobs
Handles failures
And, much, much more...

@crichardson

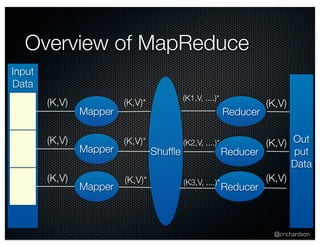

Overview of MapReduce
Input
Data
Mapper
Mapper
Mapper
Reducer
Reducer
Reducer
Out
put
Data
Shuffle
(K,V)
(K,V)
(K,V)
(K,V)*
(K,V)*
(K,V)*
(K1,V, ....)*
(K2,V, ....)*
(K3,V, ....)*
(K,V)
(K,V)
(K,V)

http://wiki.apache.org/hadoop/WordCount
@crichardson

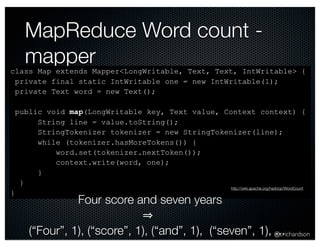

MapReduce Word count -
mapper
class Map extends Mapper<LongWritable, Text, Text, IntWritable> {
private final static IntWritable one = new IntWritable(1);
private Text word = new Text();
public void map(LongWritable key, Text value, Context context) {
String line = value.toString();
StringTokenizer tokenizer = new StringTokenizer(line);
while (tokenizer.hasMoreTokens()) {
word.set(tokenizer.nextToken());
context.write(word, one);
}
}
}
Four score and seven years
⇒
(“Four”, 1), (“score”, 1), (“and”, 1), (“seven”, 1), ...

@crichardson

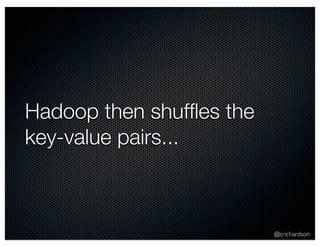

Hadoop then shuffles the
key-value pairs...

@crichardson

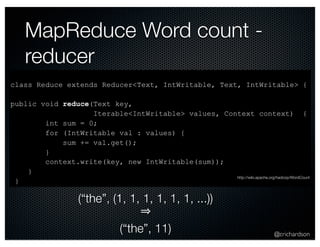

MapReduce Word count -
reducer
class Reduce extends Reducer<Text, IntWritable, Text, IntWritable> {
public void reduce(Text key,
Iterable<IntWritable> values, Context context) {
int sum = 0;
for (IntWritable val : values) {
sum += val.get();
}
context.write(key, new IntWritable(sum));
}
}
(“the”, (1, 1, 1, 1, 1, 1, ...))
⇒
(“the”, 11)
http://wiki.apache.org/hadoop/WordCount

@crichardson

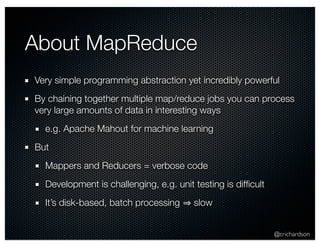

About MapReduce
Very simple programming abstraction yet incredibly powerful
By chaining together multiple map/reduce jobs you can process
very large amounts of data in interesting ways
e.g. Apache Mahout for machine learning
But
Mappers and Reducers = verbose code
Development is challenging, e.g. unit testing is difficult
It’s disk-based, batch processing ⇒ slow

Each row is a map of
@crichardson
Scalding: Scala DSL for
MapReduce
class WordCountJob(args : Args) extends Job(args) {
TextLine( args("input") )
.flatMap('line -> 'word) { line : String => tokenize(line) }
.groupBy('word) { _.size }
.write( Tsv( args("output") ) )
def tokenize(text : String) : Array[String] = {
text.toLowerCase.replaceAll("[^a-zA-Z0-9s]", "")
.split("s+")
}
}
Expressive and unit testable
https://github.com/twitter/scalding
named fields

@crichardson
Apache Spark
Created at UC Berkeley and now part of the Hadoop ecosystem
Key abstraction = Resilient Distributed Datasets (RDD)
Collection that is partitioned across cluster members
Operations are parallelized
Created from either a collection or a Hadoop supported datasource -
HDFS, S3 etc
Can be cached in-memory for super-fast performance
Can be replicated for fault-tolerance
Scala, Java, and Python APIs
http://spark.apache.org

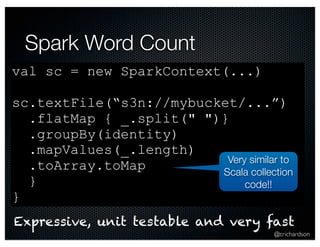

Spark Word Count
val sc = new SparkContext(...)
sc.textFile(“s3n://mybucket/...”)
Very similar to
Scala collection
@crichardson
.flatMap { _.split(" ")}
.groupBy(identity)
.mapValues(_.length)
.toArray.toMap
}
code!!
}
Expressive, unit testable and very fast

@crichardson

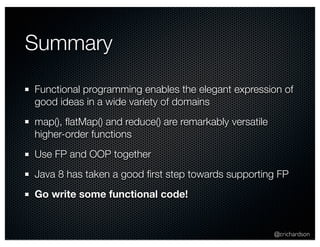

Summary
Functional programming enables the elegant expression of
good ideas in a wide variety of domains
map(), flatMap() and reduce() are remarkably versatile
higher-order functions
Use FP and OOP together
Java 8 has taken a good first step towards supporting FP
Go write some functional code!

@crichardson chris@chrisrichardson.net
@crichardson
Questions?
http://plainoldobjects.com

Map, flatmap and reduce are your new best friends (javaone, svcc)

More Related Content

What's hot

Similar to Map, flatmap and reduce are your new best friends (javaone, svcc)

More from Chris Richardson

Recently uploaded

Map, flatmap and reduce are your new best friends (javaone, svcc)
