Sumant Tambe, Ph.D.
Senior Software Research Engineer and Microsoft MVP
Real-Time Innovations, Inc.
www.rti.com
SILICON VALLEY
10/2/2013 © 2012 RTI 2

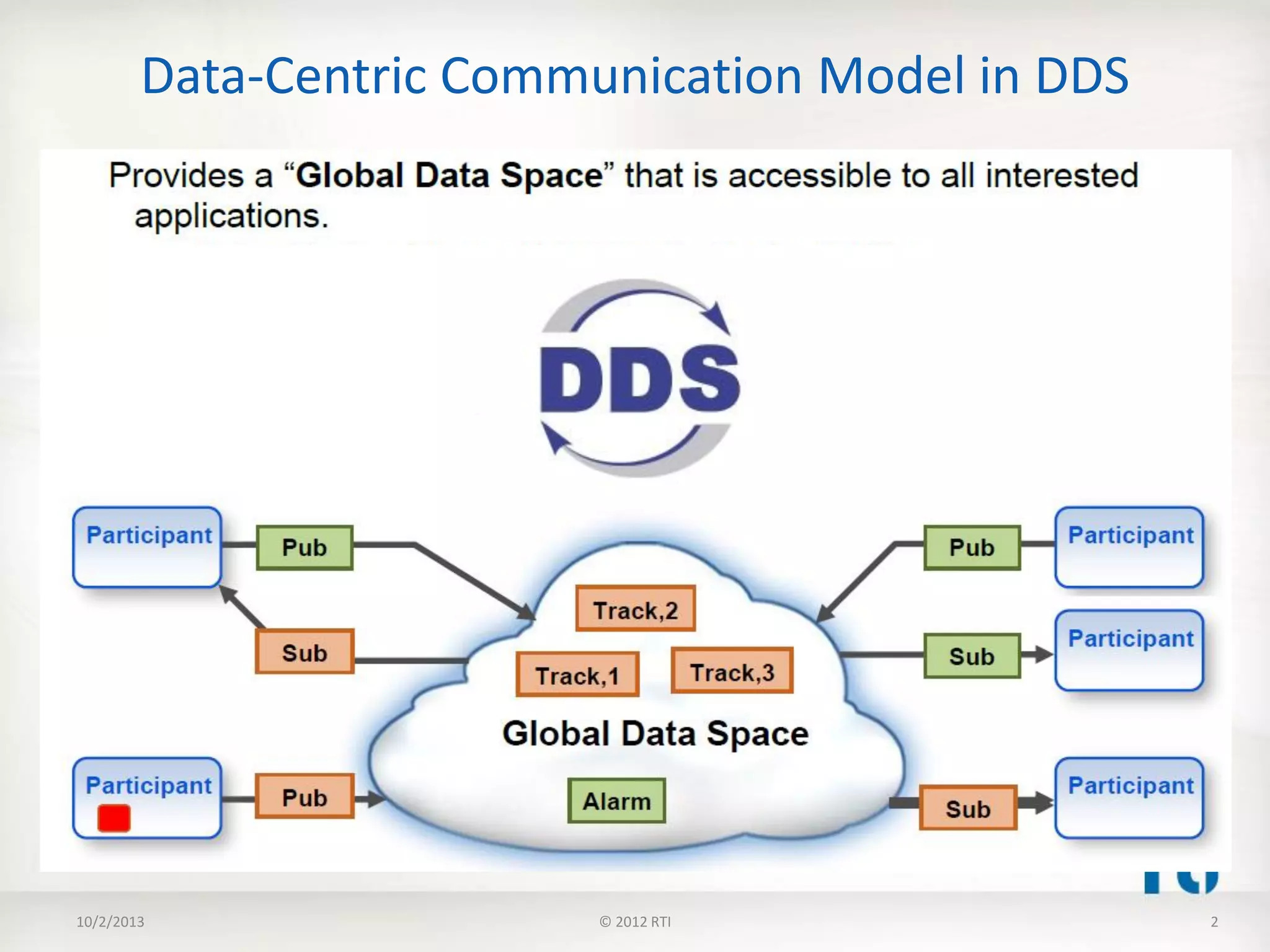

Data-Centric Communication Model in DDS
Data Distribution Service
10/2/2013 © 2012 RTI 3
• Data Distribution Service
– Middleware knows the schema
– Messages represent update to data-objects
– Data-Objects identified by a key
– Middleware maintains state of each object
– Objects are cached. Applications can read at leisure
– Smart QoS (Reliability, Ownership, History (per key), Deadline, and 18 more!)
Streaming
Data
Sensors Events
Real-Time
Applications
Enterprise
Applications
Actuators
Data-Centric  Typed All the Way!
10/2/2013 © 2013 RTI 4
Standard
Mapping
Java
C/C++
C#
Type Descriptions
in DDS-XTypes
(IDL, XSD, Java etc.)
Code
Generator
• Types description similar to an OO language
– Primitives, strings, arrays and sequences, maps, structures,
enumerations, aliases (typedefs), unions, modules, etc.
• Type versioning and assignability
• Meta-Data
– Unique ID for each member
– Annotations (like in Java)
– Key/non-key
– Optional/required members
– Sharable/non-sharable
DDS X-Types Standard
• Type System: DDS data objects have a type and obey the rules described
herein
• Language Binding for Object Manipulation
– Generate code when type-descriptions are available at compile-time
– Otherwise, create/inspect objects of any type at run-time
• Language Binding for Type Manipulation
– add/remove/query data members types (think Java reflection)
• Data Representation: Objects can be serialized for file storage and
network transmission
• Type Representation: Types can be serialized for file storage and network
transmission (using TypeObject) 5
Type System
Type
Representation
Language
Binding
Data
Representation
Example
6
Type
Representation
Language
Binding
Data
Representation
IDL: Foo.idl
struct Foo {
string name;
@key long ssn;
@optional string
phone;
};
IDL to C++ Language Mapping:
struct Foo {
std::string name;
int ssn;
std::string * phone;
// ...
};
IDL to CDR:
00000006
68656C6C
6F000000
00000002
Two Faces of DDS
10/2/2013 © 2013 RTI 7
• Application Integration
– Many applications, many programming languages, many
contractors necessitate a common format for sharing types
– IDL serves well
– Related technologies: CORBA Interfaces, schema definitions (DB),
XML document structure (XSD)
• Messaging
– Typically, a single (distributed) application
– Likely developed using a single programming language
– Overall system under single administration
– Data already stored in application data structures
– Just send it from point A to B
– Related technologies: ActiveMQ, JMS
– IDL not so much desirable
IDL may be a Distraction (for messaging apps)
• “… But I already have my headers…”
– Maintaining redundant IDL type descriptions is a burden
– Integrating generated code in app build system could be burdensome
– Must write glue code
• Or sometimes it is an overhead
– Copy data back and forth between app data types and IDL data types
• Application level data structures may not be captured
accurately
– Think XSD (e.g., sequence of choices)
10/2/2013 © 2013 RTI 8
Solution: A Pure C++11 Library-based Approach
Example:
10/2/2013 © 2012 RTI 9
// shape.h
struct ShapeType
{
std::string color;
int x;
int y;
unsigned shapesize;
};
// shape.h
RTI_ADAPT_STRUCT(
ShapeType,
(std::string, color, KEY)
(int, x)
(int, y)
(unsigned, shapesize))
DDSDomainParticipant * participant = ...
GenericDataWriter<ShapeType> shapes_writer(participant, "Square");
for(;;) {
ShapeType shape {“BLUE”, x, y, 30};
shapes_writer.write(shape);
}
Solution: A Pure C++11 Library-based Approach
Example:
10/4/2013 © 2012 RTI 10
// shape.h
struct ShapeType
{
std::string color;
int x;
int y;
unsigned shapesize;
};
// shape.h
RTI_ADAPT_STRUCT(
ShapeType,
(std::string, color, KEY)
(int, x)
(int, y)
(unsigned, shapesize))
@Extensibility(EXTENSIBLE)
struct ShapeType {
@key string color;
long x;
long y;
unsigned long shapesize;
};
Instead
IDL
A substitute for lack of reflection in C++
Read/Take Shapes (note C++11)
10/2/2013 © 2013 RTI 11
class MyShapesListener : public GenericDataReaderListener<ShapeType> {
public:
void on_data_available(GenericDataReader<ShapeType> & dr) override {
std::vector<ShapeType> samples = dr.take();
for (auto const &shape : samples) {
std::cout << “color = " << shape.color << “n”
<< "x = " << shape.x << “n”
<< "y = " << shape.y << “n”
<< "shapesize = " << shape.shapesize << “n”
<< std::endl;
}
}
};
DDSDomainParticipant * participant = ...
MyShapesListener listener;
std::string topic = “Square”;
GenericDataReader<ShapeType> shapes_reader(participant, &listener, topic);
for(;;)
sleep(1);
Slightly Complex Example
10/2/2013 © 2012 RTI • COMPANY CONFIDENTIAL 12
struct VetoTDCHit {
int hit_index;
int pmt_index; // not sent
float pmt_theta;
float pmt_phi;
};
typedef std::list<VetoTDCHit> VetoTDCHits;
struct VetoTruth
{
int sim_event;
VetoTDCHits hits;
};
enum STATUS_FLAGS { NORMAL=0,
ID_MISMATCH=1,
BAD_TIMESTAMP=2 };
struct EventInfo {
VetoTruth truth;
int event_id;
STATUS_FLAGS status;
};
RTI_ADAPT_STRUCT( // same header
VetoTDCHit,
(int, hit_index)
(float, pmt_theta)
(float, pmt_phi))
RTI_ADAPT_STRUCT(
VetoTruth,
(int, sim_event)
(VetoTDCHits, hits))
RTI_ADAPT_ENUM(
STATUS_FLAGS,
(NORMAL, 0)
(ID_MISMATCH, 1)
(BAD_TIMESTAMP, 2))
RTI_ADAPT_STRUCT(
EventInfo,
(VetoTruth, truth)
(int, event_id, KEY)
(TATUS_FLAGS, status))
Equivalent Type at Run-time
10/4/2013 © 2012 RTI • COMPANY CONFIDENTIAL 13
@Extensibility(EXTENSIBLE_EXTENSIBILITY)
enum STATUS_FLAGS {
NORMAL = 0,
ID_MISMATCH = 1,
BAD_TIMESTAMP = 2,
};
@Extensibility(EXTENSIBLE_EXTENSIBILITY)
struct VetoTDCHit {
long hit_index;
float pmt_theta;
float pmt_phi;
};
@Extensibility(EXTENSIBLE_EXTENSIBILITY)
struct VetoTruth {
long sim_event;
sequence<VetoTDCHit> hits;
};
@Extensibility(EXTENSIBLE_EXTENSIBILITY)
struct EventInfo {
VetoTruth truth;
@key long event_id;
STATUS_FLAGS status;
};
Type representation
is binary at runtime
but shown here
using the IDL syntax
for readability
So, How does it work?
• It uses:
– C++11
– Overloading in overdrive!
• SFINAE: Substitution Failure Is Not An Error
– Generic/Generative programming (templates)
– Template meta-programming
– Some (macro) preprocessor tricks
• For code generation
– C++ Standard Library
• tuple, pair, vector, list, set, map, array, type_traits etc.
– Boost
• Fusion, Optional, Variant, and Preprocessor
– TypeCode API
– Dynamic Data API
10/2/2013 © 2012 RTI • COMPANY CONFIDENTIAL 14
What is Supported? (C++ point of view)
• Built-in types, arrays, enumerations
• Nested structs/classes (with public members)
• STL
– string, vector, list, set, map, array, tuple, pair, iterators, etc.
• User-defined/custom containers
– my_special_container_with_iterators
– On-the-fly container adapters (views e.g., boost.Iterators)
• C++11 compilers
– Visual Studio 2013 Preview
– gcc 4.9
– Clang 3.0, 3.2
• In future…
– Raw Pointers, smart pointers
– Classes with public get/set methods?
– Inheritance?
10/2/2013 © 2012 RTI • COMPANY CONFIDENTIAL 15
What is Supported? (IDL point of view)
• Basic types/enumerations/strings
• Arrays
• Sequences of strings/basic types/enumerations
• Bounded sequences/strings
• Structures
• Unions (including cases with defaults, multiple discriminators, and enumerations)
• Sparse Types
• Sequences of sequences (of sequences… and so on…)
• Sequences of structures
• Multidimensional arrays of strings, structures, sequences,…
• Nested structures
• Nested unions
• But, no bit-fields and inheritance, so far…
10/2/2013 © 2012 RTI • COMPANY CONFIDENTIAL 16
Architecture
10/2/2013 © 2012 RTI • COMPANY CONFIDENTIAL 17
Application
GenericDataReader<T>
GenericDataReaderListener<T>
GenericDataWriter<T>
Generic Functions
(MakeTypecode, FillDD, ExtractDD, etc.)
Type-driven access (overloading, template
meta-programming, etc.)
RTI_ADAPT
Macros
TypeCode, Dynamic Data API, DynamicDataTypeSupport
Dynamic Data Type Plugin callbacks and CDR API
DDS Core
Extremely Simplified
DynamicData API
class DDS_TypeCode {};
class DDS_DynamicData
{
public:
explicit DDS_DynamicData(const DDS_TypeCode &) {}
void set_short (int id, int16_t) {}
void set_long (int id, int32_t) {}
void set_longlong (int id, uint64_t) {}
void set_octet (int id, uint8_t) {}
void set_ushort (int id, uint16_t) {}
void set_ulong (int id, uint32_t) {}
void set_ulonglong (int id, uint64_t) {}
void set_float (int id, float) {}
void set_double (int id, double) {}
void set_longdouble(int id, long double) {}
void set_string (int id, const char *) {}
void set_complex (int id, const DDS_DynamicData &) {}
};
10/2/2013 © 2012 RTI • COMPANY CONFIDENTIAL 18
10/2/2013 © 2012 RTI • COMPANY CONFIDENTIAL 19
Overloading for Fundamental Types
void set_value(DDS_DynamicData & d, int id, bool v) {
d.set_bool(id, v); }
void set_value(DDS_DynamicData & d, int id, char v) {
d.set_char(id, v); }
void set_value(DDS_DynamicData & d, int id, int16_t v) {
d.set_short(id, v); }
void set_value(DDS_DynamicData & d, int id, int32_t v) {
d.set_long(id, v); }
void set_value(DDS_DynamicData & d, int id, float v) {
d.set_float(id, v); }
void set_value(DDS_DynamicData & d, int id, double v) {
d.set_double(id, v); }
10/2/2013 © 2012 RTI • COMPANY CONFIDENTIAL 20
Overloading set_value for std::string
void set_value(DDS_DynamicData & d,
int id,
const std::string & str)
{
d.set_string(id, str.c_str());
}
Sequences
(simplified DDS DynamicData API, again)
class DDS_DynamicData
{
public:
void set_boolean_seq (int id, const DDS_BooleanSeq &) {}
void set_long_seq (int id, const DDS_LongSeq &) {}
void set_float_seq (int id, const DDS_FloatSeq &) {}
void set_double_seq (int id, const DDS_DoubleSeq &) {}
void set_longdouble_seq (int id, const DDS_LongDoubleSeq &) {}
};
10/2/2013 © 2012 RTI • COMPANY CONFIDENTIAL 21
• Sequences are wrappers over C-style arrays
• Flexible: May own memory or loan/unloan from the user
– RAII is used when memory is owned
10/2/2013 © 2012 RTI • COMPANY CONFIDENTIAL 22
Overloading for std::vector of primitives
void set_value(DDS_DynamicData & d,
int id,
const std::vector<float> & v)
{
DDS_FloatSeq seq;
seq.loan_contiguous(&v[0], v.size(), v.capacity());
d.set_float_seq(id, seq);
seq.unloan();
}
// and many many more similar looking functions for
// int8_t, int16_t, int32_t, int64_t, char, double, ...
10/2/2013 © 2012 RTI • COMPANY CONFIDENTIAL 23
set_value Template for std::vector of primitives
template <class T>
void set_value(DDS_DynamicData & d,
int id,
const std::vector<T> & v)
{
typename DynamicDataSeqTraits<T>::type seq;
seq.loan_contiguous(&v[0], v.size(), v.capacity());
typename DynamicDataSeqTraits<T>::SetSeqFuncPtr fn =
DynamicDataSeqTraits<T>::set_seq_func_ptr;
d.*fn(id, seq);
seq.unloan();
}
• One template for all vectors of primitives
• Traits to get the function pointer
• Traits written using macros!
• Isn’t that just overloading and static method dispatch? . . . Yes it is!
Static
method
dispatch
10/2/2013 © 2012 RTI • COMPANY CONFIDENTIAL 24
But set_value[T=bool] is outright wrong!
template <class T>
void set_value(DDS_DynamicData & d,
int id,
const std::vector<T> & v)
{
typename DynamicDataSeqTraits<T>::type seq;
seq.loan_contiguous(&v[0], v.size(), v.capacity());
typename DynamicDataSeqTraits<T>::SetSeqFuncPtr fn =
DynamicDataSeqTraits<T>::set_seq_func_ptr;
d.*fn(id, seq);
seq.unloan();
}
std::vector<bool>
layout incompatible
• std::vector<bool> is often a space-efficient data structure
• Each element occupies a single bit instead of a single byte
• Does not follow many other std::vector invariants
10/2/2013 © 2012 RTI • COMPANY CONFIDENTIAL 25
Add std::vector<bool> overload of set_value
template <class T>
void set_value(DDS_DynamicData & d,
int id,
const std::vector<T> & v) {
typename DynamicDataSeqTraits<T>::type seq;
seq.loan_contiguous(&v[0], v.size(), v.size());
typename DynamicDataSeqTraits<T>::SetSeqFuncPtr fn =
DynamicDataSeqTraits<T>::set_seq_func_ptr;
d.*fn(id, seq);
seq.unloan();
}
void set_value(DDS_DynamicData & d,
int id,
const std::vector<bool> & v) {
DDS_BooleanSeq seq;
seq.ensure_length(v.size(), v.size());
std::copy(begin(v), end(v), &seq[0]);
d.set_boolean_seq(id, seq);
}
Overload for Classic Enumerations
• C++03 enumerations implicitly convert to an integer
– User C++11’s type-safe enums if you don’t want that
• The following overload works ... for now!
• set_value(DDS_DynamicData &, int id, int32_t)
10/2/2013 © 2012 RTI • COMPANY CONFIDENTIAL 26
enums go here
Overload for user-defined structs: “Foo”
10/4/2013 © 2012 RTI • COMPANY CONFIDENTIAL 27
template <class T>
void set_value(DDS_DynamicData & d,
int id,
const T & t)
{
DDS_DynamicData inner;
// Use boost.fusion to iterate over the public members of T
// and use set_value recursively to populate the inner object.
// Effectively equivalent to
set_value(inner, 0, at<0>(t));
set_value(inner, 1, at<1>(t));
set_value(inner, 2, at<2>(t)); // and so on...
d.set_complex(id, inner);
}
Enumerations are user-defined types too!
• Addition of the template for Foo breaks enumerations
• Solution:
– Function Overloading Based on Arbitrary Properties of
Types
– Powered by SFINAE!
• Substitution Failure Is Not An Error
10/2/2013 © 2012 RTI • COMPANY CONFIDENTIAL 28
template <class T>
void set_value(DDS_DynamicData & d,
int id,
const T & t);
All enums and user-
defined structs resolve to
this overload
(that’s not what we want)
A SFINAE Primer
• Instantiating a function template is a two-phase process
– Deduce template arguments
– Substitute the deduced type in all occurrences of the template
parameter
• If the substitution process leads to an invalid type,
argument deduction fails
• The function is removed from the overload resolution set
10/2/2013 © 2012 RTI • COMPANY CONFIDENTIAL 29
int negate(int i) { return -i; }
template <class F>
typename F::result_type
negate(const F& f) { return -f(); }
negate(1);
Function Enablers and Disablers
• enable_if<true> keeps the template instantiation in the overload set
• enable_if<false> removes the template instantiation from the overload
set
10/2/2013 © 2012 RTI • COMPANY CONFIDENTIAL 30
template <bool B, class T = void>
struct enable_if {
typedef T type;
};
template <class T>
struct enable_if<false, T> {};
template <class T>
typename enable_if<is_arithmetic<T>::value, T>::type
foo(T t);
template <class T>
T bar (T t,
typename enable_if<is_arithmetic<T>::value>::type* = 0);
Using enable_if with type_traits
• enable_if combined with type_traits is very powerful
• Many type_traits are implemented using compiler intrinsics
– Think of it as compile-time reflection in library form
– E.g., is_union, is_pod, is_enum, any many many more
– C++11 type_traits library is portable
10/2/2013 © 2012 RTI • COMPANY CONFIDENTIAL 31
template <class T>
void set_value(DDS_DynamicData & d,
int id,
const T & t,
typename enable_if<std::is_enum<T>::value>::type * = 0);
template <class T>
void set_value(DDS_DynamicData & d,
int id,
const T & t,
typename enable_if<std::is_class<T>::value>::type * = 0);
Recap set_value overloads so far
10/3/2013 © 2012 RTI • COMPANY CONFIDENTIAL 32
Overloads #
void set_value(DDS_DynamicData &, int, FundamentalTypes v); [18 overloads] 1
template <class T>
void set_value(DDS_DynamicData &, int, const std::vector<T> &);[T=fundamental]
2
void set_value(DDS_DynamicData &, int, const std::vector<bool> &); 3
template <class T>
void set_value(DDS_DynamicData &, int, const T &,
typename enable_if<std::is_enum<T>::value>::type * = 0);
4
template <class T>
void set_value(DDS_DynamicData &, int, const T &,
typename enable_if<std::is_class<T>::value>::type * = 0);
5
• Works with
– 18 fundamental types, std::vector of those, std::vector<bool>, scalar
enumerations, and scalar user-defined structs.
• No match for
– std::vector<USER-DEFINED-STRUCTS>
More overloads
10/4/2013 © 2012 RTI • COMPANY CONFIDENTIAL 33
Overloads #
void set_value(DDS_DynamicData &, int, FundamentalTypes v); [18 overloads] 1
template <class T>
void set_value(DDS_DynamicData &, int, const std::vector<T> &
enable_if<is_fundamental<T>::value>::type * = 0);
2
template <class T>
void set_value(DDS_DynamicData &, int, const std::vector<T> &,
disable_if<is_fundamental<T>::value>::type * = 0);
3
void set_value(DDS_DynamicData &, int, const std::vector<bool> &); 4
template <class T>
void set_value(DDS_DynamicData &, int, const T &,
typename enable_if<is_enum<T>::value>::type * = 0);
5
template <class T>
void set_value(DDS_DynamicData &, int, const T &,
typename enable_if<is_class<T>::value>::type * = 0);
6
• Works with
– std::vector<USER-DEFINED-STRUCT>, std::vector<bool>, scalar enumerations, scalar user-defined structs, 18
fundamental types, std::vector of those
• Resolves incorrectly for std::vector<ENUMS>
– Resolves to overload #3 but that’s wrong because enums are not fundamental types
More overloads!
10/3/2013 © 2012 RTI • COMPANY CONFIDENTIAL 34
Overloads #
void set_value(DDS_DynamicData &, int, FundamentalTypes v); [18 overloads] 1
template <class T>
void set_value(DDS_DynamicData &, int, const std::vector<T> &
enable_if<is_fundamental<T>::value>::type * = 0);
2
template <class T>
void set_value(DDS_DynamicData &, int, const std::vector<T> &,
disable_if<is_fundamental<T>::value>::type * = 0);
3
template <class T>
void set_value(DDS_DynamicData &, int, const std::vector<T> &,
enable_if<is_enum<T>::value>::type * = 0);
4
void set_value(DDS_DynamicData &, int, const std::vector<bool> &); 5
template <class T>
void set_value(DDS_DynamicData &, int, const T &,
typename enable_if<is_enum<T>::value>::type * = 0);
6
template <class T>
void set_value(DDS_DynamicData &, int, const T &,
typename enable_if<is_class<T>::value>::type * = 0);
7
• std::vector<ENUMS> does not work due to ambiguity
• Overload #3 and #4 are both viable for std::vector<ENUMS>
More overloads!
10/3/2013 © 2012 RTI • COMPANY CONFIDENTIAL 35
Overloads #
void set_value(DDS_DynamicData &, int, FundamentalTypes v); [18 overloads] 1
template <class T>
void set_value(DDS_DynamicData &, int, const std::vector<T> &
enable_if<is_fundamental<T>::value>::type * = 0);
2
template <class T>
void set_value(DDS_DynamicData &, int, const std::vector<T> &,
enable_if<is_class<T>::value>::type * = 0);
3
template <class T>
void set_value(DDS_DynamicData &, int, const std::vector<T> &,
enable_if<is_enum<T>::value>::type * = 0);
4
void set_value(DDS_DynamicData &, int, const std::vector<bool> &); 5
template <class T>
void set_value(DDS_DynamicData &, int, const T &,
typename enable_if<is_enum<T>::value>::type * = 0);
6
template <class T>
void set_value(DDS_DynamicData &, int, const T &,
typename enable_if<is_class<T>::value>::type * = 0);
7
• Support built-in arrays
– Without array-specific overloads arrays map to the bool overload!
10/3/2013 © 2012 RTI • COMPANY CONFIDENTIAL 36
Overloads #
void set_value(DDS_DynamicData &, int, FundamentalTypes v); [18 overloads] 1
template <class T>
void set_value(DDS_DynamicData &, int, const std::vector<T> &
enable_if<is_fundamental<T>::value>::type * = 0);
2
template <class T>
void set_value(DDS_DynamicData &, int, const std::vector<T> &,
enable_if<is_class<T>::value>::type * = 0);
3
template <class T>
void set_value(DDS_DynamicData &, int, const std::vector<T> &,
enable_if<is_enum<T>::value>::type * = 0);
4
void set_value(DDS_DynamicData &, int, const std::vector<bool> &); 5
template <class T>
void set_value(DDS_DynamicData &, int, const T &,
typename enable_if<is_enum<T>::value>::type * = 0);
6
template <class T>
void set_value(DDS_DynamicData &, int, const T &,
typename enable_if<is_class<T>::value>::type * = 0);
7
template <class T, unsigned N>
void set_value(DDS_DynamicData &, int, const T(&arr)[N],
typename enable_if<is_fundamental<typename remove_all_extents<T>::type>::value>::type * = 0);
8
template <class T, unsigned N>
void set_value(DDS_DynamicData &, int, const T(&arr)[N],
typename enable_if<is_enum<typename remove_all_extents<T>::type>::value>::type * = 0);
9
template <class T, unsigned N>
void set_value(DDS_DynamicData &, int, const T(&arr)[N],
typename enable_if<is_class<typename remove_all_extents<T>::type>::value>::type * = 0);
10
set_value Overloads for built-in arrays
Overloads for std::vector<T[N]> ?
10/3/2013 © 2012 RTI • COMPANY CONFIDENTIAL 37
Overloads #
void set_value(DDS_DynamicData &, int, FundamentalTypes v); [18 overloads] 1
template <class T>
void set_value(DDS_DynamicData &, int, const std::vector<T> &
enable_if<is_fundamental<T>::value>::type * = 0);
2
template <class T>
void set_value(DDS_DynamicData &, int, const std::vector<T> &,
enable_if<is_class<T>::value>::type * = 0);
3
template <class T>
void set_value(DDS_DynamicData &, int, const std::vector<T> &,
enable_if<is_enum<T>::value>::type * = 0);
4
void set_value(DDS_DynamicData &, int, const std::vector<bool> &); 5
template <class T>
void set_value(DDS_DynamicData &, int, const T &,
typename enable_if<is_enum<T>::value>::type * = 0);
6
template <class T>
void set_value(DDS_DynamicData &, int, const T &,
typename enable_if<is_class<T>::value>::type * = 0);
7
template <class T, unsigned N>
void set_value(DDS_DynamicData &, int, const T(&arr)[N],
typename enable_if<is_fundamental<typename remove_all_extents<T>::type>::value>::type * = 0);
8
template <class T, unsigned N>
void set_value(DDS_DynamicData &, int, const T(&arr)[N],
typename enable_if<is_enum<typename remove_all_extents<T>::type>::value>::type * = 0);
9
template <class T, unsigned N>
void set_value(DDS_DynamicData &, int, const T(&arr)[N],
typename enable_if<is_class<typename remove_all_extents<T>::type>::value>::type * = 0);
10
Works for vector
of structs but not
for vector of
built-in arrays
Overloads for std::vector<T[N]>
10/4/2013 © 2012 RTI • COMPANY CONFIDENTIAL 38
Overloads #
void set_value(DDS_DynamicData &, int, FundamentalTypes v); [18 overloads] 1
template <class T>
void set_value(DDS_DynamicData &, int, const std::vector<T> &
enable_if<is_fundamental<T>::value>::type * = 0);
2
template <class T>
void set_value(DDS_DynamicData &, int, const std::vector<T> &,
disable_if<is_fundamental<T>::value ||
is_enum<T>::value>::type * = 0);
3
template <class T>
void set_value(DDS_DynamicData &, int, const std::vector<T> &,
enable_if<is_enum<T>::value>::type * = 0);
4
void set_value(DDS_DynamicData &, int, const std::vector<bool> &); 5
template <class T>
void set_value(DDS_DynamicData &, int, const T &,
typename enable_if<is_enum<T>::value>::type * = 0);
6
template <class T>
void set_value(DDS_DynamicData &, int, const T &,
typename enable_if<is_class<T>::value>::type * = 0);
7
template <class T, unsigned N>
void set_value(DDS_DynamicData &, int, const T(&arr)[N],
typename enable_if<is_fundamental<typename remove_all_extents<T>::type>::value>::type * = 0);
8
template <class T, unsigned N>
void set_value(DDS_DynamicData &, int, const T(&arr)[N],
typename enable_if<is_enum<typename remove_all_extents<T>::type>::value>::type * = 0);
9
template <class T, unsigned N>
void set_value(DDS_DynamicData &, int, const T(&arr)[N],
typename enable_if<is_class<typename remove_all_extents<T>::type>::value>::type * = 0);
10
Works for vector
of structs/built-in
arrays/nested
vectors
The Overloads are Mutually Recursive
10/4/2013 © 2012 RTI • COMPANY CONFIDENTIAL 39
Overloads #
void set_value(DDS_DynamicData &, int, FundamentalTypes v); [18 overloads] 1
template <class T>
void set_value(DDS_DynamicData &, int, const std::vector<T> &
enable_if<is_fundamental<T>::value>::type * = 0);
2
template <class T>
void set_value(DDS_DynamicData &, int, const std::vector<T> &,
disable_if<is_fundamental<T>::value ||
is_enum<T>::value>::type * = 0);
3
template <class T>
void set_value(DDS_DynamicData &, int, const std::vector<T> &,
enable_if<is_enum<T>::value>::type * = 0);
4
void set_value(DDS_DynamicData &, int, const std::vector<bool> &); 5
template <class T>
void set_value(DDS_DynamicData &, int, const T &,
typename enable_if<is_enum<T>::value>::type * = 0);
6
template <class T>
void set_value(DDS_DynamicData &, int, const T &,
typename enable_if<is_class<T>::value>::type * = 0);
7
template <class T, unsigned N>
void set_value(DDS_DynamicData &, int, const T(&arr)[N],
typename enable_if<is_fundamental<typename remove_all_extents<T>::type>::value>::type * = 0);
8
template <class T, unsigned N>
void set_value(DDS_DynamicData &, int, const T(&arr)[N],
typename enable_if<is_enum<typename remove_all_extents<T>::type>::value>::type * = 0);
9
template <class T, unsigned N>
void set_value(DDS_DynamicData &, int, const T(&arr)[N],
typename enable_if<is_class<typename remove_all_extents<T>::type>::value>::type * = 0);
10
May call
The Overloads are Mutually Recursive
10/4/2013 © 2012 RTI • COMPANY CONFIDENTIAL 40
Overloads #
void set_value(DDS_DynamicData &, int, FundamentalTypes v); [18 overloads] 1
template <class T>
void set_value(DDS_DynamicData &, int, const std::vector<T> &
enable_if<is_fundamental<T>::value>::type * = 0);
2
template <class T>
void set_value(DDS_DynamicData &, int, const std::vector<T> &,
disable_if<is_fundamental<T>::value ||
is_enum<T>::value>::type * = 0);
3
template <class T>
void set_value(DDS_DynamicData &, int, const std::vector<T> &,
enable_if<is_enum<T>::value>::type * = 0);
4
void set_value(DDS_DynamicData &, int, const std::vector<bool> &); 5
template <class T>
void set_value(DDS_DynamicData &, int, const T &,
typename enable_if<is_enum<T>::value>::type * = 0);
6
template <class T>
void set_value(DDS_DynamicData &, int, const T &,
typename enable_if<is_class<T>::value>::type * = 0);
7
template <class T, unsigned N>
void set_value(DDS_DynamicData &, int, const T(&arr)[N],
typename enable_if<is_fundamental<typename remove_all_extents<T>::type>::value>::type * = 0);
8
template <class T, unsigned N>
void set_value(DDS_DynamicData &, int, const T(&arr)[N],
typename enable_if<is_enum<typename remove_all_extents<T>::type>::value>::type * = 0);
9
template <class T, unsigned N>
void set_value(DDS_DynamicData &, int, const T(&arr)[N],
typename enable_if<is_class<typename remove_all_extents<T>::type>::value>::type * = 0);
10
Works for
Multidimensional
array or array of
complex types
Overloading for Other STL Containers!
10/3/2013 © 2012 RTI • COMPANY CONFIDENTIAL 41
Overloads #
void set_value(DDS_DynamicData &, int, FundamentalTypes v); [18 overloads] 1
template <class T>
void set_value(DDS_DynamicData &, int, const std::vector<T> &
enable_if<is_fundamental<T>::value>::type * = 0);
2
template <class T>
void set_value(DDS_DynamicData &, int, const std::vector<T> &,
enable_if<is_class<T>::value>::type * = 0);
3
template <class T>
void set_value(DDS_DynamicData &, int, const std::vector<T> &,
enable_if<is_enum<T>::value>::type * = 0);
4
void set_value(DDS_DynamicData &, int, const std::vector<bool> &); 5
template <class T>
void set_value(DDS_DynamicData &, int, const T &,
typename enable_if<is_enum<T>::value>::type * = 0);
6
template <class T>
void set_value(DDS_DynamicData &, int, const T &,
typename enable_if<is_class<T>::value>::type * = 0);
7
template <class T, unsigned N>
void set_value(DDS_DynamicData &, int, const T(&arr)[N],
typename enable_if<is_fundamental<typename remove_all_extents<T>::type>::value>::type * = 0);
8
template <class T, unsigned N>
void set_value(DDS_DynamicData &, int, const T(&arr)[N],
typename enable_if<is_enum<typename remove_all_extents<T>::type>::value>::type * = 0);
9
template <class T, unsigned N>
void set_value(DDS_DynamicData &, int, const T(&arr)[N],
typename enable_if<is_class<typename remove_all_extents<T>::type>::value>::type * = 0);
10
What about
standard list, set,
deque, unordered,
etc.?
Overloading for Other STL Containers!
10/3/2013 © 2012 RTI • COMPANY CONFIDENTIAL 42
template <class T>
struct is_container : std::false_type {};
template <class T, class Alloc>
struct is_container<std::vector<T, Alloc>> : std::true_type {};
template <class T, class Alloc>
struct is_container<std::list<T, Alloc>> : std::true_type {};
template <class T, class Comp, class Alloc>
struct is_container<std::set<T, Comp, Alloc>> : std::true_type {};
template <class Key, class Value, class Comp, class Alloc>
struct is_container<std::map<Key, Value, Comp, Alloc>> : std::true_type {};
// and few more ...
Overloading for Other STL Containers!
10/3/2013 © 2012 RTI • COMPANY CONFIDENTIAL 43
Overloads #
template <class T>
void set_value(DDS_DynamicData &, int, const std::vector<T> &
enable_if<is_fundamental<T>::value>::type * = 0);
1
template <class T>
void set_value(DDS_DynamicData &, int, const T &,
typename disable_if<!is_container<T>::value ||
std::is_fundamental<typename T::value_type>::value ||
std::is_enum<typename T::value_type>::value >::type * = 0)
2
template <class T>
void set_value(DDS_DynamicData &, int, const T &,
typename enable_if<is_container<T>::value &&
(is_fundamental<typename T::value_type>::value ||
std::is_enum<typename T::value_type>::value) &&
(is_vector<T>::value?
is_bool_or_enum<typename T::value_type>::value :
true)>::type * = 0);
3
void set_value(DDS_DynamicData &, int, const std::vector<bool> &); 4
template <class T>
void set_value(DDS_DynamicData &, int, const T &,
typename enable_if<!is_container<T>::value &&
is_class<T>::value>::type * = 0);
5
template <class T>
void set_value(DDS_DynamicData &, int, const T &,
typename enable_if<is_enum<T>::value>::type * = 0);
6
Overloads for fundamental scalar types and built-in arrays are not shown
T is a std container
of primitives but
not vector
<primitives except
(bool & enums)>
T is a std container of
complex type
Scalar complex type
(Foo)
Scalar Enums
vector<fundamental>
Using set_value overloads with Boost.Fusion
struct SetValue {
SetValue(DDS_DynamicData &dd);
// ...
template <typename T>
void operator()(T& t) const {
set_value(dd, ++id, t);
}
};
ShapeType shape(“BLUE”, x, y, 30);
DDS_DynamicData dd(get_typecode<ShapeType>());
boost::fusion::for_each(shape, SetValue(dd));
10/4/2013 © 2012 RTI • COMPANY CONFIDENTIAL 44
// shape.h
struct ShapeType
{
std::string color;
int x;
int y;
unsigned shapesize;
};
// shape.h
RTI_ADAPT_STRUCT(
ShapeType,
(std::string, color, KEY)
(int, x)
(int, y)
(unsigned, shapesize))
More Info
• OMG DDS
– http://portals.omg.org/dds/
• RTI Connext™ DDS
– http://www.rti.com/products/dds/
• Example Code
– https://cpptruths.googlecode.com/svn/trunk/cpp
0x/overloading-overdrive.cpp
10/4/2013 © 2012 RTI • COMPANY CONFIDENTIAL 45
Thank you!
© 2012 RTI • COMPANY CONFIDENTIAL

More Related Content

What's hot

Apache Spark Machine Learning
Apache Spark Machine LearningApache Spark Machine Learning
Apache Spark Machine Learning
Carol McDonald

Compilers Are Databases
Compilers Are DatabasesCompilers Are Databases
Compilers Are Databases
Martin Odersky

Core concepts of C++
Core concepts of C++  Core concepts of C++
Core concepts of C++
Martin Ayvazyan

Performance and predictability (1)
Performance and predictability (1)Performance and predictability (1)
Performance and predictability (1)
RichardWarburton

Map, flatmap and reduce are your new best friends (javaone, svcc)
Map, flatmap and reduce are your new best friends (javaone, svcc)Map, flatmap and reduce are your new best friends (javaone, svcc)
Map, flatmap and reduce are your new best friends (javaone, svcc)
Chris Richardson

Dplyr packages
Dplyr packagesDplyr packages
Dplyr packages
19mss020Karthick

Introduction to Machine Learning with Spark
Introduction to Machine Learning with SparkIntroduction to Machine Learning with Spark
Introduction to Machine Learning with Spark
datamantra

Ge aviation spark application experience porting analytics into py spark ml p...
Ge aviation spark application experience porting analytics into py spark ml p...Ge aviation spark application experience porting analytics into py spark ml p...
Ge aviation spark application experience porting analytics into py spark ml p...
Databricks

Spark schema for free with David Szakallas
Spark schema for free with David SzakallasSpark schema for free with David Szakallas
Spark schema for free with David Szakallas
Databricks

Deep Anomaly Detection from Research to Production Leveraging Spark and Tens...
 Deep Anomaly Detection from Research to Production Leveraging Spark and Tens... Deep Anomaly Detection from Research to Production Leveraging Spark and Tens...
Deep Anomaly Detection from Research to Production Leveraging Spark and Tens...
Databricks

Statistical Learning and Text Classification with NLTK and scikit-learn
Statistical Learning and Text Classification with NLTK and scikit-learnStatistical Learning and Text Classification with NLTK and scikit-learn
Statistical Learning and Text Classification with NLTK and scikit-learn
Olivier Grisel

An Introduction to Higher Order Functions in Spark SQL with Herman van Hovell
An Introduction to Higher Order Functions in Spark SQL with Herman van HovellAn Introduction to Higher Order Functions in Spark SQL with Herman van Hovell
An Introduction to Higher Order Functions in Spark SQL with Herman van Hovell
Databricks

Concurrency Constructs Overview
Concurrency Constructs OverviewConcurrency Constructs Overview
Concurrency Constructs Overview
stasimus

Scalable and Flexible Machine Learning With Scala @ LinkedIn
Scalable and Flexible Machine Learning With Scala @ LinkedInScalable and Flexible Machine Learning With Scala @ LinkedIn
Scalable and Flexible Machine Learning With Scala @ LinkedIn
Vitaly Gordon

MATLAB and HDF-EOS
MATLAB and HDF-EOSMATLAB and HDF-EOS
Groovy On Trading Desk (2010)
Groovy On Trading Desk (2010)Groovy On Trading Desk (2010)
Groovy On Trading Desk (2010)
Jonathan Felch

Survey of Spark for Data Pre-Processing and Analytics
Survey of Spark for Data Pre-Processing and AnalyticsSurvey of Spark for Data Pre-Processing and Analytics
Survey of Spark for Data Pre-Processing and Analytics
Yannick Pouliot

Toub parallelism tour_oct2009
Toub parallelism tour_oct2009Toub parallelism tour_oct2009
Toub parallelism tour_oct2009
nkaluva

Scalax
ScalaxScalax
VelocityGraph Introduction
VelocityGraph IntroductionVelocityGraph Introduction
VelocityGraph Introduction
Mats Persson


What's hot (20)

Apache Spark Machine Learning
Apache Spark Machine LearningApache Spark Machine Learning
Apache Spark Machine Learning

Compilers Are Databases
Compilers Are DatabasesCompilers Are Databases
Compilers Are Databases

Core concepts of C++
Core concepts of C++  Core concepts of C++
Core concepts of C++

Performance and predictability (1)
Performance and predictability (1)Performance and predictability (1)
Performance and predictability (1)

Map, flatmap and reduce are your new best friends (javaone, svcc)
Map, flatmap and reduce are your new best friends (javaone, svcc)Map, flatmap and reduce are your new best friends (javaone, svcc)
Map, flatmap and reduce are your new best friends (javaone, svcc)

Dplyr packages
Dplyr packagesDplyr packages
Dplyr packages

Introduction to Machine Learning with Spark
Introduction to Machine Learning with SparkIntroduction to Machine Learning with Spark
Introduction to Machine Learning with Spark

Ge aviation spark application experience porting analytics into py spark ml p...
Ge aviation spark application experience porting analytics into py spark ml p...Ge aviation spark application experience porting analytics into py spark ml p...
Ge aviation spark application experience porting analytics into py spark ml p...

Spark schema for free with David Szakallas
Spark schema for free with David SzakallasSpark schema for free with David Szakallas
Spark schema for free with David Szakallas

Deep Anomaly Detection from Research to Production Leveraging Spark and Tens...
 Deep Anomaly Detection from Research to Production Leveraging Spark and Tens... Deep Anomaly Detection from Research to Production Leveraging Spark and Tens...
Deep Anomaly Detection from Research to Production Leveraging Spark and Tens...

Statistical Learning and Text Classification with NLTK and scikit-learn
Statistical Learning and Text Classification with NLTK and scikit-learnStatistical Learning and Text Classification with NLTK and scikit-learn
Statistical Learning and Text Classification with NLTK and scikit-learn

An Introduction to Higher Order Functions in Spark SQL with Herman van Hovell
An Introduction to Higher Order Functions in Spark SQL with Herman van HovellAn Introduction to Higher Order Functions in Spark SQL with Herman van Hovell
An Introduction to Higher Order Functions in Spark SQL with Herman van Hovell

Concurrency Constructs Overview
Concurrency Constructs OverviewConcurrency Constructs Overview
Concurrency Constructs Overview

Scalable and Flexible Machine Learning With Scala @ LinkedIn
Scalable and Flexible Machine Learning With Scala @ LinkedInScalable and Flexible Machine Learning With Scala @ LinkedIn
Scalable and Flexible Machine Learning With Scala @ LinkedIn

MATLAB and HDF-EOS
MATLAB and HDF-EOSMATLAB and HDF-EOS
MATLAB and HDF-EOS

Groovy On Trading Desk (2010)
Groovy On Trading Desk (2010)Groovy On Trading Desk (2010)
Groovy On Trading Desk (2010)

Survey of Spark for Data Pre-Processing and Analytics
Survey of Spark for Data Pre-Processing and AnalyticsSurvey of Spark for Data Pre-Processing and Analytics
Survey of Spark for Data Pre-Processing and Analytics

Toub parallelism tour_oct2009
Toub parallelism tour_oct2009Toub parallelism tour_oct2009
Toub parallelism tour_oct2009

Scalax
ScalaxScalax
Scalax

VelocityGraph Introduction
VelocityGraph IntroductionVelocityGraph Introduction
VelocityGraph Introduction


Viewers also liked

C++11 Idioms @ Silicon Valley Code Camp 2012
C++11 Idioms @ Silicon Valley Code Camp 2012 C++11 Idioms @ Silicon Valley Code Camp 2012
C++11 Idioms @ Silicon Valley Code Camp 2012
Sumant Tambe

Fun with Lambdas: C++14 Style (part 2)
Fun with Lambdas: C++14 Style (part 2)Fun with Lambdas: C++14 Style (part 2)
Fun with Lambdas: C++14 Style (part 2)
Sumant Tambe

Reactive Stream Processing in Industrial IoT using DDS and Rx
Reactive Stream Processing in Industrial IoT using DDS and RxReactive Stream Processing in Industrial IoT using DDS and Rx
Reactive Stream Processing in Industrial IoT using DDS and Rx
Sumant Tambe

C++ Generators and Property-based Testing
C++ Generators and Property-based TestingC++ Generators and Property-based Testing
C++ Generators and Property-based Testing
Sumant Tambe

O caml2014 leroy-slides
O caml2014 leroy-slidesO caml2014 leroy-slides
O caml2014 leroy-slides
OCaml

Getting Started with DDS in C++, Java and Scala
Getting Started with DDS in C++, Java and ScalaGetting Started with DDS in C++, Java and Scala
Getting Started with DDS in C++, Java and Scala
Angelo Corsaro

The Present and Future of DDS
The Present and Future of DDSThe Present and Future of DDS
The Present and Future of DDS
Angelo Corsaro

Deep C
Deep CDeep C
Deep C
Olve Maudal


Viewers also liked (8)

C++11 Idioms @ Silicon Valley Code Camp 2012
C++11 Idioms @ Silicon Valley Code Camp 2012 C++11 Idioms @ Silicon Valley Code Camp 2012
C++11 Idioms @ Silicon Valley Code Camp 2012

Fun with Lambdas: C++14 Style (part 2)
Fun with Lambdas: C++14 Style (part 2)Fun with Lambdas: C++14 Style (part 2)
Fun with Lambdas: C++14 Style (part 2)

Reactive Stream Processing in Industrial IoT using DDS and Rx
Reactive Stream Processing in Industrial IoT using DDS and RxReactive Stream Processing in Industrial IoT using DDS and Rx
Reactive Stream Processing in Industrial IoT using DDS and Rx

C++ Generators and Property-based Testing
C++ Generators and Property-based TestingC++ Generators and Property-based Testing
C++ Generators and Property-based Testing

O caml2014 leroy-slides
O caml2014 leroy-slidesO caml2014 leroy-slides
O caml2014 leroy-slides

Getting Started with DDS in C++, Java and Scala
Getting Started with DDS in C++, Java and ScalaGetting Started with DDS in C++, Java and Scala
Getting Started with DDS in C++, Java and Scala

The Present and Future of DDS
The Present and Future of DDSThe Present and Future of DDS
The Present and Future of DDS

Deep C
Deep CDeep C
Deep C


Similar to Overloading in Overdrive: A Generic Data-Centric Messaging Library for DDS

DDS ISO C++ PSM
DDS ISO C++ PSMDDS ISO C++ PSM
DDS ISO C++ PSM
Angelo Corsaro

Extensible and Dynamic Topic Types For DDS (out of date)
Extensible and Dynamic Topic Types For DDS (out of date)Extensible and Dynamic Topic Types For DDS (out of date)
Extensible and Dynamic Topic Types For DDS (out of date)
Rick Warren

mm-ADT: A Multi-Model Abstract Data Type
mm-ADT: A Multi-Model Abstract Data Typemm-ADT: A Multi-Model Abstract Data Type
mm-ADT: A Multi-Model Abstract Data Type
Marko Rodriguez

DDS Advanced Tutorial - OMG June 2013 Berlin Meeting
DDS Advanced Tutorial - OMG June 2013 Berlin MeetingDDS Advanced Tutorial - OMG June 2013 Berlin Meeting
DDS Advanced Tutorial - OMG June 2013 Berlin Meeting
Jaime Martin Losa

7 DDS Innovations to Improve your Next Distributed System
7 DDS Innovations to Improve your Next Distributed System7 DDS Innovations to Improve your Next Distributed System
7 DDS Innovations to Improve your Next Distributed System
Real-Time Innovations (RTI)

DDS Programming with IDL to C++11 tutorial
DDS Programming with IDL to C++11 tutorialDDS Programming with IDL to C++11 tutorial
DDS Programming with IDL to C++11 tutorial
Remedy IT

Distributed Systems: How to connect your real-time applications
Distributed Systems: How to connect your real-time applicationsDistributed Systems: How to connect your real-time applications
Distributed Systems: How to connect your real-time applications
Jaime Martin Losa

DFDL and Apache Daffodil(tm) Overview from Owl Cyber Defense
DFDL and Apache Daffodil(tm) Overview from Owl Cyber DefenseDFDL and Apache Daffodil(tm) Overview from Owl Cyber Defense
DFDL and Apache Daffodil(tm) Overview from Owl Cyber Defense
Mike Beckerle

SolidSource Portfolio
SolidSource PortfolioSolidSource Portfolio
SolidSource Portfolio
Lucian Voinea

DDS-PSM-Cxx and simd-cxx
DDS-PSM-Cxx and simd-cxxDDS-PSM-Cxx and simd-cxx
DDS-PSM-Cxx and simd-cxx
Angelo Corsaro

Standardizing the Data Distribution Service (DDS) API for Modern C++
Standardizing the Data Distribution Service (DDS) API for Modern C++Standardizing the Data Distribution Service (DDS) API for Modern C++
Standardizing the Data Distribution Service (DDS) API for Modern C++
Sumant Tambe

Overview of the DDS-XRCE specification
Overview of the DDS-XRCE specificationOverview of the DDS-XRCE specification
Overview of the DDS-XRCE specification
Gerardo Pardo-Castellote

Introducing the New MagicDraw Plug-In for RTI Connext DDS: Industrial IoT Mee...
Introducing the New MagicDraw Plug-In for RTI Connext DDS: Industrial IoT Mee...Introducing the New MagicDraw Plug-In for RTI Connext DDS: Industrial IoT Mee...
Introducing the New MagicDraw Plug-In for RTI Connext DDS: Industrial IoT Mee...
IncQuery Labs

IoT Protocols Integration with Vortex Gateway
IoT Protocols Integration with Vortex GatewayIoT Protocols Integration with Vortex Gateway
IoT Protocols Integration with Vortex Gateway
Angelo Corsaro

Resume_Dimitri_Dey_LTE_Android_Gmail
Resume_Dimitri_Dey_LTE_Android_GmailResume_Dimitri_Dey_LTE_Android_Gmail
Resume_Dimitri_Dey_LTE_Android_Gmail
Dimitri Dey

Vital AI MetaQL: Queries Across NoSQL, SQL, Sparql, and Spark
Vital AI MetaQL: Queries Across NoSQL, SQL, Sparql, and SparkVital AI MetaQL: Queries Across NoSQL, SQL, Sparql, and Spark
Vital AI MetaQL: Queries Across NoSQL, SQL, Sparql, and Spark
Vital.AI

Scam 08
Scam 08Scam 08
Scam 08
ClarkTony

Sw Software Design
Sw Software DesignSw Software Design
Sw Software Design
jonathan077070

Distributed Algorithms with DDS
Distributed Algorithms with DDSDistributed Algorithms with DDS
Distributed Algorithms with DDS
Angelo Corsaro

Reactive Data Centric Architectures with DDS
Reactive Data Centric Architectures with DDSReactive Data Centric Architectures with DDS
Reactive Data Centric Architectures with DDS
Angelo Corsaro


Similar to Overloading in Overdrive: A Generic Data-Centric Messaging Library for DDS (20)

DDS ISO C++ PSM
DDS ISO C++ PSMDDS ISO C++ PSM
DDS ISO C++ PSM

Extensible and Dynamic Topic Types For DDS (out of date)
Extensible and Dynamic Topic Types For DDS (out of date)Extensible and Dynamic Topic Types For DDS (out of date)
Extensible and Dynamic Topic Types For DDS (out of date)

mm-ADT: A Multi-Model Abstract Data Type
mm-ADT: A Multi-Model Abstract Data Typemm-ADT: A Multi-Model Abstract Data Type
mm-ADT: A Multi-Model Abstract Data Type

DDS Advanced Tutorial - OMG June 2013 Berlin Meeting
DDS Advanced Tutorial - OMG June 2013 Berlin MeetingDDS Advanced Tutorial - OMG June 2013 Berlin Meeting
DDS Advanced Tutorial - OMG June 2013 Berlin Meeting

7 DDS Innovations to Improve your Next Distributed System
7 DDS Innovations to Improve your Next Distributed System7 DDS Innovations to Improve your Next Distributed System
7 DDS Innovations to Improve your Next Distributed System

DDS Programming with IDL to C++11 tutorial
DDS Programming with IDL to C++11 tutorialDDS Programming with IDL to C++11 tutorial
DDS Programming with IDL to C++11 tutorial

Distributed Systems: How to connect your real-time applications
Distributed Systems: How to connect your real-time applicationsDistributed Systems: How to connect your real-time applications
Distributed Systems: How to connect your real-time applications

DFDL and Apache Daffodil(tm) Overview from Owl Cyber Defense
DFDL and Apache Daffodil(tm) Overview from Owl Cyber DefenseDFDL and Apache Daffodil(tm) Overview from Owl Cyber Defense
DFDL and Apache Daffodil(tm) Overview from Owl Cyber Defense

SolidSource Portfolio
SolidSource PortfolioSolidSource Portfolio
SolidSource Portfolio

DDS-PSM-Cxx and simd-cxx
DDS-PSM-Cxx and simd-cxxDDS-PSM-Cxx and simd-cxx
DDS-PSM-Cxx and simd-cxx

Standardizing the Data Distribution Service (DDS) API for Modern C++
Standardizing the Data Distribution Service (DDS) API for Modern C++Standardizing the Data Distribution Service (DDS) API for Modern C++
Standardizing the Data Distribution Service (DDS) API for Modern C++

Overview of the DDS-XRCE specification
Overview of the DDS-XRCE specificationOverview of the DDS-XRCE specification
Overview of the DDS-XRCE specification

Introducing the New MagicDraw Plug-In for RTI Connext DDS: Industrial IoT Mee...
Introducing the New MagicDraw Plug-In for RTI Connext DDS: Industrial IoT Mee...Introducing the New MagicDraw Plug-In for RTI Connext DDS: Industrial IoT Mee...
Introducing the New MagicDraw Plug-In for RTI Connext DDS: Industrial IoT Mee...

IoT Protocols Integration with Vortex Gateway
IoT Protocols Integration with Vortex GatewayIoT Protocols Integration with Vortex Gateway
IoT Protocols Integration with Vortex Gateway

Resume_Dimitri_Dey_LTE_Android_Gmail
Resume_Dimitri_Dey_LTE_Android_GmailResume_Dimitri_Dey_LTE_Android_Gmail
Resume_Dimitri_Dey_LTE_Android_Gmail

Vital AI MetaQL: Queries Across NoSQL, SQL, Sparql, and Spark
Vital AI MetaQL: Queries Across NoSQL, SQL, Sparql, and SparkVital AI MetaQL: Queries Across NoSQL, SQL, Sparql, and Spark
Vital AI MetaQL: Queries Across NoSQL, SQL, Sparql, and Spark

Scam 08
Scam 08Scam 08
Scam 08

Sw Software Design
Sw Software DesignSw Software Design
Sw Software Design

Distributed Algorithms with DDS
Distributed Algorithms with DDSDistributed Algorithms with DDS
Distributed Algorithms with DDS

Reactive Data Centric Architectures with DDS
Reactive Data Centric Architectures with DDSReactive Data Centric Architectures with DDS
Reactive Data Centric Architectures with DDS


More from Sumant Tambe

Kafka tiered-storage-meetup-2022-final-presented
Kafka tiered-storage-meetup-2022-final-presentedKafka tiered-storage-meetup-2022-final-presented
Kafka tiered-storage-meetup-2022-final-presented
Sumant Tambe

Tuning kafka pipelines
Tuning kafka pipelinesTuning kafka pipelines
Tuning kafka pipelines
Sumant Tambe

New Tools for a More Functional C++
New Tools for a More Functional C++New Tools for a More Functional C++
New Tools for a More Functional C++
Sumant Tambe

C++ Coroutines
C++ CoroutinesC++ Coroutines
C++ Coroutines
Sumant Tambe

RPC over DDS Beta 1
RPC over DDS Beta 1RPC over DDS Beta 1
RPC over DDS Beta 1
Sumant Tambe

Remote Log Analytics Using DDS, ELK, and RxJS
Remote Log Analytics Using DDS, ELK, and RxJSRemote Log Analytics Using DDS, ELK, and RxJS
Remote Log Analytics Using DDS, ELK, and RxJS
Sumant Tambe

Reactive Stream Processing for Data-centric Publish/Subscribe
Reactive Stream Processing for Data-centric Publish/SubscribeReactive Stream Processing for Data-centric Publish/Subscribe
Reactive Stream Processing for Data-centric Publish/Subscribe
Sumant Tambe

Fun with Lambdas: C++14 Style (part 1)
Fun with Lambdas: C++14 Style (part 1)Fun with Lambdas: C++14 Style (part 1)
Fun with Lambdas: C++14 Style (part 1)
Sumant Tambe

An Extensible Architecture for Avionics Sensor Health Assessment Using DDS
An Extensible Architecture for Avionics Sensor Health Assessment Using DDSAn Extensible Architecture for Avionics Sensor Health Assessment Using DDS
An Extensible Architecture for Avionics Sensor Health Assessment Using DDS
Sumant Tambe

Communication Patterns Using Data-Centric Publish/Subscribe
Communication Patterns Using Data-Centric Publish/SubscribeCommunication Patterns Using Data-Centric Publish/Subscribe
Communication Patterns Using Data-Centric Publish/Subscribe
Sumant Tambe

Retargeting Embedded Software Stack for Many-Core Systems
Retargeting Embedded Software Stack for Many-Core SystemsRetargeting Embedded Software Stack for Many-Core Systems
Retargeting Embedded Software Stack for Many-Core Systems
Sumant Tambe

Ph.D. Dissertation
Ph.D. DissertationPh.D. Dissertation
Ph.D. Dissertation
Sumant Tambe

Native XML processing in C++ (BoostCon'11)
Native XML processing in C++ (BoostCon'11)Native XML processing in C++ (BoostCon'11)
Native XML processing in C++ (BoostCon'11)
Sumant Tambe


More from Sumant Tambe (13)

Kafka tiered-storage-meetup-2022-final-presented
Kafka tiered-storage-meetup-2022-final-presentedKafka tiered-storage-meetup-2022-final-presented
Kafka tiered-storage-meetup-2022-final-presented

Tuning kafka pipelines
Tuning kafka pipelinesTuning kafka pipelines
Tuning kafka pipelines

New Tools for a More Functional C++
New Tools for a More Functional C++New Tools for a More Functional C++
New Tools for a More Functional C++

C++ Coroutines
C++ CoroutinesC++ Coroutines
C++ Coroutines

RPC over DDS Beta 1
RPC over DDS Beta 1RPC over DDS Beta 1
RPC over DDS Beta 1

Remote Log Analytics Using DDS, ELK, and RxJS
Remote Log Analytics Using DDS, ELK, and RxJSRemote Log Analytics Using DDS, ELK, and RxJS
Remote Log Analytics Using DDS, ELK, and RxJS

Reactive Stream Processing for Data-centric Publish/Subscribe
Reactive Stream Processing for Data-centric Publish/SubscribeReactive Stream Processing for Data-centric Publish/Subscribe
Reactive Stream Processing for Data-centric Publish/Subscribe

Fun with Lambdas: C++14 Style (part 1)
Fun with Lambdas: C++14 Style (part 1)Fun with Lambdas: C++14 Style (part 1)
Fun with Lambdas: C++14 Style (part 1)

An Extensible Architecture for Avionics Sensor Health Assessment Using DDS
An Extensible Architecture for Avionics Sensor Health Assessment Using DDSAn Extensible Architecture for Avionics Sensor Health Assessment Using DDS
An Extensible Architecture for Avionics Sensor Health Assessment Using DDS

Communication Patterns Using Data-Centric Publish/Subscribe
Communication Patterns Using Data-Centric Publish/SubscribeCommunication Patterns Using Data-Centric Publish/Subscribe
Communication Patterns Using Data-Centric Publish/Subscribe

Retargeting Embedded Software Stack for Many-Core Systems
Retargeting Embedded Software Stack for Many-Core SystemsRetargeting Embedded Software Stack for Many-Core Systems
Retargeting Embedded Software Stack for Many-Core Systems

Ph.D. Dissertation
Ph.D. DissertationPh.D. Dissertation
Ph.D. Dissertation

Native XML processing in C++ (BoostCon'11)
Native XML processing in C++ (BoostCon'11)Native XML processing in C++ (BoostCon'11)
Native XML processing in C++ (BoostCon'11)


Recently uploaded

Public CyberSecurity Awareness Presentation 2024.pptx
Public CyberSecurity Awareness Presentation 2024.pptxPublic CyberSecurity Awareness Presentation 2024.pptx
Public CyberSecurity Awareness Presentation 2024.pptx
marufrahmanstratejm

Y-Combinator seed pitch deck template PP
Y-Combinator seed pitch deck template PPY-Combinator seed pitch deck template PP
Y-Combinator seed pitch deck template PP
c5vrf27qcz

Nordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptxNordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptx
MichaelKnudsen27

Biomedical Knowledge Graphs for Data Scientists and Bioinformaticians
Biomedical Knowledge Graphs for Data Scientists and BioinformaticiansBiomedical Knowledge Graphs for Data Scientists and Bioinformaticians
Biomedical Knowledge Graphs for Data Scientists and Bioinformaticians
Neo4j

“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
Edge AI and Vision Alliance

Taking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdfTaking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdf
ssuserfac0301

5th LF Energy Power Grid Model Meet-up Slides
5th LF Energy Power Grid Model Meet-up Slides5th LF Energy Power Grid Model Meet-up Slides
5th LF Energy Power Grid Model Meet-up Slides
DanBrown980551

Driving Business Innovation: Latest Generative AI Advancements & Success Story
Driving Business Innovation: Latest Generative AI Advancements & Success StoryDriving Business Innovation: Latest Generative AI Advancements & Success Story
Driving Business Innovation: Latest Generative AI Advancements & Success Story
Safe Software

Apps Break Data
Apps Break DataApps Break Data
Apps Break Data
Ivo Velitchkov

Leveraging the Graph for Clinical Trials and Standards
Leveraging the Graph for Clinical Trials and StandardsLeveraging the Graph for Clinical Trials and Standards
Leveraging the Graph for Clinical Trials and Standards
Neo4j

Programming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup SlidesProgramming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup Slides
Zilliz

Digital Marketing Trends in 2024 | Guide for Staying Ahead
Digital Marketing Trends in 2024 | Guide for Staying AheadDigital Marketing Trends in 2024 | Guide for Staying Ahead
Digital Marketing Trends in 2024 | Guide for Staying Ahead
Wask

Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-EfficiencyFreshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
ScyllaDB

What is an RPA CoE? Session 1 – CoE Vision
What is an RPA CoE?  Session 1 – CoE VisionWhat is an RPA CoE?  Session 1 – CoE Vision
What is an RPA CoE? Session 1 – CoE Vision
DianaGray10

JavaLand 2024: Application Development Green Masterplan
JavaLand 2024: Application Development Green MasterplanJavaLand 2024: Application Development Green Masterplan
JavaLand 2024: Application Development Green Masterplan
Miro Wengner

GraphRAG for LifeSciences Hands-On with the Clinical Knowledge Graph
GraphRAG for LifeSciences Hands-On with the Clinical Knowledge GraphGraphRAG for LifeSciences Hands-On with the Clinical Knowledge Graph
GraphRAG for LifeSciences Hands-On with the Clinical Knowledge Graph
Neo4j

The Microsoft 365 Migration Tutorial For Beginner.pptx
The Microsoft 365 Migration Tutorial For Beginner.pptxThe Microsoft 365 Migration Tutorial For Beginner.pptx
The Microsoft 365 Migration Tutorial For Beginner.pptx
operationspcvita

GraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracyGraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracy
Tomaz Bratanic

Skybuffer SAM4U tool for SAP license adoption
Skybuffer SAM4U tool for SAP license adoptionSkybuffer SAM4U tool for SAP license adoption
Skybuffer SAM4U tool for SAP license adoption
Tatiana Kojar

TrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy SurveyTrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy Survey
TrustArc


Recently uploaded (20)

Public CyberSecurity Awareness Presentation 2024.pptx
Public CyberSecurity Awareness Presentation 2024.pptxPublic CyberSecurity Awareness Presentation 2024.pptx
Public CyberSecurity Awareness Presentation 2024.pptx

Y-Combinator seed pitch deck template PP
Y-Combinator seed pitch deck template PPY-Combinator seed pitch deck template PP
Y-Combinator seed pitch deck template PP

Nordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptxNordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptx

Biomedical Knowledge Graphs for Data Scientists and Bioinformaticians
Biomedical Knowledge Graphs for Data Scientists and BioinformaticiansBiomedical Knowledge Graphs for Data Scientists and Bioinformaticians
Biomedical Knowledge Graphs for Data Scientists and Bioinformaticians

“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...

Taking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdfTaking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdf

5th LF Energy Power Grid Model Meet-up Slides
5th LF Energy Power Grid Model Meet-up Slides5th LF Energy Power Grid Model Meet-up Slides
5th LF Energy Power Grid Model Meet-up Slides

Driving Business Innovation: Latest Generative AI Advancements & Success Story
Driving Business Innovation: Latest Generative AI Advancements & Success StoryDriving Business Innovation: Latest Generative AI Advancements & Success Story
Driving Business Innovation: Latest Generative AI Advancements & Success Story

Apps Break Data
Apps Break DataApps Break Data
Apps Break Data

Leveraging the Graph for Clinical Trials and Standards
Leveraging the Graph for Clinical Trials and StandardsLeveraging the Graph for Clinical Trials and Standards
Leveraging the Graph for Clinical Trials and Standards

Programming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup SlidesProgramming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup Slides

Digital Marketing Trends in 2024 | Guide for Staying Ahead
Digital Marketing Trends in 2024 | Guide for Staying AheadDigital Marketing Trends in 2024 | Guide for Staying Ahead
Digital Marketing Trends in 2024 | Guide for Staying Ahead

Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-EfficiencyFreshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency

What is an RPA CoE? Session 1 – CoE Vision
What is an RPA CoE?  Session 1 – CoE VisionWhat is an RPA CoE?  Session 1 – CoE Vision
What is an RPA CoE? Session 1 – CoE Vision

JavaLand 2024: Application Development Green Masterplan
JavaLand 2024: Application Development Green MasterplanJavaLand 2024: Application Development Green Masterplan
JavaLand 2024: Application Development Green Masterplan

GraphRAG for LifeSciences Hands-On with the Clinical Knowledge Graph
GraphRAG for LifeSciences Hands-On with the Clinical Knowledge GraphGraphRAG for LifeSciences Hands-On with the Clinical Knowledge Graph
GraphRAG for LifeSciences Hands-On with the Clinical Knowledge Graph

The Microsoft 365 Migration Tutorial For Beginner.pptx
The Microsoft 365 Migration Tutorial For Beginner.pptxThe Microsoft 365 Migration Tutorial For Beginner.pptx
The Microsoft 365 Migration Tutorial For Beginner.pptx

GraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracyGraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracy

Skybuffer SAM4U tool for SAP license adoption
Skybuffer SAM4U tool for SAP license adoptionSkybuffer SAM4U tool for SAP license adoption
Skybuffer SAM4U tool for SAP license adoption

TrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy SurveyTrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy Survey


Overloading in Overdrive: A Generic Data-Centric Messaging Library for DDS

  • 1. Sumant Tambe, Ph.D. Senior Software Research Engineer and Microsoft MVP Real-Time Innovations, Inc. www.rti.com SILICON VALLEY
  • 2. 10/2/2013 © 2012 RTI 2 Data-Centric Communication Model in DDS
  • 3. Data Distribution Service 10/2/2013 © 2012 RTI 3 • Data Distribution Service – Middleware knows the schema – Messages represent update to data-objects – Data-Objects identified by a key – Middleware maintains state of each object – Objects are cached. Applications can read at leisure – Smart QoS (Reliability, Ownership, History (per key), Deadline, and 18 more!) Streaming Data Sensors Events Real-Time Applications Enterprise Applications Actuators
  • 4. Data-Centric  Typed All the Way! 10/2/2013 © 2013 RTI 4 Standard Mapping Java C/C++ C# Type Descriptions in DDS-XTypes (IDL, XSD, Java etc.) Code Generator • Types description similar to an OO language – Primitives, strings, arrays and sequences, maps, structures, enumerations, aliases (typedefs), unions, modules, etc. • Type versioning and assignability • Meta-Data – Unique ID for each member – Annotations (like in Java) – Key/non-key – Optional/required members – Sharable/non-sharable
  • 5. DDS X-Types Standard • Type System: DDS data objects have a type and obey the rules described herein • Language Binding for Object Manipulation – Generate code when type-descriptions are available at compile-time – Otherwise, create/inspect objects of any type at run-time • Language Binding for Type Manipulation – add/remove/query data members types (think Java reflection) • Data Representation: Objects can be serialized for file storage and network transmission • Type Representation: Types can be serialized for file storage and network transmission (using TypeObject) 5 Type System Type Representation Language Binding Data Representation
  • 6. Example 6 Type Representation Language Binding Data Representation IDL: Foo.idl struct Foo { string name; @key long ssn; @optional string phone; }; IDL to C++ Language Mapping: struct Foo { std::string name; int ssn; std::string * phone; // ... }; IDL to CDR: 00000006 68656C6C 6F000000 00000002
  • 7. Two Faces of DDS 10/2/2013 © 2013 RTI 7 • Application Integration – Many applications, many programming languages, many contractors necessitate a common format for sharing types – IDL serves well – Related technologies: CORBA Interfaces, schema definitions (DB), XML document structure (XSD) • Messaging – Typically, a single (distributed) application – Likely developed using a single programming language – Overall system under single administration – Data already stored in application data structures – Just send it from point A to B – Related technologies: ActiveMQ, JMS – IDL not so much desirable
  • 8. IDL may be a Distraction (for messaging apps) • “… But I already have my headers…” – Maintaining redundant IDL type descriptions is a burden – Integrating generated code in app build system could be burdensome – Must write glue code • Or sometimes it is an overhead – Copy data back and forth between app data types and IDL data types • Application level data structures may not be captured accurately – Think XSD (e.g., sequence of choices) 10/2/2013 © 2013 RTI 8
  • 9. Solution: A Pure C++11 Library-based Approach Example: 10/2/2013 © 2012 RTI 9 // shape.h struct ShapeType { std::string color; int x; int y; unsigned shapesize; }; // shape.h RTI_ADAPT_STRUCT( ShapeType, (std::string, color, KEY) (int, x) (int, y) (unsigned, shapesize)) DDSDomainParticipant * participant = ... GenericDataWriter<ShapeType> shapes_writer(participant, "Square"); for(;;) { ShapeType shape {“BLUE”, x, y, 30}; shapes_writer.write(shape); }
  • 10. Solution: A Pure C++11 Library-based Approach Example: 10/4/2013 © 2012 RTI 10 // shape.h struct ShapeType { std::string color; int x; int y; unsigned shapesize; }; // shape.h RTI_ADAPT_STRUCT( ShapeType, (std::string, color, KEY) (int, x) (int, y) (unsigned, shapesize)) @Extensibility(EXTENSIBLE) struct ShapeType { @key string color; long x; long y; unsigned long shapesize; }; Instead IDL A substitute for lack of reflection in C++
  • 11. Read/Take Shapes (note C++11) 10/2/2013 © 2013 RTI 11 class MyShapesListener : public GenericDataReaderListener<ShapeType> { public: void on_data_available(GenericDataReader<ShapeType> & dr) override { std::vector<ShapeType> samples = dr.take(); for (auto const &shape : samples) { std::cout << “color = " << shape.color << “n” << "x = " << shape.x << “n” << "y = " << shape.y << “n” << "shapesize = " << shape.shapesize << “n” << std::endl; } } }; DDSDomainParticipant * participant = ... MyShapesListener listener; std::string topic = “Square”; GenericDataReader<ShapeType> shapes_reader(participant, &listener, topic); for(;;) sleep(1);
  • 12. Slightly Complex Example 10/2/2013 © 2012 RTI • COMPANY CONFIDENTIAL 12 struct VetoTDCHit { int hit_index; int pmt_index; // not sent float pmt_theta; float pmt_phi; }; typedef std::list<VetoTDCHit> VetoTDCHits; struct VetoTruth { int sim_event; VetoTDCHits hits; }; enum STATUS_FLAGS { NORMAL=0, ID_MISMATCH=1, BAD_TIMESTAMP=2 }; struct EventInfo { VetoTruth truth; int event_id; STATUS_FLAGS status; }; RTI_ADAPT_STRUCT( // same header VetoTDCHit, (int, hit_index) (float, pmt_theta) (float, pmt_phi)) RTI_ADAPT_STRUCT( VetoTruth, (int, sim_event) (VetoTDCHits, hits)) RTI_ADAPT_ENUM( STATUS_FLAGS, (NORMAL, 0) (ID_MISMATCH, 1) (BAD_TIMESTAMP, 2)) RTI_ADAPT_STRUCT( EventInfo, (VetoTruth, truth) (int, event_id, KEY) (TATUS_FLAGS, status))
  • 13. Equivalent Type at Run-time 10/4/2013 © 2012 RTI • COMPANY CONFIDENTIAL 13 @Extensibility(EXTENSIBLE_EXTENSIBILITY) enum STATUS_FLAGS { NORMAL = 0, ID_MISMATCH = 1, BAD_TIMESTAMP = 2, }; @Extensibility(EXTENSIBLE_EXTENSIBILITY) struct VetoTDCHit { long hit_index; float pmt_theta; float pmt_phi; }; @Extensibility(EXTENSIBLE_EXTENSIBILITY) struct VetoTruth { long sim_event; sequence<VetoTDCHit> hits; }; @Extensibility(EXTENSIBLE_EXTENSIBILITY) struct EventInfo { VetoTruth truth; @key long event_id; STATUS_FLAGS status; }; Type representation is binary at runtime but shown here using the IDL syntax for readability
  • 14. So, How does it work? • It uses: – C++11 – Overloading in overdrive! • SFINAE: Substitution Failure Is Not An Error – Generic/Generative programming (templates) – Template meta-programming – Some (macro) preprocessor tricks • For code generation – C++ Standard Library • tuple, pair, vector, list, set, map, array, type_traits etc. – Boost • Fusion, Optional, Variant, and Preprocessor – TypeCode API – Dynamic Data API 10/2/2013 © 2012 RTI • COMPANY CONFIDENTIAL 14
  • 15. What is Supported? (C++ point of view) • Built-in types, arrays, enumerations • Nested structs/classes (with public members) • STL – string, vector, list, set, map, array, tuple, pair, iterators, etc. • User-defined/custom containers – my_special_container_with_iterators – On-the-fly container adapters (views e.g., boost.Iterators) • C++11 compilers – Visual Studio 2013 Preview – gcc 4.9 – Clang 3.0, 3.2 • In future… – Raw Pointers, smart pointers – Classes with public get/set methods? – Inheritance? 10/2/2013 © 2012 RTI • COMPANY CONFIDENTIAL 15
  • 16. What is Supported? (IDL point of view) • Basic types/enumerations/strings • Arrays • Sequences of strings/basic types/enumerations • Bounded sequences/strings • Structures • Unions (including cases with defaults, multiple discriminators, and enumerations) • Sparse Types • Sequences of sequences (of sequences… and so on…) • Sequences of structures • Multidimensional arrays of strings, structures, sequences,… • Nested structures • Nested unions • But, no bit-fields and inheritance, so far… 10/2/2013 © 2012 RTI • COMPANY CONFIDENTIAL 16
  • 17. Architecture 10/2/2013 © 2012 RTI • COMPANY CONFIDENTIAL 17 Application GenericDataReader<T> GenericDataReaderListener<T> GenericDataWriter<T> Generic Functions (MakeTypecode, FillDD, ExtractDD, etc.) Type-driven access (overloading, template meta-programming, etc.) RTI_ADAPT Macros TypeCode, Dynamic Data API, DynamicDataTypeSupport Dynamic Data Type Plugin callbacks and CDR API DDS Core
  • 18. Extremely Simplified DynamicData API class DDS_TypeCode {}; class DDS_DynamicData { public: explicit DDS_DynamicData(const DDS_TypeCode &) {} void set_short (int id, int16_t) {} void set_long (int id, int32_t) {} void set_longlong (int id, uint64_t) {} void set_octet (int id, uint8_t) {} void set_ushort (int id, uint16_t) {} void set_ulong (int id, uint32_t) {} void set_ulonglong (int id, uint64_t) {} void set_float (int id, float) {} void set_double (int id, double) {} void set_longdouble(int id, long double) {} void set_string (int id, const char *) {} void set_complex (int id, const DDS_DynamicData &) {} }; 10/2/2013 © 2012 RTI • COMPANY CONFIDENTIAL 18
  • 19. 10/2/2013 © 2012 RTI • COMPANY CONFIDENTIAL 19 Overloading for Fundamental Types void set_value(DDS_DynamicData & d, int id, bool v) { d.set_bool(id, v); } void set_value(DDS_DynamicData & d, int id, char v) { d.set_char(id, v); } void set_value(DDS_DynamicData & d, int id, int16_t v) { d.set_short(id, v); } void set_value(DDS_DynamicData & d, int id, int32_t v) { d.set_long(id, v); } void set_value(DDS_DynamicData & d, int id, float v) { d.set_float(id, v); } void set_value(DDS_DynamicData & d, int id, double v) { d.set_double(id, v); }
  • 20. 10/2/2013 © 2012 RTI • COMPANY CONFIDENTIAL 20 Overloading set_value for std::string void set_value(DDS_DynamicData & d, int id, const std::string & str) { d.set_string(id, str.c_str()); }
  • 21. Sequences (simplified DDS DynamicData API, again) class DDS_DynamicData { public: void set_boolean_seq (int id, const DDS_BooleanSeq &) {} void set_long_seq (int id, const DDS_LongSeq &) {} void set_float_seq (int id, const DDS_FloatSeq &) {} void set_double_seq (int id, const DDS_DoubleSeq &) {} void set_longdouble_seq (int id, const DDS_LongDoubleSeq &) {} }; 10/2/2013 © 2012 RTI • COMPANY CONFIDENTIAL 21 • Sequences are wrappers over C-style arrays • Flexible: May own memory or loan/unloan from the user – RAII is used when memory is owned
  • 22. 10/2/2013 © 2012 RTI • COMPANY CONFIDENTIAL 22 Overloading for std::vector of primitives void set_value(DDS_DynamicData & d, int id, const std::vector<float> & v) { DDS_FloatSeq seq; seq.loan_contiguous(&v[0], v.size(), v.capacity()); d.set_float_seq(id, seq); seq.unloan(); } // and many many more similar looking functions for // int8_t, int16_t, int32_t, int64_t, char, double, ...
  • 23. 10/2/2013 © 2012 RTI • COMPANY CONFIDENTIAL 23 set_value Template for std::vector of primitives template <class T> void set_value(DDS_DynamicData & d, int id, const std::vector<T> & v) { typename DynamicDataSeqTraits<T>::type seq; seq.loan_contiguous(&v[0], v.size(), v.capacity()); typename DynamicDataSeqTraits<T>::SetSeqFuncPtr fn = DynamicDataSeqTraits<T>::set_seq_func_ptr; d.*fn(id, seq); seq.unloan(); } • One template for all vectors of primitives • Traits to get the function pointer • Traits written using macros! • Isn’t that just overloading and static method dispatch? . . . Yes it is! Static method dispatch
  • 24. 10/2/2013 © 2012 RTI • COMPANY CONFIDENTIAL 24 But set_value[T=bool] is outright wrong! template <class T> void set_value(DDS_DynamicData & d, int id, const std::vector<T> & v) { typename DynamicDataSeqTraits<T>::type seq; seq.loan_contiguous(&v[0], v.size(), v.capacity()); typename DynamicDataSeqTraits<T>::SetSeqFuncPtr fn = DynamicDataSeqTraits<T>::set_seq_func_ptr; d.*fn(id, seq); seq.unloan(); } std::vector<bool> layout incompatible • std::vector<bool> is often a space-efficient data structure • Each element occupies a single bit instead of a single byte • Does not follow many other std::vector invariants
  • 25. 10/2/2013 © 2012 RTI • COMPANY CONFIDENTIAL 25 Add std::vector<bool> overload of set_value template <class T> void set_value(DDS_DynamicData & d, int id, const std::vector<T> & v) { typename DynamicDataSeqTraits<T>::type seq; seq.loan_contiguous(&v[0], v.size(), v.size()); typename DynamicDataSeqTraits<T>::SetSeqFuncPtr fn = DynamicDataSeqTraits<T>::set_seq_func_ptr; d.*fn(id, seq); seq.unloan(); } void set_value(DDS_DynamicData & d, int id, const std::vector<bool> & v) { DDS_BooleanSeq seq; seq.ensure_length(v.size(), v.size()); std::copy(begin(v), end(v), &seq[0]); d.set_boolean_seq(id, seq); }
  • 26. Overload for Classic Enumerations • C++03 enumerations implicitly convert to an integer – User C++11’s type-safe enums if you don’t want that • The following overload works ... for now! • set_value(DDS_DynamicData &, int id, int32_t) 10/2/2013 © 2012 RTI • COMPANY CONFIDENTIAL 26 enums go here
  • 27. Overload for user-defined structs: “Foo” 10/4/2013 © 2012 RTI • COMPANY CONFIDENTIAL 27 template <class T> void set_value(DDS_DynamicData & d, int id, const T & t) { DDS_DynamicData inner; // Use boost.fusion to iterate over the public members of T // and use set_value recursively to populate the inner object. // Effectively equivalent to set_value(inner, 0, at<0>(t)); set_value(inner, 1, at<1>(t)); set_value(inner, 2, at<2>(t)); // and so on... d.set_complex(id, inner); }
  • 28. Enumerations are user-defined types too! • Addition of the template for Foo breaks enumerations • Solution: – Function Overloading Based on Arbitrary Properties of Types – Powered by SFINAE! • Substitution Failure Is Not An Error 10/2/2013 © 2012 RTI • COMPANY CONFIDENTIAL 28 template <class T> void set_value(DDS_DynamicData & d, int id, const T & t); All enums and user- defined structs resolve to this overload (that’s not what we want)
  • 29. A SFINAE Primer • Instantiating a function template is a two-phase process – Deduce template arguments – Substitute the deduced type in all occurrences of the template parameter • If the substitution process leads to an invalid type, argument deduction fails • The function is removed from the overload resolution set 10/2/2013 © 2012 RTI • COMPANY CONFIDENTIAL 29 int negate(int i) { return -i; } template <class F> typename F::result_type negate(const F& f) { return -f(); } negate(1);
  • 30. Function Enablers and Disablers • enable_if<true> keeps the template instantiation in the overload set • enable_if<false> removes the template instantiation from the overload set 10/2/2013 © 2012 RTI • COMPANY CONFIDENTIAL 30 template <bool B, class T = void> struct enable_if { typedef T type; }; template <class T> struct enable_if<false, T> {}; template <class T> typename enable_if<is_arithmetic<T>::value, T>::type foo(T t); template <class T> T bar (T t, typename enable_if<is_arithmetic<T>::value>::type* = 0);
  • 31. Using enable_if with type_traits • enable_if combined with type_traits is very powerful • Many type_traits are implemented using compiler intrinsics – Think of it as compile-time reflection in library form – E.g., is_union, is_pod, is_enum, any many many more – C++11 type_traits library is portable 10/2/2013 © 2012 RTI • COMPANY CONFIDENTIAL 31 template <class T> void set_value(DDS_DynamicData & d, int id, const T & t, typename enable_if<std::is_enum<T>::value>::type * = 0); template <class T> void set_value(DDS_DynamicData & d, int id, const T & t, typename enable_if<std::is_class<T>::value>::type * = 0);
  • 32. Recap set_value overloads so far 10/3/2013 © 2012 RTI • COMPANY CONFIDENTIAL 32 Overloads # void set_value(DDS_DynamicData &, int, FundamentalTypes v); [18 overloads] 1 template <class T> void set_value(DDS_DynamicData &, int, const std::vector<T> &);[T=fundamental] 2 void set_value(DDS_DynamicData &, int, const std::vector<bool> &); 3 template <class T> void set_value(DDS_DynamicData &, int, const T &, typename enable_if<std::is_enum<T>::value>::type * = 0); 4 template <class T> void set_value(DDS_DynamicData &, int, const T &, typename enable_if<std::is_class<T>::value>::type * = 0); 5 • Works with – 18 fundamental types, std::vector of those, std::vector<bool>, scalar enumerations, and scalar user-defined structs. • No match for – std::vector<USER-DEFINED-STRUCTS>
  • 33. More overloads 10/4/2013 © 2012 RTI • COMPANY CONFIDENTIAL 33 Overloads # void set_value(DDS_DynamicData &, int, FundamentalTypes v); [18 overloads] 1 template <class T> void set_value(DDS_DynamicData &, int, const std::vector<T> & enable_if<is_fundamental<T>::value>::type * = 0); 2 template <class T> void set_value(DDS_DynamicData &, int, const std::vector<T> &, disable_if<is_fundamental<T>::value>::type * = 0); 3 void set_value(DDS_DynamicData &, int, const std::vector<bool> &); 4 template <class T> void set_value(DDS_DynamicData &, int, const T &, typename enable_if<is_enum<T>::value>::type * = 0); 5 template <class T> void set_value(DDS_DynamicData &, int, const T &, typename enable_if<is_class<T>::value>::type * = 0); 6 • Works with – std::vector<USER-DEFINED-STRUCT>, std::vector<bool>, scalar enumerations, scalar user-defined structs, 18 fundamental types, std::vector of those • Resolves incorrectly for std::vector<ENUMS> – Resolves to overload #3 but that’s wrong because enums are not fundamental types
  • 34. More overloads! 10/3/2013 © 2012 RTI • COMPANY CONFIDENTIAL 34 Overloads # void set_value(DDS_DynamicData &, int, FundamentalTypes v); [18 overloads] 1 template <class T> void set_value(DDS_DynamicData &, int, const std::vector<T> & enable_if<is_fundamental<T>::value>::type * = 0); 2 template <class T> void set_value(DDS_DynamicData &, int, const std::vector<T> &, disable_if<is_fundamental<T>::value>::type * = 0); 3 template <class T> void set_value(DDS_DynamicData &, int, const std::vector<T> &, enable_if<is_enum<T>::value>::type * = 0); 4 void set_value(DDS_DynamicData &, int, const std::vector<bool> &); 5 template <class T> void set_value(DDS_DynamicData &, int, const T &, typename enable_if<is_enum<T>::value>::type * = 0); 6 template <class T> void set_value(DDS_DynamicData &, int, const T &, typename enable_if<is_class<T>::value>::type * = 0); 7 • std::vector<ENUMS> does not work due to ambiguity • Overload #3 and #4 are both viable for std::vector<ENUMS>
  • 35. More overloads! 10/3/2013 © 2012 RTI • COMPANY CONFIDENTIAL 35 Overloads # void set_value(DDS_DynamicData &, int, FundamentalTypes v); [18 overloads] 1 template <class T> void set_value(DDS_DynamicData &, int, const std::vector<T> & enable_if<is_fundamental<T>::value>::type * = 0); 2 template <class T> void set_value(DDS_DynamicData &, int, const std::vector<T> &, enable_if<is_class<T>::value>::type * = 0); 3 template <class T> void set_value(DDS_DynamicData &, int, const std::vector<T> &, enable_if<is_enum<T>::value>::type * = 0); 4 void set_value(DDS_DynamicData &, int, const std::vector<bool> &); 5 template <class T> void set_value(DDS_DynamicData &, int, const T &, typename enable_if<is_enum<T>::value>::type * = 0); 6 template <class T> void set_value(DDS_DynamicData &, int, const T &, typename enable_if<is_class<T>::value>::type * = 0); 7 • Support built-in arrays – Without array-specific overloads arrays map to the bool overload!
  • 36. 10/3/2013 © 2012 RTI • COMPANY CONFIDENTIAL 36 Overloads # void set_value(DDS_DynamicData &, int, FundamentalTypes v); [18 overloads] 1 template <class T> void set_value(DDS_DynamicData &, int, const std::vector<T> & enable_if<is_fundamental<T>::value>::type * = 0); 2 template <class T> void set_value(DDS_DynamicData &, int, const std::vector<T> &, enable_if<is_class<T>::value>::type * = 0); 3 template <class T> void set_value(DDS_DynamicData &, int, const std::vector<T> &, enable_if<is_enum<T>::value>::type * = 0); 4 void set_value(DDS_DynamicData &, int, const std::vector<bool> &); 5 template <class T> void set_value(DDS_DynamicData &, int, const T &, typename enable_if<is_enum<T>::value>::type * = 0); 6 template <class T> void set_value(DDS_DynamicData &, int, const T &, typename enable_if<is_class<T>::value>::type * = 0); 7 template <class T, unsigned N> void set_value(DDS_DynamicData &, int, const T(&arr)[N], typename enable_if<is_fundamental<typename remove_all_extents<T>::type>::value>::type * = 0); 8 template <class T, unsigned N> void set_value(DDS_DynamicData &, int, const T(&arr)[N], typename enable_if<is_enum<typename remove_all_extents<T>::type>::value>::type * = 0); 9 template <class T, unsigned N> void set_value(DDS_DynamicData &, int, const T(&arr)[N], typename enable_if<is_class<typename remove_all_extents<T>::type>::value>::type * = 0); 10 set_value Overloads for built-in arrays
  • 37. Overloads for std::vector<T[N]> ? 10/3/2013 © 2012 RTI • COMPANY CONFIDENTIAL 37 Overloads # void set_value(DDS_DynamicData &, int, FundamentalTypes v); [18 overloads] 1 template <class T> void set_value(DDS_DynamicData &, int, const std::vector<T> & enable_if<is_fundamental<T>::value>::type * = 0); 2 template <class T> void set_value(DDS_DynamicData &, int, const std::vector<T> &, enable_if<is_class<T>::value>::type * = 0); 3 template <class T> void set_value(DDS_DynamicData &, int, const std::vector<T> &, enable_if<is_enum<T>::value>::type * = 0); 4 void set_value(DDS_DynamicData &, int, const std::vector<bool> &); 5 template <class T> void set_value(DDS_DynamicData &, int, const T &, typename enable_if<is_enum<T>::value>::type * = 0); 6 template <class T> void set_value(DDS_DynamicData &, int, const T &, typename enable_if<is_class<T>::value>::type * = 0); 7 template <class T, unsigned N> void set_value(DDS_DynamicData &, int, const T(&arr)[N], typename enable_if<is_fundamental<typename remove_all_extents<T>::type>::value>::type * = 0); 8 template <class T, unsigned N> void set_value(DDS_DynamicData &, int, const T(&arr)[N], typename enable_if<is_enum<typename remove_all_extents<T>::type>::value>::type * = 0); 9 template <class T, unsigned N> void set_value(DDS_DynamicData &, int, const T(&arr)[N], typename enable_if<is_class<typename remove_all_extents<T>::type>::value>::type * = 0); 10 Works for vector of structs but not for vector of built-in arrays
  • 38. Overloads for std::vector<T[N]> 10/4/2013 © 2012 RTI • COMPANY CONFIDENTIAL 38 Overloads # void set_value(DDS_DynamicData &, int, FundamentalTypes v); [18 overloads] 1 template <class T> void set_value(DDS_DynamicData &, int, const std::vector<T> & enable_if<is_fundamental<T>::value>::type * = 0); 2 template <class T> void set_value(DDS_DynamicData &, int, const std::vector<T> &, disable_if<is_fundamental<T>::value || is_enum<T>::value>::type * = 0); 3 template <class T> void set_value(DDS_DynamicData &, int, const std::vector<T> &, enable_if<is_enum<T>::value>::type * = 0); 4 void set_value(DDS_DynamicData &, int, const std::vector<bool> &); 5 template <class T> void set_value(DDS_DynamicData &, int, const T &, typename enable_if<is_enum<T>::value>::type * = 0); 6 template <class T> void set_value(DDS_DynamicData &, int, const T &, typename enable_if<is_class<T>::value>::type * = 0); 7 template <class T, unsigned N> void set_value(DDS_DynamicData &, int, const T(&arr)[N], typename enable_if<is_fundamental<typename remove_all_extents<T>::type>::value>::type * = 0); 8 template <class T, unsigned N> void set_value(DDS_DynamicData &, int, const T(&arr)[N], typename enable_if<is_enum<typename remove_all_extents<T>::type>::value>::type * = 0); 9 template <class T, unsigned N> void set_value(DDS_DynamicData &, int, const T(&arr)[N], typename enable_if<is_class<typename remove_all_extents<T>::type>::value>::type * = 0); 10 Works for vector of structs/built-in arrays/nested vectors
  • 39. The Overloads are Mutually Recursive 10/4/2013 © 2012 RTI • COMPANY CONFIDENTIAL 39 Overloads # void set_value(DDS_DynamicData &, int, FundamentalTypes v); [18 overloads] 1 template <class T> void set_value(DDS_DynamicData &, int, const std::vector<T> & enable_if<is_fundamental<T>::value>::type * = 0); 2 template <class T> void set_value(DDS_DynamicData &, int, const std::vector<T> &, disable_if<is_fundamental<T>::value || is_enum<T>::value>::type * = 0); 3 template <class T> void set_value(DDS_DynamicData &, int, const std::vector<T> &, enable_if<is_enum<T>::value>::type * = 0); 4 void set_value(DDS_DynamicData &, int, const std::vector<bool> &); 5 template <class T> void set_value(DDS_DynamicData &, int, const T &, typename enable_if<is_enum<T>::value>::type * = 0); 6 template <class T> void set_value(DDS_DynamicData &, int, const T &, typename enable_if<is_class<T>::value>::type * = 0); 7 template <class T, unsigned N> void set_value(DDS_DynamicData &, int, const T(&arr)[N], typename enable_if<is_fundamental<typename remove_all_extents<T>::type>::value>::type * = 0); 8 template <class T, unsigned N> void set_value(DDS_DynamicData &, int, const T(&arr)[N], typename enable_if<is_enum<typename remove_all_extents<T>::type>::value>::type * = 0); 9 template <class T, unsigned N> void set_value(DDS_DynamicData &, int, const T(&arr)[N], typename enable_if<is_class<typename remove_all_extents<T>::type>::value>::type * = 0); 10 May call
  • 40. The Overloads are Mutually Recursive 10/4/2013 © 2012 RTI • COMPANY CONFIDENTIAL 40 Overloads # void set_value(DDS_DynamicData &, int, FundamentalTypes v); [18 overloads] 1 template <class T> void set_value(DDS_DynamicData &, int, const std::vector<T> & enable_if<is_fundamental<T>::value>::type * = 0); 2 template <class T> void set_value(DDS_DynamicData &, int, const std::vector<T> &, disable_if<is_fundamental<T>::value || is_enum<T>::value>::type * = 0); 3 template <class T> void set_value(DDS_DynamicData &, int, const std::vector<T> &, enable_if<is_enum<T>::value>::type * = 0); 4 void set_value(DDS_DynamicData &, int, const std::vector<bool> &); 5 template <class T> void set_value(DDS_DynamicData &, int, const T &, typename enable_if<is_enum<T>::value>::type * = 0); 6 template <class T> void set_value(DDS_DynamicData &, int, const T &, typename enable_if<is_class<T>::value>::type * = 0); 7 template <class T, unsigned N> void set_value(DDS_DynamicData &, int, const T(&arr)[N], typename enable_if<is_fundamental<typename remove_all_extents<T>::type>::value>::type * = 0); 8 template <class T, unsigned N> void set_value(DDS_DynamicData &, int, const T(&arr)[N], typename enable_if<is_enum<typename remove_all_extents<T>::type>::value>::type * = 0); 9 template <class T, unsigned N> void set_value(DDS_DynamicData &, int, const T(&arr)[N], typename enable_if<is_class<typename remove_all_extents<T>::type>::value>::type * = 0); 10 Works for Multidimensional array or array of complex types
  • 41. Overloading for Other STL Containers! 10/3/2013 © 2012 RTI • COMPANY CONFIDENTIAL 41 Overloads # void set_value(DDS_DynamicData &, int, FundamentalTypes v); [18 overloads] 1 template <class T> void set_value(DDS_DynamicData &, int, const std::vector<T> & enable_if<is_fundamental<T>::value>::type * = 0); 2 template <class T> void set_value(DDS_DynamicData &, int, const std::vector<T> &, enable_if<is_class<T>::value>::type * = 0); 3 template <class T> void set_value(DDS_DynamicData &, int, const std::vector<T> &, enable_if<is_enum<T>::value>::type * = 0); 4 void set_value(DDS_DynamicData &, int, const std::vector<bool> &); 5 template <class T> void set_value(DDS_DynamicData &, int, const T &, typename enable_if<is_enum<T>::value>::type * = 0); 6 template <class T> void set_value(DDS_DynamicData &, int, const T &, typename enable_if<is_class<T>::value>::type * = 0); 7 template <class T, unsigned N> void set_value(DDS_DynamicData &, int, const T(&arr)[N], typename enable_if<is_fundamental<typename remove_all_extents<T>::type>::value>::type * = 0); 8 template <class T, unsigned N> void set_value(DDS_DynamicData &, int, const T(&arr)[N], typename enable_if<is_enum<typename remove_all_extents<T>::type>::value>::type * = 0); 9 template <class T, unsigned N> void set_value(DDS_DynamicData &, int, const T(&arr)[N], typename enable_if<is_class<typename remove_all_extents<T>::type>::value>::type * = 0); 10 What about standard list, set, deque, unordered, etc.?
  • 42. Overloading for Other STL Containers! 10/3/2013 © 2012 RTI • COMPANY CONFIDENTIAL 42 template <class T> struct is_container : std::false_type {}; template <class T, class Alloc> struct is_container<std::vector<T, Alloc>> : std::true_type {}; template <class T, class Alloc> struct is_container<std::list<T, Alloc>> : std::true_type {}; template <class T, class Comp, class Alloc> struct is_container<std::set<T, Comp, Alloc>> : std::true_type {}; template <class Key, class Value, class Comp, class Alloc> struct is_container<std::map<Key, Value, Comp, Alloc>> : std::true_type {}; // and few more ...
  • 43. Overloading for Other STL Containers! 10/3/2013 © 2012 RTI • COMPANY CONFIDENTIAL 43 Overloads # template <class T> void set_value(DDS_DynamicData &, int, const std::vector<T> & enable_if<is_fundamental<T>::value>::type * = 0); 1 template <class T> void set_value(DDS_DynamicData &, int, const T &, typename disable_if<!is_container<T>::value || std::is_fundamental<typename T::value_type>::value || std::is_enum<typename T::value_type>::value >::type * = 0) 2 template <class T> void set_value(DDS_DynamicData &, int, const T &, typename enable_if<is_container<T>::value && (is_fundamental<typename T::value_type>::value || std::is_enum<typename T::value_type>::value) && (is_vector<T>::value? is_bool_or_enum<typename T::value_type>::value : true)>::type * = 0); 3 void set_value(DDS_DynamicData &, int, const std::vector<bool> &); 4 template <class T> void set_value(DDS_DynamicData &, int, const T &, typename enable_if<!is_container<T>::value && is_class<T>::value>::type * = 0); 5 template <class T> void set_value(DDS_DynamicData &, int, const T &, typename enable_if<is_enum<T>::value>::type * = 0); 6 Overloads for fundamental scalar types and built-in arrays are not shown T is a std container of primitives but not vector <primitives except (bool & enums)> T is a std container of complex type Scalar complex type (Foo) Scalar Enums vector<fundamental>
  • 44. Using set_value overloads with Boost.Fusion struct SetValue { SetValue(DDS_DynamicData &dd); // ... template <typename T> void operator()(T& t) const { set_value(dd, ++id, t); } }; ShapeType shape(“BLUE”, x, y, 30); DDS_DynamicData dd(get_typecode<ShapeType>()); boost::fusion::for_each(shape, SetValue(dd)); 10/4/2013 © 2012 RTI • COMPANY CONFIDENTIAL 44 // shape.h struct ShapeType { std::string color; int x; int y; unsigned shapesize; }; // shape.h RTI_ADAPT_STRUCT( ShapeType, (std::string, color, KEY) (int, x) (int, y) (unsigned, shapesize))
  • 45. More Info • OMG DDS – http://portals.omg.org/dds/ • RTI Connext™ DDS – http://www.rti.com/products/dds/ • Example Code – https://cpptruths.googlecode.com/svn/trunk/cpp 0x/overloading-overdrive.cpp 10/4/2013 © 2012 RTI • COMPANY CONFIDENTIAL 45
  • 46. Thank you! © 2012 RTI • COMPANY CONFIDENTIAL
