1. Mammography
Presented by Akari Kyaw
Fourth Year
B. Med Tech (MIT)
24.6.2020

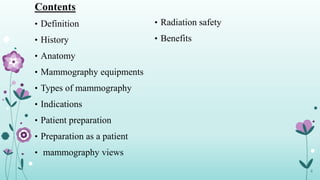

2. Contents
• Definition
• History
• Anatomy
• Mammography equipments
• Types of mammography
• Indications
• Patient preparation
• Preparation as a patient
• mammography views
• Radiation safety
• Benefits
2

3. Mammography
 X ray imaging of breast organ
 Also called mastography
 Radiographic procedure that uses special equipment to produce images
of high contrast and high resolution for the diagnosis of breast leisions
 Using low energy X rays(usually around 30 kVp)
 goal of mammography is the early detection of breast cancer, typically
through detection of characteristic masses or microcalcifications.
3

4. History of mammography
 1913 (Dr. Albert Solomon)
First attempt at mammography
 1950 (Robert Egan)
First utilized low kVp and high mAs techniques
 1960
Development of xero-mammography
 1990
Screen-film mammography was accepted
4

5. 5

6. 6

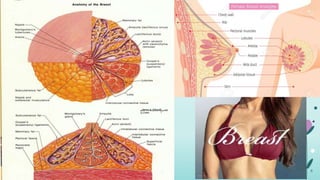

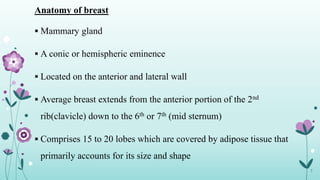

7. Anatomy of breast
 Mammary gland
 A conic or hemispheric eminence
 Located on the anterior and lateral wall
 Average breast extends from the anterior portion of the 2nd
rib(clavicle) down to the 6th or 7th (mid sternum)
 Comprises 15 to 20 lobes which are covered by adipose tissue that
primarily accounts for its size and shape
7

8. 8

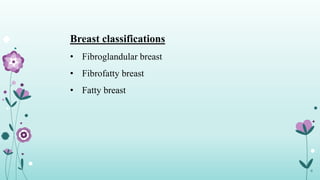

9. Breast classifications
• Fibroglandular breast
• Fibrofatty breast
• Fatty breast
9

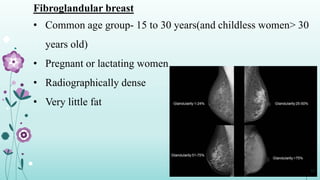

10. Fibroglandular breast
• Common age group- 15 to 30 years(and childless women> 30
years old)
• Pregnant or lactating women
• Radiographically dense
• Very little fat
10

11. Fibrofatty breast
• 30 to 50 years
• Young women with three or more pregnancies
• Average radiographic density
• 50% fat and 50% fibroglandular
11

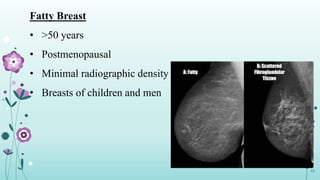

12. Fatty Breast
• >50 years
• Postmenopausal
• Minimal radiographic density
• Breasts of children and men
12

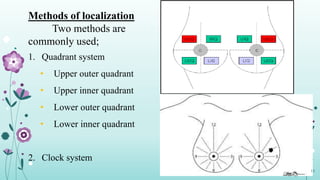

13. Methods of localization
Two methods are
commonly used;
1. Quadrant system
• Upper outer quadrant
• Upper inner quadrant
• Lower outer quadrant
• Lower inner quadrant
2. Clock system
13

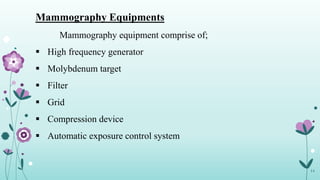

14. Mammography Equipments
Mammography equipment comprise of;
 High frequency generator
 Molybdenum target
 Filter
 Grid
 Compression device
 Automatic exposure control system
14

15. High frequency generator
 Works on single phase
 Provides rectified smoothed voltage supply to the tube
 Small in size with good reproducibility
 Providing up to 600 mAs
 Employ small focal spots, low kVp technique, low
grid ratio and special screen films
15

16. Target and filter
Most of the mammography X ray tubes are
designed with;
• Mo target with Mo Filter
• Mo target with Rh Filter
• Rh target with Rh Filter
16

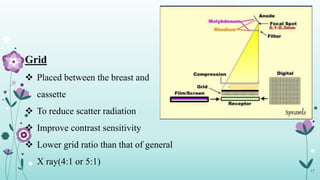

17. Grid
 Placed between the breast and
cassette
 To reduce scatter radiation
 Improve contrast sensitivity
 Lower grid ratio than that of general
X ray(4:1 or 5:1)
17

18. Compression device
 Made of a plastic that allows transmission of low energy X rays
 Should have a straight edge that allows the compression to
grasp the breast tissue close to the chest wall
 Applied at 25 to 45 pounds of pressure
 Used to decrease the thickness of the breast tissue
 To bring the breast structures as close to IR
 To decrease dose needed and scattered radiation
 To decrease motion and geometric unsharpness
 To increase contrast 18

19. Automatic Exposure control (AEC)
 Employs phototimers to measure the X ray intensity and
quality
 Kept closer to the image receptor
 To minimize the object to image distance(OID)
 Improving spatial resolution
There are two types of AEC available,
 Ionization chamber type
 Solid state diode type
19

20. 20

21. 21

22. 22

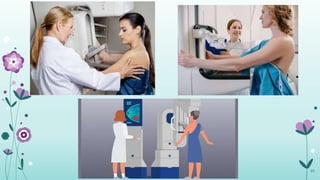

23. 23

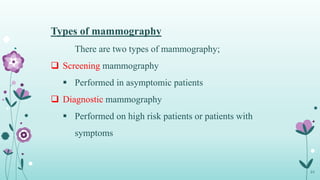

24. Types of mammography
There are two types of mammography;
 Screening mammography
 Performed in asymptomic patients
 Diagnostic mammography
 Performed on high risk patients or patients with
symptoms
24

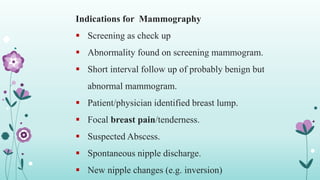

25. Indications for Mammography
 Screening as check up
 Abnormality found on screening mammogram.
 Short interval follow up of probably benign but
abnormal mammogram.
 Patient/physician identified breast lump.
 Focal breast pain/tenderness.
 Suspected Abscess.
 Spontaneous nipple discharge.
 New nipple changes (e.g. inversion)
25

26. Patient preparation
 Put on a gown
 Remove any jewelry, talcum powder, or antiperspirant
 Drape the upper torso with a gown or sheet except during
actual positioning and radiographic exposure
 Explain the procedure and documents any relevant
patient history as per departmental protocol
26

27. • Patient history include the following
 Number of pregnancies
 Family history of cancer including breast cancer
 Medications (eg; hormone therapy) currently taken
 Previous breast surgery
 Previous mammograms when and where performed
 Reason for current visit such as screening mammogram,
lumps, pain, or discharge
27

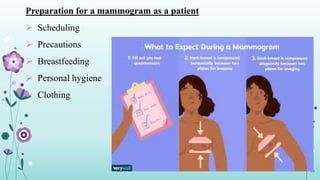

28. Preparation for a mammogram as a patient
 Scheduling
 Precautions
 Breastfeeding
 Personal hygiene
 Clothing
28

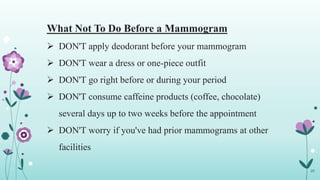

29. What Not To Do Before a Mammogram
 DON'T apply deodorant before your mammogram
 DON'T wear a dress or one-piece outfit
 DON'T go right before or during your period
 DON'T consume caffeine products (coffee, chocolate)
several days up to two weeks before the appointment
 DON'T worry if you've had prior mammograms at other
facilities
29

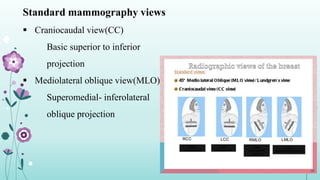

30. Standard mammography views
 Craniocaudal view(CC)
Basic superior to inferior
projection
 Mediolateral oblique view(MLO)
Superomedial- inferolateral
oblique projection
30

31. 31

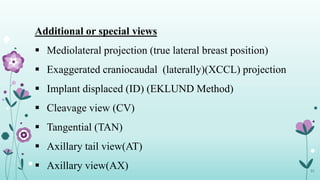

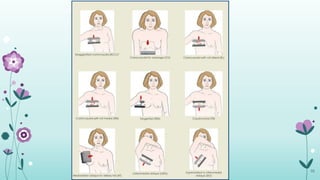

Additional or special views
 Mediolateral projection (true lateral breast position)
 Exaggerated craniocaudal (laterally)(XCCL) projection
 Implant displaced (ID) (EKLUND Method)
 Cleavage view (CV)
 Tangential (TAN)
 Axillary tail view(AT)
 Axillary view(AX)

32. 32

33. 33

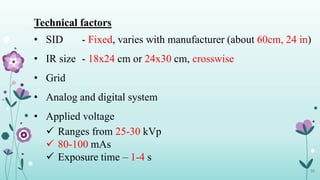

Technical factors
• SID - Fixed, varies with manufacturer (about 60cm, 24 in)
• IR size - 18x24 cm or 24x30 cm, crosswise
• Grid
• Analog and digital system
• Applied voltage
 Ranges from 25-30 kVp
 80-100 mAs
 Exposure time – 1-4 s

34. 34
Radiation safety
We must obey cardinal rules;
• Time
• distance
• shielding

35. 35

36. 36

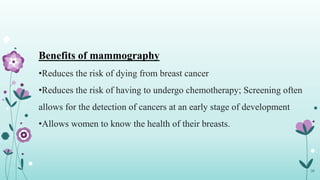

Benefits of mammography
•Reduces the risk of dying from breast cancer
•Reduces the risk of having to undergo chemotherapy; Screening often
allows for the detection of cancers at an early stage of development
•Allows women to know the health of their breasts.

37. 37

38. 38

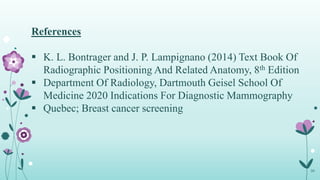

References
 K. L. Bontrager and J. P. Lampignano (2014) Text Book Of
Radiographic Positioning And Related Anatomy, 8th Edition
 Department Of Radiology, Dartmouth Geisel School Of
Medicine 2020 Indications For Diagnostic Mammography
 Quebec; Breast cancer screening
