LoRaWAN for IoT
- 1. LoRa 4 IoTStavrosKalapothas, MSc Exploring LPWAN Wireless Technologies
- 2. • Stavros Kalapothas •Senior DevOps Engineer at GR Gov • MSc in Pervasive Computing • Research interests: • WSN • SDR • IoT • OSH & OSS advocate LoRa 4 IoT About me stavros@ubinet. gr @stavros_it
- 3. • Slides withmany figures so, be prepared • Technical deep dive • No prior knowledge with wireless protocols is required • Feel free to interrupt and ask questions LoRa 4 IoT Before we start http://push-conference.com
- 4. • LPWAN -Where it fits • LPWAN - Emerging technologies • LoRa breakdown • LoRa based IoT applications • Demo showcase LoRa 4 IoT Agenda
- 5. • Low PowerWide Area Network • The rise of the Internet of Things • IoT is about 106s or 109s connected devices • connected devices providing data to transform societies/economies • connections always on increase • expected market growth and high revenue • broad coverage LoRa 4 IoT LPWAN – Where it fits 1/3

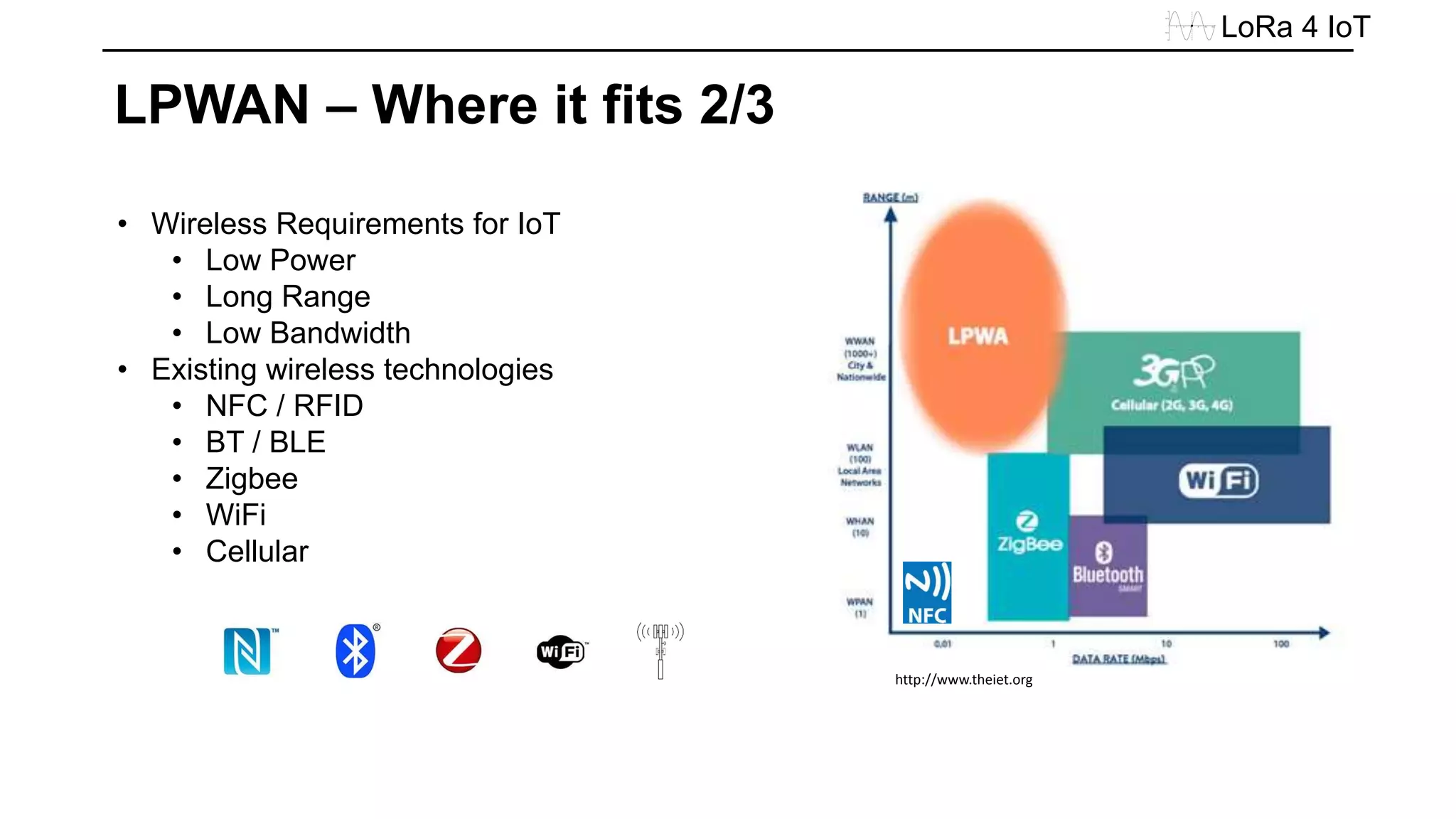

- 6. • Wireless Requirementsfor IoT • Low Power • Long Range • Low Bandwidth • Existing wireless technologies • NFC / RFID • BT / BLE • Zigbee • WiFi • Cellular LoRa 4 IoT LPWAN – Where it fits 2/3 http://www.theiet.org

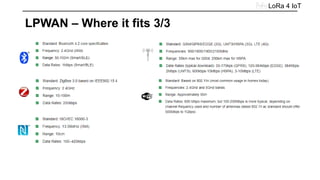

- 7. LoRa 4 IoT LPWAN– Where it fits 3/3
- 8. LoRa 4 IoT LPWAN– Emerging technologies Get ready for LPWAN
- 9. LoRa 4 IoT LPWAN– Emerging technologies http://www.itwissen.info/lex-images/lpwan-konzepte-fuer-das-internet-of-things-iot.png

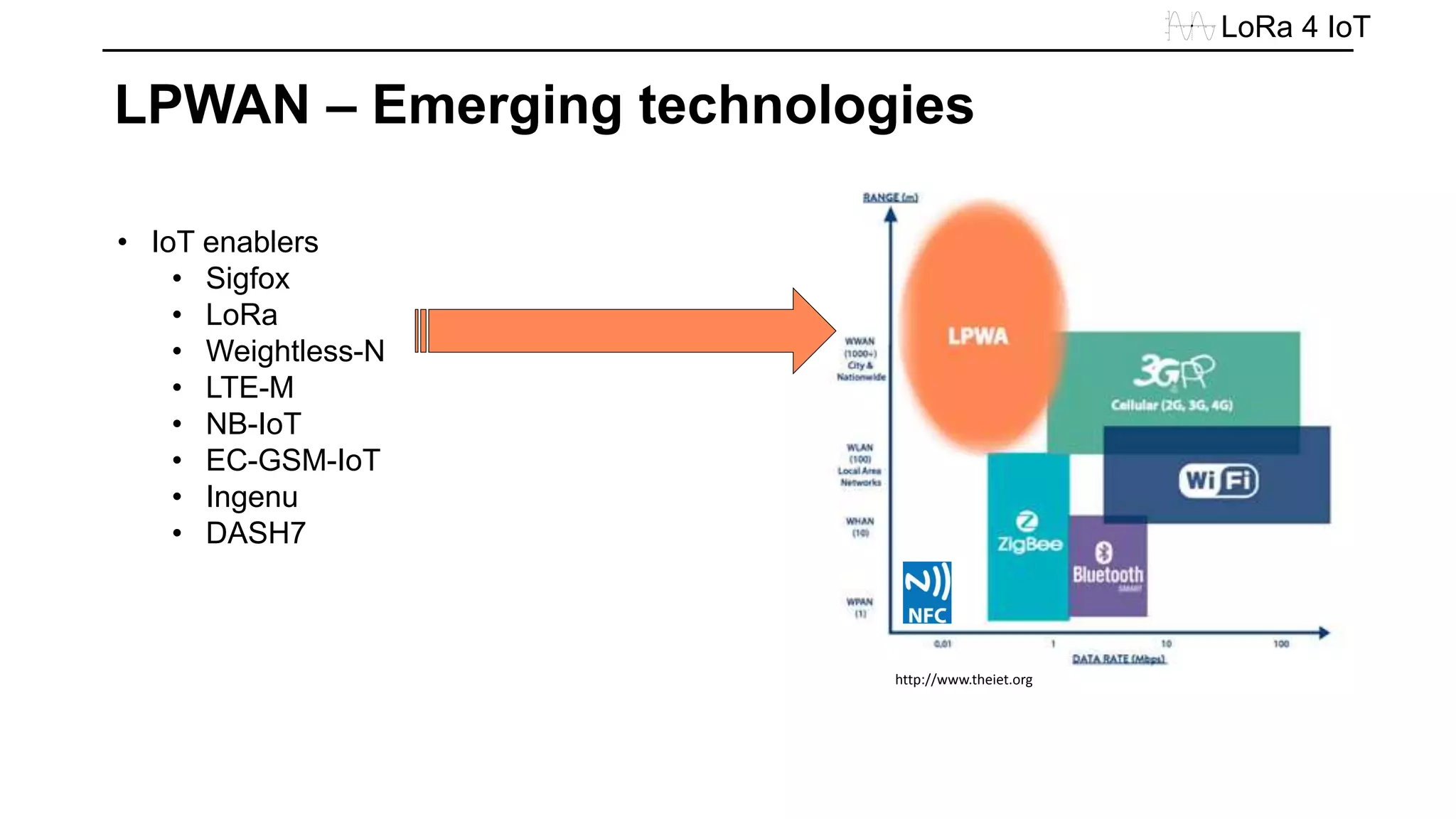

- 10. • IoT enablers •Sigfox • LoRa • Weightless-N • LTE-M • NB-IoT • EC-GSM-IoT • Ingenu • DASH7 LoRa 4 IoT LPWAN – Emerging technologies http://www.theiet.org

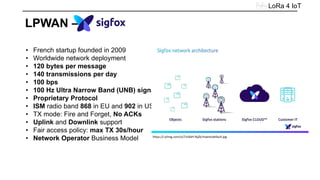

- 11. • French startupfounded in 2009 • Worldwide network deployment • 120 bytes per message • 140 transmissions per day • 100 bps • 100 Hz Ultra Narrow Band (UNB) signal • Proprietary Protocol • ISM radio band 868 in EU and 902 in US • TX mode: Fire and Forget, No ACKs • Uplink and Downlink support • Fair access policy: max TX 30s/hour • Network Operator Business Model LoRa 4 IoT LPWAN – https://i.ytimg.com/vi/7zc6bH-9qZk/maxresdefault.jpg

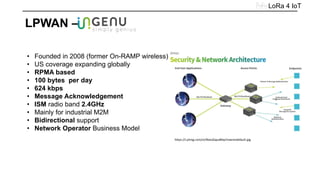

- 12. LoRa 4 IoT LPWAN– https://i.ytimg.com/vi/4beoZapuBXw/maxresdefault.jpg • Founded in 2008 (former On-RAMP wireless) • US coverage expanding globally • RPMA based • 100 bytes per day • 624 kbps • Message Acknowledgement • ISM radio band 2.4GHz • Mainly for industrial M2M • Bidirectional support • Network Operator Business Model
- 13. LoRa 4 IoT LPWAN– https://www.slideshare.net/DuncanPurves • Weightless Specialty Interest Group (SIG) • Open Standard • GMSK and DBPSK based • Weightless N/P/W • Unidirectional (N) – Bidirectional (P) • 100 Hz (N) – 12.5 KHz (P) • 100 bps (N) – 200kbps (P) • 100% Message Acknowledgement • ~2 Km • ISM bands N/P – TVWS (W) • Partners
- 14. LoRa 4 IoT LPWAN– https://www.sierrawireless.com/resources/white-paper/lpwa-fact-or-fiction

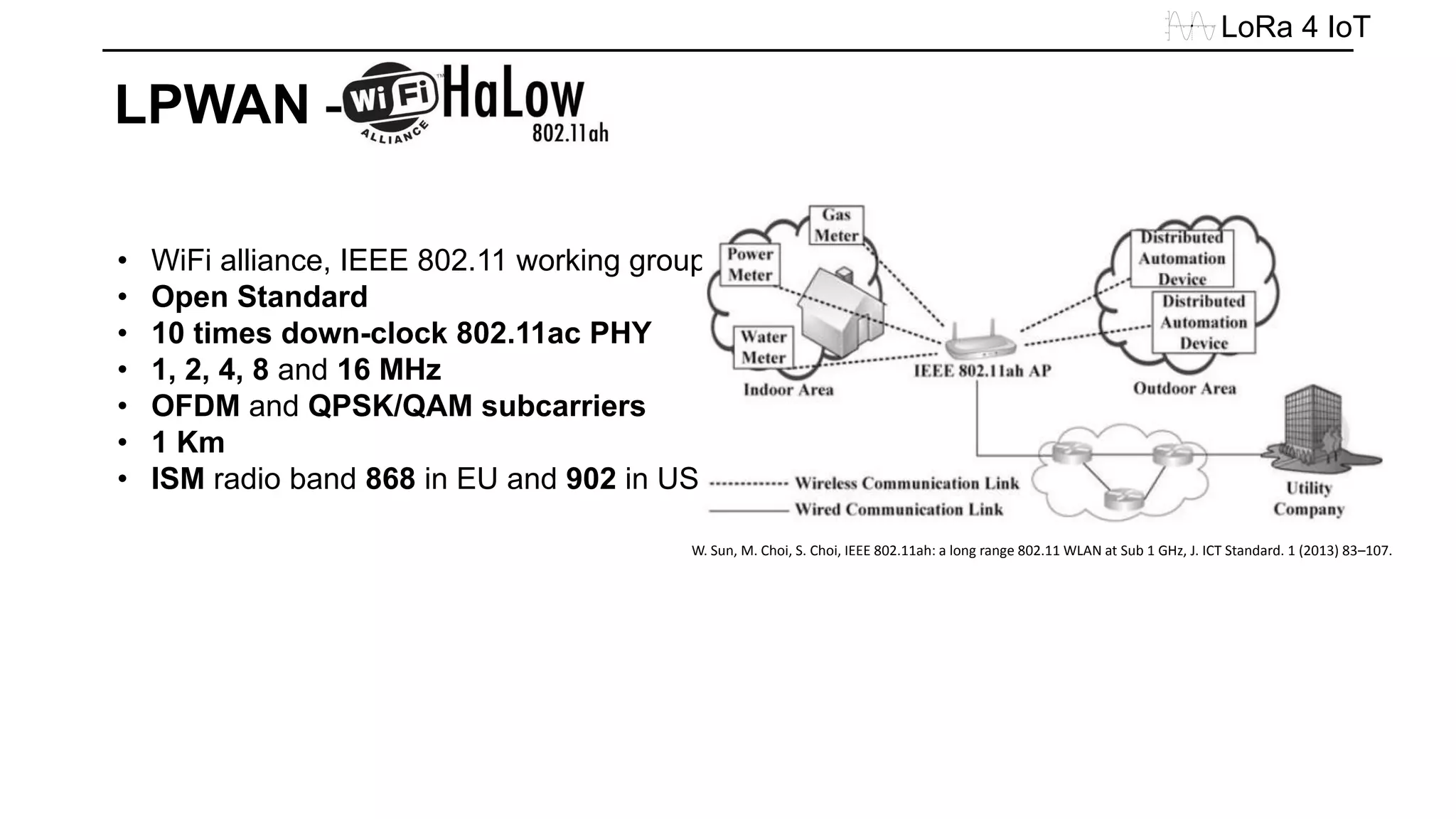

- 15. LoRa 4 IoT LPWAN– • WiFi alliance, IEEE 802.11 working group • Open Standard • 10 times down-clock 802.11ac PHY • 1, 2, 4, 8 and 16 MHz • OFDM and QPSK/QAM subcarriers • 1 Km • ISM radio band 868 in EU and 902 in US W. Sun, M. Choi, S. Choi, IEEE 802.11ah: a long range 802.11 WLAN at Sub 1 GHz, J. ICT Standard. 1 (2013) 83–107.

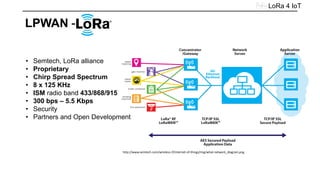

- 16. LoRa 4 IoT LPWAN– • Semtech, LoRa alliance • Proprietary • Chirp Spread Spectrum • 8 x 125 KHz • ISM radio band 433/868/915 • 300 bps – 5.5 Kbps • Security • Partners and Open Development http://www.semtech.com/wireless-rf/internet-of-things/img/what-network_diagram.png
- 17. LoRa 4 IoT LoRa- PHY • Compressed High Intensity Radar Pulse • Constant amplitude • Signals cross the available bandwidth in a linear or non-linear way • up-chirp frequency from low to high • down-chirp frequency from high to low • Fading and Doppler shift resistant • Good sensitivity • Robustness http://www.sghoslya.com
- 18. LoRa 4 IoT LoRa- PHY • Spread Spectrum Modulation • 6 Spreading Factors, SF7 to SF12 • Higher SF Lower Data Rate • Lower SF Higher Data Rate http://www.sghoslya.com

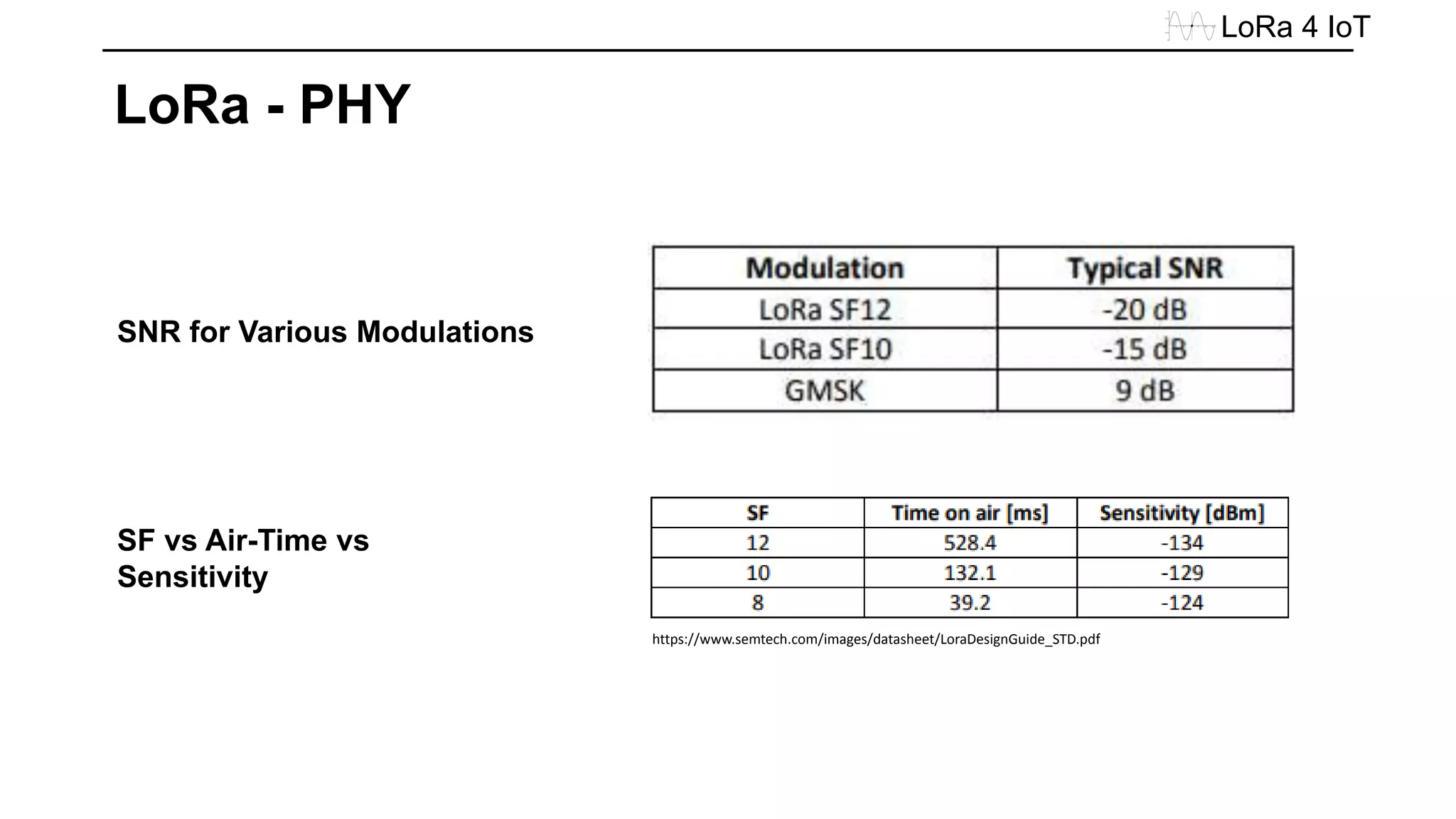

- 19. LoRa 4 IoT LoRa- PHY SNR for Various Modulations https://www.semtech.com/images/datasheet/LoraDesignGuide_STD.pdf SF vs Air-Time vs Sensitivity

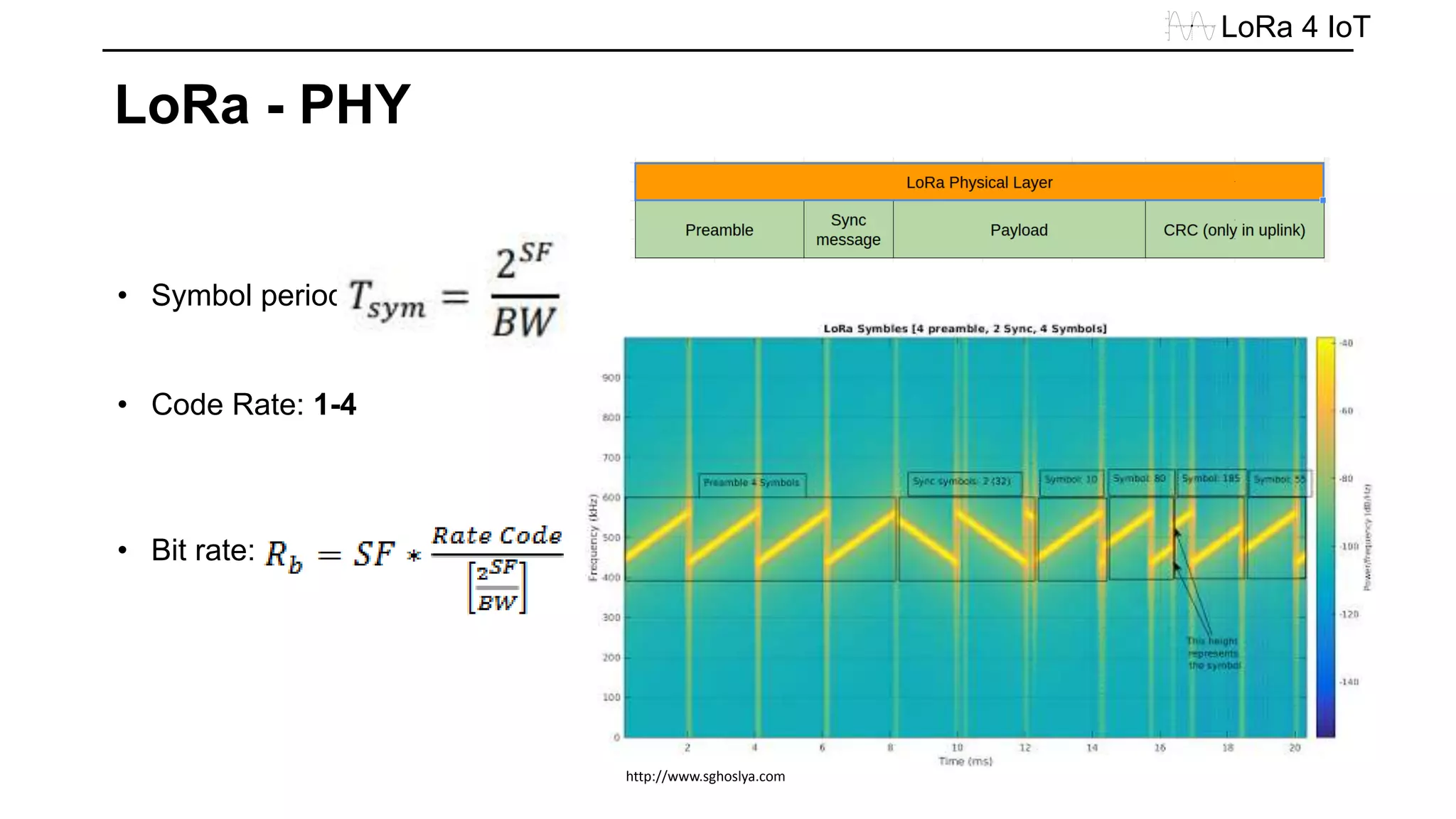

- 20. LoRa 4 IoT LoRa- PHY • Symbol period: • Code Rate: 1-4 • Bit rate: http://www.sghoslya.com
- 21. LoRa 4 IoT LoRaWAN- Stack • Class A: on demand TX windows + short RX windows • Class B: Class A + scheduled receive windows (beacon) • Class C: Class A + continuous receive window https://www.lora-alliance.org/technology

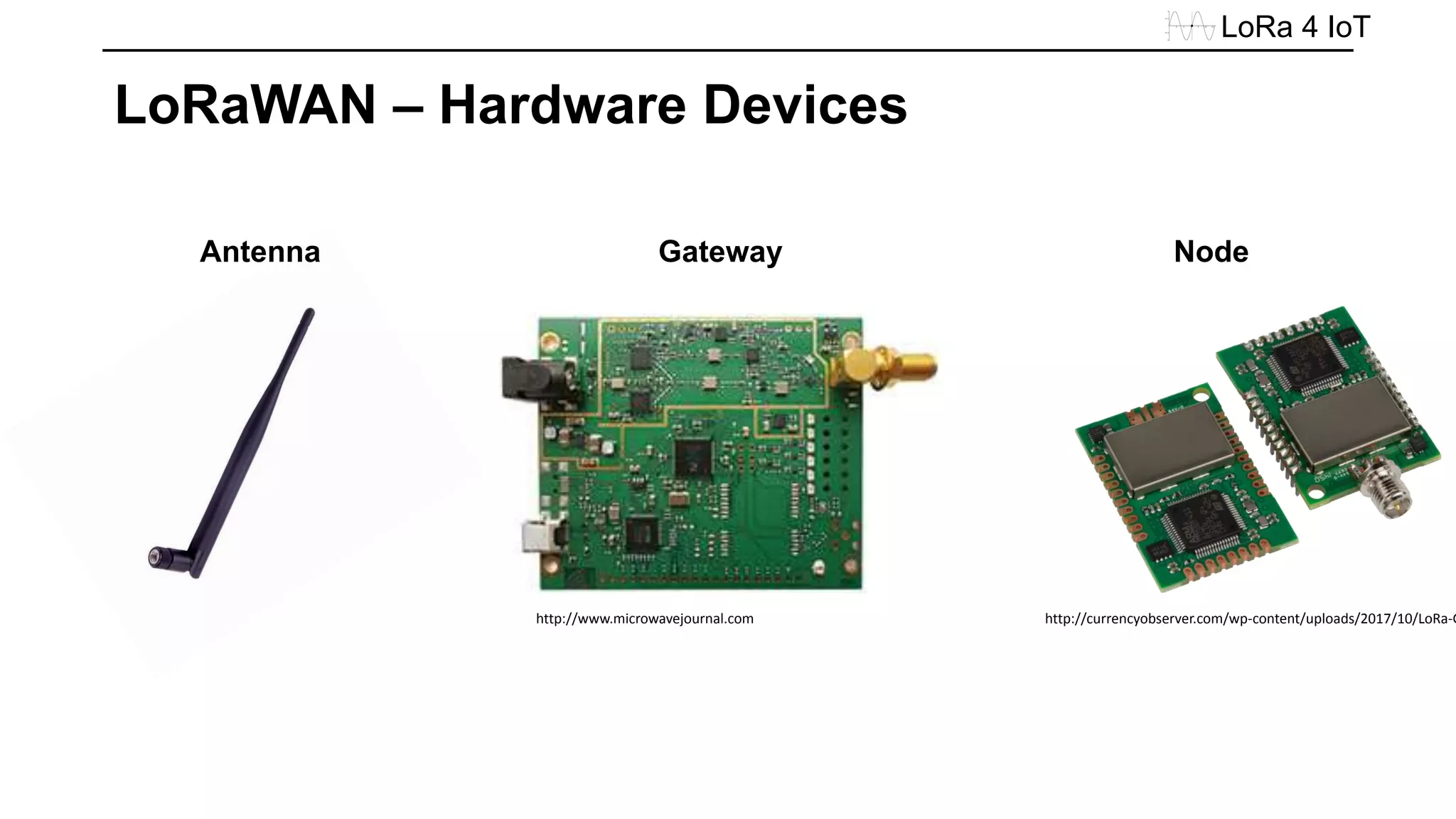

- 22. LoRa 4 IoT LoRaWAN– Hardware Devices Node http://www.microwavejournal.com Gateway http://currencyobserver.com/wp-content/uploads/2017/10/LoRa-G Antenna

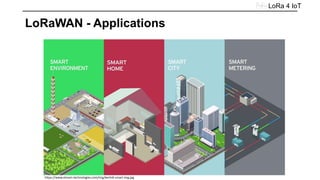

- 23. LoRa 4 IoT LoRaWAN- Applications http://www.sghoslya.com https://www.stream-technologies.com/img/kerlink-smart-img.jpg
- 24. LoRa 4 IoT LoRa- Demo
