5G
End-to-End Slicing
Demo
December 7th 2016
FG-IMT-2020 Geneva
2
Outline
Background
Architecture
Prototype
3

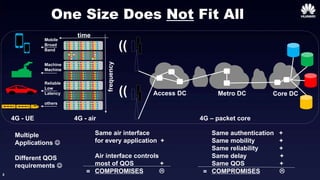

One Size Does Not Fit All
time
frequency
Access DC Metro DC Core DC
((
((
Multiple
Applications 
Different QOS
requirements 
Same air interface
for every application +
Air interface controls
most of QOS +
COMPROMISES 
Same authentication +
Same mobility +
Same reliability +
Same delay +
Same QOS +
COMPROMISES 
4G - air 4G – packet core4G - UE
Mobile
Broad
Band
Machine
Machine
Reliable
Low
Latency
others
==
4

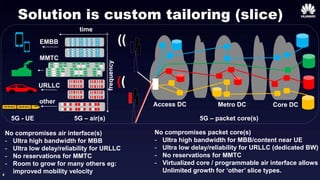

Solution is custom tailoring (slice)
time
frequency
Access DC Metro DC Core DC
((
((
EMBB
URLLC
MMTC
No compromises air interface(s)
- Ultra high bandwidth for MBB
- Ultra low delay/reliability for URLLC
- No reservations for MMTC
- Room to grow for many others eg:
improved mobility velocity
other
5G – air(s) 5G – packet core(s)5G - UE
No compromises packet core(s)
- Ultra high bandwidth for MBB/content near UE
- Ultra low delay/reliability for URLLC (dedicated BW)
- No reservations for MMTC
- Virtualized core / programmable air interface allows
Unlimited growth for ‘other’ slice types.
5

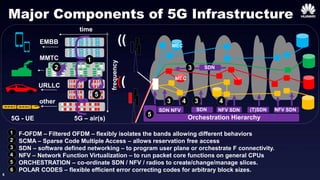

Major Components of 5G Infrastructure
time
frequency
((
((
EMBB
URLLC
MMTC
other
5G – air(s)5G - UE Orchestration Hierarchy
SDN (T)SDNSDN NFV NFV SDNNFV SDN
1
2
1 F-OFDM – Filtered OFDM – flexibly isolates the bands allowing different behaviors
2 SCMA – Sparse Code Multiple Access – allows reservation free access
3 SDN – software defined networking – to program user plane or orchestrate F connectivity.
4 NFV – Network Function Virtualization – to run packet core functions on general CPUs
ORCHESTRATION – co-ordinate SDN / NFV / radios to create/change/manage slices.
6 POLAR CODES – flexible efficient error correcting codes for arbitrary block sizes.
1
2
3
4
5
33 4 4
5
SDN3
5
6
MEC
MEC
6
Slices however must “breathe”
time
frequency
Access DC Metro DC Core DC
((
((
EMBB
URLLC
MMTC
5G – air(s) 5G – packet core(s)5G - UE
Since slices are allocated dedicated resources this can lead to inefficiencies. So:
• Must be possible for slices to change size (breath) and to exchange physical resources
• Example the MMTC slice shrinks and gives up capacity to the EMMB slice.
• Example the ‘other’ slice is not present for some period of time. Its resources given to URLLC.
• Must happen with minimum interference or the capability is not usable sufficiently often.
Slicing in terms of resource sets/subsets.
+ + + +
Antennas Fronthaul CRAN fabric CRAN CPU/S/W RAT Numerology
+ +
Back Haul Core CPU/S/W
eMBB
Enhanced Mobile
Broadband
mMTC
Massive Machine Type
Communications
uMTC
Ultra-reliable and Low-latency
Communications
Future IMT
UE
+
+ + + +
Antennas Fronthaul CRAN fabric CRAN CPU/S/W RAT Numerology
+ +
Back Haul Core CPU/S/W
eMBB
Enhanced Mobile
Broadband
mMTC
Massive Machine Type
Communications
uMTC
Ultra-reliable and Low-latency
Communications
Future IMT
UE
+
From the Universe of resource sets..
A slice can be thought of as a set of subsets …
Different RATs
Different NG-EPC
(demux at Slice Selection Function in NB)
Different downstream of the NG-EPC
(eg different FW/LB etc.)
= Sj
= Sk
= Si
= Sl
Slices can be isolated all the way to
antenna.
Slices can share antennas, fronthaul
CRAN etc. but be separated by frequency
time or code space.
))))
))))
OS
))))))))
OSOS
Thing Thing
APP
APP
APP
APP
APP
UEs/”Things” can be it
a single slice, or multiple slices
A UE in multiple slices can be
sliced A) horizontally (slice = QOS/QOE) or
B) vertically (slice = virtual UE).
A
B
SSF
+ + + +
Antennas Fronthaul CRAN fabric CRAN CPU/S/W RAT Numerology
+ +
Back Haul Core CPU/S/W
eMBB
Enhanced Mobile
Broadband
mMTC
Massive Machine Type
Communications
uMTC
Ultra-reliable and Low-latency
Communications
Future IMT
UE
+

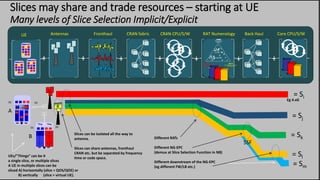

Slices may share and trade resources – starting at UE
Many levels of Slice Selection Implicit/Explicit
Eg 4.xG
= Sm

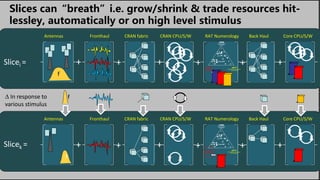

Slices can“breath”i.e. grow/shrink & trade resources hit-
lessley, automatically or on high level stimulus
+ + + +
Antennas Fronthaul CRAN fabric CRAN CPU/S/W RAT Numerology
+ +
Back Haul Core CPU/S/W
eMBB
Enhanced Mobile
Broadband
mMTC
Massive Machine Type
Communications
uMTC
Ultra-reliable and Low-latency
Communications
Future IMT
+ + + +
Antennas Fronthaul CRAN fabric CRAN CPU/S/W RAT Numerology
+ +
Back Haul Core CPU/S/W
eMBB
Enhanced Mobile
Broadband
mMTC
Massive Machine Type
Communications
uMTC
Ultra-reliable and Low-latency
Communications
Future IMT
Slicei =
Slicek =
f
f
fD In response to
various stimulus

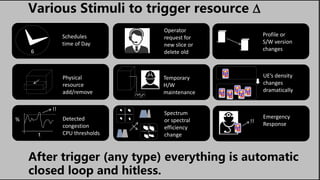

Various Stimuli to trigger resource D
After trigger (any type) everything is automatic
closed loop and hitless.
Temporary
H/W
maintenance
6
Schedules
time of Day
Operator
request for
new slice or
delete old
Profile or
S/W version
changes
Physical
resource
add/remove
UE’s density
changes
dramatically
Detected
congestion
CPU thresholds
Spectrum
or spectral
efficiency
change
Emergency
Response
%
t
!!
!!

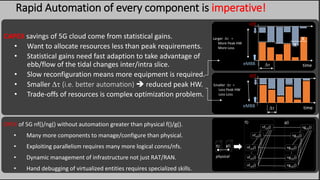

Rapid Automation of every component is imperative!
CAPEX savings of 5G cloud come from statistical gains.
• Want to allocate resources less than peak requirements.
• Statistical gains need fast adaption to take advantage of
ebb/flow of the tidal changes inter/intra slice.
• Slow reconfiguration means more equipment is required.
• Smaller Dt (i.e. better automation)  reduced peak HW.
• Trade-offs of resources is complex optimization problem.
timeeMBB
IOT
Dt
Larger Dt =
More Peak HW
More Loss
X
X
timeeMBB
IOT
Dt
Smaller Dt =
Less Peak HW
Less Loss
OPEX of 5G nf()/ng() without automation greater than physical f()/g().
• Many more components to manage/configure than physical.
• Exploiting parallelism requires many more logical conns/nfs.
• Dynamic management of infrastructure not just RAT/RAN.
• Hand debugging of virtualized entities requires specialized skills.
f() g()
nfu[i]()
nfu[i]()
nfu[i]()
..
nfc[i]()
nfc[i]()
f()
ngu[i]()
ngu[i]()
ngu[i]()
..
ngc[i]()
ngc[i]()
g()
physical
5g-1
auto p1
iface p1 inet manual
bond-master bond0
auto p2
iface p2 inet manual
bond-master bond0
auto bond0
iface p1 inet static
bond-mode 4
bond-miimon 100
bond-lacp-rate 1
bond-slaves p1 p2
Encoded
lxc start endoeB
ovs-vsctl add-port 5g-br0 enodeB_veth_0
ovs-vsctl set port enodeB_veth_0 tag=10
HSS
lxc start hss
ovs-vsctl add-port 5g-br0 hss_veth_0
ovs-vsctl set port hss_veth_0 tag=10
5g-2
auto p1
iface p1 inet manual
bond-master bond0
auto p2
iface p2 inet manual
bond-master bond0
auto bond0
iface p1 inet static
bond-mode 4
bond-miimon 100
bond-lacp-rate1
bond-slaves p1 p2
5g-4
auto p1
iface p1 inet manual
bond-master bond0
auto p2
iface p2 inet manual
bond-master bond0
auto bond0
iface p1 inet static
bond-mode 4
bond-miimon 100
bond-lacp-rate1
bond-slaves p1 p2
5g-6
auto p1
iface p1 inet manual
bond-master bond0
auto p2
iface p2 inet manual
bond-master bond0
auto bond0
iface p1 inet static
bond-mode 4
bond-miimon 100
bond-lacp-rate1
bond-slaves p1 p2
5g-7
auto p1
iface p1 inet manual
bond-master bond0
auto p2
iface p2 inet manual
bond-master bond0
auto bond0
iface p1 inet static
bond-mode 4
bond-miimon 100
bond-lacp-rate1
bond-slaves p1 p2
RRH
docker attach rrh
ovs-docker add-port 5g-br0 eth1 rrh –ipaddress==192.168.10.2/24
ovs-vsctl set port rrh_veth_0 tag=10
EPC
virsh net-define 5g-network.xml
virsh net-start 5g-network
virsh define epc
virsh start epc
ovs-vsctl add-port 5g-br0 epc_veth_0
ovs-vsctl set port epc_veth_0 tag=10
Switch-1
vlan 10
interface eth-trunk1
Description: To 5g-2
port link-type trunk
port trunk allow-pass vlan 10
mode lacp-dynamic
interface eth-trunk2
Description: To 5g-4
port link-type trunk
port trunk allow-pass vlan 10
mode lacp-dynamic
interface eth-trunk9
Description: To 5g-1 RRH
port link-type trunk
port trunk allow-pass vlan 10
mode lacp-dynamic
interface eth-trunk21
Description: To Optical Node
port link-type trunk
port trunk allow-pass vlan 10
mode lacp-dynamic
Switch-2
vlan 10
interface eth-trunk1
Description: To 5g-6
port link-type trunk
port trunk allow-pass vlan 10
mode lacp-dynamic
interface eth-trunk2
Description: To 5g-7q
port link-type trunk
port trunk allow-pass vlan 10
mode lacp-dynamic
interface eth-trunk21
Description: To Optical Node
port link-type trunk
port trunk allow-pass vlan 10
mode lacp-dynamic

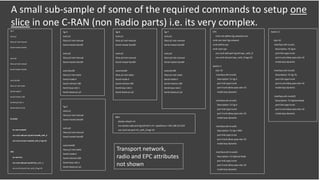

A small sub-sample of some of the required commands to setup one
slice in one C-RAN (non Radio parts) i.e. its very complex.
Transport network,
radio and EPC attributes
not shown
13
Outline
Background
Architecture
Prototype
CTRL
MGMT
SOFT
ANT/freq
CTRL
MGMT
SOFT
FH
CTRL
MGMT
SOFT
DSP
S
P
L
CTRL
MGMT
SOFT
Fabric
CTRL
MGMT
SOFT
CUS
CTRL
MGMT
SOFT
NFs
F()
G()
H()
CTRL
MGMT
SOFT
Fabric
CTRL
MGMT
SOFT
CPUS
CTRL
MGMT
SOFT
NFs
F()
G()
H()
CONTROL
ORCHESTRATION
SOFTWARIZATION(APIs)
CONTROL
ORCHESTRATION
SOFTWARIZATION(APIs)
CTRL
MGMT
SOFT
NW
CONTROL
ORCHESTRATION
SOFTWARIZATION(APIs)
TAPI
F()
G() H()
S
F()
G() H()
I()
I()
((
((
URLLC
eMBB
URLLC Slice-B
eMBB Slice-A
f
Slicing create/control hierarchical orchestration infrastructure
CTRL
MGMT
SOFT
NW
TAPI
NG(R)ANUE NG-UP FW
NG-CP
UDM
AF
Data
Network
NG1
NG3
NG2 NG4
NG7
NG6
NG5
SliceTemplate(eMBB-A)
F() G() H()
I()
L2VPN
L3VPN
A B C
INPUTMACHINEOUTUT
CTRL
MGMT
SOFT
ANT/freq
CTRL
MGMT
SOFT
FH
CTRL
MGMT
SOFT
DSP
S
P
L
CTRL
MGMT
SOFT
Fabric
CTRL
MGMT
SOFT
CUS
CTRL
MGMT
SOFT
NFs
F()
G()
H()
CTRL
MGMT
SOFT
Fabric
CTRL
MGMT
SOFT
CPUS
CTRL
MGMT
SOFT
NFs
F()
G()
H()
CONTROL
ORCHESTRATION
SOFTWARIZATION(APIs)
CONTROL
ORCHESTRATION
SOFTWARIZATION(APIs)
CTRL
MGMT
SOFT
NW
CONTROL
ORCHESTRATION
SOFTWARIZATION(APIs)
TAPI
G() H()
S
F() I()
((
((
URLLC
URLLC Slice-B
f

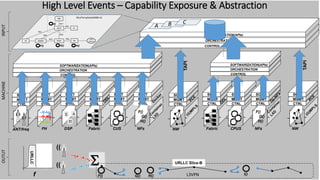

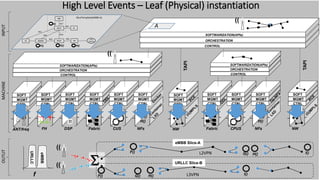

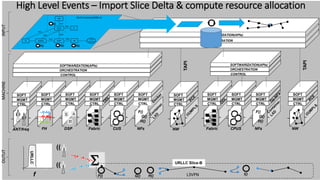

High Level Events – Capability Exposure & Abstraction
CTRL
MGMT
SOFT
NW
TAPI
NG(R)ANUE NG-UP FW
NG-CP
UDM
AF
Data
Network
NG1
NG3
NG2 NG4
NG7
NG6
NG5
SliceTemplate(eMBB-A)
F() G() H()
I()
L3VPN
A B C
INPUTMACHINEOUTUT
CTRL
MGMT
SOFT
ANT/freq
CTRL
MGMT
SOFT
FH
CTRL
MGMT
SOFT
DSP
S
P
L
CTRL
MGMT
SOFT
Fabric
CTRL
MGMT
SOFT
CUS
CTRL
MGMT
SOFT
NFs
F()
G()
H()
CTRL
MGMT
SOFT
Fabric
CTRL
MGMT
SOFT
CPUS
CTRL
MGMT
SOFT
NFs
F()
G()
H()
CONTROL
ORCHESTRATION
SOFTWARIZATION(APIs)
CONTROL
ORCHESTRATION
SOFTWARIZATION(APIs)
CTRL
MGMT
SOFT
NW
CONTROL
ORCHESTRATION
SOFTWARIZATION(APIs)
TAPI
High Level Events – Import Slice Delta & compute resource allocation
CTRL
MGMT
SOFT
NW
TAPI
NG(R)ANUE NG-UP FW
NG-CP
UDM
AF
Data
Network
NG1
NG3
NG2 NG4
NG7
NG6
NG5
SliceTemplate(eMBB-A)
F() G() H()
I()
A B
INPUTMACHINE
G() H()
S
F() I()
((
((
URLLC
URLLC Slice-B
f L3VPN
OUTUT
CTRL
MGMT
SOFT
ANT/freq
CTRL
MGMT
SOFT
FH
CTRL
MGMT
SOFT
DSP
S
P
L
CTRL
MGMT
SOFT
Fabric
CTRL
MGMT
SOFT
CUS
CTRL
MGMT
SOFT
NFs
F()
G()
H()
CTRL
MGMT
SOFT
Fabric
CTRL
MGMT
SOFT
CPUS
CTRL
MGMT
SOFT
NFs
F()
G()
H()
CONTROL
ORCHESTRATION
SOFTWARIZATION(APIs)
CONTROL
ORCHESTRATION
SOFTWARIZATION(APIs)
CTRL
MGMT
SOFT
NW
CONTROL
ORCHESTRATION
SOFTWARIZATION(APIs)
TAPI

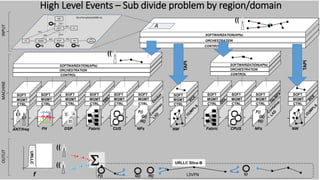

High Level Events – Sub divide problem by region/domain
CTRL
MGMT
SOFT
NW
TAPI
NG(R)ANUE NG-UP FW
NG-CP
UDM
AF
Data
Network
NG1
NG3
NG2 NG4
NG7
NG6
NG5
SliceTemplate(eMBB-A)
F() G() H()
I()
A
INPUTMACHINE
G() H()
S
F() I()
((
((
URLLC
URLLC Slice-B
f L3VPN
OUTUT
((
((
CTRL
MGMT
SOFT
ANT/freq
CTRL
MGMT
SOFT
FH
CTRL
MGMT
SOFT
DSP
S
P
L
CTRL
MGMT
SOFT
Fabric
CTRL
MGMT
SOFT
CUS
CTRL
MGMT
SOFT
NFs
F()
G()
H()
CTRL
MGMT
SOFT
Fabric
CTRL
MGMT
SOFT
CPUS
CTRL
MGMT
SOFT
NFs
F()
G()
H()
CONTROL
ORCHESTRATION
SOFTWARIZATION(APIs)
CONTROL
ORCHESTRATION
SOFTWARIZATION(APIs)
CTRL
MGMT
SOFT
NW
CONTROL
ORCHESTRATION
SOFTWARIZATION(APIs)
TAPI

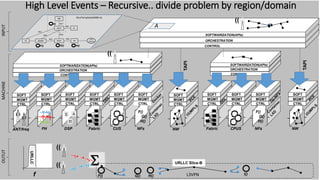

High Level Events – Recursive.. divide problem by region/domain
CTRL
MGMT
SOFT
NW
TAPI
NG(R)ANUE NG-UP FW
NG-CP
UDM
AF
Data
Network
NG1
NG3
NG2 NG4
NG7
NG6
NG5
SliceTemplate(eMBB-A)
F() G() H()
I()
A
INPUTMACHINE
G() H()
S
F() I()
((
((
URLLC
URLLC Slice-B
f L3VPN
OUTUT
((
((
CTRL
MGMT
SOFT
ANT/freq
CTRL
MGMT
SOFT
FH
CTRL
MGMT
SOFT
DSP
S
P
L
CTRL
MGMT
SOFT
Fabric
CTRL
MGMT
SOFT
CUS
CTRL
MGMT
SOFT
NFs
F()
G()
H()
CTRL
MGMT
SOFT
Fabric
CTRL
MGMT
SOFT
CPUS
CTRL
MGMT
SOFT
NFs
F()
G()
H()
CONTROL
ORCHESTRATION
SOFTWARIZATION(APIs)
CONTROL
ORCHESTRATION
SOFTWARIZATION(APIs)
CTRL
MGMT
SOFT
NW
CONTROL
ORCHESTRATION
SOFTWARIZATION(APIs)
TAPI
High Level Events – Leaf (Physical) instantiation
CTRL
MGMT
SOFT
NW
TAPI
NG(R)ANUE NG-UP FW
NG-CP
UDM
AF
Data
Network
NG1
NG3
NG2 NG4
NG7
NG6
NG5
SliceTemplate(eMBB-A)
F() G() H()
I()
A
INPUTMACHINE
G() H()
S
F() I()
((
((
URLLC
URLLC Slice-B
f L3VPN
OUTUT
((
((
F() G() H() I()
eMBB Slice-A
L2VPN
eMBB
20
Outline
Background
Architecture
Prototype
21

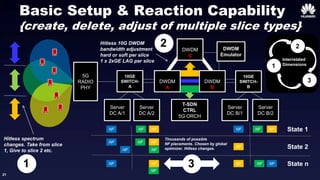

Basic Setup & Reaction Capability
{create, delete, adjust of multiple slice types}
5G
RADIO
PHY
10GE
SWITCH-
A
DWDM
A
DWDM
B
10GE
SWITCH-
B
DWDM
Emulator
Server
DC A/1
Server
DC A/2
T-SDN
CTRL
5G ORCH
Server
DC B/1
Server
DC B/2
DWDM
C
Hitless spectrum
changes. Take from slice
1, Give to slice 2 etc.
Hitless 10G DWDM
bandwidth adjustment
hard or soft per slice
1 x 2xGE LAG per slice
NF NFNF NFNF NF
NF
NF
NF
NF
NF
NF
NF NFNF
NF
NF NF
Thousands of possible
NF placements. Chosen by global
optimizer. Hitless changes.
State 1
State n
State 2
1
2
3
1
3
2
Interrelated
Dimensions
22

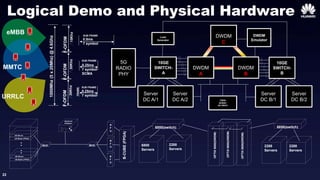

Logical Demo and Physical Hardware
5G
RADIO
PHY
10GE
SWITCH-
A
DWDM
A
DWDM
B
10GE
SWITCH-
B
DWDM
Emulator
Server
DC A/1
Server
DC A/2 TSDN
SONAC
5G ORCH
Server
DC B/1
Server
DC B/2
DWDM
C
Load
Generator
B-CUBE(FPGA)
OPTIX9800(DWDM)
2288
Servers
6850(switch)
R
F
U
R
F
U
R
F
U
6800
Servers
2288
Servers
2288
Servers
OPTIX9800(DWDM)
OPTIX9800(DWDM)
eMBB
URRLC
MMTC
1000Mhz(5x20Mhz)@4.6Ghz
F-OFDMF-OFDMF-OFDM
15Khz30Khz30Khz
0.5ms
7 symbol
0.25ms
7 symbol
SCMA
0.25ms
7 symbol
SUB FRAME
FRAME
UE-Server
UE-Radio (FPGA)
UE-Server
UE-Radio (FPGA)
:
:
cv
Spectrum
Analyzer
6850(switch)
MUX MUX
SUB FRAME
SUB FRAME
23

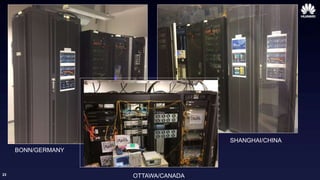

BONN/GERMANY
SHANGHAI/CHINA
OTTAWA/CANADA
24

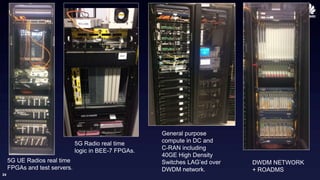

DWDM NETWORK
+ ROADMS
General purpose
compute in DC and
C-RAN including
40GE High Density
Switches LAG’ed over
DWDM network.
5G Radio real time
logic in BEE-7 FPGAs.
5G UE Radios real time
FPGAs and test servers.

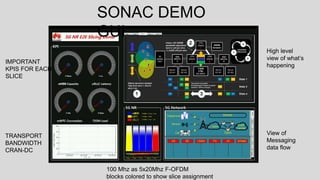

SONAC DEMO
GUI
IMPORTANT
KPIS FOR EACH
SLICE
TRANSPORT
BANDWIDTH
CRAN-DC
100 Mhz as 5x20Mhz F-OFDM
blocks colored to show slice assignment
High level
view of what’s
happening
View of
Messaging
data flow

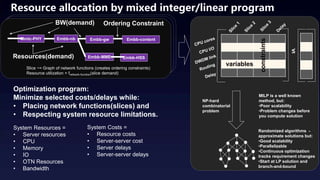

Resource allocation by mixed integer/linear program
System Resources =
• Server resources
• CPU
• Memory
• IO
• OTN Resources
• Bandwidth
System Costs =
• Resource costs
• Server-server cost
• Server delays
• Server-server delays
Optimization program:
Minimize selected costs/delays while:
• Placing network functions(slices) and
• Respecting system resource limitations.
≤
NP-hard
combinatorial
problem
Randomized algorithms -
approximate solutions but:
•Good scalability
•Parallelizable
•Continuous optimization
tracks requirement changes
•Start at LP solution and
branch-and-bound
MILP is a well known
method, but:
•Poor scalability
•Problem changes before
you compute solution
constraints
variables
Embb-MME Embb-HSS
Mmtc-PHY Embb-nb Embb-gw Embb-content
Ordering ConstraintBW(demand)
Resources(demand)
Slice ~= Graph of network functions (creates ordering constraints)
Resource utilization = fnetwork-function(slice demand)
27

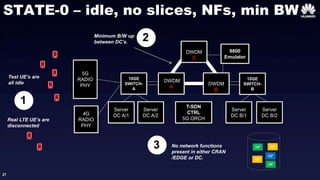

STATE-0 – idle, no slices, NFs, min BW
5G
RADIO
PHY
10GE
SWITCH-
A
DWDM
A
DWDM
B
10GE
SWITCH-
B
9800
Emulator
Server
DC A/1
Server
DC A/2
T-SDN
CTRL
5G ORCH
Server
DC B/1
Server
DC B/2
DWDM
C
NF
NF
NF
NF
NF
No network functions
present in either CRAN
/EDGE or DC.
1
2
3
Test UE’s are
all idle
Minimum B/W up
between DC’s.
4G
RADIO
PHY
Real LTE UE’s are
disconnected
28
10GE
SWITCH-
A
DWDM
A
DWDM
B
10GE
SWITCH-
B
DWDM
Emulator
Server
DC A/1
Server
DC A/2
T-SDN
CTRL
5G ORCH
Server
DC B/1
Server
DC B/2
DWDM
C
NF
NF
NF
NF
1 Operator !!
requests LTE slices
EPC NF’containers placed in C-RAN
2
Global Optimizer
assigns
resources
3 LTE MME&HSS NFs
placed in DC, cores
assigned, started,
configured.
3
LTE Phy H/W
instantiated.
E-2-E network
configured and sized.
5a-OVS bridges, 5b-phys
switches. 5c-TSDN
allocates and
brings up lambdas into
switch LAG for this slice.
5

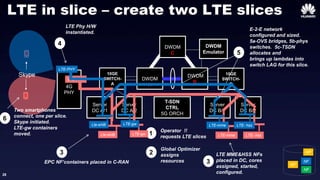

LTE in slice – create two LTE slices
4
6
Two smartphones
connect, one per slice.
Skype initiated.
LTE-gw containers
moved.
Skype
4G
PHY
Lte-eNB LTE-mme
LTE-PHY
LTE-gw LTE- hss
Lte-eNB LTE-mme
LTE-PHY
LTE-gw LTE- hss
29
5G
RADIO
PHY
10GE
SWITCH-
A
DWDM
A
DWDM
B
10GE
SWITCH-
B
DWDM
Emulator
Server
DC A/1
Server
DC A/2
T-SDN
CTRL
5G ORCH
Server
DC B/1
Server
DC B/2
DWDM
C
NF
Embb-nb
NF
NF
NF
1 Operator !!
requests eMBB
slice
eMBB NF’containers placed in C-RAN
1-eMBB NB protocol
2-eMBB gateways, 3-some content
Cores assigned, started, configured.
Embb mme
Mmtc-PHY
2
Global Optimizer
assigns
resources
3
eMBB MME&HSS NFs
placed in DC, cores
assigned, started,
configured.
3
eMBB PHY instantiated.
Spectrum/OFDM etc.
attributes configured.
E-2-E network
configured and sized.
5a-OVS bridges, 5b-phys
switches. 5c-TSDN
allocates and
brings up lambdas into
switch LAG for this slice.
5

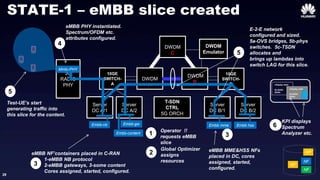

STATE-1 – eMBB slice created
4
5
Test-UE’s start
generating traffic into
this slice for the content.
>display stats
30,30303
30303.
>display stats
30,30303
30303.
6
KPI displays
Spectrum
Analyzer etc.
Embb-gw Embb hss
Embb-content
30
5G
RADIO
PHY
10GE
SWITCH-
A
DWDM
A
DWDM
B
10GE
SWITCH-
B
DWDM
Emulator
Server
DC A/1
Server
DC A/2
T-SDN
CTRL
5G ORCH
Server
DC B/1
Server
DC B/2
DWDM
C
NF
Mmtc-prot
Mmtf-agg
NF
NF
NF
1 Operator !!
requests MMTC
slice
MMTc NF’ containers placed in C-RAN
1-MMTc NB protocol
2-MTc small packet aggregator
Cores assigned, started,
configured.
Mmtc-split
Mmtc-PHY
2
Global Optimizer
assigns
resources
3
MMTc small packet
disaggregator NF
placed in DC, cores
assigned, started,
configured.
3
MMTc PHY instantiated.
Spectrum/OFDM etc.
attributes configured.
E-2-E network
configured and sized.
5a-OVS bridges, 5b-phys
switches. 5c-TSDN
allocates and
brings up lambdas into
switch LAG for this slice.
5

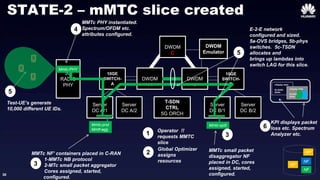

STATE-2 – mMTC slice created
4
5
Test-UE’s generate
10,000 different UE IDs.
>display stats
30,30303
30303.
>display stats
30,30303
30303.
6
KPI displays packet
loss etc. Spectrum
Analyzer etc.

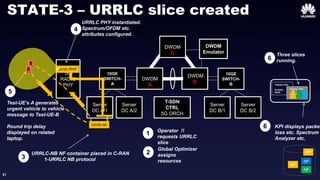

31
5G
RADIO
PHY
10GE
SWITCH-
A
DWDM
A
DWDM
B
10GE
SWITCH-
B
DWDM
Emulator
Server
DC A/1
Server
DC A/2
T-SDN
CTRL
5G ORCH
Server
DC B/1
Server
DC B/2
DWDM
C
NF
Urrrlc-nb
NF
NF
NF
1 Operator !!
requests URRLC
slice
URRLC-NB NF container placed in C-RAN
1-URRLC NB protocol
urrrlc-PHY
2
Global Optimizer
assigns
resources
3
URRLC PHY instantiated.
Spectrum/OFDM etc.
attributes configured.
STATE-3 – URRLC slice created
4
5
Test-UE’s A generates
urgent vehicle to vehicle
message to Test-UE-B
Round trip delay
displayed on related
laptop.
>display stats
30,30303
30303.
>display stats
30,30303
30303.
6
Three slices
running.6
KPI displays packet
loss etc. Spectrum
Analyzer etc.
32
5G
RADIO
PHY
10GE
SWITCH-
A
DWDM
A
DWDM
B
10GE
SWITCH-
B
DWDM
Emulator
Server
DC A/1
Server
DC A/2
T-SDN
CTRL
5G ORCH
Server
DC B/1
Server
DC B/2
DWDM
C
NF
Urrrlc-nb
NF
NF
NF
1 Operator !! requests URRLC
slice spectrum growth by
reducing MMTC spectrum
MMTc NF container moved out of C-to
DC because URRLC needs the
compute resources.
urrrlc-PHY
2
Global Optimizer has to move MMTC
to DC for URRLC performance
increase. Also more DC/CRAN B/W
required for MMTC-protocol to PHY
3
URRLC PHY hitless
spectrum increase. MMTC
hitless spectrum decrease.

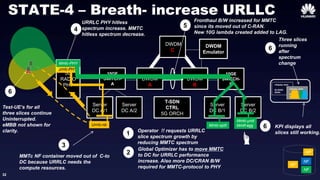

STATE-4 – Breath- increase URLLC
4
6
Test-UE’s for all
three slices continue
Uninterrupted.
eMBB not shown for
clarity.
>display stats
30,30303
30303.
>display stats
30,30303
30303.
6
Three slices
running
after
spectrum
change
6
KPI displays all
slices still working.
Mmtc-prot
Mmtf-aggMmtc-split
Mmtc-PHY
5
Fronthaul B/W increased for MMTC
since its moved out of C-RAN.
New 10G lambda created added to LAG.
33
5G
RADIO
PHY
10GE
SWITCH-
A
DWDM
A
DWDM
B
10GE
SWITCH-
B
DWDM
Emulator
Server
DC A/1
Server
DC A/2
T-SDN
CTRL
5G ORCH
Server
DC B/1
Server
DC B/2
DWDM
C
NF
Embb-nb
NF
NF
NF
1 Operator !!
requests eMBB ICN
slice
ICN-ROUTER container placed in C-RAN
eMBB NB Slice Selection Function
SSF configured to forward ICN
packets direct ICN-router NF.
Mmtc-PHY
2
Global Optimizer
assigns
resources
3
ICN-ROUTER ,
MANAGER, VIDEO CONF
APP containers placed in
DC
4
Due to increase in MBB
traffic on the ICN slice
TSDN configures extra
10GE lambda to the MBB
slice LAG.
5

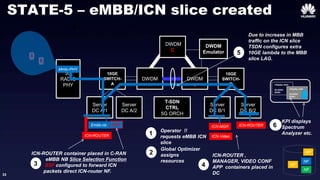

STATE-5 – eMBB/ICN slice created
>display stats
30,30303
30303.
>display stats
30,30303
30303.
6
KPI displays
Spectrum
Analyzer etc.ICN-ROUTER
ICN-ROUTERICN-MGR
ICN-Video
SSF
6
34
5G
RADIO
PHY
10GE
SWITCH-
A
DWDM
A
DWDM
B
10GE
SWITCH-
B
DWDM
Emulator
Server
DC A/1
Server
DC A/2
T-SDN
CTRL
5G ORCH
Server
DC B/1
Server
DC B/2
DWDM
C
Embb-nb
Mmtc-PHY

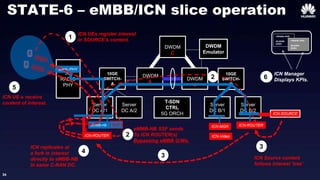

STATE-6 – eMBB/ICN slice operation
3
ICN UEs register interest
In SOURCE’s content.
>display stats
30,30303
30303.
>display stats
30,30303
30303.
6
ICN Manager
Displays KPIs.
ICN-ROUTER
ICN-ROUTERICN-MGR
ICN-Video
ICN-SOURCE
SSF
1
ICN Source content
follows interest ‘tree’
2
2
3
ICN replicates at
a fork in interest
directly to eMBB-NB
In same C-RAN DC.
4
eMMB-NB SSF sends
To ICN ROUTER(s)
Bypassing eMBB G/Ws.
5
ICN UE-s receive
content of interest.
35

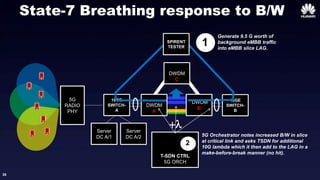

State-7 Breathing response to B/W
5G
RADIO
PHY
10GE
SWITCH-
A
DWDM
A
DWDM
B
10GE
SWITCH-
B
Server
DC A/1
Server
DC A/2
T-SDN CTRL
5G ORCH
DWDM
C
Generate 9.5 G worth of
background eMBB traffic
into eMBB slice LAG.
1
2
5G Orchestrator notes increased B/W in slice
at critical link and asks TSDN for additional
10G lambda which it then add to the LAG in a
make-before-break manner (no hit).
+l
SPIRENT
TESTER
36
Thank-You

More Related Content

What's hot

Beginners: Different Types of RAN Architectures - Distributed, Centralized & ...
Beginners: Different Types of RAN Architectures - Distributed, Centralized & ...Beginners: Different Types of RAN Architectures - Distributed, Centralized & ...
Beginners: Different Types of RAN Architectures - Distributed, Centralized & ...
3G4G

Beginners: 5G Terminology (Updated - Feb 2019)
Beginners: 5G Terminology (Updated - Feb 2019)Beginners: 5G Terminology (Updated - Feb 2019)
Beginners: 5G Terminology (Updated - Feb 2019)
3G4G

5G Network Architecture Options
5G Network Architecture Options5G Network Architecture Options
5G Network Architecture Options
3G4G

5G RAN fundamentals
5G RAN fundamentals5G RAN fundamentals
5G RAN fundamentals
Ravi Sharma

5G Services Story
5G Services Story5G Services Story
5G Services Story
Ericsson

5g introduction_NR
5g introduction_NR5g introduction_NR
5g introduction_NR
Nitin George Thomas

5G_NR_Overview_Architecture_and_Operating_Modes
5G_NR_Overview_Architecture_and_Operating_Modes5G_NR_Overview_Architecture_and_Operating_Modes
5G_NR_Overview_Architecture_and_Operating_Modes
Aalekh Jain

Lte power control
Lte power controlLte power control
Lte power control
Pranay Akul

Huawei GPON Fundamentals
Huawei GPON FundamentalsHuawei GPON Fundamentals
Huawei GPON Fundamentals
ibrahimnabil17

5G NR parameters
5G NR parameters5G NR parameters
5G NR parameters
Sasi Reddy

LTE network: How it all comes together architecture technical poster
LTE network: How it all comes together architecture technical posterLTE network: How it all comes together architecture technical poster
LTE network: How it all comes together architecture technical poster
David Swift

Evolution of Core Networks
Evolution of Core NetworksEvolution of Core Networks
Evolution of Core Networks
Sarp Köksal

4g interview-question
4g interview-question4g interview-question
4g interview-question
Manpreet Singh

Overview 5G NR Radio Protocols by Intel
Overview 5G NR Radio Protocols by Intel Overview 5G NR Radio Protocols by Intel
Overview 5G NR Radio Protocols by Intel
Eiko Seidel

5G NR: Key features and enhancements
5G NR: Key features and enhancements5G NR: Key features and enhancements
5G NR: Key features and enhancements
3G4G

Packet core network basics
Packet core network basicsPacket core network basics
Packet core network basics
Mustafa Golam

5gc call flow
5gc call flow5gc call flow
5gc call flow
Koorosh Hoveyda

Gpon Fundamentals
Gpon FundamentalsGpon Fundamentals
Gpon Fundamentals
mansoor_gr8

Best practices-lte-call-flow-guide
Best practices-lte-call-flow-guideBest practices-lte-call-flow-guide
Best practices-lte-call-flow-guide
Morg

How to dimension user traffic in LTE
How to dimension user traffic in LTEHow to dimension user traffic in LTE
How to dimension user traffic in LTE
Althaf Hussain


What's hot (20)

Beginners: Different Types of RAN Architectures - Distributed, Centralized & ...
Beginners: Different Types of RAN Architectures - Distributed, Centralized & ...Beginners: Different Types of RAN Architectures - Distributed, Centralized & ...
Beginners: Different Types of RAN Architectures - Distributed, Centralized & ...

Beginners: 5G Terminology (Updated - Feb 2019)
Beginners: 5G Terminology (Updated - Feb 2019)Beginners: 5G Terminology (Updated - Feb 2019)
Beginners: 5G Terminology (Updated - Feb 2019)

5G Network Architecture Options
5G Network Architecture Options5G Network Architecture Options
5G Network Architecture Options

5G RAN fundamentals
5G RAN fundamentals5G RAN fundamentals
5G RAN fundamentals

5G Services Story
5G Services Story5G Services Story
5G Services Story

5g introduction_NR
5g introduction_NR5g introduction_NR
5g introduction_NR

5G_NR_Overview_Architecture_and_Operating_Modes
5G_NR_Overview_Architecture_and_Operating_Modes5G_NR_Overview_Architecture_and_Operating_Modes
5G_NR_Overview_Architecture_and_Operating_Modes

Lte power control
Lte power controlLte power control
Lte power control

Huawei GPON Fundamentals
Huawei GPON FundamentalsHuawei GPON Fundamentals
Huawei GPON Fundamentals

5G NR parameters
5G NR parameters5G NR parameters
5G NR parameters

LTE network: How it all comes together architecture technical poster
LTE network: How it all comes together architecture technical posterLTE network: How it all comes together architecture technical poster
LTE network: How it all comes together architecture technical poster

Evolution of Core Networks
Evolution of Core NetworksEvolution of Core Networks
Evolution of Core Networks

4g interview-question
4g interview-question4g interview-question
4g interview-question

Overview 5G NR Radio Protocols by Intel
Overview 5G NR Radio Protocols by Intel Overview 5G NR Radio Protocols by Intel
Overview 5G NR Radio Protocols by Intel

5G NR: Key features and enhancements
5G NR: Key features and enhancements5G NR: Key features and enhancements
5G NR: Key features and enhancements

Packet core network basics
Packet core network basicsPacket core network basics
Packet core network basics

5gc call flow
5gc call flow5gc call flow
5gc call flow

Gpon Fundamentals
Gpon FundamentalsGpon Fundamentals
Gpon Fundamentals

Best practices-lte-call-flow-guide
Best practices-lte-call-flow-guideBest practices-lte-call-flow-guide
Best practices-lte-call-flow-guide

How to dimension user traffic in LTE
How to dimension user traffic in LTEHow to dimension user traffic in LTE
How to dimension user traffic in LTE


Viewers also liked

Cisco Live! :: Introduction to Segment Routing :: BRKRST-2124 | Las Vegas 2017
Cisco Live! :: Introduction to Segment Routing :: BRKRST-2124  | Las Vegas 2017Cisco Live! :: Introduction to Segment Routing :: BRKRST-2124  | Las Vegas 2017
Cisco Live! :: Introduction to Segment Routing :: BRKRST-2124 | Las Vegas 2017
Bruno Teixeira

5G Network Introduction
5G Network Introduction5G Network Introduction
5G Network Introduction
Michelle Holley

Виртуализация в опорной сети мобильного оператора
Виртуализация в опорной сети мобильного оператораВиртуализация в опорной сети мобильного оператора
Виртуализация в опорной сети мобильного оператора
Cisco Russia

#CiscoLiveLA 2017 Presentacion de Miro Polakovic
#CiscoLiveLA 2017 Presentacion de Miro Polakovic #CiscoLiveLA 2017 Presentacion de Miro Polakovic
#CiscoLiveLA 2017 Presentacion de Miro Polakovic
ITSitio.com

Shift Happens: From Value Destruction to Value Creation
Shift Happens: From Value Destruction to Value CreationShift Happens: From Value Destruction to Value Creation
Shift Happens: From Value Destruction to Value Creation
Cisco Service Provider

vCloud NFV - Accelerating deployment of the Telco Cloud (SDN NFV Day ITB 2016)
vCloud NFV - Accelerating deployment of the Telco Cloud (SDN NFV Day ITB 2016)vCloud NFV - Accelerating deployment of the Telco Cloud (SDN NFV Day ITB 2016)
vCloud NFV - Accelerating deployment of the Telco Cloud (SDN NFV Day ITB 2016)
SDNRG ITB

Cisco Live! :: Cisco ASR 9000 Architecture :: BRKARC-2003 | Las Vegas 2017
Cisco Live! :: Cisco ASR 9000 Architecture :: BRKARC-2003 | Las Vegas 2017Cisco Live! :: Cisco ASR 9000 Architecture :: BRKARC-2003 | Las Vegas 2017
Cisco Live! :: Cisco ASR 9000 Architecture :: BRKARC-2003 | Las Vegas 2017
Bruno Teixeira

Architecture for Mobile Data Offload over Wi-Fi Access Networks
Architecture for Mobile Data Offload over Wi-Fi Access NetworksArchitecture for Mobile Data Offload over Wi-Fi Access Networks
Architecture for Mobile Data Offload over Wi-Fi Access Networks
Cisco Service Provider

Cisco Connect Toronto 2017 - Optimizing your client's Wi-Fi Experience
Cisco Connect Toronto 2017 - Optimizing your client's Wi-Fi ExperienceCisco Connect Toronto 2017 - Optimizing your client's Wi-Fi Experience
Cisco Connect Toronto 2017 - Optimizing your client's Wi-Fi Experience
Cisco Canada

Cisco SDN/NVF Innovations (SDN NVF Day ITB 2016)
Cisco SDN/NVF Innovations (SDN NVF Day ITB 2016)Cisco SDN/NVF Innovations (SDN NVF Day ITB 2016)
Cisco SDN/NVF Innovations (SDN NVF Day ITB 2016)
SDNRG ITB

Q4 fy17 earnings slides final no guidance
Q4 fy17 earnings slides final no guidanceQ4 fy17 earnings slides final no guidance
Q4 fy17 earnings slides final no guidance
ir_cisco

Software Defined Networking (SDN) / Network Function Virtualization (NFV) bas...
Software Defined Networking (SDN) / Network Function Virtualization (NFV) bas...Software Defined Networking (SDN) / Network Function Virtualization (NFV) bas...
Software Defined Networking (SDN) / Network Function Virtualization (NFV) bas...
Michelle Holley

Cisco Visual Networking Index Global Mobile Data Traffic Forecast Infographic
Cisco Visual Networking Index Global Mobile Data Traffic Forecast InfographicCisco Visual Networking Index Global Mobile Data Traffic Forecast Infographic
Cisco Visual Networking Index Global Mobile Data Traffic Forecast Infographic
Cisco Service Provider

5G Crosshaul vs 5G-XHaul
5G Crosshaul vs 5G-XHaul5G Crosshaul vs 5G-XHaul
5G Crosshaul vs 5G-XHaul
3G4G

Cisco Connect Toronto 2017 - Understanding Cisco Next Generation SD-WAN
Cisco Connect Toronto 2017 - Understanding Cisco Next Generation SD-WANCisco Connect Toronto 2017 - Understanding Cisco Next Generation SD-WAN
Cisco Connect Toronto 2017 - Understanding Cisco Next Generation SD-WAN
Cisco Canada

Q1 fy18 earnings slides no guidance
Q1 fy18 earnings slides no guidanceQ1 fy18 earnings slides no guidance
Q1 fy18 earnings slides no guidance
ir_cisco

4.5G: Integration of LTE and Wi-Fi networks
4.5G: Integration of LTE and Wi-Fi networks4.5G: Integration of LTE and Wi-Fi networks
4.5G: Integration of LTE and Wi-Fi networks
eXplanoTech

Finance, meaning, concept and types
Finance, meaning, concept and typesFinance, meaning, concept and types
Finance, meaning, concept and types
Anandapadmanabhan Kottiyam


Viewers also liked (18)

Cisco Live! :: Introduction to Segment Routing :: BRKRST-2124 | Las Vegas 2017
Cisco Live! :: Introduction to Segment Routing :: BRKRST-2124  | Las Vegas 2017Cisco Live! :: Introduction to Segment Routing :: BRKRST-2124  | Las Vegas 2017
Cisco Live! :: Introduction to Segment Routing :: BRKRST-2124 | Las Vegas 2017

5G Network Introduction
5G Network Introduction5G Network Introduction
5G Network Introduction

Виртуализация в опорной сети мобильного оператора
Виртуализация в опорной сети мобильного оператораВиртуализация в опорной сети мобильного оператора
Виртуализация в опорной сети мобильного оператора

#CiscoLiveLA 2017 Presentacion de Miro Polakovic
#CiscoLiveLA 2017 Presentacion de Miro Polakovic #CiscoLiveLA 2017 Presentacion de Miro Polakovic
#CiscoLiveLA 2017 Presentacion de Miro Polakovic

Shift Happens: From Value Destruction to Value Creation
Shift Happens: From Value Destruction to Value CreationShift Happens: From Value Destruction to Value Creation
Shift Happens: From Value Destruction to Value Creation

vCloud NFV - Accelerating deployment of the Telco Cloud (SDN NFV Day ITB 2016)
vCloud NFV - Accelerating deployment of the Telco Cloud (SDN NFV Day ITB 2016)vCloud NFV - Accelerating deployment of the Telco Cloud (SDN NFV Day ITB 2016)
vCloud NFV - Accelerating deployment of the Telco Cloud (SDN NFV Day ITB 2016)

Cisco Live! :: Cisco ASR 9000 Architecture :: BRKARC-2003 | Las Vegas 2017
Cisco Live! :: Cisco ASR 9000 Architecture :: BRKARC-2003 | Las Vegas 2017Cisco Live! :: Cisco ASR 9000 Architecture :: BRKARC-2003 | Las Vegas 2017
Cisco Live! :: Cisco ASR 9000 Architecture :: BRKARC-2003 | Las Vegas 2017

Architecture for Mobile Data Offload over Wi-Fi Access Networks
Architecture for Mobile Data Offload over Wi-Fi Access NetworksArchitecture for Mobile Data Offload over Wi-Fi Access Networks
Architecture for Mobile Data Offload over Wi-Fi Access Networks

Cisco Connect Toronto 2017 - Optimizing your client's Wi-Fi Experience
Cisco Connect Toronto 2017 - Optimizing your client's Wi-Fi ExperienceCisco Connect Toronto 2017 - Optimizing your client's Wi-Fi Experience
Cisco Connect Toronto 2017 - Optimizing your client's Wi-Fi Experience

Cisco SDN/NVF Innovations (SDN NVF Day ITB 2016)
Cisco SDN/NVF Innovations (SDN NVF Day ITB 2016)Cisco SDN/NVF Innovations (SDN NVF Day ITB 2016)
Cisco SDN/NVF Innovations (SDN NVF Day ITB 2016)

Q4 fy17 earnings slides final no guidance
Q4 fy17 earnings slides final no guidanceQ4 fy17 earnings slides final no guidance
Q4 fy17 earnings slides final no guidance

Software Defined Networking (SDN) / Network Function Virtualization (NFV) bas...
Software Defined Networking (SDN) / Network Function Virtualization (NFV) bas...Software Defined Networking (SDN) / Network Function Virtualization (NFV) bas...
Software Defined Networking (SDN) / Network Function Virtualization (NFV) bas...

Cisco Visual Networking Index Global Mobile Data Traffic Forecast Infographic
Cisco Visual Networking Index Global Mobile Data Traffic Forecast InfographicCisco Visual Networking Index Global Mobile Data Traffic Forecast Infographic
Cisco Visual Networking Index Global Mobile Data Traffic Forecast Infographic

5G Crosshaul vs 5G-XHaul
5G Crosshaul vs 5G-XHaul5G Crosshaul vs 5G-XHaul
5G Crosshaul vs 5G-XHaul

Cisco Connect Toronto 2017 - Understanding Cisco Next Generation SD-WAN
Cisco Connect Toronto 2017 - Understanding Cisco Next Generation SD-WANCisco Connect Toronto 2017 - Understanding Cisco Next Generation SD-WAN
Cisco Connect Toronto 2017 - Understanding Cisco Next Generation SD-WAN

Q1 fy18 earnings slides no guidance
Q1 fy18 earnings slides no guidanceQ1 fy18 earnings slides no guidance
Q1 fy18 earnings slides no guidance

4.5G: Integration of LTE and Wi-Fi networks
4.5G: Integration of LTE and Wi-Fi networks4.5G: Integration of LTE and Wi-Fi networks
4.5G: Integration of LTE and Wi-Fi networks

Finance, meaning, concept and types
Finance, meaning, concept and typesFinance, meaning, concept and types
Finance, meaning, concept and types


Similar to 5G End to-end network slicing Demo

Data center network reference architecture with hpe flex fabric
Data center network reference architecture with hpe flex fabricData center network reference architecture with hpe flex fabric
Data center network reference architecture with hpe flex fabric
Aruba, a Hewlett Packard Enterprise company

cFrame framework slides
cFrame framework slidescFrame framework slides
cFrame framework slides
kestasj

Sharath Pass 111111111111111111111111111111111111111111111111111111.pdf
Sharath Pass 111111111111111111111111111111111111111111111111111111.pdfSharath Pass 111111111111111111111111111111111111111111111111111111.pdf
Sharath Pass 111111111111111111111111111111111111111111111111111111.pdf
GaganaGowda31

Introduction to IBM Shared Memory Communications Version 2 (SMCv2) and SMC-Dv2
Introduction to IBM Shared Memory Communications Version 2 (SMCv2) and SMC-Dv2Introduction to IBM Shared Memory Communications Version 2 (SMCv2) and SMC-Dv2
Introduction to IBM Shared Memory Communications Version 2 (SMCv2) and SMC-Dv2
zOSCommserver

The Data Center and Hadoop
The Data Center and HadoopThe Data Center and Hadoop
The Data Center and Hadoop
DataWorks Summit

ECI OpenFlow 2.0 the Future of SDN
ECI OpenFlow 2.0 the Future of SDN ECI OpenFlow 2.0 the Future of SDN
ECI OpenFlow 2.0 the Future of SDN
ECI – THE ELASTIC NETWORK™

2014/09/02 Cisco UCS HPC @ ANL
2014/09/02 Cisco UCS HPC @ ANL2014/09/02 Cisco UCS HPC @ ANL
2014/09/02 Cisco UCS HPC @ ANL
dgoodell

Future Onshore Wind Energy Technology
Future Onshore Wind Energy TechnologyFuture Onshore Wind Energy Technology
Future Onshore Wind Energy Technology
Philip Totaro

Ground-Cloud-Cloud-Ground - NAB 2022 IP Showcase
Ground-Cloud-Cloud-Ground - NAB 2022 IP ShowcaseGround-Cloud-Cloud-Ground - NAB 2022 IP Showcase
Ground-Cloud-Cloud-Ground - NAB 2022 IP Showcase
Kieran Kunhya

6TiSCH @Telecom Bretagne 2015
6TiSCH @Telecom Bretagne 20156TiSCH @Telecom Bretagne 2015
6TiSCH @Telecom Bretagne 2015
Pascal Thubert

Elephant & mice flows
Elephant & mice flowsElephant & mice flows
Elephant & mice flows
Jeff Green

Presentation power vm common 2012
Presentation   power vm common 2012Presentation   power vm common 2012
Presentation power vm common 2012
solarisyougood

An overview of 100GbE technology, now and the future
An overview of 100GbE technology, now and the futureAn overview of 100GbE technology, now and the future
An overview of 100GbE technology, now and the future
Jisc

Strategies for End-to-End Timing Guarantees in a Centralized Software Defined...
Strategies for End-to-End Timing Guarantees in a Centralized Software Defined...Strategies for End-to-End Timing Guarantees in a Centralized Software Defined...
Strategies for End-to-End Timing Guarantees in a Centralized Software Defined...
RealTime-at-Work (RTaW)

Cisco data center support
Cisco data center supportCisco data center support
Cisco data center support
Krunal Shah

Orange_US Domain (revised with notes)
Orange_US Domain (revised with notes)Orange_US Domain (revised with notes)
Orange_US Domain (revised with notes)
Roderick Dottin

Technical Overview of Cisco Catalyst 9200 Series Switches
Technical Overview of Cisco Catalyst 9200 Series SwitchesTechnical Overview of Cisco Catalyst 9200 Series Switches
Technical Overview of Cisco Catalyst 9200 Series Switches
Robb Boyd

Approaching hyperconvergedopenstack
Approaching hyperconvergedopenstackApproaching hyperconvergedopenstack
Approaching hyperconvergedopenstack
Ikuo Kumagai

AT&T: HetNet – Small Cell Placement and the resulting performance
AT&T: HetNet – Small Cell Placement and the resulting performanceAT&T: HetNet – Small Cell Placement and the resulting performance
AT&T: HetNet – Small Cell Placement and the resulting performance
Small Cell Forum

Universal Reconfigurable Processing Platform For Space Rev Voice4
Universal Reconfigurable Processing Platform For Space Rev Voice4Universal Reconfigurable Processing Platform For Space Rev Voice4
Universal Reconfigurable Processing Platform For Space Rev Voice4
dseagrave


Similar to 5G End to-end network slicing Demo (20)

Data center network reference architecture with hpe flex fabric
Data center network reference architecture with hpe flex fabricData center network reference architecture with hpe flex fabric
Data center network reference architecture with hpe flex fabric

cFrame framework slides
cFrame framework slidescFrame framework slides
cFrame framework slides

Sharath Pass 111111111111111111111111111111111111111111111111111111.pdf
Sharath Pass 111111111111111111111111111111111111111111111111111111.pdfSharath Pass 111111111111111111111111111111111111111111111111111111.pdf
Sharath Pass 111111111111111111111111111111111111111111111111111111.pdf

Introduction to IBM Shared Memory Communications Version 2 (SMCv2) and SMC-Dv2
Introduction to IBM Shared Memory Communications Version 2 (SMCv2) and SMC-Dv2Introduction to IBM Shared Memory Communications Version 2 (SMCv2) and SMC-Dv2
Introduction to IBM Shared Memory Communications Version 2 (SMCv2) and SMC-Dv2

The Data Center and Hadoop
The Data Center and HadoopThe Data Center and Hadoop
The Data Center and Hadoop

ECI OpenFlow 2.0 the Future of SDN
ECI OpenFlow 2.0 the Future of SDN ECI OpenFlow 2.0 the Future of SDN
ECI OpenFlow 2.0 the Future of SDN

2014/09/02 Cisco UCS HPC @ ANL
2014/09/02 Cisco UCS HPC @ ANL2014/09/02 Cisco UCS HPC @ ANL
2014/09/02 Cisco UCS HPC @ ANL

Future Onshore Wind Energy Technology
Future Onshore Wind Energy TechnologyFuture Onshore Wind Energy Technology
Future Onshore Wind Energy Technology

Ground-Cloud-Cloud-Ground - NAB 2022 IP Showcase
Ground-Cloud-Cloud-Ground - NAB 2022 IP ShowcaseGround-Cloud-Cloud-Ground - NAB 2022 IP Showcase
Ground-Cloud-Cloud-Ground - NAB 2022 IP Showcase

6TiSCH @Telecom Bretagne 2015
6TiSCH @Telecom Bretagne 20156TiSCH @Telecom Bretagne 2015
6TiSCH @Telecom Bretagne 2015

Elephant & mice flows
Elephant & mice flowsElephant & mice flows
Elephant & mice flows

Presentation power vm common 2012
Presentation   power vm common 2012Presentation   power vm common 2012
Presentation power vm common 2012

An overview of 100GbE technology, now and the future
An overview of 100GbE technology, now and the futureAn overview of 100GbE technology, now and the future
An overview of 100GbE technology, now and the future

Strategies for End-to-End Timing Guarantees in a Centralized Software Defined...
Strategies for End-to-End Timing Guarantees in a Centralized Software Defined...Strategies for End-to-End Timing Guarantees in a Centralized Software Defined...
Strategies for End-to-End Timing Guarantees in a Centralized Software Defined...

Cisco data center support
Cisco data center supportCisco data center support
Cisco data center support

Orange_US Domain (revised with notes)
Orange_US Domain (revised with notes)Orange_US Domain (revised with notes)
Orange_US Domain (revised with notes)

Technical Overview of Cisco Catalyst 9200 Series Switches
Technical Overview of Cisco Catalyst 9200 Series SwitchesTechnical Overview of Cisco Catalyst 9200 Series Switches
Technical Overview of Cisco Catalyst 9200 Series Switches

Approaching hyperconvergedopenstack
Approaching hyperconvergedopenstackApproaching hyperconvergedopenstack
Approaching hyperconvergedopenstack

AT&T: HetNet – Small Cell Placement and the resulting performance
AT&T: HetNet – Small Cell Placement and the resulting performanceAT&T: HetNet – Small Cell Placement and the resulting performance
AT&T: HetNet – Small Cell Placement and the resulting performance

Universal Reconfigurable Processing Platform For Space Rev Voice4
Universal Reconfigurable Processing Platform For Space Rev Voice4Universal Reconfigurable Processing Platform For Space Rev Voice4
Universal Reconfigurable Processing Platform For Space Rev Voice4


More from ITU

Do we need a wakeup call to keep driver-less cars protected?
Do we need a wakeup call to keep driver-less cars protected? Do we need a wakeup call to keep driver-less cars protected?
Do we need a wakeup call to keep driver-less cars protected?
ITU

Global Virtual Mobile Network for Car manufacturers
Global Virtual Mobile Network for Car manufacturersGlobal Virtual Mobile Network for Car manufacturers
Global Virtual Mobile Network for Car manufacturers
ITU

Coordination of Threat Analysis in ICT Ecosystems
Coordination of Threat Analysis in ICT EcosystemsCoordination of Threat Analysis in ICT Ecosystems
Coordination of Threat Analysis in ICT Ecosystems
ITU

Learning from the past: Systematization for Attacks and Countermeasures on Mo...
Learning from the past: Systematization for Attacks and Countermeasures on Mo...Learning from the past: Systematization for Attacks and Countermeasures on Mo...
Learning from the past: Systematization for Attacks and Countermeasures on Mo...
ITU

Trustworthy networking and technical considerations for 5G
Trustworthy networking and technical considerations for 5GTrustworthy networking and technical considerations for 5G
Trustworthy networking and technical considerations for 5G
ITU

The role of Bicycles and E-Bikes in the future development of Intelligent Tra...
The role of Bicycles and E-Bikes in the future development of Intelligent Tra...The role of Bicycles and E-Bikes in the future development of Intelligent Tra...
The role of Bicycles and E-Bikes in the future development of Intelligent Tra...
ITU

Connected Cars & 5G
Connected Cars & 5GConnected Cars & 5G
Connected Cars & 5G
ITU

5G for Connected and Automated Driving
5G for Connected and Automated Driving5G for Connected and Automated Driving
5G for Connected and Automated Driving
ITU

Securing the future of Automotive
Securing the future of AutomotiveSecuring the future of Automotive
Securing the future of Automotive
ITU

The Connected Vehicle - Challenges and Opportunities.
The Connected Vehicle - Challenges and Opportunities. The Connected Vehicle - Challenges and Opportunities.
The Connected Vehicle - Challenges and Opportunities.
ITU

Machine learning for decentralized and flying radio devices
Machine learning for decentralized and flying radio devicesMachine learning for decentralized and flying radio devices
Machine learning for decentralized and flying radio devices
ITU

AI and machine learning
AI and machine learningAI and machine learning
AI and machine learning
ITU

Machine learning for 5G and beyond
Machine learning for 5G and beyondMachine learning for 5G and beyond
Machine learning for 5G and beyond
ITU

Efficient Deep Learning in Communications
Efficient Deep Learning in CommunicationsEfficient Deep Learning in Communications
Efficient Deep Learning in Communications
ITU

AI for Good Global Summit - 2017 Report
AI for Good Global Summit - 2017 ReportAI for Good Global Summit - 2017 Report
AI for Good Global Summit - 2017 Report
ITU

Standardization of XDSL and MGfast in ITU-T SG15
Standardization of XDSL and MGfast in ITU-T SG15Standardization of XDSL and MGfast in ITU-T SG15
Standardization of XDSL and MGfast in ITU-T SG15
ITU

One World One Global Sim
One World One Global Sim One World One Global Sim
One World One Global Sim
ITU

ICTs, LDCs and the SDGs
ICTs, LDCs and the SDGsICTs, LDCs and the SDGs
ICTs, LDCs and the SDGs
ITU

Collection Methodology for Key Performance Indicators for Smart Sustainable C...
Collection Methodology for Key Performance Indicators for Smart Sustainable C...Collection Methodology for Key Performance Indicators for Smart Sustainable C...
Collection Methodology for Key Performance Indicators for Smart Sustainable C...
ITU

Enhancing innovation and participation in smart sustainable cities
Enhancing innovation and participation in smart sustainable citiesEnhancing innovation and participation in smart sustainable cities
Enhancing innovation and participation in smart sustainable cities
ITU


More from ITU (20)

Do we need a wakeup call to keep driver-less cars protected?
Do we need a wakeup call to keep driver-less cars protected? Do we need a wakeup call to keep driver-less cars protected?
Do we need a wakeup call to keep driver-less cars protected?

Global Virtual Mobile Network for Car manufacturers
Global Virtual Mobile Network for Car manufacturersGlobal Virtual Mobile Network for Car manufacturers
Global Virtual Mobile Network for Car manufacturers

Coordination of Threat Analysis in ICT Ecosystems
Coordination of Threat Analysis in ICT EcosystemsCoordination of Threat Analysis in ICT Ecosystems
Coordination of Threat Analysis in ICT Ecosystems

Learning from the past: Systematization for Attacks and Countermeasures on Mo...
Learning from the past: Systematization for Attacks and Countermeasures on Mo...Learning from the past: Systematization for Attacks and Countermeasures on Mo...
Learning from the past: Systematization for Attacks and Countermeasures on Mo...

Trustworthy networking and technical considerations for 5G
Trustworthy networking and technical considerations for 5GTrustworthy networking and technical considerations for 5G
Trustworthy networking and technical considerations for 5G

The role of Bicycles and E-Bikes in the future development of Intelligent Tra...
The role of Bicycles and E-Bikes in the future development of Intelligent Tra...The role of Bicycles and E-Bikes in the future development of Intelligent Tra...
The role of Bicycles and E-Bikes in the future development of Intelligent Tra...

Connected Cars & 5G
Connected Cars & 5GConnected Cars & 5G
Connected Cars & 5G

5G for Connected and Automated Driving
5G for Connected and Automated Driving5G for Connected and Automated Driving
5G for Connected and Automated Driving

Securing the future of Automotive
Securing the future of AutomotiveSecuring the future of Automotive
Securing the future of Automotive

The Connected Vehicle - Challenges and Opportunities.
The Connected Vehicle - Challenges and Opportunities. The Connected Vehicle - Challenges and Opportunities.
The Connected Vehicle - Challenges and Opportunities.

Machine learning for decentralized and flying radio devices
Machine learning for decentralized and flying radio devicesMachine learning for decentralized and flying radio devices
Machine learning for decentralized and flying radio devices

AI and machine learning
AI and machine learningAI and machine learning
AI and machine learning

Machine learning for 5G and beyond
Machine learning for 5G and beyondMachine learning for 5G and beyond
Machine learning for 5G and beyond

Efficient Deep Learning in Communications
Efficient Deep Learning in CommunicationsEfficient Deep Learning in Communications
Efficient Deep Learning in Communications

AI for Good Global Summit - 2017 Report
AI for Good Global Summit - 2017 ReportAI for Good Global Summit - 2017 Report
AI for Good Global Summit - 2017 Report

Standardization of XDSL and MGfast in ITU-T SG15
Standardization of XDSL and MGfast in ITU-T SG15Standardization of XDSL and MGfast in ITU-T SG15
Standardization of XDSL and MGfast in ITU-T SG15

One World One Global Sim
One World One Global Sim One World One Global Sim
One World One Global Sim

ICTs, LDCs and the SDGs
ICTs, LDCs and the SDGsICTs, LDCs and the SDGs
ICTs, LDCs and the SDGs

Collection Methodology for Key Performance Indicators for Smart Sustainable C...
Collection Methodology for Key Performance Indicators for Smart Sustainable C...Collection Methodology for Key Performance Indicators for Smart Sustainable C...
Collection Methodology for Key Performance Indicators for Smart Sustainable C...

Enhancing innovation and participation in smart sustainable cities
Enhancing innovation and participation in smart sustainable citiesEnhancing innovation and participation in smart sustainable cities
Enhancing innovation and participation in smart sustainable cities


Recently uploaded

RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx
RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptxRPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx
RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx
SynapseIndia

Calgary MuleSoft Meetup APM and IDP .pptx
Calgary MuleSoft Meetup APM and IDP .pptxCalgary MuleSoft Meetup APM and IDP .pptx
Calgary MuleSoft Meetup APM and IDP .pptx
ishalveerrandhawa1

Gen-AI in Telcos: Strategies, Challenges & Impact
Gen-AI in Telcos: Strategies, Challenges & ImpactGen-AI in Telcos: Strategies, Challenges & Impact
Gen-AI in Telcos: Strategies, Challenges & Impact
aejazahamed4

find out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challengesfind out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challenges
huseindihon

BEGINNER’S GUIDE TO AI AGENTS (1).pptx...
BEGINNER’S GUIDE TO AI AGENTS (1).pptx...BEGINNER’S GUIDE TO AI AGENTS (1).pptx...
BEGINNER’S GUIDE TO AI AGENTS (1).pptx...
WriteMe

Fluttercon 2024: Showing that you care about security - OpenSSF Scorecards fo...
Fluttercon 2024: Showing that you care about security - OpenSSF Scorecards fo...Fluttercon 2024: Showing that you care about security - OpenSSF Scorecards fo...
Fluttercon 2024: Showing that you care about security - OpenSSF Scorecards fo...
Chris Swan

(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
Priyanka Aash

Overview of Enterprise-scale landing zones using Cloud Adoption Framework Rea...
Overview of Enterprise-scale landing zones using Cloud Adoption Framework Rea...Overview of Enterprise-scale landing zones using Cloud Adoption Framework Rea...
Overview of Enterprise-scale landing zones using Cloud Adoption Framework Rea...
MarceloMiranda38200

The Role of Technology in Payroll Statutory Compliance (1).pdf
The Role of Technology in Payroll Statutory Compliance (1).pdfThe Role of Technology in Payroll Statutory Compliance (1).pdf
The Role of Technology in Payroll Statutory Compliance (1).pdf
paysquare consultancy

How RPA Help in the Transportation and Logistics Industry.pptx
How RPA Help in the Transportation and Logistics Industry.pptxHow RPA Help in the Transportation and Logistics Industry.pptx
How RPA Help in the Transportation and Logistics Industry.pptx
SynapseIndia

Advanced Techniques for Cyber Security Analysis and Anomaly Detection
Advanced Techniques for Cyber Security Analysis and Anomaly DetectionAdvanced Techniques for Cyber Security Analysis and Anomaly Detection
Advanced Techniques for Cyber Security Analysis and Anomaly Detection
Bert Blevins

7 Most Powerful Solar Storms in the History of Earth.pdf
7 Most Powerful Solar Storms in the History of Earth.pdf7 Most Powerful Solar Storms in the History of Earth.pdf
7 Most Powerful Solar Storms in the History of Earth.pdf
Enterprise Wired

Applying Retrieval-Augmented Generation (RAG) to Combat Hallucinations in GenAI
Applying Retrieval-Augmented Generation (RAG) to Combat Hallucinations in GenAIApplying Retrieval-Augmented Generation (RAG) to Combat Hallucinations in GenAI
Applying Retrieval-Augmented Generation (RAG) to Combat Hallucinations in GenAI
ssuserd4e0d2

How to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptxHow to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptx
Adam Dunkels

Password Rotation in 2024 is still Relevant
Password Rotation in 2024 is still RelevantPassword Rotation in 2024 is still Relevant
Password Rotation in 2024 is still Relevant
Bert Blevins

Three New Criminal Laws in India 1 July 2024
Three New Criminal Laws in India 1 July 2024Three New Criminal Laws in India 1 July 2024
Three New Criminal Laws in India 1 July 2024
aakash malhotra

Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops
Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - MydbopsScaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops
Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops
Mydbops

[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
Kief Morris

Choose our Linux Web Hosting for a seamless and successful online presence
Choose our Linux Web Hosting for a seamless and successful online presenceChoose our Linux Web Hosting for a seamless and successful online presence
Choose our Linux Web Hosting for a seamless and successful online presence
rajancomputerfbd

“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...
“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...
“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...
Edge AI and Vision Alliance


Recently uploaded (20)

RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx
RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptxRPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx
RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx

Calgary MuleSoft Meetup APM and IDP .pptx
Calgary MuleSoft Meetup APM and IDP .pptxCalgary MuleSoft Meetup APM and IDP .pptx
Calgary MuleSoft Meetup APM and IDP .pptx

Gen-AI in Telcos: Strategies, Challenges & Impact
Gen-AI in Telcos: Strategies, Challenges & ImpactGen-AI in Telcos: Strategies, Challenges & Impact
Gen-AI in Telcos: Strategies, Challenges & Impact

find out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challengesfind out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challenges

BEGINNER’S GUIDE TO AI AGENTS (1).pptx...
BEGINNER’S GUIDE TO AI AGENTS (1).pptx...BEGINNER’S GUIDE TO AI AGENTS (1).pptx...
BEGINNER’S GUIDE TO AI AGENTS (1).pptx...

Fluttercon 2024: Showing that you care about security - OpenSSF Scorecards fo...
Fluttercon 2024: Showing that you care about security - OpenSSF Scorecards fo...Fluttercon 2024: Showing that you care about security - OpenSSF Scorecards fo...
Fluttercon 2024: Showing that you care about security - OpenSSF Scorecards fo...

(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...

Overview of Enterprise-scale landing zones using Cloud Adoption Framework Rea...
Overview of Enterprise-scale landing zones using Cloud Adoption Framework Rea...Overview of Enterprise-scale landing zones using Cloud Adoption Framework Rea...
Overview of Enterprise-scale landing zones using Cloud Adoption Framework Rea...

The Role of Technology in Payroll Statutory Compliance (1).pdf
The Role of Technology in Payroll Statutory Compliance (1).pdfThe Role of Technology in Payroll Statutory Compliance (1).pdf
The Role of Technology in Payroll Statutory Compliance (1).pdf

How RPA Help in the Transportation and Logistics Industry.pptx
How RPA Help in the Transportation and Logistics Industry.pptxHow RPA Help in the Transportation and Logistics Industry.pptx
How RPA Help in the Transportation and Logistics Industry.pptx

Advanced Techniques for Cyber Security Analysis and Anomaly Detection
Advanced Techniques for Cyber Security Analysis and Anomaly DetectionAdvanced Techniques for Cyber Security Analysis and Anomaly Detection
Advanced Techniques for Cyber Security Analysis and Anomaly Detection

7 Most Powerful Solar Storms in the History of Earth.pdf
7 Most Powerful Solar Storms in the History of Earth.pdf7 Most Powerful Solar Storms in the History of Earth.pdf
7 Most Powerful Solar Storms in the History of Earth.pdf

Applying Retrieval-Augmented Generation (RAG) to Combat Hallucinations in GenAI
Applying Retrieval-Augmented Generation (RAG) to Combat Hallucinations in GenAIApplying Retrieval-Augmented Generation (RAG) to Combat Hallucinations in GenAI
Applying Retrieval-Augmented Generation (RAG) to Combat Hallucinations in GenAI

How to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptxHow to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptx

Password Rotation in 2024 is still Relevant
Password Rotation in 2024 is still RelevantPassword Rotation in 2024 is still Relevant
Password Rotation in 2024 is still Relevant

Three New Criminal Laws in India 1 July 2024
Three New Criminal Laws in India 1 July 2024Three New Criminal Laws in India 1 July 2024
Three New Criminal Laws in India 1 July 2024

Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops
Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - MydbopsScaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops
Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops

[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf

Choose our Linux Web Hosting for a seamless and successful online presence
Choose our Linux Web Hosting for a seamless and successful online presenceChoose our Linux Web Hosting for a seamless and successful online presence
Choose our Linux Web Hosting for a seamless and successful online presence

“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...
“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...
“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...


5G End to-end network slicing Demo

  • 1. 5G End-to-End Slicing Demo December 7th 2016 FG-IMT-2020 Geneva
  • 3. 3 One Size Does Not Fit All time frequency Access DC Metro DC Core DC (( (( Multiple Applications  Different QOS requirements  Same air interface for every application + Air interface controls most of QOS + COMPROMISES  Same authentication + Same mobility + Same reliability + Same delay + Same QOS + COMPROMISES  4G - air 4G – packet core4G - UE Mobile Broad Band Machine Machine Reliable Low Latency others ==
  • 4. 4 Solution is custom tailoring (slice) time frequency Access DC Metro DC Core DC (( (( EMBB URLLC MMTC No compromises air interface(s) - Ultra high bandwidth for MBB - Ultra low delay/reliability for URLLC - No reservations for MMTC - Room to grow for many others eg: improved mobility velocity other 5G – air(s) 5G – packet core(s)5G - UE No compromises packet core(s) - Ultra high bandwidth for MBB/content near UE - Ultra low delay/reliability for URLLC (dedicated BW) - No reservations for MMTC - Virtualized core / programmable air interface allows Unlimited growth for ‘other’ slice types.
  • 5. 5 Major Components of 5G Infrastructure time frequency (( (( EMBB URLLC MMTC other 5G – air(s)5G - UE Orchestration Hierarchy SDN (T)SDNSDN NFV NFV SDNNFV SDN 1 2 1 F-OFDM – Filtered OFDM – flexibly isolates the bands allowing different behaviors 2 SCMA – Sparse Code Multiple Access – allows reservation free access 3 SDN – software defined networking – to program user plane or orchestrate F connectivity. 4 NFV – Network Function Virtualization – to run packet core functions on general CPUs ORCHESTRATION – co-ordinate SDN / NFV / radios to create/change/manage slices. 6 POLAR CODES – flexible efficient error correcting codes for arbitrary block sizes. 1 2 3 4 5 33 4 4 5 SDN3 5 6 MEC MEC
  • 6. 6 Slices however must “breathe” time frequency Access DC Metro DC Core DC (( (( EMBB URLLC MMTC 5G – air(s) 5G – packet core(s)5G - UE Since slices are allocated dedicated resources this can lead to inefficiencies. So: • Must be possible for slices to change size (breath) and to exchange physical resources • Example the MMTC slice shrinks and gives up capacity to the EMMB slice. • Example the ‘other’ slice is not present for some period of time. Its resources given to URLLC. • Must happen with minimum interference or the capability is not usable sufficiently often.
  • 7. Slicing in terms of resource sets/subsets. + + + + Antennas Fronthaul CRAN fabric CRAN CPU/S/W RAT Numerology + + Back Haul Core CPU/S/W eMBB Enhanced Mobile Broadband mMTC Massive Machine Type Communications uMTC Ultra-reliable and Low-latency Communications Future IMT UE + + + + + Antennas Fronthaul CRAN fabric CRAN CPU/S/W RAT Numerology + + Back Haul Core CPU/S/W eMBB Enhanced Mobile Broadband mMTC Massive Machine Type Communications uMTC Ultra-reliable and Low-latency Communications Future IMT UE + From the Universe of resource sets.. A slice can be thought of as a set of subsets …
  • 8. Different RATs Different NG-EPC (demux at Slice Selection Function in NB) Different downstream of the NG-EPC (eg different FW/LB etc.) = Sj = Sk = Si = Sl Slices can be isolated all the way to antenna. Slices can share antennas, fronthaul CRAN etc. but be separated by frequency time or code space. )))) )))) OS )))))))) OSOS Thing Thing APP APP APP APP APP UEs/”Things” can be it a single slice, or multiple slices A UE in multiple slices can be sliced A) horizontally (slice = QOS/QOE) or B) vertically (slice = virtual UE). A B SSF + + + + Antennas Fronthaul CRAN fabric CRAN CPU/S/W RAT Numerology + + Back Haul Core CPU/S/W eMBB Enhanced Mobile Broadband mMTC Massive Machine Type Communications uMTC Ultra-reliable and Low-latency Communications Future IMT UE + Slices may share and trade resources – starting at UE Many levels of Slice Selection Implicit/Explicit Eg 4.xG = Sm
  • 9. Slices can“breath”i.e. grow/shrink & trade resources hit- lessley, automatically or on high level stimulus + + + + Antennas Fronthaul CRAN fabric CRAN CPU/S/W RAT Numerology + + Back Haul Core CPU/S/W eMBB Enhanced Mobile Broadband mMTC Massive Machine Type Communications uMTC Ultra-reliable and Low-latency Communications Future IMT + + + + Antennas Fronthaul CRAN fabric CRAN CPU/S/W RAT Numerology + + Back Haul Core CPU/S/W eMBB Enhanced Mobile Broadband mMTC Massive Machine Type Communications uMTC Ultra-reliable and Low-latency Communications Future IMT Slicei = Slicek = f f fD In response to various stimulus
  • 10. Various Stimuli to trigger resource D After trigger (any type) everything is automatic closed loop and hitless. Temporary H/W maintenance 6 Schedules time of Day Operator request for new slice or delete old Profile or S/W version changes Physical resource add/remove UE’s density changes dramatically Detected congestion CPU thresholds Spectrum or spectral efficiency change Emergency Response % t !! !!
  • 11. Rapid Automation of every component is imperative! CAPEX savings of 5G cloud come from statistical gains. • Want to allocate resources less than peak requirements. • Statistical gains need fast adaption to take advantage of ebb/flow of the tidal changes inter/intra slice. • Slow reconfiguration means more equipment is required. • Smaller Dt (i.e. better automation)  reduced peak HW. • Trade-offs of resources is complex optimization problem. timeeMBB IOT Dt Larger Dt = More Peak HW More Loss X X timeeMBB IOT Dt Smaller Dt = Less Peak HW Less Loss OPEX of 5G nf()/ng() without automation greater than physical f()/g(). • Many more components to manage/configure than physical. • Exploiting parallelism requires many more logical conns/nfs. • Dynamic management of infrastructure not just RAT/RAN. • Hand debugging of virtualized entities requires specialized skills. f() g() nfu[i]() nfu[i]() nfu[i]() .. nfc[i]() nfc[i]() f() ngu[i]() ngu[i]() ngu[i]() .. ngc[i]() ngc[i]() g() physical
  • 12. 5g-1 auto p1 iface p1 inet manual bond-master bond0 auto p2 iface p2 inet manual bond-master bond0 auto bond0 iface p1 inet static bond-mode 4 bond-miimon 100 bond-lacp-rate 1 bond-slaves p1 p2 Encoded lxc start endoeB ovs-vsctl add-port 5g-br0 enodeB_veth_0 ovs-vsctl set port enodeB_veth_0 tag=10 HSS lxc start hss ovs-vsctl add-port 5g-br0 hss_veth_0 ovs-vsctl set port hss_veth_0 tag=10 5g-2 auto p1 iface p1 inet manual bond-master bond0 auto p2 iface p2 inet manual bond-master bond0 auto bond0 iface p1 inet static bond-mode 4 bond-miimon 100 bond-lacp-rate1 bond-slaves p1 p2 5g-4 auto p1 iface p1 inet manual bond-master bond0 auto p2 iface p2 inet manual bond-master bond0 auto bond0 iface p1 inet static bond-mode 4 bond-miimon 100 bond-lacp-rate1 bond-slaves p1 p2 5g-6 auto p1 iface p1 inet manual bond-master bond0 auto p2 iface p2 inet manual bond-master bond0 auto bond0 iface p1 inet static bond-mode 4 bond-miimon 100 bond-lacp-rate1 bond-slaves p1 p2 5g-7 auto p1 iface p1 inet manual bond-master bond0 auto p2 iface p2 inet manual bond-master bond0 auto bond0 iface p1 inet static bond-mode 4 bond-miimon 100 bond-lacp-rate1 bond-slaves p1 p2 RRH docker attach rrh ovs-docker add-port 5g-br0 eth1 rrh –ipaddress==192.168.10.2/24 ovs-vsctl set port rrh_veth_0 tag=10 EPC virsh net-define 5g-network.xml virsh net-start 5g-network virsh define epc virsh start epc ovs-vsctl add-port 5g-br0 epc_veth_0 ovs-vsctl set port epc_veth_0 tag=10 Switch-1 vlan 10 interface eth-trunk1 Description: To 5g-2 port link-type trunk port trunk allow-pass vlan 10 mode lacp-dynamic interface eth-trunk2 Description: To 5g-4 port link-type trunk port trunk allow-pass vlan 10 mode lacp-dynamic interface eth-trunk9 Description: To 5g-1 RRH port link-type trunk port trunk allow-pass vlan 10 mode lacp-dynamic interface eth-trunk21 Description: To Optical Node port link-type trunk port trunk allow-pass vlan 10 mode lacp-dynamic Switch-2 vlan 10 interface eth-trunk1 Description: To 5g-6 port link-type trunk port trunk allow-pass vlan 10 mode lacp-dynamic interface eth-trunk2 Description: To 5g-7q port link-type trunk port trunk allow-pass vlan 10 mode lacp-dynamic interface eth-trunk21 Description: To Optical Node port link-type trunk port trunk allow-pass vlan 10 mode lacp-dynamic A small sub-sample of some of the required commands to setup one slice in one C-RAN (non Radio parts) i.e. its very complex. Transport network, radio and EPC attributes not shown
  • 16. CTRL MGMT SOFT ANT/freq CTRL MGMT SOFT FH CTRL MGMT SOFT DSP S P L CTRL MGMT SOFT Fabric CTRL MGMT SOFT CUS CTRL MGMT SOFT NFs F() G() H() CTRL MGMT SOFT Fabric CTRL MGMT SOFT CPUS CTRL MGMT SOFT NFs F() G() H() CONTROL ORCHESTRATION SOFTWARIZATION(APIs) CONTROL ORCHESTRATION SOFTWARIZATION(APIs) CTRL MGMT SOFT NW CONTROL ORCHESTRATION SOFTWARIZATION(APIs) TAPI High Level Events – Import Slice Delta & compute resource allocation CTRL MGMT SOFT NW TAPI NG(R)ANUE NG-UP FW NG-CP UDM AF Data Network NG1 NG3 NG2 NG4 NG7 NG6 NG5 SliceTemplate(eMBB-A) F() G() H() I() A B INPUTMACHINE G() H() S F() I() (( (( URLLC URLLC Slice-B f L3VPN OUTUT
  • 17. CTRL MGMT SOFT ANT/freq CTRL MGMT SOFT FH CTRL MGMT SOFT DSP S P L CTRL MGMT SOFT Fabric CTRL MGMT SOFT CUS CTRL MGMT SOFT NFs F() G() H() CTRL MGMT SOFT Fabric CTRL MGMT SOFT CPUS CTRL MGMT SOFT NFs F() G() H() CONTROL ORCHESTRATION SOFTWARIZATION(APIs) CONTROL ORCHESTRATION SOFTWARIZATION(APIs) CTRL MGMT SOFT NW CONTROL ORCHESTRATION SOFTWARIZATION(APIs) TAPI High Level Events – Sub divide problem by region/domain CTRL MGMT SOFT NW TAPI NG(R)ANUE NG-UP FW NG-CP UDM AF Data Network NG1 NG3 NG2 NG4 NG7 NG6 NG5 SliceTemplate(eMBB-A) F() G() H() I() A INPUTMACHINE G() H() S F() I() (( (( URLLC URLLC Slice-B f L3VPN OUTUT (( ((
  • 18. CTRL MGMT SOFT ANT/freq CTRL MGMT SOFT FH CTRL MGMT SOFT DSP S P L CTRL MGMT SOFT Fabric CTRL MGMT SOFT CUS CTRL MGMT SOFT NFs F() G() H() CTRL MGMT SOFT Fabric CTRL MGMT SOFT CPUS CTRL MGMT SOFT NFs F() G() H() CONTROL ORCHESTRATION SOFTWARIZATION(APIs) CONTROL ORCHESTRATION SOFTWARIZATION(APIs) CTRL MGMT SOFT NW CONTROL ORCHESTRATION SOFTWARIZATION(APIs) TAPI High Level Events – Recursive.. divide problem by region/domain CTRL MGMT SOFT NW TAPI NG(R)ANUE NG-UP FW NG-CP UDM AF Data Network NG1 NG3 NG2 NG4 NG7 NG6 NG5 SliceTemplate(eMBB-A) F() G() H() I() A INPUTMACHINE G() H() S F() I() (( (( URLLC URLLC Slice-B f L3VPN OUTUT (( ((
  • 19. CTRL MGMT SOFT ANT/freq CTRL MGMT SOFT FH CTRL MGMT SOFT DSP S P L CTRL MGMT SOFT Fabric CTRL MGMT SOFT CUS CTRL MGMT SOFT NFs F() G() H() CTRL MGMT SOFT Fabric CTRL MGMT SOFT CPUS CTRL MGMT SOFT NFs F() G() H() CONTROL ORCHESTRATION SOFTWARIZATION(APIs) CONTROL ORCHESTRATION SOFTWARIZATION(APIs) CTRL MGMT SOFT NW CONTROL ORCHESTRATION SOFTWARIZATION(APIs) TAPI High Level Events – Leaf (Physical) instantiation CTRL MGMT SOFT NW TAPI NG(R)ANUE NG-UP FW NG-CP UDM AF Data Network NG1 NG3 NG2 NG4 NG7 NG6 NG5 SliceTemplate(eMBB-A) F() G() H() I() A INPUTMACHINE G() H() S F() I() (( (( URLLC URLLC Slice-B f L3VPN OUTUT (( (( F() G() H() I() eMBB Slice-A L2VPN eMBB
  • 21. 21 Basic Setup & Reaction Capability {create, delete, adjust of multiple slice types} 5G RADIO PHY 10GE SWITCH- A DWDM A DWDM B 10GE SWITCH- B DWDM Emulator Server DC A/1 Server DC A/2 T-SDN CTRL 5G ORCH Server DC B/1 Server DC B/2 DWDM C Hitless spectrum changes. Take from slice 1, Give to slice 2 etc. Hitless 10G DWDM bandwidth adjustment hard or soft per slice 1 x 2xGE LAG per slice NF NFNF NFNF NF NF NF NF NF NF NF NF NFNF NF NF NF Thousands of possible NF placements. Chosen by global optimizer. Hitless changes. State 1 State n State 2 1 2 3 1 3 2 Interrelated Dimensions
  • 22. 22 Logical Demo and Physical Hardware 5G RADIO PHY 10GE SWITCH- A DWDM A DWDM B 10GE SWITCH- B DWDM Emulator Server DC A/1 Server DC A/2 TSDN SONAC 5G ORCH Server DC B/1 Server DC B/2 DWDM C Load Generator B-CUBE(FPGA) OPTIX9800(DWDM) 2288 Servers 6850(switch) R F U R F U R F U 6800 Servers 2288 Servers 2288 Servers OPTIX9800(DWDM) OPTIX9800(DWDM) eMBB URRLC MMTC 1000Mhz(5x20Mhz)@4.6Ghz F-OFDMF-OFDMF-OFDM 15Khz30Khz30Khz 0.5ms 7 symbol 0.25ms 7 symbol SCMA 0.25ms 7 symbol SUB FRAME FRAME UE-Server UE-Radio (FPGA) UE-Server UE-Radio (FPGA) : : cv Spectrum Analyzer 6850(switch) MUX MUX SUB FRAME SUB FRAME
  • 24. 24 DWDM NETWORK + ROADMS General purpose compute in DC and C-RAN including 40GE High Density Switches LAG’ed over DWDM network. 5G Radio real time logic in BEE-7 FPGAs. 5G UE Radios real time FPGAs and test servers.
  • 25. SONAC DEMO GUI IMPORTANT KPIS FOR EACH SLICE TRANSPORT BANDWIDTH CRAN-DC 100 Mhz as 5x20Mhz F-OFDM blocks colored to show slice assignment High level view of what’s happening View of Messaging data flow
  • 26. Resource allocation by mixed integer/linear program System Resources = • Server resources • CPU • Memory • IO • OTN Resources • Bandwidth System Costs = • Resource costs • Server-server cost • Server delays • Server-server delays Optimization program: Minimize selected costs/delays while: • Placing network functions(slices) and • Respecting system resource limitations. ≤ NP-hard combinatorial problem Randomized algorithms - approximate solutions but: •Good scalability •Parallelizable •Continuous optimization tracks requirement changes •Start at LP solution and branch-and-bound MILP is a well known method, but: •Poor scalability •Problem changes before you compute solution constraints variables Embb-MME Embb-HSS Mmtc-PHY Embb-nb Embb-gw Embb-content Ordering ConstraintBW(demand) Resources(demand) Slice ~= Graph of network functions (creates ordering constraints) Resource utilization = fnetwork-function(slice demand)
  • 27. 27 STATE-0 – idle, no slices, NFs, min BW 5G RADIO PHY 10GE SWITCH- A DWDM A DWDM B 10GE SWITCH- B 9800 Emulator Server DC A/1 Server DC A/2 T-SDN CTRL 5G ORCH Server DC B/1 Server DC B/2 DWDM C NF NF NF NF NF No network functions present in either CRAN /EDGE or DC. 1 2 3 Test UE’s are all idle Minimum B/W up between DC’s. 4G RADIO PHY Real LTE UE’s are disconnected
  • 28. 28 10GE SWITCH- A DWDM A DWDM B 10GE SWITCH- B DWDM Emulator Server DC A/1 Server DC A/2 T-SDN CTRL 5G ORCH Server DC B/1 Server DC B/2 DWDM C NF NF NF NF 1 Operator !! requests LTE slices EPC NF’containers placed in C-RAN 2 Global Optimizer assigns resources 3 LTE MME&HSS NFs placed in DC, cores assigned, started, configured. 3 LTE Phy H/W instantiated. E-2-E network configured and sized. 5a-OVS bridges, 5b-phys switches. 5c-TSDN allocates and brings up lambdas into switch LAG for this slice. 5 LTE in slice – create two LTE slices 4 6 Two smartphones connect, one per slice. Skype initiated. LTE-gw containers moved. Skype 4G PHY Lte-eNB LTE-mme LTE-PHY LTE-gw LTE- hss Lte-eNB LTE-mme LTE-PHY LTE-gw LTE- hss
  • 29. 29 5G RADIO PHY 10GE SWITCH- A DWDM A DWDM B 10GE SWITCH- B DWDM Emulator Server DC A/1 Server DC A/2 T-SDN CTRL 5G ORCH Server DC B/1 Server DC B/2 DWDM C NF Embb-nb NF NF NF 1 Operator !! requests eMBB slice eMBB NF’containers placed in C-RAN 1-eMBB NB protocol 2-eMBB gateways, 3-some content Cores assigned, started, configured. Embb mme Mmtc-PHY 2 Global Optimizer assigns resources 3 eMBB MME&HSS NFs placed in DC, cores assigned, started, configured. 3 eMBB PHY instantiated. Spectrum/OFDM etc. attributes configured. E-2-E network configured and sized. 5a-OVS bridges, 5b-phys switches. 5c-TSDN allocates and brings up lambdas into switch LAG for this slice. 5 STATE-1 – eMBB slice created 4 5 Test-UE’s start generating traffic into this slice for the content. >display stats 30,30303 30303. >display stats 30,30303 30303. 6 KPI displays Spectrum Analyzer etc. Embb-gw Embb hss Embb-content
  • 30. 30 5G RADIO PHY 10GE SWITCH- A DWDM A DWDM B 10GE SWITCH- B DWDM Emulator Server DC A/1 Server DC A/2 T-SDN CTRL 5G ORCH Server DC B/1 Server DC B/2 DWDM C NF Mmtc-prot Mmtf-agg NF NF NF 1 Operator !! requests MMTC slice MMTc NF’ containers placed in C-RAN 1-MMTc NB protocol 2-MTc small packet aggregator Cores assigned, started, configured. Mmtc-split Mmtc-PHY 2 Global Optimizer assigns resources 3 MMTc small packet disaggregator NF placed in DC, cores assigned, started, configured. 3 MMTc PHY instantiated. Spectrum/OFDM etc. attributes configured. E-2-E network configured and sized. 5a-OVS bridges, 5b-phys switches. 5c-TSDN allocates and brings up lambdas into switch LAG for this slice. 5 STATE-2 – mMTC slice created 4 5 Test-UE’s generate 10,000 different UE IDs. >display stats 30,30303 30303. >display stats 30,30303 30303. 6 KPI displays packet loss etc. Spectrum Analyzer etc.
  • 31. 31 5G RADIO PHY 10GE SWITCH- A DWDM A DWDM B 10GE SWITCH- B DWDM Emulator Server DC A/1 Server DC A/2 T-SDN CTRL 5G ORCH Server DC B/1 Server DC B/2 DWDM C NF Urrrlc-nb NF NF NF 1 Operator !! requests URRLC slice URRLC-NB NF container placed in C-RAN 1-URRLC NB protocol urrrlc-PHY 2 Global Optimizer assigns resources 3 URRLC PHY instantiated. Spectrum/OFDM etc. attributes configured. STATE-3 – URRLC slice created 4 5 Test-UE’s A generates urgent vehicle to vehicle message to Test-UE-B Round trip delay displayed on related laptop. >display stats 30,30303 30303. >display stats 30,30303 30303. 6 Three slices running.6 KPI displays packet loss etc. Spectrum Analyzer etc.
  • 32. 32 5G RADIO PHY 10GE SWITCH- A DWDM A DWDM B 10GE SWITCH- B DWDM Emulator Server DC A/1 Server DC A/2 T-SDN CTRL 5G ORCH Server DC B/1 Server DC B/2 DWDM C NF Urrrlc-nb NF NF NF 1 Operator !! requests URRLC slice spectrum growth by reducing MMTC spectrum MMTc NF container moved out of C-to DC because URRLC needs the compute resources. urrrlc-PHY 2 Global Optimizer has to move MMTC to DC for URRLC performance increase. Also more DC/CRAN B/W required for MMTC-protocol to PHY 3 URRLC PHY hitless spectrum increase. MMTC hitless spectrum decrease. STATE-4 – Breath- increase URLLC 4 6 Test-UE’s for all three slices continue Uninterrupted. eMBB not shown for clarity. >display stats 30,30303 30303. >display stats 30,30303 30303. 6 Three slices running after spectrum change 6 KPI displays all slices still working. Mmtc-prot Mmtf-aggMmtc-split Mmtc-PHY 5 Fronthaul B/W increased for MMTC since its moved out of C-RAN. New 10G lambda created added to LAG.
  • 33. 33 5G RADIO PHY 10GE SWITCH- A DWDM A DWDM B 10GE SWITCH- B DWDM Emulator Server DC A/1 Server DC A/2 T-SDN CTRL 5G ORCH Server DC B/1 Server DC B/2 DWDM C NF Embb-nb NF NF NF 1 Operator !! requests eMBB ICN slice ICN-ROUTER container placed in C-RAN eMBB NB Slice Selection Function SSF configured to forward ICN packets direct ICN-router NF. Mmtc-PHY 2 Global Optimizer assigns resources 3 ICN-ROUTER , MANAGER, VIDEO CONF APP containers placed in DC 4 Due to increase in MBB traffic on the ICN slice TSDN configures extra 10GE lambda to the MBB slice LAG. 5 STATE-5 – eMBB/ICN slice created >display stats 30,30303 30303. >display stats 30,30303 30303. 6 KPI displays Spectrum Analyzer etc.ICN-ROUTER ICN-ROUTERICN-MGR ICN-Video SSF 6
  • 34. 34 5G RADIO PHY 10GE SWITCH- A DWDM A DWDM B 10GE SWITCH- B DWDM Emulator Server DC A/1 Server DC A/2 T-SDN CTRL 5G ORCH Server DC B/1 Server DC B/2 DWDM C Embb-nb Mmtc-PHY STATE-6 – eMBB/ICN slice operation 3 ICN UEs register interest In SOURCE’s content. >display stats 30,30303 30303. >display stats 30,30303 30303. 6 ICN Manager Displays KPIs. ICN-ROUTER ICN-ROUTERICN-MGR ICN-Video ICN-SOURCE SSF 1 ICN Source content follows interest ‘tree’ 2 2 3 ICN replicates at a fork in interest directly to eMBB-NB In same C-RAN DC. 4 eMMB-NB SSF sends To ICN ROUTER(s) Bypassing eMBB G/Ws. 5 ICN UE-s receive content of interest.
  • 35. 35 State-7 Breathing response to B/W 5G RADIO PHY 10GE SWITCH- A DWDM A DWDM B 10GE SWITCH- B Server DC A/1 Server DC A/2 T-SDN CTRL 5G ORCH DWDM C Generate 9.5 G worth of background eMBB traffic into eMBB slice LAG. 1 2 5G Orchestrator notes increased B/W in slice at critical link and asks TSDN for additional 10G lambda which it then add to the LAG in a make-before-break manner (no hit). +l SPIRENT TESTER

Editor's Notes

  1. If we look at some of the goals of 5G vs where we are today we an see the gap that has to be bridged over the next few years. The goal of 1ms latency is nearly 50x better than current LTE systems, to get from 100Mbps per user to 10G we need 100x the throughput per connection. The current 10,000 connections per square kilometer needs to increase to 1Million connetions so a 100x increase in density. Reliabile communications today with LTE top out about 350km/h and we expect to bring that up by 1.5x to 500km/h . Finally the current core networks and backhaul/front haul are inflexible with wasted pools of bandwidth. The introduction of SDN/NFV will allow much better ability to chop up and virtualize the network resources for lower operational costs and capital costs and much greater flexibility.
