The document presents a comprehensive overview of leveraging open source software (OSS) to enhance and manage Storage Area Network (SAN) performance. It outlines the problems associated with SAN management, proposes solutions utilizing OSS tools, and details the implementations for data collection and processing. Additionally, it discusses the required software and hardware configurations for effective management and reporting of SAN performance metrics.

1. IBM GLOBAL SERVICES New Orleans, LA P12 Brett Allison Leveraging Open Source to Manage SAN Performance July 25-29, 2005 © IBM Corporation 2005

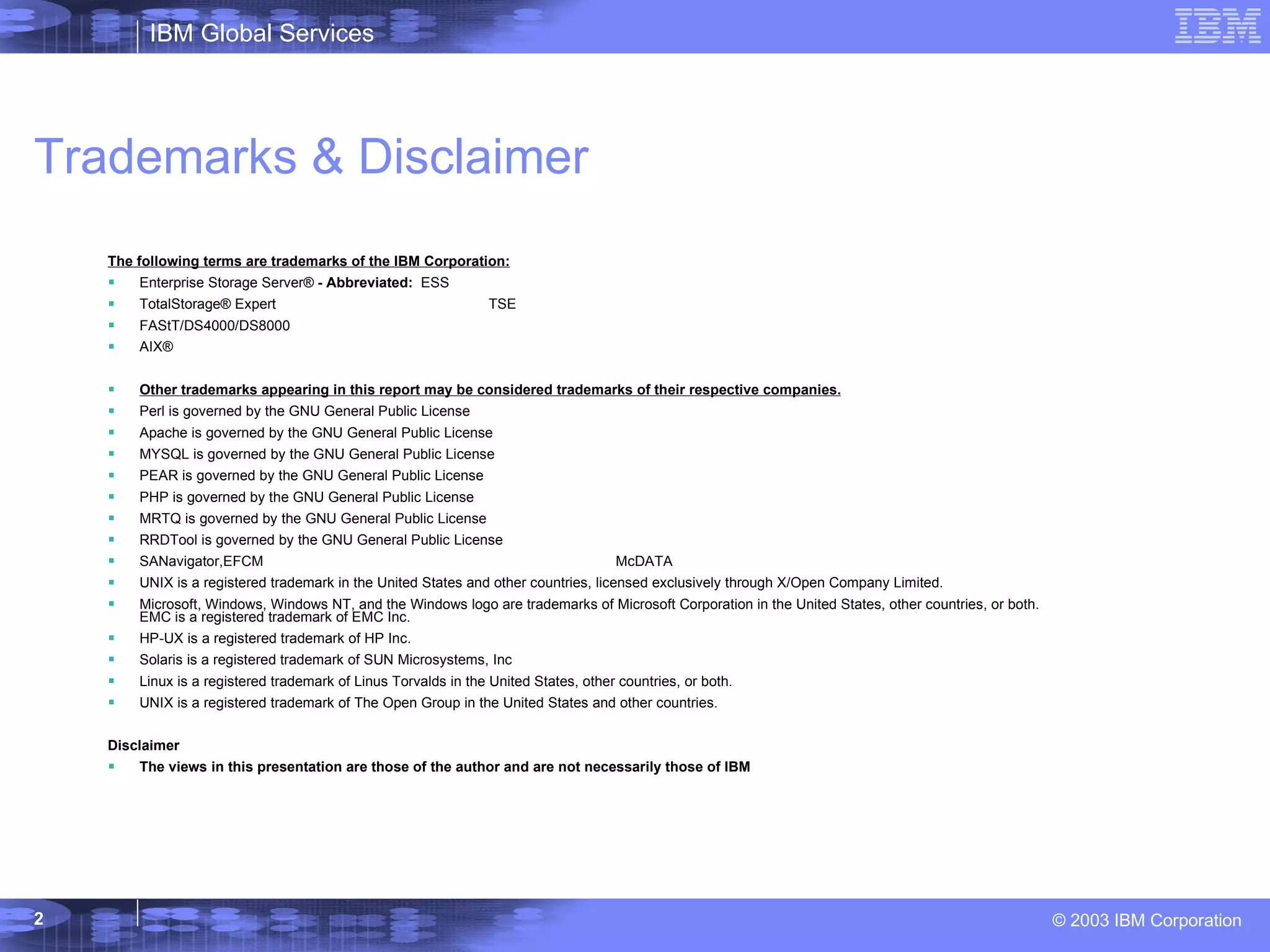

2. Trademarks & Disclaimer The following terms are trademarks of the IBM Corporation: Enterprise Storage Server® - Abbreviated: ESS TotalStorage® Expert TSE FAStT/DS4000/DS8000 AIX® Other trademarks appearing in this report may be considered trademarks of their respective companies. Perl is governed by the GNU General Public License Apache is governed by the GNU General Public License MYSQL is governed by the GNU General Public License PEAR is governed by the GNU General Public License PHP is governed by the GNU General Public License MRTQ is governed by the GNU General Public License RRDTool is governed by the GNU General Public License SANavigator,EFCM McDATA UNIX is a registered trademark in the United States and other countries, licensed exclusively through X/Open Company Limited. Microsoft, Windows, Windows NT, and the Windows logo are trademarks of Microsoft Corporation in the United States, other countries, or both. EMC is a registered trademark of EMC Inc. HP-UX is a registered trademark of HP Inc. Solaris is a registered trademark of SUN Microsystems, Inc Linux is a registered trademark of Linus Torvalds in the United States, other countries, or both. UNIX is a registered trademark of The Open Group in the United States and other countries. Disclaimer The views in this presentation are those of the author and are not necessarily those of IBM

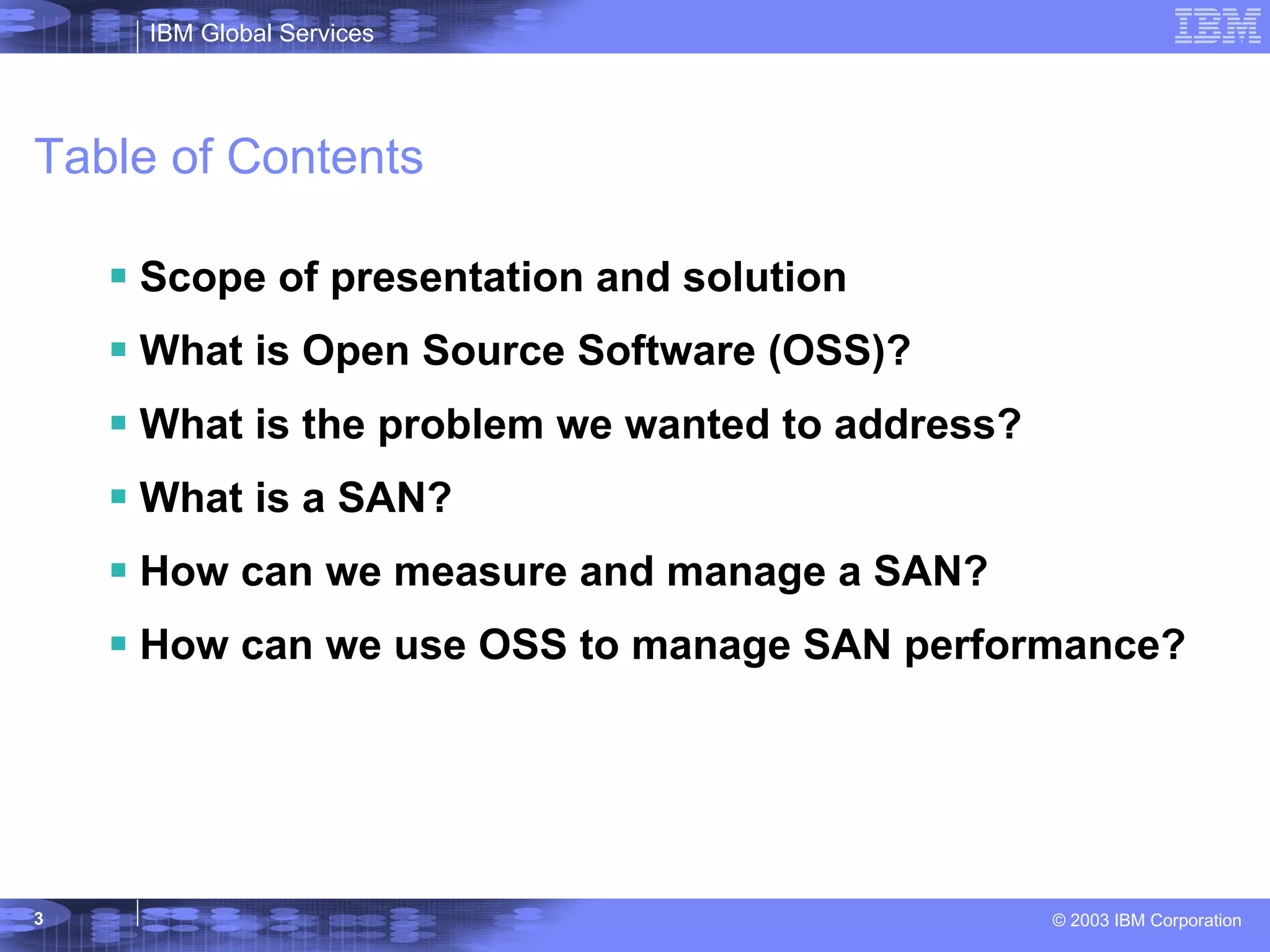

3. Table of Contents Scope of presentation and solution What is Open Source Software (OSS)? What is the problem we wanted to address? What is a SAN? How can we measure and manage a SAN? How can we use OSS to manage SAN performance?

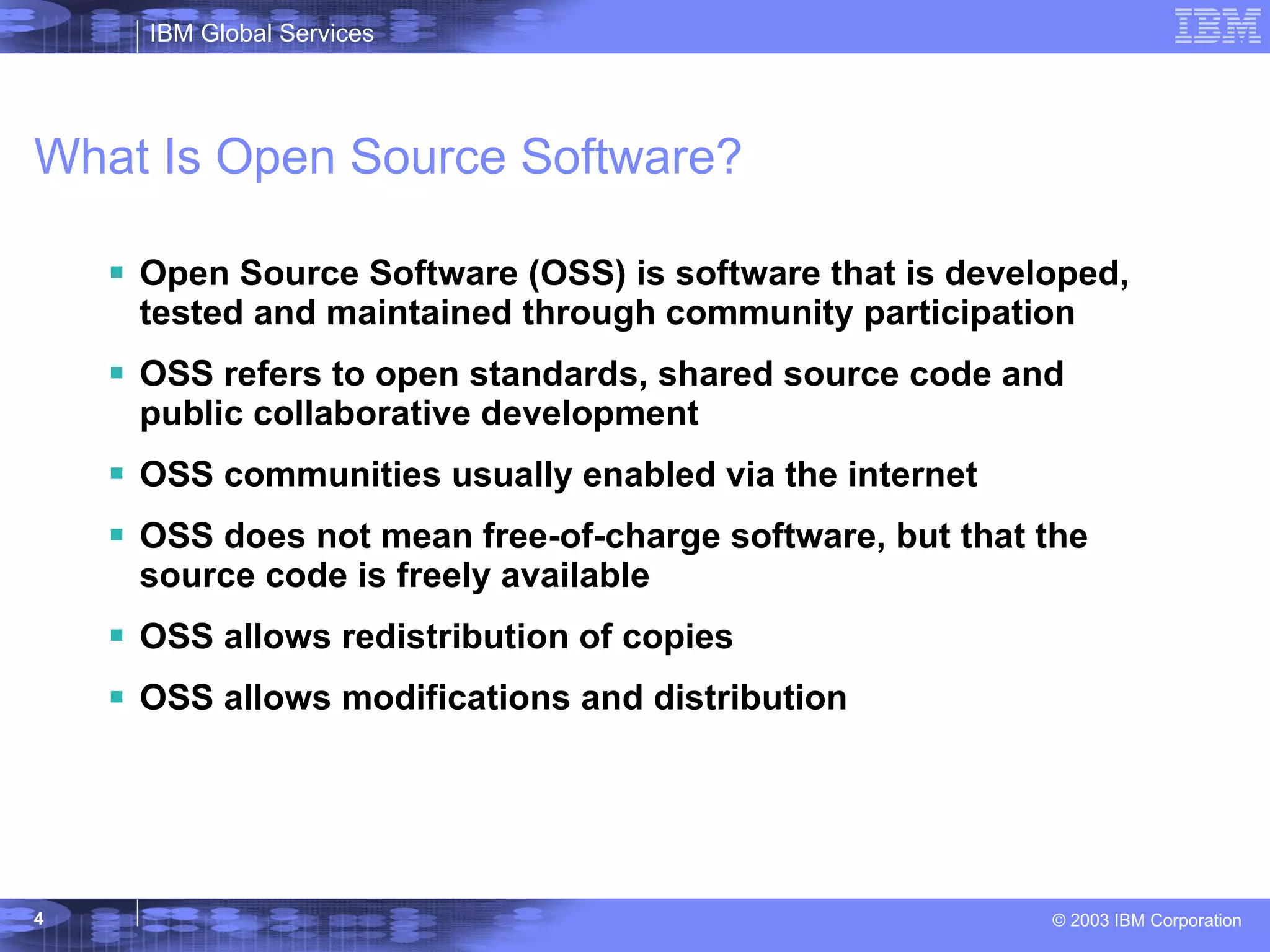

4. What Is Open Source Software? Open Source Software (OSS) is software that is developed, tested and maintained through community participation OSS refers to open standards, shared source code and public collaborative development OSS communities usually enabled via the internet OSS does not mean free-of-charge software, but that the source code is freely available OSS allows redistribution of copies OSS allows modifications and distribution

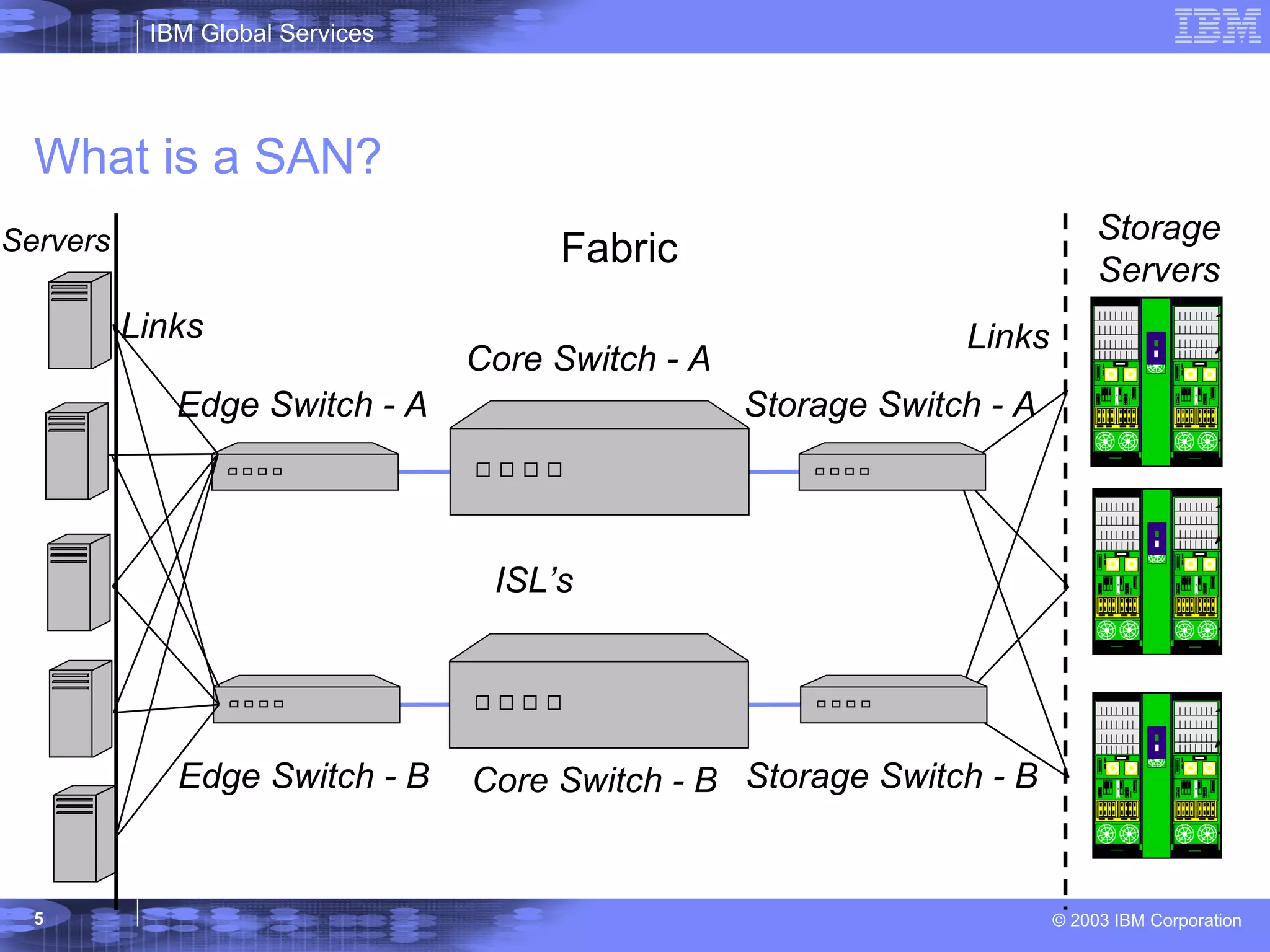

5. What is a SAN? ISL’s Core Switch - A Core Switch - B Fabric Edge Switch - A Edge Switch - B Links Links Storage Switch - A Storage Switch - B Servers Storage Servers

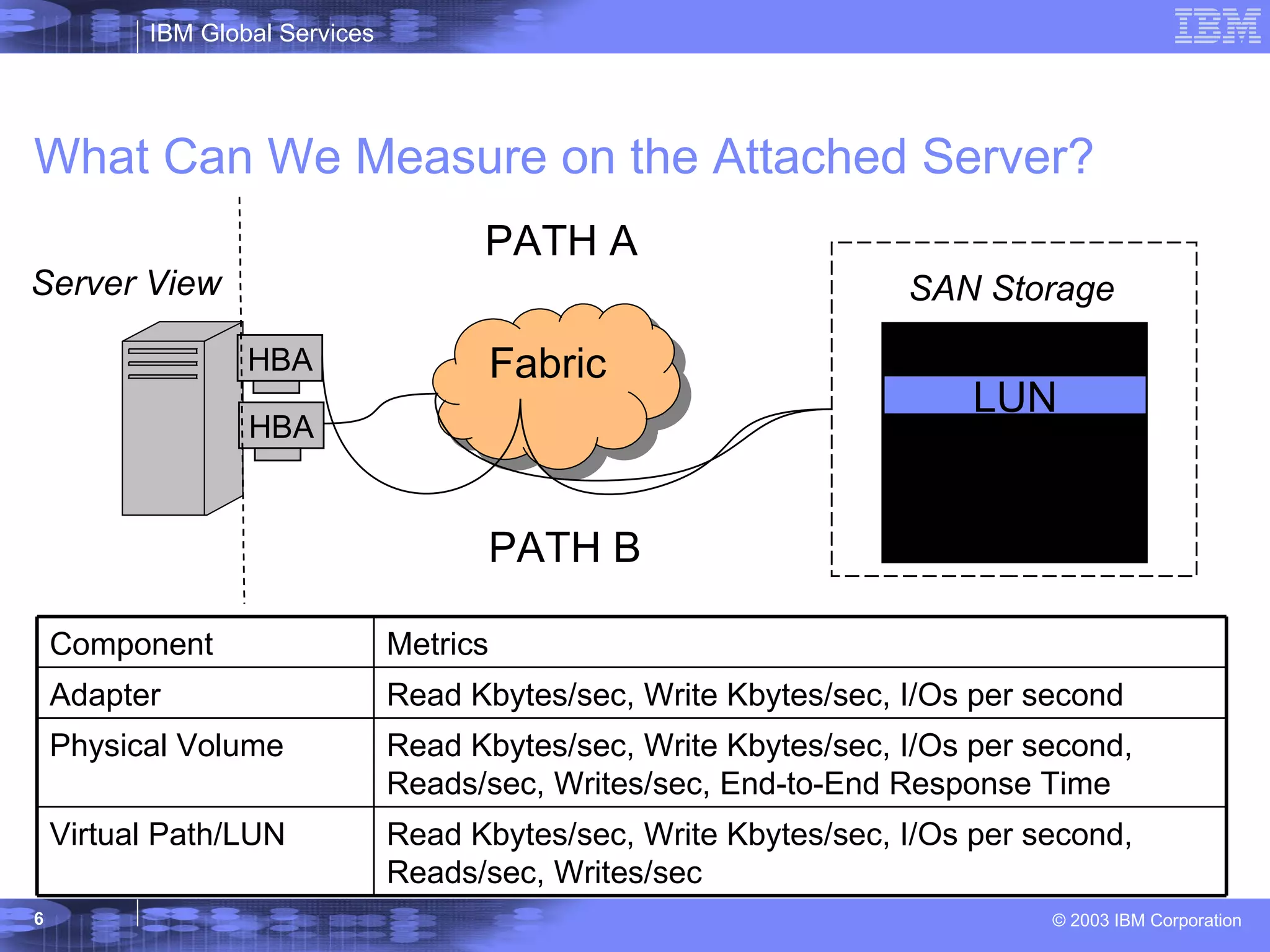

6. What Can We Measure on the Attached Server? Server View SAN Storage Fabric LUN PATH A PATH B Read Kbytes/sec, Write Kbytes/sec, I/Os per second, Reads/sec, Writes/sec, End-to-End Response Time Physical Volume Read Kbytes/sec, Write Kbytes/sec, I/Os per second, Reads/sec, Writes/sec Virtual Path/LUN Read Kbytes/sec, Write Kbytes/sec, I/Os per second Adapter Metrics Component HBA HBA

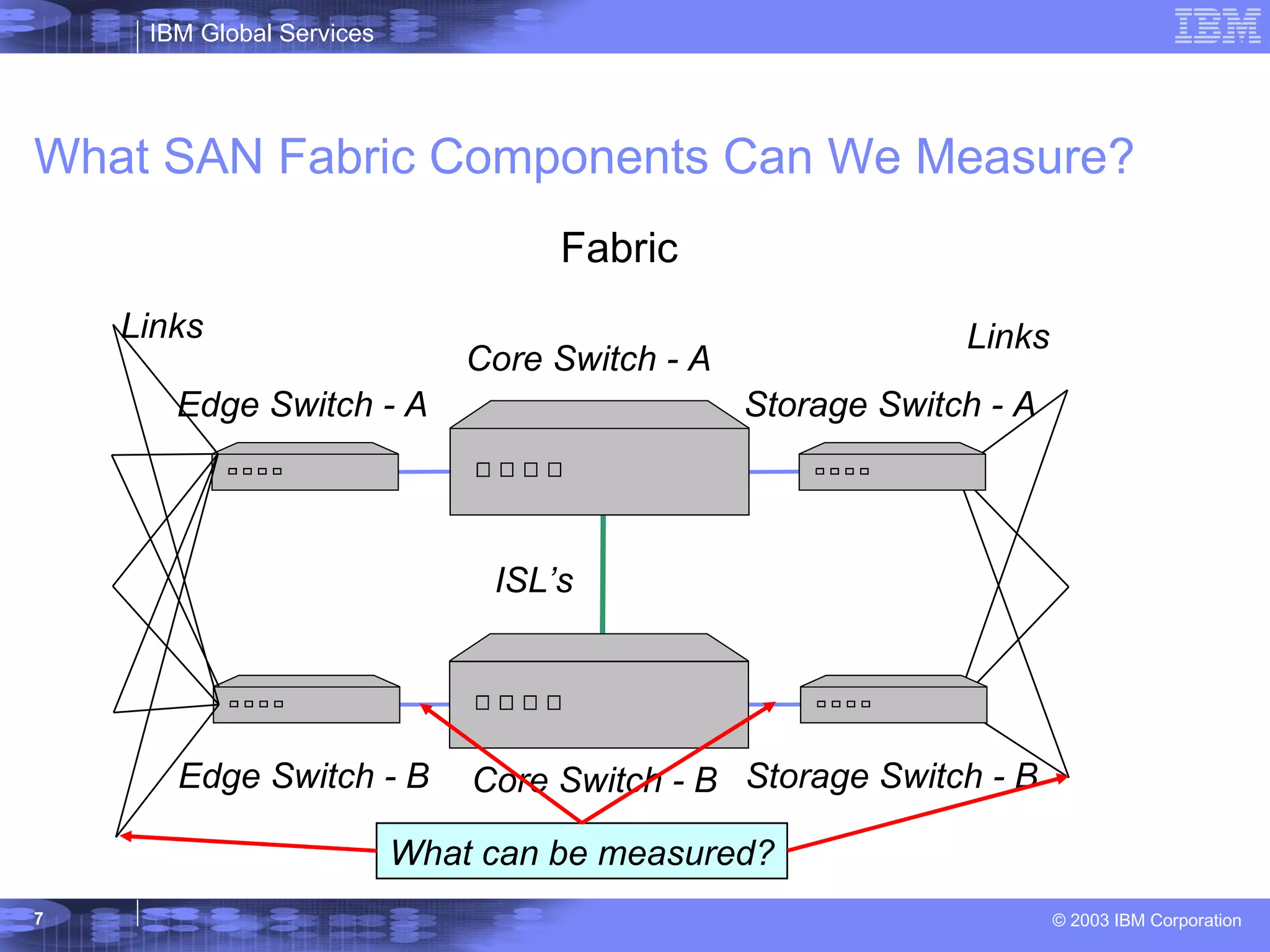

7. What SAN Fabric Components Can We Measure? Fabric Edge Switch - A Edge Switch - B ISL’s Core Switch - A Core Switch - B Links Links Storage Switch - A Storage Switch - B What can be measured?

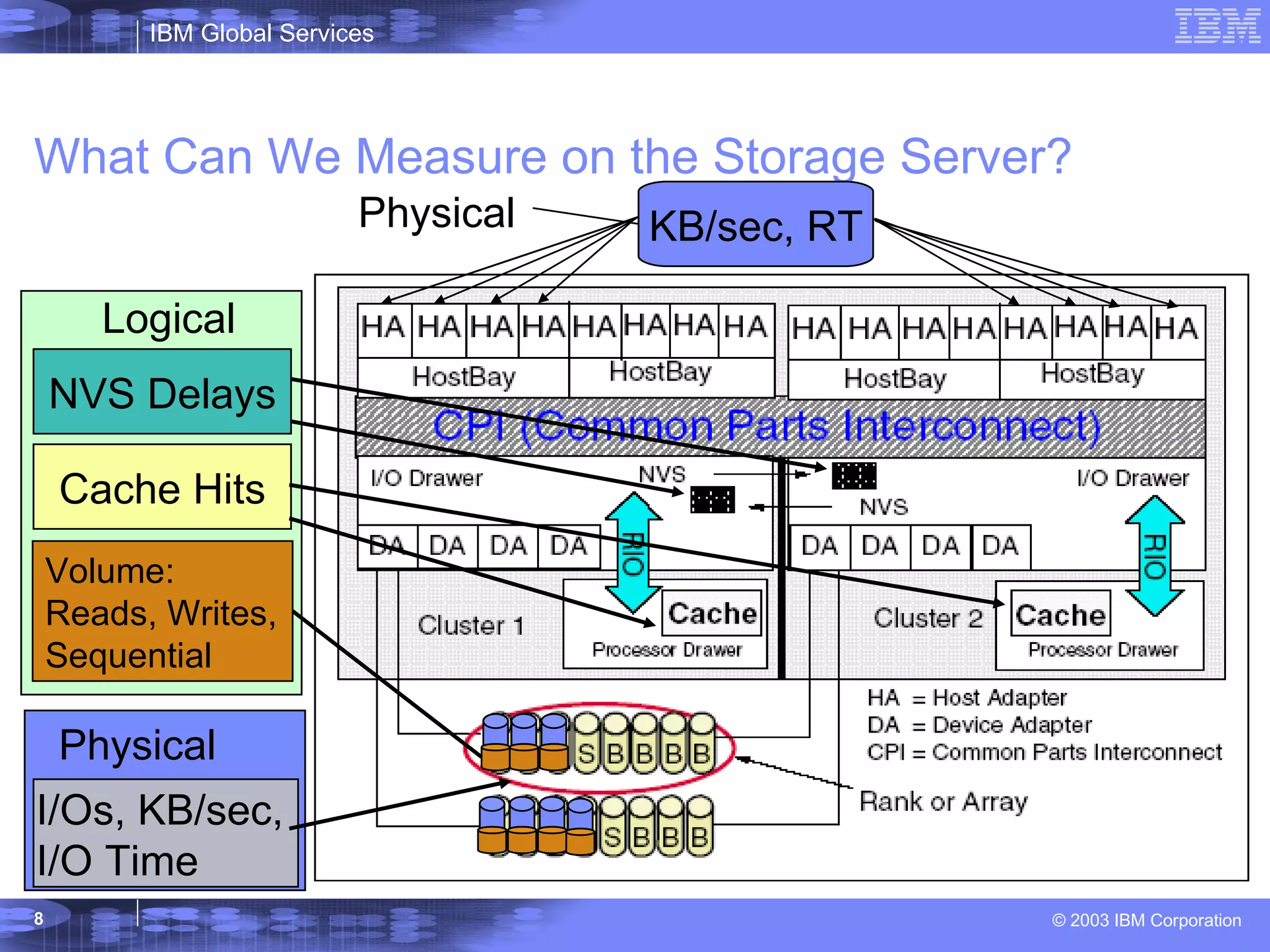

8. What Can We Measure on the Storage Server? KB/sec, RT Physical NVS Delays Cache Hits Logical Volume: Reads, Writes, Sequential I/Os, KB/sec, I/O Time Physical

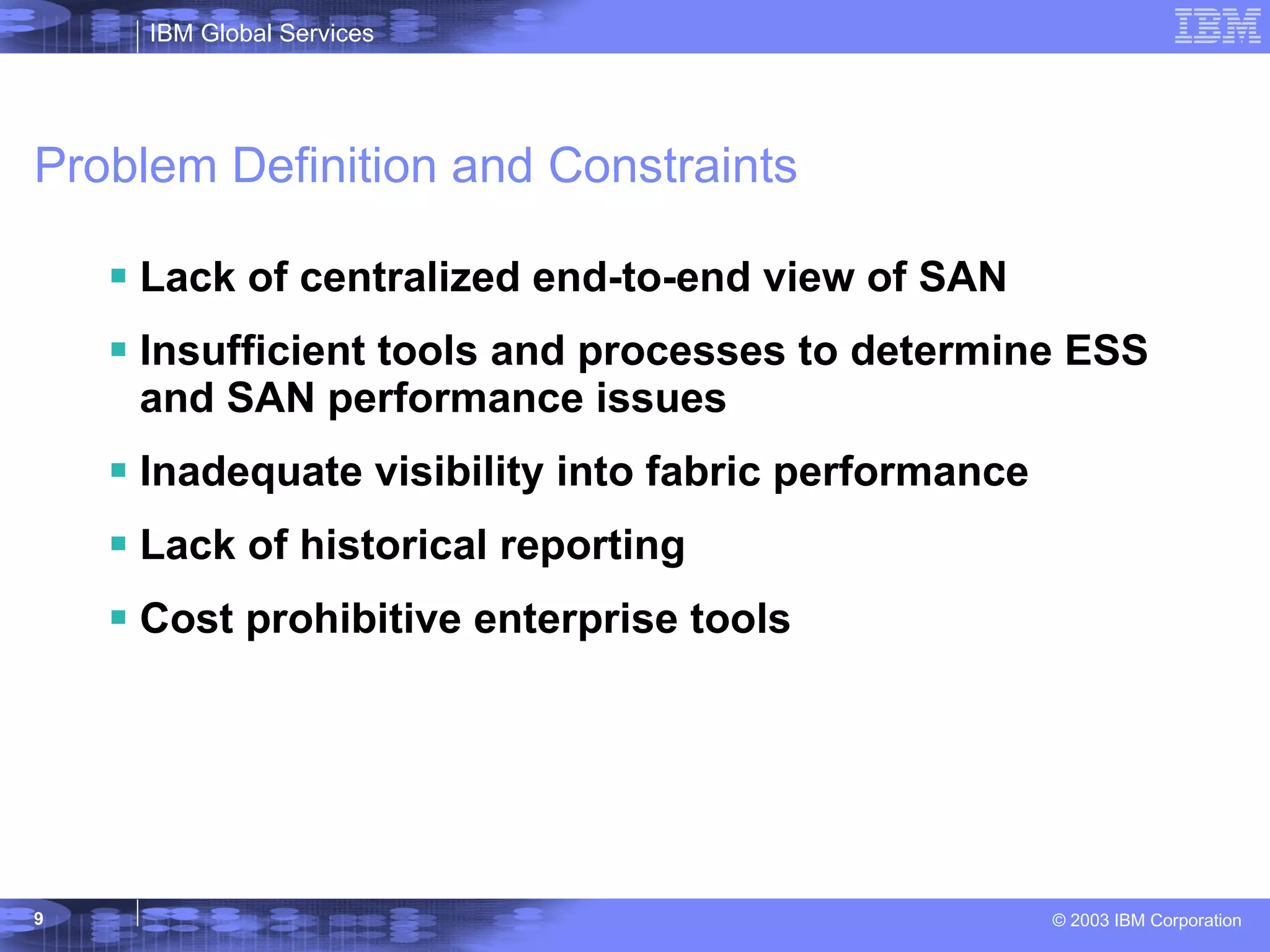

9. Problem Definition and Constraints Lack of centralized end-to-end view of SAN Insufficient tools and processes to determine ESS and SAN performance issues Inadequate visibility into fabric performance Lack of historical reporting Cost prohibitive enterprise tools

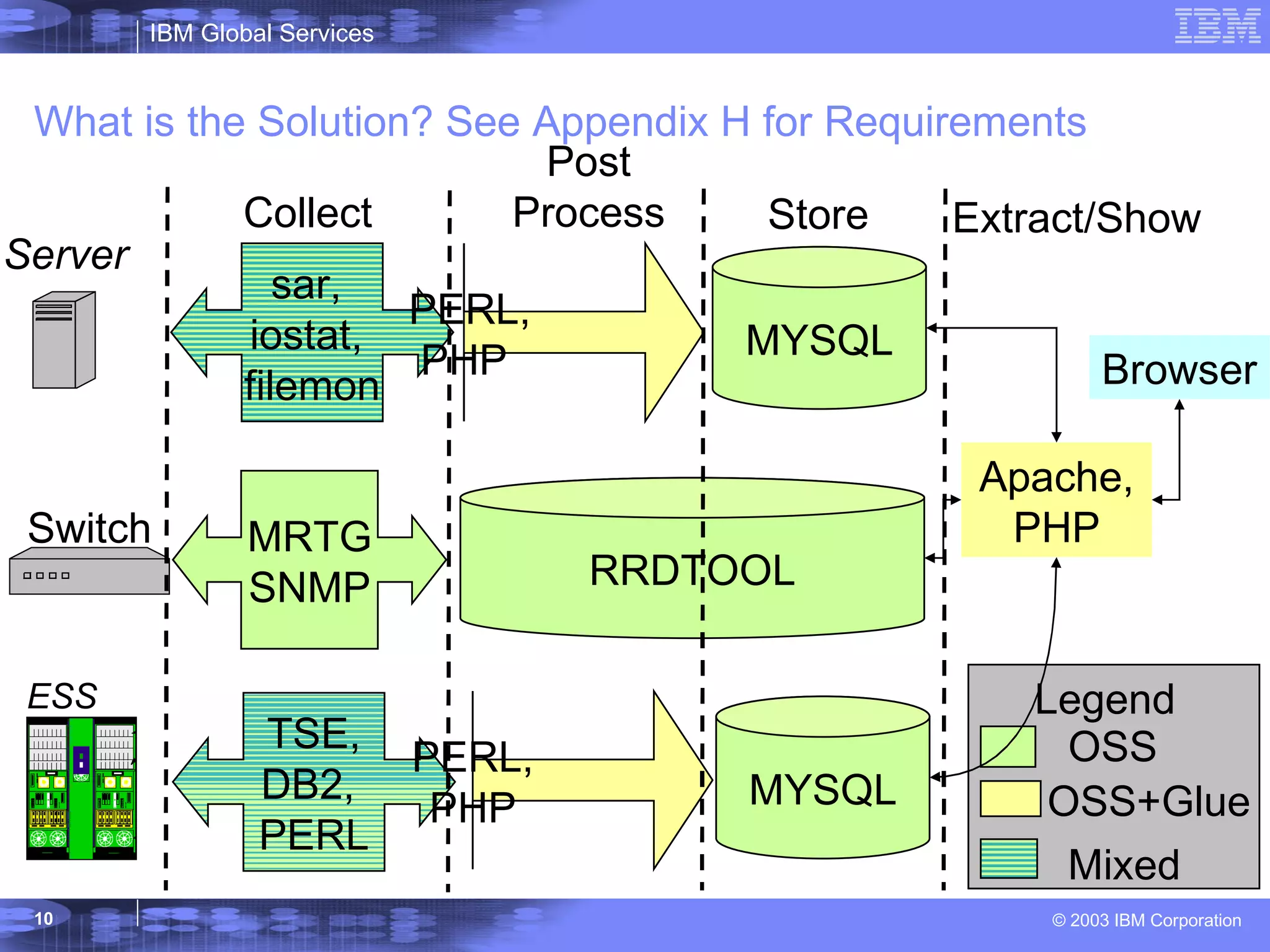

10. What is the Solution? See Appendix H for Requirements sar, iostat, filemon MRTG SNMP TSE, DB2, PERL Collect Post Process PERL, PHP PERL, PHP Extract/Show MYSQL Store RRDTOOL MYSQL Mixed OSS Legend OSS+Glue Server ESS Switch Apache, PHP Browser

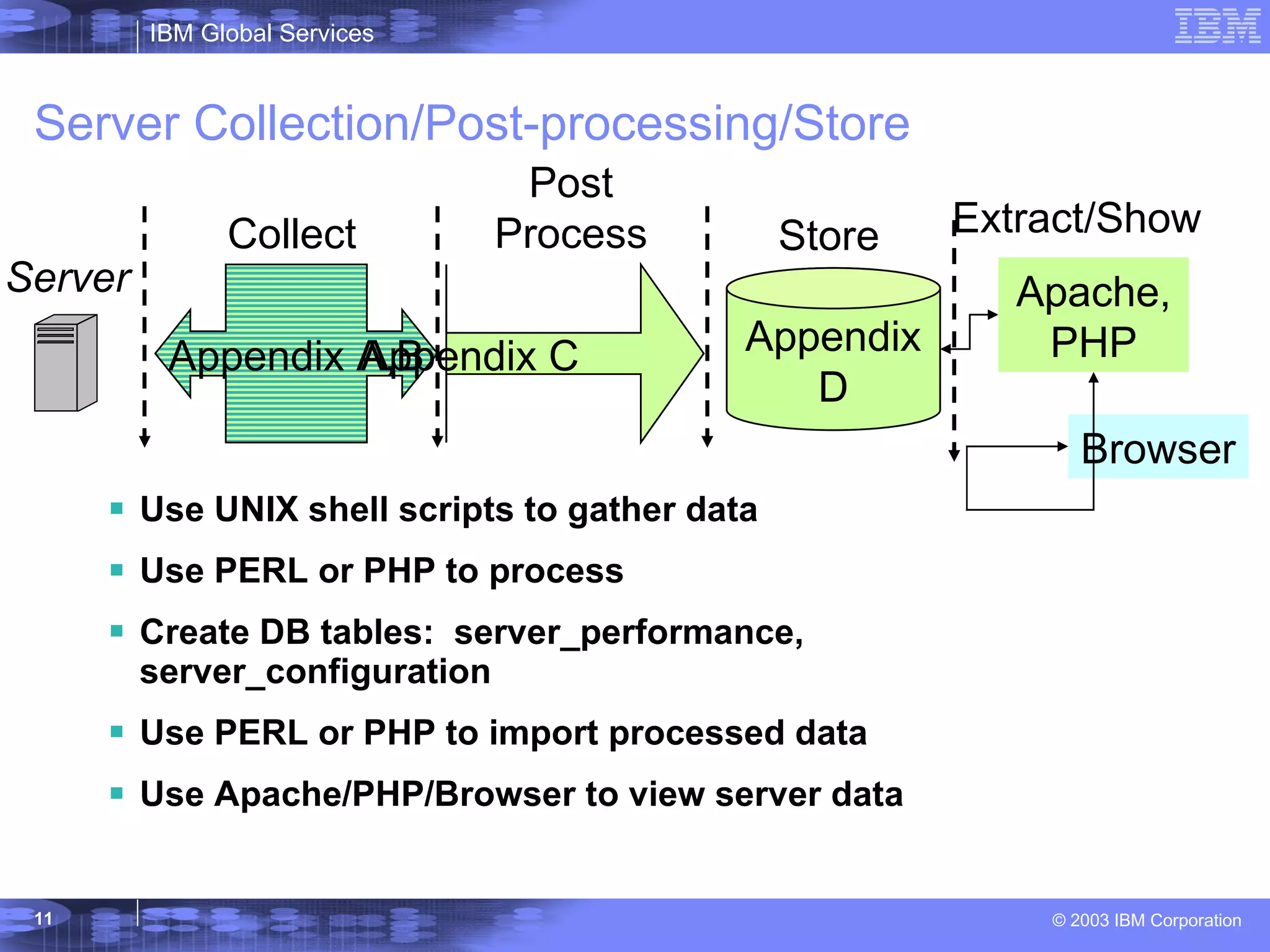

11. Server Collection/Post-processing/Store Use UNIX shell scripts to gather data Use PERL or PHP to process Create DB tables: server_performance, server_configuration Use PERL or PHP to import processed data Use Apache/PHP/Browser to view server data Appendix A,B Collect Post Process Appendix C Appendix D Store Server Extract/Show Apache, PHP Browser

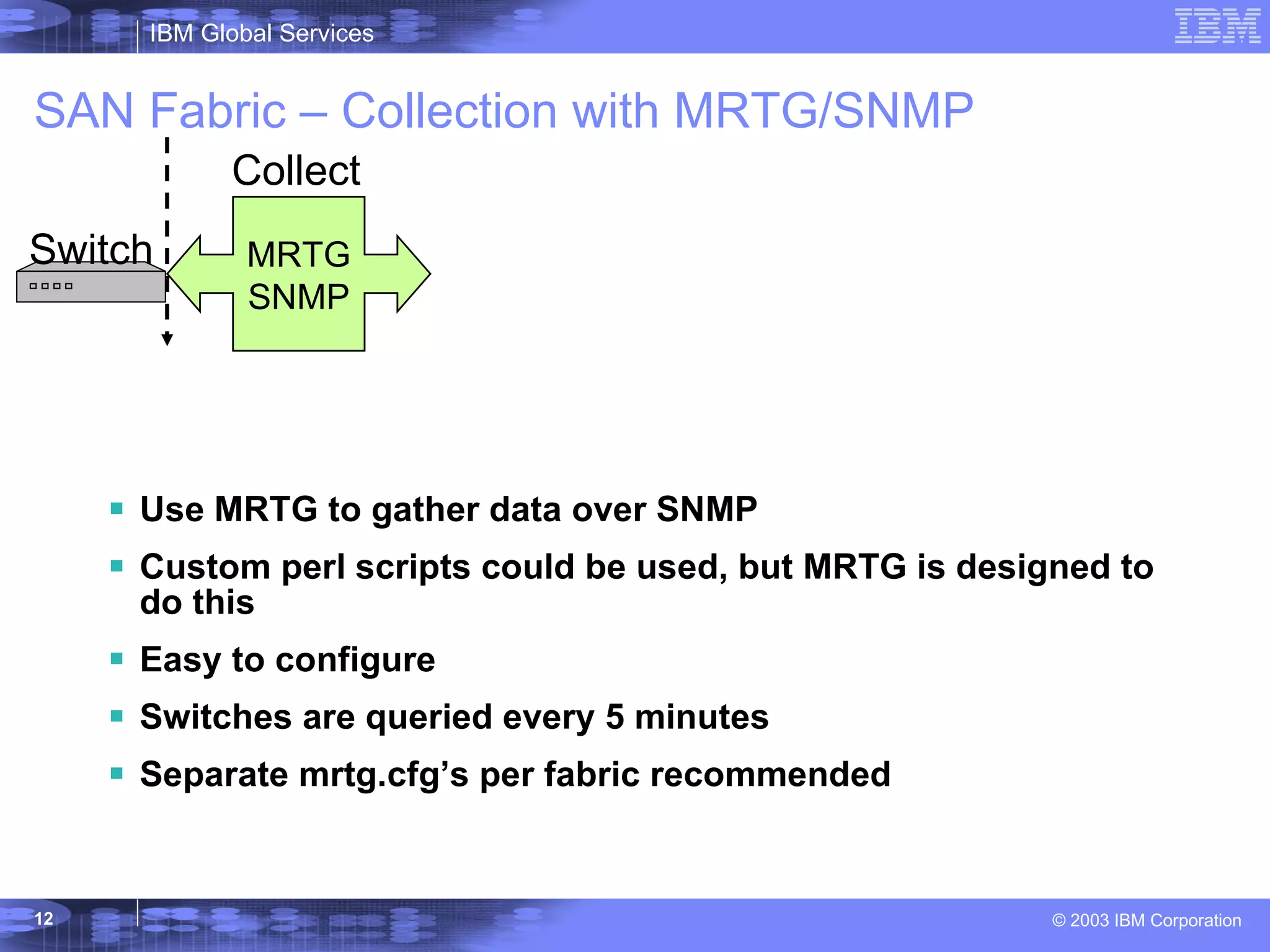

12. SAN Fabric – Collection with MRTG/SNMP Use MRTG to gather data over SNMP Custom perl scripts could be used, but MRTG is designed to do this Easy to configure Switches are queried every 5 minutes Separate mrtg.cfg’s per fabric recommended Switch MRTG SNMP Collect

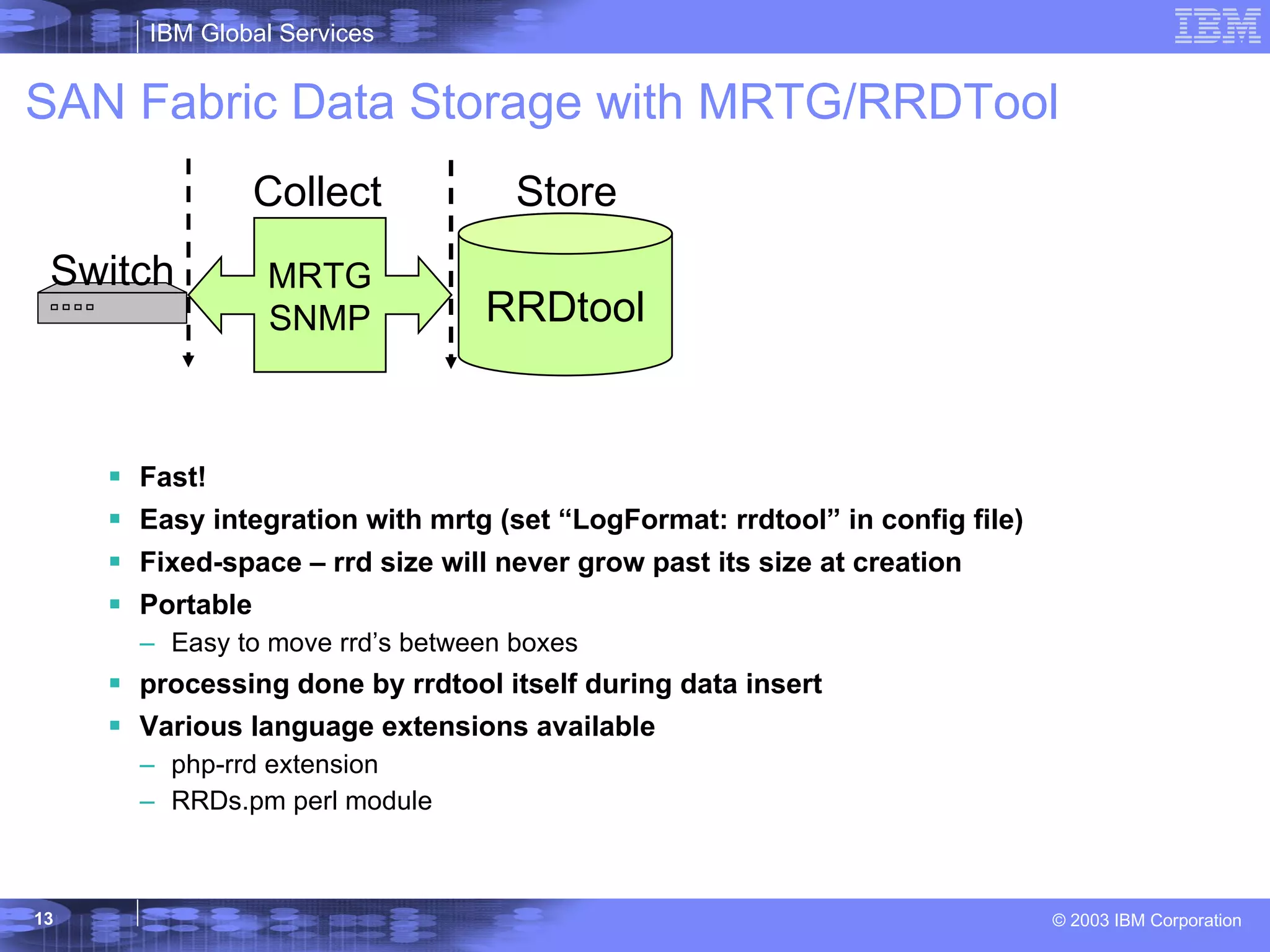

13. SAN Fabric Data Storage with MRTG/RRDTool Fast! Easy integration with mrtg (set “LogFormat: rrdtool” in config file) Fixed-space – rrd size will never grow past its size at creation Portable Easy to move rrd’s between boxes processing done by rrdtool itself during data insert Various language extensions available php-rrd extension RRDs.pm perl module Switch MRTG SNMP Collect RRDtool Store

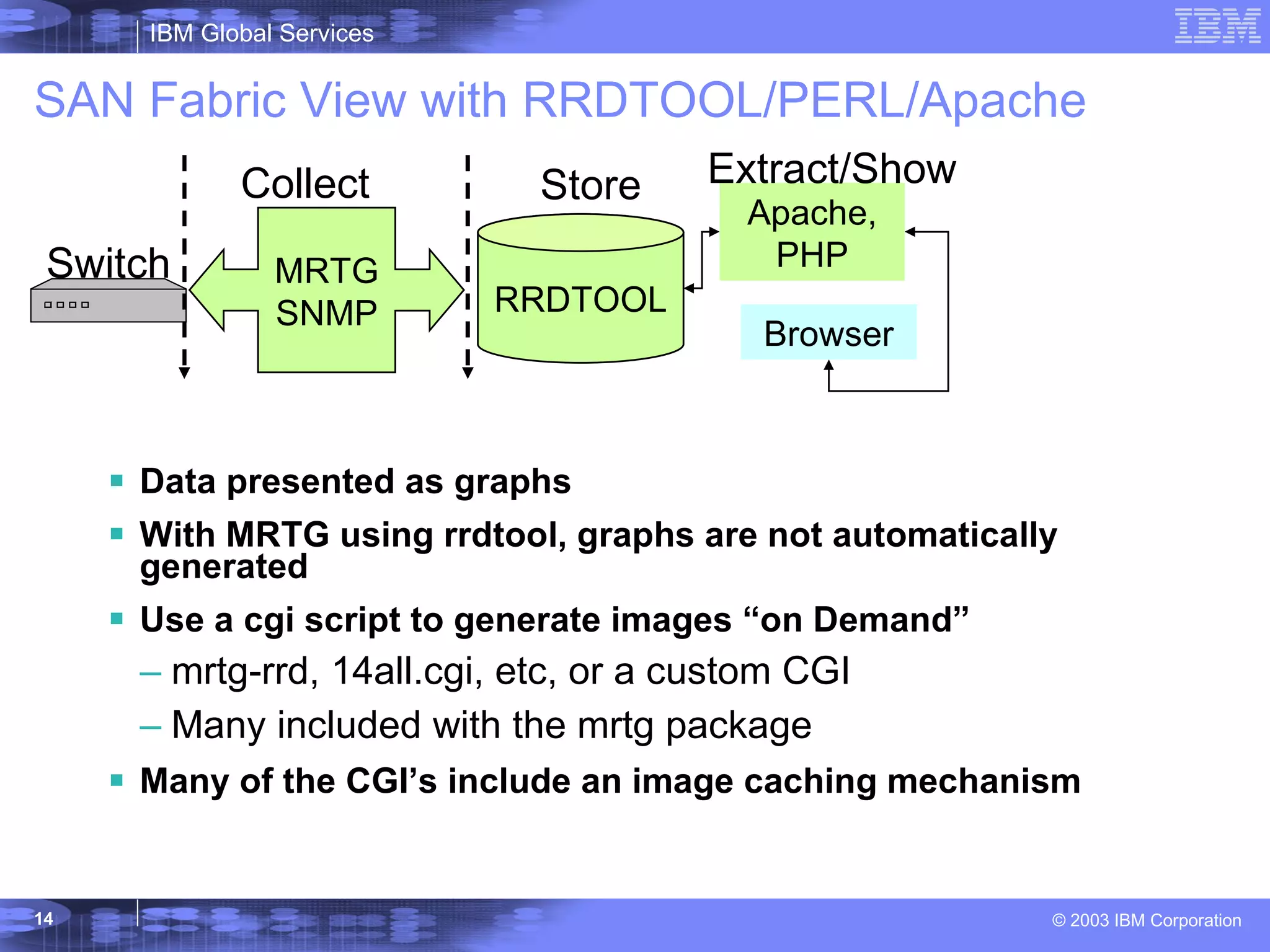

14. SAN Fabric View with RRDTOOL/PERL/Apache Data presented as graphs With MRTG using rrdtool, graphs are not automatically generated Use a cgi script to generate images “on Demand” mrtg-rrd, 14all.cgi, etc, or a custom CGI Many included with the mrtg package Many of the CGI’s include an image caching mechanism Switch MRTG SNMP Collect RRDTOOL Apache, PHP Browser Store Extract/Show

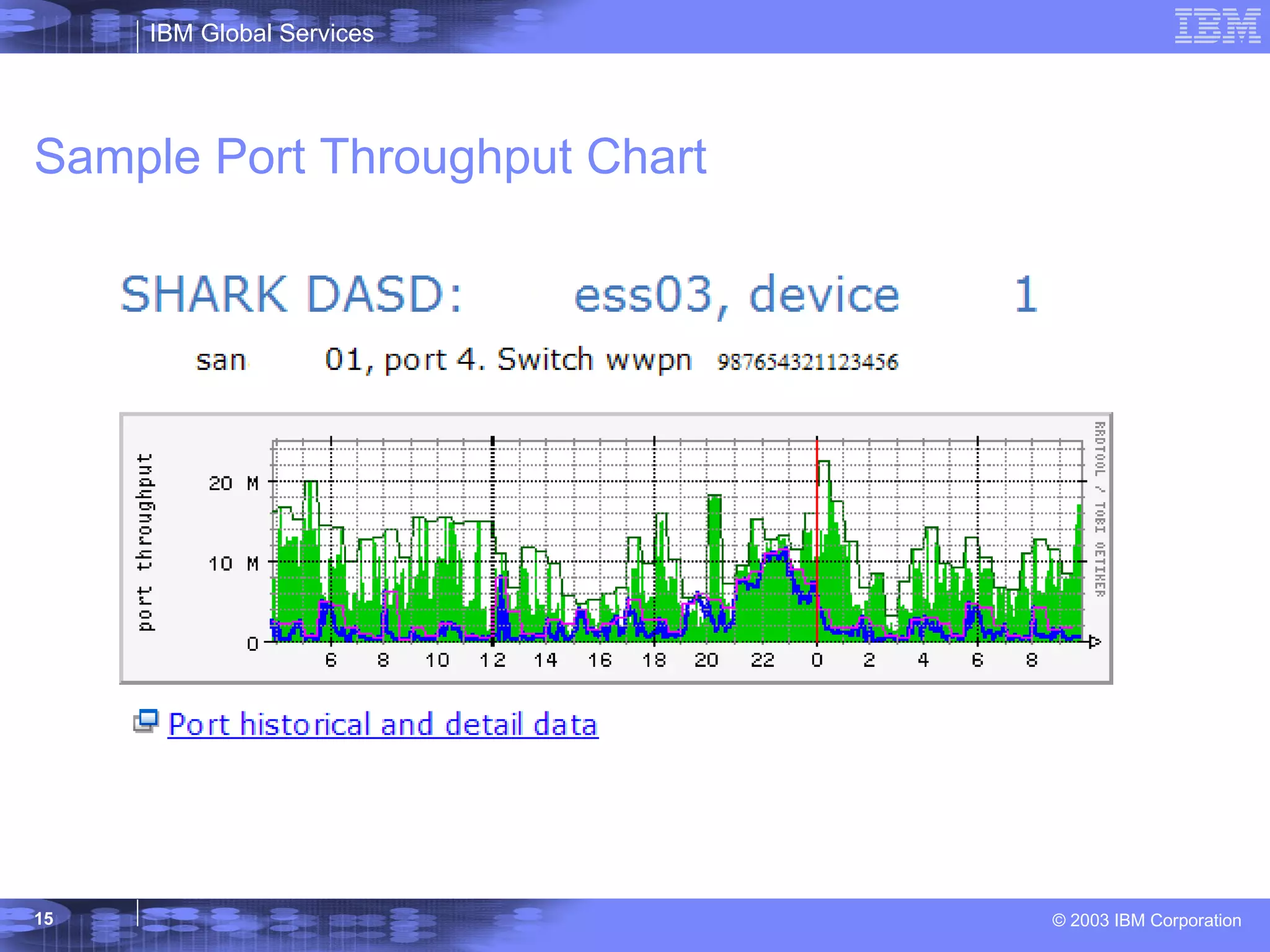

15. Sample Port Throughput Chart

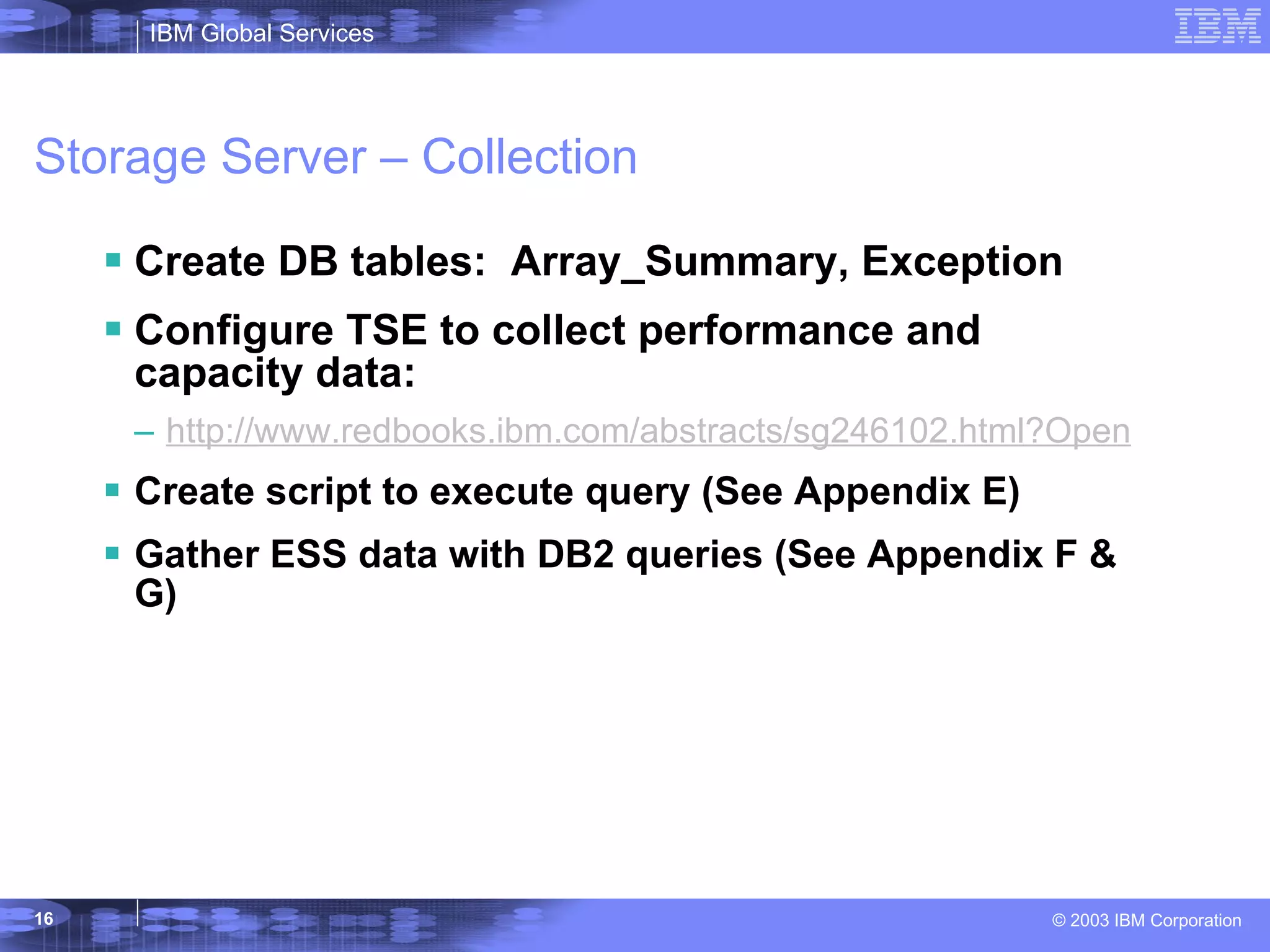

16. Storage Server – Collection Create DB tables: Array_Summary, Exception Configure TSE to collect performance and capacity data: http://www.redbooks.ibm.com/abstracts/sg246102.html?Open Create script to execute query (See Appendix E) Gather ESS data with DB2 queries (See Appendix F & G)

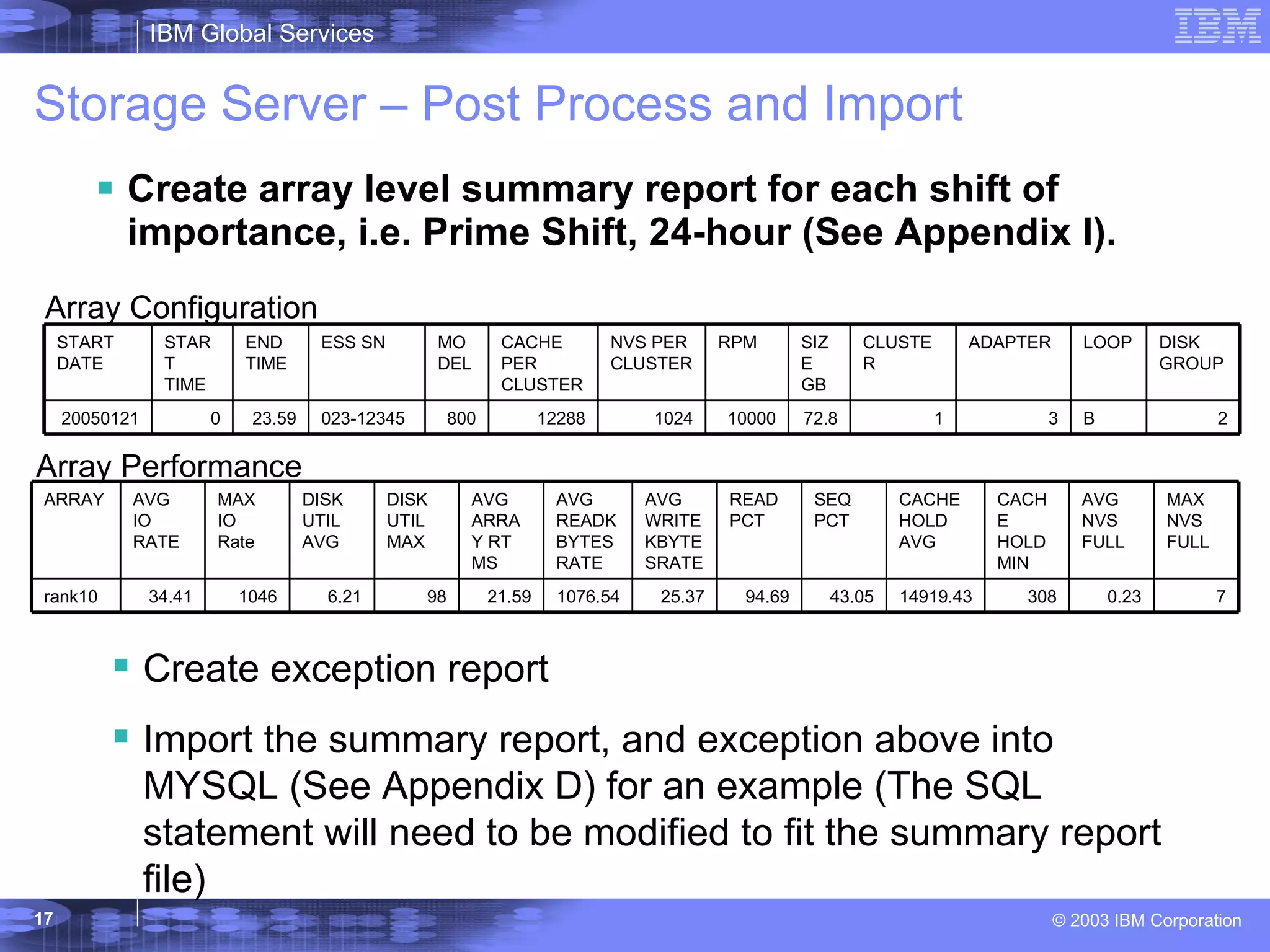

17. Storage Server – Post Process and Import Create array level summary report for each shift of importance, i.e. Prime Shift, 24-hour (See Appendix I). Array Configuration Create exception report Import the summary report, and exception above into MYSQL (See Appendix D) for an example (The SQL statement will need to be modified to fit the summary report file) Array Performance 2 B 3 1 72.8 10000 1024 12288 800 023-12345 23.59 0 20050121 DISK GROUP LOOP ADAPTER CLUSTER SIZE GB RPM NVS PER CLUSTER CACHE PER CLUSTER MODEL ESS SN END TIME START TIME START DATE 7 0.23 308 14919.43 43.05 94.69 25.37 1076.54 21.59 98 6.21 1046 34.41 rank10 MAX NVS FULL AVG NVS FULL CACHE HOLD MIN CACHE HOLD AVG SEQ PCT READ PCT AVG WRITEKBYTESRATE AVG READKBYTESRATE AVG ARRAY RT MS DISK UTIL MAX DISK UTIL AVG MAX IO Rate AVG IO RATE ARRAY

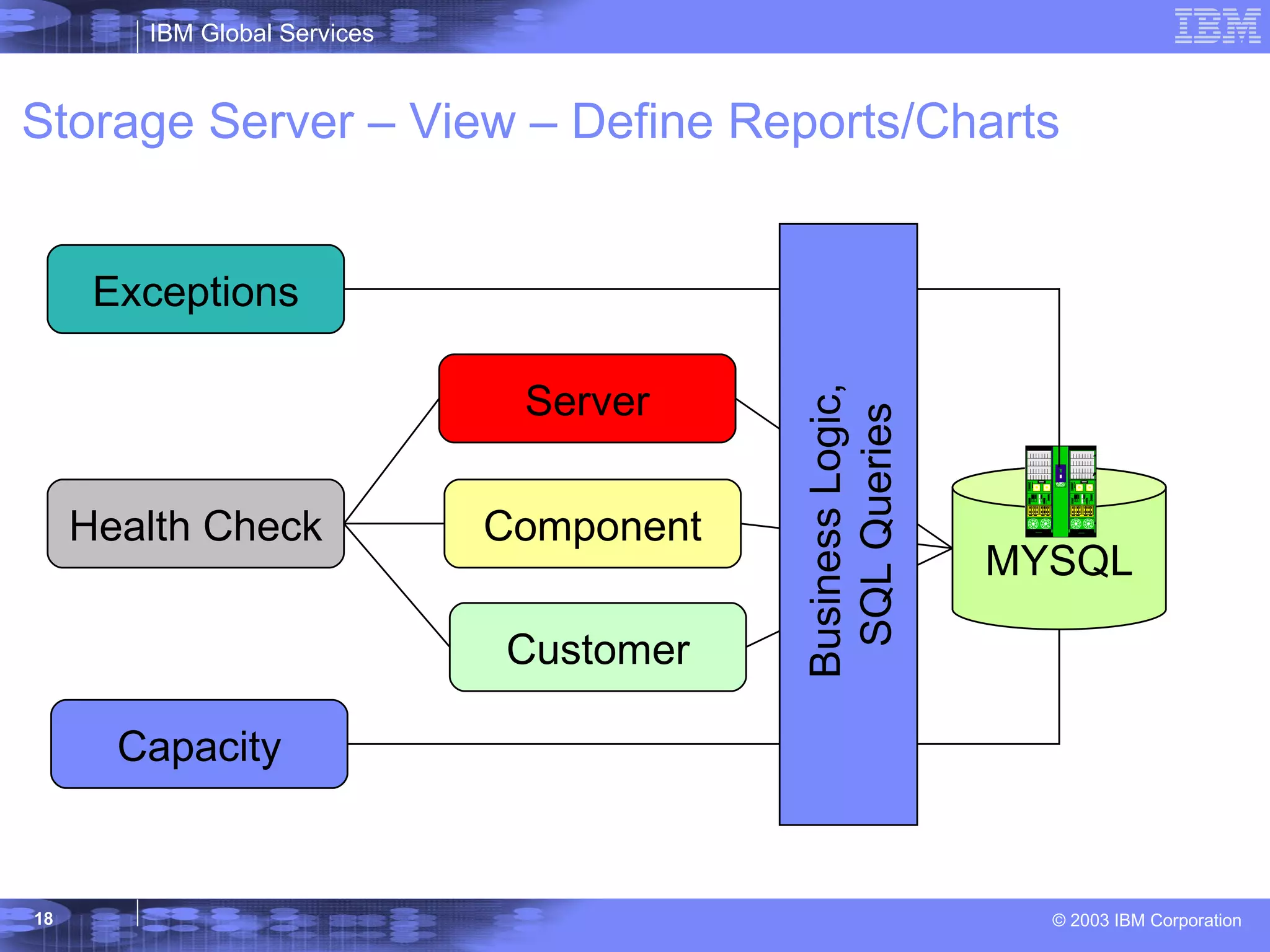

18. Storage Server – View – Define Reports/Charts MYSQL Capacity Health Check Server Component Customer Exceptions Business Logic, SQL Queries

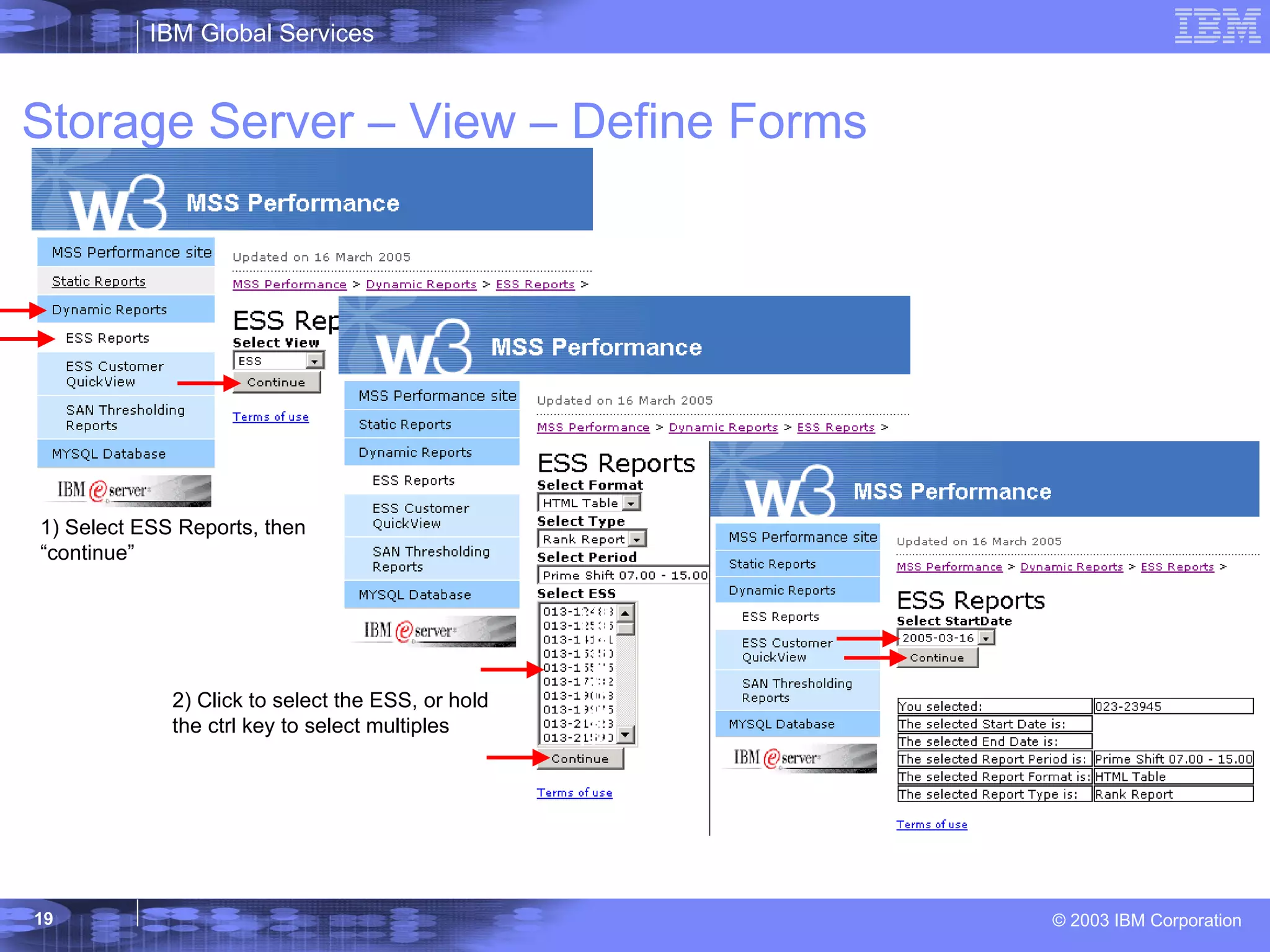

19. Storage Server – View – Define Forms 1) Select ESS Reports, then “continue” 2) Click to select the ESS, or hold the ctrl key to select multiples

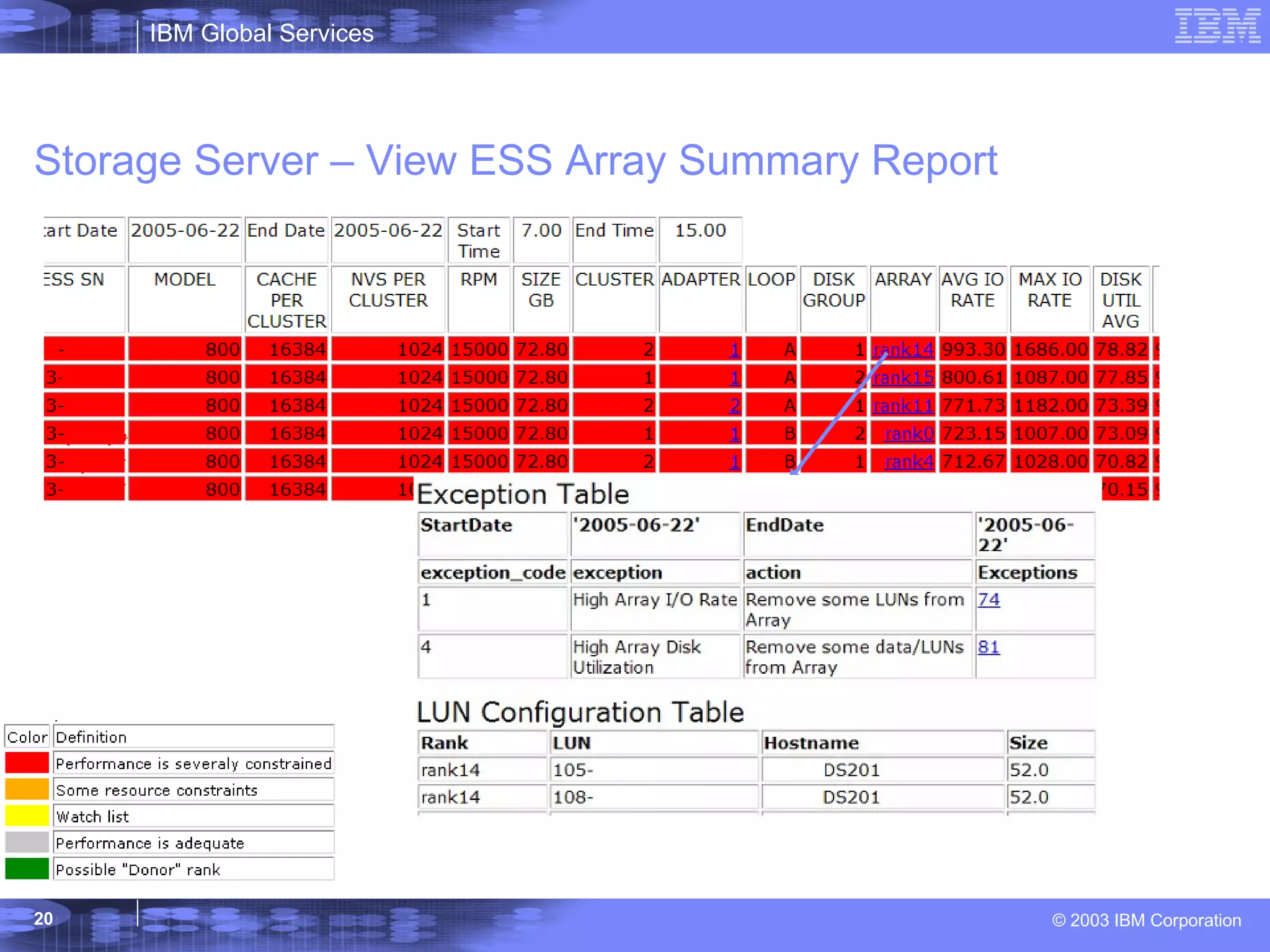

20. Storage Server – View ESS Array Summary Report

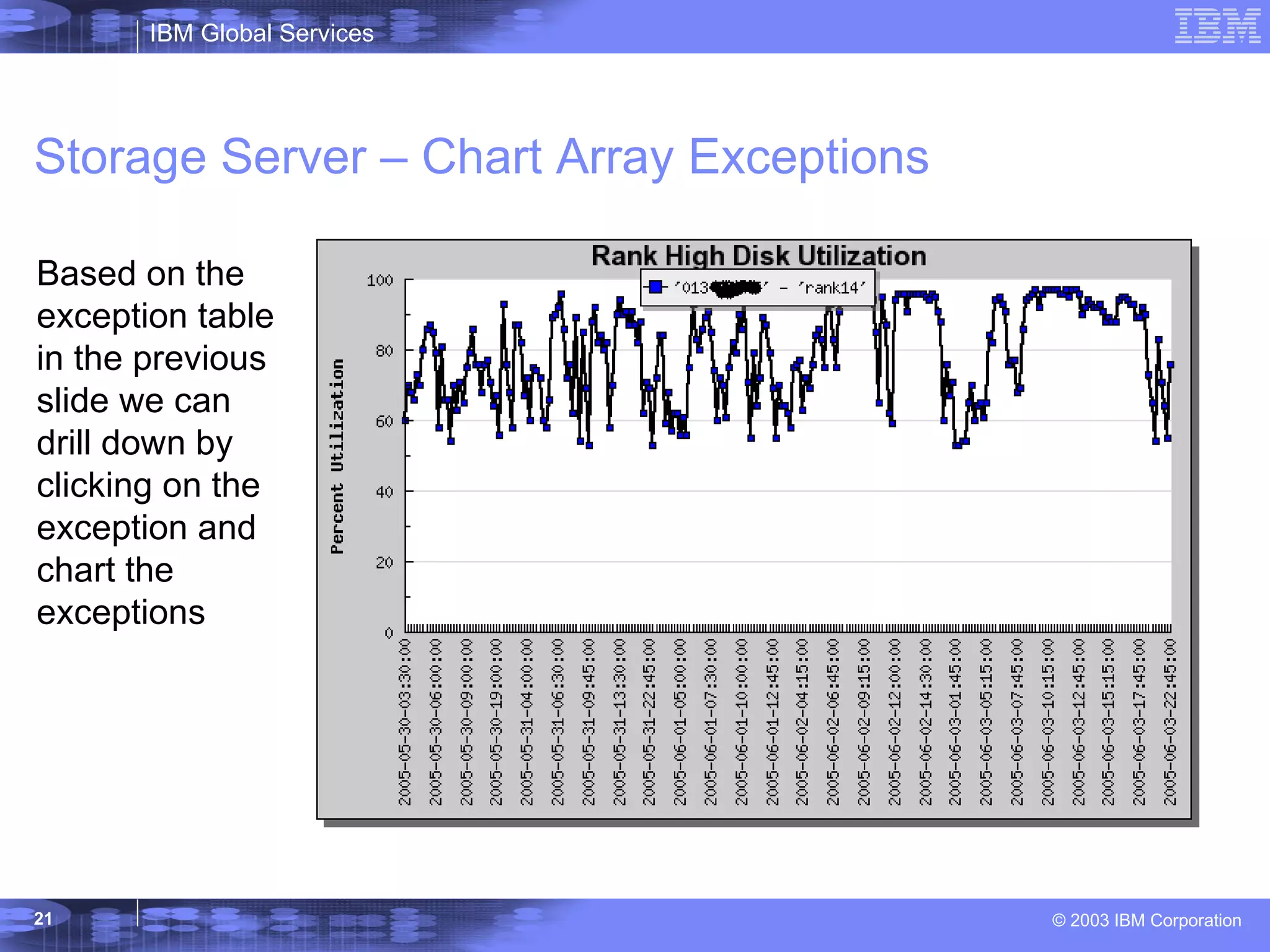

21. Storage Server – Chart Array Exceptions Based on the exception table in the previous slide we can drill down by clicking on the exception and chart the exceptions

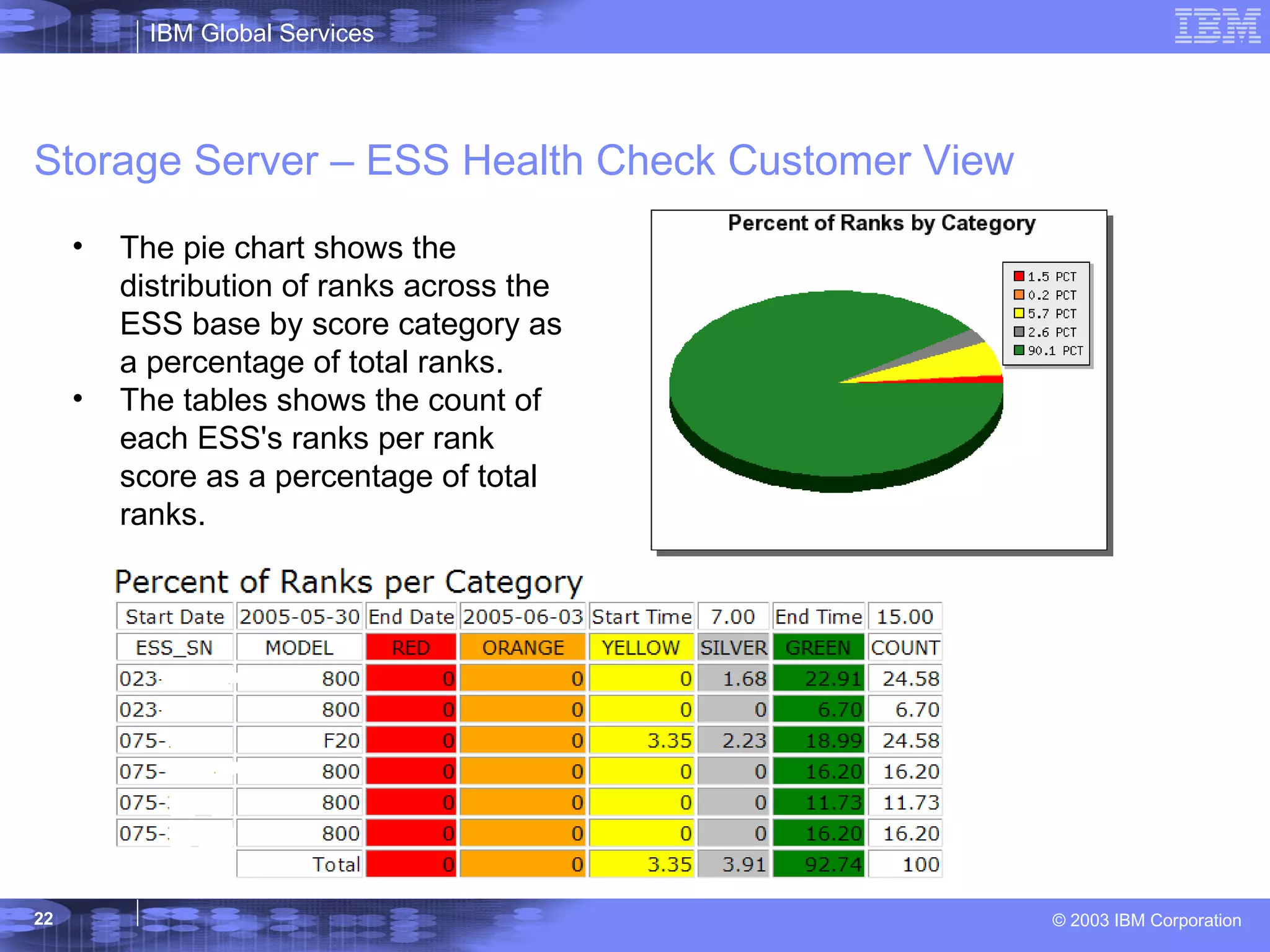

22. Storage Server – ESS Health Check Customer View The pie chart shows the distribution of ranks across the ESS base by score category as a percentage of total ranks. The tables shows the count of each ESS's ranks per rank score as a percentage of total ranks.

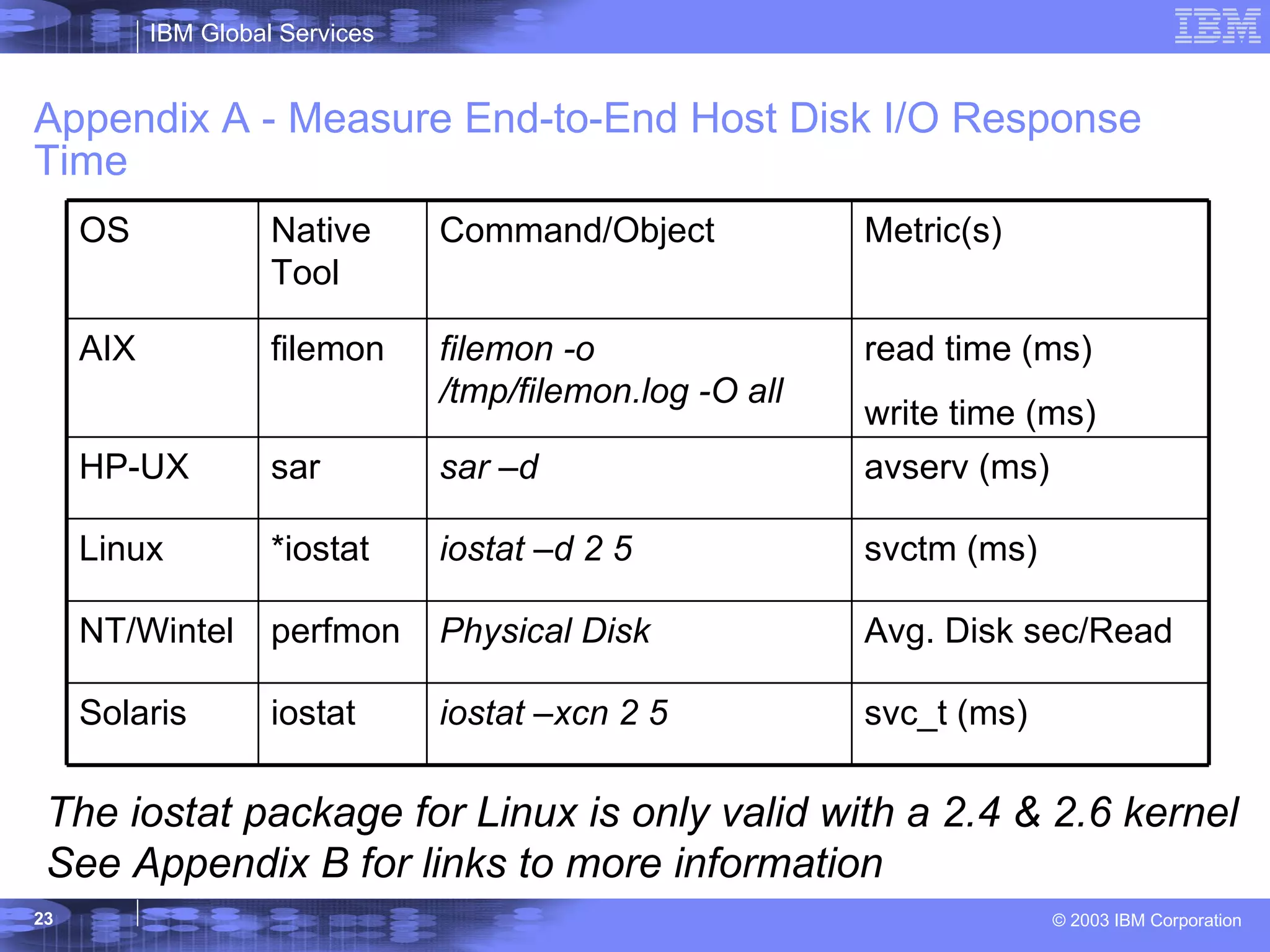

23. Appendix A - Measure End-to-End Host Disk I/O Response Time The iostat package for Linux is only valid with a 2.4 & 2.6 kernel See Appendix B for links to more information Avg. Disk sec/Read Physical Disk perfmon NT/Wintel svctm (ms) iostat –d 2 5 *iostat Linux iostat –xcn 2 5 sar –d filemon -o /tmp/filemon.log -O all Command/Object iostat sar filemon Native Tool svc_t (ms) Solaris avserv (ms) HP-UX read time (ms) write time (ms) AIX Metric(s) OS

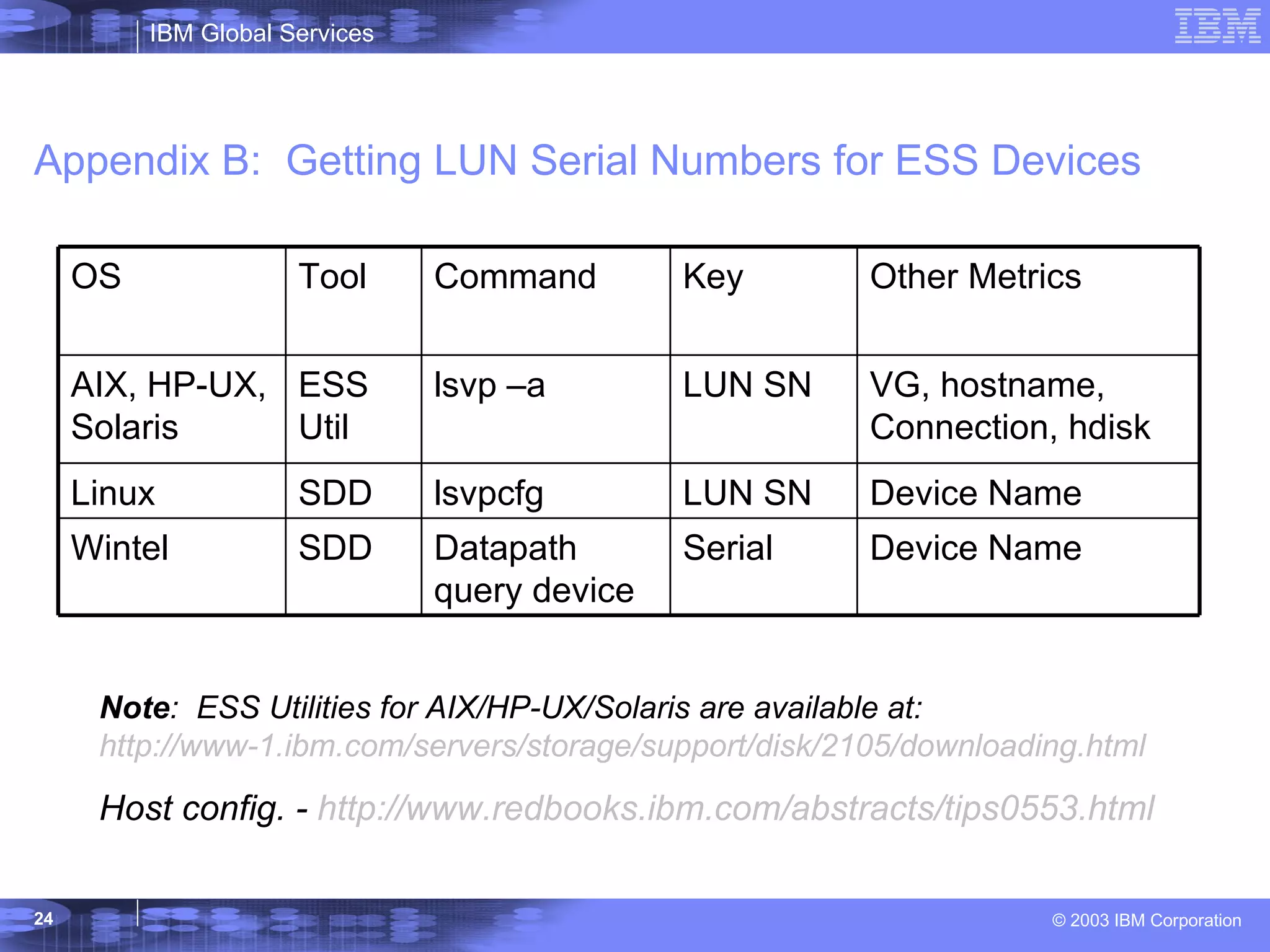

24. Appendix B: Getting LUN Serial Numbers for ESS Devices Note : ESS Utilities for AIX/HP-UX/Solaris are available at: http://www-1.ibm.com/servers/storage/support/disk/2105/downloading.html Host config. - http://www.redbooks.ibm.com/abstracts/tips0553.html Device Name LUN SN lsvpcfg SDD Linux SDD ESS Util Tool Device Name Serial Datapath query device Wintel VG, hostname, Connection, hdisk LUN SN lsvp –a AIX, HP-UX, Solaris Other Metrics Key Command OS

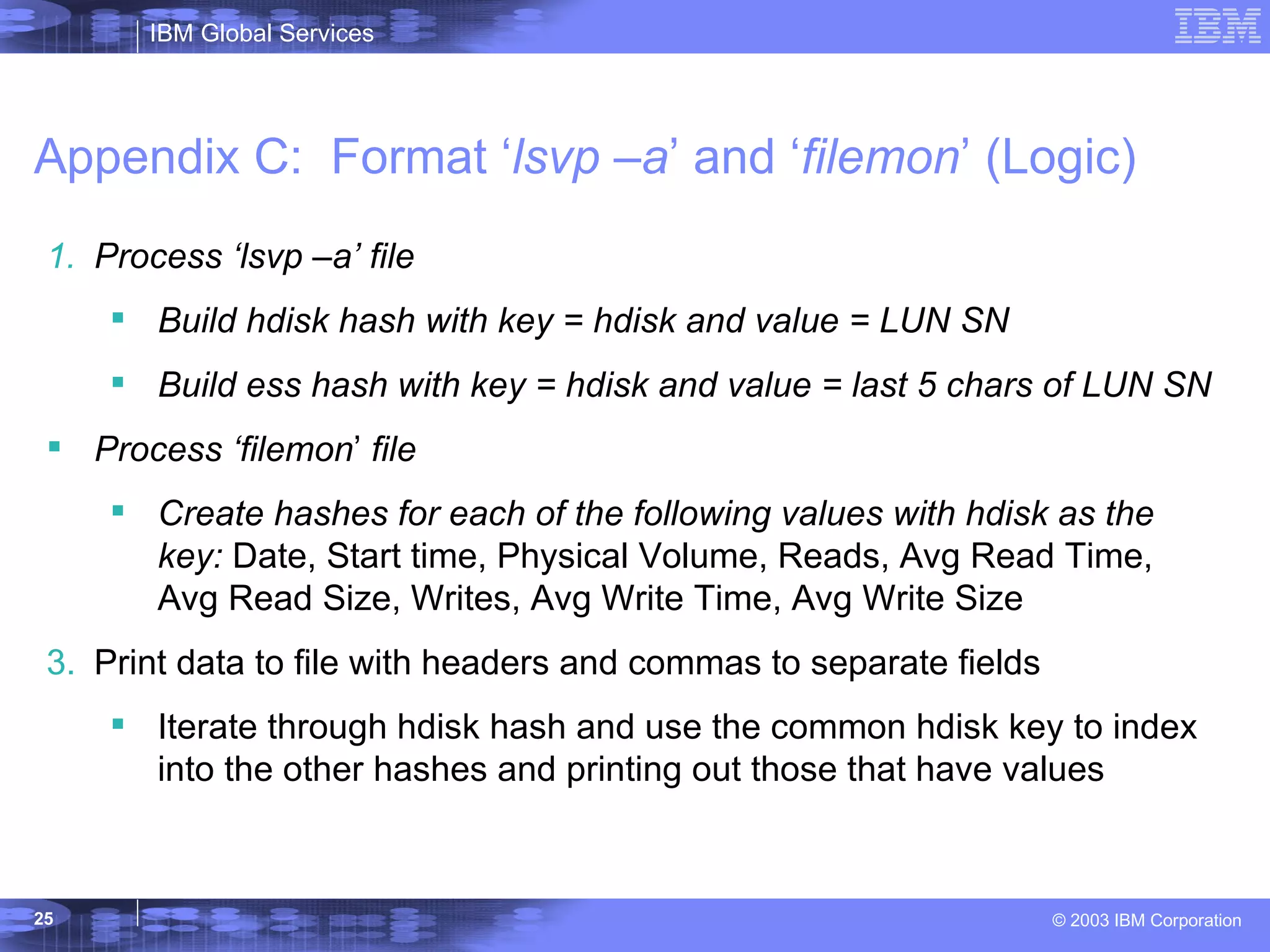

25. Appendix C: Format ‘ lsvp –a ’ and ‘ filemon ’ (Logic) Process ‘lsvp –a’ file Build hdisk hash with key = hdisk and value = LUN SN Build ess hash with key = hdisk and value = last 5 chars of LUN SN Process ‘filemon ’ file Create hashes for each of the following values with hdisk as the key: Date, Start time, Physical Volume, Reads, Avg Read Time, Avg Read Size, Writes, Avg Write Time, Avg Write Size Print data to file with headers and commas to separate fields Iterate through hdisk hash and use the common hdisk key to index into the other hashes and printing out those that have values

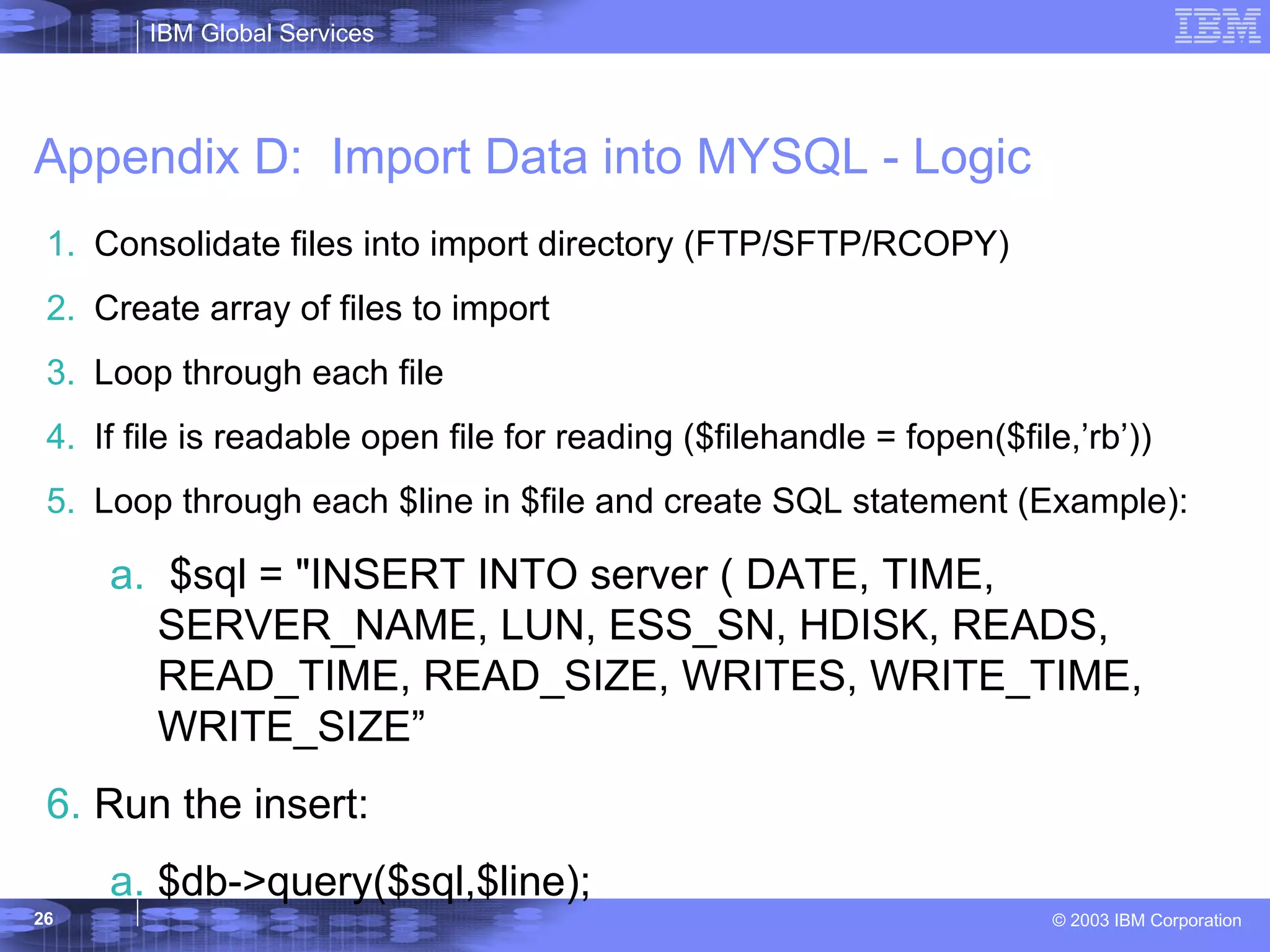

26. Appendix D: Import Data into MYSQL - Logic Consolidate files into import directory (FTP/SFTP/RCOPY) Create array of files to import Loop through each file If file is readable open file for reading ($filehandle = fopen($file,’rb’)) Loop through each $line in $file and create SQL statement (Example): $sql = "INSERT INTO server ( DATE, TIME, SERVER_NAME, LUN, ESS_SN, HDISK, READS, READ_TIME, READ_SIZE, WRITES, WRITE_TIME, WRITE_SIZE” Run the insert: $db->query($sql,$line);

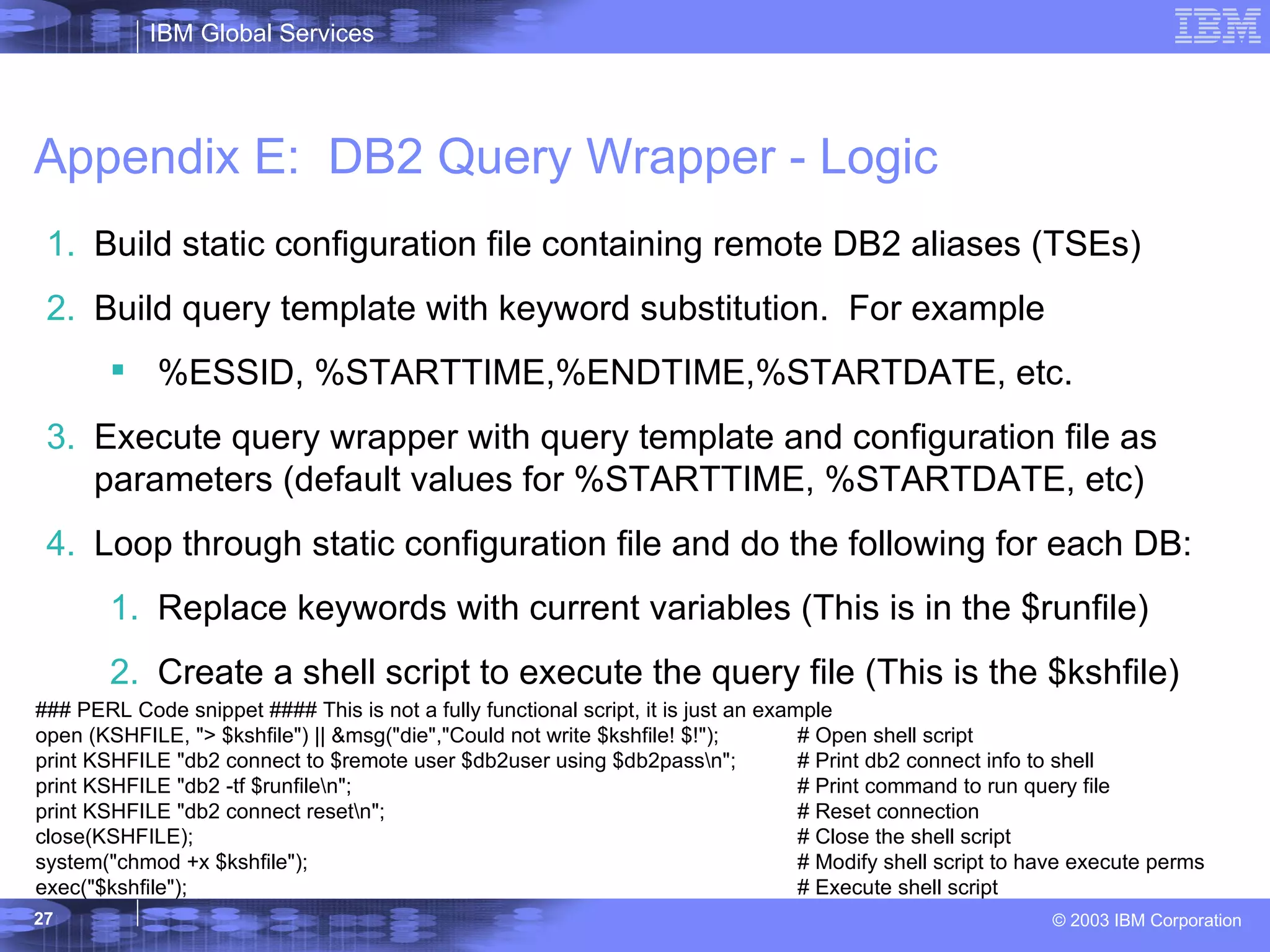

27. Appendix E: DB2 Query Wrapper - Logic Build static configuration file containing remote DB2 aliases (TSEs) Build query template with keyword substitution. For example %ESSID, %STARTTIME,%ENDTIME,%STARTDATE, etc. Execute query wrapper with query template and configuration file as parameters (default values for %STARTTIME, %STARTDATE, etc) Loop through static configuration file and do the following for each DB: Replace keywords with current variables (This is in the $runfile) Create a shell script to execute the query file (This is the $kshfile) ### PERL Code snippet #### This is not a fully functional script, it is just an example open (KSHFILE, "> $kshfile") || &msg("die","Could not write $kshfile! $!"); # Open shell script print KSHFILE "db2 connect to $remote user $db2user using $db2pass\n"; # Print db2 connect info to shell print KSHFILE "db2 -tf $runfile\n"; # Print command to run query file print KSHFILE "db2 connect reset\n"; # Reset connection close(KSHFILE); # Close the shell script system("chmod +x $kshfile"); # Modify shell script to have execute perms exec("$kshfile"); # Execute shell script

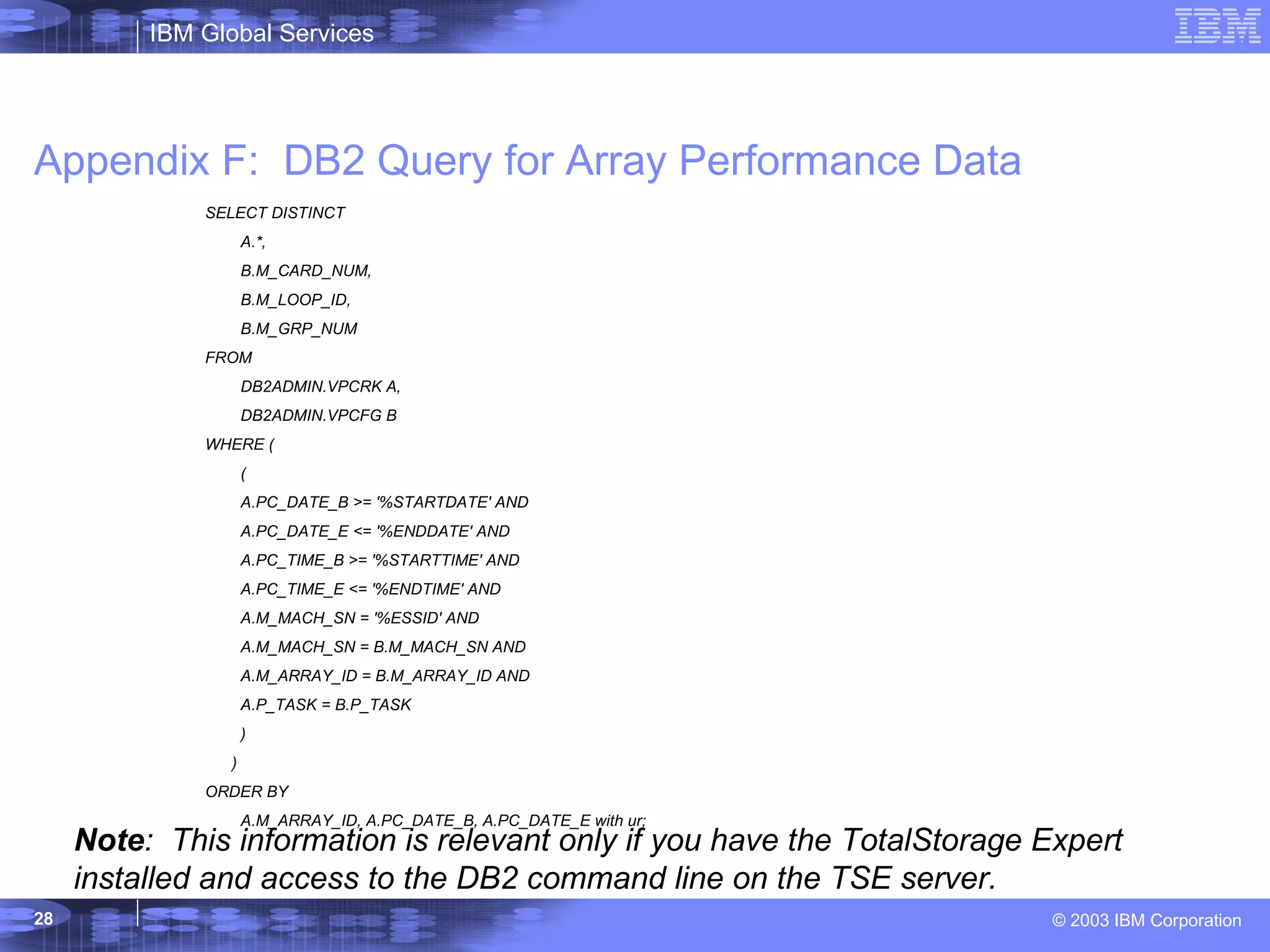

28. Appendix F: DB2 Query for Array Performance Data Note : This information is relevant only if you have the TotalStorage Expert installed and access to the DB2 command line on the TSE server. SELECT DISTINCT A.*, B.M_CARD_NUM, B.M_LOOP_ID, B.M_GRP_NUM FROM DB2ADMIN.VPCRK A, DB2ADMIN.VPCFG B WHERE ( ( A.PC_DATE_B >= '%STARTDATE' AND A.PC_DATE_E <= '%ENDDATE' AND A.PC_TIME_B >= '%STARTTIME' AND A.PC_TIME_E <= '%ENDTIME' AND A.M_MACH_SN = '%ESSID' AND A.M_MACH_SN = B.M_MACH_SN AND A.M_ARRAY_ID = B.M_ARRAY_ID AND A.P_TASK = B.P_TASK ) ) ORDER BY A.M_ARRAY_ID, A.PC_DATE_B, A.PC_DATE_E with ur;

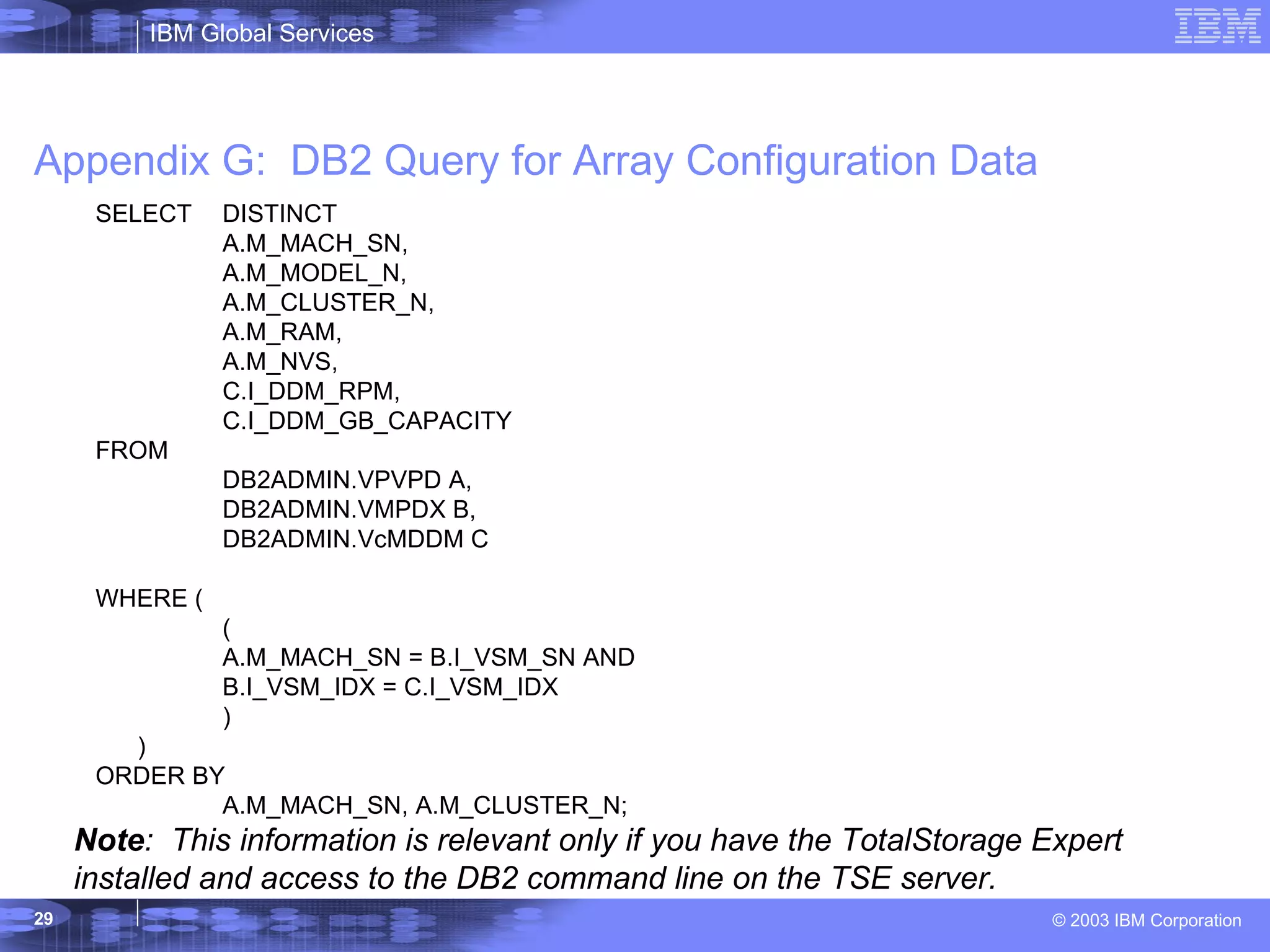

29. Appendix G: DB2 Query for Array Configuration Data Note : This information is relevant only if you have the TotalStorage Expert installed and access to the DB2 command line on the TSE server. SELECT DISTINCT A.M_MACH_SN, A.M_MODEL_N, A.M_CLUSTER_N, A.M_RAM, A.M_NVS, C.I_DDM_RPM, C.I_DDM_GB_CAPACITY FROM DB2ADMIN.VPVPD A, DB2ADMIN.VMPDX B, DB2ADMIN.VcMDDM C WHERE ( ( A.M_MACH_SN = B.I_VSM_SN AND B.I_VSM_IDX = C.I_VSM_IDX ) ) ORDER BY A.M_MACH_SN, A.M_CLUSTER_N;

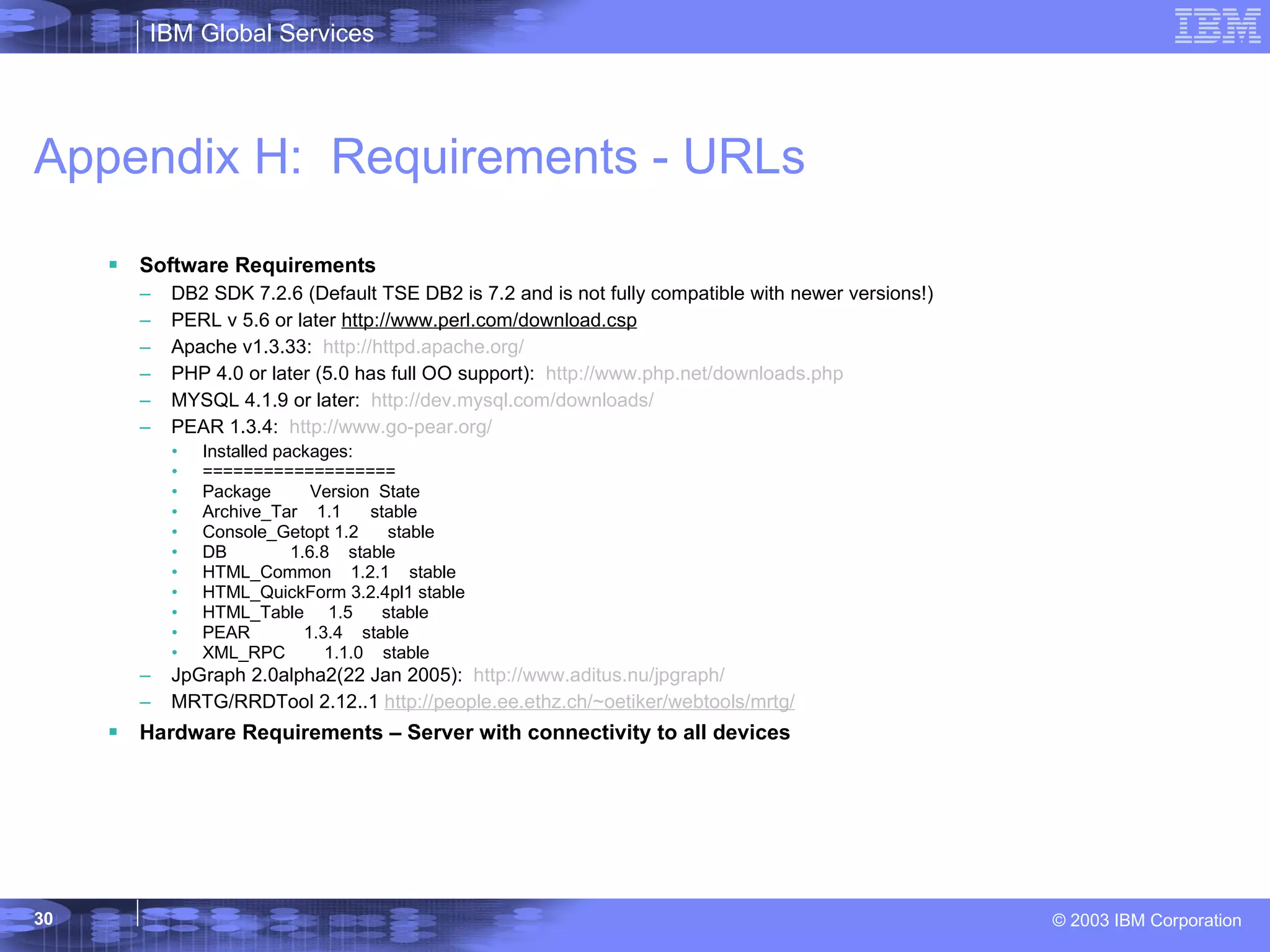

30. Appendix H: Requirements - URLs Software Requirements DB2 SDK 7.2.6 (Default TSE DB2 is 7.2 and is not fully compatible with newer versions!) PERL v 5.6 or later http://www.perl.com/download.csp Apache v1.3.33: http://httpd.apache.org/ PHP 4.0 or later (5.0 has full OO support): http://www.php.net/downloads.php MYSQL 4.1.9 or later: http://dev.mysql.com/downloads/ PEAR 1.3.4: http://www.go-pear.org / Installed packages: =================== Package Version State Archive_Tar 1.1 stable Console_Getopt 1.2 stable DB 1.6.8 stable HTML_Common 1.2.1 stable HTML_QuickForm 3.2.4pl1 stable HTML_Table 1.5 stable PEAR 1.3.4 stable XML_RPC 1.1.0 stable JpGraph 2.0alpha2(22 Jan 2005): http://www.aditus.nu/jpgraph/ MRTG/RRDTool 2.12..1 http://people.ee.ethz.ch/~oetiker/webtools/mrtg/ Hardware Requirements – Server with connectivity to all devices

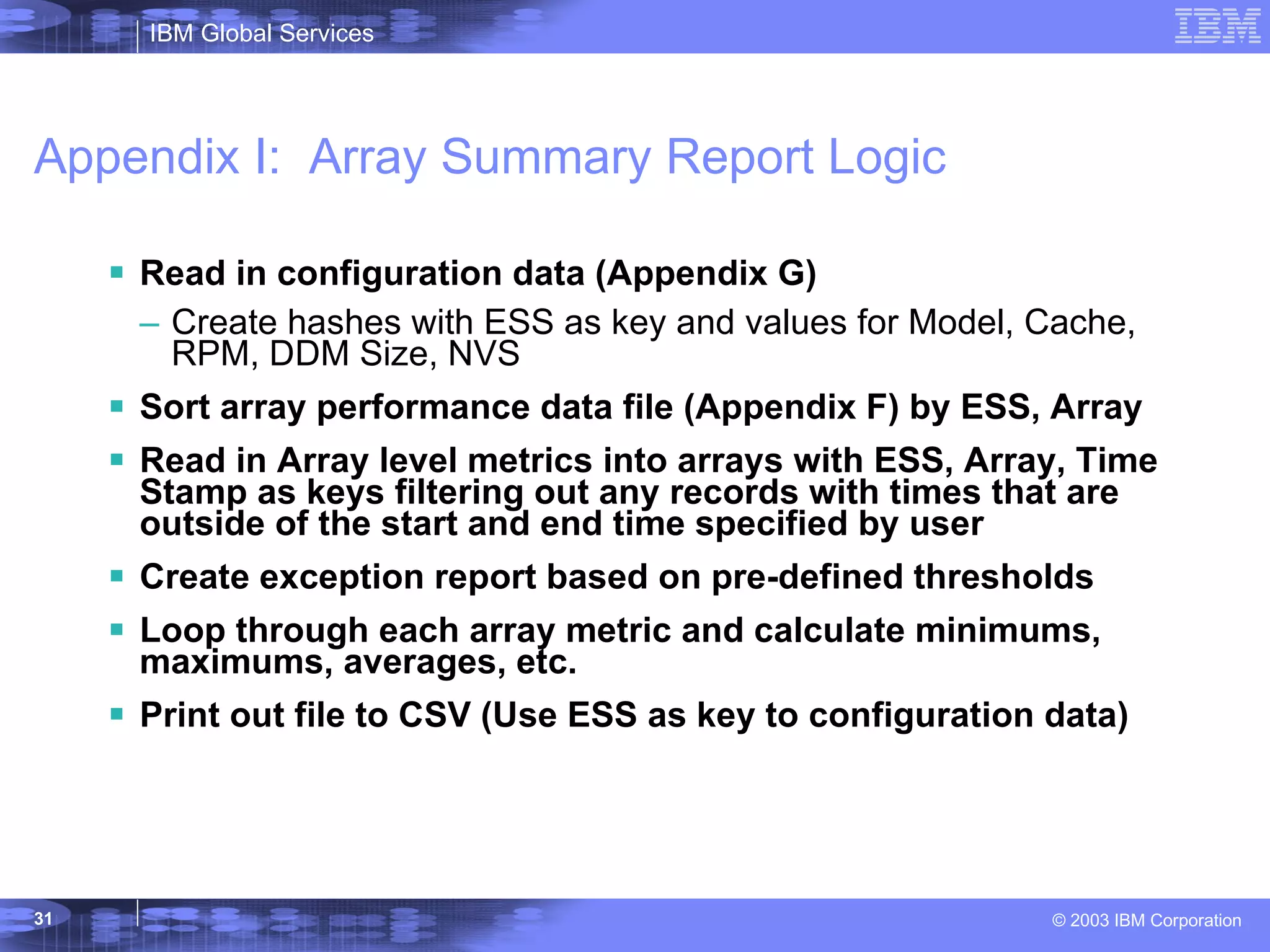

31. Appendix I: Array Summary Report Logic Read in configuration data (Appendix G) Create hashes with ESS as key and values for Model, Cache, RPM, DDM Size, NVS Sort array performance data file (Appendix F) by ESS, Array Read in Array level metrics into arrays with ESS, Array, Time Stamp as keys filtering out any records with times that are outside of the start and end time specified by user Create exception report based on pre-defined thresholds Loop through each array metric and calculate minimums, maximums, averages, etc. Print out file to CSV (Use ESS as key to configuration data)

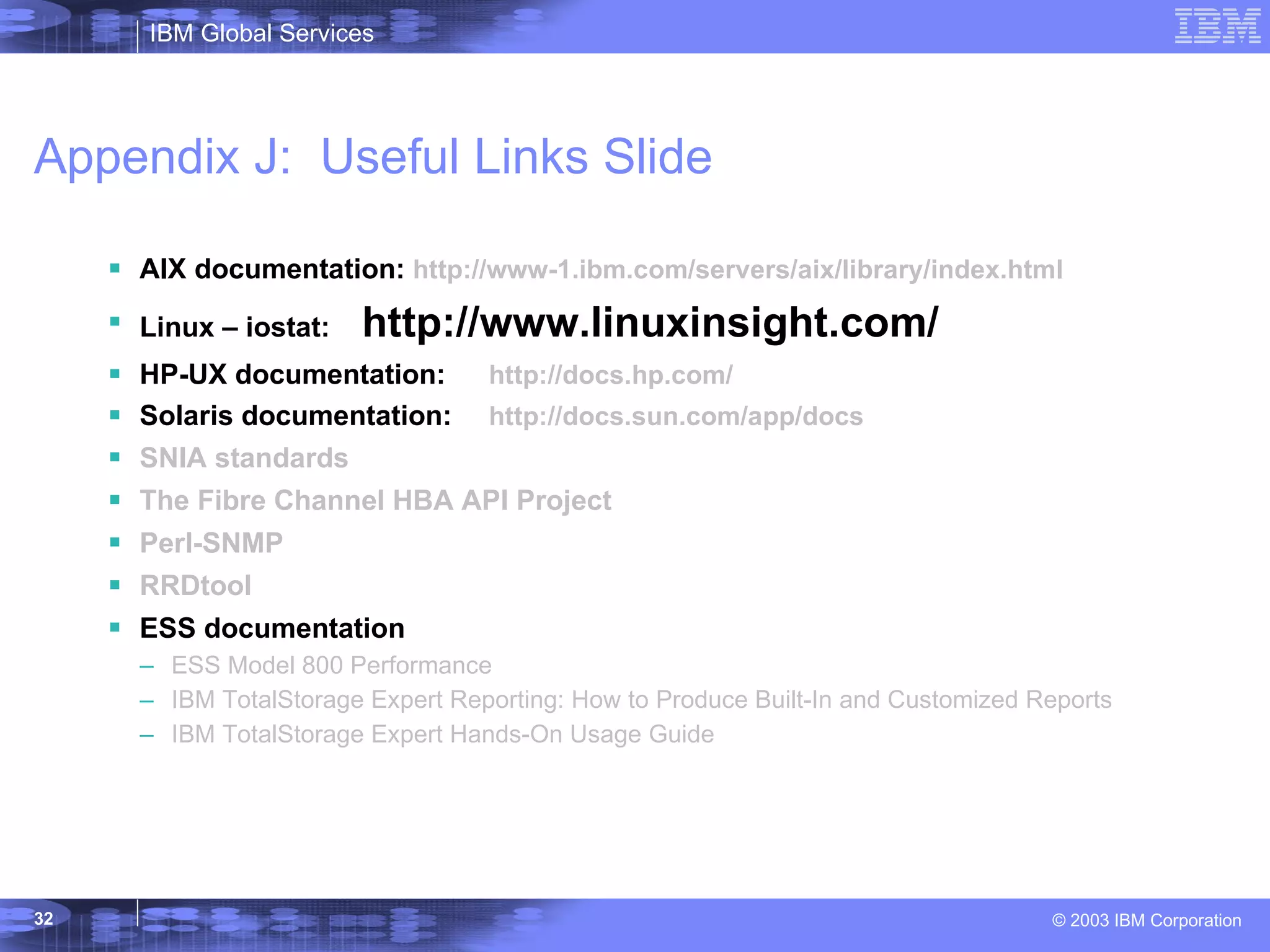

32. Appendix J: Useful Links Slide AIX documentation: http://www-1.ibm.com/servers/aix/library/index.html Linux – iostat: http://www.linuxinsight.com/ HP-UX documentation: http:// docs.hp.com / Solaris documentation: http:// docs.sun.com /app/docs SNIA standards The Fibre Channel HBA API Project Perl-SNMP RRDtool ESS documentation ESS Model 800 Performance IBM TotalStorage Expert Reporting: How to Produce Built-In and Customized Reports IBM TotalStorage Expert Hands-On Usage Guide

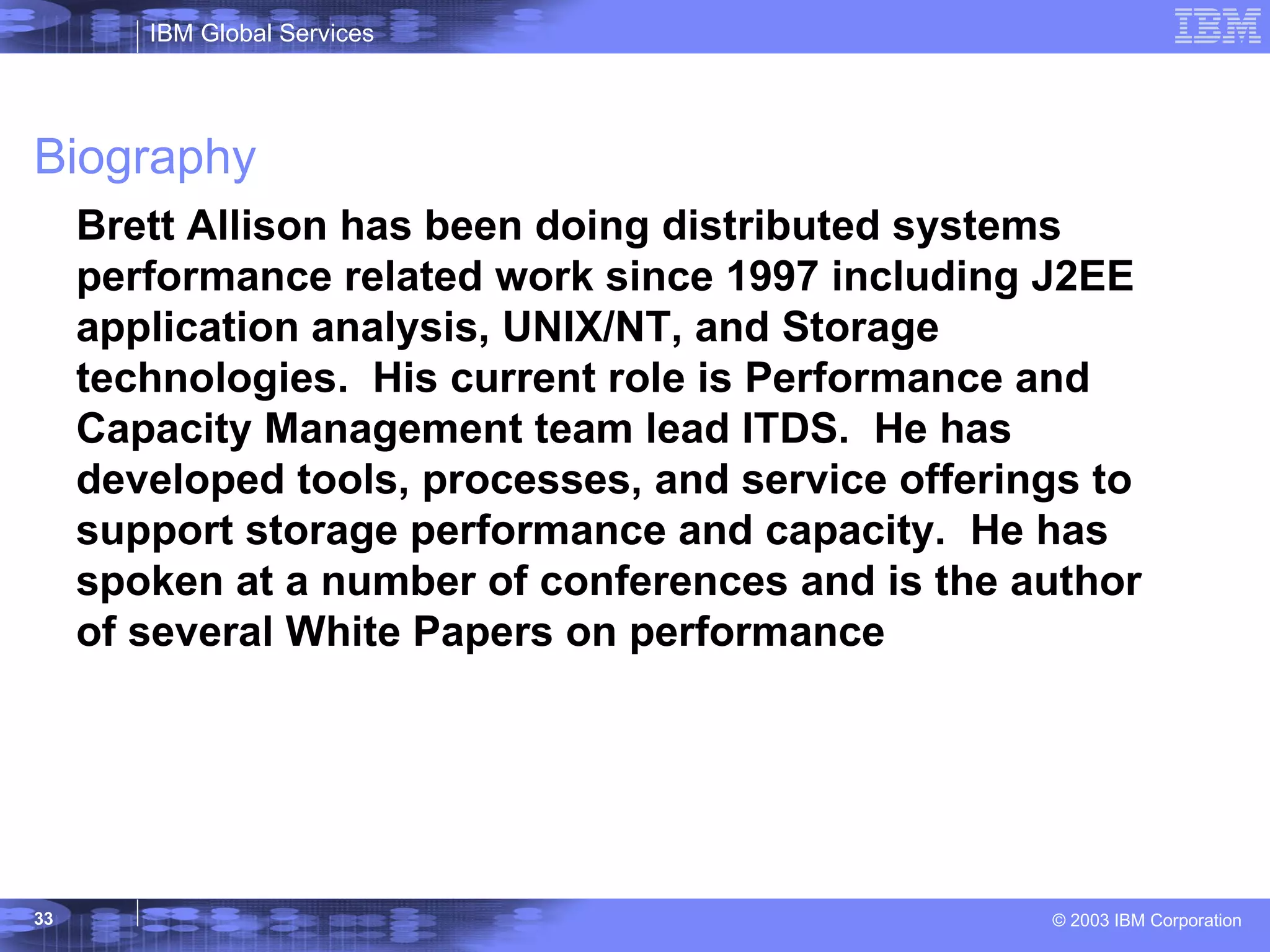

33. Biography Brett Allison has been doing distributed systems performance related work since 1997 including J2EE application analysis, UNIX/NT, and Storage technologies. His current role is Performance and Capacity Management team lead ITDS. He has developed tools, processes, and service offerings to support storage performance and capacity. He has spoken at a number of conferences and is the author of several White Papers on performance
