1. The Race for Space
David Shepherd | Senior Solutions Consultant | 24th February 2016
Stephen Mogg | Senior Sales Engineer

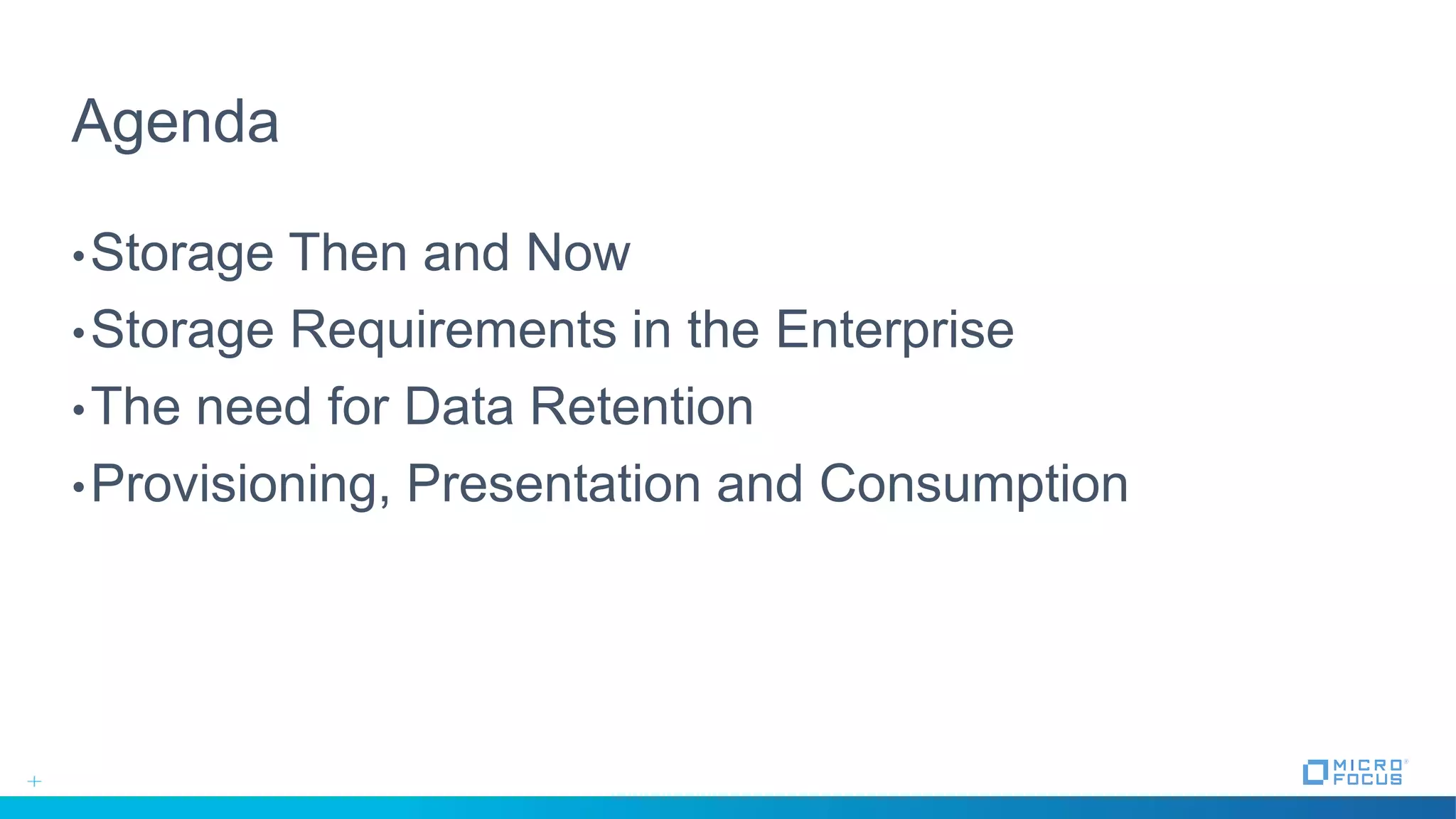

2. Agenda
•Storage Then and Now
•Storage Requirements in the Enterprise
•The need for Data Retention
•Provisioning, Presentation and Consumption

3. Storage Then and Now

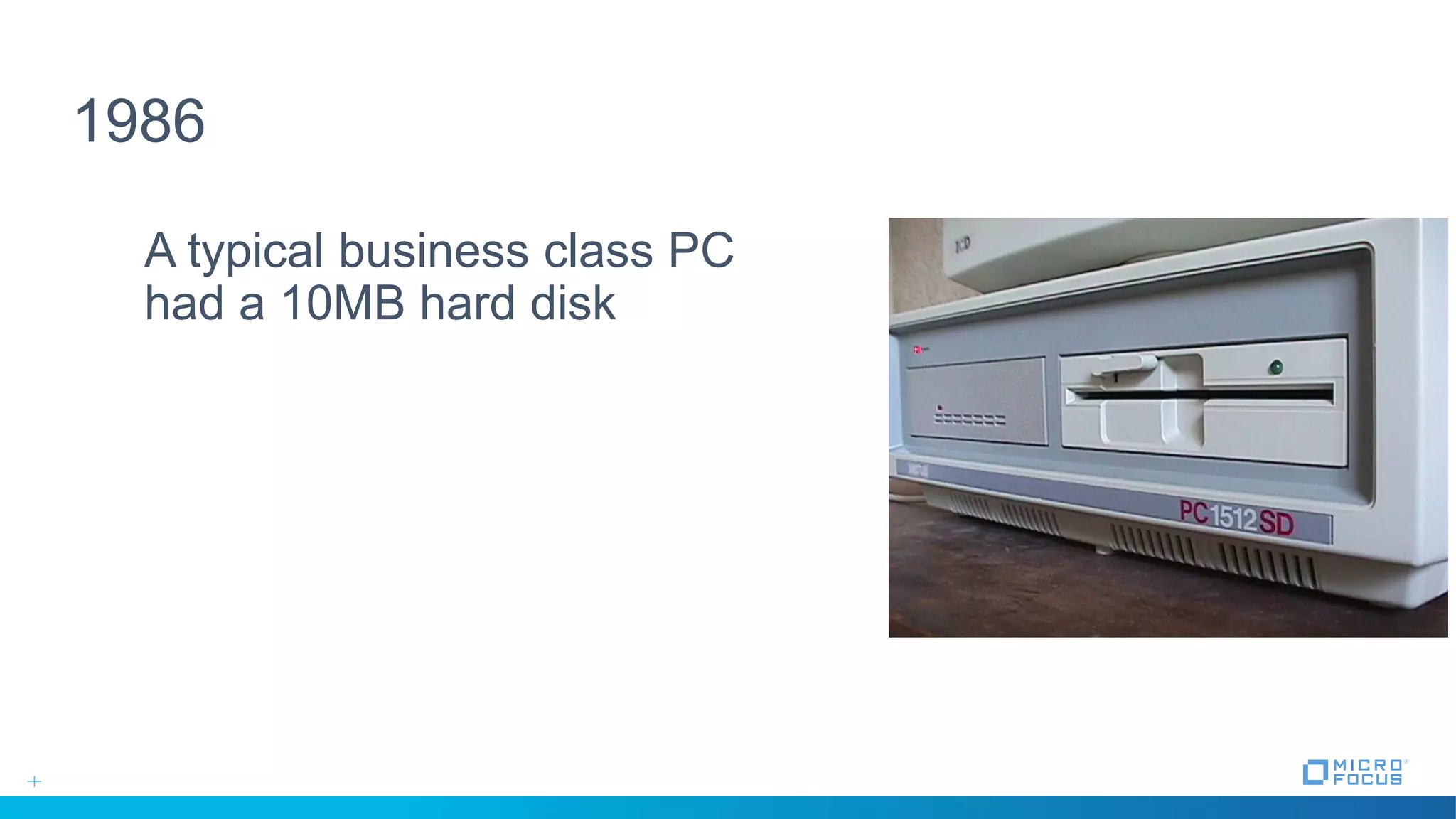

4. 1986
A typical business class PC
had a 10MB hard disk

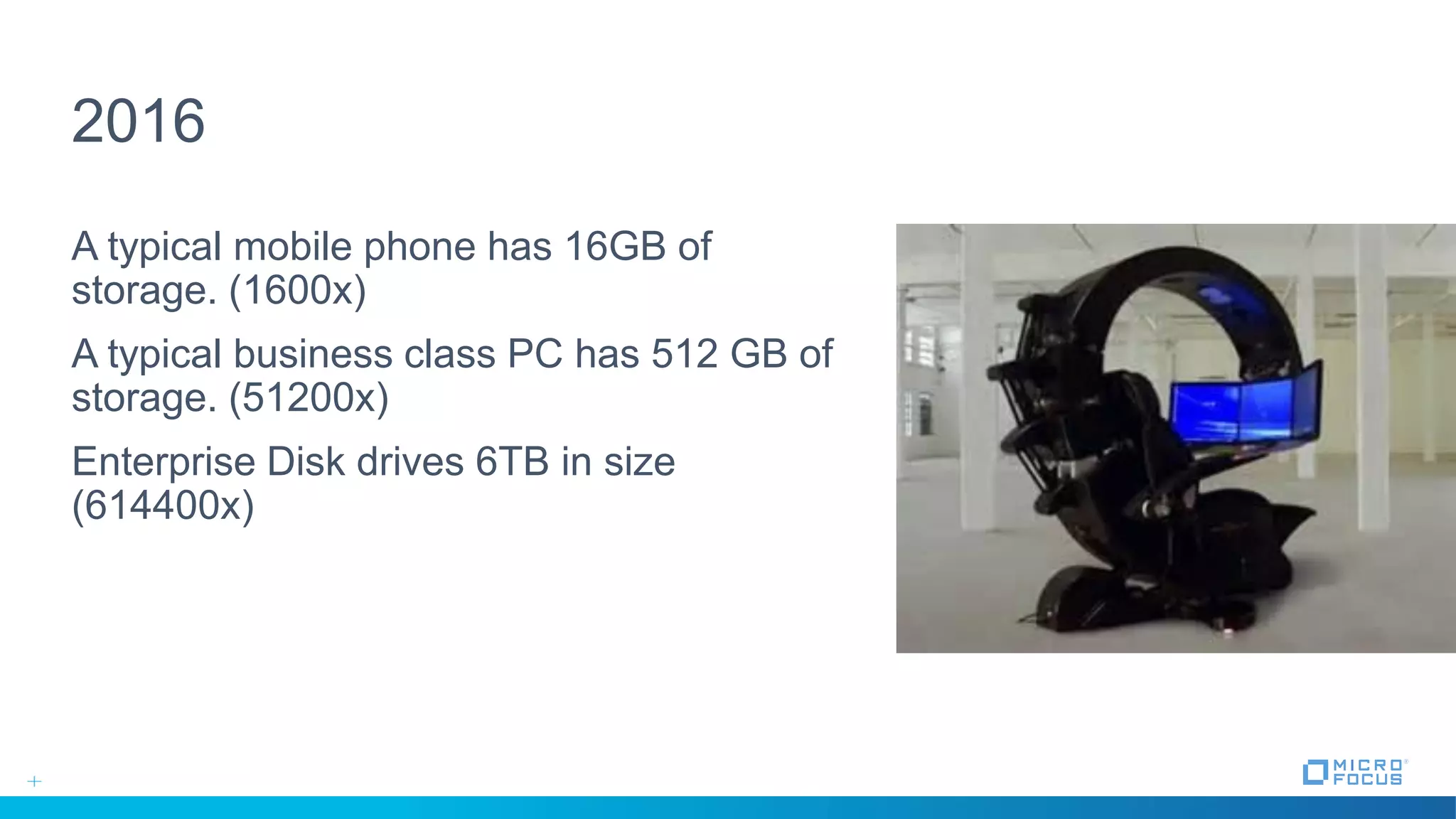

5. 2016
A typical mobile phone has 16GB of
storage. (1600x)
A typical business class PC has 512 GB of
storage. (51200x)
Enterprise Disk drives 6TB in size
(614400x)

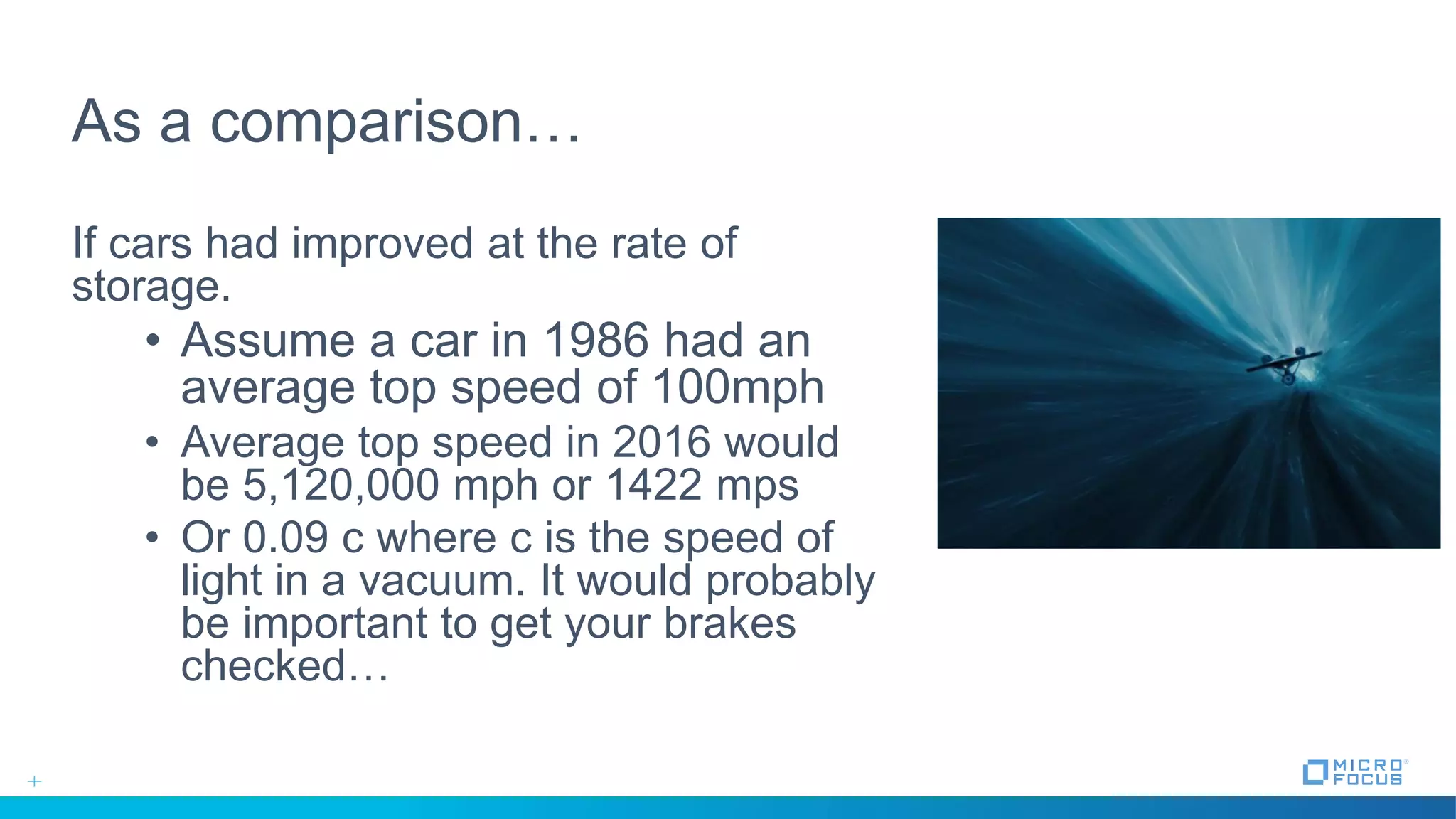

6. As a comparison…
If cars had improved at the rate of
storage.
• Assume a car in 1986 had an
average top speed of 100mph
• Average top speed in 2016 would
be 5,120,000 mph or 1422 mps
• Or 0.09 c where c is the speed of
light in a vacuum. It would probably
be important to get your brakes
checked…

7. Enterprise Storage in the 21st
Century

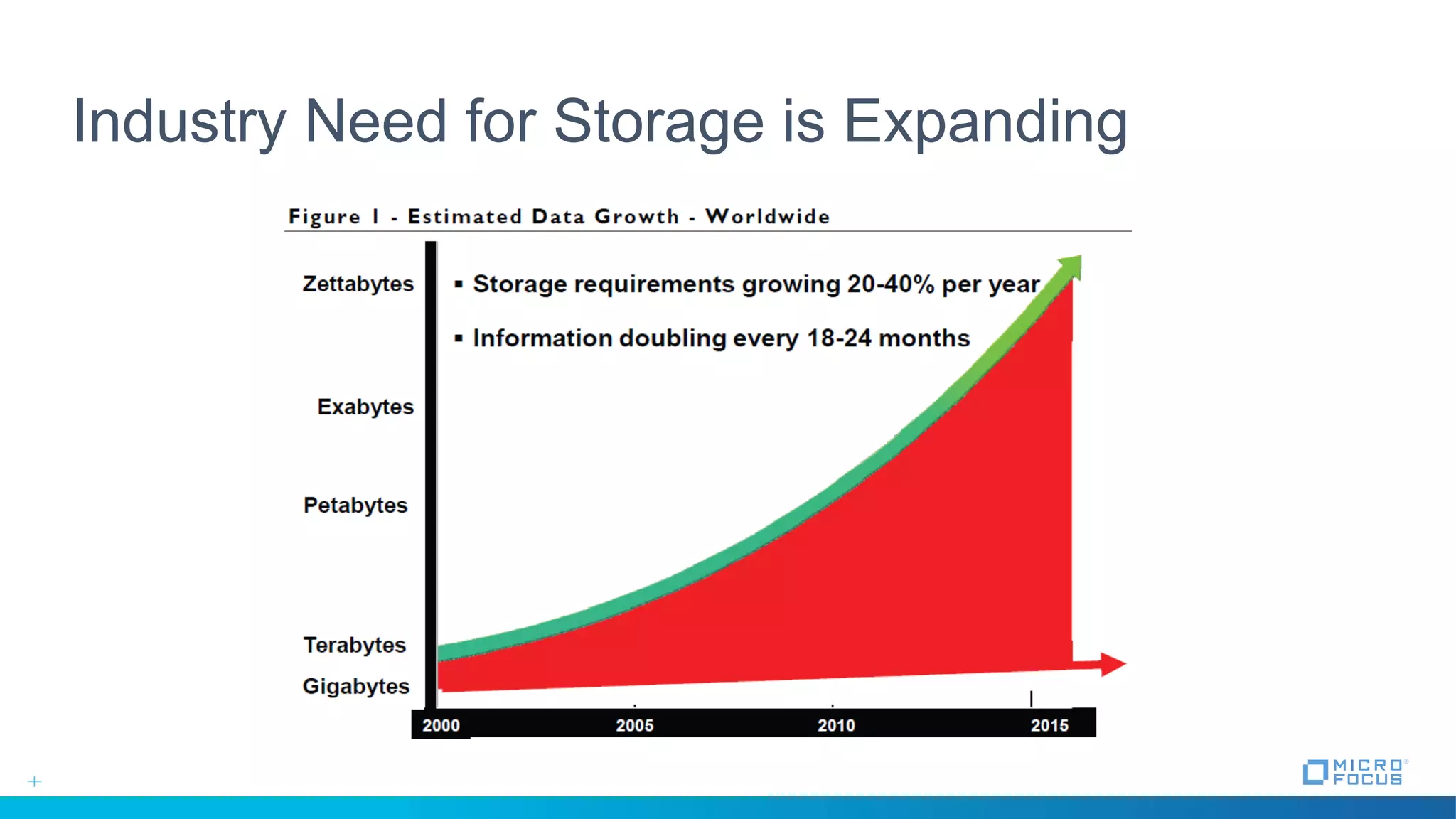

8. Industry Need for Storage is Expanding

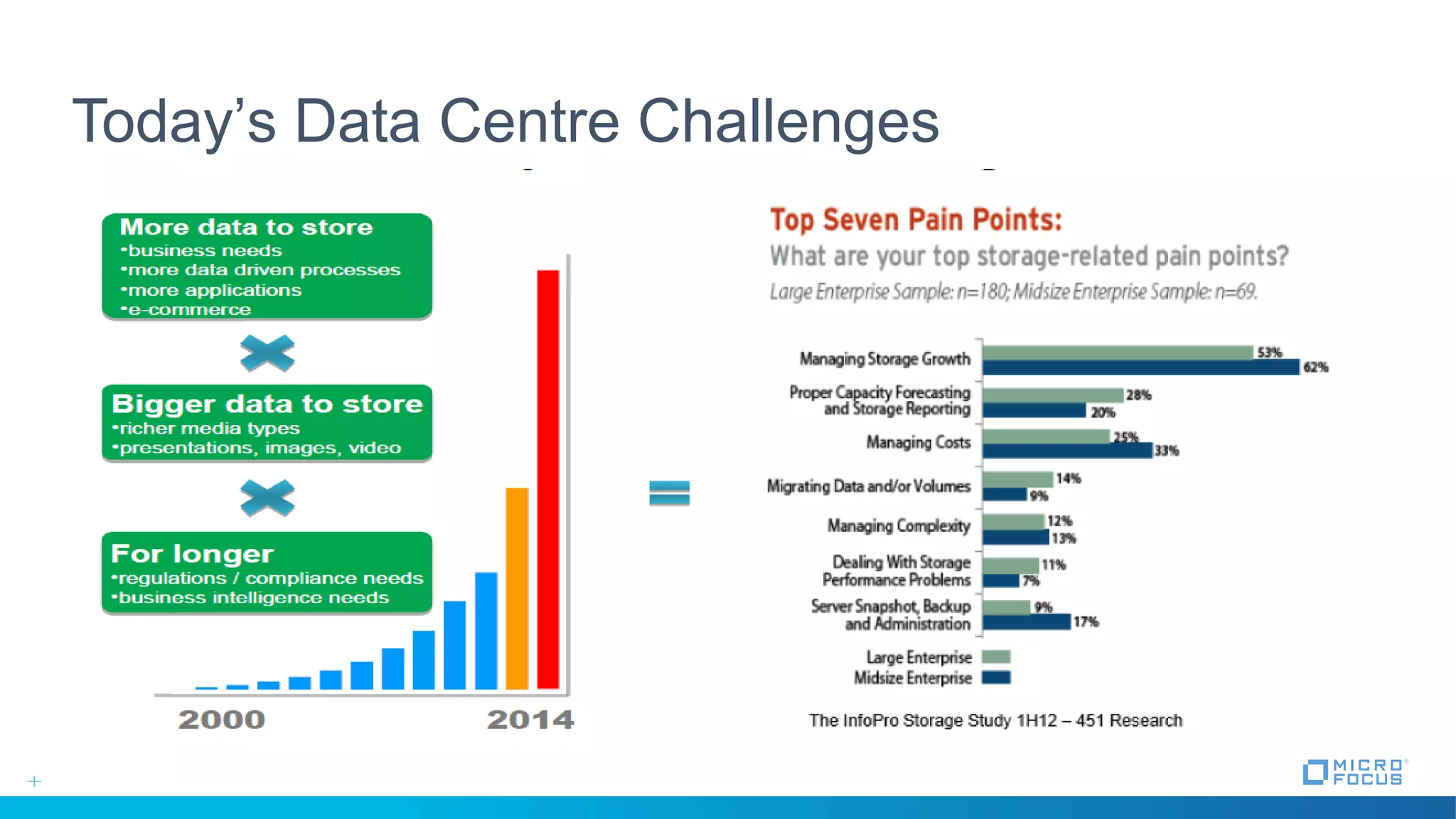

9. Today’s Data Centre Challenges

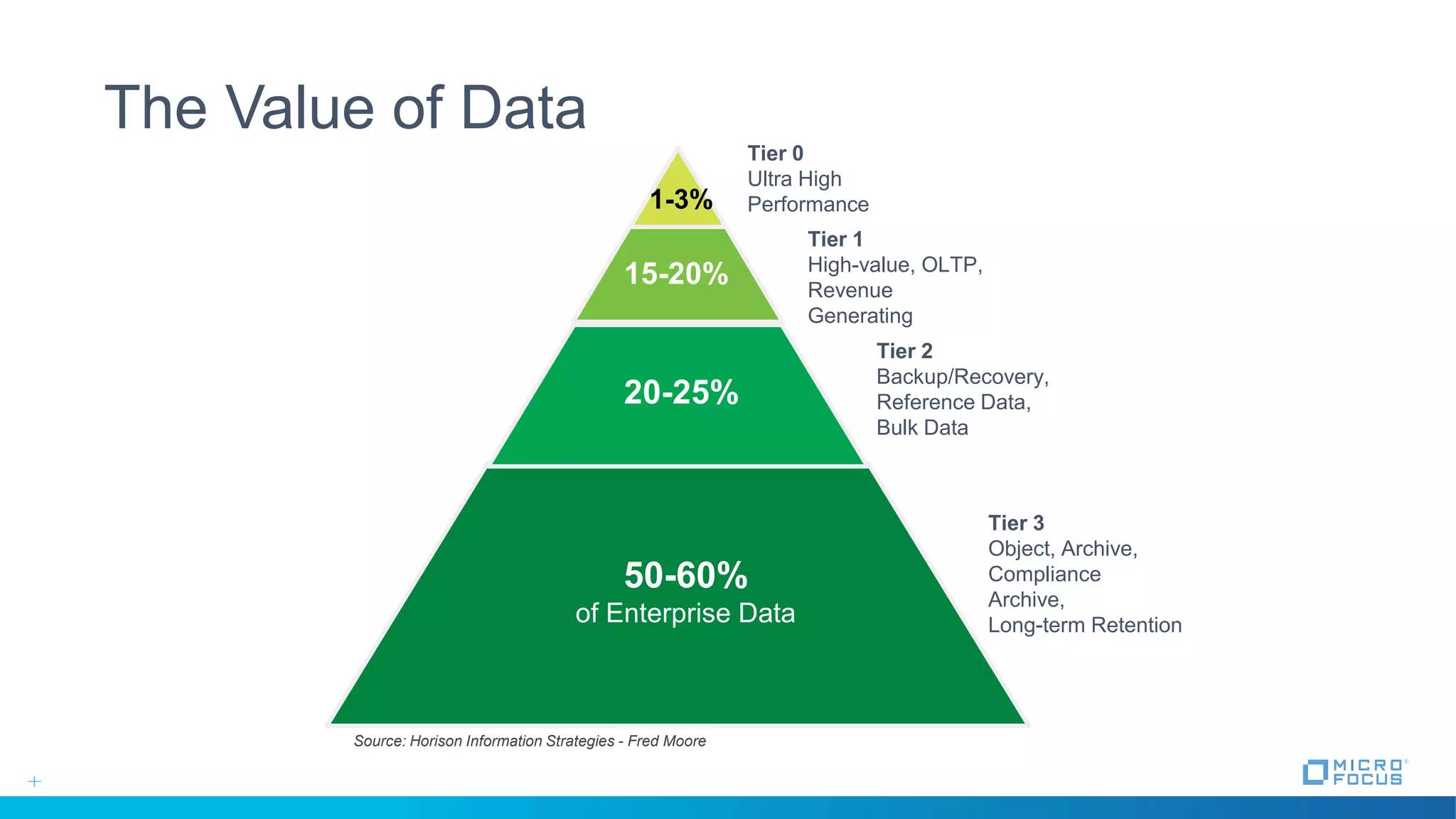

10. The Value of Data
50-60%
of Enterprise Data
20-25%
15-20%
1-3%
Tier 0
Ultra High
Performance
Tier 1
High-value, OLTP,
Revenue
Generating
Tier 2
Backup/Recovery,
Reference Data,
Bulk Data
Tier 3
Object, Archive,
Compliance
Archive,
Long-term Retention
Source: Horison Information Strategies - Fred Moore

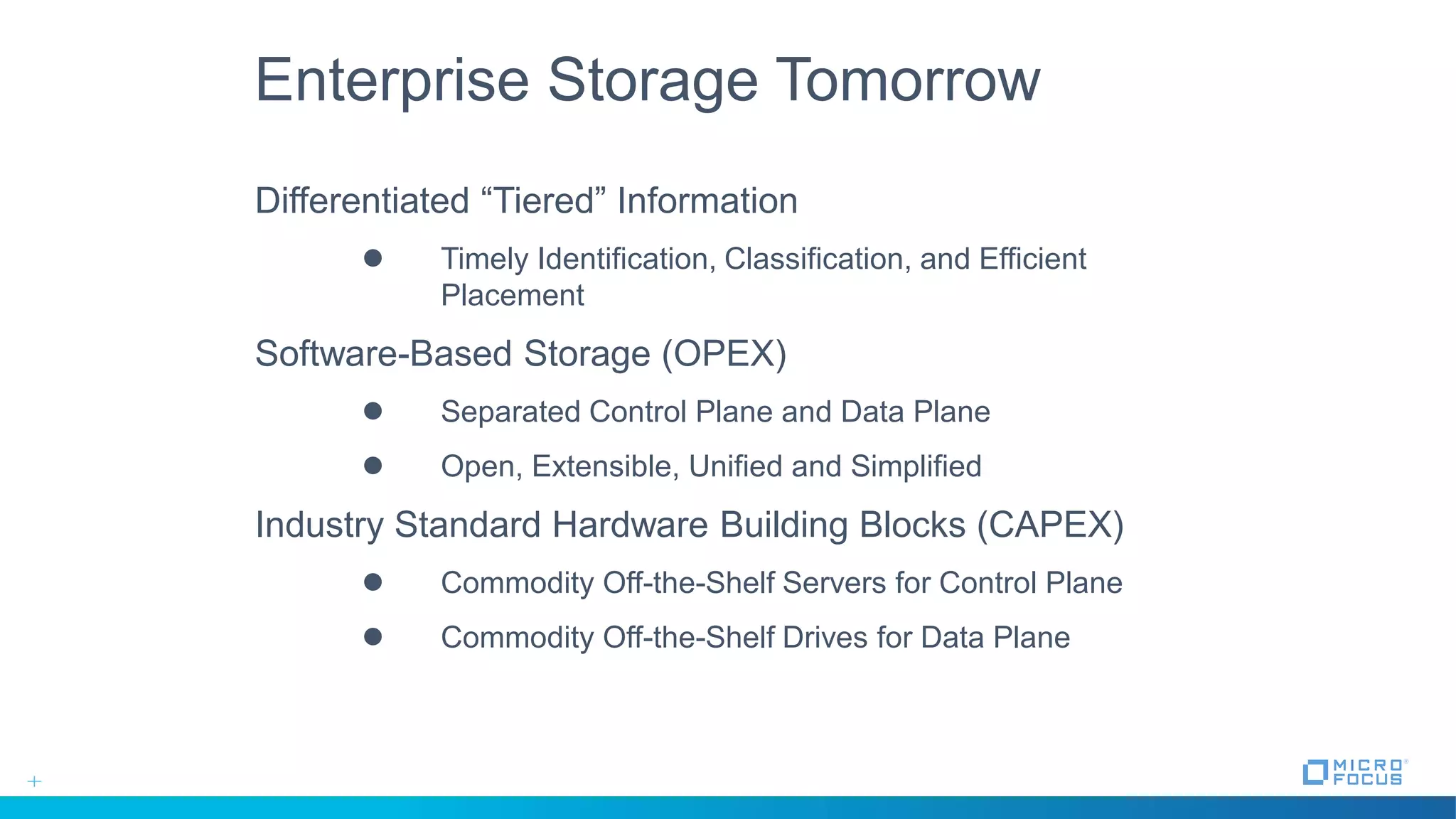

11. Enterprise Storage Tomorrow
Differentiated “Tiered” Information
 Timely Identification, Classification, and Efficient
Placement
Software-Based Storage (OPEX)
 Separated Control Plane and Data Plane
 Open, Extensible, Unified and Simplified
Industry Standard Hardware Building Blocks (CAPEX)
 Commodity Off-the-Shelf Servers for Control Plane
 Commodity Off-the-Shelf Drives for Data Plane

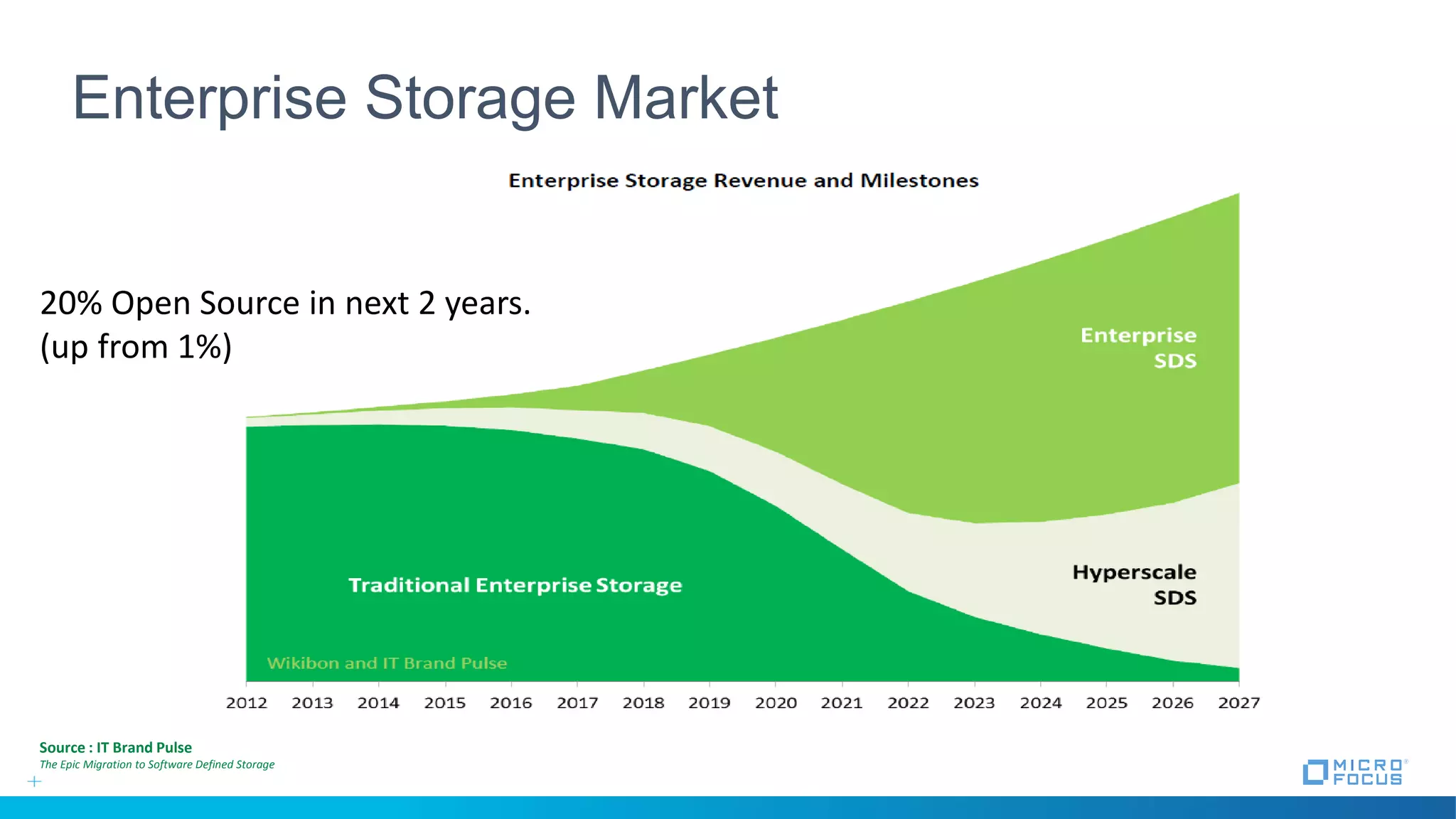

12. Enterprise Storage Market
Source : IT Brand Pulse
The Epic Migration to Software Defined Storage
20% Open Source in next 2 years.
(up from 1%)

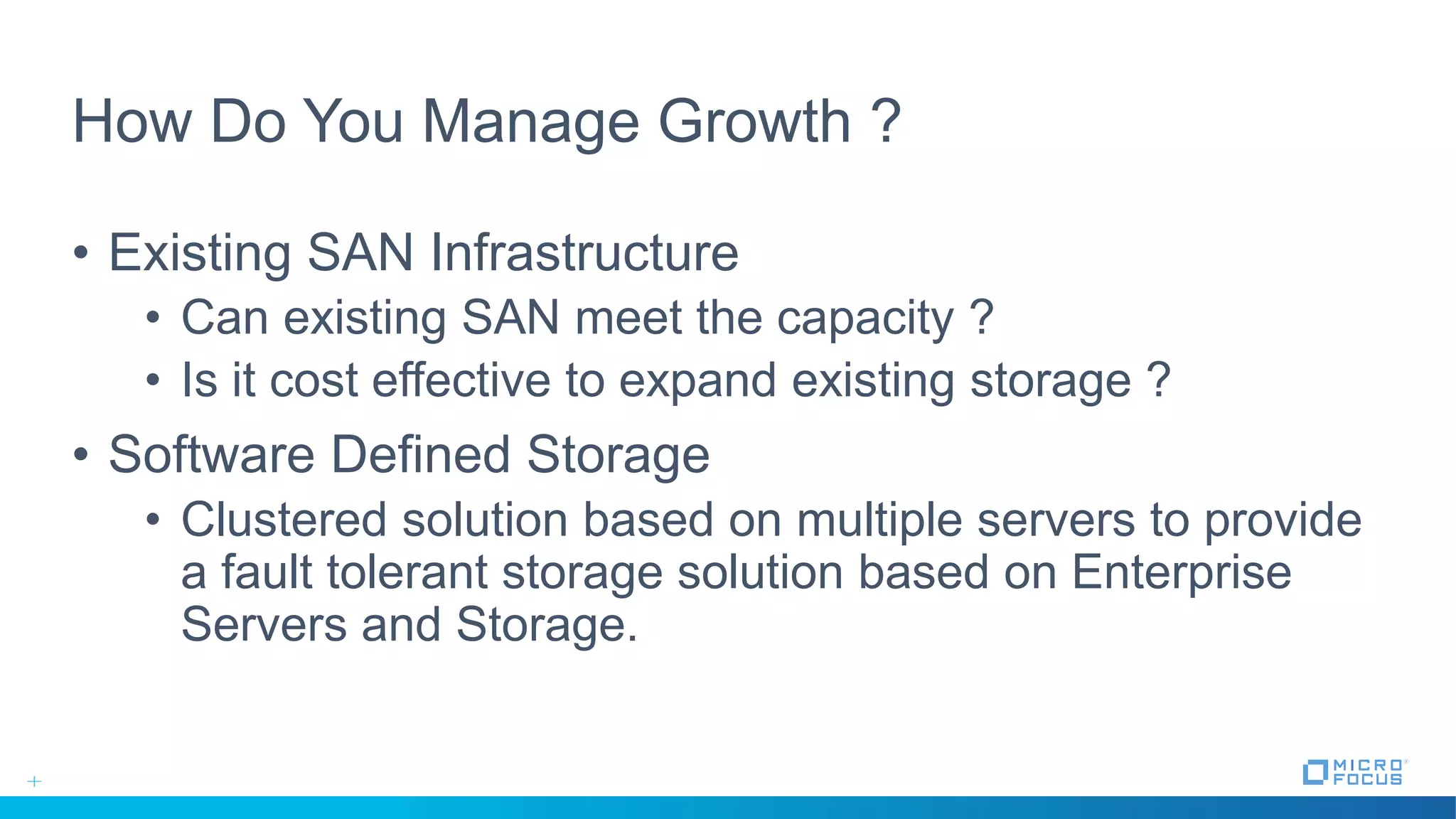

13. How Do You Manage Growth ?
• Existing SAN Infrastructure
• Can existing SAN meet the capacity ?
• Is it cost effective to expand existing storage ?
• Software Defined Storage
• Clustered solution based on multiple servers to provide
a fault tolerant storage solution based on Enterprise
Servers and Storage.

14. SUSE Enterprise Storage

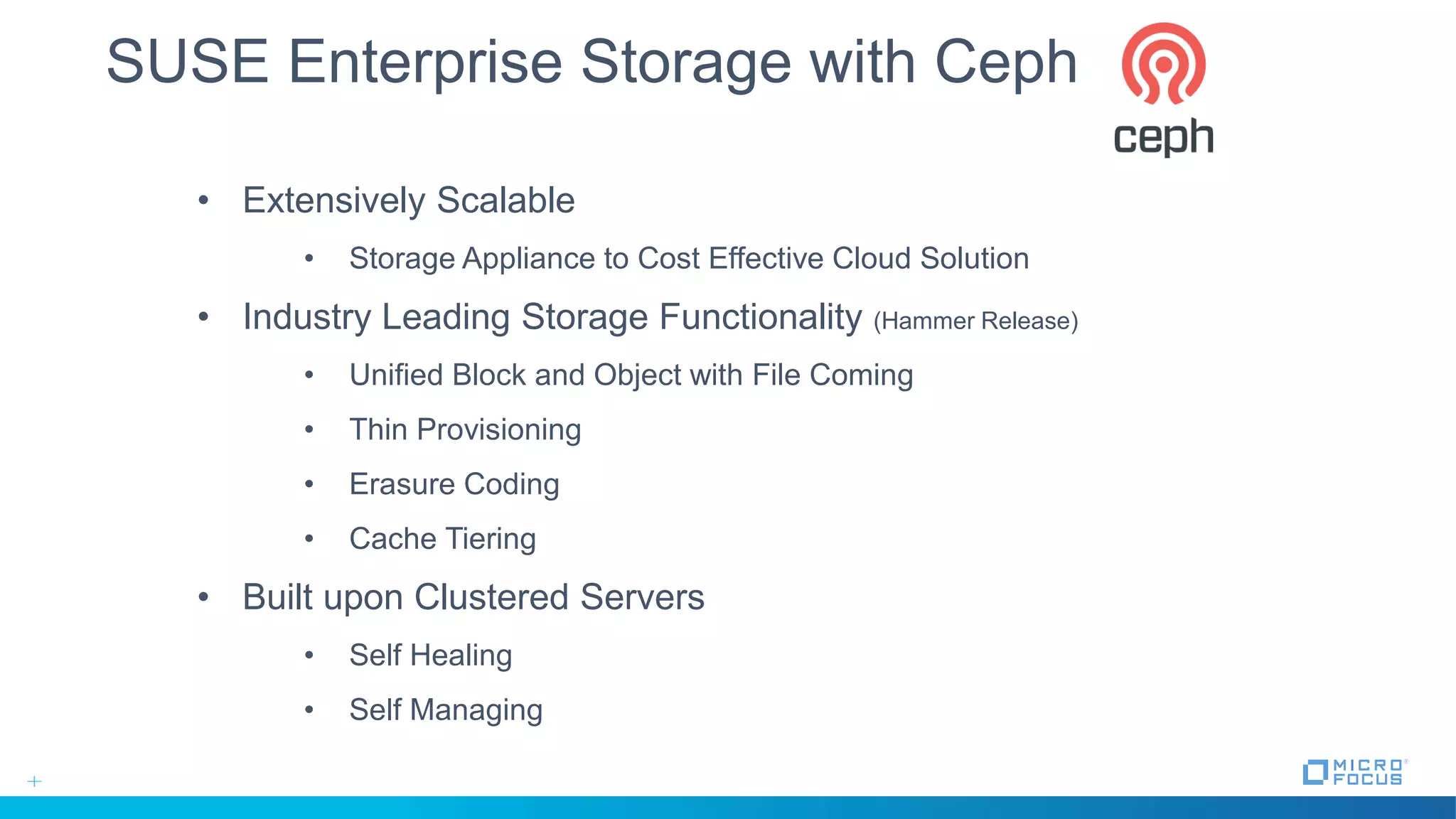

15. • Extensively Scalable
• Storage Appliance to Cost Effective Cloud Solution
• Industry Leading Storage Functionality (Hammer Release)
• Unified Block and Object with File Coming
• Thin Provisioning
• Erasure Coding
• Cache Tiering
• Built upon Clustered Servers
• Self Healing
• Self Managing
SUSE Enterprise Storage with Ceph

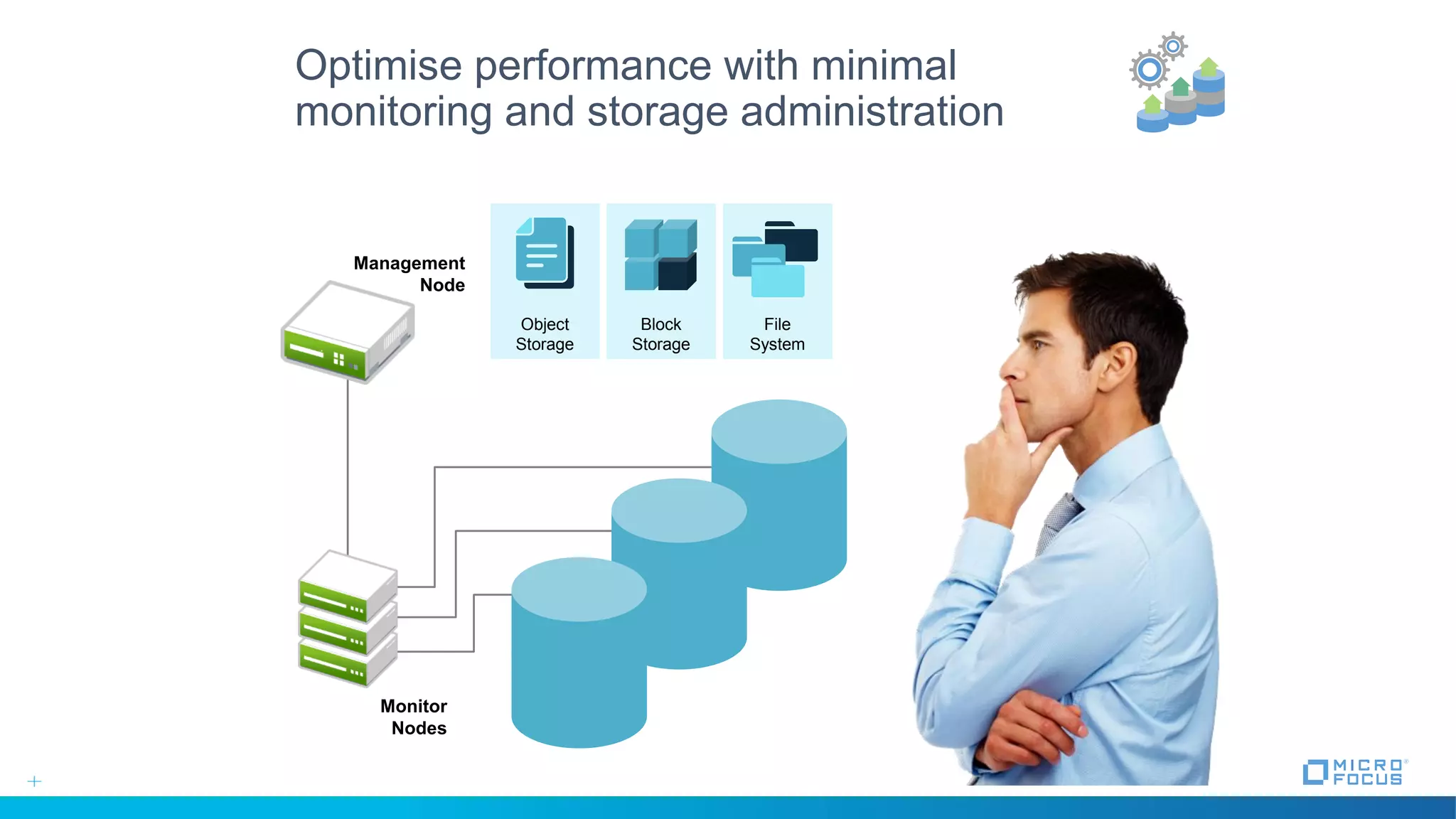

16. Optimise performance with minimal
monitoring and storage administration
Block
Storage
File
System
Object
Storage
Monitor
Nodes
Management
Node

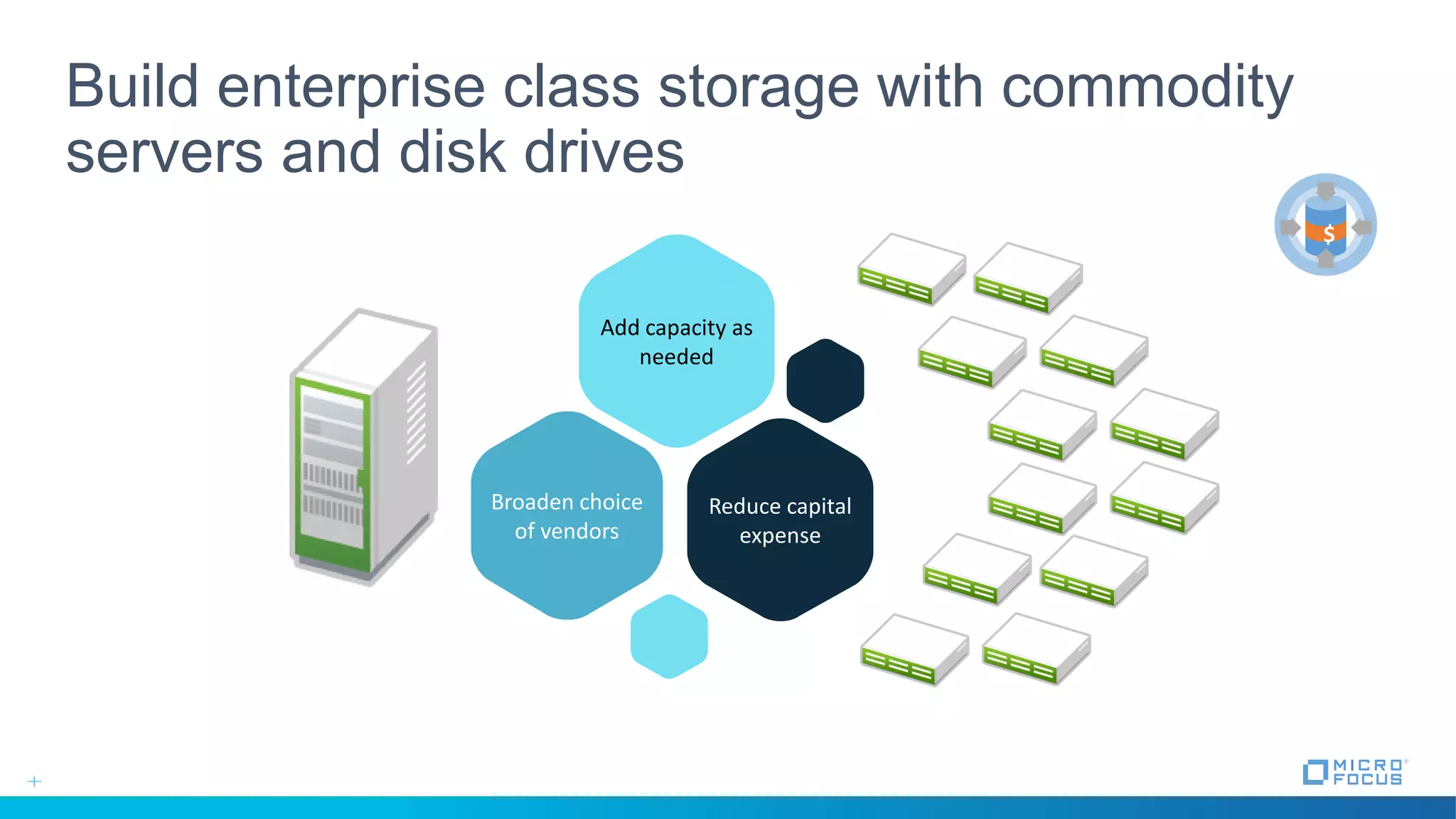

17. Build enterprise class storage with commodity
servers and disk drives
$
Add capacity as
needed
Reduce capital
expense
Broaden choice
of vendors

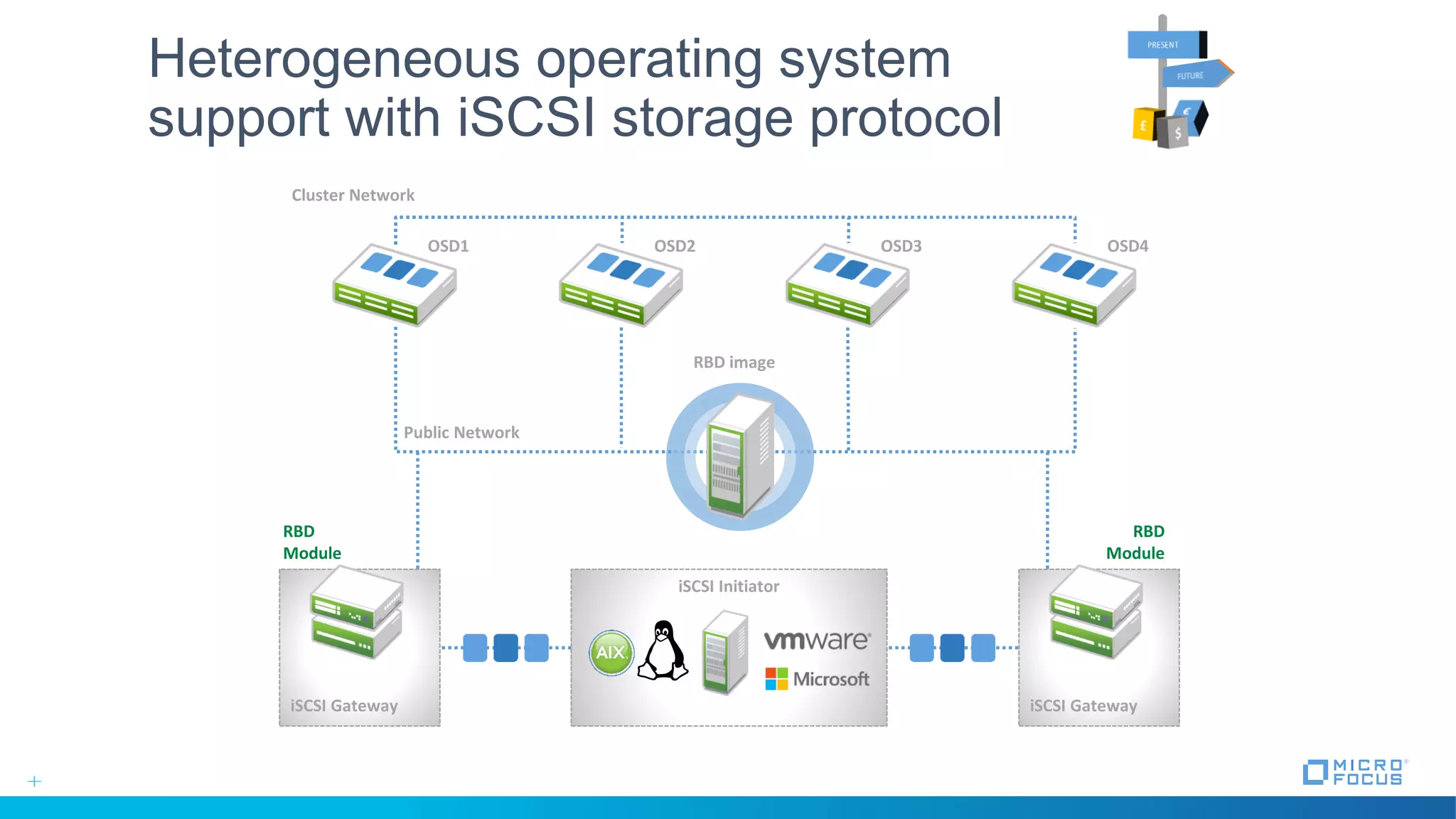

18. Public Network
OSD1 OSD2 OSD3 OSD4
Heterogeneous operating system
support with iSCSI storage protocol
Cluster Network
iSCSI Gateway
RBD
Module
iSCSI Gateway
RBD
Module
iSCSI Initiator
RBD image

19. Provisioning, Presentation
and Consumption

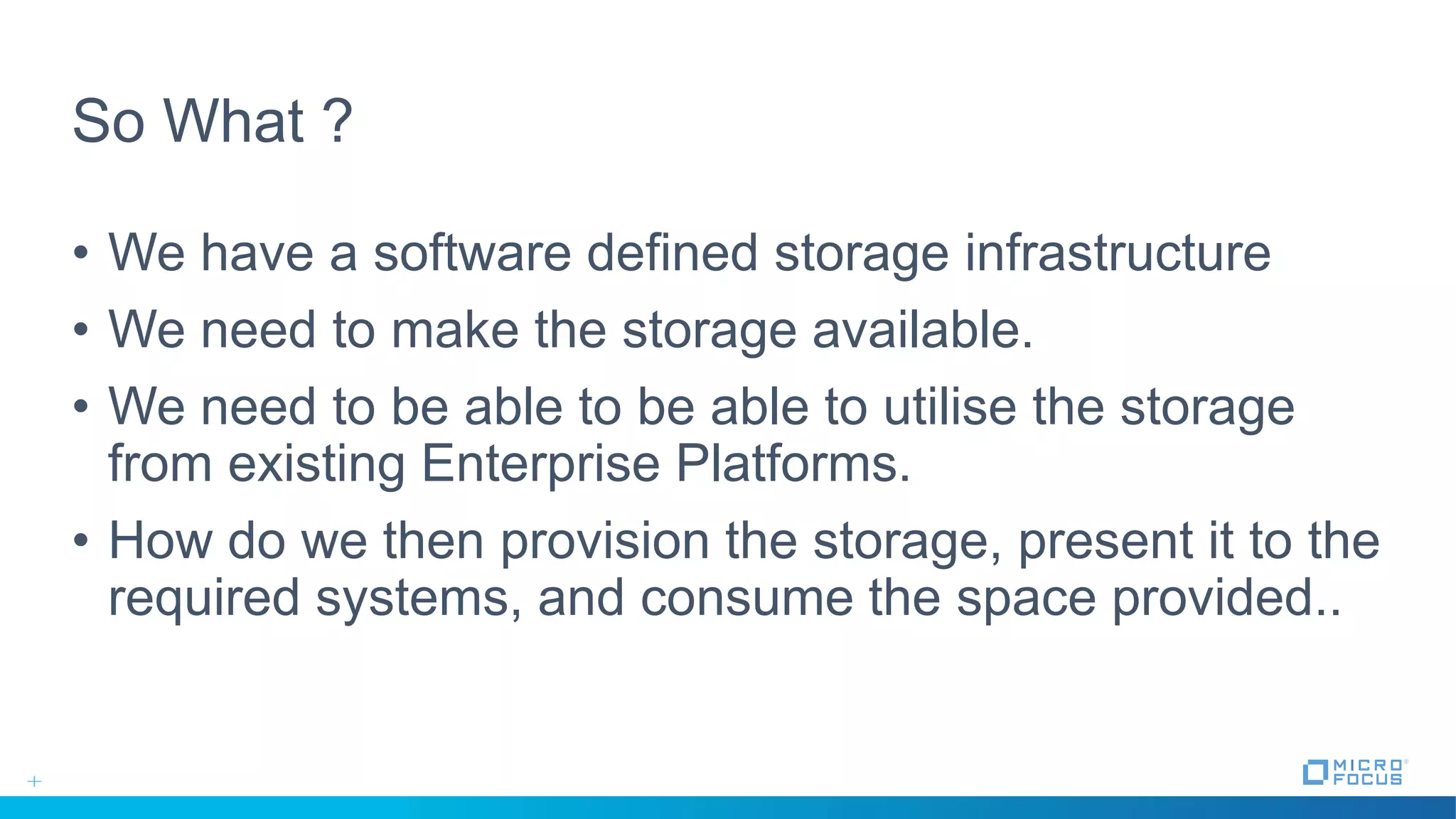

20. So What ?
• We have a software defined storage infrastructure
• We need to make the storage available.
• We need to be able to be able to utilise the storage
from existing Enterprise Platforms.
• How do we then provision the storage, present it to the
required systems, and consume the space provided..

21. The Need for Data Retention

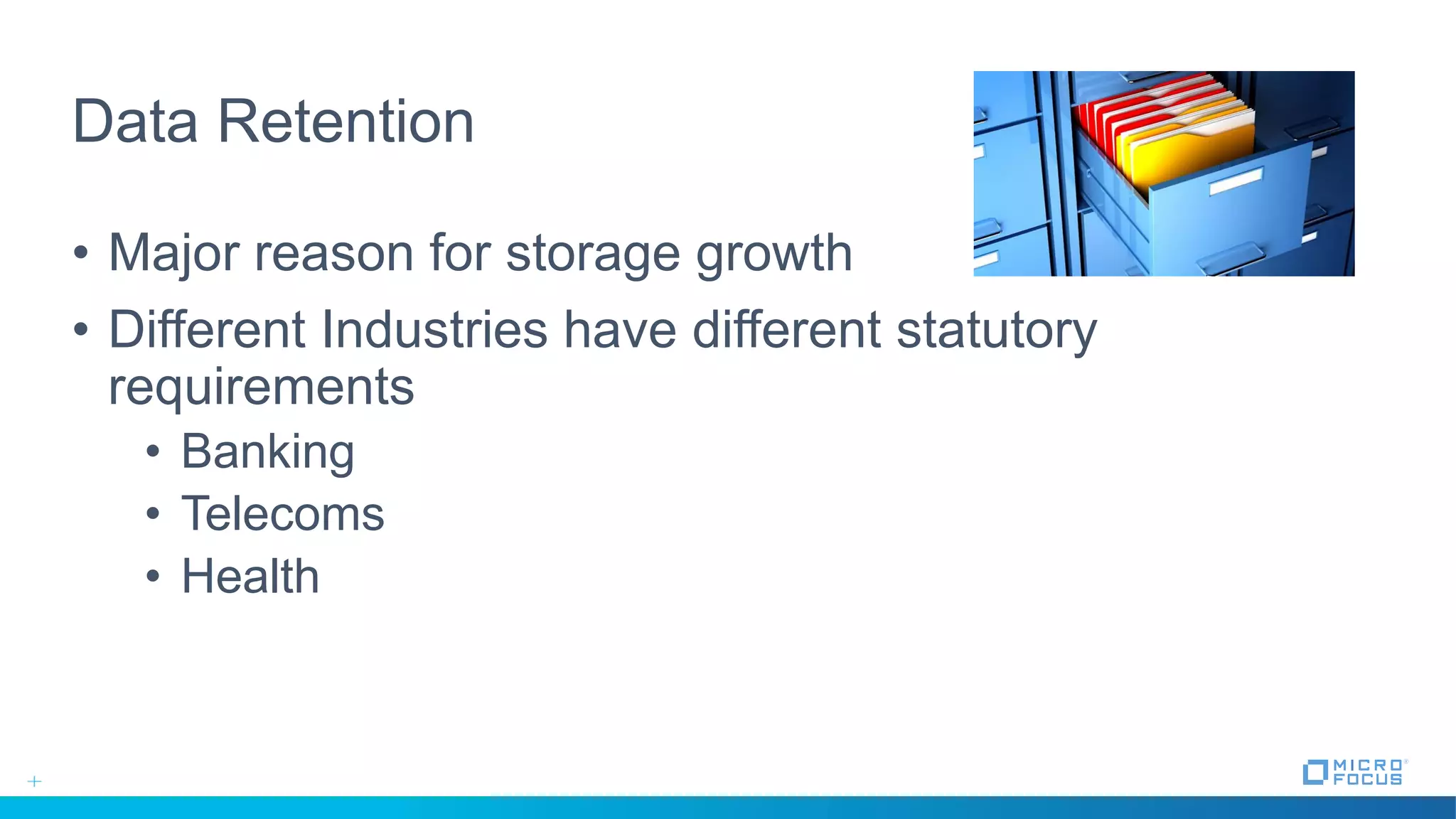

22. Data Retention
• Major reason for storage growth
• Different Industries have different statutory
requirements
• Banking
• Telecoms
• Health

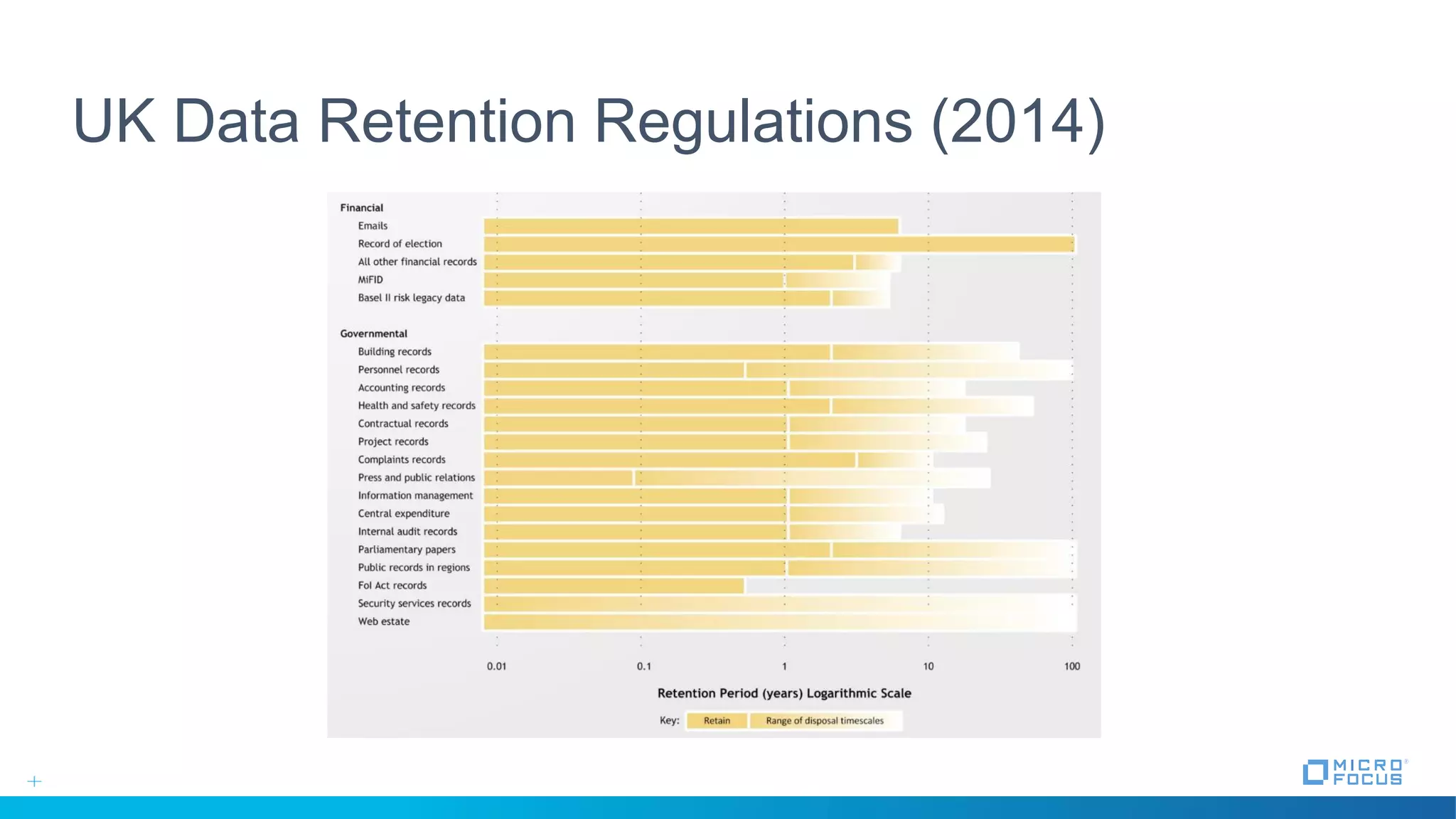

23. UK Data Retention Regulations (2014)

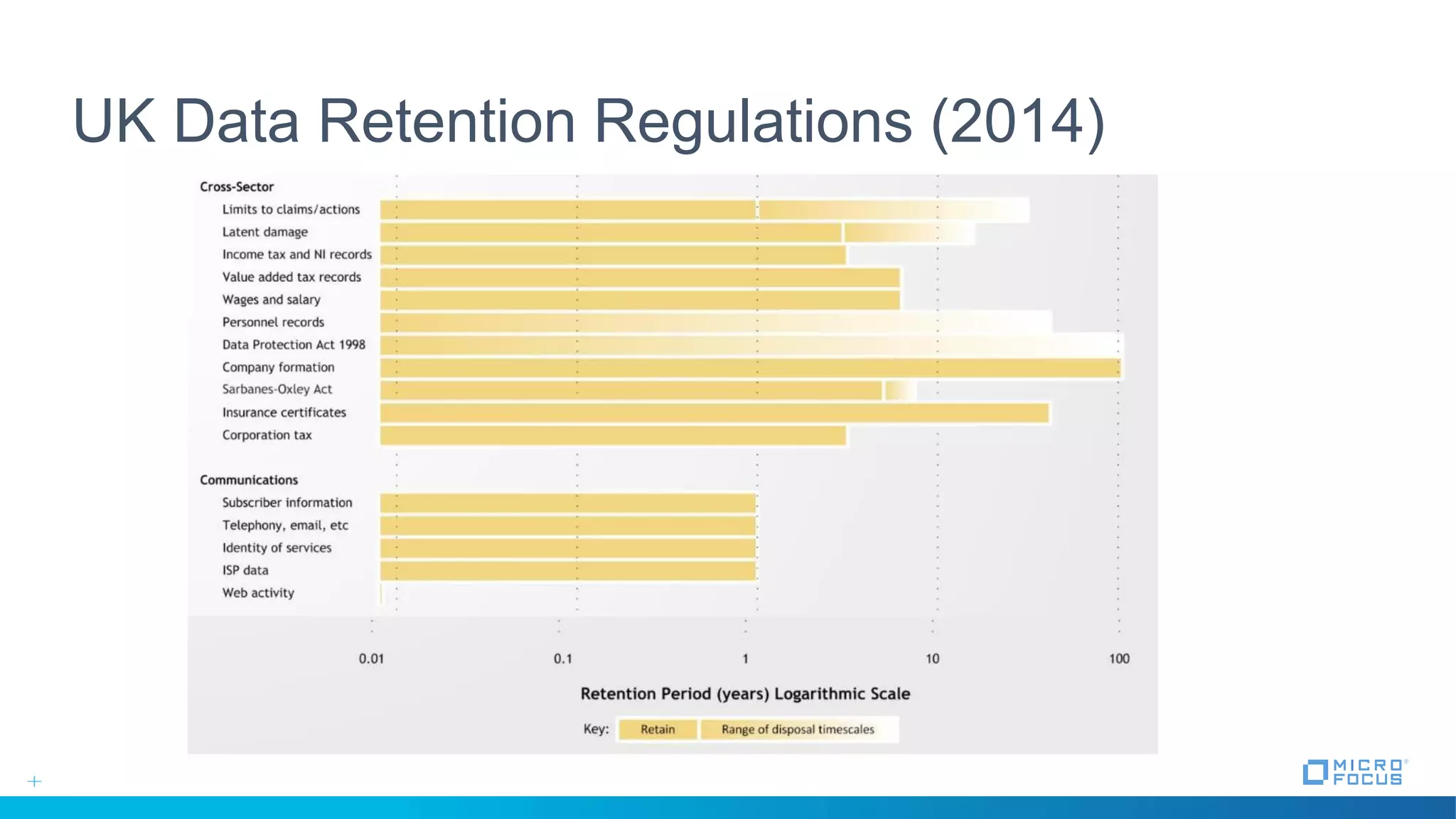

24. UK Data Retention Regulations (2014)

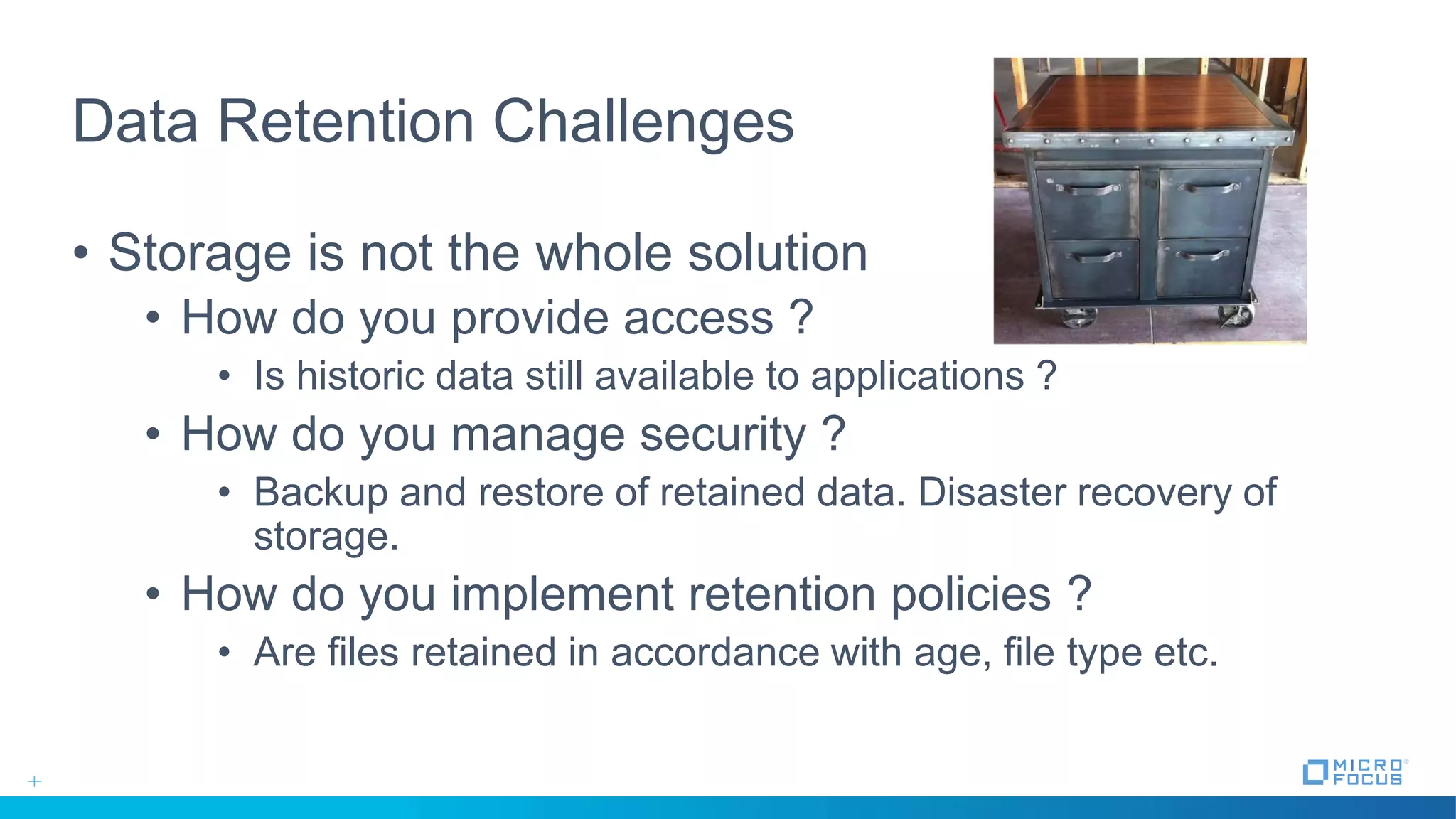

25. Data Retention Challenges
• Storage is not the whole solution
• How do you provide access ?
• Is historic data still available to applications ?
• How do you manage security ?
• Backup and restore of retained data. Disaster recovery of
storage.
• How do you implement retention policies ?
• Are files retained in accordance with age, file type etc.

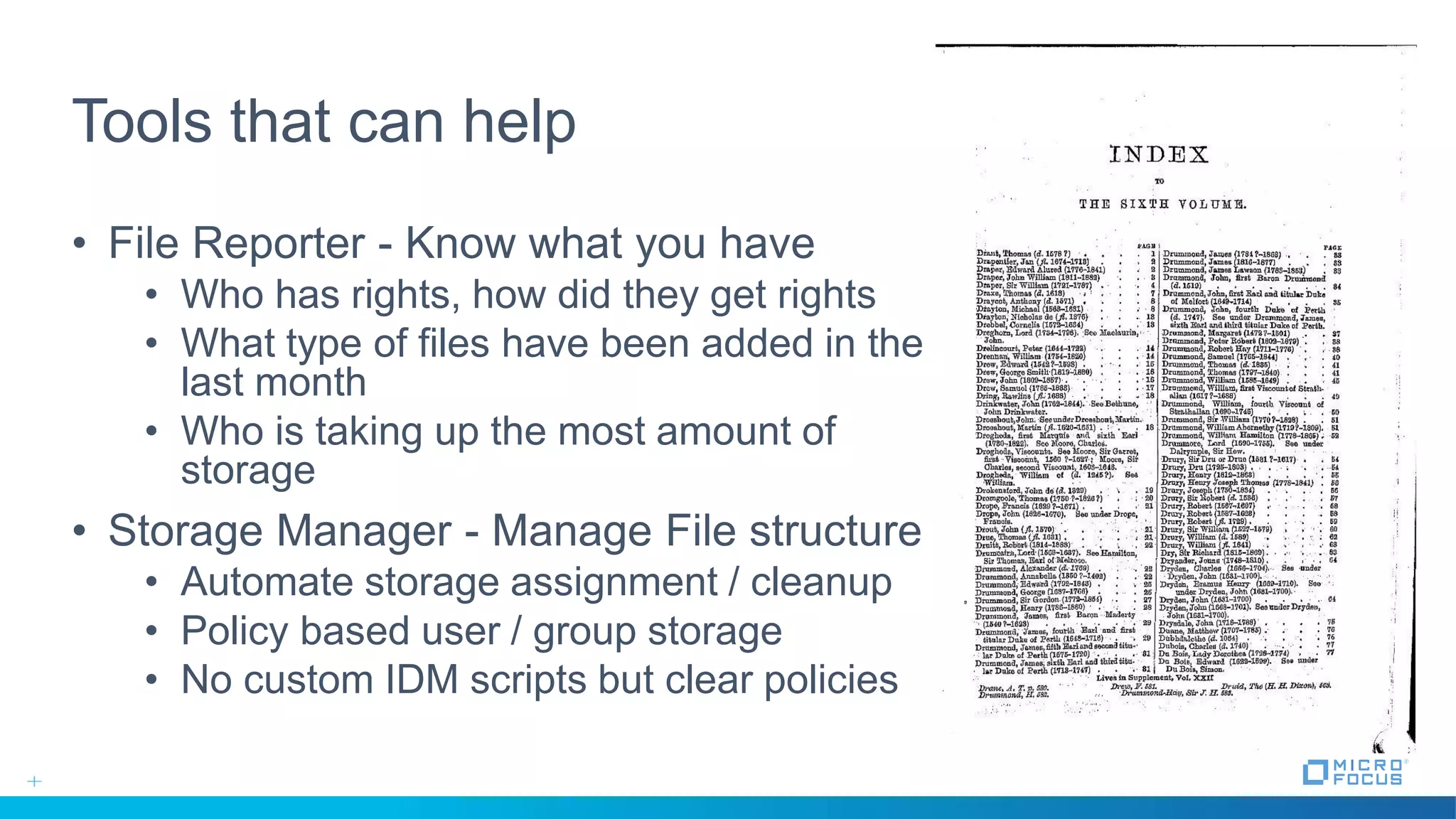

26. Tools that can help
• File Reporter - Know what you have
• Who has rights, how did they get rights
• What type of files have been added in the
last month
• Who is taking up the most amount of
storage
• Storage Manager - Manage File structure
• Automate storage assignment / cleanup
• Policy based user / group storage
• No custom IDM scripts but clear policies

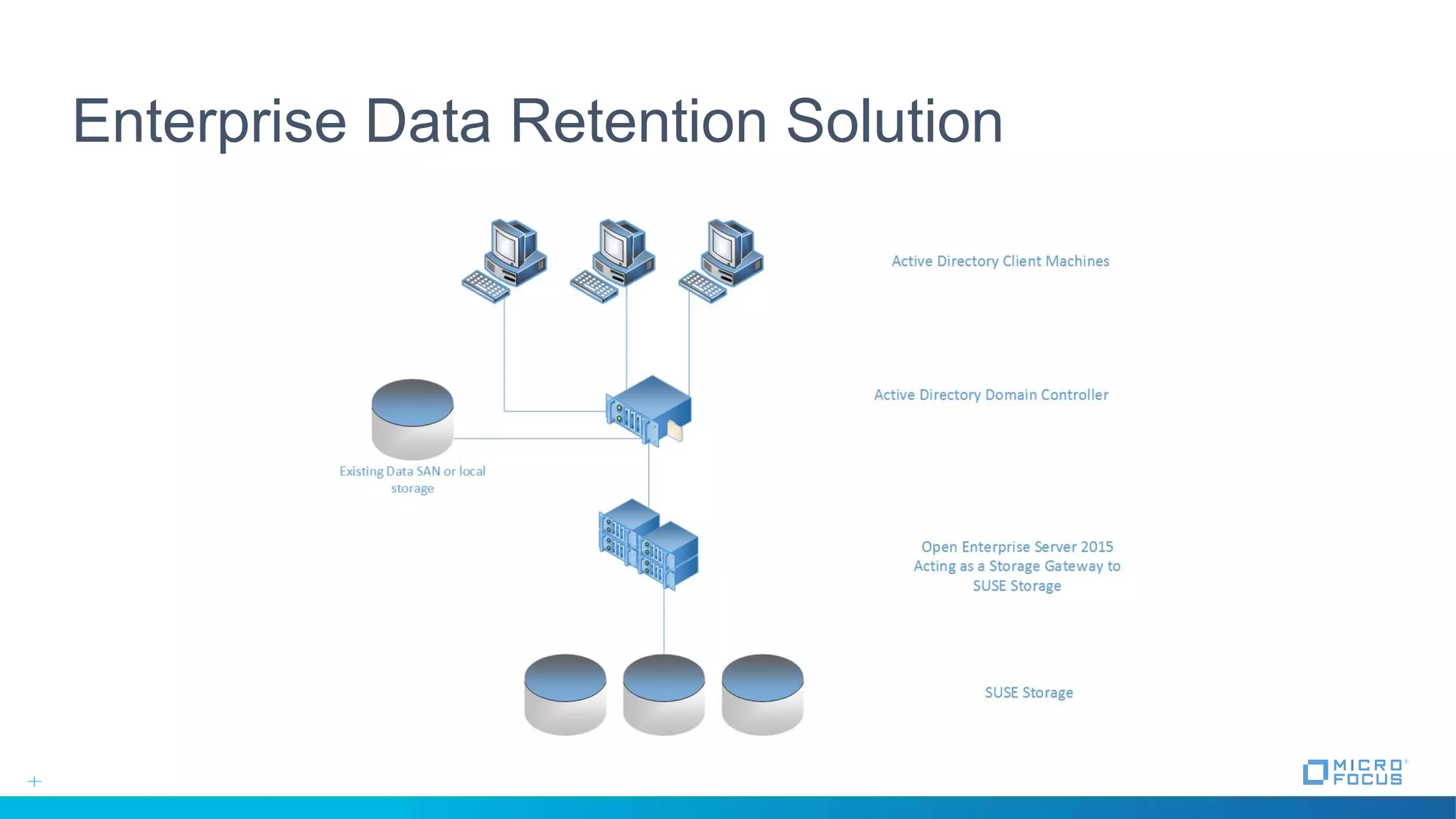

27. Enterprise Data Retention Solution

28. OES2015 as a Storage
Gateway
Leveraging the use of SUSE
Storage to multiple client types

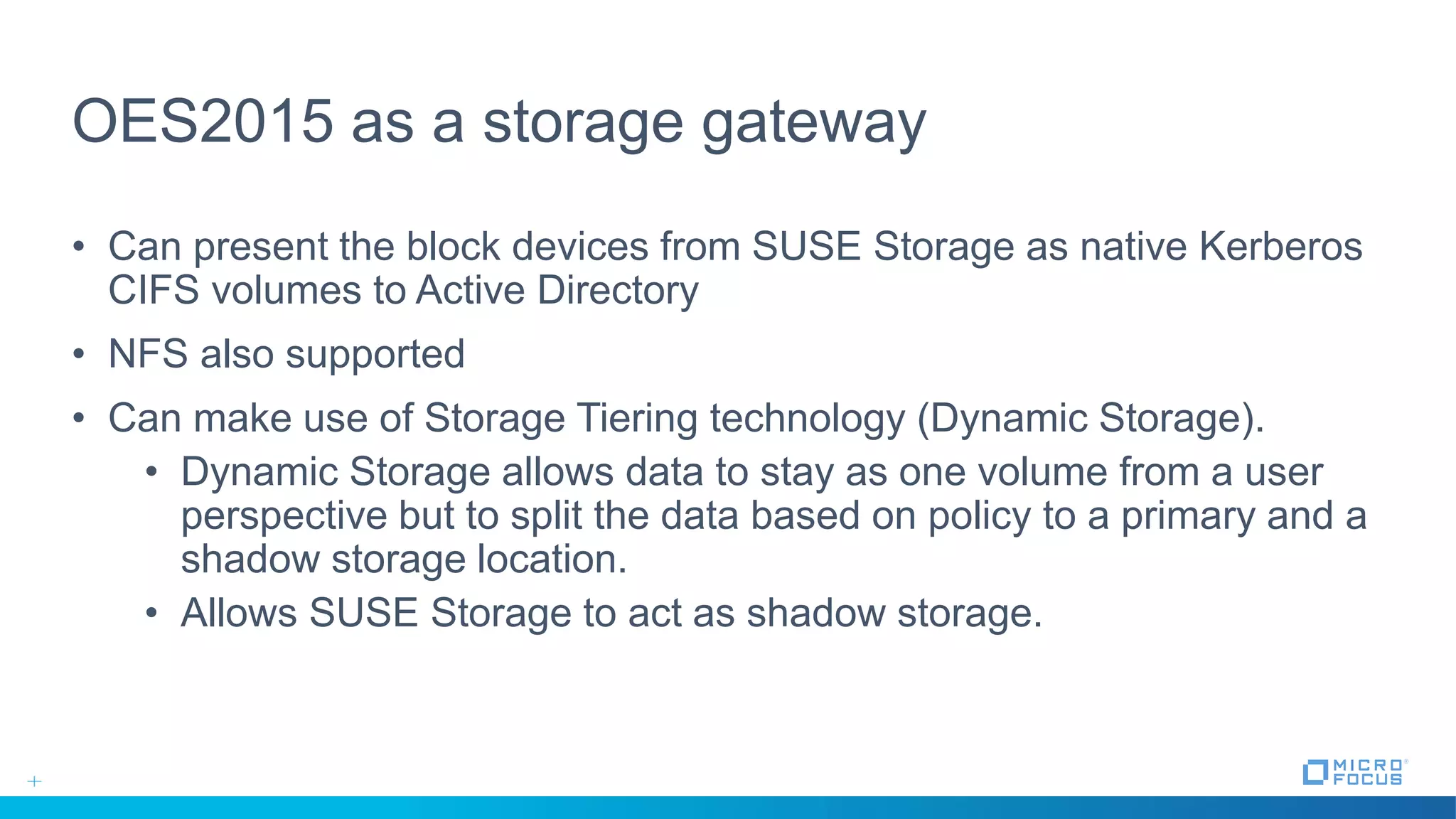

29. OES2015 as a storage gateway
• Can present the block devices from SUSE Storage as native Kerberos
CIFS volumes to Active Directory
• NFS also supported
• Can make use of Storage Tiering technology (Dynamic Storage).
• Dynamic Storage allows data to stay as one volume from a user
perspective but to split the data based on policy to a primary and a
shadow storage location.
• Allows SUSE Storage to act as shadow storage.

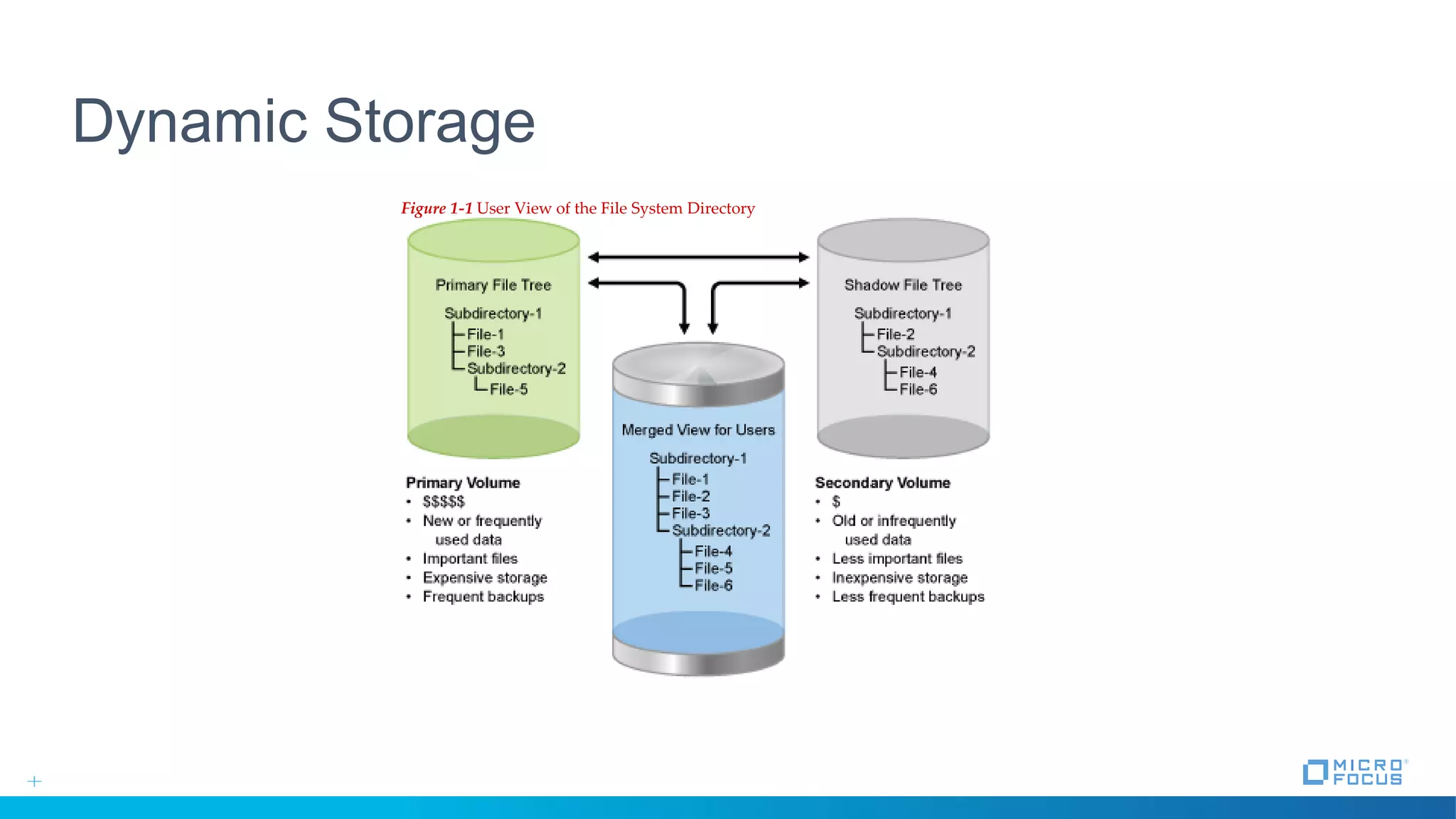

30. Dynamic Storage
Figure 1-1 User View of the File System Directory

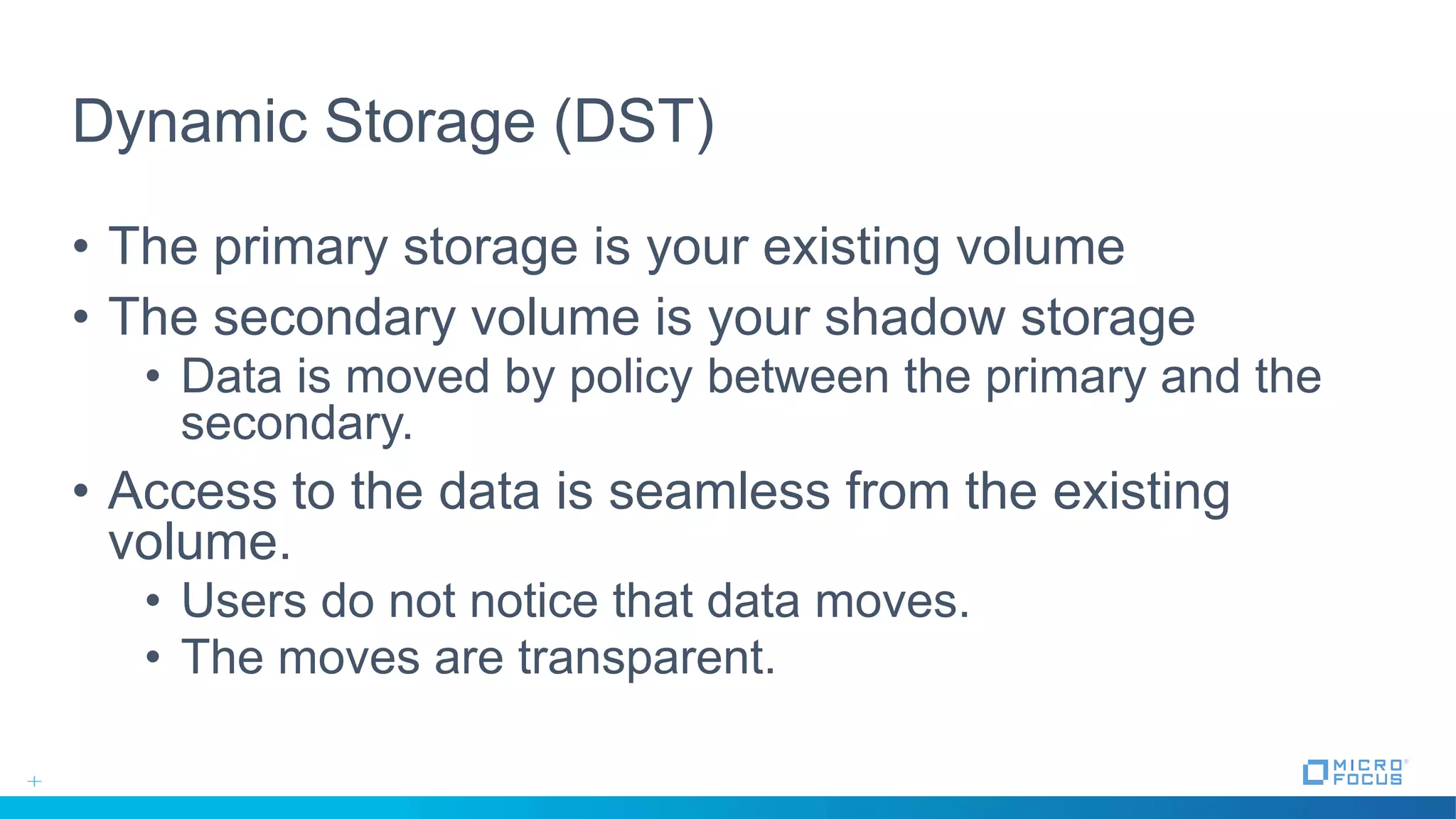

31. Dynamic Storage (DST)
• The primary storage is your existing volume
• The secondary volume is your shadow storage
• Data is moved by policy between the primary and the
secondary.
• Access to the data is seamless from the existing
volume.
• Users do not notice that data moves.
• The moves are transparent.

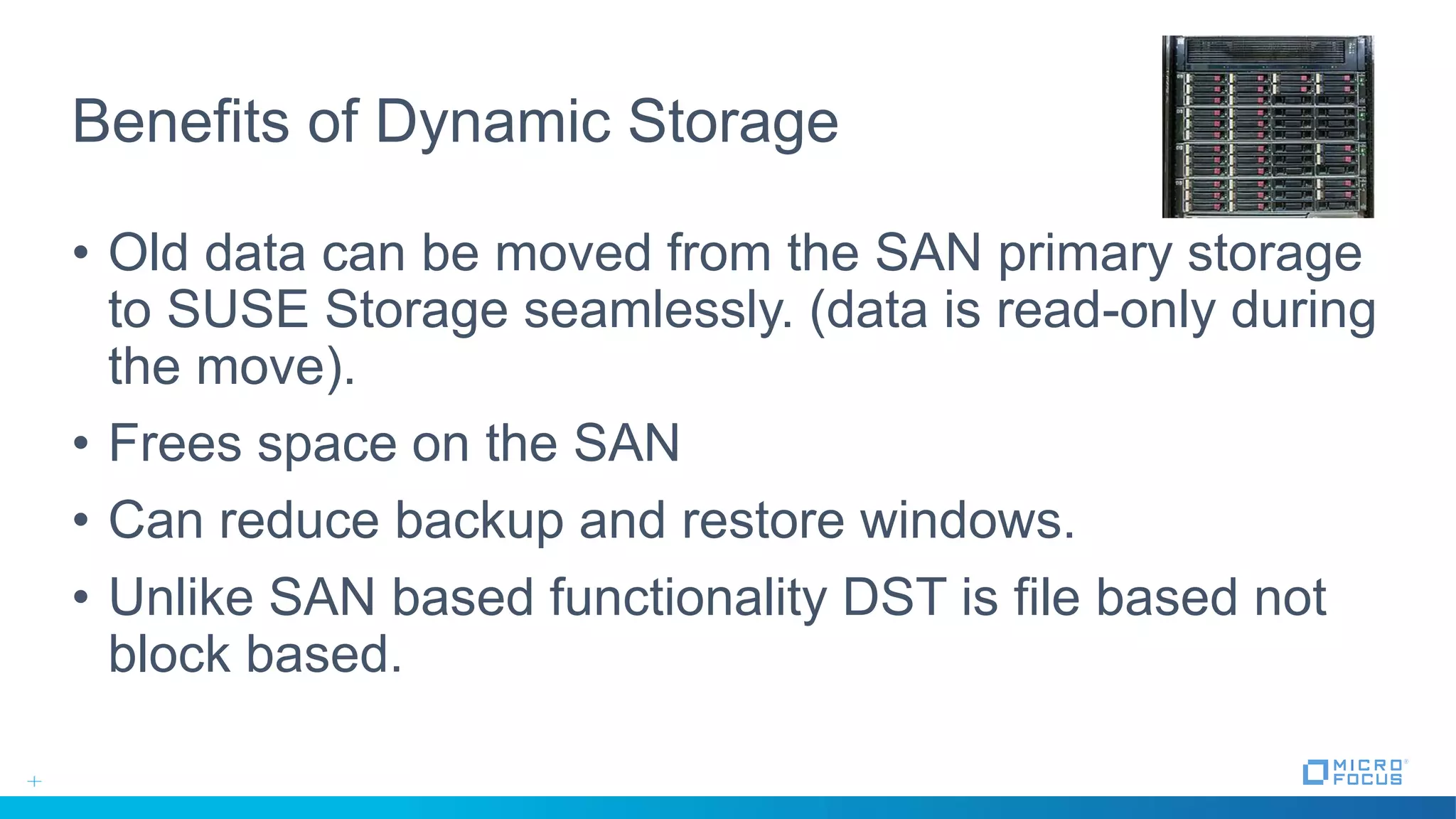

32. Benefits of Dynamic Storage
• Old data can be moved from the SAN primary storage
to SUSE Storage seamlessly. (data is read-only during
the move).
• Frees space on the SAN
• Can reduce backup and restore windows.
• Unlike SAN based functionality DST is file based not
block based.

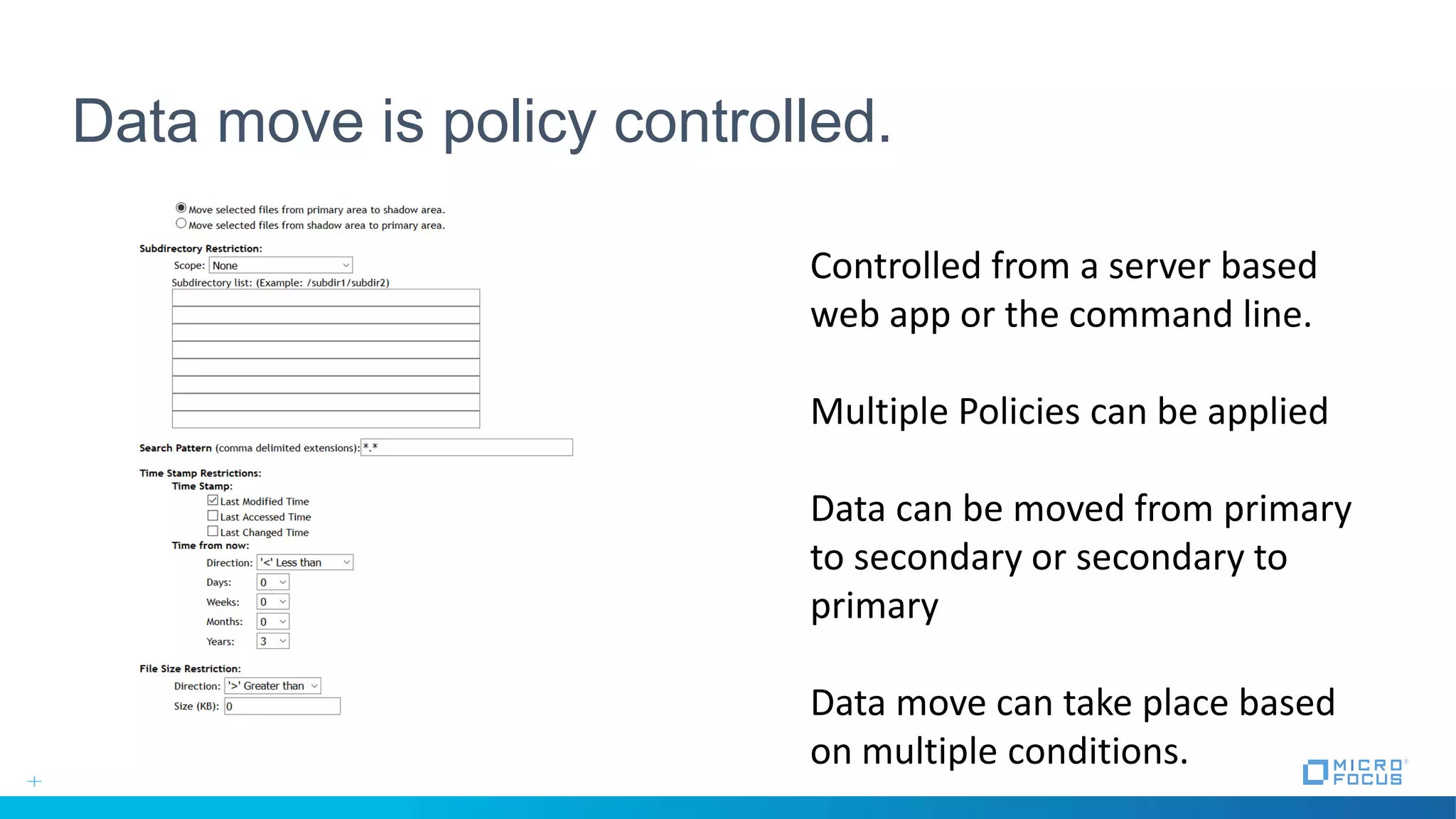

33. Data move is policy controlled.
Controlled from a server based
web app or the command line.
Multiple Policies can be applied
Data can be moved from primary
to secondary or secondary to
primary
Data move can take place based
on multiple conditions.

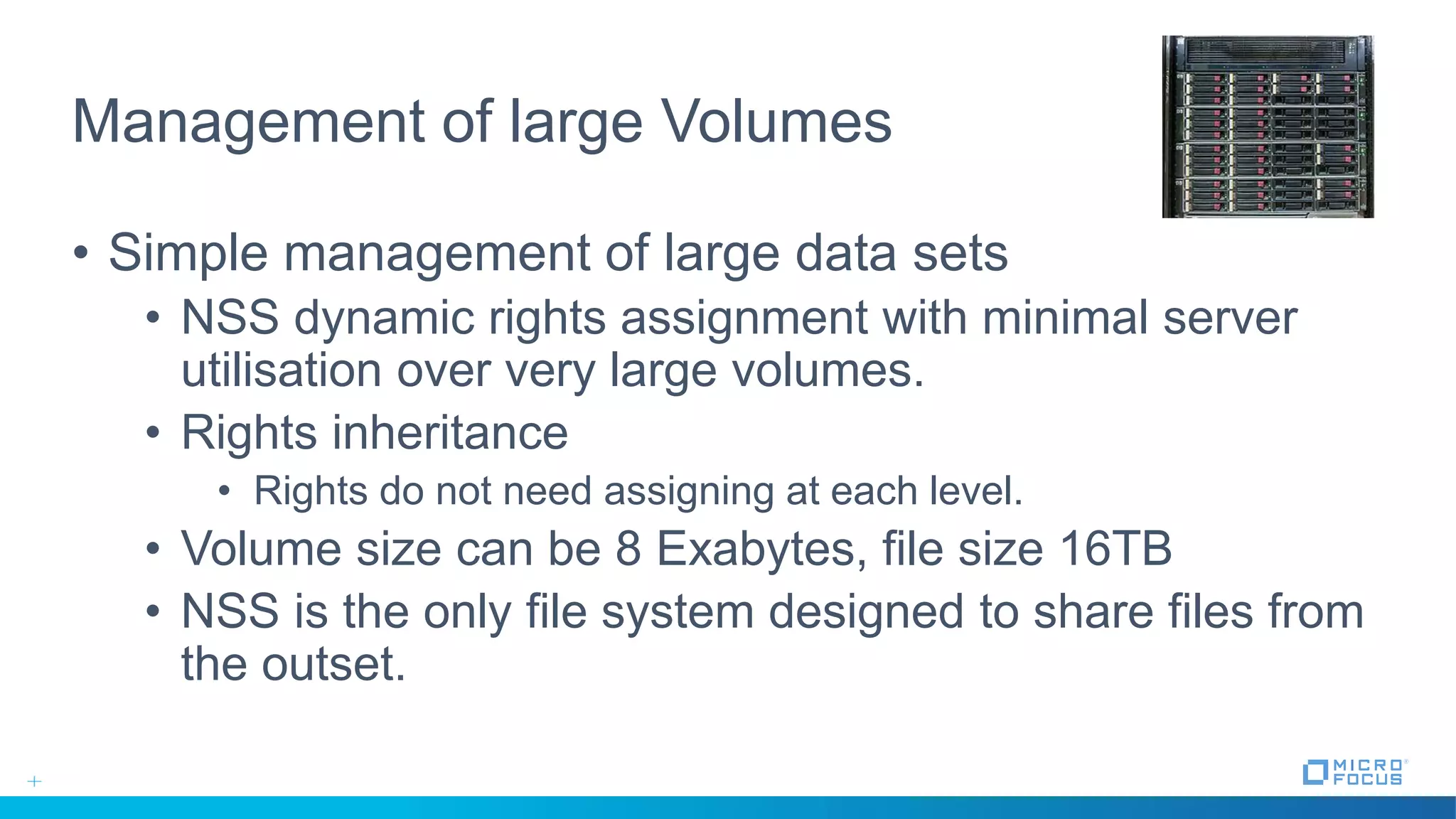

34. Management of large Volumes
• Simple management of large data sets
• NSS dynamic rights assignment with minimal server
utilisation over very large volumes.
• Rights inheritance
• Rights do not need assigning at each level.
• Volume size can be 8 Exabytes, file size 16TB
• NSS is the only file system designed to share files from
the outset.

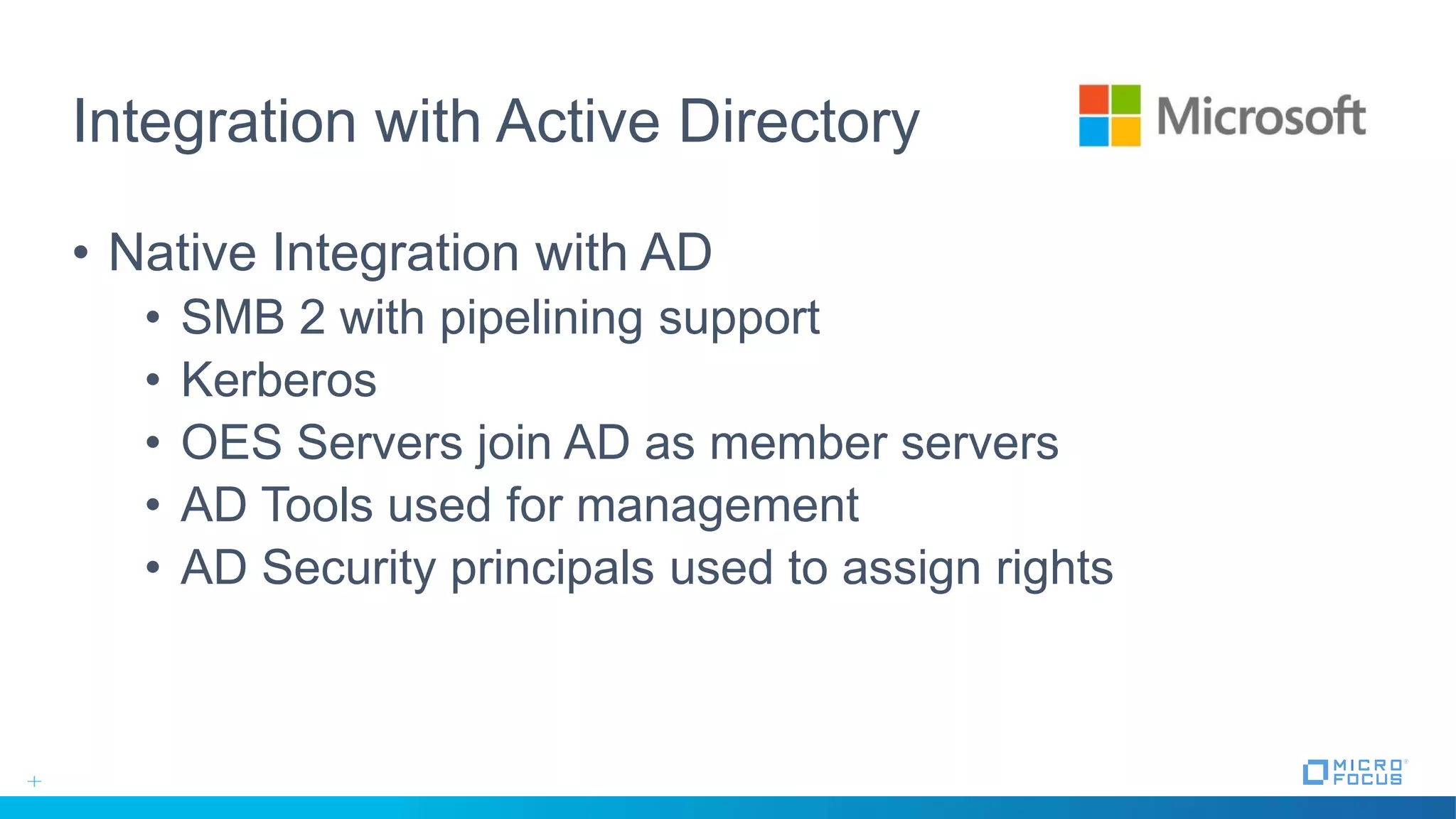

35. Integration with Active Directory
• Native Integration with AD
• SMB 2 with pipelining support
• Kerberos
• OES Servers join AD as member servers
• AD Tools used for management
• AD Security principals used to assign rights

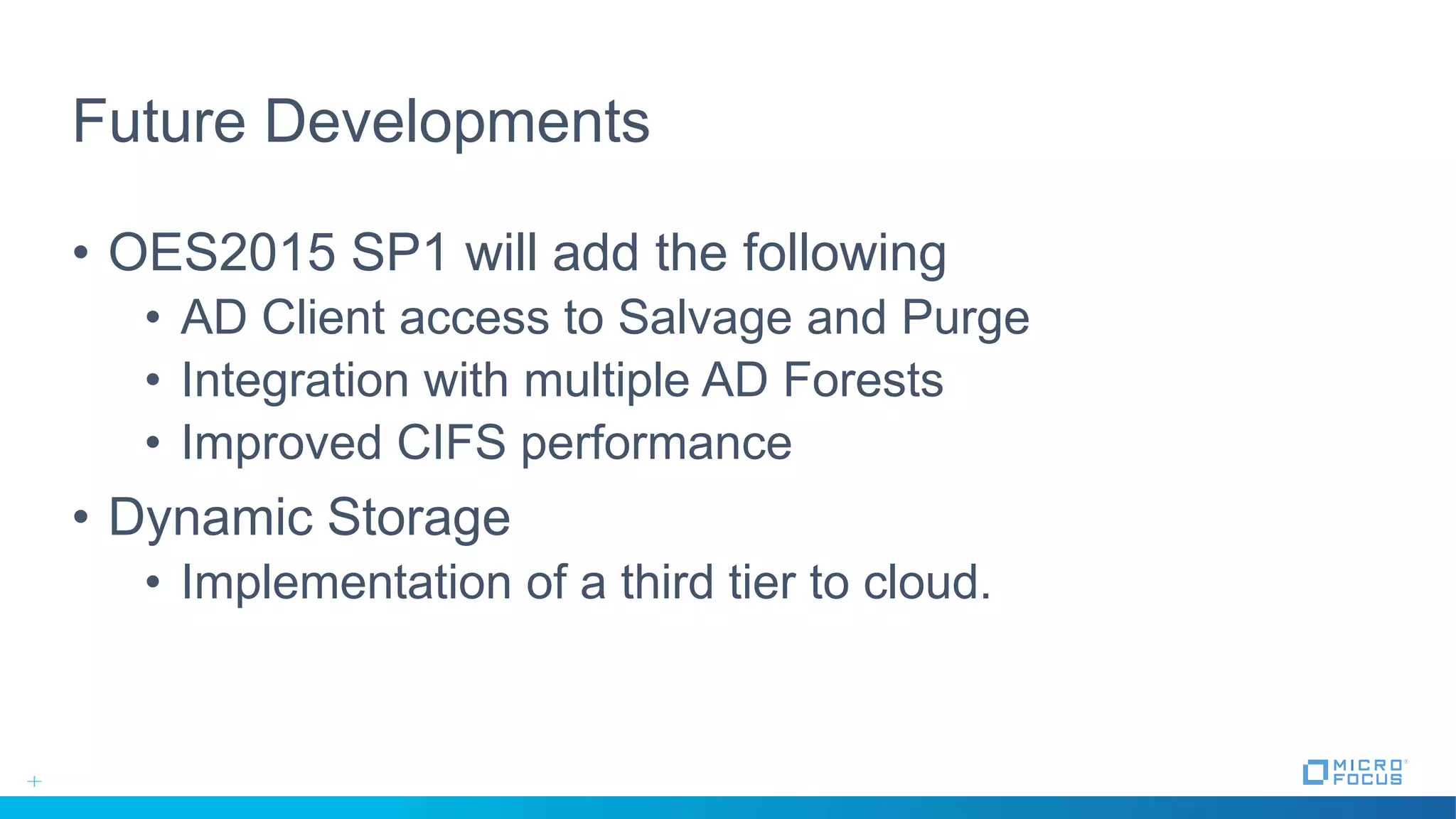

36. Future Developments
• OES2015 SP1 will add the following
• AD Client access to Salvage and Purge
• Integration with multiple AD Forests
• Improved CIFS performance
• Dynamic Storage
• Implementation of a third tier to cloud.

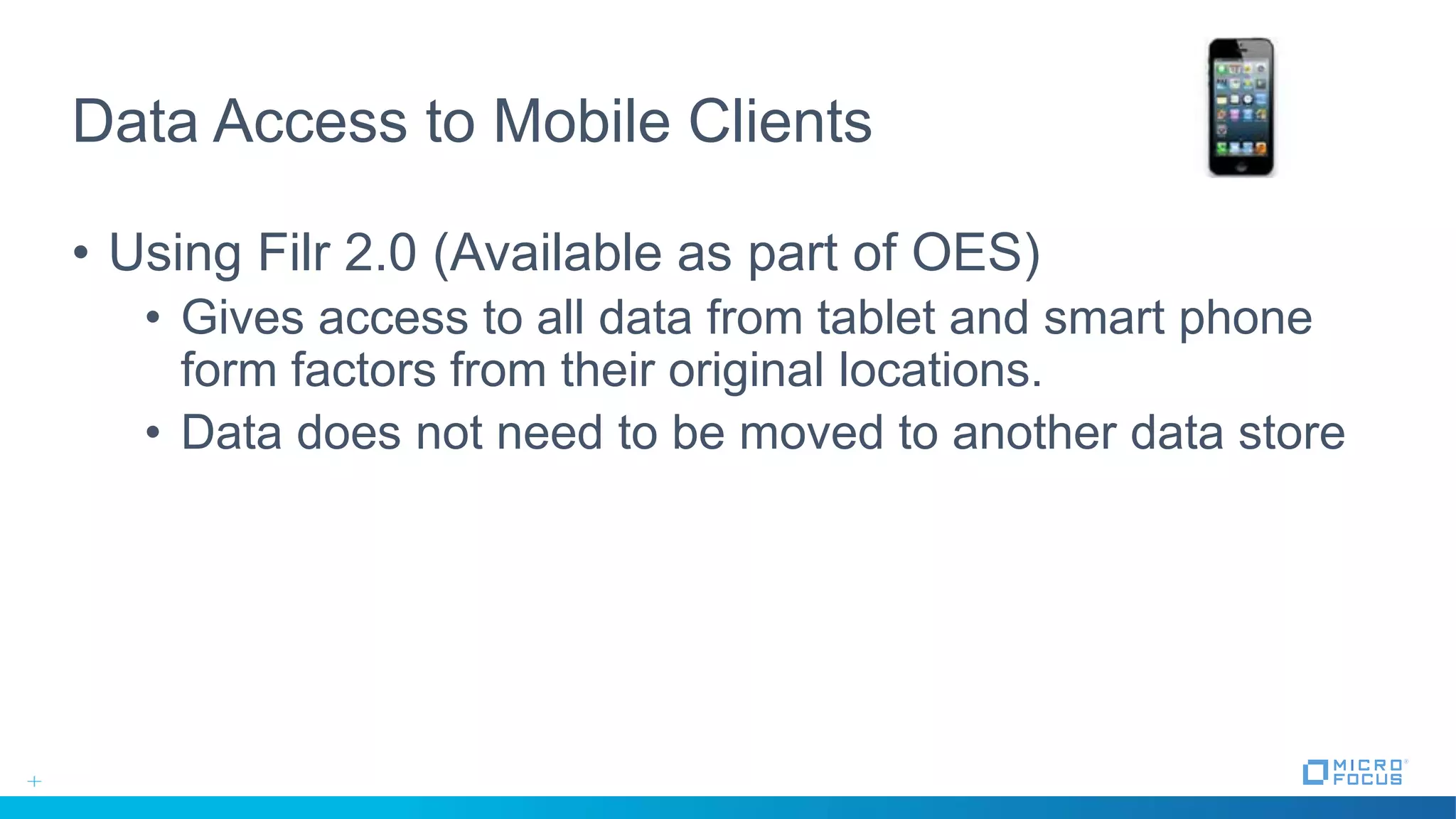

37. Data Access to Mobile Clients
• Using Filr 2.0 (Available as part of OES)
• Gives access to all data from tablet and smart phone
form factors from their original locations.
• Data does not need to be moved to another data store

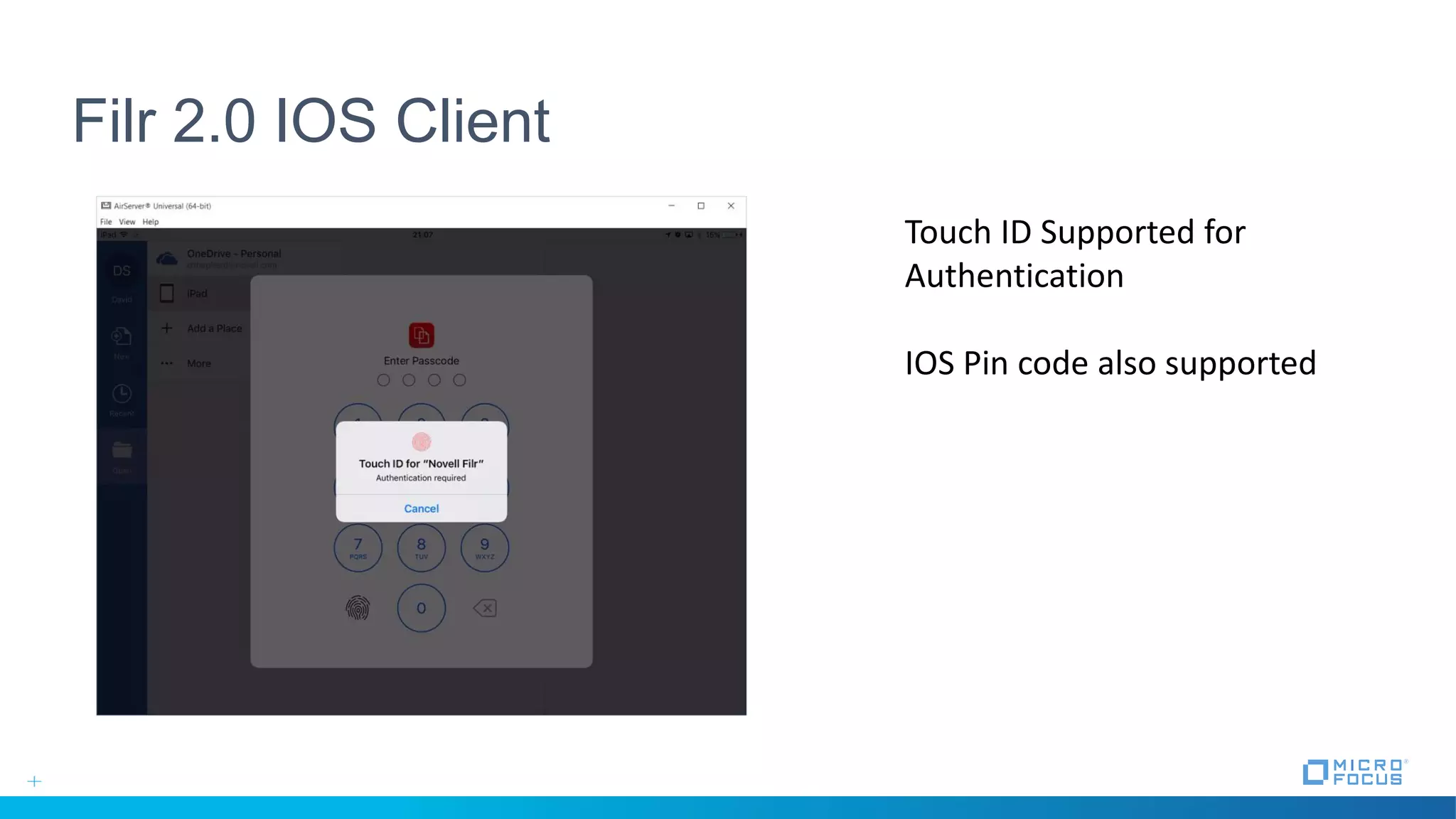

38. Filr 2.0 IOS Client
Touch ID Supported for
Authentication
IOS Pin code also supported

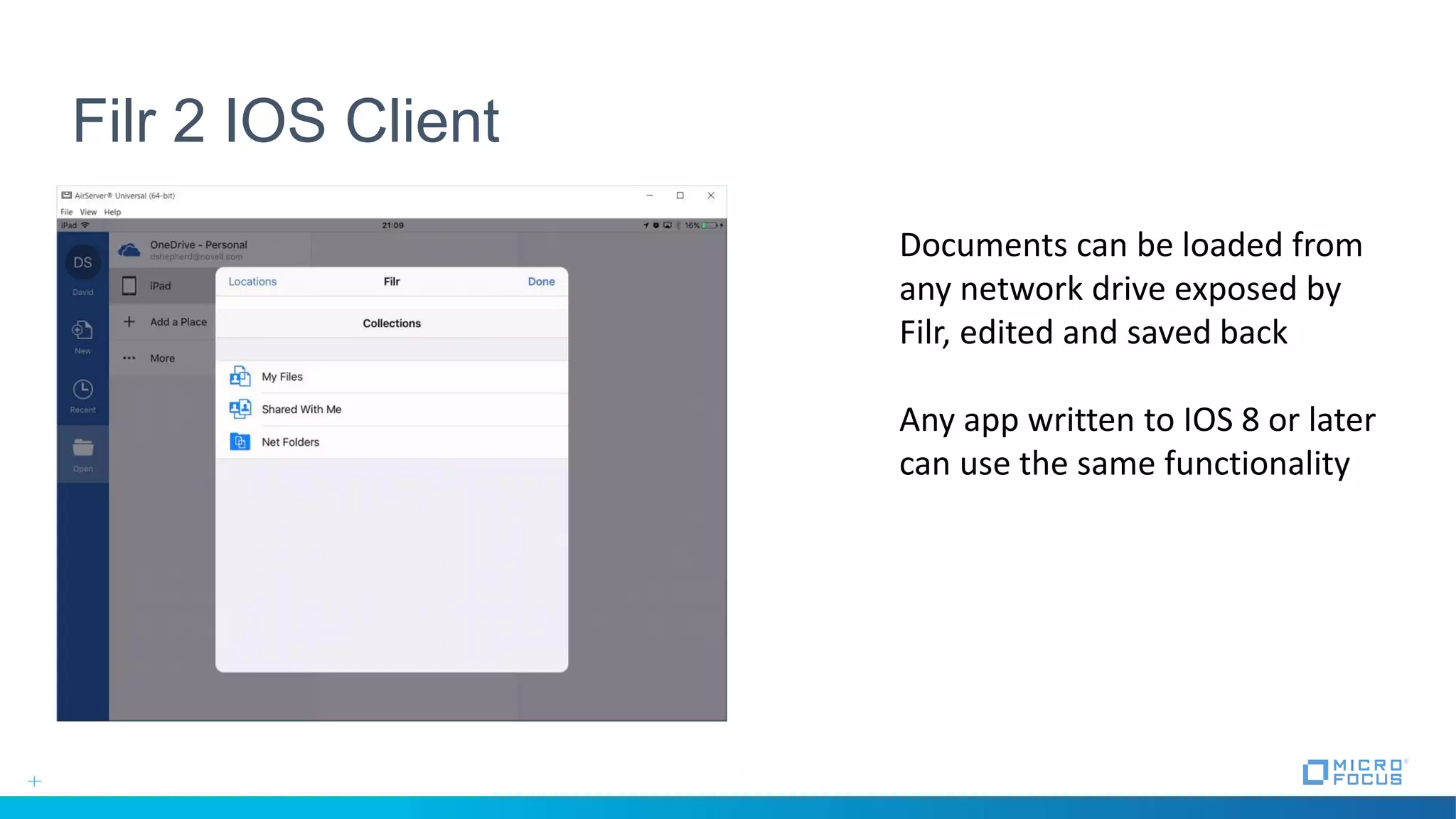

39. Filr 2 IOS Client
Documents can be loaded from
any network drive exposed by
Filr, edited and saved back
Any app written to IOS 8 or later
can use the same functionality

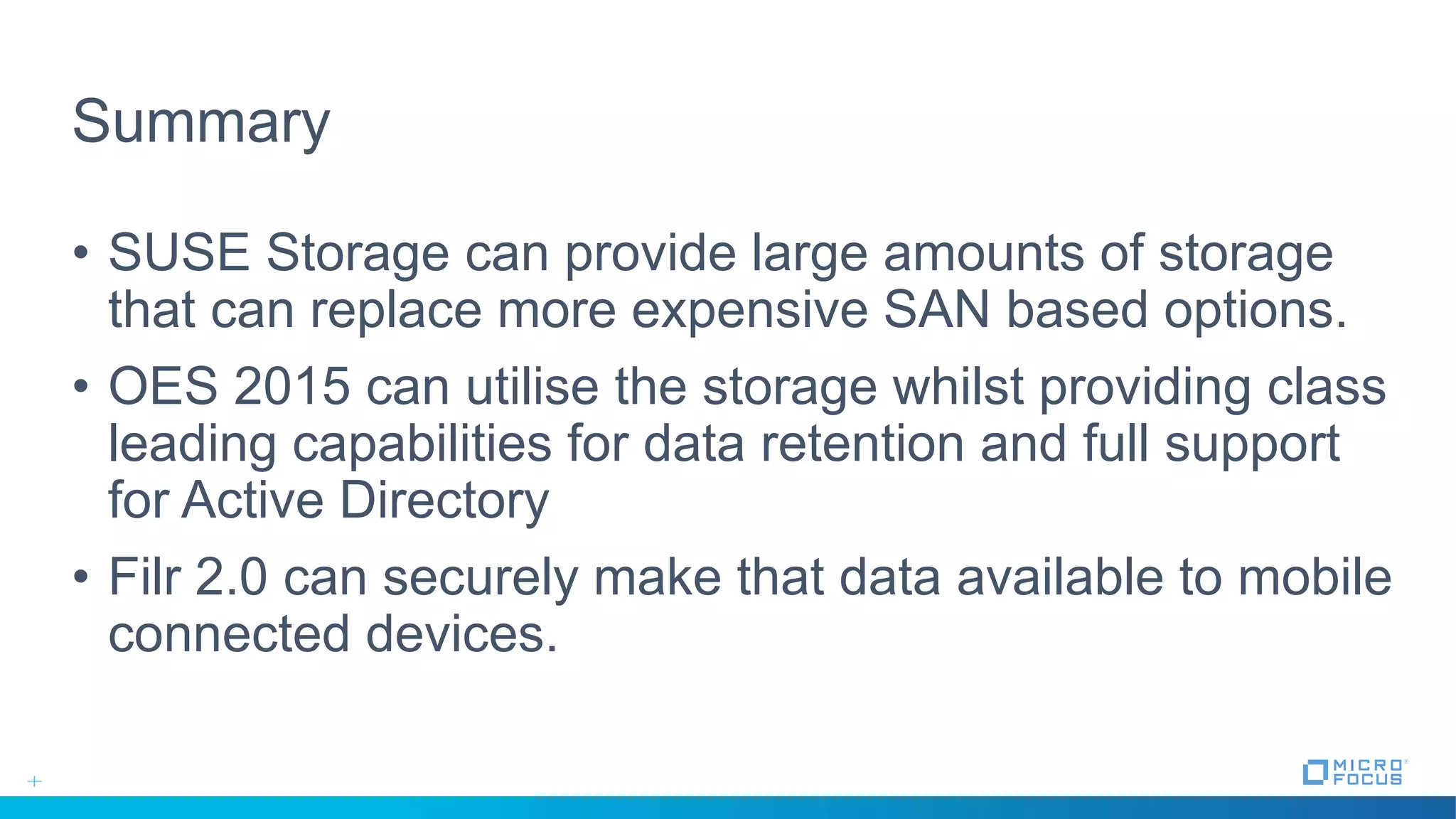

40. Summary
• SUSE Storage can provide large amounts of storage
that can replace more expensive SAN based options.
• OES 2015 can utilise the storage whilst providing class
leading capabilities for data retention and full support
for Active Directory
• Filr 2.0 can securely make that data available to mobile
connected devices.

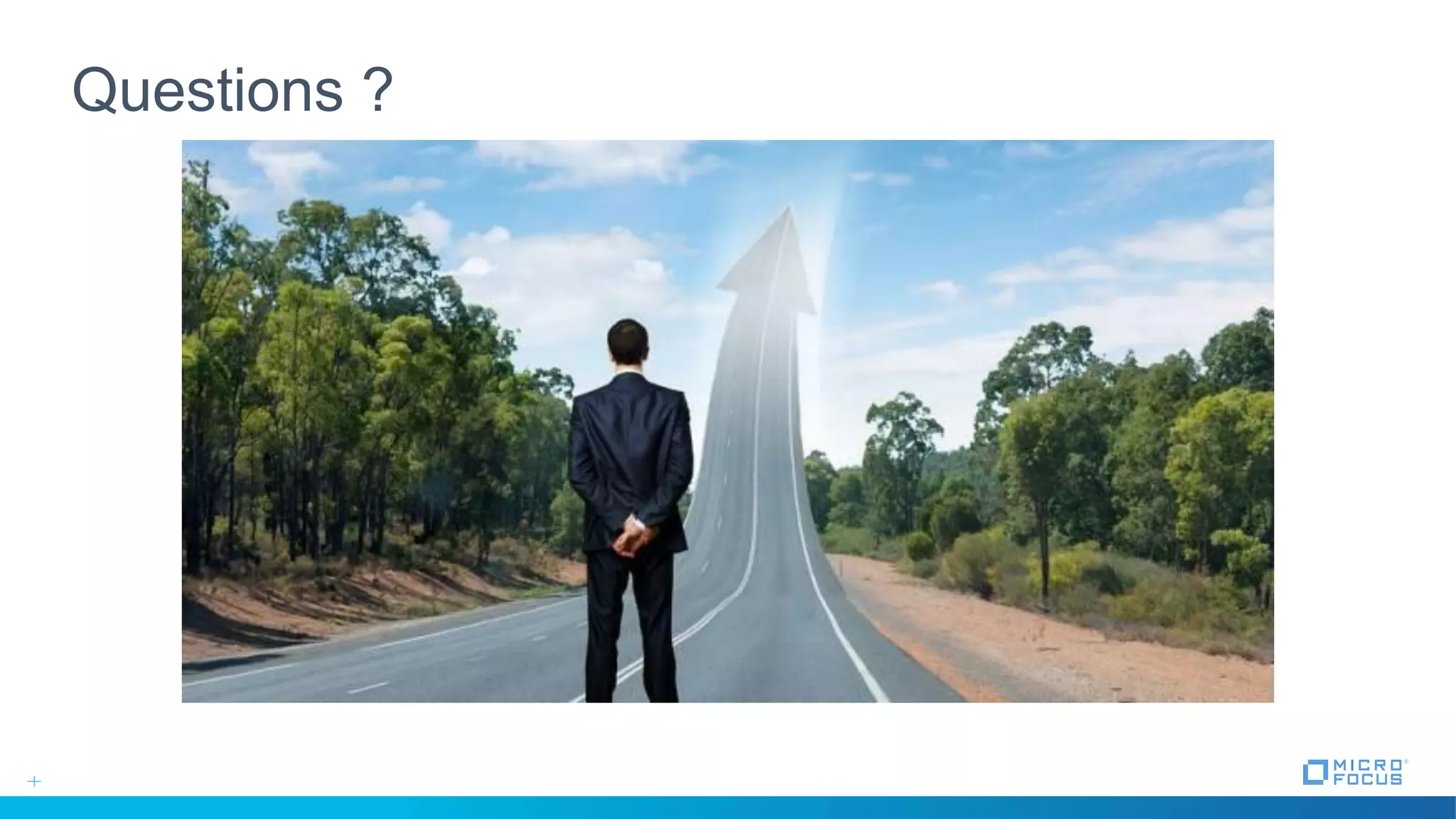

41. Questions ?
