This document discusses ControlCircle's design of a segmented network for CloudStack management domains. Key points: - ControlCircle designed separate networks for DMZ, control, management, guest, public and database traffic to improve security and scale. - Troubleshooting use cases like ISO uploads was challenging due to limited documentation on segmented designs. - Lessons learned include relying on logs, considering network agility, understanding use cases in advance, and documenting designs and rules. The CloudStack community provides valuable troubleshooting support.

1. © Copyright ControlCircle 2013. All rights reserved. ControlCircle products and services mentioned herein as well as their respective logos are trademarks or registered trademarks of ControlCircle in the UK
and other countries. ControlCircle products and services mentioned herein as well as their respective logos are trademarks or registered trademarks of ControlCircle in the United States and in other countries.
Confidential
Len Bellemore – Cloud Product Development
4th July 2013
Securing the CloudStack
Management Domain

2. © Copyright ControlCircle 2013. All rights reserved. ControlCircle products and services mentioned herein as well as their respective logos are trademarks or registered trademarks of ControlCircle in the UK
and other countries. ControlCircle products and services mentioned herein as well as their respective logos are trademarks or registered trademarks of ControlCircle in the United States and in other countries.
Confidential

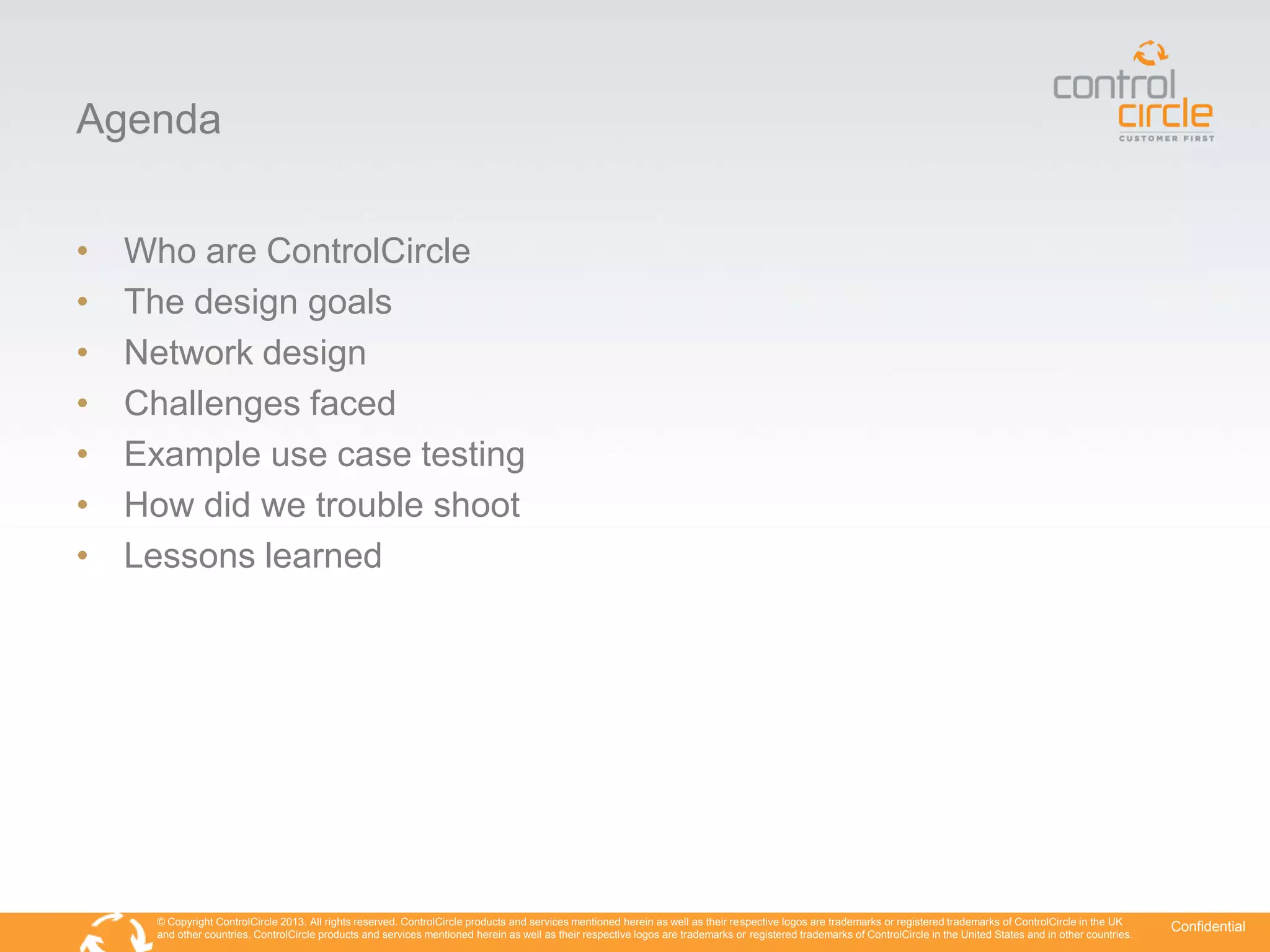

Agenda
