1. Best Practices for Building
an Enterprise SOA
Infrastructure
Antony Reynolds
Craig Barr
Matt Wright
Ramkumar Menon

2. 2 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8

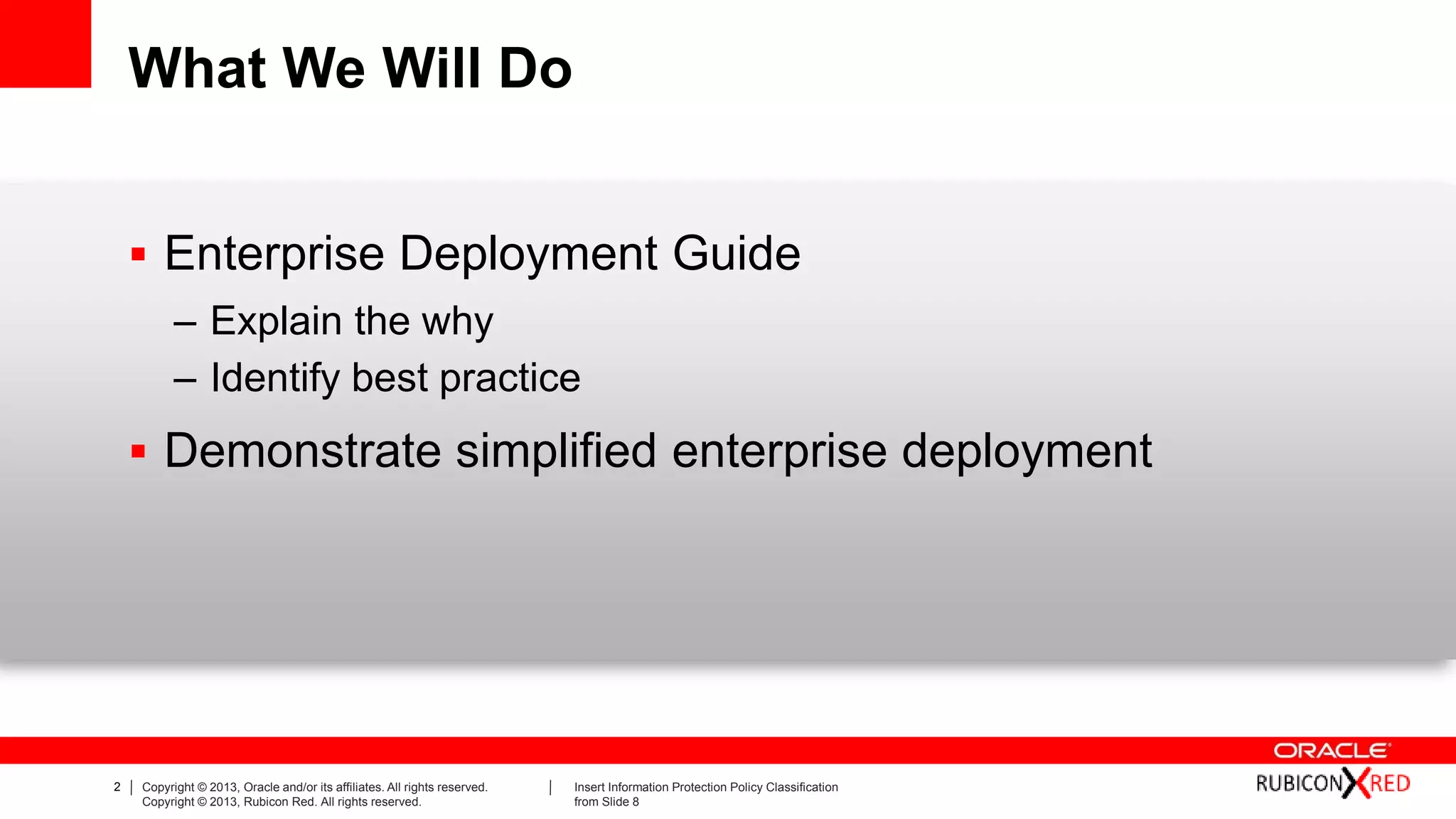

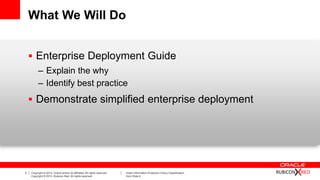

What We Will Do
 Enterprise Deployment Guide
– Explain the why
– Identify best practice
 Demonstrate simplified enterprise deployment

3. 3 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8
Who We Are
Antony Reynolds
Master Principal Sales
Consultant
Oracle
Author SOA Suite 11g
Developers Cookbook & SOA
Suite 11g Developers Guide
Matthew Wright
Director & Founder
Rubicon Red
Author SOA Suite 11g
Developers Cookbook & SOA
Suite 11g Developers Guide
Ramkumar Menon
Principal Product Manager
Oracle
Craig Barr
Platform Architect
Rubicon Red

4. 4 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8

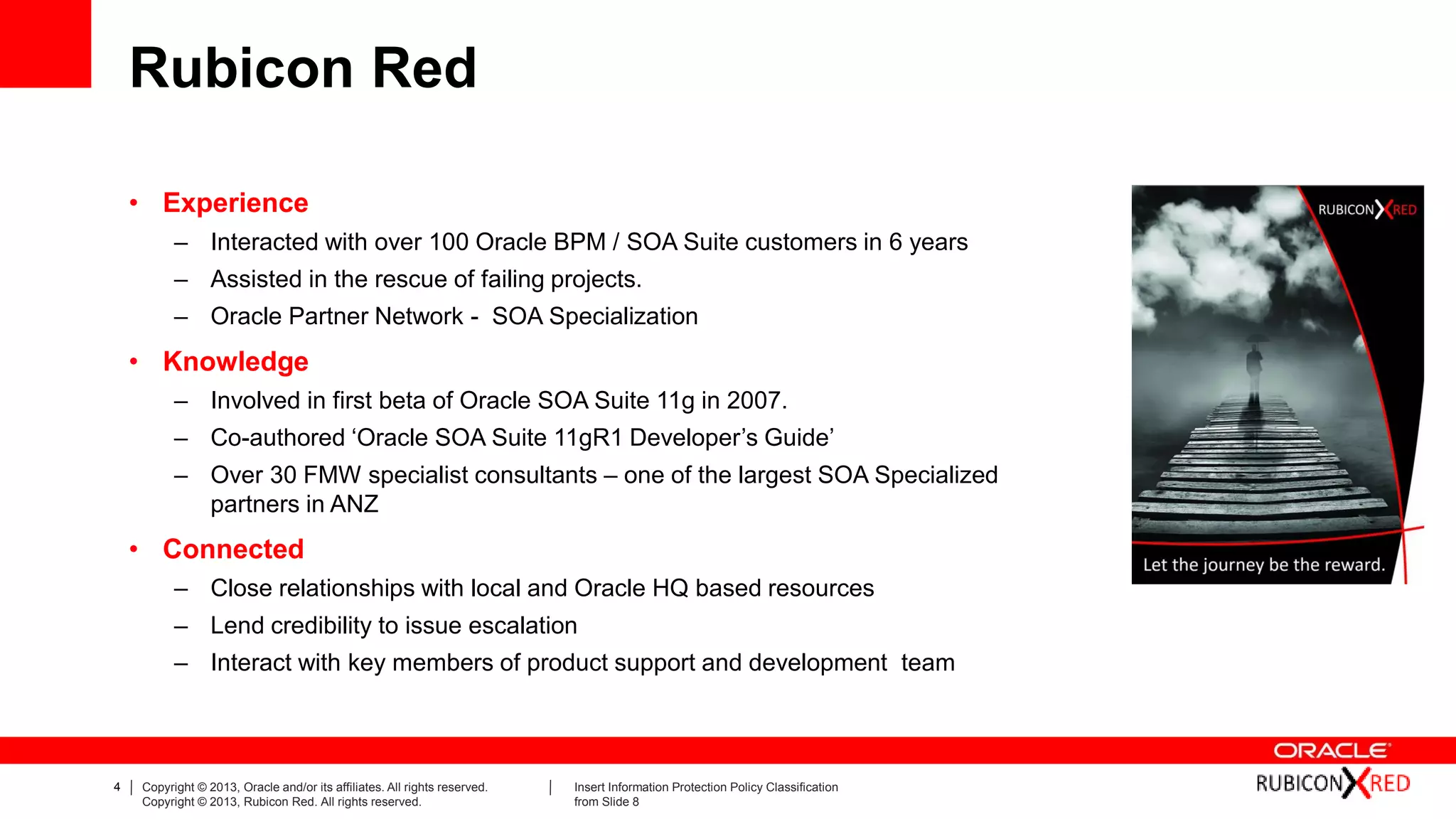

Rubicon Red
• Experience
– Interacted with over 100 Oracle BPM / SOA Suite customers in 6 years
– Assisted in the rescue of failing projects.
– Oracle Partner Network - SOA Specialization
• Knowledge
– Involved in first beta of Oracle SOA Suite 11g in 2007.
– Co-authored ‘Oracle SOA Suite 11gR1 Developer’s Guide’
– Over 30 FMW specialist consultants – one of the largest SOA Specialized
partners in ANZ
• Connected
– Close relationships with local and Oracle HQ based resources
– Lend credibility to issue escalation
– Interact with key members of product support and development team

5. 5 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8

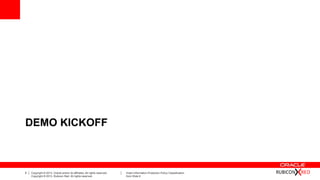

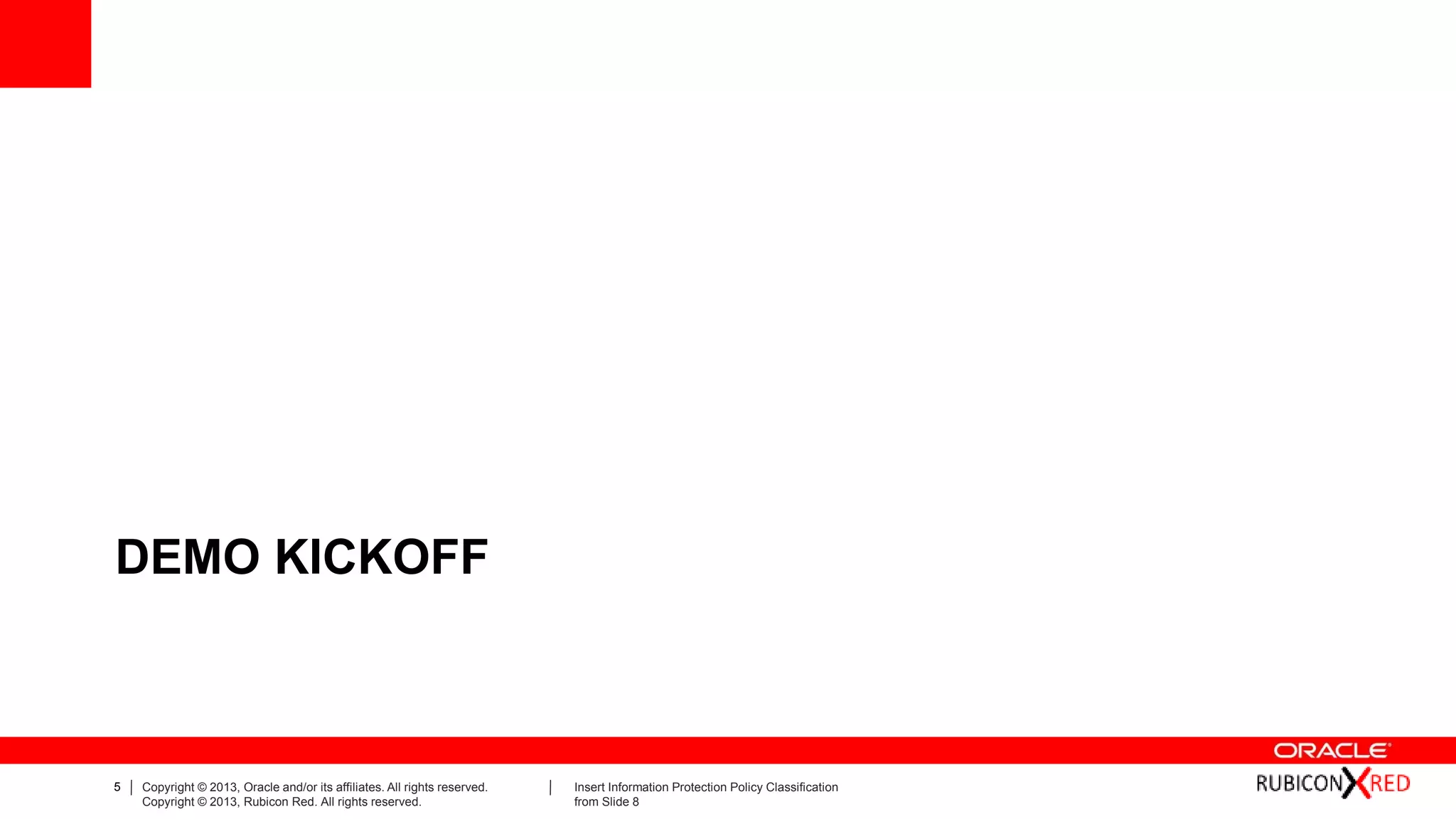

DEMO KICKOFF

6. 6 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8

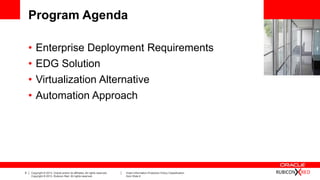

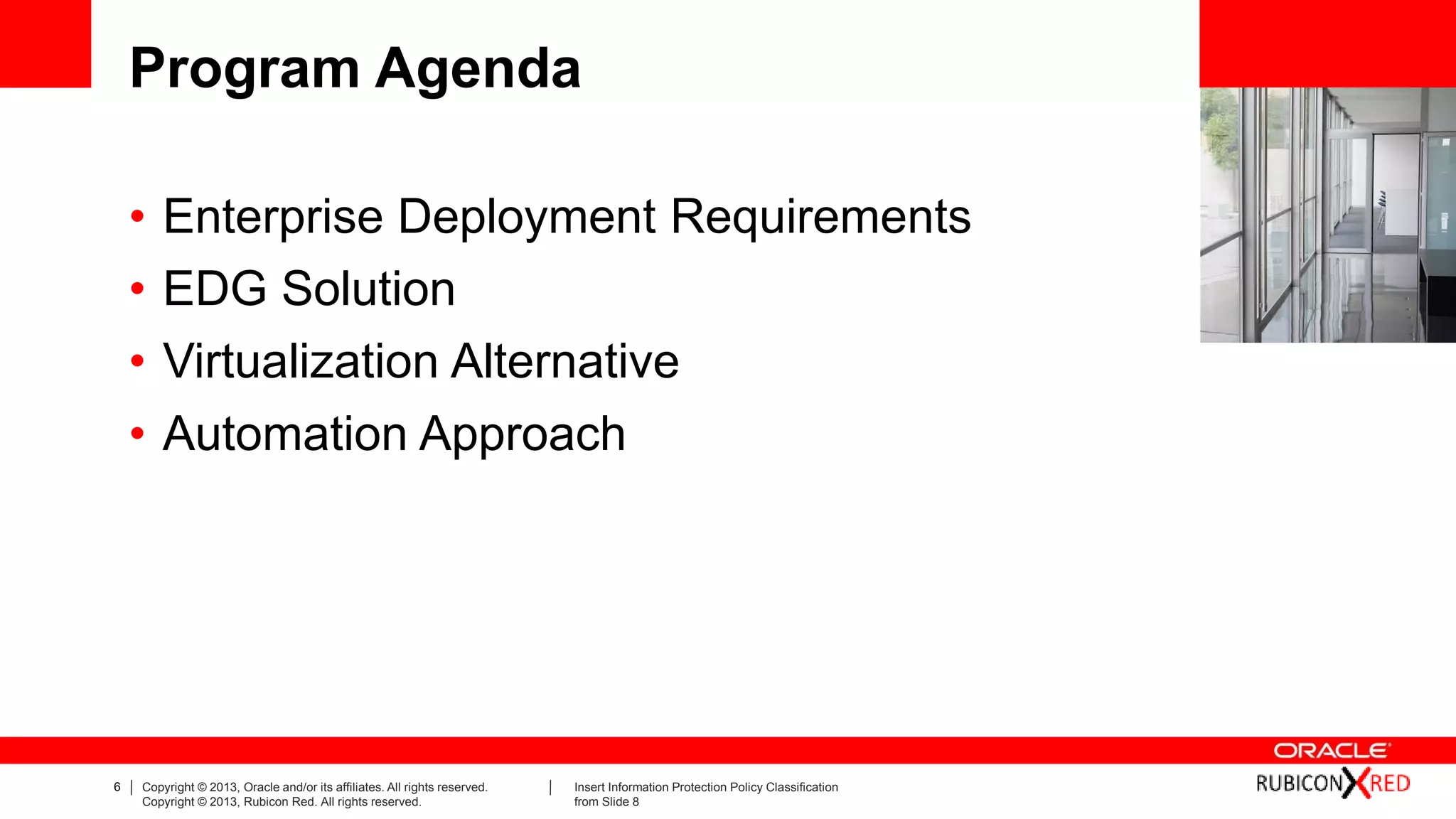

Program Agenda
• Enterprise Deployment Requirements
• EDG Solution
• Virtualization Alternative
• Automation Approach

7. 7 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8

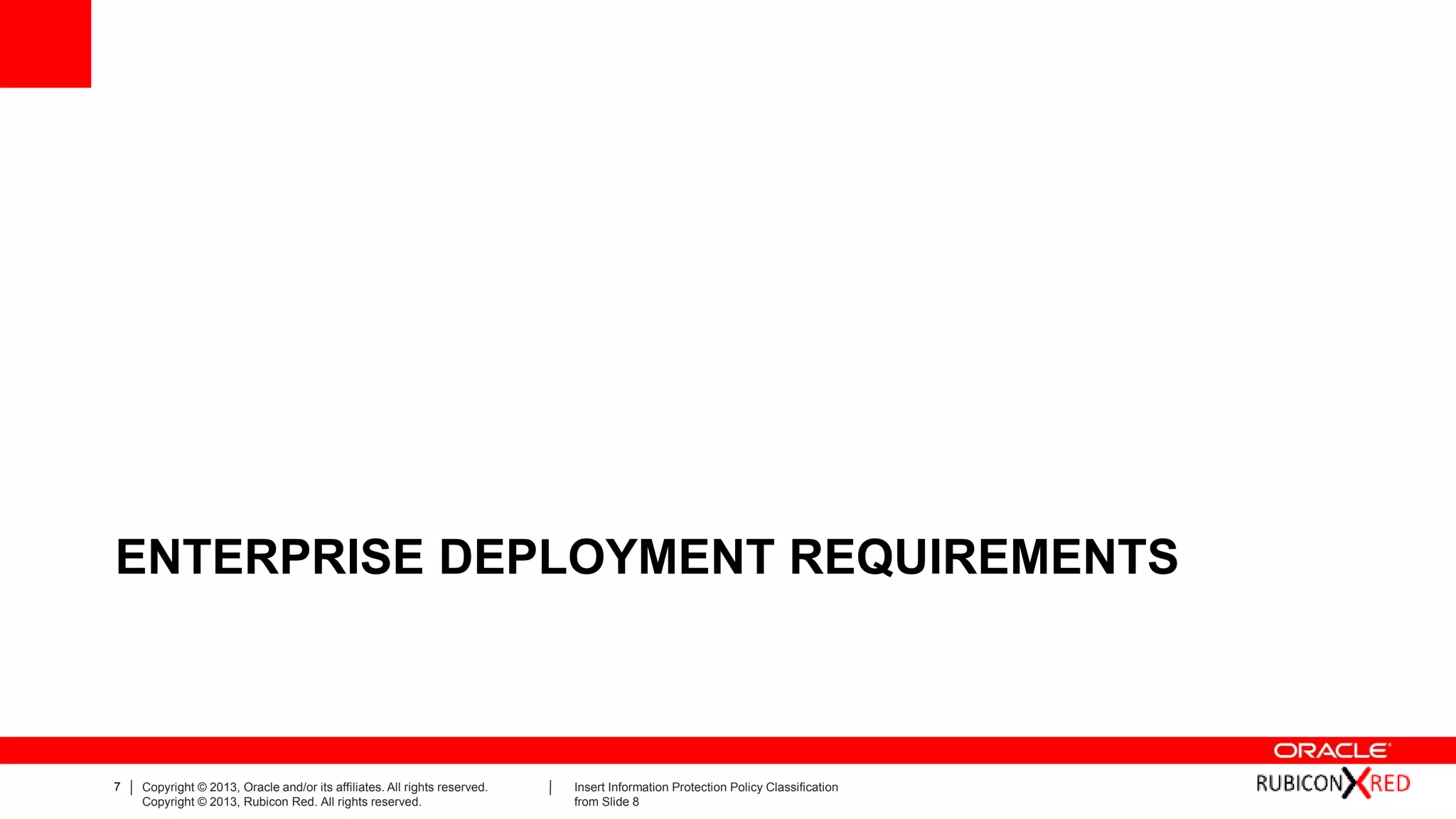

ENTERPRISE DEPLOYMENT REQUIREMENTS

8. 8 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8

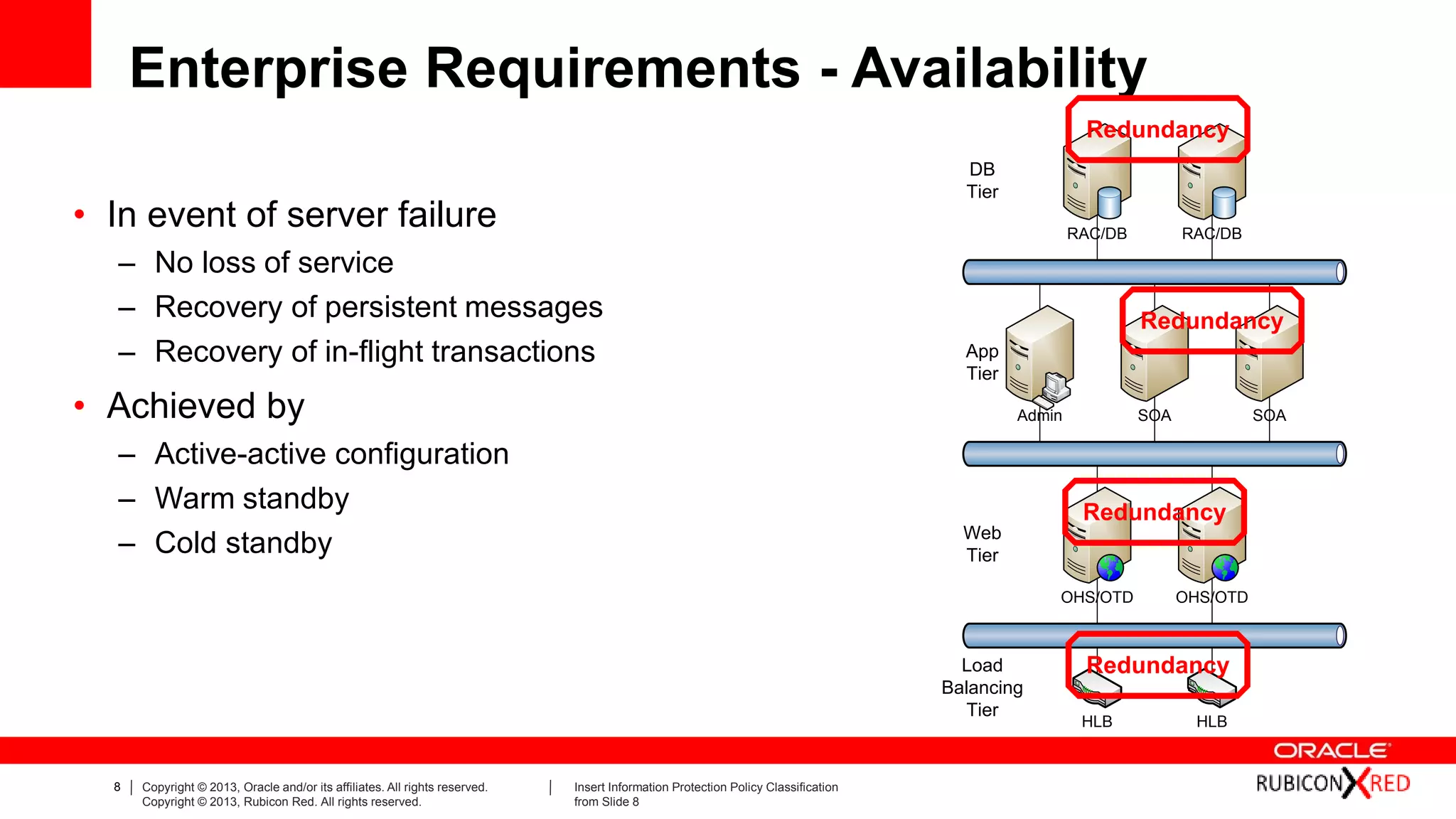

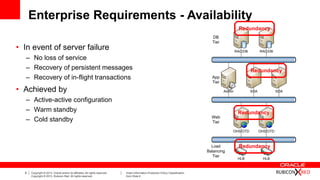

Enterprise Requirements - Availability
• In event of server failure
– No loss of service
– Recovery of persistent messages
– Recovery of in-flight transactions
• Achieved by
– Active-active configuration
– Warm standby
– Cold standby
HLB HLB
OHS/OTD OHS/OTD
Admin SOA SOA
RAC/DB RAC/DB
Load
Balancing
Tier
Web
Tier
App
Tier
DB
Tier
Redundancy
Redundancy
Redundancy
Redundancy

9. 9 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8

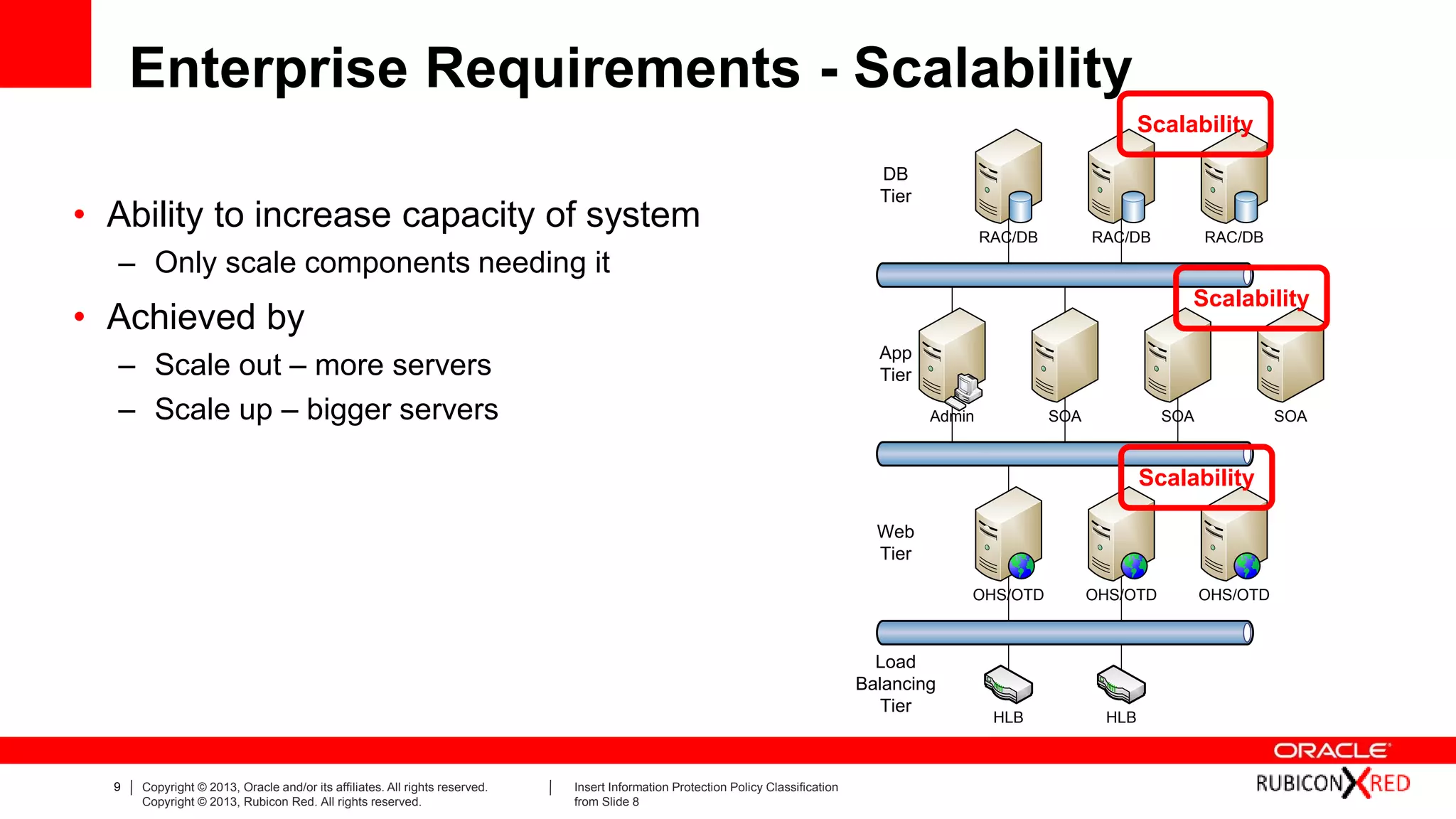

Enterprise Requirements - Scalability
• Ability to increase capacity of system
– Only scale components needing it
• Achieved by
– Scale out – more servers
– Scale up – bigger servers
HLB HLB
OHS/OTD OHS/OTD
Admin SOA SOA
RAC/DB RAC/DB
Load
Balancing
Tier
Web
Tier
App
Tier
DB
Tier
OHS/OTD
SOA
RAC/DB
Scalability
Scalability
Scalability

10. 10 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8

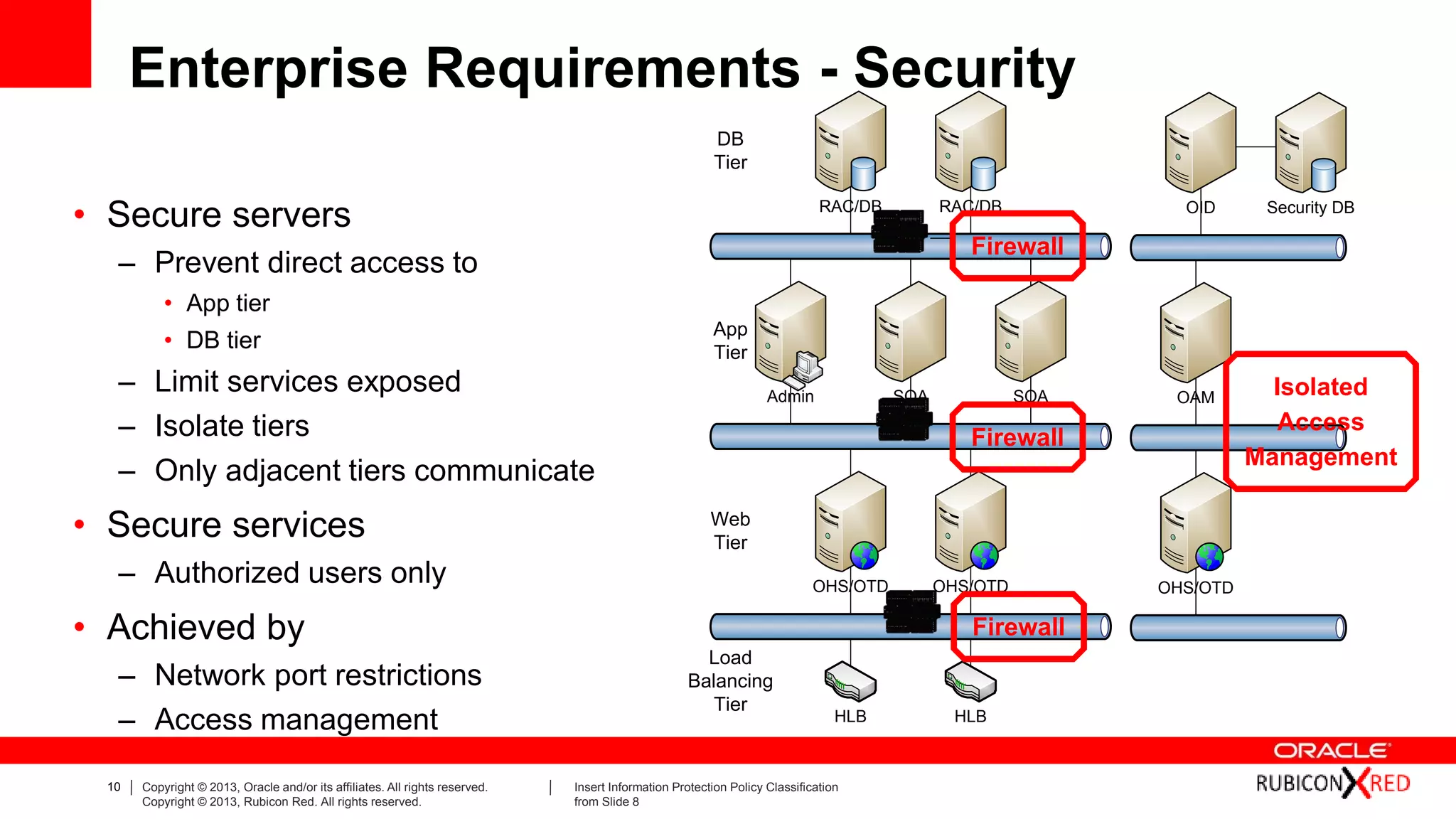

Enterprise Requirements - Security
• Secure servers
– Prevent direct access to
• App tier
• DB tier
– Limit services exposed
– Isolate tiers
– Only adjacent tiers communicate
• Secure services
– Authorized users only
• Achieved by
– Network port restrictions
– Access management HLB HLB
OHS/OTD OHS/OTD
Admin SOA SOA
RAC/DB RAC/DB
Load
Balancing
Tier
Web
Tier
App
Tier
DB
Tier
Firewall
Firewall
Firewall
OHS/OTD
OAM
OID Security DB
Isolated
Access
Management

11. 11 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8

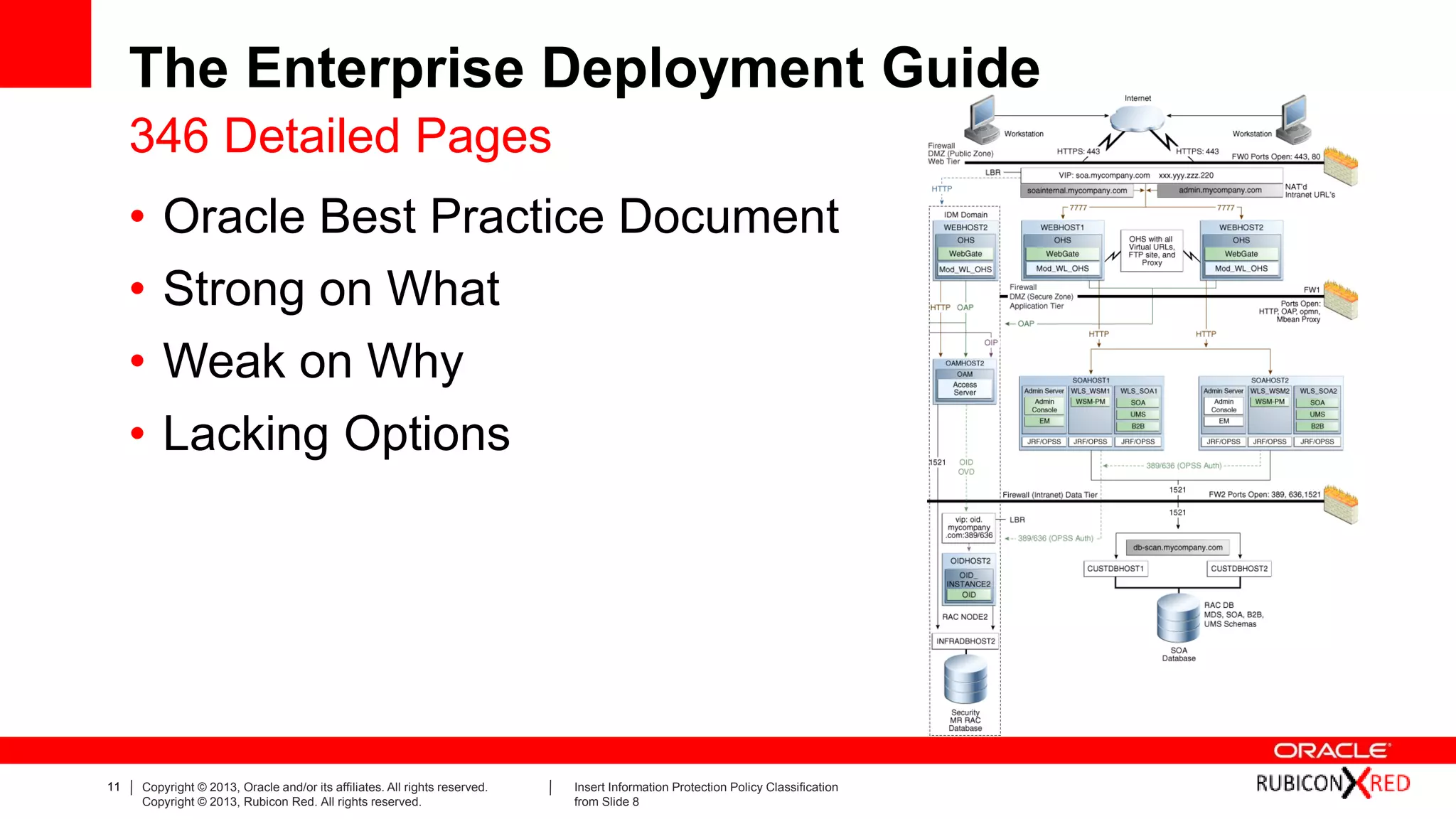

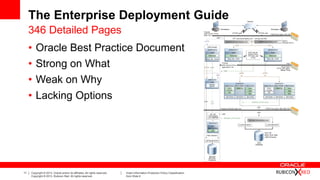

The Enterprise Deployment Guide
• Oracle Best Practice Document
• Strong on What
• Weak on Why
• Lacking Options
346 Detailed Pages

12. 12 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8

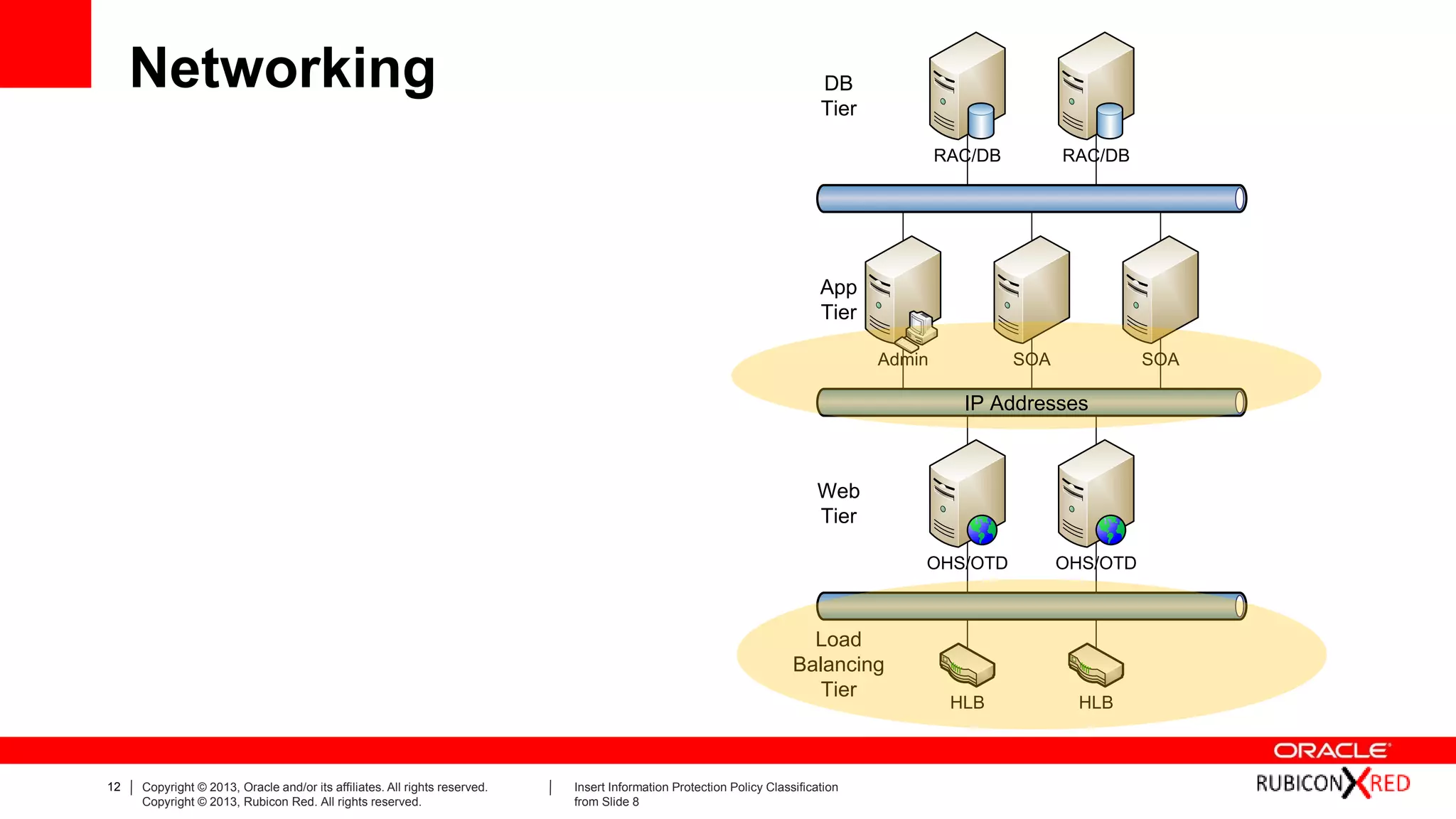

Networking
HLB HLB
OHS/OTD OHS/OTD
Admin SOA SOA
RAC/DB RAC/DB
Load
Balancing
Tier
Web
Tier
App
Tier
DB
Tier
IP Addresses

13. 13 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8

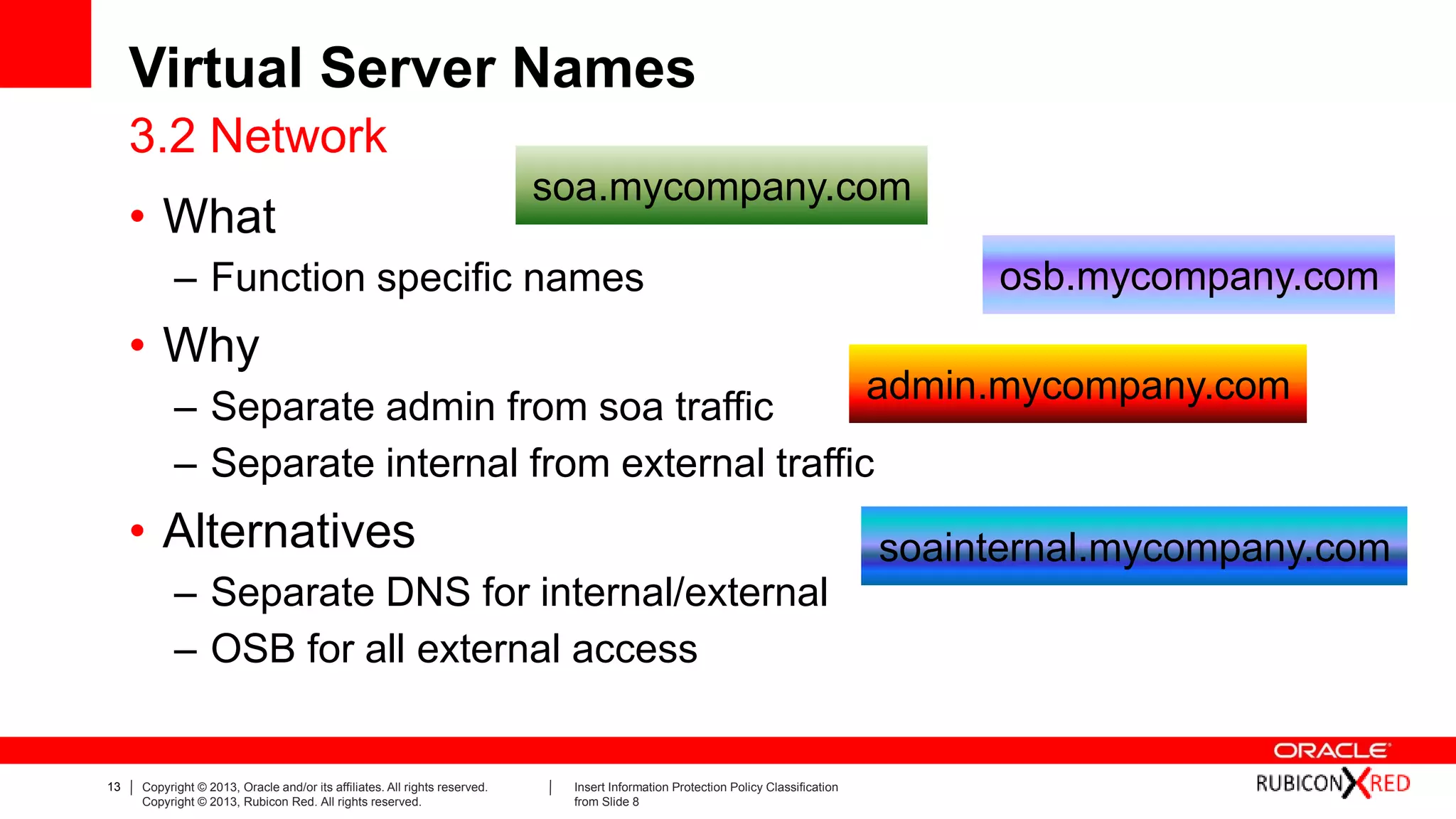

Virtual Server Names
• What
– Function specific names
• Why
– Separate admin from soa traffic
– Separate internal from external traffic
• Alternatives
– Separate DNS for internal/external
– OSB for all external access
3.2 Network
soa.mycompany.com
osb.mycompany.com
admin.mycompany.com
soainternal.mycompany.com

14. 14 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8

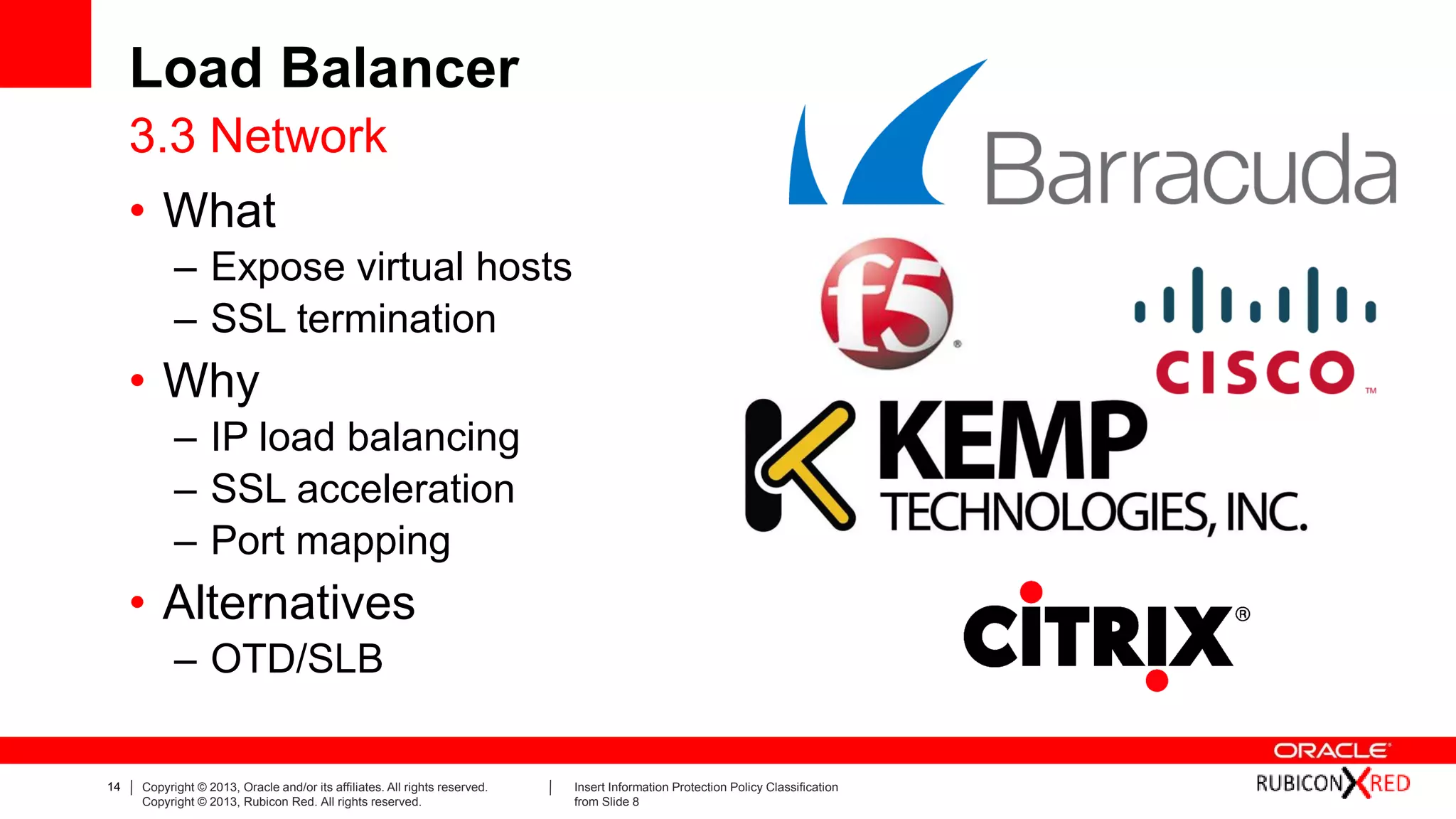

Load Balancer
• What
– Expose virtual hosts
– SSL termination
• Why
– IP load balancing
– SSL acceleration
– Port mapping
• Alternatives
– OTD/SLB
3.3 Network

15. 15 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8

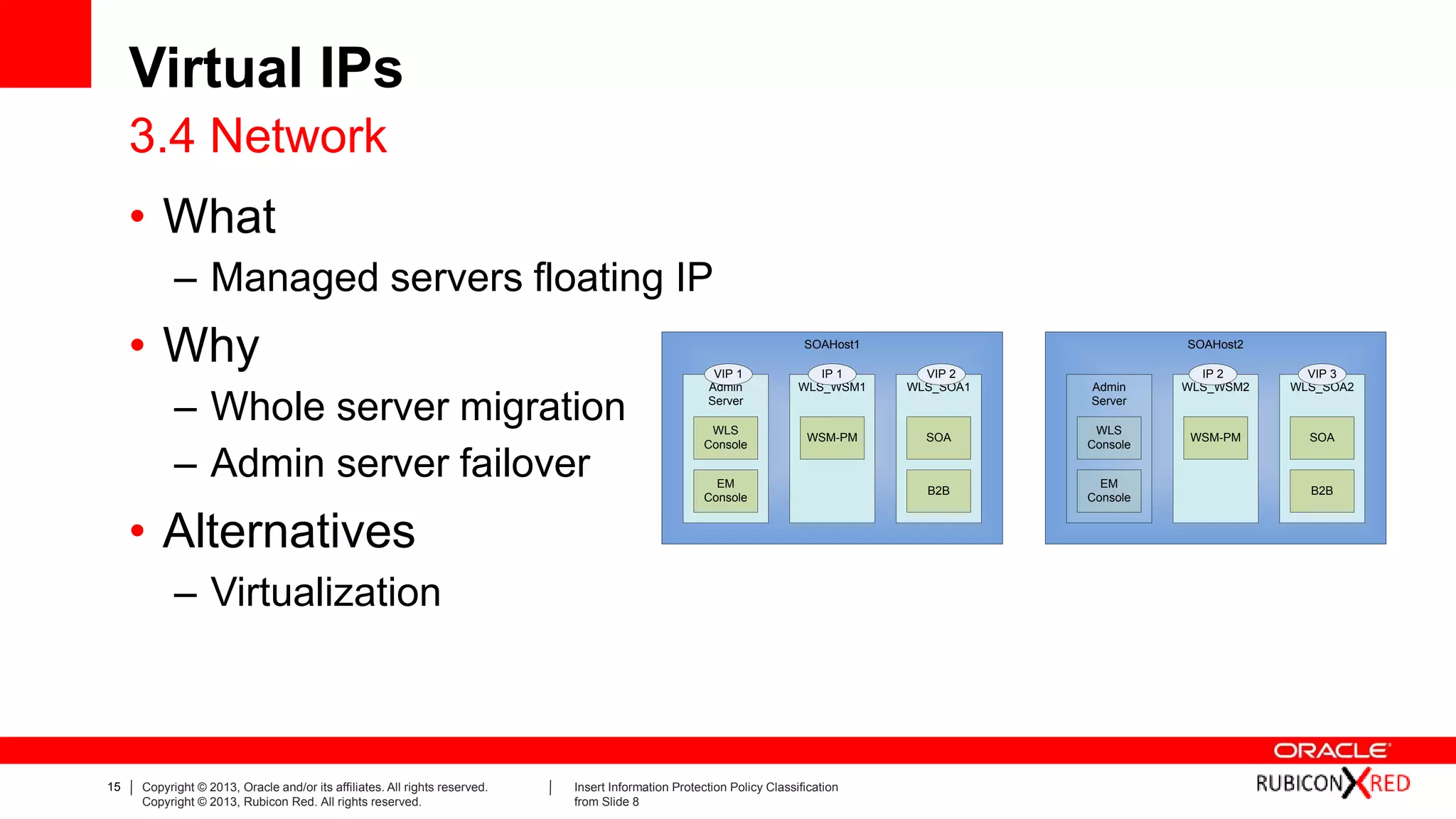

Virtual IPs
• What
– Managed servers floating IP
• Why
– Whole server migration
– Admin server failover
• Alternatives
– Virtualization
3.4 Network
SOAHost1
WLS_WSM1Admin
Server
WLS_SOA1
WLS
Console
EM
Console
WSM-PM SOA
B2B
SOAHost2
WLS_WSM2Admin
Server
WLS_SOA2
WLS
Console
EM
Console
WSM-PM SOA
B2B
VIP 1 IP 1 VIP 2 IP 2 VIP 3

16. 16 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8

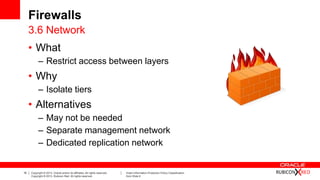

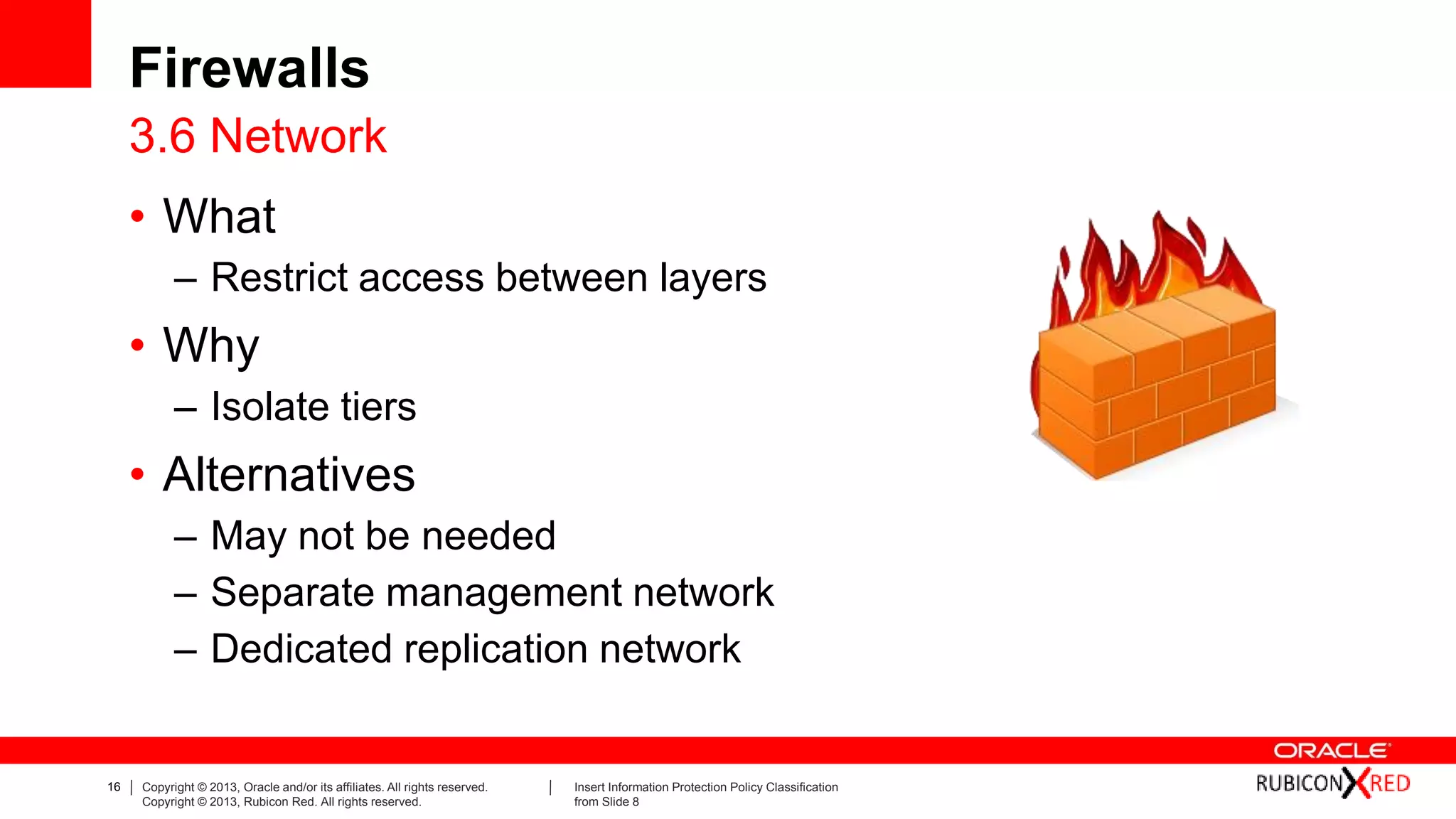

Firewalls
• What
– Restrict access between layers
• Why
– Isolate tiers
• Alternatives
– May not be needed
– Separate management network
– Dedicated replication network
3.6 Network

17. 17 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8

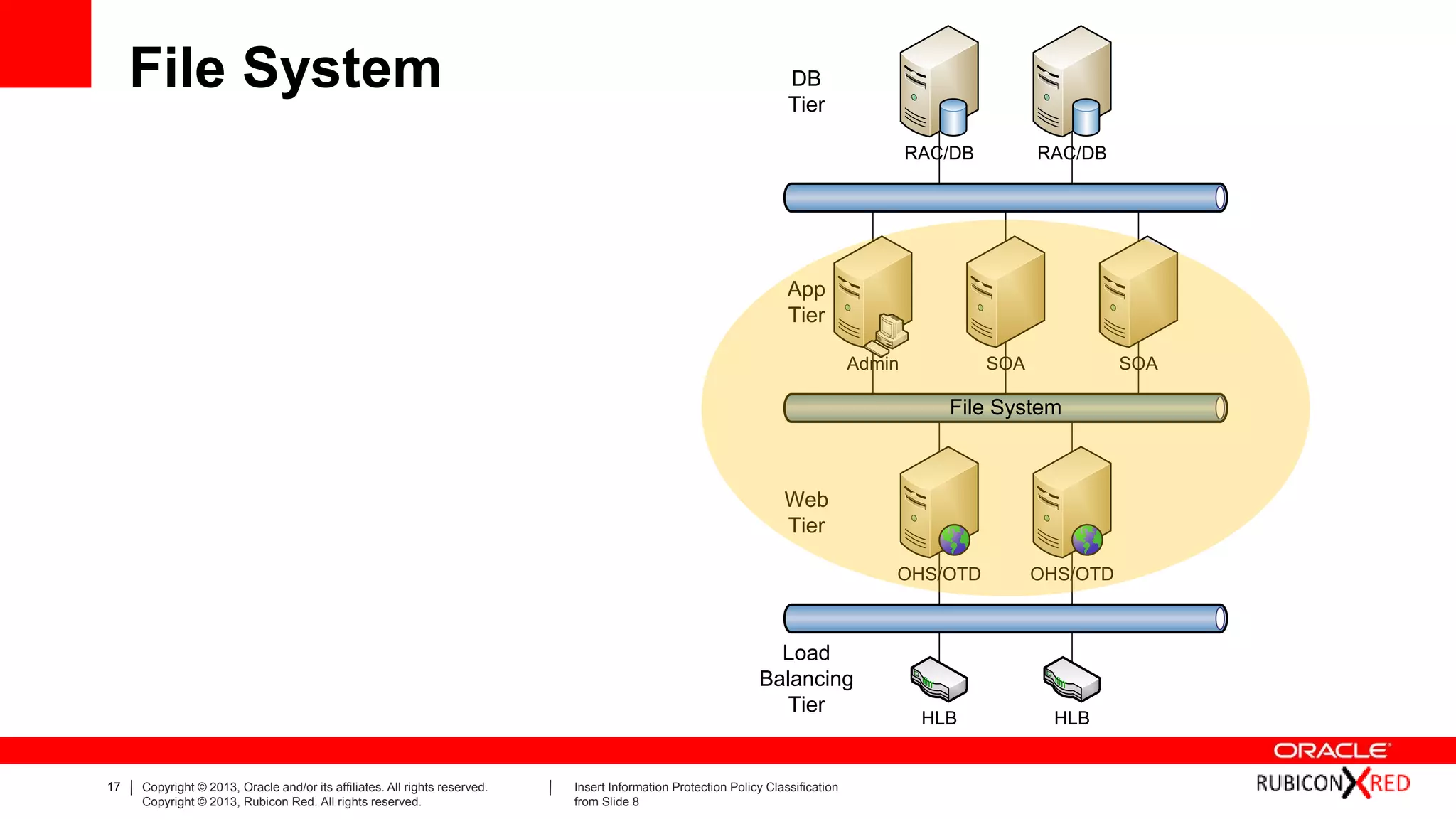

File System
HLB HLB
OHS/OTD OHS/OTD
Admin SOA SOA
RAC/DB RAC/DB
Load
Balancing
Tier
Web
Tier
App
Tier
DB
Tier
File System

18. 18 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8

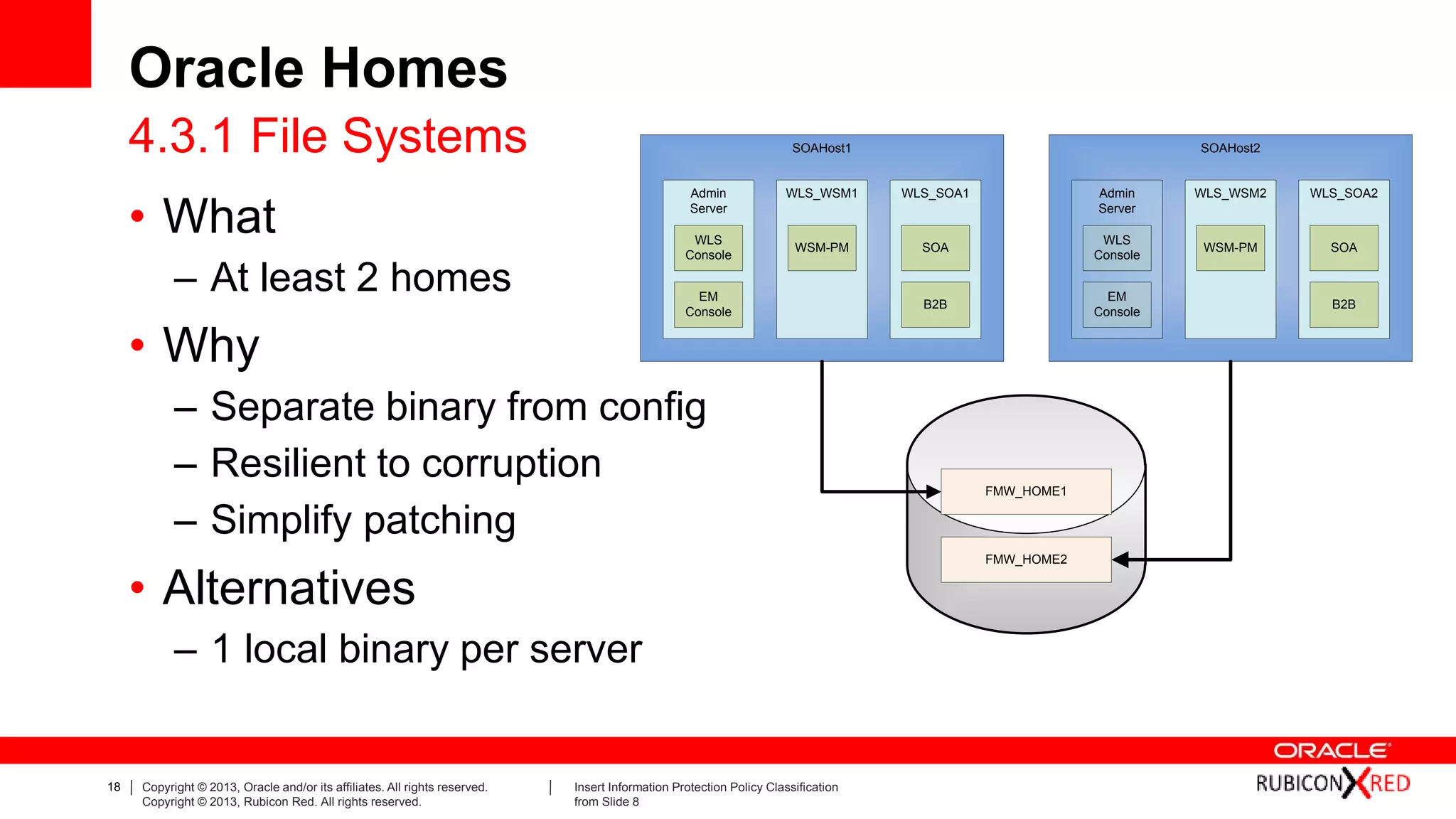

Oracle Homes
• What
– At least 2 homes
• Why
– Separate binary from config
– Resilient to corruption
– Simplify patching
• Alternatives
– 1 local binary per server
4.3.1 File Systems SOAHost1
WLS_WSM1Admin
Server
WLS_SOA1
WLS
Console
EM
Console
WSM-PM SOA
B2B
SOAHost2
WLS_WSM2Admin
Server
WLS_SOA2
WLS
Console
EM
Console
WSM-PM SOA
B2B
FMW_HOME1
FMW_HOME2

19. 19 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8

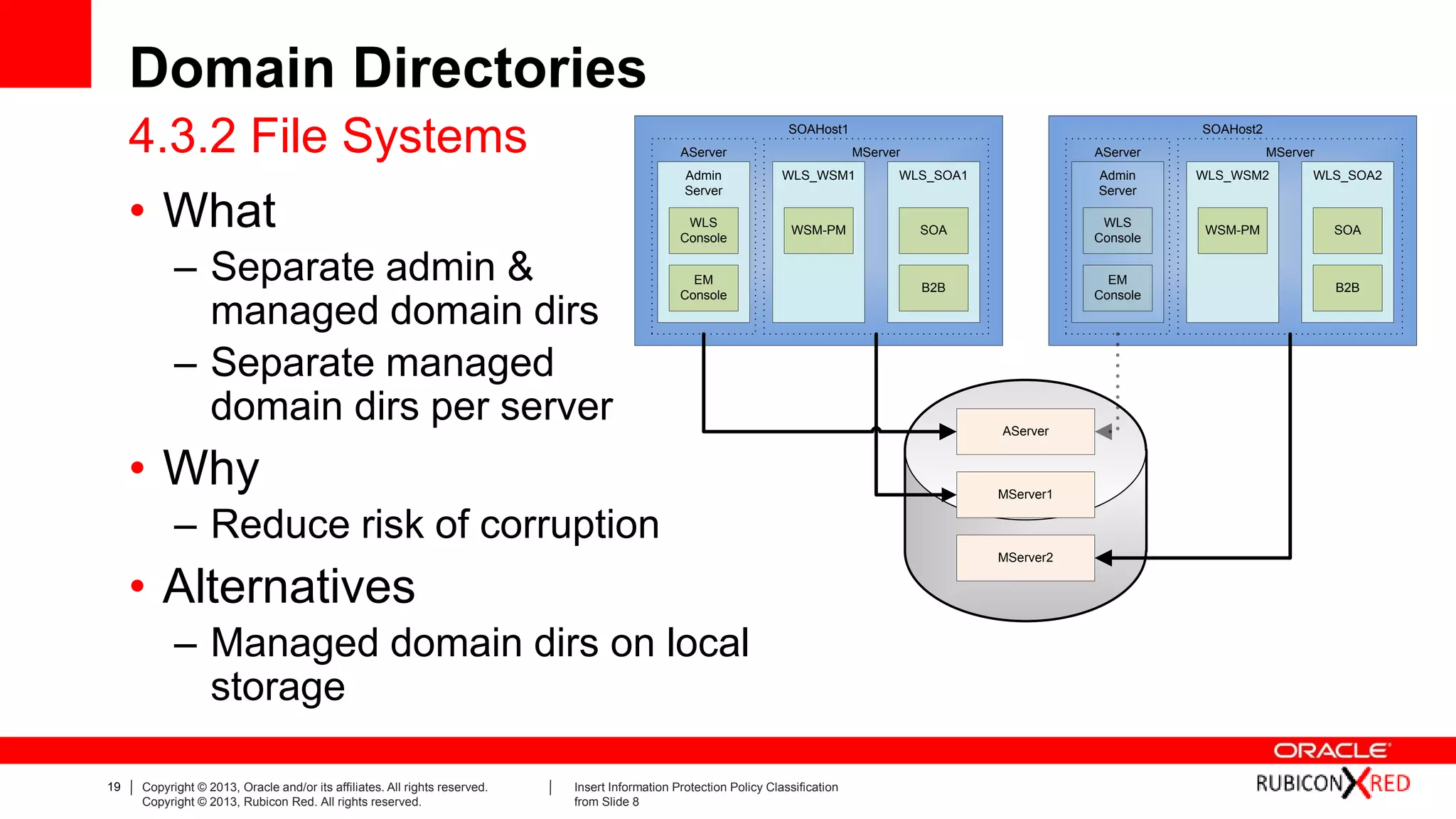

Domain Directories
• What
– Separate admin &
managed domain dirs
– Separate managed
domain dirs per server
• Why
– Reduce risk of corruption
• Alternatives
– Managed domain dirs on local
storage
4.3.2 File Systems SOAHost1
WLS_WSM1Admin
Server
WLS_SOA1
WLS
Console
EM
Console
WSM-PM SOA
B2B
SOAHost2
WLS_WSM2Admin
Server
WLS_SOA2
WLS
Console
EM
Console
WSM-PM SOA
B2B
MServer1
MServer2
AServer AServer MServerMServer
AServer

20. 20 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8

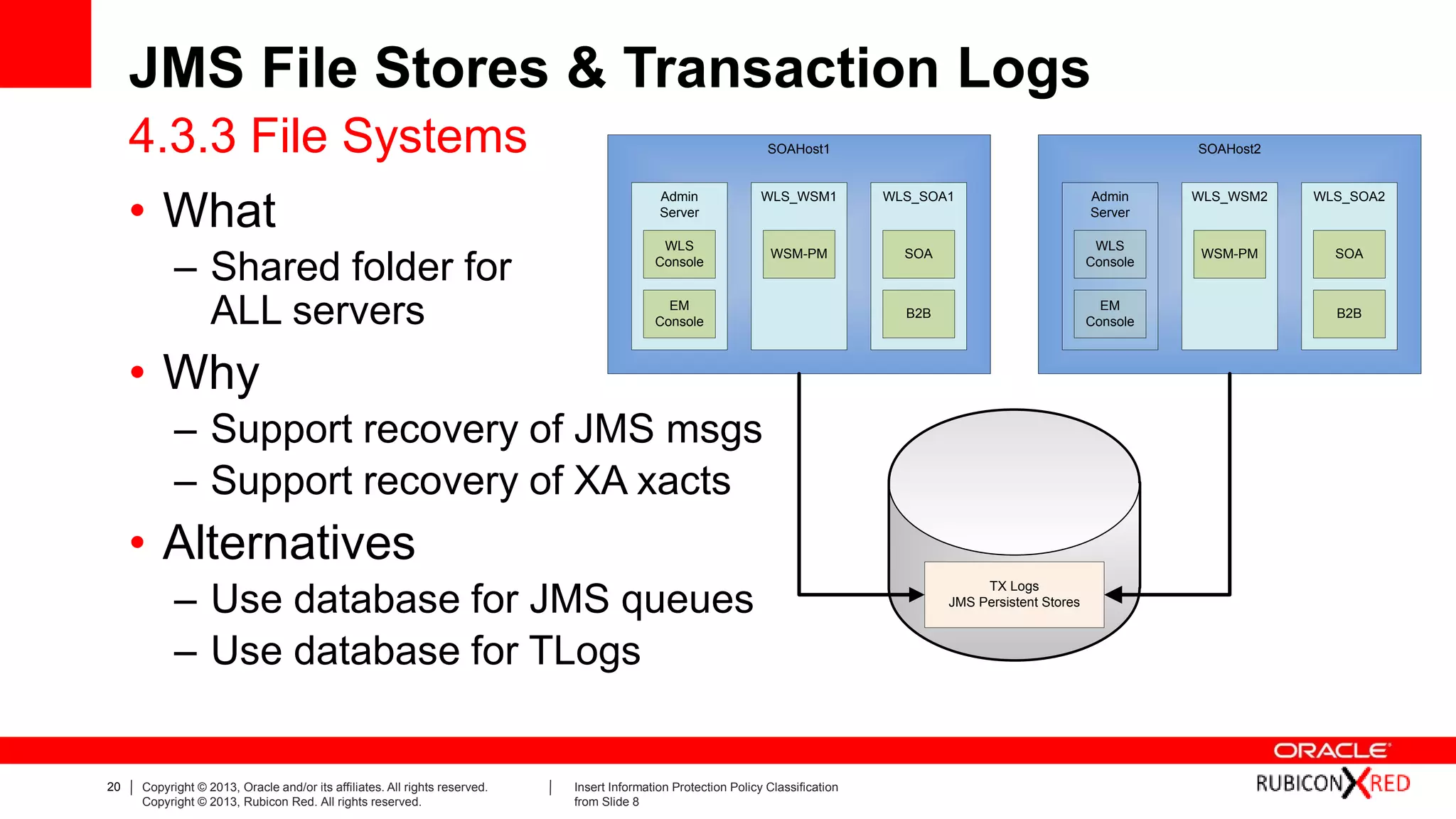

JMS File Stores & Transaction Logs
• What
– Shared folder for
ALL servers
• Why
– Support recovery of JMS msgs
– Support recovery of XA xacts
• Alternatives
– Use database for JMS queues
– Use database for TLogs
4.3.3 File Systems SOAHost1
WLS_WSM1Admin
Server
WLS_SOA1
WLS
Console
EM
Console
WSM-PM SOA
B2B
SOAHost2
WLS_WSM2Admin
Server
WLS_SOA2
WLS
Console
EM
Console
WSM-PM SOA
B2B
TX Logs
JMS Persistent Stores

21. 21 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8

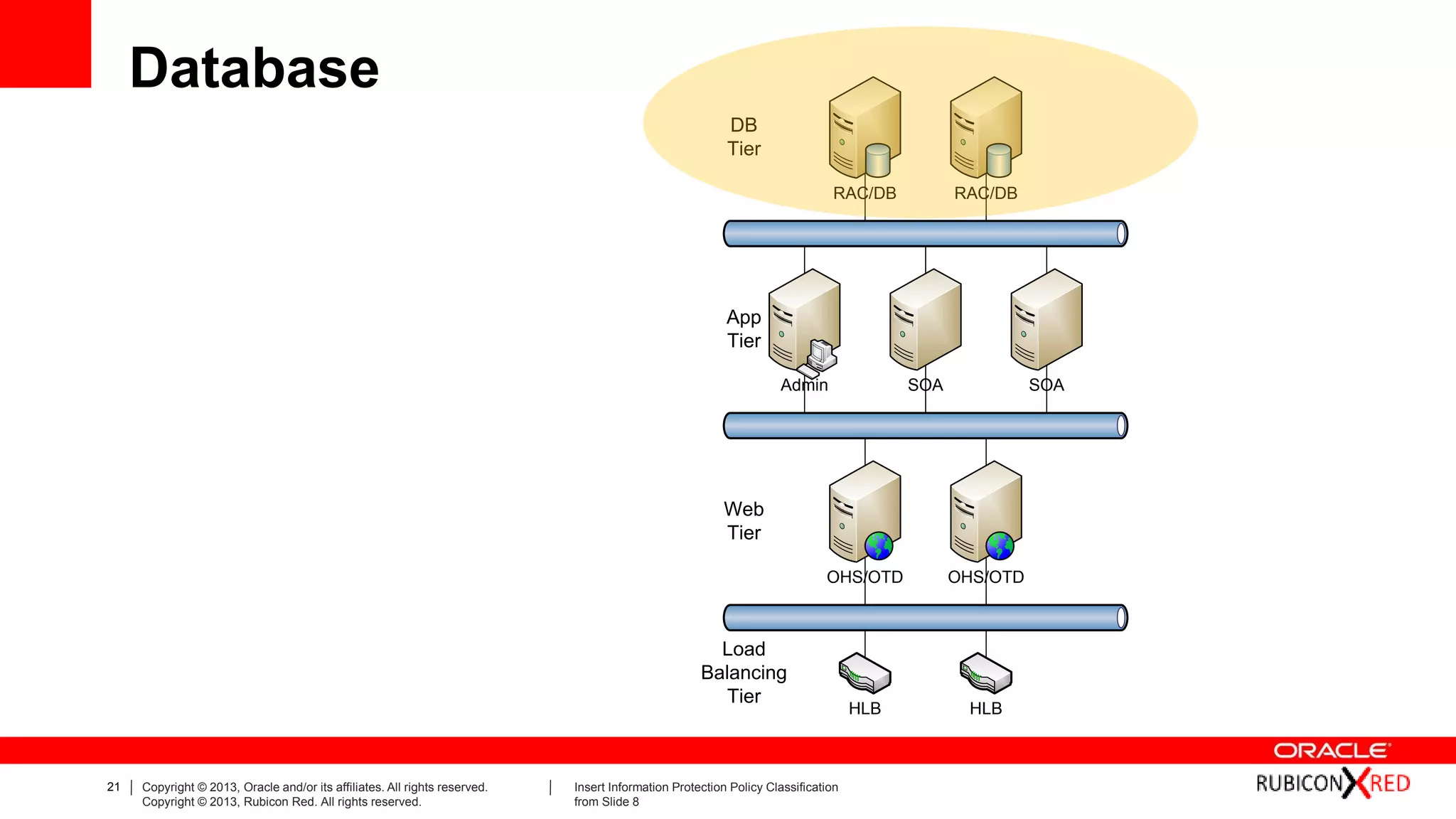

Database
HLB HLB
OHS/OTD OHS/OTD
Admin SOA SOA
RAC/DB RAC/DB
Load
Balancing
Tier
Web
Tier
App
Tier
DB
Tier

22. 22 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8

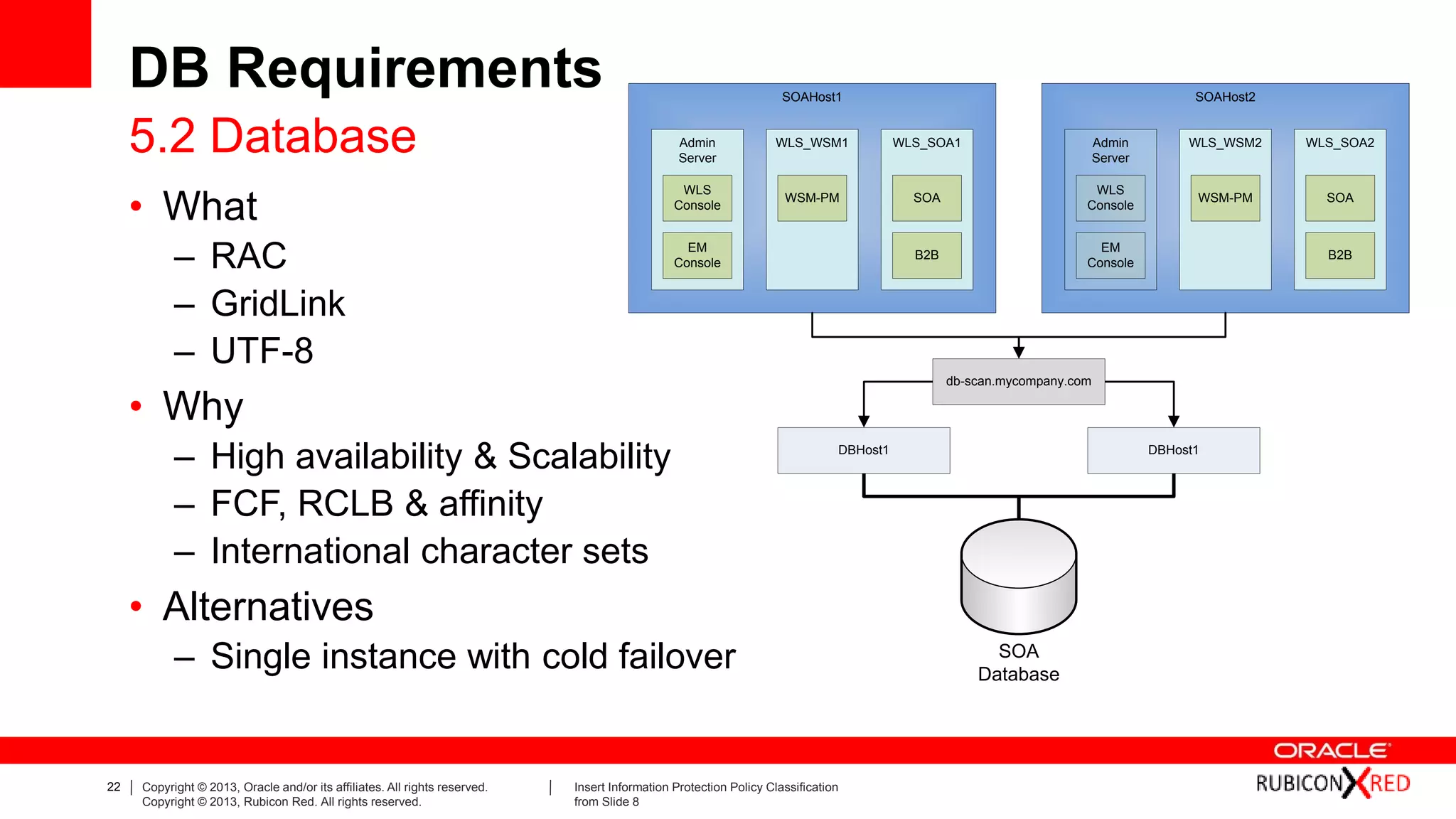

DB Requirements
• What
– RAC
– GridLink
– UTF-8
• Why
– High availability & Scalability
– FCF, RCLB & affinity
– International character sets
• Alternatives
– Single instance with cold failover
5.2 Database
SOAHost1
WLS_WSM1Admin
Server
WLS_SOA1
WLS
Console
EM
Console
WSM-PM SOA
B2B
SOAHost2
WLS_WSM2Admin
Server
WLS_SOA2
WLS
Console
EM
Console
WSM-PM SOA
B2B
SOA
Database
DBHost1 DBHost1
db-scan.mycompany.com

23. 23 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8

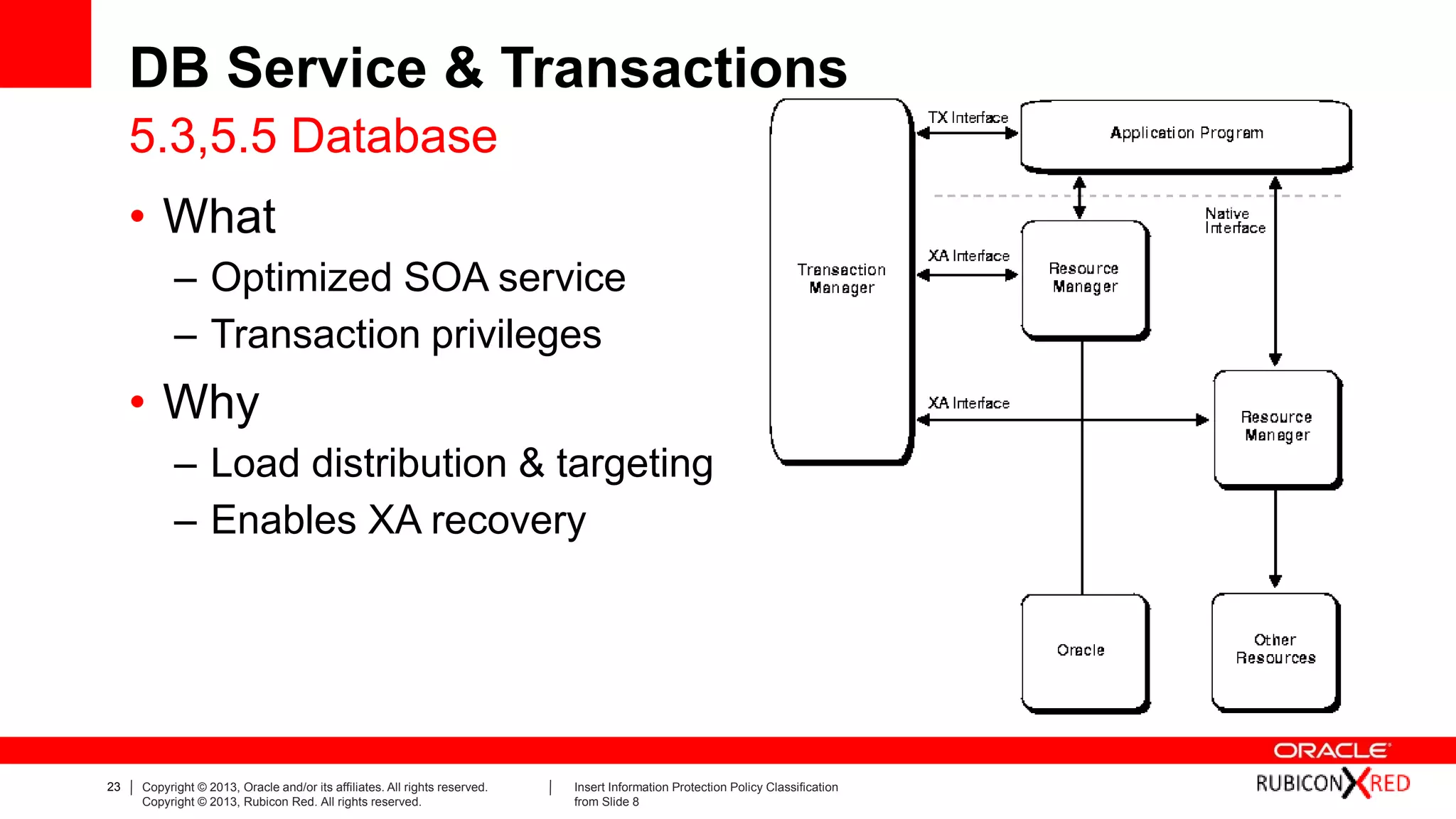

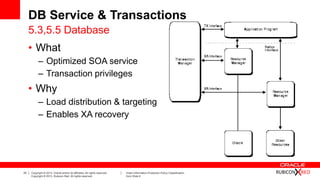

DB Service & Transactions
• What
– Optimized SOA service
– Transaction privileges
• Why
– Load distribution & targeting
– Enables XA recovery
5.3,5.5 Database

24. 24 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8

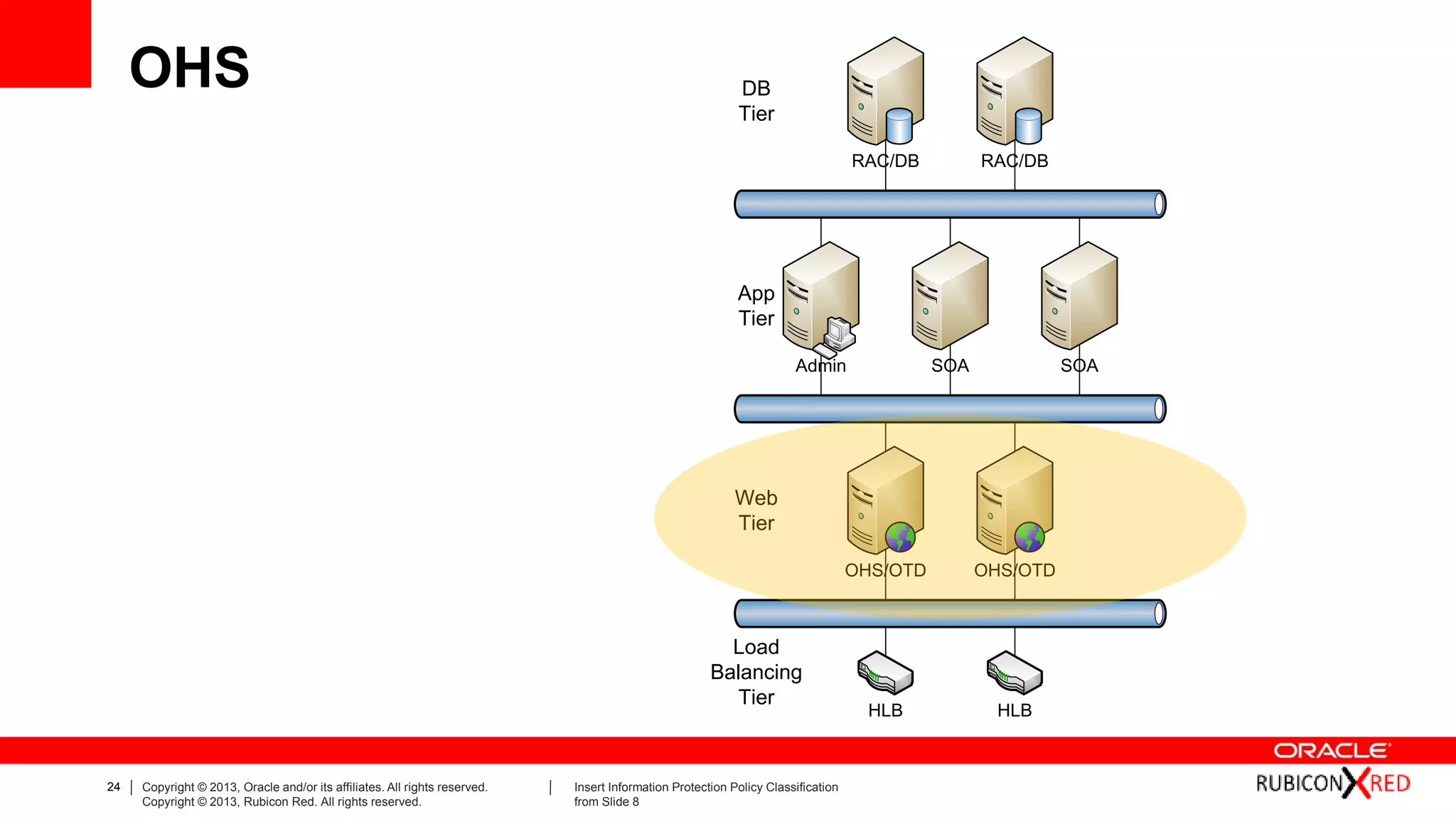

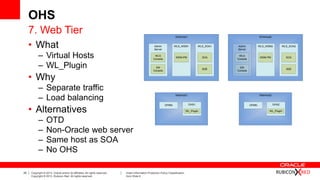

OHS
HLB HLB
OHS/OTD OHS/OTD
Admin SOA SOA
RAC/DB RAC/DB
Load
Balancing
Tier
Web
Tier
App
Tier
DB
Tier

25. 25 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8
OHS
• What
– Virtual Hosts
– WL_Plugin
• Why
– Separate traffic
– Load balancing
• Alternatives
– OTD
– Non-Oracle web server
– Same host as SOA
– No OHS
7. Web Tier SOAHost1
WLS_WSM1Admin
Server
WLS_SOA1
WLS
Console
EM
Console
WSM-PM SOA
B2B
SOAHost2
WLS_WSM2Admin
Server
WLS_SOA2
WLS
Console
EM
Console
WSM-PM SOA
B2B
WebHost1
OHS1OPMN
WebHost2
OHS2OPMN
WL_PlugIn WL_PlugIn

26. 26 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8

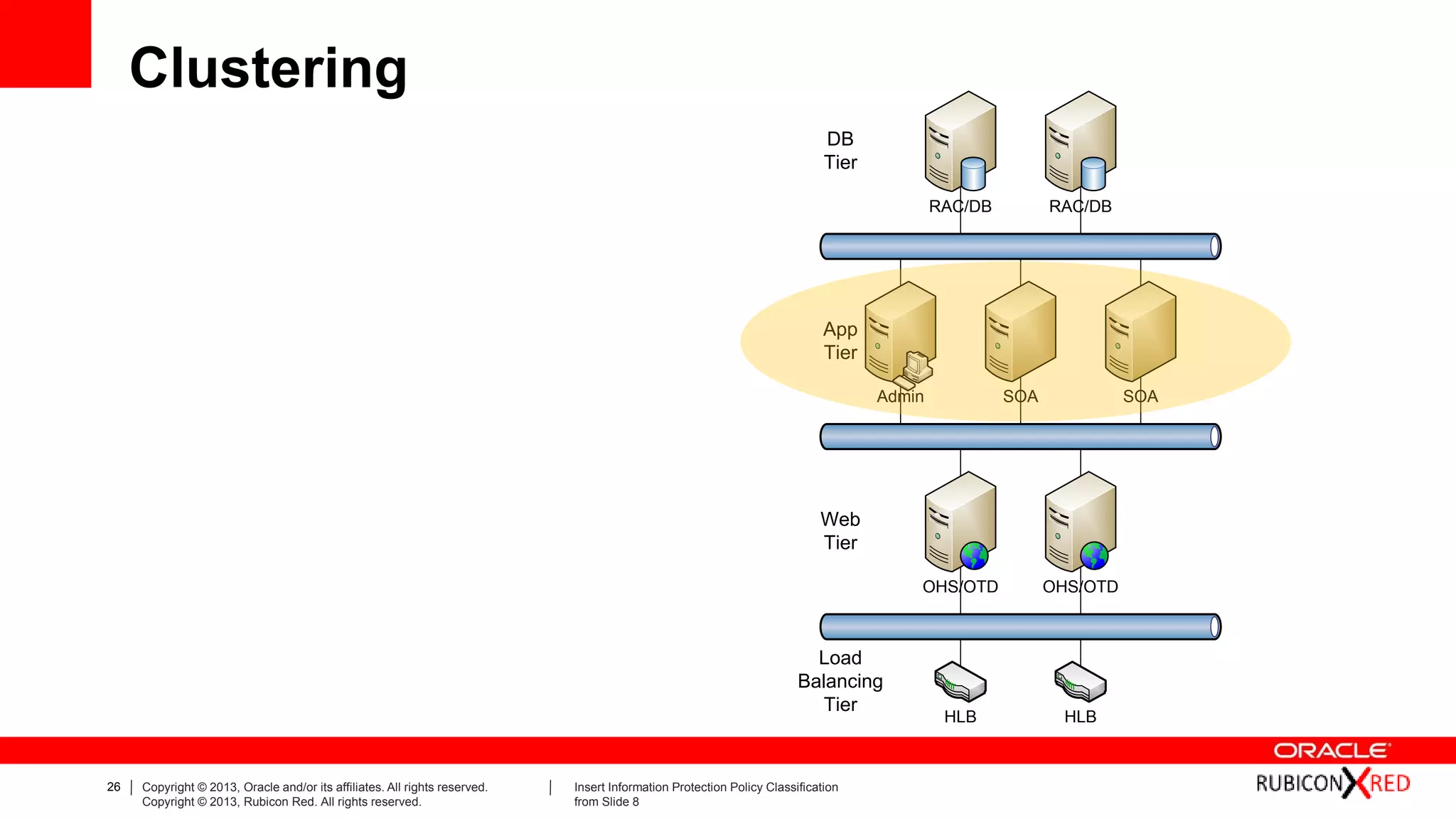

Clustering
HLB HLB
OHS/OTD OHS/OTD
Admin SOA SOA
RAC/DB RAC/DB
Load
Balancing
Tier
Web
Tier
App
Tier
DB
Tier

27. 27 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8

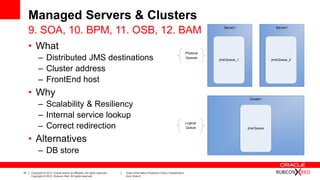

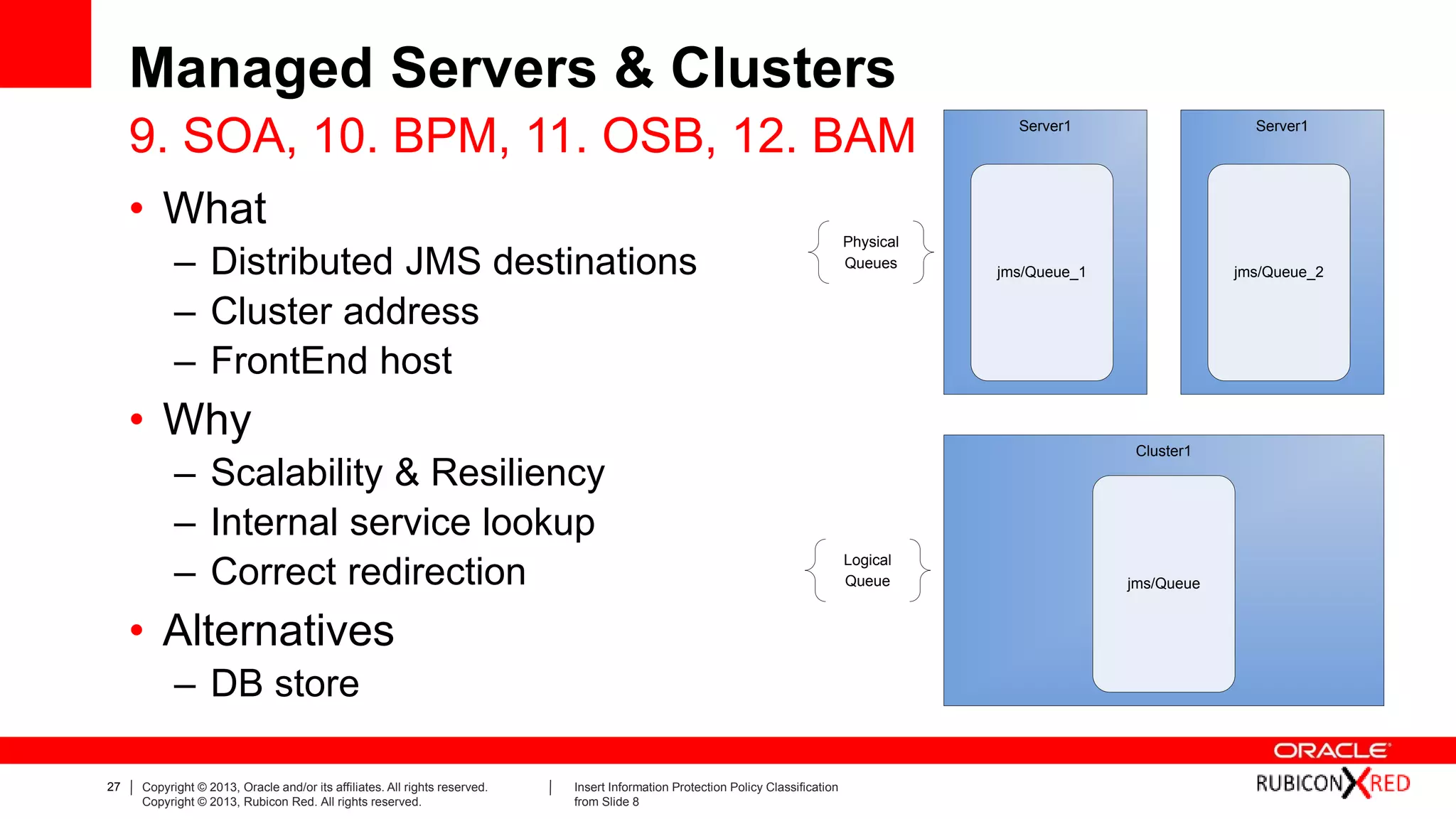

Managed Servers & Clusters
• What
– Distributed JMS destinations
– Cluster address
– FrontEnd host
• Why
– Scalability & Resiliency
– Internal service lookup
– Correct redirection
• Alternatives
– DB store
9. SOA, 10. BPM, 11. OSB, 12. BAM Server1
jms/Queue_1
Server1
jms/Queue_2
Physical
Queues
Cluster1
jms/Queue
Logical
Queue

28. 28 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8

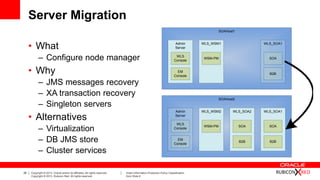

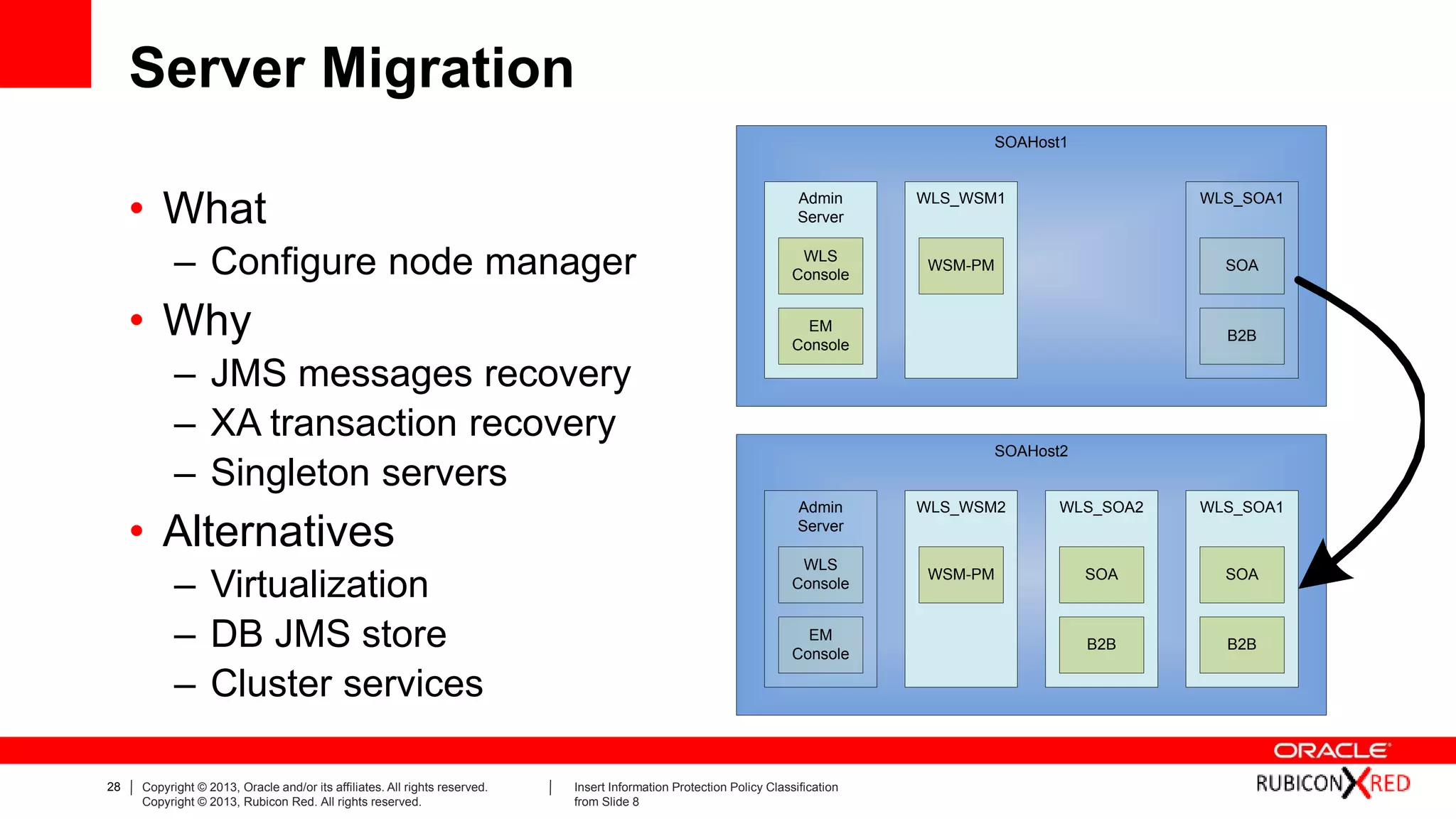

Server Migration
• What
– Configure node manager
• Why
– JMS messages recovery
– XA transaction recovery
– Singleton servers
• Alternatives
– Virtualization
– DB JMS store
– Cluster services
SOAHost1
WLS_WSM1Admin
Server
WLS_SOA1
WLS
Console
EM
Console
WSM-PM SOA
B2B
SOAHost2
WLS_WSM2Admin
Server
WLS_SOA2
WLS
Console
EM
Console
WSM-PM SOA
B2B
WLS_SOA1
SOA
B2B

29. 29 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8

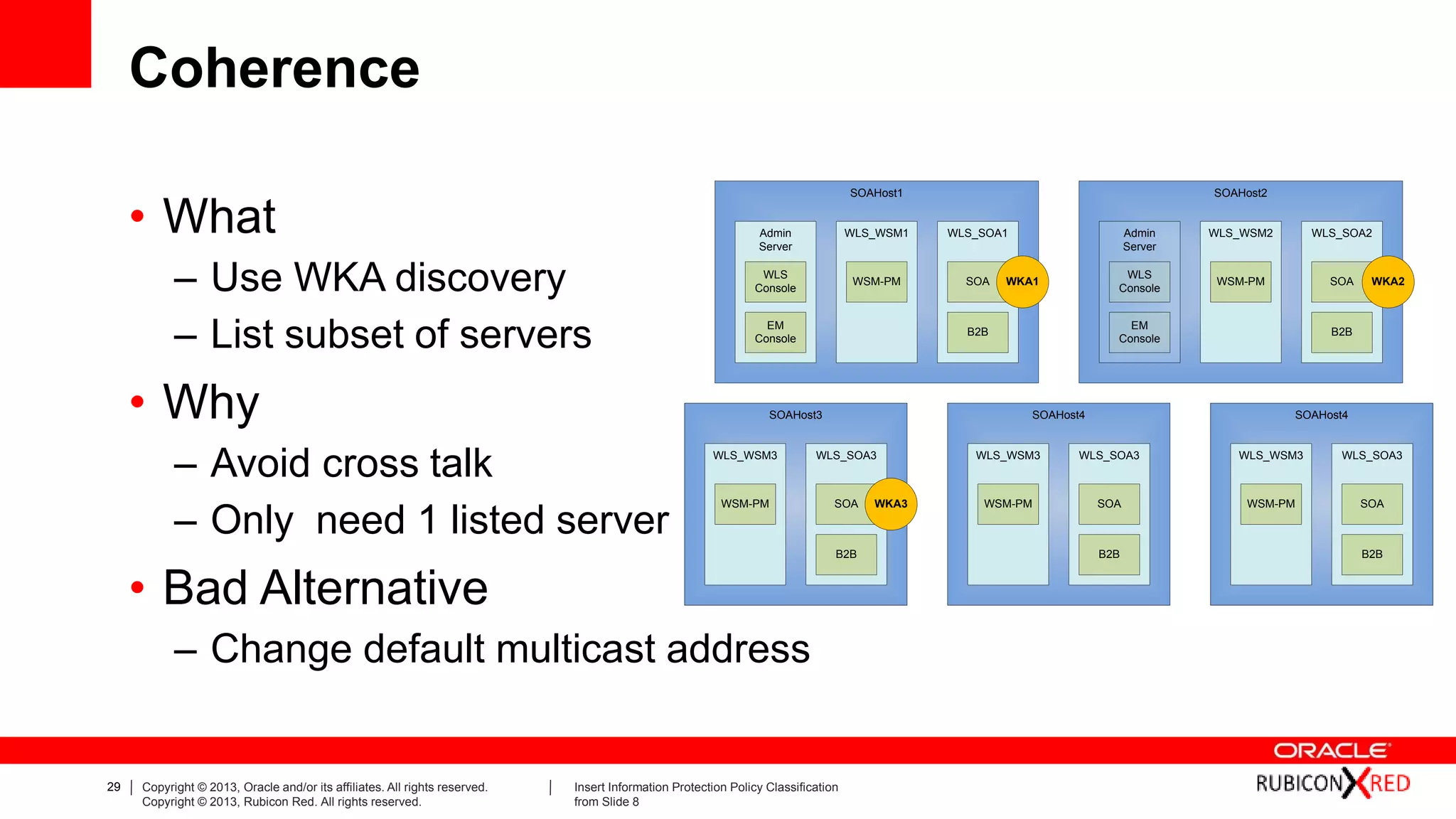

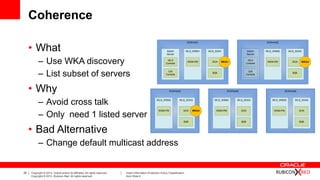

Coherence
• What
– Use WKA discovery
– List subset of servers
• Why
– Avoid cross talk
– Only need 1 listed server
• Bad Alternative
– Change default multicast address
SOAHost1
WLS_WSM1Admin
Server
WLS_SOA1
WLS
Console
EM
Console
WSM-PM SOA
B2B
SOAHost2
WLS_WSM2Admin
Server
WLS_SOA2
WLS
Console
EM
Console
WSM-PM SOA
B2B
SOAHost3
WLS_WSM3 WLS_SOA3
WSM-PM SOA
B2B
SOAHost4
WLS_WSM3 WLS_SOA3
WSM-PM SOA
B2B
SOAHost4
WLS_WSM3 WLS_SOA3
WSM-PM SOA
B2B
WKA1 WKA2
WKA3

30. 30 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8

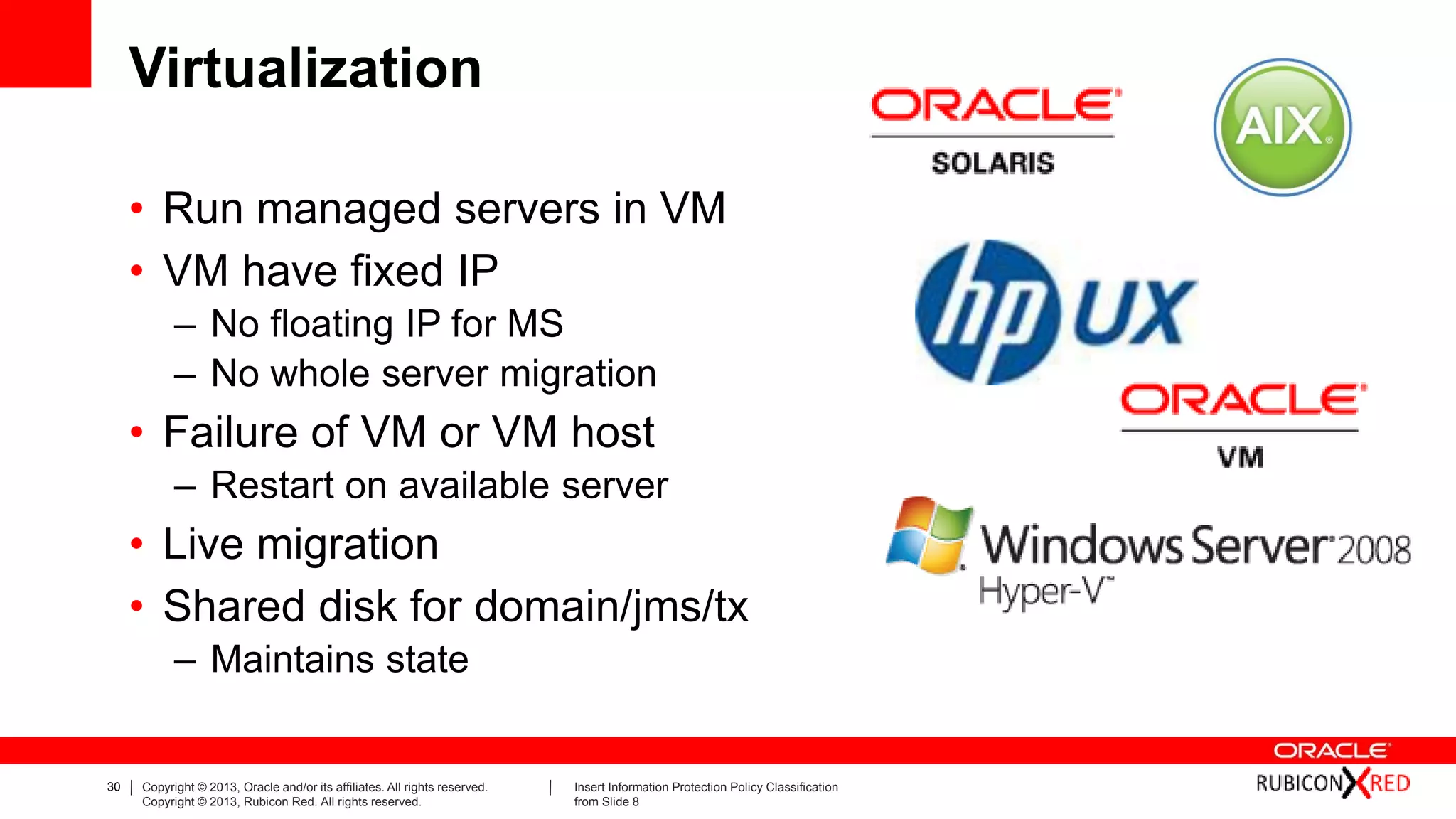

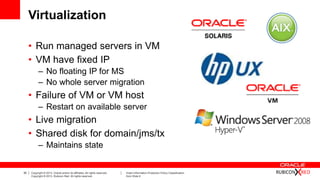

Virtualization
• Run managed servers in VM
• VM have fixed IP
– No floating IP for MS
– No whole server migration
• Failure of VM or VM host
– Restart on available server
• Live migration
• Shared disk for domain/jms/tx
– Maintains state

31. 31 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8

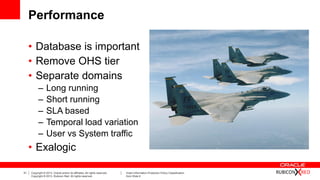

Performance
• Database is important
• Remove OHS tier
• Separate domains
– Long running
– Short running
– SLA based
– Temporal load variation
– User vs System traffic
• Exalogic

32. 32 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8

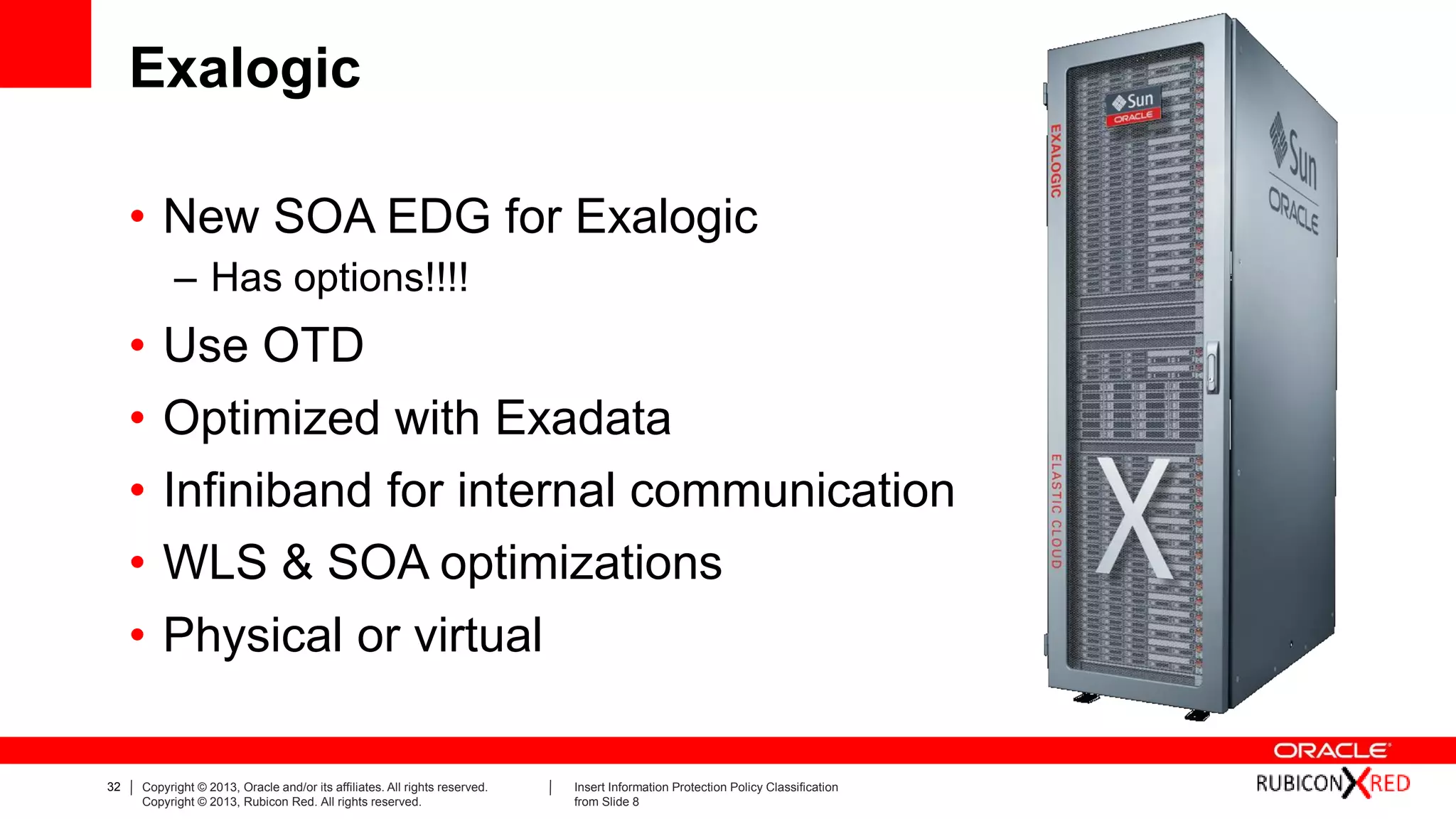

Exalogic
• New SOA EDG for Exalogic
– Has options!!!!
• Use OTD
• Optimized with Exadata
• Infiniband for internal communication
• WLS & SOA optimizations
• Physical or virtual

33. 33 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8

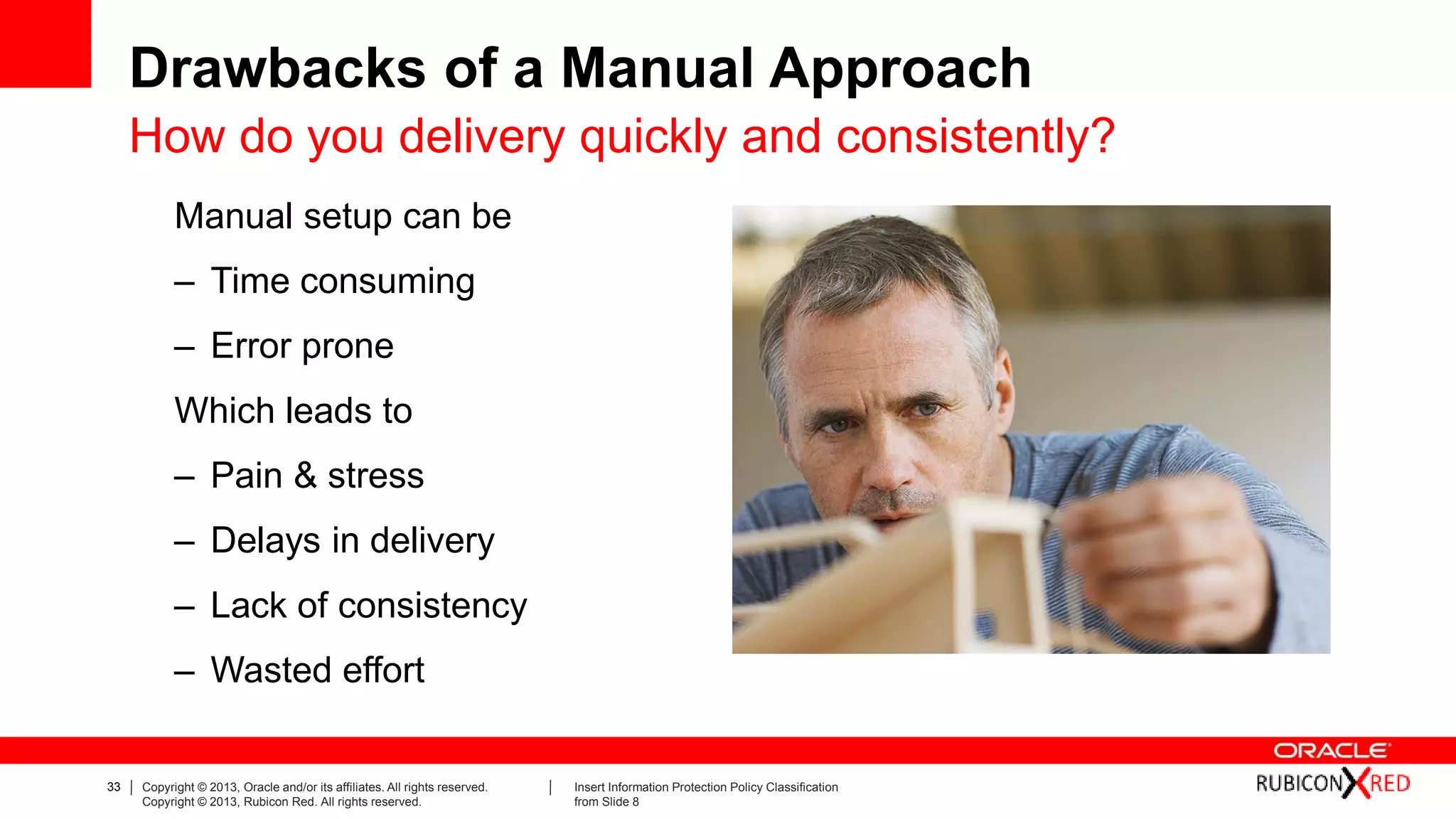

Drawbacks of a Manual Approach
Manual setup can be
– Time consuming
– Error prone
Which leads to
– Pain & stress
– Delays in delivery
– Lack of consistency
– Wasted effort
How do you delivery quickly and consistently?

34. 34 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8

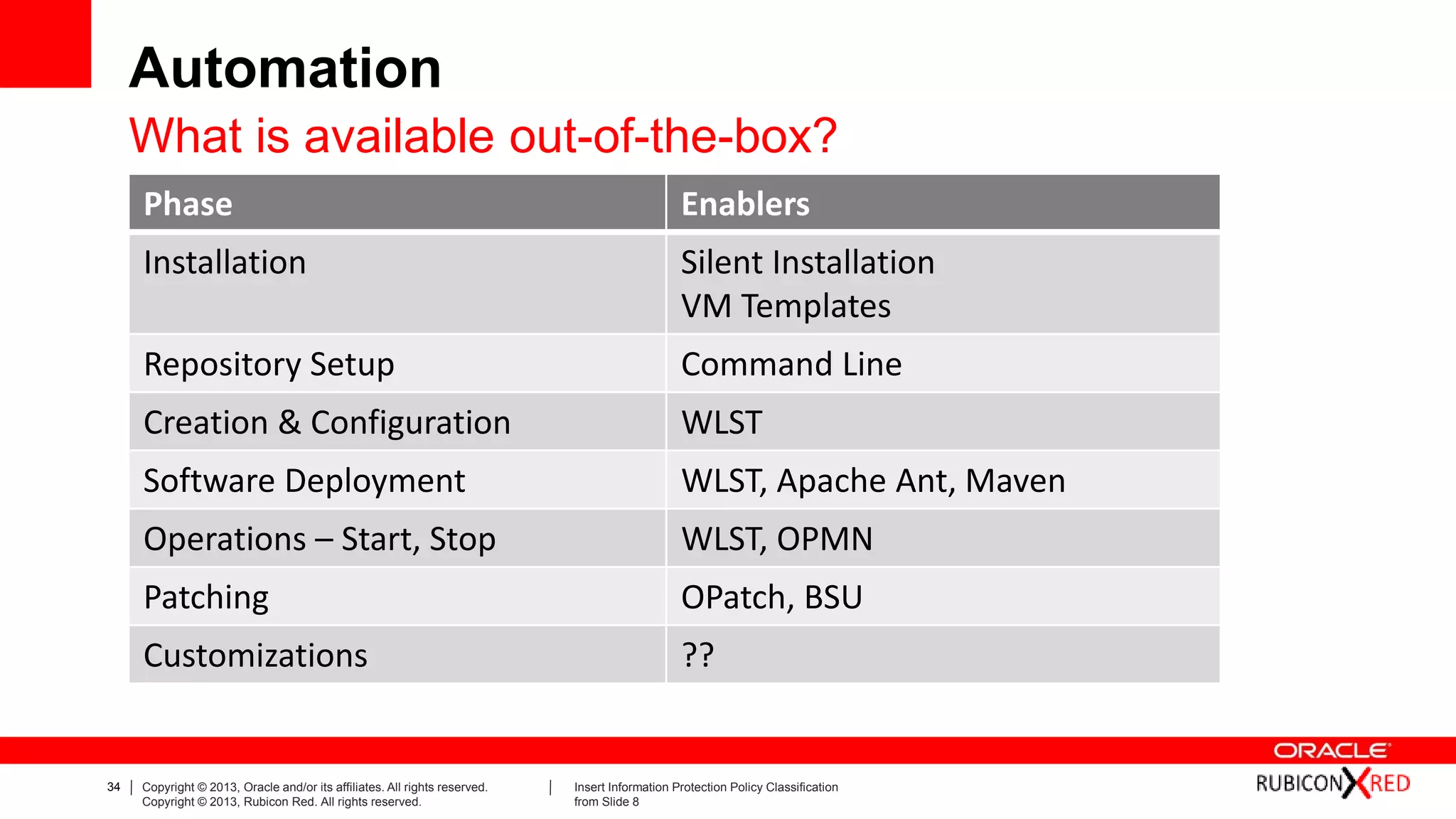

Automation
What is available out-of-the-box?
Phase Enablers
Installation Silent Installation
VM Templates
Repository Setup Command Line
Creation & Configuration WLST
Software Deployment WLST, Apache Ant, Maven
Operations – Start, Stop WLST, OPMN
Patching OPatch, BSU
Customizations ??

35. 35 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8

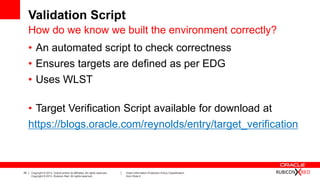

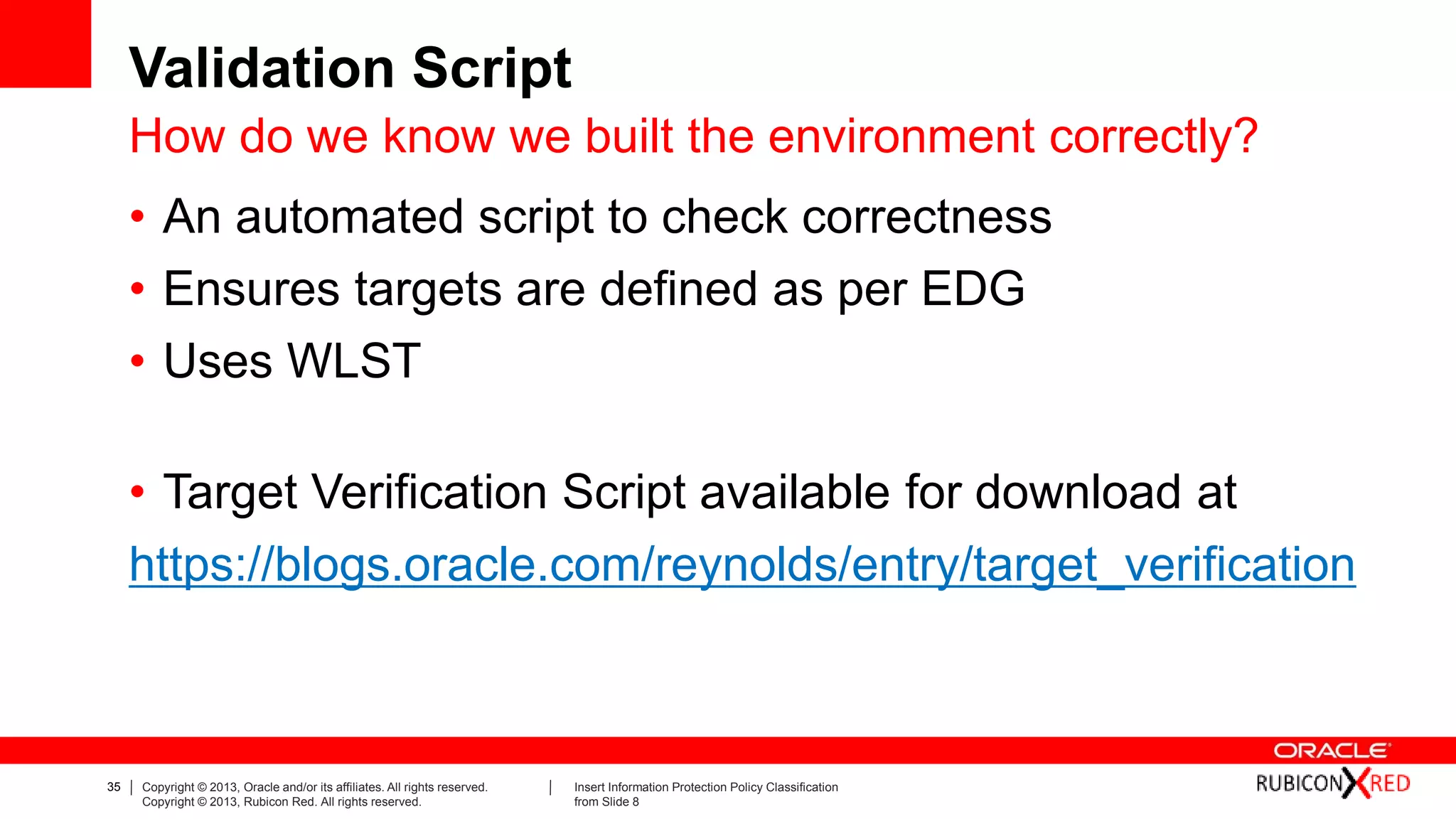

Validation Script
• An automated script to check correctness
• Ensures targets are defined as per EDG
• Uses WLST
• Target Verification Script available for download at
https://blogs.oracle.com/reynolds/entry/target_verification
How do we know we built the environment correctly?

36. 36 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8

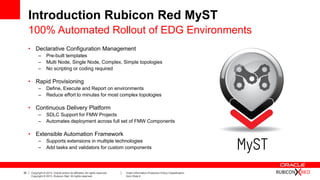

Introduction Rubicon Red MyST
• Declarative Configuration Management
– Pre-built templates
– Multi Node, Single Node, Complex, Simple topologies
– No scripting or coding required
• Rapid Provisioning
– Define, Execute and Report on environments
– Reduce effort to minutes for most complex topologies
• Continuous Delivery Platform
– SDLC Support for FMW Projects
– Automates deployment across full set of FMW Components
• Extensible Automation Framework
– Supports extensions in multiple technologies
– Add tasks and validators for custom components
100% Automated Rollout of EDG Environments

37. 37 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8

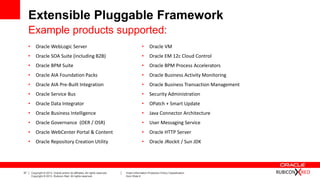

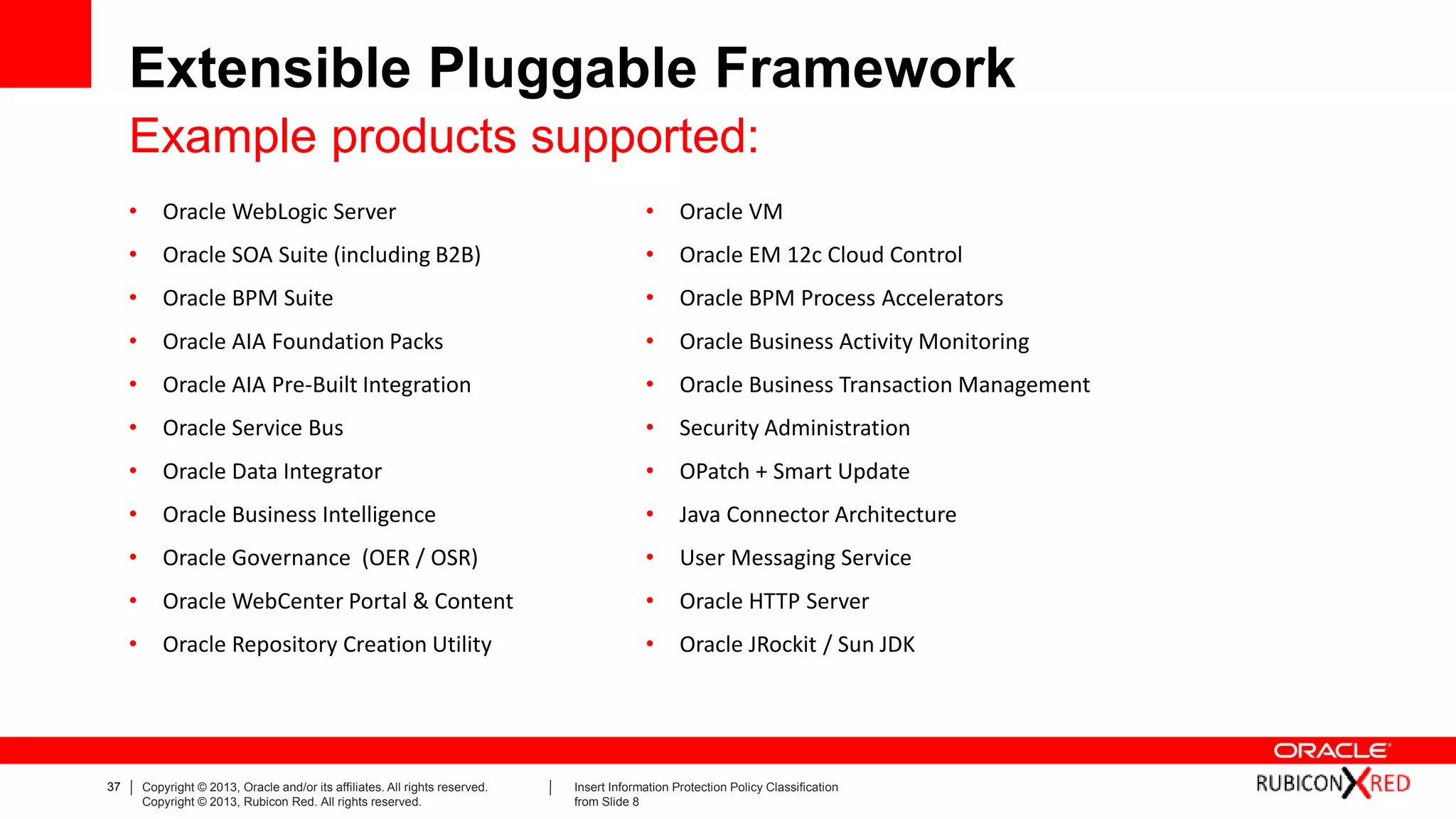

Extensible Pluggable Framework
Example products supported:
• Oracle WebLogic Server
• Oracle SOA Suite (including B2B)
• Oracle BPM Suite
• Oracle AIA Foundation Packs
• Oracle AIA Pre-Built Integration
• Oracle Service Bus
• Oracle Data Integrator
• Oracle Business Intelligence
• Oracle Governance (OER / OSR)
• Oracle WebCenter Portal & Content
• Oracle Repository Creation Utility
• Oracle VM
• Oracle EM 12c Cloud Control
• Oracle BPM Process Accelerators
• Oracle Business Activity Monitoring
• Oracle Business Transaction Management
• Security Administration
• OPatch + Smart Update
• Java Connector Architecture
• User Messaging Service
• Oracle HTTP Server
• Oracle JRockit / Sun JDK

38. 38 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8

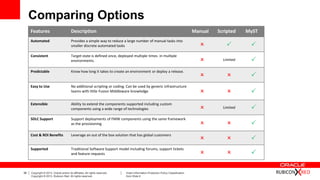

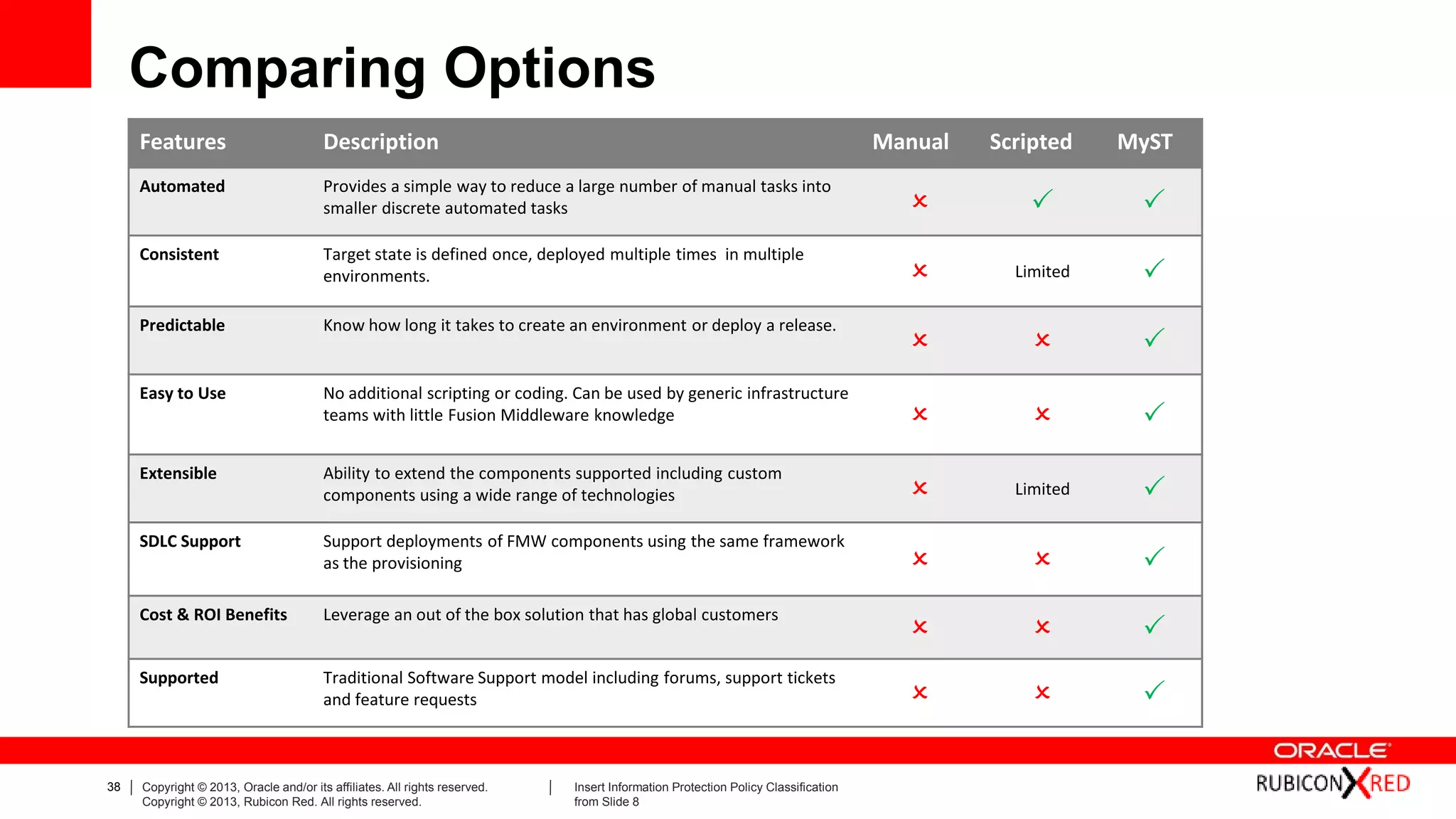

Comparing Options
Features Description Manual Scripted MyST
Automated Provides a simple way to reduce a large number of manual tasks into
smaller discrete automated tasks   
Consistent Target state is defined once, deployed multiple times in multiple
environments.  Limited 
Predictable Know how long it takes to create an environment or deploy a release.
  
Easy to Use No additional scripting or coding. Can be used by generic infrastructure
teams with little Fusion Middleware knowledge   
Extensible Ability to extend the components supported including custom
components using a wide range of technologies  Limited 
SDLC Support Support deployments of FMW components using the same framework
as the provisioning   
Cost & ROI Benefits Leverage an out of the box solution that has global customers
  
Supported Traditional Software Support model including forums, support tickets
and feature requests   

39. 39 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8

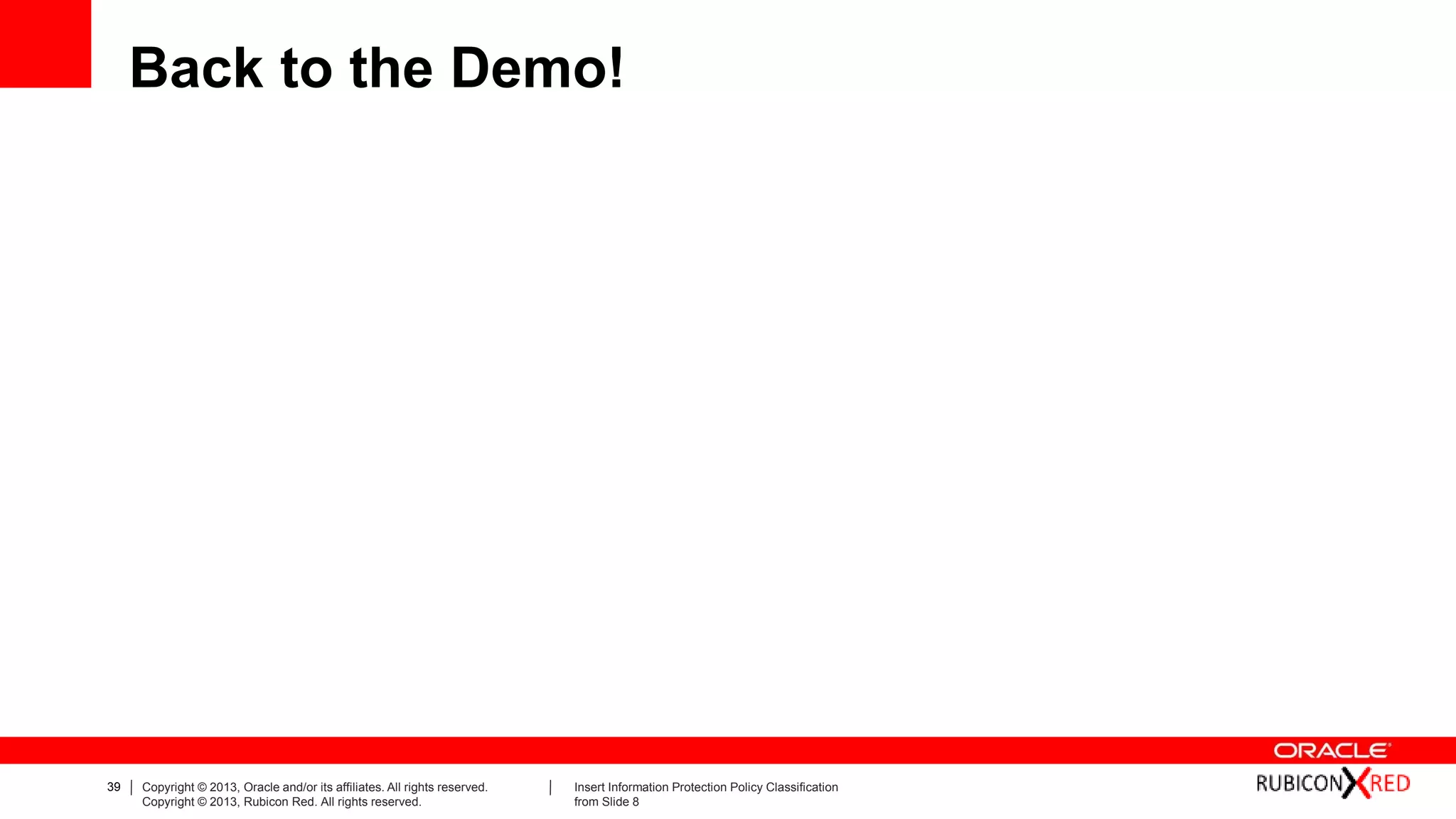

Back to the Demo!

40. 40 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8
Benefits of Automation
• Deliver significantly faster!
• Deliver more reliably
& consistently
• Reduce overall risk
• Decrease time-to-market
Delivery at the click of a button

41. 41 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8

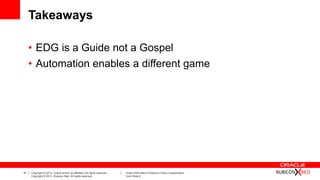

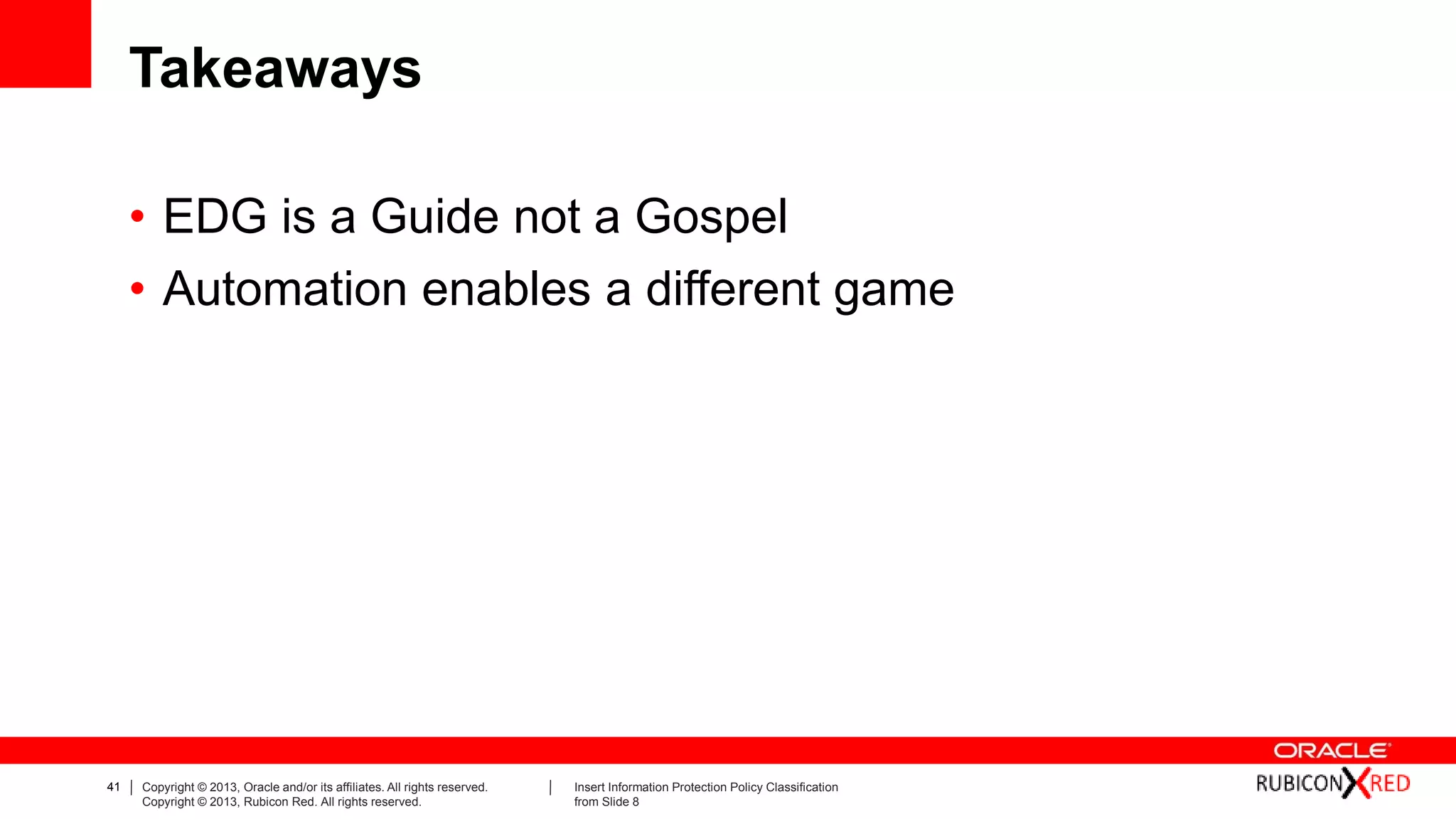

Takeaways
• EDG is a Guide not a Gospel
• Automation enables a different game

42. 42 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8
Q&A

43. 43 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8

44. 44 Copyright © 2013, Oracle and/or its affiliates. All rights reserved.
Copyright © 2013, Rubicon Red. All rights reserved.
Insert Information Protection Policy Classification
from Slide 8
